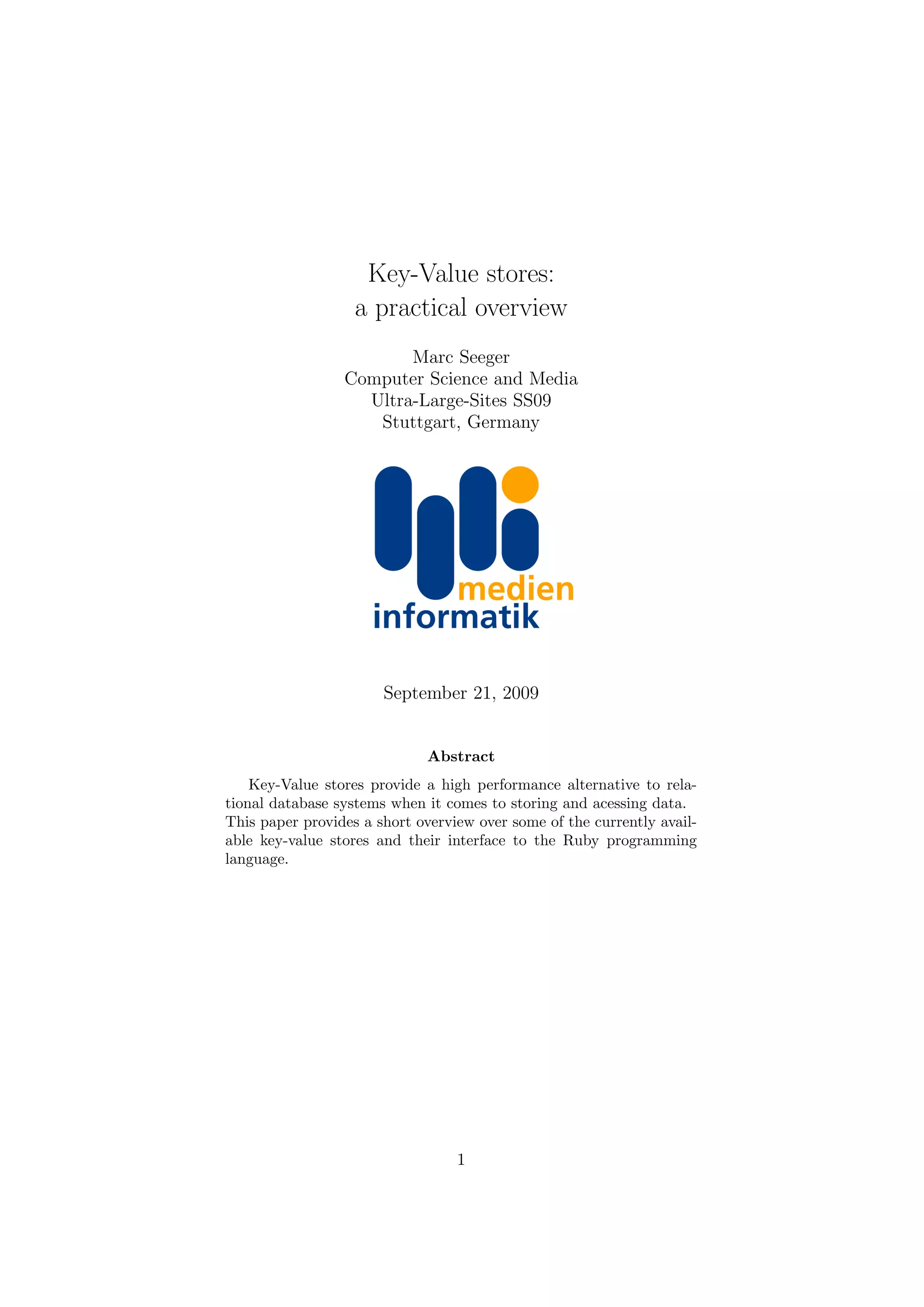

Key-Value stores:
                   a practical overview
                        Marc Seeger
                 Computer Science and Media
                   Ultra-Large-Sites SS09
                    Stuttgart, Germany




                       September 21, 2009


                             Abstract
    Key-Value stores provide a high performance alternative to rela-
tional database systems when it comes to storing and acessing data.
This paper provides a short overview over some of the currently avail-
able key-value stores and their interface to the Ruby programming
language.




                                  1

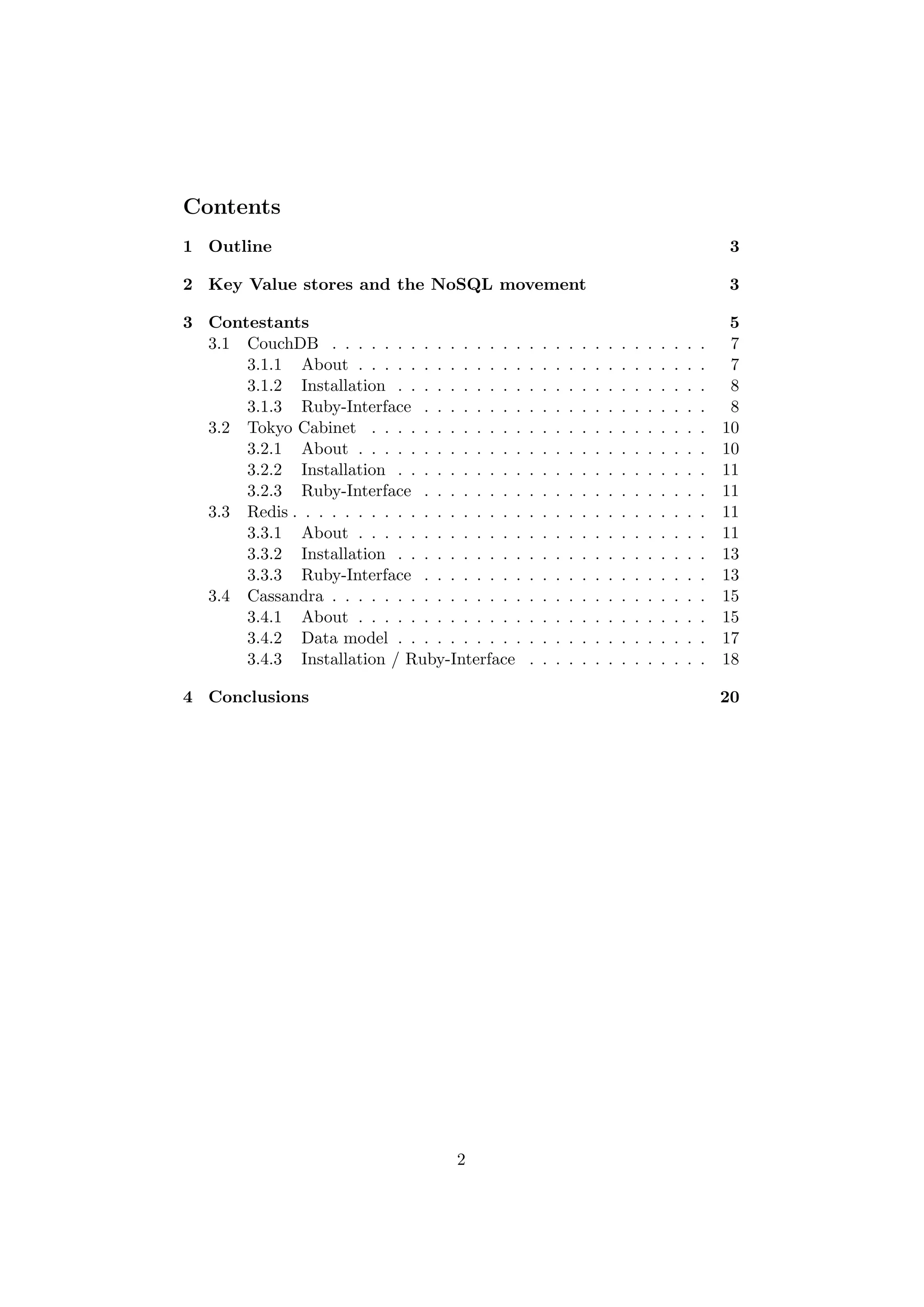

Contents
1 Outline                                                                                                  3

2 Key Value stores and the NoSQL movement                                                                  3

3 Contestants                                                                                              5
  3.1 CouchDB . . . . . . . . . . . . . . .       .   .   .   .   .   .   .   .   .   .   .   .   .   .    7
      3.1.1 About . . . . . . . . . . . . .       .   .   .   .   .   .   .   .   .   .   .   .   .   .    7
      3.1.2 Installation . . . . . . . . . .      .   .   .   .   .   .   .   .   .   .   .   .   .   .    8
      3.1.3 Ruby-Interface . . . . . . . .        .   .   .   .   .   .   .   .   .   .   .   .   .   .    8
  3.2 Tokyo Cabinet . . . . . . . . . . . .       .   .   .   .   .   .   .   .   .   .   .   .   .   .   10
      3.2.1 About . . . . . . . . . . . . .       .   .   .   .   .   .   .   .   .   .   .   .   .   .   10

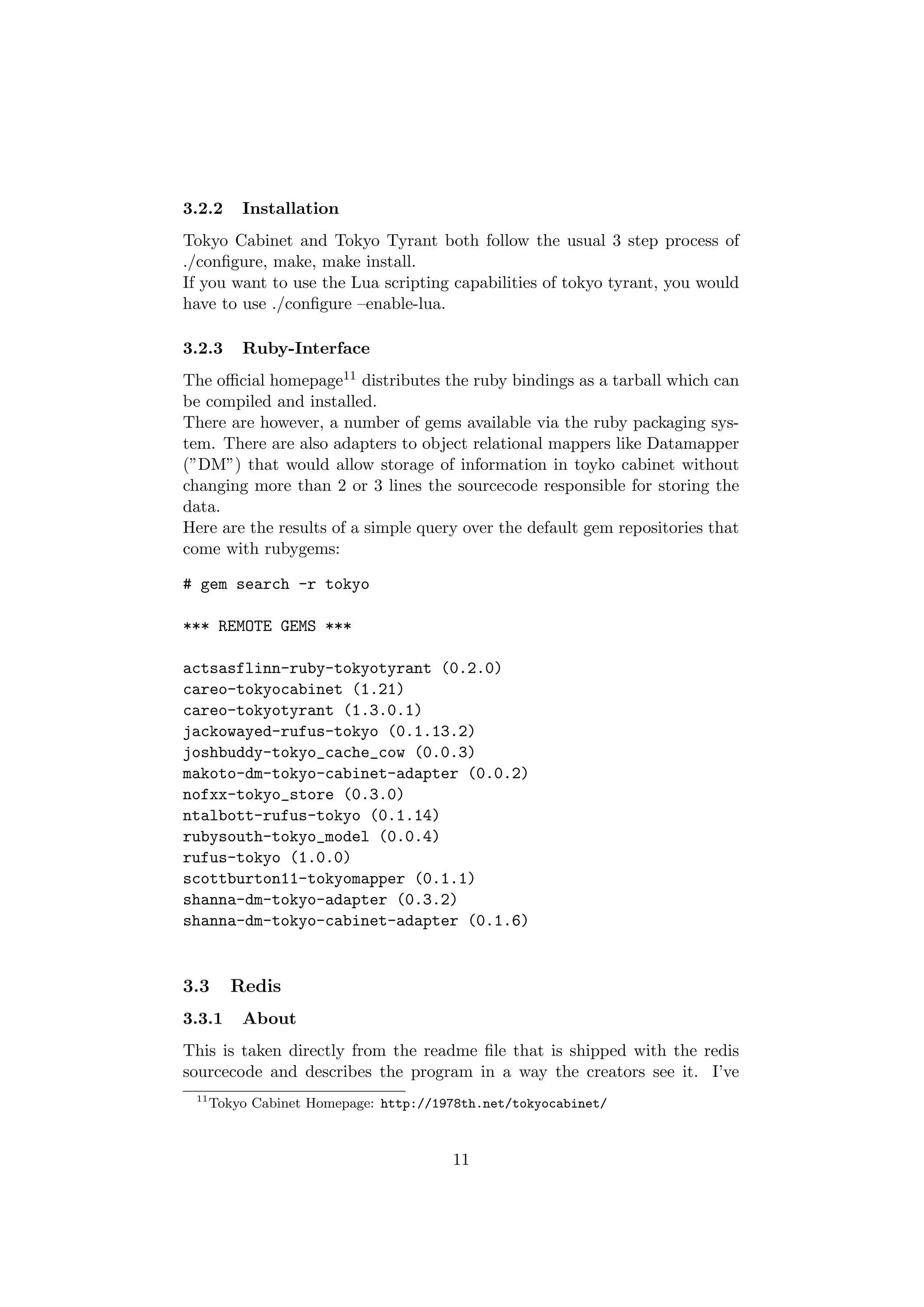

      3.2.2 Installation . . . . . . . . . .      .   .   .   .   .   .   .   .   .   .   .   .   .   .   11
      3.2.3 Ruby-Interface . . . . . . . .        .   .   .   .   .   .   .   .   .   .   .   .   .   .   11

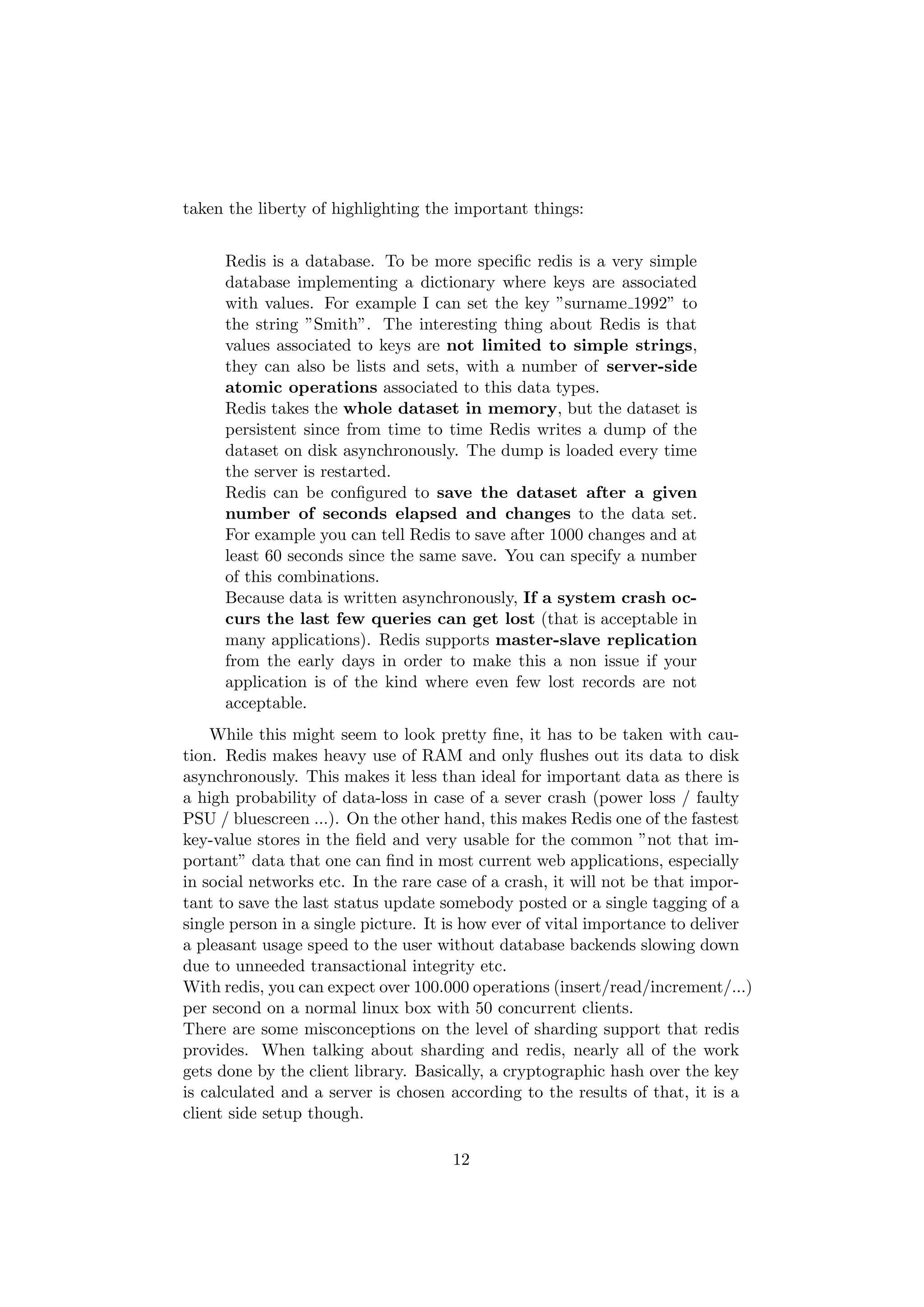

  3.3 Redis . . . . . . . . . . . . . . . . . .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   11
      3.3.1 About . . . . . . . . . . . . .       .   .   .   .   .   .   .   .   .   .   .   .   .   .   11
      3.3.2 Installation . . . . . . . . . .      .   .   .   .   .   .   .   .   .   .   .   .   .   .   13
      3.3.3 Ruby-Interface . . . . . . . .        .   .   .   .   .   .   .   .   .   .   .   .   .   .   13

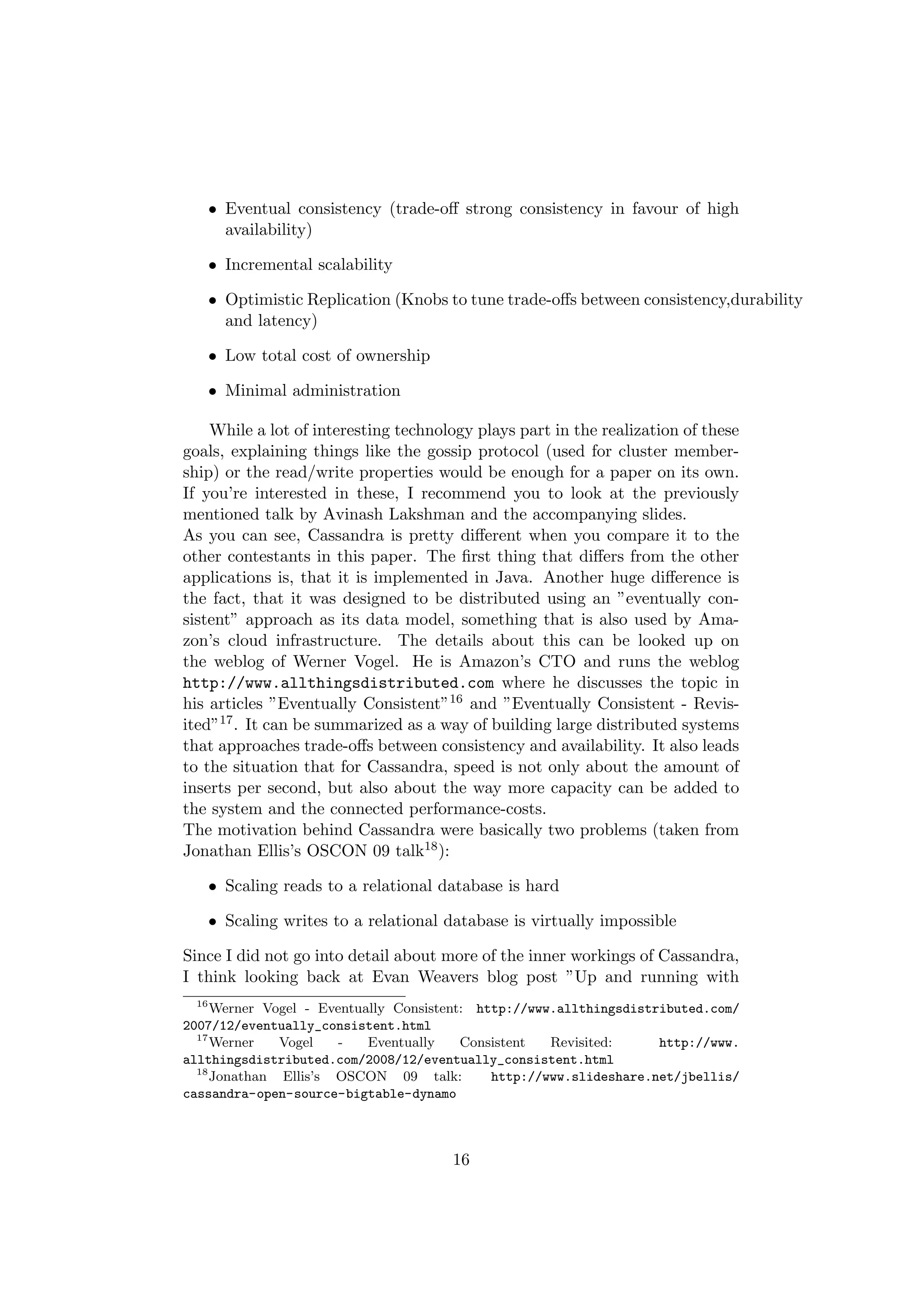

  3.4 Cassandra . . . . . . . . . . . . . . .     .   .   .   .   .   .   .   .   .   .   .   .   .   .   15
      3.4.1 About . . . . . . . . . . . . .       .   .   .   .   .   .   .   .   .   .   .   .   .   .   15

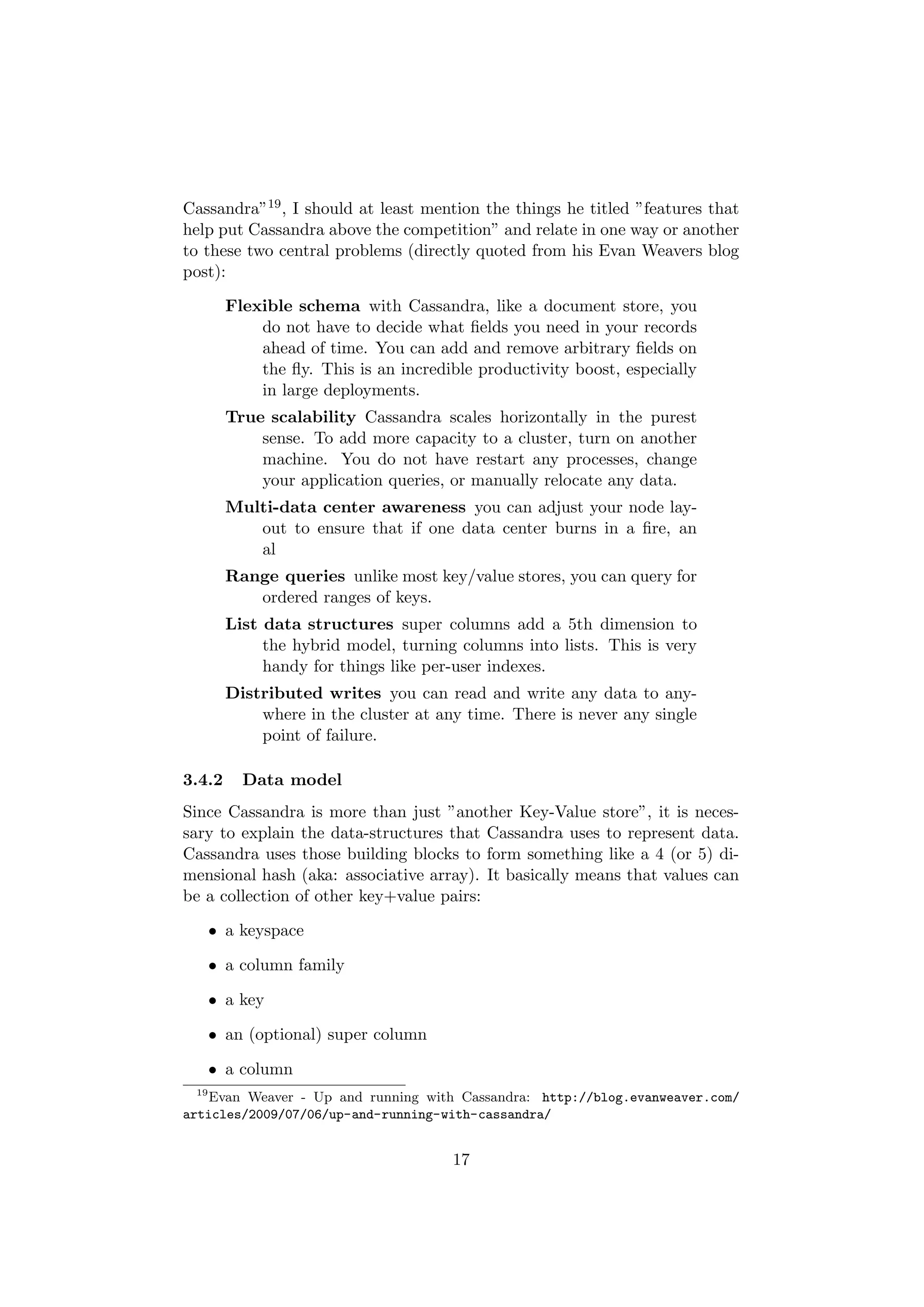

      3.4.2 Data model . . . . . . . . . .        .   .   .   .   .   .   .   .   .   .   .   .   .   .   17

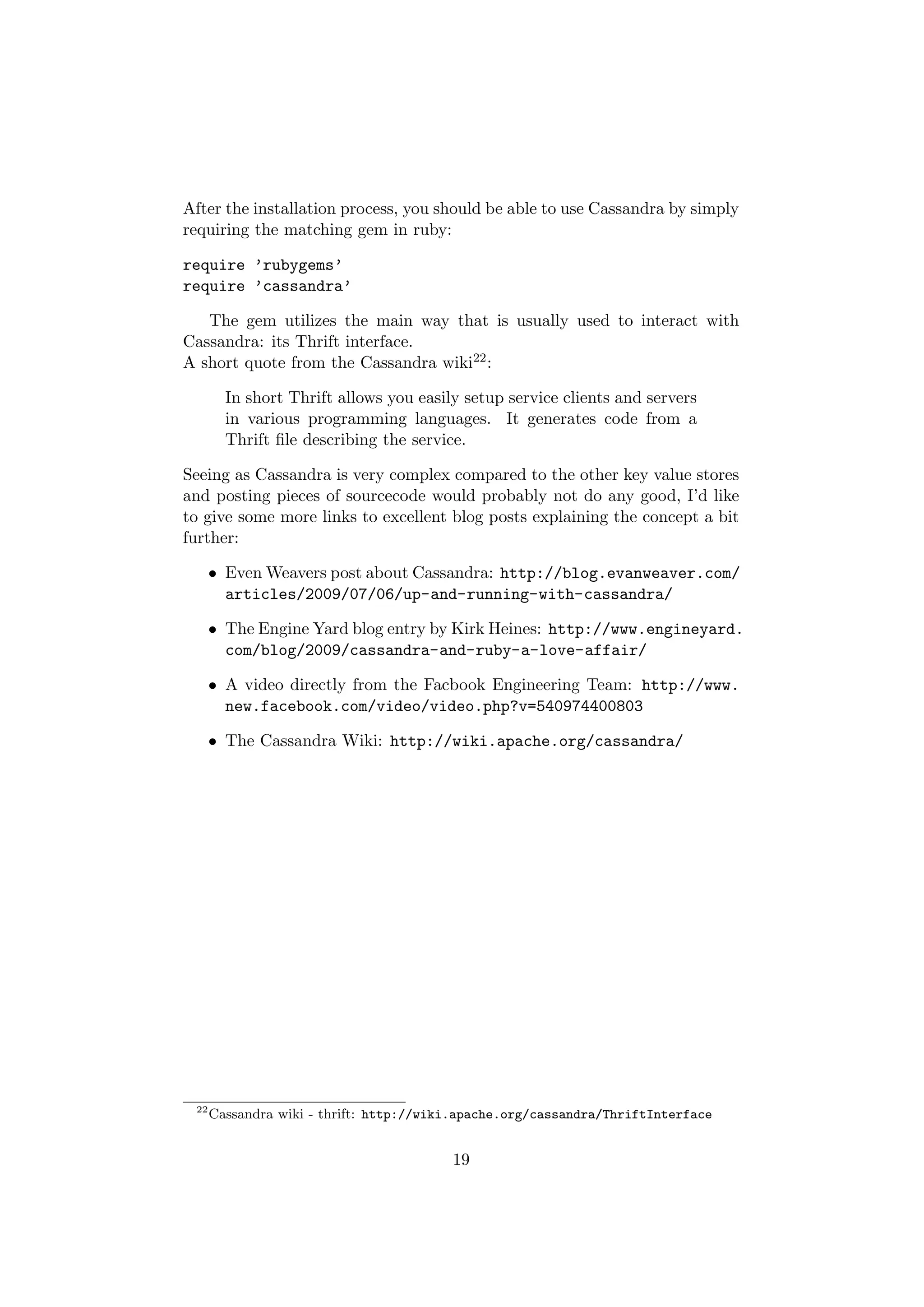

      3.4.3 Installation / Ruby-Interface         .   .   .   .   .   .   .   .   .   .   .   .   .   .   18

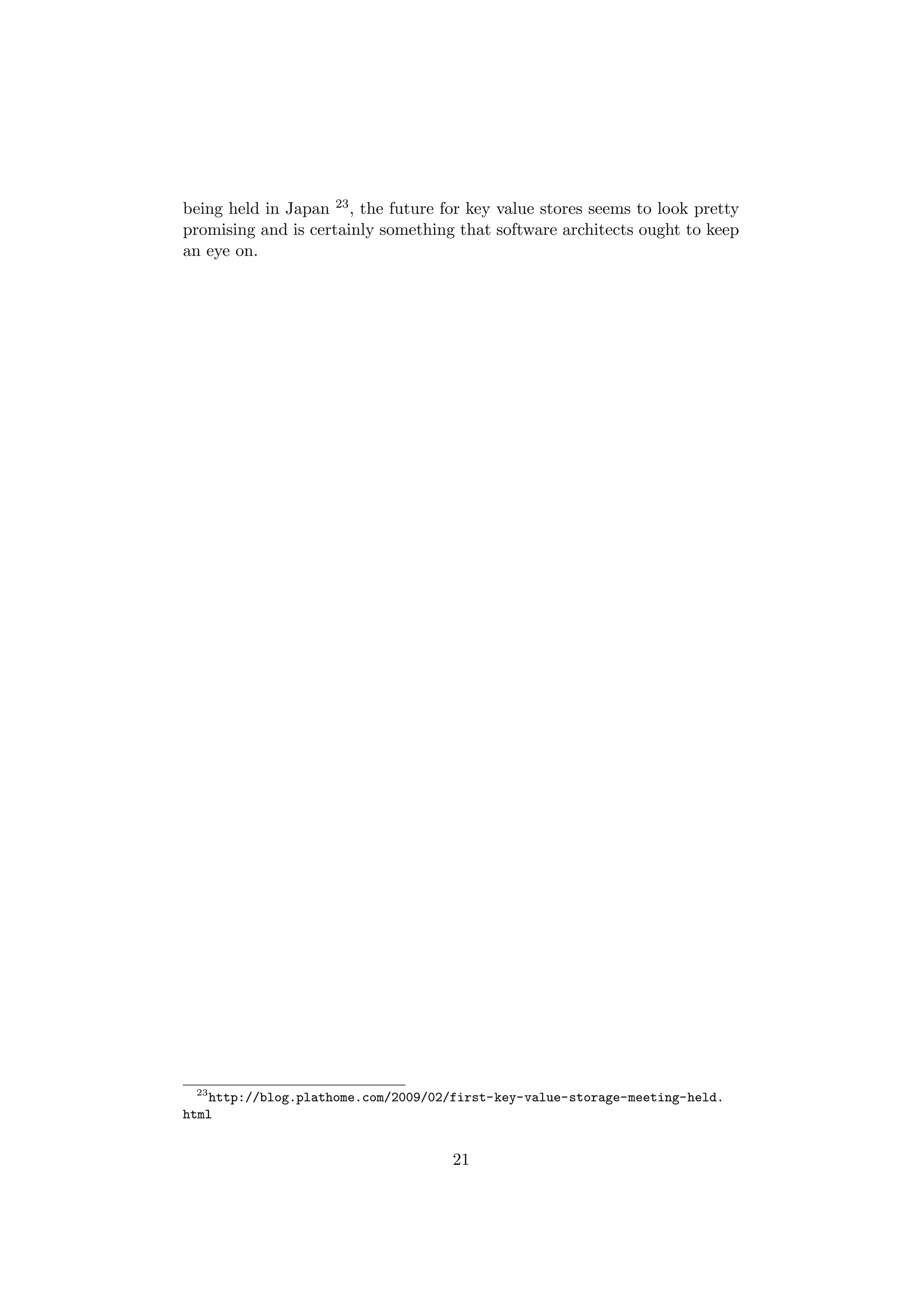

4 Conclusions                                                                                             20




                                      2

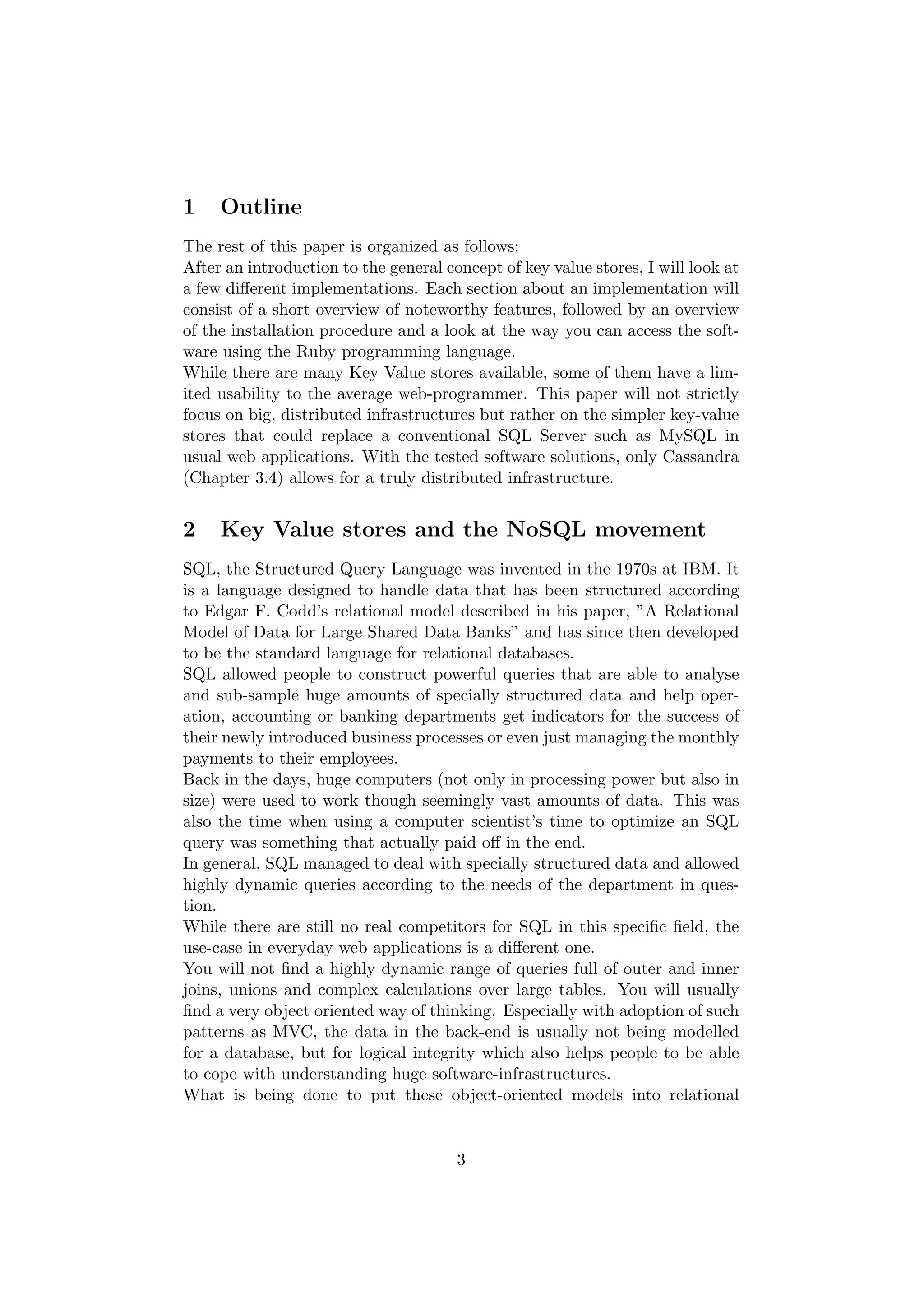

1    Outline
The rest of this paper is organized as follows:
After an introduction to the general concept of key value stores, I will look at
a few different implementations. Each section about an implementation will
consist of a short overview of noteworthy features, followed by an overview
of the installation procedure and a look at the way you can access the soft-
ware using the Ruby programming language.
While there are many Key Value stores available, some of them have a lim-
ited usability to the average web-programmer. This paper will not strictly
focus on big, distributed infrastructures but rather on the simpler key-value
stores that could replace a conventional SQL Server such as MySQL in
usual web applications. With the tested software solutions, only Cassandra
(Chapter 3.4) allows for a truly distributed infrastructure.


2    Key Value stores and the NoSQL movement
SQL, the Structured Query Language was invented in the 1970s at IBM. It
is a language designed to handle data that has been structured according
to Edgar F. Codd’s relational model described in his paper, ”A Relational
Model of Data for Large Shared Data Banks” and has since then developed
to be the standard language for relational databases.
SQL allowed people to construct powerful queries that are able to analyse
and sub-sample huge amounts of specially structured data and help oper-
ation, accounting or banking departments get indicators for the success of
their newly introduced business processes or even just managing the monthly
payments to their employees.
Back in the days, huge computers (not only in processing power but also in
size) were used to work though seemingly vast amounts of data. This was
also the time when using a computer scientist’s time to optimize an SQL
query was something that actually paid off in the end.
In general, SQL managed to deal with specially structured data and allowed
highly dynamic queries according to the needs of the department in ques-
tion.
While there are still no real competitors for SQL in this specific field, the
use-case in everyday web applications is a different one.
You will not find a highly dynamic range of queries full of outer and inner
joins, unions and complex calculations over large tables. You will usually
find a very object oriented way of thinking. Especially with adoption of such
patterns as MVC, the data in the back-end is usually not being modelled
for a database, but for logical integrity which also helps people to be able
to cope with understanding huge software-infrastructures.
What is being done to put these object-oriented models into relational


                                       3

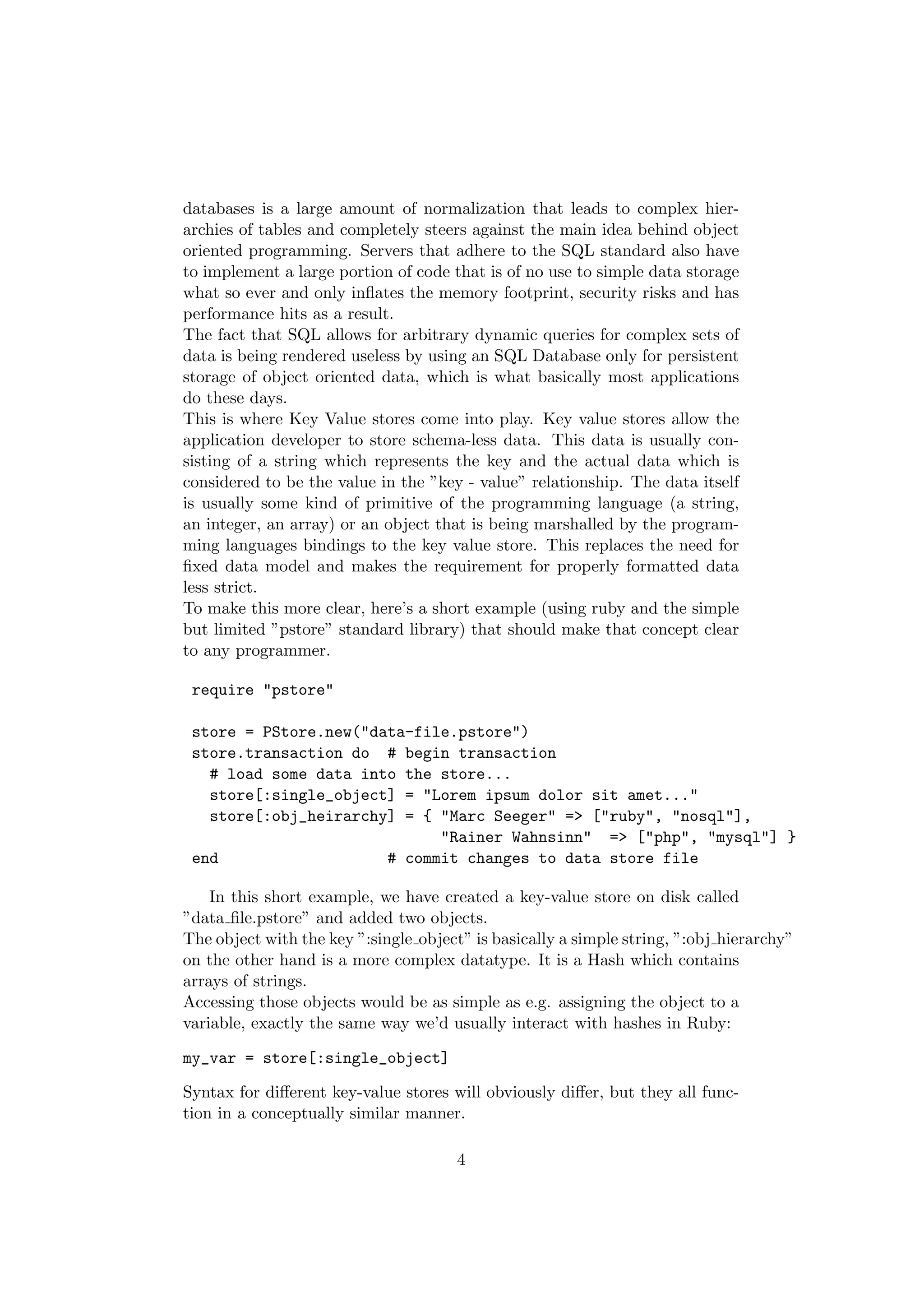

databases is a large amount of normalization that leads to complex hier-
archies of tables and completely steers against the main idea behind object
oriented programming. Servers that adhere to the SQL standard also have
to implement a large portion of code that is of no use to simple data storage
what so ever and only inflates the memory footprint, security risks and has
performance hits as a result.
The fact that SQL allows for arbitrary dynamic queries for complex sets of
data is being rendered useless by using an SQL Database only for persistent
storage of object oriented data, which is what basically most applications
do these days.
This is where Key Value stores come into play. Key value stores allow the
application developer to store schema-less data. This data is usually con-
sisting of a string which represents the key and the actual data which is
considered to be the value in the ”key - value” relationship. The data itself
is usually some kind of primitive of the programming language (a string,
an integer, an array) or an object that is being marshalled by the program-
ming languages bindings to the key value store. This replaces the need for
fixed data model and makes the requirement for properly formatted data
less strict.
To make this more clear, here’s a short example (using ruby and the simple
but limited ”pstore” standard library) that should make that concept clear
to any programmer.

 require "pstore"

 store = PStore.new("data-file.pstore")
 store.transaction do # begin transaction
   # load some data into the store...
   store[:single_object] = "Lorem ipsum dolor sit amet..."
   store[:obj_heirarchy] = { "Marc Seeger" => ["ruby", "nosql"],
                             "Rainer Wahnsinn" => ["php", "mysql"] }
 end                   # commit changes to data store file

    In this short example, we have created a key-value store on disk called
”data file.pstore” and added two objects.
The object with the key ”:single object” is basically a simple string, ”:obj hierarchy”
on the other hand is a more complex datatype. It is a Hash which contains
arrays of strings.
Accessing those objects would be as simple as e.g. assigning the object to a
variable, exactly the same way we’d usually interact with hashes in Ruby:

my_var = store[:single_object]

Syntax for different key-value stores will obviously differ, but they all func-
tion in a conceptually similar manner.

                                       4

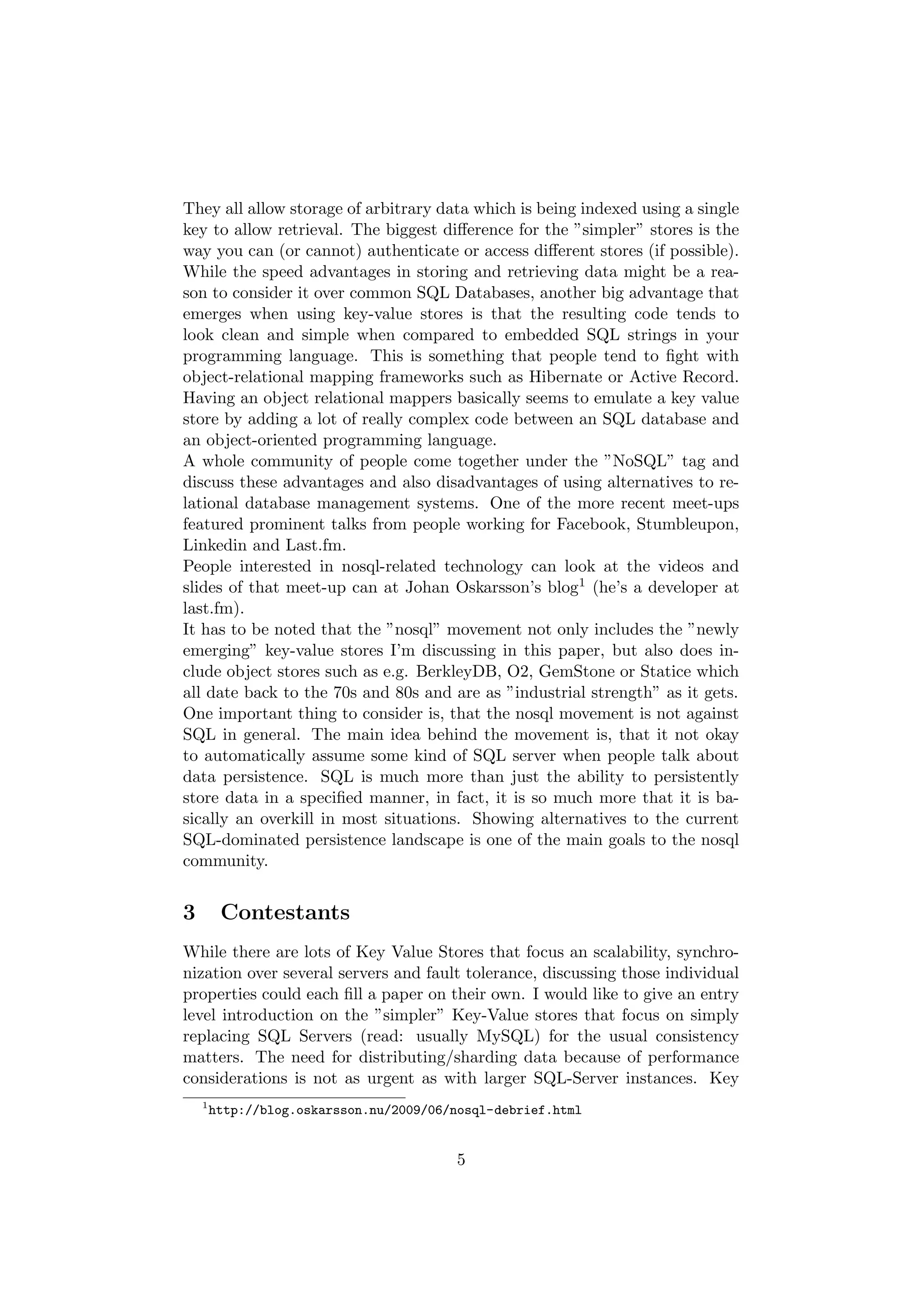

They all allow storage of arbitrary data which is being indexed using a single
key to allow retrieval. The biggest difference for the ”simpler” stores is the
way you can (or cannot) authenticate or access different stores (if possible).
While the speed advantages in storing and retrieving data might be a rea-
son to consider it over common SQL Databases, another big advantage that
emerges when using key-value stores is that the resulting code tends to
look clean and simple when compared to embedded SQL strings in your
programming language. This is something that people tend to fight with
object-relational mapping frameworks such as Hibernate or Active Record.
Having an object relational mappers basically seems to emulate a key value
store by adding a lot of really complex code between an SQL database and
an object-oriented programming language.
A whole community of people come together under the ”NoSQL” tag and
discuss these advantages and also disadvantages of using alternatives to re-
lational database management systems. One of the more recent meet-ups
featured prominent talks from people working for Facebook, Stumbleupon,
Linkedin and Last.fm.
People interested in nosql-related technology can look at the videos and
slides of that meet-up can at Johan Oskarsson’s blog1 (he’s a developer at
last.fm).
It has to be noted that the ”nosql” movement not only includes the ”newly
emerging” key-value stores I’m discussing in this paper, but also does in-
clude object stores such as e.g. BerkleyDB, O2, GemStone or Statice which
all date back to the 70s and 80s and are as ”industrial strength” as it gets.
One important thing to consider is, that the nosql movement is not against
SQL in general. The main idea behind the movement is, that it not okay
to automatically assume some kind of SQL server when people talk about
data persistence. SQL is much more than just the ability to persistently
store data in a specified manner, in fact, it is so much more that it is ba-
sically an overkill in most situations. Showing alternatives to the current
SQL-dominated persistence landscape is one of the main goals to the nosql
community.


3        Contestants
While there are lots of Key Value Stores that focus an scalability, synchro-
nization over several servers and fault tolerance, discussing those individual
properties could each fill a paper on their own. I would like to give an entry
level introduction on the ”simpler” Key-Value stores that focus on simply
replacing SQL Servers (read: usually MySQL) for the usual consistency
matters. The need for distributing/sharding data because of performance
considerations is not as urgent as with larger SQL-Server instances. Key
    1
        http://blog.oskarsson.nu/2009/06/nosql-debrief.html


                                         5

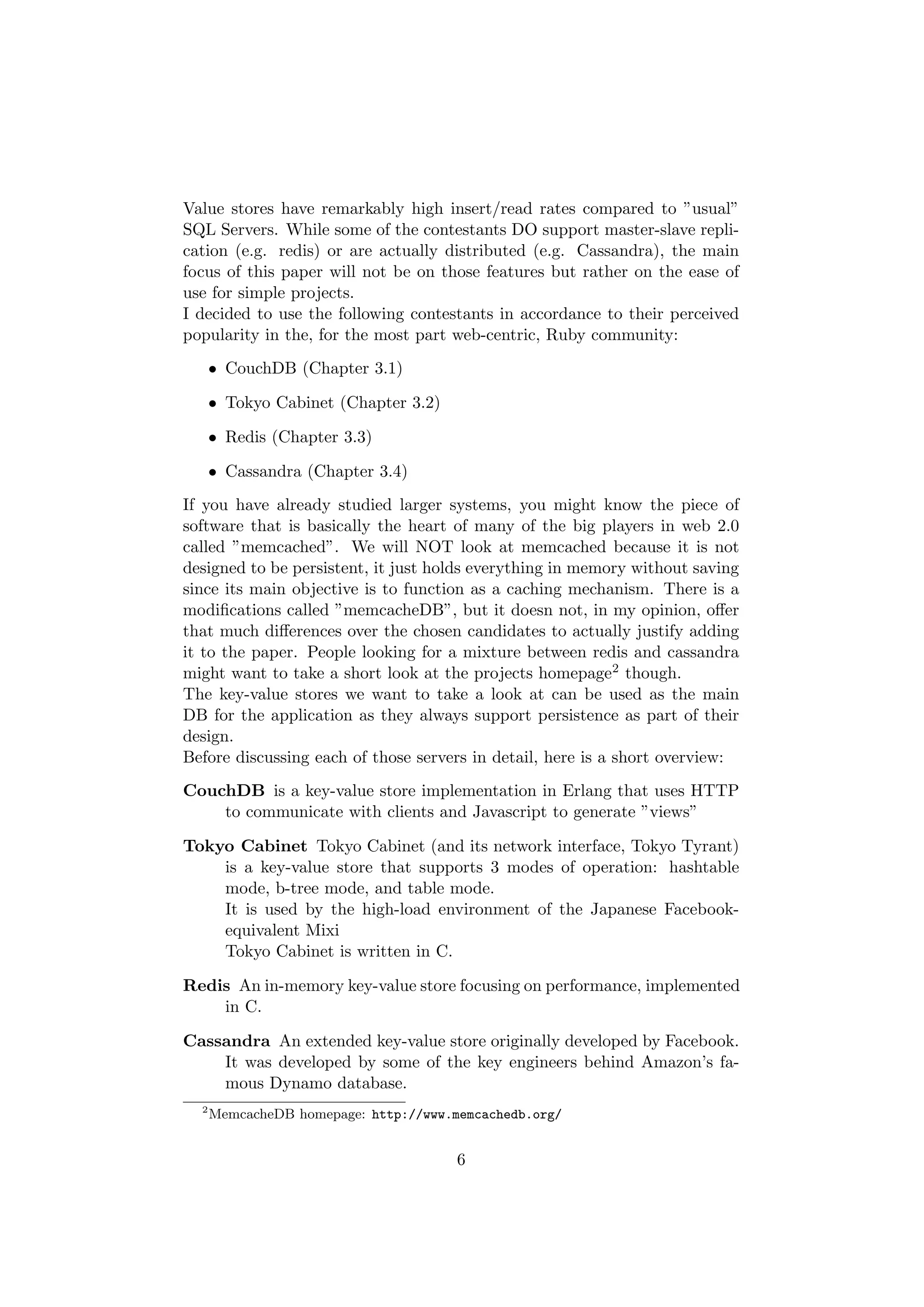

Value stores have remarkably high insert/read rates compared to ”usual”
SQL Servers. While some of the contestants DO support master-slave repli-
cation (e.g. redis) or are actually distributed (e.g. Cassandra), the main
focus of this paper will not be on those features but rather on the ease of
use for simple projects.
I decided to use the following contestants in accordance to their perceived
popularity in the, for the most part web-centric, Ruby community:
      • CouchDB (Chapter 3.1)

      • Tokyo Cabinet (Chapter 3.2)

      • Redis (Chapter 3.3)

      • Cassandra (Chapter 3.4)
If you have already studied larger systems, you might know the piece of
software that is basically the heart of many of the big players in web 2.0
called ”memcached”. We will NOT look at memcached because it is not
designed to be persistent, it just holds everything in memory without saving
since its main objective is to function as a caching mechanism. There is a
modifications called ”memcacheDB”, but it doesn not, in my opinion, offer
that much differences over the chosen candidates to actually justify adding
it to the paper. People looking for a mixture between redis and cassandra
might want to take a short look at the projects homepage2 though.
The key-value stores we want to take a look at can be used as the main
DB for the application as they always support persistence as part of their
design.
Before discussing each of those servers in detail, here is a short overview:
CouchDB is a key-value store implementation in Erlang that uses HTTP
    to communicate with clients and Javascript to generate ”views”

Tokyo Cabinet Tokyo Cabinet (and its network interface, Tokyo Tyrant)
    is a key-value store that supports 3 modes of operation: hashtable
    mode, b-tree mode, and table mode.
    It is used by the high-load environment of the Japanese Facebook-
    equivalent Mixi
    Tokyo Cabinet is written in C.

Redis An in-memory key-value store focusing on performance, implemented
    in C.

Cassandra An extended key-value store originally developed by Facebook.
    It was developed by some of the key engineers behind Amazon’s fa-
    mous Dynamo database.
  2
      MemcacheDB homepage: http://www.memcachedb.org/


                                       6
Here is a quote describing the software, directly taken from the project’s
        homepage3 :
        ”Cassandra is a highly scalable, eventually consistent, distributed,
        structured key-value store. Cassandra brings together the distributed
        systems technologies from Dynamo and the data model from Googles
        BigTable. Like Dynamo, Cassandra is eventually consistent. Like
        BigTable, Cassandra provides a ColumnFamily-based data model richer
        than typical key/value systems”

3.1     CouchDB
3.1.1     About
From the projects homepage4 :


        Apache CouchDB is a distributed, fault-tolerant and schema-free
        document-oriented database accessible via a RESTful HTTP/JSON
        API. Among other features, it provides robust, incremental repli-
        cation with bi-directional conflict detection and resolution, and
        is queryable and indexable using a table-oriented view engine
        with JavaScript acting as the default view definition language.
        CouchDB is written in Erlang, but can be easily accessed from
        any environment that provides means to make HTTP requests.
        There are a multitude of third-party client libraries that make
        this even easier for a variety of programming languages and en-
        vironments.

CouchDB is coded in Erlang. The only bigger C parts are the IBM uni-
code library and the spidermonkey javascript engine (which also powers e.g.
Firefox).
CouchDB uses a simple RESTful HTTP/JSON approach to interfacing with
the outside world. Seeing as HTTP is probably one of the most supported
protocols, old infrastructure such as loadbalancers, http caches or SSL prox-
ies can still be used in connection with CouchDB.
This allows companies to harvest existing knowledge to easily secure and
speed up their HTTP-based CouchDB infrastructure without having to hire
an external database specialist.
Another interesting feature of CouchDB is the fact that developers can use
”views” to query the software for data. Views are basically map and re-
duce functions that are implemented in Javascript and sent to CouchDB.
Querying these views is simply a matter of making the appropriate HTTP
  3
      http://incubator.apache.org/cassandra/
  4
      http://couchdb.apache.org




                                         7

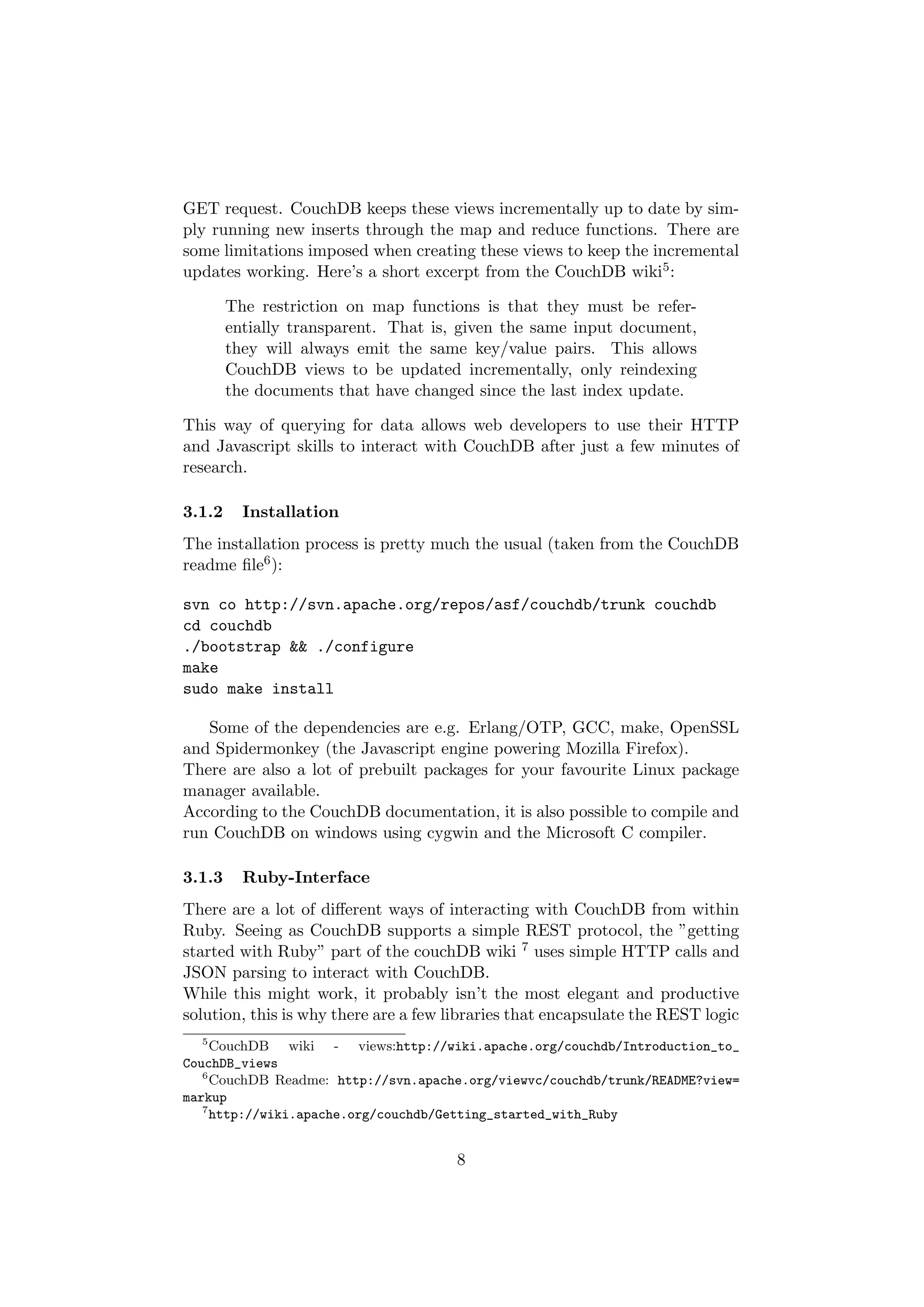

GET request. CouchDB keeps these views incrementally up to date by sim-
ply running new inserts through the map and reduce functions. There are
some limitations imposed when creating these views to keep the incremental
updates working. Here’s a short excerpt from the CouchDB wiki5 :

        The restriction on map functions is that they must be refer-
        entially transparent. That is, given the same input document,
        they will always emit the same key/value pairs. This allows
        CouchDB views to be updated incrementally, only reindexing
        the documents that have changed since the last index update.

This way of querying for data allows web developers to use their HTTP
and Javascript skills to interact with CouchDB after just a few minutes of
research.

3.1.2     Installation
The installation process is pretty much the usual (taken from the CouchDB
readme file6 ):

svn co http://svn.apache.org/repos/asf/couchdb/trunk couchdb
cd couchdb
./bootstrap && ./configure
make
sudo make install

   Some of the dependencies are e.g. Erlang/OTP, GCC, make, OpenSSL
and Spidermonkey (the Javascript engine powering Mozilla Firefox).
There are also a lot of prebuilt packages for your favourite Linux package
manager available.
According to the CouchDB documentation, it is also possible to compile and
run CouchDB on windows using cygwin and the Microsoft C compiler.

3.1.3     Ruby-Interface
There are a lot of different ways of interacting with CouchDB from within
Ruby. Seeing as CouchDB supports a simple REST protocol, the ”getting
started with Ruby” part of the couchDB wiki 7 uses simple HTTP calls and
JSON parsing to interact with CouchDB.
While this might work, it probably isn’t the most elegant and productive
solution, this is why there are a few libraries that encapsulate the REST logic
   5
     CouchDB wiki - views:http://wiki.apache.org/couchdb/Introduction_to_
CouchDB_views
   6
     CouchDB Readme: http://svn.apache.org/viewvc/couchdb/trunk/README?view=
markup
   7
     http://wiki.apache.org/couchdb/Getting_started_with_Ruby


                                      8

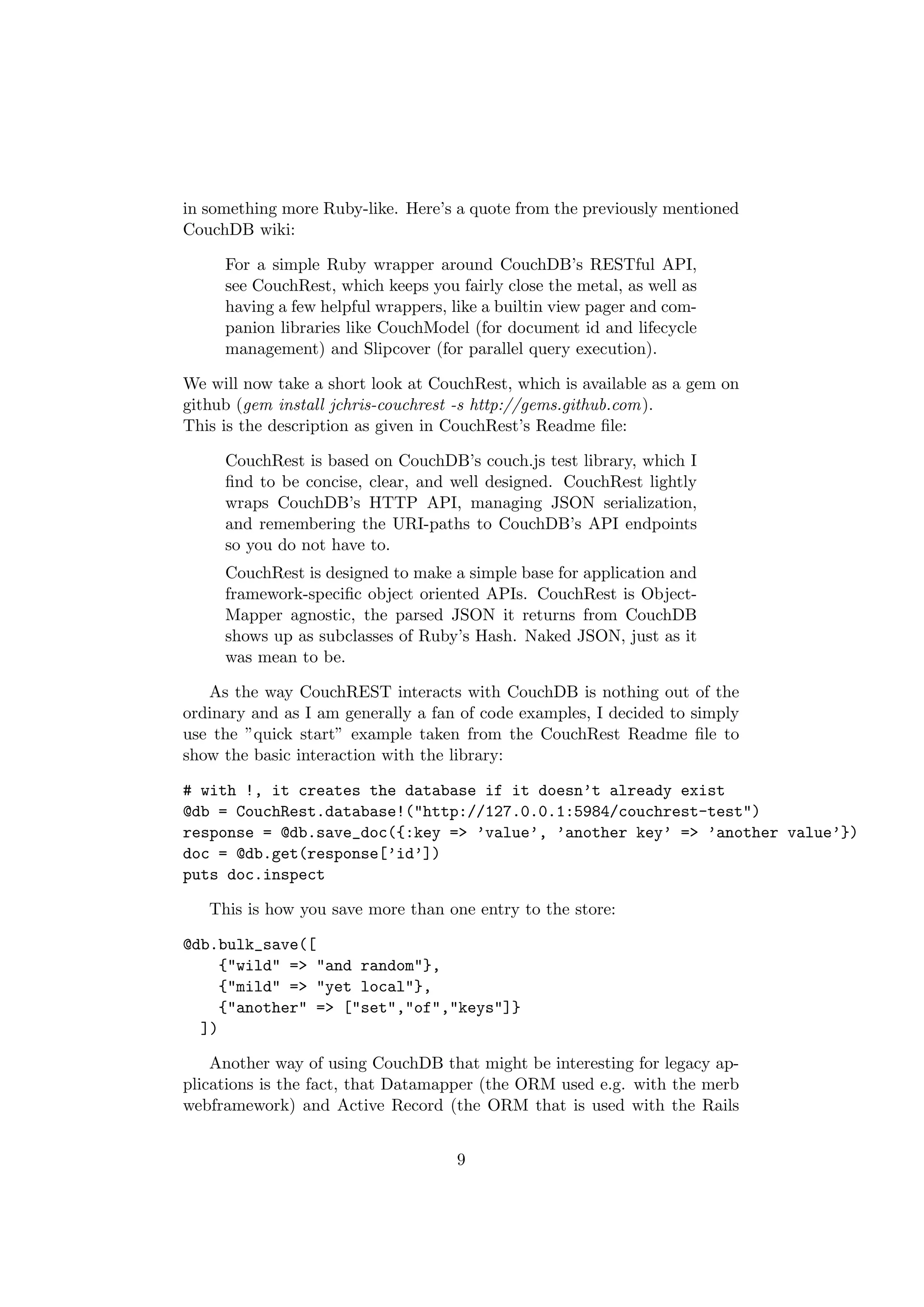

in something more Ruby-like. Here’s a quote from the previously mentioned
CouchDB wiki:

     For a simple Ruby wrapper around CouchDB’s RESTful API,
     see CouchRest, which keeps you fairly close the metal, as well as
     having a few helpful wrappers, like a builtin view pager and com-
     panion libraries like CouchModel (for document id and lifecycle
     management) and Slipcover (for parallel query execution).

We will now take a short look at CouchRest, which is available as a gem on
github (gem install jchris-couchrest -s http://gems.github.com).
This is the description as given in CouchRest’s Readme file:

     CouchRest is based on CouchDB’s couch.js test library, which I
     find to be concise, clear, and well designed. CouchRest lightly
     wraps CouchDB’s HTTP API, managing JSON serialization,
     and remembering the URI-paths to CouchDB’s API endpoints
     so you do not have to.
     CouchRest is designed to make a simple base for application and
     framework-specific object oriented APIs. CouchRest is Object-
     Mapper agnostic, the parsed JSON it returns from CouchDB
     shows up as subclasses of Ruby’s Hash. Naked JSON, just as it
     was mean to be.

   As the way CouchREST interacts with CouchDB is nothing out of the
ordinary and as I am generally a fan of code examples, I decided to simply
use the ”quick start” example taken from the CouchRest Readme file to
show the basic interaction with the library:

# with !, it creates the database if it doesn’t already exist
@db = CouchRest.database!("http://127.0.0.1:5984/couchrest-test")
response = @db.save_doc({:key => ’value’, ’another key’ => ’another value’})
doc = @db.get(response[’id’])
puts doc.inspect

   This is how you save more than one entry to the store:

@db.bulk_save([
    {"wild" => "and random"},
    {"mild" => "yet local"},
    {"another" => ["set","of","keys"]}
  ])

    Another way of using CouchDB that might be interesting for legacy ap-
plications is the fact, that Datamapper (the ORM used e.g. with the merb
webframework) and Active Record (the ORM that is used with the Rails


                                    9

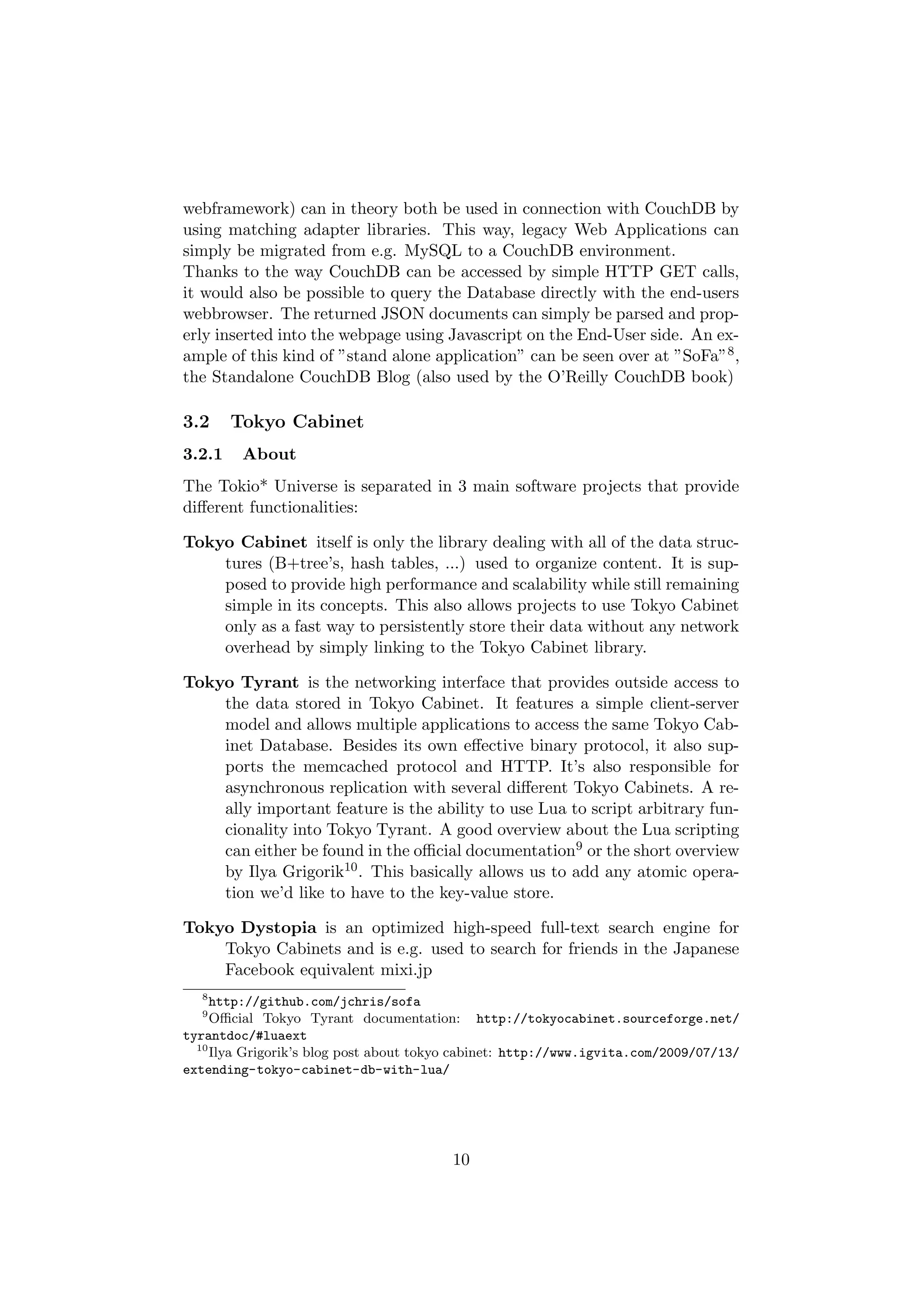

webframework) can in theory both be used in connection with CouchDB by
using matching adapter libraries. This way, legacy Web Applications can
simply be migrated from e.g. MySQL to a CouchDB environment.
Thanks to the way CouchDB can be accessed by simple HTTP GET calls,
it would also be possible to query the Database directly with the end-users
webbrowser. The returned JSON documents can simply be parsed and prop-
erly inserted into the webpage using Javascript on the End-User side. An ex-
ample of this kind of ”stand alone application” can be seen over at ”SoFa”8 ,
the Standalone CouchDB Blog (also used by the O’Reilly CouchDB book)

3.2     Tokyo Cabinet
3.2.1    About
The Tokio* Universe is separated in 3 main software projects that provide
different functionalities:

Tokyo Cabinet itself is only the library dealing with all of the data struc-
    tures (B+tree’s, hash tables, ...) used to organize content. It is sup-
    posed to provide high performance and scalability while still remaining
    simple in its concepts. This also allows projects to use Tokyo Cabinet
    only as a fast way to persistently store their data without any network
    overhead by simply linking to the Tokyo Cabinet library.

Tokyo Tyrant is the networking interface that provides outside access to
    the data stored in Tokyo Cabinet. It features a simple client-server
    model and allows multiple applications to access the same Tokyo Cab-
    inet Database. Besides its own effective binary protocol, it also sup-
    ports the memcached protocol and HTTP. It’s also responsible for
    asynchronous replication with several different Tokyo Cabinets. A re-
    ally important feature is the ability to use Lua to script arbitrary fun-
    cionality into Tokyo Tyrant. A good overview about the Lua scripting
    can either be found in the official documentation9 or the short overview
    by Ilya Grigorik10 . This basically allows us to add any atomic opera-
    tion we’d like to have to the key-value store.

Tokyo Dystopia is an optimized high-speed full-text search engine for
    Tokyo Cabinets and is e.g. used to search for friends in the Japanese
    Facebook equivalent mixi.jp
  8
     http://github.com/jchris/sofa
  9
     Official Tokyo Tyrant documentation: http://tokyocabinet.sourceforge.net/
tyrantdoc/#luaext
  10
     Ilya Grigorik’s blog post about tokyo cabinet: http://www.igvita.com/2009/07/13/
extending-tokyo-cabinet-db-with-lua/




                                         10
3.2.2     Installation
Tokyo Cabinet and Tokyo Tyrant both follow the usual 3 step process of
./configure, make, make install.
If you want to use the Lua scripting capabilities of tokyo tyrant, you would
have to use ./configure –enable-lua.

3.2.3     Ruby-Interface
The official homepage11 distributes the ruby bindings as a tarball which can
be compiled and installed.
There are however, a number of gems available via the ruby packaging sys-
tem. There are also adapters to object relational mappers like Datamapper
(”DM”) that would allow storage of information in toyko cabinet without
changing more than 2 or 3 lines the sourcecode responsible for storing the
data.
Here are the results of a simple query over the default gem repositories that
come with rubygems:

# gem search -r tokyo

*** REMOTE GEMS ***

actsasflinn-ruby-tokyotyrant (0.2.0)
careo-tokyocabinet (1.21)
careo-tokyotyrant (1.3.0.1)
jackowayed-rufus-tokyo (0.1.13.2)
joshbuddy-tokyo_cache_cow (0.0.3)
makoto-dm-tokyo-cabinet-adapter (0.0.2)
nofxx-tokyo_store (0.3.0)
ntalbott-rufus-tokyo (0.1.14)
rubysouth-tokyo_model (0.0.4)
rufus-tokyo (1.0.0)
scottburton11-tokyomapper (0.1.1)
shanna-dm-tokyo-adapter (0.3.2)
shanna-dm-tokyo-cabinet-adapter (0.1.6)


3.3      Redis
3.3.1     About
This is taken directly from the readme file that is shipped with the redis
sourcecode and describes the program in a way the creators see it. I’ve
 11
      Tokyo Cabinet Homepage: http://1978th.net/tokyocabinet/



                                       11
taken the liberty of highlighting the important things:


     Redis is a database. To be more specific redis is a very simple
     database implementing a dictionary where keys are associated
     with values. For example I can set the key ”surname 1992” to
     the string ”Smith”. The interesting thing about Redis is that
     values associated to keys are not limited to simple strings,
     they can also be lists and sets, with a number of server-side
     atomic operations associated to this data types.
     Redis takes the whole dataset in memory, but the dataset is
     persistent since from time to time Redis writes a dump of the
     dataset on disk asynchronously. The dump is loaded every time
     the server is restarted.
     Redis can be configured to save the dataset after a given
     number of seconds elapsed and changes to the data set.
     For example you can tell Redis to save after 1000 changes and at
     least 60 seconds since the same save. You can specify a number
     of this combinations.
     Because data is written asynchronously, If a system crash oc-
     curs the last few queries can get lost (that is acceptable in
     many applications). Redis supports master-slave replication
     from the early days in order to make this a non issue if your
     application is of the kind where even few lost records are not
     acceptable.
    While this might seem to look pretty fine, it has to be taken with cau-
tion. Redis makes heavy use of RAM and only flushes out its data to disk
asynchronously. This makes it less than ideal for important data as there is
a high probability of data-loss in case of a sever crash (power loss / faulty
PSU / bluescreen ...). On the other hand, this makes Redis one of the fastest
key-value stores in the field and very usable for the common ”not that im-
portant” data that one can find in most current web applications, especially
in social networks etc. In the rare case of a crash, it will not be that impor-
tant to save the last status update somebody posted or a single tagging of a
single person in a single picture. It is how ever of vital importance to deliver
a pleasant usage speed to the user without database backends slowing down
due to unneeded transactional integrity etc.
With redis, you can expect over 100.000 operations (insert/read/increment/...)
per second on a normal linux box with 50 concurrent clients.
There are some misconceptions on the level of sharding support that redis
provides. When talking about sharding and redis, nearly all of the work
gets done by the client library. Basically, a cryptographic hash over the key
is calculated and a server is chosen according to the results of that, it is a
client side setup though.

                                     12

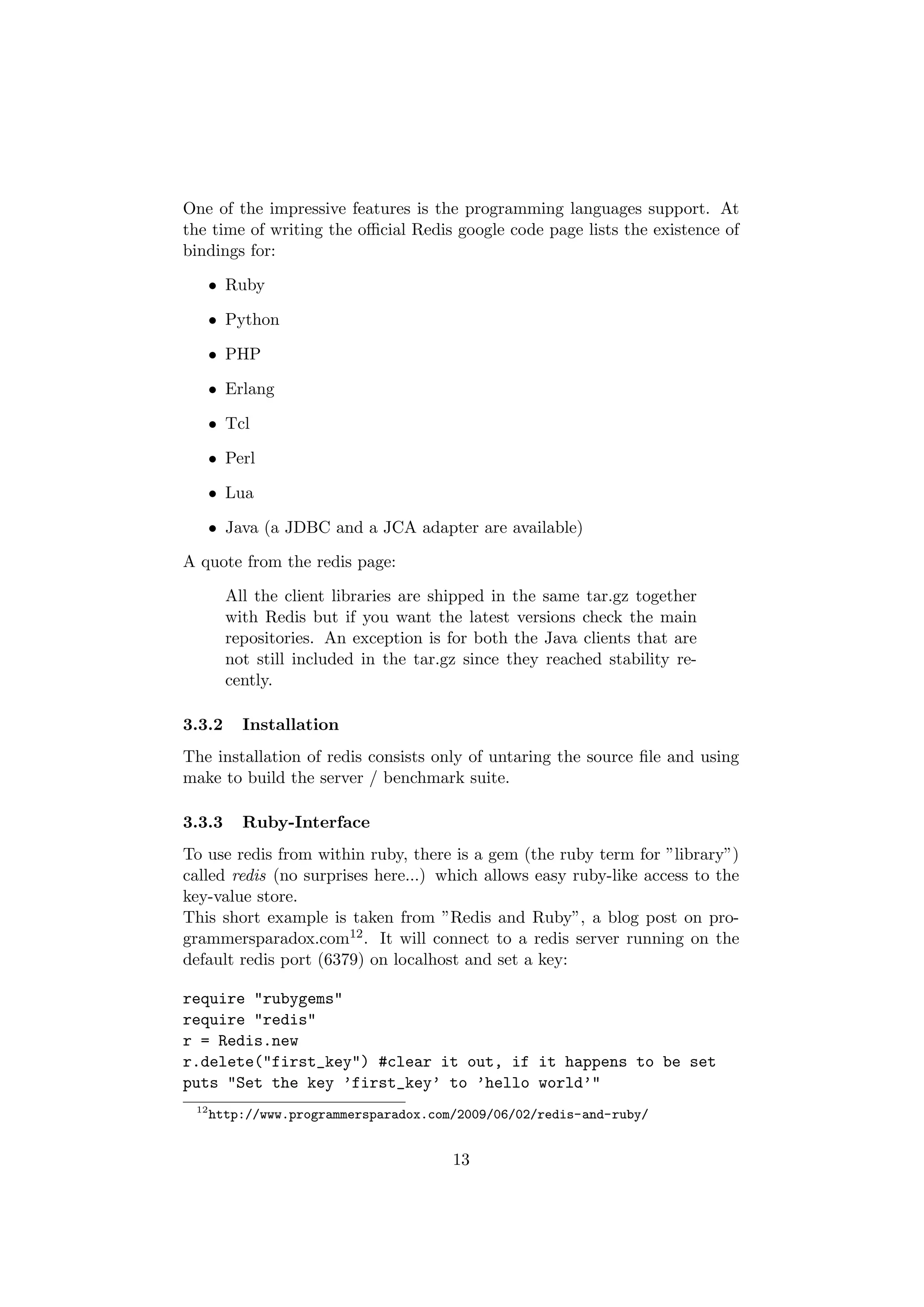

One of the impressive features is the programming languages support. At
the time of writing the official Redis google code page lists the existence of
bindings for:

      • Ruby

      • Python

      • PHP

      • Erlang

      • Tcl

      • Perl

      • Lua

      • Java (a JDBC and a JCA adapter are available)

A quote from the redis page:

        All the client libraries are shipped in the same tar.gz together
        with Redis but if you want the latest versions check the main
        repositories. An exception is for both the Java clients that are
        not still included in the tar.gz since they reached stability re-
        cently.

3.3.2     Installation
The installation of redis consists only of untaring the source file and using
make to build the server / benchmark suite.

3.3.3     Ruby-Interface
To use redis from within ruby, there is a gem (the ruby term for ”library”)
called redis (no surprises here...) which allows easy ruby-like access to the
key-value store.
This short example is taken from ”Redis and Ruby”, a blog post on pro-
grammersparadox.com12 . It will connect to a redis server running on the
default redis port (6379) on localhost and set a key:

require "rubygems"
require "redis"
r = Redis.new
r.delete("first_key") #clear it out, if it happens to be set
puts "Set the key ’first_key’ to ’hello world’"
 12
      http://www.programmersparadox.com/2009/06/02/redis-and-ruby/


                                       13

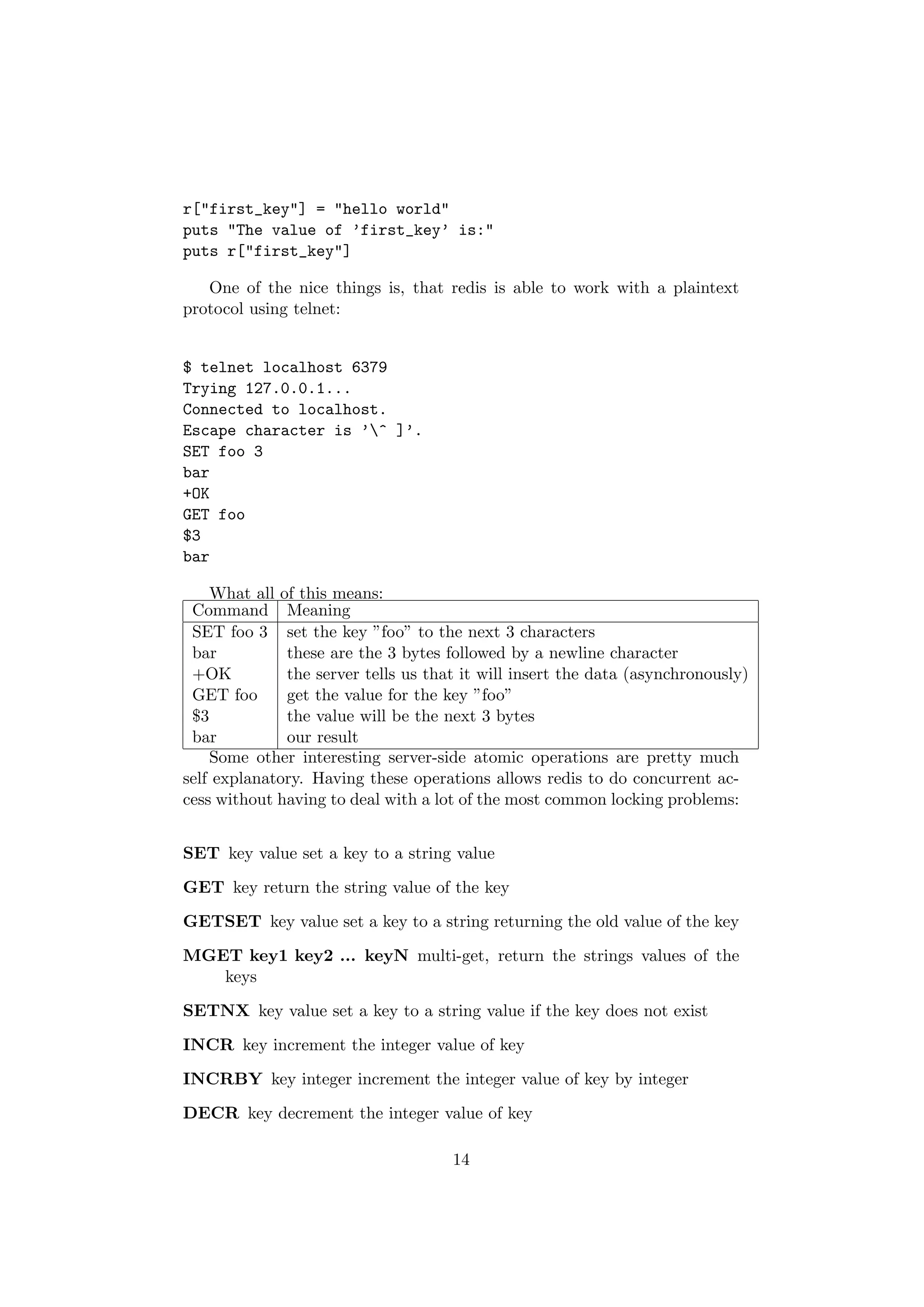

r["first_key"] = "hello world"
puts "The value of ’first_key’ is:"
puts r["first_key"]

   One of the nice things is, that redis is able to work with a plaintext
protocol using telnet:


$ telnet localhost 6379
Trying 127.0.0.1...
Connected to localhost.
Escape character is ’^ ]’.
SET foo 3
bar
+OK
GET foo
$3
bar

    What all of this means:
 Command Meaning
 SET foo 3 set the key ”foo” to the next 3 characters
 bar          these are the 3 bytes followed by a newline character
 +OK          the server tells us that it will insert the data (asynchronously)
 GET foo      get the value for the key ”foo”
 $3           the value will be the next 3 bytes
 bar          our result
    Some other interesting server-side atomic operations are pretty much
self explanatory. Having these operations allows redis to do concurrent ac-
cess without having to deal with a lot of the most common locking problems:


SET key value set a key to a string value

GET key return the string value of the key

GETSET key value set a key to a string returning the old value of the key

MGET key1 key2 ... keyN multi-get, return the strings values of the
   keys

SETNX key value set a key to a string value if the key does not exist

INCR key increment the integer value of key

INCRBY key integer increment the integer value of key by integer

DECR key decrement the integer value of key

                                     14

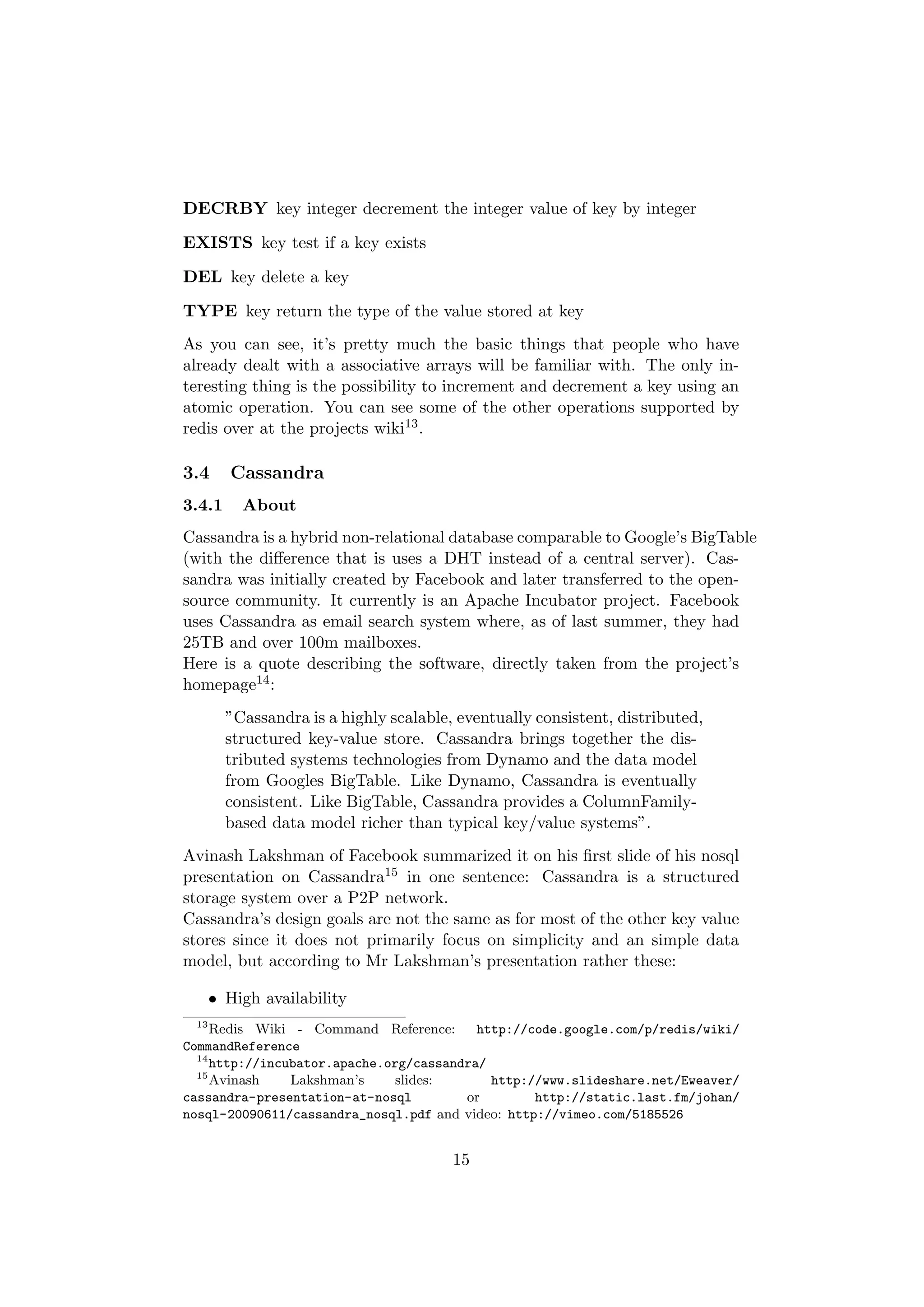

DECRBY key integer decrement the integer value of key by integer

EXISTS key test if a key exists

DEL key delete a key

TYPE key return the type of the value stored at key
As you can see, it’s pretty much the basic things that people who have
already dealt with a associative arrays will be familiar with. The only in-
teresting thing is the possibility to increment and decrement a key using an
atomic operation. You can see some of the other operations supported by
redis over at the projects wiki13 .

3.4      Cassandra
3.4.1     About
Cassandra is a hybrid non-relational database comparable to Google’s BigTable
(with the difference that is uses a DHT instead of a central server). Cas-
sandra was initially created by Facebook and later transferred to the open-
source community. It currently is an Apache Incubator project. Facebook
uses Cassandra as email search system where, as of last summer, they had
25TB and over 100m mailboxes.
Here is a quote describing the software, directly taken from the project’s
homepage14 :
        ”Cassandra is a highly scalable, eventually consistent, distributed,
        structured key-value store. Cassandra brings together the dis-
        tributed systems technologies from Dynamo and the data model
        from Googles BigTable. Like Dynamo, Cassandra is eventually
        consistent. Like BigTable, Cassandra provides a ColumnFamily-
        based data model richer than typical key/value systems”.
Avinash Lakshman of Facebook summarized it on his first slide of his nosql
presentation on Cassandra15 in one sentence: Cassandra is a structured
storage system over a P2P network.
Cassandra’s design goals are not the same as for most of the other key value
stores since it does not primarily focus on simplicity and an simple data
model, but according to Mr Lakshman’s presentation rather these:

      • High availability
 13
     Redis Wiki - Command Reference:      http://code.google.com/p/redis/wiki/
CommandReference
  14
     http://incubator.apache.org/cassandra/
  15
     Avinash    Lakshman’s     slides:      http://www.slideshare.net/Eweaver/
cassandra-presentation-at-nosql         or        http://static.last.fm/johan/
nosql-20090611/cassandra_nosql.pdf and video: http://vimeo.com/5185526


                                        15
• Eventual consistency (trade-off strong consistency in favour of high
     availability)

   • Incremental scalability

   • Optimistic Replication (Knobs to tune trade-offs between consistency,durability
     and latency)

   • Low total cost of ownership

   • Minimal administration

    While a lot of interesting technology plays part in the realization of these
goals, explaining things like the gossip protocol (used for cluster member-
ship) or the read/write properties would be enough for a paper on its own.
If you’re interested in these, I recommend you to look at the previously
mentioned talk by Avinash Lakshman and the accompanying slides.
As you can see, Cassandra is pretty different when you compare it to the
other contestants in this paper. The first thing that differs from the other
applications is, that it is implemented in Java. Another huge difference is
the fact, that it was designed to be distributed using an ”eventually con-
sistent” approach as its data model, something that is also used by Ama-
zon’s cloud infrastructure. The details about this can be looked up on
the weblog of Werner Vogel. He is Amazon’s CTO and runs the weblog
http://www.allthingsdistributed.com where he discusses the topic in
his articles ”Eventually Consistent”16 and ”Eventually Consistent - Revis-
ited”17 . It can be summarized as a way of building large distributed systems
that approaches trade-offs between consistency and availability. It also leads
to the situation that for Cassandra, speed is not only about the amount of
inserts per second, but also about the way more capacity can be added to
the system and the connected performance-costs.
The motivation behind Cassandra were basically two problems (taken from
Jonathan Ellis’s OSCON 09 talk18 ):

   • Scaling reads to a relational database is hard

   • Scaling writes to a relational database is virtually impossible

Since I did not go into detail about more of the inner workings of Cassandra,
I think looking back at Evan Weavers blog post ”Up and running with
  16
     Werner Vogel - Eventually Consistent: http://www.allthingsdistributed.com/
2007/12/eventually_consistent.html
  17
     Werner   Vogel    -   Eventually    Consistent  Revisited:     http://www.
allthingsdistributed.com/2008/12/eventually_consistent.html
  18
     Jonathan Ellis’s OSCON 09 talk:         http://www.slideshare.net/jbellis/
cassandra-open-source-bigtable-dynamo



                                      16
Cassandra”19 , I should at least mention the things he titled ”features that
help put Cassandra above the competition” and relate in one way or another
to these two central problems (directly quoted from his Evan Weavers blog
post):

        Flexible schema with Cassandra, like a document store, you
            do not have to decide what fields you need in your records
            ahead of time. You can add and remove arbitrary fields on
            the fly. This is an incredible productivity boost, especially
            in large deployments.
        True scalability Cassandra scales horizontally in the purest
            sense. To add more capacity to a cluster, turn on another
            machine. You do not have restart any processes, change
            your application queries, or manually relocate any data.
        Multi-data center awareness you can adjust your node lay-
           out to ensure that if one data center burns in a fire, an
           al
        Range queries unlike most key/value stores, you can query for
           ordered ranges of keys.
        List data structures super columns add a 5th dimension to
             the hybrid model, turning columns into lists. This is very
             handy for things like per-user indexes.
        Distributed writes you can read and write any data to any-
            where in the cluster at any time. There is never any single
            point of failure.

3.4.2     Data model
Since Cassandra is more than just ”another Key-Value store”, it is neces-
sary to explain the data-structures that Cassandra uses to represent data.
Cassandra uses those building blocks to form something like a 4 (or 5) di-
mensional hash (aka: associative array). It basically means that values can
be a collection of other key+value pairs:

      • a keyspace

      • a column family

      • a key

      • an (optional) super column

      • a column
 19
    Evan Weaver - Up and running with Cassandra: http://blog.evanweaver.com/
articles/2009/07/06/up-and-running-with-cassandra/


                                      17

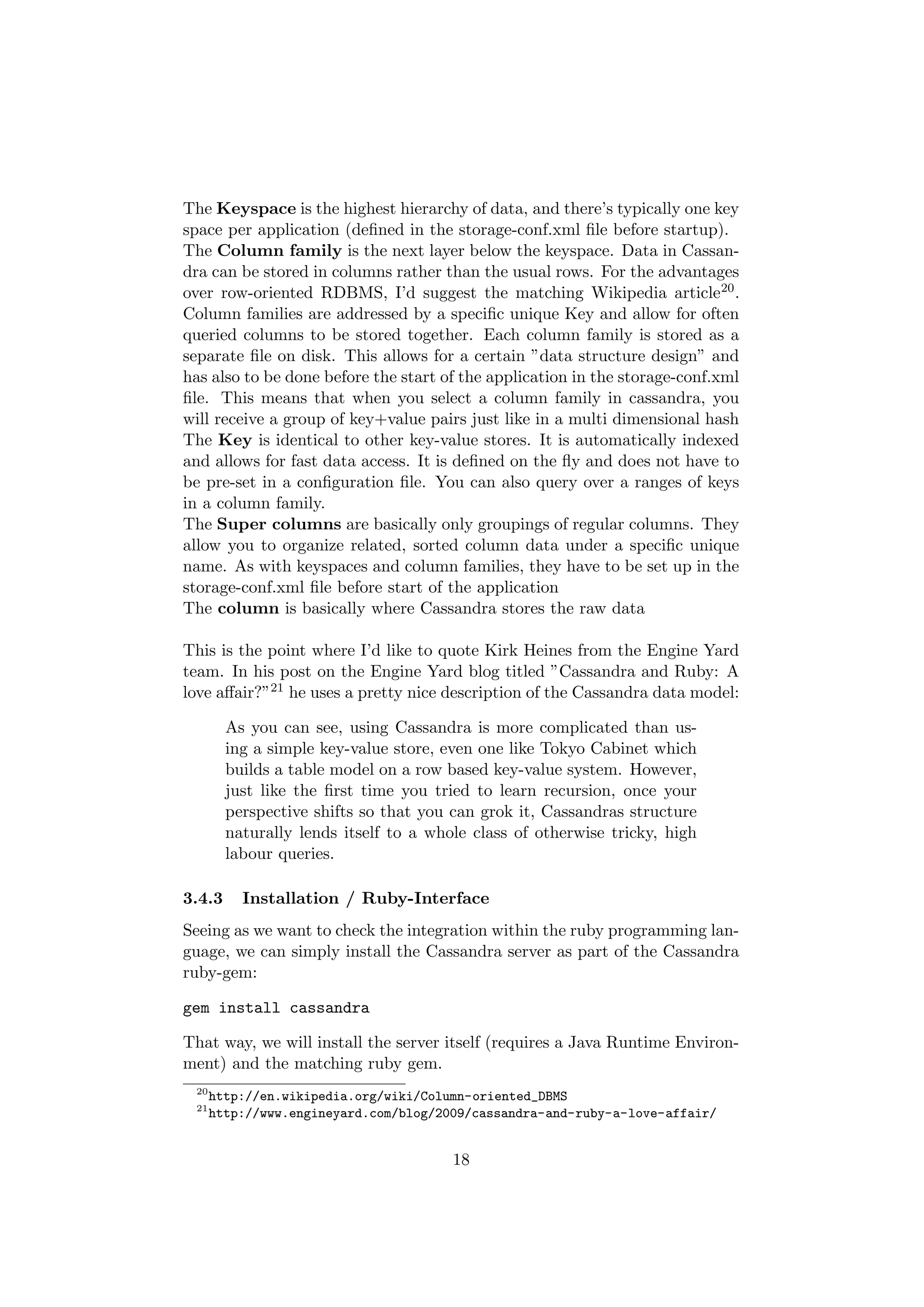

The Keyspace is the highest hierarchy of data, and there’s typically one key
space per application (defined in the storage-conf.xml file before startup).
The Column family is the next layer below the keyspace. Data in Cassan-
dra can be stored in columns rather than the usual rows. For the advantages
over row-oriented RDBMS, I’d suggest the matching Wikipedia article20 .
Column families are addressed by a specific unique Key and allow for often
queried columns to be stored together. Each column family is stored as a
separate file on disk. This allows for a certain ”data structure design” and
has also to be done before the start of the application in the storage-conf.xml
file. This means that when you select a column family in cassandra, you
will receive a group of key+value pairs just like in a multi dimensional hash
The Key is identical to other key-value stores. It is automatically indexed
and allows for fast data access. It is defined on the fly and does not have to
be pre-set in a configuration file. You can also query over a ranges of keys
in a column family.
The Super columns are basically only groupings of regular columns. They
allow you to organize related, sorted column data under a specific unique
name. As with keyspaces and column families, they have to be set up in the
storage-conf.xml file before start of the application
The column is basically where Cassandra stores the raw data

This is the point where I’d like to quote Kirk Heines from the Engine Yard
team. In his post on the Engine Yard blog titled ”Cassandra and Ruby: A
love affair?”21 he uses a pretty nice description of the Cassandra data model:

        As you can see, using Cassandra is more complicated than us-
        ing a simple key-value store, even one like Tokyo Cabinet which
        builds a table model on a row based key-value system. However,
        just like the first time you tried to learn recursion, once your
        perspective shifts so that you can grok it, Cassandras structure
        naturally lends itself to a whole class of otherwise tricky, high
        labour queries.

3.4.3     Installation / Ruby-Interface
Seeing as we want to check the integration within the ruby programming lan-
guage, we can simply install the Cassandra server as part of the Cassandra
ruby-gem:

gem install cassandra

That way, we will install the server itself (requires a Java Runtime Environ-
ment) and the matching ruby gem.
 20
      http://en.wikipedia.org/wiki/Column-oriented_DBMS
 21
      http://www.engineyard.com/blog/2009/cassandra-and-ruby-a-love-affair/


                                       18
After the installation process, you should be able to use Cassandra by simply
requiring the matching gem in ruby:

require ’rubygems’
require ’cassandra’

   The gem utilizes the main way that is usually used to interact with
Cassandra: its Thrift interface.
A short quote from the Cassandra wiki22 :

        In short Thrift allows you easily setup service clients and servers
        in various programming languages. It generates code from a
        Thrift file describing the service.

Seeing as Cassandra is very complex compared to the other key value stores
and posting pieces of sourcecode would probably not do any good, I’d like
to give some more links to excellent blog posts explaining the concept a bit
further:

      • Even Weavers post about Cassandra: http://blog.evanweaver.com/
        articles/2009/07/06/up-and-running-with-cassandra/

      • The Engine Yard blog entry by Kirk Heines: http://www.engineyard.
        com/blog/2009/cassandra-and-ruby-a-love-affair/

      • A video directly from the Facbook Engineering Team: http://www.
        new.facebook.com/video/video.php?v=540974400803

      • The Cassandra Wiki: http://wiki.apache.org/cassandra/




 22
      Cassandra wiki - thrift: http://wiki.apache.org/cassandra/ThriftInterface


                                         19

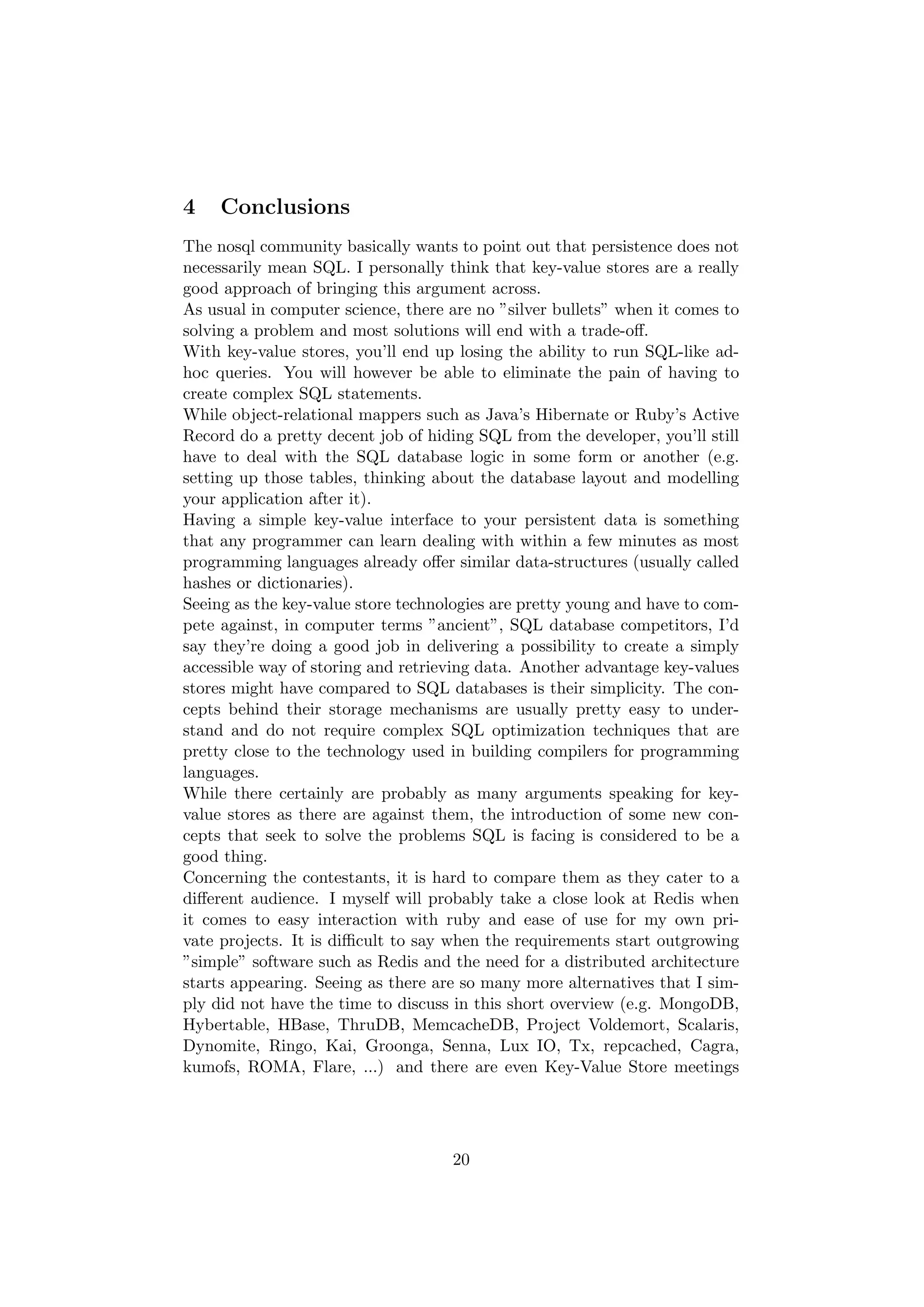

4    Conclusions
The nosql community basically wants to point out that persistence does not
necessarily mean SQL. I personally think that key-value stores are a really
good approach of bringing this argument across.
As usual in computer science, there are no ”silver bullets” when it comes to
solving a problem and most solutions will end with a trade-off.
With key-value stores, you’ll end up losing the ability to run SQL-like ad-
hoc queries. You will however be able to eliminate the pain of having to
create complex SQL statements.
While object-relational mappers such as Java’s Hibernate or Ruby’s Active
Record do a pretty decent job of hiding SQL from the developer, you’ll still
have to deal with the SQL database logic in some form or another (e.g.
setting up those tables, thinking about the database layout and modelling
your application after it).
Having a simple key-value interface to your persistent data is something
that any programmer can learn dealing with within a few minutes as most
programming languages already offer similar data-structures (usually called
hashes or dictionaries).
Seeing as the key-value store technologies are pretty young and have to com-
pete against, in computer terms ”ancient”, SQL database competitors, I’d
say they’re doing a good job in delivering a possibility to create a simply
accessible way of storing and retrieving data. Another advantage key-values
stores might have compared to SQL databases is their simplicity. The con-
cepts behind their storage mechanisms are usually pretty easy to under-
stand and do not require complex SQL optimization techniques that are
pretty close to the technology used in building compilers for programming
languages.
While there certainly are probably as many arguments speaking for key-
value stores as there are against them, the introduction of some new con-
cepts that seek to solve the problems SQL is facing is considered to be a
good thing.
Concerning the contestants, it is hard to compare them as they cater to a
different audience. I myself will probably take a close look at Redis when
it comes to easy interaction with ruby and ease of use for my own pri-
vate projects. It is difficult to say when the requirements start outgrowing
”simple” software such as Redis and the need for a distributed architecture
starts appearing. Seeing as there are so many more alternatives that I sim-
ply did not have the time to discuss in this short overview (e.g. MongoDB,
Hybertable, HBase, ThruDB, MemcacheDB, Project Voldemort, Scalaris,
Dynomite, Ringo, Kai, Groonga, Senna, Lux IO, Tx, repcached, Cagra,
kumofs, ROMA, Flare, ...) and there are even Key-Value Store meetings




                                    20
being held in Japan 23 , the future for key value stores seems to look pretty
promising and is certainly something that software architects ought to keep
an eye on.




 23
    http://blog.plathome.com/2009/02/first-key-value-storage-meeting-held.
html


                                     21

More Related Content

What's hot

Apache spark 소개 및 실습
Apache spark 소개 및 실습Apache spark 소개 및 실습
Apache spark 소개 및 실습
동현 강

AWS 고객이 주로 겪는 운영 이슈에 대한 해법-AWS Summit Seoul 2017
AWS 고객이 주로 겪는 운영 이슈에 대한 해법-AWS Summit Seoul 2017AWS 고객이 주로 겪는 운영 이슈에 대한 해법-AWS Summit Seoul 2017
AWS 고객이 주로 겪는 운영 이슈에 대한 해법-AWS Summit Seoul 2017
Amazon Web Services Korea

Getting Ready to Use Redis with Apache Spark with Dvir Volk
Getting Ready to Use Redis with Apache Spark with Dvir VolkGetting Ready to Use Redis with Apache Spark with Dvir Volk
Getting Ready to Use Redis with Apache Spark with Dvir Volk
Spark Summit

Redis - Usability and Use Cases
Redis - Usability and Use CasesRedis - Usability and Use Cases
Redis - Usability and Use Cases
Fabrizio Farinacci

[D35] インメモリーデータベース徹底比較 by Komori
[D35] インメモリーデータベース徹底比較 by Komori[D35] インメモリーデータベース徹底比較 by Komori
[D35] インメモリーデータベース徹底比較 by KomoriInsight Technology, Inc.

Snowflake: The most cost-effective agile and scalable data warehouse ever!
Snowflake: The most cost-effective agile and scalable data warehouse ever!Snowflake: The most cost-effective agile and scalable data warehouse ever!
Snowflake: The most cost-effective agile and scalable data warehouse ever!
Visual_BI

Introduction to Redis
Introduction to RedisIntroduction to Redis
Introduction to Redis
Dvir Volk

Modern ETL Pipelines with Change Data Capture
Modern ETL Pipelines with Change Data CaptureModern ETL Pipelines with Change Data Capture
Modern ETL Pipelines with Change Data Capture
Databricks

Building an Activity Feed with Cassandra
Building an Activity Feed with CassandraBuilding an Activity Feed with Cassandra
Building an Activity Feed with Cassandra
Mark Dunphy

Oak, the architecture of Apache Jackrabbit 3
Oak, the architecture of Apache Jackrabbit 3Oak, the architecture of Apache Jackrabbit 3
Oak, the architecture of Apache Jackrabbit 3
Jukka Zitting

Content Management With Apache Jackrabbit
Content Management With Apache JackrabbitContent Management With Apache Jackrabbit
Content Management With Apache Jackrabbit
Jukka Zitting

Hadoop and Kerberos
Hadoop and KerberosHadoop and Kerberos
Hadoop and Kerberos
Yuta Imai

Iceberg + Alluxio for Fast Data Analytics
Iceberg + Alluxio for Fast Data AnalyticsIceberg + Alluxio for Fast Data Analytics
Iceberg + Alluxio for Fast Data Analytics
Alluxio, Inc.

Introduction to redis
Introduction to redisIntroduction to redis
Introduction to redis
NexThoughts Technologies

MongoDB Fundamentals
MongoDB FundamentalsMongoDB Fundamentals
MongoDB Fundamentals
MongoDB

Application Timeline Server - Past, Present and Future
Application Timeline Server - Past, Present and FutureApplication Timeline Server - Past, Present and Future
Application Timeline Server - Past, Present and Future
VARUN SAXENA

Cassandra Introduction & Features
Cassandra Introduction & FeaturesCassandra Introduction & Features
Cassandra Introduction & Features
DataStax Academy

7 Stages of Scaling Web Applications
7 Stages of Scaling Web Applications7 Stages of Scaling Web Applications
7 Stages of Scaling Web Applications
David Mitzenmacher

NoSQL databases
NoSQL databasesNoSQL databases
NoSQL databases
Harri Kauhanen

Customizing the Document Library
Customizing the Document LibraryCustomizing the Document Library
Customizing the Document Library
Alfresco Software


What's hot (20)

Apache spark 소개 및 실습
Apache spark 소개 및 실습Apache spark 소개 및 실습
Apache spark 소개 및 실습

AWS 고객이 주로 겪는 운영 이슈에 대한 해법-AWS Summit Seoul 2017
AWS 고객이 주로 겪는 운영 이슈에 대한 해법-AWS Summit Seoul 2017AWS 고객이 주로 겪는 운영 이슈에 대한 해법-AWS Summit Seoul 2017
AWS 고객이 주로 겪는 운영 이슈에 대한 해법-AWS Summit Seoul 2017

Getting Ready to Use Redis with Apache Spark with Dvir Volk
Getting Ready to Use Redis with Apache Spark with Dvir VolkGetting Ready to Use Redis with Apache Spark with Dvir Volk
Getting Ready to Use Redis with Apache Spark with Dvir Volk

Redis - Usability and Use Cases
Redis - Usability and Use CasesRedis - Usability and Use Cases
Redis - Usability and Use Cases

[D35] インメモリーデータベース徹底比較 by Komori
[D35] インメモリーデータベース徹底比較 by Komori[D35] インメモリーデータベース徹底比較 by Komori
[D35] インメモリーデータベース徹底比較 by Komori

Snowflake: The most cost-effective agile and scalable data warehouse ever!
Snowflake: The most cost-effective agile and scalable data warehouse ever!Snowflake: The most cost-effective agile and scalable data warehouse ever!
Snowflake: The most cost-effective agile and scalable data warehouse ever!

Introduction to Redis
Introduction to RedisIntroduction to Redis
Introduction to Redis

Modern ETL Pipelines with Change Data Capture
Modern ETL Pipelines with Change Data CaptureModern ETL Pipelines with Change Data Capture
Modern ETL Pipelines with Change Data Capture

Building an Activity Feed with Cassandra
Building an Activity Feed with CassandraBuilding an Activity Feed with Cassandra
Building an Activity Feed with Cassandra

Oak, the architecture of Apache Jackrabbit 3
Oak, the architecture of Apache Jackrabbit 3Oak, the architecture of Apache Jackrabbit 3
Oak, the architecture of Apache Jackrabbit 3

Content Management With Apache Jackrabbit
Content Management With Apache JackrabbitContent Management With Apache Jackrabbit
Content Management With Apache Jackrabbit

Hadoop and Kerberos
Hadoop and KerberosHadoop and Kerberos
Hadoop and Kerberos

Iceberg + Alluxio for Fast Data Analytics
Iceberg + Alluxio for Fast Data AnalyticsIceberg + Alluxio for Fast Data Analytics
Iceberg + Alluxio for Fast Data Analytics

Introduction to redis
Introduction to redisIntroduction to redis
Introduction to redis

MongoDB Fundamentals
MongoDB FundamentalsMongoDB Fundamentals
MongoDB Fundamentals

Application Timeline Server - Past, Present and Future
Application Timeline Server - Past, Present and FutureApplication Timeline Server - Past, Present and Future
Application Timeline Server - Past, Present and Future

Cassandra Introduction & Features
Cassandra Introduction & FeaturesCassandra Introduction & Features
Cassandra Introduction & Features

7 Stages of Scaling Web Applications
7 Stages of Scaling Web Applications7 Stages of Scaling Web Applications
7 Stages of Scaling Web Applications

NoSQL databases
NoSQL databasesNoSQL databases
NoSQL databases

Customizing the Document Library
Customizing the Document LibraryCustomizing the Document Library
Customizing the Document Library


Similar to Key-Value Stores: a practical overview

Consistent join queries in cloud data stores
Consistent join queries in cloud data storesConsistent join queries in cloud data stores
Consistent join queries in cloud data stores
João Gabriel Lima

Livre blanc Windows Azure No SQL
Livre blanc Windows Azure No SQLLivre blanc Windows Azure No SQL
Livre blanc Windows Azure No SQL
Microsoft Décideurs IT

paper
paperpaper
rails.html
rails.htmlrails.html
rails.html
tutorialsruby

rails.html
rails.htmlrails.html
rails.html
tutorialsruby

NoSql Databases
NoSql DatabasesNoSql Databases
NoSql Databases
Nimat Khattak

HadoopDB a major step towards a dead end
HadoopDB a major step towards a dead endHadoopDB a major step towards a dead end
HadoopDB a major step towards a dead end
thkoch

If NoSQL is your answer, you are probably asking the wrong question.
If NoSQL is your answer, you are probably asking the wrong question.If NoSQL is your answer, you are probably asking the wrong question.
If NoSQL is your answer, you are probably asking the wrong question.
Lukas Smith

Life above the_service_tier_v1.1
Life above the_service_tier_v1.1Life above the_service_tier_v1.1
Life above the_service_tier_v1.1
Ganesh Prasad

Why no sql_ibm_cloudant
Why no sql_ibm_cloudantWhy no sql_ibm_cloudant
Why no sql_ibm_cloudant
Peter Tutty

Benchmarking Couchbase Server for Interactive Applications
Benchmarking Couchbase Server for Interactive ApplicationsBenchmarking Couchbase Server for Interactive Applications
Benchmarking Couchbase Server for Interactive Applications
Altoros

No sql exploration keyvaluestore
No sql exploration   keyvaluestoreNo sql exploration   keyvaluestore
No sql exploration keyvaluestore
Balaji Srinivasaraghavan

Brief introduction to NoSQL by fas mosleh
Brief introduction to NoSQL by fas moslehBrief introduction to NoSQL by fas mosleh
Brief introduction to NoSQL by fas mosleh
Fas (Feisal) Mosleh

Scaling SQL and NoSQL Databases in the Cloud
Scaling SQL and NoSQL Databases in the Cloud Scaling SQL and NoSQL Databases in the Cloud
Scaling SQL and NoSQL Databases in the Cloud
RightScale

Ashwin_Thesis
Ashwin_ThesisAshwin_Thesis
Ashwin_Thesis
Ashwin Ramesh

RDB Synchronization, Transcoding and LDAP Directory Services ...
RDB Synchronization, Transcoding and LDAP Directory Services ...RDB Synchronization, Transcoding and LDAP Directory Services ...
RDB Synchronization, Transcoding and LDAP Directory Services ...
Videoguy

The MySQL Cluster API Developer Guide
The MySQL Cluster API Developer GuideThe MySQL Cluster API Developer Guide
The MySQL Cluster API Developer Guide
webhostingguy

Oracle to-sql-server-migration-approach
Oracle to-sql-server-migration-approachOracle to-sql-server-migration-approach
Oracle to-sql-server-migration-approach
Rajesh Raushan

MineDB Mineral Resource Evaluation White Paper
MineDB Mineral Resource Evaluation White PaperMineDB Mineral Resource Evaluation White Paper
MineDB Mineral Resource Evaluation White Paper
Derek Diamond

My SQL conceptual architecture
My SQL conceptual architectureMy SQL conceptual architecture
My SQL conceptual architecture
M Vinay Kumar


Similar to Key-Value Stores: a practical overview (20)

Consistent join queries in cloud data stores
Consistent join queries in cloud data storesConsistent join queries in cloud data stores
Consistent join queries in cloud data stores

Livre blanc Windows Azure No SQL
Livre blanc Windows Azure No SQLLivre blanc Windows Azure No SQL
Livre blanc Windows Azure No SQL

paper
paperpaper
paper

rails.html
rails.htmlrails.html
rails.html

rails.html
rails.htmlrails.html
rails.html

NoSql Databases
NoSql DatabasesNoSql Databases
NoSql Databases

HadoopDB a major step towards a dead end
HadoopDB a major step towards a dead endHadoopDB a major step towards a dead end
HadoopDB a major step towards a dead end

If NoSQL is your answer, you are probably asking the wrong question.
If NoSQL is your answer, you are probably asking the wrong question.If NoSQL is your answer, you are probably asking the wrong question.
If NoSQL is your answer, you are probably asking the wrong question.

Life above the_service_tier_v1.1
Life above the_service_tier_v1.1Life above the_service_tier_v1.1
Life above the_service_tier_v1.1

Why no sql_ibm_cloudant
Why no sql_ibm_cloudantWhy no sql_ibm_cloudant
Why no sql_ibm_cloudant

Benchmarking Couchbase Server for Interactive Applications
Benchmarking Couchbase Server for Interactive ApplicationsBenchmarking Couchbase Server for Interactive Applications
Benchmarking Couchbase Server for Interactive Applications

No sql exploration keyvaluestore
No sql exploration   keyvaluestoreNo sql exploration   keyvaluestore
No sql exploration keyvaluestore

Brief introduction to NoSQL by fas mosleh
Brief introduction to NoSQL by fas moslehBrief introduction to NoSQL by fas mosleh
Brief introduction to NoSQL by fas mosleh

Scaling SQL and NoSQL Databases in the Cloud
Scaling SQL and NoSQL Databases in the Cloud Scaling SQL and NoSQL Databases in the Cloud
Scaling SQL and NoSQL Databases in the Cloud

Ashwin_Thesis
Ashwin_ThesisAshwin_Thesis
Ashwin_Thesis

RDB Synchronization, Transcoding and LDAP Directory Services ...
RDB Synchronization, Transcoding and LDAP Directory Services ...RDB Synchronization, Transcoding and LDAP Directory Services ...
RDB Synchronization, Transcoding and LDAP Directory Services ...

The MySQL Cluster API Developer Guide
The MySQL Cluster API Developer GuideThe MySQL Cluster API Developer Guide
The MySQL Cluster API Developer Guide

Oracle to-sql-server-migration-approach
Oracle to-sql-server-migration-approachOracle to-sql-server-migration-approach
Oracle to-sql-server-migration-approach

MineDB Mineral Resource Evaluation White Paper
MineDB Mineral Resource Evaluation White PaperMineDB Mineral Resource Evaluation White Paper
MineDB Mineral Resource Evaluation White Paper

My SQL conceptual architecture
My SQL conceptual architectureMy SQL conceptual architecture
My SQL conceptual architecture


More from Marc Seeger

DevOps Boston - Heartbleed at Acquia
DevOps Boston - Heartbleed at AcquiaDevOps Boston - Heartbleed at Acquia
DevOps Boston - Heartbleed at Acquia
Marc Seeger

The current state of anonymous filesharing
The current state of anonymous filesharingThe current state of anonymous filesharing
The current state of anonymous filesharing
Marc Seeger

Lunch and learn: Cucumber and Capybara
Lunch and learn: Cucumber and CapybaraLunch and learn: Cucumber and Capybara
Lunch and learn: Cucumber and Capybara
Marc Seeger

NoSQL databases
NoSQL databasesNoSQL databases
NoSQL databases
Marc Seeger

building blocks of a scalable webcrawler
building blocks of a scalable webcrawlerbuilding blocks of a scalable webcrawler
building blocks of a scalable webcrawler
Marc Seeger

Communitygetriebe Android Systementwicklung
Communitygetriebe Android SystementwicklungCommunitygetriebe Android Systementwicklung
Communitygetriebe Android SystementwicklungMarc Seeger

Eventdriven I/O - A hands on introduction
Eventdriven I/O - A hands on introductionEventdriven I/O - A hands on introduction
Eventdriven I/O - A hands on introduction
Marc Seeger

Alternative Infrastucture
Alternative InfrastuctureAlternative Infrastucture
Alternative Infrastucture
Marc Seeger

Communitygetriebene Android Systemerweiterungen
Communitygetriebene Android SystemerweiterungenCommunitygetriebene Android Systemerweiterungen
Communitygetriebene Android Systemerweiterungen
Marc Seeger

ZFS
ZFSZFS
The Dirac Video CoDec
The Dirac Video CoDecThe Dirac Video CoDec
The Dirac Video CoDec
Marc Seeger

Anonimität - Konzepte und Werkzeuge
Anonimität - Konzepte und WerkzeugeAnonimität - Konzepte und Werkzeuge
Anonimität - Konzepte und Werkzeuge
Marc Seeger

Security In Dect
Security In DectSecurity In Dect
Security In Dect
Marc Seeger

Social Media in der Unternehmenskommunikation
Social Media in der UnternehmenskommunikationSocial Media in der Unternehmenskommunikation
Social Media in der Unternehmenskommunikation
Marc Seeger

xDSL, DSLAM & CO
xDSL, DSLAM & COxDSL, DSLAM & CO
xDSL, DSLAM & CO
Marc Seeger

Ruby Xml Mapping
Ruby Xml MappingRuby Xml Mapping
Ruby Xml Mapping
Marc Seeger

HdM Stuttgart Präsentationstag PPTP VPN WLAN Update
HdM Stuttgart Präsentationstag PPTP VPN WLAN UpdateHdM Stuttgart Präsentationstag PPTP VPN WLAN Update
HdM Stuttgart Präsentationstag PPTP VPN WLAN Update
Marc Seeger


More from Marc Seeger (17)

DevOps Boston - Heartbleed at Acquia
DevOps Boston - Heartbleed at AcquiaDevOps Boston - Heartbleed at Acquia
DevOps Boston - Heartbleed at Acquia

The current state of anonymous filesharing
The current state of anonymous filesharingThe current state of anonymous filesharing
The current state of anonymous filesharing

Lunch and learn: Cucumber and Capybara
Lunch and learn: Cucumber and CapybaraLunch and learn: Cucumber and Capybara
Lunch and learn: Cucumber and Capybara

NoSQL databases
NoSQL databasesNoSQL databases
NoSQL databases

building blocks of a scalable webcrawler
building blocks of a scalable webcrawlerbuilding blocks of a scalable webcrawler
building blocks of a scalable webcrawler

Communitygetriebe Android Systementwicklung
Communitygetriebe Android SystementwicklungCommunitygetriebe Android Systementwicklung
Communitygetriebe Android Systementwicklung

Eventdriven I/O - A hands on introduction
Eventdriven I/O - A hands on introductionEventdriven I/O - A hands on introduction
Eventdriven I/O - A hands on introduction

Alternative Infrastucture
Alternative InfrastuctureAlternative Infrastucture
Alternative Infrastucture

Communitygetriebene Android Systemerweiterungen
Communitygetriebene Android SystemerweiterungenCommunitygetriebene Android Systemerweiterungen
Communitygetriebene Android Systemerweiterungen

ZFS
ZFSZFS
ZFS

The Dirac Video CoDec
The Dirac Video CoDecThe Dirac Video CoDec
The Dirac Video CoDec

Anonimität - Konzepte und Werkzeuge
Anonimität - Konzepte und WerkzeugeAnonimität - Konzepte und Werkzeuge
Anonimität - Konzepte und Werkzeuge

Security In Dect
Security In DectSecurity In Dect
Security In Dect

Social Media in der Unternehmenskommunikation
Social Media in der UnternehmenskommunikationSocial Media in der Unternehmenskommunikation
Social Media in der Unternehmenskommunikation

xDSL, DSLAM & CO
xDSL, DSLAM & COxDSL, DSLAM & CO
xDSL, DSLAM & CO

Ruby Xml Mapping
Ruby Xml MappingRuby Xml Mapping
Ruby Xml Mapping

HdM Stuttgart Präsentationstag PPTP VPN WLAN Update
HdM Stuttgart Präsentationstag PPTP VPN WLAN UpdateHdM Stuttgart Präsentationstag PPTP VPN WLAN Update
HdM Stuttgart Präsentationstag PPTP VPN WLAN Update


Recently uploaded

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
akankshawande

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations
kumardaparthi1024

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

UI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentationUI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentation
Wouter Lemaire

Infrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI modelsInfrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI models
Zilliz

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future
Alpen-Adria-Universität

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization
Zilliz

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx
Brandon Minnick, MBA

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
Edge AI and Vision Alliance

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024
Matthew Sinclair

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter
Daiki Mogmet Ito

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems S.M.S.A.

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP
Pixlogix Infotech

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
名前 です男


Recently uploaded (20)

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

UI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentationUI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentation

Infrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI modelsInfrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI models

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...


Key-Value Stores: a practical overview

  • 1. Key-Value stores: a practical overview Marc Seeger Computer Science and Media Ultra-Large-Sites SS09 Stuttgart, Germany September 21, 2009 Abstract Key-Value stores provide a high performance alternative to rela- tional database systems when it comes to storing and acessing data. This paper provides a short overview over some of the currently avail- able key-value stores and their interface to the Ruby programming language. 1
  • 2. Contents 1 Outline 3 2 Key Value stores and the NoSQL movement 3 3 Contestants 5 3.1 CouchDB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3.1.1 About . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3.1.2 Installation . . . . . . . . . . . . . . . . . . . . . . . . 8 3.1.3 Ruby-Interface . . . . . . . . . . . . . . . . . . . . . . 8 3.2 Tokyo Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2.1 About . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2.2 Installation . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2.3 Ruby-Interface . . . . . . . . . . . . . . . . . . . . . . 11 3.3 Redis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.3.1 About . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.3.2 Installation . . . . . . . . . . . . . . . . . . . . . . . . 13 3.3.3 Ruby-Interface . . . . . . . . . . . . . . . . . . . . . . 13 3.4 Cassandra . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3.4.1 About . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3.4.2 Data model . . . . . . . . . . . . . . . . . . . . . . . . 17 3.4.3 Installation / Ruby-Interface . . . . . . . . . . . . . . 18 4 Conclusions 20 2
  • 3. 1 Outline The rest of this paper is organized as follows: After an introduction to the general concept of key value stores, I will look at a few different implementations. Each section about an implementation will consist of a short overview of noteworthy features, followed by an overview of the installation procedure and a look at the way you can access the soft- ware using the Ruby programming language. While there are many Key Value stores available, some of them have a lim- ited usability to the average web-programmer. This paper will not strictly focus on big, distributed infrastructures but rather on the simpler key-value stores that could replace a conventional SQL Server such as MySQL in usual web applications. With the tested software solutions, only Cassandra (Chapter 3.4) allows for a truly distributed infrastructure. 2 Key Value stores and the NoSQL movement SQL, the Structured Query Language was invented in the 1970s at IBM. It is a language designed to handle data that has been structured according to Edgar F. Codd’s relational model described in his paper, ”A Relational Model of Data for Large Shared Data Banks” and has since then developed to be the standard language for relational databases. SQL allowed people to construct powerful queries that are able to analyse and sub-sample huge amounts of specially structured data and help oper- ation, accounting or banking departments get indicators for the success of their newly introduced business processes or even just managing the monthly payments to their employees. Back in the days, huge computers (not only in processing power but also in size) were used to work though seemingly vast amounts of data. This was also the time when using a computer scientist’s time to optimize an SQL query was something that actually paid off in the end. In general, SQL managed to deal with specially structured data and allowed highly dynamic queries according to the needs of the department in ques- tion. While there are still no real competitors for SQL in this specific field, the use-case in everyday web applications is a different one. You will not find a highly dynamic range of queries full of outer and inner joins, unions and complex calculations over large tables. You will usually find a very object oriented way of thinking. Especially with adoption of such patterns as MVC, the data in the back-end is usually not being modelled for a database, but for logical integrity which also helps people to be able to cope with understanding huge software-infrastructures. What is being done to put these object-oriented models into relational 3
  • 4. databases is a large amount of normalization that leads to complex hier- archies of tables and completely steers against the main idea behind object oriented programming. Servers that adhere to the SQL standard also have to implement a large portion of code that is of no use to simple data storage what so ever and only inflates the memory footprint, security risks and has performance hits as a result. The fact that SQL allows for arbitrary dynamic queries for complex sets of data is being rendered useless by using an SQL Database only for persistent storage of object oriented data, which is what basically most applications do these days. This is where Key Value stores come into play. Key value stores allow the application developer to store schema-less data. This data is usually con- sisting of a string which represents the key and the actual data which is considered to be the value in the ”key - value” relationship. The data itself is usually some kind of primitive of the programming language (a string, an integer, an array) or an object that is being marshalled by the program- ming languages bindings to the key value store. This replaces the need for fixed data model and makes the requirement for properly formatted data less strict. To make this more clear, here’s a short example (using ruby and the simple but limited ”pstore” standard library) that should make that concept clear to any programmer. require "pstore" store = PStore.new("data-file.pstore") store.transaction do # begin transaction # load some data into the store... store[:single_object] = "Lorem ipsum dolor sit amet..." store[:obj_heirarchy] = { "Marc Seeger" => ["ruby", "nosql"], "Rainer Wahnsinn" => ["php", "mysql"] } end # commit changes to data store file In this short example, we have created a key-value store on disk called ”data file.pstore” and added two objects. The object with the key ”:single object” is basically a simple string, ”:obj hierarchy” on the other hand is a more complex datatype. It is a Hash which contains arrays of strings. Accessing those objects would be as simple as e.g. assigning the object to a variable, exactly the same way we’d usually interact with hashes in Ruby: my_var = store[:single_object] Syntax for different key-value stores will obviously differ, but they all func- tion in a conceptually similar manner. 4
  • 5. They all allow storage of arbitrary data which is being indexed using a single key to allow retrieval. The biggest difference for the ”simpler” stores is the way you can (or cannot) authenticate or access different stores (if possible). While the speed advantages in storing and retrieving data might be a rea- son to consider it over common SQL Databases, another big advantage that emerges when using key-value stores is that the resulting code tends to look clean and simple when compared to embedded SQL strings in your programming language. This is something that people tend to fight with object-relational mapping frameworks such as Hibernate or Active Record. Having an object relational mappers basically seems to emulate a key value store by adding a lot of really complex code between an SQL database and an object-oriented programming language. A whole community of people come together under the ”NoSQL” tag and discuss these advantages and also disadvantages of using alternatives to re- lational database management systems. One of the more recent meet-ups featured prominent talks from people working for Facebook, Stumbleupon, Linkedin and Last.fm. People interested in nosql-related technology can look at the videos and slides of that meet-up can at Johan Oskarsson’s blog1 (he’s a developer at last.fm). It has to be noted that the ”nosql” movement not only includes the ”newly emerging” key-value stores I’m discussing in this paper, but also does in- clude object stores such as e.g. BerkleyDB, O2, GemStone or Statice which all date back to the 70s and 80s and are as ”industrial strength” as it gets. One important thing to consider is, that the nosql movement is not against SQL in general. The main idea behind the movement is, that it not okay to automatically assume some kind of SQL server when people talk about data persistence. SQL is much more than just the ability to persistently store data in a specified manner, in fact, it is so much more that it is ba- sically an overkill in most situations. Showing alternatives to the current SQL-dominated persistence landscape is one of the main goals to the nosql community. 3 Contestants While there are lots of Key Value Stores that focus an scalability, synchro- nization over several servers and fault tolerance, discussing those individual properties could each fill a paper on their own. I would like to give an entry level introduction on the ”simpler” Key-Value stores that focus on simply replacing SQL Servers (read: usually MySQL) for the usual consistency matters. The need for distributing/sharding data because of performance considerations is not as urgent as with larger SQL-Server instances. Key 1 http://blog.oskarsson.nu/2009/06/nosql-debrief.html 5
  • 6. Value stores have remarkably high insert/read rates compared to ”usual” SQL Servers. While some of the contestants DO support master-slave repli- cation (e.g. redis) or are actually distributed (e.g. Cassandra), the main focus of this paper will not be on those features but rather on the ease of use for simple projects. I decided to use the following contestants in accordance to their perceived popularity in the, for the most part web-centric, Ruby community: • CouchDB (Chapter 3.1) • Tokyo Cabinet (Chapter 3.2) • Redis (Chapter 3.3) • Cassandra (Chapter 3.4) If you have already studied larger systems, you might know the piece of software that is basically the heart of many of the big players in web 2.0 called ”memcached”. We will NOT look at memcached because it is not designed to be persistent, it just holds everything in memory without saving since its main objective is to function as a caching mechanism. There is a modifications called ”memcacheDB”, but it doesn not, in my opinion, offer that much differences over the chosen candidates to actually justify adding it to the paper. People looking for a mixture between redis and cassandra might want to take a short look at the projects homepage2 though. The key-value stores we want to take a look at can be used as the main DB for the application as they always support persistence as part of their design. Before discussing each of those servers in detail, here is a short overview: CouchDB is a key-value store implementation in Erlang that uses HTTP to communicate with clients and Javascript to generate ”views” Tokyo Cabinet Tokyo Cabinet (and its network interface, Tokyo Tyrant) is a key-value store that supports 3 modes of operation: hashtable mode, b-tree mode, and table mode. It is used by the high-load environment of the Japanese Facebook- equivalent Mixi Tokyo Cabinet is written in C. Redis An in-memory key-value store focusing on performance, implemented in C. Cassandra An extended key-value store originally developed by Facebook. It was developed by some of the key engineers behind Amazon’s fa- mous Dynamo database. 2 MemcacheDB homepage: http://www.memcachedb.org/ 6
  • 7. Here is a quote describing the software, directly taken from the project’s homepage3 : ”Cassandra is a highly scalable, eventually consistent, distributed, structured key-value store. Cassandra brings together the distributed systems technologies from Dynamo and the data model from Googles BigTable. Like Dynamo, Cassandra is eventually consistent. Like BigTable, Cassandra provides a ColumnFamily-based data model richer than typical key/value systems” 3.1 CouchDB 3.1.1 About From the projects homepage4 : Apache CouchDB is a distributed, fault-tolerant and schema-free document-oriented database accessible via a RESTful HTTP/JSON API. Among other features, it provides robust, incremental repli- cation with bi-directional conflict detection and resolution, and is queryable and indexable using a table-oriented view engine with JavaScript acting as the default view definition language. CouchDB is written in Erlang, but can be easily accessed from any environment that provides means to make HTTP requests. There are a multitude of third-party client libraries that make this even easier for a variety of programming languages and en- vironments. CouchDB is coded in Erlang. The only bigger C parts are the IBM uni- code library and the spidermonkey javascript engine (which also powers e.g. Firefox). CouchDB uses a simple RESTful HTTP/JSON approach to interfacing with the outside world. Seeing as HTTP is probably one of the most supported protocols, old infrastructure such as loadbalancers, http caches or SSL prox- ies can still be used in connection with CouchDB. This allows companies to harvest existing knowledge to easily secure and speed up their HTTP-based CouchDB infrastructure without having to hire an external database specialist. Another interesting feature of CouchDB is the fact that developers can use ”views” to query the software for data. Views are basically map and re- duce functions that are implemented in Javascript and sent to CouchDB. Querying these views is simply a matter of making the appropriate HTTP 3 http://incubator.apache.org/cassandra/ 4 http://couchdb.apache.org 7
  • 8. GET request. CouchDB keeps these views incrementally up to date by sim- ply running new inserts through the map and reduce functions. There are some limitations imposed when creating these views to keep the incremental updates working. Here’s a short excerpt from the CouchDB wiki5 : The restriction on map functions is that they must be refer- entially transparent. That is, given the same input document, they will always emit the same key/value pairs. This allows CouchDB views to be updated incrementally, only reindexing the documents that have changed since the last index update. This way of querying for data allows web developers to use their HTTP and Javascript skills to interact with CouchDB after just a few minutes of research. 3.1.2 Installation The installation process is pretty much the usual (taken from the CouchDB readme file6 ): svn co http://svn.apache.org/repos/asf/couchdb/trunk couchdb cd couchdb ./bootstrap && ./configure make sudo make install Some of the dependencies are e.g. Erlang/OTP, GCC, make, OpenSSL and Spidermonkey (the Javascript engine powering Mozilla Firefox). There are also a lot of prebuilt packages for your favourite Linux package manager available. According to the CouchDB documentation, it is also possible to compile and run CouchDB on windows using cygwin and the Microsoft C compiler. 3.1.3 Ruby-Interface There are a lot of different ways of interacting with CouchDB from within Ruby. Seeing as CouchDB supports a simple REST protocol, the ”getting started with Ruby” part of the couchDB wiki 7 uses simple HTTP calls and JSON parsing to interact with CouchDB. While this might work, it probably isn’t the most elegant and productive solution, this is why there are a few libraries that encapsulate the REST logic 5 CouchDB wiki - views:http://wiki.apache.org/couchdb/Introduction_to_ CouchDB_views 6 CouchDB Readme: http://svn.apache.org/viewvc/couchdb/trunk/README?view= markup 7 http://wiki.apache.org/couchdb/Getting_started_with_Ruby 8
  • 9. in something more Ruby-like. Here’s a quote from the previously mentioned CouchDB wiki: For a simple Ruby wrapper around CouchDB’s RESTful API, see CouchRest, which keeps you fairly close the metal, as well as having a few helpful wrappers, like a builtin view pager and com- panion libraries like CouchModel (for document id and lifecycle management) and Slipcover (for parallel query execution). We will now take a short look at CouchRest, which is available as a gem on github (gem install jchris-couchrest -s http://gems.github.com). This is the description as given in CouchRest’s Readme file: CouchRest is based on CouchDB’s couch.js test library, which I find to be concise, clear, and well designed. CouchRest lightly wraps CouchDB’s HTTP API, managing JSON serialization, and remembering the URI-paths to CouchDB’s API endpoints so you do not have to. CouchRest is designed to make a simple base for application and framework-specific object oriented APIs. CouchRest is Object- Mapper agnostic, the parsed JSON it returns from CouchDB shows up as subclasses of Ruby’s Hash. Naked JSON, just as it was mean to be. As the way CouchREST interacts with CouchDB is nothing out of the ordinary and as I am generally a fan of code examples, I decided to simply use the ”quick start” example taken from the CouchRest Readme file to show the basic interaction with the library: # with !, it creates the database if it doesn’t already exist @db = CouchRest.database!("http://127.0.0.1:5984/couchrest-test") response = @db.save_doc({:key => ’value’, ’another key’ => ’another value’}) doc = @db.get(response[’id’]) puts doc.inspect This is how you save more than one entry to the store: @db.bulk_save([ {"wild" => "and random"}, {"mild" => "yet local"}, {"another" => ["set","of","keys"]} ]) Another way of using CouchDB that might be interesting for legacy ap- plications is the fact, that Datamapper (the ORM used e.g. with the merb webframework) and Active Record (the ORM that is used with the Rails 9
  • 10. webframework) can in theory both be used in connection with CouchDB by using matching adapter libraries. This way, legacy Web Applications can simply be migrated from e.g. MySQL to a CouchDB environment. Thanks to the way CouchDB can be accessed by simple HTTP GET calls, it would also be possible to query the Database directly with the end-users webbrowser. The returned JSON documents can simply be parsed and prop- erly inserted into the webpage using Javascript on the End-User side. An ex- ample of this kind of ”stand alone application” can be seen over at ”SoFa”8 , the Standalone CouchDB Blog (also used by the O’Reilly CouchDB book) 3.2 Tokyo Cabinet 3.2.1 About The Tokio* Universe is separated in 3 main software projects that provide different functionalities: Tokyo Cabinet itself is only the library dealing with all of the data struc- tures (B+tree’s, hash tables, ...) used to organize content. It is sup- posed to provide high performance and scalability while still remaining simple in its concepts. This also allows projects to use Tokyo Cabinet only as a fast way to persistently store their data without any network overhead by simply linking to the Tokyo Cabinet library. Tokyo Tyrant is the networking interface that provides outside access to the data stored in Tokyo Cabinet. It features a simple client-server model and allows multiple applications to access the same Tokyo Cab- inet Database. Besides its own effective binary protocol, it also sup- ports the memcached protocol and HTTP. It’s also responsible for asynchronous replication with several different Tokyo Cabinets. A re- ally important feature is the ability to use Lua to script arbitrary fun- cionality into Tokyo Tyrant. A good overview about the Lua scripting can either be found in the official documentation9 or the short overview by Ilya Grigorik10 . This basically allows us to add any atomic opera- tion we’d like to have to the key-value store. Tokyo Dystopia is an optimized high-speed full-text search engine for Tokyo Cabinets and is e.g. used to search for friends in the Japanese Facebook equivalent mixi.jp 8 http://github.com/jchris/sofa 9 Official Tokyo Tyrant documentation: http://tokyocabinet.sourceforge.net/ tyrantdoc/#luaext 10 Ilya Grigorik’s blog post about tokyo cabinet: http://www.igvita.com/2009/07/13/ extending-tokyo-cabinet-db-with-lua/ 10
  • 11. 3.2.2 Installation Tokyo Cabinet and Tokyo Tyrant both follow the usual 3 step process of ./configure, make, make install. If you want to use the Lua scripting capabilities of tokyo tyrant, you would have to use ./configure –enable-lua. 3.2.3 Ruby-Interface The official homepage11 distributes the ruby bindings as a tarball which can be compiled and installed. There are however, a number of gems available via the ruby packaging sys- tem. There are also adapters to object relational mappers like Datamapper (”DM”) that would allow storage of information in toyko cabinet without changing more than 2 or 3 lines the sourcecode responsible for storing the data. Here are the results of a simple query over the default gem repositories that come with rubygems: # gem search -r tokyo *** REMOTE GEMS *** actsasflinn-ruby-tokyotyrant (0.2.0) careo-tokyocabinet (1.21) careo-tokyotyrant (1.3.0.1) jackowayed-rufus-tokyo (0.1.13.2) joshbuddy-tokyo_cache_cow (0.0.3) makoto-dm-tokyo-cabinet-adapter (0.0.2) nofxx-tokyo_store (0.3.0) ntalbott-rufus-tokyo (0.1.14) rubysouth-tokyo_model (0.0.4) rufus-tokyo (1.0.0) scottburton11-tokyomapper (0.1.1) shanna-dm-tokyo-adapter (0.3.2) shanna-dm-tokyo-cabinet-adapter (0.1.6) 3.3 Redis 3.3.1 About This is taken directly from the readme file that is shipped with the redis sourcecode and describes the program in a way the creators see it. I’ve 11 Tokyo Cabinet Homepage: http://1978th.net/tokyocabinet/ 11
  • 12. taken the liberty of highlighting the important things: Redis is a database. To be more specific redis is a very simple database implementing a dictionary where keys are associated with values. For example I can set the key ”surname 1992” to the string ”Smith”. The interesting thing about Redis is that values associated to keys are not limited to simple strings, they can also be lists and sets, with a number of server-side atomic operations associated to this data types. Redis takes the whole dataset in memory, but the dataset is persistent since from time to time Redis writes a dump of the dataset on disk asynchronously. The dump is loaded every time the server is restarted. Redis can be configured to save the dataset after a given number of seconds elapsed and changes to the data set. For example you can tell Redis to save after 1000 changes and at least 60 seconds since the same save. You can specify a number of this combinations. Because data is written asynchronously, If a system crash oc- curs the last few queries can get lost (that is acceptable in many applications). Redis supports master-slave replication from the early days in order to make this a non issue if your application is of the kind where even few lost records are not acceptable. While this might seem to look pretty fine, it has to be taken with cau- tion. Redis makes heavy use of RAM and only flushes out its data to disk asynchronously. This makes it less than ideal for important data as there is a high probability of data-loss in case of a sever crash (power loss / faulty PSU / bluescreen ...). On the other hand, this makes Redis one of the fastest key-value stores in the field and very usable for the common ”not that im- portant” data that one can find in most current web applications, especially in social networks etc. In the rare case of a crash, it will not be that impor- tant to save the last status update somebody posted or a single tagging of a single person in a single picture. It is how ever of vital importance to deliver a pleasant usage speed to the user without database backends slowing down due to unneeded transactional integrity etc. With redis, you can expect over 100.000 operations (insert/read/increment/...) per second on a normal linux box with 50 concurrent clients. There are some misconceptions on the level of sharding support that redis provides. When talking about sharding and redis, nearly all of the work gets done by the client library. Basically, a cryptographic hash over the key is calculated and a server is chosen according to the results of that, it is a client side setup though. 12
  • 13. One of the impressive features is the programming languages support. At the time of writing the official Redis google code page lists the existence of bindings for: • Ruby • Python • PHP • Erlang • Tcl • Perl • Lua • Java (a JDBC and a JCA adapter are available) A quote from the redis page: All the client libraries are shipped in the same tar.gz together with Redis but if you want the latest versions check the main repositories. An exception is for both the Java clients that are not still included in the tar.gz since they reached stability re- cently. 3.3.2 Installation The installation of redis consists only of untaring the source file and using make to build the server / benchmark suite. 3.3.3 Ruby-Interface To use redis from within ruby, there is a gem (the ruby term for ”library”) called redis (no surprises here...) which allows easy ruby-like access to the key-value store. This short example is taken from ”Redis and Ruby”, a blog post on pro- grammersparadox.com12 . It will connect to a redis server running on the default redis port (6379) on localhost and set a key: require "rubygems" require "redis" r = Redis.new r.delete("first_key") #clear it out, if it happens to be set puts "Set the key ’first_key’ to ’hello world’" 12 http://www.programmersparadox.com/2009/06/02/redis-and-ruby/ 13
  • 14. r["first_key"] = "hello world" puts "The value of ’first_key’ is:" puts r["first_key"] One of the nice things is, that redis is able to work with a plaintext protocol using telnet: $ telnet localhost 6379 Trying 127.0.0.1... Connected to localhost. Escape character is ’^ ]’. SET foo 3 bar +OK GET foo $3 bar What all of this means: Command Meaning SET foo 3 set the key ”foo” to the next 3 characters bar these are the 3 bytes followed by a newline character +OK the server tells us that it will insert the data (asynchronously) GET foo get the value for the key ”foo” $3 the value will be the next 3 bytes bar our result Some other interesting server-side atomic operations are pretty much self explanatory. Having these operations allows redis to do concurrent ac- cess without having to deal with a lot of the most common locking problems: SET key value set a key to a string value GET key return the string value of the key GETSET key value set a key to a string returning the old value of the key MGET key1 key2 ... keyN multi-get, return the strings values of the keys SETNX key value set a key to a string value if the key does not exist INCR key increment the integer value of key INCRBY key integer increment the integer value of key by integer DECR key decrement the integer value of key 14
  • 15. DECRBY key integer decrement the integer value of key by integer EXISTS key test if a key exists DEL key delete a key TYPE key return the type of the value stored at key As you can see, it’s pretty much the basic things that people who have already dealt with a associative arrays will be familiar with. The only in- teresting thing is the possibility to increment and decrement a key using an atomic operation. You can see some of the other operations supported by redis over at the projects wiki13 . 3.4 Cassandra 3.4.1 About Cassandra is a hybrid non-relational database comparable to Google’s BigTable (with the difference that is uses a DHT instead of a central server). Cas- sandra was initially created by Facebook and later transferred to the open- source community. It currently is an Apache Incubator project. Facebook uses Cassandra as email search system where, as of last summer, they had 25TB and over 100m mailboxes. Here is a quote describing the software, directly taken from the project’s homepage14 : ”Cassandra is a highly scalable, eventually consistent, distributed, structured key-value store. Cassandra brings together the dis- tributed systems technologies from Dynamo and the data model from Googles BigTable. Like Dynamo, Cassandra is eventually consistent. Like BigTable, Cassandra provides a ColumnFamily- based data model richer than typical key/value systems”. Avinash Lakshman of Facebook summarized it on his first slide of his nosql presentation on Cassandra15 in one sentence: Cassandra is a structured storage system over a P2P network. Cassandra’s design goals are not the same as for most of the other key value stores since it does not primarily focus on simplicity and an simple data model, but according to Mr Lakshman’s presentation rather these: • High availability 13 Redis Wiki - Command Reference: http://code.google.com/p/redis/wiki/ CommandReference 14 http://incubator.apache.org/cassandra/ 15 Avinash Lakshman’s slides: http://www.slideshare.net/Eweaver/ cassandra-presentation-at-nosql or http://static.last.fm/johan/ nosql-20090611/cassandra_nosql.pdf and video: http://vimeo.com/5185526 15
  • 16. • Eventual consistency (trade-off strong consistency in favour of high availability) • Incremental scalability • Optimistic Replication (Knobs to tune trade-offs between consistency,durability and latency) • Low total cost of ownership • Minimal administration While a lot of interesting technology plays part in the realization of these goals, explaining things like the gossip protocol (used for cluster member- ship) or the read/write properties would be enough for a paper on its own. If you’re interested in these, I recommend you to look at the previously mentioned talk by Avinash Lakshman and the accompanying slides. As you can see, Cassandra is pretty different when you compare it to the other contestants in this paper. The first thing that differs from the other applications is, that it is implemented in Java. Another huge difference is the fact, that it was designed to be distributed using an ”eventually con- sistent” approach as its data model, something that is also used by Ama- zon’s cloud infrastructure. The details about this can be looked up on the weblog of Werner Vogel. He is Amazon’s CTO and runs the weblog http://www.allthingsdistributed.com where he discusses the topic in his articles ”Eventually Consistent”16 and ”Eventually Consistent - Revis- ited”17 . It can be summarized as a way of building large distributed systems that approaches trade-offs between consistency and availability. It also leads to the situation that for Cassandra, speed is not only about the amount of inserts per second, but also about the way more capacity can be added to the system and the connected performance-costs. The motivation behind Cassandra were basically two problems (taken from Jonathan Ellis’s OSCON 09 talk18 ): • Scaling reads to a relational database is hard • Scaling writes to a relational database is virtually impossible Since I did not go into detail about more of the inner workings of Cassandra, I think looking back at Evan Weavers blog post ”Up and running with 16 Werner Vogel - Eventually Consistent: http://www.allthingsdistributed.com/ 2007/12/eventually_consistent.html 17 Werner Vogel - Eventually Consistent Revisited: http://www. allthingsdistributed.com/2008/12/eventually_consistent.html 18 Jonathan Ellis’s OSCON 09 talk: http://www.slideshare.net/jbellis/ cassandra-open-source-bigtable-dynamo 16
  • 17. Cassandra”19 , I should at least mention the things he titled ”features that help put Cassandra above the competition” and relate in one way or another to these two central problems (directly quoted from his Evan Weavers blog post): Flexible schema with Cassandra, like a document store, you do not have to decide what fields you need in your records ahead of time. You can add and remove arbitrary fields on the fly. This is an incredible productivity boost, especially in large deployments. True scalability Cassandra scales horizontally in the purest sense. To add more capacity to a cluster, turn on another machine. You do not have restart any processes, change your application queries, or manually relocate any data. Multi-data center awareness you can adjust your node lay- out to ensure that if one data center burns in a fire, an al Range queries unlike most key/value stores, you can query for ordered ranges of keys. List data structures super columns add a 5th dimension to the hybrid model, turning columns into lists. This is very handy for things like per-user indexes. Distributed writes you can read and write any data to any- where in the cluster at any time. There is never any single point of failure. 3.4.2 Data model Since Cassandra is more than just ”another Key-Value store”, it is neces- sary to explain the data-structures that Cassandra uses to represent data. Cassandra uses those building blocks to form something like a 4 (or 5) di- mensional hash (aka: associative array). It basically means that values can be a collection of other key+value pairs: • a keyspace • a column family • a key • an (optional) super column • a column 19 Evan Weaver - Up and running with Cassandra: http://blog.evanweaver.com/ articles/2009/07/06/up-and-running-with-cassandra/ 17
  • 18. The Keyspace is the highest hierarchy of data, and there’s typically one key space per application (defined in the storage-conf.xml file before startup). The Column family is the next layer below the keyspace. Data in Cassan- dra can be stored in columns rather than the usual rows. For the advantages over row-oriented RDBMS, I’d suggest the matching Wikipedia article20 . Column families are addressed by a specific unique Key and allow for often queried columns to be stored together. Each column family is stored as a separate file on disk. This allows for a certain ”data structure design” and has also to be done before the start of the application in the storage-conf.xml file. This means that when you select a column family in cassandra, you will receive a group of key+value pairs just like in a multi dimensional hash The Key is identical to other key-value stores. It is automatically indexed and allows for fast data access. It is defined on the fly and does not have to be pre-set in a configuration file. You can also query over a ranges of keys in a column family. The Super columns are basically only groupings of regular columns. They allow you to organize related, sorted column data under a specific unique name. As with keyspaces and column families, they have to be set up in the storage-conf.xml file before start of the application The column is basically where Cassandra stores the raw data This is the point where I’d like to quote Kirk Heines from the Engine Yard team. In his post on the Engine Yard blog titled ”Cassandra and Ruby: A love affair?”21 he uses a pretty nice description of the Cassandra data model: As you can see, using Cassandra is more complicated than us- ing a simple key-value store, even one like Tokyo Cabinet which builds a table model on a row based key-value system. However, just like the first time you tried to learn recursion, once your perspective shifts so that you can grok it, Cassandras structure naturally lends itself to a whole class of otherwise tricky, high labour queries. 3.4.3 Installation / Ruby-Interface Seeing as we want to check the integration within the ruby programming lan- guage, we can simply install the Cassandra server as part of the Cassandra ruby-gem: gem install cassandra That way, we will install the server itself (requires a Java Runtime Environ- ment) and the matching ruby gem. 20 http://en.wikipedia.org/wiki/Column-oriented_DBMS 21 http://www.engineyard.com/blog/2009/cassandra-and-ruby-a-love-affair/ 18
  • 19. After the installation process, you should be able to use Cassandra by simply requiring the matching gem in ruby: require ’rubygems’ require ’cassandra’ The gem utilizes the main way that is usually used to interact with Cassandra: its Thrift interface. A short quote from the Cassandra wiki22 : In short Thrift allows you easily setup service clients and servers in various programming languages. It generates code from a Thrift file describing the service. Seeing as Cassandra is very complex compared to the other key value stores and posting pieces of sourcecode would probably not do any good, I’d like to give some more links to excellent blog posts explaining the concept a bit further: • Even Weavers post about Cassandra: http://blog.evanweaver.com/ articles/2009/07/06/up-and-running-with-cassandra/ • The Engine Yard blog entry by Kirk Heines: http://www.engineyard. com/blog/2009/cassandra-and-ruby-a-love-affair/ • A video directly from the Facbook Engineering Team: http://www. new.facebook.com/video/video.php?v=540974400803 • The Cassandra Wiki: http://wiki.apache.org/cassandra/ 22 Cassandra wiki - thrift: http://wiki.apache.org/cassandra/ThriftInterface 19
  • 20. 4 Conclusions The nosql community basically wants to point out that persistence does not necessarily mean SQL. I personally think that key-value stores are a really good approach of bringing this argument across. As usual in computer science, there are no ”silver bullets” when it comes to solving a problem and most solutions will end with a trade-off. With key-value stores, you’ll end up losing the ability to run SQL-like ad- hoc queries. You will however be able to eliminate the pain of having to create complex SQL statements. While object-relational mappers such as Java’s Hibernate or Ruby’s Active Record do a pretty decent job of hiding SQL from the developer, you’ll still have to deal with the SQL database logic in some form or another (e.g. setting up those tables, thinking about the database layout and modelling your application after it). Having a simple key-value interface to your persistent data is something that any programmer can learn dealing with within a few minutes as most programming languages already offer similar data-structures (usually called hashes or dictionaries). Seeing as the key-value store technologies are pretty young and have to com- pete against, in computer terms ”ancient”, SQL database competitors, I’d say they’re doing a good job in delivering a possibility to create a simply accessible way of storing and retrieving data. Another advantage key-values stores might have compared to SQL databases is their simplicity. The con- cepts behind their storage mechanisms are usually pretty easy to under- stand and do not require complex SQL optimization techniques that are pretty close to the technology used in building compilers for programming languages. While there certainly are probably as many arguments speaking for key- value stores as there are against them, the introduction of some new con- cepts that seek to solve the problems SQL is facing is considered to be a good thing. Concerning the contestants, it is hard to compare them as they cater to a different audience. I myself will probably take a close look at Redis when it comes to easy interaction with ruby and ease of use for my own pri- vate projects. It is difficult to say when the requirements start outgrowing ”simple” software such as Redis and the need for a distributed architecture starts appearing. Seeing as there are so many more alternatives that I sim- ply did not have the time to discuss in this short overview (e.g. MongoDB, Hybertable, HBase, ThruDB, MemcacheDB, Project Voldemort, Scalaris, Dynomite, Ringo, Kai, Groonga, Senna, Lux IO, Tx, repcached, Cagra, kumofs, ROMA, Flare, ...) and there are even Key-Value Store meetings 20
  • 21. being held in Japan 23 , the future for key value stores seems to look pretty promising and is certainly something that software architects ought to keep an eye on. 23 http://blog.plathome.com/2009/02/first-key-value-storage-meeting-held. html 21
