Kamailio on Docker
- 1. Kamailio on Docker StanleyWu (吳建澄) skyeyester@gmail.com Sep. 12, 2015

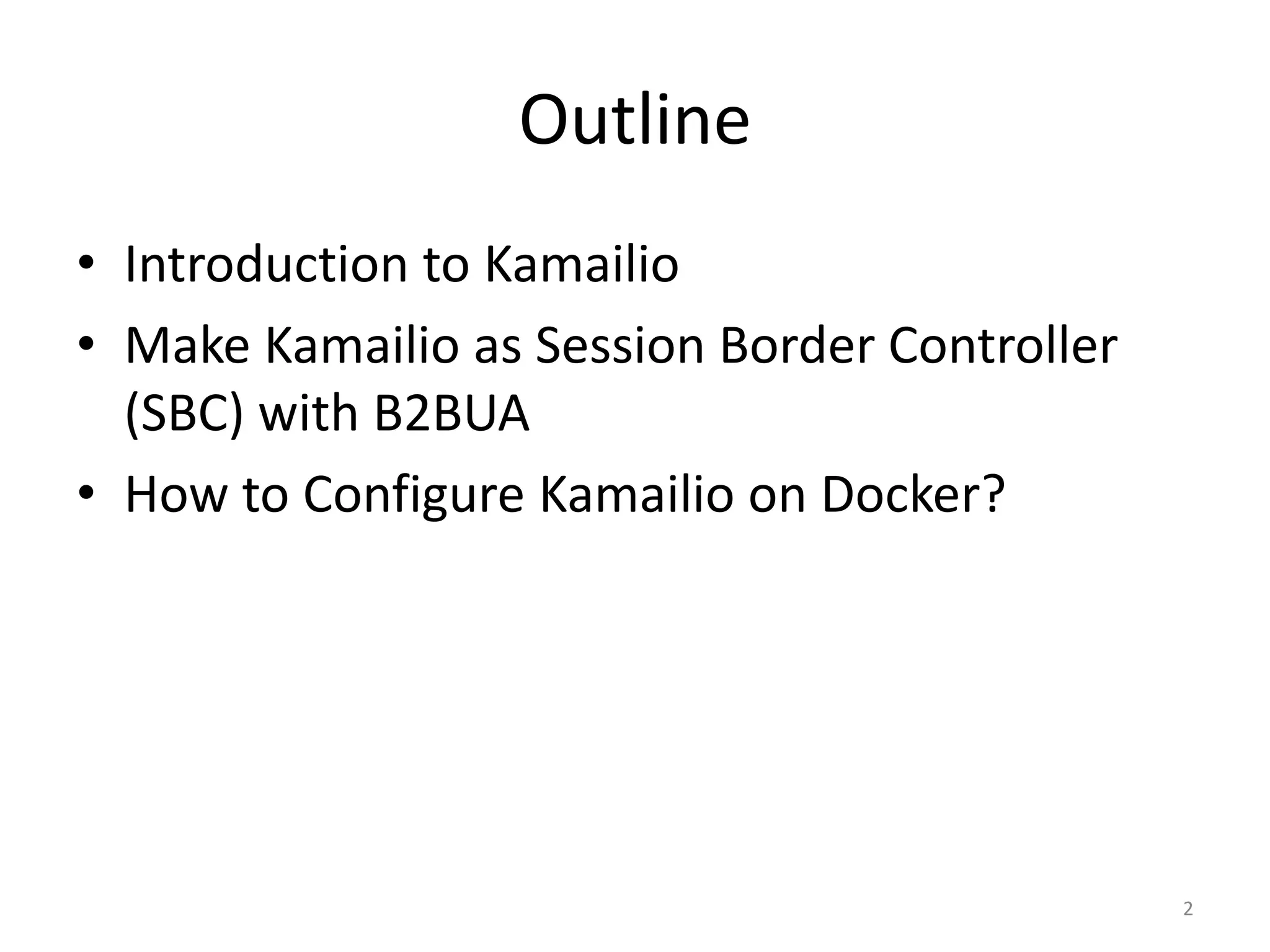

- 2. Outline • Introduction toKamailio • Make Kamailio as Session Border Controller (SBC) with B2BUA • How to Configure Kamailio on Docker? 2

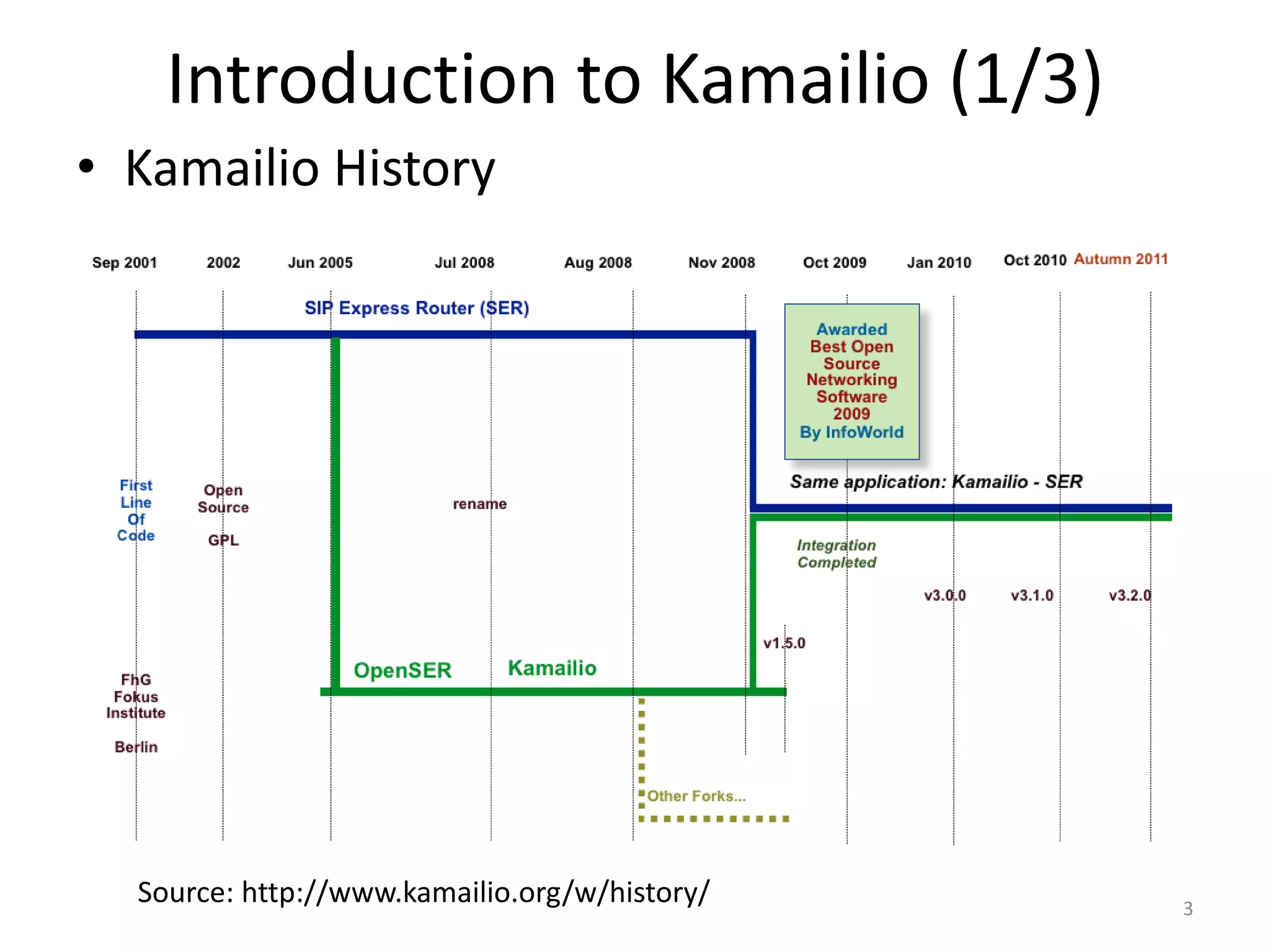

- 3. Introduction to Kamailio(1/3) • Kamailio History 3 Source: http://www.kamailio.org/w/history/

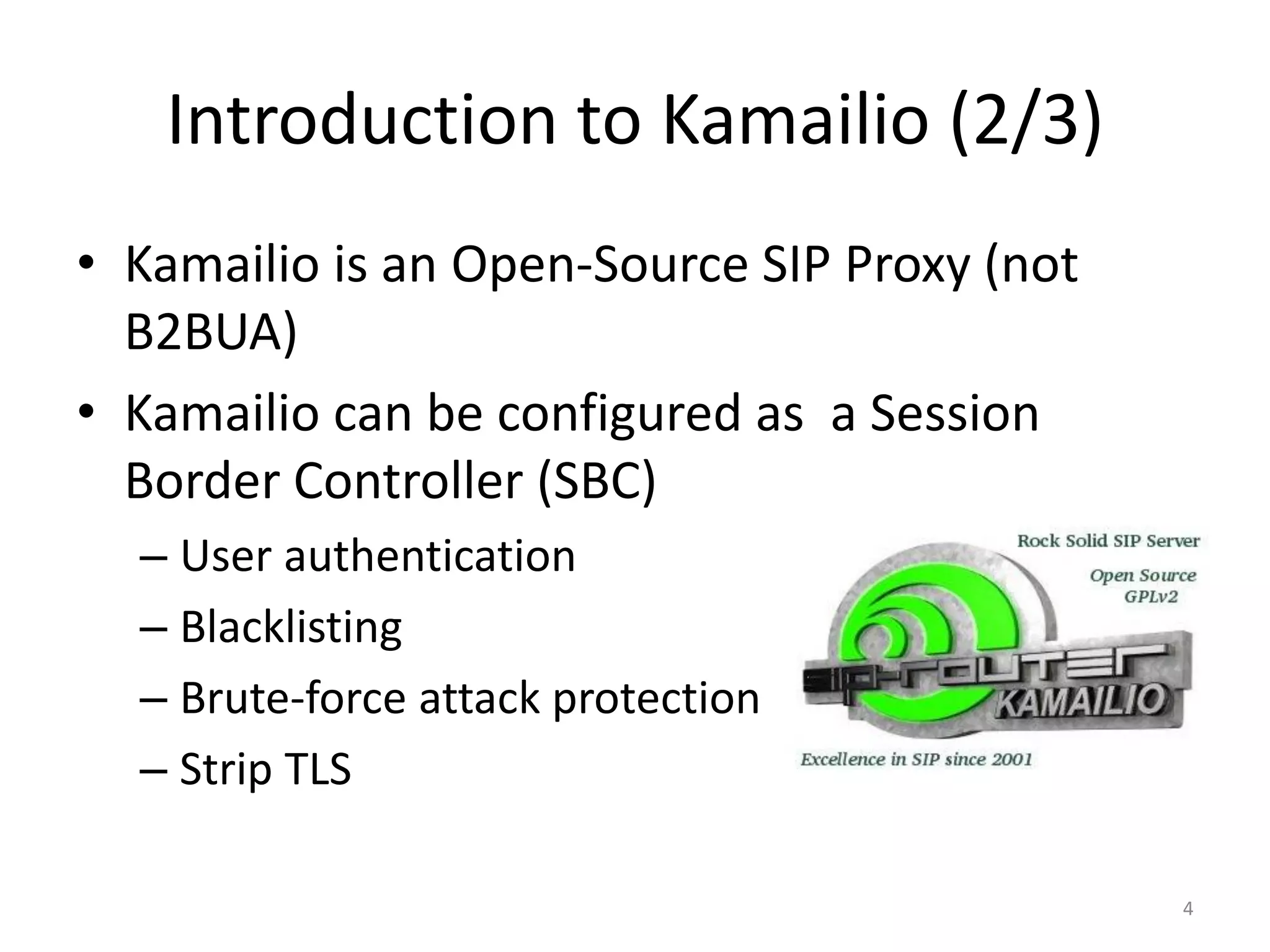

- 4. Introduction to Kamailio(2/3) • Kamailio is an Open-Source SIP Proxy (not B2BUA) • Kamailio can be configured as a Session Border Controller (SBC) – User authentication – Blacklisting – Brute-force attack protection – Strip TLS 4

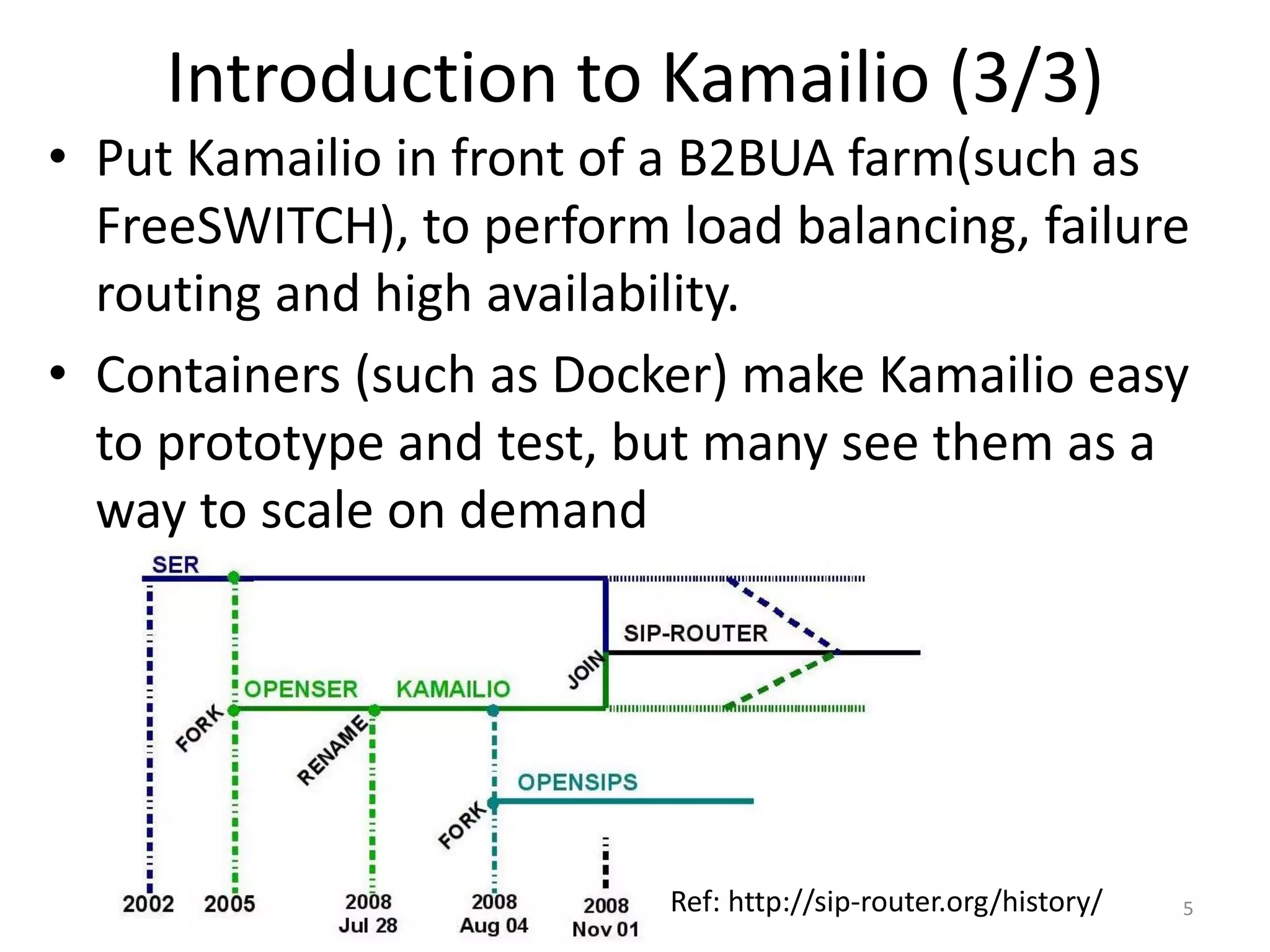

- 5. Introduction to Kamailio(3/3) • Put Kamailio in front of a B2BUA farm(such as FreeSWITCH), to perform load balancing, failure routing and high availability. • Containers (such as Docker) make Kamailio easy to prototype and test, but many see them as a way to scale on demand 5Ref: http://sip-router.org/history/

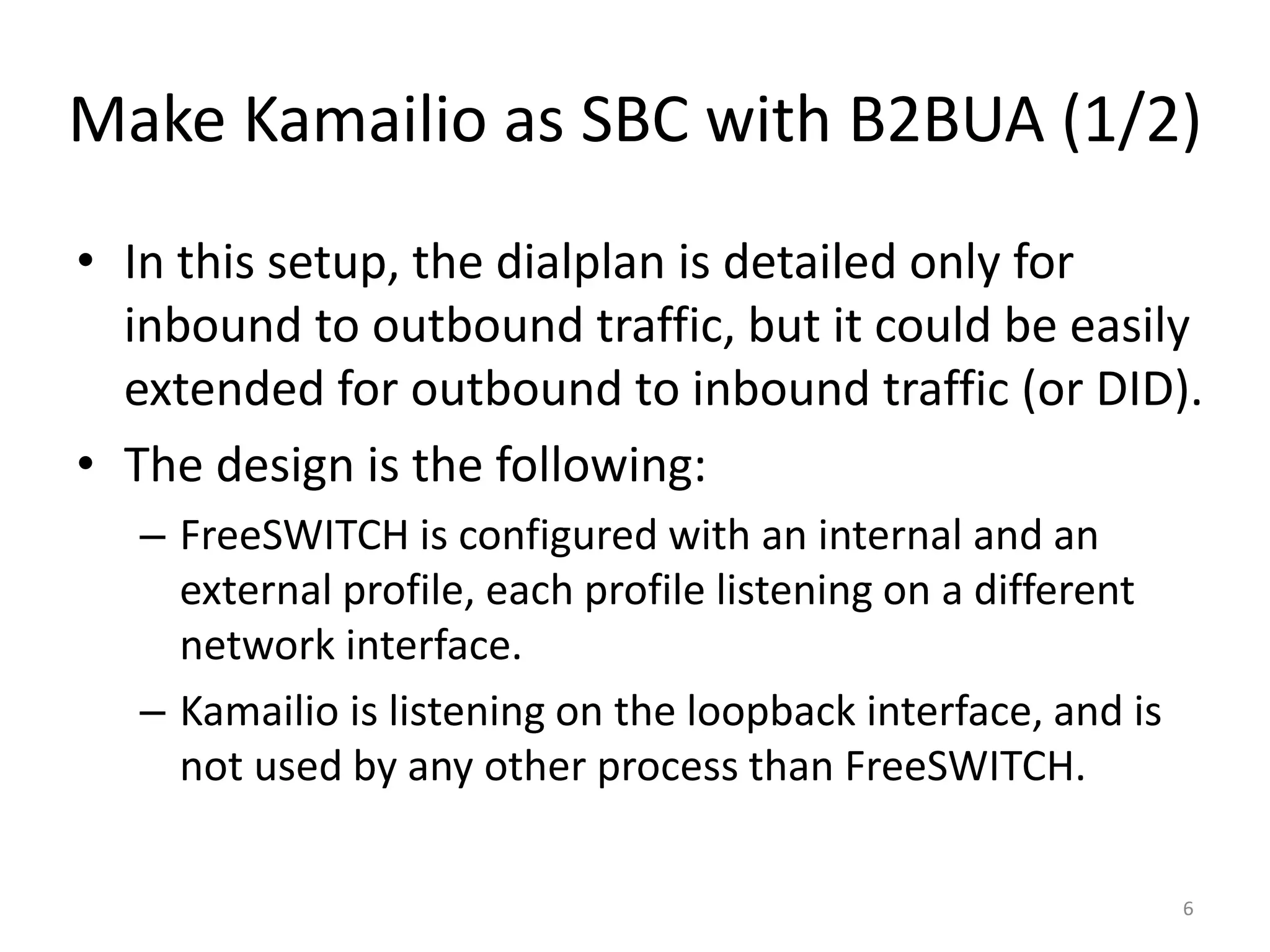

- 6. Make Kamailio asSBC with B2BUA (1/2) • In this setup, the dialplan is detailed only for inbound to outbound traffic, but it could be easily extended for outbound to inbound traffic (or DID). • The design is the following: – FreeSWITCH is configured with an internal and an external profile, each profile listening on a different network interface. – Kamailio is listening on the loopback interface, and is not used by any other process than FreeSWITCH. 6

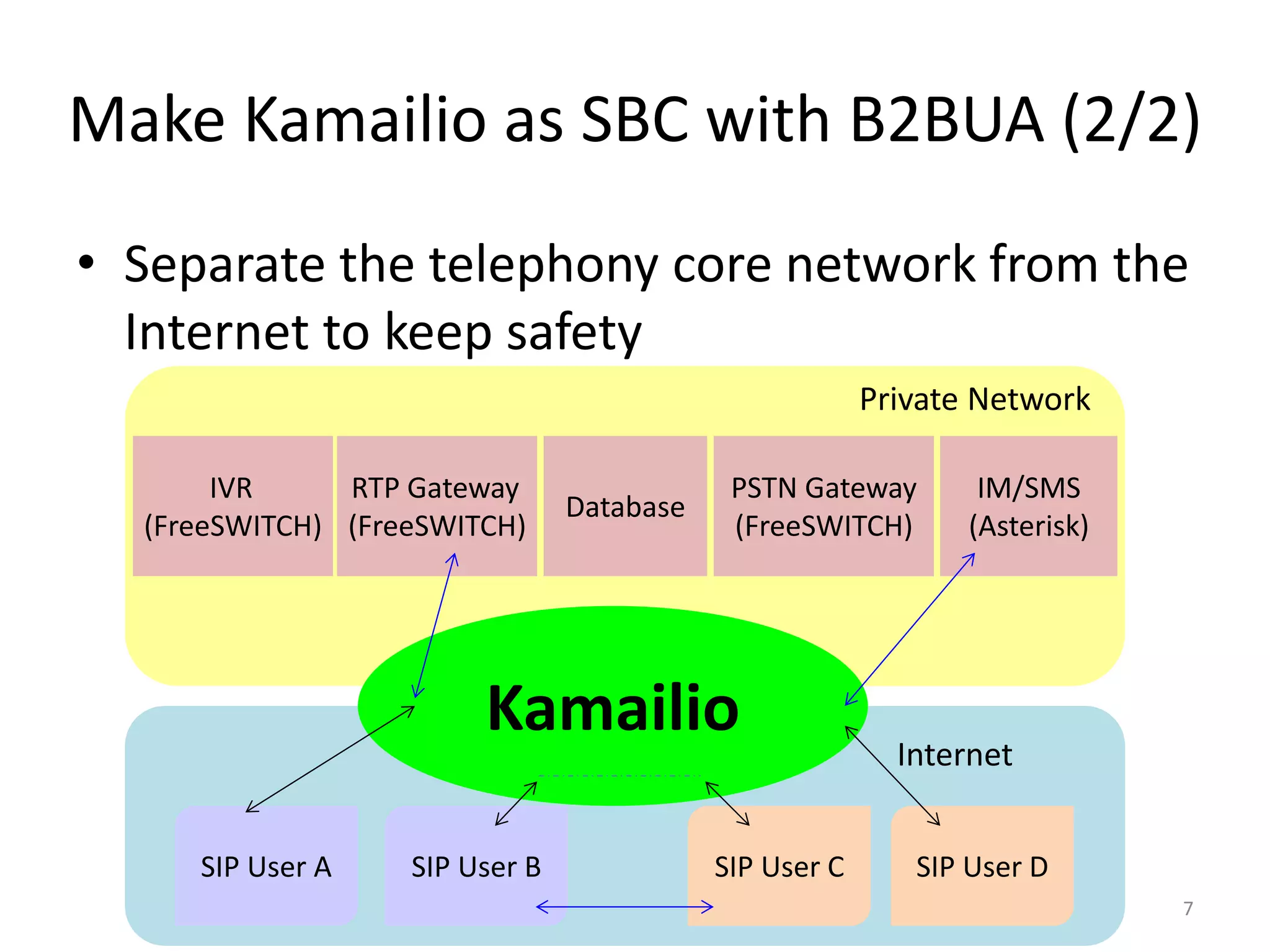

- 7. Make Kamailio asSBC with B2BUA (2/2) • Separate the telephony core network from the Internet to keep safety 7 Private Network Internet Kamailio IVR (FreeSWITCH) RTP Gateway (FreeSWITCH) Database PSTN Gateway (FreeSWITCH) IM/SMS (Asterisk) SIP User A SIP User B SIP User C SIP User D

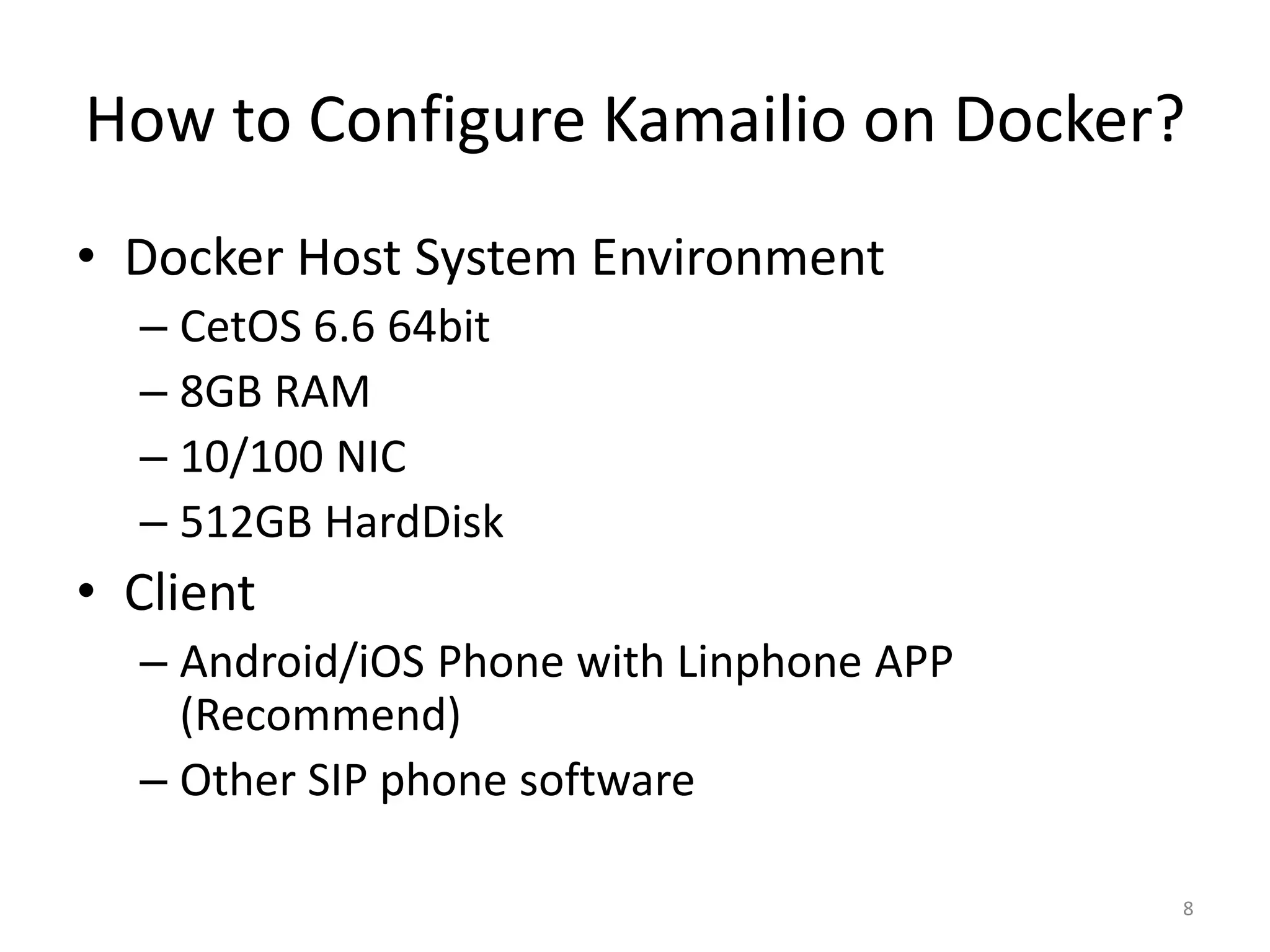

- 8. How to ConfigureKamailio on Docker? • Docker Host System Environment – CetOS 6.6 64bit – 8GB RAM – 10/100 NIC – 512GB HardDisk • Client – Android/iOS Phone with Linphone APP (Recommend) – Other SIP phone software 8

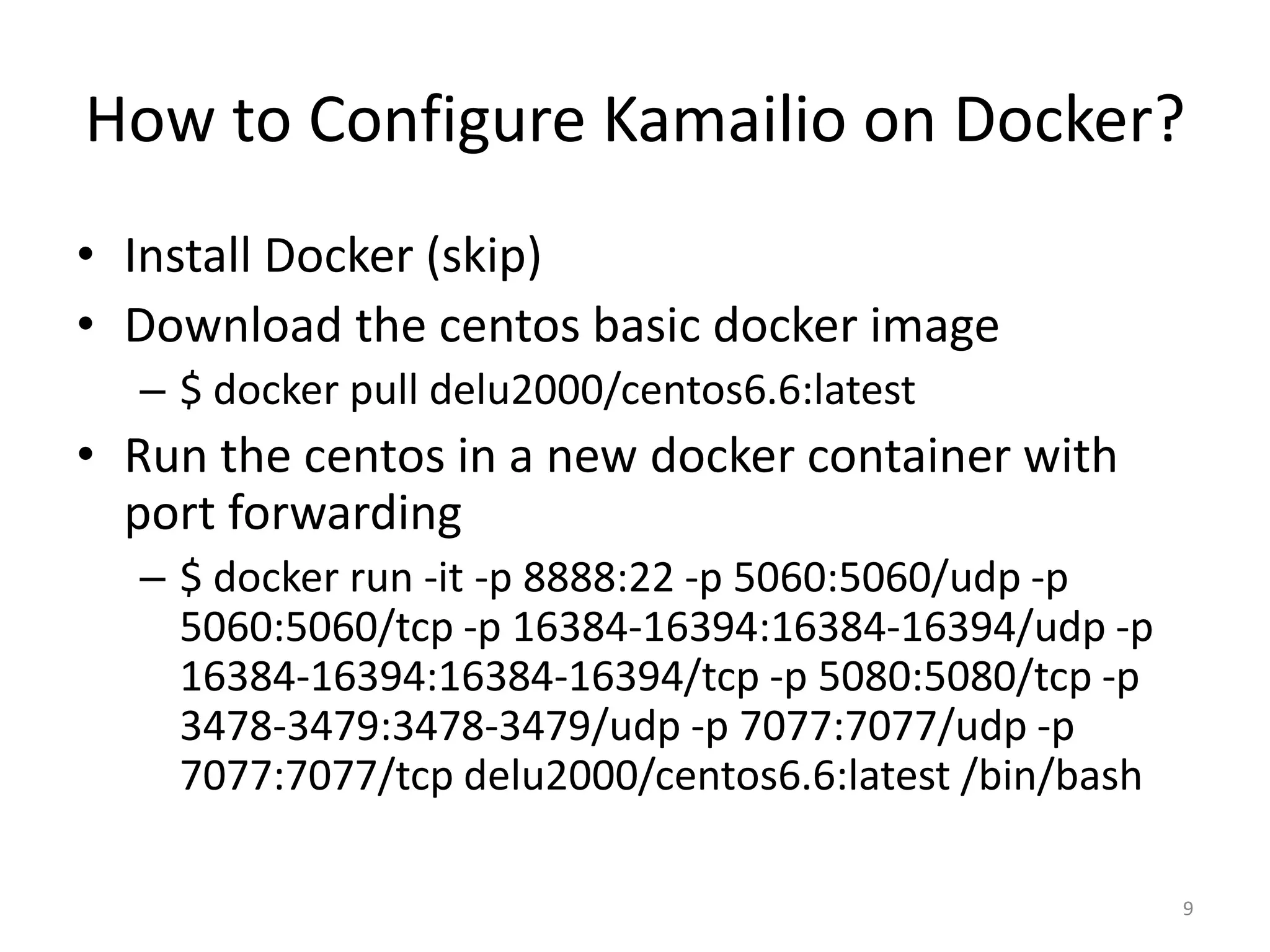

- 9. How to ConfigureKamailio on Docker? • Install Docker (skip) • Download the centos basic docker image – $ docker pull delu2000/centos6.6:latest • Run the centos in a new docker container with port forwarding – $ docker run -it -p 8888:22 -p 5060:5060/udp -p 5060:5060/tcp -p 16384-16394:16384-16394/udp -p 16384-16394:16384-16394/tcp -p 5080:5080/tcp -p 3478-3479:3478-3479/udp -p 7077:7077/udp -p 7077:7077/tcp delu2000/centos6.6:latest /bin/bash 9

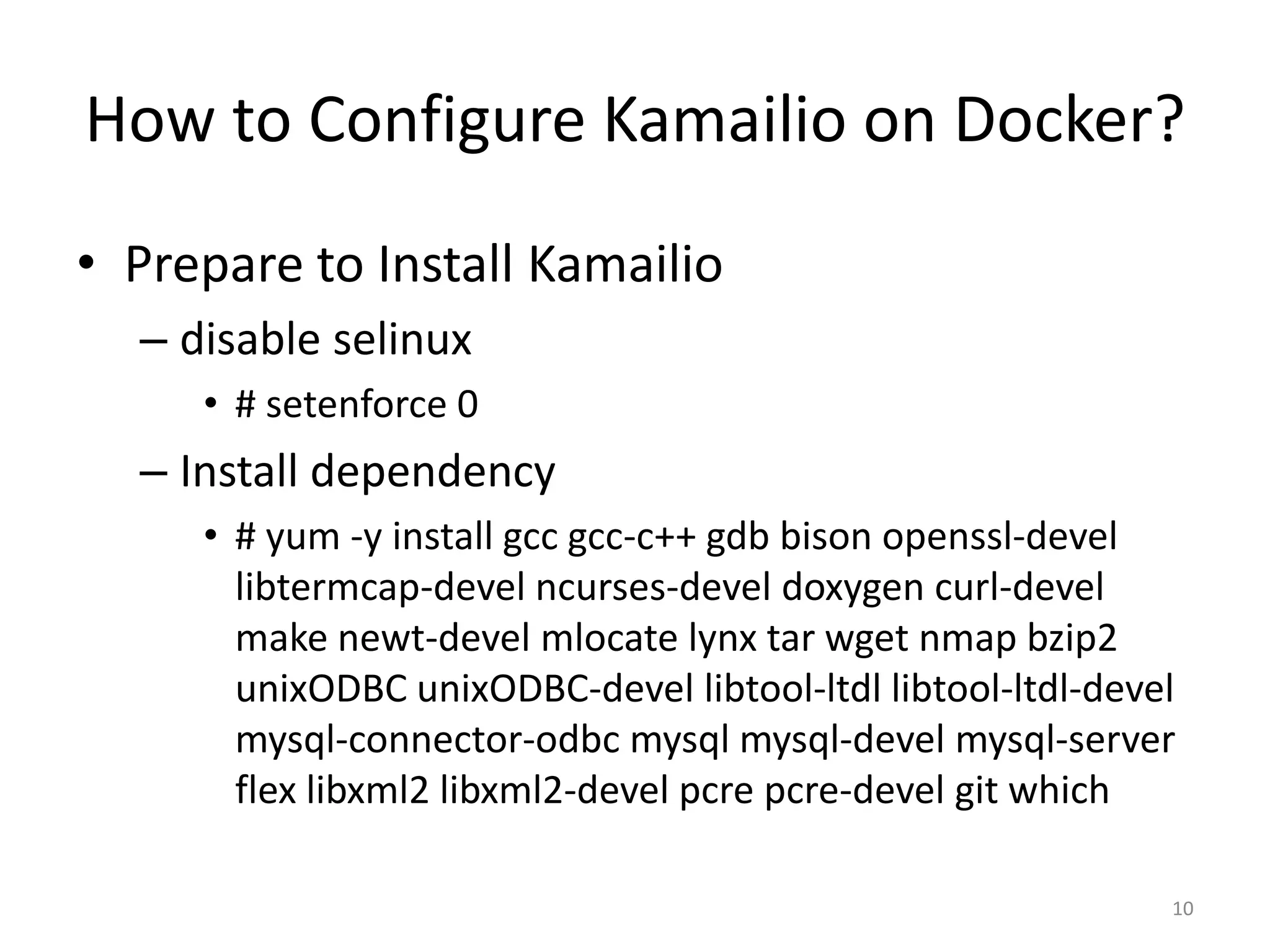

- 10. How to ConfigureKamailio on Docker? • Prepare to Install Kamailio – disable selinux • # setenforce 0 – Install dependency • # yum -y install gcc gcc-c++ gdb bison openssl-devel libtermcap-devel ncurses-devel doxygen curl-devel make newt-devel mlocate lynx tar wget nmap bzip2 unixODBC unixODBC-devel libtool-ltdl libtool-ltdl-devel mysql-connector-odbc mysql mysql-devel mysql-server flex libxml2 libxml2-devel pcre pcre-devel git which 10

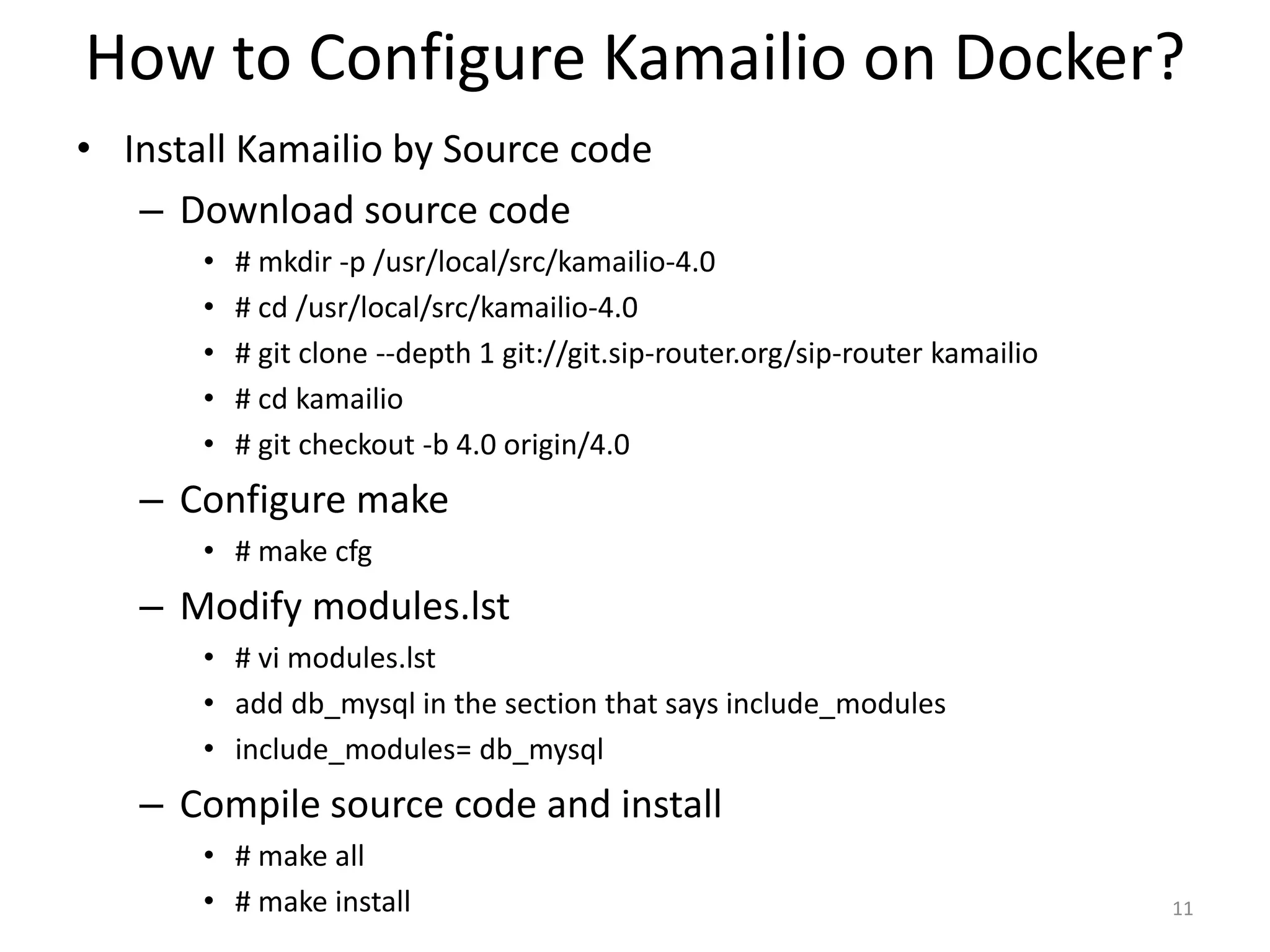

- 11. How to ConfigureKamailio on Docker? • Install Kamailio by Source code – Download source code • # mkdir -p /usr/local/src/kamailio-4.0 • # cd /usr/local/src/kamailio-4.0 • # git clone --depth 1 git://git.sip-router.org/sip-router kamailio • # cd kamailio • # git checkout -b 4.0 origin/4.0 – Configure make • # make cfg – Modify modules.lst • # vi modules.lst • add db_mysql in the section that says include_modules • include_modules= db_mysql – Compile source code and install • # make all • # make install 11

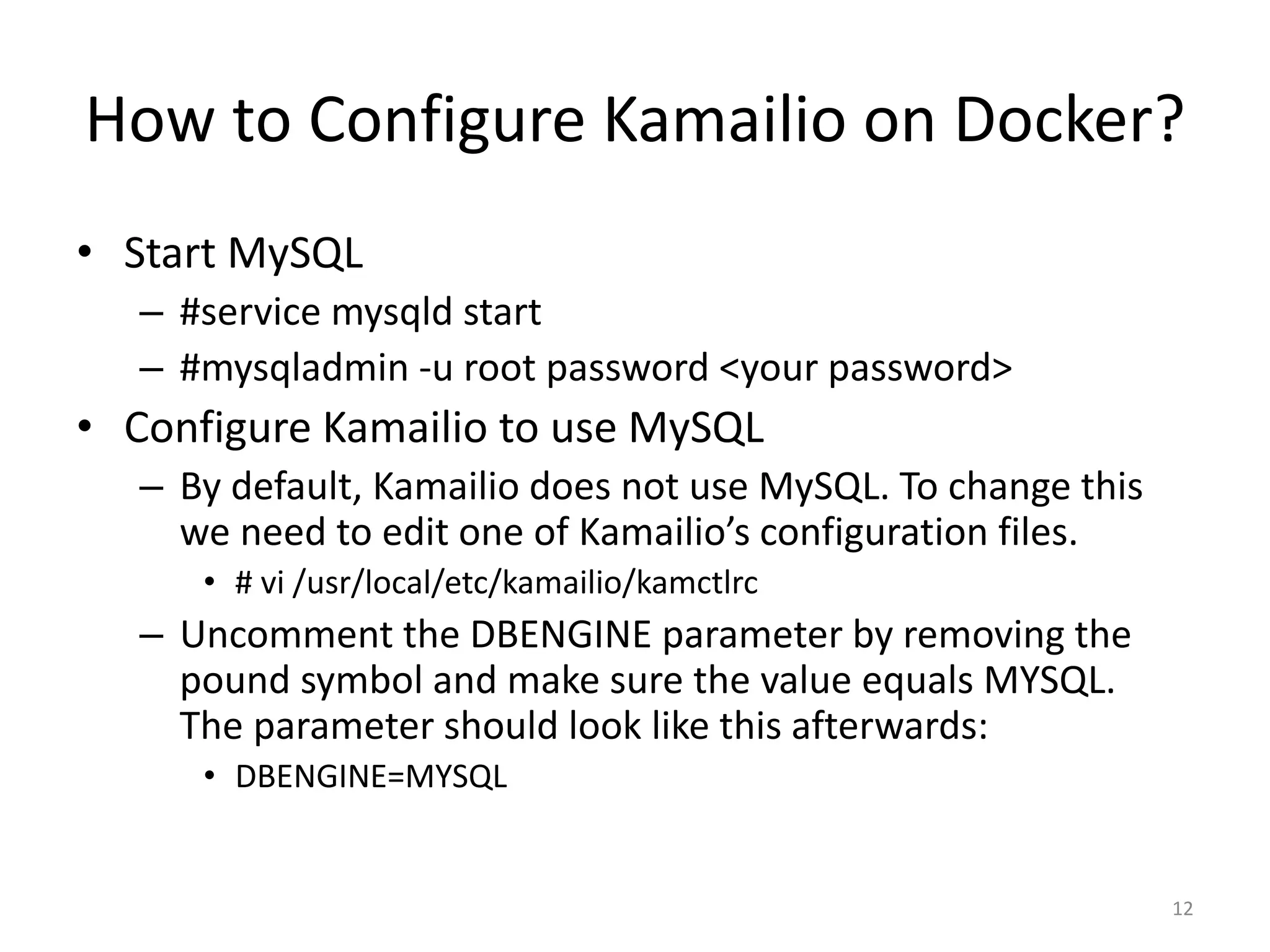

- 12. How to ConfigureKamailio on Docker? • Start MySQL – #service mysqld start – #mysqladmin -u root password <your password> • Configure Kamailio to use MySQL – By default, Kamailio does not use MySQL. To change this we need to edit one of Kamailio’s configuration files. • # vi /usr/local/etc/kamailio/kamctlrc – Uncomment the DBENGINE parameter by removing the pound symbol and make sure the value equals MYSQL. The parameter should look like this afterwards: • DBENGINE=MYSQL 12

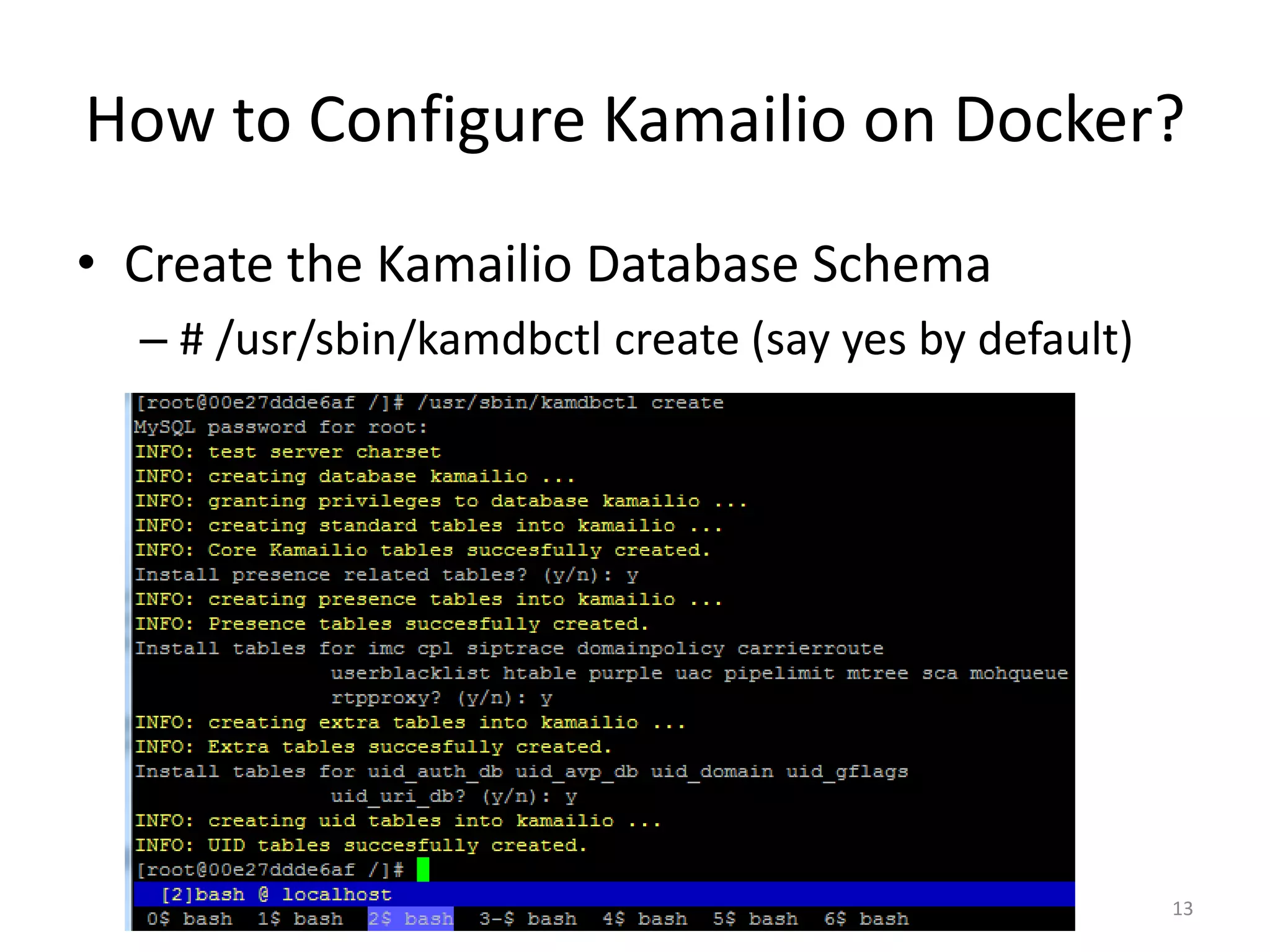

- 13. How to ConfigureKamailio on Docker? • Create the Kamailio Database Schema – # /usr/sbin/kamdbctl create (say yes by default) 13

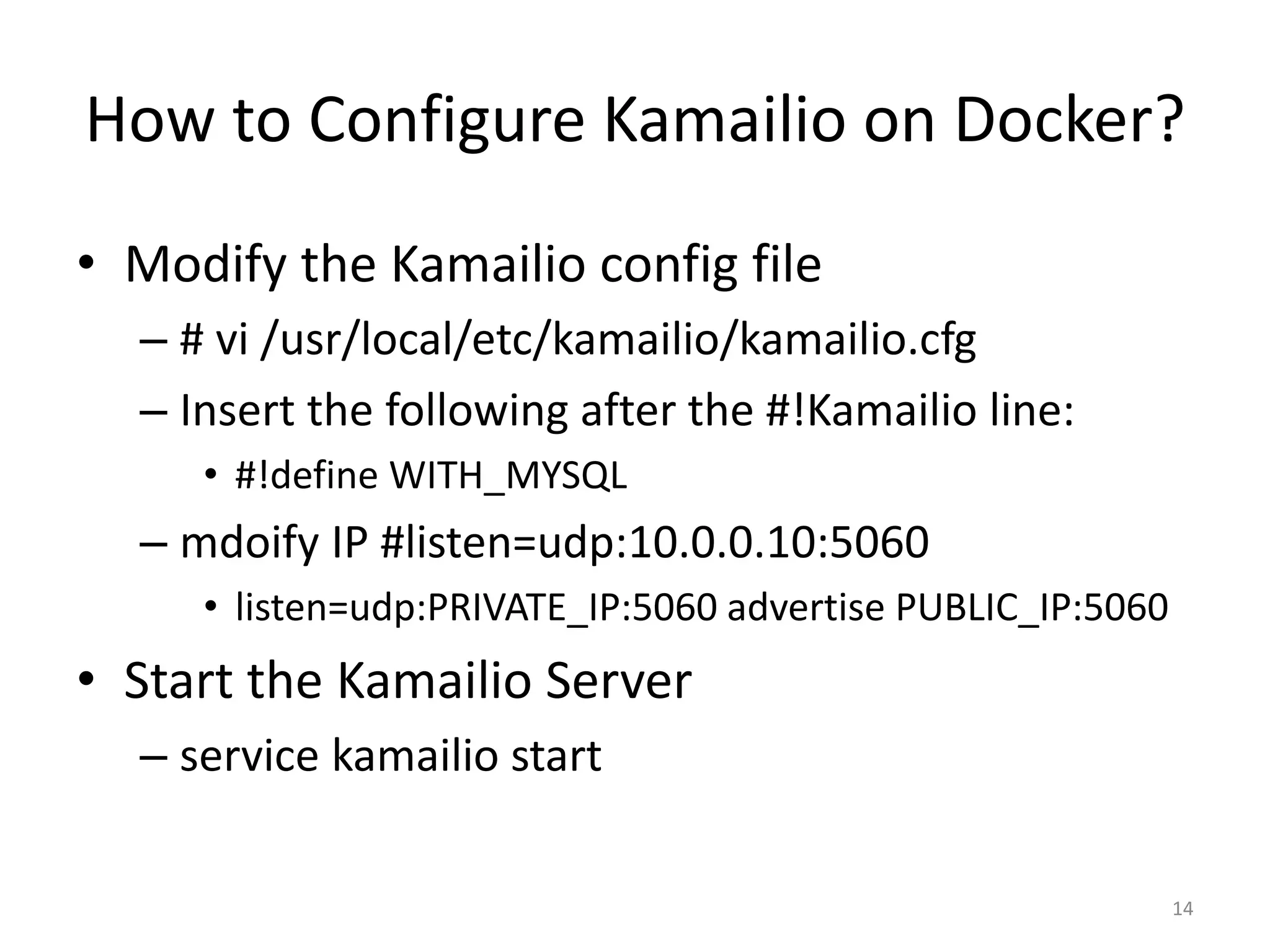

- 14. How to ConfigureKamailio on Docker? • Modify the Kamailio config file – # vi /usr/local/etc/kamailio/kamailio.cfg – Insert the following after the #!Kamailio line: • #!define WITH_MYSQL – mdoify IP #listen=udp:10.0.0.10:5060 • listen=udp:PRIVATE_IP:5060 advertise PUBLIC_IP:5060 • Start the Kamailio Server – service kamailio start 14

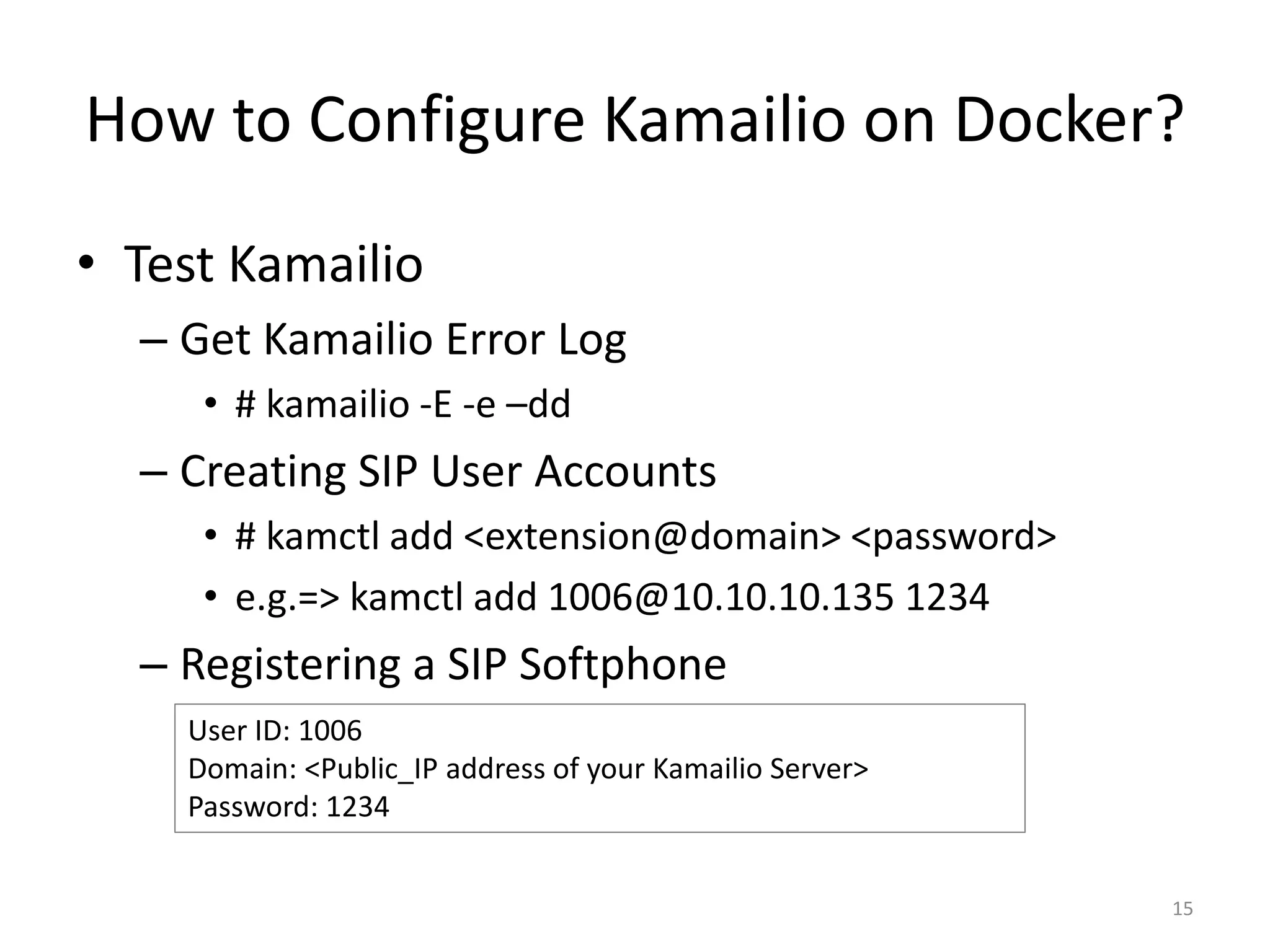

- 15. How to ConfigureKamailio on Docker? • Test Kamailio – Get Kamailio Error Log • # kamailio -E -e –dd – Creating SIP User Accounts • # kamctl add <extension@domain> <password> • e.g.=> kamctl add 1006@10.10.10.135 1234 – Registering a SIP Softphone 15 User ID: 1006 Domain: <Public_IP address of your Kamailio Server> Password: 1234

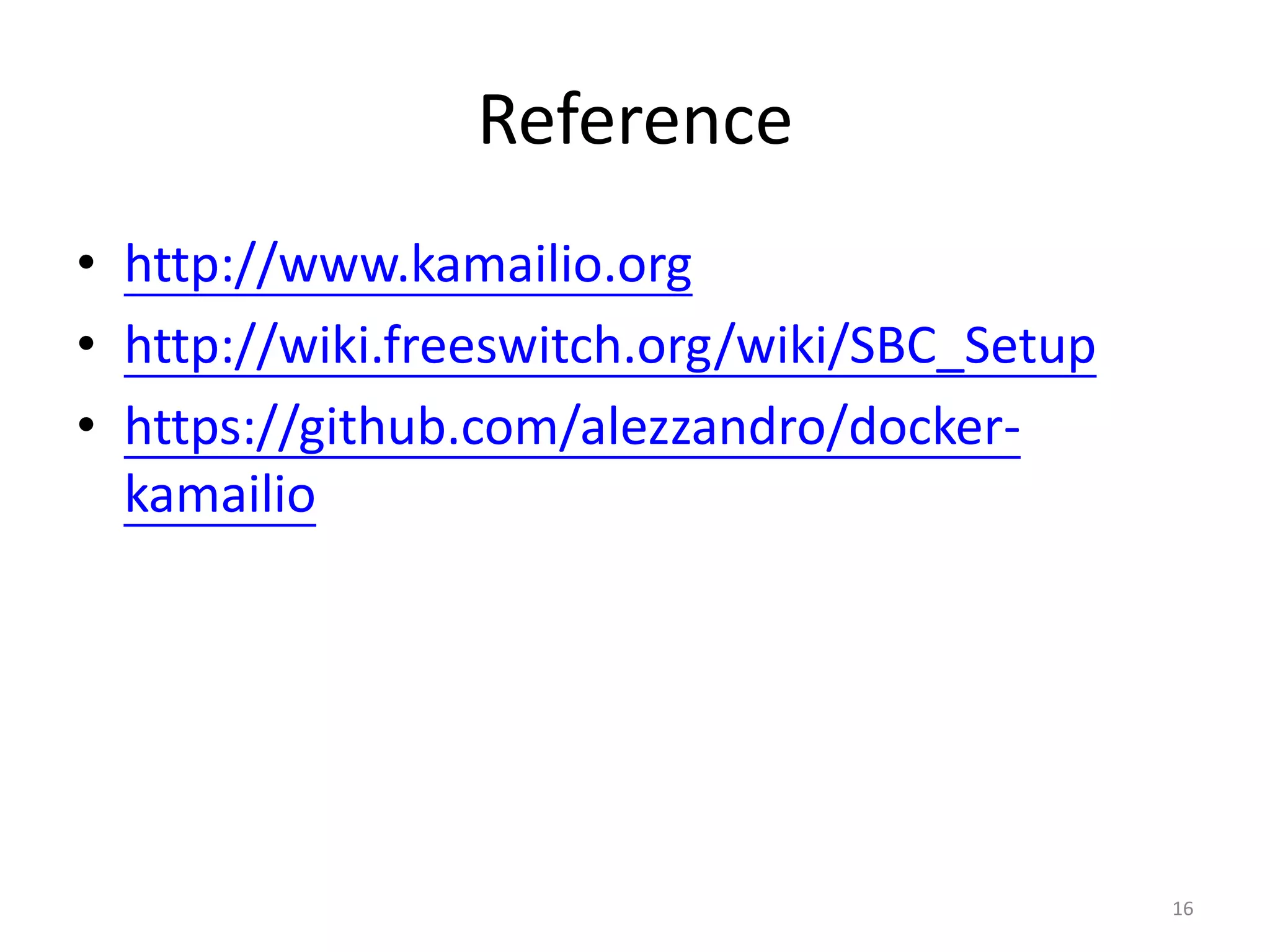

- 16. Reference • http://www.kamailio.org • http://wiki.freeswitch.org/wiki/SBC_Setup •https://github.com/alezzandro/docker- kamailio 16
