2. Agenda
World of Microservices
Kubernetes for Beginners
NodeRed Chatbot w/ K8S

3. World of Microservices
Virtual Machines, Containers, etc.

4. App Development Changes
• Huge Applications
• Hours to Build
• Huge Downtime
• Microservices
• Container Deployment
• Independent Deployments
• Fast Version Releases

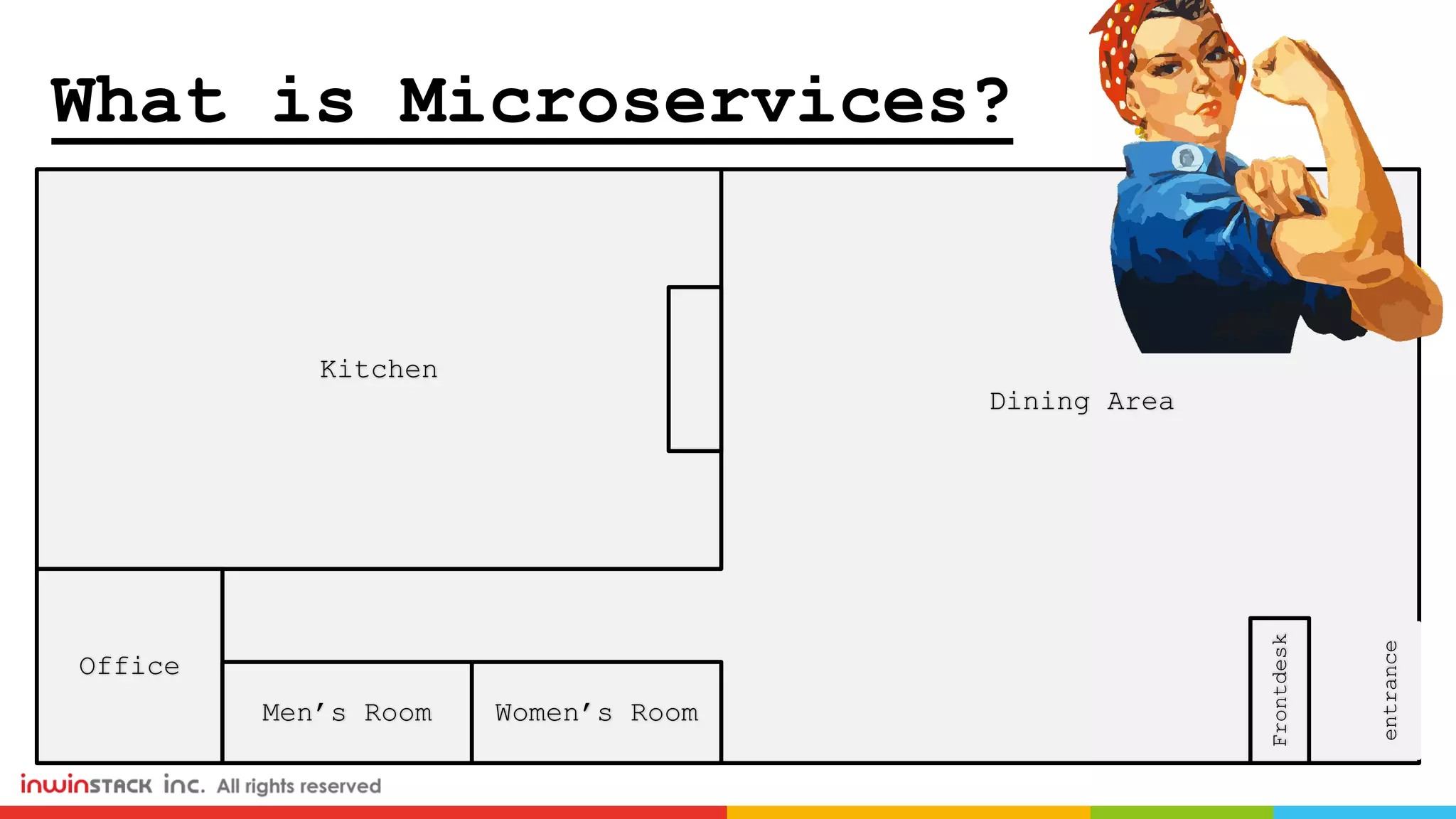

5. What is Microservices?
Kitchen
Office
Men’s Room Women’s Room
Frontdesk
Dining Area
entrance

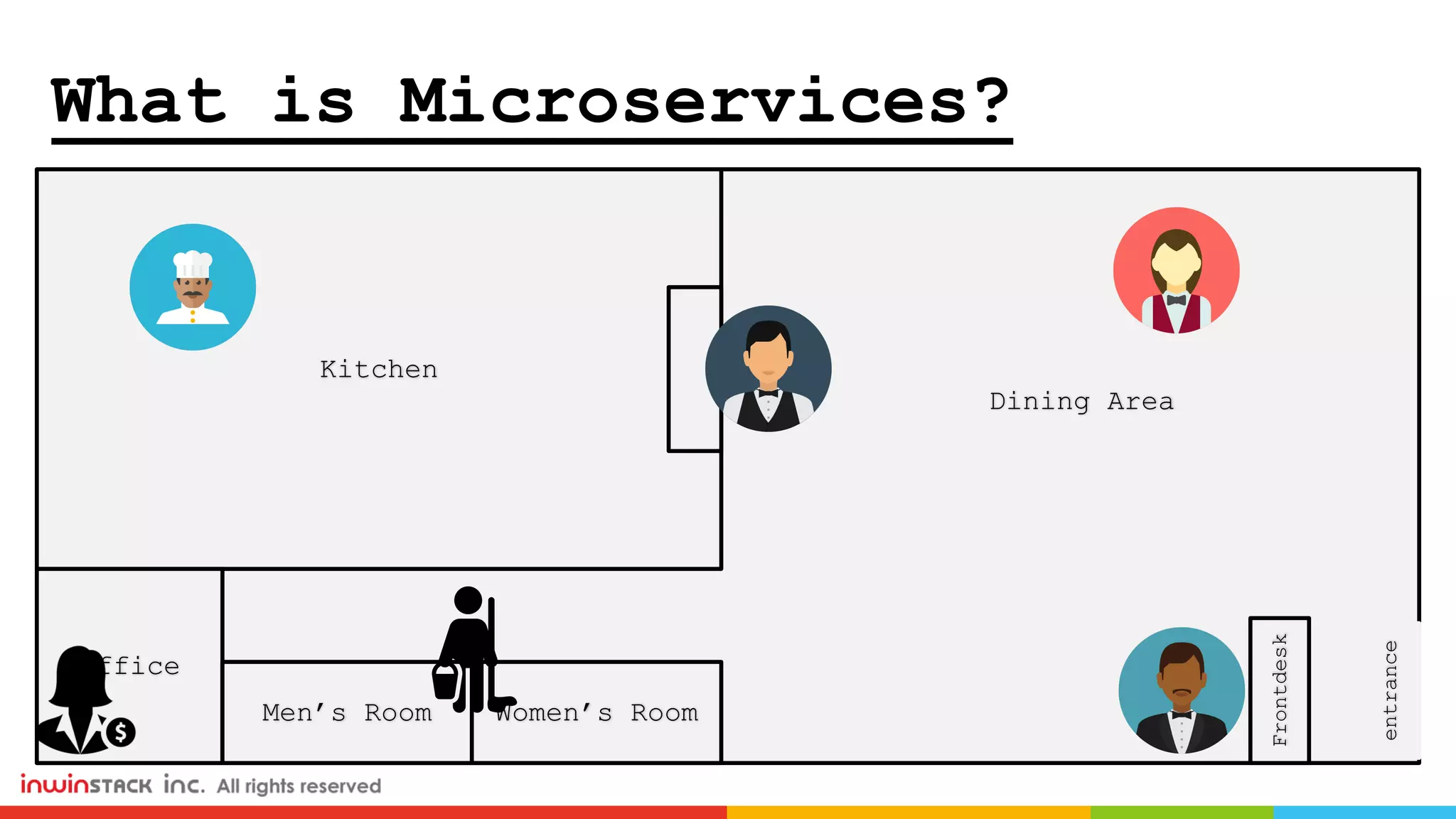

6. What is Microservices?
Kitchen
Office
Men’s Room Women’s Room
Frontdesk
Dining Area
entrance

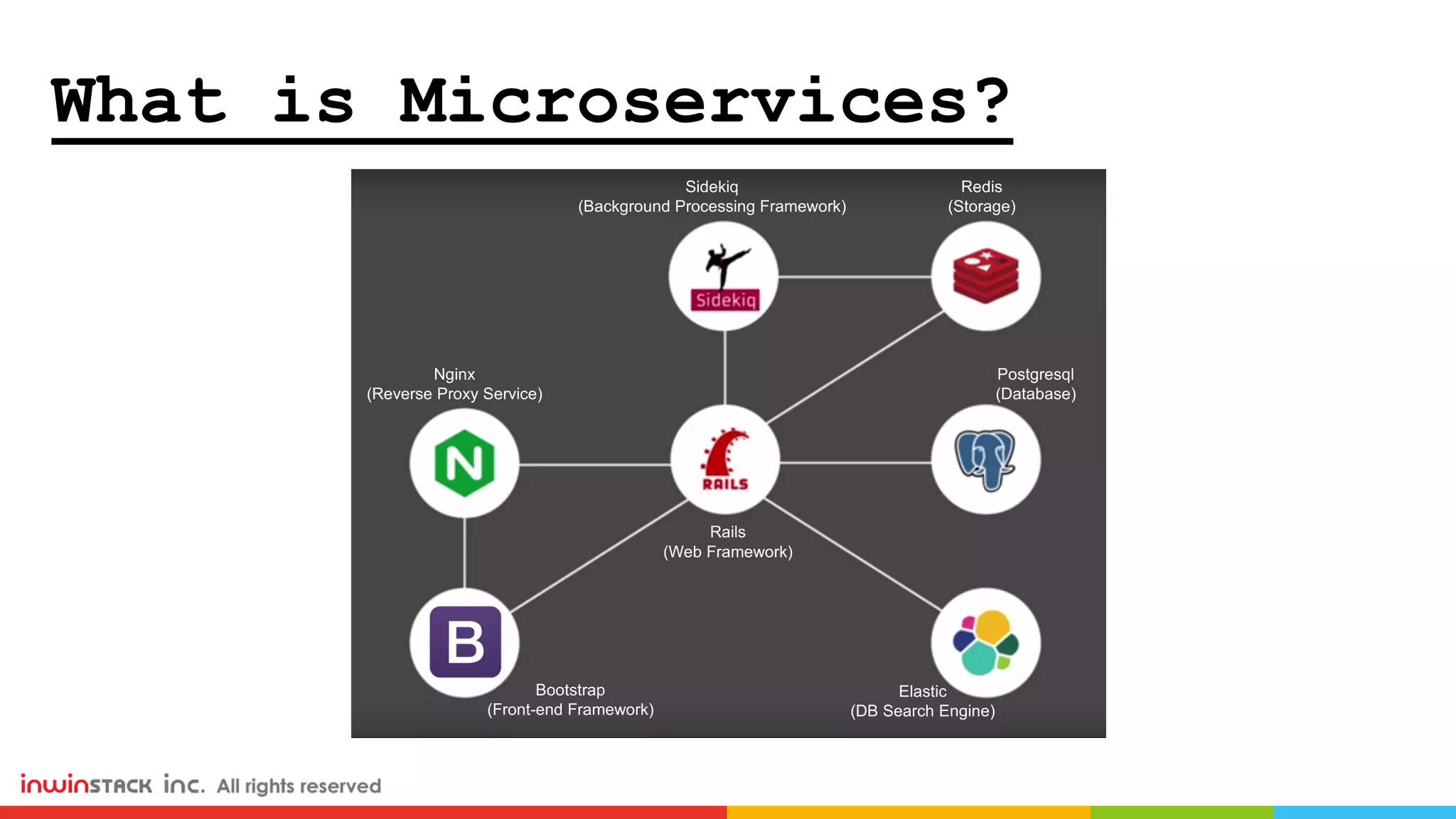

7. Nginx
(Reverse Proxy Service)
Bootstrap
(Front-end Framework)
Rails
(Web Framework)
Sidekiq
(Background Processing Framework)
Redis
(Storage)
Postgresql
(Database)
Elastic
(DB Search Engine)
What is Microservices?

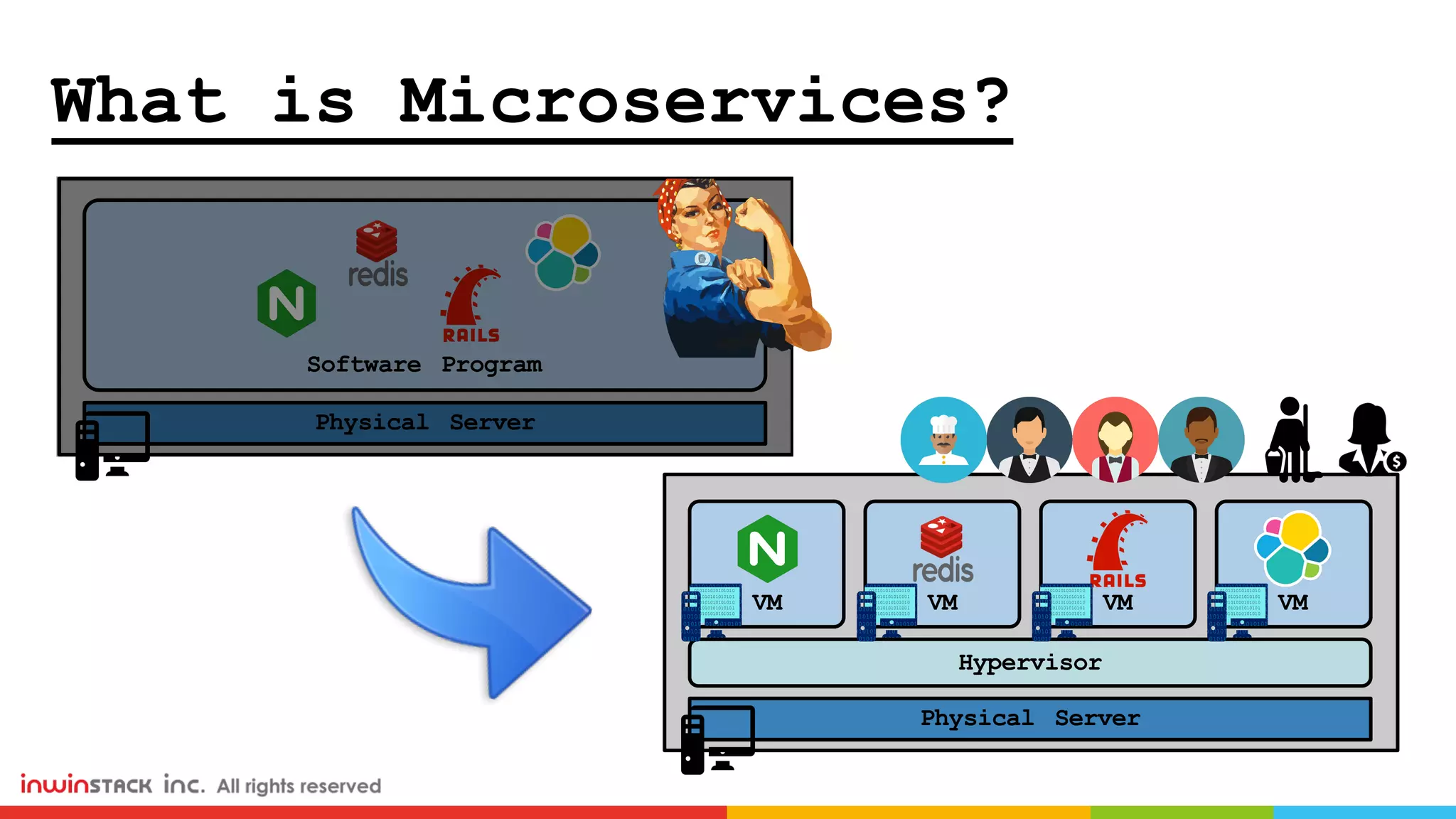

8. What is Microservices?
Physical Server
VM VM VM VM
Hypervisor
Physical Server
Software Program
010101010101010
101010101010101
010101010101010
101010101010101
010101010101010
010101010101010
101010101010101
010101010101010
101010101010101
010101010101010
010101010101010
101010101010101
010101010101010
101010101010101
010101010101010
010101010101010
101010101010101
010101010101010
101010101010101
010101010101010

9. What is Microservices?

10. What is Microservices?
Kitchen
Office
Men’s Room Women’s Room
Frontdesk
Dining Area
entrance

11. What is Microservices?
Physical Server
Software Program
Physical Server
VM VM VM VM
Hypervisor
Physical Server
Container Container Container Container
Container Engine
(Docker)

12. Kitchen
Office
Men’s Room Women’s Room
Frontdesk
Dining Area
entrance
What is Microservices?
Kitchen
Office
Men’s Room Women’s Room
Frontdesk
Dining Area
entrance
Physical Server
Container Container Container Container
Container Engine
(Docker)

13. Kubernetes for Beginners (kinda..)

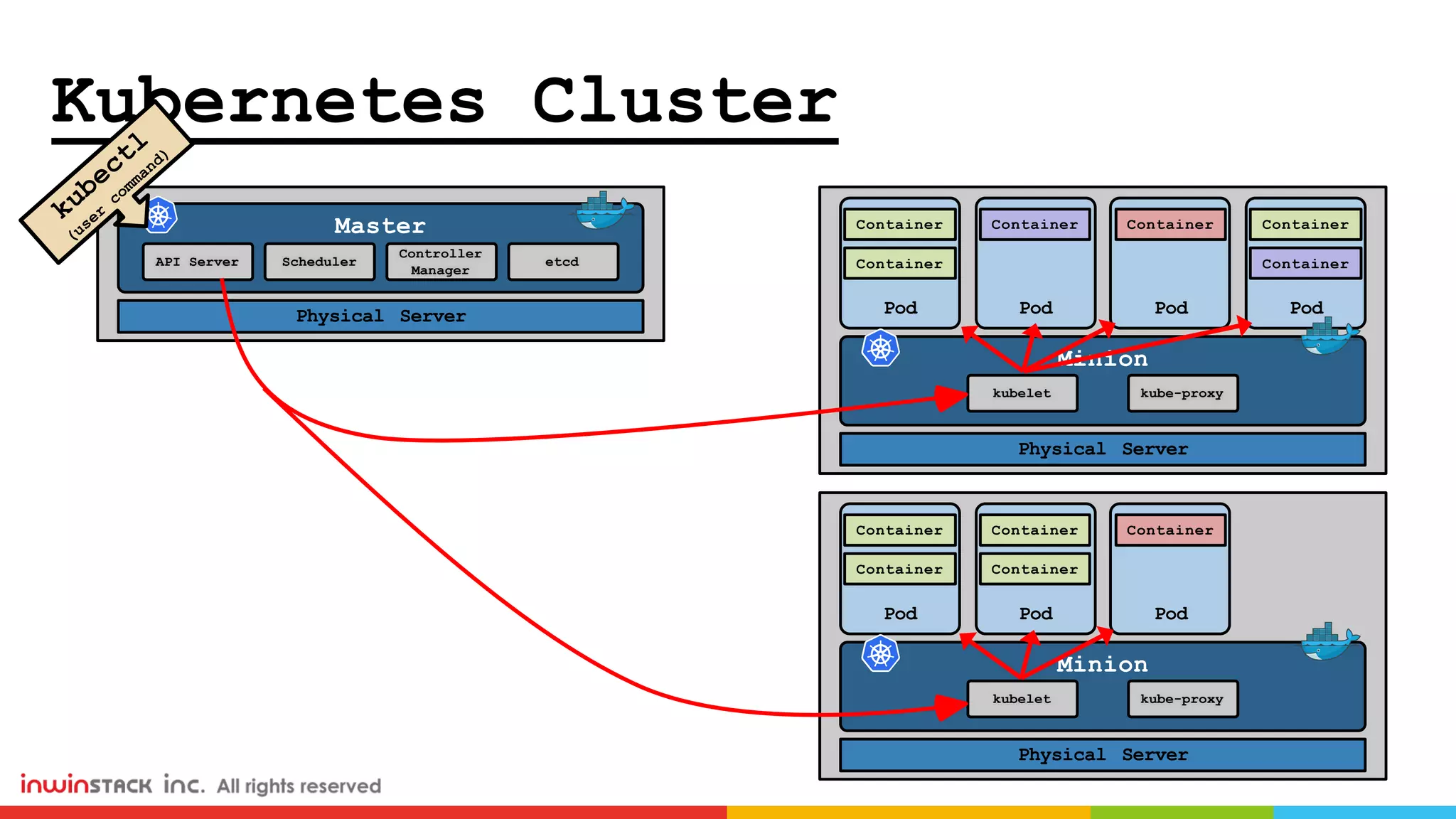

14. Kubernetes Cluster
Physical Server
Minion
kube-proxykubelet
Pod
Container
Container
Pod
Container
Pod
Container
Pod
Container
Container
Physical Server
Minion
kube-proxykubelet
Pod
Container
Container
Pod
Container
Pod
Container
Container
10G
Switch
Network:172.24.0.0/24
Gateway:172.24.0.254
Physical Server
Master
Controller
Manager
etcdSchedulerAPI Server

15. Kubernetes Cluster
Physical Server
Minion
kube-proxykubelet
Pod
Container
Container
Pod
Container
Pod
Container
Pod
Container
Container
Physical Server
Minion
kube-proxykubelet
Pod
Container
Container
Pod
Container
Pod
Container
Container
Physical Server
Master
Controller
Manager
etcdSchedulerAPI Server

16. Concepts & Terms
• Controllers
o Deployment (deploy)
o Stateful Set
o Daemon Set (ds)
o Jobs
https://kubernetes.io/docs/concepts/

17. Concepts & Terms
• Deployment (deploy)
o Stateless
o Availability > Consistency
o Web Frontends
o Rolling Update

18. Concepts & Terms
• Deployment (deploy)
o Stateless
o Availability > Consistency
o Web Frontends

19. Concepts & Terms
• Stateful Set
o Persistent data
o Availability < Consistency
o Each has its own identity
o Databases, Message queues

20. Concepts & Terms
• Daemon Set
o Background process
o One pod per node
o Node labels
o Cluster storage, logs, node monitoring

21. Concepts & Terms
• Jobs
o Batch Pattern
o Run in parallel
o Run to completion (then exit)
o Independent but related processes

22. NodeRed Chatbot w/ K8S
Running FB RedBot containers as a Deployment

23. Why Chatbots?
• Make the Most of Emerging Trends
• Access Information Faster
• Consistent & Controllable Conversation
• Integrate Social Media and Sales
• Informal Brand Chats

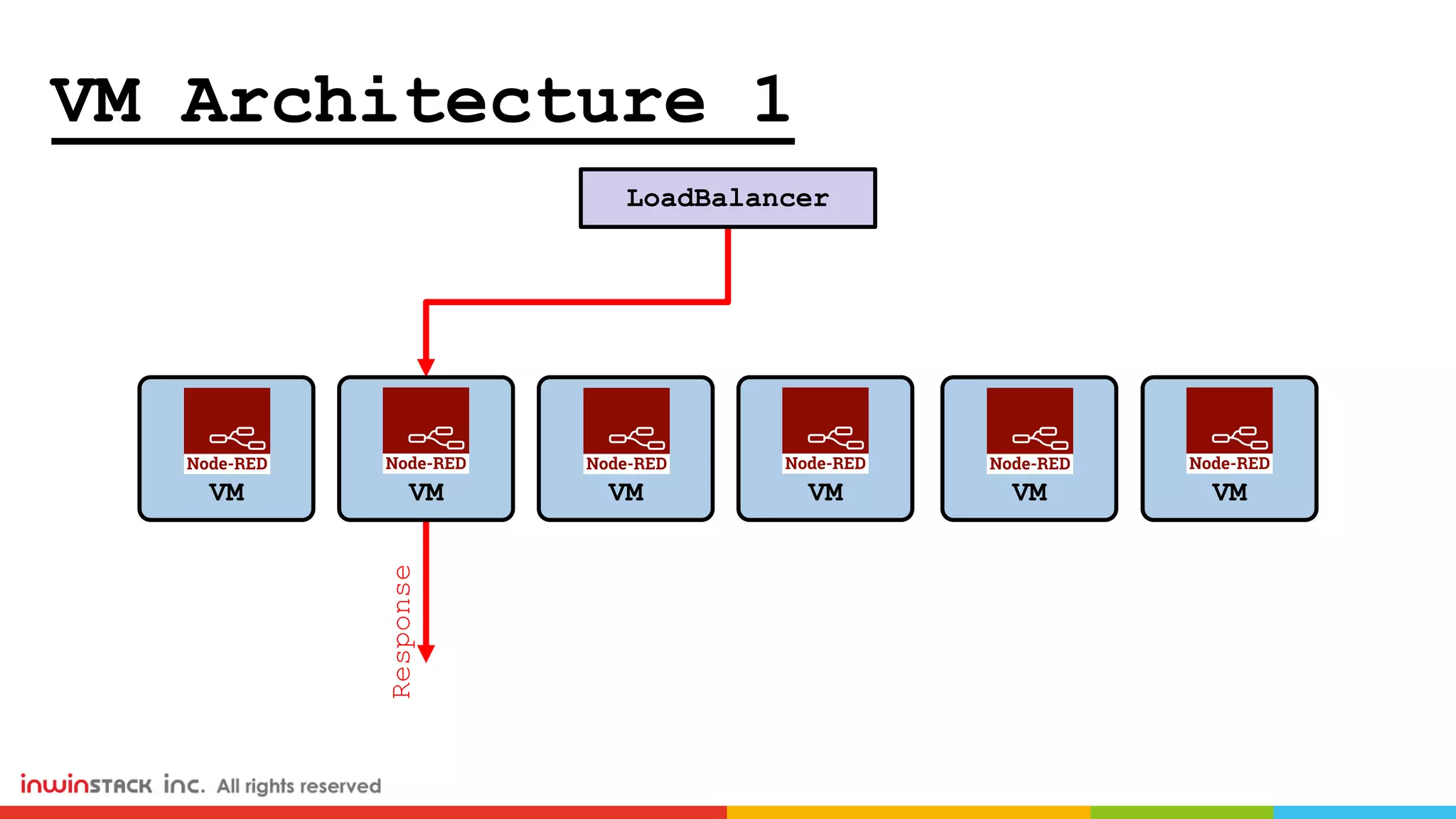

24. VM Architecture 1
LoadBalancer
VMVM VMVM VMVM
Response

25. VM Architecture 2
<func>
Pass Master
Response Only
VM
VM
MQ
Master
Slave
Response

26. K8S Architecture
Minion
Pod Pod
Webhook
Load-Balance
/
Node-Port
Service

27. K8S Architecture
Benefits:
• Resource Utilization
• Scalability
• Auto Load-balance
• Self-healing
Challenges:
• Logging
• Chat Conversation
Who am I talking to?!!!
Hi!
My name is
Kamekube!
Hi! What’s
your name?

28. Possible Solution?
• Load-balance?
• Cache?
Minion
Pod1 Pod2 Pod3 Pod4
DB
[Username:Conv0001:Bot3]
Pod
MB
Pod
MB
Pod
MB
Pod
MB
Pod
MB
Webhook
Load-Balance
/
Node-Port
Service

29. What else?
I’m
Leaving it
to the
Smarter People
(YOU!)
