Judge: Identifying, Understanding, and Evaluating Sources of Unsoundness in Call Graphs
1. Judge: Identifying,
Understanding, and Evaluating
Sources of Unsoundness in Call
Graphs
Michael Reif, Florian Kübler, Michael Eichberg, Dominik Helm, and Mira Mezini
Software Technology Group
TU Darmstadt
@Reifmi

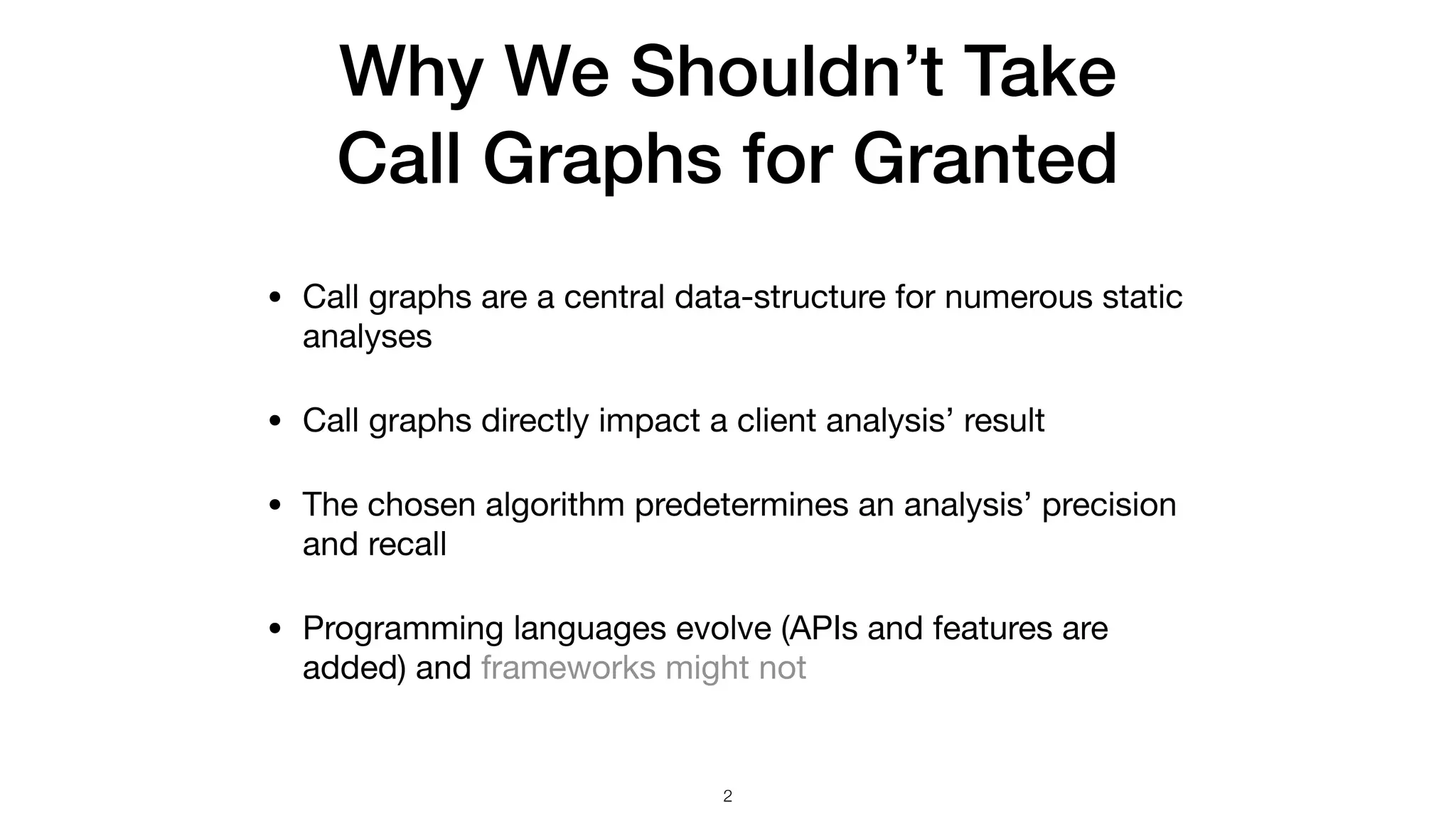

2. Why We Shouldn’t Take
Call Graphs for Granted
• Call graphs are a central data-structure for numerous static
analyses
• Call graphs directly impact a client analysis’ result
• The chosen algorithm predetermines an analysis’ precision
and recall
• Programming languages evolve (APIs and features are
added) and frameworks might not
!2

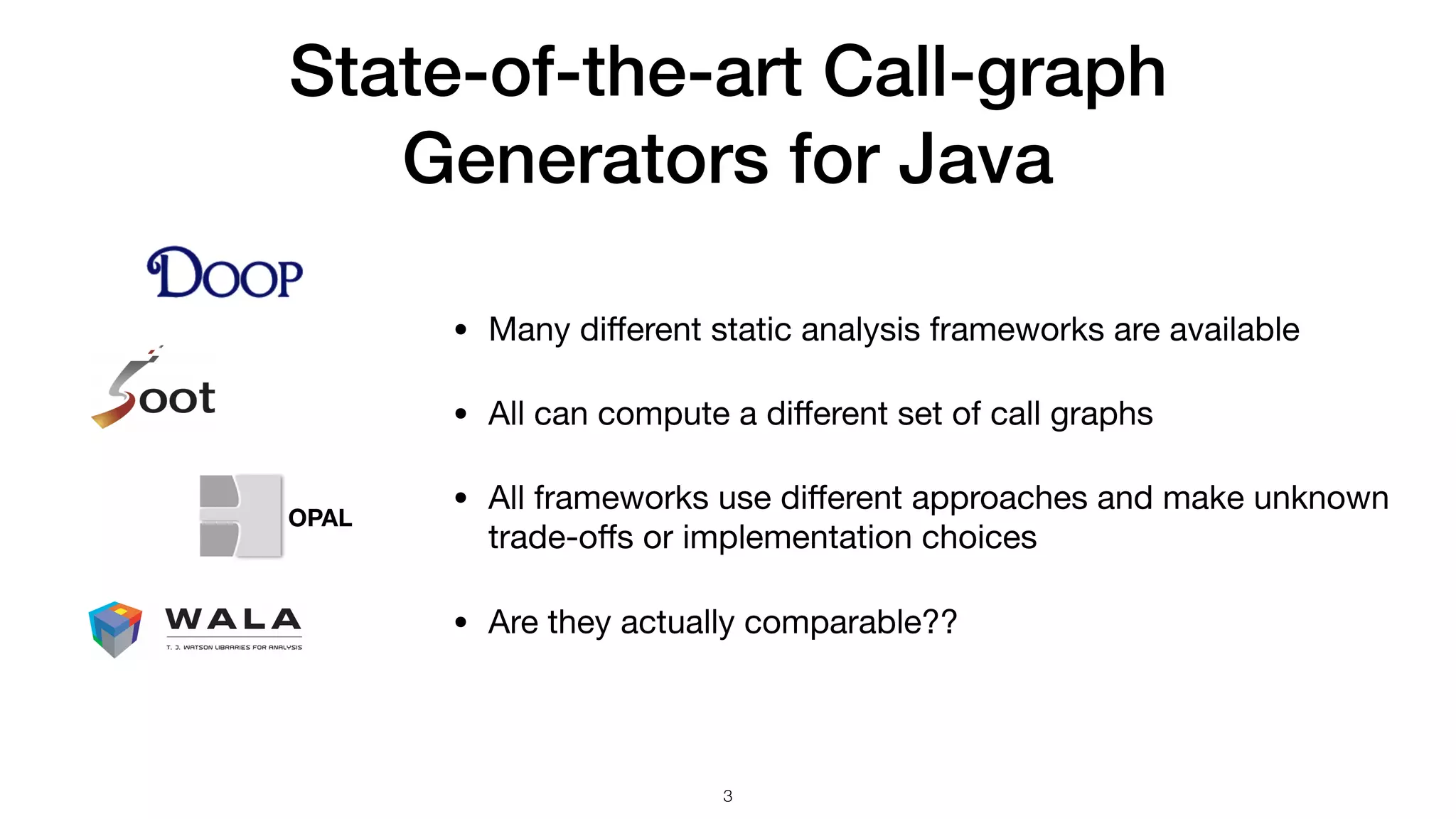

3. State-of-the-art Call-graph
Generators for Java
• Many different static analysis frameworks are available
• All can compute a different set of call graphs
• All frameworks use different approaches and make unknown
trade-offs or implementation choices
• Are they actually comparable??
!3
OPAL

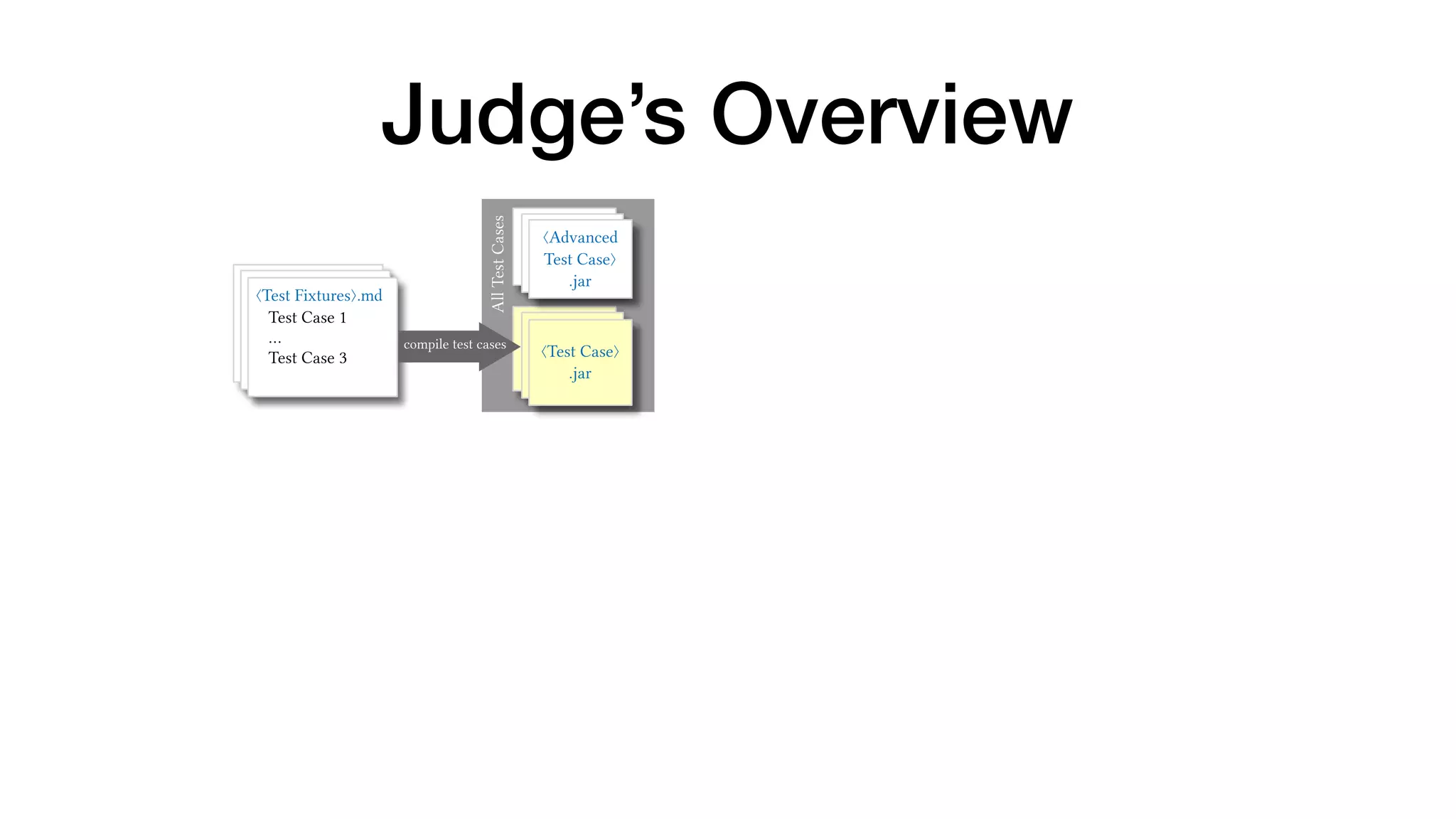

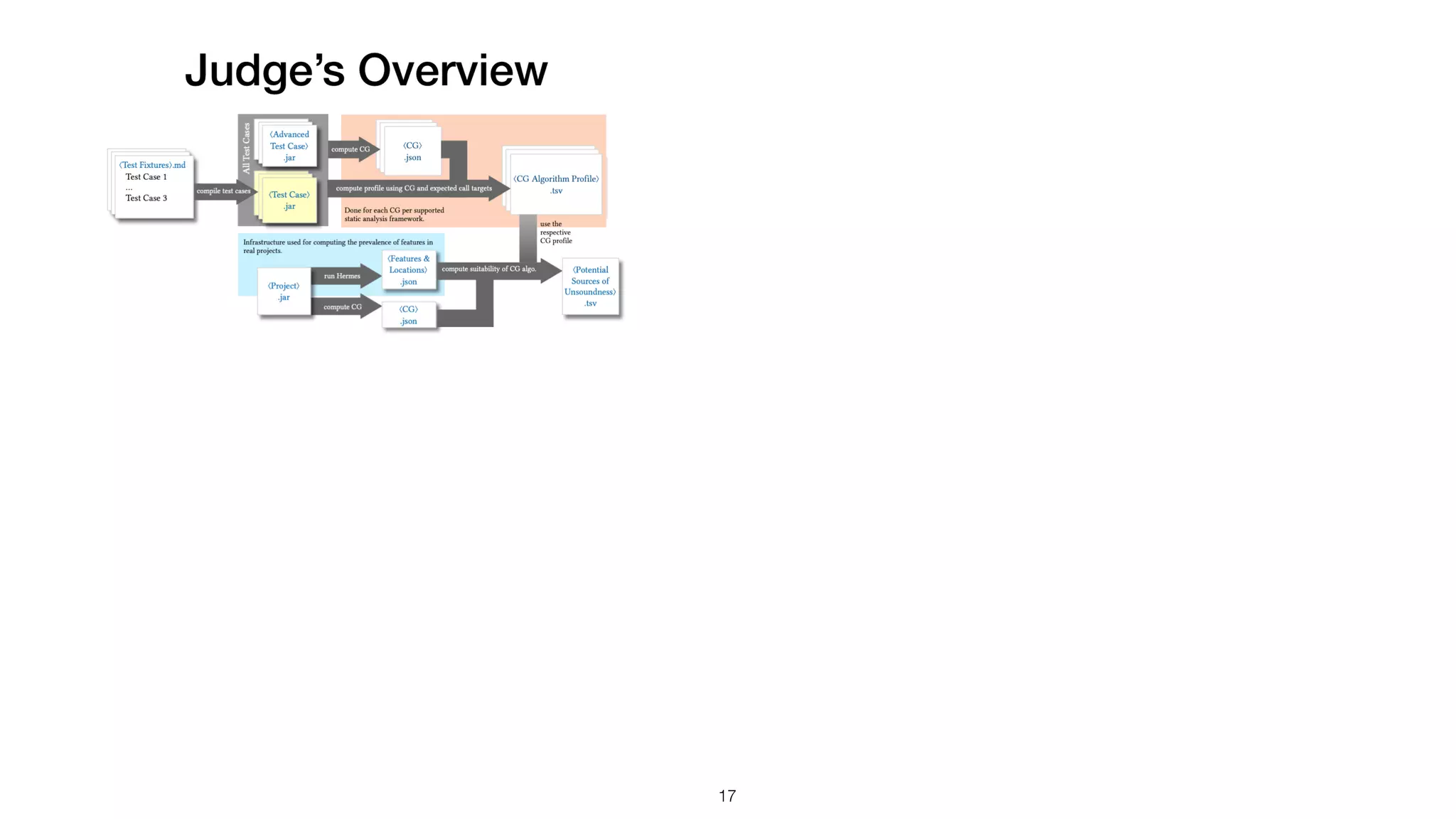

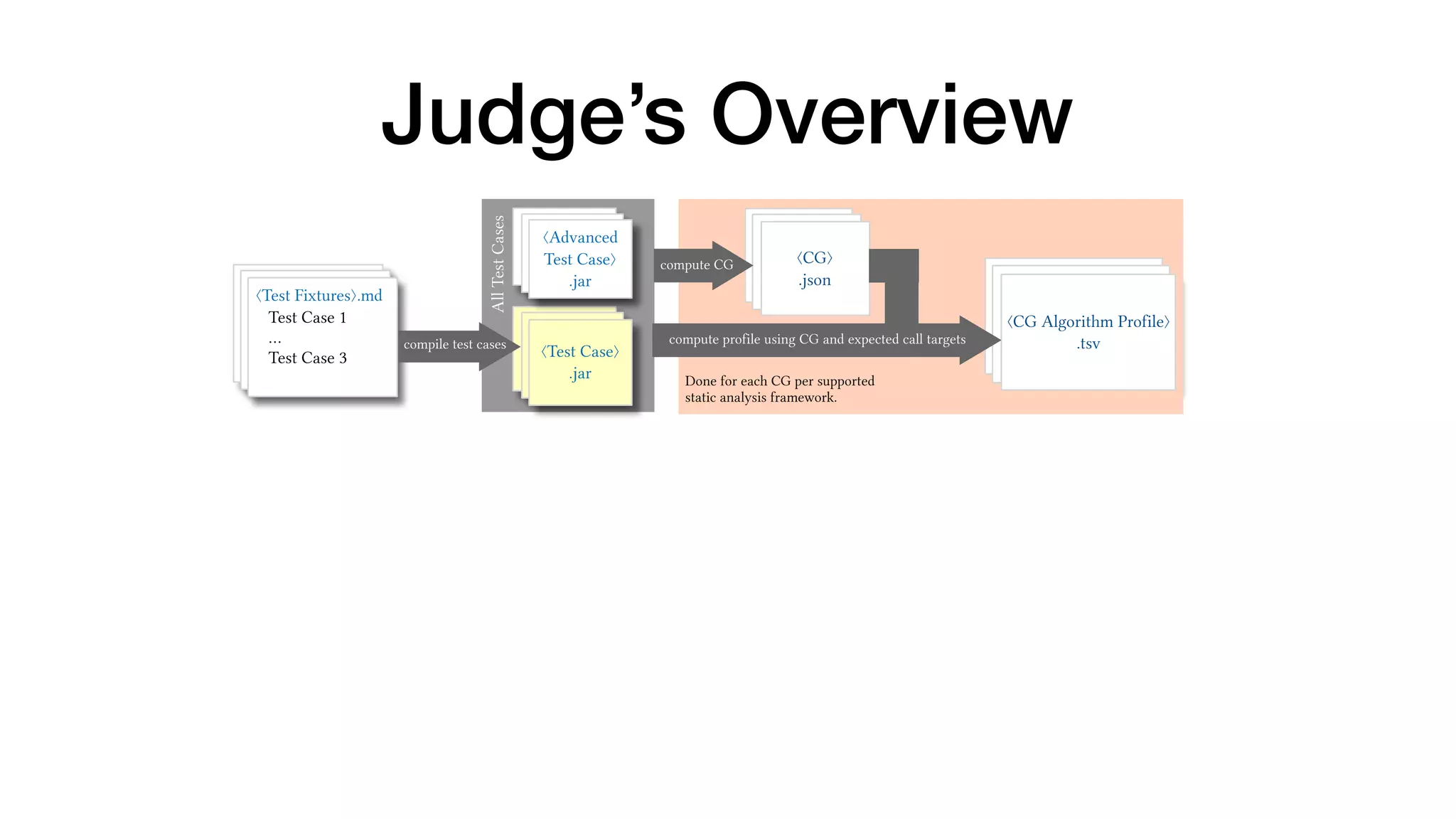

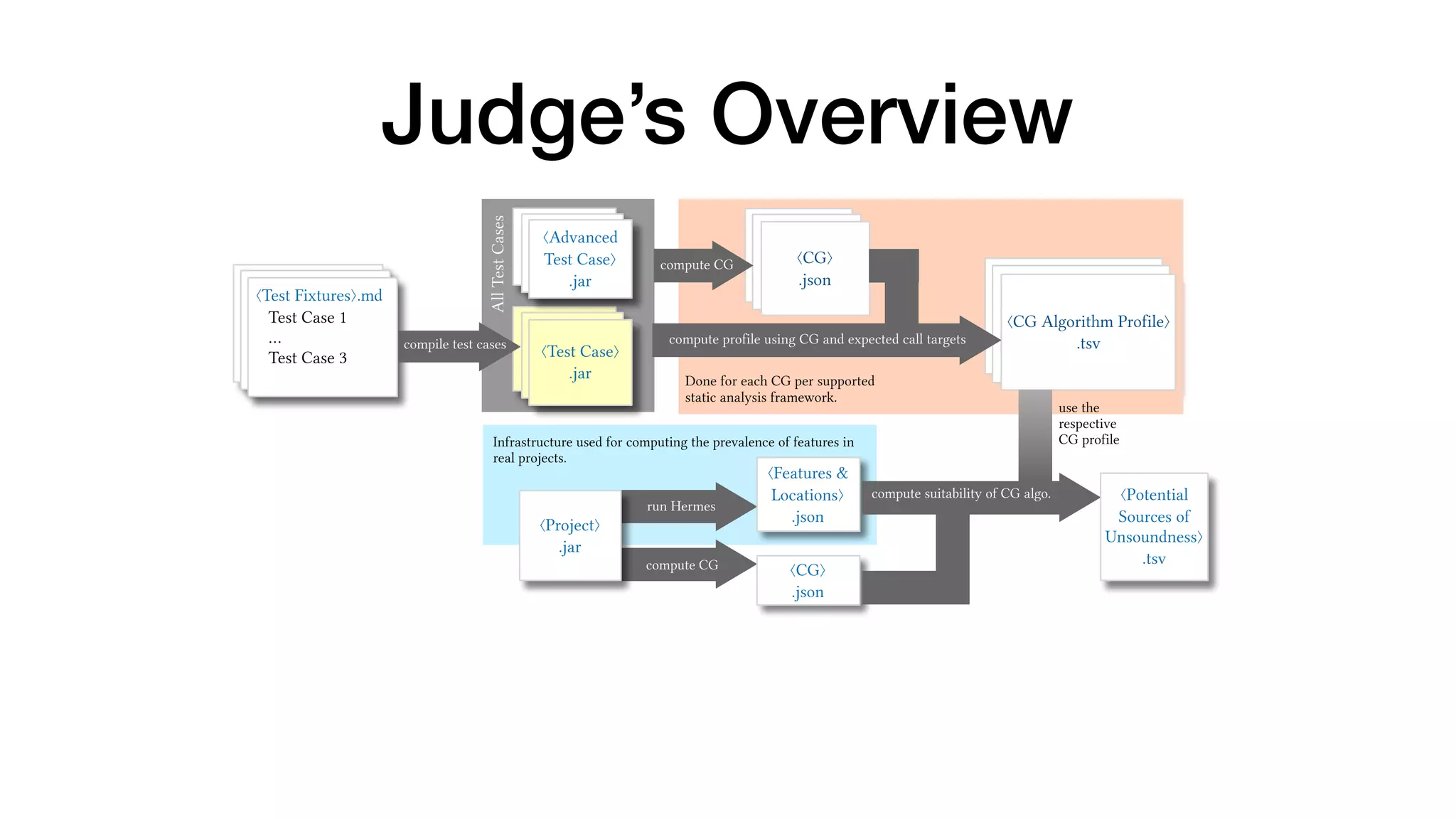

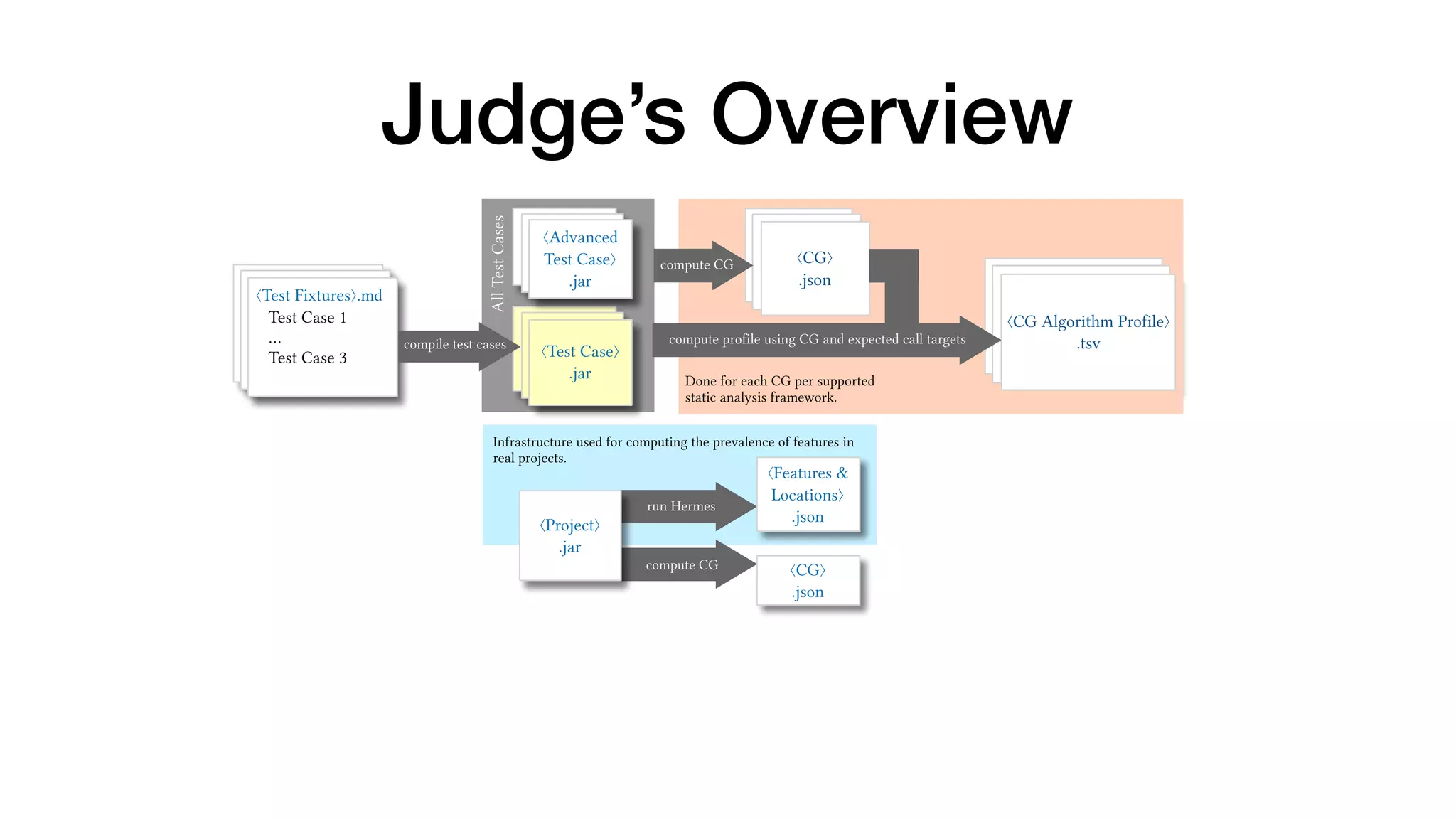

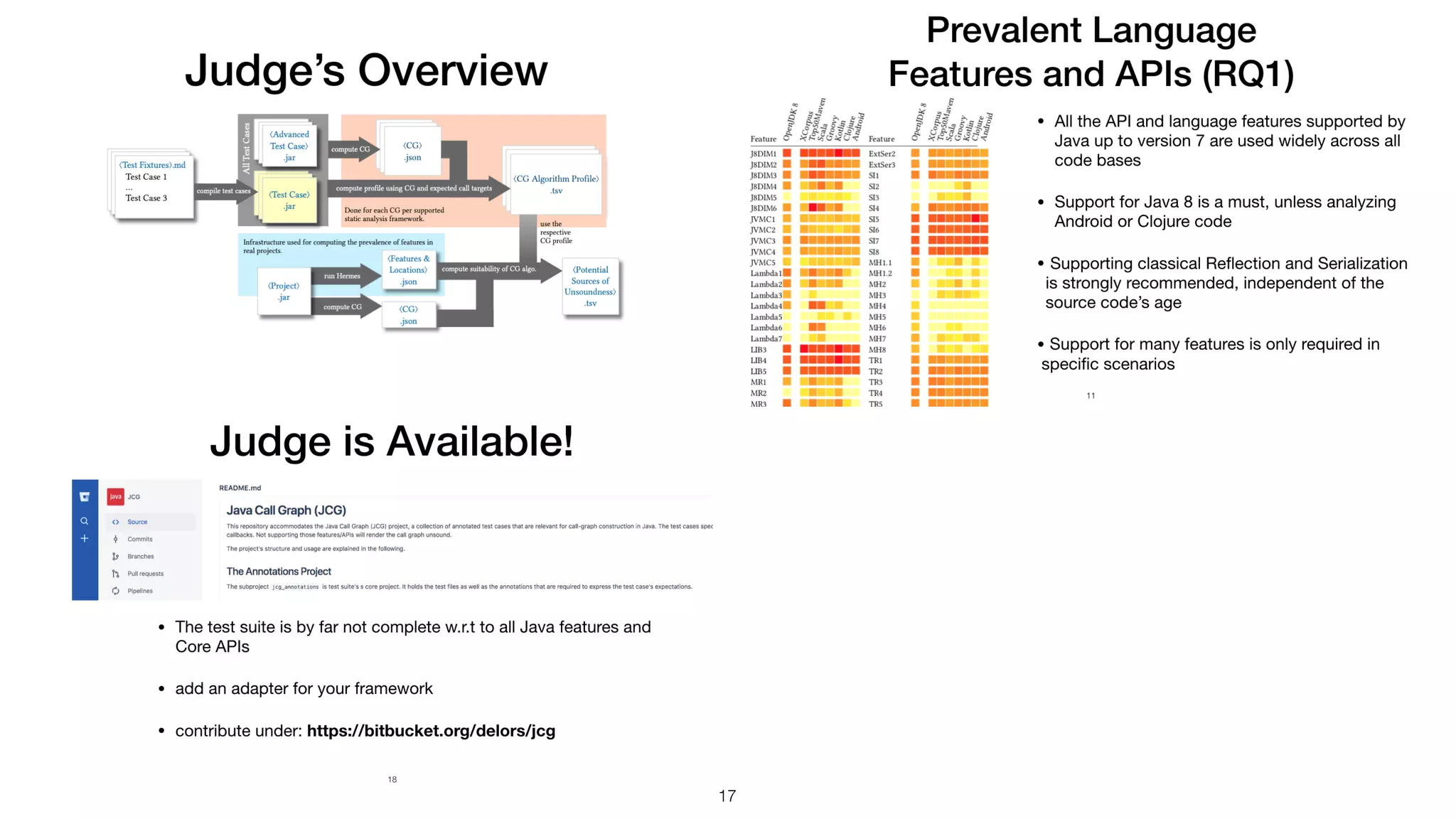

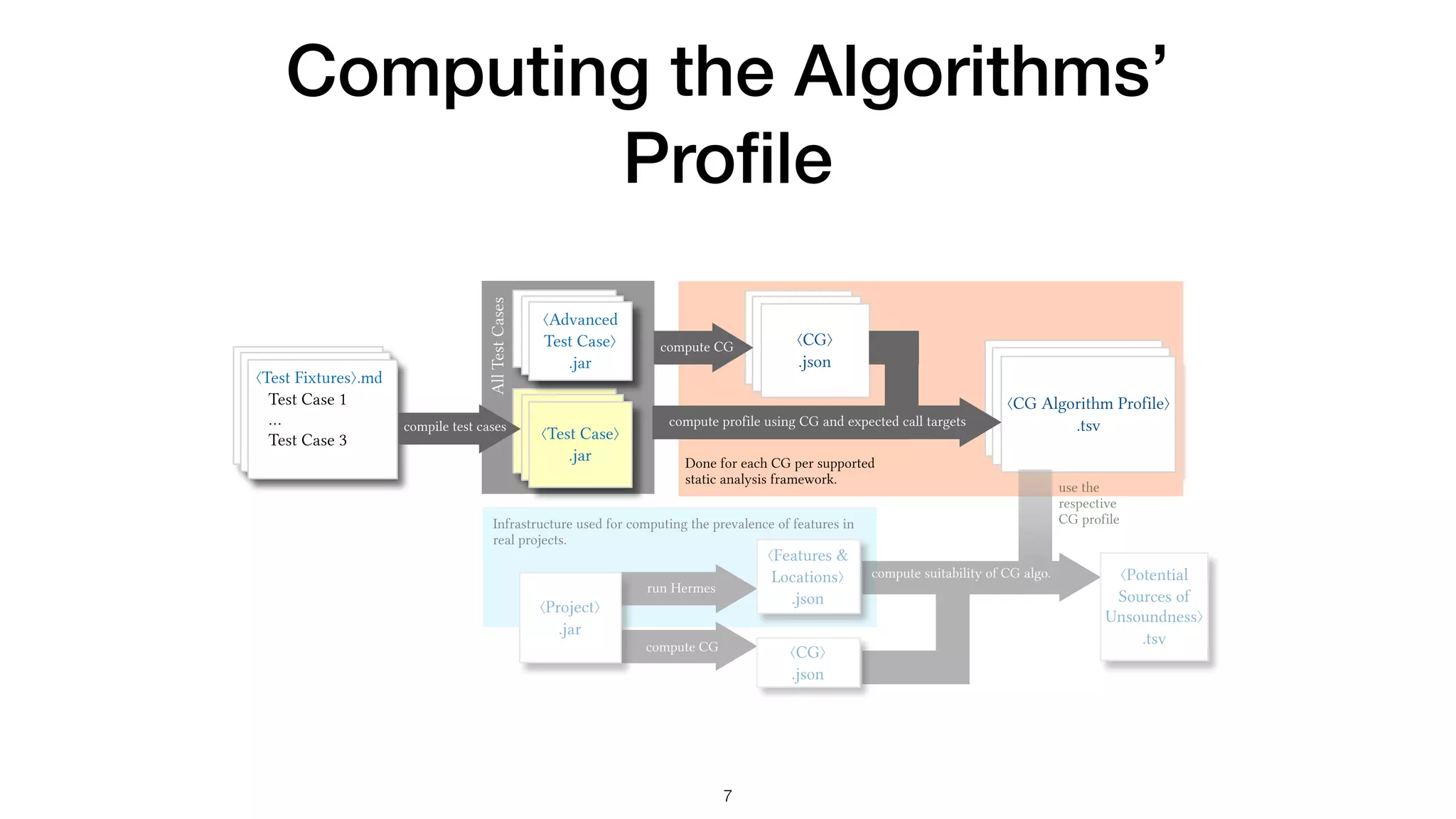

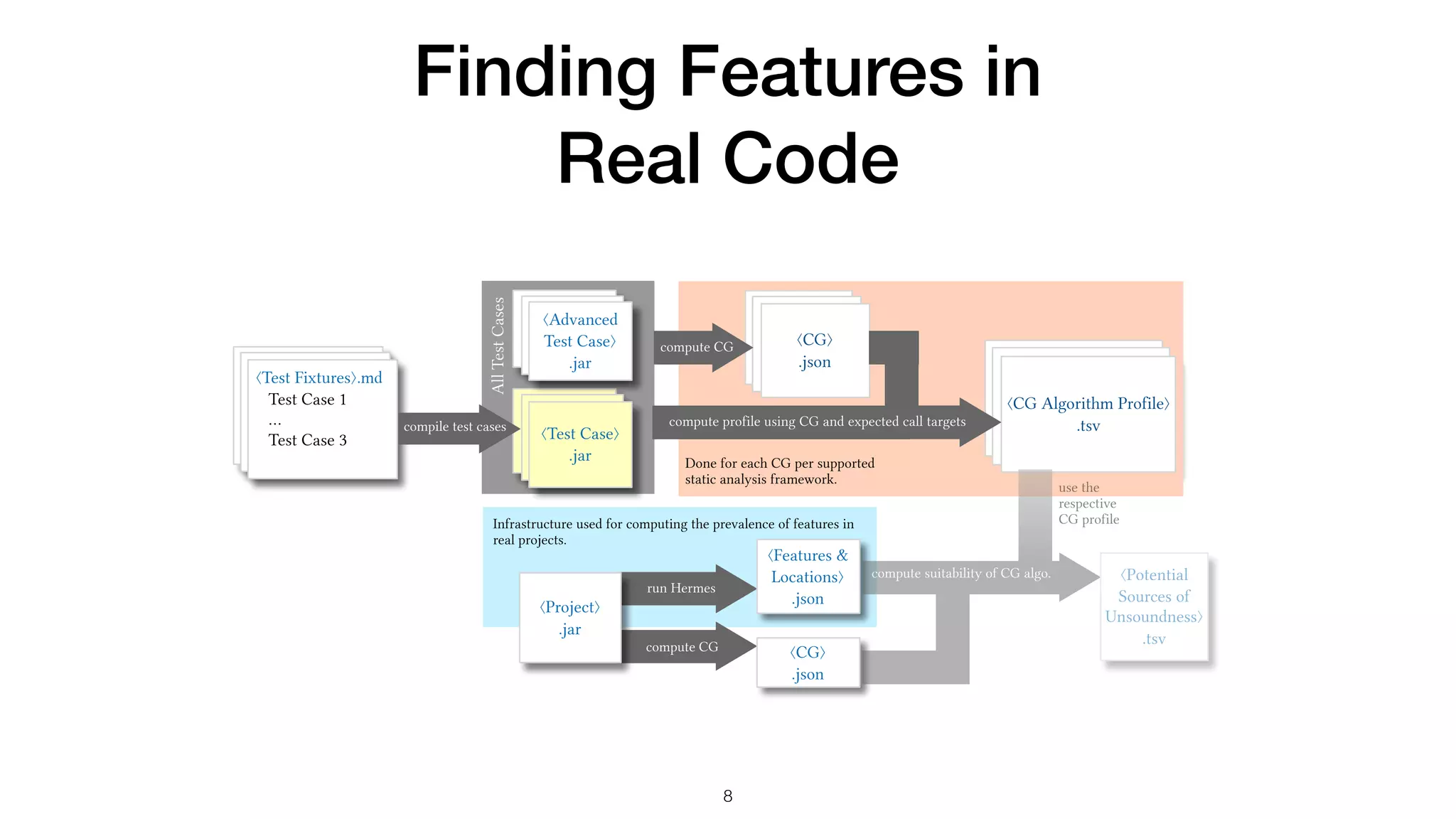

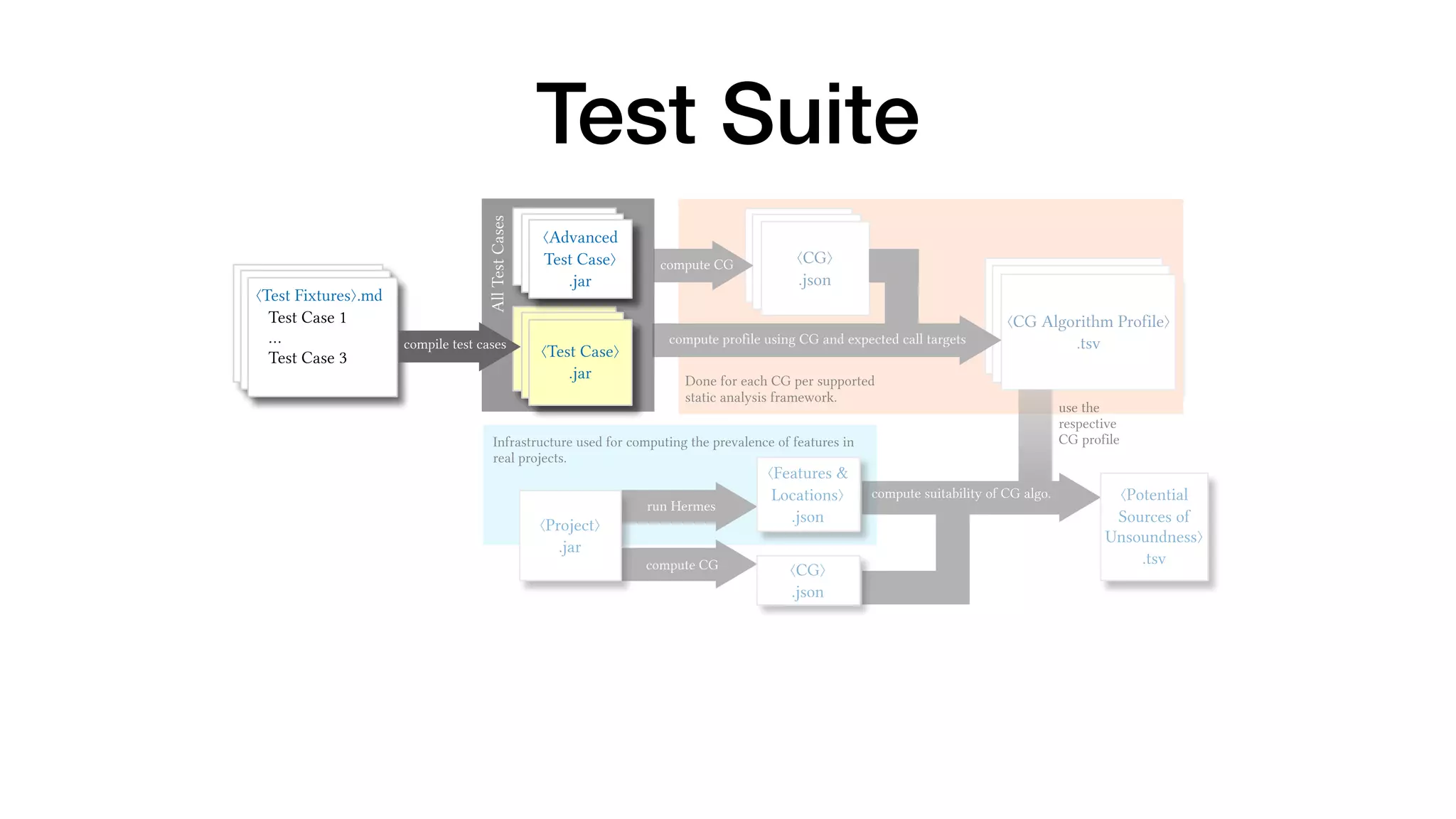

5. Judge’s Overview
TC1.jarTC2.jar⟨Test Case⟩
.jar
⟨Advanced
Test Case⟩
.jar
compile test cases
AllTestCases
<Test Fixtures
Category>.md
Test Case 1(TC1)
…
Test Case 3 (TCN)
⟨Test Fixtures⟩.md
Test Case 1
…
Test Case 3
⟨CG⟩
.json
compute CG
Done for each CG per supported
static analysis framework.
⟨CG Algorithm Profile⟩
.tsvcompute profile using CG and expected call targets
6. Judge’s Overview
TC1.jarTC2.jar⟨Test Case⟩
.jar
⟨Advanced
Test Case⟩
.jar
compile test cases
AllTestCases
<Test Fixtures
Category>.md
Test Case 1(TC1)
…
Test Case 3 (TCN)
⟨Test Fixtures⟩.md
Test Case 1
…
Test Case 3
⟨CG⟩
.json
compute CG
Done for each CG per supported
static analysis framework.
⟨CG Algorithm Profile⟩
.tsvcompute profile using CG and expected call targets
⟨Project⟩
.jar
⟨Features &
Locations⟩
.json
⟨CG⟩
.json
compute CG
run Hermes
Infrastructure used for computing the prevalence of features in
real projects.
7. Judge’s Overview
TC1.jarTC2.jar⟨Test Case⟩
.jar
⟨Advanced
Test Case⟩
.jar
compile test cases
AllTestCases
<Test Fixtures
Category>.md
Test Case 1(TC1)
…
Test Case 3 (TCN)
⟨Test Fixtures⟩.md
Test Case 1
…
Test Case 3
⟨CG⟩
.json
compute CG
Done for each CG per supported
static analysis framework.
⟨CG Algorithm Profile⟩
.tsvcompute profile using CG and expected call targets
⟨Project⟩
.jar
⟨Features &
Locations⟩
.json
⟨CG⟩
.json
compute CG
run Hermes
Infrastructure used for computing the prevalence of features in
real projects.
⟨Potential
Sources of
Unsoundness⟩
.tsv
compute suitability of CG algo.
use the
respective
CG profile

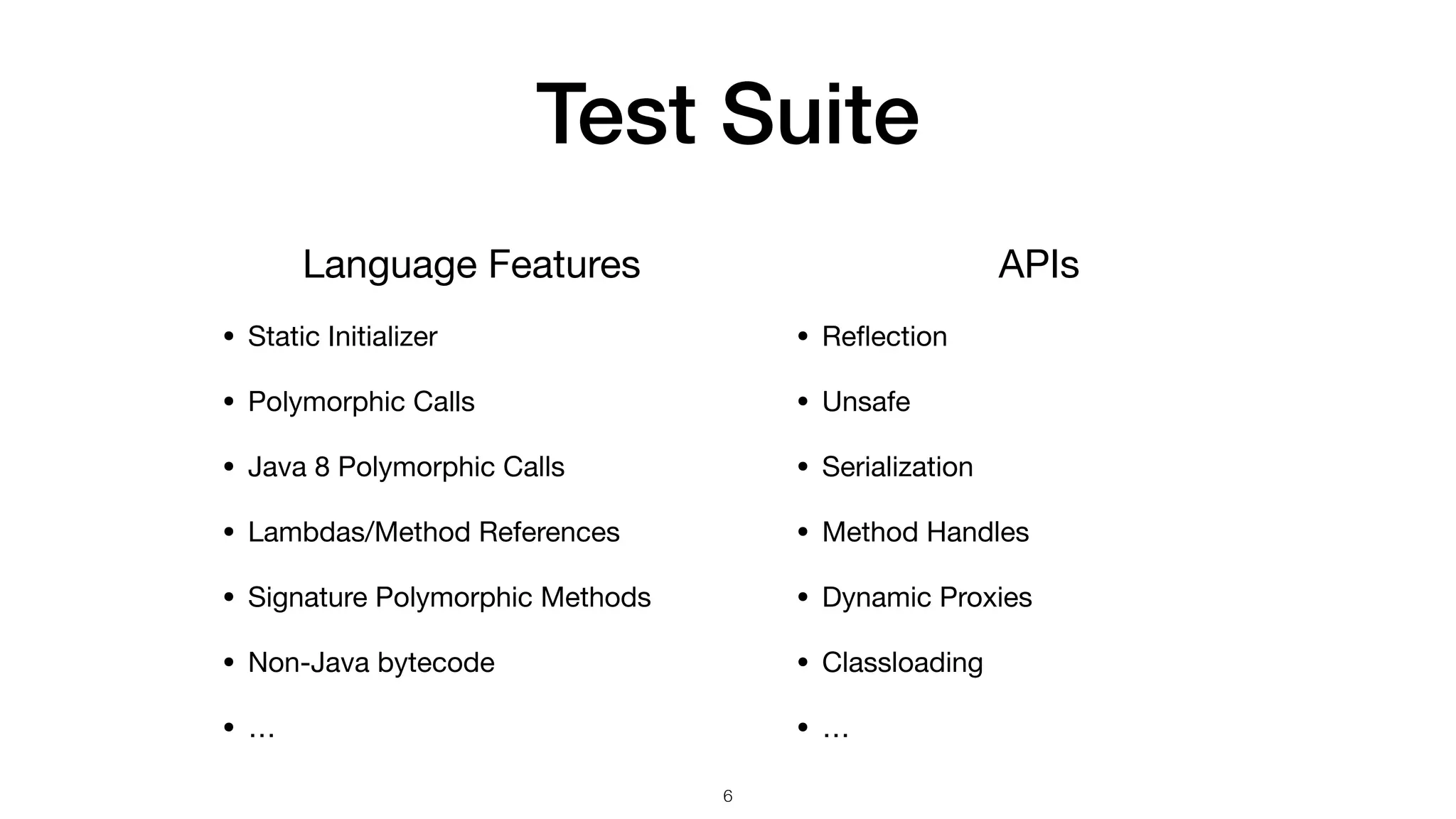

8. Test Suite
TC1.jarTC2.jar⟨Test Case⟩
.jar
⟨Advanced
Test Case⟩
.jar
compile test cases
AllTestCases
<Test Fixtures
Category>.md
Test Case 1(TC1)
…
Test Case 3 (TCN)
⟨Test Fixtures⟩.md
Test Case 1
…
Test Case 3
⟨CG⟩
.json
compute CG
Done for each CG per supported
static analysis framework.
⟨CG Algorithm Profile⟩
.tsvcompute profile using CG and expected call targets
⟨Project⟩
.jar
⟨Features &
Locations⟩
.json
⟨CG⟩
.json
compute CG
run Hermes
Infrastructure used for computing the prevalence of features in
real projects.
⟨Potential
Sources of
Unsoundness⟩
.tsv
compute suitability of CG algo.
use the
respective
CG profile
9. Test Suite
TC1.jarTC2.jar⟨Test Case⟩
.jar
⟨Advanced
Test Case⟩
.jar
compile test cases
AllTestCases
<Test Fixtures
Category>.md
Test Case 1(TC1)
…
Test Case 3 (TCN)
⟨Test Fixtures⟩.md
Test Case 1
…
Test Case 3
⟨CG⟩
.json
compute CG
Done for each CG per supported
static analysis framework.
⟨CG Algorithm Profile⟩
.tsvcompute profile using CG and expected call targets
⟨Project⟩
.jar
⟨Features &
Locations⟩
.json
⟨CG⟩
.json
compute CG
run Hermes
Infrastructure used for computing the prevalence of features in
real projects.
⟨Potential
Sources of
Unsoundness⟩
.tsv
compute suitability of CG algo.
use the
respective
CG profile

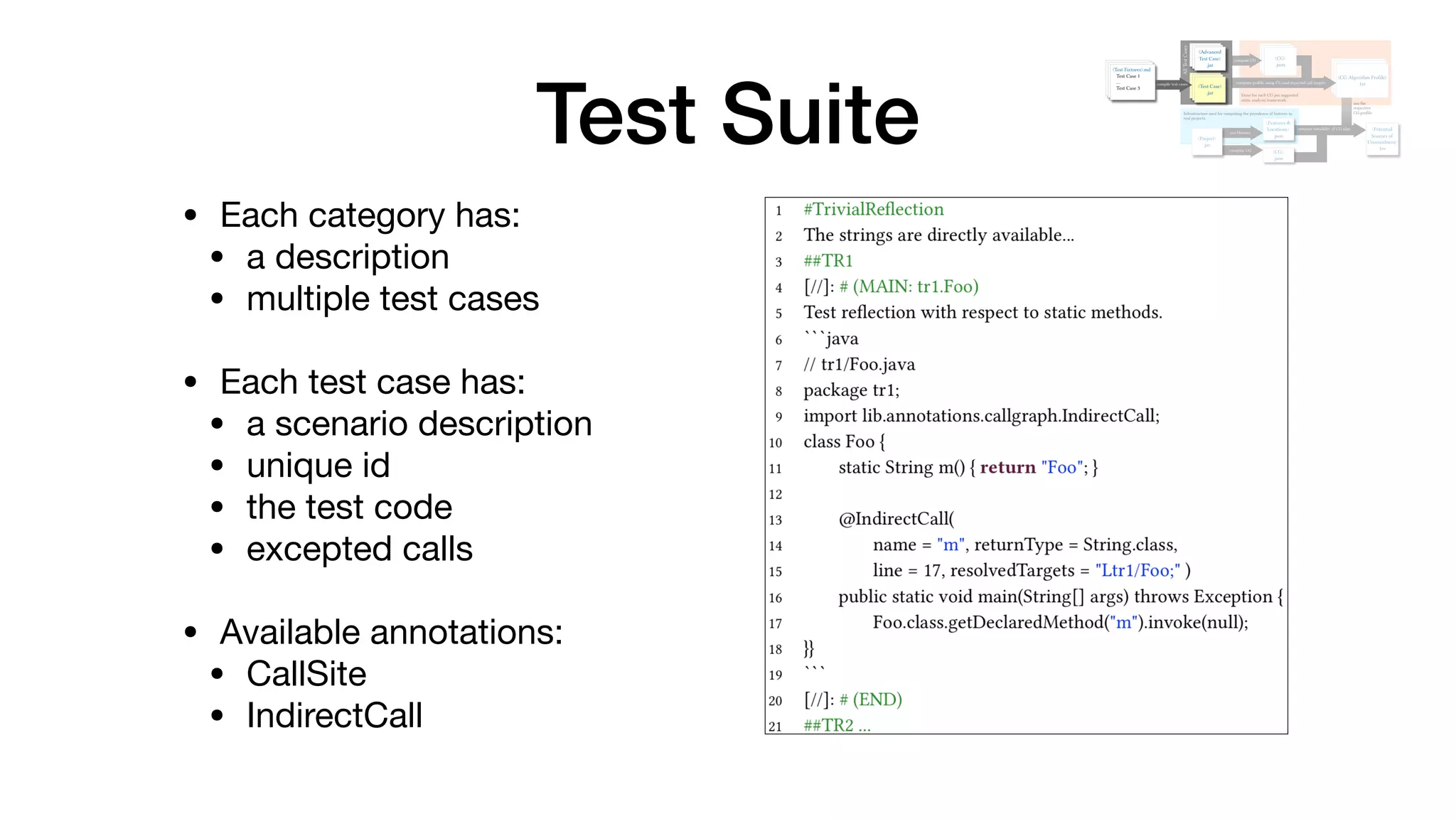

• Each category has:
• a description
• multiple test cases
• Each test case has:
• a scenario description
• unique id
• the test code
• excepted calls
• Available annotations:
• CallSite
• IndirectCall
11. Computing the Algorithms’
Profile
!7
TC1.jarTC2.jar⟨Test Case⟩
.jar
⟨Advanced
Test Case⟩
.jar
compile test cases
AllTestCases
<Test Fixtures
Category>.md
Test Case 1(TC1)
…
Test Case 3 (TCN)
⟨Test Fixtures⟩.md
Test Case 1
…
Test Case 3
⟨CG⟩
.json
compute CG
Done for each CG per supported
static analysis framework.
⟨CG Algorithm Profile⟩
.tsvcompute profile using CG and expected call targets
⟨Project⟩
.jar
⟨Features &
Locations⟩
.json
⟨CG⟩
.json
compute CG
run Hermes
Infrastructure used for computing the prevalence of features in
real projects.
⟨Potential
Sources of
Unsoundness⟩
.tsv
compute suitability of CG algo.
use the
respective
CG profile
12. TC1.jarTC2.jar⟨Test Case⟩
.jar
⟨Advanced
Test Case⟩
.jar
compile test cases
AllTestCases
<Test Fixtures
Category>.md
Test Case 1(TC1)
…
Test Case 3 (TCN)
⟨Test Fixtures⟩.md
Test Case 1
…
Test Case 3
⟨CG⟩
.json
compute CG
Done for each CG per supported
static analysis framework.
⟨CG Algorithm Profile⟩
.tsvcompute profile using CG and expected call targets
⟨Project⟩
.jar
⟨Features &
Locations⟩
.json
⟨CG⟩
.json
compute CG
run Hermes
Infrastructure used for computing the prevalence of features in
real projects.
⟨Potential
Sources of
Unsoundness⟩
.tsv
compute suitability of CG algo.
use the
respective
CG profile
Finding Features in
Real Code
!8
13. TC1.jarTC2.jar⟨Test Case⟩
.jar
⟨Advanced
Test Case⟩
.jar
compile test cases
AllTestCases
<Test Fixtures
Category>.md
Test Case 1(TC1)
…
Test Case 3 (TCN)
⟨Test Fixtures⟩.md
Test Case 1
…
Test Case 3
⟨CG⟩
.json
compute CG
Done for each CG per supported
static analysis framework.
⟨CG Algorithm Profile⟩
.tsvcompute profile using CG and expected call targets
⟨Project⟩
.jar
⟨Features &
Locations⟩
.json
⟨CG⟩
.json
compute CG
run Hermes
Infrastructure used for computing the prevalence of features in
real projects.
⟨Potential
Sources of
Unsoundness⟩
.tsv
compute suitability of CG algo.
use the
respective
CG profile
Finding Features in
Real Code
!8
[1] Reif, Michael et al. Hermes: assessment and creation of effective test corpora. SOAP ’17. ACM, 43–48.
• We used Hermes [1], a static analysis code query
infrastructure
• Each query is an analysis that checks if a specific feature
is found in a given code base
• We developed 15 Hermes queries to derive 107 Hermes
features and map the derived features to the test case ids
• All queries perform a most-conservative intra-procedural
analysis

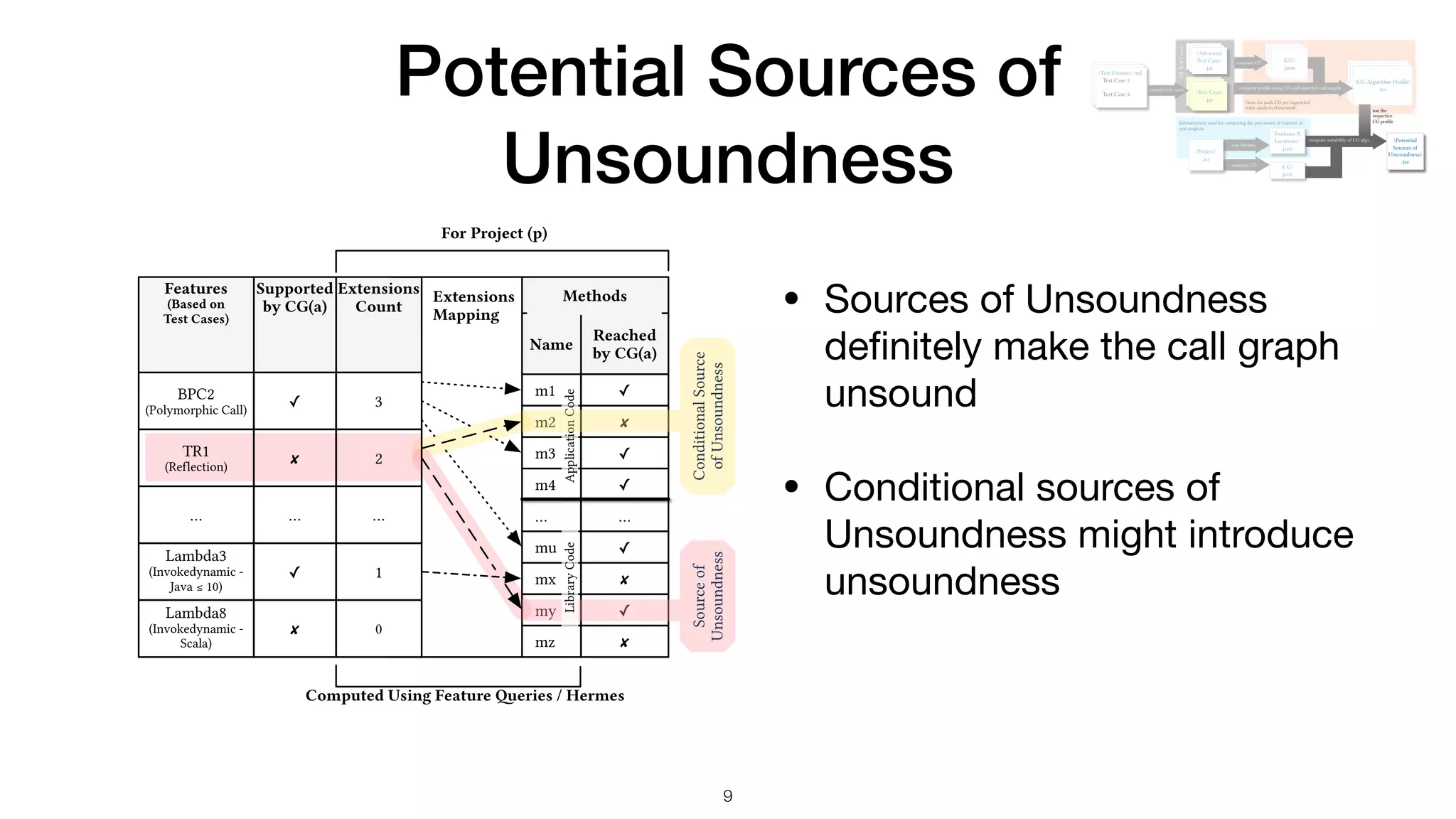

14. Potential Sources of
Unsoundness
!9
0✘
Lambda8
(Invokedynamic -
Scala)
Lambda3
(Invokedynamic -
Java ≤ 10)
1✓
… ……
TR1
(Reflection)
2✘
Extensions
Count
3
Supported
by CG(a)
✓
BPC2
(Polymorphic Call)
Features
(Based on
Test Cases)
✘mz
my ✓
mx ✘
✓mu
……
m4 ✓
m3 ✓
m2 ✘
Reached
by CG(a)
✓m1
Name
Methods
Computed Using Feature Queries / Hermes
LibraryCodeApplicationCode
Sourceof
Unsoundness
For Project (p)
ConditionalSource
ofUnsoundness
Extensions
Mapping
TC1.jarTC2.jar⟨Test Case⟩
.jar
⟨Advanced
Test Case⟩
.jar
compile test cases
AllTestCases
<Test Fixtures
Category>.md
Test Case 1(TC1)
…
Test Case 3 (TCN)
⟨Test Fixtures⟩.md
Test Case 1
…
Test Case 3
⟨CG⟩
.json
compute CG
Done for each CG per supported
static analysis framework.
⟨CG Algorithm Profile⟩
.tsvcompute profile using CG and expected call targets
⟨Project⟩
.jar
⟨Features &
Locations⟩
.json
⟨CG⟩
.json
compute CG
run Hermes
Infrastructure used for computing the prevalence of features in
real projects.
⟨Potential
Sources of
Unsoundness⟩
.tsv
compute suitability of CG algo.
use the
respective
CG profile
• Sources of Unsoundness
definitely make the call graph
unsound
• Conditional sources of
Unsoundness might introduce
unsoundness

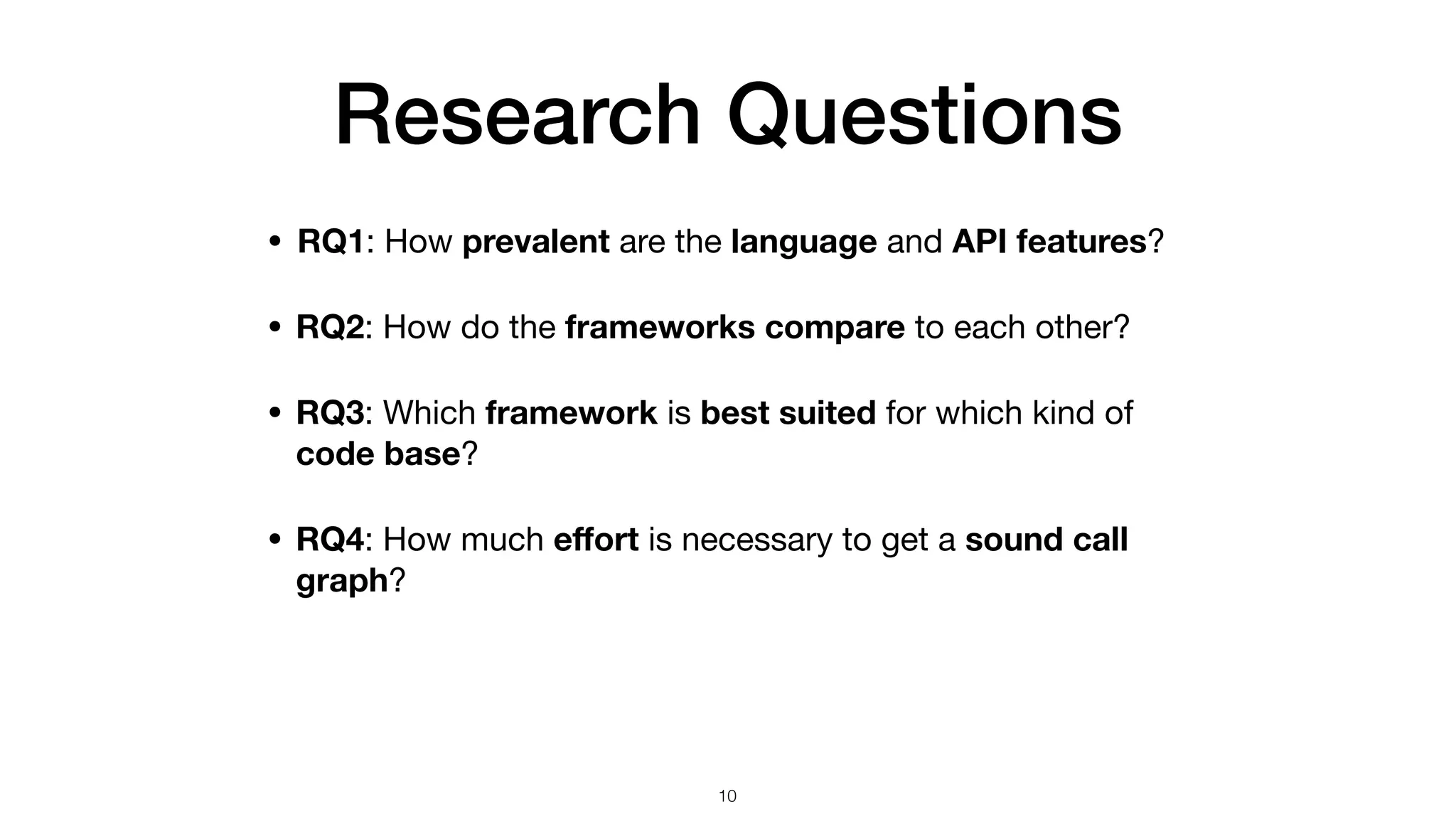

15. Research Questions
• RQ1: How prevalent are the language and API features?
• RQ2: How do the frameworks compare to each other?
• RQ3: Which framework is best suited for which kind of
code base?
• RQ4: How much effort is necessary to get a sound call
graph?
!10

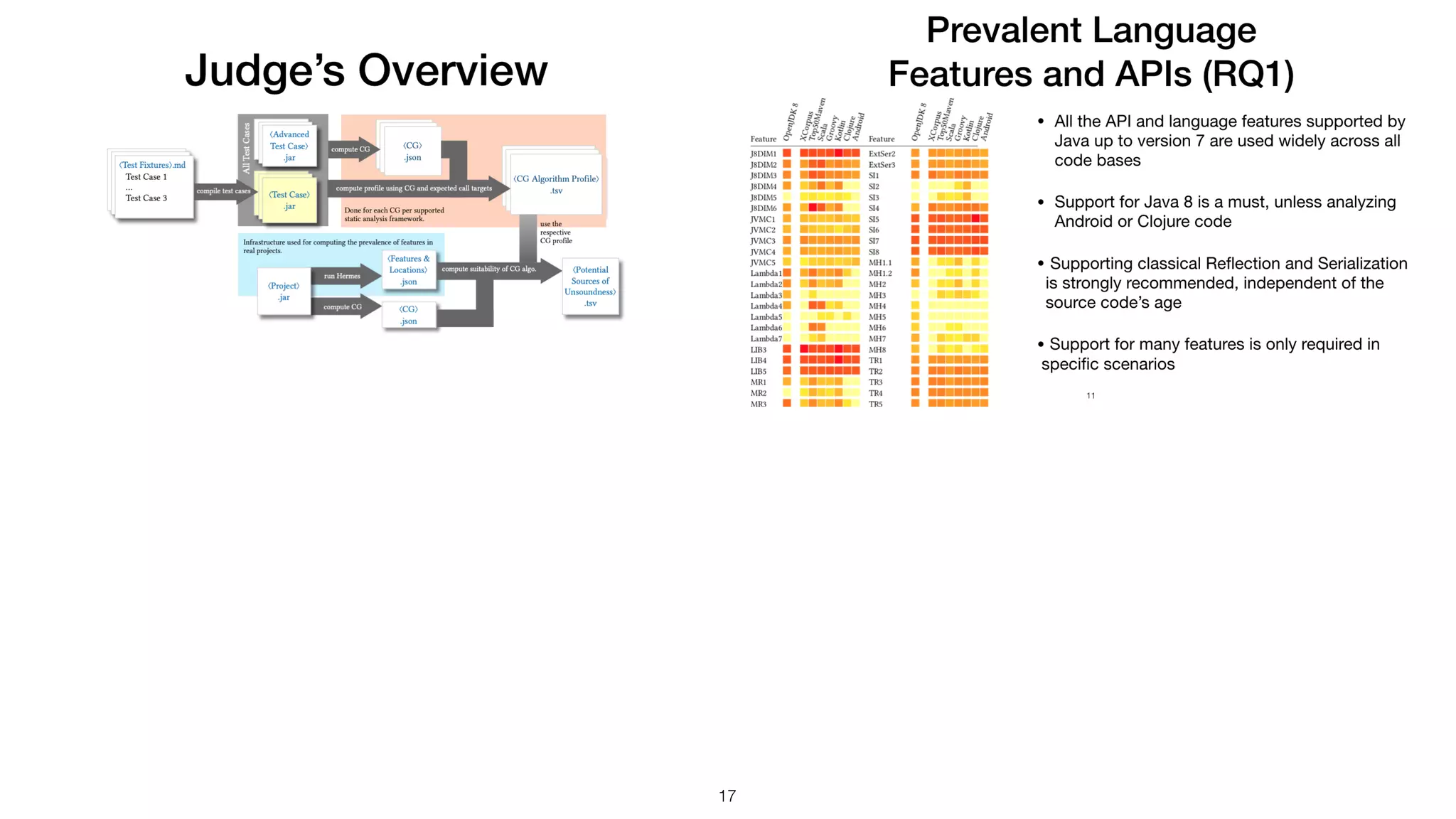

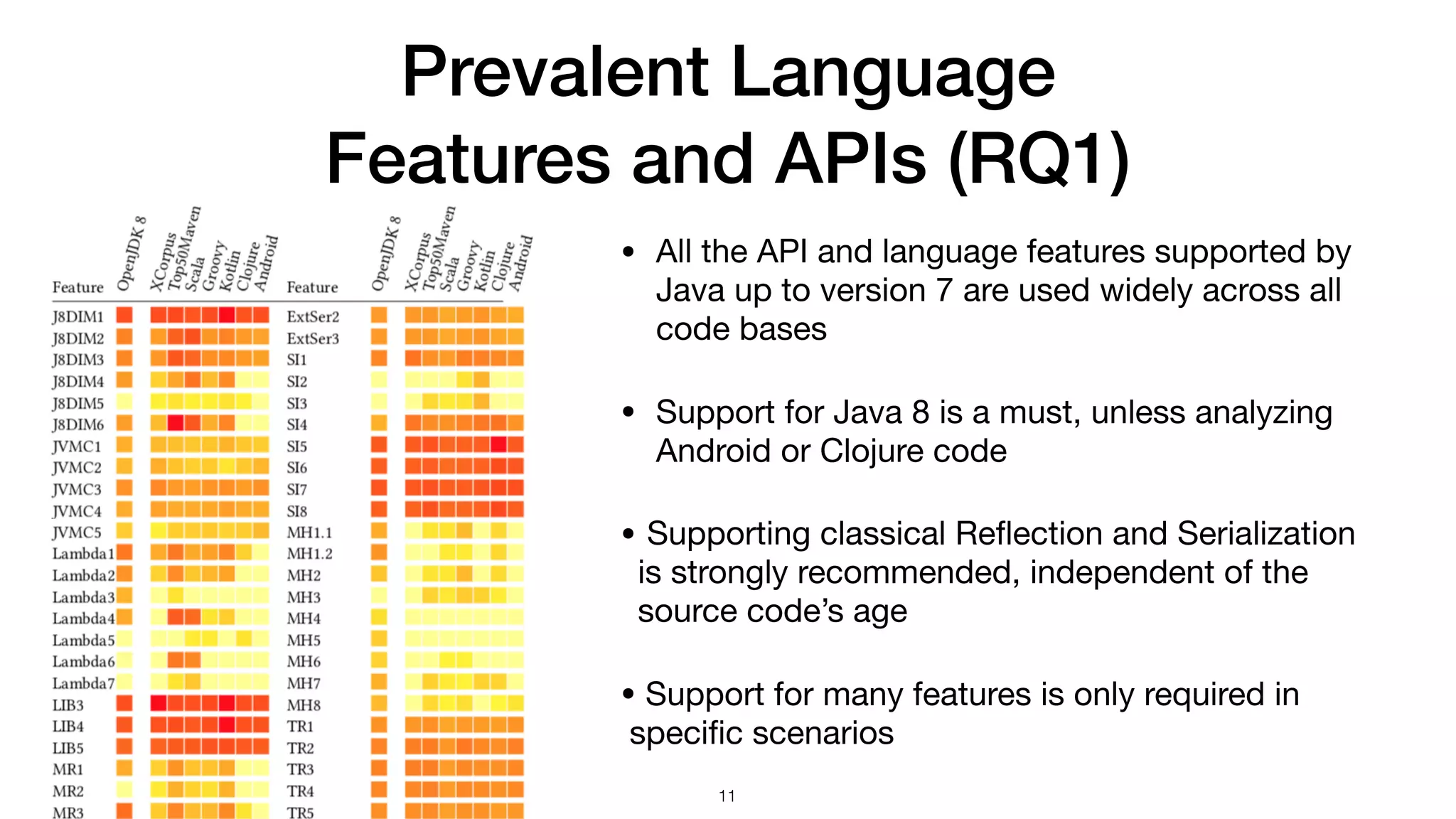

16. Prevalent Language
Features and APIs (RQ1)
• All the API and language features supported by
Java up to version 7 are used widely across all
code bases
• Support for Java 8 is a must, unless analyzing
Android or Clojure code
• Supporting classical Reflection and Serialization
is strongly recommended, independent of the
source code’s age
• Support for many features is only required in
specific scenarios
!11

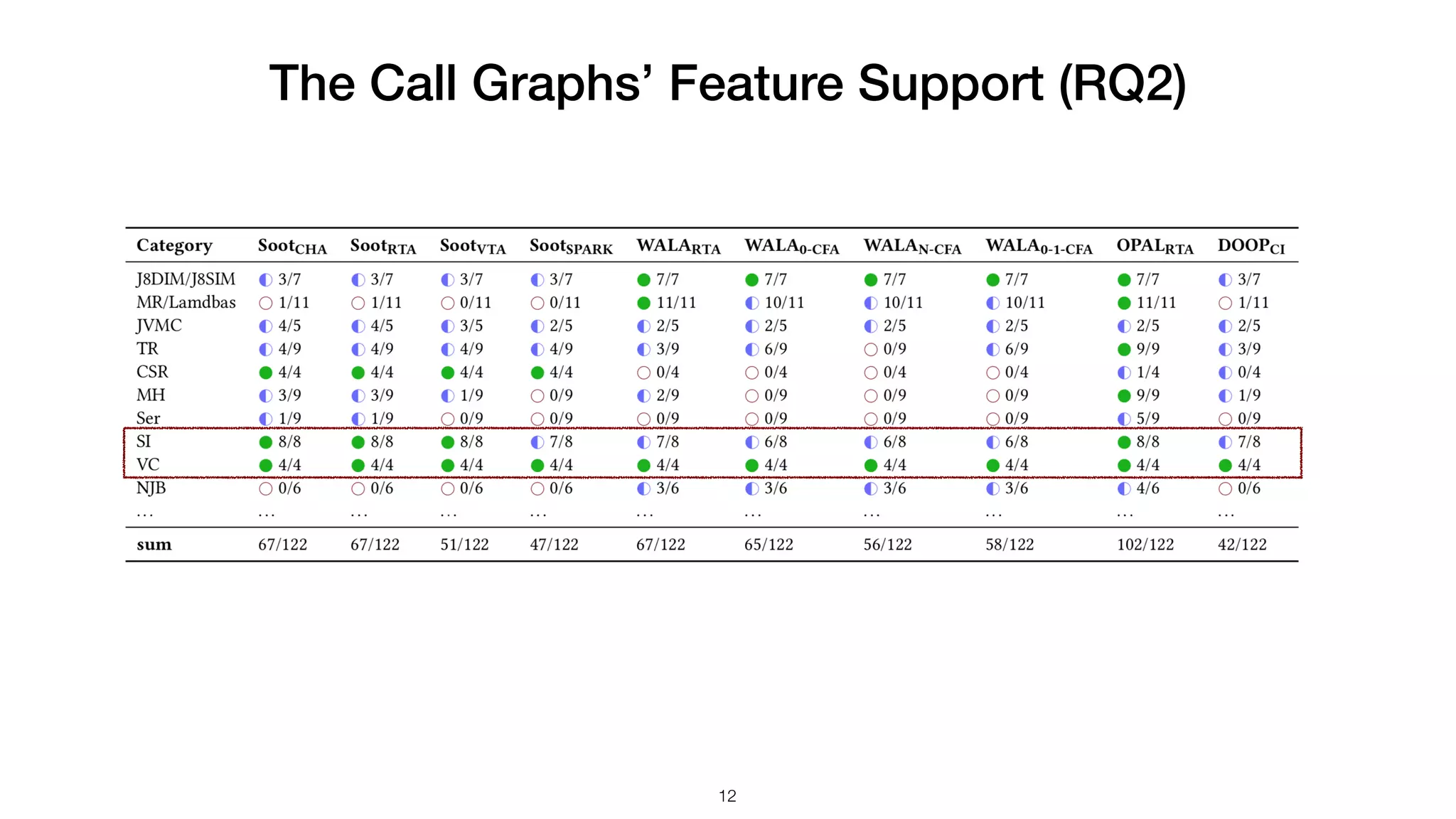

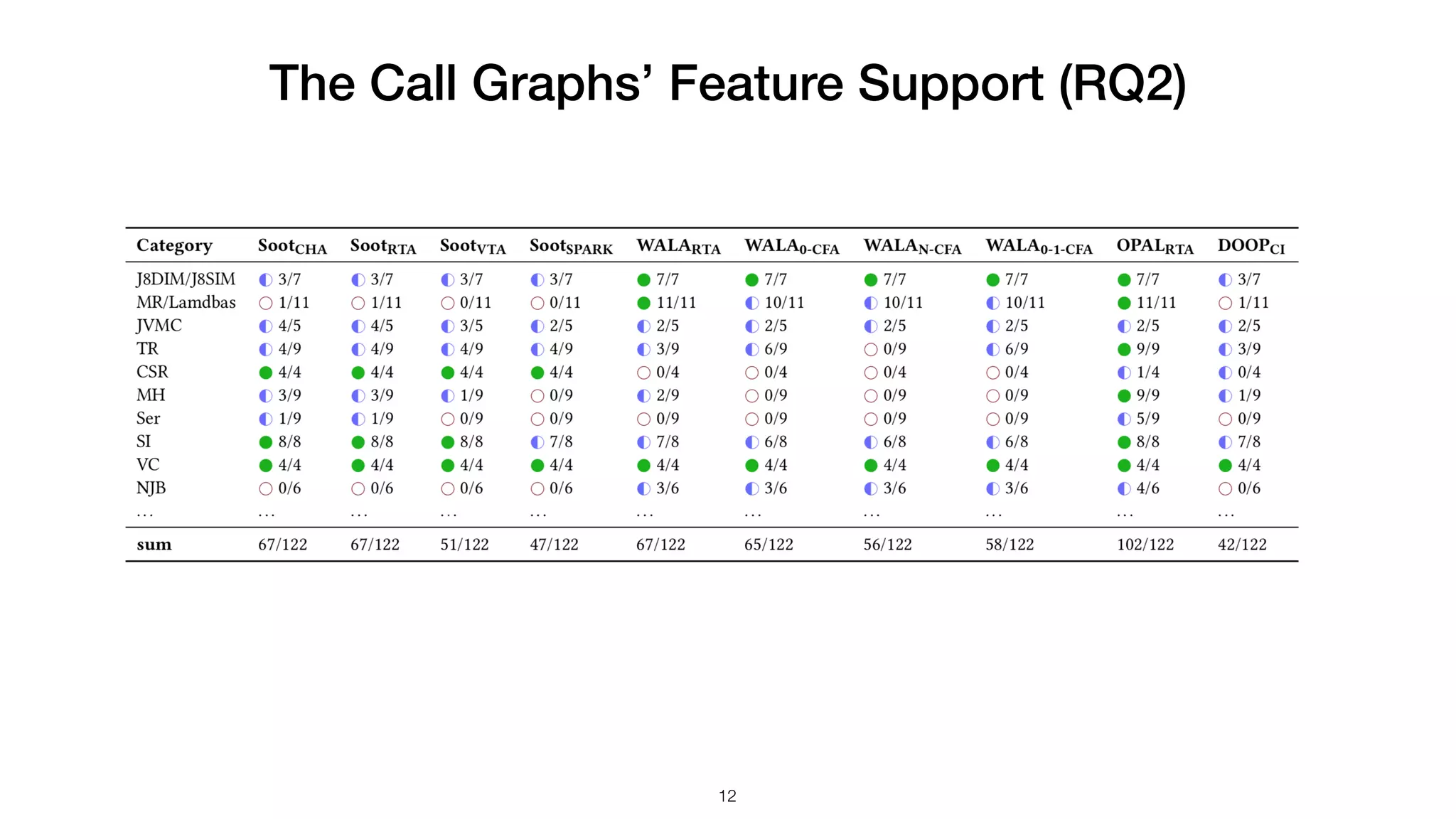

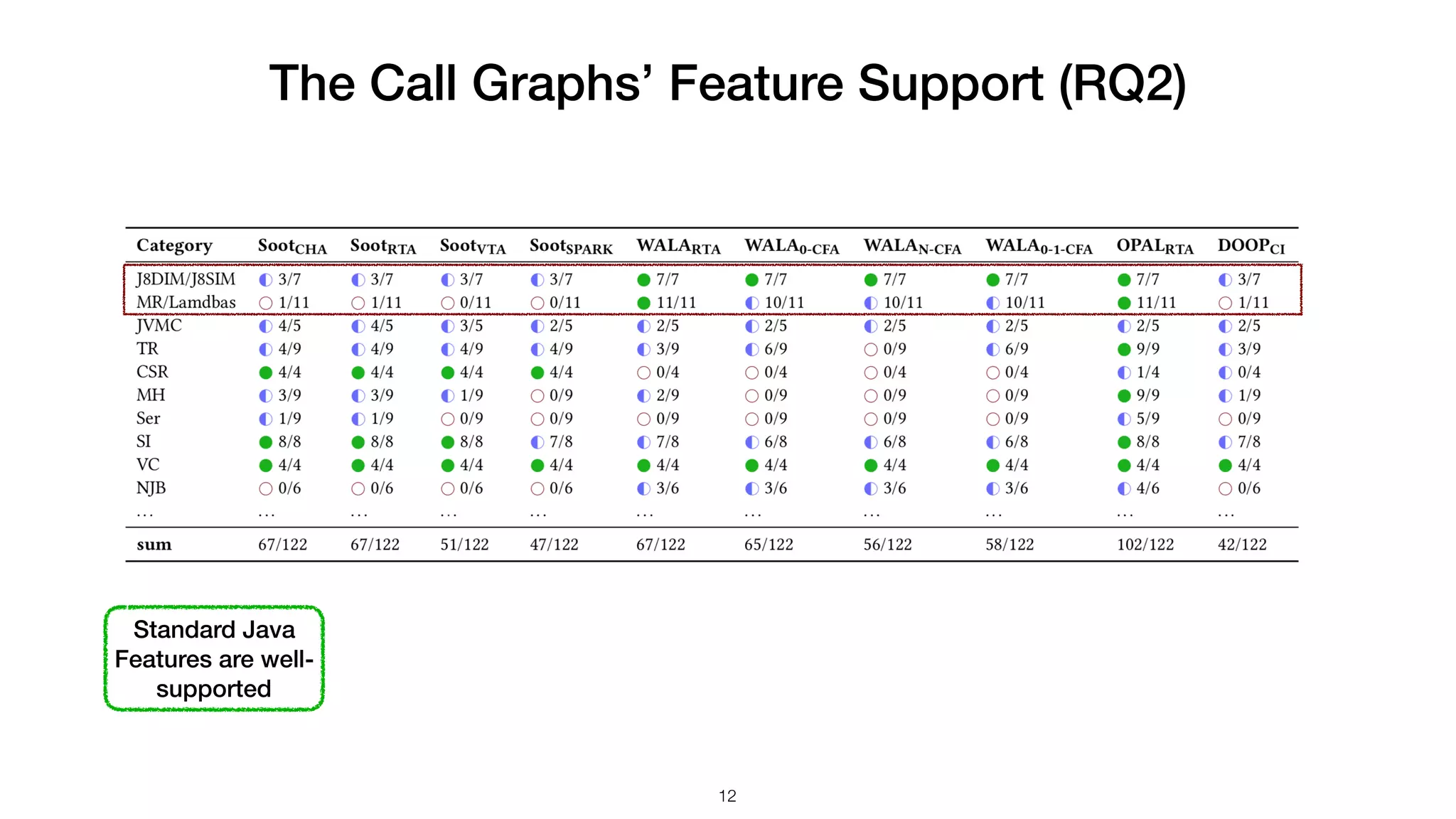

19. The Call Graphs’ Feature Support (RQ2)
!12
Standard Java
Features are well-
supported

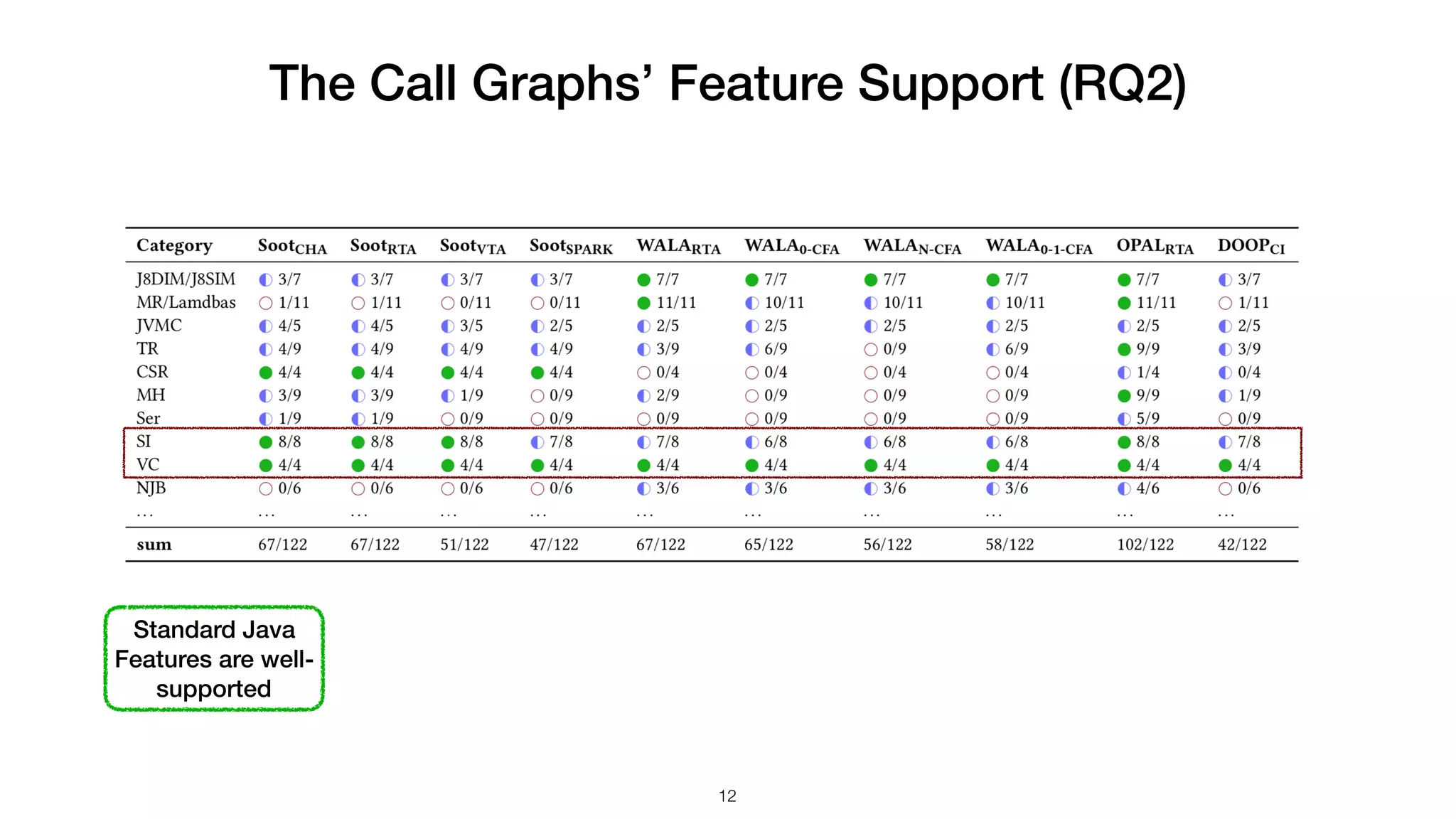

20. The Call Graphs’ Feature Support (RQ2)
!12
Standard Java
Features are well-
supported

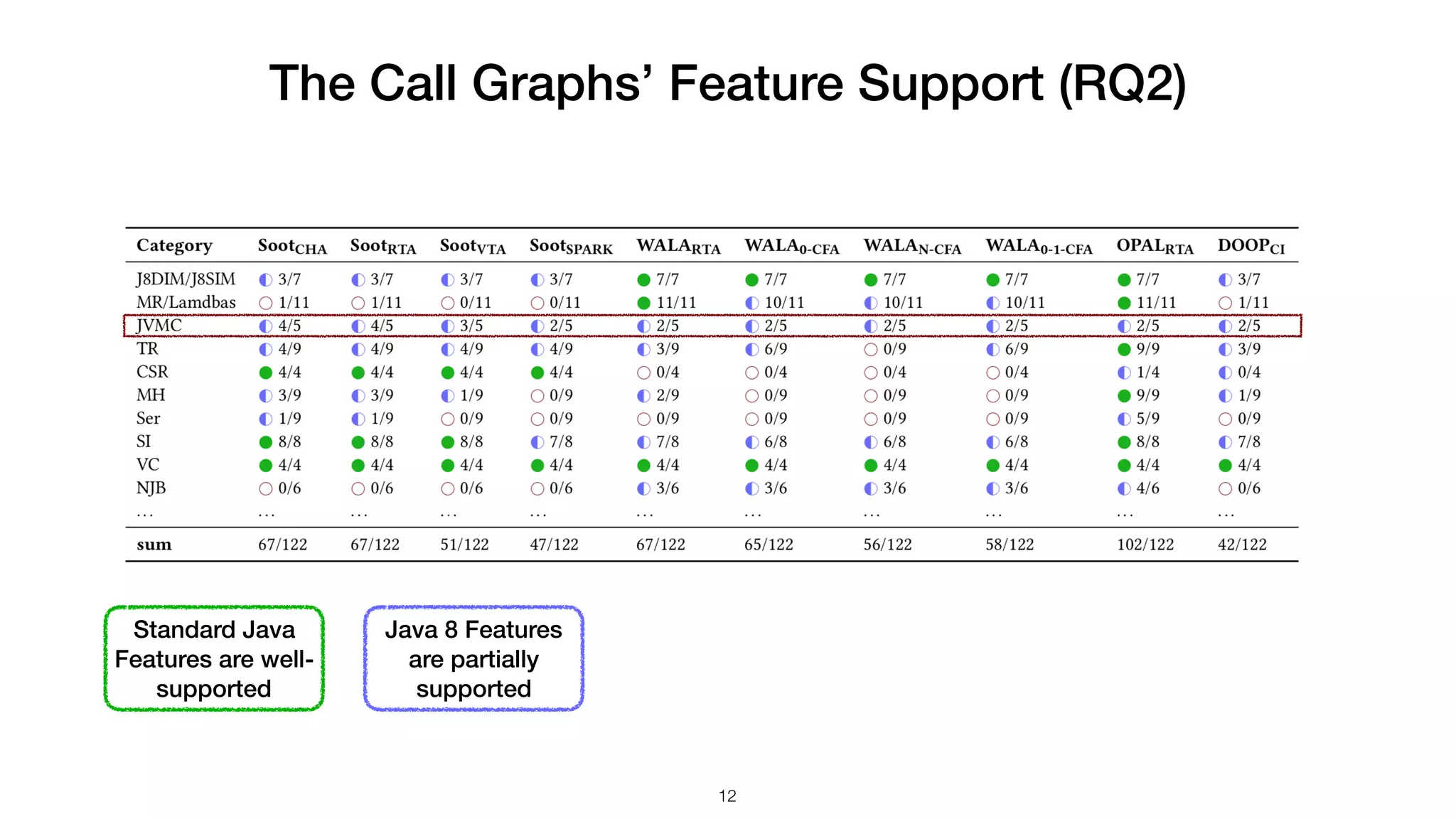

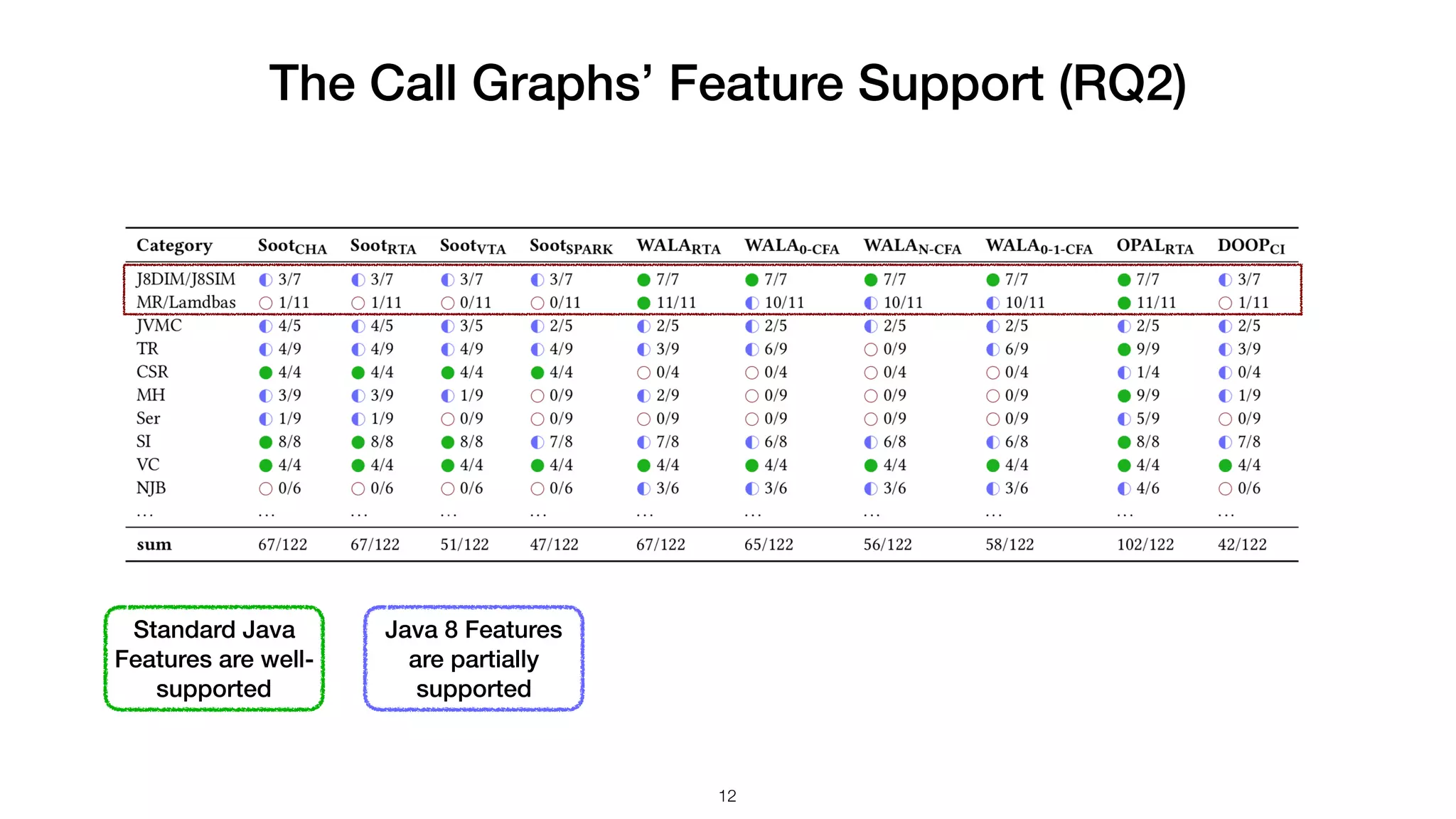

21. The Call Graphs’ Feature Support (RQ2)
!12
Java 8 Features
are partially
supported
Standard Java
Features are well-
supported
22. The Call Graphs’ Feature Support (RQ2)
!12
Java 8 Features
are partially
supported
Standard Java
Features are well-
supported

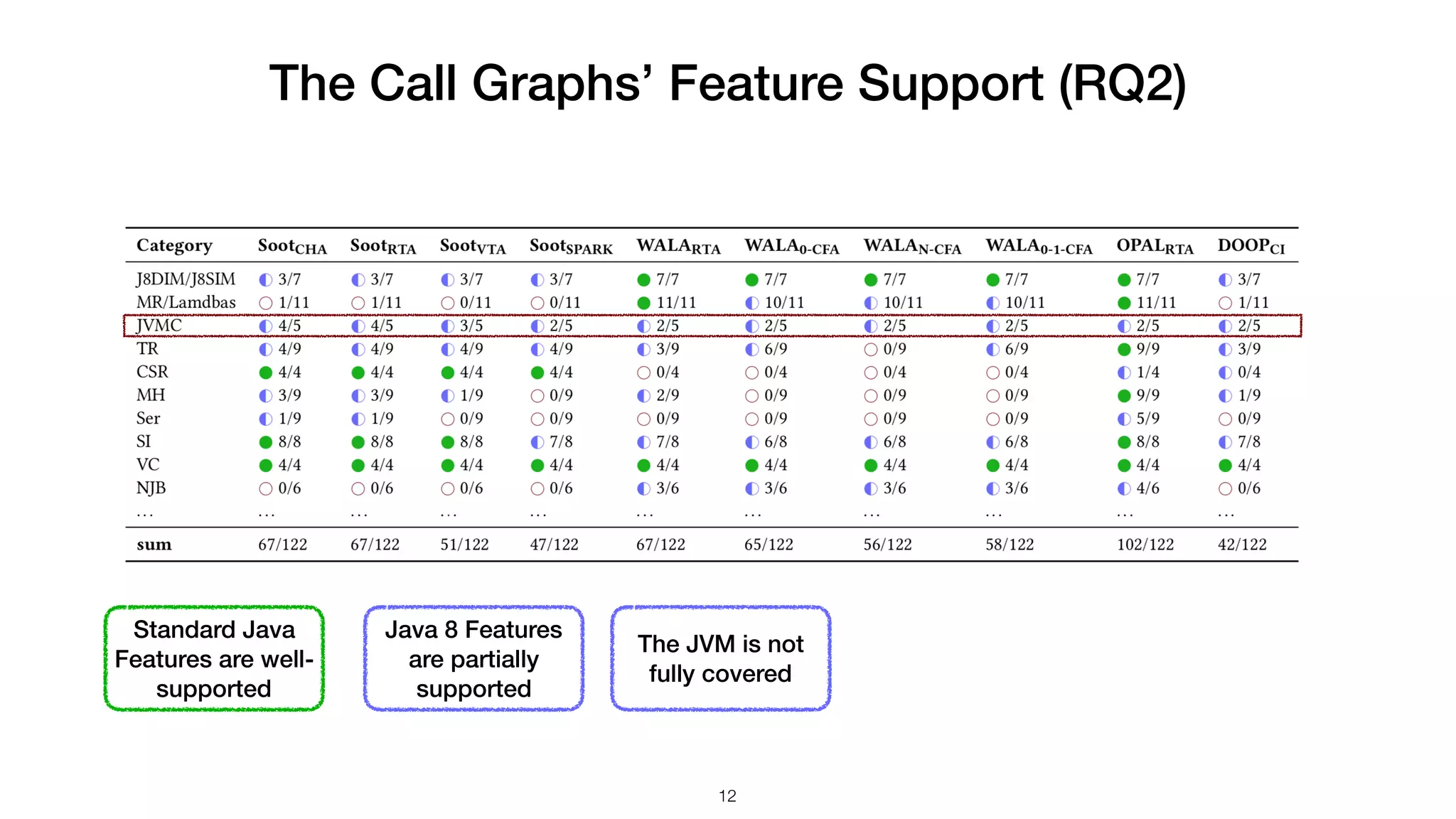

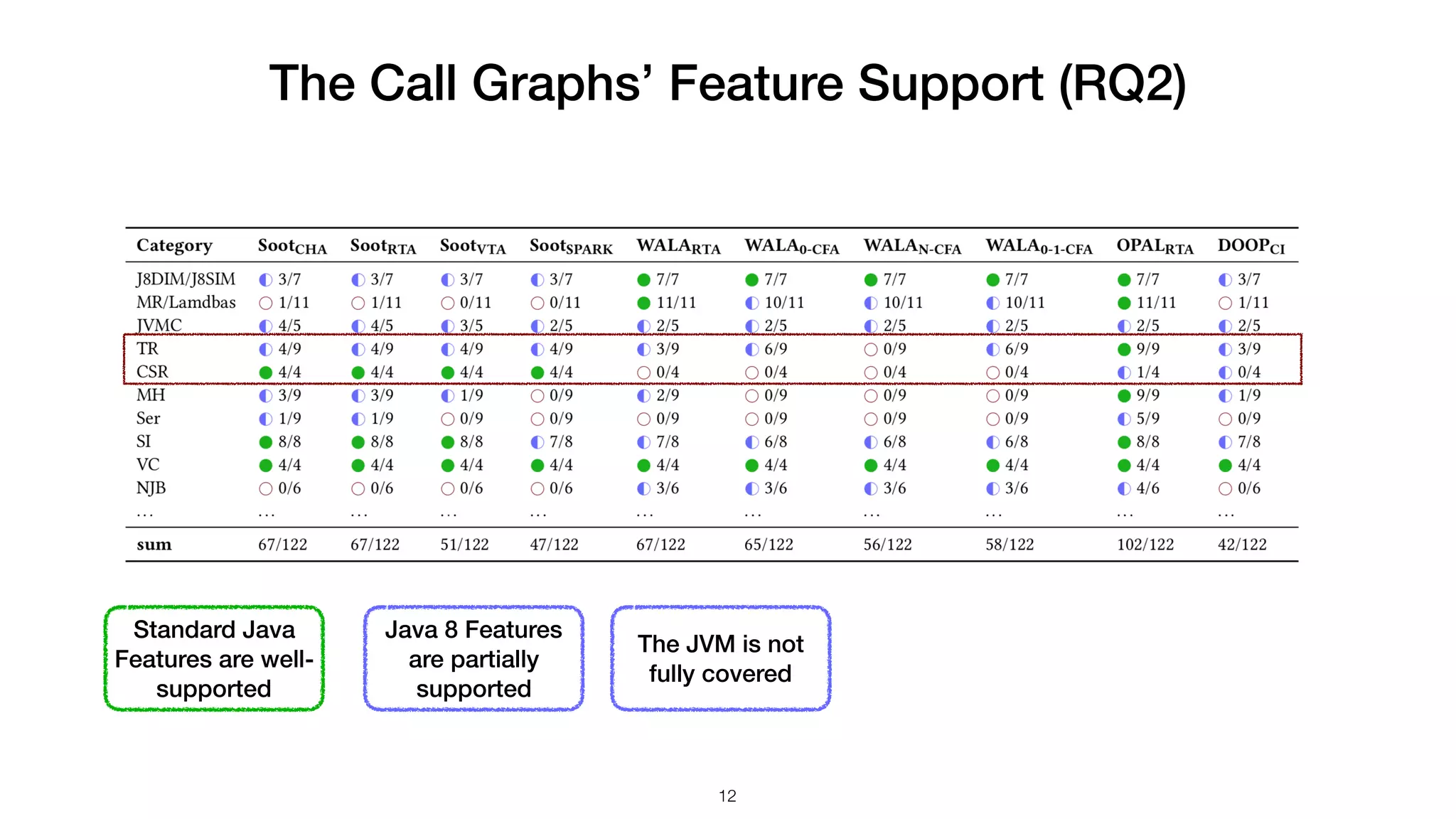

23. The Call Graphs’ Feature Support (RQ2)
!12
Java 8 Features
are partially
supported
The JVM is not
fully covered
Standard Java
Features are well-
supported
24. The Call Graphs’ Feature Support (RQ2)
!12
Java 8 Features
are partially
supported
The JVM is not
fully covered
Standard Java
Features are well-
supported

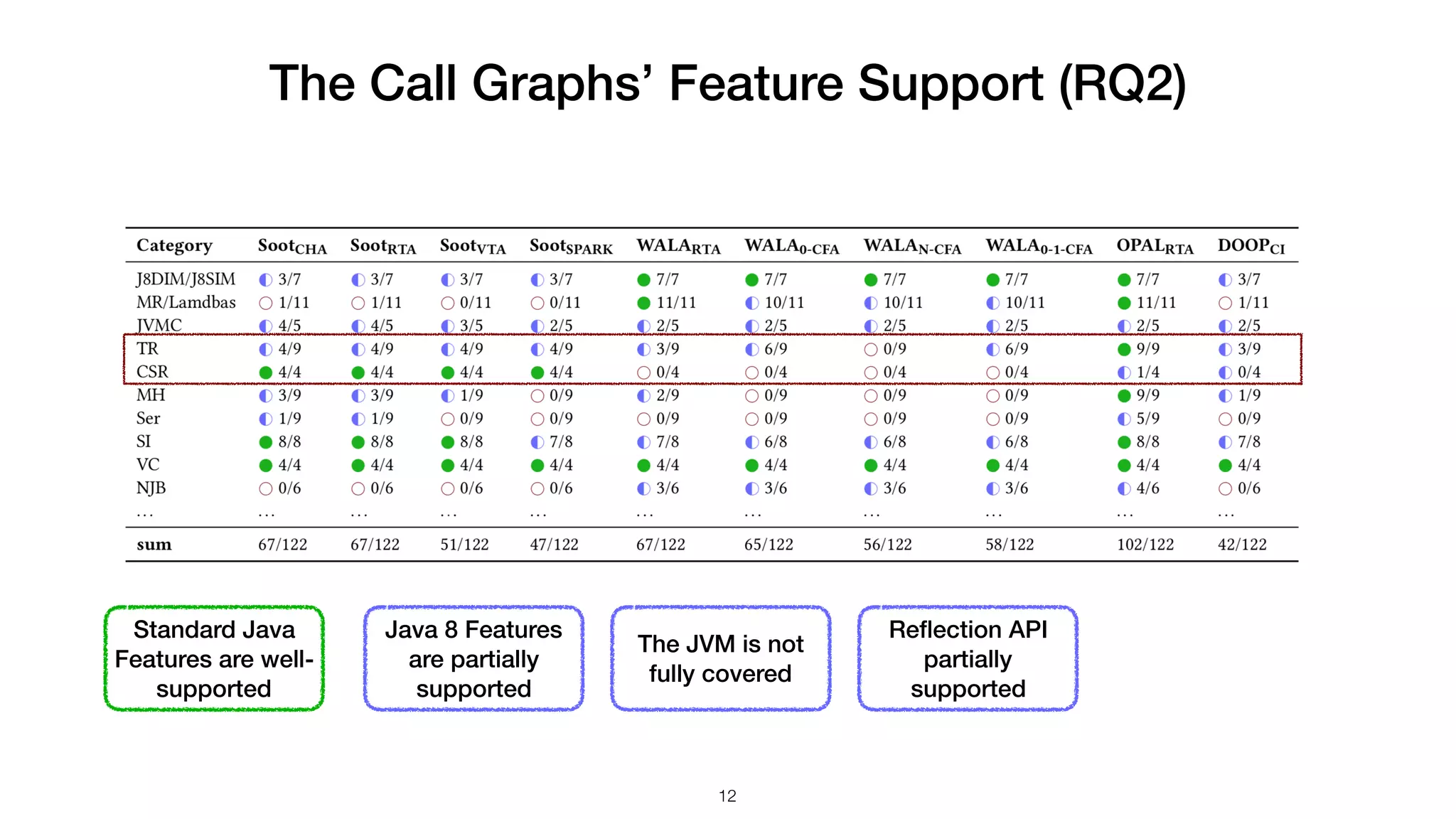

25. The Call Graphs’ Feature Support (RQ2)
!12
Java 8 Features
are partially
supported
The JVM is not
fully covered
Standard Java
Features are well-
supported
Reflection API
partially
supported

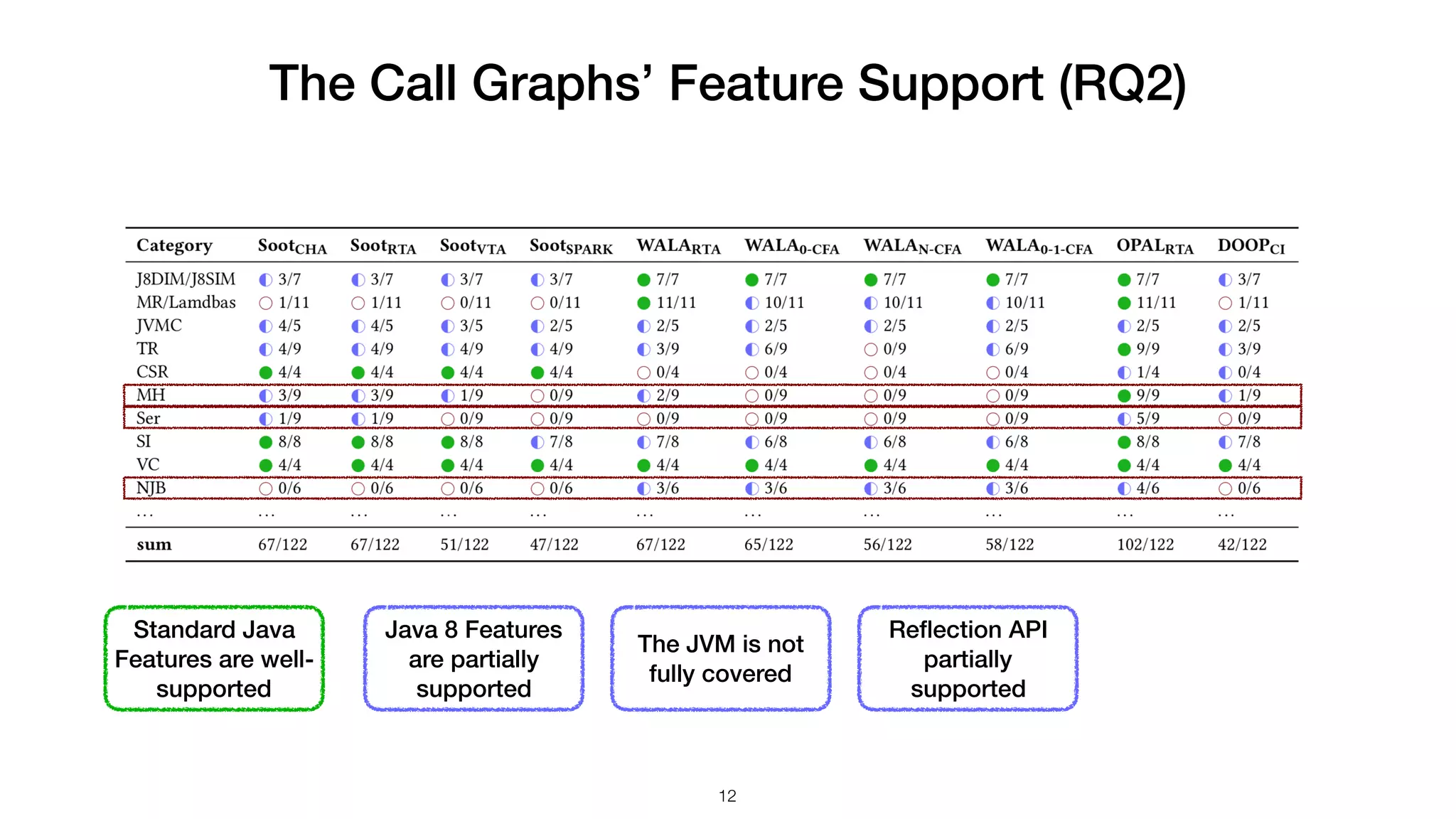

26. The Call Graphs’ Feature Support (RQ2)
!12
Java 8 Features
are partially
supported
The JVM is not
fully covered
Standard Java
Features are well-
supported
Reflection API
partially
supported

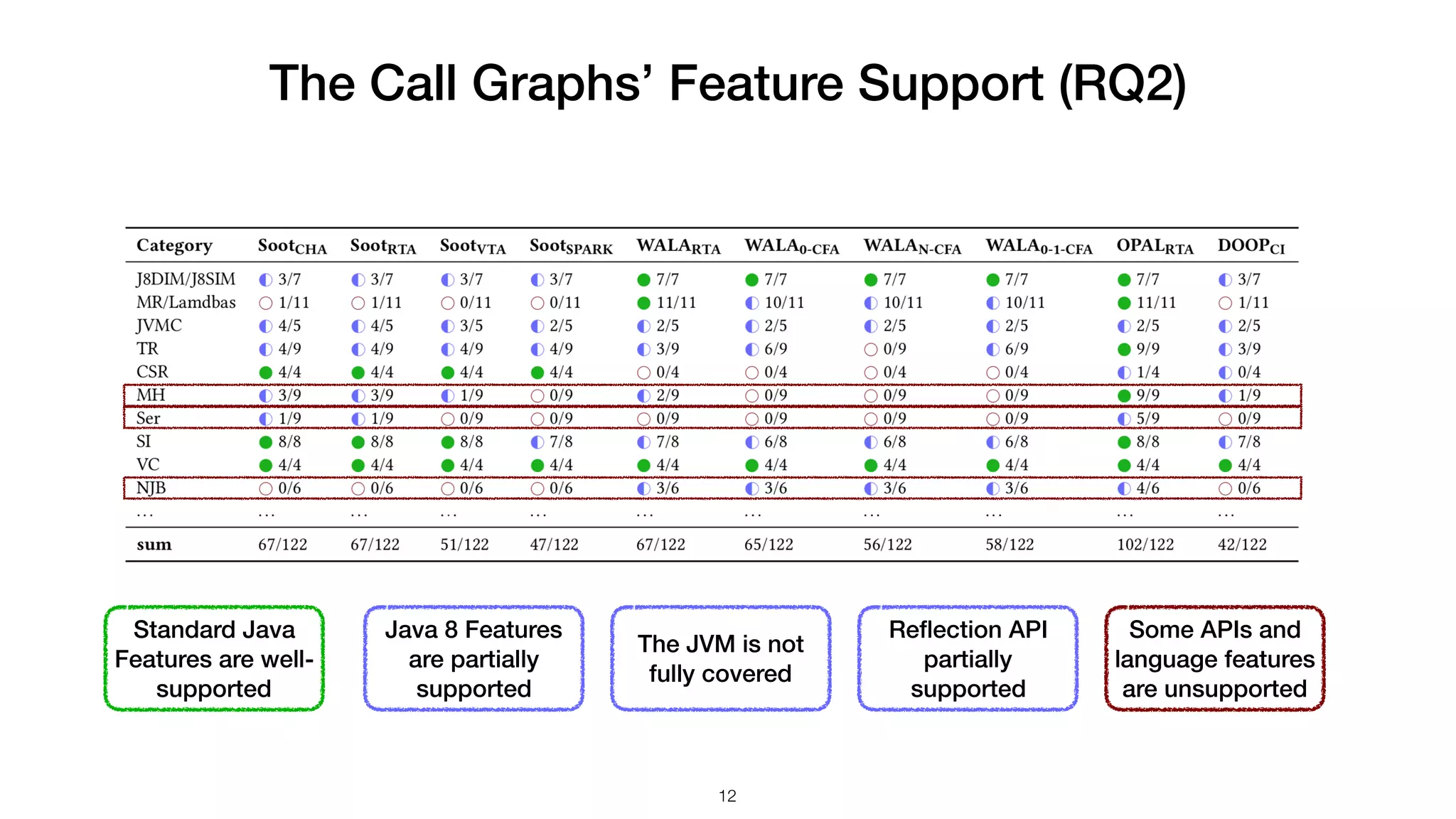

27. The Call Graphs’ Feature Support (RQ2)
!12
Java 8 Features
are partially
supported
The JVM is not
fully covered
Some APIs and
language features
are unsupported
Standard Java
Features are well-
supported
Reflection API
partially
supported

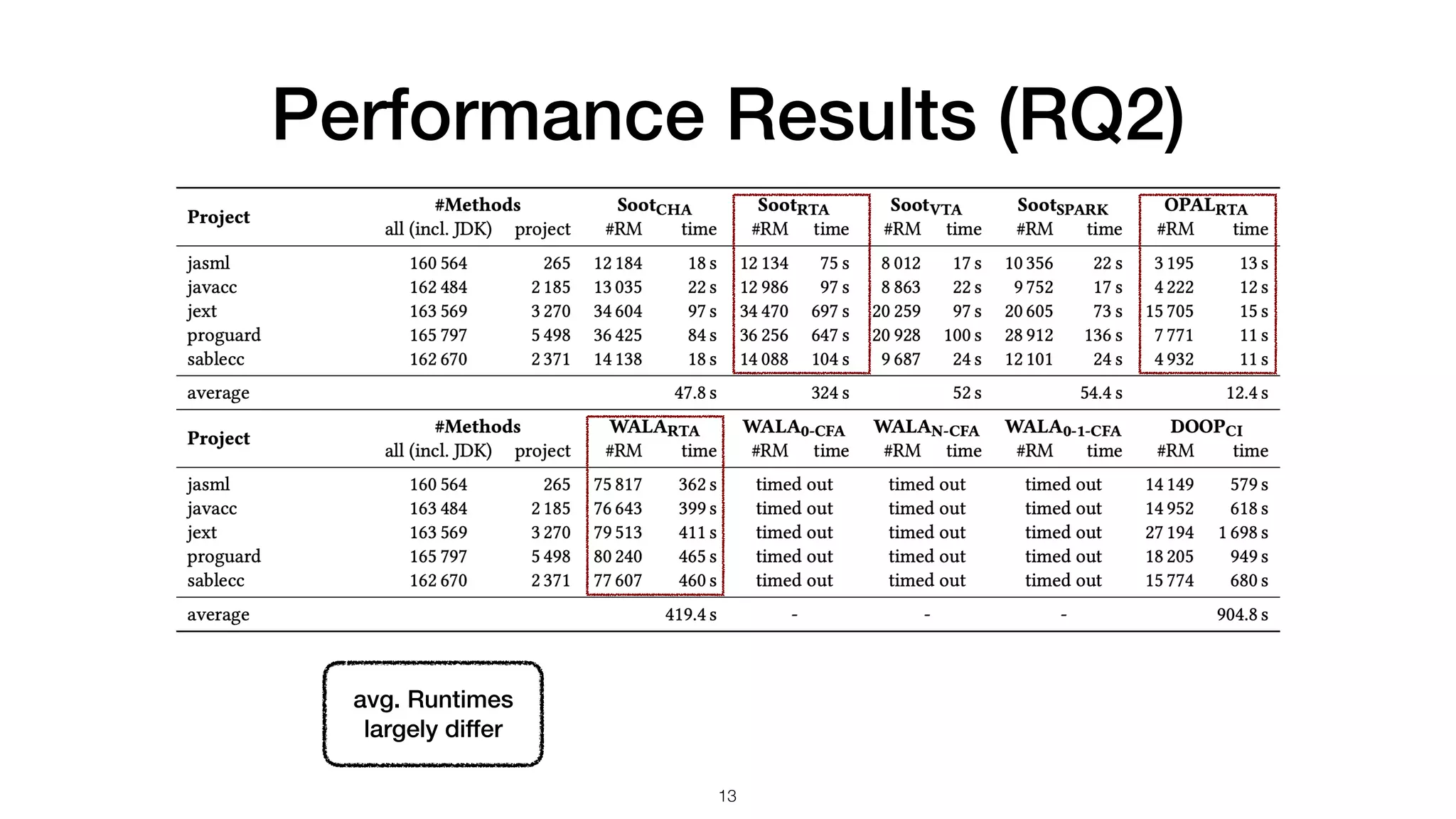

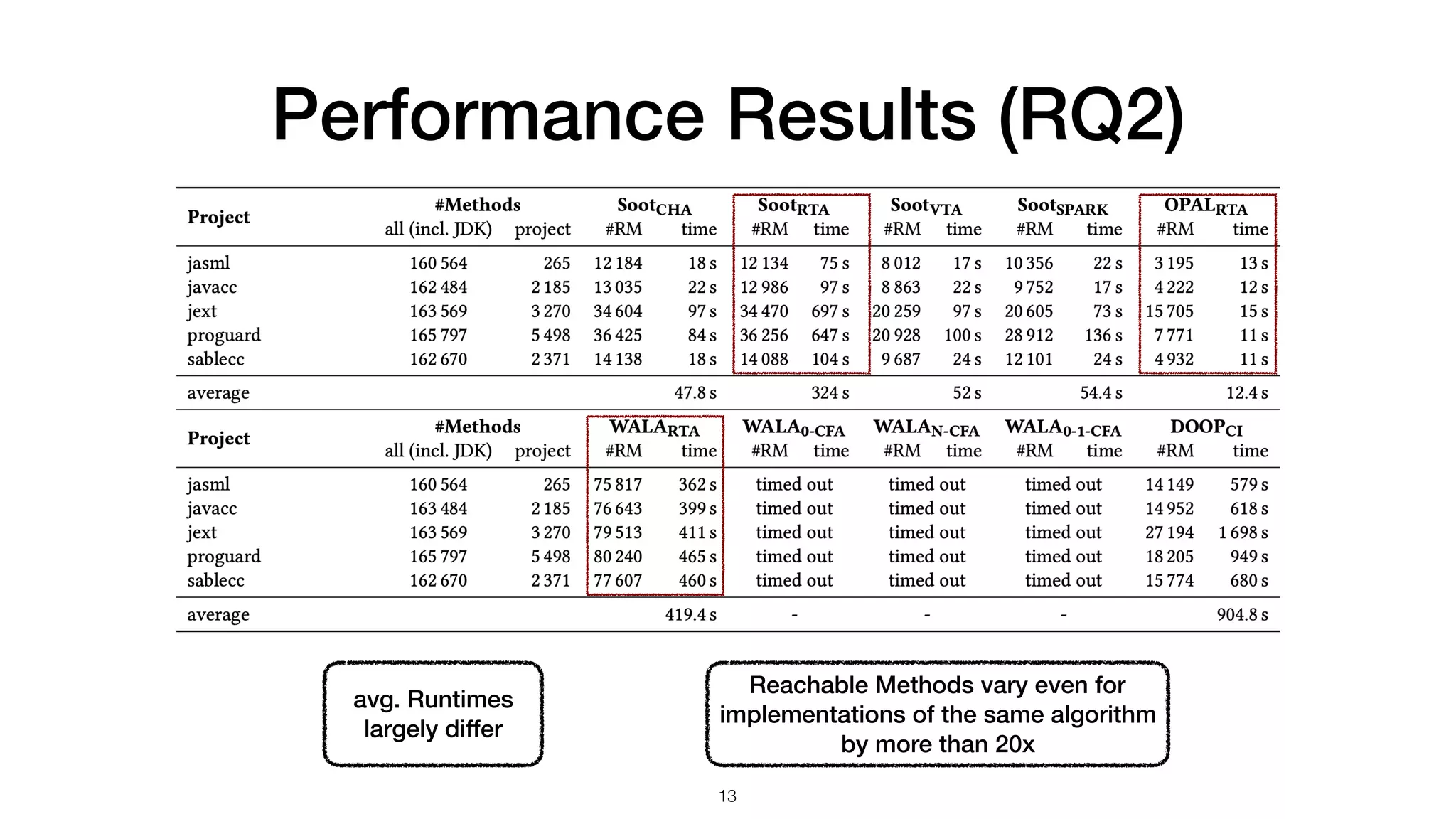

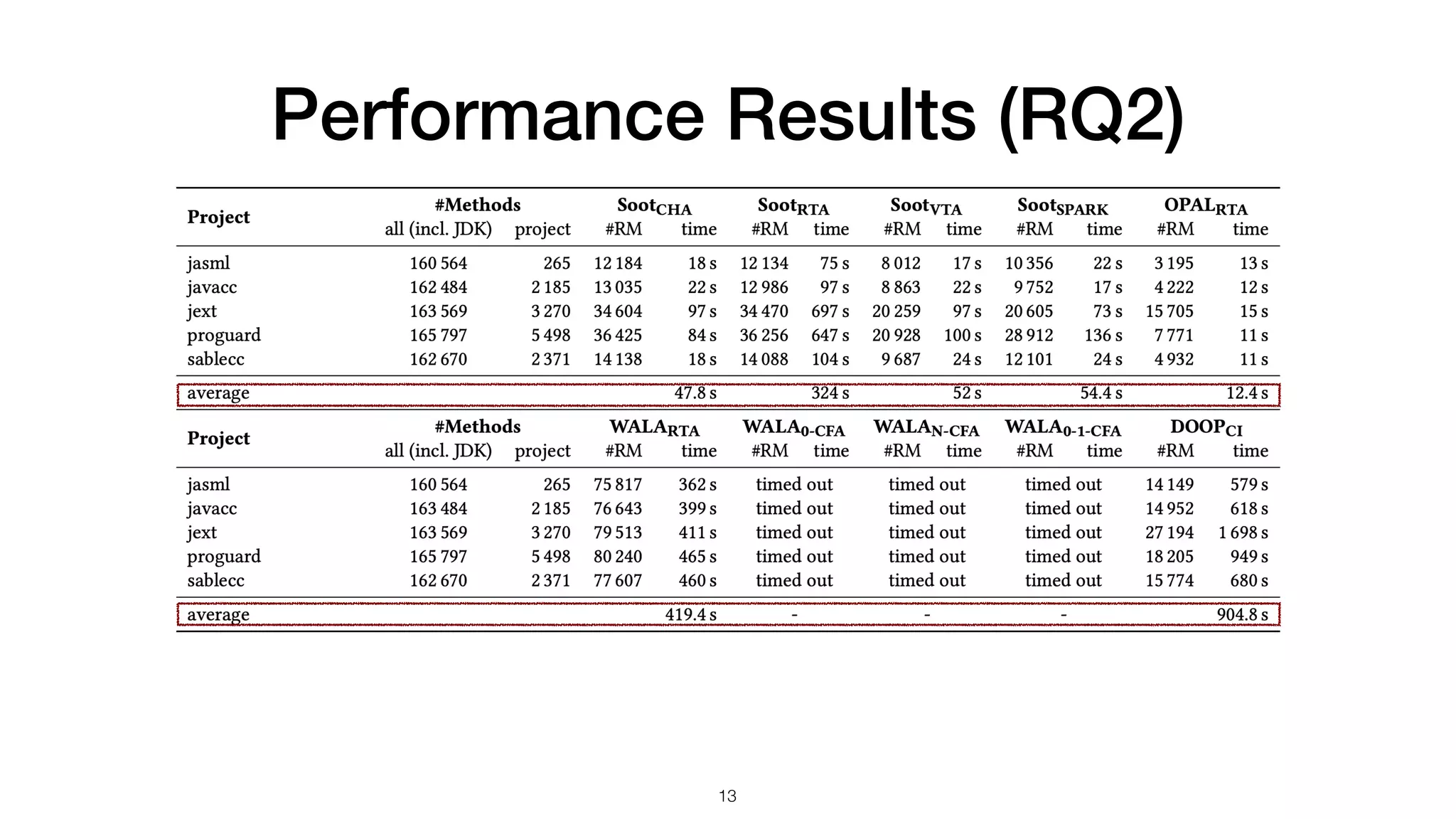

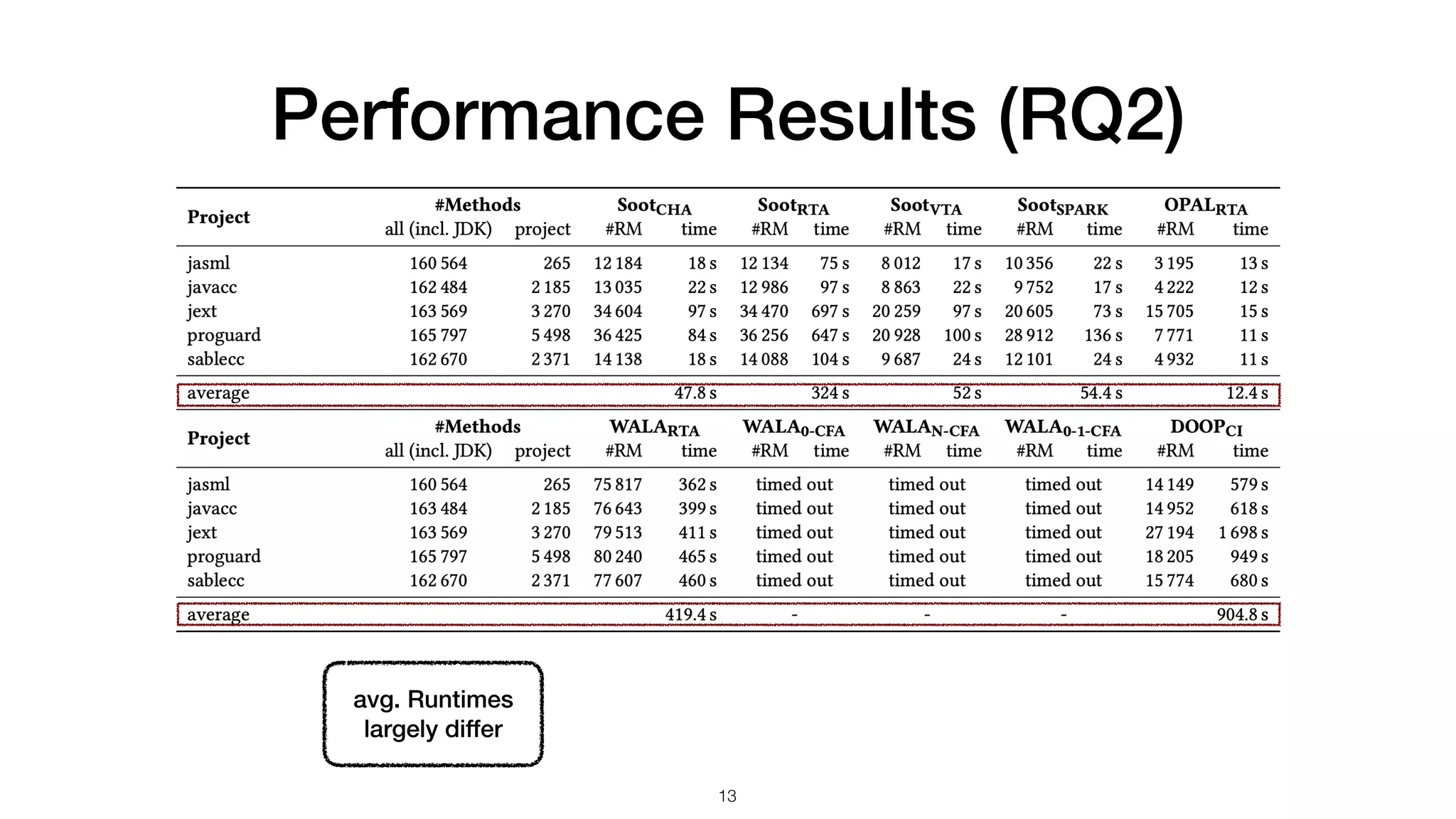

32. Performance Results (RQ2)
!13
avg. Runtimes
largely differ
Reachable Methods vary even for
implementations of the same algorithm
by more than 20x

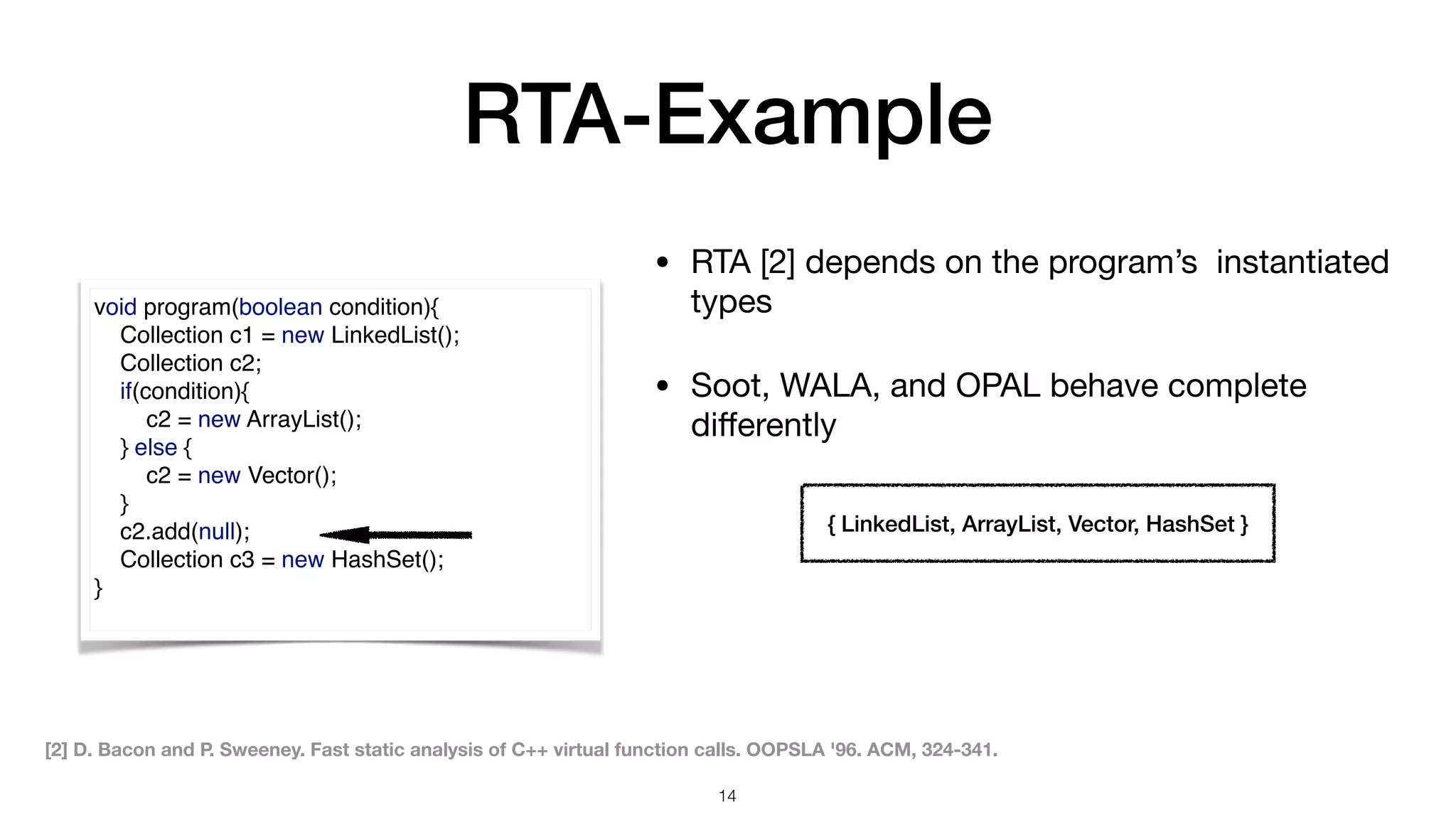

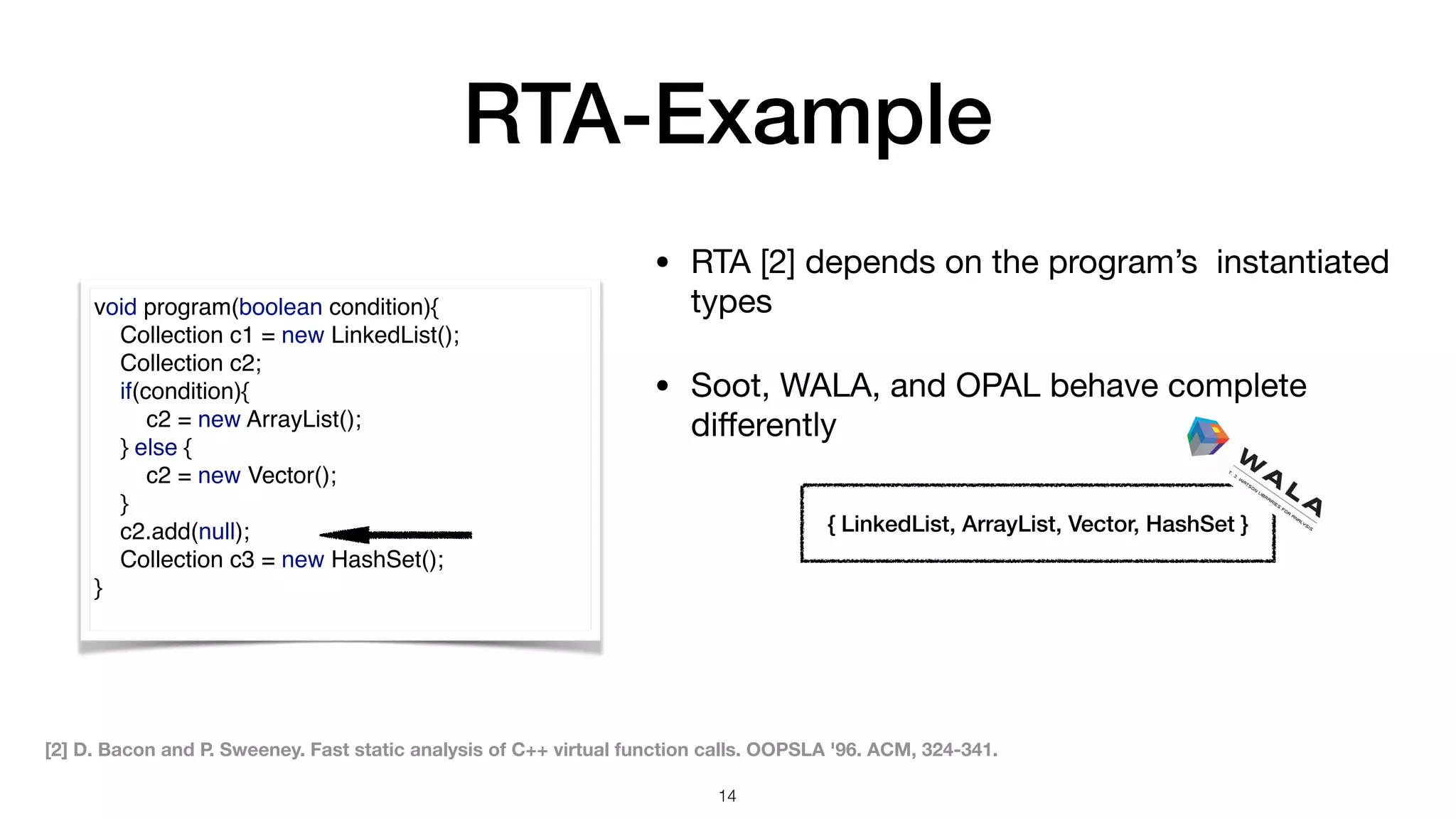

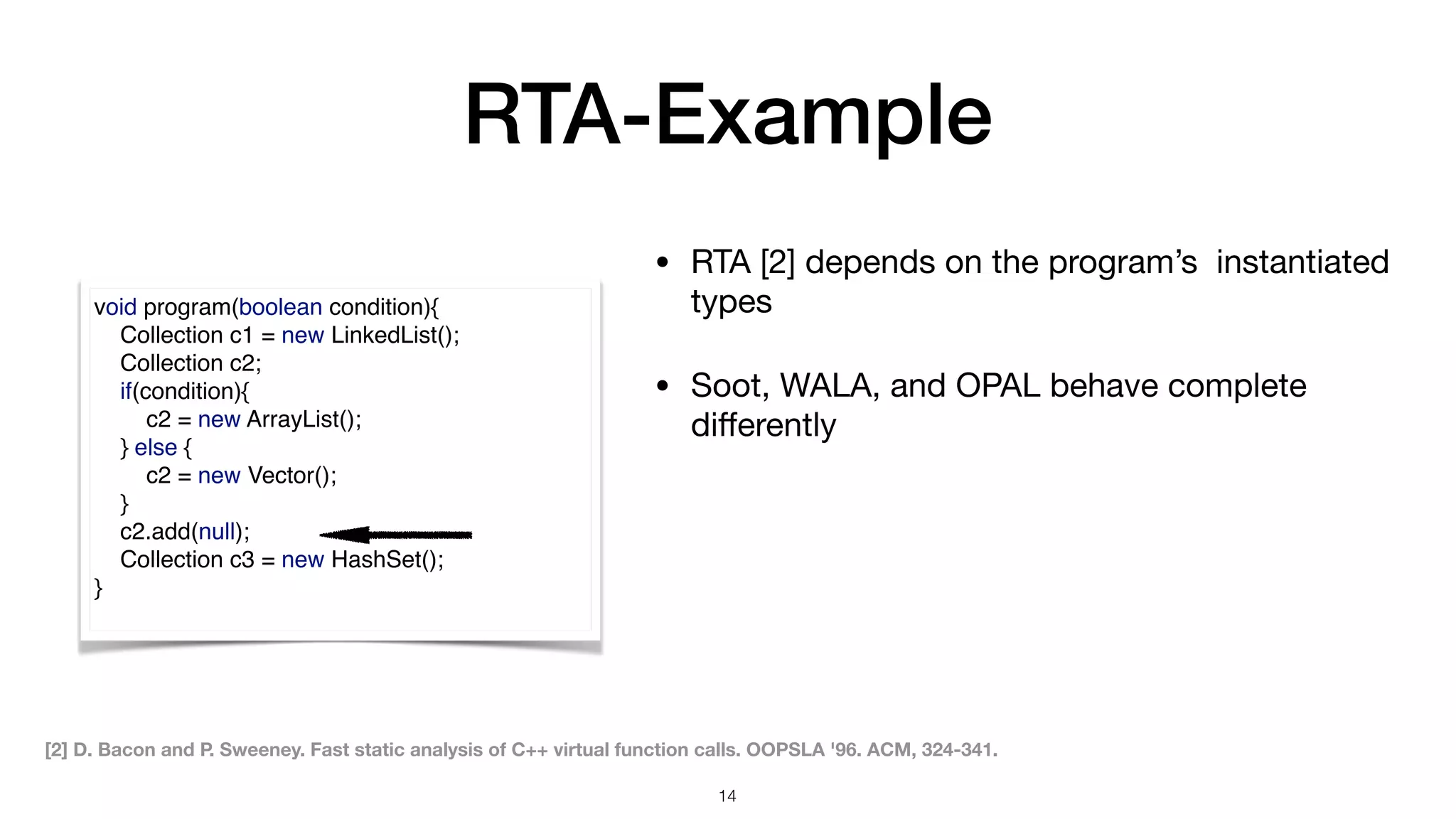

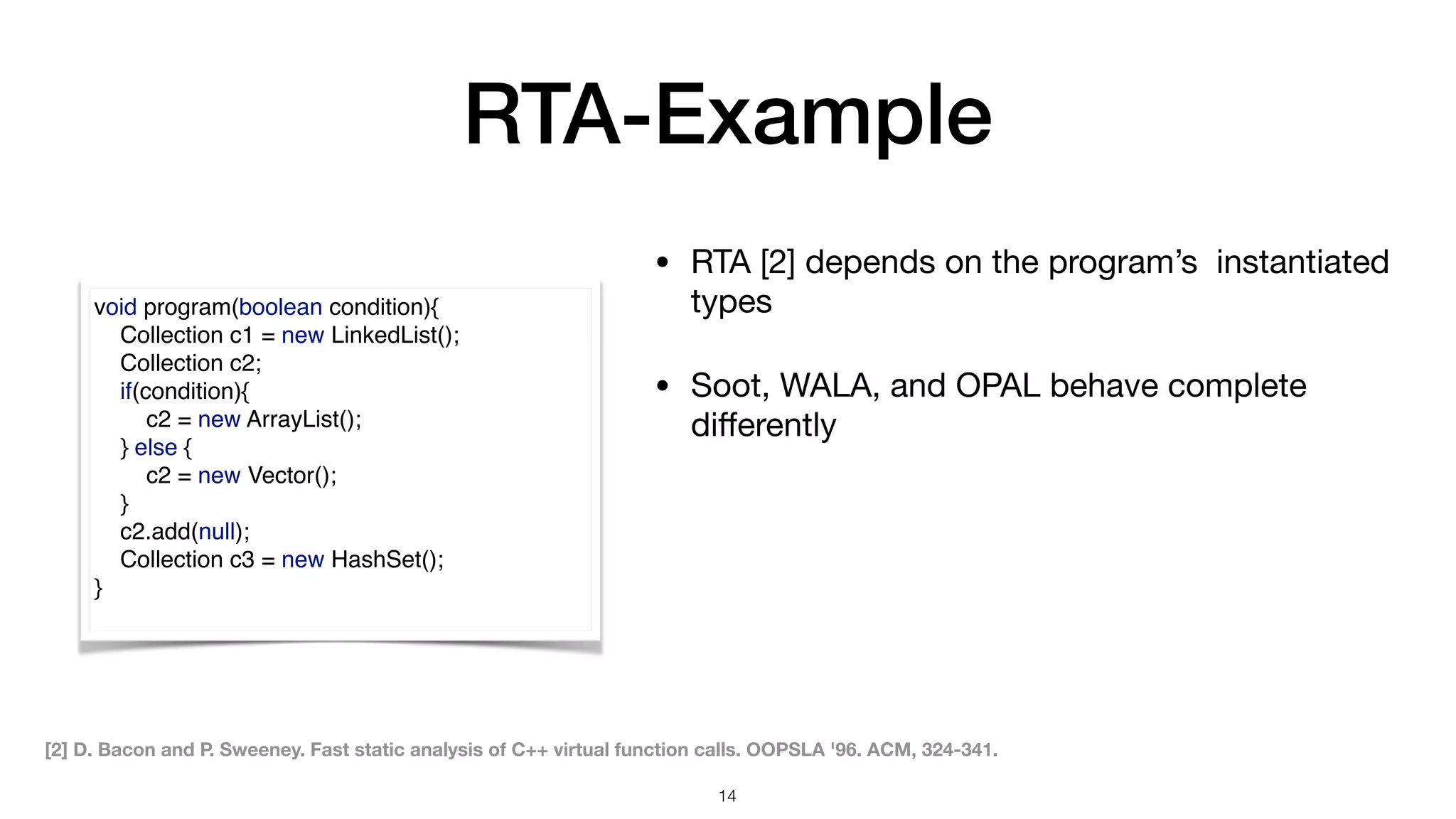

33. RTA-Example
!14
void program(boolean condition){
Collection c1 = new LinkedList();
Collection c2;
if(condition){
c2 = new ArrayList();
} else {
c2 = new Vector();
}
c2.add(null);
Collection c3 = new HashSet();
}
• RTA [2] depends on the program’s instantiated
types
• Soot, WALA, and OPAL behave complete
differently
[2] D. Bacon and P. Sweeney. Fast static analysis of C++ virtual function calls. OOPSLA '96. ACM, 324-341.

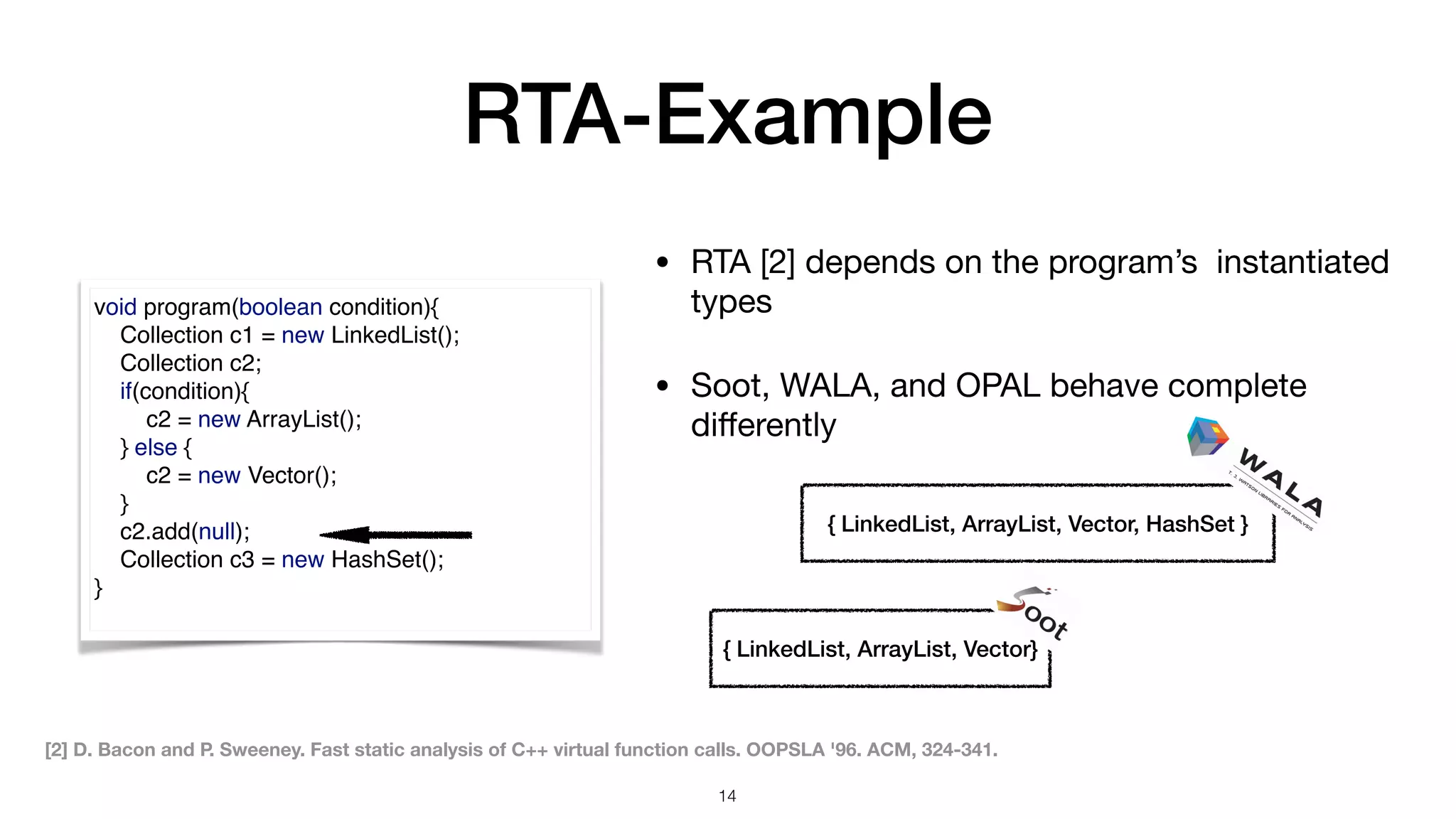

34. RTA-Example
!14
void program(boolean condition){
Collection c1 = new LinkedList();
Collection c2;
if(condition){
c2 = new ArrayList();
} else {
c2 = new Vector();
}
c2.add(null);
Collection c3 = new HashSet();
}
• RTA [2] depends on the program’s instantiated
types
• Soot, WALA, and OPAL behave complete
differently
[2] D. Bacon and P. Sweeney. Fast static analysis of C++ virtual function calls. OOPSLA '96. ACM, 324-341.

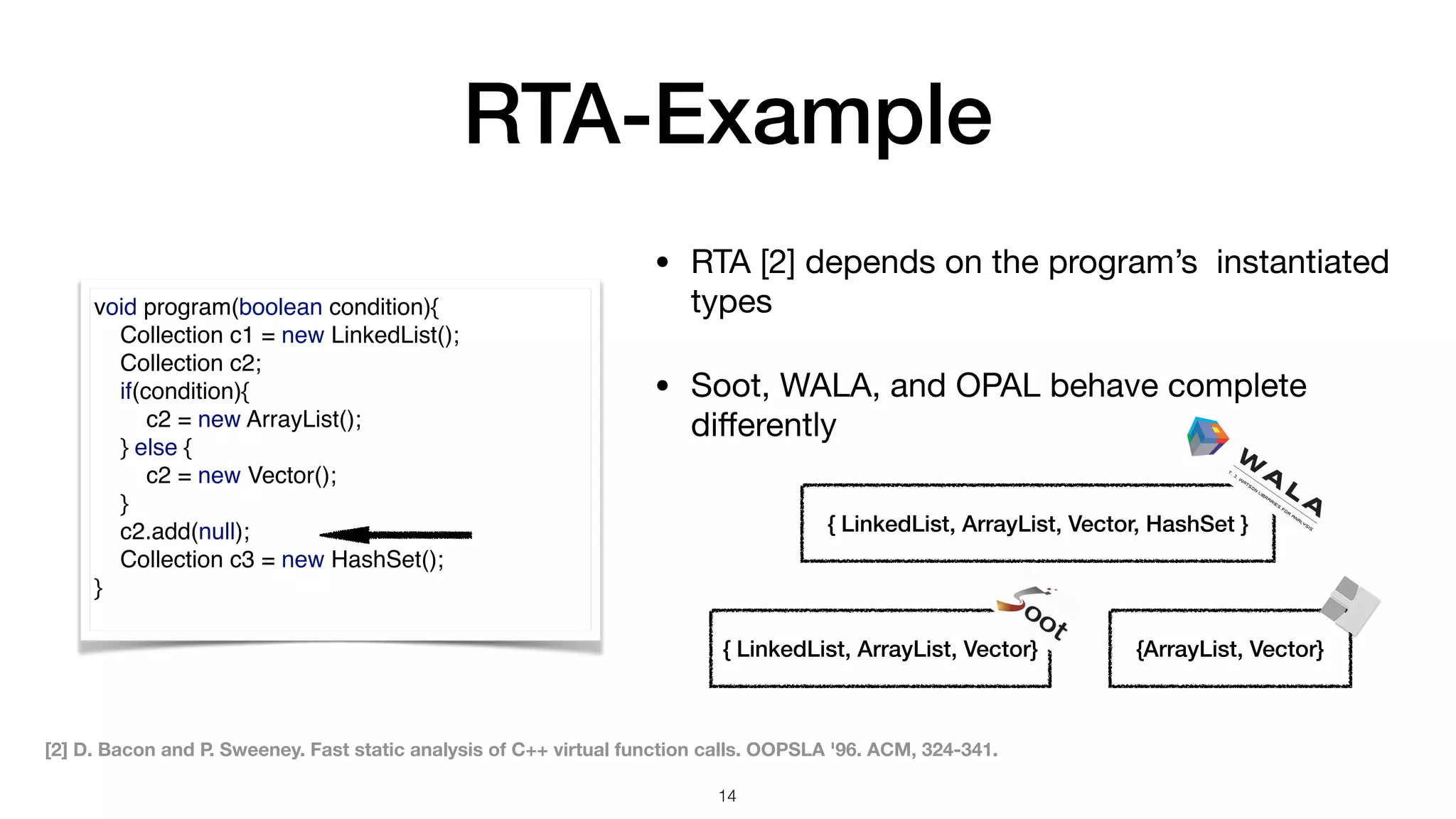

35. RTA-Example
!14
void program(boolean condition){
Collection c1 = new LinkedList();
Collection c2;
if(condition){
c2 = new ArrayList();
} else {
c2 = new Vector();
}
c2.add(null);
Collection c3 = new HashSet();
}
• RTA [2] depends on the program’s instantiated
types
• Soot, WALA, and OPAL behave complete
differently
[2] D. Bacon and P. Sweeney. Fast static analysis of C++ virtual function calls. OOPSLA '96. ACM, 324-341.
{ LinkedList, ArrayList, Vector, HashSet }
36. RTA-Example
!14
void program(boolean condition){
Collection c1 = new LinkedList();
Collection c2;
if(condition){
c2 = new ArrayList();
} else {
c2 = new Vector();
}
c2.add(null);
Collection c3 = new HashSet();
}
• RTA [2] depends on the program’s instantiated
types
• Soot, WALA, and OPAL behave complete
differently
[2] D. Bacon and P. Sweeney. Fast static analysis of C++ virtual function calls. OOPSLA '96. ACM, 324-341.
{ LinkedList, ArrayList, Vector, HashSet }
37. RTA-Example
!14
void program(boolean condition){
Collection c1 = new LinkedList();
Collection c2;
if(condition){
c2 = new ArrayList();
} else {
c2 = new Vector();
}
c2.add(null);
Collection c3 = new HashSet();
}
• RTA [2] depends on the program’s instantiated
types
• Soot, WALA, and OPAL behave complete
differently
[2] D. Bacon and P. Sweeney. Fast static analysis of C++ virtual function calls. OOPSLA '96. ACM, 324-341.
{ LinkedList, ArrayList, Vector, HashSet }
{ LinkedList, ArrayList, Vector}
38. RTA-Example
!14
void program(boolean condition){
Collection c1 = new LinkedList();
Collection c2;
if(condition){
c2 = new ArrayList();
} else {
c2 = new Vector();
}
c2.add(null);
Collection c3 = new HashSet();
}
• RTA [2] depends on the program’s instantiated
types
• Soot, WALA, and OPAL behave complete
differently
[2] D. Bacon and P. Sweeney. Fast static analysis of C++ virtual function calls. OOPSLA '96. ACM, 324-341.
{ LinkedList, ArrayList, Vector, HashSet }
{ArrayList, Vector}{ LinkedList, ArrayList, Vector}

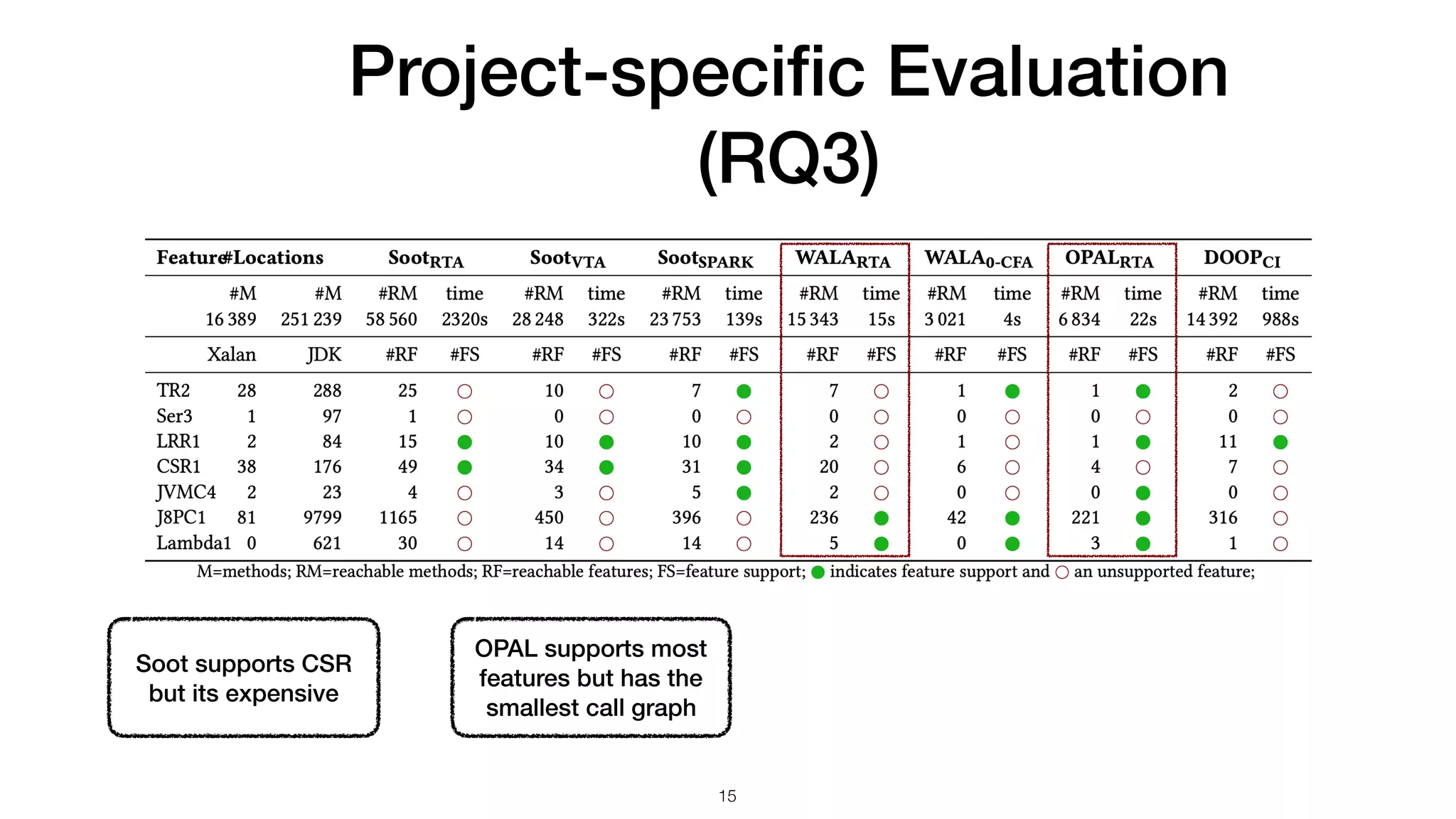

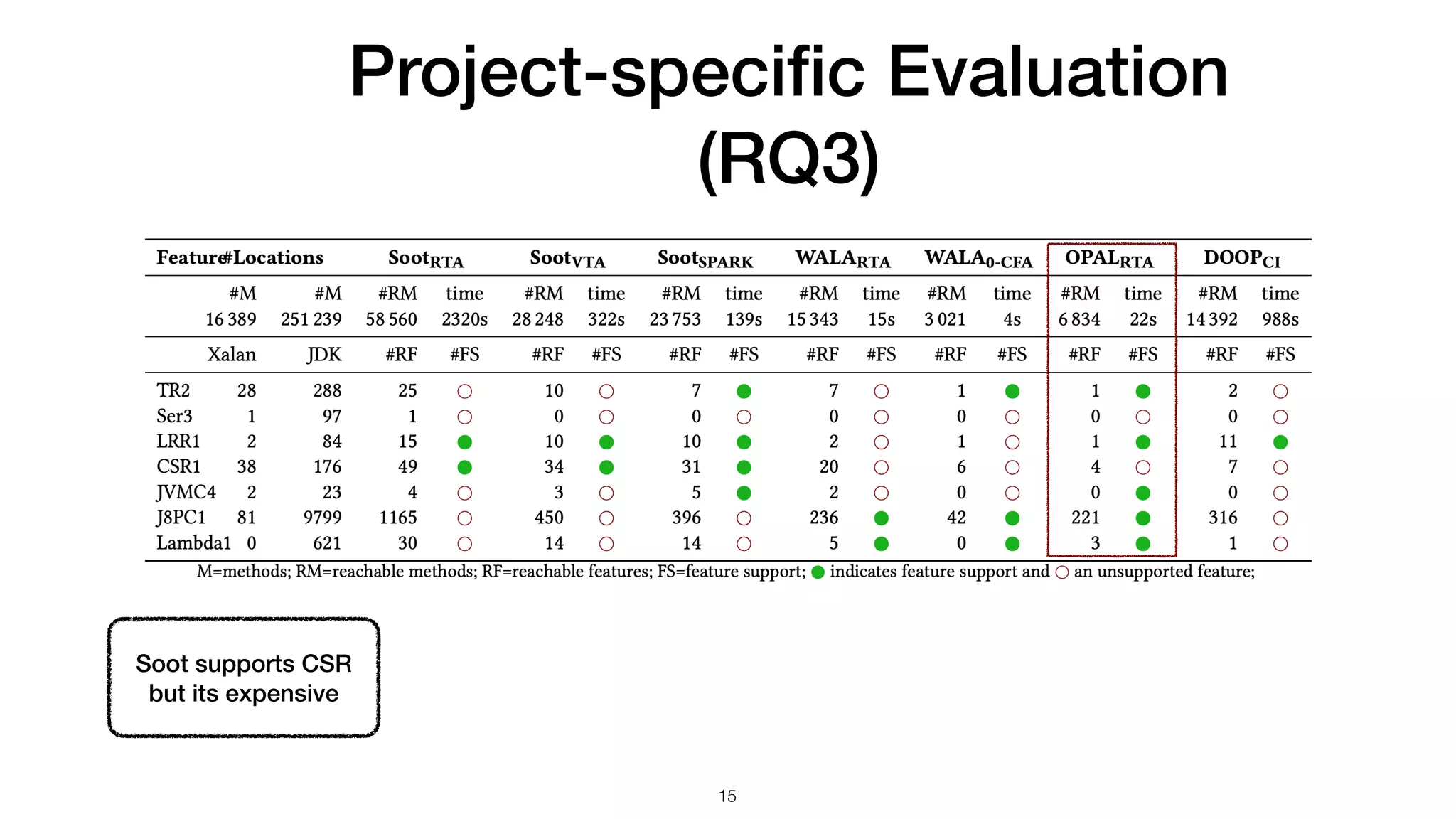

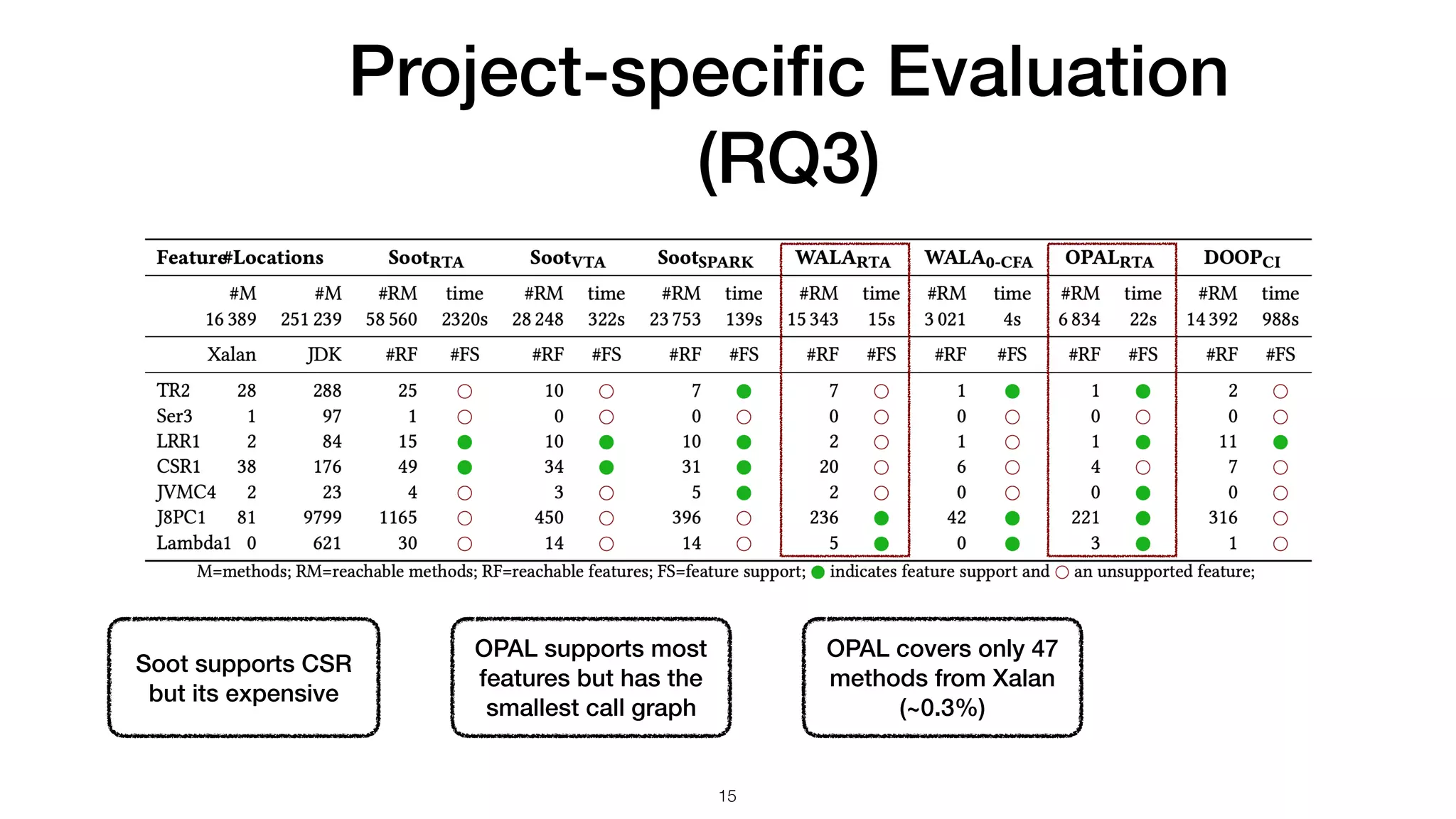

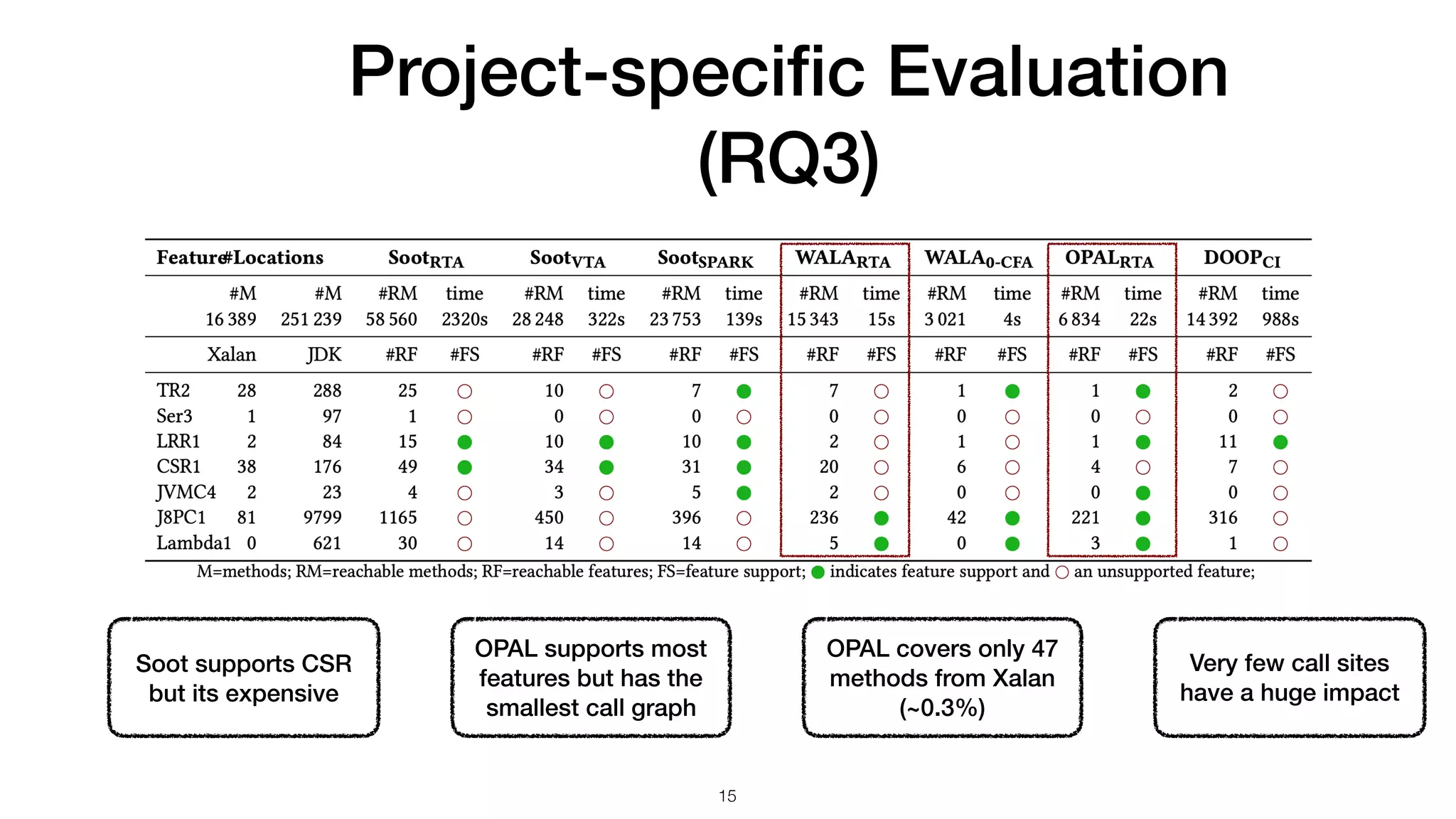

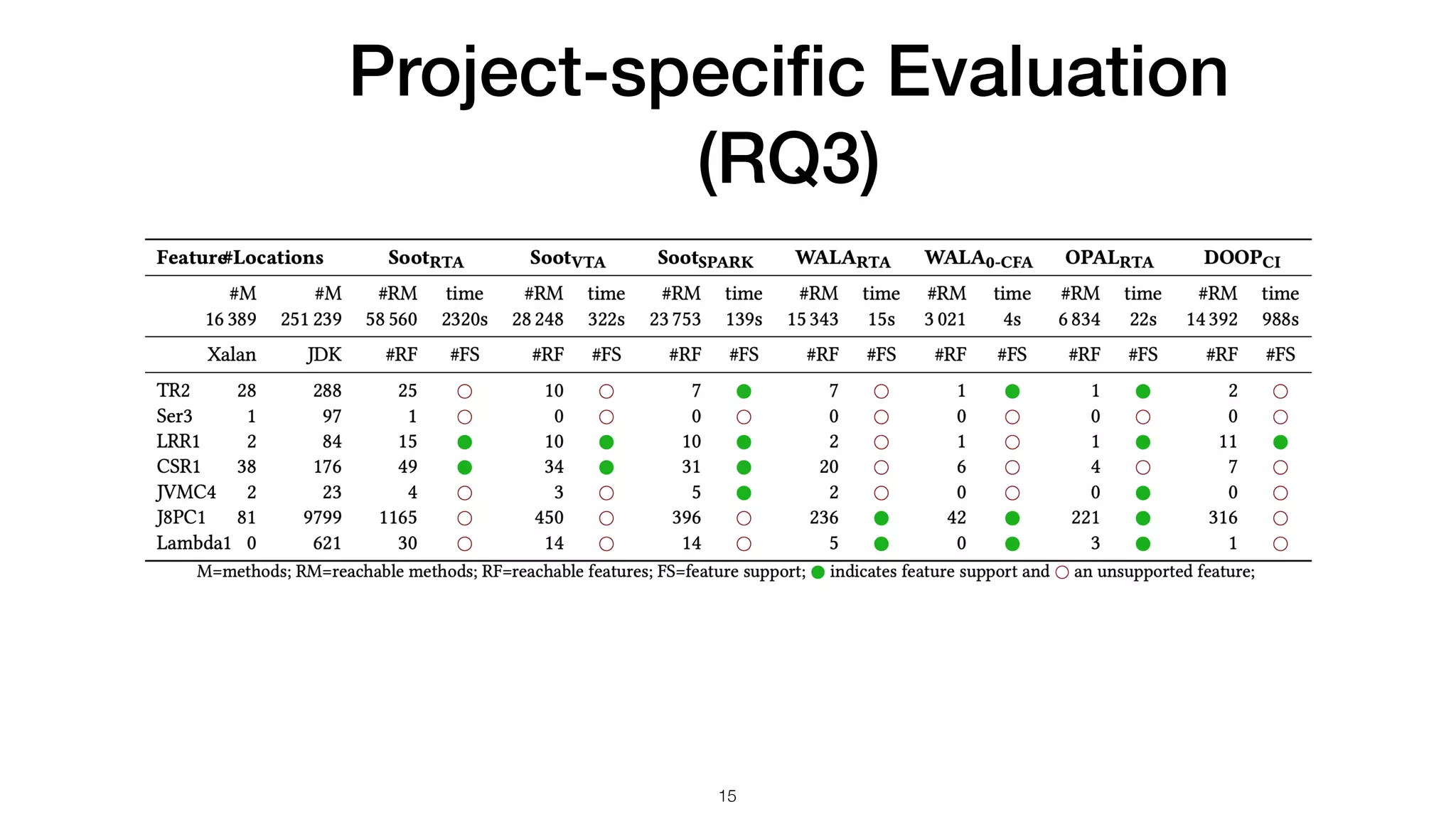

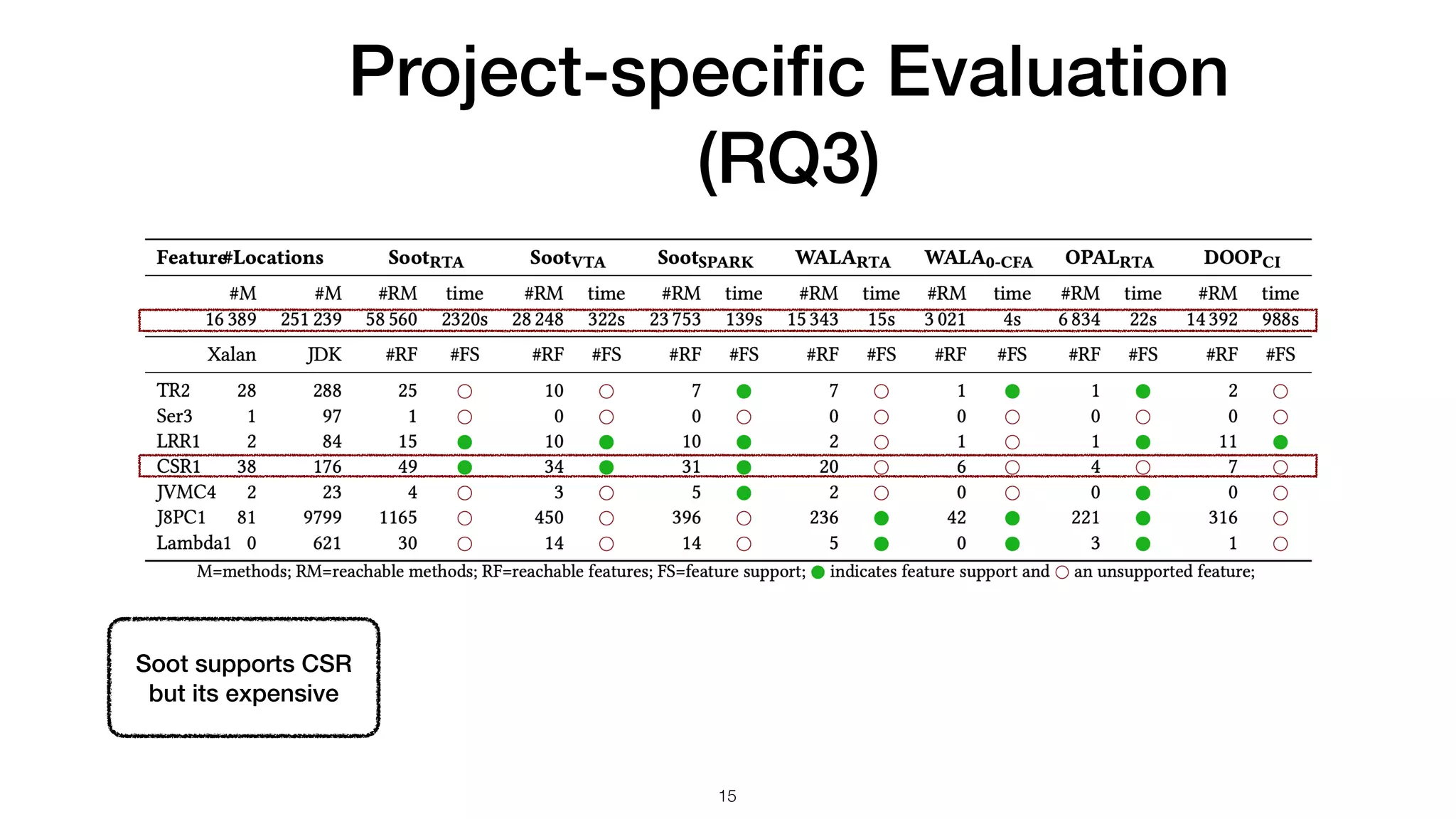

45. Project-specific Evaluation
(RQ3)
!15
Soot supports CSR
but its expensive
OPAL supports most
features but has the
smallest call graph
OPAL covers only 47
methods from Xalan
(~0.3%)
Very few call sites
have a huge impact

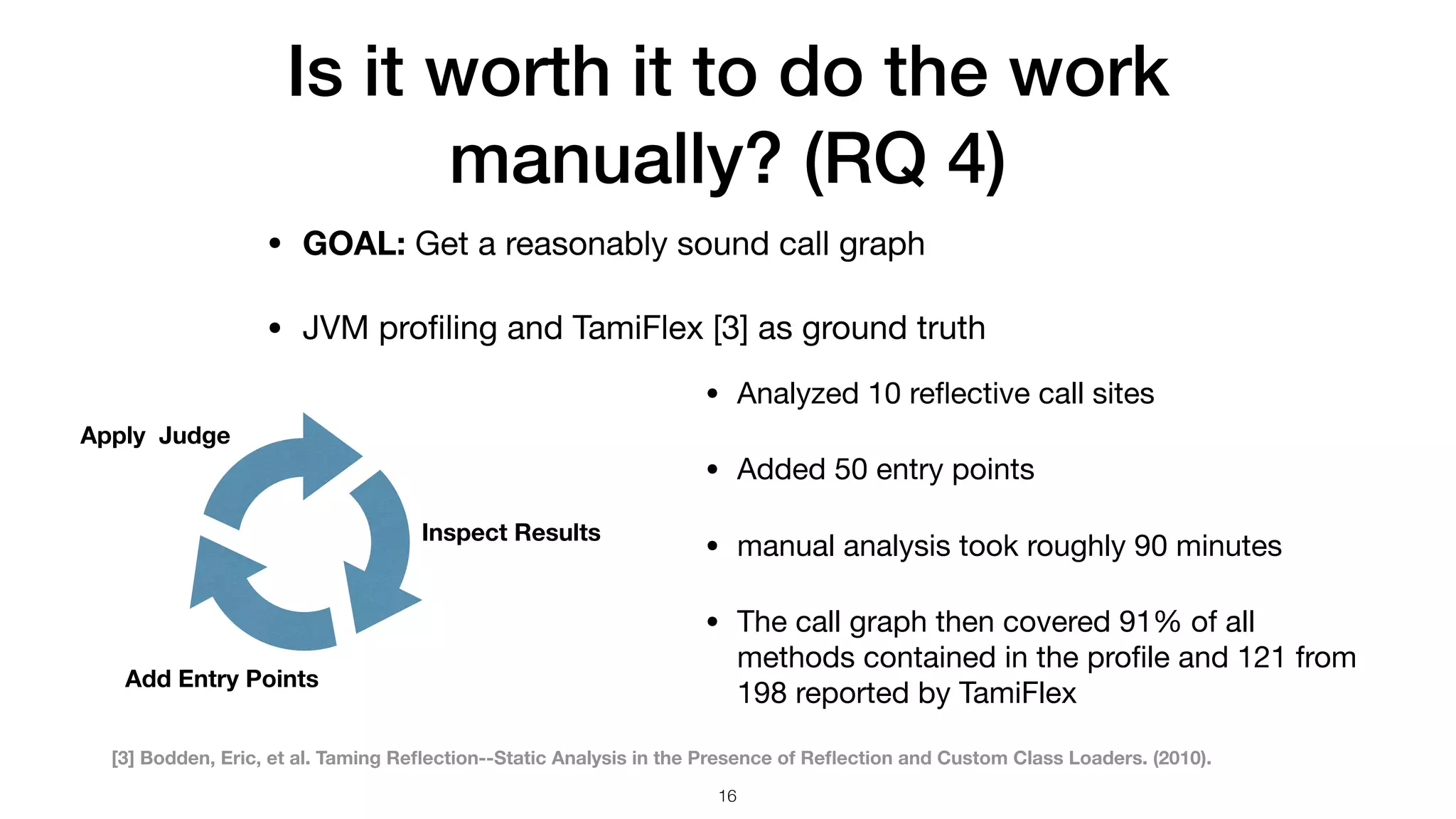

46. Is it worth it to do the work
manually? (RQ 4)
• GOAL: Get a reasonably sound call graph
• JVM profiling and TamiFlex [3] as ground truth
!16
[3] Bodden, Eric, et al. Taming Reflection--Static Analysis in the Presence of Reflection and Custom Class Loaders. (2010).
Apply Judge
Inspect Results
Add Entry Points
• Analyzed 10 reflective call sites
• Added 50 entry points
• manual analysis took roughly 90 minutes
• The call graph then covered 91% of all
methods contained in the profile and 121 from
198 reported by TamiFlex
