GlassFish BOF

Copyright © 2013, Oracle and/or its affiliates. All rights reserved.1
GlassFish BOF
Reza Rahman, GlassFish Evangelist
Anil Gaur, VP Software Development

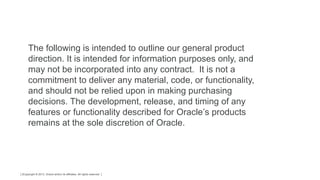

The following is intended to outline our general product
direction. It is intended for information purposes only, and
may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality,
and should not be relied upon in making purchasing
decisions. The development, release, and timing of any
features or functionality described for Oracle’s products
remains at the sole discretion of Oracle.

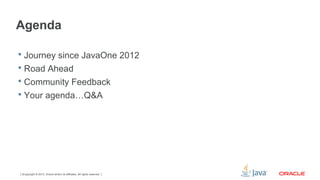

Agenda
 Journey since JavaOne 2012
 Road Ahead
 Community Feedback
 Your agenda…Q&A

GlassFish Community
 Shipped Java EE 7 RI
 More social: More Twitter followers
 Community contributions
– FishCat – Mohammed, Marcus, Adam & many more
– Adopt-a-JSR effort with 20+ JUGs
– Tic Tac Toe Sample - Johan
Since JavaOne 2012…

Java EE 7

Java EE Past, Present, & Future
J2EE 1.3
CMP,
Connector
Architecture
J2EE 1.4
Web
Services
Mgmt,
Deploymen
t,
Async
Connector
Java EE 5
Ease of
Development
,
EJB 3, JPA,
JSF, JAXB,
JAX-WS,
StAX, SAAJ
Java EE 6
Pruning,
Extensibility,
Ease of
Use,
CDI, JAX-
RS
Web
Profile
Servlet 3,
EJB 3.1 Lite
Java EE 7
JMS 2,
Batch, TX,
Concurrency,
Interceptor,
WebSocket,
JSON
Web Profile
JAX-RS 2
J2EE 1.2
Servlet,
JSP, EJB,
JMS, RMI

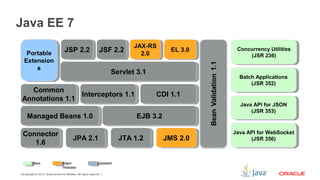

Java EE 7
Connector
1.6
Connector
1.6
Managed Beans 1.0Managed Beans 1.0 EJB 3.2EJB 3.2
Servlet 3.1Servlet 3.1
Portable
Extension
s
Portable
Extension
s
JSF 2.2JSF 2.2 JAX-RS
2.0
JAX-RS
2.0
JMS 2.0JMS 2.0JPA 2.1JPA 2.1
EL 3.0EL 3.0
JTA 1.2JTA 1.2
JSP 2.2JSP 2.2
Interceptors 1.1Interceptors 1.1 CDI 1.1CDI 1.1
Common
Annotations 1.1
Common
Annotations 1.1
UpdatedMajor
Release
New
Concurrency Utilities
(JSR 236)
Concurrency Utilities
(JSR 236)
Batch Applications
(JSR 352)
Batch Applications
(JSR 352)
Java API for JSON
(JSR 353)
Java API for JSON
(JSR 353)

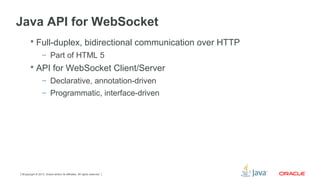

Java API for WebSocket
(JSR 356)
(JSR 356)

 Full-duplex, bidirectional communication over HTTP
– Part of HTML 5
 API for WebSocket Client/Server
– Declarative, annotation-driven
– Programmatic, interface-driven

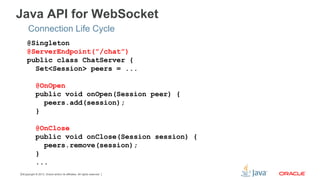

Connection Life Cycle
@Singleton
@ServerEndpoint(”/chat”)
public class ChatServer {
Set<Session> peers = ...
@OnOpen
public void onOpen(Session peer) {
peers.add(session);
}
@OnClose
public void onClose(Session session) {
peers.remove(session);
}
...

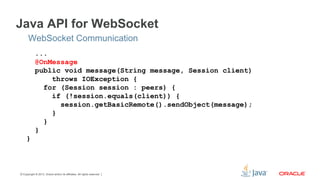

WebSocket Communication
...
@OnMessage
public void message(String message, Session client)
throws IOException {
for (Session session : peers) {
if (!session.equals(client)) {
session.getBasicRemote().sendObject(message);
}
}
}
}

JAX-RS 2
 Client API
 Message filters & entity interceptors
 Asynchronous processing
– Server and client
 Hypermedia Support
 Mime type negotiation

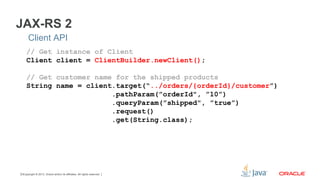

JAX-RS 2
Client API
// Get instance of Client
Client client = ClientBuilder.newClient();
// Get customer name for the shipped products
String name = client.target(“../orders/{orderId}/customer”)
.pathParam(”orderId", ”10”)
.queryParam(”shipped", ”true”)
.request()
.get(String.class);

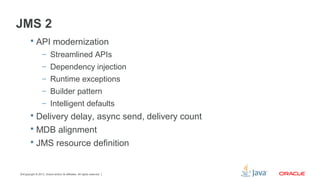

JMS 2
 API modernization
– Streamlined APIs
– Dependency injection
– Runtime exceptions
– Builder pattern
– Intelligent defaults
 Delivery delay, async send, delivery count
 MDB alignment
 JMS resource definition

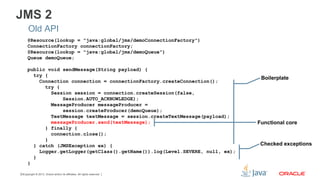

JMS 2
Old API
@Resource(lookup = "java:global/jms/demoConnectionFactory")
ConnectionFactory connectionFactory;
@Resource(lookup = "java:global/jms/demoQueue")
Queue demoQueue;
public void sendMessage(String payload) {
try {
Connection connection = connectionFactory.createConnection();
try {
Session session = connection.createSession(false,
Session.AUTO_ACKNOWLEDGE);
MessageProducer messageProducer =
session.createProducer(demoQueue);
TextMessage textMessage = session.createTextMessage(payload);
messageProducer.send(textMessage);
} finally {
connection.close();
}
} catch (JMSException ex) {
Logger.getLogger(getClass().getName()).log(Level.SEVERE, null, ex);
}
}
Boilerplate
Functional core
Checked exceptions

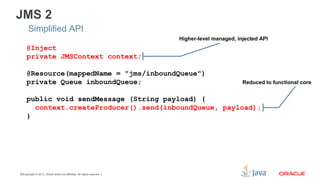

JMS 2
Simplified API
@Inject
private JMSContext context;
@Resource(mappedName = "jms/inboundQueue")
private Queue inboundQueue;
public void sendMessage (String payload) {
context.createProducer().send(inboundQueue, payload);
}
Reduced to functional core
Higher-level managed, injected API

Batch Applications for the Java Platform
 Standard Java API for batch processing
 Lingua franca for well understood batch concepts
– Jobs, job specification language (JSL), steps, readers, writers,
processors, chunking, flow, parallelization, repositories

<step id=”sendStatements”>
<chunk reader ref=”accountReader”
processor ref=”accountProcessor”
writer ref=”emailWriter”
chunk-size=”10” />
</step>

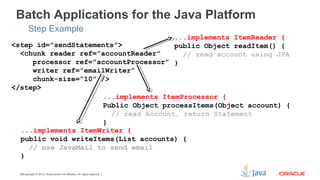

Batch Applications for the Java Platform
Step Example
...implements ItemReader {
public Object readItem() {
// read account using JPA
}
...implements ItemProcessor {
Public Object processItems(Object account) {
// read Account, return Statement
}
...implements ItemWriter {
public void writeItems(List accounts) {
// use JavaMail to send email
}

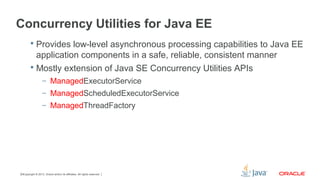

Concurrency Utilities for Java EE
 Provides low-level asynchronous processing capabilities to Java EE
application components in a safe, reliable, consistent manner
 Mostly extension of Java SE Concurrency Utilities APIs
– ManagedExecutorService
– ManagedScheduledExecutorService
– ManagedThreadFactory

Concurrency Utilities for Java EE
Managed Task Executor
public class TestServlet extends HTTPServlet {
@Resource(name=“concurrent/MyExecutorService”)
ManagedExecutorService executor;
Future future = executor.submit(new MyTask());
class MyTask implements Runnable {
public void run() {
... // Task logic
}
}
}

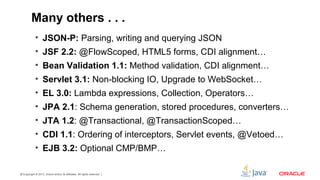

Many others . . .
• JSON-P: Parsing, writing and querying JSON
• JSF 2.2: @FlowScoped, HTML5 forms, CDI alignment…
• Bean Validation 1.1: Method validation, CDI alignment…
• Servlet 3.1: Non-blocking IO, Upgrade to WebSocket…
• EL 3.0: Lambda expressions, Collection, Operators…
• JPA 2.1: Schema generation, stored procedures, converters…
• JTA 1.2: @Transactional, @TransactionScoped…
• CDI 1.1: Ordering of interceptors, Servlet events, @Vetoed…
• EJB 3.2: Optional CMP/BMP…

GlassFish 4

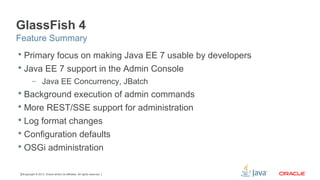

GlassFish 4
 Primary focus on making Java EE 7 usable by developers
 Java EE 7 support in the Admin Console
– Java EE Concurrency, JBatch
 Background execution of admin commands
 More REST/SSE support for administration
 Log format changes
 Configuration defaults
 OSGi administration
Feature Summary

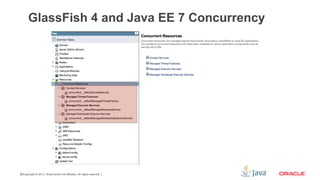

GlassFish 4 and Java EE 7 Concurrency

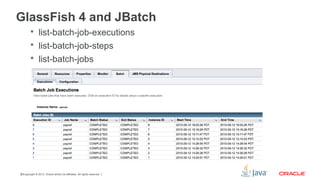

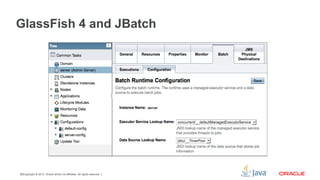

GlassFish 4 and JBatch

GlassFish 4 and JBatch
 list-batch-job-executions
 list-batch-job-steps
 list-batch-jobs

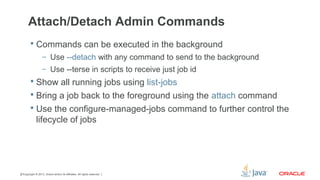

Attach/Detach Admin Commands
 Commands can be executed in the background
– Use --detach with any command to send to the background
– Use --terse in scripts to receive just job id
 Show all running jobs using list-jobs
 Bring a job back to the foreground using the attach command
 Use the configure-managed-jobs command to further control the
lifecycle of jobs

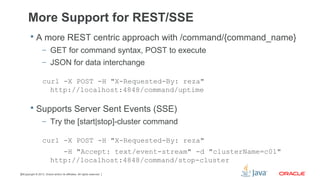

More Support for REST/SSE
 A more REST centric approach with /command/{command_name}
– GET for command syntax, POST to execute
– JSON for data interchange
curl -X POST -H "X-Requested-By: reza"
http://localhost:4848/command/uptime
 Supports Server Sent Events (SSE)
– Try the [start|stop]-cluster command
curl -X POST -H "X-Requested-By: reza"
-H "Accept: text/event-stream" -d "clusterName=c01"
http://localhost:4848/command/stop-cluster

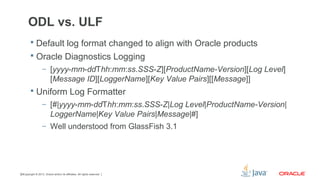

ODL vs. ULF
 Default log format changed to align with Oracle products
 Oracle Diagnostics Logging
– [yyyy-mm-ddThh:mm:ss.SSS-Z][ProductName-Version][Log Level]
[Message ID][LoggerName][Key Value Pairs][[Message]]
 Uniform Log Formatter
– [#|yyyy-mm-ddThh:mm:ss.SSS-Z|Log Level|ProductName-Version|
LoggerName|Key Value Pairs|Message|#]
– Well understood from GlassFish 3.1

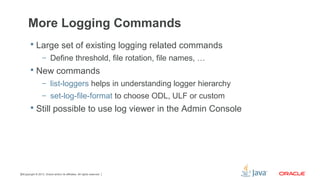

More Logging Commands
 Large set of existing logging related commands
– Define threshold, file rotation, file names, …
 New commands
– list-loggers helps in understanding logger hierarchy
– set-log-file-format to choose ODL, ULF or custom
 Still possible to use log viewer in the Admin Console

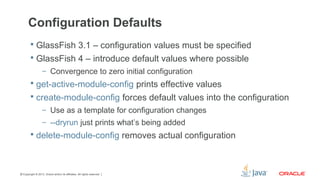

Configuration Defaults
 GlassFish 3.1 – configuration values must be specified
 GlassFish 4 – introduce default values where possible
– Convergence to zero initial configuration
 get-active-module-config prints effective values
 create-module-config forces default values into the configuration
– Use as a template for configuration changes
– --dryrun just prints what’s being added
 delete-module-config removes actual configuration

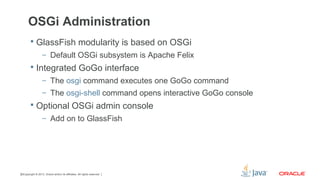

OSGi Administration
 GlassFish modularity is based on OSGi
– Default OSGi subsystem is Apache Felix
 Integrated GoGo interface
– The osgi command executes one GoGo command
– The osgi-shell command opens interactive GoGo console
 Optional OSGi admin console
– Add on to GlassFish

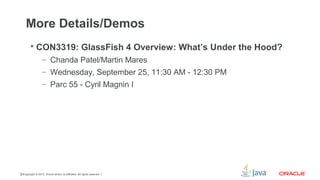

More Details/Demos
 CON3319: GlassFish 4 Overview: What’s Under the Hood?
– Chanda Patel/Martin Mares
– Wednesday, September 25, 11:30 AM - 12:30 PM
– Parc 55 - Cyril Magnin I

GlassFish Server
The Ecosystem

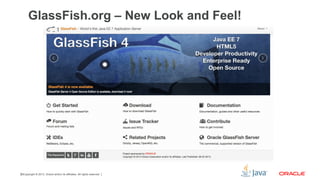

GlassFish.org – New Look and Feel!

Project Avatar

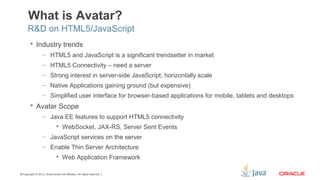

What is Avatar?
 Industry trends
– HTML5 and JavaScript is a significant trendsetter in market
– HTML5 Connectivity – need a server
– Strong interest in server-side JavaScript; horizontally scale
– Native Applications gaining ground (but expensive)
– Simplified user interface for browser-based applications for mobile, tablets and desktops
 Avatar Scope
– Java EE features to support HTML5 connectivity
 WebSocket, JAX-RS, Server Sent Events
– JavaScript services on the server
– Enable Thin Server Architecture
 Web Application Framework
R&D on HTML5/JavaScript

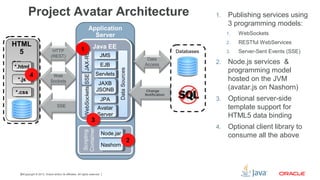

Project Avatar Architecture 1. Publishing services using
3 programming models:
1. WebSockets
2. RESTful WebServices
3. Server-Sent Events (SSE)
2. Node.js services &
programming model
hosted on the JVM
(avatar.js on Nashorn)
3. Optional server-side
template support for
HTML5 data binding
4. Optional client library to
consume all the above
HTML
5
Client
HTML
5
Client*.html*.html
*.js*.js
*.css*.css
HTTP
(REST)
Web
Sockets
SSE
Application
Server
Java EEJava EE
JMSJMS
EJBEJB
JPAJPA
Avatar
Server
Avatar
Server
JAXB
JSONB
JAXB
JSONB
Data
Access
Change
Notification
Databases
Node.jarNode.jar
NashornNashorn
44
11
33
22
ServletsServlets

Avatar DemoAvatar Demo

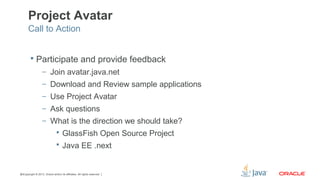

Project Avatar
 Participate and provide feedback
– Join avatar.java.net
– Download and Review sample applications
– Use Project Avatar
– Ask questions
– What is the direction we should take?
 GlassFish Open Source Project
 Java EE .next
Call to Action

Roadmap

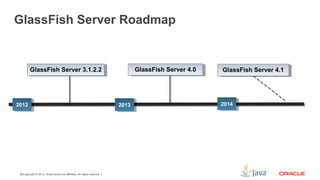

GlassFish Server Roadmap
GlassFish Server 4.0GlassFish Server 4.0 GlassFish Server 4.1GlassFish Server 4.1
20122012 20132013 20142014
GlassFish Server 3.1.2.2GlassFish Server 3.1.2.2

The Future of Java EE

Summary
 Java EE 7 themes are HTML5, productivity and enterprise needs
 Well received by the community
 GlassFish 4 reference implementation and first application server
implementing Java EE 7
 Oracle continues to invest in Java EE/GlassFish
 Get involved in shaping the future!

Try it Out!
4.0
http://glassfish.org

GlassFish BOF

More Related Content

What's hot

Similar to GlassFish BOF

Recently uploaded

GlassFish BOF

Editor's Notes
