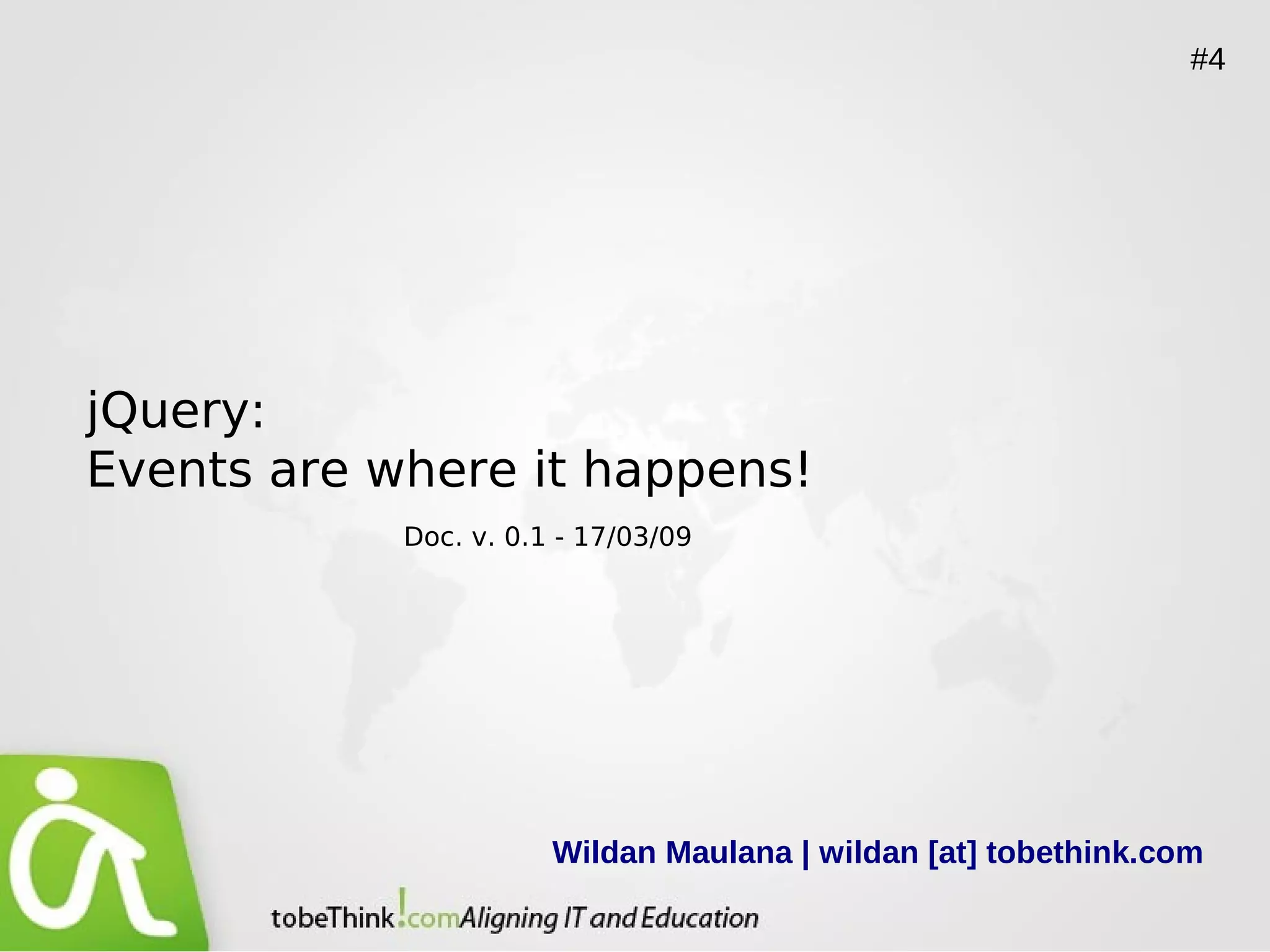

jQuery : Events are where it happens!

#4

jQuery:
Events are where it happens!
Doc. v. 0.1 - 17/03/09

Wildan Maulana | wildan [at] tobethink.com

What this presentation Covers

• The event models as implemented by
the browsers
• Using jQuery to bind event handlers
to elements
• The Event object instance
• Triggering event handlers under script
control

The GUI Rule
1.Set up the user interface
2.Wait for something interesting to
happen
3.React accordingly
4.Repeat

Understanding the browser event model

The DOM Level 0 Event Model
<html>
<head>
<title>DOM Level 0 Events Example</title>
<script type=quot;text/javascriptquot; src=quot;../scripts/jquery-1.2.1.jsquot;>
Ready handlers defines
</script>
mouseover handlers
<script type=quot;text/javascriptquot;>
$(function(){
$('#vstar')[0].onmouseover = function(event) {
say('Whee!');
Utility function emits text
}
to console
});

function say(text) {
$('#console').append('<div>'+new Date()+' '+text+'</div>');
}
<div> element serve as
</script>
console <img> element is instrumented
</head>

<body>
<img id=quot;vstarquot; src=quot;vstar.jpgquot; onclick=quot;say('Vroom vroom!')quot;/>
<div id=quot;consolequot;></div>
</body>
</html>

Event Handler
onclick=quot;say('Vroom vroom!');quot;

an anonymous function is automatically created
using the value
of the attribute as the function body

imageElement.onclick = function(event) {
say('Vroom vroom!');
}

The DOM Level 0 Event Model In Action

Event Bubbling
• What is Event Bubbling ?

Event Bubbling in Action <html id=quot;greatgreatgrandpaquot;>
<head>
<title>DOM Level 0 Bubbling Example</title>
Events propagating
• </script>
from the point of origin to the <script type=quot;text/javascriptquot;>
$(function(){
top of the
$('*').each(function(){
DOM tree var current = this;
this.onclick = function(event) {
if (!event) event = window.event;
var target = (event.target) ?
event.target : event.srcElement;
say('For ' + current.tagName + '#'+ current.id +
' target is ' + target.id);
}
});
});

$('#console').append('<div>'+text+'</div>');
}
</script>
</head>

<body id=quot;greatgrandpaquot;>
<div id=quot;grandpaquot;>
<div id=quot;popsquot;>
<img id=quot;vstarquot; src=quot;vstar.jpgquot;/>
</div>
</div>
</body>
</html>

Affecting event propagation
• If we want to prevent an event from
propagating, we can use :
– stopPropagation() method of the Event
instance (for standard compliant
browser) or
– In internet explore, we set a property
named cancelBubble to true in the
Event instance

Lack of DOM Level 0
• One severe shortcoming of the DOM Level 0 Event Model is
that, because a property is used to store a reference to a
function that’s to serve as an event handler,only one event
handler per element can be registered for any specific event
type

someElement.onclick = doFirstThing;
someElement.onclick = doSecondThing;
Won't work !

• Using Observable pattern that establishes
The solution
a publish/subscribe schema for that handlers
• Or using closure Or …
• Using DOM Level 2 Event Model

Establishing events
• Rather than assigning a function reference to an
element property, DOM Level 2 event handlers—
also termed listeners—are established via an
element method.
• Each DOM element defines a method named
addEventListener() that’s used to attach event
handlers (listeners) to the element

addEventListener(eventType,listener,useCapture)

addEventListener()

addEventListener(eventType,listener,useCapture)

EventType is a string that identifies the type
of event to be handled
useCapture, is a Boolean

The listener parameter is a reference
to the function (or inline function) that’s to be
established as the handler for the named
event type on the element

Establishing event handlers with the DOM Level 2 Model
<html>
<head>
<title>DOM Level 2 Events Example</title>
</script>
$(function(){
var element = $('#vstar')[0];
element.addEventListener('click',function(event) {
say('Whee once!');
},false);
say('Whee twice!');
},false);
say('Whee three times!');
},false);
});

}
</script>
</head>
<body>
Remember : The Order of the execution <div id=quot;consolequot;></div>
is not guaranteed ! It can be random ! </body>
</html>

Event Propagation

Propagation in the DOM Level 2 Event Model traverses the DOM
hierarchy twice: once from top to target during capture phase and
once from target to top during bubble phase.

<html id=quot;greatgreatgrandpaquot;>
Tracking event propagation <head>
with bubble and capture handlers <title>DOM Level 2 Propagation Example</title>
</script>
$(function(){
$('*').each(function(){
var current = this;
this.addEventListener('click',function(event) {
say('Capture for ' + current.tagName + '#'+ current.id +
' target is ' + event.target.id);
},true);
this.addEventListener('click',function(event) {
say('Bubble for ' + current.tagName + '#'+ current.id +
' target is ' + event.target.id);
},false);
});
});

}
</script>
</head>

<body id=quot;greatgrandpaquot;>
<div id=quot;grandpaquot;>
<div id=quot;popsquot;>
</div>
</div>
</body>
</html>

The Internet Explore Event Model

• Internet Explorer (both IE6 and, most
disappointingly, IE7) doesn’t provide
support for the DOM Level 2 Event

addEventListener() → attachEvent(eventName,handler)

The jQuery Event Model
jQuery event implementation

jQuery event implementation, exhibits the following features :
•
– Provides a unified method for establishing event handlers
Allows multiple handlers for each event type on each element
–
– Uses standard event-type names: for example, click or
mouseover
– Makes the Event instance available as a parameter to the
handlers
– Normalizes the Event instance for the most often used
properties
– Provides unified methods for event canceling and default action
blocking

Binding event handlers using jQuery

• Using the jQuery Event Model, we can establish
event handlers on DOM elements with the bind()
command :

$('img').bind('click',function(event){alert('Hi
there!');});

Command syntax : bind
bind(eventType,data,listener)

Establishes a function as the event handler for the specified event type on all elements in the
matched set.
Parameters
(String) Specifies the name of the event type
eventType
for which the handler is to be established.
This event type can be namespaced with a
suffix separated
from the event name with a period character.
See the remainder of this
section for details.
(Object) Caller-supplied data that’s attached
data
to the Event instance as a
property named data for availability to the
handler functions. If omitted, the
handler function can be specified as the
second parameter.
(Function) The function that’s to be
listener
established as the event handler.
Returns
The wrapped set

<html>
bind() in action <head>
<title>jQuery Events Example</title>
</script>
$(function(){
$('#vstar')
.bind('click',function(event) {
say('Whee once!');
})
say('Whee twice!');
})
say('Whee three times!');
});
});

}
</script>
</head>

<body>
</body>
</html>

Command syntax : specific event binding
eventTypeName(listener)

Establishes the specified function as the event handler for the event type
named by the method’s name. The supported commands are as follows:
blur focus mousedown resize
● ● ● ●

● change ● keydown ● mousemove ● scroll

● click ● keypress ● mouseout ● select

● dblclick ● keyup ● mouseover ● submit

● error ● load ● mouseup ● unload

Note that when using these shortcut methods, we cannot specify a data value
to be placed in the event.data property.
Parameters
(Function) The function that’s to be established as the
listener
event handler.
Returns
The wrapped set.

Command syntax: one
one(eventType,data,listener)

Establishes a function as the event handler for the specified event type on all
elements in the matched set. Once executed, the handler is automatically
removed.
Parameters
eventType (String) Specifies the name of the event type for which
the handler is to be established.
data (Object) Caller-supplied data that’s attached to the
Event instance for availability to the handler functions.
If omitted, the handler function can be specified as the
second parameter.
listener (Function) The function that’s to be established as the
event handle
Returns
The wrapped set.

Removing event handlers
Command syntax: unbind
unbind(eventType,listener)
unbind(event)

Removes events handlers from all elements of the wrapped set as specified by
the optional passed parameters. If no parameters are provided, all listeners are
removed from the elements.
Parameters
eventType (String) If provided, specifies that only listeners
established for the specified event type are to be
removed.
listener (Function) If provided, identifies the specific listener
that’s to be remove
event (Event) Removes the listener that triggered the event
described by this Event instance.
Returns
The wrapped set.

Inspecting the Event instance
Property Description
Set to true if the Alt key was pressed when the
altKey
event was triggered, false if not. The Alt key is
labeled Option on most Mac keyboards.
Set to true if the Ctrl key was pressed when the
ctrlKey
event was triggered, false if not.
The value, if any, passed as the second
data
parameter to the bind() command when the
handler was established.
For keyup and keydown events, this returns the
keyCode
key that was pressed. Note that for alphabetic
characters, the uppercase version of the letter will
be returned, regardless of whether the user typed
an uppercase or lowercase letter. For example,
both a and A will return 65. You can use
shiftKey to determine which case was entered.
For keypress events, use the which property,
which is reliable across browsers.

metaKey Set to true if the Meta key was pressed
when the event was triggered, false if
not.The Meta key is the Ctrl key on PCs
and the Command key on Macs.
pageX For mouse events, specifies the
horizontal coordinate of the event
relative from the page origin.
pageY For mouse events, specifies the vertical
coordinate of the event relative from the
page origin.
relatedTarget For some mouse events, identifies the
element that the cursor left or entered
when the event was triggered.
screenX For mouse events, specifies the
horizontal coordinate of the event
relative from the screen origin.
screenY For mouse events, specifies the
vertical coordinate of the event relative
from the screen origin.

Set to true if the Shift key was pressed
shiftKey
when the event was triggered, false if
not.
target Identifies the element for which the
event was triggered.
type For all events, specifies the type of
event that was triggered (for example,
click). This can be useful if you’re using
one event handler function for multiple
events.
which For keyboard events, specifies the
numeric code for the key that caused
the event,and for mouse events,
specifies which button was pressed (1
for left, 2 for middle, 3 for right). This
should be used instead of button, which
can’t be relied on to function
consistently across browsers.

Affecting the event propagation
• stopPropagation() : Prevent the event from
bubbling further up the DOM tree
• preventDefault() : cancel any semantic action
that the event might cause

Triggering event handlers
Command syntax: trigger
trigger(eventType)

Invokes any event handlers established for the passed event type for all
matched elements
Parameters
eventType (String) Specifies the name of the event type for
handlers which are to be invoked
Returns
The wrapped set

Command syntax: eventName
eventName()

Invokes any event handlers established for the named event type for all
matched elements.

The supported commands are as follows:

blur
●

● click

● focus

● select

● submit

Parameters
none
Returns
The wrapped set.

Other event-related commands

• Toggling listener

Command syntax: toggle
toggle(listenerOdd,listenerEven)

Establishes the passed functions as click event handlers on all elements of the
wrapped set that toggle between each other with every other trigger of a click
event
Parameters
listenerOdd (Function) A function that serves as the click
event handler for all odd-numbered clicks (the
first, the third, the fifth, and so on)
listenerEven (Function) A function that serves as the click
event handler for all even-numbered clicks (the
second, the fourth, the sixth, and so on)
Returns
The wrapped set

toggle()
<html>
<head>
<title>jQuery Toggle Command Example</title>
</script>
$(function(){
$('#vstar').toggle(
function(event) {
$(event.target).css('opacity',0.4);
},
function(event) {
$(event.target).css('opacity',1.0);
}
);
});
</script>
</head>

<body>
</body>
</html>

Reference
• jQuery in Action, Bear Bibeault,
Yehuda Katz, Manning

jQuery : Events are where it happens!

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (8)

Similar to jQuery : Events are where it happens!

Similar to jQuery : Events are where it happens! (20)

More from Wildan Maulana

More from Wildan Maulana (20)

Recently uploaded

Recently uploaded (20)

jQuery : Events are where it happens!
