Journey to the cloud
This document summarizes a company's journey to migrate their on-premise infrastructure to AWS. It discusses why they chose to move to the cloud, including potential cost savings and the ability to change infrastructure quickly. It then outlines the system architecture, technology stack, supporting applications and infrastructure, additional requirements, environments, milestones, AWS services used, and steps taken for tasks like EC2 creation, DNS, email, monitoring, backups, secret management and more.
More Related Content
![AWS Technical Day Riyadh Nov 2019 [Migration]](https://cdn.slidesharecdn.com/ss_thumbnails/aws-tech-day-riydh-migration-191102193614-thumbnail.jpg?width=640&height=640&fit=bounds)
Journey to the cloud
- 1. Journey to thecloud - experiences in migrating an on-premise infrastructure to AWS Mikhail Advani ThoughtWorks
- 2. Why cloud? Cost (monthly) Datacenter: approx $150,000 AWS: Servers: $50,000 Additional Security Solutions: $10,000 Infrastructure automation Ability to change quickly Attain consistency

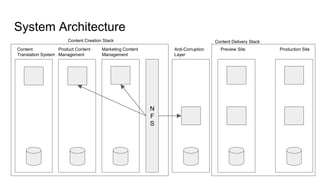

- 3. System Architecture N F S Product Content Management MarketingContent Management Anti-Corruption Layer Preview Site Production Site Content Creation Stack Content Delivery Stack Content Translation System
- 4. Tech Stack CTM: In-housedeveloped app - PHP + MySQL PCM: Oracle backed commercial tool MCM: MySQL backed commercial tool Anti-corruption layer: Scala + MongoDB Content Delivery Stack: Scala + MongoDB

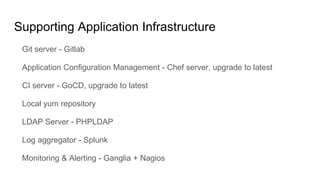

- 5. Supporting Application Infrastructure Gitserver - Gitlab Application Configuration Management - Chef server, upgrade to latest CI server - GoCD, upgrade to latest Local yum repository LDAP Server - PHPLDAP Log aggregator - Splunk Monitoring & Alerting - Ganglia + Nagios
- 6. Additional Requirements Encrypt allinternal HTTP communication with on-demand certificate rotation Automate data backups Automate OS Patching Automate management of supporting infrastructure servers

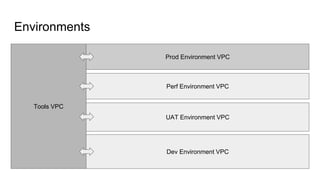

- 7. Environments Tools VPC Prod EnvironmentVPC Perf Environment VPC UAT Environment VPC Dev Environment VPC

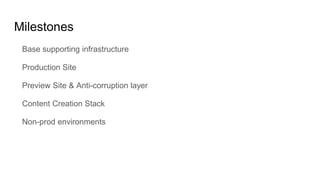

- 8. Milestones Base supporting infrastructure ProductionSite Preview Site & Anti-corruption layer Content Creation Stack Non-prod environments

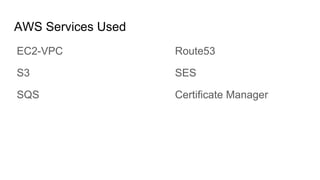

- 9.

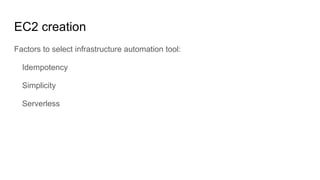

- 10. EC2 creation Factors toselect infrastructure automation tool: Idempotency Simplicity Serverless
- 11.
- 12.
- 13.
- 14.
- 15.

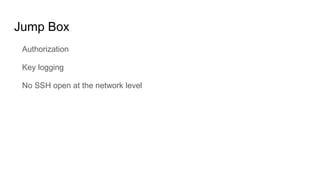

- 16. Jump Box Authorization Key logging NoSSH open at the network level
- 17.
- 18.

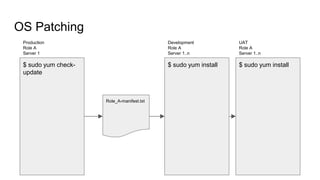

- 19. OS Patching $ sudoyum check- update Production Role A Server 1 Role_A-manifest.txt $ sudo yum install Development Role A Server 1..n $ sudo yum install UAT Role A Server 1..n
- 20.
- 21.
Editor's Notes
- #3 What automation also gave us was identical structure across environments and faster spinup of new servers
- #7 Backups were previously carried out by snapshotting the complete system. OS patching was a manual activity(typically 1 day)
- #8 One environment per VPC got us the isolation we wanted between environments. Also production, non-prod and tools VPCs belonged to different accounts Dedicated tenancy was chosen in Tools & Prod a safe-guard against future hypervisor vulnerabilities and also as a compliance measure
- #11 We chose Ansible after evaluating terraform, chef and cloud formation AWS CLI and python boto were also used where ansible fell short

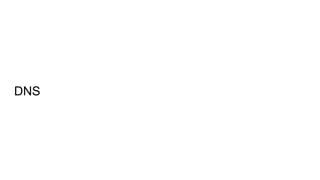

- #12 Route53 was a winner being a managed service. We didn’t need to care about availability. Gotcha’s: In case you want cross account VPCs to share the same hosted zone, raise a request from both the accounts and give enough lead time Route53 DNS resolution may not work for the first few seconds when your instance is booting up. As a result, any custom services that you have defined to run on boot up should be tolerant to DNS failures

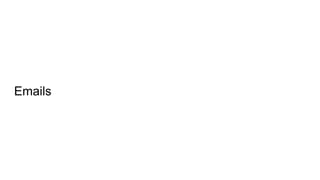

- #13 Purpose: Alerts and reports SES Simple, quick. Bounce handling was done using a logger Emails had to be sent from instances in the pvt subnet. This became a problem

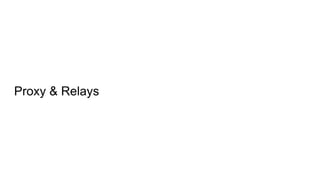

- #14 NAT Gateway would have been much better Support for all protocols HA would be managed Squid as HTTP(S) proxy Postfix for SMTP relay Cron for SFTP

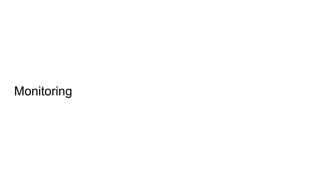

- #15 Ganglia - Custom alerts using Nagios Given a choice, we would have considered migrating our monitoring to another tools CloudWatch for RDS & ELB - No alerts
- #16 EBS backups - anything which stored data in simple files S3 backups - artifacts exported by applications which were being uploaded by cron driven scripts Clean up of artifacts should be done iff the new backup was successful Restoration was manual
- #17 EC2Box, for of KeyBox Browser based AWS tags based filtering for authorization SSH keys were stored securely within the DB of the tool

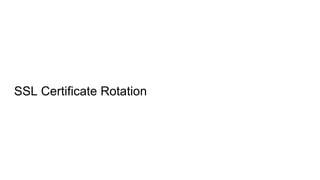

- #18 SSL Certificate key pairs were checked into version control and deployed with every run In case of non-prod environments, self-signed SSL certificates were generated with every run

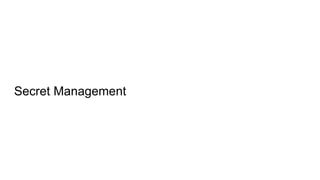

- #19 git-crypt: Certificates & SSH keys were also checked into version control, encrypted using git-crypt ansible-vault: Credentials were stored encrypted using ansible-vault The distribution of these keys on developer machines, deploy agents and ansible controller were carried out manually as it was a one time activity vs the complexity of setup of a key management system

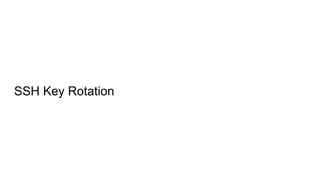

- #21 We had shared AMI’s across our environments from which we had not removed the public key. As a result we used a common SSH key across accounts. The additional key pair setup while instance creation was an alternative way to SSH into our instances. Key rotation was automated by adding the new key and then removing the existing key
- #22 750+ GB of data, 50 million files Ensure a dry run of data copy before actual migration pbzip2 is a very useful tool to archive large number of small files Configure the maintenance window to be different as compared to your RDS import duration. 110GB in dry run which took about 1 hour took in excess of 8 hours due to backup running
