Plate Wizard updates
within the latest
release of PaleoGIS
John Watson

14-11-2013

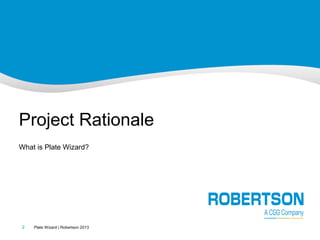

Project Rationale
What is Plate Wizard?

2

Plate Wizard | Robertson 2013
What is Plate Wizard?
 Deformable global plate model for the
Phanerozoic, data constrained for the
Cenozoic and Mesozoic
 Accurately reconstructs and predicts past
positions and geometries of rigid and
deformable plates
 User friendly ArcMap toolbar to accurately
reconstruct geo-referenced datasets
(lines, points, polygons) to their palaeolocations
 Models deformation at extensional plate
boundaries of the Atlantic, Southern
Australian and Western Indian Ocean to
restore extended continental crust to its
pre-rift geometry
3

Plate Wizard | Robertson 2013

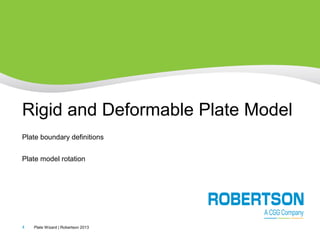

Rigid and Deformable Plate Model
Plate boundary definitions
Plate model rotation

4

Plate Wizard | Robertson 2013

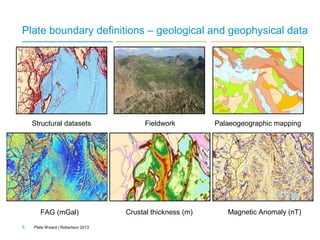

Plate boundary definitions – geological and geophysical data

Structural datasets

FAG (mGal)
5

Fieldwork

Crustal thickness (m)

Plate Wizard | Robertson 2013

Palaeogeographic mapping

Magnetic Anomaly (nT)
Plate model rotation – Hybrid model for Plate Wizard 4

Plate Wizard 2 and 3
 Fixed Hotspot reference frame – 0 to 250 Ma

Plate Wizard 3

Plate Wizard 4 (Release date: end 2013)
 Fixed Hotspot reference frame – 0 to 120 Ma
 Palaeo-mag reference frame – 120 to 440 Ma

Plate Wizard 4
6

Plate Wizard | Robertson 2013

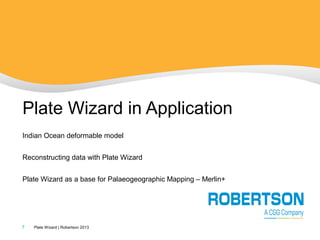

Plate Wizard in Application
Indian Ocean deformable model
Reconstructing data with Plate Wizard
Plate Wizard as a base for Palaeogeographic Mapping – Merlin+

7

Plate Wizard | Robertson 2013

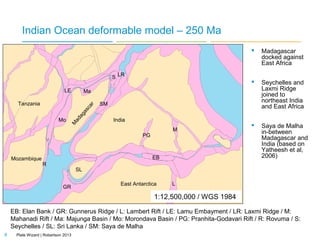

Indian Ocean deformable model – 250 Ma




S LR
LE

ca
r
M
ad
ag
as

India
M

EB
R



Saya de Malha
in-between
Madagascar and
India (based on
Yatheesh et al,
2006)

SM

PG

Mozambique

Seychelles and
Laxmi Ridge
joined to
northeast India
and East Africa

Ma

Tanzania
Mo

Madagascar
docked against
East Africa

SL
GR

East Antarctica

L

1:12,500,000 / WGS 1984
EB: Elan Bank / GR: Gunnerus Ridge / L: Lambert Rift / LE: Lamu Embayment / LR: Laxmi Ridge / M:
Mahanadi Rift / Ma: Majunga Basin / Mo: Morondava Basin / PG: Pranhita-Godavari Rift / R: Rovuma / S:
Seychelles / SL: Sri Lanka / SM: Saya de Malha
8

Plate Wizard | Robertson 2013

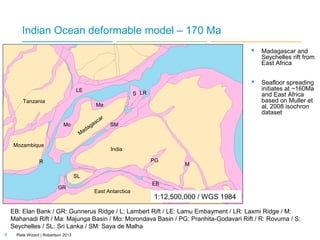

Indian Ocean deformable model – 170 Ma



LE
Tanzania

S LR
Ma

Mo

Mozambique
R

d
Ma

as
ag

ca

r

Madagascar and
Seychelles rift from
East Africa
Seafloor spreading
initiates at ~160Ma
and East Africa
based on Muller et
al, 2008 isochron
dataset

SM

India
PG

M
170Ma: Initial separation of AntarcticaAfrica relative to India-Madagascar during
SL
the Early to Mid Jurassic (based upon EB
GR
East Antarctica
reviews by Reeves & De Wit, 2000 and
1:12,500,000 / WGS 1984
Gaina et al, 2007).

EB: Elan Bank / GR: Gunnerus Ridge / L: Lambert Rift / LE: Lamu Embayment / LR: Laxmi Ridge / M:
Mahanadi Rift / Ma: Majunga Basin / Mo: Morondava Basin / PG: Pranhita-Godavari Rift / R: Rovuma / S:
Seychelles / SL: Sri Lanka / SM: Saya de Malha
9

Plate Wizard | Robertson 2013

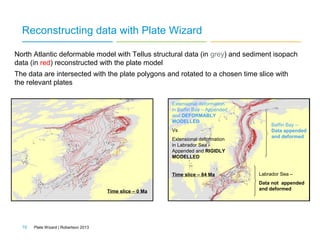

Reconstructing data with Plate Wizard
North Atlantic deformable model with Tellus structural data (in grey) and sediment isopach
data (in red) reconstructed with the plate model
The data are intersected with the plate polygons and rotated to a chosen time slice with
the relevant plates
Extensional deformation
in Baffin Bay – Appended
and DEFORMABLY
MODELLED
Vs
Extensional deformation
in Labrador Sea Appended and RIGIDLY
MODELLED

Time slice – 84 Ma
Time slice – 0 Ma

10

Plate Wizard | Robertson 2013

Baffin Bay –
Data appended
and deformed

Labrador Sea –
Data not appended
and deformed

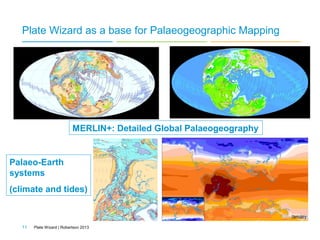

Plate Wizard as a base for Palaeogeographic Mapping

MERLIN+: Detailed Global Palaeogeography

Palaeo-Earth
systems
(climate and tides)

11

Plate Wizard | Robertson 2013

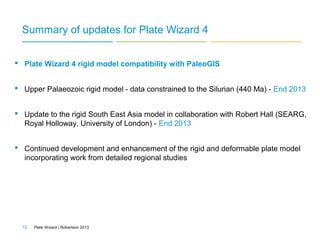

Summary of updates for Plate Wizard 4
 Plate Wizard 4 rigid model compatibility with PaleoGIS
 Upper Palaeozoic rigid model - data constrained to the Silurian (440 Ma) - End 2013
 Update to the rigid South East Asia model in collaboration with Robert Hall (SEARG,
Royal Holloway, University of London) - End 2013

 Continued development and enhancement of the rigid and deformable plate model
incorporating work from detailed regional studies

12

Plate Wizard | Robertson 2013
