The Navigation Component in Jetpack allows developers to implement navigation between fragments and activities in a simplified and consistent manner. Key features include defining a navigation graph that visualizes available destinations and connections, using a NavController to navigate between destinations based on the graph, and passing arguments between destinations in a type-safe way. It also integrates with other Jetpack components like view models to handle configuration changes and live data observers.

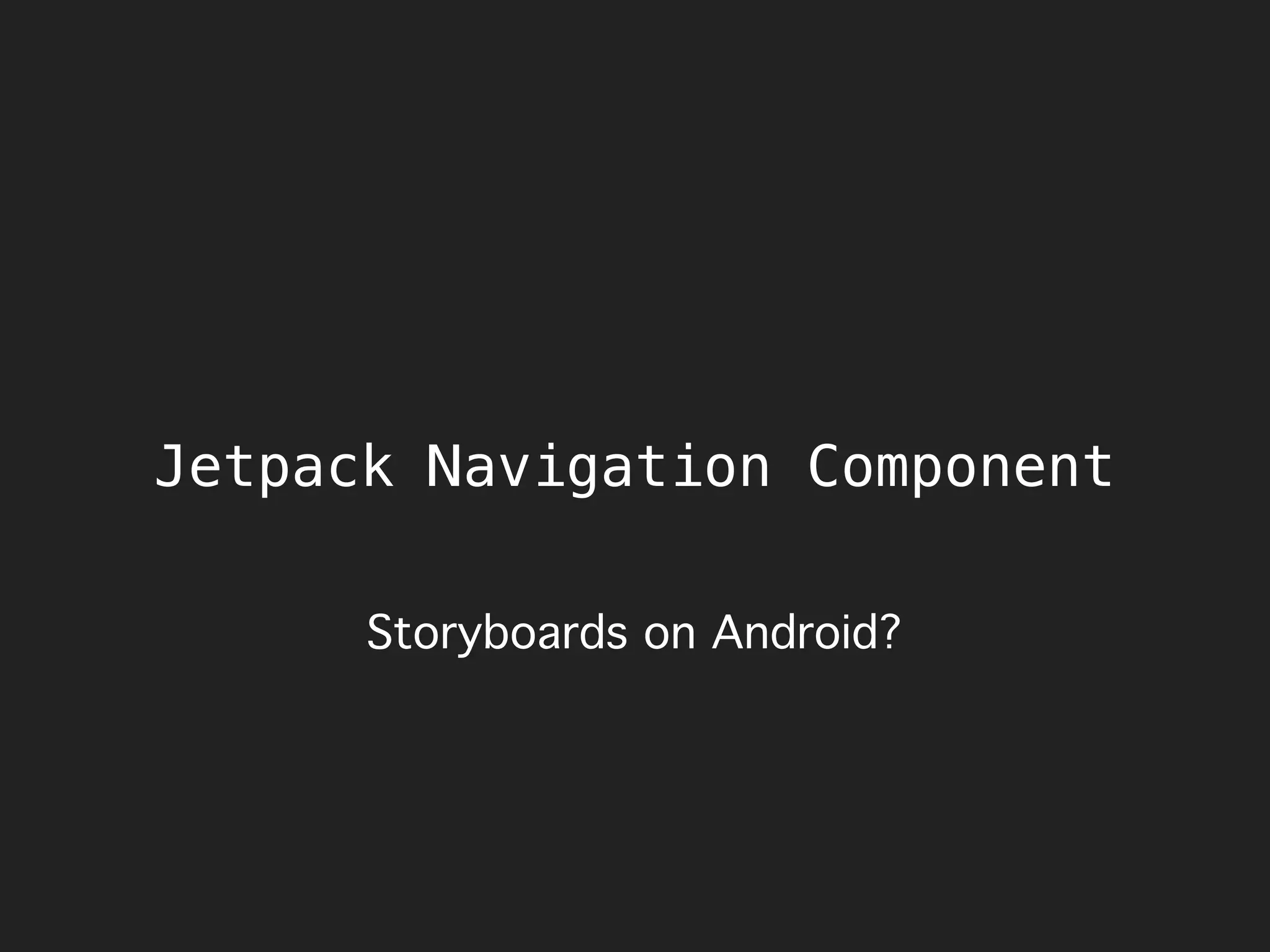

1. Jetpack Navigation Component
Storyboards on Android?

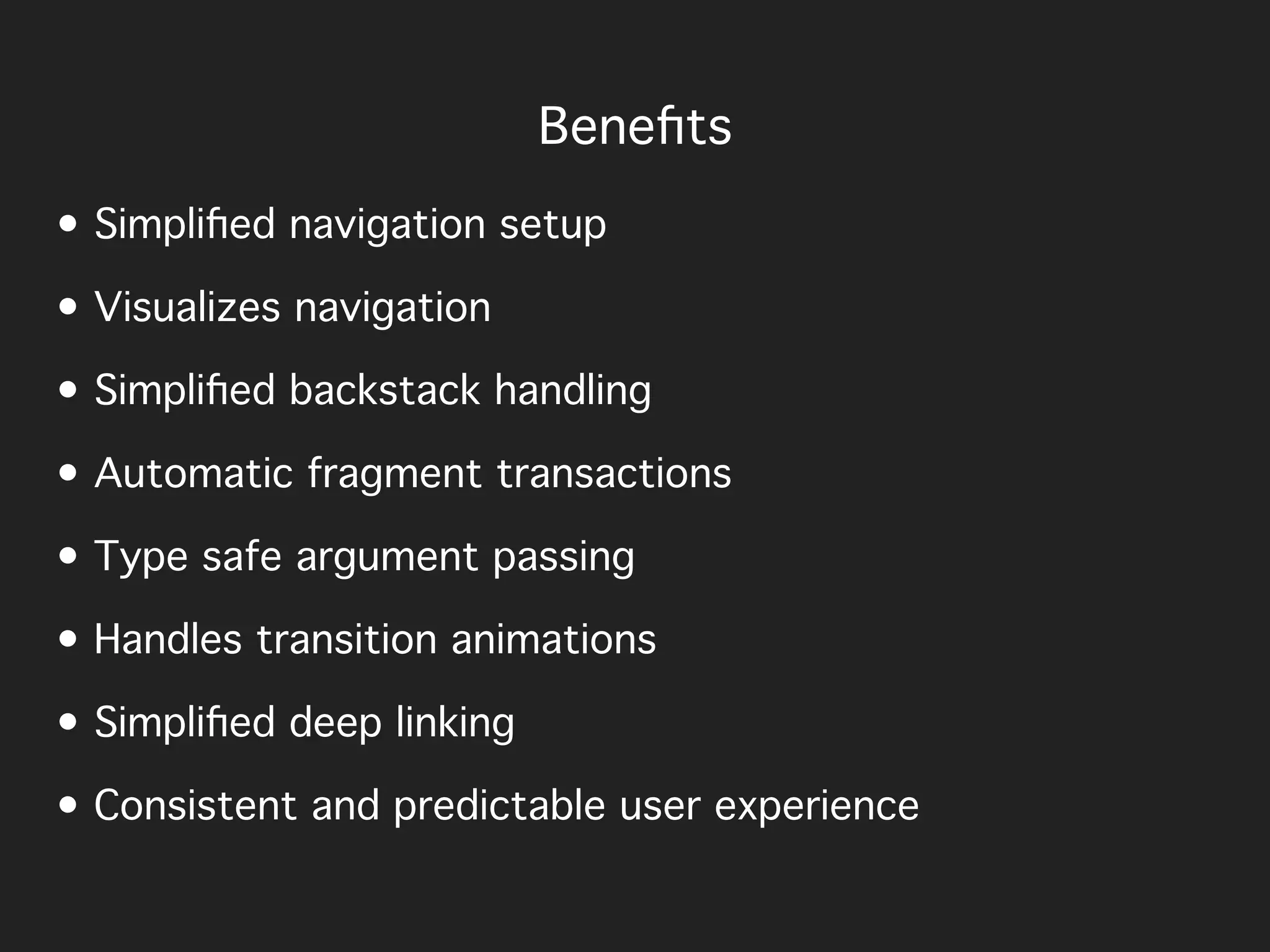

2. • Simplified navigation setup
• Visualizes navigation
• Simplified backstack handling
• Automatic fragment transactions
• Type safe argument passing
• Handles transition animations
• Simplified deep linking
• Consistent and predictable user experience
Benefits

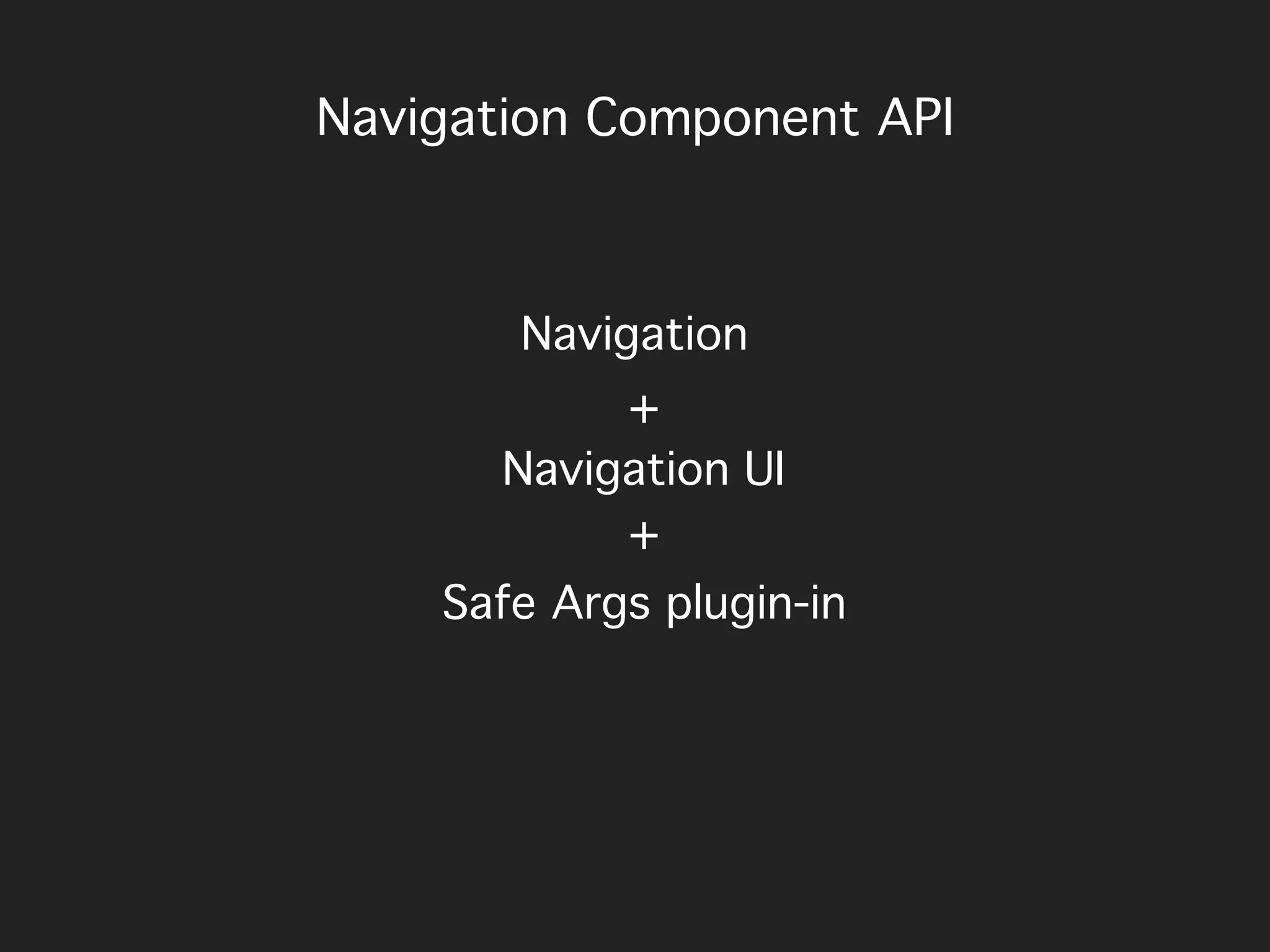

3. Navigation
Navigation UI
Safe Args plugin-in
+
+
Navigation Component API

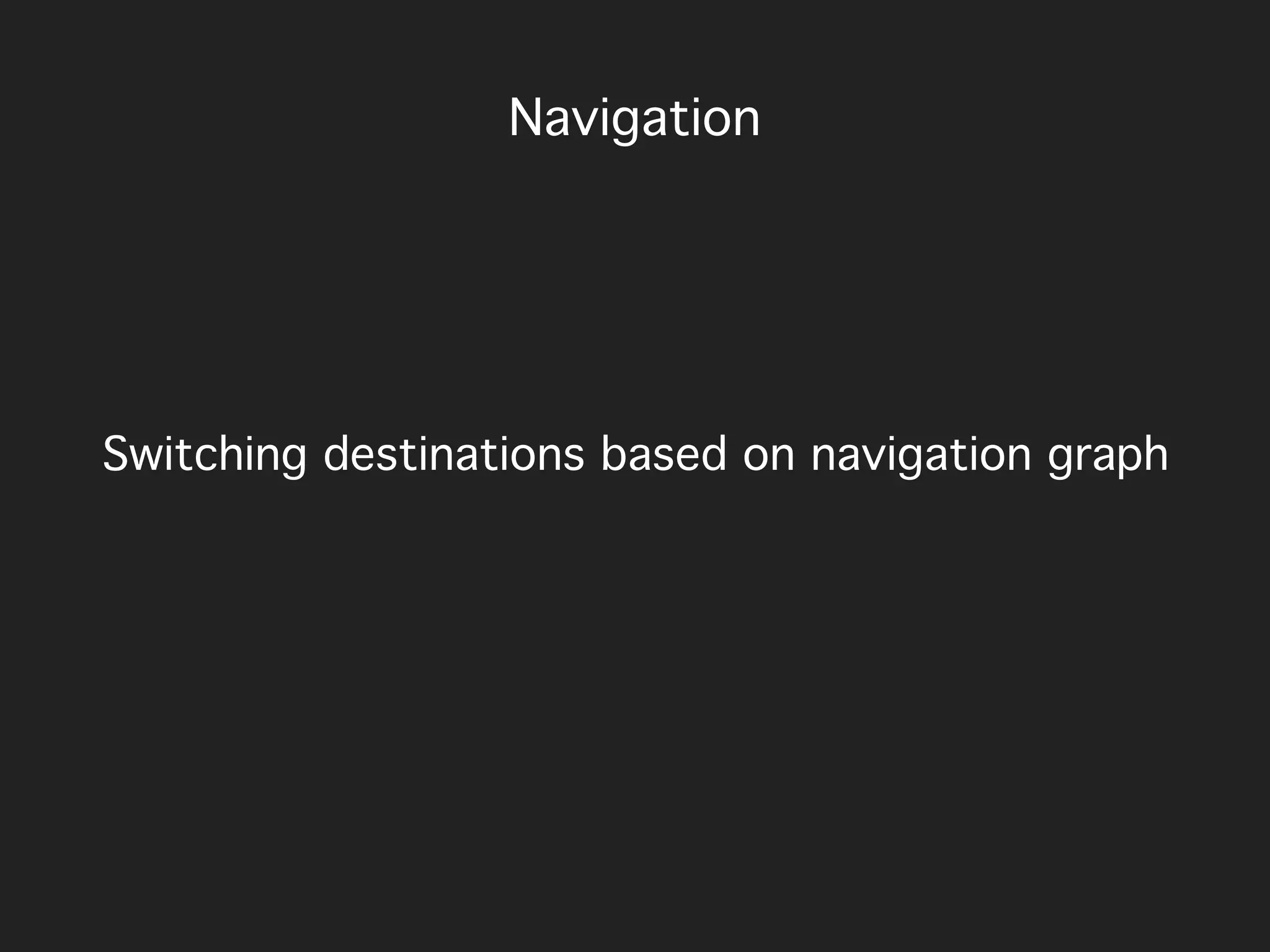

4. Switching destinations based on navigation graph
Navigation

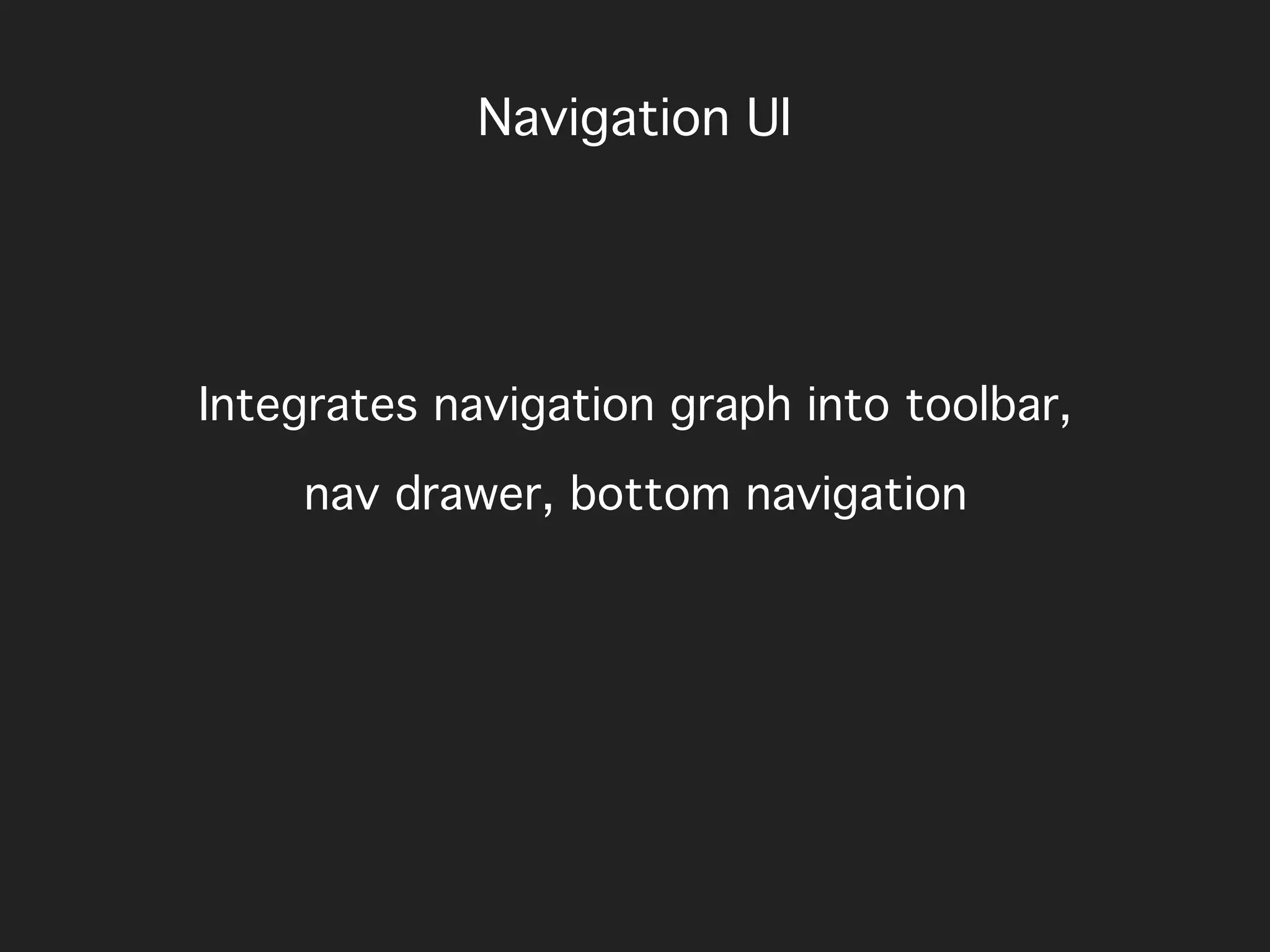

5. Integrates navigation graph into toolbar,
nav drawer, bottom navigation
Navigation UI

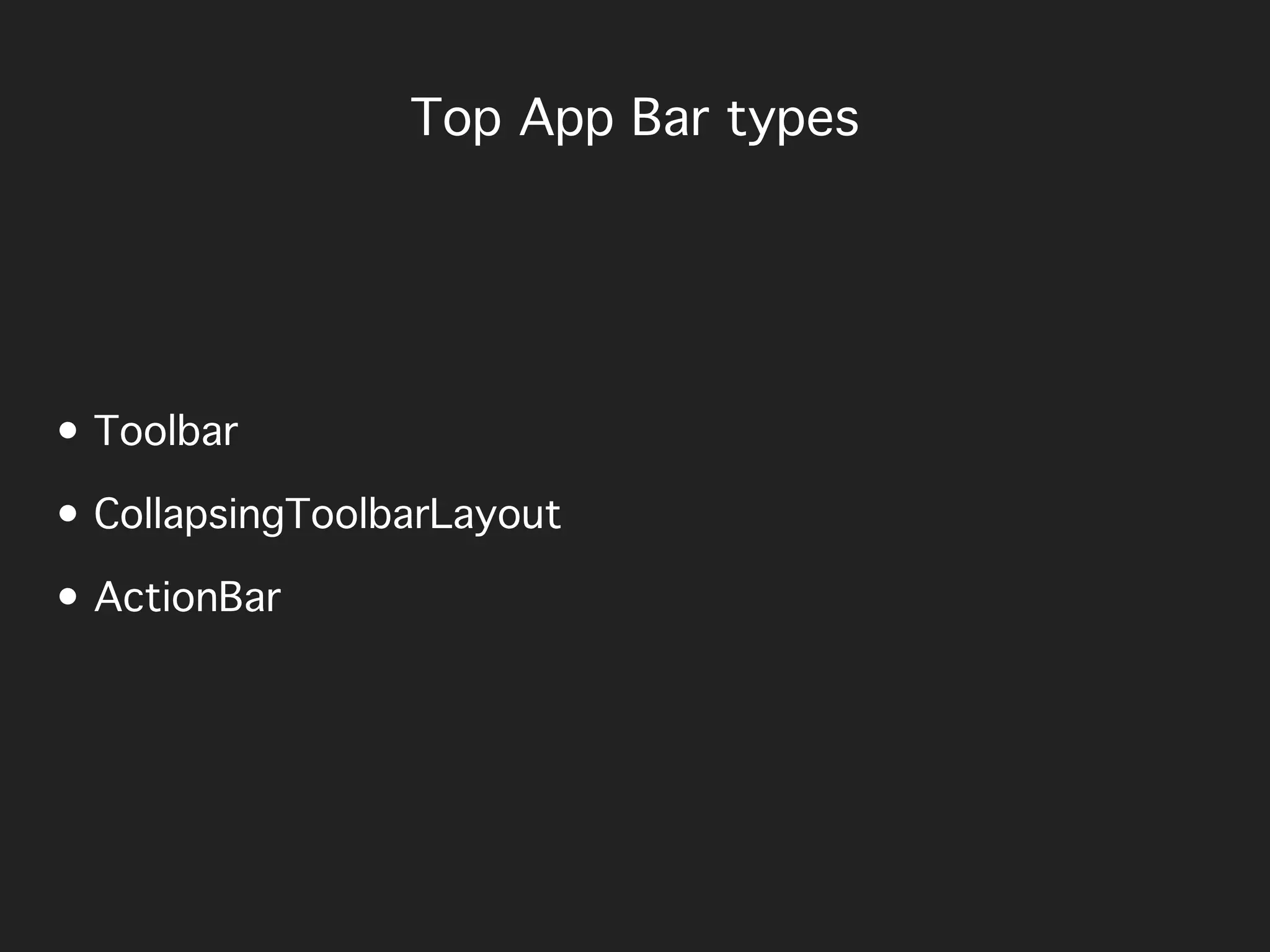

6. Top App Bar types
• Toolbar
• CollapsingToolbarLayout
• ActionBar

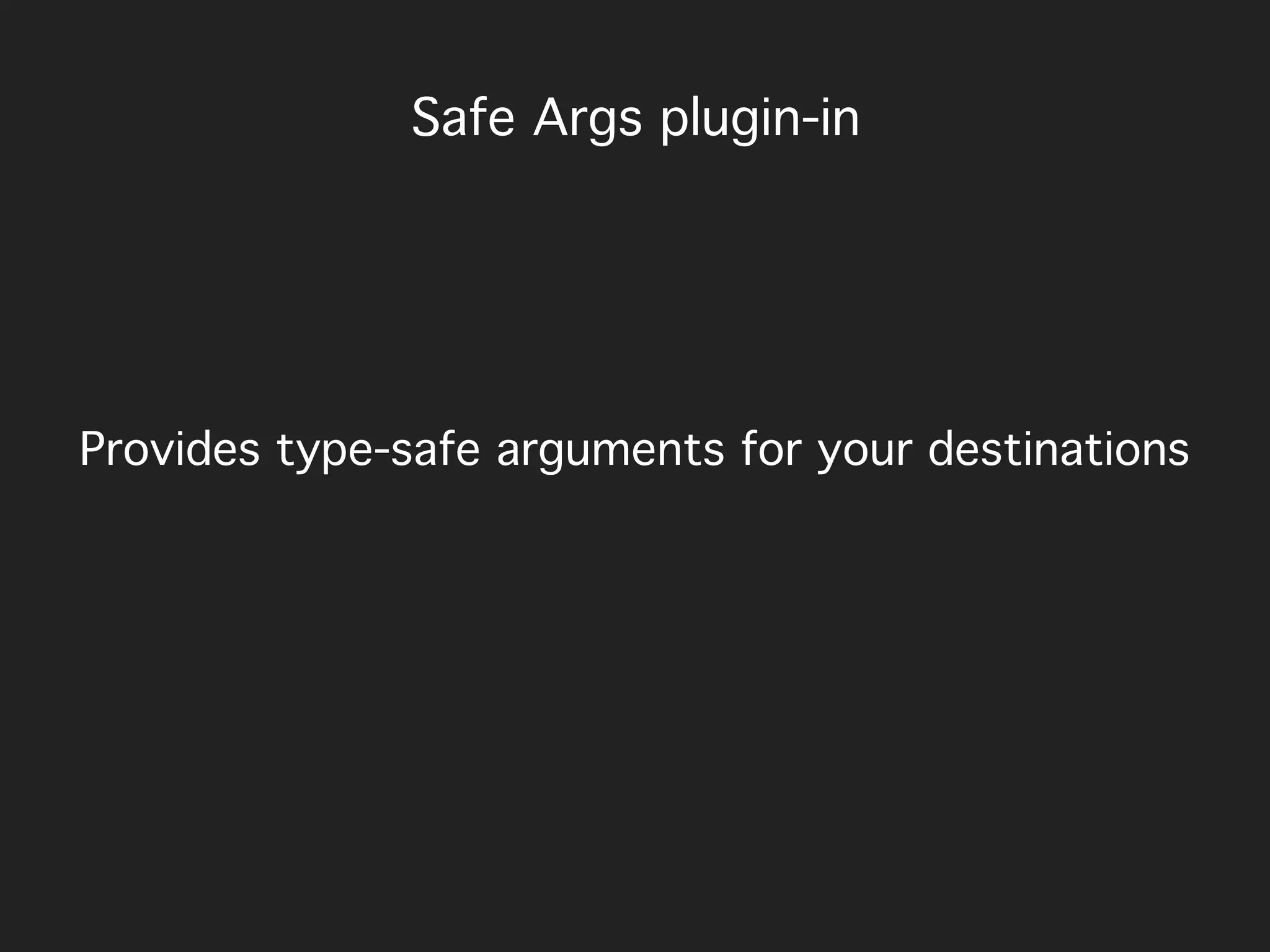

7. Provides type-safe arguments for your destinations
Safe Args plugin-in

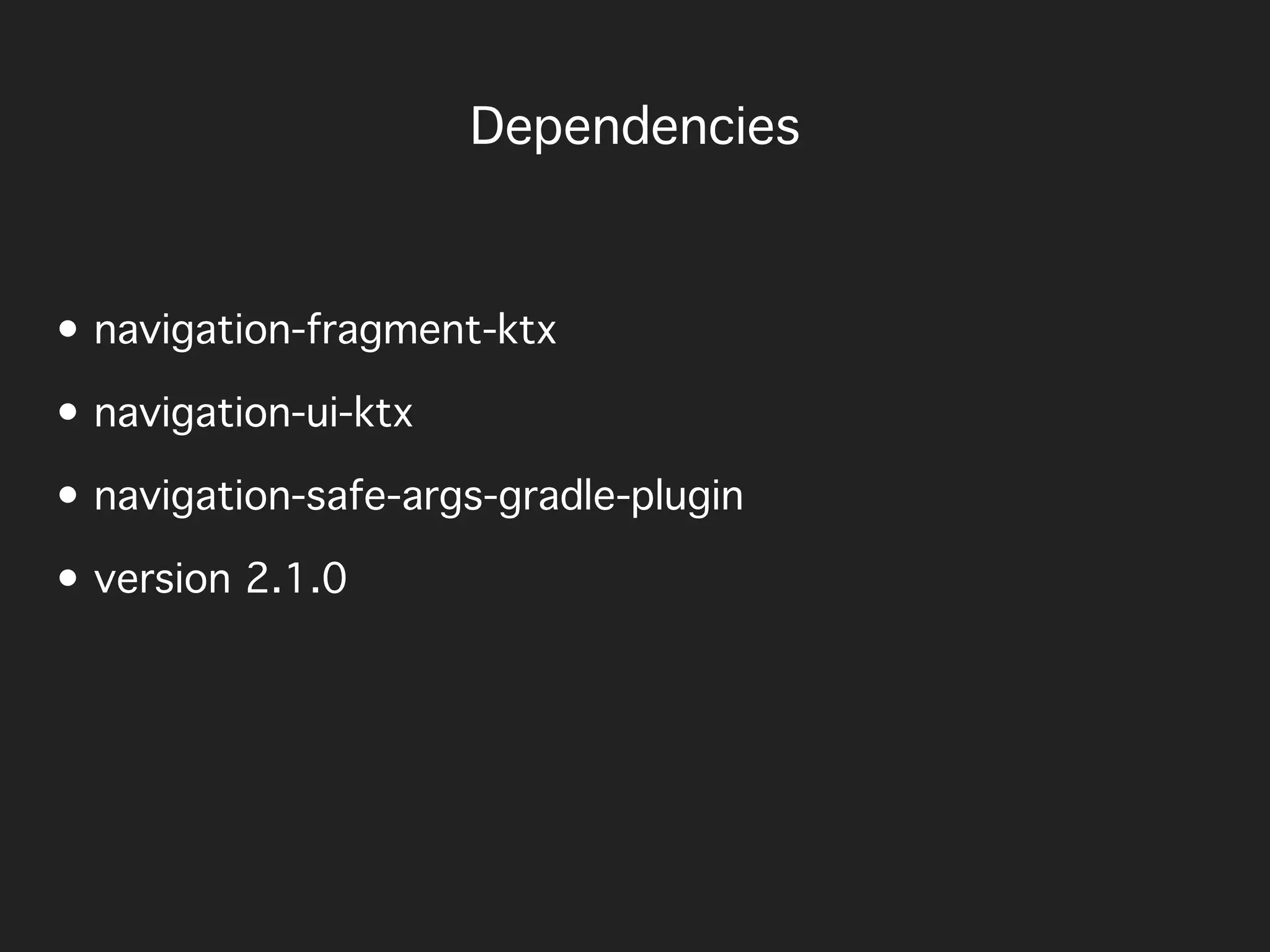

8. • navigation-fragment-ktx
• navigation-ui-ktx
• navigation-safe-args-gradle-plugin
• version 2.1.0
Dependencies

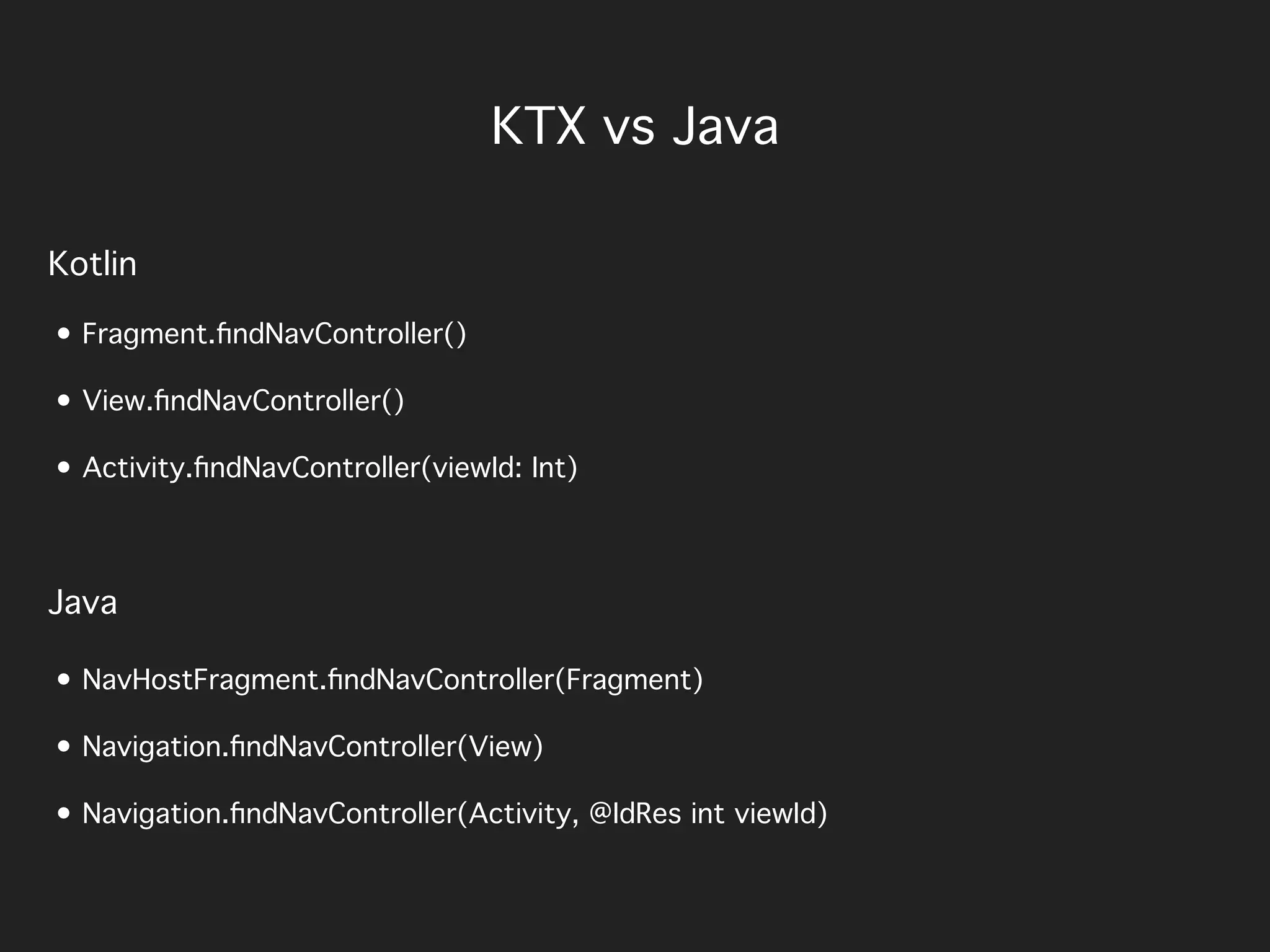

9. • Fragment.findNavController()
• View.findNavController()
• Activity.findNavController(viewId: Int)
KTX vs Java
Kotlin
• NavHostFragment.findNavController(Fragment)
• Navigation.findNavController(View)
• Navigation.findNavController(Activity, @IdRes int viewId)
Java

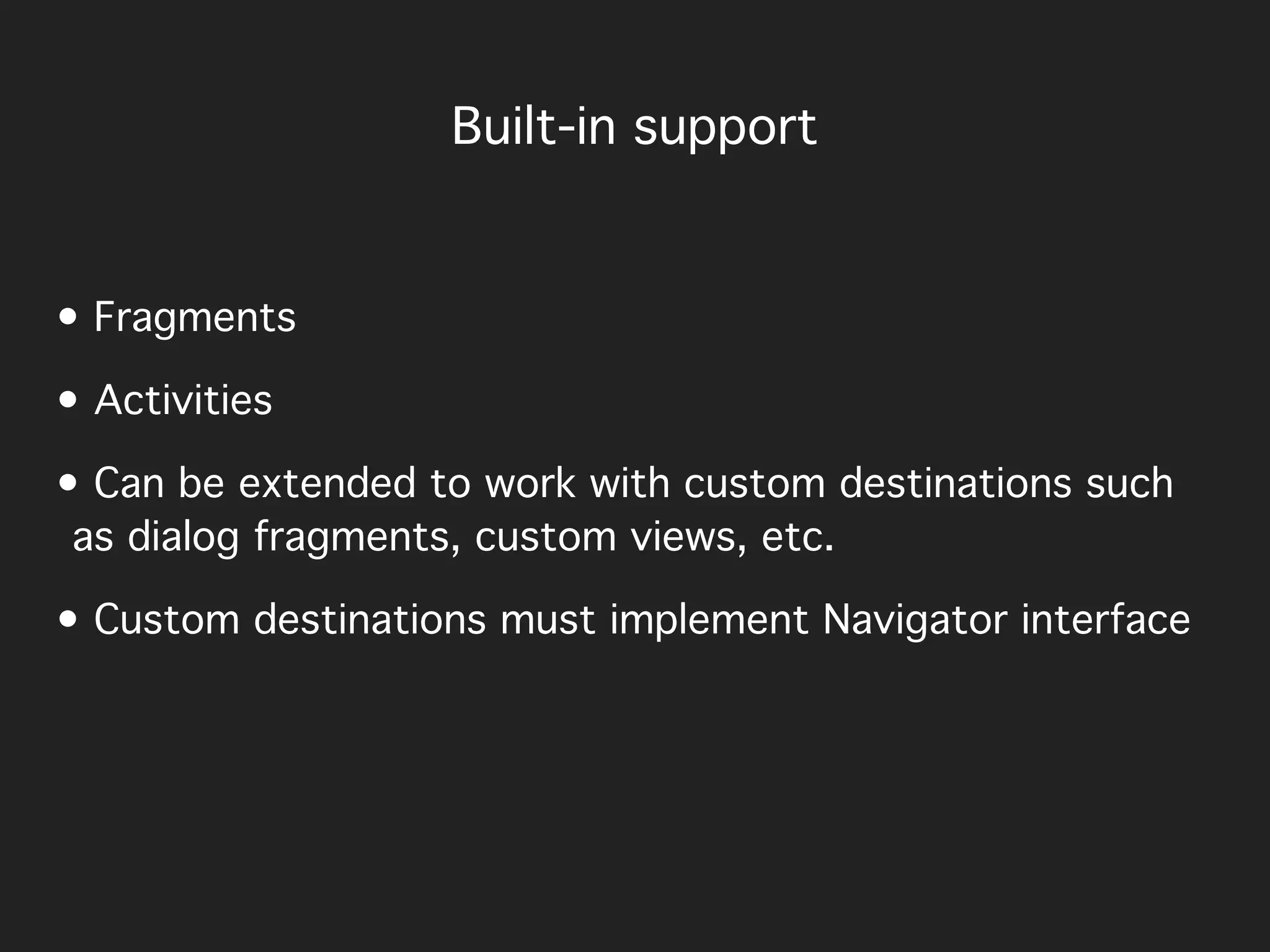

10. • Fragments
• Activities
• Can be extended to work with custom destinations such
as dialog fragments, custom views, etc.
• Custom destinations must implement Navigator interface
Built-in support

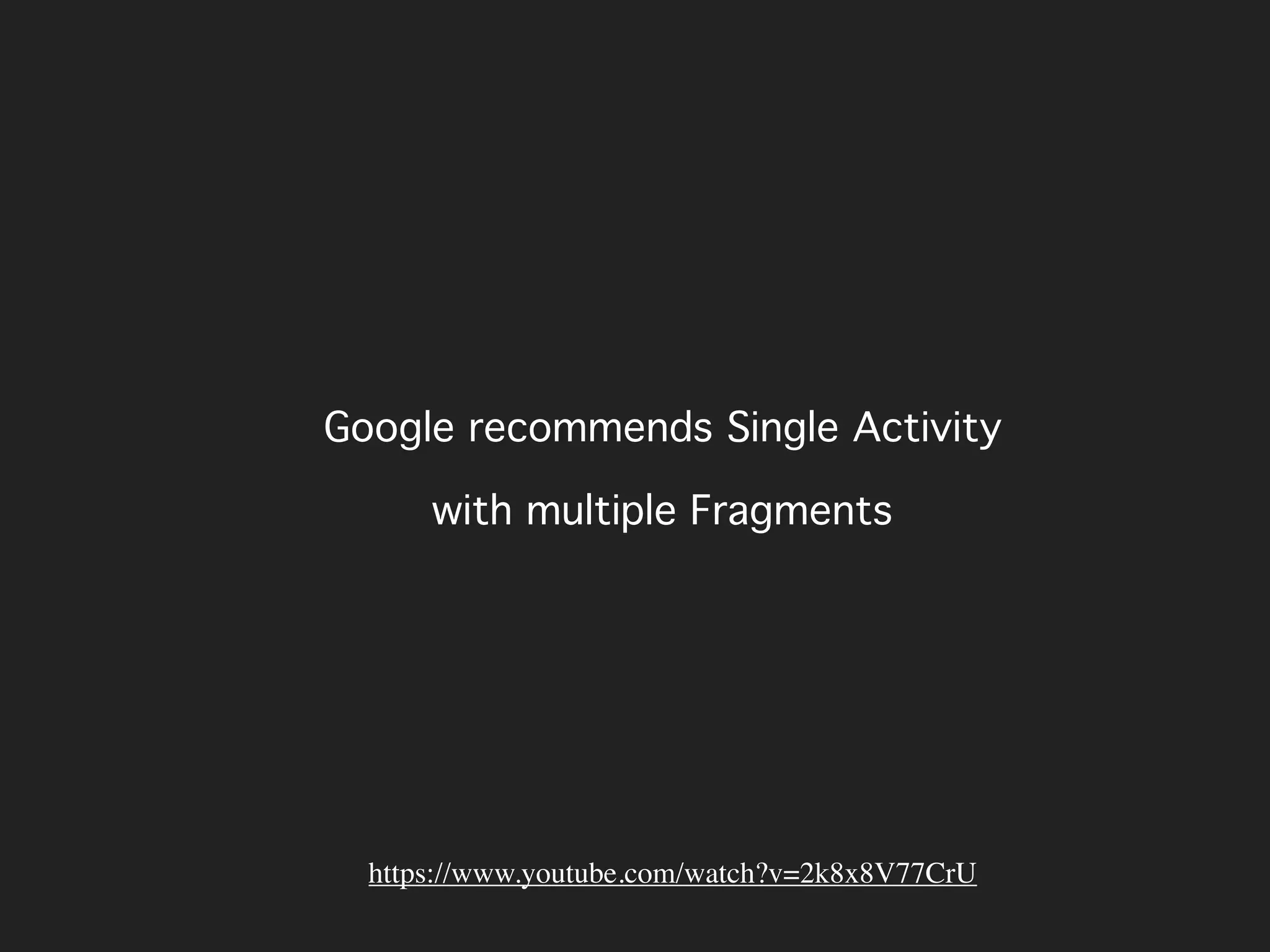

11. Google recommends Single Activity
with multiple Fragments
https://www.youtube.com/watch?v=2k8x8V77CrU

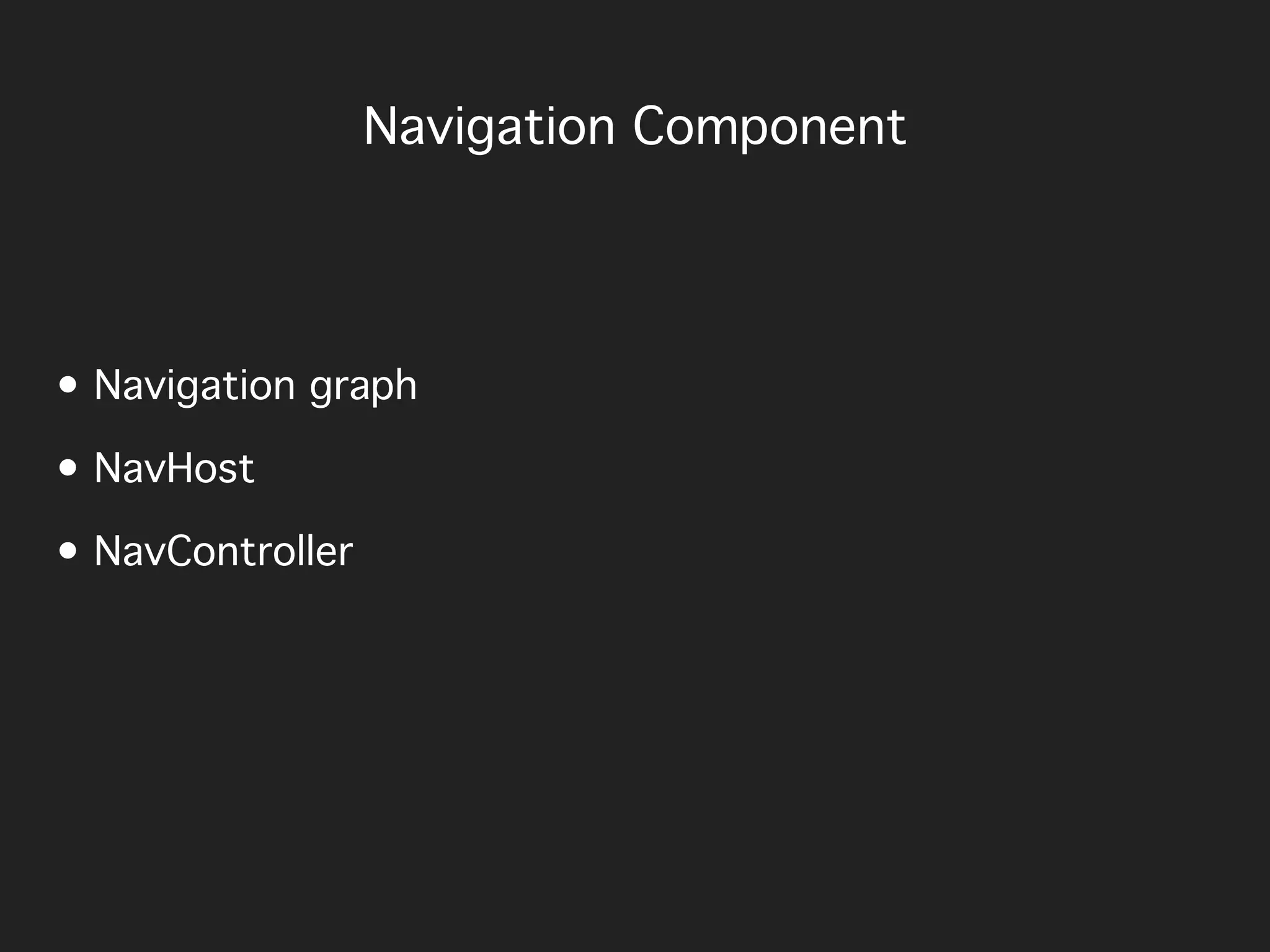

12. • Navigation graph
• NavHost
• NavController
Navigation Component

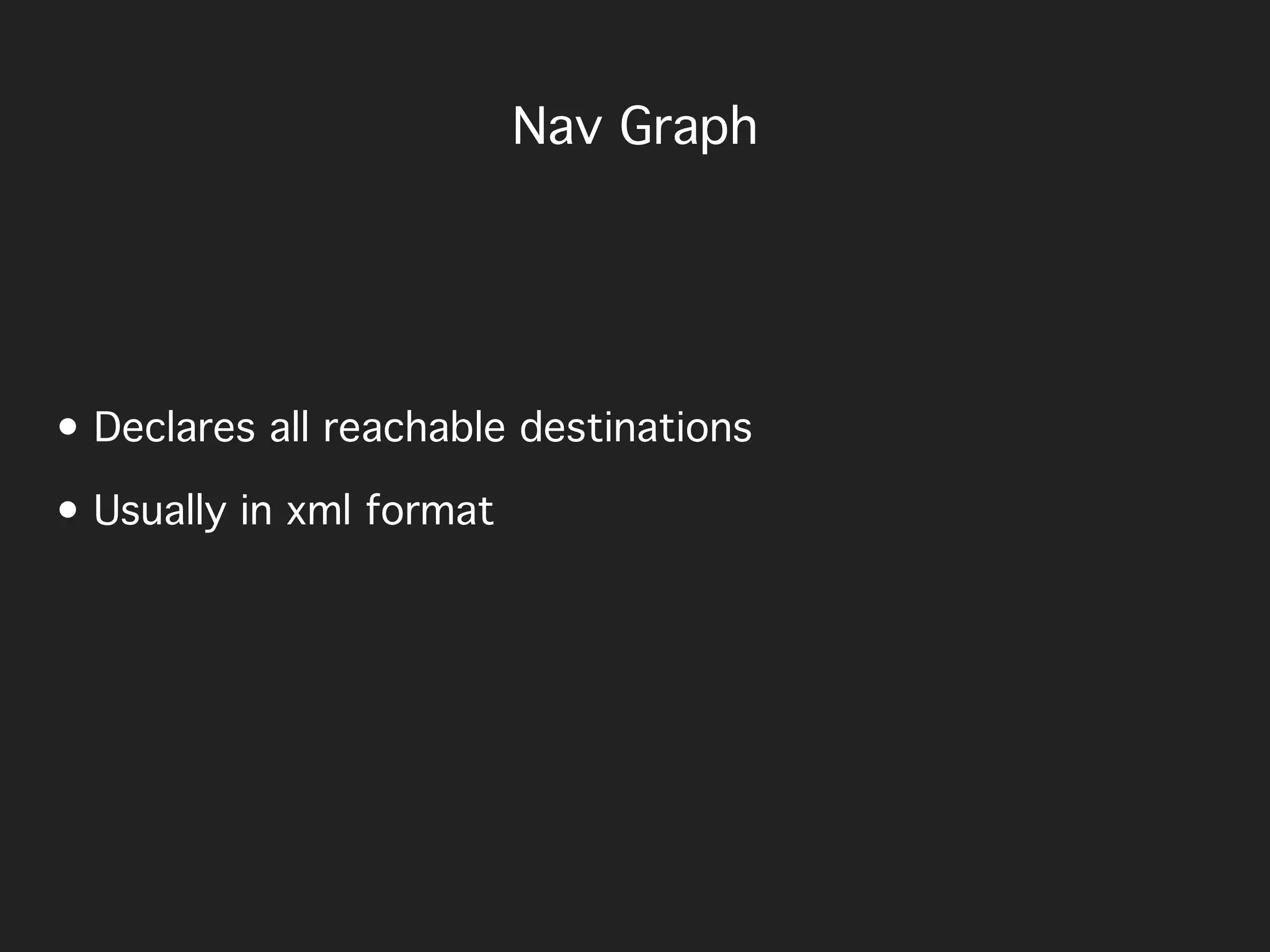

13. • Declares all reachable destinations
• Usually in xml format
Nav Graph

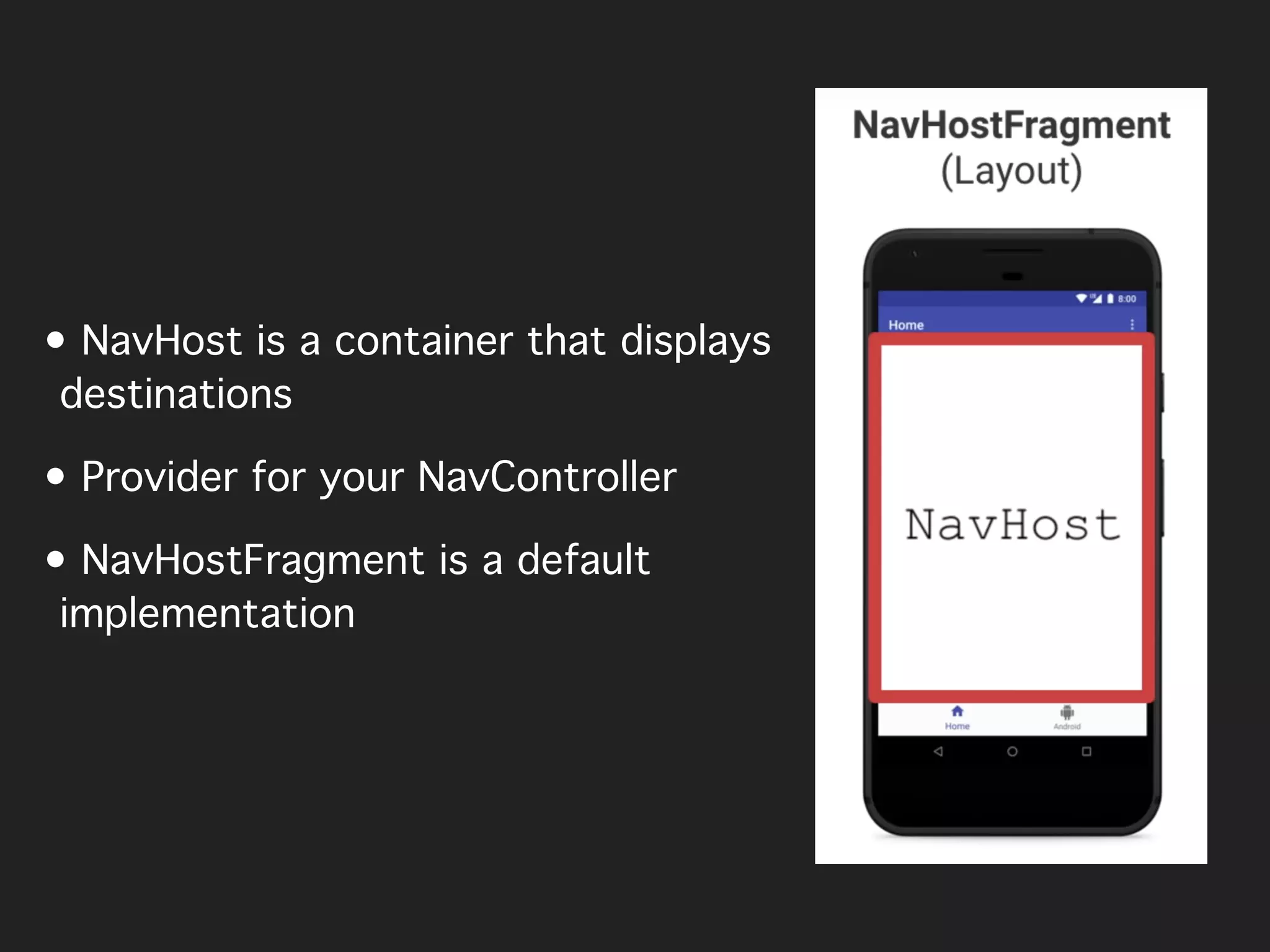

14. • NavHost is a container that displays
destinations
• Provider for your NavController
• NavHostFragment is a default
implementation

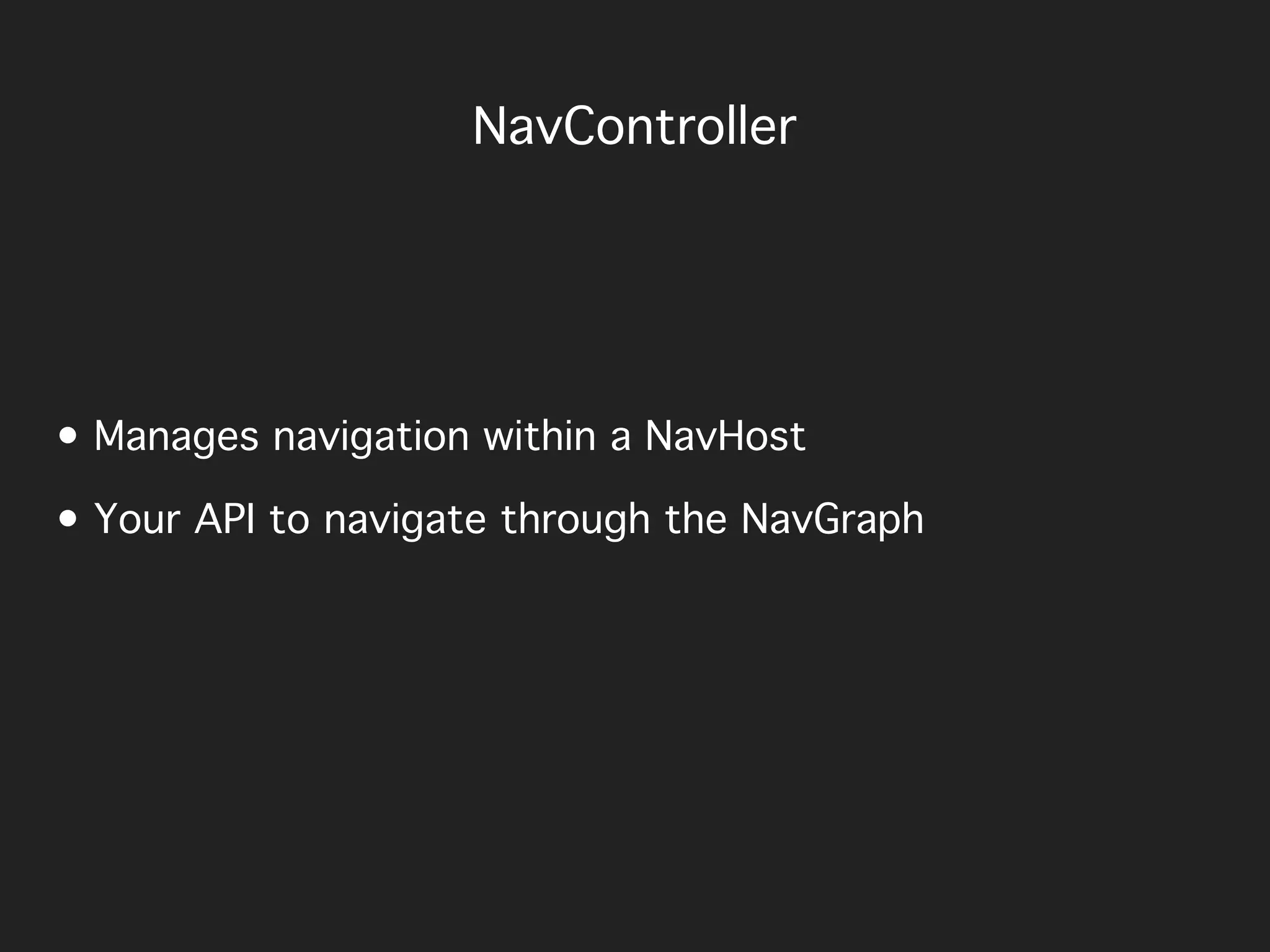

15. NavController
• Manages navigation within a NavHost
• Your API to navigate through the NavGraph

16. NavController
findNavController().navigate(R.id.editorFragment)

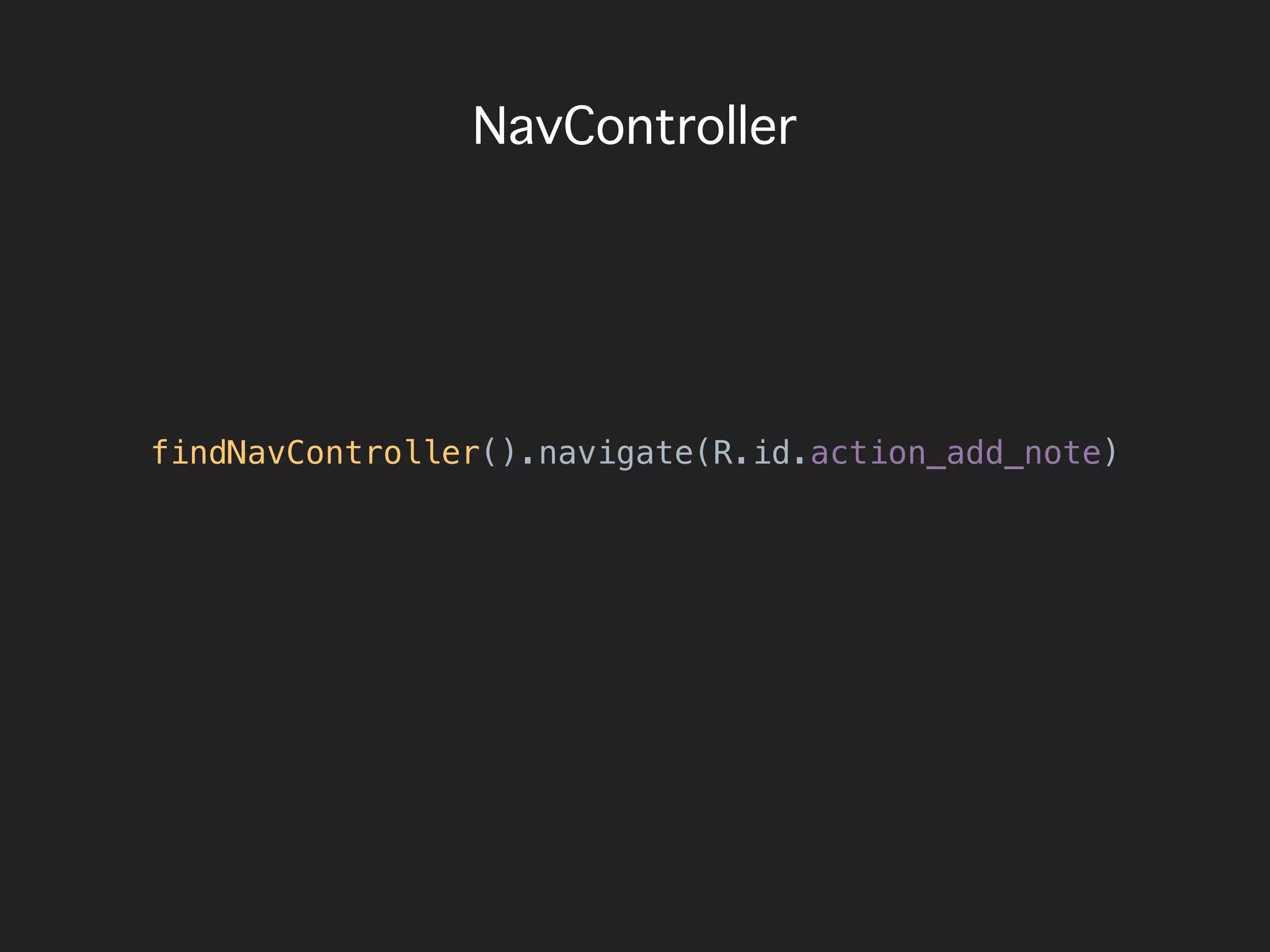

17. NavController
findNavController().navigate(R.id.action_add_note)

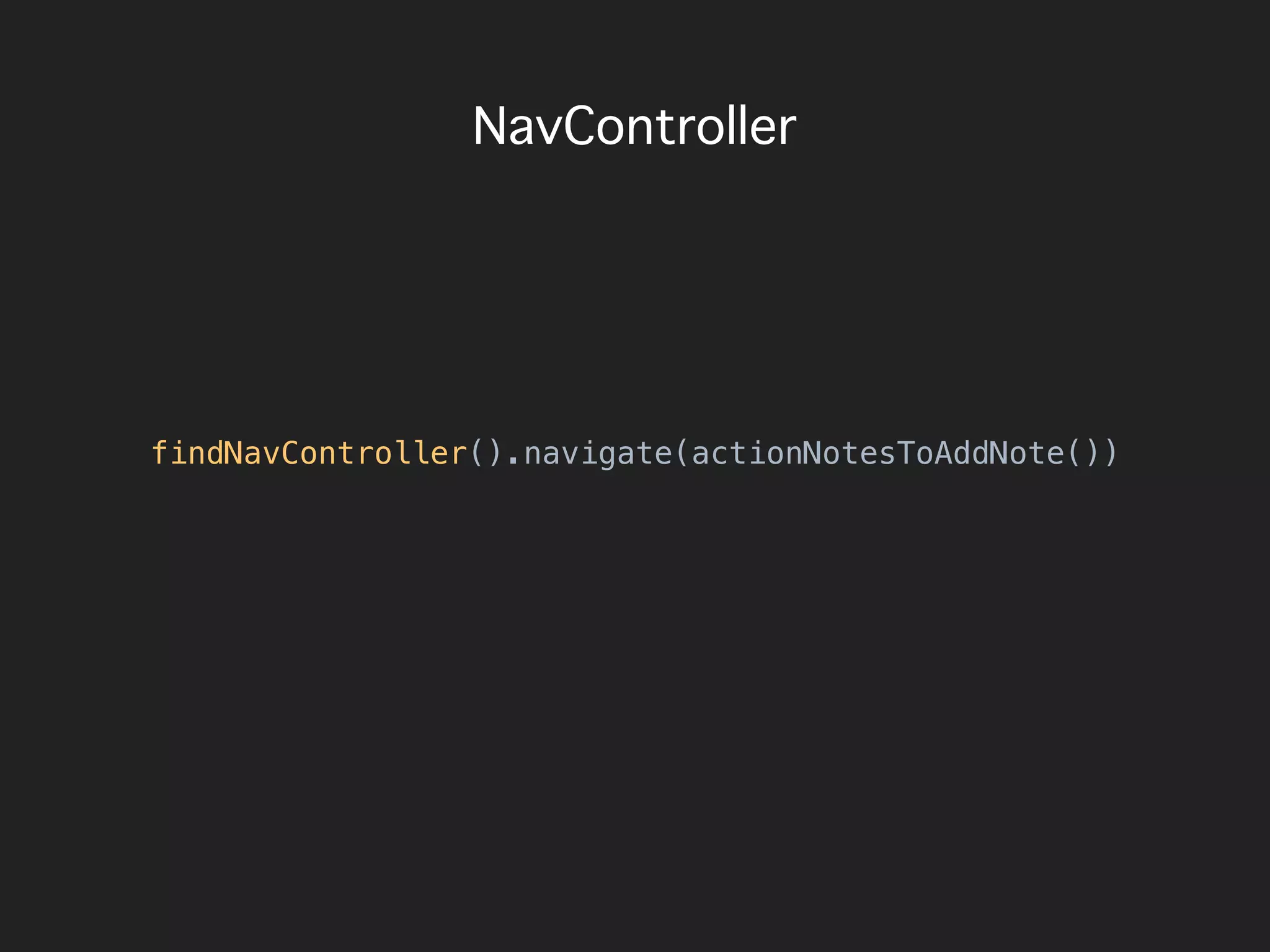

18. NavController
findNavController().navigate(actionNotesToAddNote())

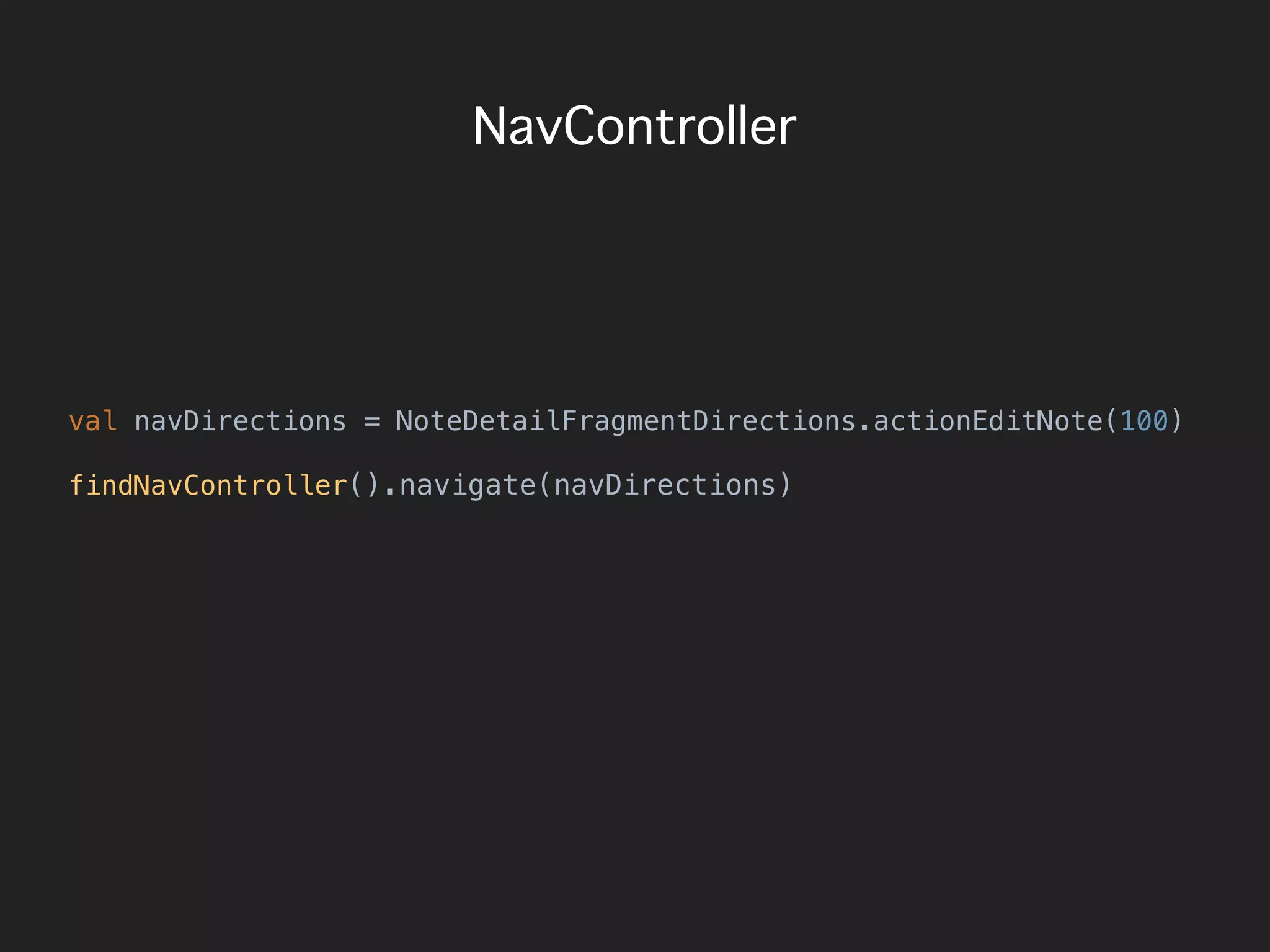

19. NavController
val navDirections = NoteDetailFragmentDirections.actionEditNote(100)
findNavController().navigate(navDirections)

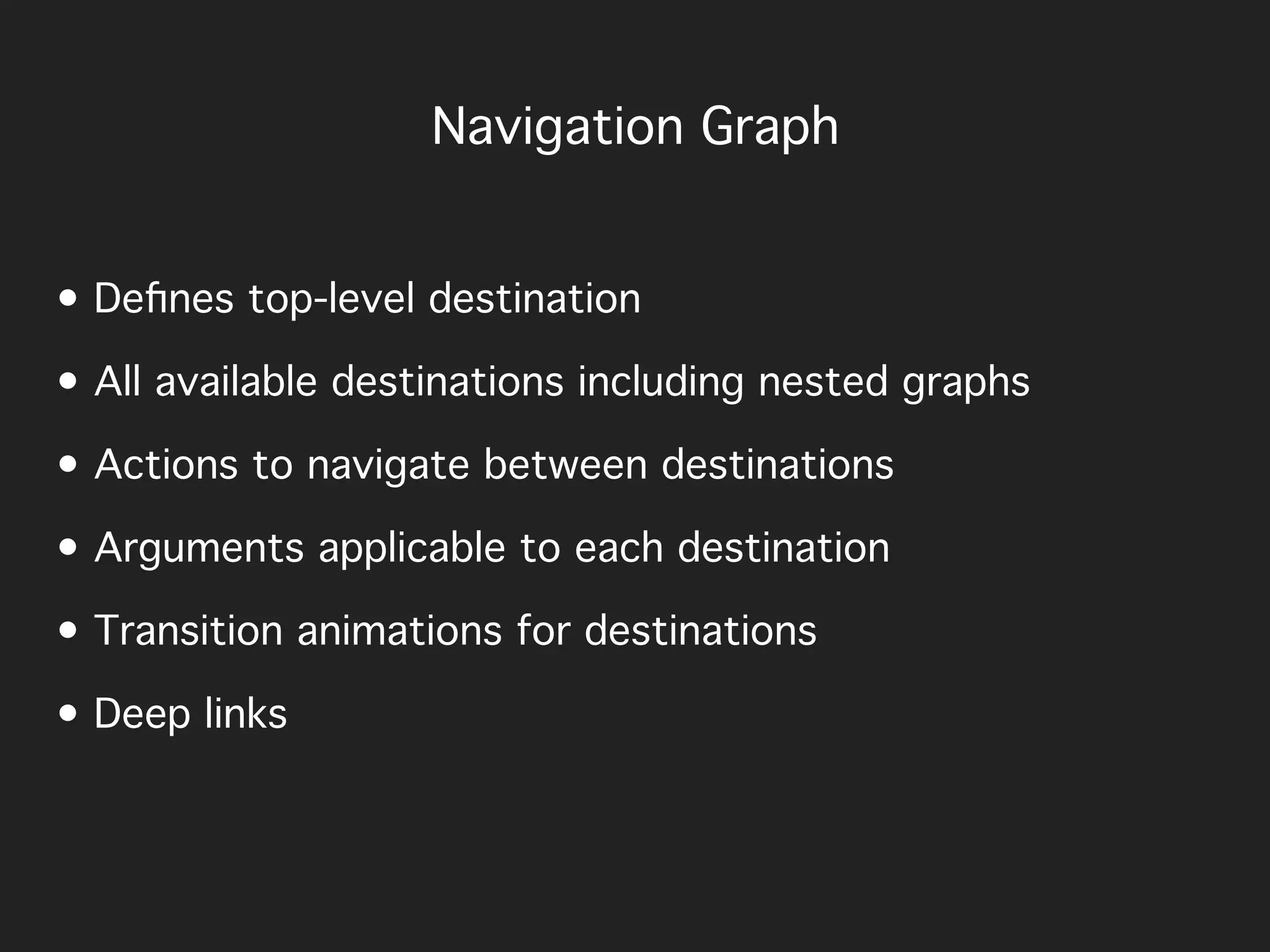

20. • Defines top-level destination
• All available destinations including nested graphs
• Actions to navigate between destinations
• Arguments applicable to each destination
• Transition animations for destinations
• Deep links
Navigation Graph

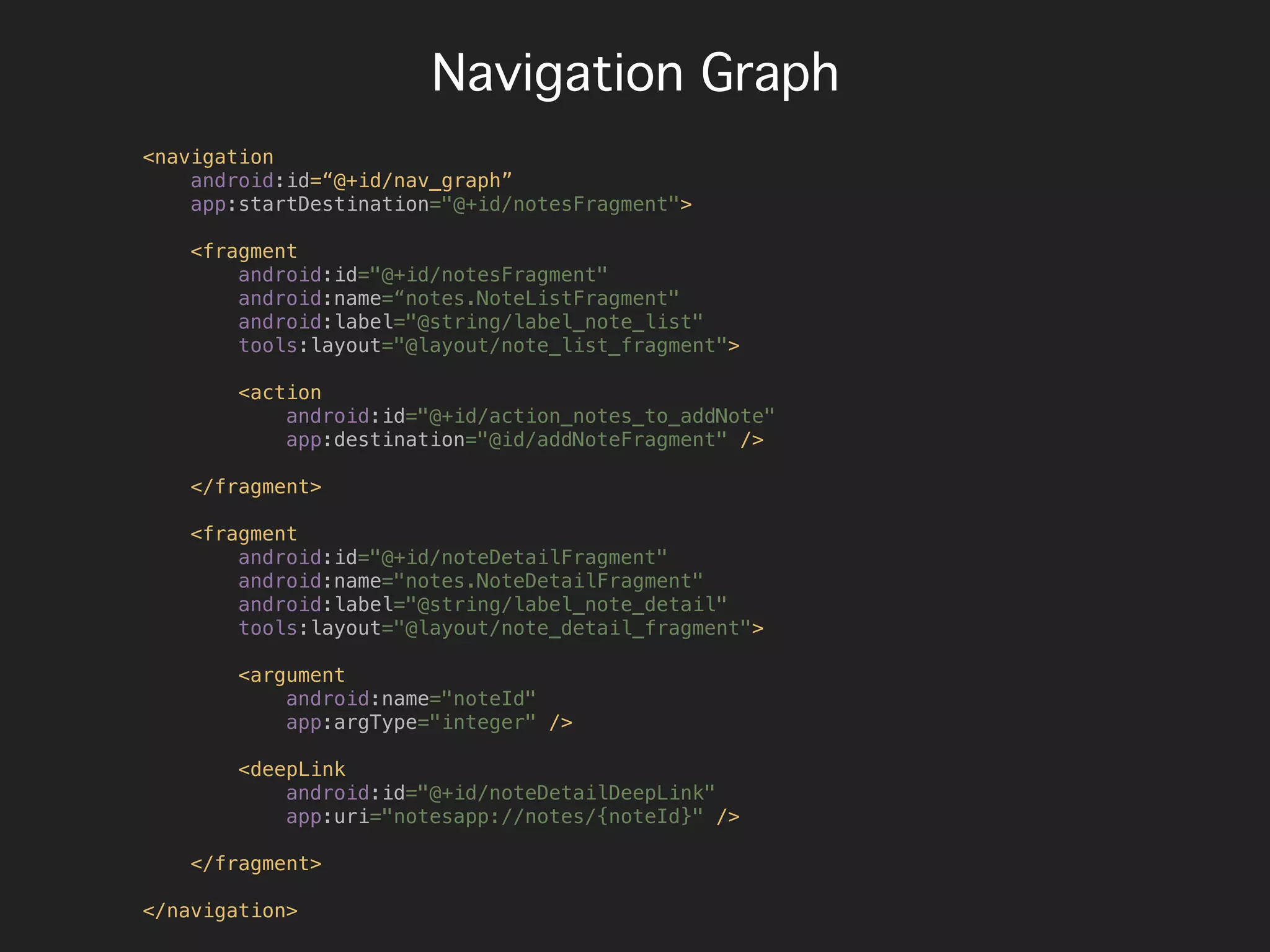

21. Navigation Graph
<navigation
android:id=“@+id/nav_graph”
app:startDestination="@+id/notesFragment">
<fragment
android:id="@+id/notesFragment"
android:name=“notes.NoteListFragment"
android:label="@string/label_note_list"
tools:layout="@layout/note_list_fragment">
<action
android:id="@+id/action_notes_to_addNote"
app:destination="@id/addNoteFragment" />
</fragment>
<fragment
android:id="@+id/noteDetailFragment"
android:name="notes.NoteDetailFragment"
android:label="@string/label_note_detail"
tools:layout="@layout/note_detail_fragment">
<argument
android:name="noteId"
app:argType="integer" />
<deepLink
android:id="@+id/noteDetailDeepLink"
app:uri="notesapp://notes/{noteId}" />
</fragment>
</navigation>

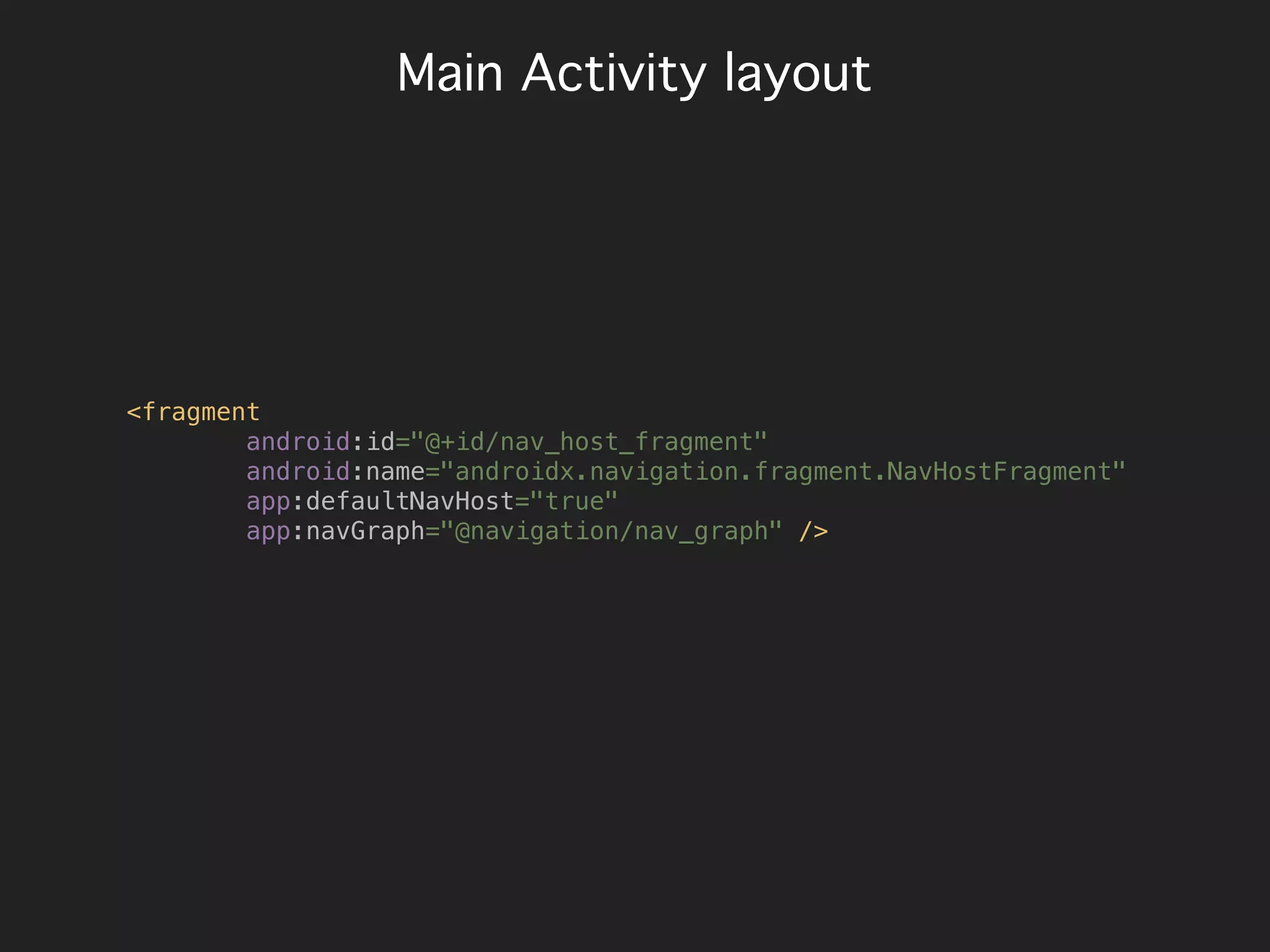

22. Main Activity layout
<fragment
android:id="@+id/nav_host_fragment"
android:name="androidx.navigation.fragment.NavHostFragment"
app:defaultNavHost="true"
app:navGraph="@navigation/nav_graph" />

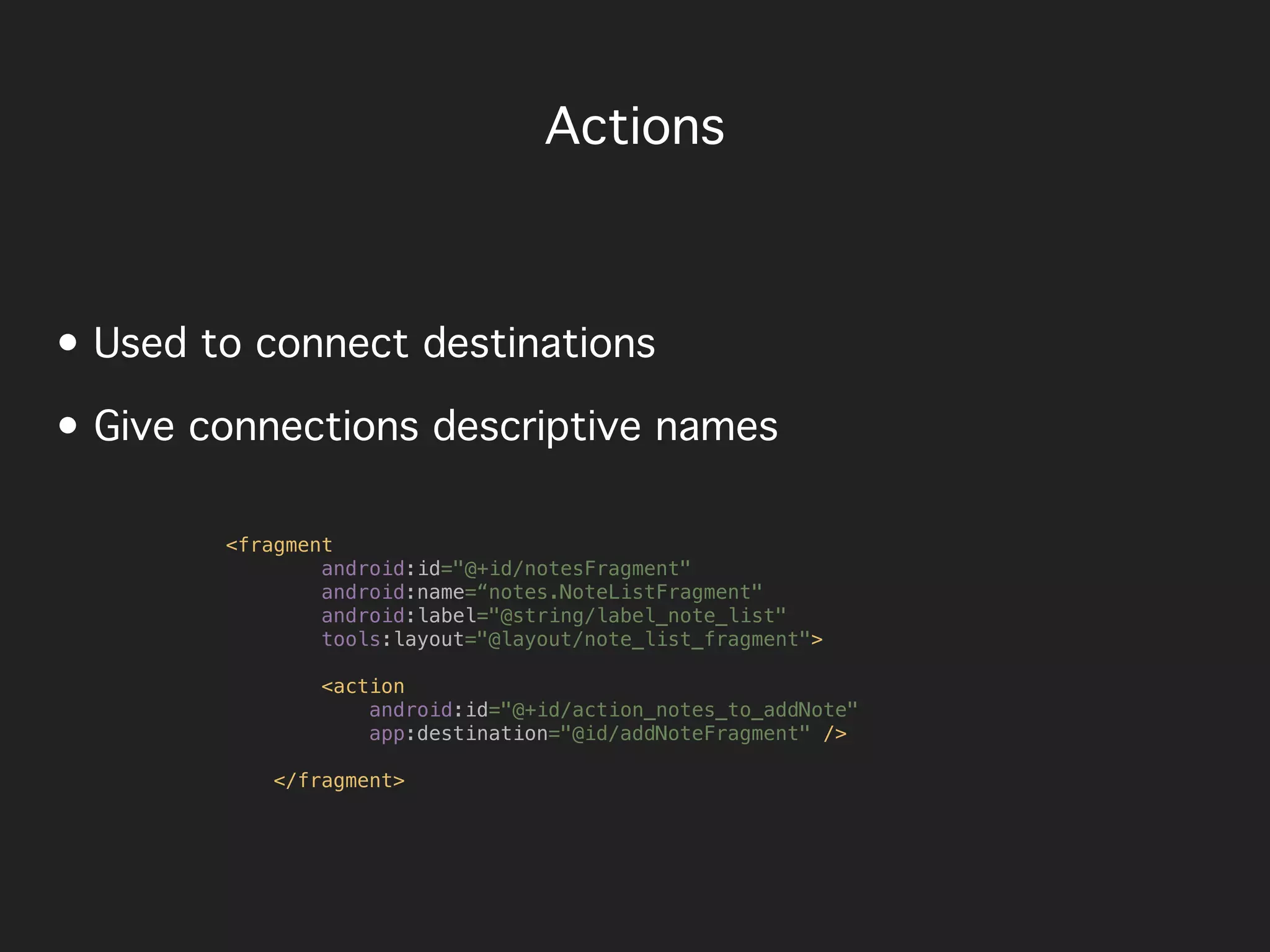

26. Actions
• Used to connect destinations
• Give connections descriptive names
<fragment
android:id="@+id/notesFragment"
android:name=“notes.NoteListFragment"
android:label="@string/label_note_list"
tools:layout="@layout/note_list_fragment">
<action
android:id="@+id/action_notes_to_addNote"
app:destination="@id/addNoteFragment" />
</fragment>

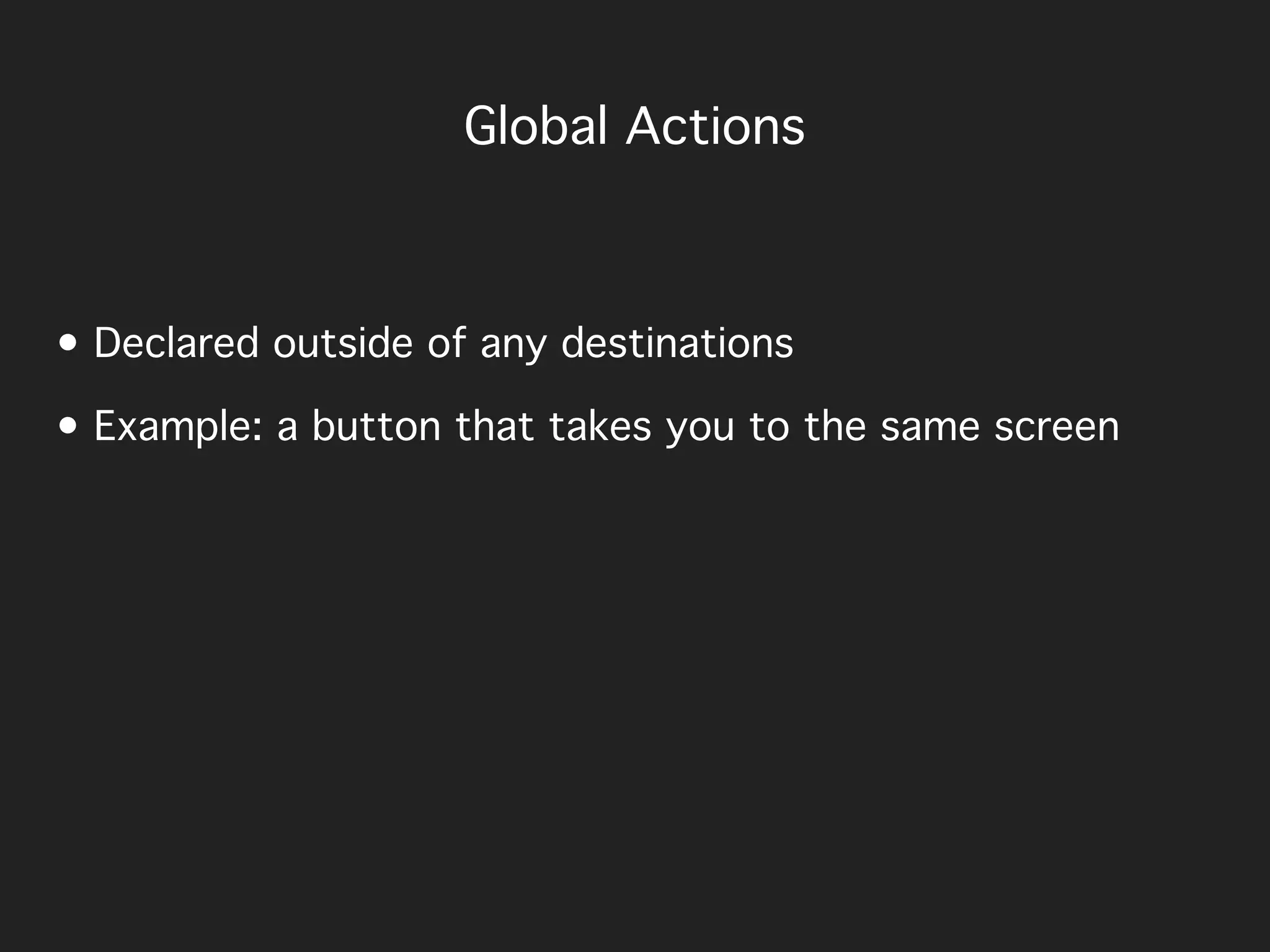

27. Global Actions
• Declared outside of any destinations
• Example: a button that takes you to the same screen

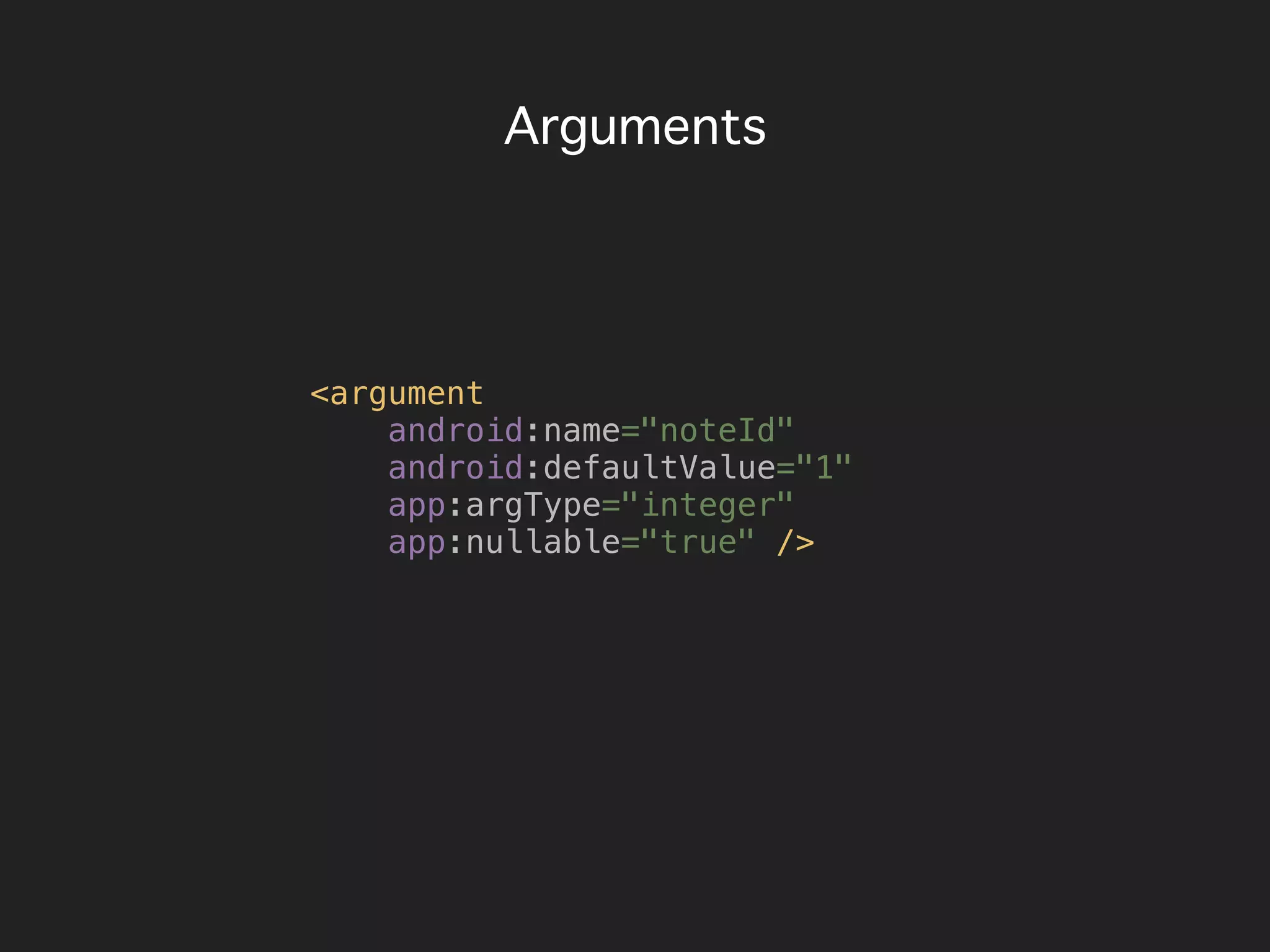

28. Arguments
<argument
android:name="noteId"
android:defaultValue="1"
app:argType="integer"
app:nullable="true" />

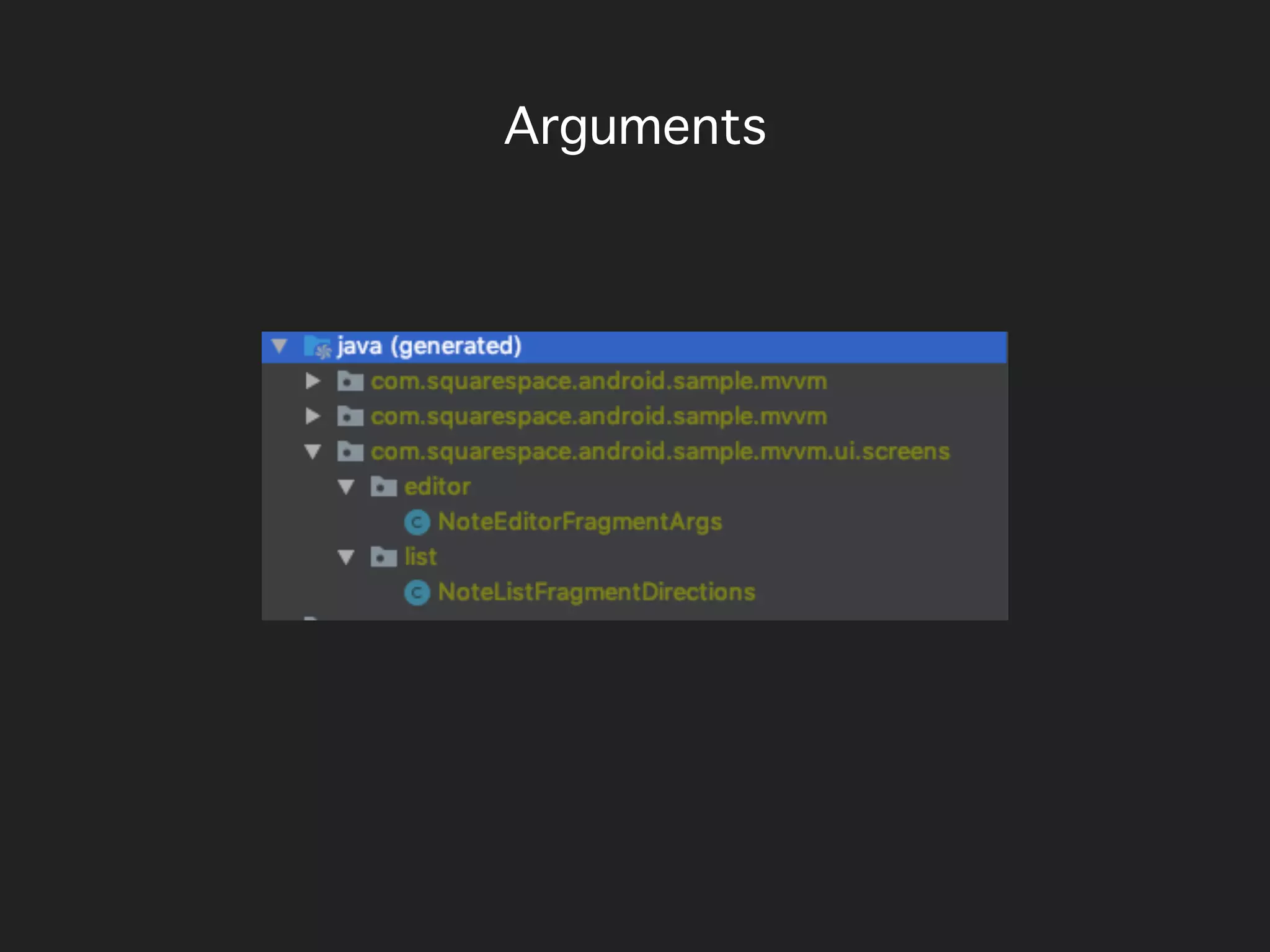

29. Arguments

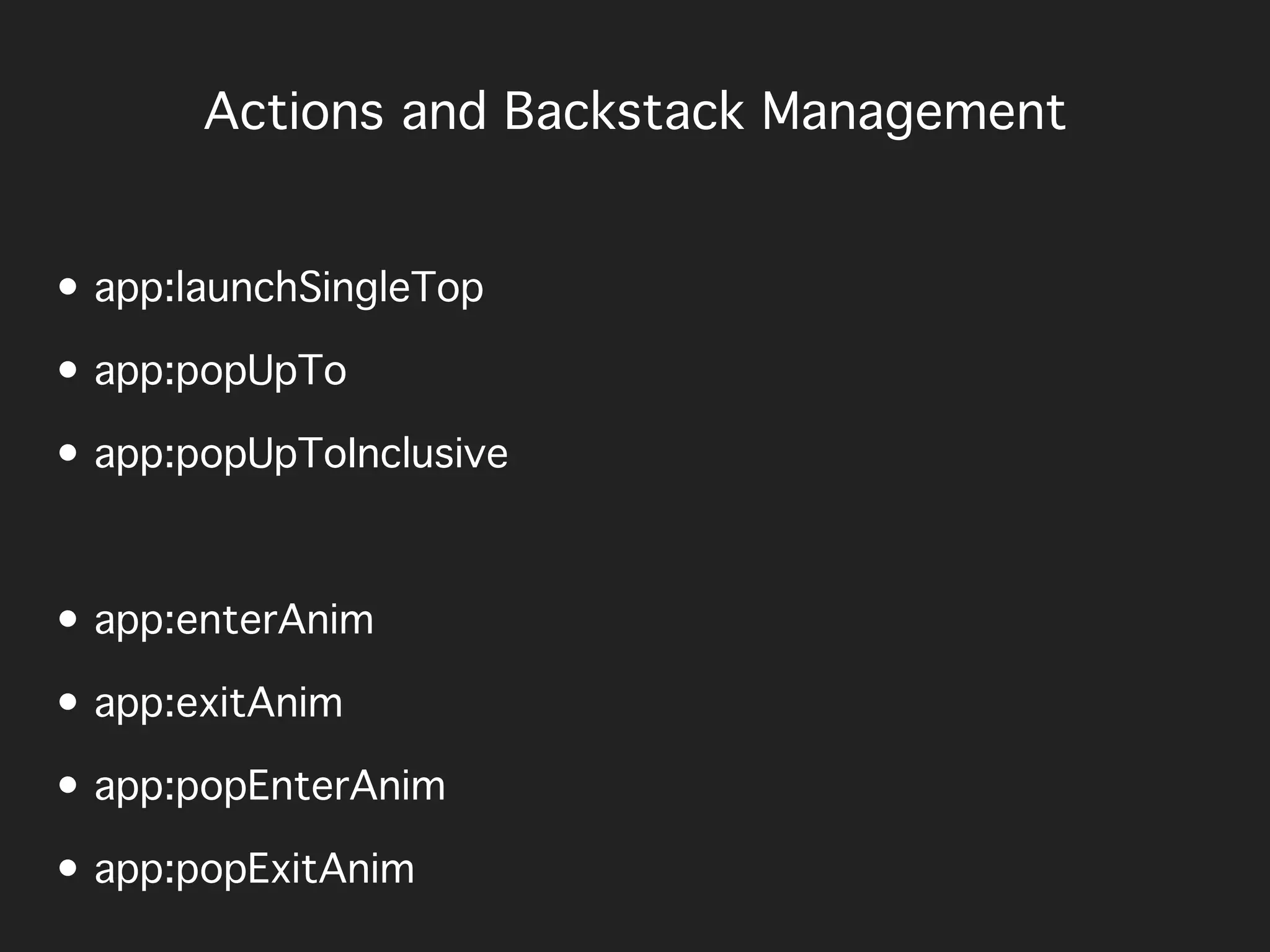

30. Actions and Backstack Management
• app:launchSingleTop
• app:popUpTo
• app:popUpToInclusive
• app:enterAnim
• app:exitAnim
• app:popEnterAnim
• app:popExitAnim

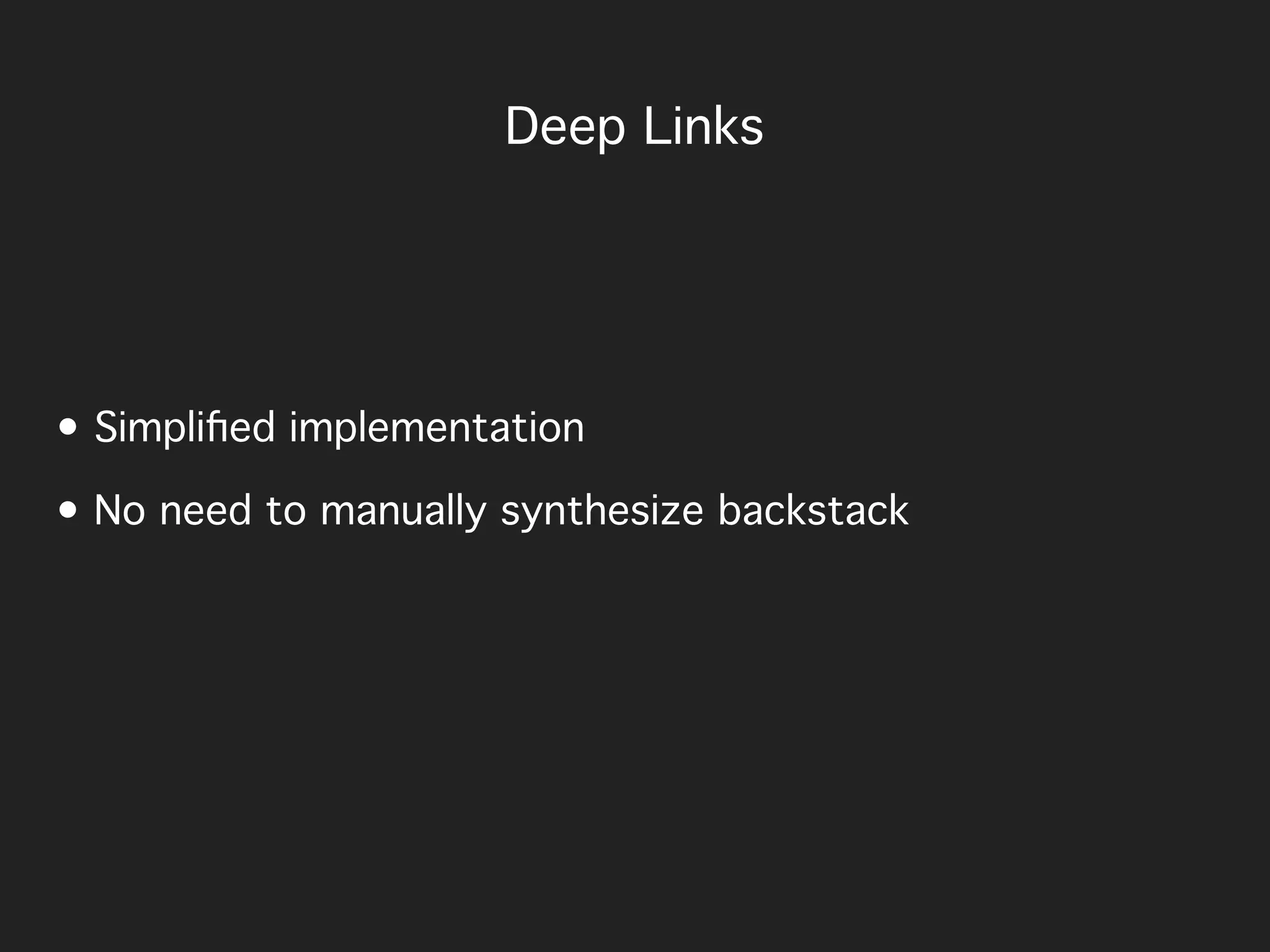

31. Deep Links
• Simplified implementation
• No need to manually synthesize backstack

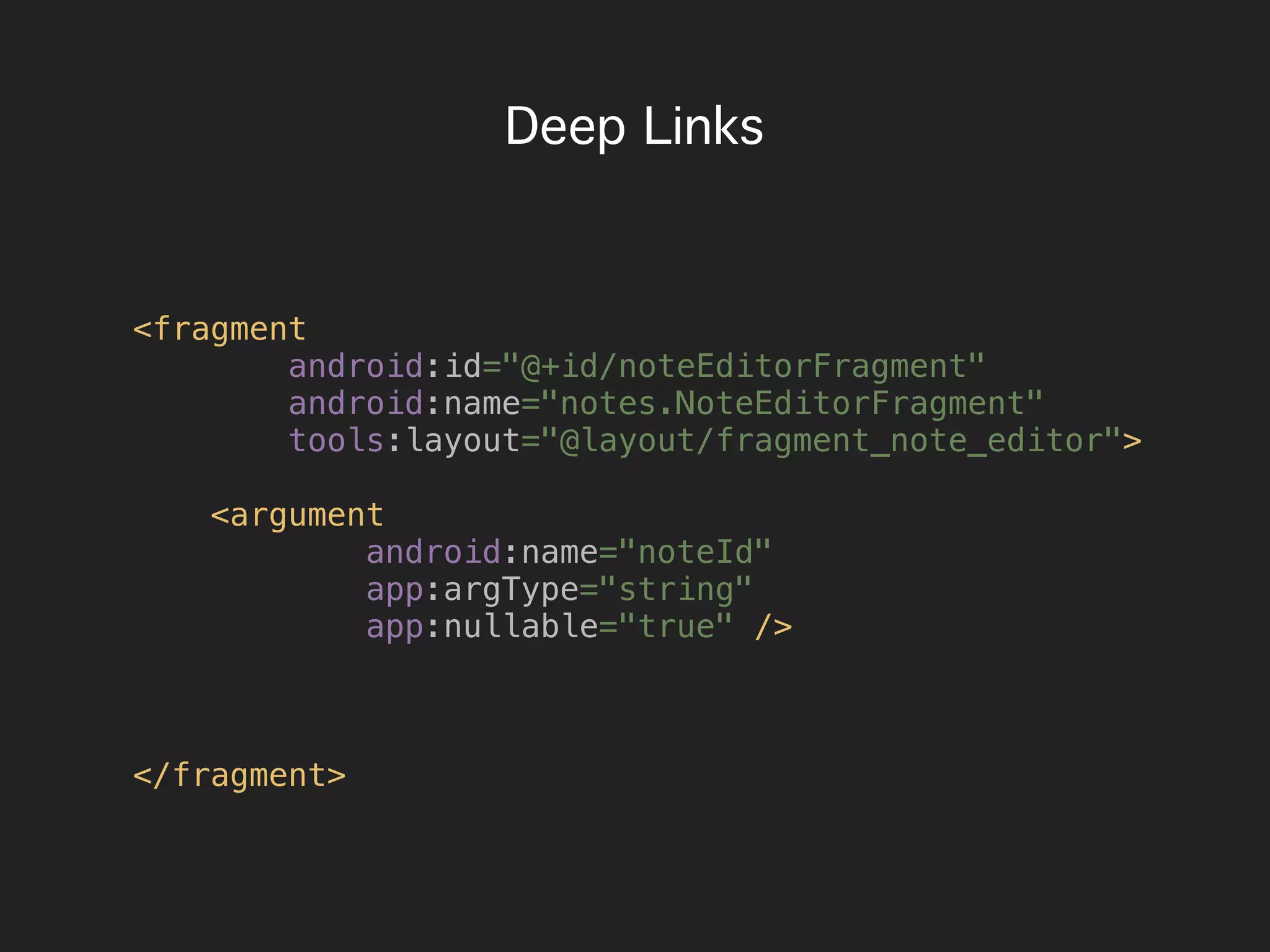

32. Deep Links
<fragment
android:id="@+id/noteEditorFragment"
android:name="notes.NoteEditorFragment"
tools:layout="@layout/fragment_note_editor">
<argument
android:name="noteId"
app:argType="string"
app:nullable="true" />
</fragment>

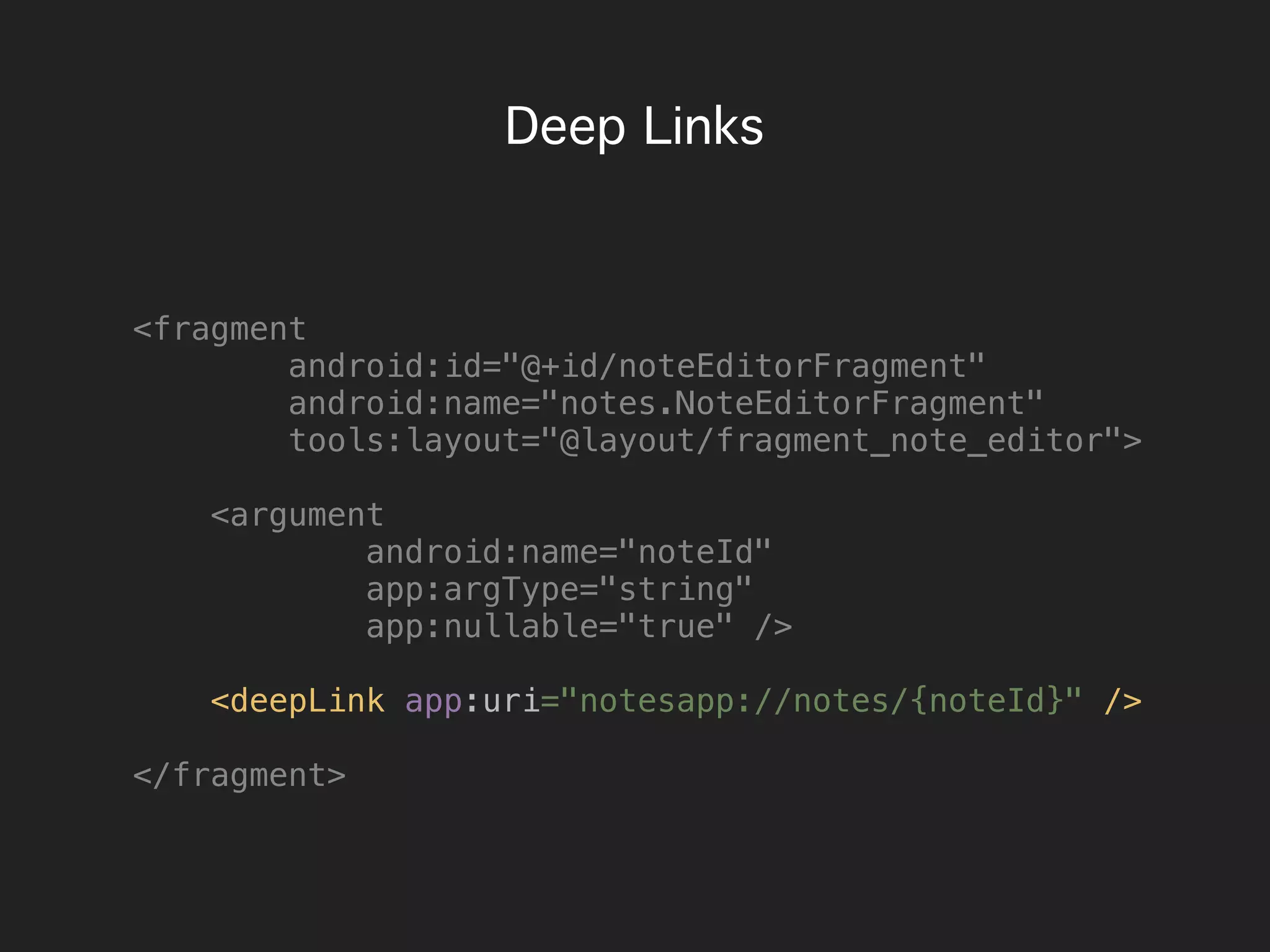

33. Deep Links
<fragment
android:id="@+id/noteEditorFragment"
android:name="notes.NoteEditorFragment"
tools:layout="@layout/fragment_note_editor">
<argument
android:name="noteId"
app:argType="string"
app:nullable="true" />
<deepLink app:uri="notesapp://notes/{noteId}" />
</fragment>

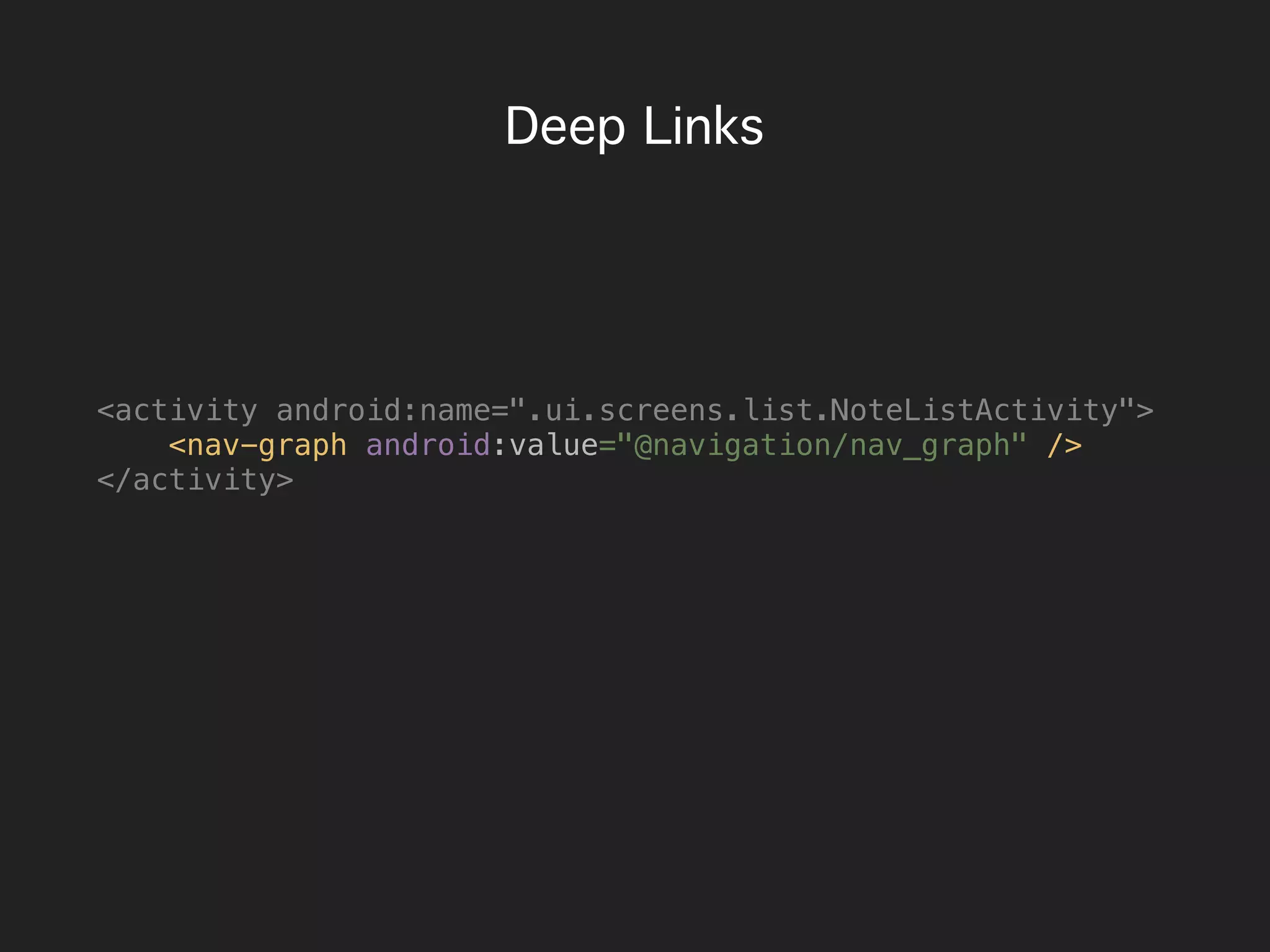

34. Deep Links
<activity android:name=".ui.screens.list.NoteListActivity">
<nav-graph android:value="@navigation/nav_graph" />
</activity>

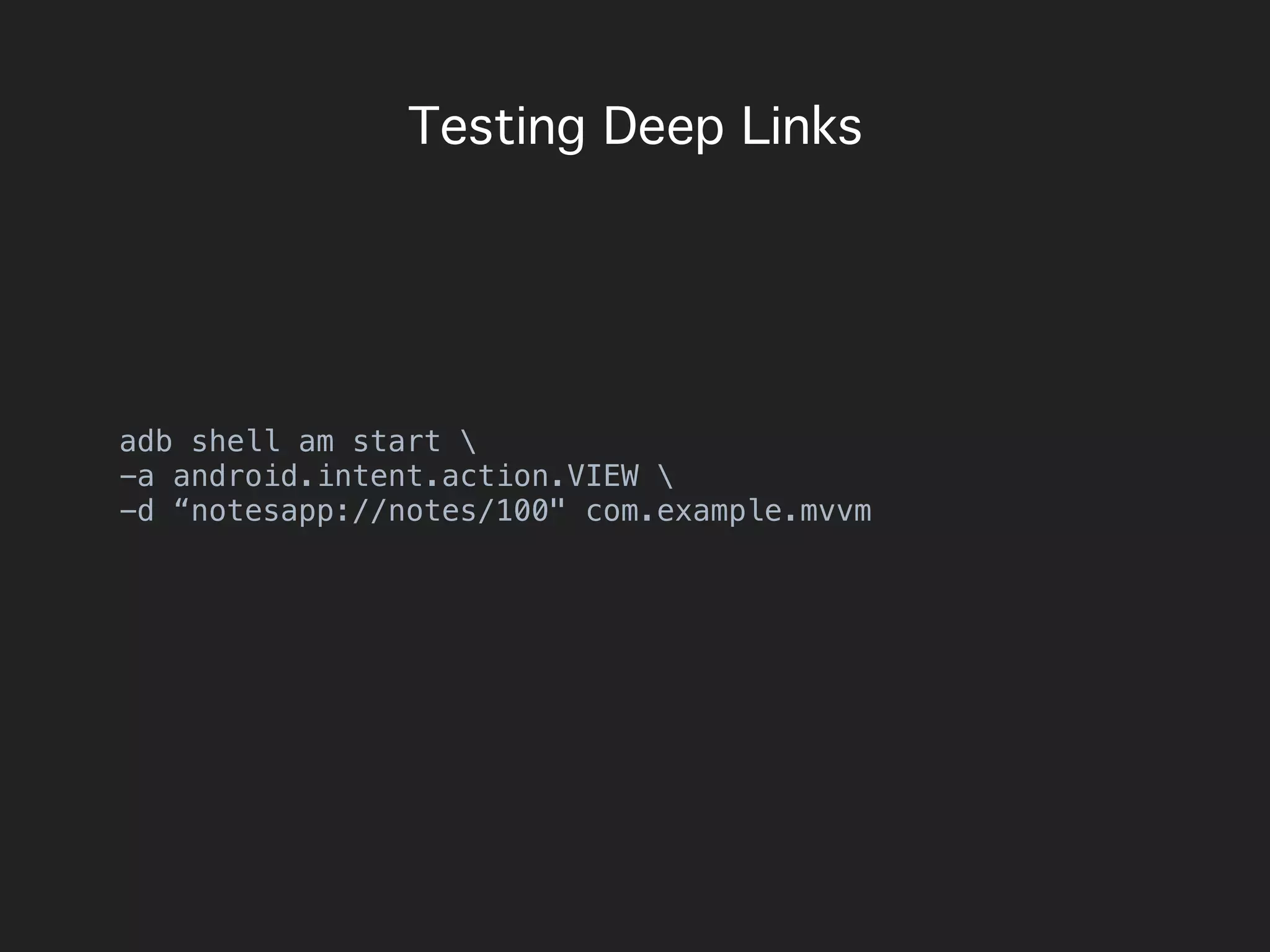

35. Testing Deep Links
adb shell am start
-a android.intent.action.VIEW
-d “notesapp://notes/100" com.example.mvvm

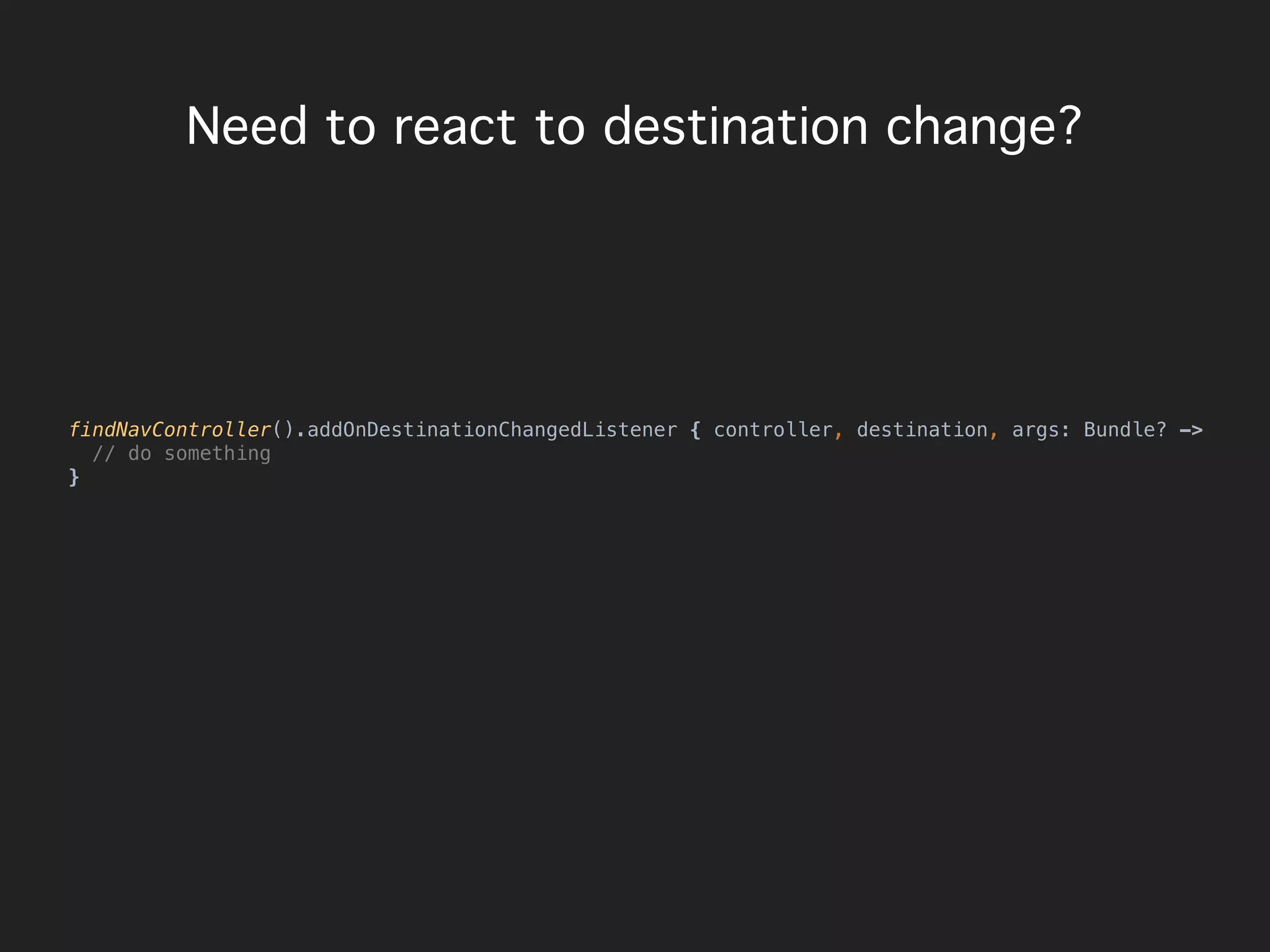

36. Need to react to destination change?
findNavController().addOnDestinationChangedListener { controller, destination, args: Bundle? ->
// do something
}

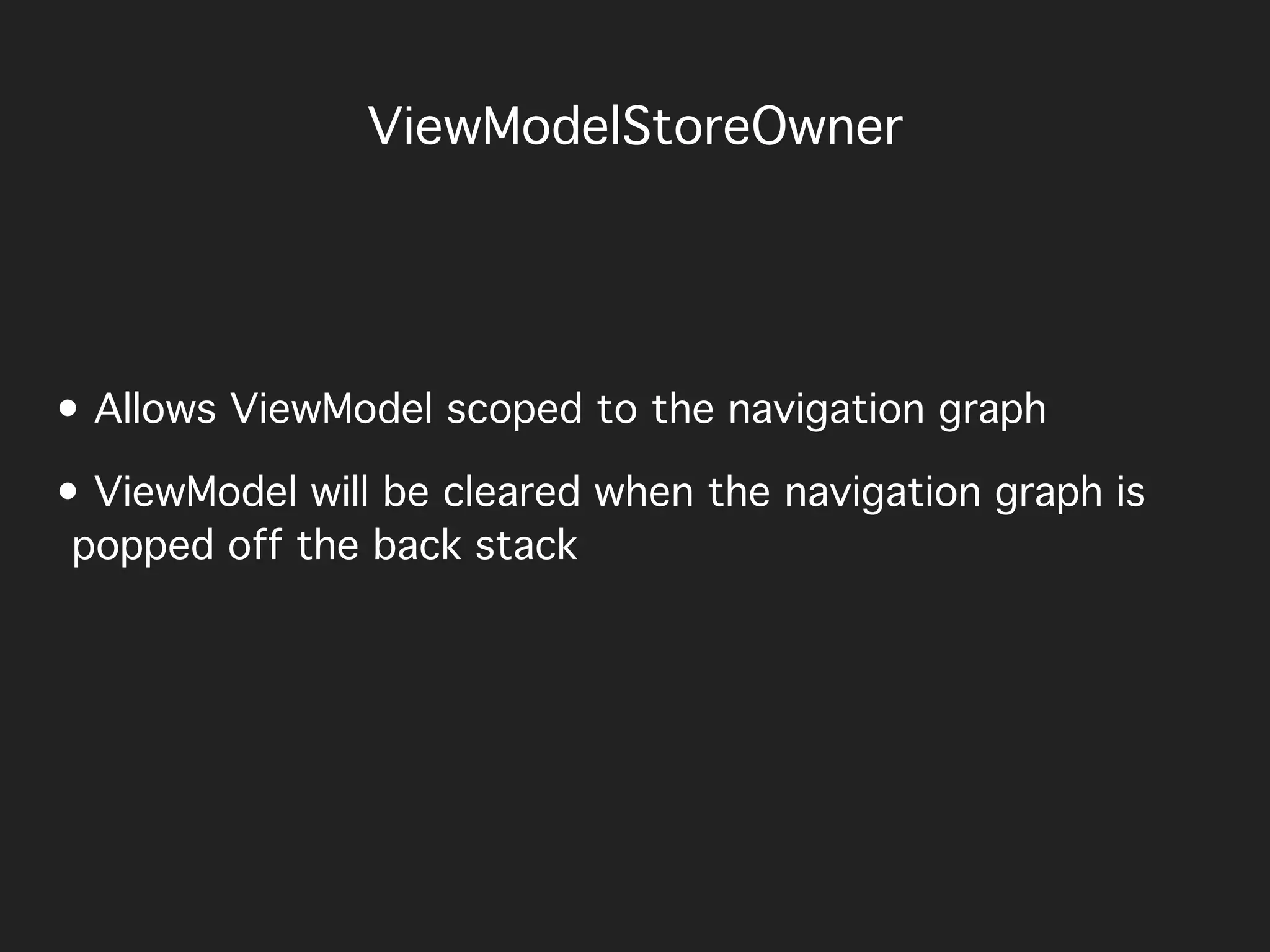

37. ViewModelStoreOwner
• Allows ViewModel scoped to the navigation graph
• ViewModel will be cleared when the navigation graph is
popped off the back stack

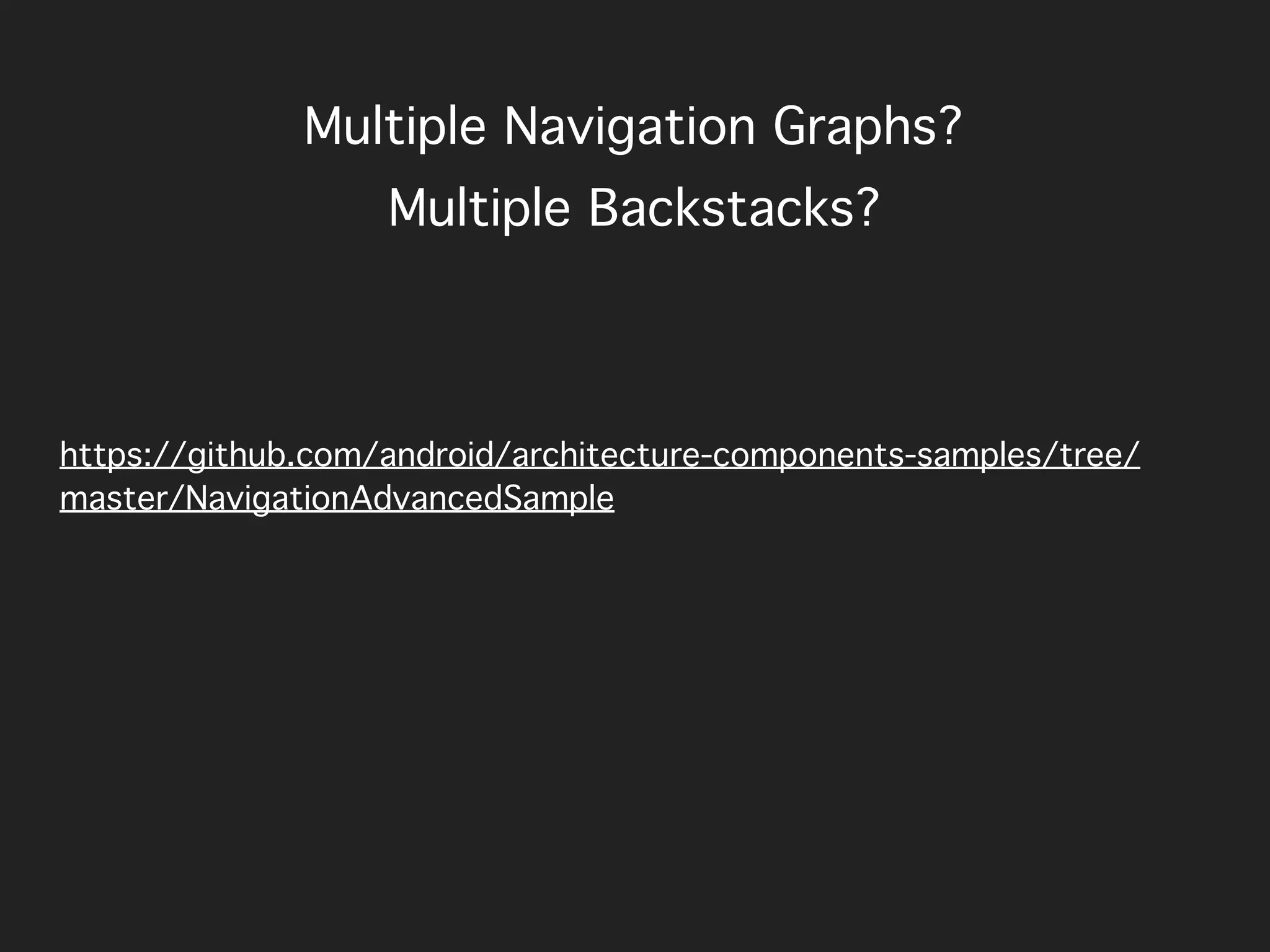

38. Multiple Navigation Graphs?
https://github.com/android/architecture-components-samples/tree/
master/NavigationAdvancedSample
Multiple Backstacks?

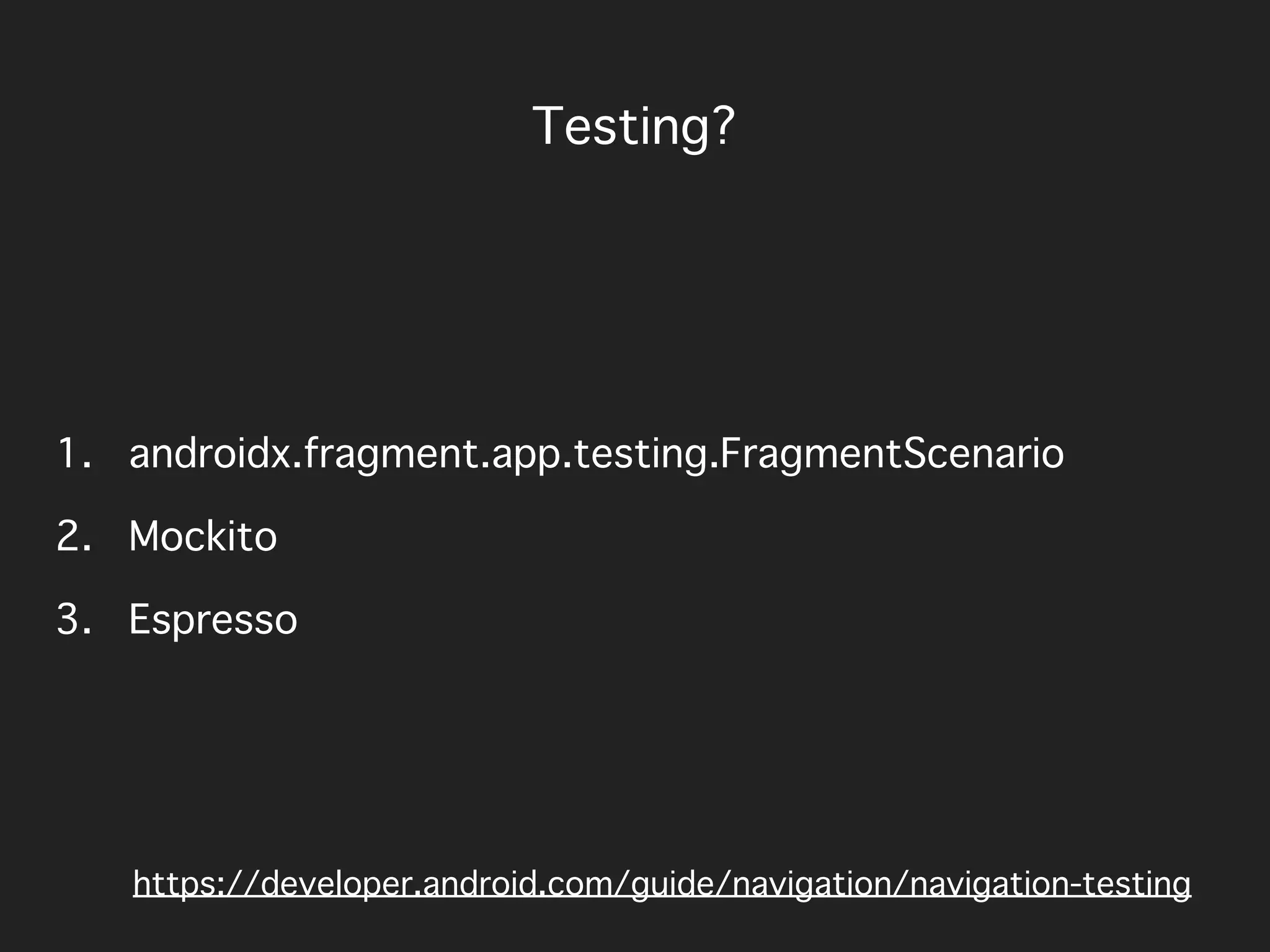

39. Testing?
https://developer.android.com/guide/navigation/navigation-testing
1. androidx.fragment.app.testing.FragmentScenario
2. Mockito
3. Espresso

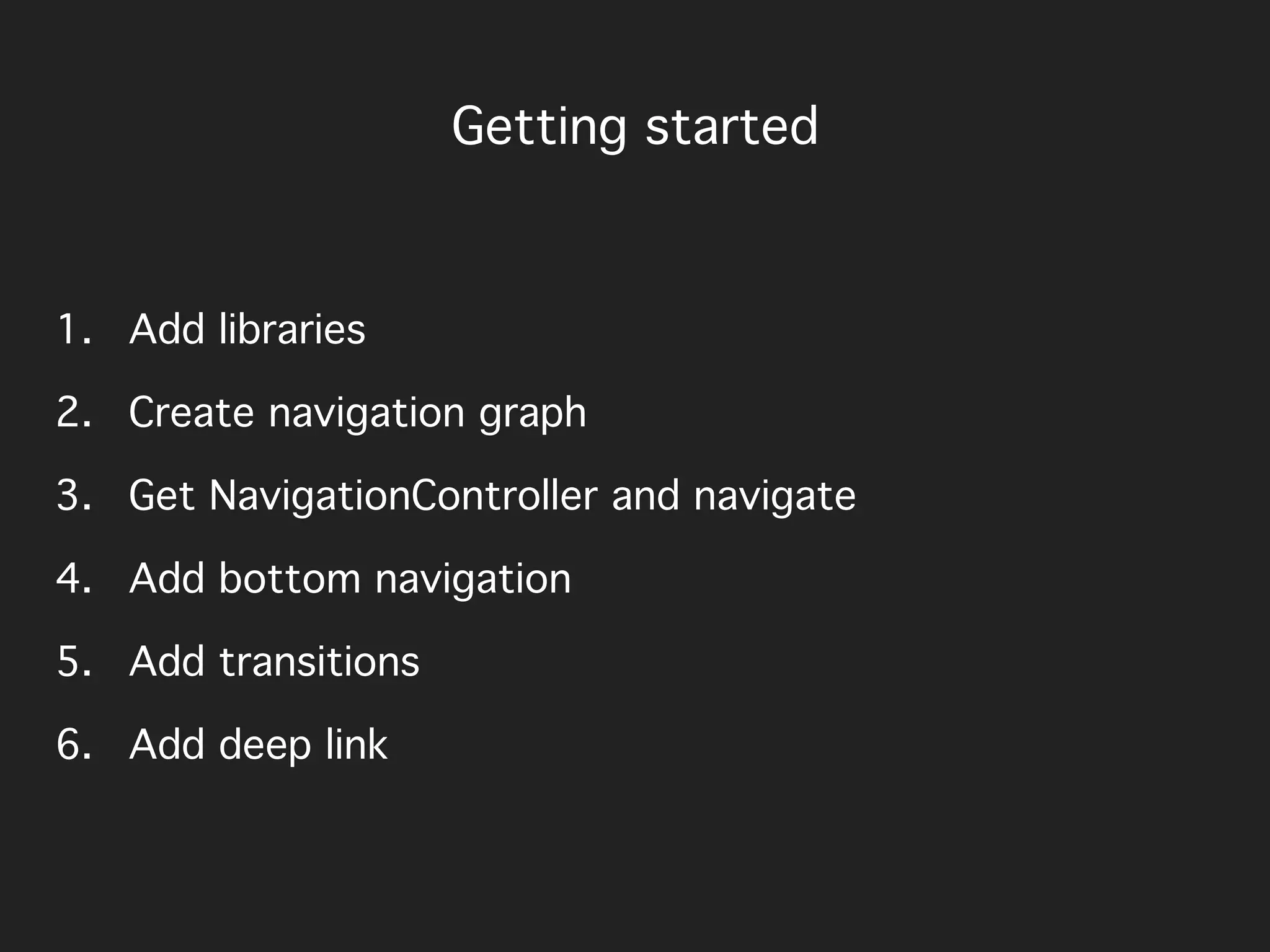

40. Getting started
1. Add libraries
2. Create navigation graph
3. Get NavigationController and navigate
4. Add bottom navigation
5. Add transitions
6. Add deep link
