inheritance
Learning Javascript foundations


          John Hunter
       12 November 2008
are these the
  same thing?
1         2
 radio                   toggleButton




we have one radio with two buttons
toggleButton


                 toggleUp ()
                 toggleDown ()



toggleButtons share the same behaviour (methods)
we could say they are a particular class of objects

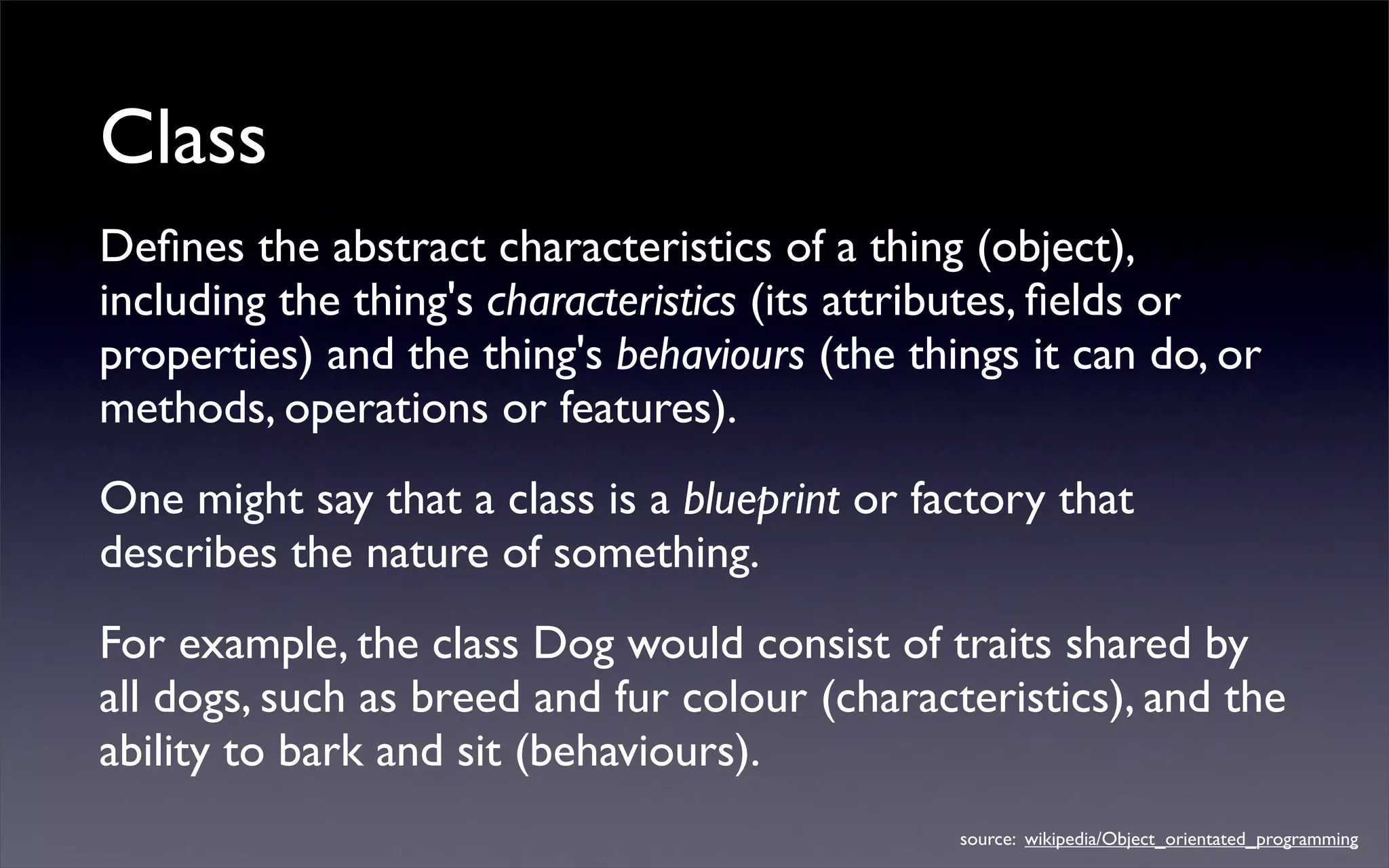

Class
Defines the abstract characteristics of a thing (object),
including the thing's characteristics (its attributes, fields or
properties) and the thing's behaviours (the things it can do, or
methods, operations or features).
One might say that a class is a blueprint or factory that
describes the nature of something.
For example, the class Dog would consist of traits shared by
all dogs, such as breed and fur colour (characteristics), and the
ability to bark and sit (behaviours).
                                               source: wikipedia/Object_orientated_programming
Javascript does not have formal
             classes
it can approximate class based
         programming
but it has other mechanisms for
           inheritance
class-based
  inheritance
       vs.




prototype-based
  inheritance
                nothing to do with the Prototype framework
Classical inheritance
  ToggleButton
                       instantiate

                                     tuningButton
                                         volumeButton



function ToggleButton () { … }
var tuningButton = new ToggleButton();
var volumeButton = new ToggleButton();

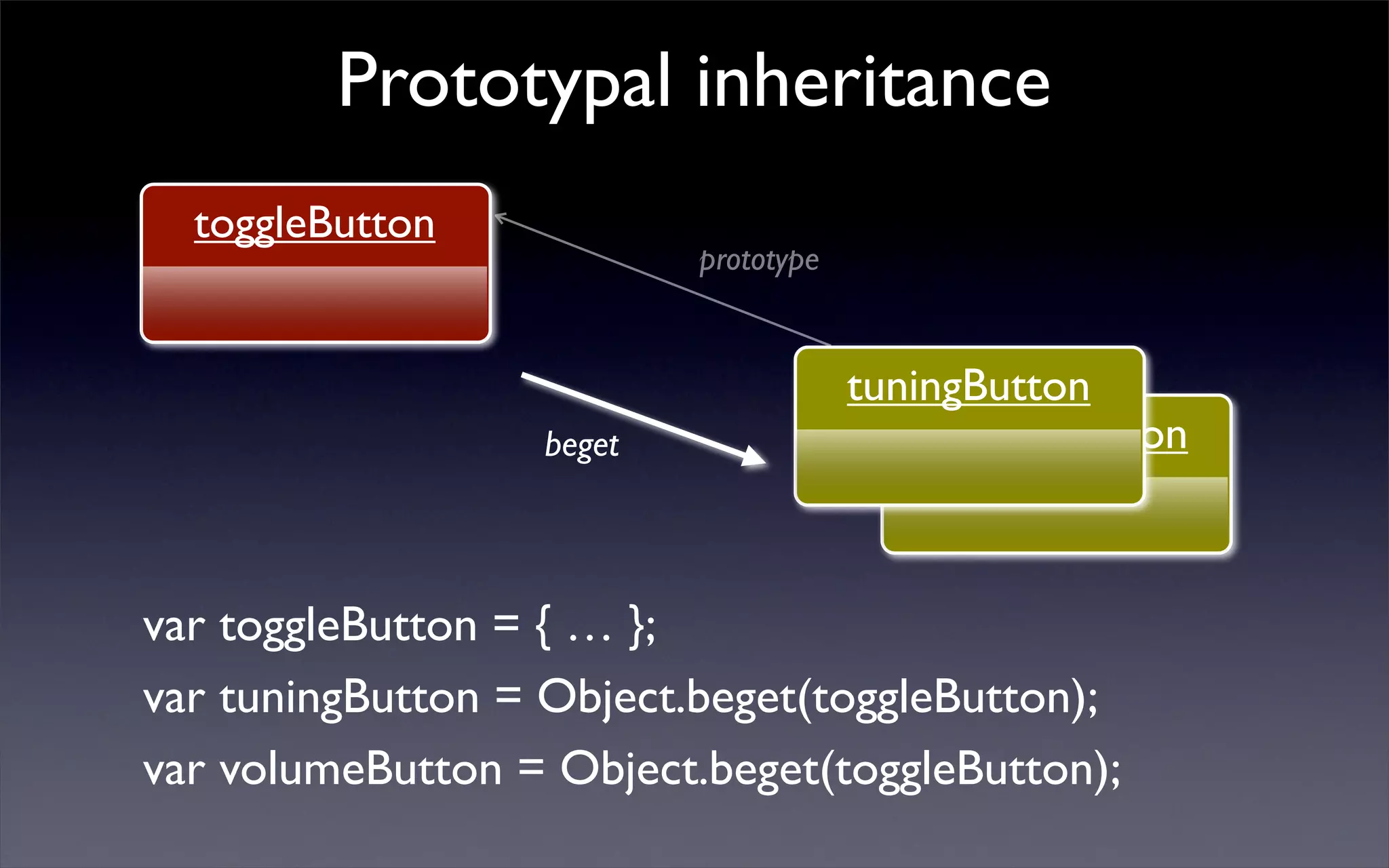

Prototypal inheritance
  toggleButton
                          prototype


                                      tuningButton
                                          volumeButton
                  beget




var toggleButton = { … };
var tuningButton = Object.beget(toggleButton);
var volumeButton = Object.beget(toggleButton);

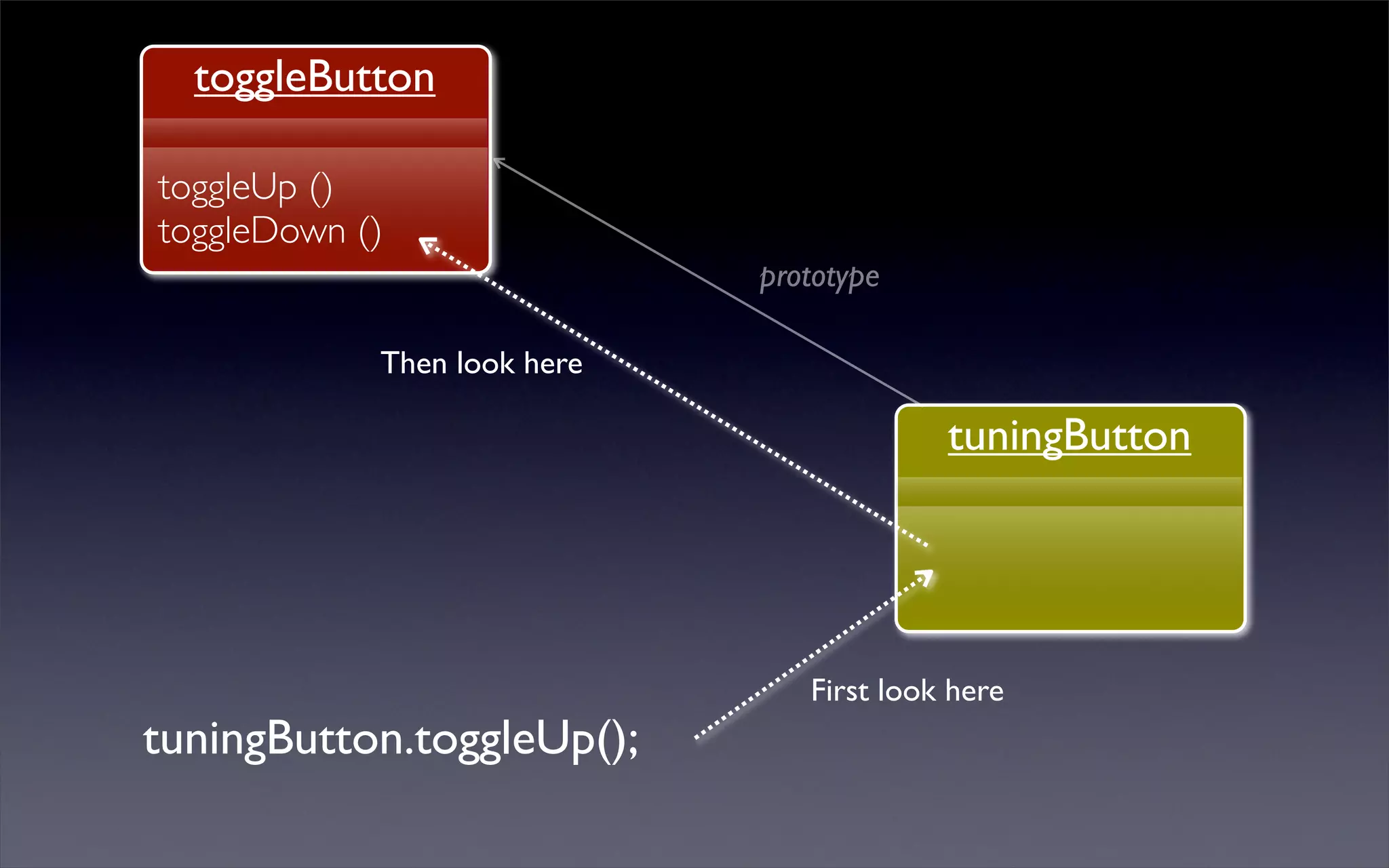

toggleButton

toggleUp ()
toggleDown ()
                             prototype

            Then look here

                                          tuningButton




                                First look here
tuningButton.toggleUp();
class-based approach:
 you always have to create a class blueprint
 in order to create an object

prototype-based approach:
 you can use an existing object as a
 prototype for more objects
Object.beget = function (obj) {
   var F = function () {};
   F.prototype = obj;
   return new F();
};

// myThing = Object.beget(thing);


the beget method returns an object that uses the
           argument as its prototype
                                             source: Doug Crockford
There is more to inheritance
  ...but that’s all for now!
Review
classes of objects share characteristics and behaviour
Javascript supports several inheritance mechanisms
 Class-based (but not true classes)
 Prototype-based
Thanks
