This document provides an introduction to Java, including: - Java is an object-oriented language developed by Sun Microsystems in 1991 that is not tied to any particular hardware or operating system. - It discusses basic Java concepts like objects, classes, inheritance and polymorphism. - Java applets allow programs written in Java to run within web browsers, and include init(), start(), paint(), stop() and destroy() methods. - The document also covers client-server programming in Java using sockets, multithreaded programming, servlets, and networking protocols like TCP and UDP.

1. ADVANCED JAVA COMMUNICATION LABORATORY

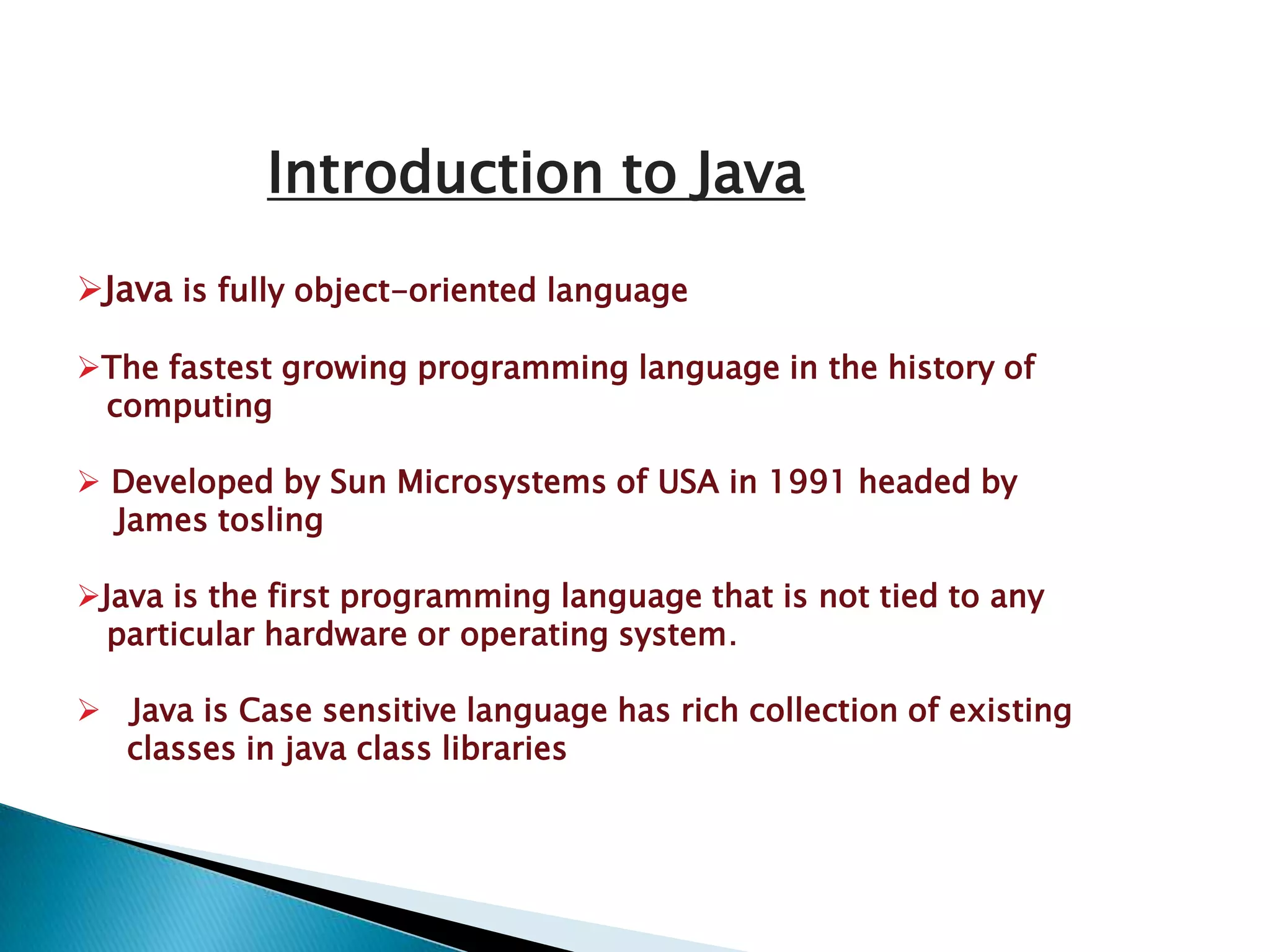

2. Introduction to JavaJava is fully object-oriented language

3. The fastest growing programming language in the history of computing Developed by Sun Microsystems of USA in 1991 headed by James toslingJava is the first programming language that is not tied to any particular hardware or operating system.Java is Case sensitive language has rich collection of existing classes in java class libraries

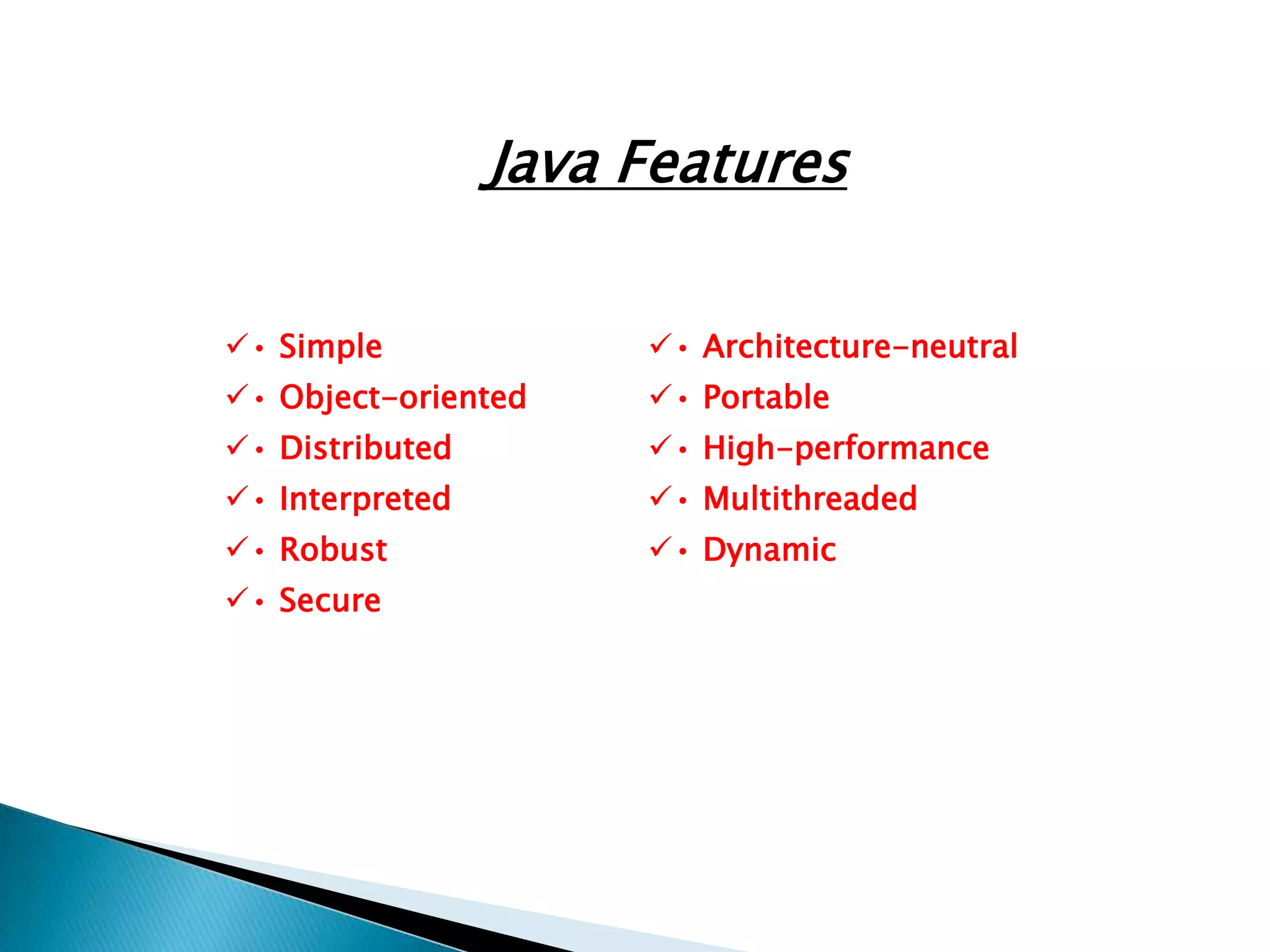

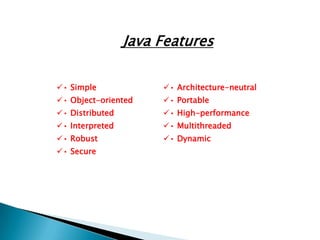

4. Java Features

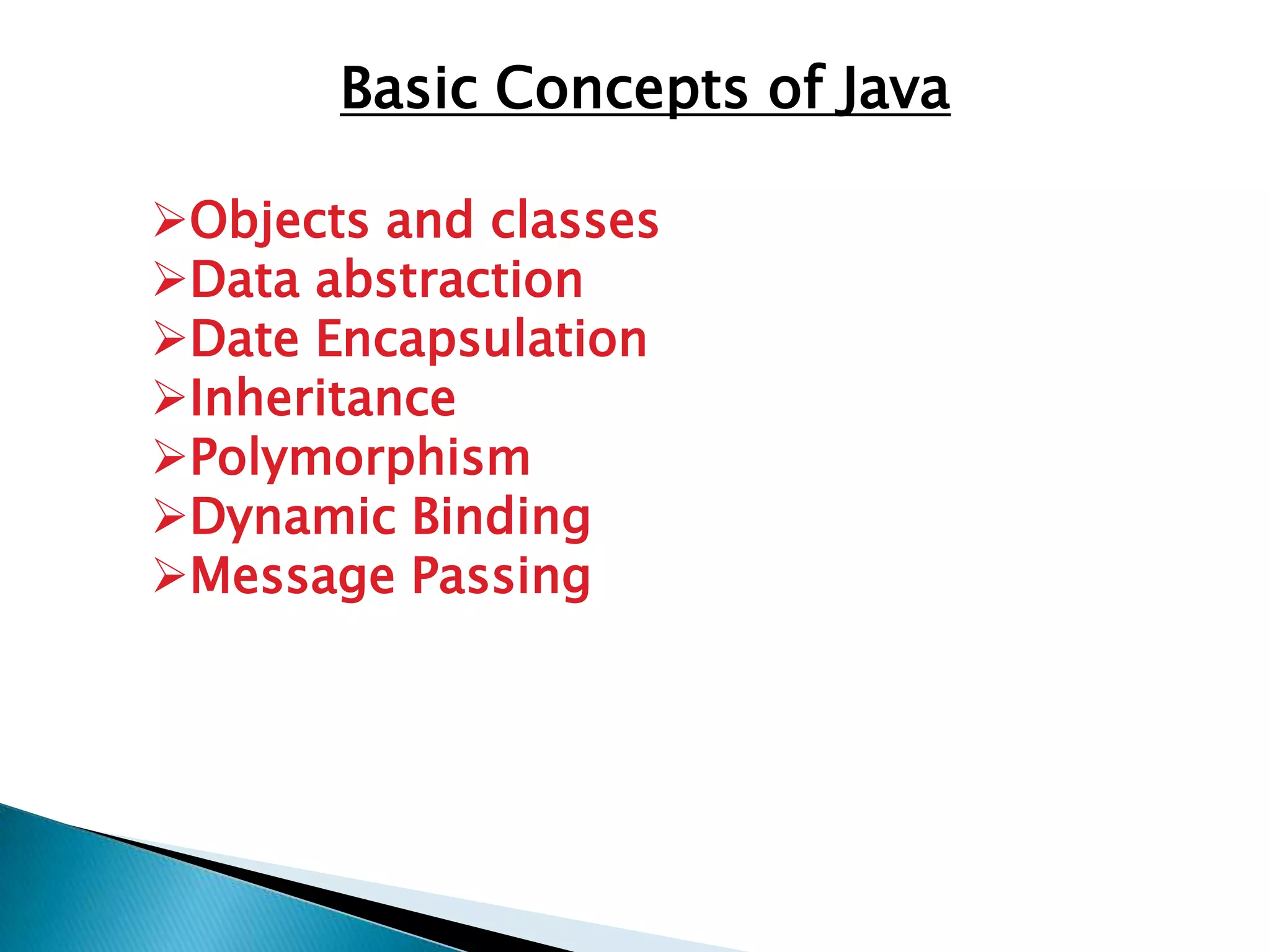

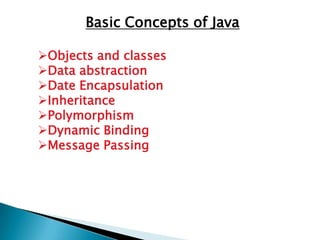

5. Basic Concepts of JavaObjects and classes

6. Data abstraction

7. Date Encapsulation

8. Inheritance

9. Polymorphism

10. Dynamic Binding

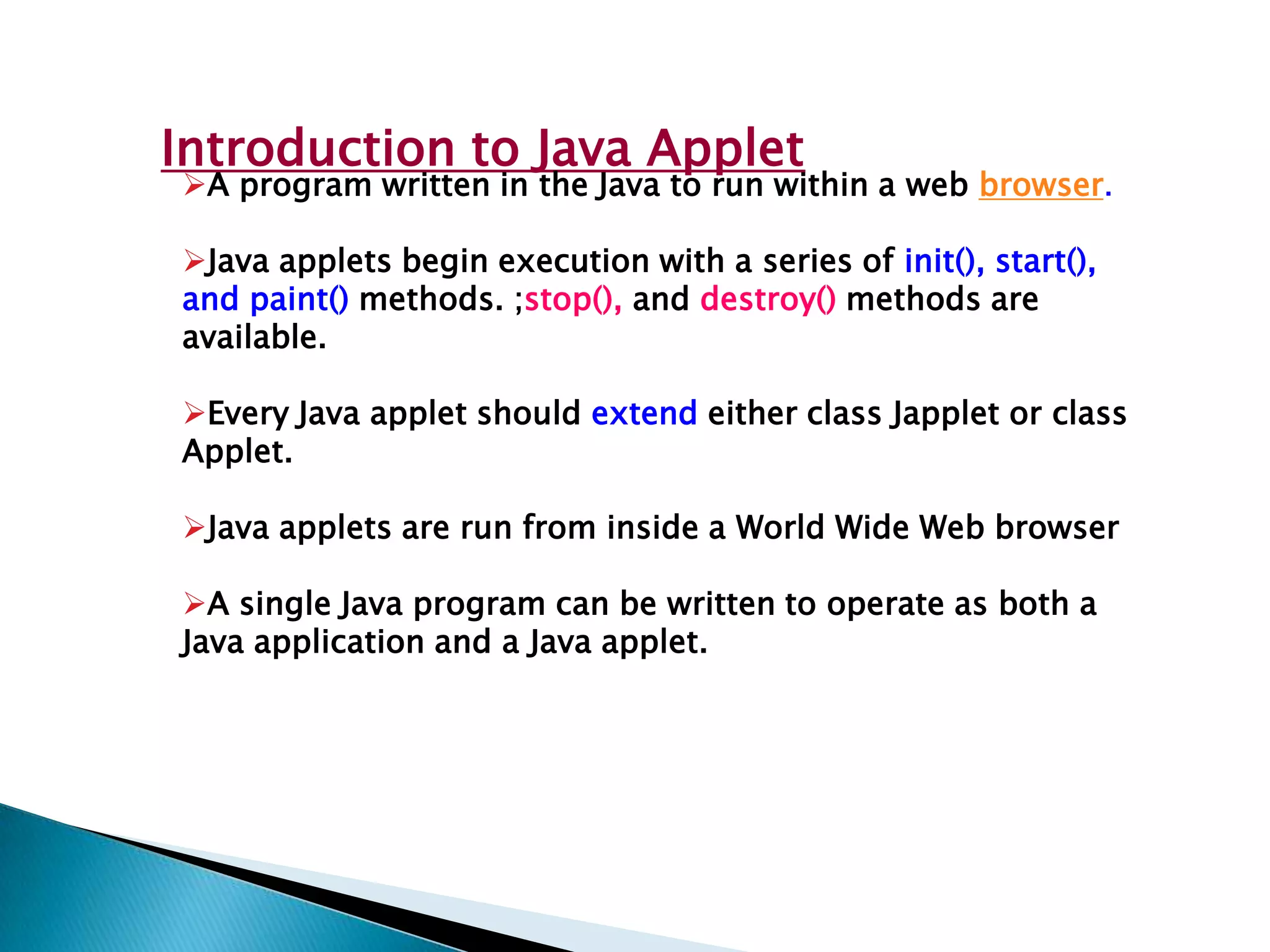

11. Message PassingIntroduction to Java AppletA program written in the Java to run within a web browser.

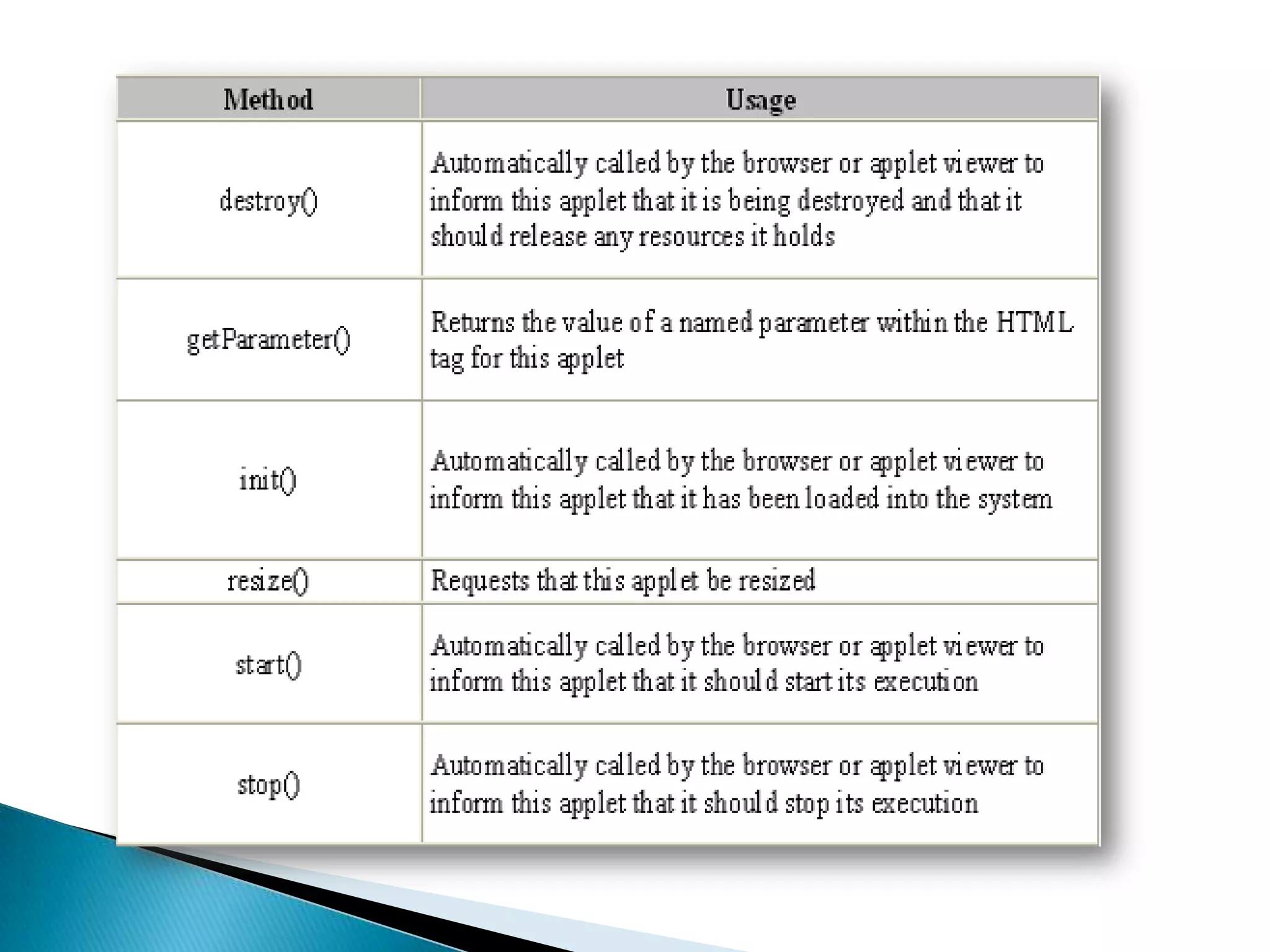

12. Java applets begin execution with a series of init(), start(), and paint() methods. ;stop(), and destroy() methods are available.

13. Every Java applet should extend either class Japplet or class Applet.

14. Java applets are run from inside a World Wide Web browser

15. A single Java program can be written to operate as both a Java application and a Java applet.

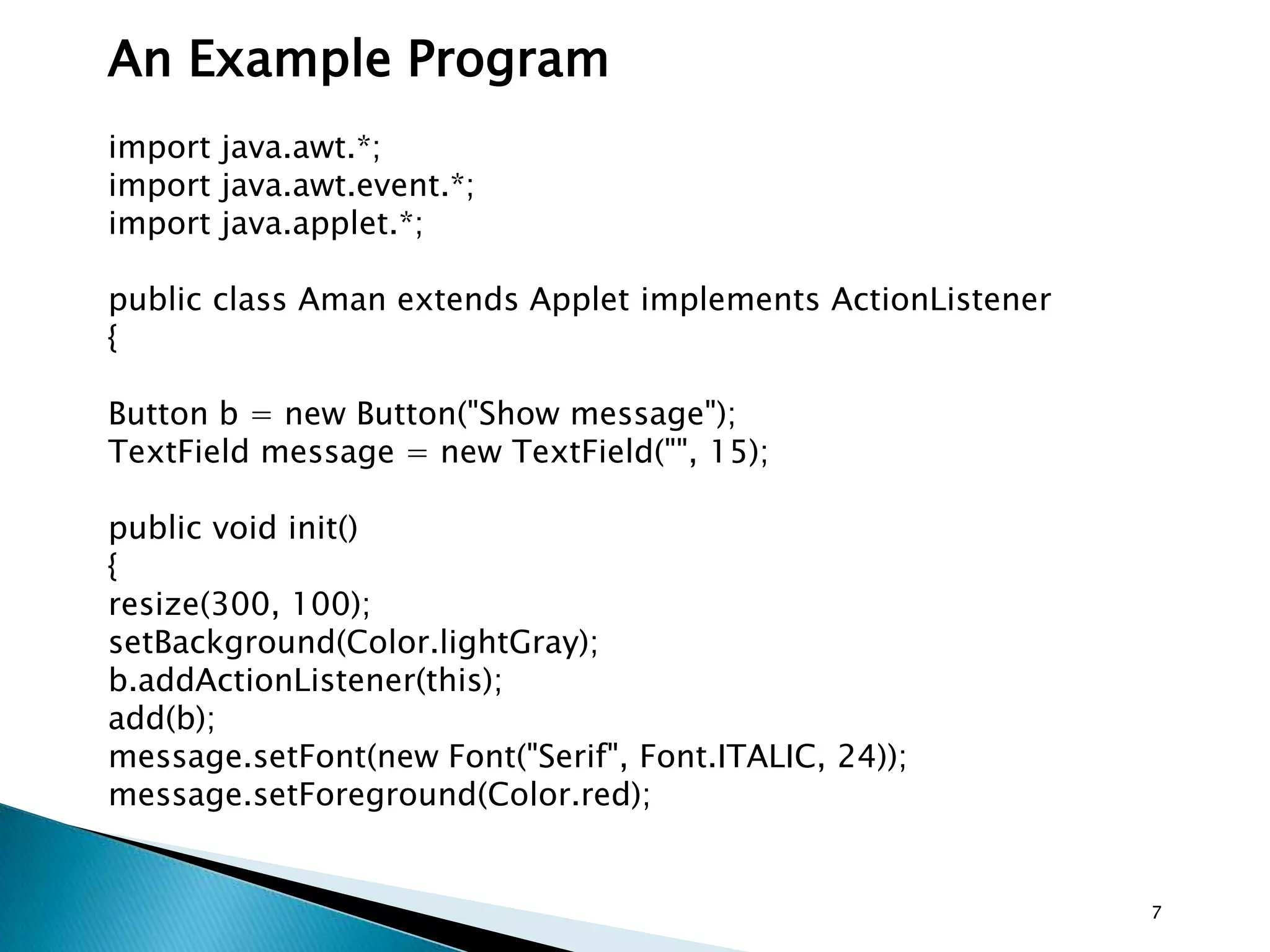

16. An Example Programimport java.awt.*;import java.awt.event.*;import java.applet.*;public class Aman extends Applet implements ActionListener{Button b = new Button("Show message");TextField message = new TextField("", 15);public void init() {resize(300, 100);setBackground(Color.lightGray);b.addActionListener(this);add(b);message.setFont(new Font("Serif", Font.ITALIC, 24));message.setForeground(Color.red);7

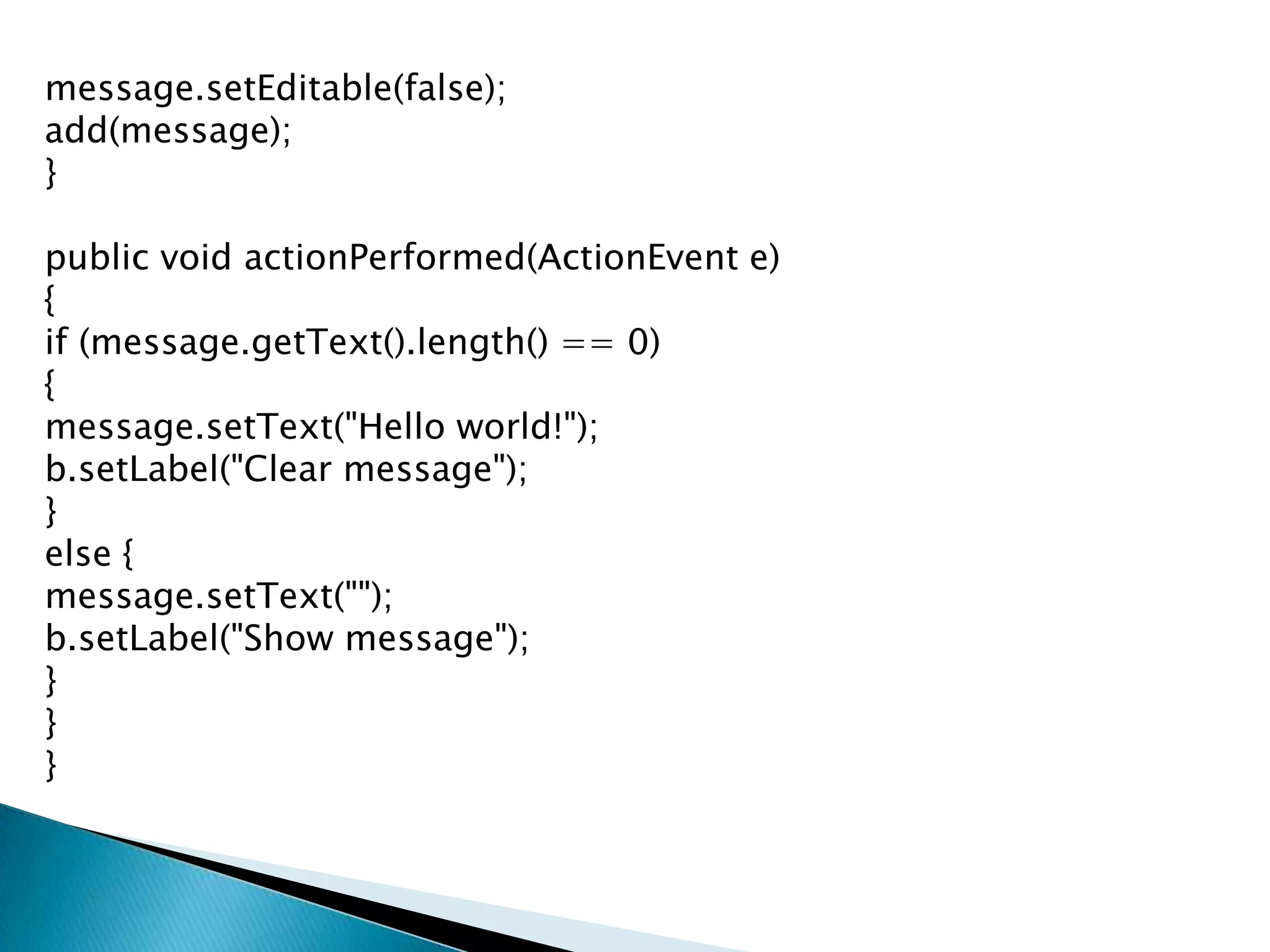

17. message.setEditable(false);add(message);}public void actionPerformed(ActionEvent e) {if (message.getText().length() == 0) {message.setText("Hello world!");b.setLabel("Clear message");}else {message.setText("");b.setLabel("Show message");}}}

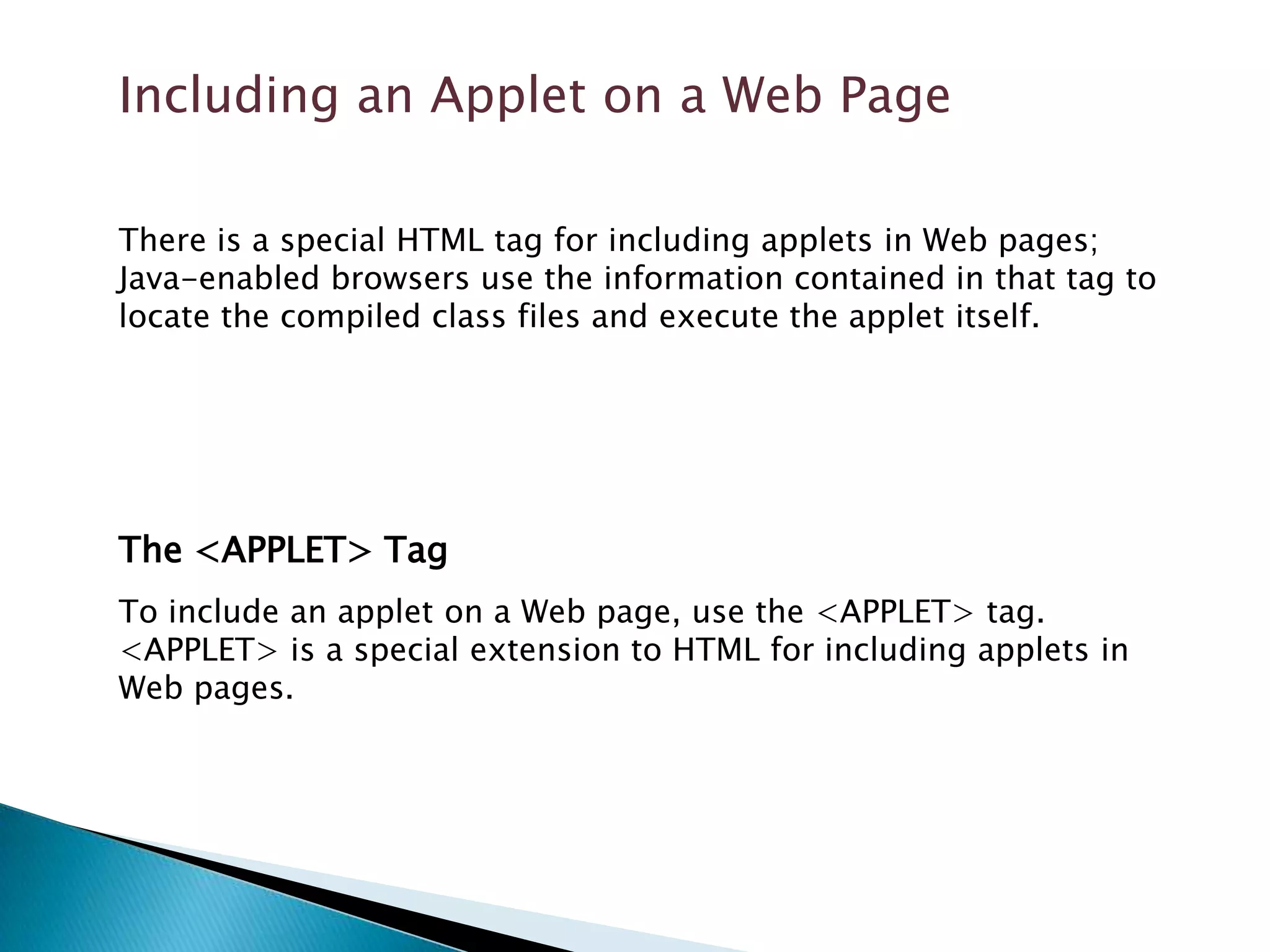

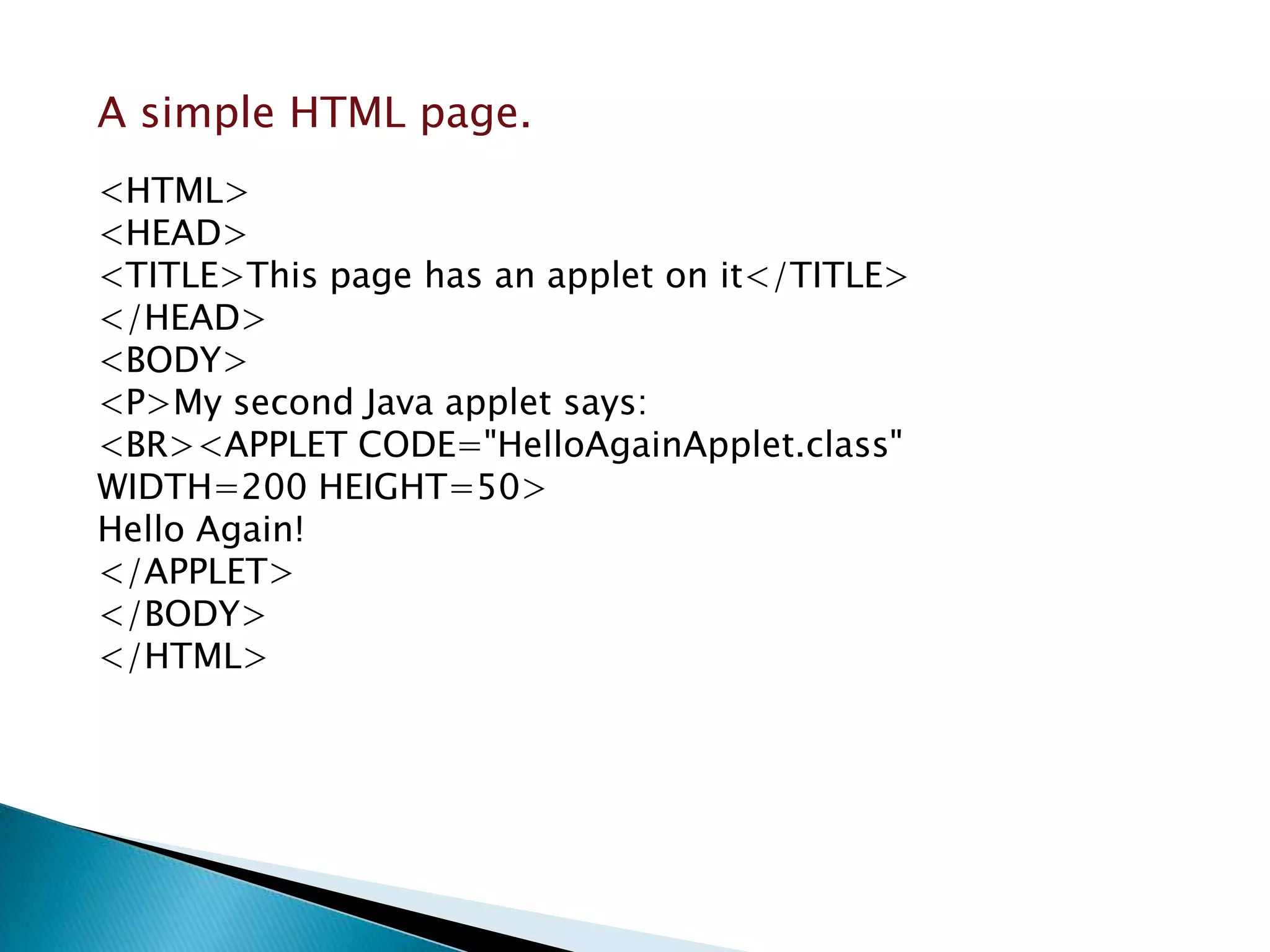

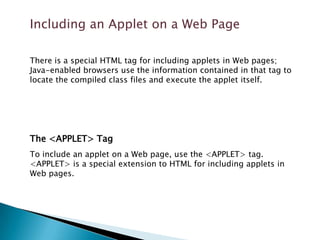

18. Including an Applet on a Web Page

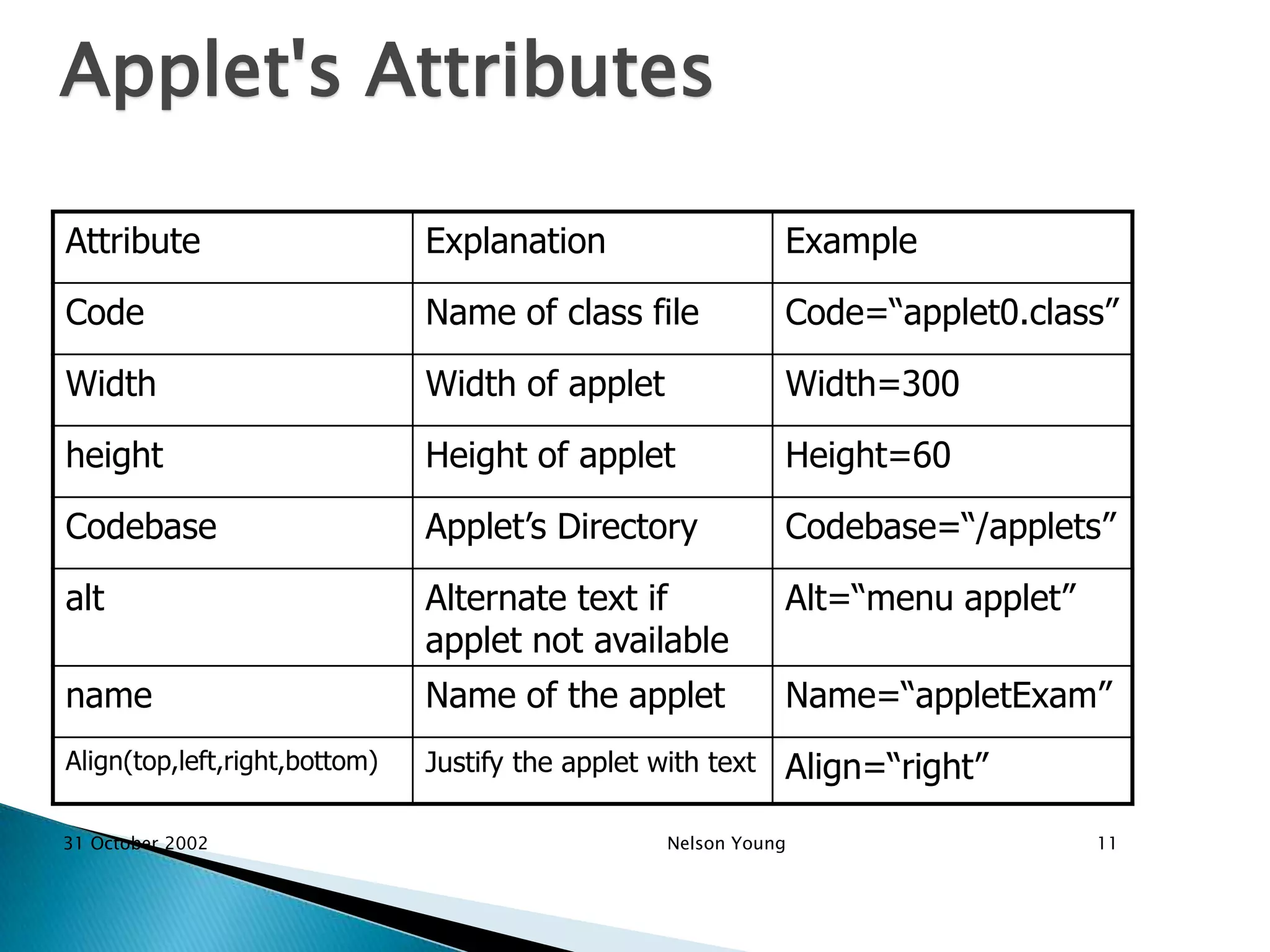

20. Applet's Attributes31 October 2002Nelson Young11

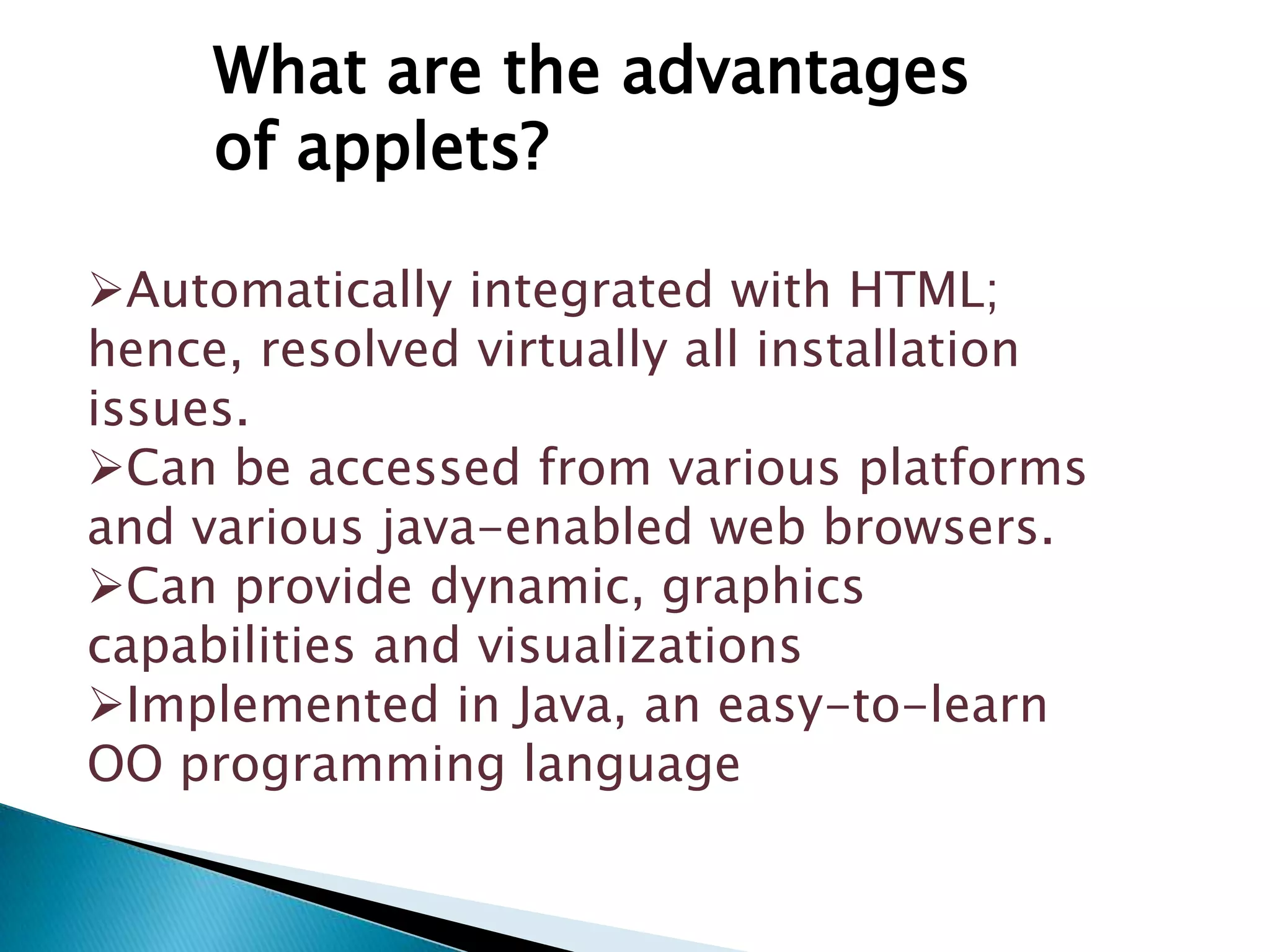

21. What are the advantages of applets?Automatically integrated with HTML; hence, resolved virtually all installation issues.

22. Can be accessed from various platforms and various java-enabled web browsers.

23. Can provide dynamic, graphics capabilities and visualizations

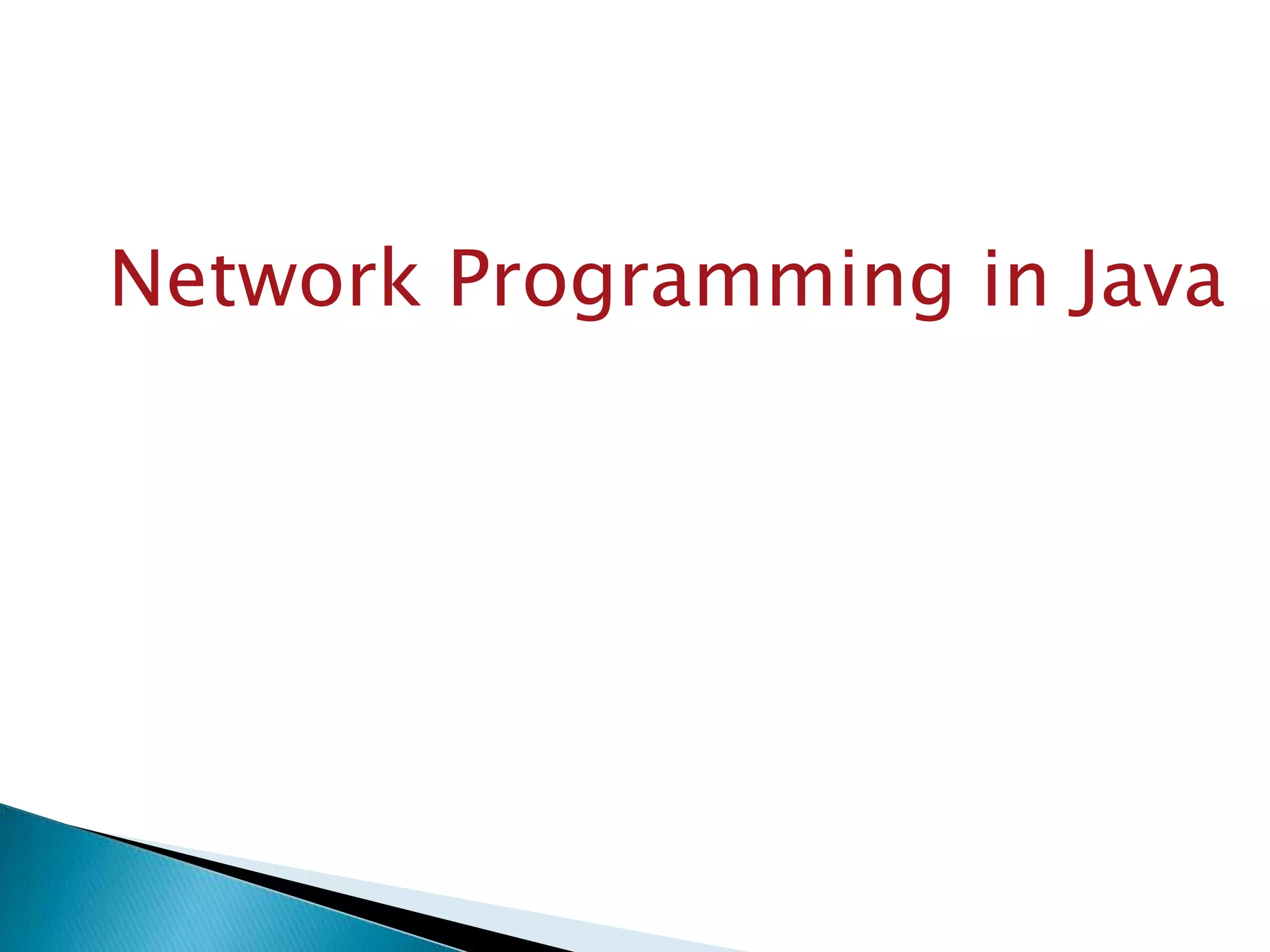

24. Implemented in Java, an easy-to-learn OO programming languageNetwork Programming in Java

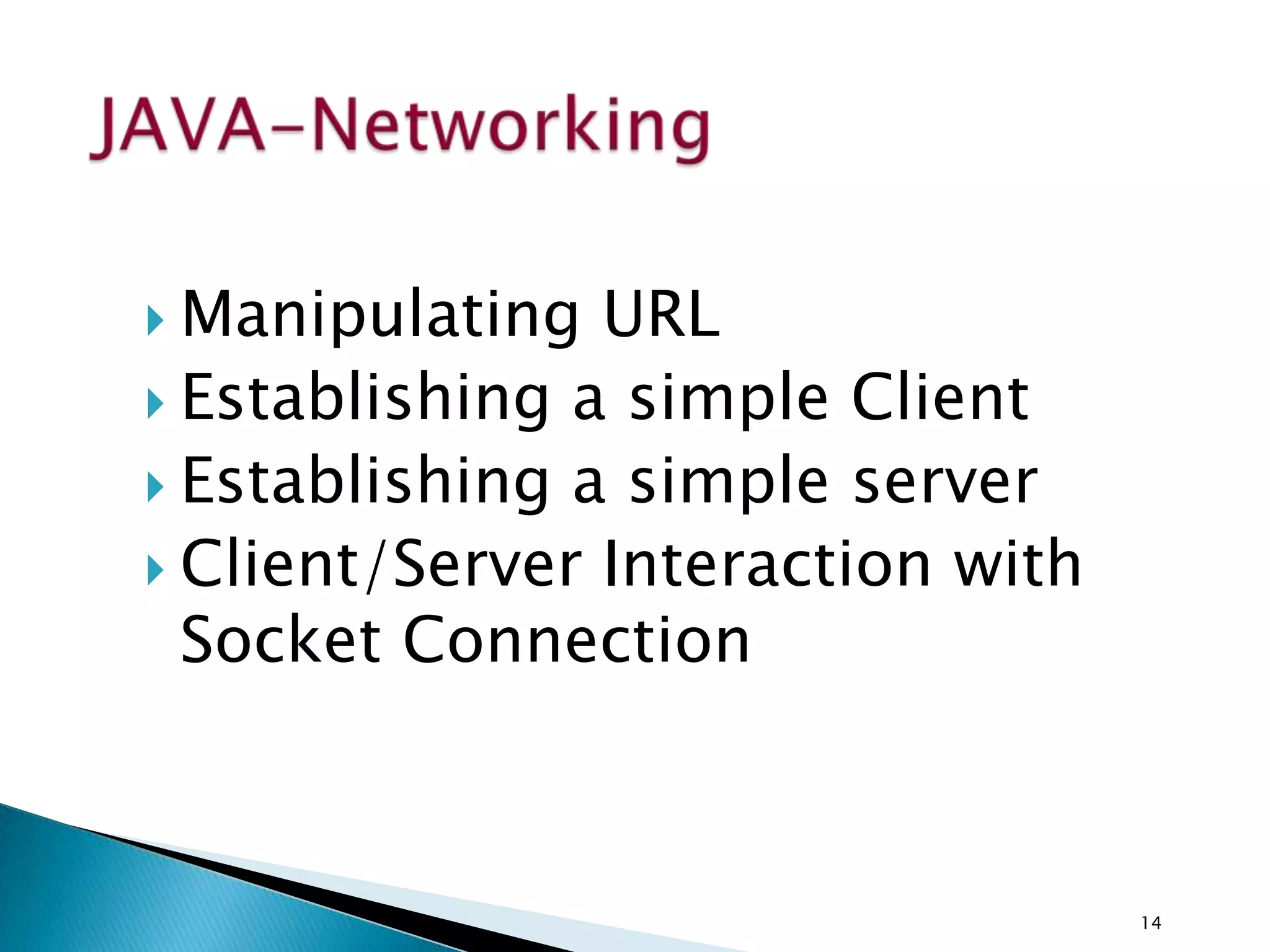

25. JAVA-NetworkingManipulating URL Establishing a simple ClientEstablishing a simple serverClient/Server Interaction with Socket Connection14

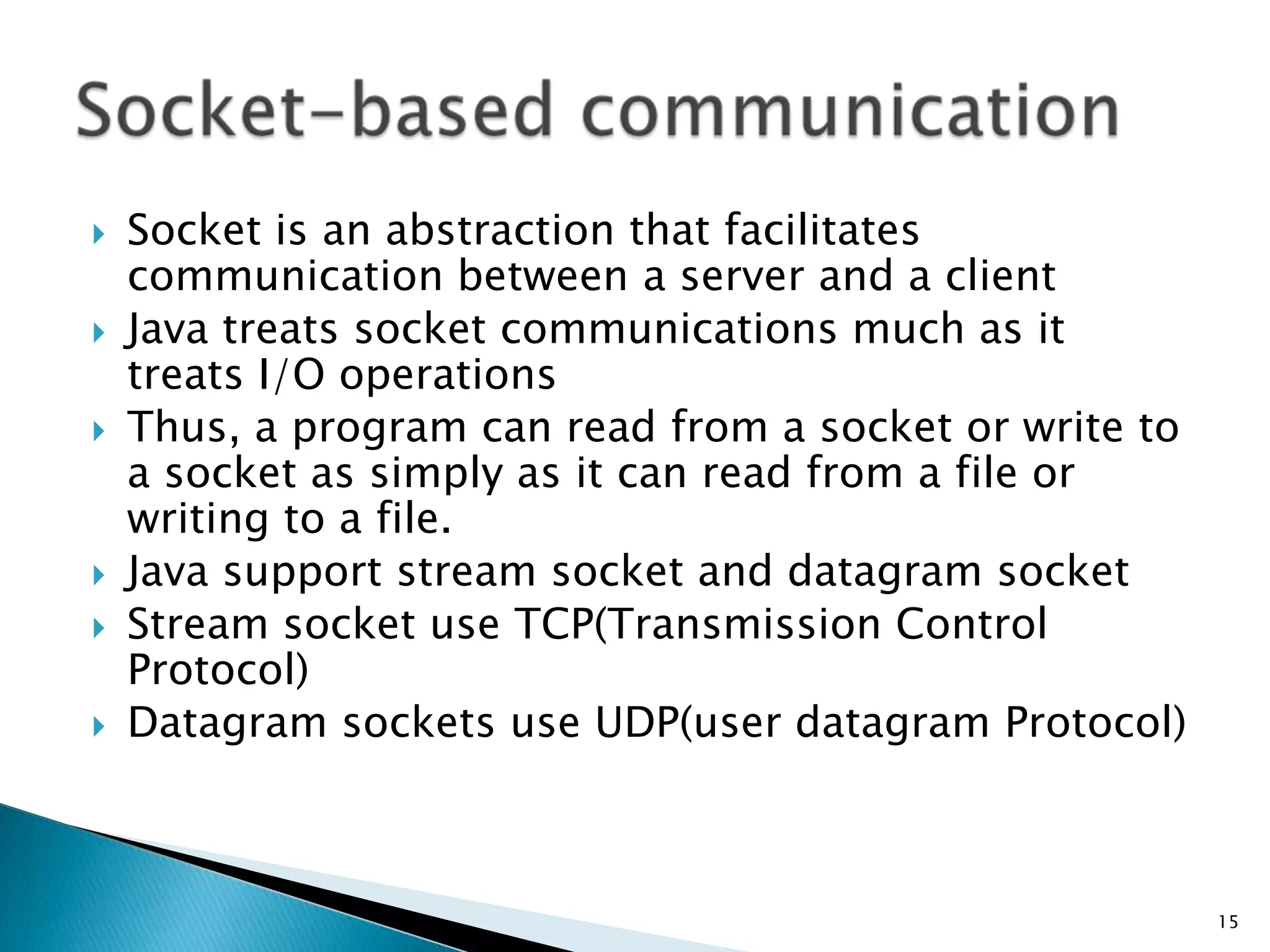

26. 15Socket-based communicationSocket is an abstraction that facilitates communication between a server and a clientJava treats socket communications much as it treats I/O operationsThus, a program can read from a socket or write to a socket as simply as it can read from a file or writing to a file.Java support stream socket and datagram socketStream socket use TCP(Transmission Control Protocol)Datagram sockets use UDP(user datagram Protocol)

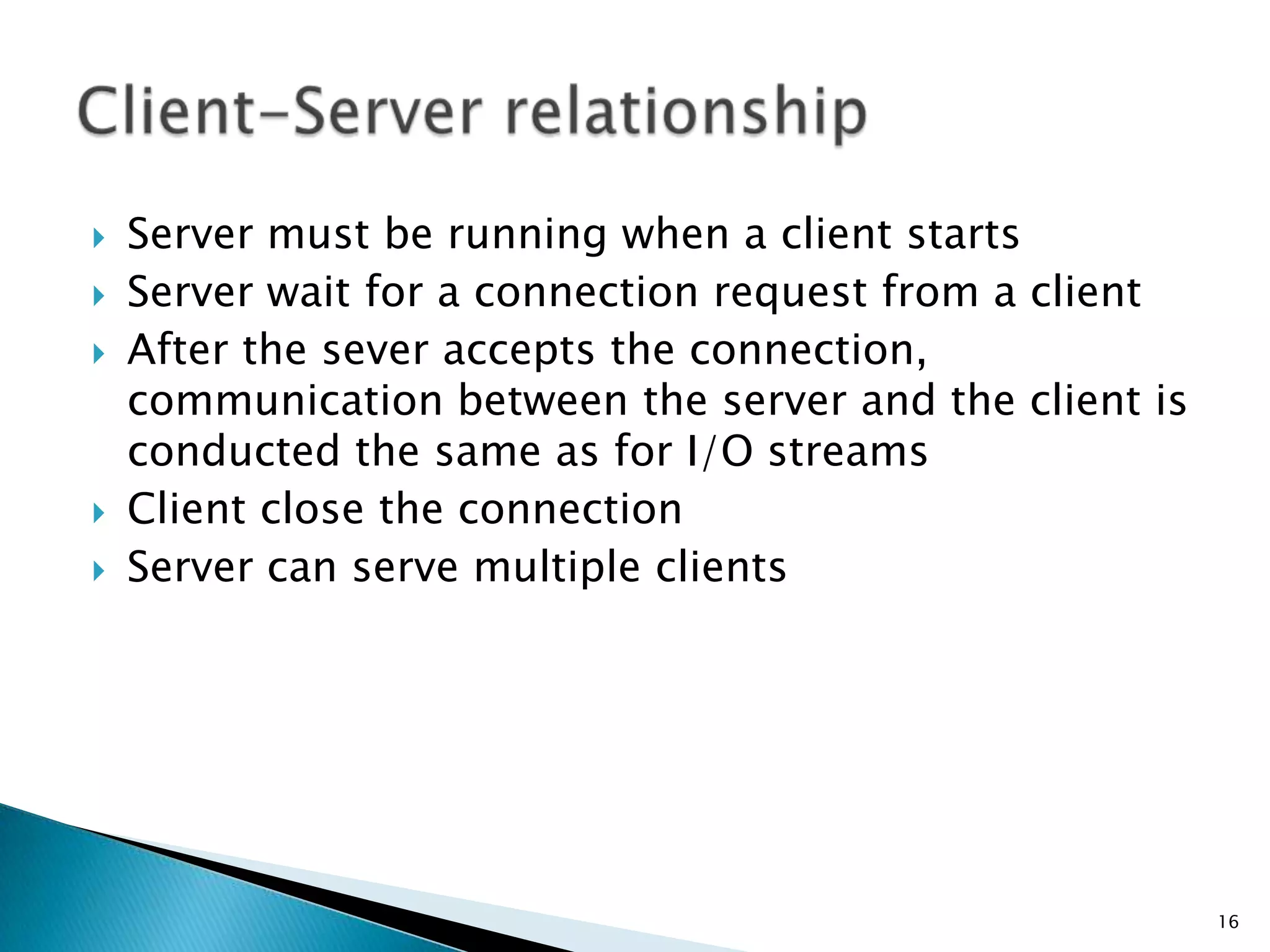

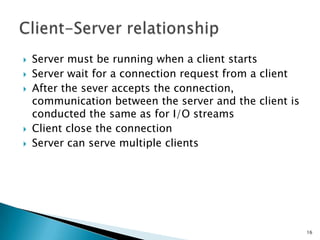

27. 16Client-Server relationshipServer must be running when a client startsServer wait for a connection request from a clientAfter the sever accepts the connection, communication between the server and the client is conducted the same as for I/O streamsClient close the connectionServer can serve multiple clients

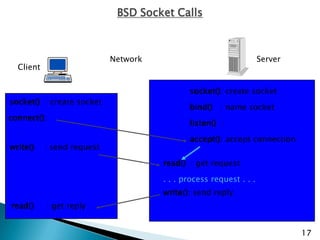

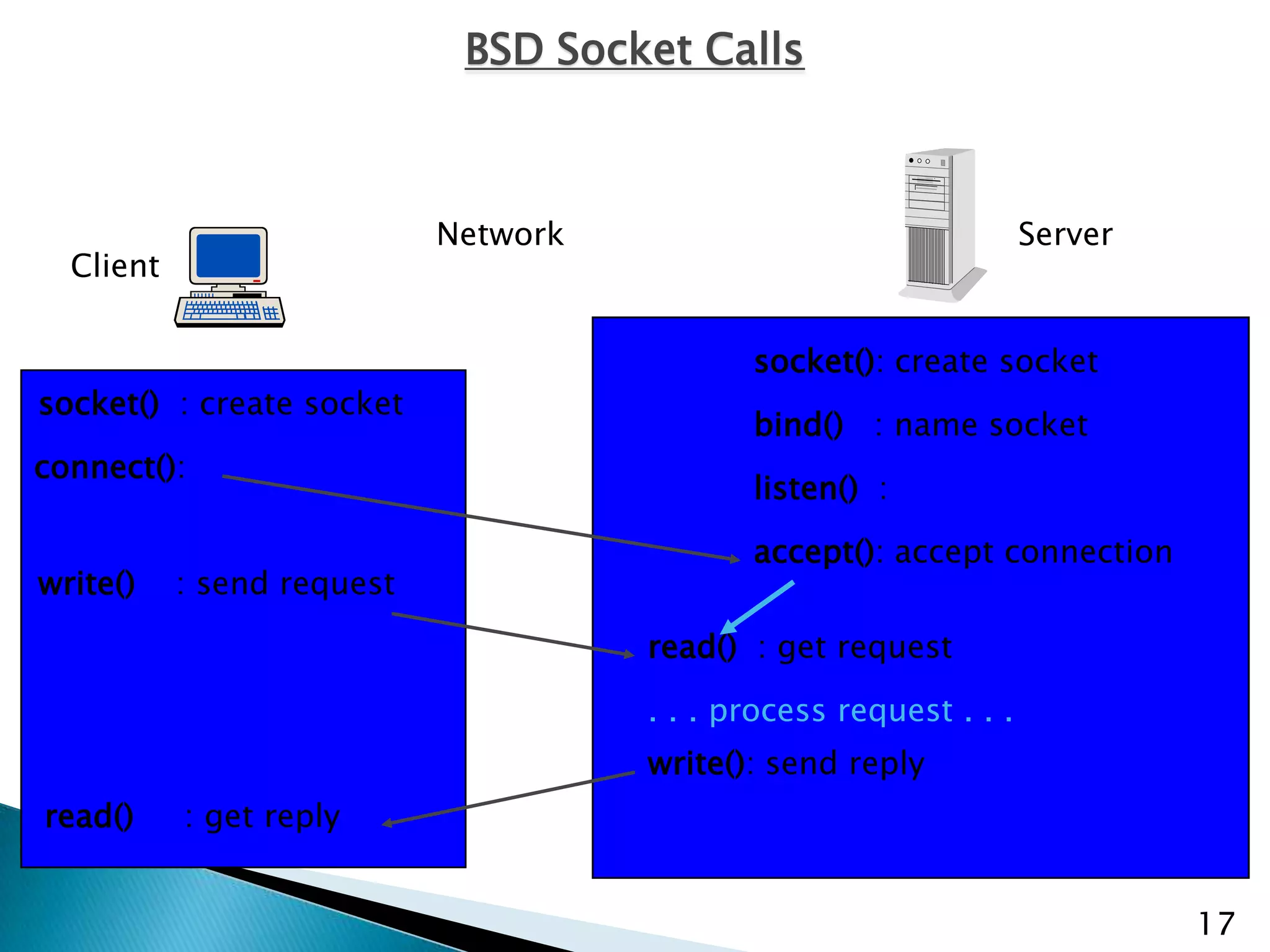

28. BSD Socket CallsNetworkServerClientsocket(): create socketsocket() : create socketbind() : name socketconnect(): listen() :accept(): accept connectionwrite() : send requestread() : get request.. . process request . . .write(): send replyread() : get reply17

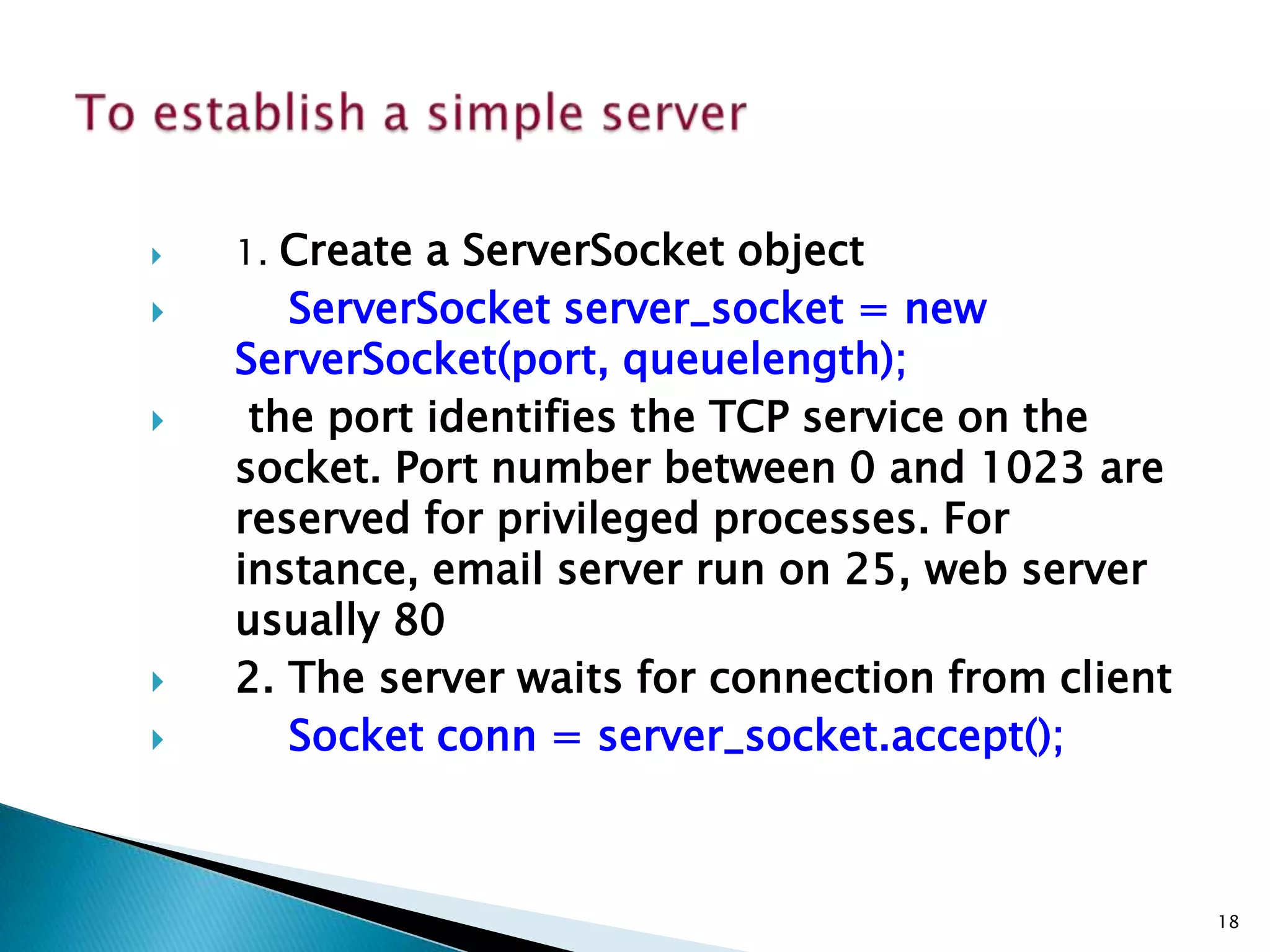

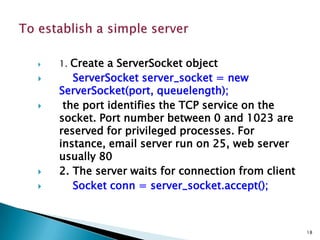

29. 18To establish a simple server1. Create a ServerSocket objectServerSocket server_socket = new ServerSocket(port, queuelength); the port identifies the TCP service on the socket. Port number between 0 and 1023 are reserved for privileged processes. For instance, email server run on 25, web server usually 802. The server waits for connection from clientSocket conn = server_socket.accept();

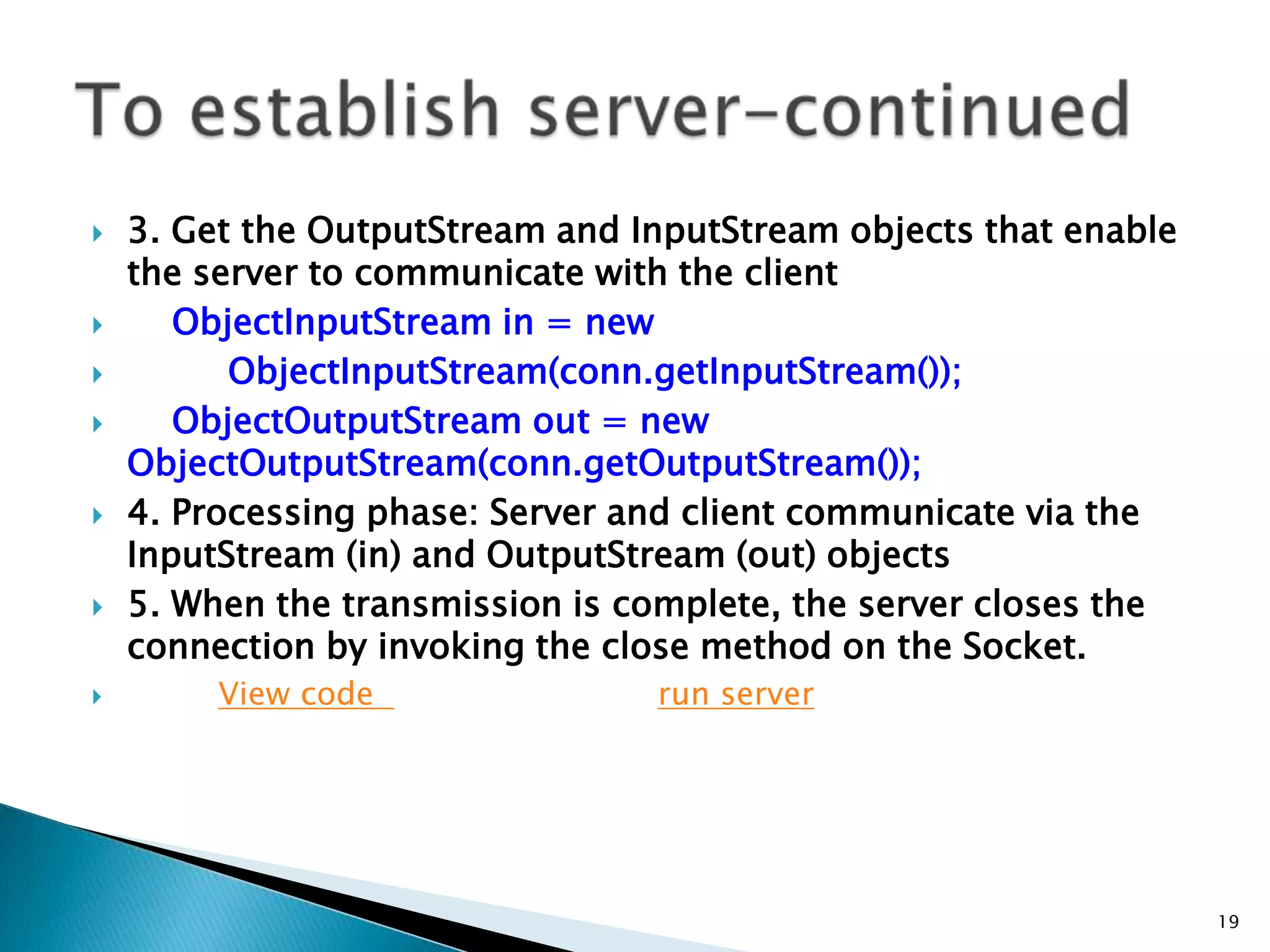

30. 19To establish server-continued3. Get the OutputStream and InputStream objects that enable the server to communicate with the clientObjectInputStream in = new ObjectInputStream(conn.getInputStream()); ObjectOutputStream out = new ObjectOutputStream(conn.getOutputStream());4. Processing phase: Server and client communicate via the InputStream (in) and OutputStream (out) objects5. When the transmission is complete, the server closes the connection by invoking the close method on the Socket.View code run server

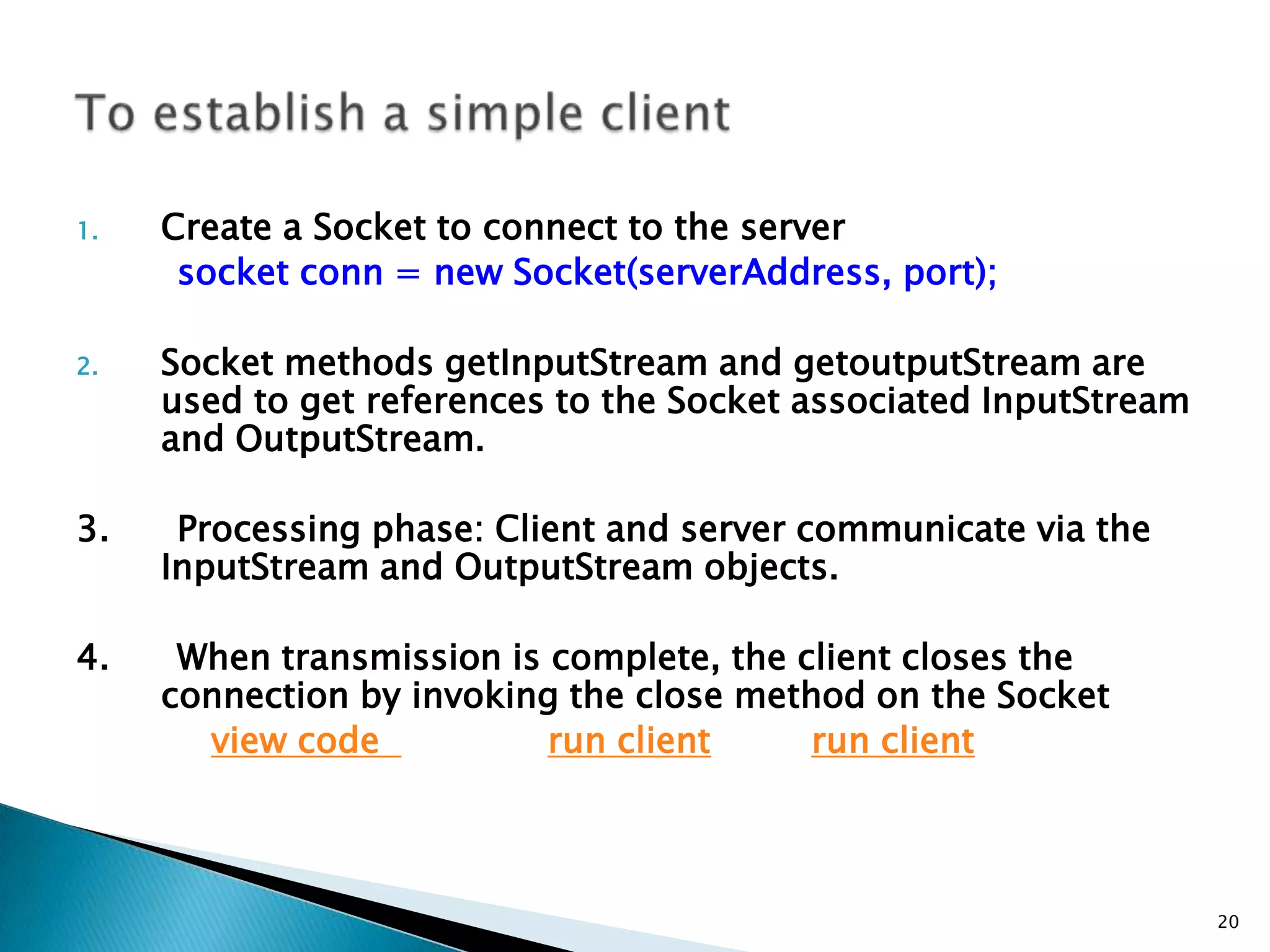

31. 20To establish a simple clientCreate a Socket to connect to the serversocket conn = new Socket(serverAddress, port);Socket methods getInputStream and getoutputStream are used to get references to the Socket associated InputStream and OutputStream.3. Processing phase: Client and server communicate via the InputStream and OutputStream objects.4. When transmission is complete, the client closes the connection by invoking the close method on the Socketview code run clientrun client

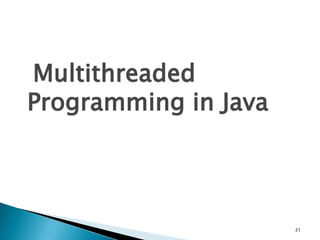

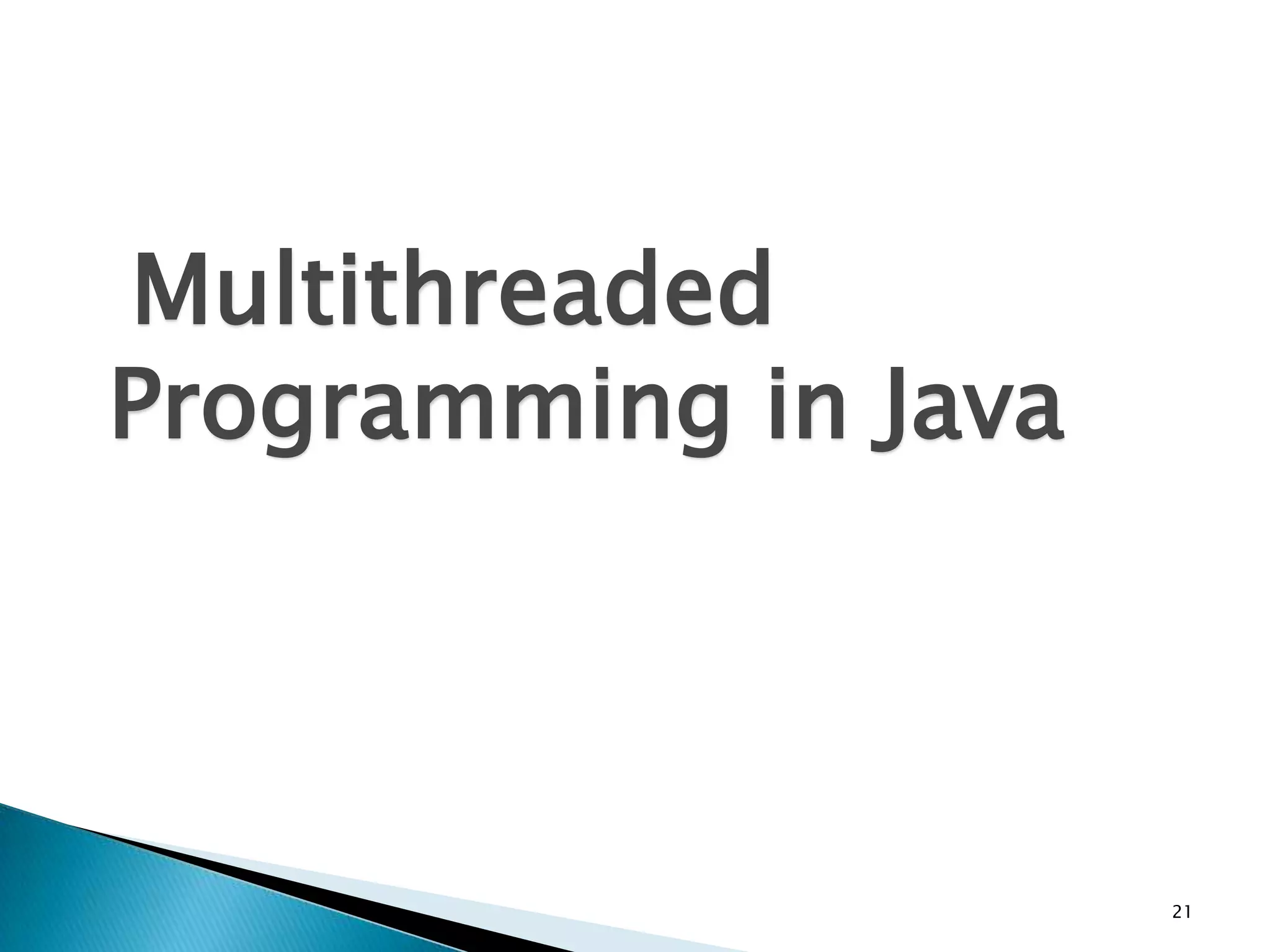

32. Multithreaded Programming in Java21

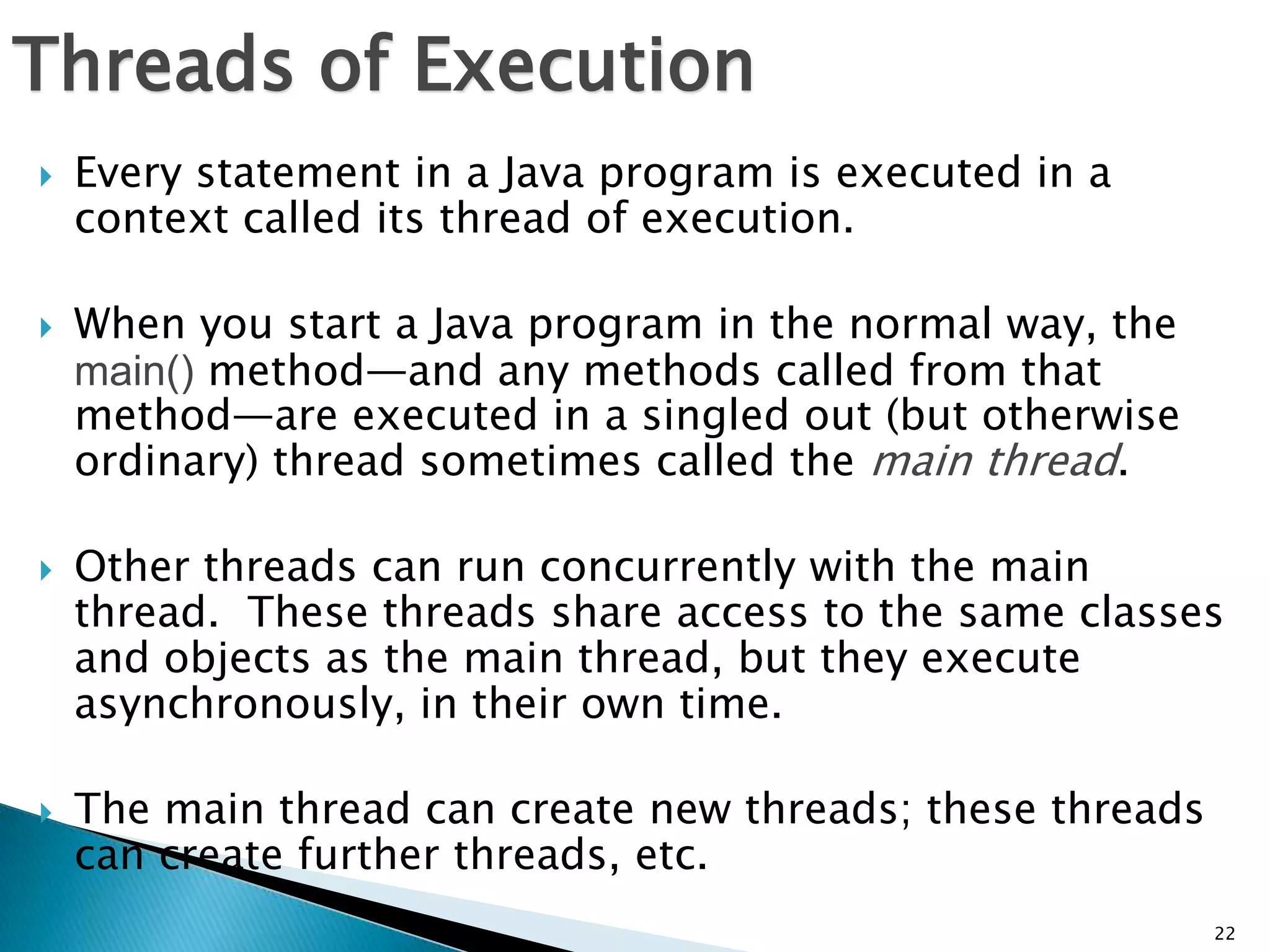

33. Threads of ExecutionEvery statement in a Java program is executed in a context called its thread of execution.

34. When you start a Java program in the normal way, the main() method—and any methods called from that method—are executed in a singled out (but otherwise ordinary) thread sometimes called the main thread.

35. Other threads can run concurrently with the main thread. These threads share access to the same classes and objects as the main thread, but they execute asynchronously, in their own time.

36. The main thread can create new threads; these threads can create further threads, etc.22
