4G Concepts and Designs Tech aims to upgrade IT systems for Arizona Health Center, addressing outdated technology and ensuring HIPAA compliance. The project involves detailed planning and execution of network designs, server configurations, and comprehensive system upgrades to enhance communication and overall productivity. Key milestones include design review, implementation completion, and training, culminating in project closure by June 1, 2013.

1. 4G CONCEPTS AND DESIGNS TECH [4GCDT]
CONCEPTS AND DESIGNS TECH

2. 4G CONCEPTS AND DESIGNS TECH [4GCDT]
Kyle Montoya - Project
Manager
Kmontoya@4GCDT.net
Colin Spangenberg - Support
Analyst
Cspangenberg@4GCDT.net
Rowena Warcharsky- Project Manager
Rwarcharsky@4GCDT.net

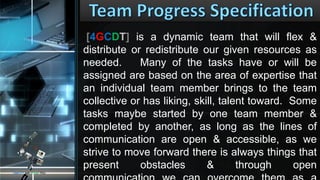

3. [4GCDT] is a dynamic team that will flex &
distribute or redistribute our given resources as
needed. Many of the tasks have or will be
assigned are based on the area of expertise that
an individual team member brings to the team
collective or has liking, skill, talent toward. Some
tasks maybe started by one team member &
completed by another, as long as the lines of
communication are open & accessible, as we
strive to move forward there is always things that
present obstacles & through open
CONCEPTS AND DESIGNS TECH

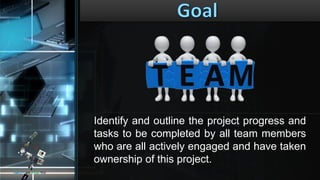

4. Identify and outline the project progress and
tasks to be completed by all team members
who are all actively engaged and have taken
ownership of this project.
CONCEPTS AND DESIGNS TECH

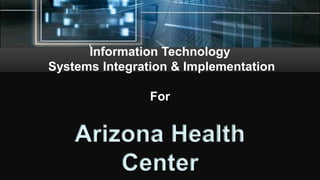

5. Information Technology
Systems Integration & Implementation
For
Arizona Health
Center

6.  Planning
 Executio
n
 Application
 Training
 Designing
 Building
 Testing
 Executing

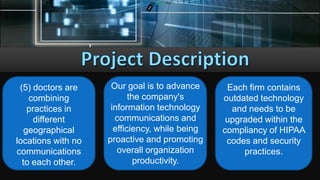

7. CONCEPTS AND DESIGNS TECH
(5) doctors are
combining
practices in
different
geographical
locations with no
communications
to each other.
Each firm contains
outdated technology
and needs to be
upgraded within the
compliancy of HIPAA
codes and security
practices.
Our goal is to advance
the company's
information technology
communications and
efficiency, while being
proactive and promoting
overall organization
productivity.

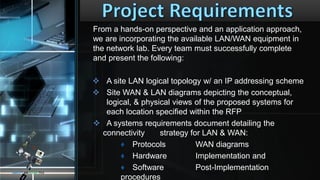

8. From a hands-on perspective and an application approach,
we are incorporating the available LAN/WAN equipment in
the network lab. Every team must successfully complete
and present the following:
 A site LAN logical topology w/ an IP addressing scheme
 Site WAN & LAN diagrams depicting the conceptual,
logical, & physical views of the proposed systems for
each location specified within the RFP
 A systems requirements document detailing the
connectivity strategy for LAN & WAN:
♦ Protocols WAN diagrams
♦ Hardware Implementation and
♦ Software Post-Implementation
procedures
CONCEPTS AND DESIGNS TECH

9.  Logical diagram with an IP addressing scheme
 A prototype environment of the following equipment:
♦ An installed & configured Windows 2012 server
♦ An installed & configured Web & FTP server (IIS)
function
♦ Configured Windows 7 Pro workstations
♦ An intranet home page, posted on the Web server,
that reflects the client’s products & services.
♦ A database using SQL requirements based off the
Medical Manager software
♦ HIPAA compliancy
CONCEPTS AND DESIGNS TECH

10. Deployment
Migration
Failover
Connectivity

12. Main Office
North Office
Firewall/Site VPN
Firewall/Site VPN
Firewall/Site VPN
East Office
Firewall/Site VPN
South Office
Firewall/Site VPNWest Office

13. Internet
Internet
Internet
Remote Site
Cable DSL Cellular 4g
1st
Failover 2nd
Failover

14. VPN Tunnel
(SonicWall Firewall)
Main Site
Storage Area Network (SAN
Cable DSL Cellular 4g
1st
Failover 2nd
Failover
Medical Database
Remote Sites
VPN Tunnel
(SonicWall Firewall)
Server

15. Internet
Cable CircuitDSL Circuit
SonicWall TZ 215 Firewall/Router
Wireless AP
192.168.1.254
RICOH Color Laser Printer
192.168.1.230
(13) HP Compaq 6200 Pro Desktop PC
DHCP Pool – 192.168.1.1 > 192.168.1.180
4G Cellular
Modem
RICOH Color Laser Printer
192.168.1.231
Fiber
(x2) Cisco 500x Series 48-Port
Managed PoE Switch
192.168.1.253
192.168.1.252
RICOH Color Laser Printer
192.168.1.232
SonicWALL 2TB
Network Storage Server
192.168.1.220
Snom ONEMini IPPBX20 Extensions
Cisco SPA508G 8 Line IP Phone
PoE and PC Port
DHCP Pool – 172.16.0.0 > 172.16.0.50
(x3) Microsoft Surface Pro
VMware Server
192.168.1.241
VMware Server
192.168.1.240
VM - Windows 2012 – File Server
192.168.1.242
HP 12TB (12x1TB)
StorageWorks P2000 G3 SAN
VM - Windows 2012 – SQL Server
192.168.1.244
VM - Windows 2012 –AD, Web, Print
192.168.1.243

16. SONICWALL VPN Wired +
Wireless TZ 215 Wireless-N
w/ 3-years of the Security
Suit
Cisco Small Business 500X
Series Managed Gigabit PoE
Switch

18. 42 U
2 U 48-port APC Patch Panel
2 U Cisco Small Business 500X Series PoE Switch
2 U APC 3000 VA 2700 Watts Smart-UPS
2 U HP DL380p 2 x Intel Xeon E5-2630 2.3GHz 16GB
2 U SonicWALL 01-SSC-4973 TZ 215 Wireless-N
1 U
1 U
1 U
1 U
1 U
1 U
1 U
1 U
1 U
1 U
1 U
1 U
1 U
1 U
2 U HP DL380p 2 x Intel Xeon E5-2630 2.3GHz 16GB
2 U APC 3000 VA 2700 Watts Smart-UPS
2 U APC 3000 VA 2700 Watts Smart-UPS
2 U APC 3000 VA 2700 Watts Smart-UPS
2 U 48-port APC Patch Panel
2 U Cisco Small Business 500X Series PoE Switch
3 U HP QR532B 12TB (12x1TB) StorageWorks P2000 G3 SAN Array Bundle
1 U HP AZ870A TFT7600 G2 Rackmount LCD KVM console
2 U SonicWALL 2TB Network Storage Server

19. HP ProLiant DL380p Gen8
2 x Intel Xeon E5-2640
2.5GHz 6C/12T 32GB RAM
APC AR3100SP1 42U
NetShelter SX 600mm Wide
x 1070mm Deep Enclosure
APC ACRD100 InRow RD
Airflow Cooling System
HP Rackmount LCD
KVM console
APC 3000 VA 2700 Watts
Smart-UPS 3000VA RM 2UHP QR532B 12TB (12x1TB)
StorageWorks P2000 G3 SAN

20. VMware ESX 5.1
32GB RAM
2x Intel Xeon E5-2640 2.5GHz 6C12T
HP QR532B 12TB (12x1TB) StorageWorks P2000 G3 SAN Array Bundle
RAID 10
6TB
VM3 – AD, Web, Print Server
Software
MS Windows Server 2012
Active Directory
IIS
Print Services
DNS
DHCP
Allocated Resources
1TB (VM Image) Partition
24GB RAM
1x Processor
VM1 – SQL Server
Software
MS Windows Server 2012
SQL Server 2012
Acronis BackupRecovery
Medical Manager Software
Allocated Resources
2TB(VM Image) Partition
32GB RAM
2x Processor
VM2 – File Server
Software
MS Windows Server 2012
Active Directory
File Share
Acronis BackupRecovery
Allocated
Resources
3TB (VM Image)
Partition
8GB RAM
1x Processor
VMware ESX 5.1
32GB RAM
2x Intel Xeon E5-2640 2.5GHz 6C12T

21. Server Naming Scheme
VMware ESX 5.1
32GB RAM
1.2TB RAID 10
2x Intel Xeon E5-2640 2.5GHz 6C12T
Virtual Machine #1
Software
MS Windows Server 2012
SQL Server 2012
Acronis BackupRecovery
Medical Manager Software
Allocated Resources
400GB( Image) Partition
16GB RAM
1x Processor
Virtual Machine #2
Software
MS Windows Server 2012
Active Directory
File Share
DHCP
DNS
File Share
Print Services
Allocated Resources
800GB (Image) Partition
16GB RAM
1x Processor
The beginning of the NetBIOS name will
specify the office location followed by
the main use of the machine.
Some examples:
North-SQL
Main-DC
West-DC

22. Staff
Billing
Nurses
Doctors
Workstations
Receptionist
Managers
Domain
Servers
Groups
UsersPrinters
Servers Printers IT Admins
Workstations
GPO s
Users

24. Central
Office
(Main DB)
Users
Remote Site
(North)
Remote Site
(East)
Remote Site
(South)
Remote Site
(West)
Users
Users Users
Users

25. Main Office (Master Database)
North Office
West Office East Office
South Office
Database
Replication w/
Main Office via
HTTPSMon,Wed,Fri
Start-12AM
Stop-5AM
Database
Replication w/ Main
Office via HTTPS
Tues,Thurs,Sat
Start-12AM
Stop-5AM

27. APC NetBotz 500
Live monitoring
and logging of:
 Camera
 Temperature
 Humidity
 Airflow

28. SonicWall TZ215
 Deep Packet Inspection Services: Gateway Anti-Virus, Anti-
Spyware, Intrusion Prevention, Application Intelligence and
Control
 Content Filtering Service (CFS): HTTP URL, HTTPS IP,
keyword and content scanning, ActiveX, Java Applet, and
cookie blocking bandwidth management on filtering
categories, allow/forbid lists
 Enforced Client Anti-Virus and Anti-Spyware: McAfee or
Kaspersky
 Comprehensive Anti-Spam Service
 Application Intelligence and Control: Application Traffic
Visualization and Bandwidth Management

29. SonicWall Network Storage
Server
Consistent Backup
Protection (CDP)
ACL lists for users to
provide minimal recovery
procedures

30. USB 3.0 Portable Hard Drive
Central Office
SAN

31. Ricoh C242SF Color
HP Pro 6200
HP ScanJet 3000
HP 20” LED Monitor

32. Microsoft Surface
Pro

34. Conference / Break
Room
AHC
Cabling Runs Diagram
Chart
RoomDoctor 1
Doctor 2
Doctor 3
Room 1 Room 2 Room 3 Room 4
Room 5 Room 6 Room 7 Room 8
Restroom Restroom
Laundry
IT/Telecom
Storage
Reception Area
Copier
Network
Printer Fax
Financial
ManagerManager
Claims
Rack
Data
VOIP/Phone
Extra Data Cable for
Laptops or other network
devices
Cable Channels above
ceiling
Receptionist
w/Paging
Capacity
Copier
Network
Printer
Copier
Network Printer
Billing/

35. Sever
Deployment
Physical rack
installation
OSSoftware
Installation
HP iLO 4
Testin
g
Uninterrupted Productivity
Imaging & Sysprep
(WDS) Windows
Deployment Services

36. RFP/SOW Release 23-Mar-13
4GCDT Selection Review 23-Mar-13
4GCDT Selection 25-Mar-13
Period of Performance Begins 25-Mar-13
Design Review 30-Mar-13
Implementation Review 08-Apr-13
Implementation Complete 27-Apr-13
Training Complete 11-May-13
Project Completion Review 25-May-13
Project Closure/Archives Complete 1-Jun-13
The below list consists of the initial milestones
identified for the AHC Project:

37. Health
Insurance
Portability and
Accountability
Act
Is a set of policy's and procedures that as an
organization, must comply with in the medical field
to keep patient information private and protected.

39. Team
4G CONCEPTS AND DESIGNS TECH
KYLE MONTOYA
COLIN SPANGENBERG
COLIN SPANGENBERG
