This document provides information on networking solutions for a new two-floor office facility for Orange Creek Lexington. It includes a list of recommended hardware, software, and services to accommodate 200 employees. Specific items include Cisco routers and switches, HP storage, Dell servers, Inspiron desktops, Office 365, and tiered support plans from Netech starting at $99.99 per month. The total estimated cost of the network infrastructure is $218,486.

1. WELCOME
May26, 2016
Orange Creek Lexington Facility
1

2. NETECH, INC
Employees:
Thomas Richard
Serena Jacob
Jose Bob
2

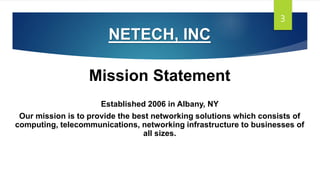

3. NETECH, INC
Mission Statement
Established 2006 in Albany, NY
Our mission is to provide the best networking solutions which consists of
computing, telecommunications, networking infrastructure to businesses of
all sizes.
3

4. Orange Creek Lexington facility
A two floor facility designed to provide office space for software
development and testing of their banking software.
These two floors will need accommodations for 100 employees per
floor, with enough infrastructure to eventually serve 180 per floor.
Each floor will consist of two lab rooms that will host 80% of the total
employee population in cubicles, with the remaining 20% residing in
offices.
4

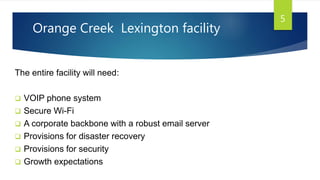

5. Orange Creek Lexington facility
The entire facility will need:
 VOIP phone system
 Secure Wi-Fi
 A corporate backbone with a robust email server
 Provisions for disaster recovery
 Provisions for security
 Growth expectations
5

6. Barracuda X300
 Firewall
 Intrusion prevention
 Prioritizes traffic
 Administration is easy
6

7. Cisco Small business RV320 Router Desktop
 Dual Gigabit Ethernet WAN ports for load balancing and business
continuity
 Built-in 4-port Gigabit Ethernet
switch
 Strong security with proven
stateful packet inspection(SPI)
firewall and hardware encryption
 High-capacity, high-performance, SSL, &16 VLAN capabilities
7

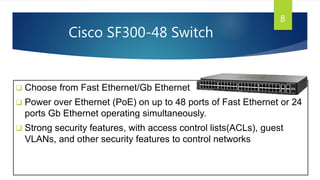

8. Cisco SF300-48 Switch
 Choose from Fast Ethernet/Gb Ethernet
 Power over Ethernet (PoE) on up to 48 ports of Fast Ethernet or 24
ports Gb Ethernet operating simultaneously.
 Strong security features, with access control lists(ACLs), guest
VLANs, and other security features to control networks
8

9. Virtualization
9
 Increase Server Efficiency
 Disaster Recovery is easier
 Enhances Security
 Data is organized

10. Hyper-V
 Allows redundancy with minimal interference
 Use Virtual Clusters
 Easy updating
10

11. Server Equipment
PowerEdge R630 Rack Server
 Automated server updates
 Saves storage space
 Use smartphone to monitor/manage
11

12. HP StoreVirtual 4730 SAS Storage
 Easy to manage
 Adjust and respond quickly to changing demands
 More space can be used for growth
12

13. Workstation OS
 One converged windows platform
 Designed for the way you work
 Helps protect against modern security threats
 Managed for continuous innovation
 It is also good for you and your customers
 Enables management for every scenario
 An app store that is open for business
13

14. Workstation OS Licensing
 Cost effective
 License security
 Easier Installation and management
 Compatibility
 Greater flexibility
 Greater protection
14

15. Inspiron 13 7000 Series 2 in 1
 6 Hour runtime with battery
 Use as laptop/tablet
 High-speed USB 3.0 port
 8GB Memory
15

16. Inspiron 17 5000 Series
 I-5 processor
 8GB RAM
 1TB hard drive
 17.3” screen (easy to see)
16

17. Inspiron 20 300 Series All in
One
 Celleron Quad Core Processor
 4GB Memory
 500GB 5400 rpm HD
17

18.  Multifunction Laser color printer
 1200 x 1200 dpi print resolution.
 25 ppm
 75-sheet automatic document feeder.
 Max. paper capacity 2000 sheets
 Duplex printing feature conserves paper
 Monthly duty cycle of up to 75,000 pages
Xerox WorkCentre 5225 Copier
18

19. Ubiquity Networking Enterprise Unifi AP-Long range
3 pack
 The UAP-LR has a range of up to
183 m (600 feet).
 It also offers 802.11 b/g/n MIMO/
up to 300 Mbps.
 Includes Power over Ethernet (PoE)
allows both power and data to be carried over a single Ethernet cable
to the device
19

20. IP Addresses
First Floor, Second Floor Workstations, 172.16.88.0/24-255.255.255.0
(Servers, and Switches Static IP)
Printers 172.16.77.0/27-255.255.255.224
(Static IP)
VoIPAddresses first Floor 172.16.66.0/24-255.255.255.0
VoIPAddresses Second Floor
Camera Addresses 172.16.55.0/24-255.255.255.0
(Static IP)
Security Access Points 172.16.44.0/27-255.255.255.224
(Static IP)
WIFI (secure) 172.16.33.0/24-255.255.255.0
20

21. Microsoft Office 365
 Store, sync, and share files online
 Email, Skype, Online Conferencing
 Easy to follow step-by-step guidance
 Offers Word, PowerPoint, and Excel
21

22. Anti-Malware
System Center Endpoint Protection
 Anti-malware activity report
 Anti-malware overall status and history
 Infected Computer
 Top users by threats
 User threat list
22

23. Sangoma S500
 Plug in and use
 5-way conferencing
 Do Not Disturb
 Conference Rooms
 Queues
23

24.  Open Source
 Easy install and setup
 Expand with company growth
 Conference rooms
24

25. Voip
SIP Trunking (Session Initiation Protocol Trunking)
 combine data, voice and video in a single line
 communicate with fixed and mobile telephone subscribers
worldwide
 Video Conferencing
25

26. Samsung SSA-R2040 Access Control, Fingerprint 4K IDs, Format
125KHz
 Uses Fingerprints
 Holds 10k ID’s
 Up to 4k fingerprints users
 No keycards/codes to use
 Secure and easy to use
26

27. Floor Plan
27

28. Equipment needed
 Cabling
 APC Rack Ladder
 Electrical Tubing Conduits
 Cable
28

29. Power Backup
SU10KRT3U SmartOnline UPS
Up to 80 minutes@1000W with included batteries
Automatic UPS power-up after lengthy power outages
Provides clean, continuous AC power
QT03015ANSX Generator
 120/240VAC – 7 day Liquid Propane/
Natural Gas fuel capacity -
 Automatic Standby startup
29

30. Tier-1 Plan
30
 Password problems
 New users
 Remove users
 Hours 9am – 5pm (Monday thru Friday)
If tech has to be called - $25/hour (Maximum 5 hours)
Tier-1 Plan: $99.99

31. Tier-2 Plan 31
 Tier-1 (included)
 Hardware support
 Hardware replacement
 Ship in 24 hours
 Hours 7am – 11pm (Monday – Saturday)
If tech is needed - $25/hour (Maximum 10 hours)
Tier-1 Plan: $175.99

32. Tier-3 Plan 32
 Tier-1 (included)
 Tier-2 (included)
 Software Support
 24/7 tech support
It tech called $25/hour (No Max)
Tier-3 Plan: $500

33. Conclusion 33
We, at Netech, Inc have met all of your goals that were outlined. We
are pleased to have the opportunity to present our ideas to your
company. We hope to do business with you in the near future.

34. Costs Analysis 34
Barracuda X300 $2,000 (1) Dell R630 Rack Server $2,000 (4)
Cisco RV320 Router $200 (3) Cisco F300-48 Switch $500 (4)
HP 4730 SAS Storage $20,000(1)Inspiron 700 Series $750 (20)
Inspiron 500 Series $700 (20) Inspiron 300 Series $350 (130)
SCEP $36/Month (All users) Office 365 (per user/month) $5
Xerox 5225 Copier $3500 (8)
Generac Generator $10,000 (1) SIP.us (per channel) $25/mo/line
Sangoma S500 $150 (180) Ubiquity WAP $250 (4)

35. Costs Analysis 35
Samsung Fingerprint $700 (5)
Materials & Supplies $31,000
Barracuda Backup $1,200/$3,000
Total Cost: $218,486.00
