The document provides instructions for drawing an isometric circle in 6 steps: 1) Add center lines to a 60mm isometric square. 2) Draw lines from the wide corners to the opposite center lines. 3) Repeat for the other side. 4) The red lines will be radii for circles drawn toward the guidelines. 5) Repeat for the other side. 6) The isometric circle is now complete and can be drawn at different 30 degree angles.

1. MRS. LIESL
HARVEY

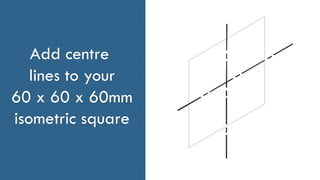

3. Add centre
lines to your
60 x 60 x 60mm
isometric square

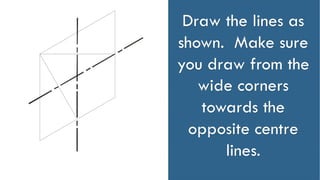

4. Draw the lines as
shown. Make sure
you draw from the
wide corners
towards the
opposite centre
lines.

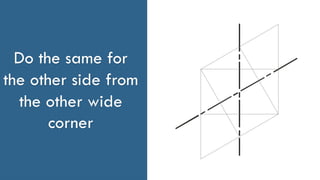

5. Do the same for
the other side from
the other wide
corner

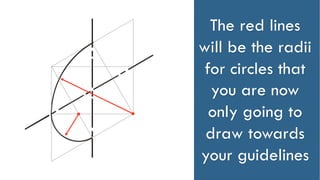

6. The red lines
will be the radii
for circles that
you are now
only going to
draw towards
your guidelines

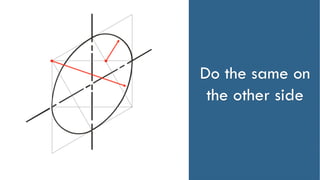

7. Do the same on
the other side

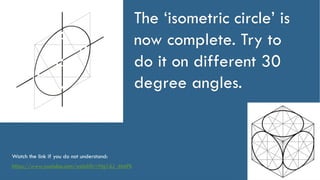

8. The ‘isometric circle’ is
now complete. Try to
do it on different 30
degree angles.
https://www.youtube.com/watch?v=Hg16J_4tmPk
Watch the link if you do not understand:
