This document describes a multi-pass fuel filter test rig that tests fuel filter performance according to ISO 19438 standards. The rig automatically tests and generates reports on parameters like contaminant capacity, particle removal, and differential pressure. It determines filter element performance by injecting contaminant test dust while online particle sensors measure contamination upstream and downstream. The rig can test filter elements, flat sheet filter media, particle retention ability, and differential pressure characteristics.

1. FEC
R
World Class Testing Equipments
An ISO 9001 Certified Co.

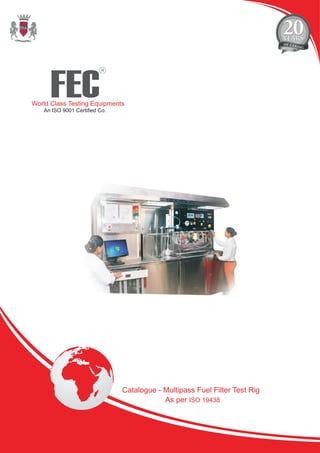

Catalogue - Multipass Fuel Filter Test Rig
As per ISO 19438

2. www.fecproduct.com

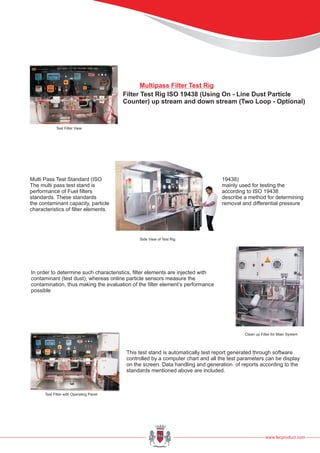

Multipass Filter Test Rig
Filter Test Rig ISO 19438 (Using On - Line Dust Particle
Counter) up stream and down stream (Two Loop - Optional)
Multi Pass Test Standard (ISO 19438)
The multi pass test stand is mainly used for testing the
performance of Fuel filters according to ISO 19438
standards. These standards describe a method for determining
the contaminant capacity, particle removal and differential pressure
characteristics of filter elements.
This test stand is automatically test report generated through software
controlled by a computer chart and all the test parameters can be display
on the screen. Data handling and generation of reports according to the
standards mentioned above are included.
In order to determine such characteristics, filter elements are injected with
contaminant (test dust), whereas online particle sensors measure the
contamination, thus making the evaluation of the filter element’s performance
possible
Test Filter View
Test Filter with Operating Panel
Clean up Filter for Main System
Side View of Test Rig

3. www.fecproduct.com

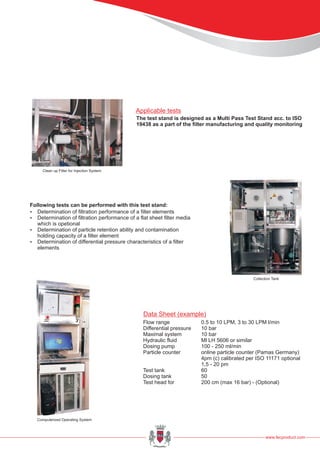

Following tests can be performed with this test stand:
?Determination of filtration performance of a filter elements
?Determination of filtration performance of a flat sheet filter media
which is opetional
?Determination of particle retention ability and contamination
holding capacity of a filter element
?Determination of differential pressure characteristics of a filter
elements
Data Sheet (example)
Flow range 0.5 to 10 LPM, 3 to 30 LPM l/min
Differential pressure 10 bar
Maximal system 10 bar
Hydraulic fluid Ml LH 5606 or similar
Dosing pump 100 - 250 ml/min
Particle counter online particle counter (Pamas Germany)
4pm (c) calibrated per ISO 11171 optional
1,5 - 20 pm
Test tank 60
Dosing tank 50
Test head for 200 cm (max 16 bar) - (Optional)
The test stand is designed as a Multi Pass Test Stand acc. to ISO
19438 as a part of the filter manufacturing and quality monitoring
Applicable tests
Clean up Filter for Injection System
Collection Tank
Computerized Operating System

4. www.fecproduct.com

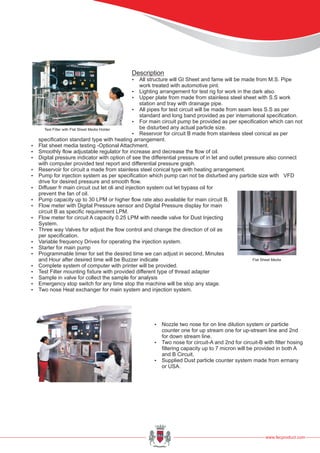

Description
?All structure will GI Sheet and fame will be made from M.S. Pipe
work treated with automotive pint.
?Lighting arrangement for test rig for work in the dark also.
?Upper plate from made from stainless steel sheet with S.S work
station and tray with drainage pipe.
?All pipes for test circuit will be made from seam less S.S as per
standard and long band provided as per international specification.
?For main circuit pump be provided as per specification which can not
be disturbed any actual particle size.
?Reservoir for circuit B made from stainless steel conical as per
specification standard type with heating arrangement.
?Flat sheet media testing -Optional Attachment.
?Smoothly flow adjustable regulator for increase and decrease the flow of oil.
?Digital pressure indicator with option of see the differential pressure of in let and outlet pressure also connect
with computer provided test report and differential pressure graph.
?Reservoir for circuit a made from stainless steel conical type with heating arrangement.
?Pump for injection system as per specification which pump can not be disturbed any particle size with VFD
drive for desired pressure and smooth flow.
?Diffuser fr main circuit out let oli and injection system out let bypass oil for
prevent the fan of oil.
?Pump capacity up to 30 LPM or higher flow rate also available for main circuit B.
?Flow meter with Digital Pressure sensor and Digital Pressure display for main
circuit B as specific requirement LPM.
?Flow meter for circuit A capacity 0.25 LPM with needle valve for Dust Injecting
System.
?Three way Valves for adjust the flow control and change the direction of oil as
per specification.
?Variable frequency Drives for operating the injection system.
?Starter for main pump
?Programmable timer for set the desired time we can adjust in second, Minutes
and Hour after desired time will be Buzzer indicate
?Complete system of computer with printer will be provided.
?Test Filter mounting fixture with provided different type of thread adapter
?Sample in valve for collect the sample for analysis
?Emergency stop switch for any time stop the machine will be stop any stage.
?Two nose Heat exchanger for main system and injection system.
Test Filter with Flat Sheet Media Holder
?Nozzle two nose for on line dilution system or particle
counter one for up stream one for up-stream line and 2nd
for down stream line.
?Two nose for circuit-A and 2nd for circuit-B with filter hosing
filtering capacity up to 7 micron will be provided in both A
and B Circuit.
?Supplied Dust particle counter system made from ermany
or USA.
Flat Sheet Media
