Enterprise networks using private IPv4 address space might not feel the need to migrate to IPv6. They are wrong and might be faced with severe consequences in the future.

1. IPv6 Deployment in Enterprise Networks
Ivan Pepelnjak
Chief Technology Advisor, NIL Data Communications

2. ©2009 NIL 2

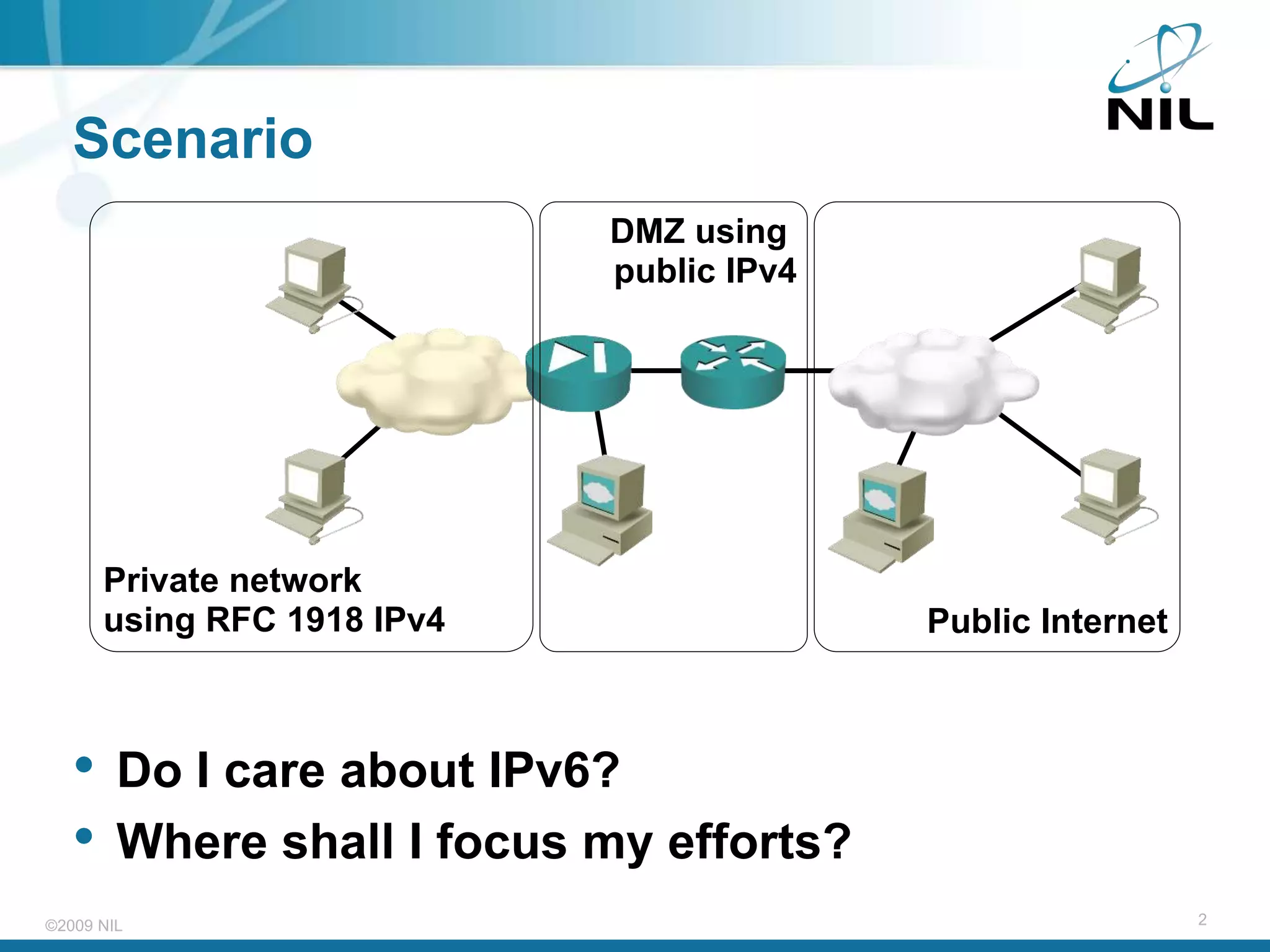

Scenario
• Do I care about IPv6?
• Where shall I focus my efforts?
Private network
using RFC 1918 IPv4
DMZ using
public IPv4
Public Internet

3. ©2009 NIL 3
Facts of Life
• IPv6 is here, get used to it.
• You’ll get stuck on migration details.
• Start small, but start now.

4. ©2009 NIL 4
Facts of Life (NAT)
• Everyone uses 4-to-4 NAT. It’s bad.
• Slow migration to IPv6 requires more NAT.
• 6-to-4 NAT stinks.
• 4-to-6 NAT is horrendous.

5. ©2009 NIL 5
Deployment Phase 1: Dual-stack
• Some public servers are reachable over IPv6
Private network
using RFC 1918 IPv4
DMZ using
public IPv4
Public Internet

6. ©2009 NIL 6
Deployment Phase 2: IPv6 Clients
• Some clients are using only IPv6: 6-to-4 NAT
Private network
using RFC 1918 IPv4
DMZ using
public IPv4
Public Internet

7. ©2009 NIL 7
Deployment Phase 3: IPv6 Servers
• Some servers are reachable only over IPv6:
4-to-6 NAT
Private network
using RFC 1918 IPv4
DMZ using
public IPv4
Public Internet

8. ©2009 NIL 8
Timeline Guestimate
Time [years]
IPv6
adoption
[%]
Dual-stack: now IPv6-only clients
2-3 years
IPv6-only servers
10(?) years
Knowledge
opportunity
loss
Business
opportunity
loss Nightmare

9. ©2009 NIL 9
Phase 1 Actions
Ignore IPv6 or …
• Deploy IPv6 in your DMZ infrastructure
• Dual-stack on non-critical servers
Private network
using RFC 1918 IPv4
DMZ using
public IPv4
Public Internet

10. ©2009 NIL 10
Phase 2 Actions
• You are IPv6 ready in your DMZ (are you?)
• Design, test and deploy dual stack in your network
Private network
using RFC 1918 IPv4
DMZ using
public IPv4
Public Internet

11. ©2009 NIL 11
Phase 3 Actions
 Relax and enjoy
 Frantic catch-up efforts
 Suffer the consequences of 4-to-6 NAT
RFC 1918 IPv4
Public IPv6
DMZ using
public IPv4
Public Internet

12. ©2009 NIL 12
Summary
• IPv6 is here
• There’s no rush (yet)
• Use your time wisely
