Infrastructure Preservation Corporation (IPC) specializes in nondestructive testing and robotic engineering for transportation and infrastructure assessments, emphasizing advanced technology for better investment decisions. Their services include bridge inspections, construction engineering, and unique robotic systems such as Tendonscan and Bridgescan, which provide detailed assessments and reduce safety risks. IPC aims to extend asset life and improve budget accuracy for maintenance without significant disruptions to traffic.

1. Infrastructure Preservation
Corporation
A NONDESTRUCTIVE TESTING & INFRASTRUCTURE ASSESSMENT FIRM.
SPECIALIST IN BRIDGE & INFRASTRUCTURE INSPECTION
IPC: Ph.727-372-2900 ext.40
info@infrastructurepc.com
www.Infrastructurepc.com

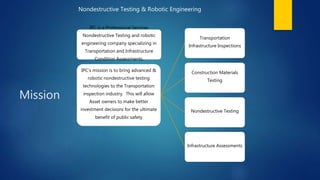

2. Mission
IPC is a Professional Services
Nondestructive Testing and robotic
engineering company specializing in
Transportation and Infrastructure
Condition Assessments.
IPC’s mission is to bring advanced &
robotic nondestructive testing
technologies to the Transportation
inspection industry. This will allow
Asset owners to make better
investment decisions for the ultimate
benefit of public safety
Transportation
Infrastructure Inspections
Construction Materials
Testing
Nondestructive Testing
Infrastructure Assessments
Nondestructive Testing & Robotic Engineering

3. 3
 Patented inspection systems providing technology points in bid
evaluation
 Advanced inspection systems that lowers proposal costs
 Fabrication shop inspection support with national network of AWS
certified welding inspectors
 NDT inspectors certified in accordance with ASNT recommended
practice
 ASNT Nationally Certified Level III Audit Services
 Bridge engineers and Inspectors on staff
Competetive Advantages

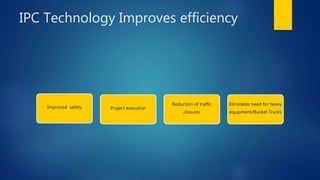

4. IPC Technology Improves efficiency
Improved safety Project execution
Reduction of traffic
closures
Eliminates need for heavy
equipment/Bucket Trucks

5. Service Offer
IPC: Ph.727-372-2900 ext.40
info@infrastructurepc.com
www.Infrastructurepc.com

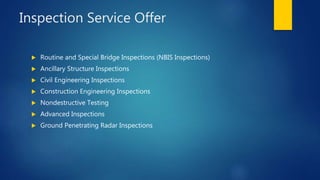

6. Inspection Service Offer
 Routine and Special Bridge Inspections (NBIS Inspections)
 Ancillary Structure Inspections
 Civil Engineering Inspections
 Construction Engineering Inspections
 Nondestructive Testing
 Advanced Inspections
 Ground Penetrating Radar Inspections

7. Nondestructive Testing
In Shop Inspection Dam Inspection Electrical Inspections Roadway Inspections
Tank Inspections Special Inspections Garage Inspections Bridge Inspections
Pipeline Inspections Construction Inspections Site InspectionsInfrastructure Inspections

8. Advanced NDT Services
PoleScan® TendonScan® Cablescan® Crackscan® BridgeScan®
ColumnScan™
Drawbridge Structural
Health Monitoring
Wire Rope Inspections
On Site & in Shop
Inspections
IPC: Ph.727-372-2900 ext.40
info@infrastructurepc.com
www.Infrastructurepc.comInfrastructure Preservation Corporation

9. Highlighted Service
TendonScan™
 Magnetic Flus Leakage
 Locates and Quantifies Loss of Metallic
Area in External PT Tendons Assessments
OLD METHOD
Infrastructure Preservation
Corporation
www.Infrastructurepc.com
IPC: Ph.727-372-2900 ext.40
info@infrastructurepc.com
www.Infrastructurepc.com
Robotic Post Tension Tendon Inspection

10. TendonScan™
Locates Loss of Metallic
Area
Identifies Tendons for
Future monitoring or
Replacement
Light weight, portable,
wireless and battery
operated
Provides four categories
of damage Condition

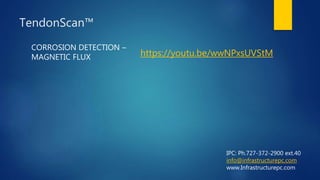

11. TendonScan™
CORROSION DETECTION –
MAGNETIC FLUX https://youtu.be/wwNPxsUVStM
IPC: Ph.727-372-2900 ext.40
info@infrastructurepc.com
www.Infrastructurepc.com

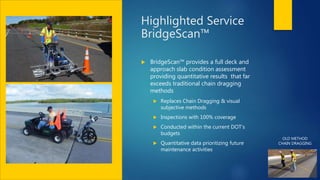

12. Highlighted Service
BridgeScan™
 BridgeScan™ provides a full deck and
approach slab condition assessment
providing quantitative results that far
exceeds traditional chain dragging
methods
 Replaces Chain Dragging & visual
subjective methods
 Inspections with 100% coverage
 Conducted within the current DOT’s
budgets
 Quantitative data prioritizing future
maintenance activities
OLD METHOD
CHAIN DRAGGING

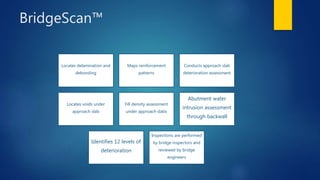

13. BridgeScan™
Locates delamination and
debonding
Maps reinforcement
patterns
Conducts approach slab
deterioration assessment
Locates voids under
approach slab
Fill density assessment
under approach slabs
Abutment water
intrusion assessment
through backwall
Identifies 12 levels of
deterioration
Inspections are performed
by bridge inspectors and
reviewed by bridge
engineers

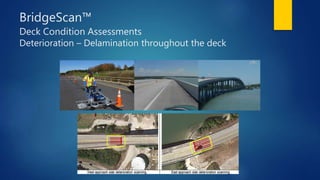

14. BridgeScan™
Deck Condition Assessments
Deterioration – Delamination throughout the deck

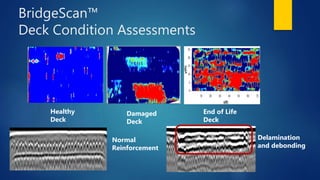

15. BridgeScan™
Deck Condition Assessments
Healthy
Deck
Damaged
Deck
End of Life
Deck
Normal
Reinforcement
Delamination
and debonding

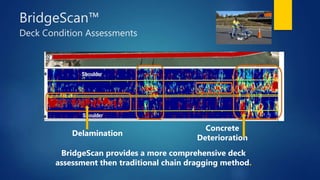

16. BridgeScan™
Deck Condition Assessments
Delamination
Concrete
Deterioration
BridgeScan provides a more comprehensive deck
assessment then traditional chain dragging method.

17. BridgeScan™
GRP sled with multiple antennas
reducing scanning time and costs

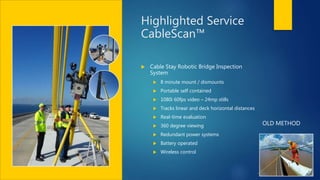

18. Highlighted Service
CableScan™
 Cable Stay Robotic Bridge Inspection
System
 8 minute mount / dismounts
 Portable self contained
 1080i 60fps video – 24mp stills
 Tracks linear and deck horizontal distances
 Real-time evaluation
 360 degree viewing
 Redundant power systems
 Battery operated
 Wireless control
OLD METHOD

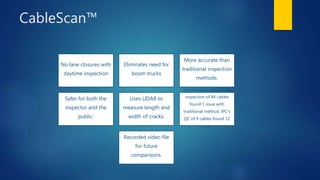

19. CableScan™
No lane closures with
daytime inspection
Eliminates need for
boom trucks
More accurate than
traditional inspection
methods.
Safer for both the
inspector and the
public.
Uses LIDAR to
measure length and
width of cracks.
Double blind study of an
inspection of 84 cables
found 1 issue with
traditional method. IPC’s
QC of 9 cables found 12
issues.
Recorded video file
for future
comparisons.

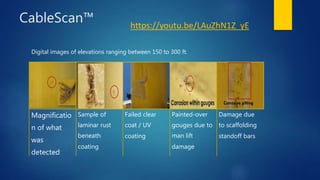

20. CableScan™
Magnificatio
n of what
was
detected
Sample of
laminar rust
beneath
coating
Failed clear
coat / UV
coating
Painted-over
gouges due to
man lift
damage
Damage due
to scaffolding
standoff bars
Digital images of elevations ranging between 150 to 300 ft.
https://youtu.be/LAuZhN1Z_yE

21. Highlighted Service
CrackScan™
 Scans for cracks from over 100 feet away
 No Lane closures
 No boom lifts required
 More efficient, less expensive and more accurate than
current inspection methods
 Records X and Y coordinates of the cracks as well as
length and width
 Future inspections allow the asset manager to track
crack progression over time
 Double blind study of 2 bridges in Nevada where the
engineering firm showed no cracks on 1 bridge and
none on another
 IPC located 7 cracks on one and 6 cracks on the other
 Manual methods cannot compete with laser technology

22. CrackScan™
 2 D and 3D Crack Maps
https://youtu.be/XlgQwi40WCc

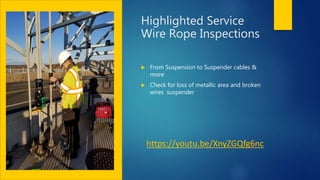

23. Highlighted Service
Wire Rope Inspections
 From Suspension to Suspender cables &
more
 Check for loss of metallic area and broken
wires suspender
https://youtu.be/XnyZGQfg6nc

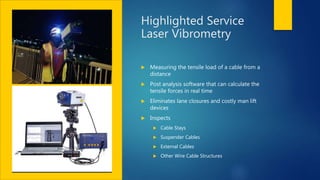

24. Highlighted Service
Laser Vibrometry
 Measuring the tensile load of a cable from a
distance
 Post analysis software that can calculate the
tensile forces in real time
 Eliminates lane closures and costly man lift
devices
 Inspects
 Cable Stays
 Suspender Cables
 External Cables
 Other Wire Cable Structures

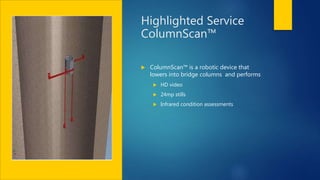

25. Highlighted Service
ColumnScan™
 ColumnScan™ is a robotic device that
lowers into bridge columns and performs
 HD video
 24mp stills
 Infrared condition assessments

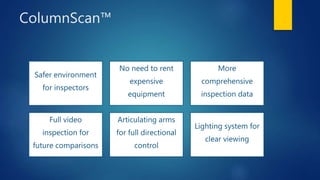

26. ColumnScan™
Safer environment
for inspectors
No need to rent
expensive
equipment
More
comprehensive
inspection data
Full video
inspection for
future comparisons
Articulating arms
for full directional
control
Lighting system for
clear viewing

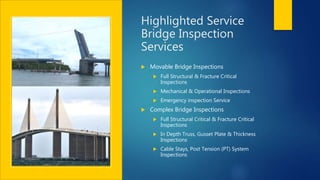

27. Highlighted Service
Bridge Inspection
Services
 Movable Bridge Inspections
 Full Structural & Fracture Critical
Inspections
 Mechanical & Operational Inspections
 Emergency inspection Service
 Complex Bridge Inspections
 Full Structural Critical & Fracture Critical
Inspections
 In Depth Truss, Gusset Plate & Thickness
Inspections
 Cable Stays, Post Tension (PT) System
Inspections

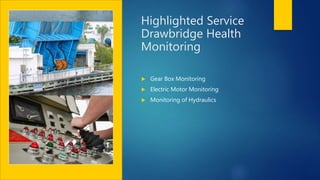

28. Highlighted Service
Drawbridge Health
Monitoring
 Gear Box Monitoring
 Electric Motor Monitoring
 Monitoring of Hydraulics

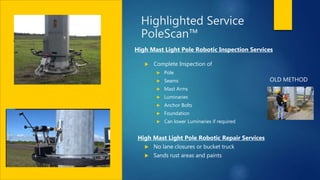

29. Highlighted Service
PoleScan™
 Complete Inspection of
 Pole
 Seams
 Mast Arms
 Luminaries
 Anchor Bolts
 Foundation
 Can lower Luminaries if required
 No lane closures or bucket truck
 Sands rust areas and paints
High Mast Light Pole Robotic Inspection Services
High Mast Light Pole Robotic Repair Services
OLD METHOD

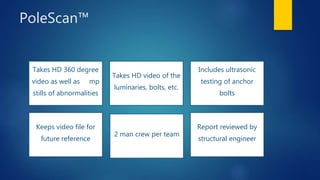

30. PoleScan™
Takes HD 360 degree
video as well as 24mp
stills of abnormalities
Takes HD video of the
luminaries, bolts, etc.
Includes ultrasonic
testing of anchor
bolts
Keeps video file for
future reference
2 man crew per team
Report reviewed by
structural engineer

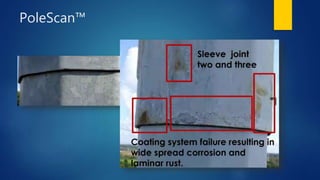

31. PoleScan™

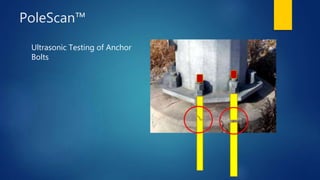

32. PoleScan™
Ultrasonic Testing of Anchor
Bolts

33. High Mast Light Pole Inspection Video –Field Inspection and Repair
Services
https://youtu.be/0LmyEVRIpEM
High Mast Light Pole Inspection Service

34. Drone Inspection
Services
 Hard To Reach Inspection
Locations
Utilizing Drones
 High profile structures
 Towers
 Windmills

35. Project References
IPC: Ph.727-372-2900 ext.40
info@infrastructurepc.com
www.Infrastructurepc.com

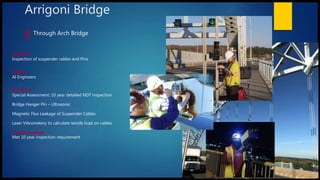

36. Arrigoni Bridge
PROJECT
Inspection of suspender cables and Pins
CLIENT
AI Engineers
IPC ROLE
Special Assessment: 10 year detailed NDT inspection
Bridge Hanger Pin – Ultrasonic
Magnetic Flux Leakage of Suspender Cables
Laser Vibrometery to calculate tensile load on cables
Problem solved
Met 10 year inspection requirement
Through Arch Bridge

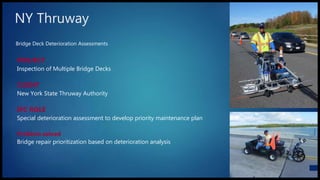

37. Bridge Deck Deterioration Assessments
NY Thruway
PROJECT
Inspection of Multiple Bridge Decks
CLIENT
New York State Thruway Authority
IPC ROLE
Special deterioration assessment to develop priority maintenance plan
Problem solved
Bridge repair prioritization based on deterioration analysis

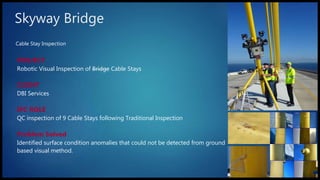

38. Cable Stay Inspection
Skyway Bridge
PROJECT
Robotic Visual Inspection of Bridge Cable Stays
CLIENT
DBI Services
IPC ROLE
QC inspection of 9 Cable Stays following Traditional Inspection
Problem Solved
Identified surface condition anomalies that could not be detected from ground
based visual method.

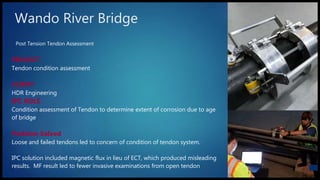

39. Post Tension Tendon Assessment
Wando River Bridge
PROJECT
Tendon condition assessment
CLIENT
HDR Engineering
IPC ROLE
Condition assessment of Tendon to determine extent of corrosion due to age
of bridge
Problem Solved
Loose and failed tendons led to concern of condition of tendon system.
IPC solution included magnetic flux in lieu of ECT, which produced misleading
results. MF result led to fewer invasive examinations from open tendon

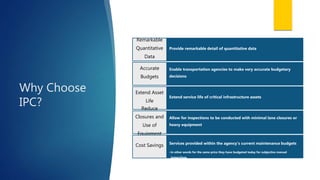

40. Why Choose
IPC?
Provide remarkable detail of quantitative data
Remarkable
Quantitative
Data
Enable transportation agencies to make very accurate budgetary
decisions
Accurate
Budgets
Extend service life of critical infrastructure assets
Extend Asset
Life
Allow for inspections to be conducted with minimal lane closures or
heavy equipment
Reduce
Closures and
Use of
Equipment
Services provided within the agency’s current maintenance budgets
•in other words for the same price they have budgeted today for subjective manual
inspections.
Cost Savings

41. Contact Information
Doug Thaler - 727-372-2900 x24
Mike Creech - 727-372-2900 x40
www.infrastructurepc.com
IPC: Ph.727-372-2900 ext.40
info@infrastructurepc.com
www.Infrastructurepc.com
