Security problems in Iot [Problems and Solutions]

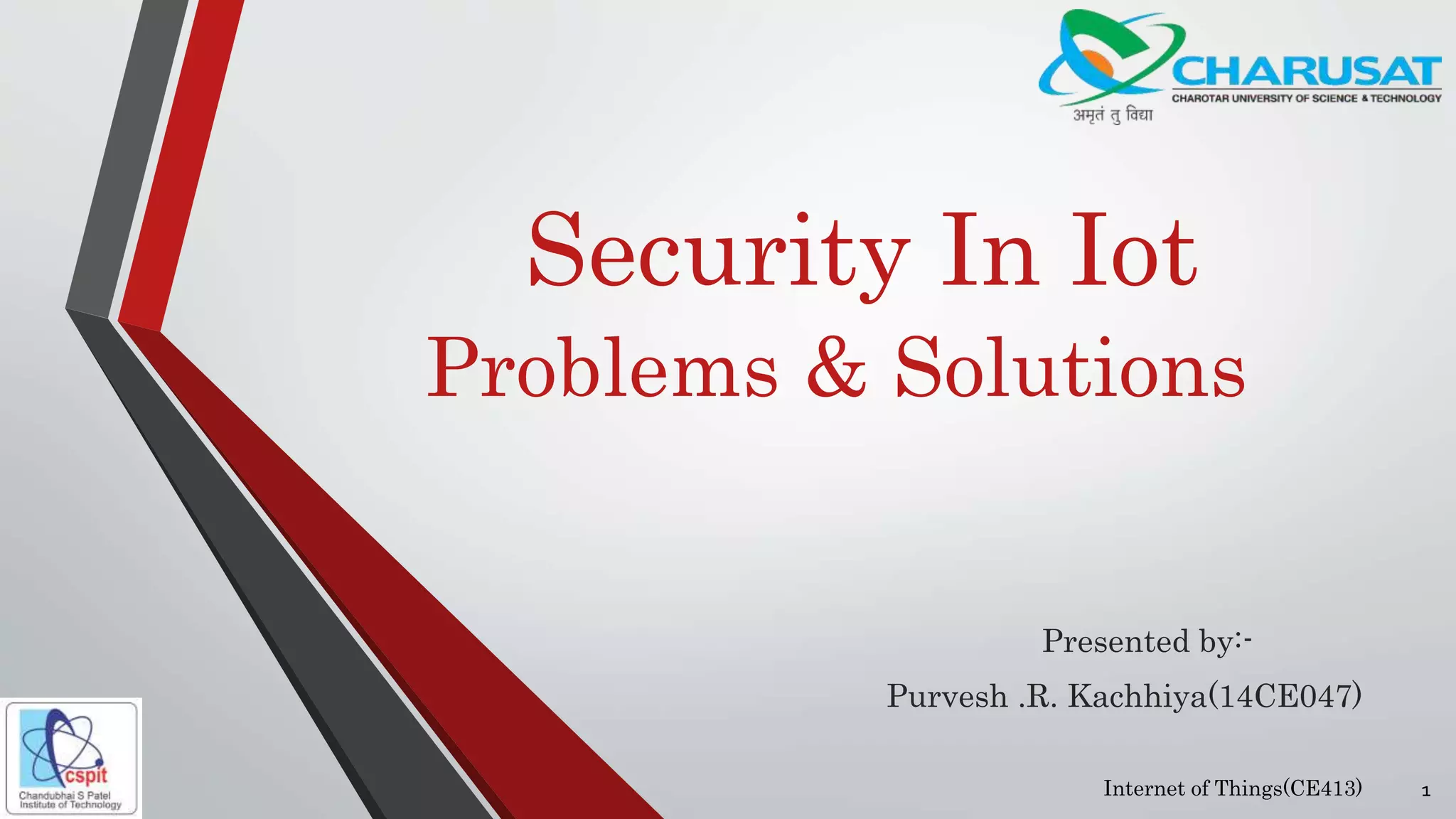

1. Security In Iot
Problems & Solutions
Presented by:-
Purvesh .R. Kachhiya(14CE047)
1Internet of Things(CE413)

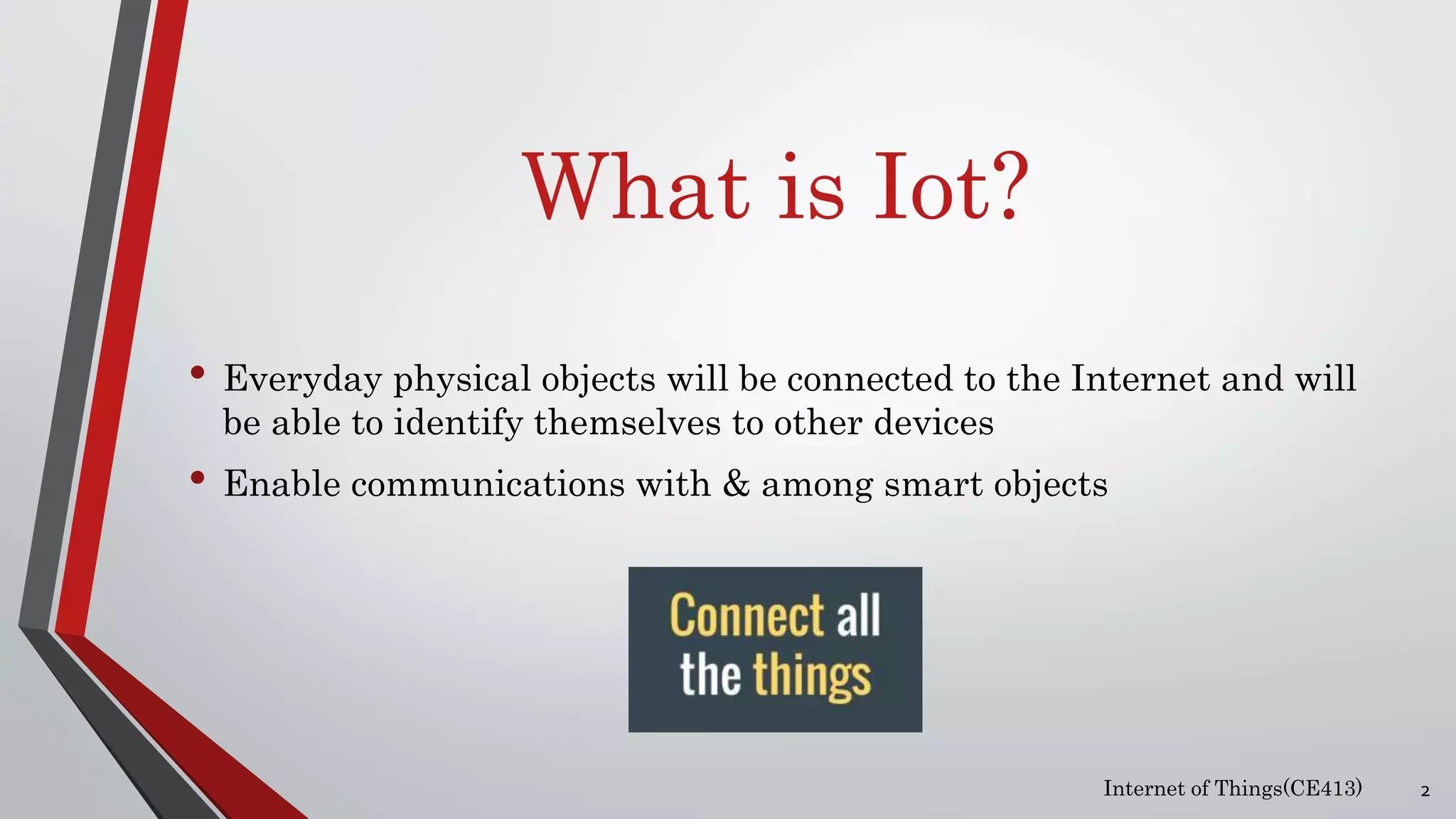

2. What is Iot?
• Everyday physical objects will be connected to the Internet and will
be able to identify themselves to other devices
• Enable communications with & among smart objects
Internet of Things(CE413) 2

3. Security
• Regulating access to electronic assets according to some set
policies
• These 'set policies' for security are in fact a result of privacy and
safety policies
• “...without trust and security built into IoT technology and systems
in a holistic way, we will not see an Internet of Things, but continue
to see silos of things.”
- Zach Shelby
[Director of Technology for IoT, ARM Inc. ]
Internet of Things(CE413) 3

4. Security
• It is clear that a system cannot be viable if it is not secure and if it
does not maintain privacy.
• Security will be a major concern wherever networks are deployed at
large scale
• However, protecting IoT is a complex and difficult task
• Video Link: https://youtu.be/u1ymmRQ_p3k
Internet of Things(CE413) 4

5. What are the Security threats?
• Denial of service(DoS)
• Physical Damage
• Eavesdropping
• Node Capture
• Controlling
Internet of Things(CE413) 5

6. Denial of service(DoS)
• Beyond traditional Internet DoS attacks that exhaust service
provider resources and network bandwidth.
• The actual wireless communication infrastructure of most data
acquisition networks can also be targeted
Internet of Things(CE413) 6

7. Physical Damage
• In this attacker model, active attackers usually lack technical
knowledge, and can only hinder the provisioning of IoT services by
destroying the actual ‘things’.
• This is a realistic attack in the IoT context, because things might
be easily accessible to anyone.
Internet of Things(CE413) 7

8. Eavesdropping
• Passive attackers can target various communication channels in
order to extract data from the information flow.
• An internal attacker that gains access to a particular
infrastructure will be able to extract the information that circulates
within that infrastructure.
Internet of Things(CE413) 8

9. Node Capture
• Instead of destroying ''Things'', an active attacker can try to extract
the information they contain.
• 'Instead of things, active attackers can also target other
infrastructures that store information, such as data processing or
data storage entities.
Internet of Things(CE413) 9

10. Controlling
• As long as there is an attack path, active attackers can try to gain
partial or full control over an IoT entity.
Internet of Things(CE413) 10

11. Authentication & Authorization
• Problem: Without authentication, it will not be possible to assure
that the data flow produced by a certain entity contains what it is
supposed to contain Without authorization (access control),
everything will be accessed by everyone, which is neither viable nor
realistic
• Solution: Device ID Certificates issued to each device at the point of
manufacturing to establish identity
• We need cryptographic add-ons to Deluge such algorithms spend
large amount of resources (energy and bandwidth) both at the
source and the destination
Internet of Things(CE413) 11

12. Communication
• Problem: As messages are communicated,
Messages and data could be intercepted, captured, or manipulated
while in transit
• Solution: Data in the cloud and IoT environment should be encrypted to
prevent interception and to maintain data confidentiality
• Assigning a unique identification key and certificate to each device...
• Most secure communication protocols (e.g. TLS or DTLS)
Internet of Things(CE413) 12

13. Data Integrity
• Problem: Devices spend most of the time unattended
• Data can be modified by adversaries while it is stored in the node or
when it traverses the network
• Data integrity is usually ensured by protecting data with passwords
• Solution: Need to guarantee that an adversary cannot modify data
in the transaction without the system detecting the change.
• Protect messages according to the Keyed-Hash Message
Authentication Code (HMAC) scheme
Internet of Things(CE413) 13

14. Protocol & Network Security
• Problem: Constrained devices will interact with various
heterogeneous devices either directly or through gateways
• Need to adapt or create lightweight security protocols that offer an
end-to-end secure communication channel
• Solution: These protocols require credentials
• Optimal key management systems must be implemented to
distribute these credentials to help in establishing the necessary
session keys between peers
Internet of Things(CE413) 14

15. Thank You…
Internet of Things(CE413) 15
