This presentation summarizes Amazon Redshift data warehouse service, its architecture and best practices for application development using Amazon Redshift.

1. Introduction to
Amazon Redshift
May, 2014
/Abdullah Cetin CAVDAR @accavdar

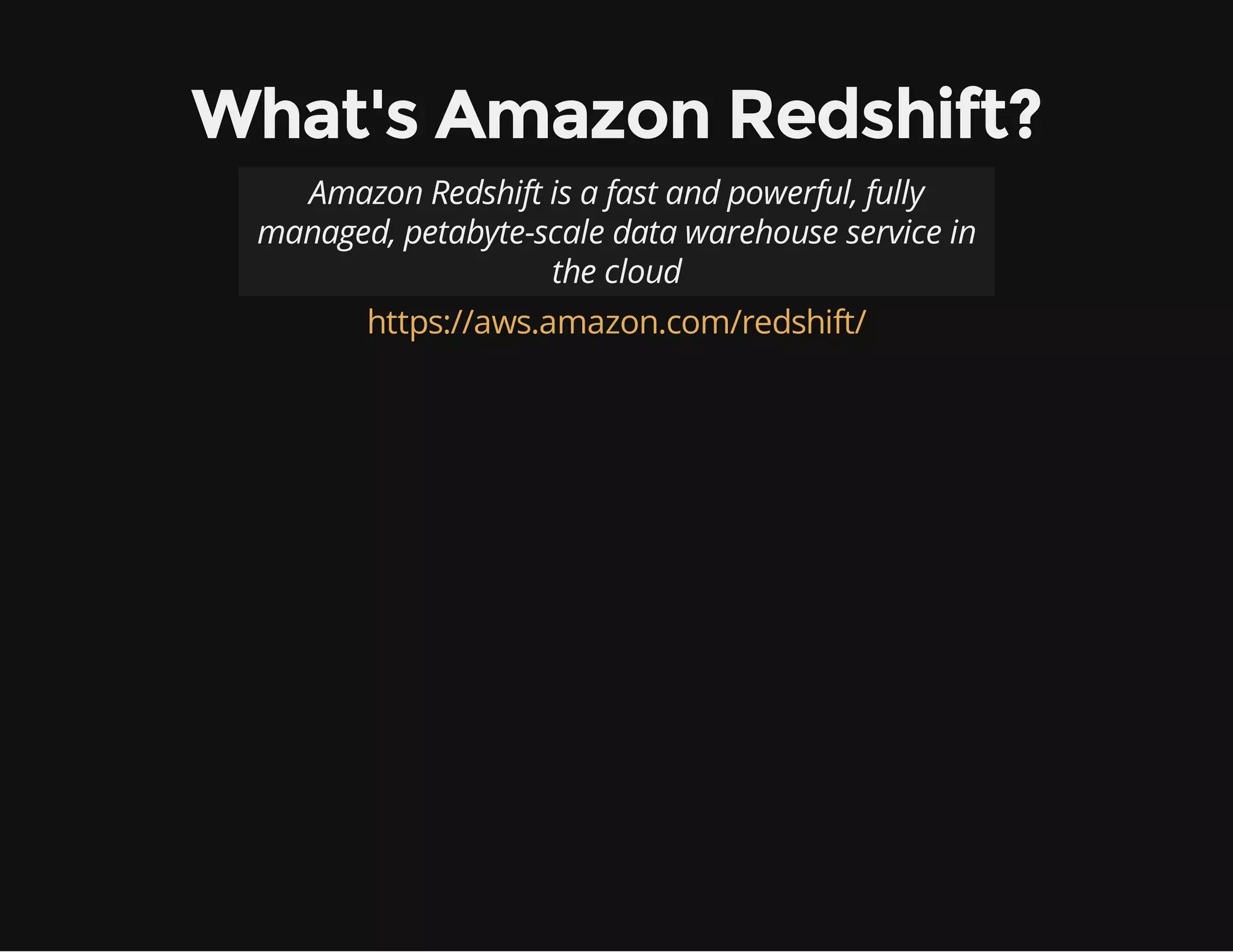

2. What's Amazon Redshift?
Amazon Redshift is a fast and powerful, fully
managed, petabyte-scale data warehouse service in
the cloud
https://aws.amazon.com/redshift/

3. Features
Petabyte scale, massively parallel
Relational data warehouse
Fully managed, zero admin
SSD and HDD platforms
$999/TB/Year

4. Architecture

5. Client Applications
Integrates with various data loading and ETL (Extract, Transform, and
Load) tools and business intelligence (BI) reporting, data mining, and
analytics tools
Redshift is based on industry-standard PostgreSQL, so most existing
SQL client applications will work with only minimal changes

6. Connections
Redshift communicates with client applications by using industry-
standard PostgreSQL JDBC and ODBC drivers

7. Clusters
A cluster is composed of one or more compute nodes
Leader Node coordinates the compute nodes and handles external
communication

8. Leader Node
Manage communications with client programs and communications
with compute nodes
Store metadata
Coordinate query execution

9. Compute Nodes
Execute the compiled code, send intermediate results back to the
leader node for final aggregation
It has own dedicated CPU, memory, and attached disk storage, which
are determined by the node type

10. Databases
A cluster contains one or more databases
User data is stored on the compute nodes
Amazon Redshift is a Relational Database Management System
(RDBMS)
Amazon Redshift is optimized for high-performance analysis and
reporting of very large datasets
Amazon Redshift is based on PostgreSQL

11. Redshift reduces I/O
Column storage - read data you need
Data compression - analyzes and compress your data
Zone Map
Keep track of minimum and maximum value for each block
Skip over blocks that don't contain data needed for a given query
Minimize unnecessary I/O
Direct attached storage
Hardware optimized for high performance data processing
Large data block sizes
Large block sizes to make the most of each read

12. Redshift runs on optimized
hardware
Optimized for I/O intensive workloads
High disk density
Runs in HPC - fast network

13. Redshift parallelizes and
distributes everything
Query
Load
Backup/Restore
Resize

14. Redshift is easy to use
Provision in minutes
Monitor query performance
Point and click resize
Built in security
Automatic backups

15. Redshift has security built-in
SSL to secure data in transit
Encryption to secure data at rest
AES 256 - hardware accelerated
All blocks on disk and in Amazon S3 encrypted
No direct access to compute nodes
Amazon VPC support

16. Redshift backs up your data
and recovers from failures
Replication within the cluster and backup to Amazon S3
Backup to Amazon S3 are continuous, automatic and incremental
Continuous monitoring and automated recovery from failures
Able to restore snapshots to any Availability Zone

17. Use Cases

18. Traditional Enterprise DW
Reduce costs by extending DW rather than adding HW
Migrate completely from existing DW systems
Respond faster to business

19. Companies with Big Data
Improve performance by an order of magnitude
Make more data available for analysis
Access business data via standard reporting tools

20. SaaS Companies
Add analytic functionality to applications
Scale DW capacity as demand grows
Reduce HW and SW costs by an order of magnitude

21. Use Caseskillpages

22. Data Architecture

23. Redshift Implementation
High Storage Extra Large (XL) DW Node
ETL Activities
Approx. 90 minutes including exports from RDBMS, copying to S3,
loading stage tables, loading target tables, vacuuming and
analysing tables
Schema
Compression
Retention

24. DW Anatomy

25. Why Redshift works for
SkillPages?
Scale - MPP
Performance - Columnar data access and compression
Platform Integration - S3, Dynamo
Operational Advantages
Ease of Access
Cost

26. Best Practices
Avoid large number of singleton Data Manipulation Language (DML)
statements if possible
Use COPY for uploading large datasets
Choose SORT and DISTRIBUTION keys with care
Encode data and time with TIMESTAMP data type
Experiment with WLM (Workload Manager) settings

27. Slides
https://github.com/accavdar/AmazonRedshift

28. THE END
by Abdullah Cetin CAVDAR / @accavdar
