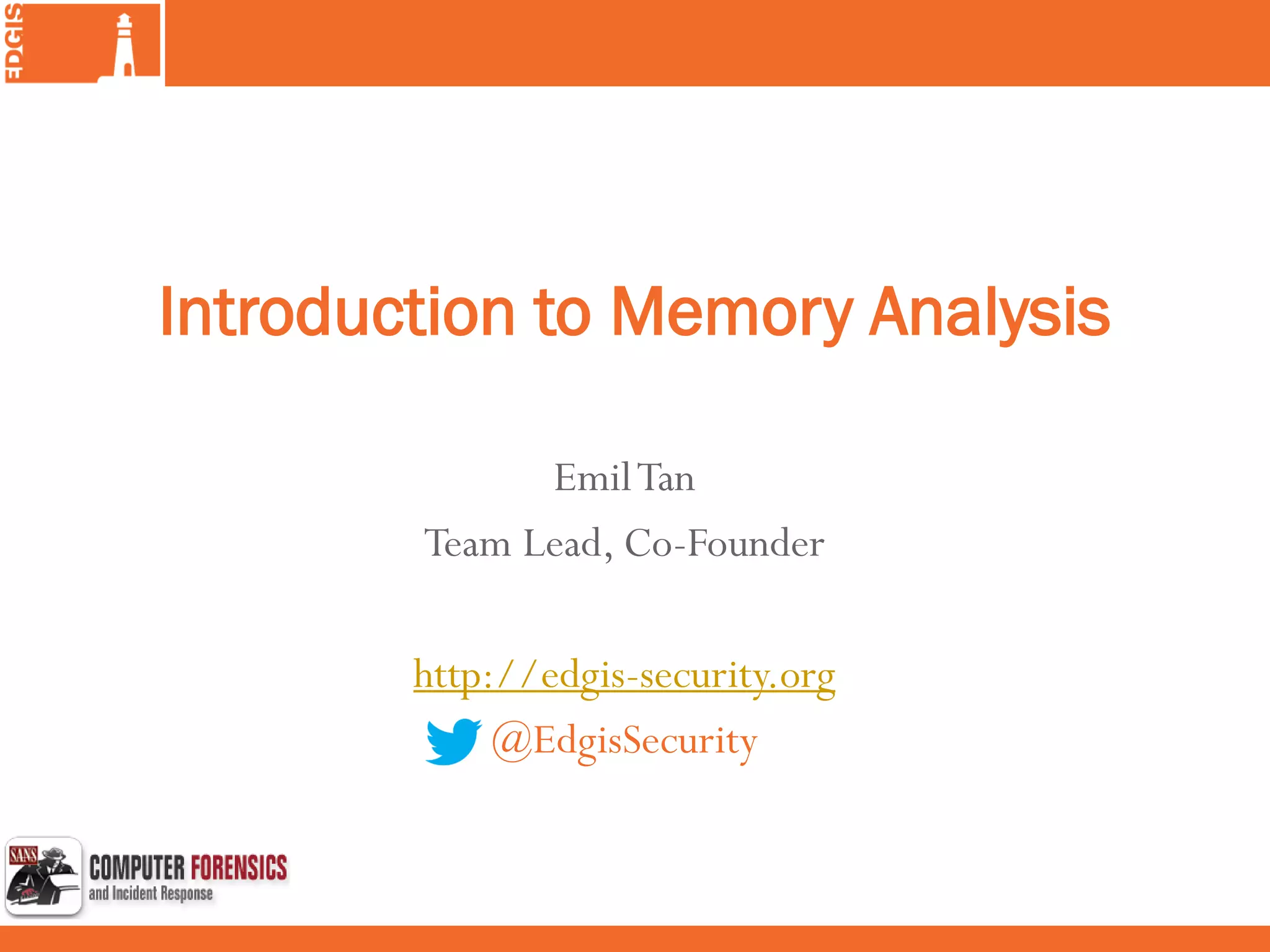

Edgis Sharing Session – Introduction to Memory Analysis at Whitehat Society, Singapore Management University September, 2012

1. EmilTan
Team Lead, Co-Founder
http://edgis-security.org
@EdgisSecurity
Introduction to Memory Analysis

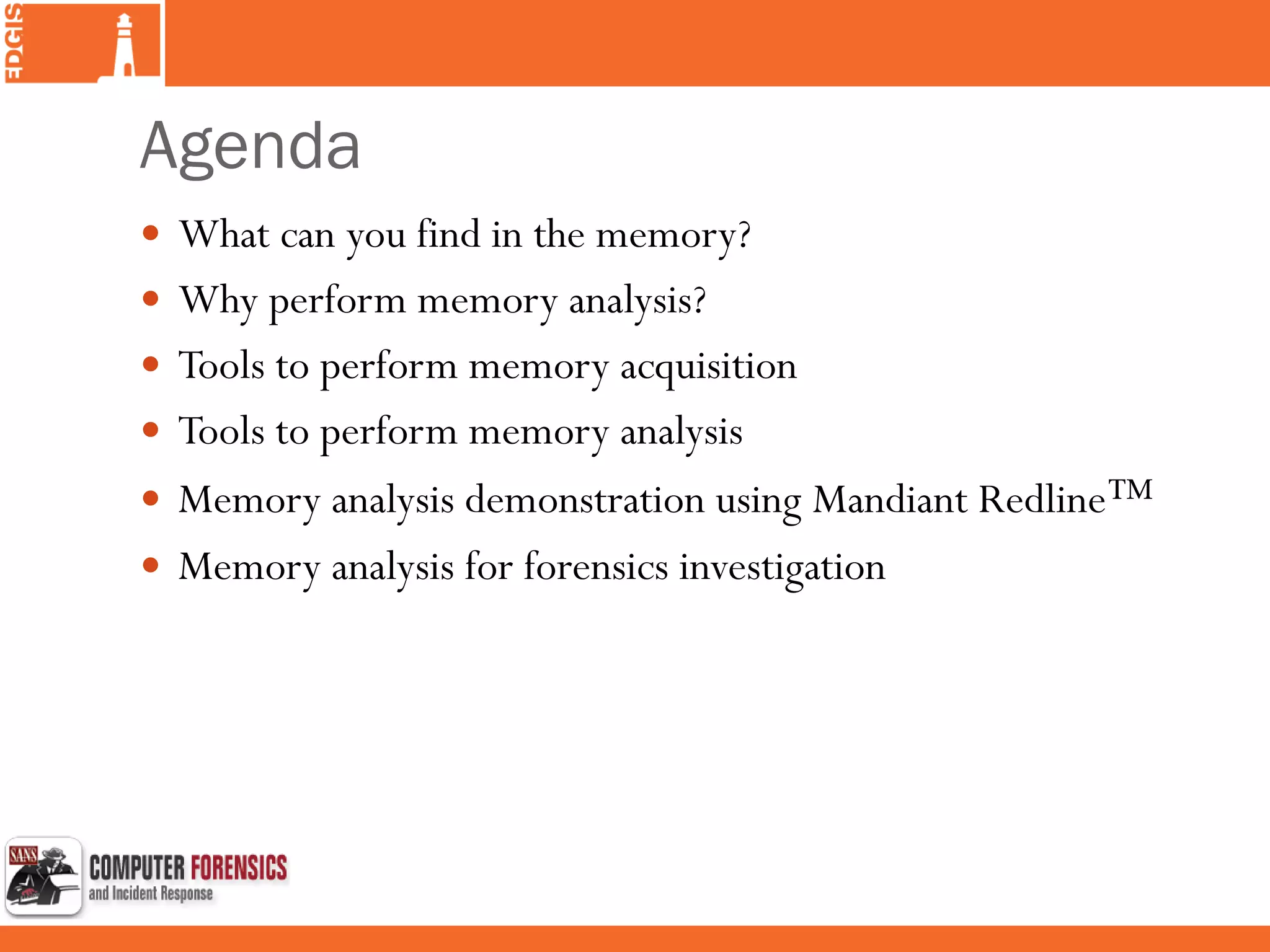

2. Agenda
 What can you find in the memory?
 Why perform memory analysis?
 Tools to perform memory acquisition
 Tools to perform memory analysis
 Memory analysis demonstration using Mandiant Redline™
 Memory analysis for forensics investigation

3. What can you find in the memory?
 The state of the machine
 Processes and threads (including hidden processes)
 Network connections (sockets, IP addresses, domain names, ports)
 Hardware and software configuration
 Event logs
 Windows registry keys
 And many more
 Encryption keys, passwords, caches, clipboards, etc.
 It’s a rich data source!
Referenced:
SANS FOR 508:Advanced Computer Forensics Analysis & Incident Response
Content FOR 508.2: Incident Response & Memory Analysis – Slide 6

4. Why perform memory analysis?
 It’s a rich data source
 Understand the state of the machine
 Behavioural analysis of users, attackers, processes
 Best place to look for traces of malicious activity
 Find malware (including rootkit!)
 Difficult to clean trace on memory
 Malware needs to be unpacked to be executed
 Data not found in hard disk (e.g. memory-only malware,
network activities)
Referenced:
SANS FOR 508:Advanced Computer Forensics Analysis & Incident Response
Content FOR 508.2: Incident Response & Memory Analysis – Slide 7

5. Tools to perform memory acquisition
 MoonSols DumpIt (Windows x86 and x64)
 MoonSolsWindows MemoryToolkit
 Mandiant Redline™
 Virtual Machines (Snapshots / Save states)
 VMware (.vmem)
 Microsoft Hyper-V (.bin)
 Parallels (.mem)
 VirtualBox (.sav)... Not quite.
Referenced:
SANS FOR 508:Advanced Computer Forensics Analysis & Incident Response
Content FOR 508.2: Incident Response & Memory Analysis – Slide 14, 17

6. Tools to perform malware analysis
 String searching (e.g. grep)
 But you can’t inspect memory based on memory structure
 Mandiant Redline™
 Mandiant Memoryze™
 Volatility
 Internet Evidence Finder (IEF)
 F-Response
 HBGary Responder
 Volafox
 Second Look®
Referenced:
SANS FOR 508:Advanced Computer Forensics Analysis & Incident Response
Content FOR 508.2: Incident Response & Memory Analysis – Slide 22 – 25

7. Processes
 Unidentifiable Processes andThreads
 File path
 Parent process
 Parameters / arguments
 SID
 Start time
 Malware Rating Index
 Looking into: Process Objects
 DLLs
 Handles
 Threads
 Memory Sections
 Sockets Referenced:
SANS FOR 508:Advanced Computer Forensics Analysis & Incident Response
Content FOR 508.2: Incident Response & Memory Analysis – Slide 49, 51

11. Network Connections
 Sockets
 IP addresses
 Ports
 Processes
Referenced:
SANS FOR 508:Advanced Computer Forensics Analysis & Incident Response
Content FOR 508.2: Incident Response & Memory Analysis – Slide 72

13. Code injection
 Code injection is evil!
 DLL Injection
 Process hollowing
Referenced:
SANS FOR 508:Advanced Computer Forensics Analysis & Incident Response
Content FOR 508.2: Incident Response & Memory Analysis – Slide 74

15. Further analysis
 Process and Drivers acquisition
 Scanning engines
 Analysis sandboxes
 Static and dynamic malware analysis
Referenced:
SANS FOR 508:Advanced Computer Forensics Analysis & Incident Response
Content FOR 508.2: Incident Response & Memory Analysis – Slide 102

16. Indicators of Compromise
 Experience
 OpenIOC
 Create signatures

17. Memory analysis for forensics investigation
 Memory acquisition may change the state of evidence, but...
 Memory is a rich data source!
 Hash acquired memory file during initial acquisition
Acquire all kind of evidence even if you do not have
the capabilities now.

18. References
 Don’t Pull the Plug:Windows Memory Analysis & Forensics by Rob Lee
 FOR 508 – Advanced Computer Forensics Analysis & Incident Response
 508.2 MemoryAnalysis for Incident Response
by Rob Lee & ChadTilbury
 3 Phases of Malware Analysis by Lenny Zeltser

19. SANS Digital Forensics & Incident Response Curriculum

20. More Resources
 SANS Computer Forensics
http://computer-forensics.sans.org/
 SANS Memory Forensics Cheat Sheet v1.0
(Pocket Reference Guide)
