IBM MessageSight is a messaging gateway appliance that provides secure and scalable connectivity between Internet of Things devices, mobile applications, and enterprise systems. It supports open standards like MQTT and exploits hardware acceleration to handle large volumes of messages and connections. IBM MessageSight can integrate with existing messaging infrastructure and platforms or be deployed independently. It is optimized for low-latency and reliable communication with constrained or intermittent devices.

1. © 2014 IBM Corporation

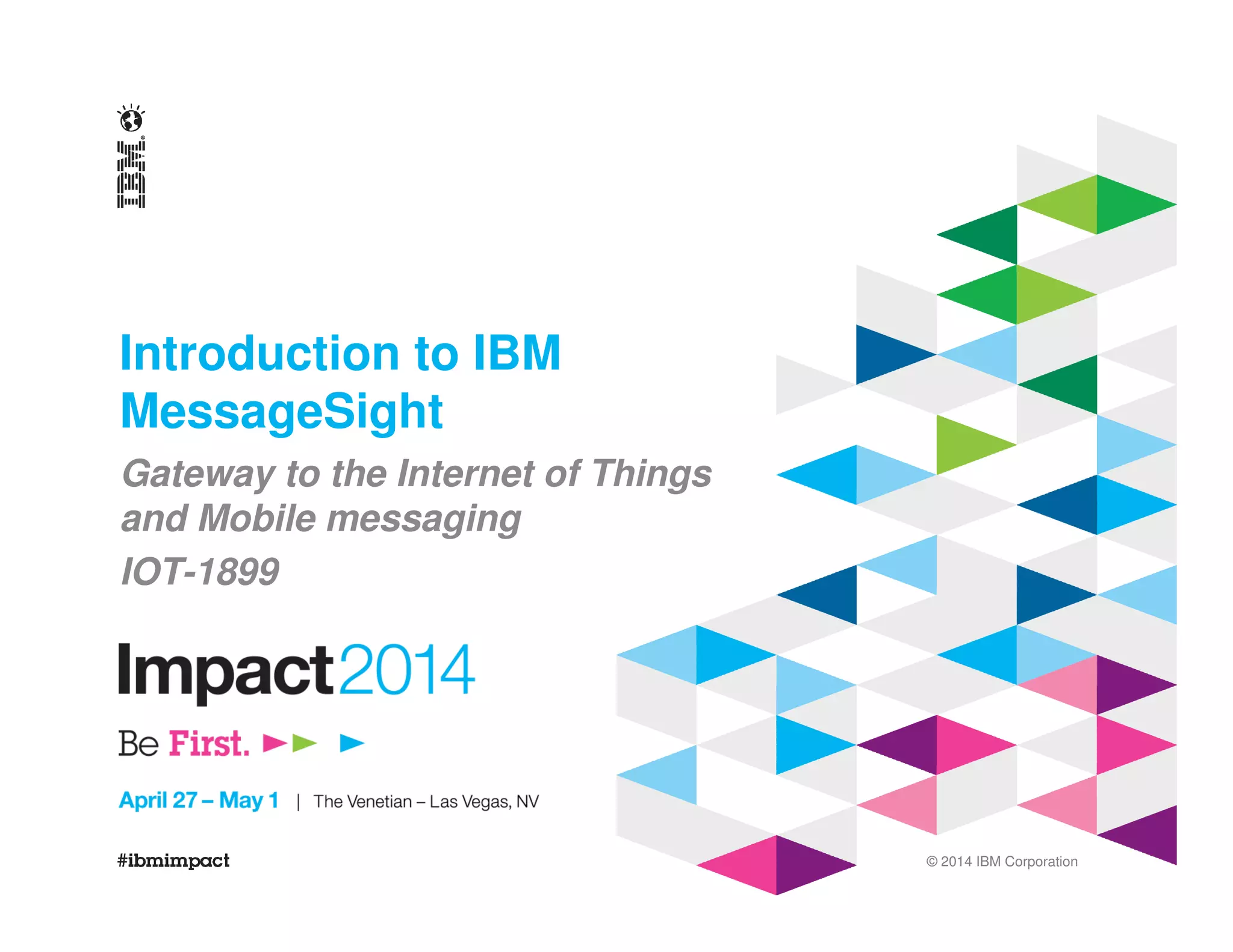

Introduction to IBM
MessageSight
Gateway to the Internet of Things
and Mobile messaging
IOT-1899

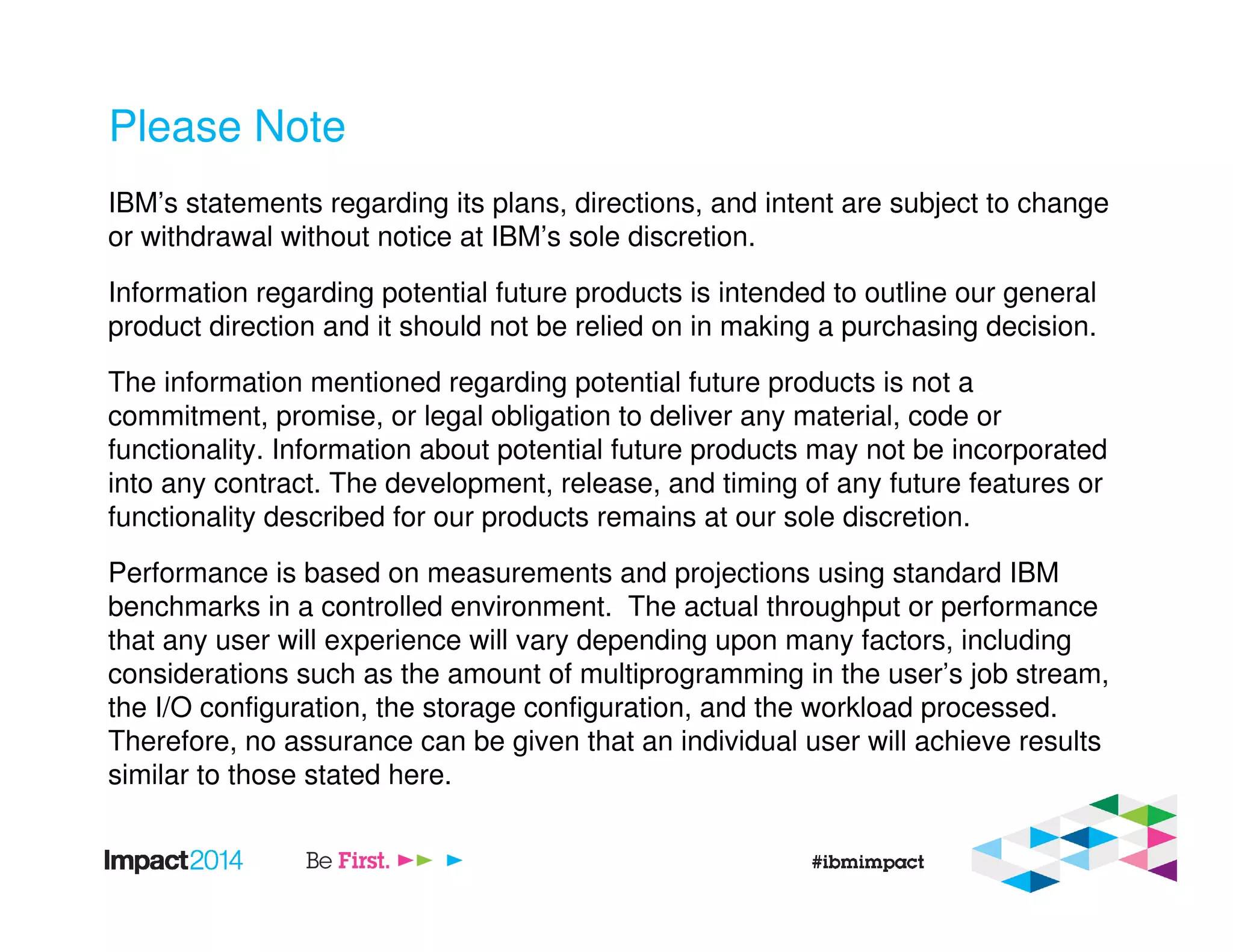

2. Please Note
IBM’s statements regarding its plans, directions, and intent are subject to change
or withdrawal without notice at IBM’s sole discretion.
Information regarding potential future products is intended to outline our general
product direction and it should not be relied on in making a purchasing decision.
The information mentioned regarding potential future products is not a
commitment, promise, or legal obligation to deliver any material, code or
functionality. Information about potential future products may not be incorporated
into any contract. The development, release, and timing of any future features or
functionality described for our products remains at our sole discretion.
Performance is based on measurements and projections using standard IBM
benchmarks in a controlled environment. The actual throughput or performance
that any user will experience will vary depending upon many factors, including
considerations such as the amount of multiprogramming in the user’s job stream,
the I/O configuration, the storage configuration, and the workload processed.
Therefore, no assurance can be given that an individual user will achieve results
similar to those stated here.

3. IBM Messaging – Market segments
Deliver Messaging Backbone for Enterprise
Focus on traditional MQ values, rock-solid enterprise-class
service, ease-of-operation, breadth of platform coverage,
availability, z/OS exploitation
Capture Big Data from Mobile and Internet of Things
Focus on Internet-scale events, m2m device enablement,
zero-admin, security and privacy, feed into real-time
analytics, location-based notifications
Enable Developers to build more scalable, responsive
applications
Focus on new app dev use cases, breadth of languages, ease-of-
deployment, lightweight services, integration with developer
frameworks

4. 50Bn Connected Devices by 2020
4Q 2013, Dept store
drives 32% of sales online1.8Bn New Smartphones in 2013
Tablets outnumbered PC
sales in 4Q 2013
The world is changing…

5. Devices & Mobiles will be the touch points that drive new revenue streams
New Customer Interaction Points for the 21st Century

6. Smart Scales:
Track health in
outpatients
Connected car:
Tracks location, status of
car parts
Mobile:
Mobile payments
Heating and Air
Conditioning:
Maximum efficiency using
weather predictions and
remote control
Building Security:
Facial recognition, remote
notification
Smart Deliveries:
Track parcel
Monitor and open garage
door remotely on arrival
Smart Meter:
Track and
control usage
Vending Machine:
Stock reporting,
temperature, shelf life
HealthCare:
Monitor patients at
home
Container Tracking:
End to end tracking,
prevent tampering
The Internet of Things is everywhere…

7. Mobile Is Changing Interactions Across Industries
Mobile banking
transactions grew at
138% CAGR
from 0.3B in 2008
to 9.4B in 2012
25% of all
online search for
travel comes from
a mobile device
1/3 of citizens
access the U.S.
federal government
website by logging in
from phones or tablets

8. And Ultimately Changing How Individuals Are Getting
Things Done
62% use
devices for work
related email
47% use
devices to read
and write docs
41% use
devices to access
work related apps

9. Connecting the Enterprise to the Internet of Things and Mobile
• Purpose-built messaging appliance
• Secure, Easy to deploy, Simple to manage
• Developer-friendly support for JavaScript APIs, WebSockets,
Android, and iOS
• Optimized for wireless communications and massive scale
Internet of Things and Mobile at edge of enterprise
Introducing IBM MessageSight

10. Use cases

11. Business Challenge: Optimize utilization of service resources and
and reduce mean-time-to-repair though real-time predictive failure
analysis and service logistics pre-staging
Data Sources
Engine Control Module
In-dash Head Unit
via Wireless Networks
Real-time Logistics
Optimization
(Parts & Skilled Labor)
Real-time
Analytics
Operational
Decision
Management
IBM MessageSight gives you the ability to securely and reliably integrate
millions of vehicles into a centralized large-scale monitoring and control
infrastructure while minimizing data and operational costs as well as server
build out.
Automotive Use Case
Service Revenue Optimization

12. Business Challenge: Tap new revenue streams of value-add vehicle
services based on secure and reliable mobile integration with the vehicle
Data Sources/Destinations
Mobile Users & Vehicles
Decision
Management
System
“I forgot to lock my car!”
“It’s starting to rain, roll up my car windows!”
“Start my car a/c before I leave work”
IBM MessageSight provides secure and reliable connectivity between mobile apps
with vehicles on a large scale in a cost effective manner.
Reliability is critical in consumer-centric applications where trust, safety and
value-add protection are keys to customer satisfaction and revenue opportunity.
Automotive Use Case
Value-add Mobile Services

13. Business Challenges: Improve energy awareness and use in the home.
Improve ability of the grid to respond without more infrastructure and
powerlines
Smart Meters
Solar Panels
Appliances
Electric Car
Decision
Management
Business Process
Management
Data
Integration
Homeowner
Energy and Utilities Use Cases
Smarter Home, Smart Grid
Power Grid
Monitor
Utilization
Data
Usage Data
Change
demand

14. Business Challenge: Allow at-risk patients to continue to live at home in
familiar surroundings, decreasing care costs while maintaining
situational responsiveness of caregivers
Heating System Sensors
IBM MessageSight provides secure and reliable connectivity between, sensors,
mobile apps with vehicles on a large scale. Security and reliability are critical in
healthcare applications where trust, safety and piece of mind are keys to
customer satisfaction and revenue.
Heart/Vital Signs Monitors
Basement Water Sensors
At-Risk Patient Community
Homes Monitored by Sensors
Patient Management
Application
Emergency Services Relatives/Caregivers
HealthCare Use Case
In-home Patient Monitoring

15. Business Challenge: Provide secure and reliable “Push” delivery of
confidential data in real time directly to the handset without having to
send that data through insecure and/or costly 3rd-party services
IBM MessageSight provides secure and reliable bi-directional interactivity for
mobile apps on a large scale. Backend applications no longer have to wait be
“polled” by clients and can proactively engage customers for smarter results
in real time.
Mobile Banking
Customer Handsets
Mobile Banking
Application Server
1) Banking Server
triggered to notify
customer with
confidential data
2) If handset is online and app is
running, data is delivered
immediately, reliably, and
securely
3) If app not online, send wake up
to WorkLight (containing no
confidential data)
3rd-party Native
Notification Service
(eg APNS)
5) Wake up app
6) App wakes and gets
data direct from
MessageSight
4) WorkLight sends
to native
notification WorkLight
Financial Services Use Case
Mobile Banking

16. Business Challenge: Allow your customer to engage with your company
securely, and seamlessly through private Instant Messaging across
different platforms
IBM MessageSight provides secure and reliable bi-directional interactivity for
mobile apps and for HTML5 web applications on a large scale.
Mobile Customer
Using Branded App
Messaging
Application
Controller
Secure Customer Instant Messaging
Cross Industry
Customer
On Web site

17. The Appliance in detail…

18. • Extends IBM Messaging family with secure,
easy to deploy appliance-based messaging
gateway
• Optimized for massive scale Internet of Things
and Mobile use cases at edge of enterprise
• Exploits hardware acceleration for high
performance
• Can extend existing messaging infrastructure
or be used standalone
Designed for
Things
Developer
Friendly
Scale For
the Internet
Of Things
And Mobile
Easy to
Integrate
Secure
And
Easy to
Deploy
IBM MessageSight V1.1
IBM MessageSight V1.1

19. Open Royalty Free Specifications being standardized by
OASIS under Paho
• Sponsors: Cisco, Blackberry, Kaazing, Red Hat, VMware,
IBM, etc.
Efficient two-way messaging protocol designed for
constrained devices, low-bandwidth, unreliable
networks
Three qualities of service:
0 – at most once delivery
1 – assured delivery but may be duplicated
2 – once and once only delivery
Built-in constructs to support loss of contact between
client and server.
“Last will and testament” to publish a message if the client goes offline
“durable” subscriptions
Retain messages for fast access to last data
Designed for
Things
M2M and Mobile
IBM MessageSight
Optimized for Wireless with MQTT

20. Action HTTP MQTT
Get single piece of data 302 bytes 69 bytes (<4 times)
Send single piece of data 320 bytes 47 bytes (<6 times)
Get 100 pieces of data 12600 bytes 2445 bytes (<5 times)
Send 100 pieces of data 14100 bytes 2126 bytes (<6 times)
Characteristics HTTP MQTT
Style Document-centric, request/response Data-centric, publish/subscribe
Verbs GET/POST/POST/DELETE, complex spec Pub/Sub/Unsub, simple protocol, easy to
learn
Message size Large message, lots of data in headers 2 bytes in minimum header
Quality of Service None, requires custom coding in application 3 levels – best-effort, at-least-once, exactly
once
Data distribution No distribution mechanism (1-to-1 only) Fully supported. 1-to-none, 1-to-1, 1-to-n.
MQTT: Optimized for Wireless
Optimizing network with event-driven notification

21. Secure
And
Easy to
Deploy
IBM MessageSight
Secure and Easy to Deploy

22. Built-in dashboard with common metrics on the Web UI
Various built-in queries available through Web UI and
CLI
Ability to publish Monitoring/Metrics data to an
administrative topic
Topic subtree: “$SYS/ResourceStatistics”
This enables simplified and more flexible integration with
existing monitoring tools / applications as well as the ability
to build custom monitoring apps / dashboards
Secure
And
Easy to
Deploy
IBM MessageSight
Simple to Manage

23. Developer-friendly APIs and libraries
MQTT 3.1 clients and libraries for a variety of platforms (C and
Java- Based APIs)
Clients for Google Android and Apple iOS
JavaScript API for HTML5-based applications using Websockets
PhoneGap MQTT plug-ins with JavaScript API for use with IBM
Worklight, Apache Cordova, and Adobe PhoneGap
JMS 1.1 client libraries
JEE/JCA Support
Extended to support Shared Subscriptions
“MessageSight for developers” Virtual machine
Makes it easy to develop applications
Developer
Friendly
IBM MessageSight
Developer Friendly

24. function connect(form) {
try {
client = new Messaging.Client(hostName, port, clientId);
} catch (exception) {
alert("Exception:"+exception);
}
client.onMessageArrived = onMessageArrived;
client.onConnectionLost = connectionLostCallback;
client.connect({onSuccess: onSuccessCallback});
}
Connect to
the server
Create client
Set callbacks
function doSend(form) {
if (form.textMessage.value == "") {
message = new Messaging.Message("");
} else {
message = new Messaging.Message(form.textMessage.value);
}
message.destinationName = form.topicName.value;
client.send(message);
}
Send the
message
Create Message
object
Set Topic
function onMessageArrived(message) {
var form = document.getElementById("basic");
form.receivedMessage.value = message.payloadString;
}
Show the payload
in a field
Connect
Publish
function subscribe(form) {
client.subscribe(form.subscribeTopicName.value);
}
Subscribe to
A topic
Subscribe
Receive
24
IBM MessageSight
JavaScript API example

25. Integration with application servers using Java Connector
Architecture (JCA)
• Integration with Message Driven Beans (MDBS)
• Shared Subscription for scalability
• Support for TLS/SSL security
• Local and XA transaction support
• HA-aware
Built-in Connectivity with WebSphere MQ
• One appliance can connect to multiple WebSphere MQ queue
managers
IBM Integration Bus support
• Through the JMS nodes/out of box patterns
IBM Worklight
• Through a Worklight Application Component
IBM InfoSphere Streams
• MQTT Operator to consume data from MessageSight
Single Sign-on support with LTPA
Ability to get notified when subscribers are disconnected
• Allows to use alternate communications mechanism to reach
them
Easy to
Integrate
IBM MessageSight
Easy to Integrate

26. IBM MessageSight
Appliance Connectivity Summary
MessageSight [Primary]
MessageSight [Standby]
Mobile
Andriod
Mobile
iOS
Mobile
Tablet
MQTT
MQTT
MQTT over
websockets
MQTT over
websockets
MQTT
MQTT
MQTT
DMZ
Sensor
(Embedded C)
Sensor
Sensor
JEE Server
(WAS)
JEE Server
(WAS)
Resource
Adapter
JMS Java
Application
MQTT
MQ
C
Application
IBM MQ
System Admin
Browser
Internet Intranet

27. Exploits hardware acceleration for high performance
One appliance can handle
• 1M Concurrent Connections
– For instance, one appliance can handle all the cars
circulating in Manhattan in a day
• 15M non-persistent msg/sec
– For fan-out streaming of data
• 400K persistent msg/sec
– When assured delivery matters
• Predictable latency in the microseconds under load
– Quick response time for end user
High availability pairs through RDMA interconnections
These numbers refer to specific scenarios. For more details, please read our detailed
performance report
Scale For
the Internet
Of Things
And Mobile
IBM MessageSight
IBM MessageSight: Scale for the Internet of Things and Mobile

28. Smarter Decisions
Powerful
analytics
High speed processing of big data
IBM MessageSight
IBM InfoSphere
Streams
Smarter actionsReal-time data
Internet Scale
device connectivity
Use Case: Enabling Real-time analytics

29. Enabling Real-time analytics Demo
Applying models to predict, detect, optimize and anticipate
Sensors tracking real-
time location of cars
Primary Event
zone
Secondary
perimeter
Overview of
car status
Real-time alerts
personalized to each
car
Car that had entered and
now left danger zone

30. Customer examples

31. The Australian Open required a scoring solution to provide live
scores to millions of fans using different devices.
Live Grand Slam Tennis Scores
During this years event the team
updated their scoring solution to use
MessageSight:
Pilot was so successful that it was
ramped up to take 100% of
websockets traffic rather than the
planned 10% during the tournament
30,000 concurrent clients connected
to MessageSight
Scoreboard loaded 60% faster than
flash based original solution
Gave sub-second response
time compared with 3-5s previous
5 Power7 LPARs to 1
MessageSight Appliance footprint
reduction ratio.

32. 3. Unlock command sent to
car, door unlocks
1. Owner pushes start
button on app
2. Sprint authenticates
user
SPRINT VELOCITY℠℠℠℠
“Key-fob “ response time
&
Driver preferences in the cloud
Connected car
“Now, Sprint's newly announced
partnership with IBM will allow
connected vehicles to communicate
with other connected devices while
using far less bandwidth and
power.” says Bob Johnson, director
of connected vehicle development at
Sprint
“Based on IBM MessageSight, the
Sprint Velocity Service Bus is a new
communications architecture that lets
smartphones, tablets and other
devices communicate through the
cloud.” 1
Press Release: http://www-03.ibm.com/press/us/en/pressrelease/41441.wss
1 M2M Evolution Magazine: http://bit.ly/1dCBA7M
video
Automotive

33. European Bank finds new opportunities with MessageSight
• Using MQTT Push technology to drive personalised loans
and savings tailored for the consumer direct to their mobile
• Used MessageSight to scale to meet customer demand as
usage exceeds 50,000 users, now testing for 500,000
users
• Pushes exclusive offers at frequently used stores
–innovatively driven from banking transaction data
• Uses MQTT
–To ensure security, confidentiality and assured delivery
–For lightweight responsiveness
• Technical solution:
– Message originates in CICS
– Uses MQ for transport to MessageSight
– MessageSight then securely pushes notification to
client device using MQTT

34. Automotive: Trucks with group chat
Uses MessageSight to enable Instant
Messaging between cabs
Topics enable group chat
Saves cost, enables community
• Built into the vehicle
• Also available from mobile devices
• More advanced telematics use cases
to follow

35. Demo
35

36. Dynamic Demos
m2m.demos.ibm.com

37. Dynamic Demos
Demo: “Whiteboard”
http://m2m.demos.ibm.com/whiteboard
“Latency demo”, optimized for mobile browsers
A shared drawing canvas: all drawing actions are published on a MQTT topic, all
whiteboard clients are subscribed to this topic.

38. Dynamic Demos
Demo: “Chatter Box”
http://chatterbox.ng.bluemix.net/
Sample of chat application

39. Connecting the Enterprise to the Internet of Things and Mobile
• A low-latency, reliable and scalable messaging server – designed
specifically for M2M and Mobile scenarios
• The DMZ-ready appliance form factor provides strong security and easy
deployment
• Enables the next generation of applications with event-driven, near-real-
time communications
IBM MessageSight Summary

40. IBM MessageSight: What’s In It for IoT use cases
Orders of
Magnitude
Improvements
Extreme
Efficiency
Optimized
for Wireless
Networks
Secure,
Open,
Event
driven
• Secure communications with many options including client side
certificates
• MQTT protocol is open and being standardized.
• Clients available on 40+ platforms
• Event driven allows fast reaction when needed
• Lightweight: small headers means reduced data costs
• Very power efficient: Ideal for battery powered sensors
• Designed to handle unreliable networks
* Source: Power Profiling: HTTPS Long Polling vs. MQTT with SSL, on Android - http://stephendnicholas.com/archives/1217
• Reduces server built out by connecting huge amount of sensors in a
single chassis : >1.000.000 per chassis
• Ideal to feed data to real-time analytics

41. IBM MessageSight: What’s In It for Mobile use cases
Orders of
Magnitude
Improvements
Extreme
Efficiency
Optimized
for Wireless
Networks
Bi-
directional,
Secure,
Cross
Platform
• Bi-directional Interactivity for Mobile: Engage customers directly
without leaving your app
• Enables Mobile Instant Messaging
• Dramatically reduce reliance on costly SMS
• Deliver confidential notifications directly to the handset
• Use same technology on HTML5-based Web Sites
• More bandwidth efficient *: reduce network consumption and
cost needed to serve your customers; engage them more
rapidly
• More power efficient: Deliver value-add data services without
excess drain on handset batteries
* Source: Power Profiling: HTTPS Long Polling vs. MQTT with SSL, on Android - http://stephendnicholas.com/archives/1217
• Reduces server built out by optimizing mobile messaging in a single
chassis
• Dependable low latency: Response time consistent regardless of load
• Supports 1.000.000 per chassis: More reach with less server build out

42. IBM MessageSight: Next Steps
Development community on developerWorks
• https://www.ibmdw.net/messaging/messagesight/
MessageSight for Developers virtual machine
• Downloadable for free
• For rapid prototyping or explore functionality
Videos:
• http://www.youtube.com/user/IBMmessagingMedia
Try it
Today!

43. Questions?

44. References
Demo site: http://m2m.demos.ibm.com/
M2M Community
https://www.ibm.com/developerworks/community/blogs/c565c720-
fe84-4f63-873f-607d87787327/entry/mobile_messaging?lang=en
Download free virtual image for Development:
https://www.ibmdw.net/messaging/messagesight/
MQTT.org: http://mqtt.org/
Eclipse Paho project: http://www.eclipse.org/paho/
IBM Messaging community:
http://www.ibm.com/developerworks/connect/IBMmessaging
IBM Messaging media:
http://www.youtube.com/user/IBMmessagingMedia?feature=watch
IBM MessageSight: http://www.ibm.com/messagesight
IBM and Sprint Velocity Drive Connected Car Into The Future:
http://www.ibm.com/press/us/en/pressrelease/41441.wss

45. We Value Your Feedback
Don’t forget to submit your Impact session and speaker
feedback! Your feedback is very important to us – we use it to
continually improve the conference.
Use the Conference Mobile App or the online Agenda Builder to
quickly submit your survey
• Navigate to “Surveys” to see a view of surveys for sessions
you’ve attended
45

47. Legal Disclaimer
• © IBM Corporation 2014. All Rights Reserved.
• The information contained in this publication is provided for informational purposes only. While efforts were made to verify the completeness and accuracy of the information contained
in this publication, it is provided AS IS without warranty of any kind, express or implied. In addition, this information is based on IBM’s current product plans and strategy, which are
subject to change by IBM without notice. IBM shall not be responsible for any damages arising out of the use of, or otherwise related to, this publication or any other materials. Nothing
contained in this publication is intended to, nor shall have the effect of, creating any warranties or representations from IBM or its suppliers or licensors, or altering the terms and
conditions of the applicable license agreement governing the use of IBM software.
• References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM operates. Product release dates and/or
capabilities referenced in this presentation may change at any time at IBM’s sole discretion based on market opportunities or other factors, and are not intended to be a commitment to
future product or feature availability in any way. Nothing contained in these materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by
you will result in any specific sales, revenue growth or other results.
• If the text contains performance statistics or references to benchmarks, insert the following language; otherwise delete:
Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput or performance that any user will
experience will vary depending upon many factors, including considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage
configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve results similar to those stated here.
• If the text includes any customer examples, please confirm we have prior written approval from such customer and insert the following language; otherwise delete:
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs
and performance characteristics may vary by customer.
• Please review text for proper trademark attribution of IBM products. At first use, each product name must be the full name and include appropriate trademark symbols (e.g., IBM
Lotus® Sametime® Unyte™). Subsequent references can drop “IBM” but should include the proper branding (e.g., Lotus Sametime Gateway, or WebSphere Application Server).
Please refer to http://www.ibm.com/legal/copytrade.shtml for guidance on which trademarks require the ® or ™ symbol. Do not use abbreviations for IBM product names in your
presentation. All product names must be used as adjectives rather than nouns. Please list all of the trademarks that you use in your presentation as follows; delete any not included in
your presentation. IBM, the IBM logo, Lotus, Lotus Notes, Notes, Domino, Quickr, Sametime, WebSphere, UC2, PartnerWorld and Lotusphere are trademarks of International
Business Machines Corporation in the United States, other countries, or both. Unyte is a trademark of WebDialogs, Inc., in the United States, other countries, or both.
• If you reference Adobe® in the text, please mark the first use and include the following; otherwise delete:
Adobe, the Adobe logo, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries.
• If you reference Java™ in the text, please mark the first use and include the following; otherwise delete:
Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both.
• If you reference Microsoft® and/or Windows® in the text, please mark the first use and include the following, as applicable; otherwise delete:
Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both.
• If you reference Intel® and/or any of the following Intel products in the text, please mark the first use and include those that you use as follows; otherwise delete:
Intel, Intel Centrino, Celeron, Intel Xeon, Intel SpeedStep, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and
other countries.
• If you reference UNIX® in the text, please mark the first use and include the following; otherwise delete:
UNIX is a registered trademark of The Open Group in the United States and other countries.
• If you reference Linux® in your presentation, please mark the first use and include the following; otherwise delete:
Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of
others.
• If the text/graphics include screenshots, no actual IBM employee names may be used (even your own), if your screenshots include fictitious company names (e.g., Renovations, Zeta
Bank, Acme) please update and insert the following; otherwise delete: All references to [insert fictitious company name] refer to a fictitious company and are used for illustration
purposes only.
