Introduction to Chatbot Development for Facebook Messenger using Python
This document serves as an introduction to developing chatbots for Facebook Messenger using Python, outlining essential tools and steps required, such as setting up a virtual environment and deploying the bot on Heroku. It covers the two types of chatbots, explains the importance of webhooks, and provides code snippets for creating a simple bot that mimics user input. The document concludes by recommending additional resources for enhancing bot intelligence, like wit.ai and IBM Watson.
![[Deck] What's New in Spark-Iceberg Integration via DSV2.pptx](https://cdn.slidesharecdn.com/ss_thumbnails/deckwhatsnewinspark-icebergintegrationviadsv2-260210005337-25955b12-thumbnail.jpg?width=640&height=640&fit=bounds)
Introduction to Chatbot Development for Facebook Messenger using Python
- 1. Intro to Chatbot developmentfor Facebook Messenger using Python oleh M. Saad Nurul Ishlah Qiscus - https://goo.gl/UyM5Li
- 2. Introduction M. Saad NurulIshlah - Frontend Developer ● Ilkomerz42 ● nurul.ishlah@gmail.com | nurul.ishlah@qiscus.co ● @nurulishlah ● http://www.ishlah.co
- 3.
- 4. Quick Intro to Chatbot Two typesof Chatbot: 1. Conversational Chatbot 2. Contextual Chatbot

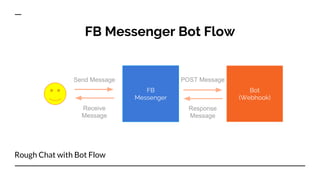

- 5. FB Messenger BotFlow FB Messenger Bot (Webhook) Send Message Receive Message POST Message Response Message Rough Chat with Bot Flow

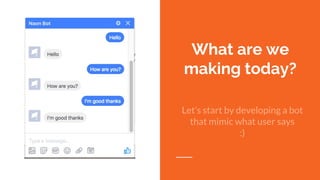

- 6. What are we makingtoday? Let’s start by developing a bot that mimic what user says :)
- 7. What do weneed? Basic Requirements - Git - Check its availability, open terminal then type “$ which git” - Otherwise, download at https://git-scm.com/ or package installer - Heroku Account - https://signup.heroku.com - Heroku Toolbelt, https://devcenter.heroku.com/articles/heroku-cli - Python, version 2.7+ - Facebook Page - https://www.facebook.com/pages/create - Facebook App - https://developers.facebook.com/

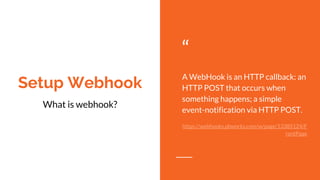

- 8. Setup Webhook “ A WebHookis an HTTP callback: an HTTP POST that occurs when something happens; a simple event-notification via HTTP POST. https://webhooks.pbworks.com/w/page/13385124/F rontPage What is webhook?
- 9. Setup Webhook We areusing Python Flask (microframework) to do this
- 10. Step 1 -Create virtualenv dir and activate it - Open your terminal - Create a new directory and go to that directory - $ mkdir bot && cd bot - Generate Virtual Environment directory - $ virtualenv venv - Activate the virtual env - $ source venv/bin/activate - (venv) $ - (venv) $ deactivate # this command is used to deactivate virtualenv

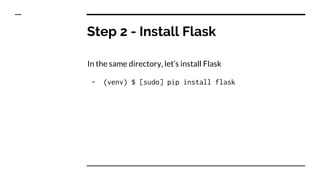

- 11. Step 2 -Install Flask In the same directory, let’s install Flask - (venv) $ [sudo] pip install flask

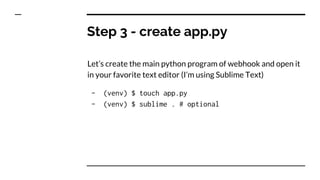

- 12. Step 3 -create app.py Let’s create the main python program of webhook and open it in your favorite text editor (I’m using Sublime Text) - (venv) $ touch app.py - (venv) $ sublime . # optional
- 13. Let’s create Flaskapp instance. In your app.py add this: - from flask import Flask, request - app = Flask(__name__) - - if __name__ == '__main__': app.run(debug=True) Step 3 (cont) - create app.py
- 14. Now, go toyour terminal again and type (venv) $ python app.py If you have something like this, it means you are good to go - * Running on http://127.0.0.1:5000/ (Press CTRL+C to quit) - * Restarting with stat - * Debugger is active! - * Debugger pin code: 156-067-590 Step 3 (cont) - create app.py
- 15. In the app.py,let’s add these lines - import os - - @app.route('/', methods=['GET']) - def verify(): - # when the endpoint is registered as a webhook, it must echo back - # the 'hub.challenge' value it receives in the query arguments - if request.args.get("hub.mode") == "subscribe" and request.args.get("hub.challenge"): - if not request.args.get("hub.verify_token") == os.environ["VERIFY_TOKEN"]: - return "Verification token mismatch", 403 - return request.args["hub.challenge"], 200 - return "Hello world", 200 Step 4 - Add verify function
- 16. - Create Procfile -$ echo “web: gunicorn app:app --log-file=-” >> Procfile - Install gunicorn - $ pip install gunicorn - Generate requirements.txt - $ pip freeze >> requirements.txt - Add “venv” to the .gitignore - $ echo “venv/” >> .gitignore Step 5 - Prepare for Deployment
- 17. - Let’s switchinto App Dashboard page, and Add Product, then choose Messenger - Then go to the Settings tab - In the Webhooks section, click Setup Webhooks. Step 4 - Subscribe to FB Messenger (cont)

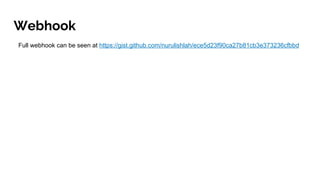

- 18. Webhook Full webhook canbe seen at https://gist.github.com/nurulishlah/ece5d23f90ca27b81cb3e373236cfbbd
- 19. Our bot isstill dumb? We need a brain! - wit.ai - api.ai - ibm watson - etc
- 20.
