This document discusses the Internet of Things and how devices connect to the cloud. It describes how devices communicate data through wireless networks and cell towers to cloud platforms. The M2M Cloud Gateway Application acts as a central point to monitor all devices, send firmware updates, and enable bi-directional communication and remote control of devices from the cloud.

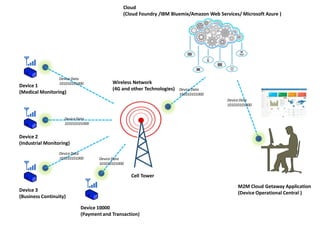

1. Internet of Things

2. Device 1
(Medical Monitoring)
Device 2
(Industrial Monitoring)
Device 3
(Business Continuity)
Device 10000
(Payment and Transaction)
Cell Tower
Wireless Network
(4G and other Technologies)
Cloud
(Cloud Foundry /IBM Bluemix/Amazon Web Services/ Microsoft Azure )
M2M Cloud Getaway Application
(Device Operational Central )
Device Data
101010101000
Device Data
101010101000
Device Data
101010101000
Device Data
101010101000 Device Data
101010101000
Device Data
101010101000

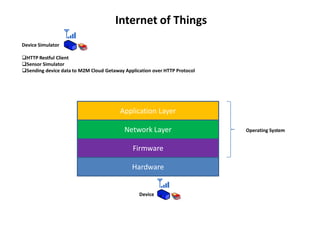

3. Device Simulator
HTTP Restful Client
Sensor Simulator
Sending device data to M2M Cloud Getaway Application over HTTP Protocol
Device
Hardware
Firmware
Network Layer
Application Layer
Operating System
Internet of Things

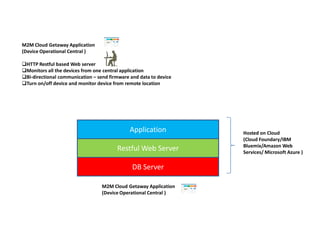

4. M2M Cloud Getaway Application
(Device Operational Central )
HTTP Restful based Web server
Monitors all the devices from one central application
Bi-directional communication – send firmware and data to device
Turn on/off device and monitor device from remote location
DB Server
Restful Web Server
Application Hosted on Cloud
(Cloud Foundary/IBM
Bluemix/Amazon Web
Services/ Microsoft Azure )
M2M Cloud Getaway Application
(Device Operational Central )

5. Thank You
