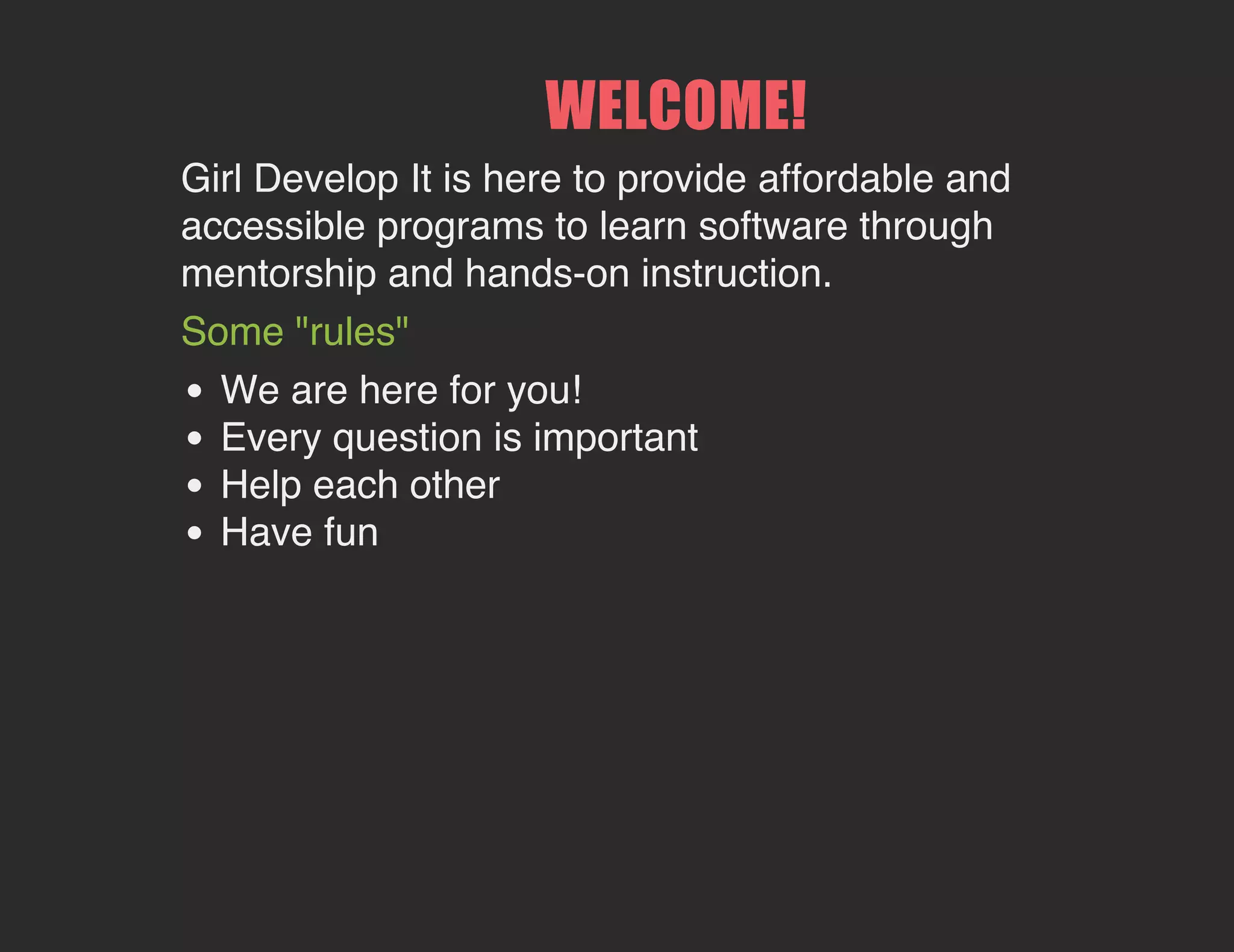

2. WELCOME!
Girl Develop It is here to provide affordable and
accessible programs to learn software through
mentorship and hands-on instruction.
Some "rules"
We are here for you!
Every question is important
Help each other
Have fun
4. MICRODATA
Micro-what?
From the W3C spec:
“Sometimes, it is desirable to annotate
content with specific machine-readable
labels...”
“Microdata allows nested groups of
namevalue pairs to be added to
documents, in parallel with the existing
content.”
Microdata Overview
10. RICH SNIPPETS
“The more information a search result
snippet can provide, the easier it is for
users to decide whether that page is
relevant to their search.”
Rich snippets
11. RICH SNIPPETS
“With rich snippets, webmasters with
sites containing structured
content...can label their content to
make it clear that each labeled piece of
text represents a certain type of data:
for example, a restaurant name, an
address, or a rating.”
Rich snippets
12. MICRODATA STRUCTURE
We will add microdata to our favorite pizza restaurant
<div>
L'Amourita Pizza
Located at 123 Main St, Albuquerque, NM.
Phone: 206-555-1234
<a href="http://pizza.com">http://pizza.com</a>
</div>
13. MICRODATA STRUCTURE
We need to define three things to add microdata to our
sites:
Itemscope attribute
Itemtype attribute
Itemprop attribute
15. MICRODATA STRUCTURE
Item scope
Sets the "scope" of what we are describing with the
microdata.
All elements nested inside the div with "itemscope" will
adhere to the vocabulary we specify with "itemtype". (i.e.
person, place, recipe)
16. MICRODATA STRUCTURE
Itemtype
<div itemscope itemtype="http://schema.org/Organization">
L'Amourita Pizza
Located at 123 Main St, Albuquerque, NM.
Phone: 206-555-1234
<a href="http://pizza.com">http://pizza.com</a>
</div>
17. MICRODATA STRUCTURE
Itemtype
Points you to the place where a microdata type is
defined
Since we're defining a business, we want to point to the
definition of an Organization
defines several type includinghttp://schema.org
Organization
18. MICRODATA STRUCTURE
Itemprop
<div itemscope itemtype ="http://schema.org/Organization">
<span itemprop ="name">L'Amourita Pizza</span>
Located at 123 Main St, Albuquerque, NM.
Phone: <span itemprop ="tel">206-555-1234</span>
<a href="http://pizza.com" itemprop ="url">http://pizza.com</a>
</div>
19. MICRODATA STRUCTURE
Itemprop
Itemprop is a property of your Item's type. The available
properties are listed on the relevant page at
For our Organization example, the available include
are: name, url, address, telephone, and location. For the
full list:
http://schema.org/docs/schemas
http://schema.org/Organization
20. MICRODATA STRUCTURE
Itemprop
Itemprop is a property of your Item's type. The available
properties are listed on the relevant page at
Here are properties of a
http://schema.org/docs/schemas
Recipe
21. NESTED MICRODATA
We have specified ALMOST everything for our
Organization, but we still don't have entries for the
address
Addresses are their own unique itemtype. So we need
to nest the address information inside a new element
with the itemtype set to Address
<div itemscope itemtype ="http://schema.org/Organization">
<span itemprop ="name">L'Amourita Pizza</span>
Located at 123 Main St, Albuquerque, NM.
Phone: <span itemprop ="tel">206-555-1234</span>
<a href="http://pizza.com" itemprop ="url">http://pizza.com</a>
</div>
23. MICRODATA RESOURCES
To make sure google sees your page the way you expect
terms of the microdata), use this tool:
Getting started guide:
Tutorial on microdata from Mark Pilgrim:
Google overview of using Microdata for an Organization:
http://www.google.com/webmasters/tools/richsnippets
http://schema.org/docs/gs.html>
http://diveintohtml5.info/extensibility.html
http://www.google.com/support/webmasters/bin/answ
answer=146861
27. MULTIMEDIA
Useful as a replacement for flash on mobile devices
Flash makes mobile devices sad :(
28. VIDEO
The Dream
The video element was created to make it unnecessary
to use plugins to display video content on your pages.
The idea is to simplify and streamline video content
delivery.
<video src="demo.mp4" type="video/mp4">
Your browser does not support the video element.
</video>
29. VIDEO
The Reality
If you want to support ALL browsers and ALL video
encodings, you will still need a plugin as a last-resort fall
back plan.
This is because not all browsers read video the same
way, and older browsers (like IE<9) don't support the
video element at all.
30. VIDEO
The Reality
<video id="movie" width="320" height="240" preload controls>
<source src="pr6.webm" type='video/webm; codecs="vp8, vorbis"' />
<source src="pr6.ogv" type='video/ogg; codecs="theora, vorbis"' />
<source src="pr6.mp4" />
<object width="320" height="240" type="application/x-shockwave-flash" data="flowplayer-3.2.1.swf">
<param name="movie" value="flowplayer-3.2.1.swf" />
<param name="allowfullscreen" value="true" />
<param name="flashvars" value='config={"clip": {"url": "http://wearehugh.com/dih5/pr6.mp4", "autoPlay":false, "autoBuffering
":true}}' />
<p>Download video as <a href="pr6.mp4">MP4</a>, <a href="pr6.webm">WebM</a>, or <a href="pr6.ogv">Ogg</a>.</p>
</object>
</video>
<script>
</script>
var v = document.getElementById("movie");
v.onclick = function() {
if (v.paused) {
v.play();
} else {
v.pause();
}
});
31. AUDIO
<audio controls>
<source src="music.mp3" type="audio/mpeg"/>
<source src="music.aac" type="audio/mp4" />
<source src="music.ogg" type="audio/ogg"/>
<!-- now include flash fall back -->
</audio>
32. MULTIMEDIA
If the dream is still far from reality, what's a dev to do?
The good news is, devs are working on it all the time
Video on the Web
Miro Video Converter
Native Audio in the Browser
35. CANVAS
The first step is to add a canvas element to your HTML.
Make sure you give it an id:
Unfortunately, everything else (all the cool stuff) is
actually in JavaScript and outside the scope of this class
<canvas id="myCanvas" width="400" height="400">
Your browser doesn’t support Canvas.
</canvas>
37. GEOLOCATION
Browsers using HTML5 can locate you through IP
addresses, WiFi connections, and GPS towers (for
mobile phones and tablets)
But all the cool interactive stuff is, once again, done in
JavaScript
You didn't expect HTML and CSS to do EVERYTHING,
did you?
Google Map
39. STORAGE
You can use HTML5 Web Storage to persist simple
data.
Two kinds of HTML5 Web Storage:
SessionStorage for per-window data
LocalStorage for global, persistent data (stored to
hard drive through the browser)
40. SESSIONSTORAGE
Ever accidentally bought two of the same kind of
ticket, because you were shopping the same site in
multiple windows/tabs?
Session Storage provides a good way to prevent this.
Session Storage is not saved to the user’s hard drive
It only lasts for the time that a browser window or tab
is open and viewing a specific site.
41. LOCALSTORAGE
With Local Storage, we can save data to the user’s
computer, via the browser.
When a user revisits a site in the same browser they
first visited in, any data saved to Local Storage can be
retrieved.
Local Storage is browser-specific: Information you
save while browsing with Firefox will NOT be available
to Safari.
