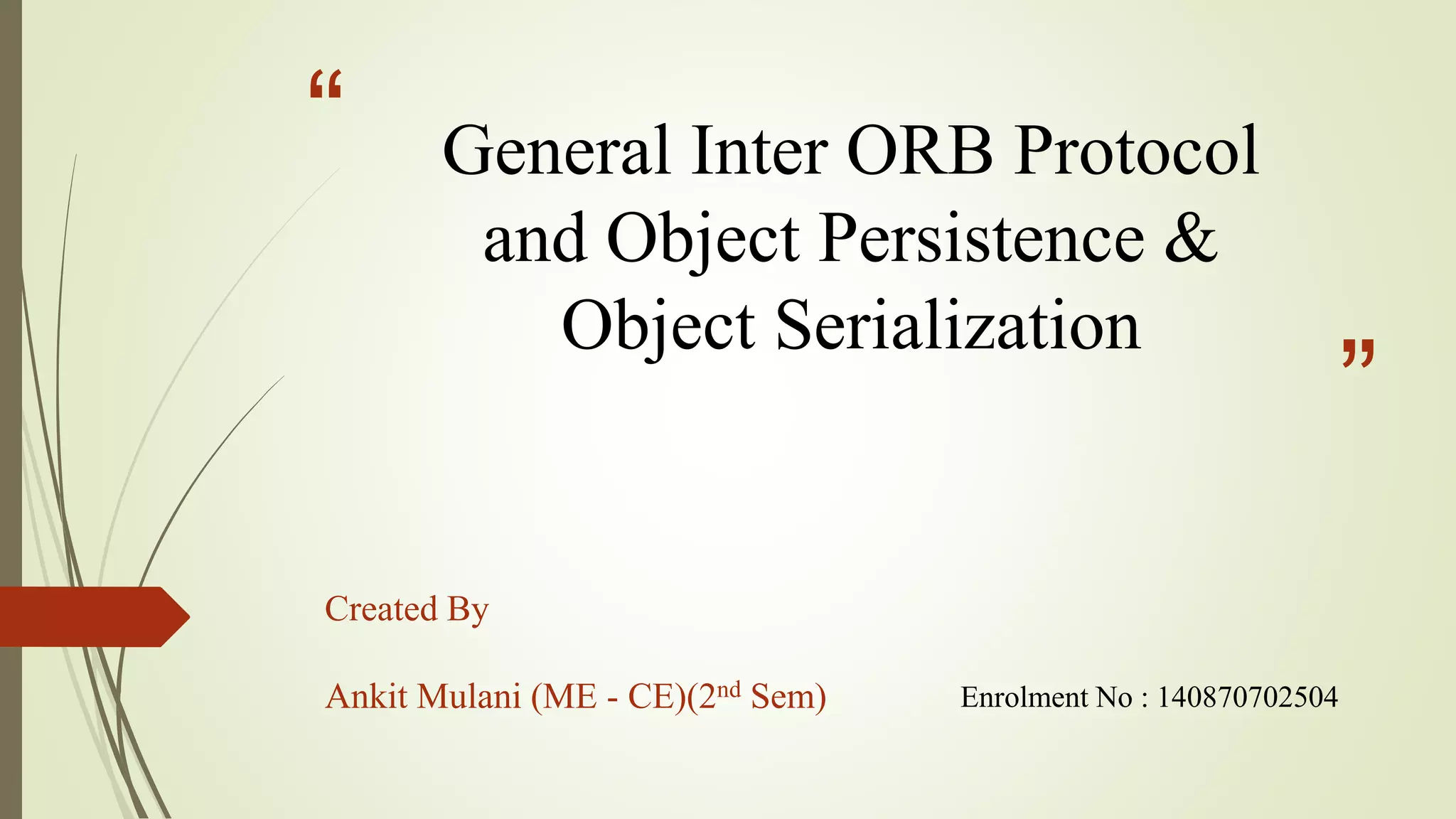

1. “
”
General Inter ORB Protocol
and Object Persistence &
Object Serialization
Created By
Ankit Mulani (ME - CE)(2nd Sem) Enrolment No : 140870702504

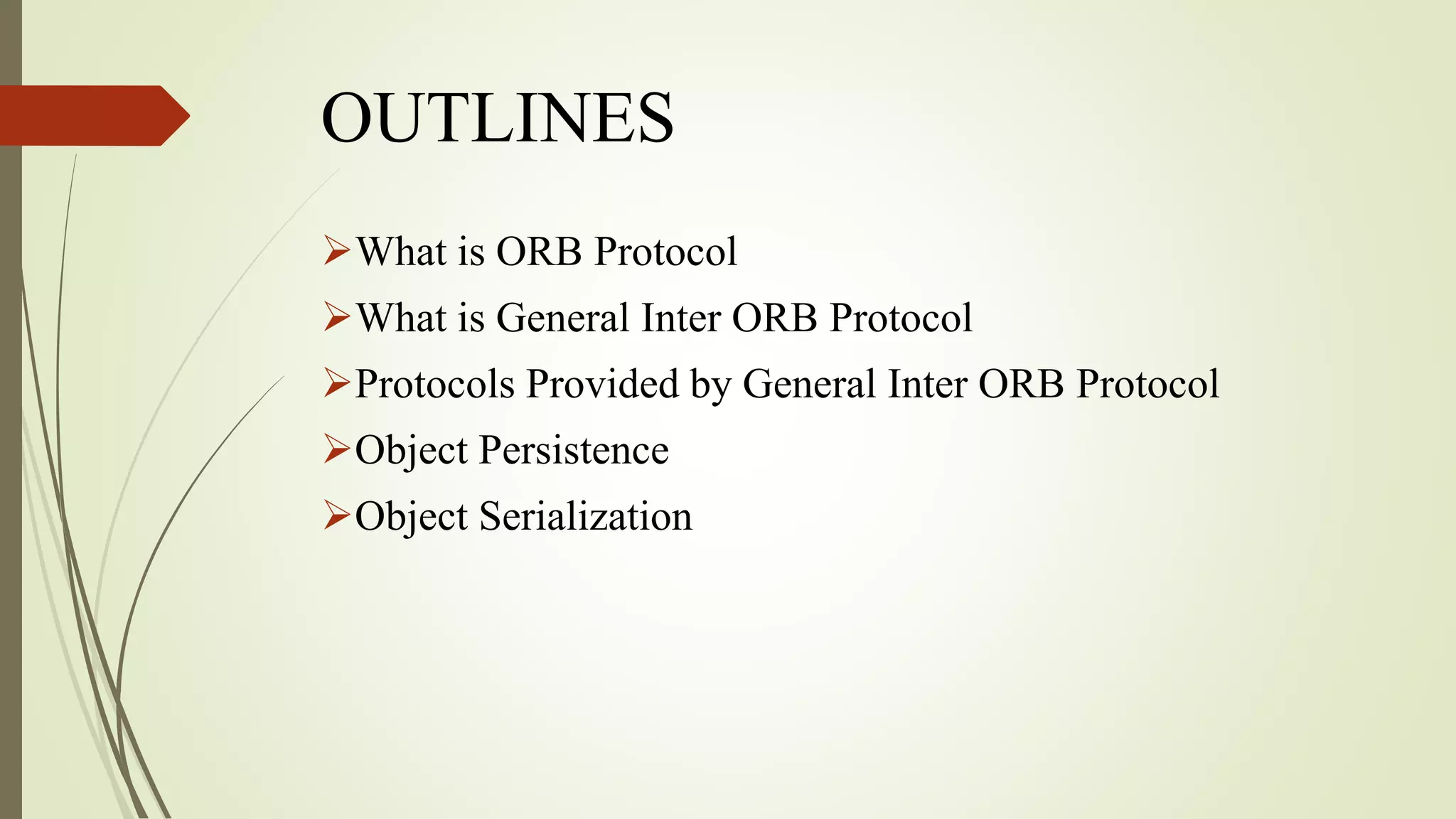

2. OUTLINES
What is ORB Protocol
What is General Inter ORB Protocol
Protocols Provided by General Inter ORB Protocol
Object Persistence
Object Serialization

3. ORB Protocol
ORB Stands for Object Request Broker
ORB Protocol allows applications to communicate with one another
no matter where they reside on a network
The Object Management Group(OMG) exists to create standards for
distributed object computing that are realistic, commercially
available and usable
 OMG does this through its Object Management Architecture
(OMA) at the heart of which is the Common Object Request Broker
Architecture (CORBA)
 CORBA specifies the Object Request Broker (ORB) Protocol

4. General Inter ORB Protocol
 In distributed computing, General Inter-ORB Protocol (GIOP) is the
abstract protocol by which ORBs can communicate
 The GIOP specification consists of the following elements
1. The Common Data Representation (CDR)
 CDR is used to represent Interface Definition Language(IDL) data types
on CORBA distributed objects
2. GIOP Transport Assumptions
 Establishment of any network transport layer that may be used to transfer
GIOP messages
3. GIOP Message Formats
 Object requests, Locate Object Implementations, and Manage
Communication Channels

5. Object Location in GIOP
The GIOP is defined to support object migration and location
services without modifying the existence of specific ORB features
Protocol Features Based on Observations
 A given transport address does not necessarily correspond to any
specific ORB architectural component
 Such as an Object Adapter, Object Server Process, Inter-ORB
Bridge

6. Different Roles of Agent(Object)
An Object may be able to Accept Object Requests Directly from
another Object and can Return Replies
An Object may not be able to accept direct requests from any objects
An Object may directly respond to some requests (for certain
objects) and provide forwarding locations for other objects
An Object may directly respond to requests for a particular object at
one point in time, and provide a forwarding location at a later time
Clients are able to accept and process Reply messages with
LOCATION_FORWARD status

7. Protocols Provided by General Inter ORB Protocol
Internet Inter ORB Protocol (IIOP)
SSL Inter ORB Protocol (SSLIOP)
HyperText Inter ORB Protocol (HTIOP)
Zipped IOP (ZIOP)

8. Internet Inter ORB Protocol (IIOP)
The mapping of GIOP message transfer to TCP/IP connections is
called the Internet Inter-ORB Protocol (IIOP)
A Binary Protocol for Communication between ORBs
It Was added in CORBA(Common Object Request Broker
Architecture) 2.0
The Baseline Transport Specified for GIOP is TCP/IP5
IIOP 1.0 is based on GIOP 1.0

9. TCP/IP Connection Usage
 If A client is in need of an object’s services then it must initiate a connection with
the address, with a connect request
 The listening server may accept or reject the connection. In general, servers should
accept connection requests if possible
 Once a connection is accepted, the client may send Request, LocateRequest, or
CancelRequest messages by writing to the TCP/IP socket it owns for the
connection
 The server may send Reply, LocateReply, and CloseConnection messages by
writing to its TCP/IP connection
 After sending (or receiving) a CloseConnection message, both client or server
must close the TCP/IP connection

10. IIOP IOR(Interoperable Object Reference)
Profile Components
TAG_ORB_TYPE
TAG_CODE_SETS
TAG_SEC_NAME
TAG_ASSOCIATION_OPTIONS
TAG_GENERIC_SEC_MECH

11. Object Persistence
One of the most critical tasks that applications have to
perform is to save and restore data
Persistence is the storage of data from working memory
so that it can be restored when the application run again
In object-oriented systems, there are several ways in which
objects can be made persistent

12. Cont…
Most objects in Java Virtual Machine are fairly short-lived
All objects will die at some point in time resulting in a loss of
reference
Object persistence allows an object to survive in JVM that hosts it
A custom class representing a key component of a system,
 a java.util.Vector list containing state data or
 a java.util.Properties object containing system settings

13. Object Serialization
Object Serialization is the technique by which object persistence is
realized
It controls data that contains an state of object information
It Allows Java objects to be encoded into a byte stream to a file on
disk or over a network
The class must implement the Serializable interface
(java.io.Serializable)

14. Cont…
 It also caters to the situation where an object is inside another object
 Figure Shows Graphical Representation of Object Serialization
Vector
Object i Object n
OutputStream
1010100101
…
Object a

15. Cont…
 Simple persistence & serialization method which provides a
program the ability to read or write a whole object to and from a
stream of bytes

16. Cont…
 Allows Java objects to be encoded into a byte stream suitable for
streaming to a file on disk or over a network

17. How Serialization Works
 Any object that implements the java.io.Serializable
Interface may be serialized with only a few lines of code
 Implementing the java.io.Serializable Interface requires
no additional effort on the part of developers
 No method needs to be implemented to support
serialization

18. Thank you

19. Queries…??
