The document provides steps to configure Tomcat and Apache HTTP Server (Apache2.2) on Windows to work together. It involves installing Apache and Tomcat separately, downloading and configuring the Tomcat Connector module to enable communication between the servers, and modifying configuration files for Apache and Tomcat with JkMount directives and Listeners. When configured, requests for pages under /examples will be handled by Tomcat instead of by Apache.

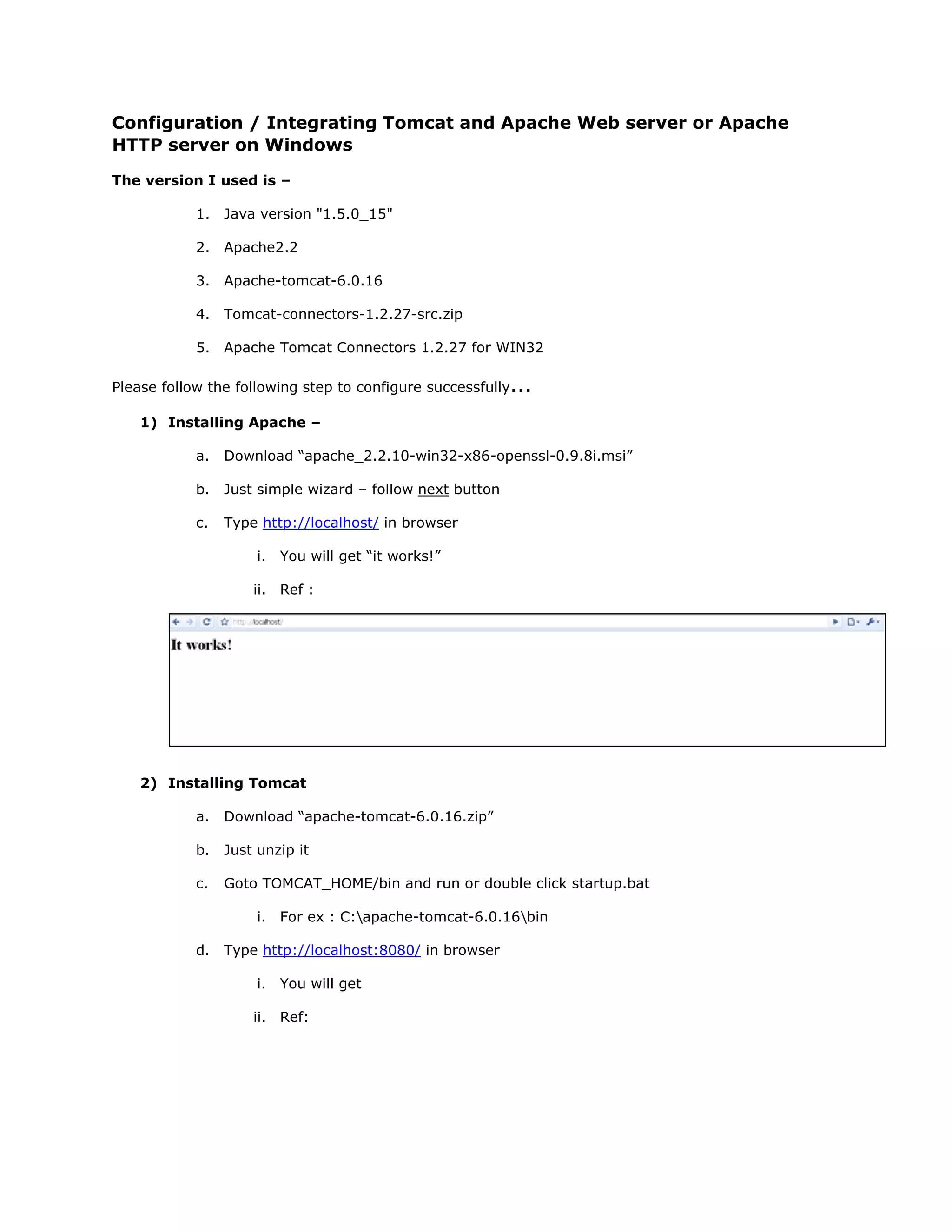

1. Configuration / Integrating Tomcat and Apache Web server or Apache
HTTP server on Windows
The version I used is –
1. Java version quot;1.5.0_15quot;
2. Apache2.2
3. Apache-tomcat-6.0.16
4. Tomcat-connectors-1.2.27-src.zip
5. Apache Tomcat Connectors 1.2.27 for WIN32
Please follow the following step to configure successfully...
1) Installing Apache –
a. Download “apache_2.2.10-win32-x86-openssl-0.9.8i.msi”
b. Just simple wizard – follow next button
c. Type http://localhost/ in browser
i. You will get “it works!”
ii. Ref :
2) Installing Tomcat
a. Download “apache-tomcat-6.0.16.zip”
b. Just unzip it
c. Goto TOMCAT_HOME/bin and run or double click startup.bat
i. For ex : C:apache-tomcat-6.0.16bin
d. Type http://localhost:8080/ in browser
i. You will get
ii. Ref:

2. 3) Stop both servers now
a. Stopping apache
i. Right click apache service icon
ii. And click “Open Apache Monitor”

3. iii. Click Stop button.
b. Stopping tomcat
i. Press “Ctrl^C” in the tomcat console
4) Download “Tomcat-connectors-1.2.27-src.zip” and unzip it.
a. Copy the following files from “C:tomcat-connectors-1.2.27-srcconf”
i. uriworkermap.properties
ii. workers.properties
iii. workers.properties.minimal
b. Paste in here – “C:apache-tomcat-6.0.16conf”
5) Download “mod_jk-1.2.27-httpd-2.2.10.so” from the following path
a. Path : http://www.apache.org/dist/tomcat/tomcat-connectors/jk/binaries/win32/jk-
1.2.27/
b. Ref:

4. c. Rename from “mod_jk-1.2.27-httpd-2.2.10.so” to “mod_jk.so”
d. Copy “mod_jk.so” and paste in here – “C:Program FilesApache Software
FoundationApache2.2modules”
6) Configure Apache
a. Open “httpd.conf” from “C:Program FilesApache Software
FoundationApache2.2conf”
b. Add the following code snippet at the end of the file “httpd.conf”
LoadModule jk_module quot;C:/Program Files/Apache Software
Foundation/Apache2.2/modules/mod_jk.soquot;
JkWorkersFile quot;C:/apache-tomcat-6.0.16/conf/workers.propertiesquot;
JkLogFile quot;C:/apache-tomcat-6.0.16/conf/from_apache_mod_jk.logquot;
JkLogLevel info
JkLogStampFormat quot;[%a %b %d %H:%M:%S %Y]quot;
# Send servlet for context /examples to worker named ajp13
JkMount /examples ajp13
# Send JSPs for context /examples/* to worker named ajp13

5. JkMount /examples/* ajp13
7) Configure Tomcat
a. Open “server.xml” from “C:apache-tomcat-6.0.16confserver.xml”
b. Add the following inside “<Server>” element
<Listener className=quot;org.apache.jk.config.ApacheConfigquot; modJk=quot;C:/Program
Files/Apache Software Foundation/Apache2.2/modules/mod_jk.soquot; />
c. Add the following between “<Host>” “</Host>”
<Listener className=quot;org.apache.jk.config.ApacheConfigquot; modJk=quot;C:/Program
Files/Apache Software Foundation/Apache2.2/modules/mod_jk.soquot; />
8) Start tomcat
9) Wait sometime 5 or 10 seconds
10) Start apache
a. Start apache
i. Right click apache service icon
ii. And click “Open Apache Monitor”

6. iii. Click Start button.
11) Type “http://localhost/examples/”
a. Ref:
b. Click “Servlets examples”
