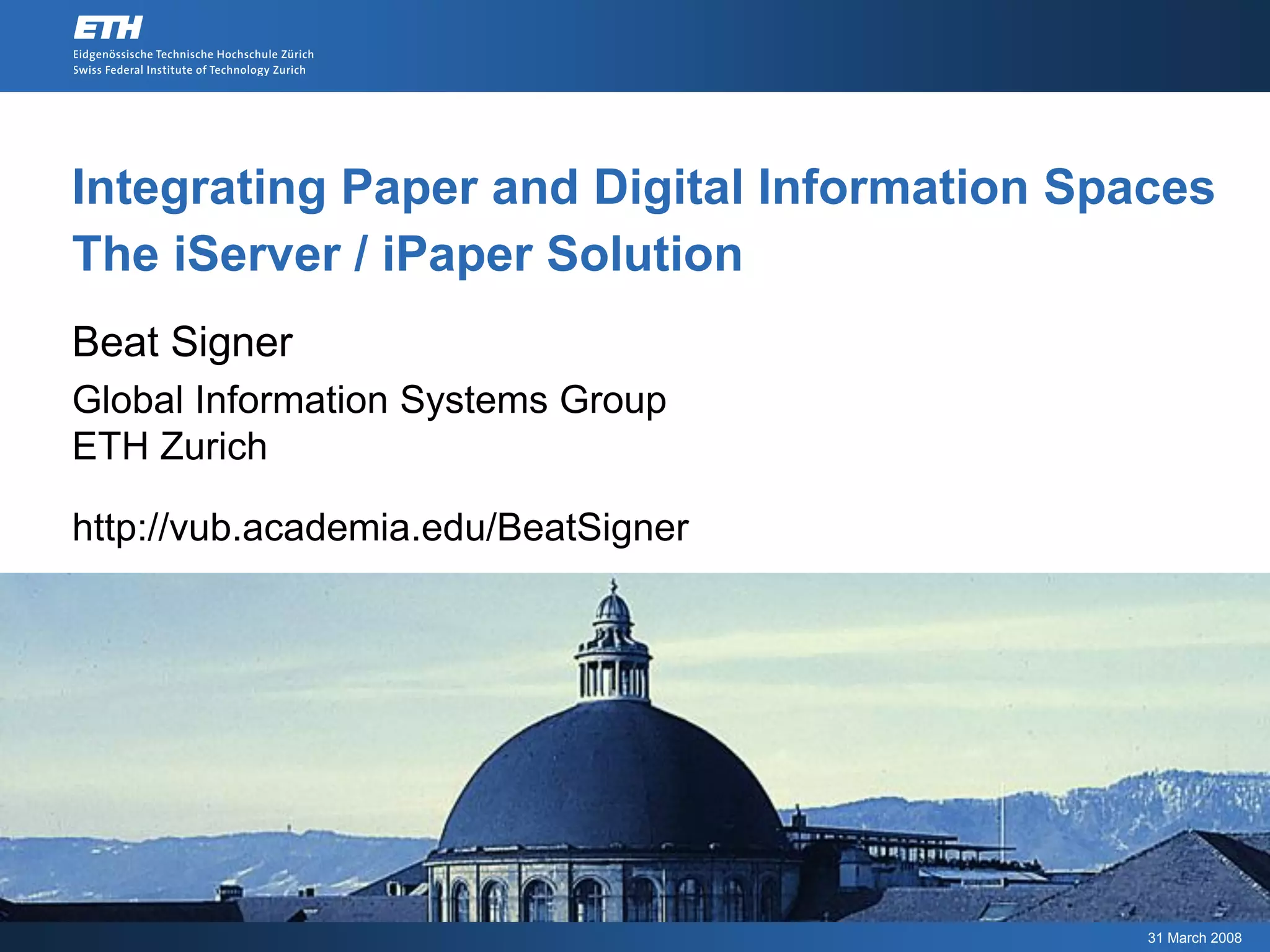

Integrating Paper and Digital Information Spaces - The iServer / iPaper Solution

Integrating Paper and Digital Information Spaces
The iServer / iPaper Solution
Beat Signer
Global Information Systems Group
ETH Zurich

http://vub.academia.edu/BeatSigner

31 March 2008

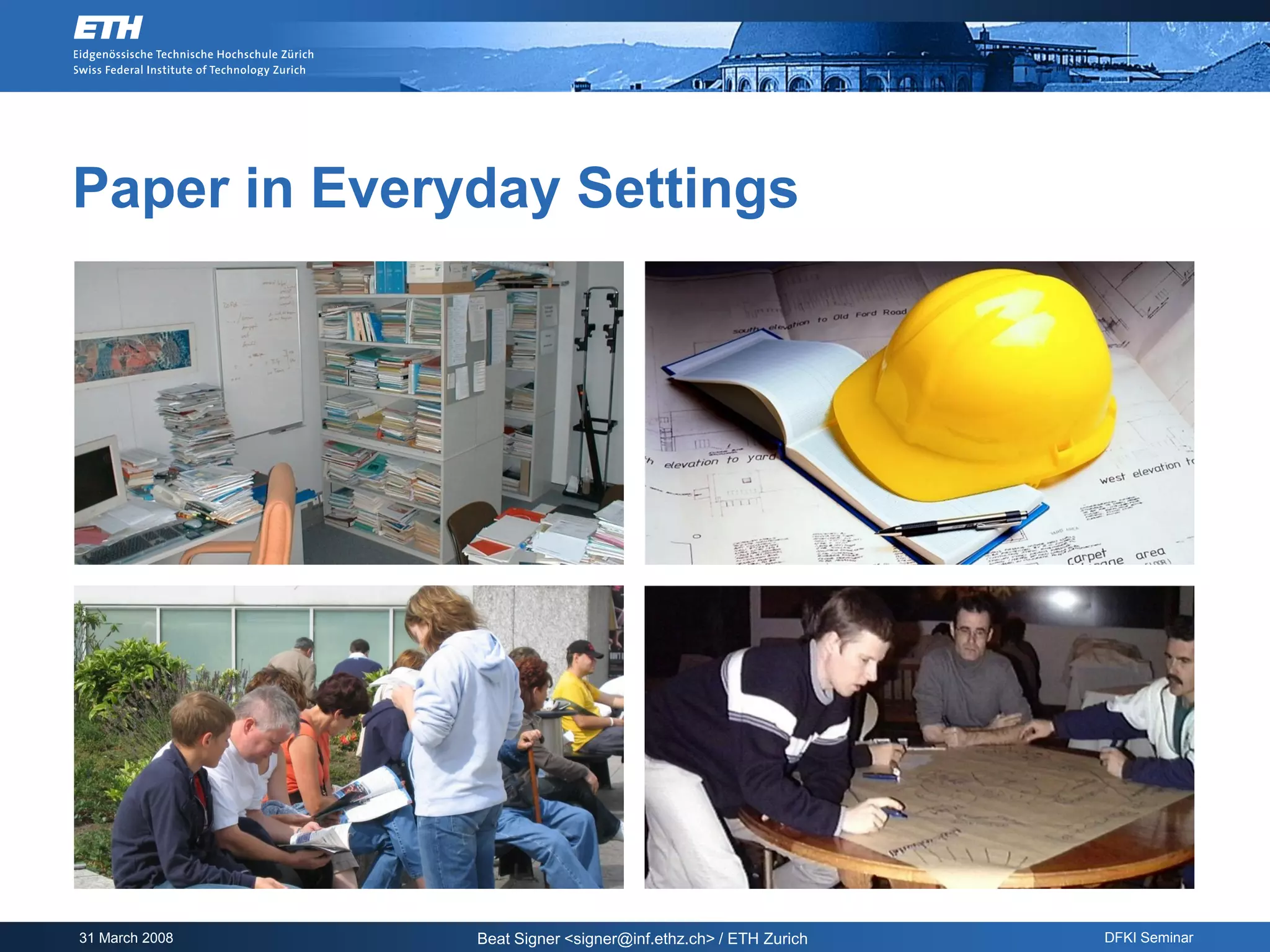

Paper in Everyday Settings

31 March 2008 Beat Signer <signer@inf.ethz.ch> / ETH Zurich DFKI Seminar

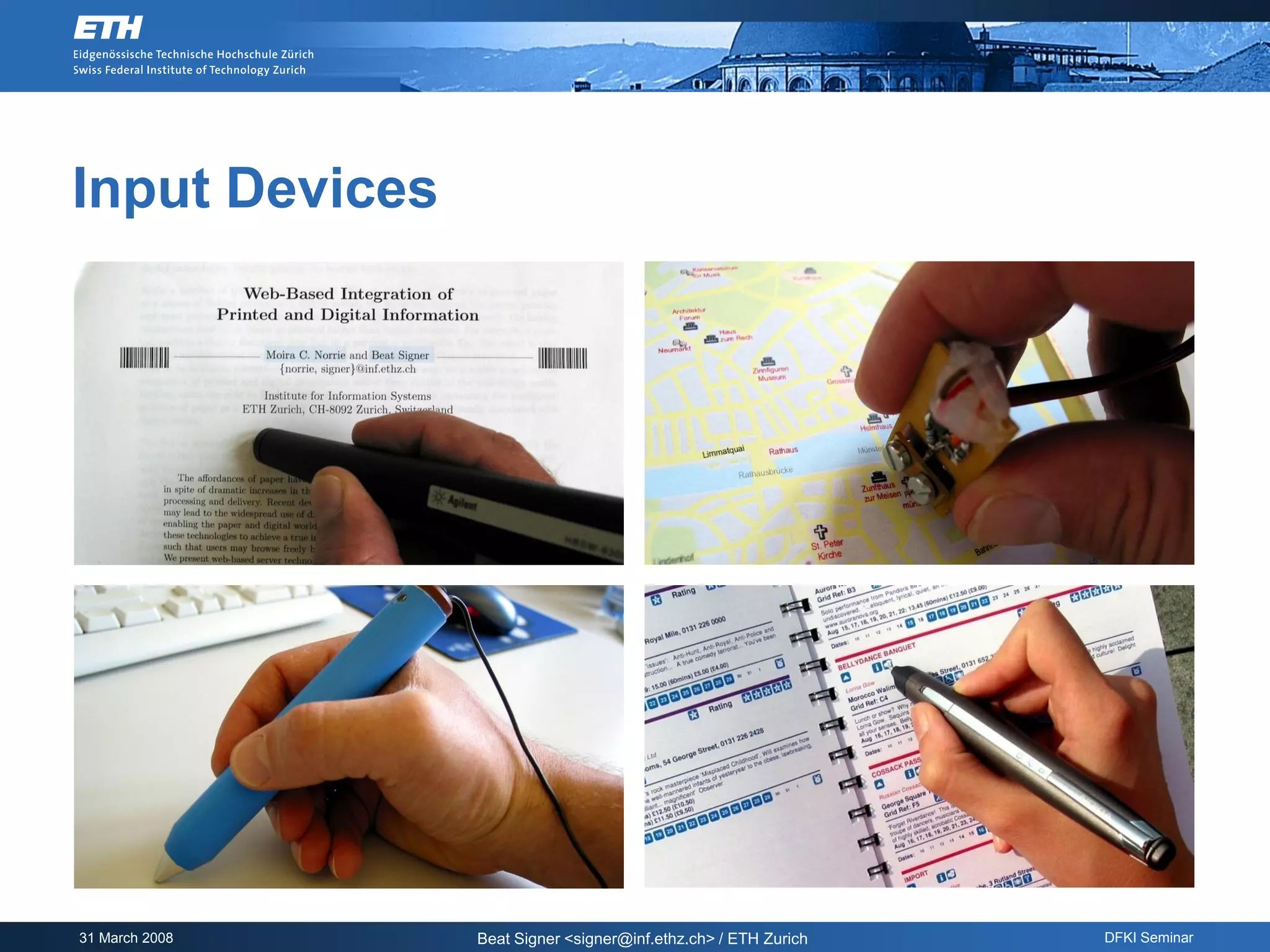

Input Devices

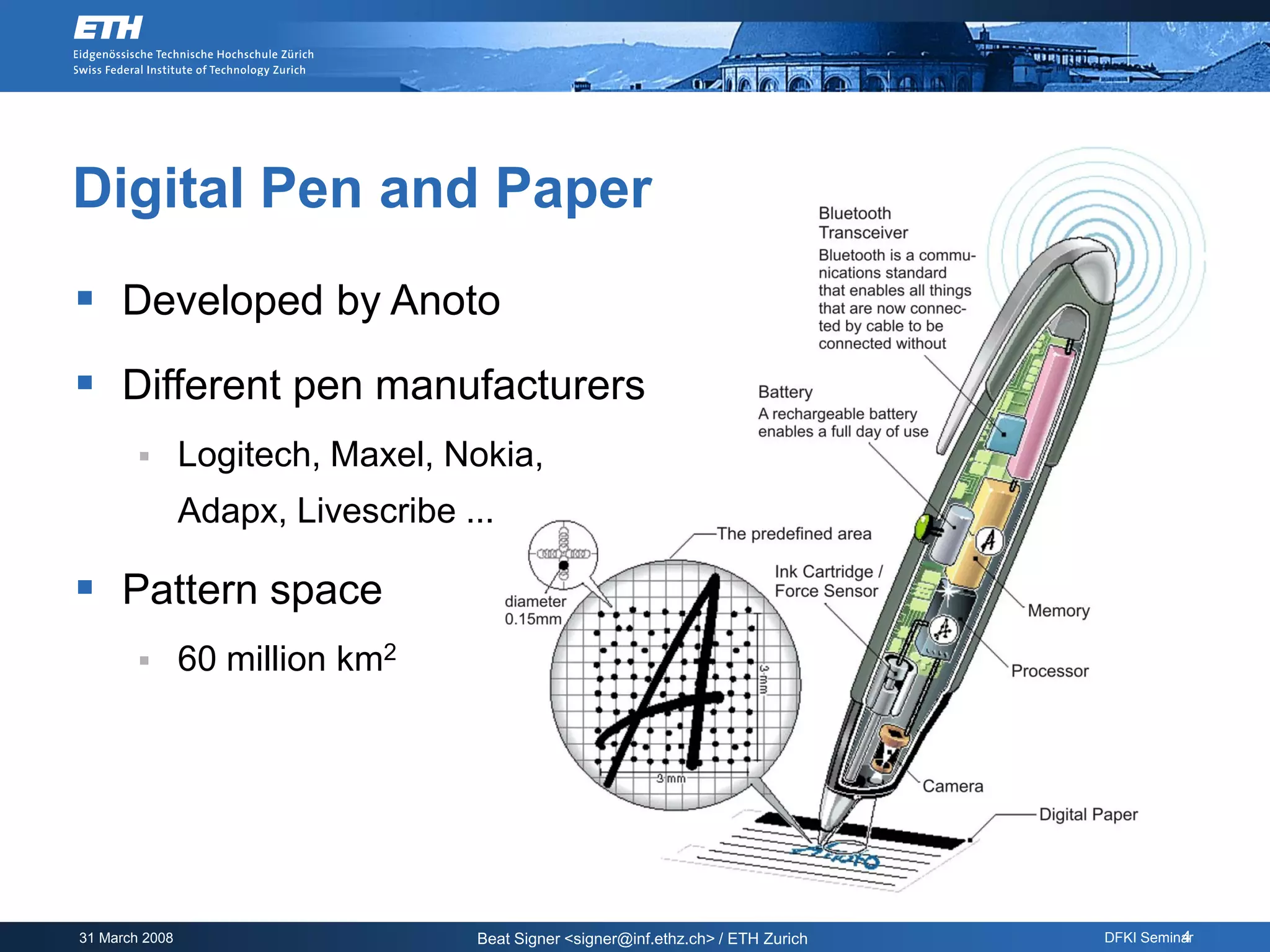

Digital Pen and Paper
 Developed by Anoto
 Different pen manufacturers
 Logitech, Maxel, Nokia,
Adapx, Livescribe ...

 Pattern space
 60 million km2

31 March 2008 Beat Signer <signer@inf.ethz.ch> / ETH Zurich 4
DFKI Seminar

Interactive Paper

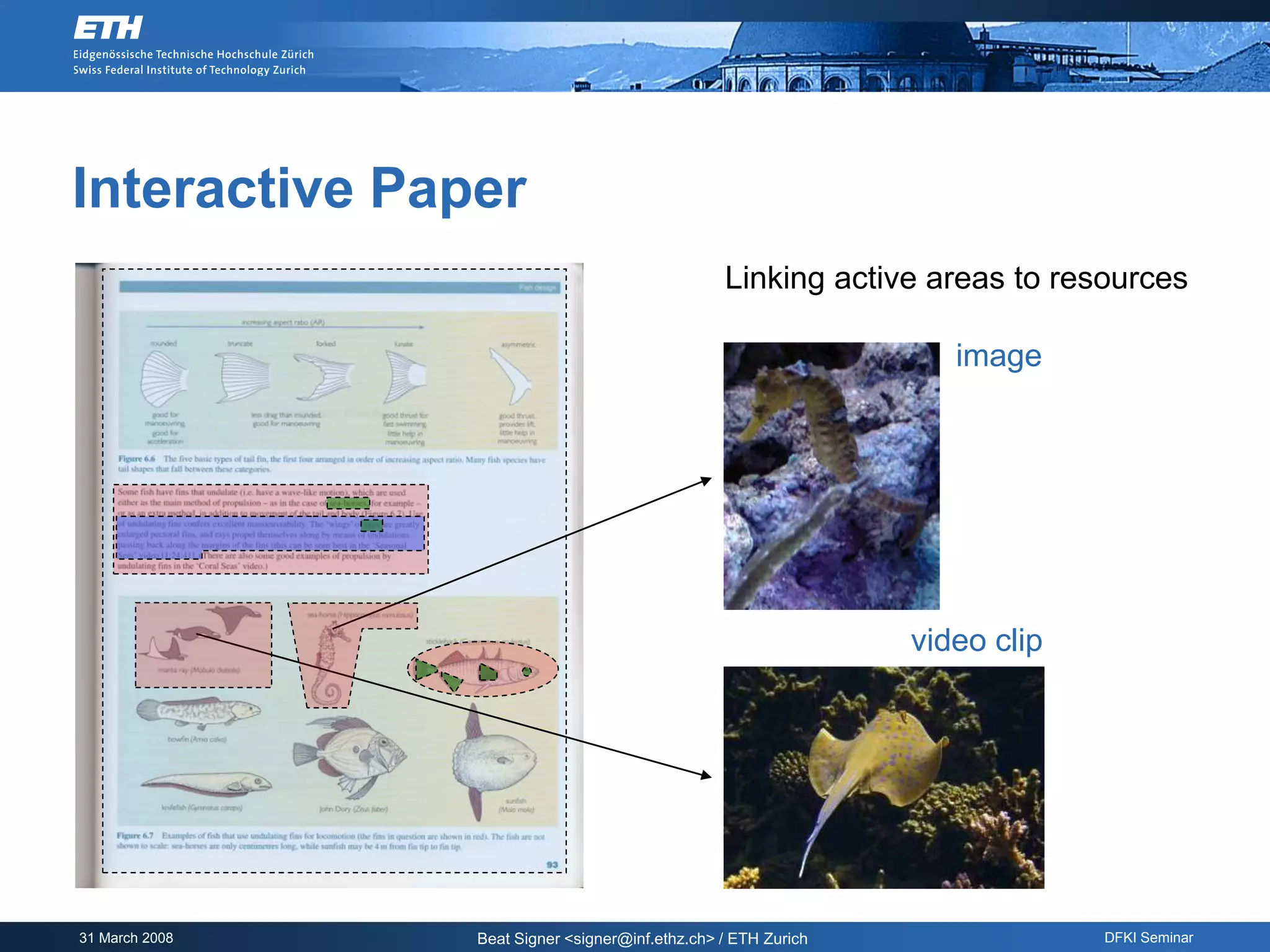

Linking active areas to resources


video clip

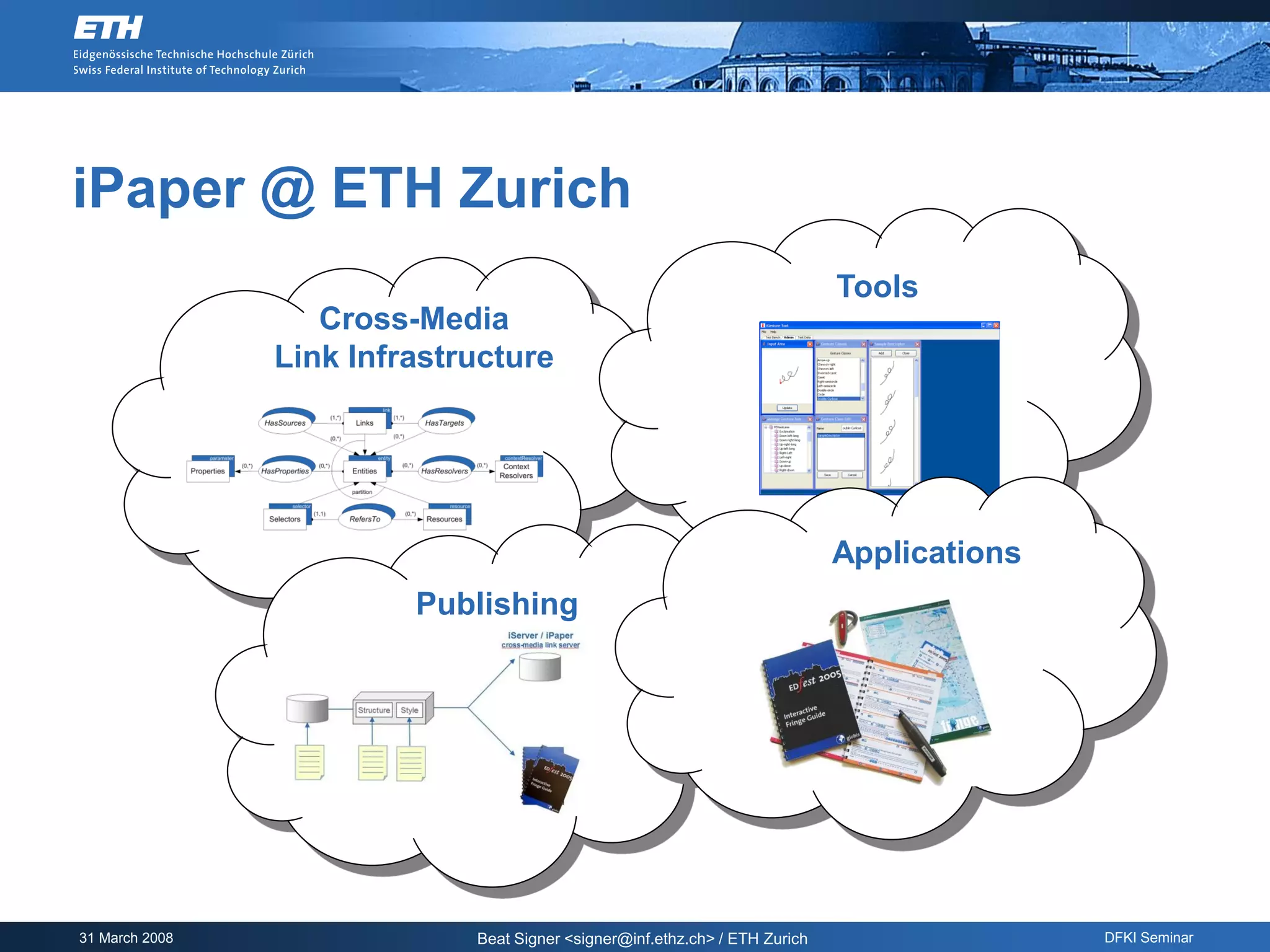

iPaper @ ETH Zurich
Tools
Cross-Media
Link Infrastructure

Applications
Publishing

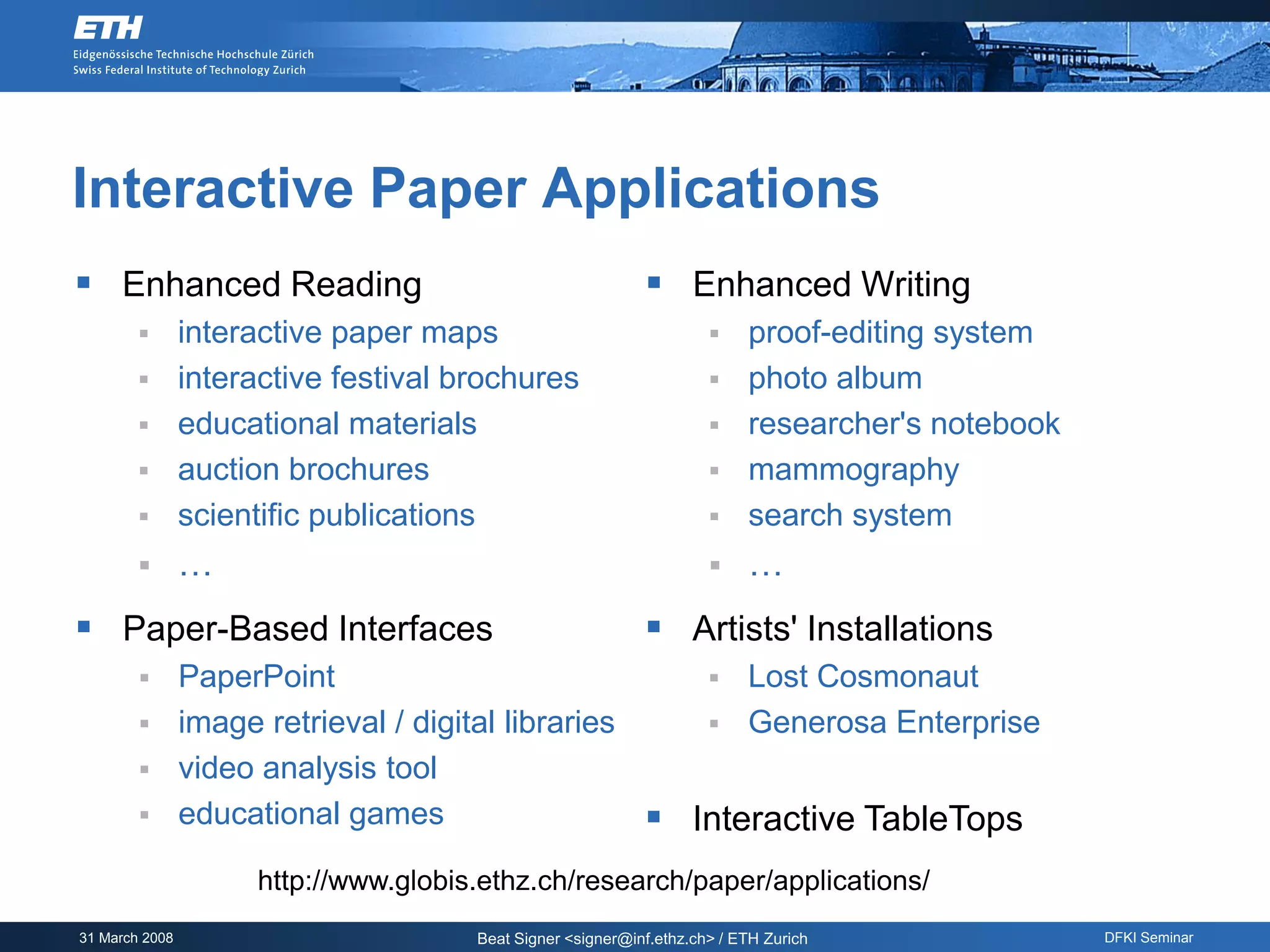

Interactive Paper Applications
 Enhanced Reading  Enhanced Writing
 interactive paper maps  proof-editing system
 interactive festival brochures  photo album
 educational materials  researcher's notebook
 auction brochures  mammography
 scientific publications  search system
 …  …
 Paper-Based Interfaces  Artists' Installations
 PaperPoint  Lost Cosmonaut
 image retrieval / digital libraries  Generosa Enterprise
 video analysis tool
 educational games  Interactive TableTops
http://www.globis.ethz.ch/research/paper/applications/

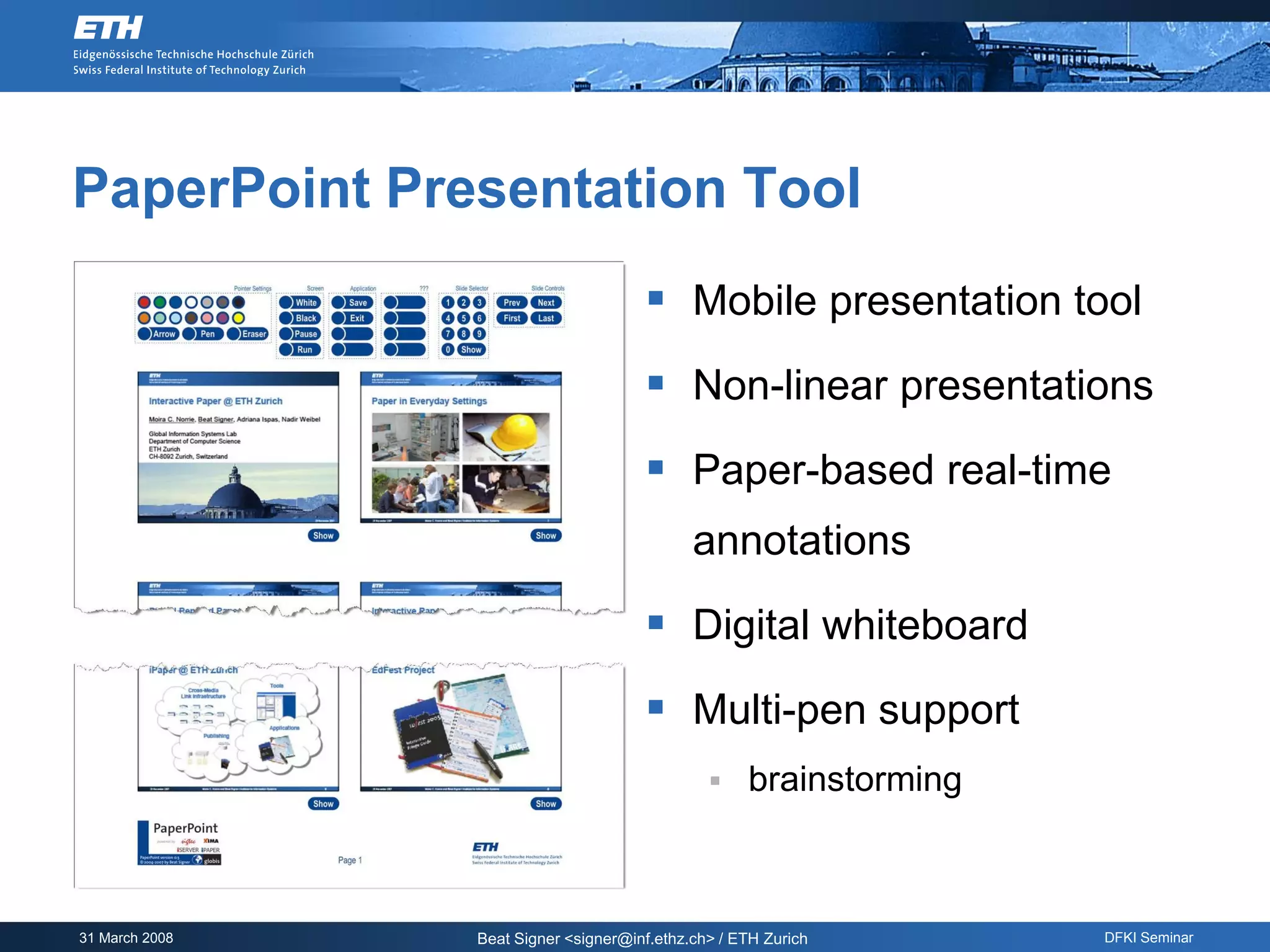

PaperPoint Presentation Tool
 Mobile presentation tool
 Non-linear presentations
 Paper-based real-time
annotations

 Digital whiteboard
 Multi-pen support
 brainstorming

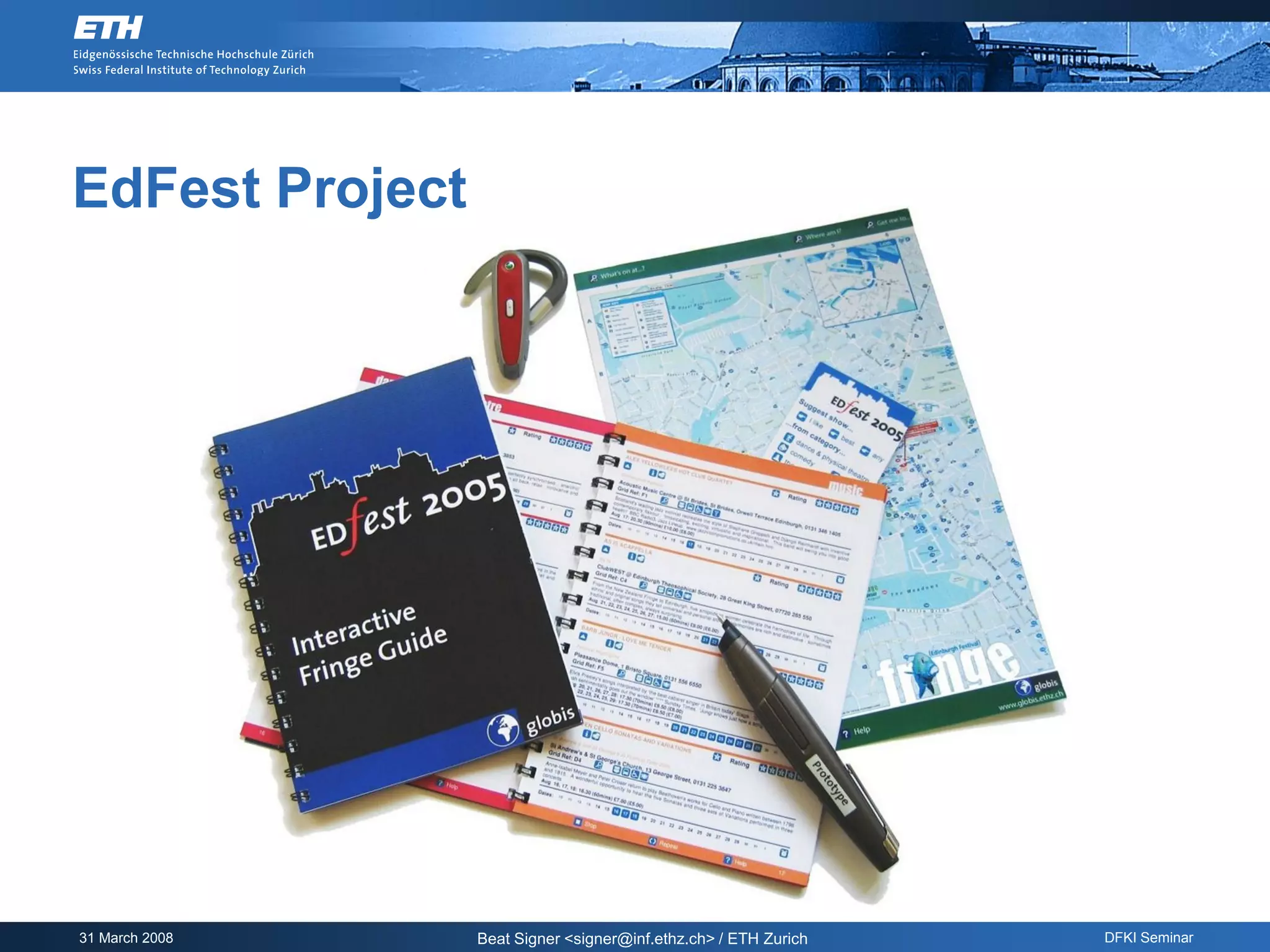

EdFest Project

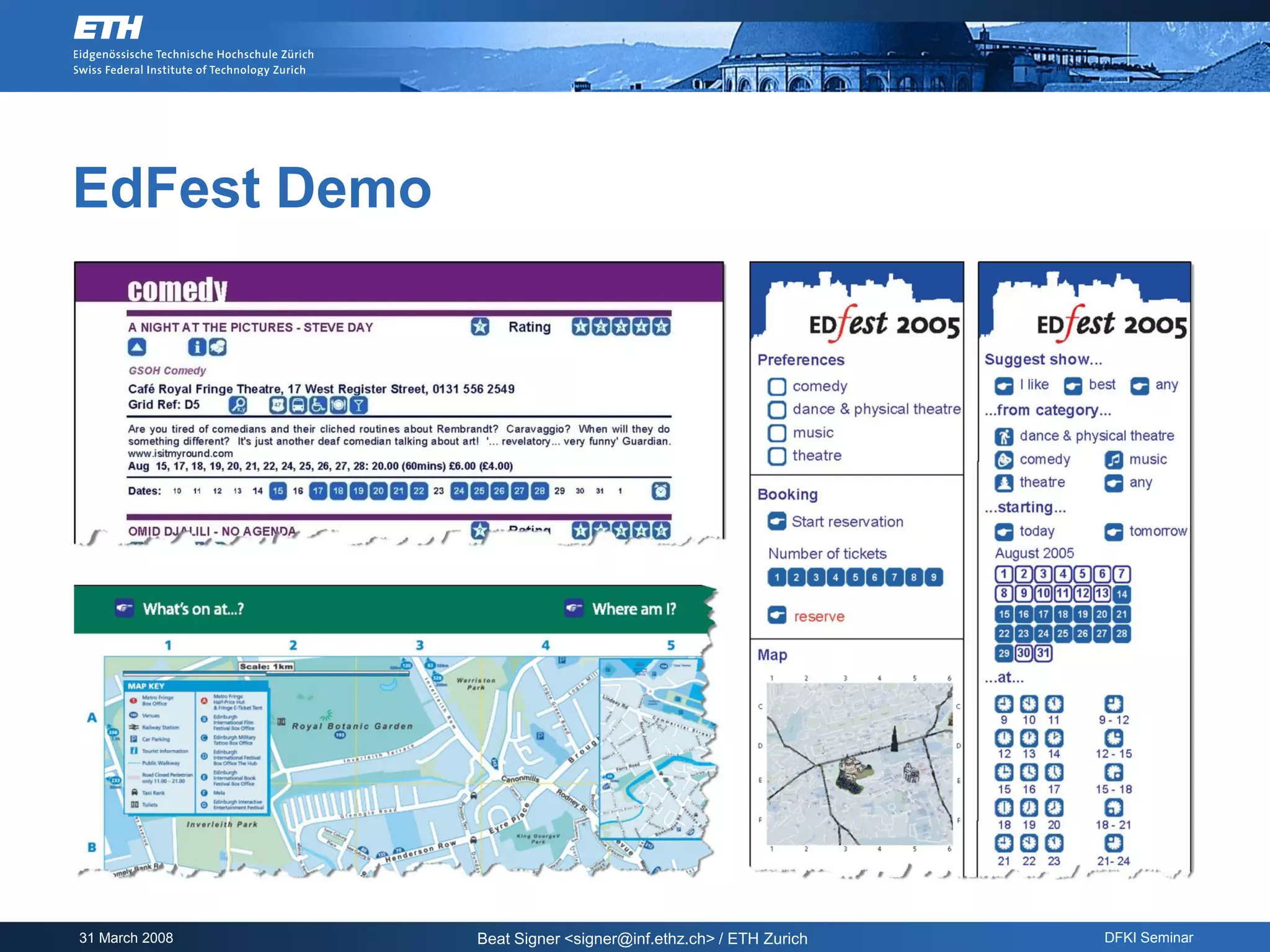

EdFest Demo

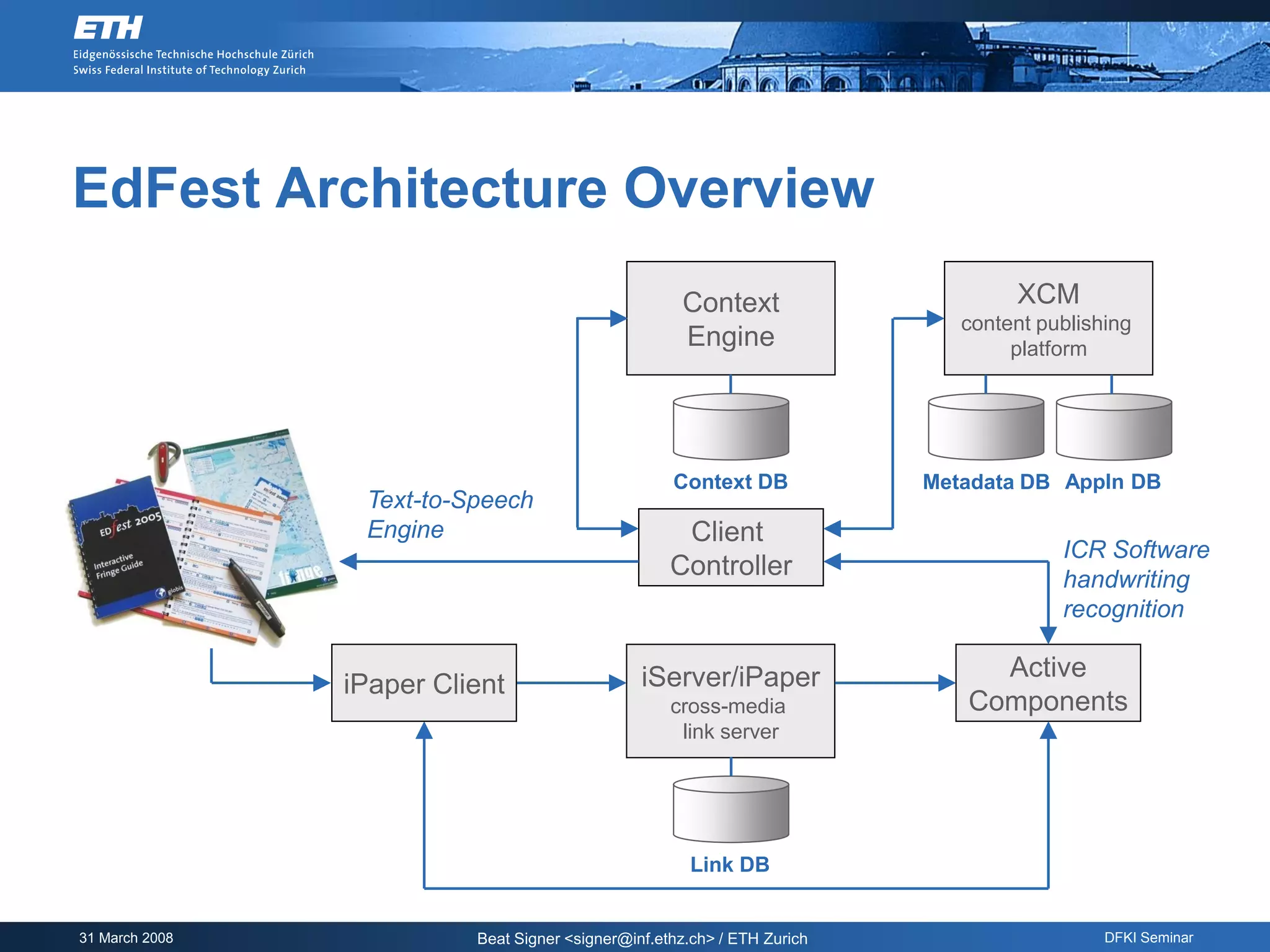

EdFest Architecture Overview
Context XCM
content publishing
Engine platform

Context DB Metadata DB Appln DB
Text-to-Speech
Engine Client
ICR Software
Controller handwriting
recognition

iServer/iPaper Active
iPaper Client
cross-media Components
link server

Link DB

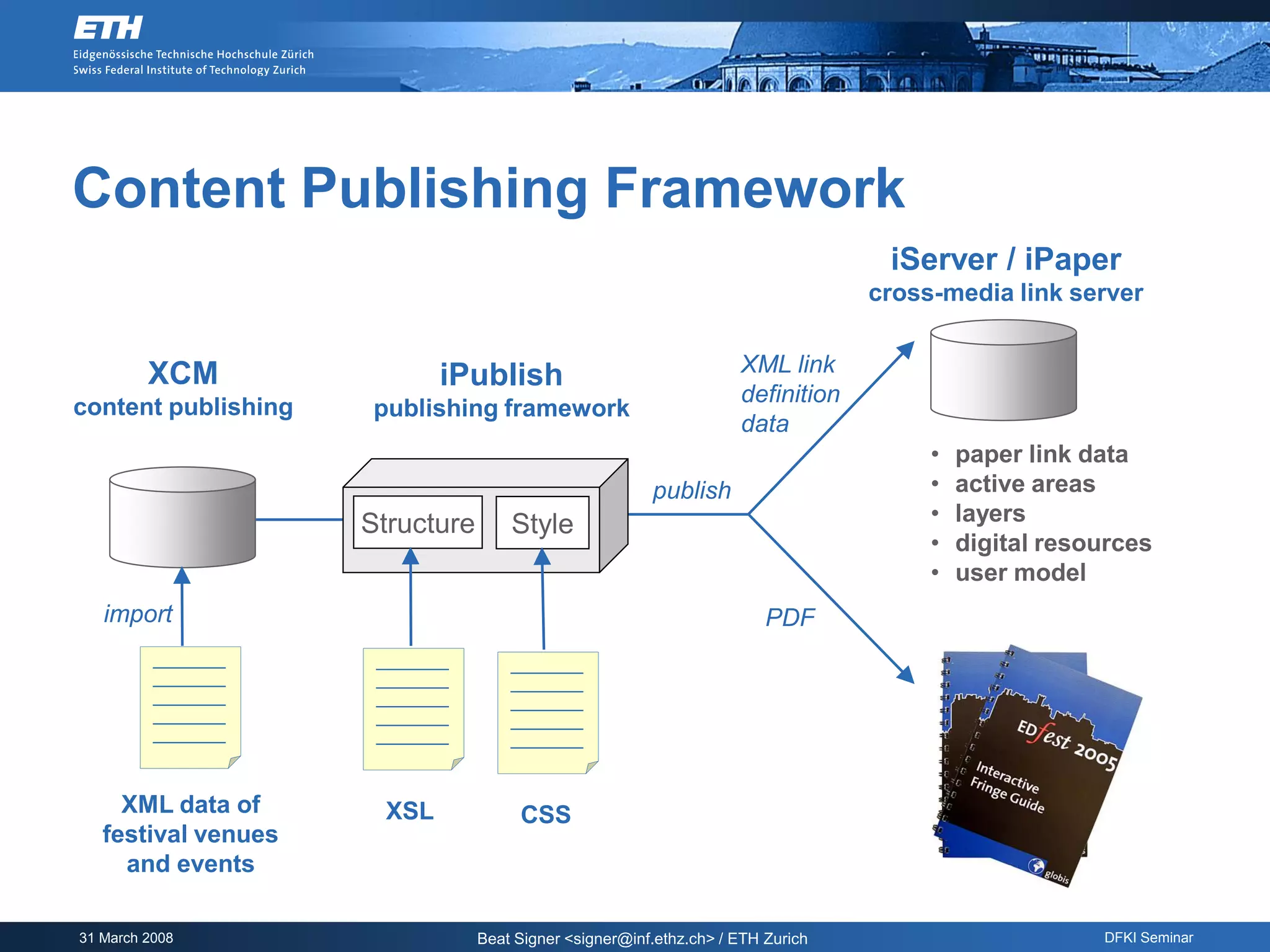

Content Publishing Framework
iServer / iPaper
cross-media link server

XCM XML link
iPublish
definition
content publishing publishing framework
data
• paper link data
publish • active areas
Structure Style • layers
• digital resources
• user model
import PDF

XML data of XSL CSS
festival venues
and events

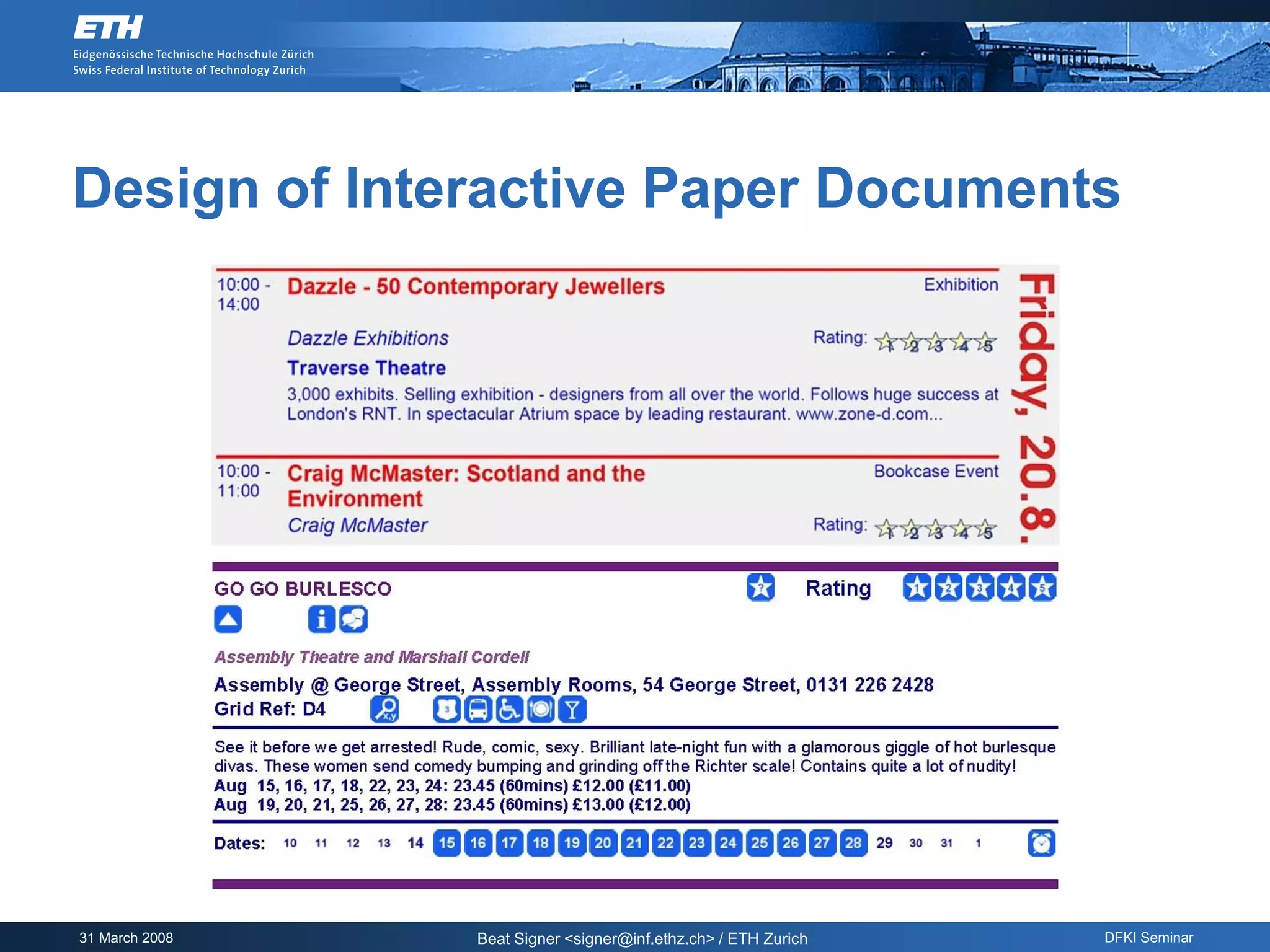

Design of Interactive Paper Documents

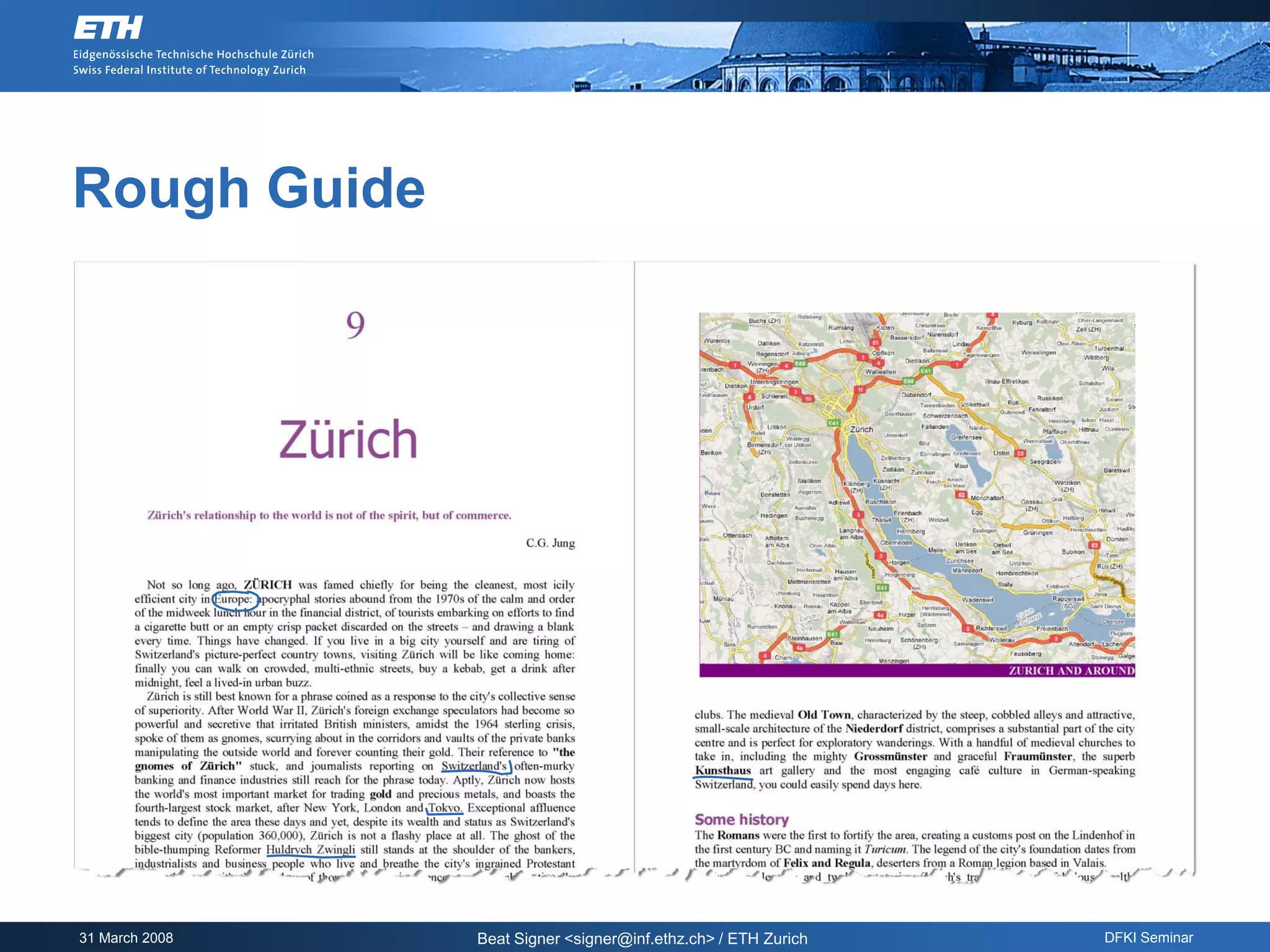

Rough Guide

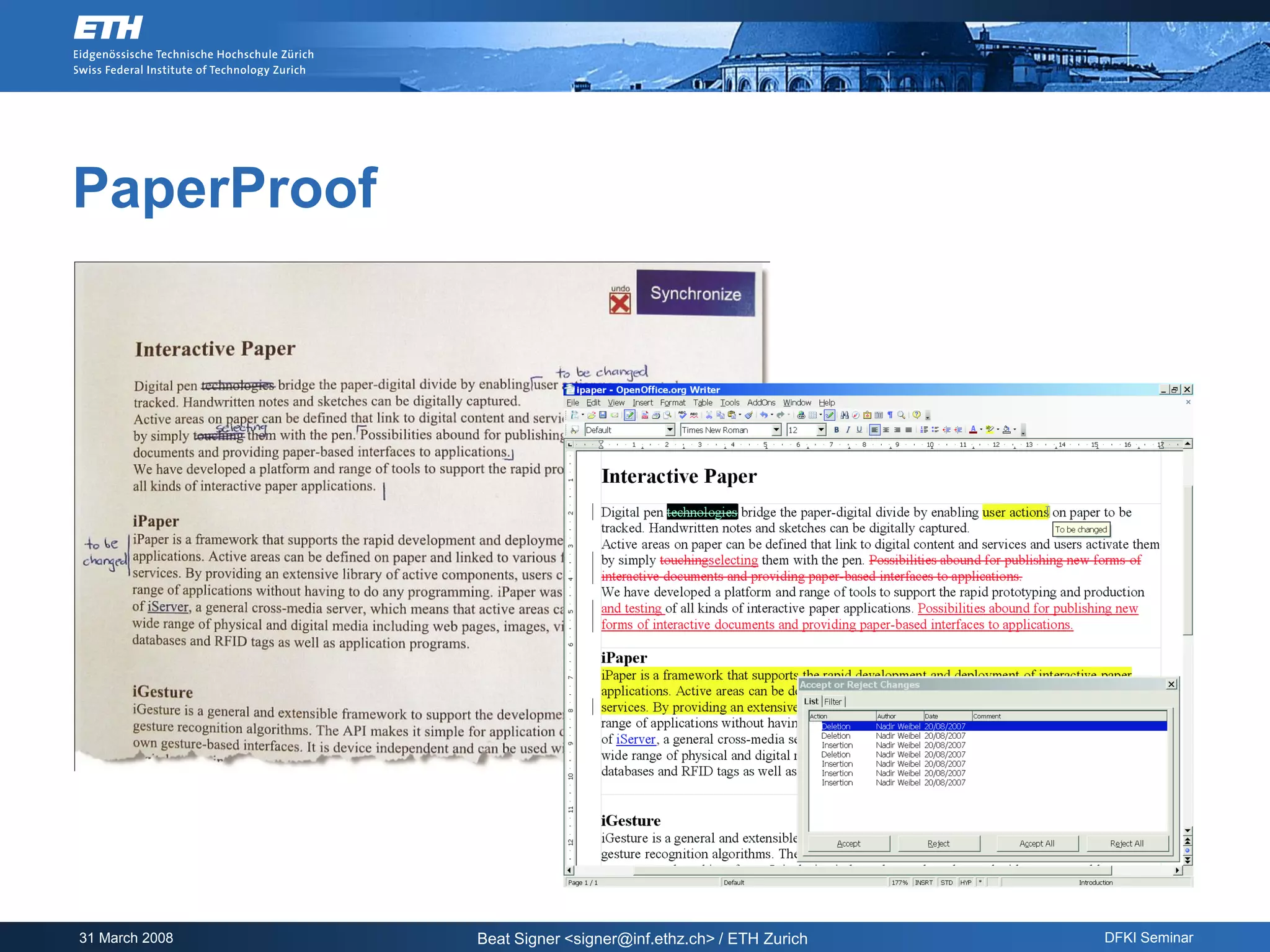

PaperProof

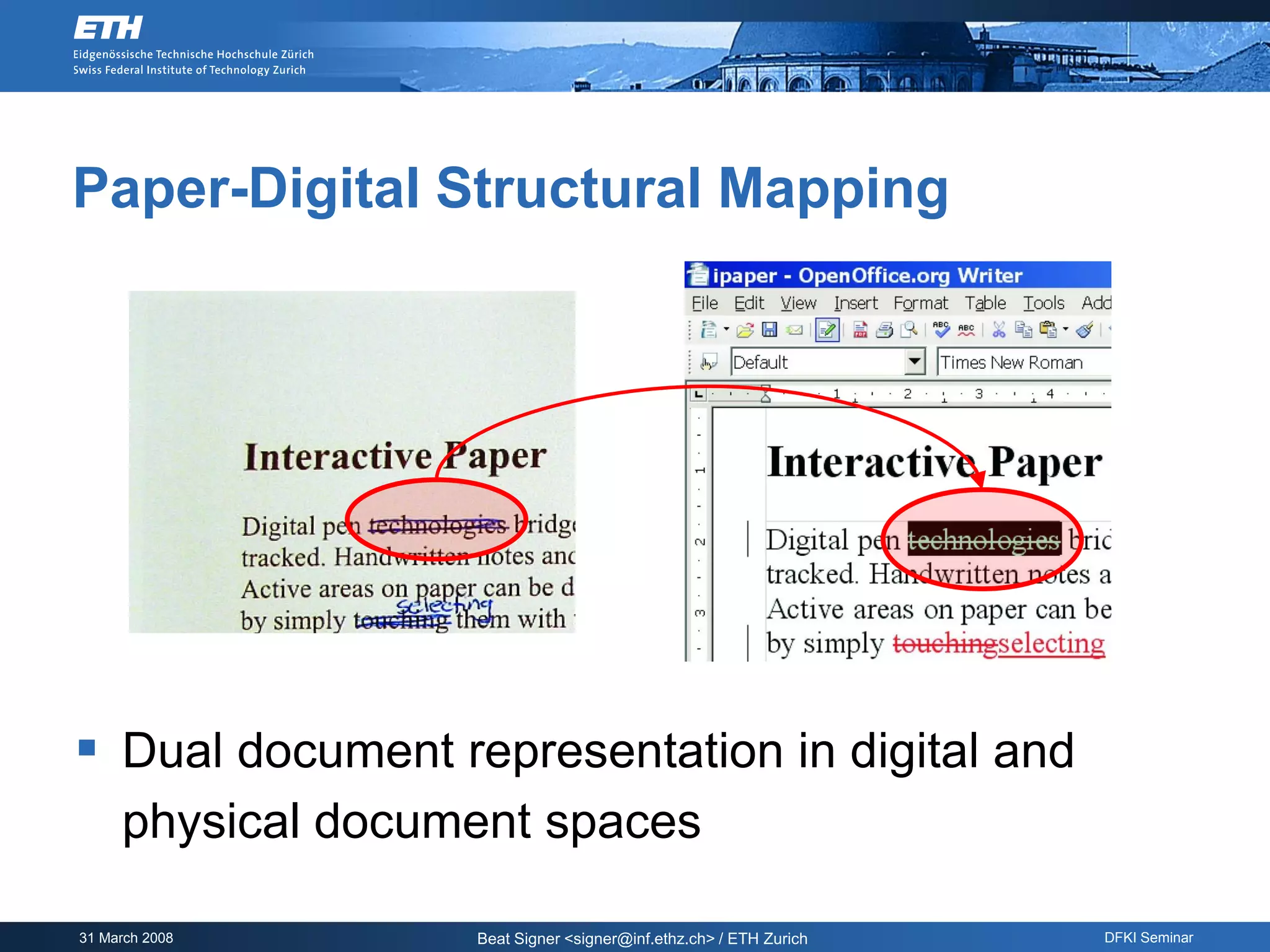

Paper-Digital Structural Mapping

 Dual document representation in digital and
physical document spaces

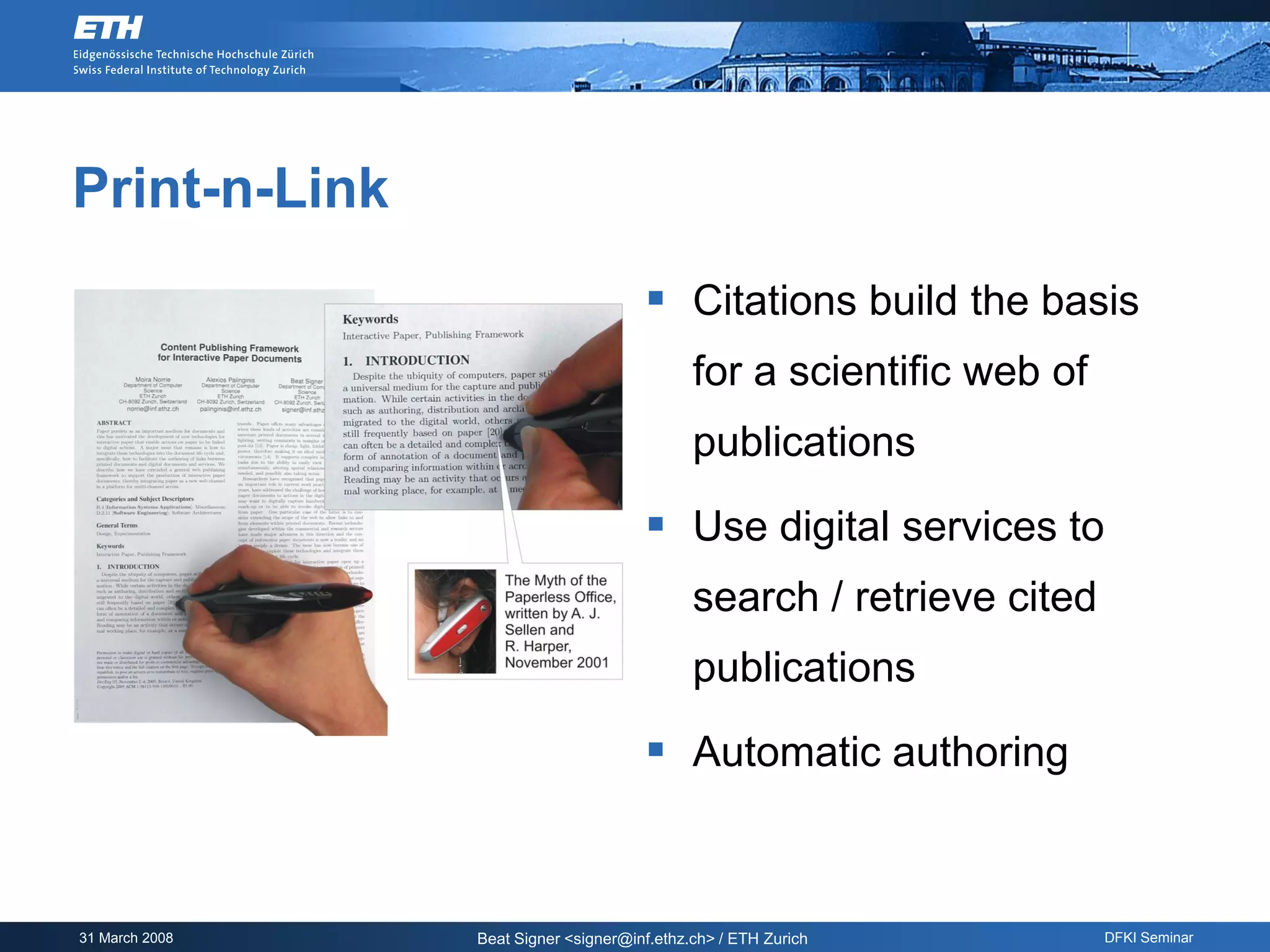

Print-n-Link
 Citations build the basis
for a scientific web of
publications

 Use digital services to
search / retrieve cited
publications

 Automatic authoring


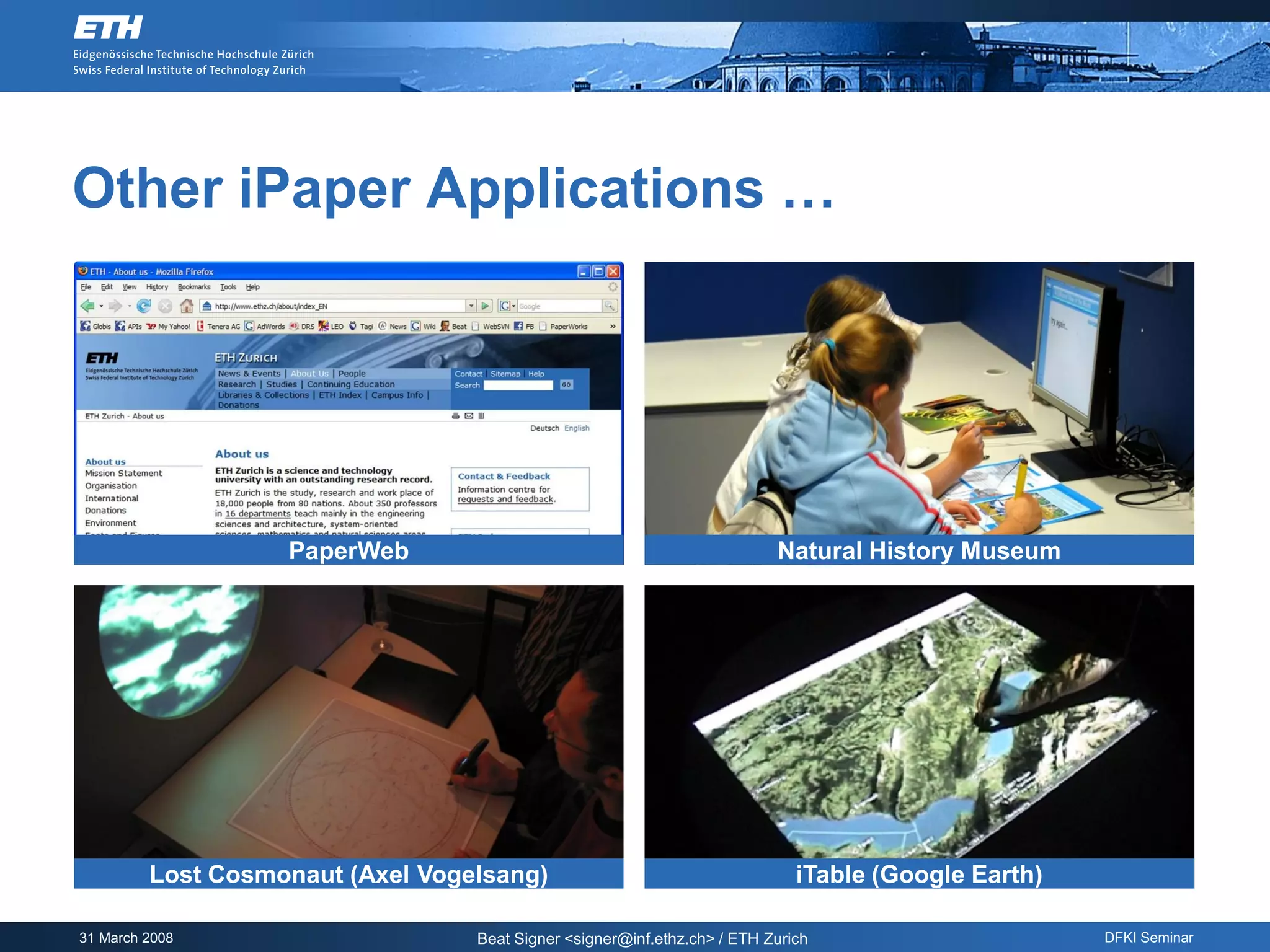

Other iPaper Applications …

PaperWeb Natural History Museum

Lost Cosmonaut (Axel Vogelsang) iTable (Google Earth)

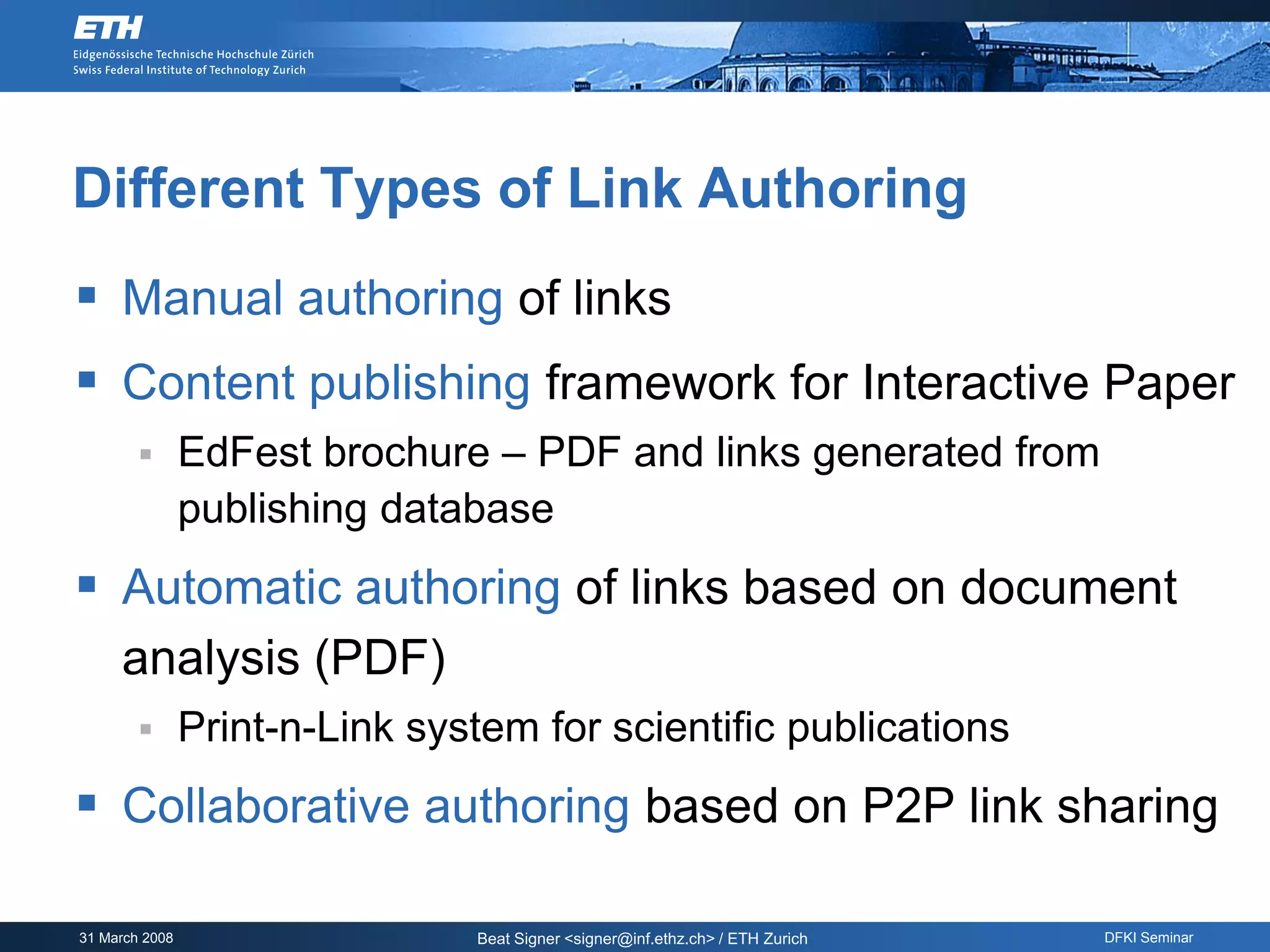

Different Types of Link Authoring
 Manual authoring of links
 Content publishing framework for Interactive Paper
 EdFest brochure – PDF and links generated from
publishing database
 Automatic authoring of links based on document
analysis (PDF)
 Print-n-Link system for scientific publications
 Collaborative authoring based on P2P link sharing

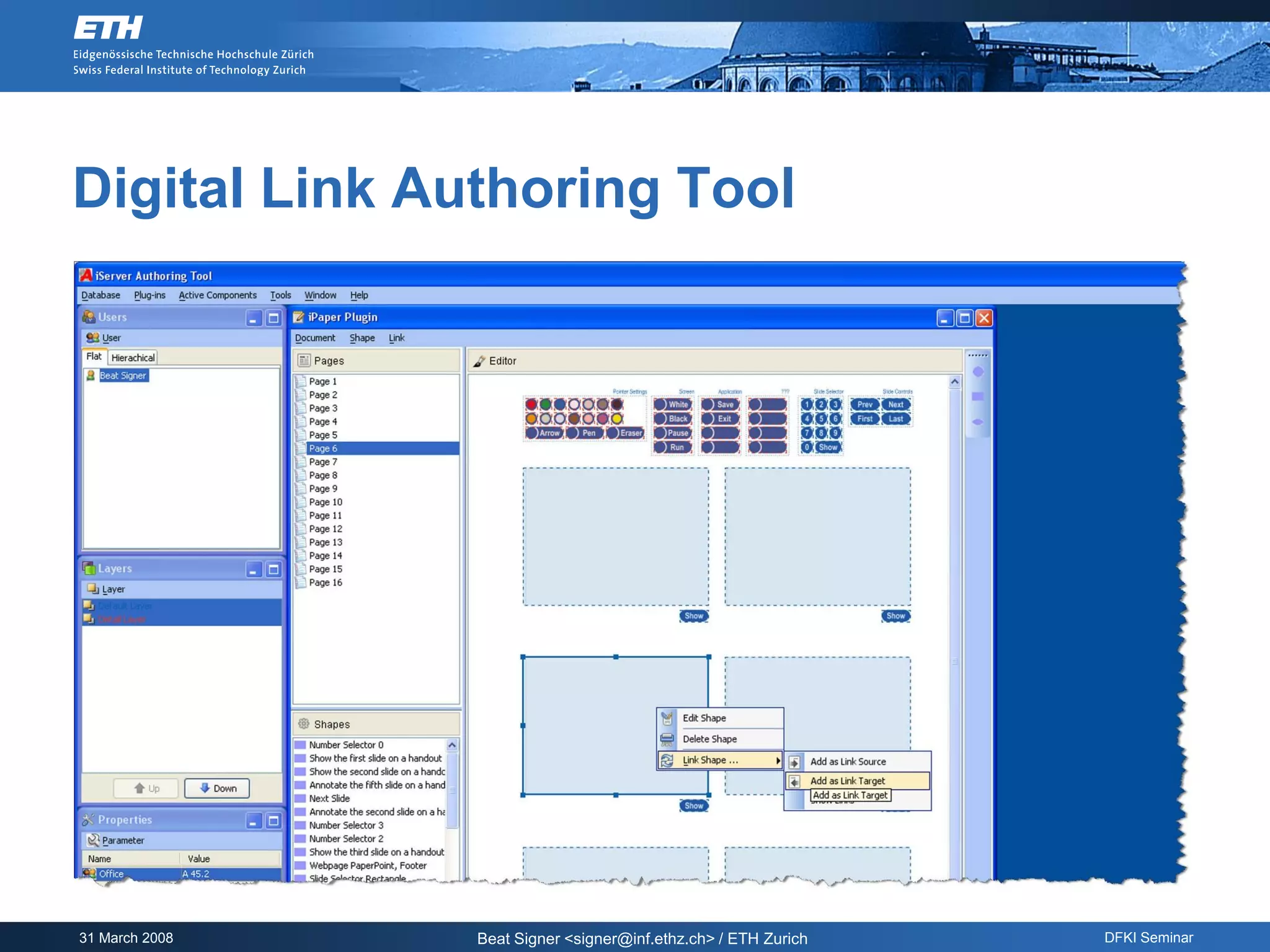

Digital Link Authoring Tool

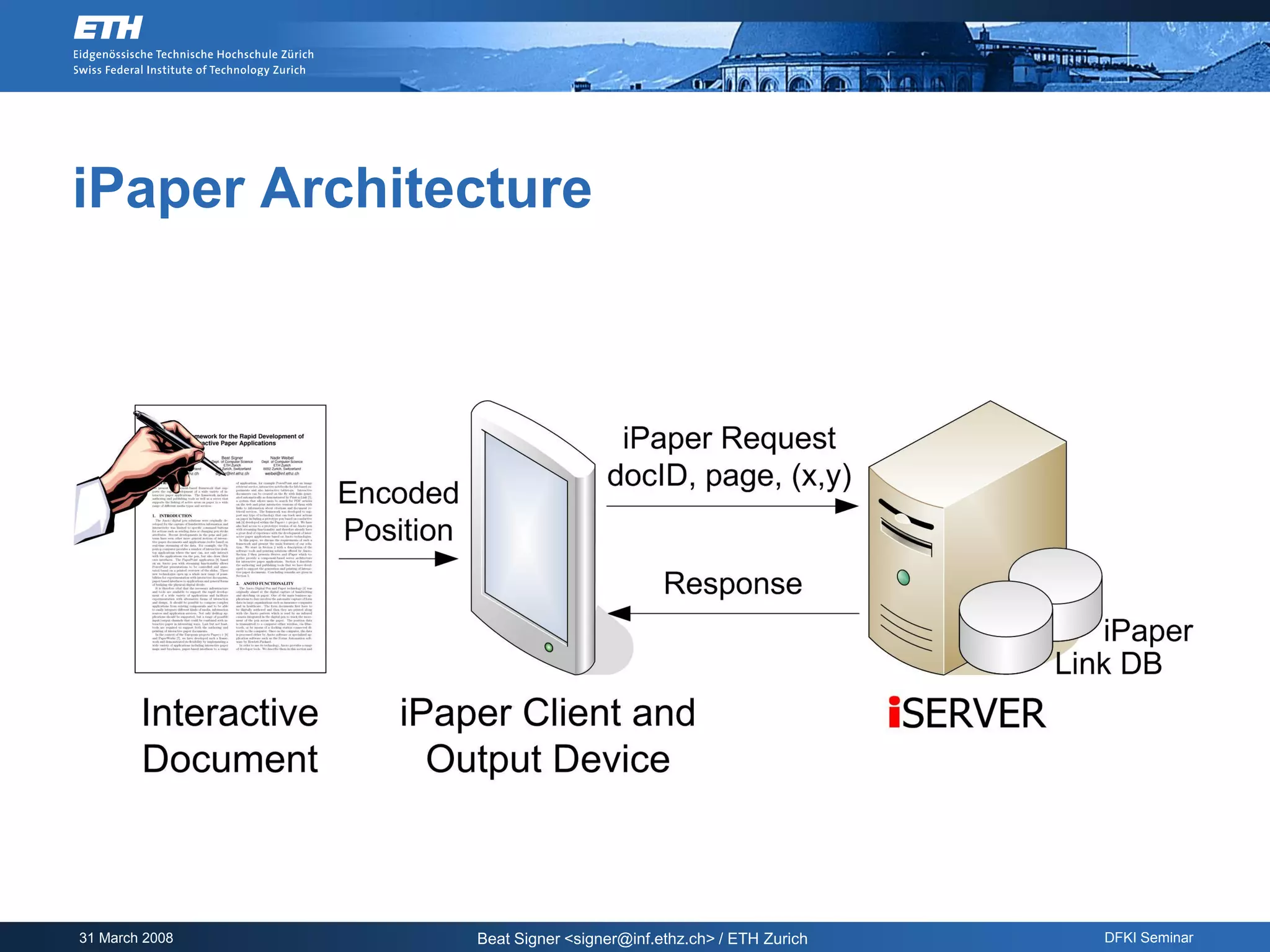

iPaper Architecture

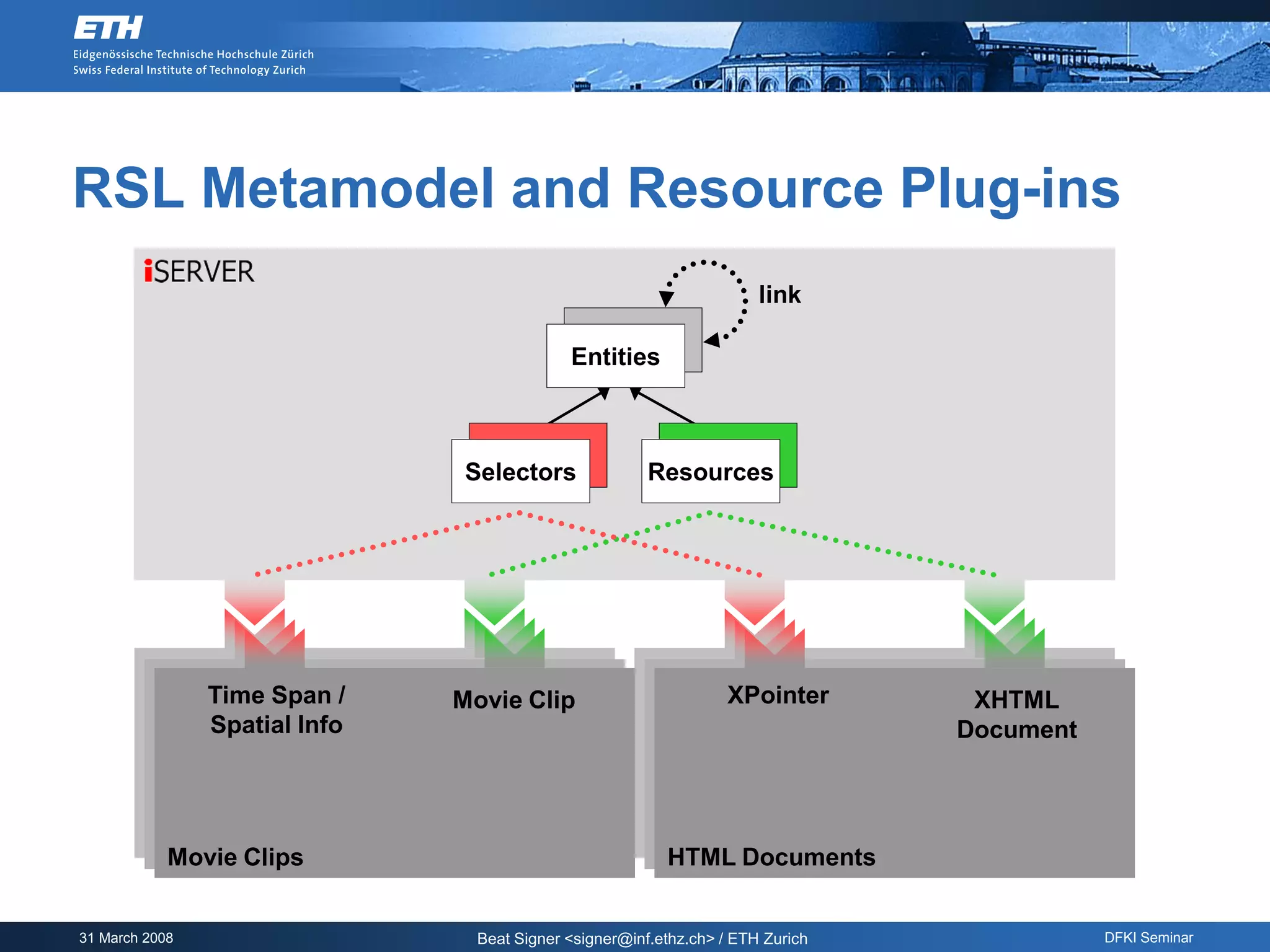

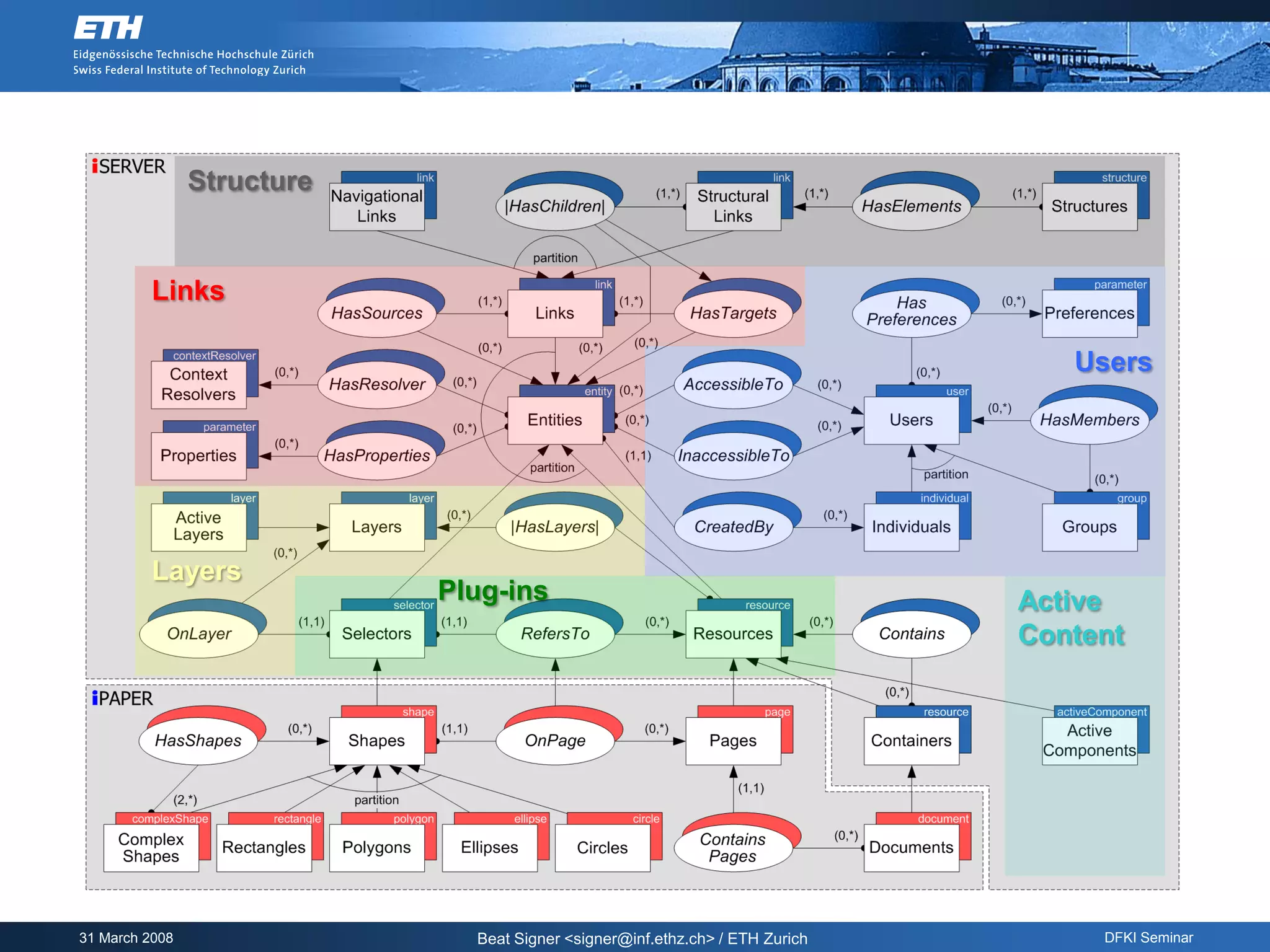

RSL Metamodel and Resource Plug-ins
link

Entities

Selectors Resources

Shape Page Query DB Object
Time Span / Movie Clip XPointer XHTML
Data/Metadata
Spatial Info Document

iPaper Application Database
Movie Clips HTML Documents


Structure

Links

Users

Layers
Plug-ins Active
Content

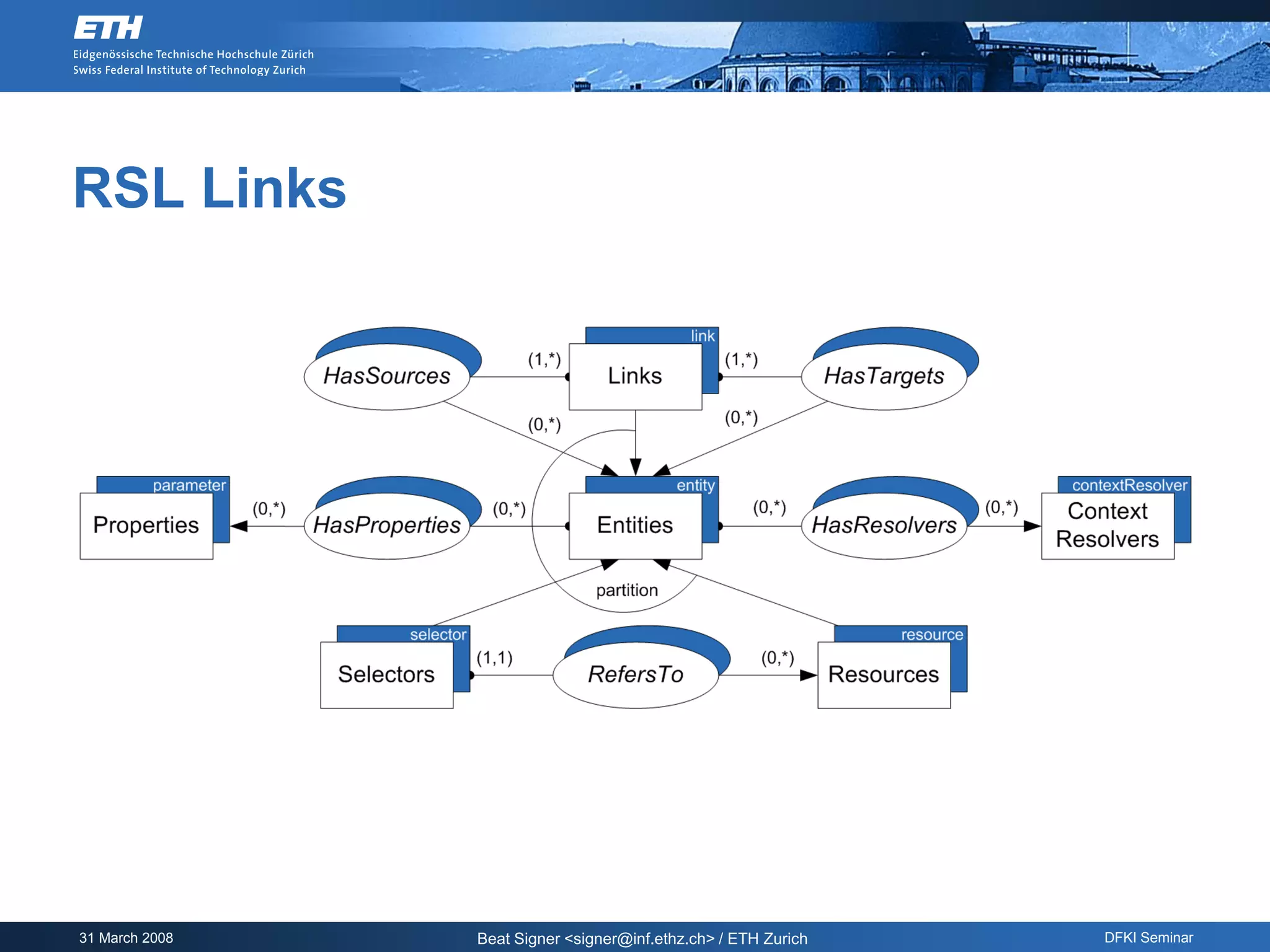

RSL Links

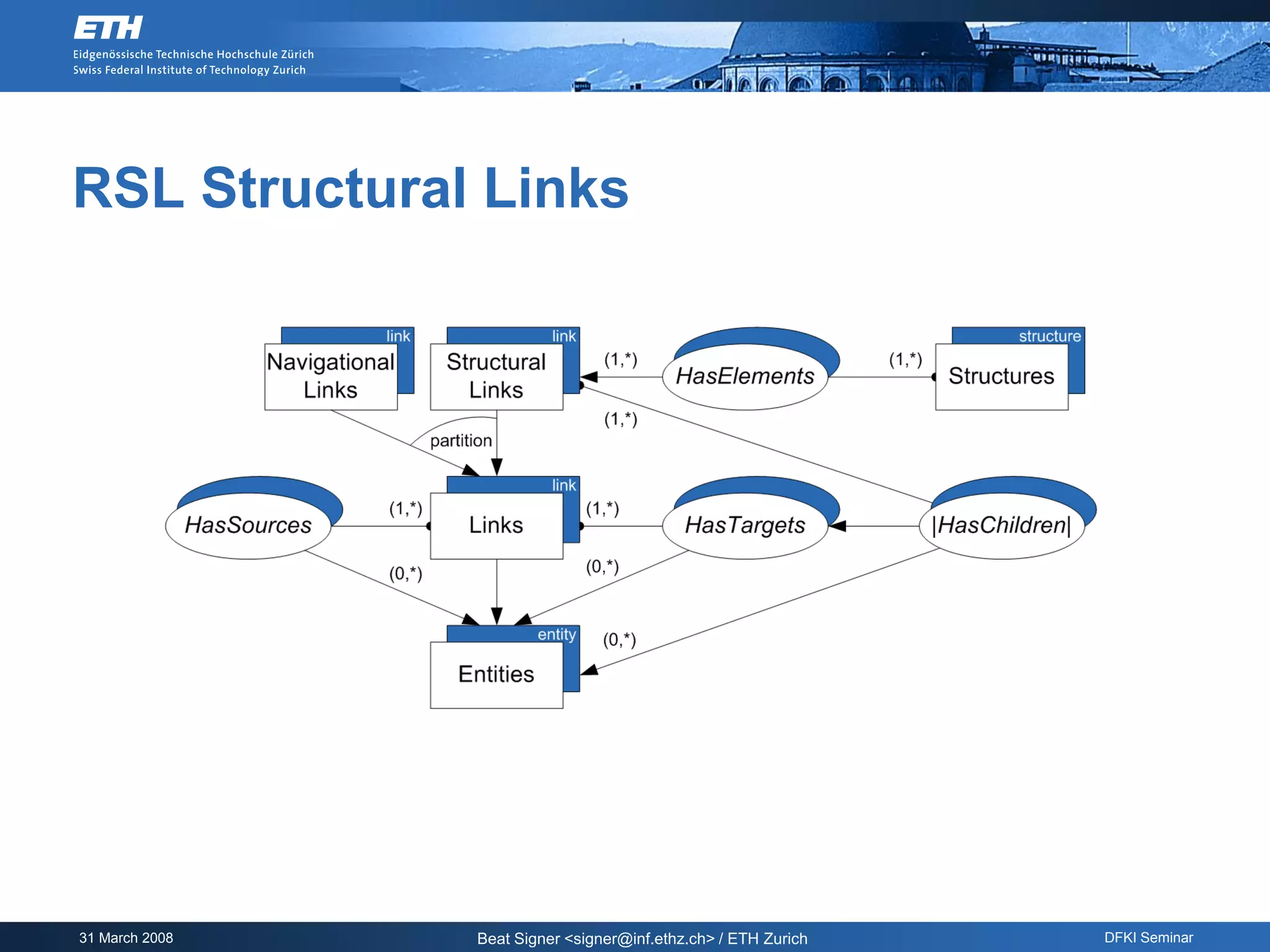

RSL Structural Links


RSL Structural Links …
 Structure over data
 e.g. regular document (chapters, sections, ...)
 reuse of resources  transclusion (Ted Nelson)
 context-dependant structures
 Structure over structures
 structural composition of data and substructures can
be combined

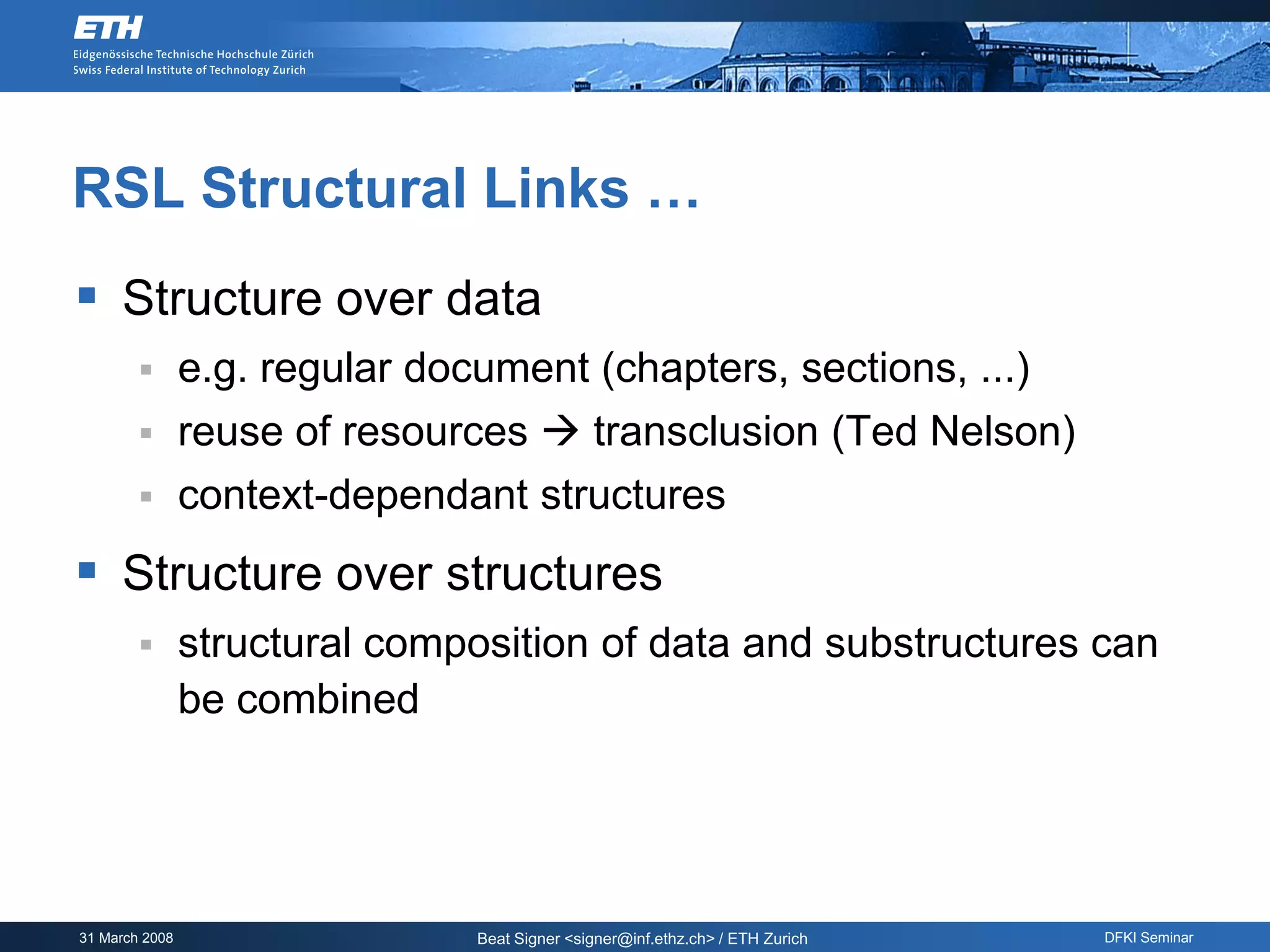

RSL Structural Links …

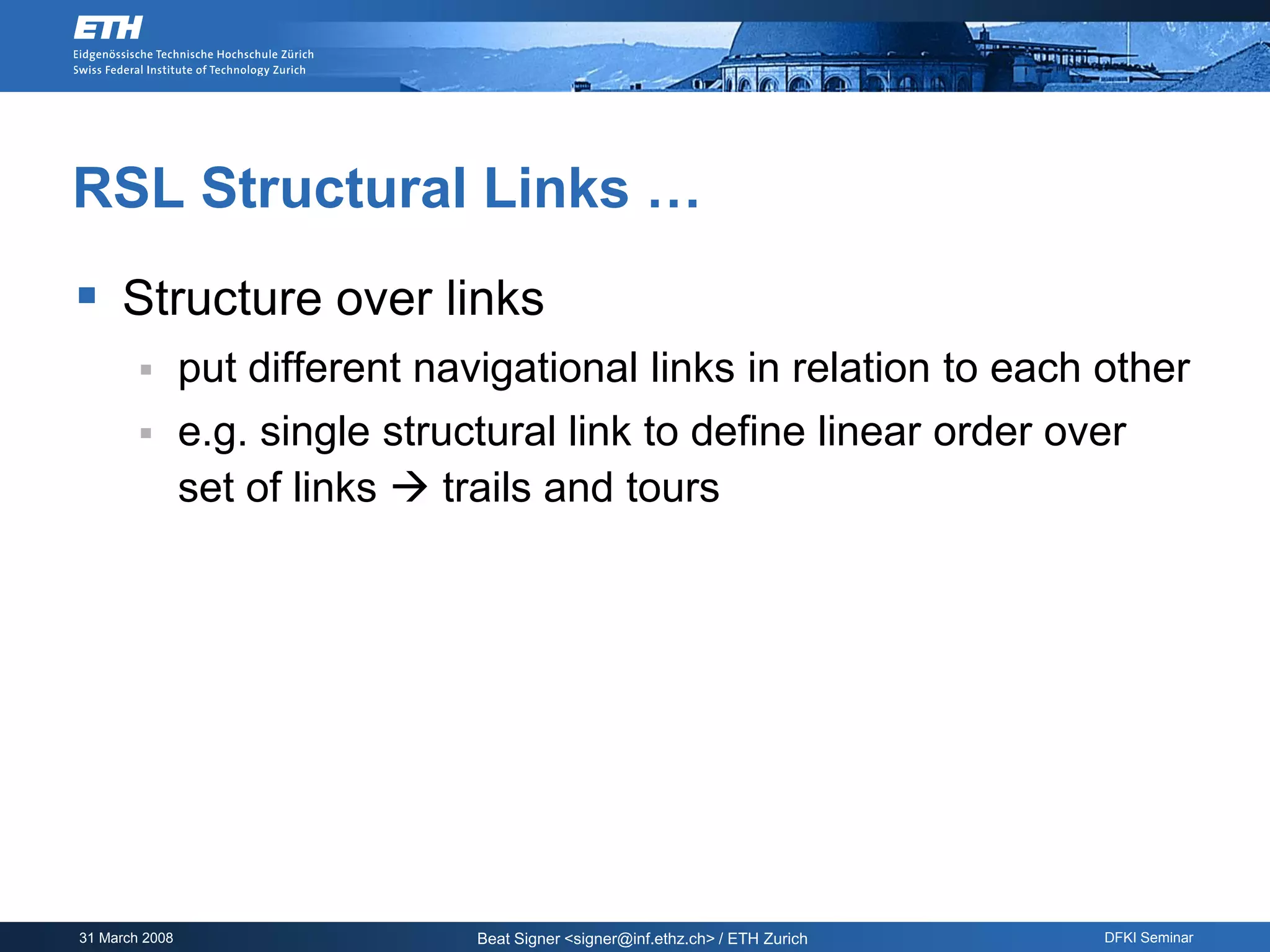

 Structure over links
 put different navigational links in relation to each other
 e.g. single structural link to define linear order over
set of links  trails and tours

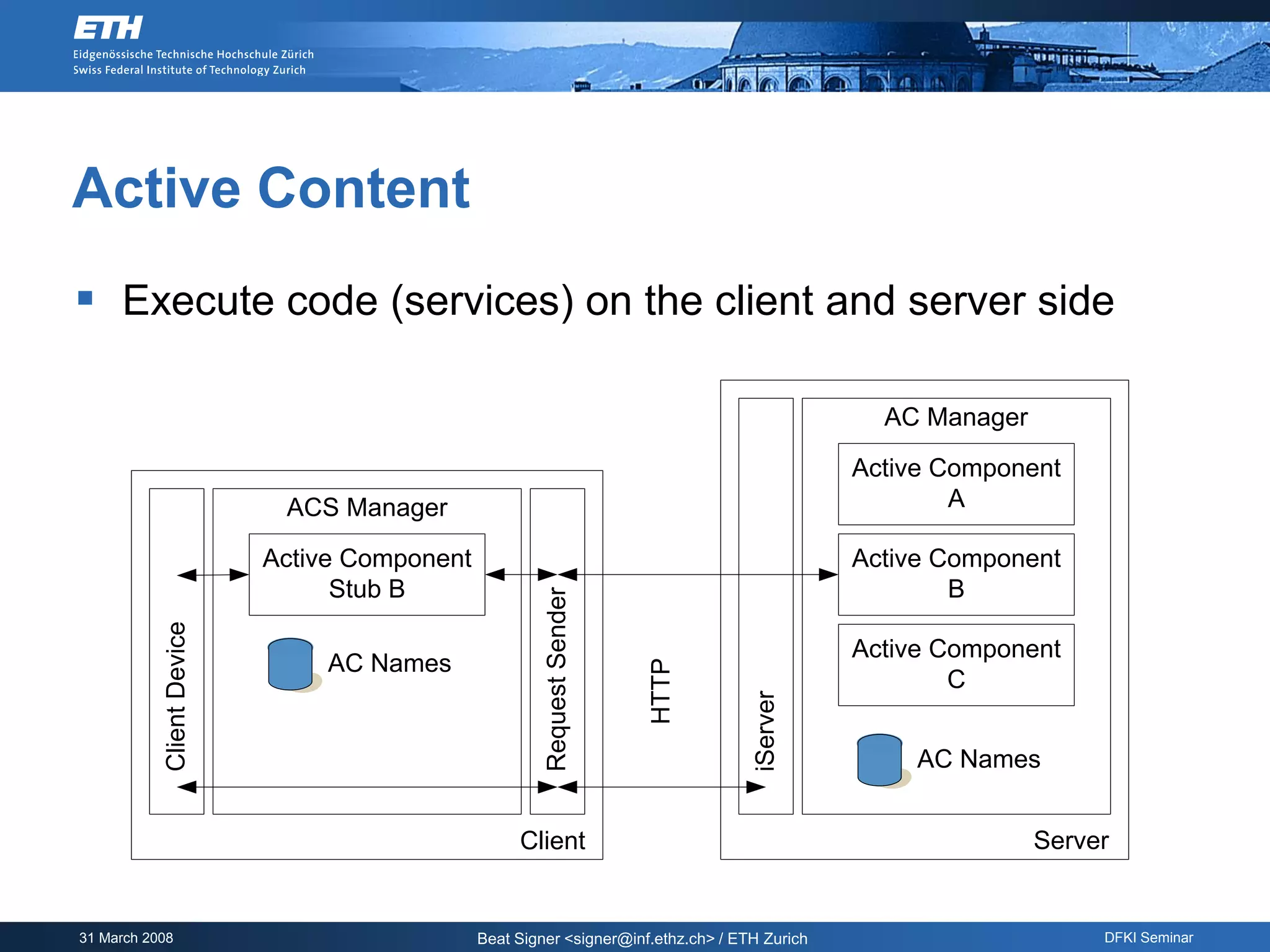

Active Content
 Execute code (services) on the client and server side

AC Manager
Active Component
ACS Manager A

Active Component Active Component
Stub B B
Request Sender
Client Device

Active Component
AC Names HTTP
C

iServer AC Names

Client Server

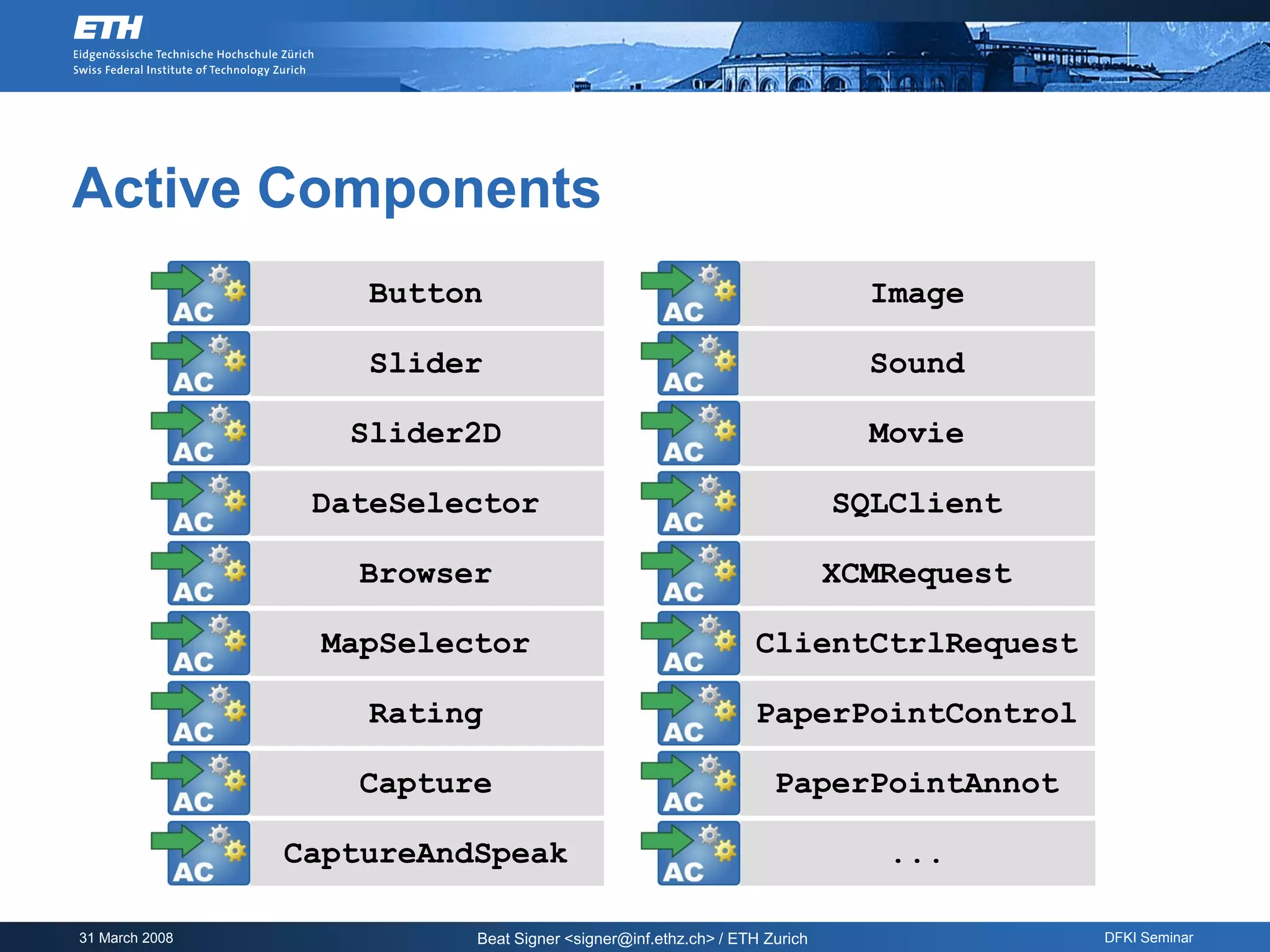

Active Components
Button Image

Slider Sound

Slider2D Movie

DateSelector SQLClient

Browser XCMRequest

MapSelector ClientCtrlRequest

Rating PaperPointControl

Capture PaperPointAnnot

CaptureAndSpeak ...

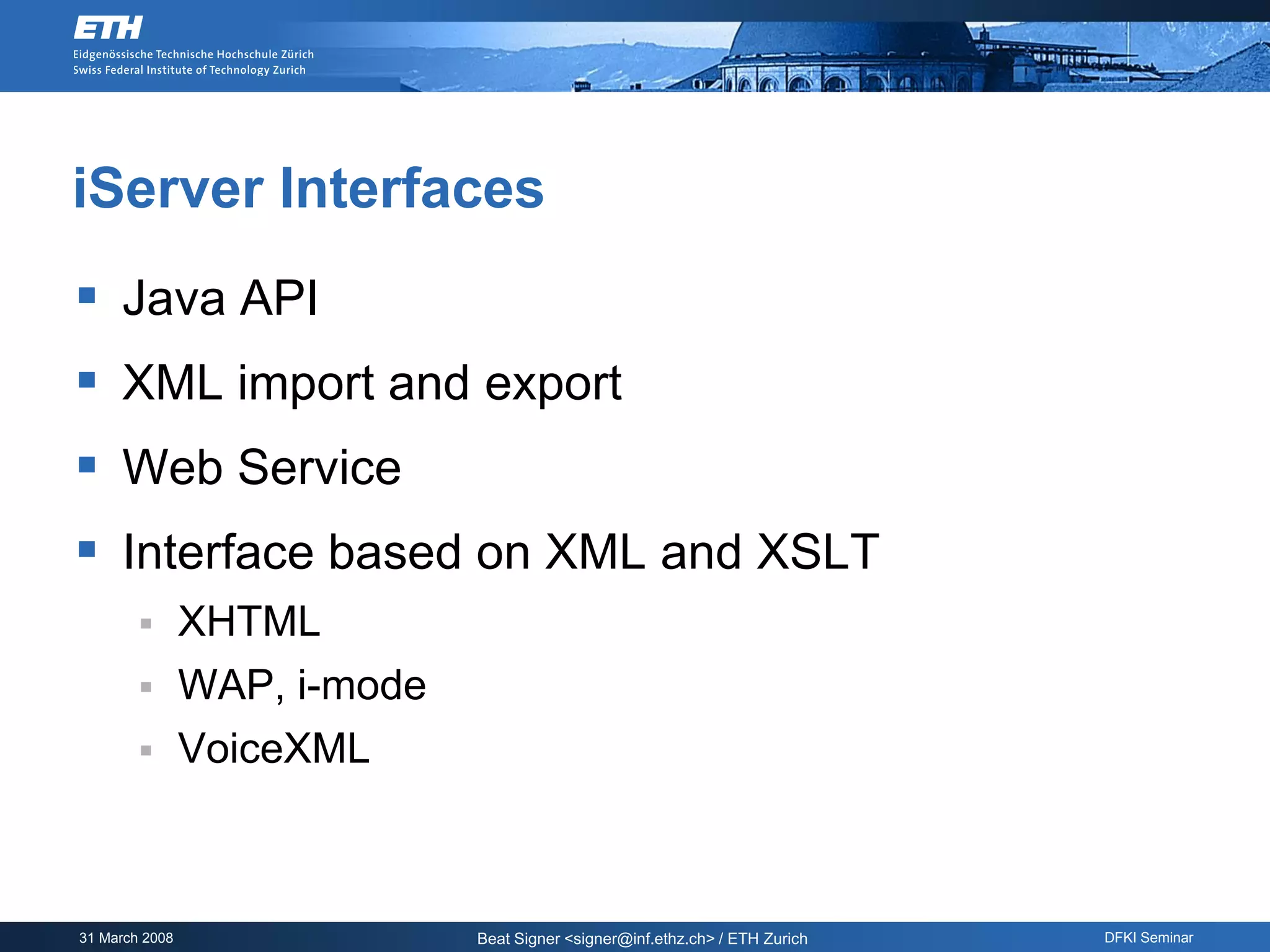

iServer Interfaces
 Java API
 XML import and export
 Web Service
 Interface based on XML and XSLT
 XHTML
 WAP, i-mode
 VoiceXML

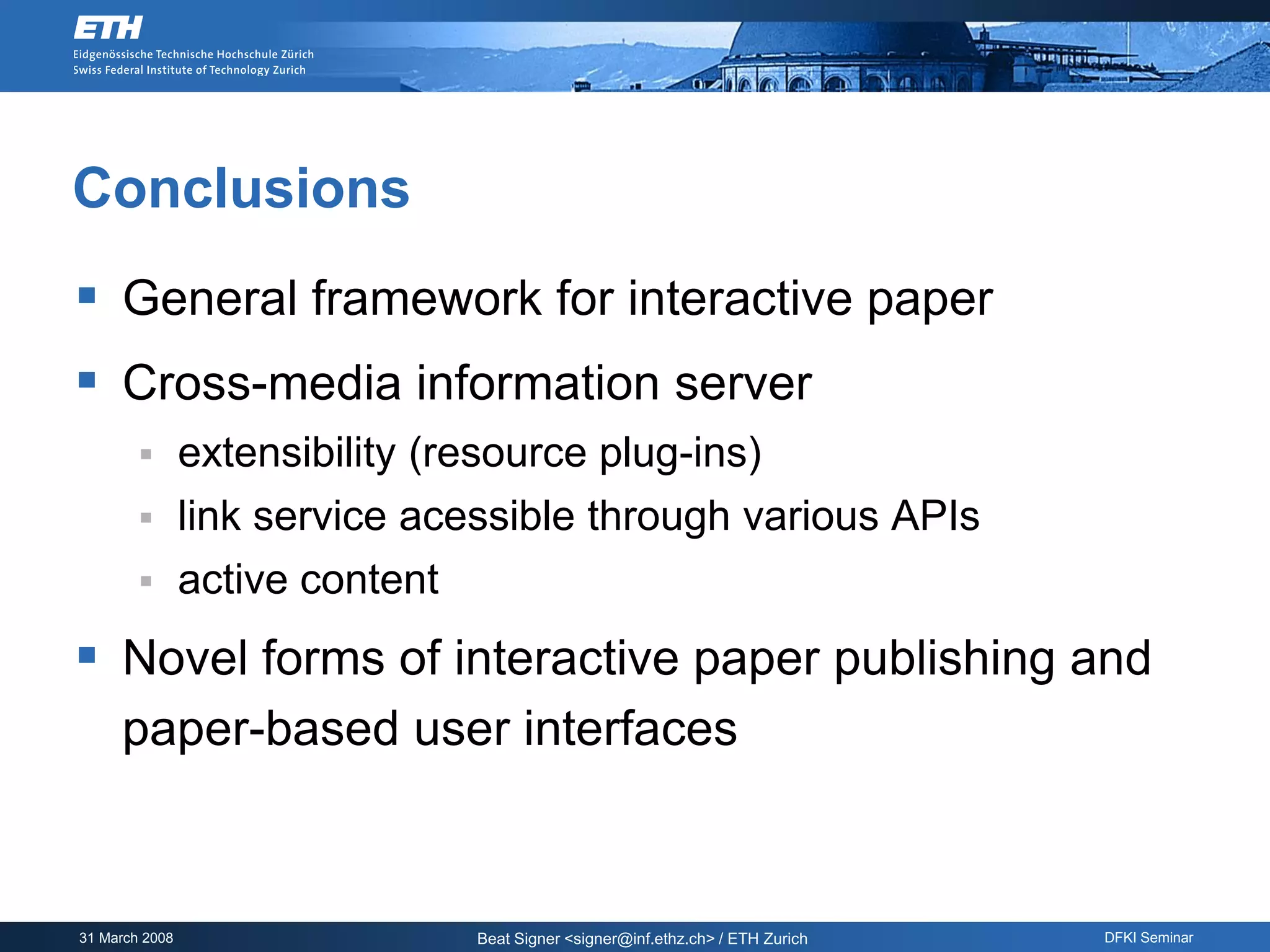

Conclusions
 General framework for interactive paper
 Cross-media information server
 extensibility (resource plug-ins)
 link service acessible through various APIs
 active content
 Novel forms of interactive paper publishing and
paper-based user interfaces

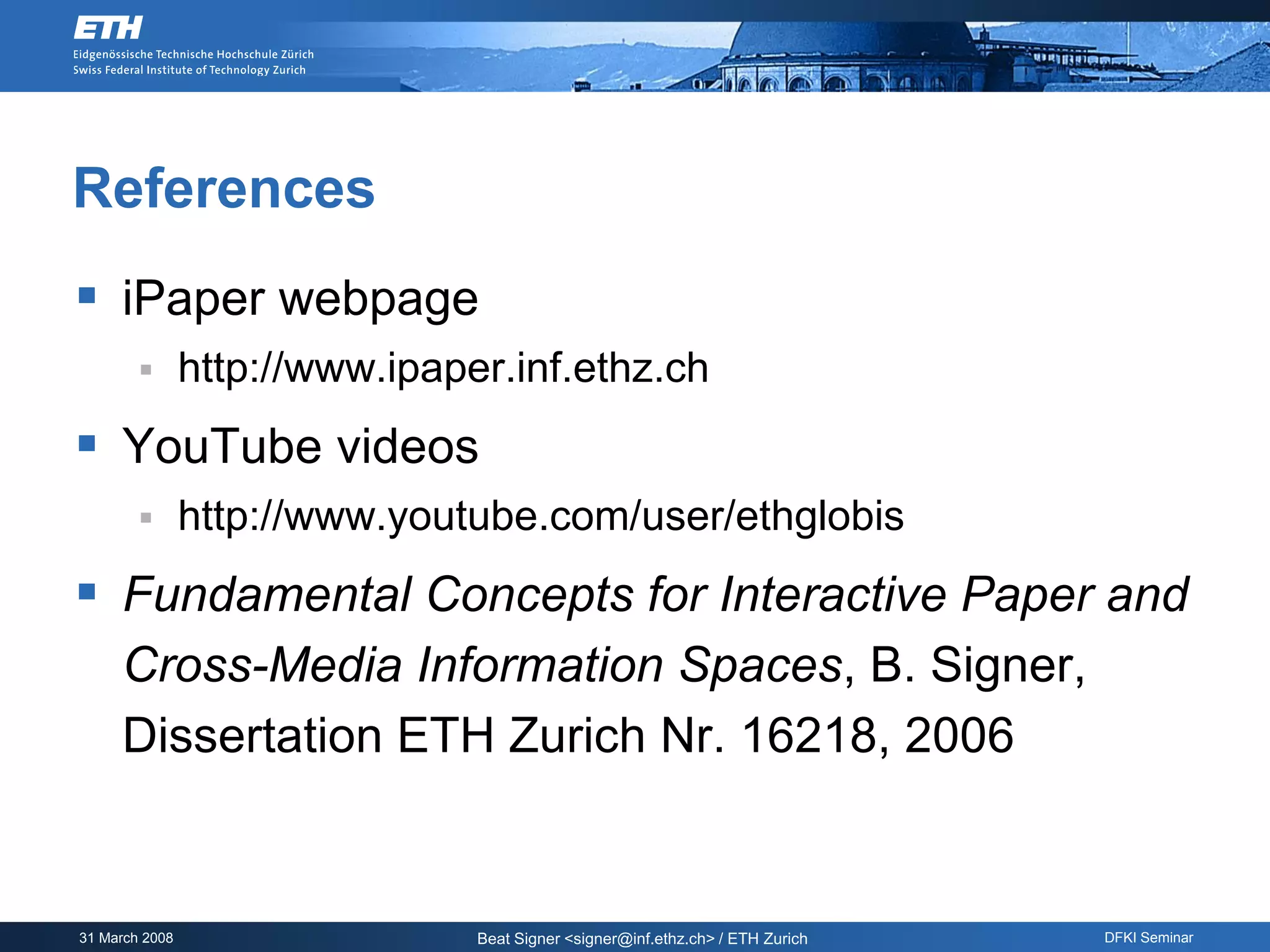

References
 iPaper webpage
 http://www.ipaper.inf.ethz.ch
 YouTube videos
 http://www.youtube.com/user/ethglobis
 Fundamental Concepts for Interactive Paper and
Cross-Media Information Spaces, B. Signer,
Dissertation ETH Zurich Nr. 16218, 2006
