Intelligent Storage
The document discusses emerging trends in storage technologies, including storage and network convergence, Fibre Channel over Ethernet (FCoE), and solid state drives. It notes that grid storage is becoming unavoidable as these technologies advance. The document also summarizes IBM's Storwize family of storage systems and provides success stories for the Storwize systems sold through Ingram Micro.
Intelligent Storage
- 1.

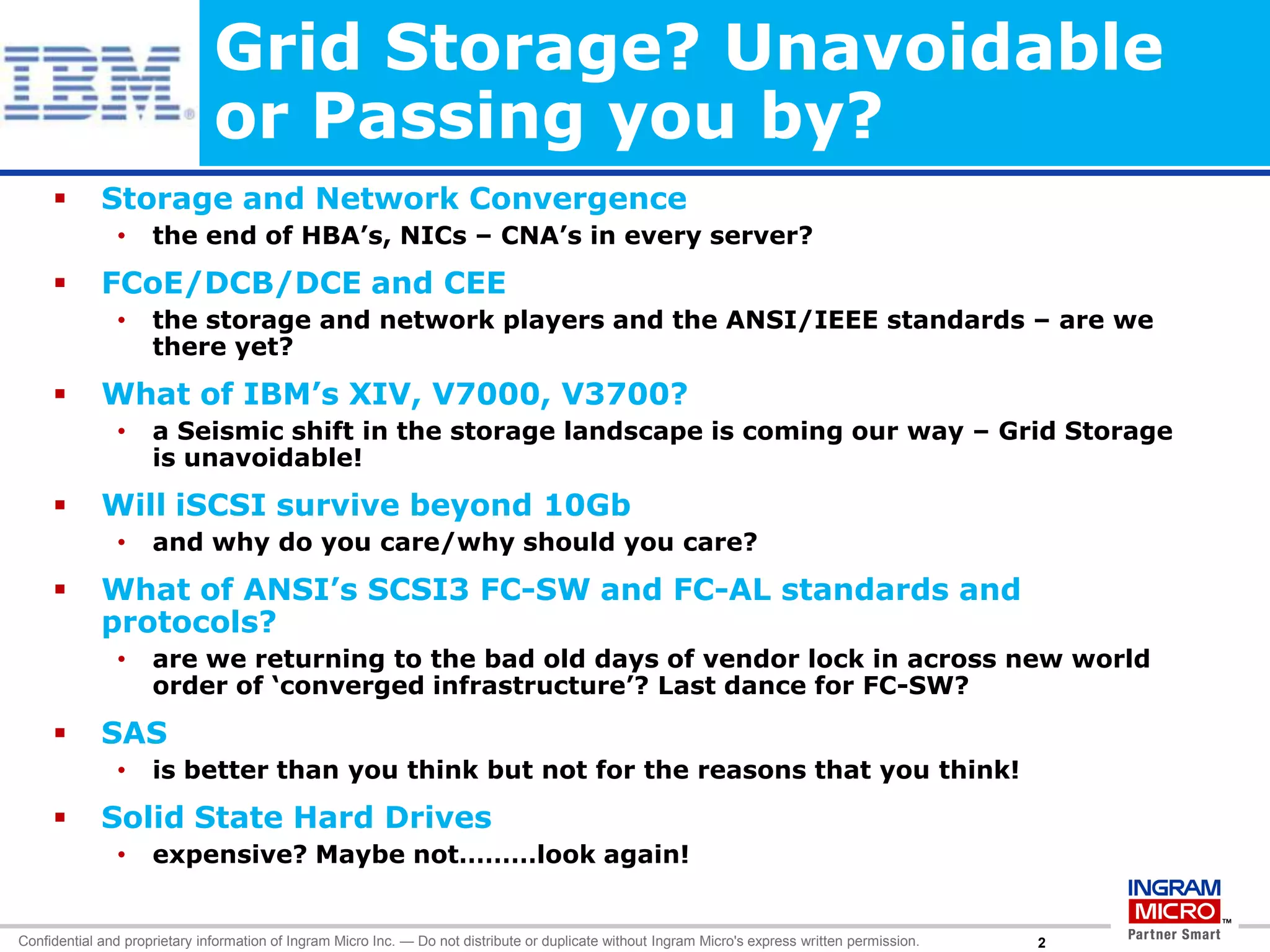

- 2. Grid Storage? Unavoidable or Passing you by? Storage and Network Convergence • the end of HBA’s, NICs – CNA’s in every server? FCoE/DCB/DCE and CEE • the storage and network players and the ANSI/IEEE standards – are we there yet? What of IBM’s XIV, V7000, V3700? • a Seismic shift in the storage landscape is coming our way – Grid Storage is unavoidable! Will iSCSI survive beyond 10Gb • and why do you care/why should you care? What of ANSI’s SCSI3 FC-SW and FC-AL standards and protocols? • are we returning to the bad old days of vendor lock in across new world order of ‘converged infrastructure’? Last dance for FC-SW? SAS • is better than you think but not for the reasons that you think! Solid State Hard Drives • expensive? Maybe not………look again! Confidential and proprietary information of Ingram Micro Inc. — Do not distribute or duplicate without Ingram Micro's express written permission. 09072
- 3. 1Gb iSCSI (poorman’s SAN!) or 8Gb FC-SW SAN iSCSI SANs leverage Ethernet infrastructure to provide a simple, cost effective storage solution Client TCP/IP Storage iSCSI/FC SW SAN LAN/WAN iSCSI NICS/FC HBAs NICs Ethernet iSCSI/FC Storage Switch Switches Confidential and proprietary 2013 February 17, information of Ingram Micro Inc.Ingram distributeConfidential — Do not Micro or duplicate without Ingram Micro's express written permission. 09073

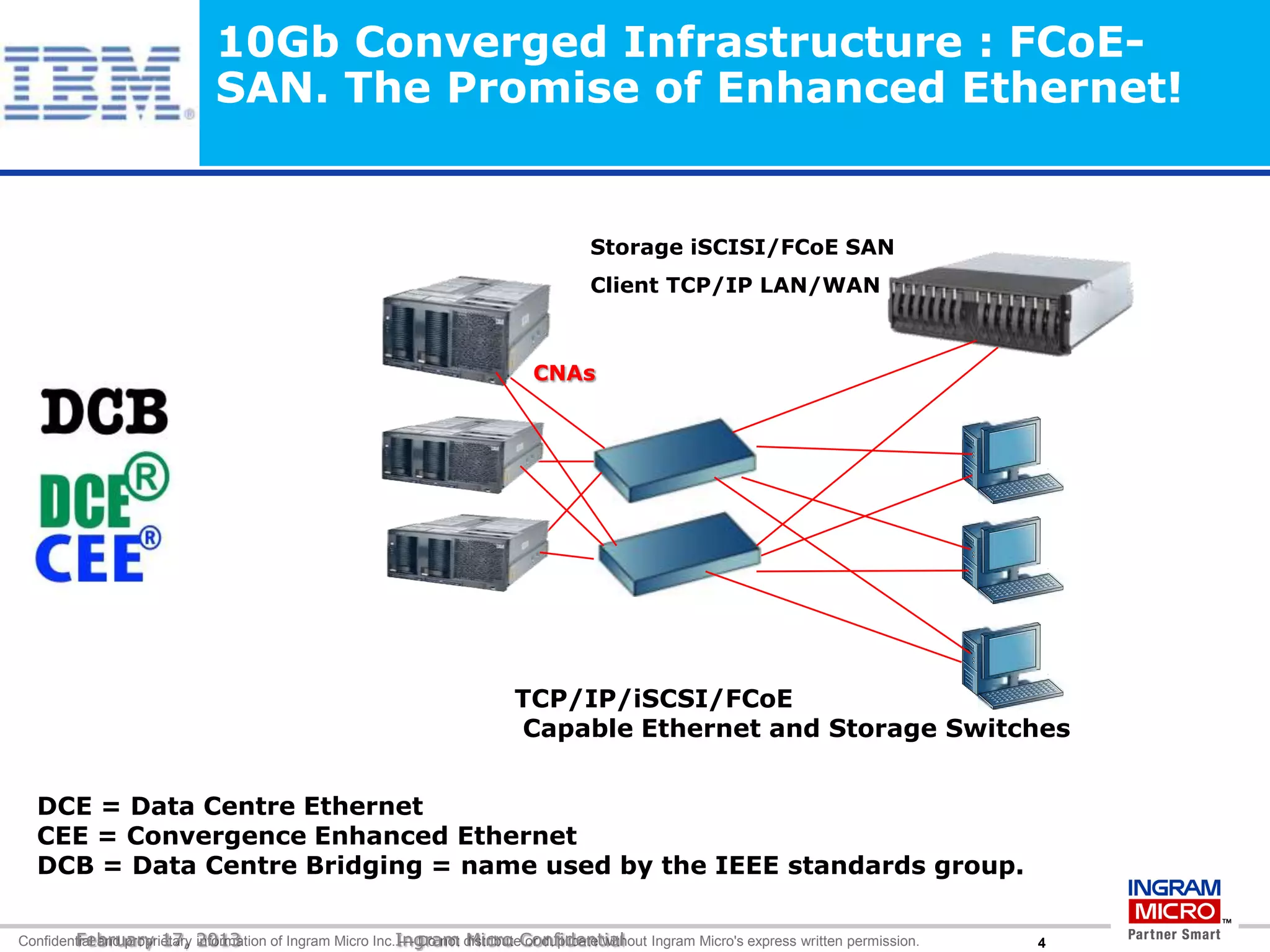

- 4. 10Gb Converged Infrastructure: FCoE- SAN. The Promise of Enhanced Ethernet! Storage iSCISI/FCoE SAN Client TCP/IP LAN/WAN CNAs TCP/IP/iSCSI/FCoE Capable Ethernet and Storage Switches DCE = Data Centre Ethernet CEE = Convergence Enhanced Ethernet DCB = Data Centre Bridging = name used by the IEEE standards group. Confidential and proprietary 2013 February 17, information of Ingram Micro Inc.Ingram distributeConfidential — Do not Micro or duplicate without Ingram Micro's express written permission. 09074

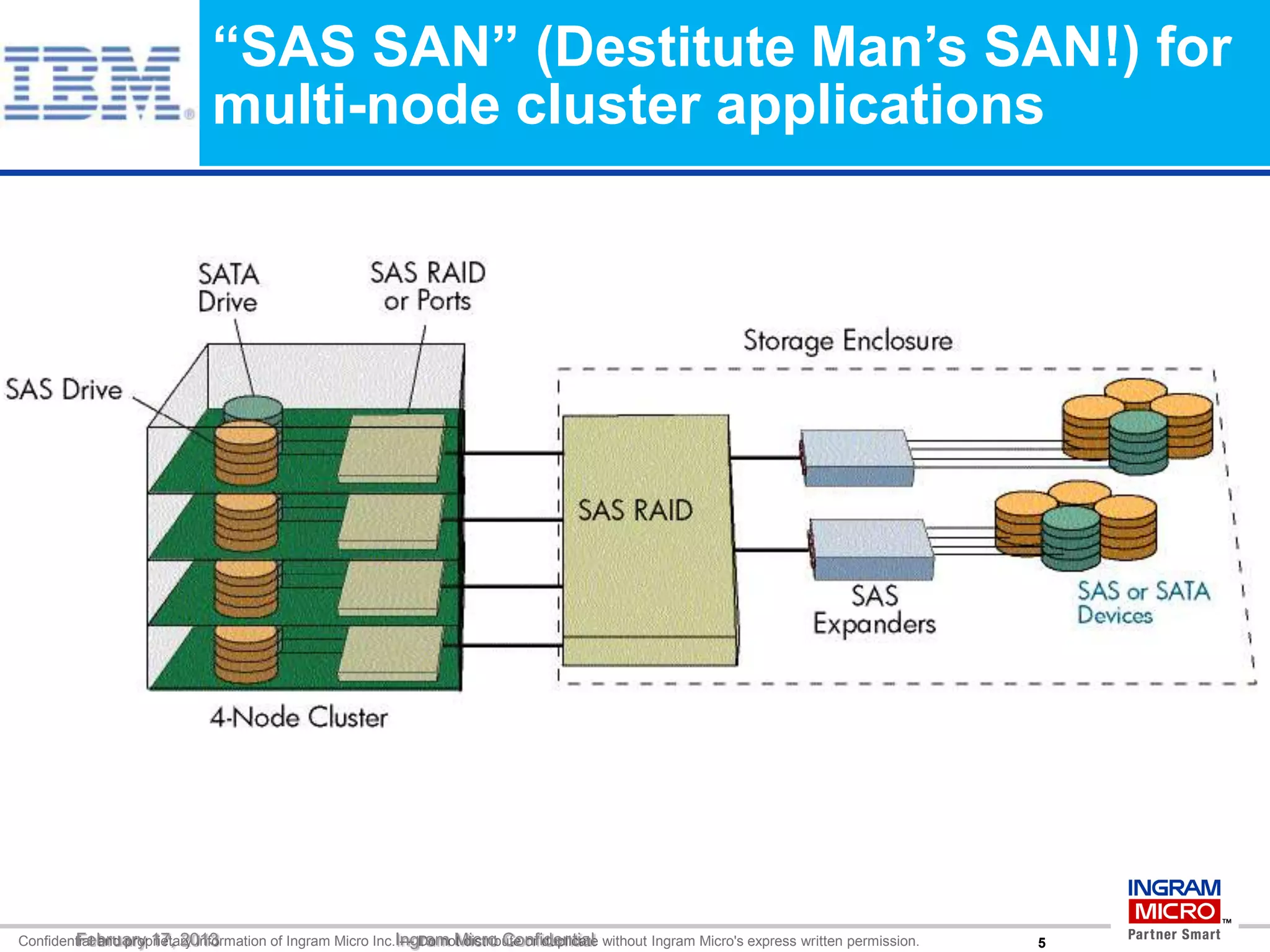

- 5. “SAS SAN” (DestituteMan’s SAN!) for multi-node cluster applications External Storage System Revenue By Drive Interface* Confidential and proprietary information of Ingram Micro Inc.Ingram Micro Confidential without Ingram Micro's express written permission. February 17, 2013 — Do not distribute or duplicate 09075
- 6. Server & StorageTrends – What is the problem here? Roll on affordable MLC Solid State Drives! Storage & Computing Trends CPU Power per $ - 50% Disk Capacity per $ - 30% Disk I/O Speed per $ - 5% Years 1 2 3 4 5 6 Confidential and proprietary 2013 February 17, information of Ingram Micro Inc.Ingram distributeConfidential — Do not Micro or duplicate without Ingram Micro's express written permission. 09076

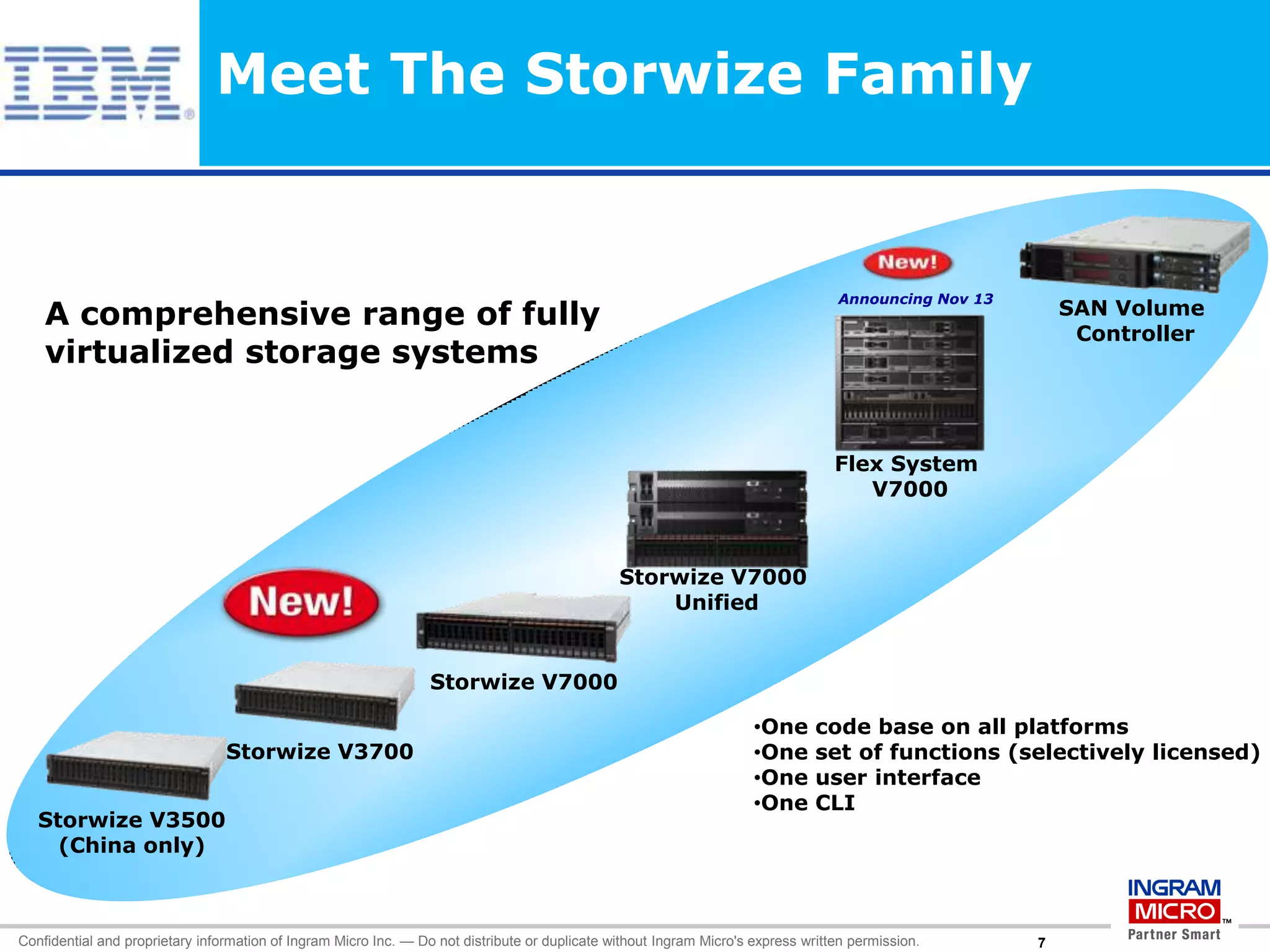

- 7. Meet The StorwizeFamily Announcing Nov 13 A comprehensive range of fully SAN Volume Controller virtualized storage systems Flex System V7000 Storwize V7000 Unified Storwize V7000 •One code base on all platforms Storwize V3700 •One set of functions (selectively licensed) •One user interface •One CLI Storwize V3500 (China only) Confidential and proprietary information of Ingram Micro Inc. — Do not distribute or duplicate without Ingram Micro's express written permission. 09077
- 8. Gen-i Ingram MicroIBM Storwize Success Stories Confidential and proprietary information of Ingram Micro Inc. — Do not distribute or duplicate without Ingram Micro's express written permission. 09078
- 9. Confidential and proprietaryinformation of Ingram Micro Inc. — Do not distribute or duplicate without Ingram Micro's express written permission. 09079 000000_9
Editor's Notes
- #3 DCE = Data Centre Ethernet = Cisco’s trademarked term for their implementation (trademarked on November 1st 2005)CEE = Convergence Enhanced Ethernet = IBM’s trademarked term for their implementation (trademarked April 18th 2007, 18 months after Cisco trademarked Cisco Data Center Ethernet)DCB = Data Centre Bridging = name used by the IEEE standards group.
