1. 11
Network Traffic Classification by Packet Length
Signature Extraction
Srinidhi H, Tamil Esai Somu, Madhusoodhana Chari S

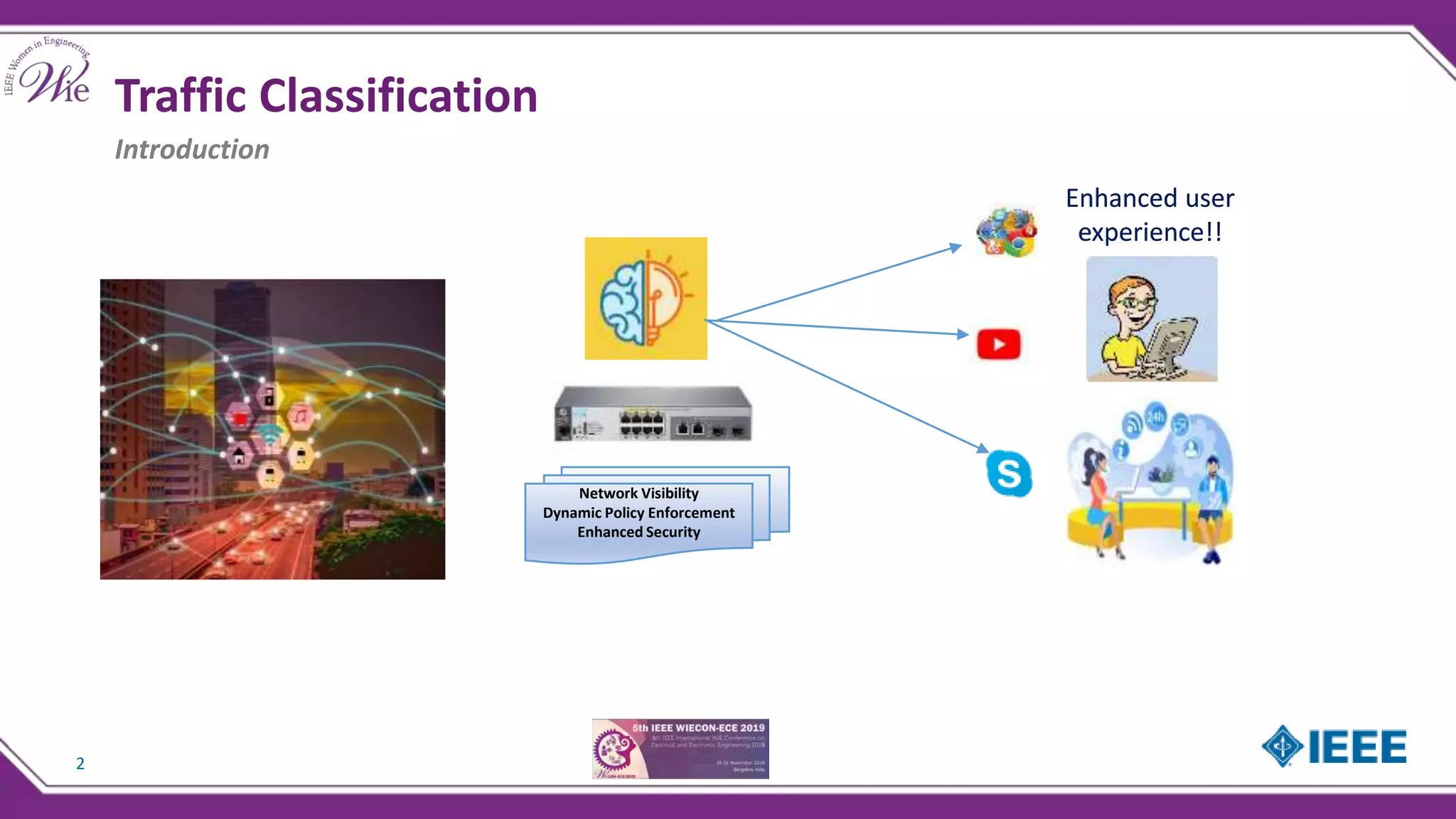

2. Network Visibility
Dynamic Policy Enforcement
Enhanced Security
Traffic Classification
2
Introduction
Enhanced user
experience!!

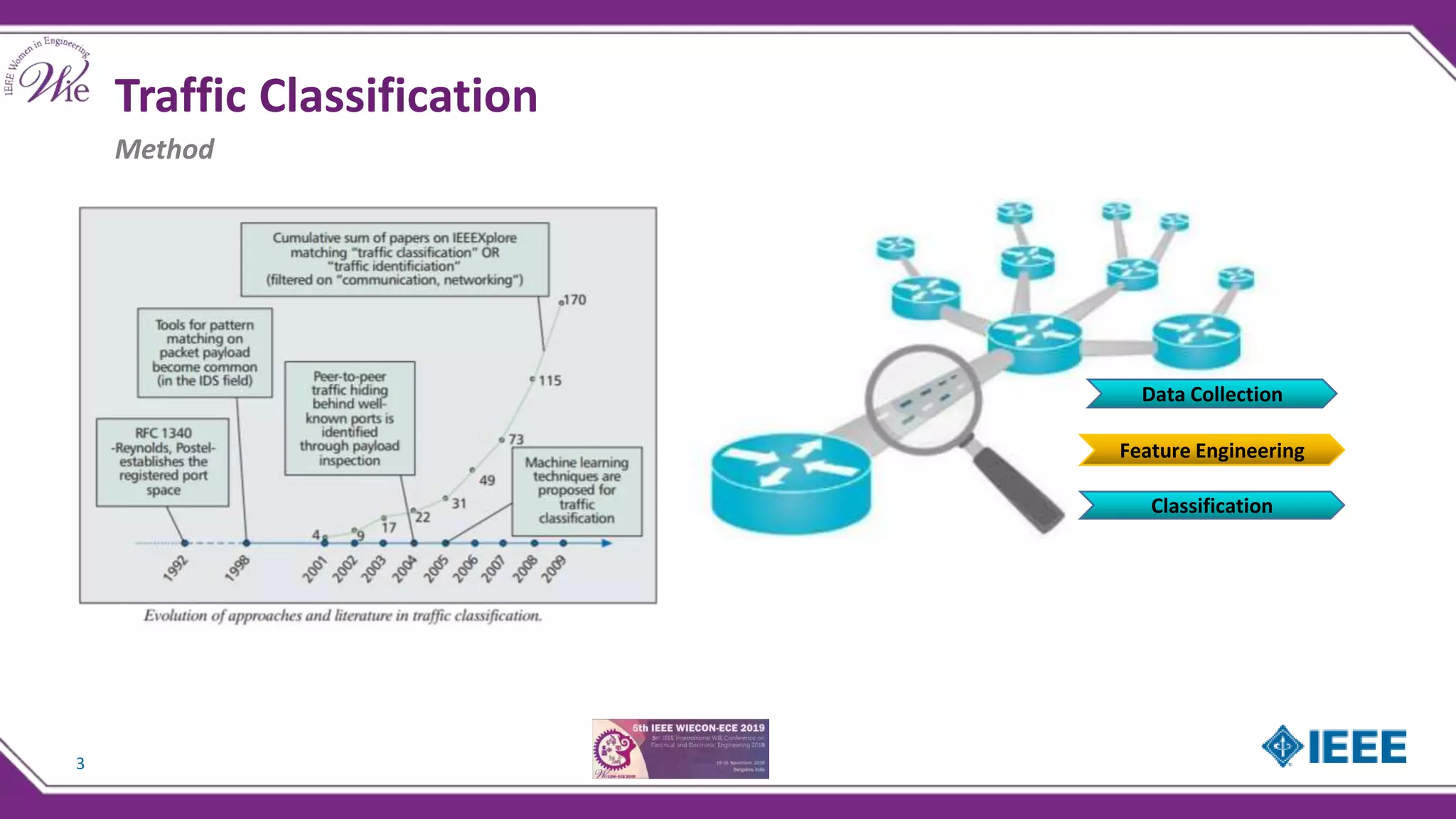

3. Traffic Classification
3
Method
Data Collection
Feature Engineering
Classification

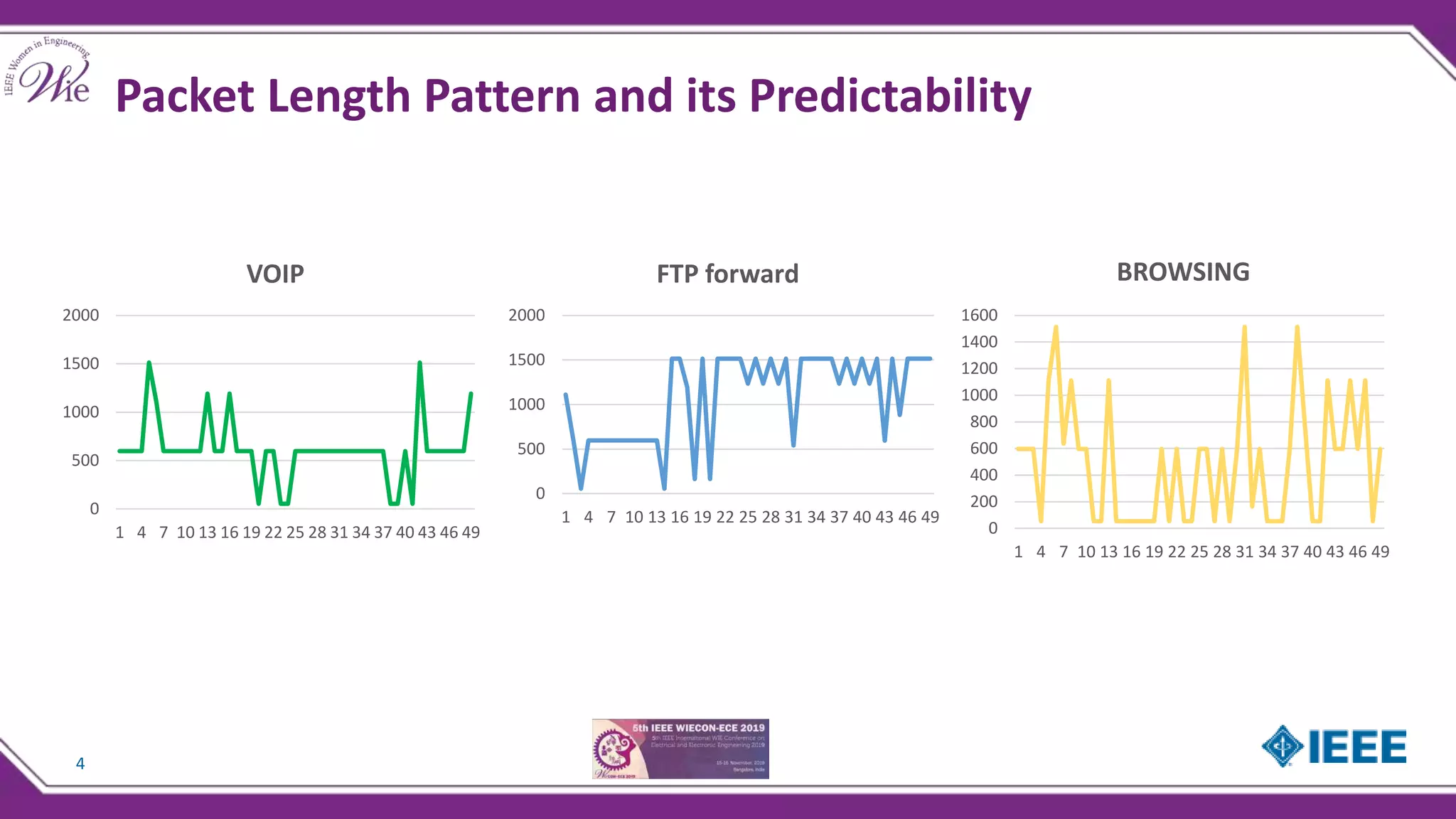

4. Packet Length Pattern and its Predictability
4
0
500
1000
1500
2000
1 4 7 10 13 16 19 22 25 28 31 34 37 40 43 46 49
VOIP
0
200
400
600
800
1000
1200
1400
1600
1 4 7 10 13 16 19 22 25 28 31 34 37 40 43 46 49
BROWSING
0
500
1000
1500
2000
1 4 7 10 13 16 19 22 25 28 31 34 37 40 43 46 49
FTP forward

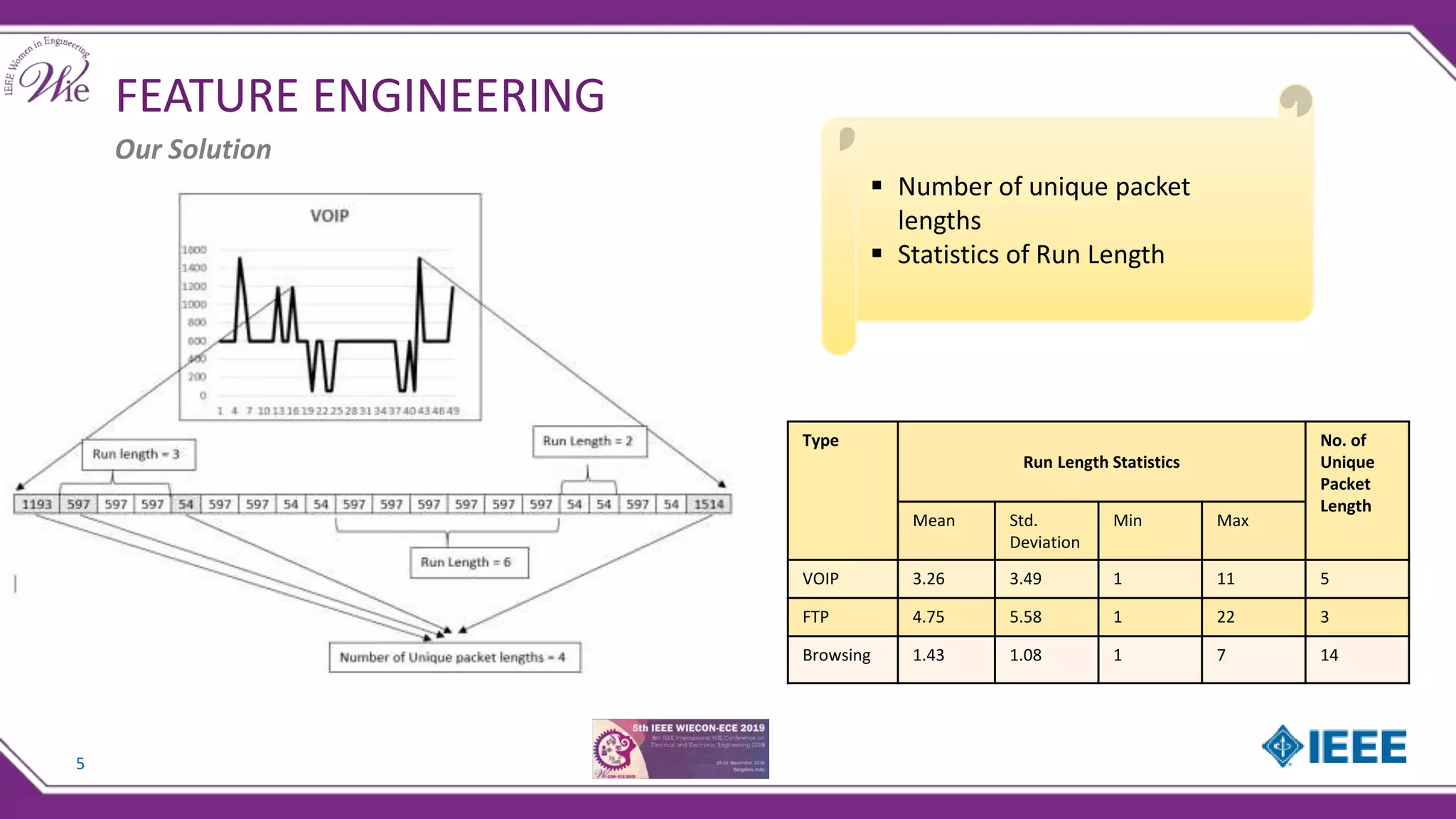

5. FEATURE ENGINEERING
5
Our Solution
 Number of unique packet
lengths
 Statistics of Run Length
Type
Run Length Statistics
No. of
Unique
Packet
Length
Mean Std.
Deviation
Min Max
VOIP 3.26 3.49 1 11 5
FTP 4.75 5.58 1 22 3
Browsing 1.43 1.08 1 7 14

6. Classification and its Interpretability
6
Tree1: Generated with only packet length
statistics.
Tree2 : Generated with no. of unique packet
length, packet length and run length statistics

7. Future Expansions
7
 Expanding signature extraction methods –
LZW compression algorithm
 Programming the ASIC

8. 8
