1. Continuous Gossip-based Aggregation
Through Dynamic Information Aging
Vitaliy Rapp, Kalman Graffi
Technology of Social Networks Group,
University of Düsseldorf, Germany
Email: graffi@cs.uni-duesseldorf.de

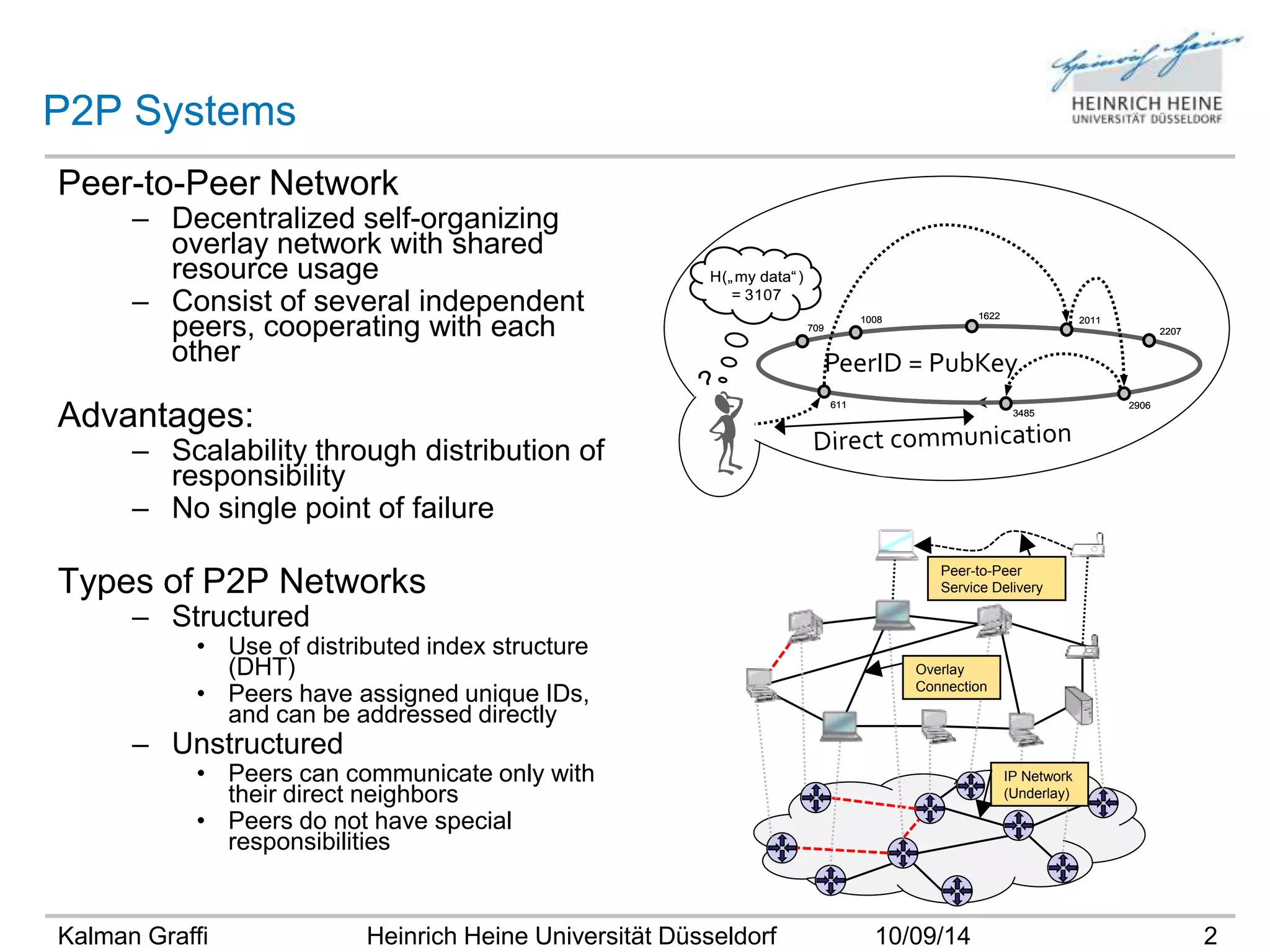

2. P2P Systems
Peer-to-Peer Network
– Decentralized self-organizing
overlay network with shared
resource usage
– Consist of several independent
peers, cooperating with each
other
Advantages:
– Scalability through distribution of
responsibility
– No single point of failure
Types of P2P Networks
– Structured
• Use of distributed index structure
(DHT)
• Peers have assigned unique IDs,
and can be addressed directly
– Unstructured
• Peers can communicate only with
their direct neighbors
• Peers do not have special
responsibilities
1008 1622 2011
PeerID = PubKey
3485
Peer-to-Peer
Service Delivery
IP Network
(Underlay)
Overlay
Connection
H(„my data“ )
= 3107
2207
2906
709
611
?
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 2

3. Future Peer-to-Peer Applications: Social Networks
A P2P Framework for Social Networks (LifeSocial)
– Framework: combining a wide set of useful modules
• Storage, messaging, security, caching,
app-hosting, multicast, pub/sub …
• Distributed data structures, monitoring
– Social network on top of platform
• Build through “plugins” (apps)
• Configurable GUI supports app growth
See p2pframework.com
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 3

4. Main Challenges for Future P2P Applications
Security:
– Secure overlays, user management, key infrastructure
– Secure (encrypted, authenticated, integer) communication
– Access control, role-based, identity-based
Controlled quality / performance
– First step monitoring: statistical aggregation over all nodes
– Hop count, node count, reply times, traffic overhead, used overlay
functions, …
– Statistics:
• Min, max, average,
standard deviation
– Requirements
• Precise
• Timely
• Low-cost
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 4

5. Agenda
Gossip based Aggregation
Continuous Gossip-based Aggregation
Evaluation
Conclusions
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 5

6. ► Gossiping Protocols
Idea:
– Communicate only with neighbors (gossip)
• Assumes no specific overlay topology
– Exchange and aggregate information
• E.g. calculate averages, minimum, maximum
Characteristics
– Gossip protocols are round-based (epochs)
– For every round
• Each node selects a subset of nodes to interact with (pairwise)
• The selection function is often probabilistic;
• Nodes interact via “small” messages
• Local state changes due to new information
– In general: “quick” convergence
D. Kempe, A. Dobra,J. Gehrke, “Gossip-Based Computation of Aggregate
Information,” IEEE Symposium on Foundations of Computer Science (FOCS’03)
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 6

7. Gossip-Protocol: PushSum
Assumptions
– Input: local states 푥푖 (푡) of peers 푝푖 at time 푡
– Initialization defines aggregation function
round(0){
– 1. 푠0,푖 = 푥푖 (for average calculation)
– 2. 푤0,푖 = 1 (for average calculation)
– 3. 푠푒푛푑 푠푖 , 푤푖 푡표 푠푒푙푓 }
Round (r>0){
∗, 푥푡
– 1. Let {(푠푡
∗)} be all pairs sent to 푖 during round r-1
∗ ; 푤푟,푖 = 푡 푤푡
– 2. 푠푟,푖 = 푡 푠푡
∗
– 3. Choose a target node 푗 ≠ 푖 uniformly at random
– 4. Send the pair (
1
2
푠푟,푖 ,
1
2
푤푟,푖 ) to j and self
– 5.
푠푟,푖
푤푟,푖
is the estimate of aggregate in round r }
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 7

8. Initialization of PushSum
Result of gossiping:
– Input: 푠푖 , 푤푖
– Output: F t =
푎푣푒푟푎푔푒(푠푖)
푎푣푒푟푎푔푒(푤푖)
Calculating the average:
– For all nodes: 푠푖 = 푥푖 ; wi = 1
푎푣푒푟푎푔푒(푥푖)
– Output:F t =
1
Node count:
– One single node: 푠푖 = 1; 푤푖 = 1
– All other nodes: 푠푖 = 1; 푤푖 = 0
– Output: F t =
1
1/푛
with 1/n being the average share of 1 among n peers
Calculating the sum:
– One single node: 푠푖 = 푥푖 ; 푤푖 = 1
– All other nodes: 푠푖 = 푥푖 ; 푤푖 = 0
푎푣푒푟푎푔푒(푥푖)
– Output: F t =
1/푛
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 8

9. Example Average Calculation
Example: 12 nodes
– Initial state
– After 1 round
• With communication links
– After 5 rounds
– After 10 rounds
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 9

10. Performance and Complexity of Push-Sum
Performance: precision
– Simulations with 1M nodes
• Gossip every 5 second
– For most time:
• False values
• Although convergence exist
– Problem
• Peer count starts always at 0
Inpre-cise
Convergence time
• n = number of nodes
• 휀 = accepted relative error
– Push-Sum converges quickly
– Problem:
• Huge message overhead
per node
•
W. Terpstra, C. Leng, A. Buchmann: Brief Announcement: Practical Summation via
Gossip, ACM Symposium on Principles of Distributed Computing (PODC 2007)
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 11

11. Churn – Reference: Node Count
Comparative Evaluation
– Node count: 1000, churn
– Tree-based monitoring: update
interval 15 sec, branching factor 8
– PushSum:30 messages per epoch
– Centralized for comparison,
update interval 60 sec
– Same overhead allowed for all
monitoring approaches
Simulation setup
– Churn with joining and
instantly leaving nodes
– Both decentralized
solutions
• Use ca. 200 bytes/s per
node
• For better comparability
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 12

12. Reference Signals: Steps, Sawtooth and Sine
PushSum
– Imprecise monitoring
– Epochs are visible
– Although same traffic
overhead
Centralized and tree-based
– Precise
– Tree become imprecise with
too much churn
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 13

13. Epoch based Approach
Idea:
– Restart the calculation after N rounds to consider new measurements
Implementation:
– Bound N round to one so called epoch
– At the start of each epoch all peers resets their estimates
– All peers witch join the network do not participate at the current epoch
• All joining peers receives the current round of running epoch
Advantages:
– Robust, easy to implement, works with any algorithm
Disadvantages:
– Requires synchronization for epoch starts
– How to estimate a good epoch length
• Long: good convergence on old data
• Short: bad convergence of fresh data
– Restarts the algorithm even when it’s not necessary
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 14

14. Agenda
Gossip based Aggregation
Continuous Gossip-based Aggregation
Evaluation
Conclusions
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 15

15. Aging Approach
Idea:
– Consider new measurements in each round with a ratio of α
Approach:
– Let calculated values converge to holding values
– Convergence rate is the same at every peer
– Proposed function: (v, c)  (1 - α)·c + α·v
• c – current estimation / statistic
• v – fresh measurement
• α – aging factor (e.g. 0.01)
Advantages:
– Dynamic adaptation, no need to restart
– No synchronization required at joining or due to epoch starts
Disadvantages:
– Calculated aggregate values do not converge in the actual sense
– Sum calculation need adjustment
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 16

16. Aging - Example
1
 = 4
4.6
4.2
7
5
3
 = 4
 = 4
 = 4
 = 4, α = 0.2
3.4
3.8
4.2
3.8
3.8
4.2
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 17

17. Aging - Example
1
 = 4
7
5
3
 = 3.513
 =  = 3.66
3..161465
 = 3.5115
3.51
3.32
 = 3.9
4
 = 3.6
== 33..3.75
3.8
66435
3.5115
3.516
4
3.513
 = 34, αα = 0.2
3.4
3.51
3.904
3.636
3.9
3.75
4
4.2
3.6
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 18

18. Sum Calculation with Aging
Idea:
– Apply “aging”
– Restart only when the peer holding 1 leaves the system
Basic implementation:
– Every Peer is holding following values:
• MAX
• VERSION
• AVG
– MAX is used to identify the loss of the initial value
• When MAX value fells under defined threshold calculation is restarted
• With a small probability every peer can initialize the restart
• Peer initializing restart set its AVG value to 1
– Version is used to identify duplications
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 19

19. Agenda
Gossip based Aggregation
Continuous Gossip-based Aggregation
Evaluation
Conclusions
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 20

20. Evaluation through Simulations
Main questions
– Monitoring precision (relative error)
– Costs (traffic and messages)
Setup
– 5000 nodes, just join, no lookups
– Two scenarios - Churn: no and KAD-based
• 0 - 60 minute: joining phase
• 65 – 240 minute: churn (if activated)
– Aging factor: α = 0.01
– Gossip round: 10 seconds, unsynchronized
Layer setup
– User / application: no overlay usage, just maintenance
– Overlay: Chord (as graph)
– Network model:
• Global Network Positioning delay model
• OECD bandwidth model
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 21

21. ► PeerfactSim.KOM (see www.peerfact.org)
Type
– Event-based simulator in Java
– Focus on simulation
of p2p systems on various layers
• User, application
• Services: monitoring, replication …
• Overlays
• Network models
Layered Architecture
– Easy exchange of components
– Testing of new applications / mechanisms
Main idea
– Layers have several implementations
– Enables testing of individual layer
mechanisms
• on its own and
• in combination with other layers
User
Simulation Engine
Application
Service
Overlay
Transport
Network
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 22

22. Network Size Estimation
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 23

23. Online Time Estimation
Node estimation
– Calculation of sum is worst case scenario
• Average of once 1 and (n-1) times a 0
– Relative error
• No churn < 0.01, with churn < 0.1 in average 0.05
Average calculations easier: e.g. online time estimation
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 24

24. Operation Cost Estimation
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 25

25. Agenda
Gossip based Aggregation
Continuous Gossip-based Aggregation
Evaluation
Conclusions
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 26

26. Conclusions
Gossiping
– Monitoring is needed for future p2p applications
– Gossiping can be used in any topology
• Very robust and versatile
– Problems with epoch-based gossiping
• New measurements are considered only at restart of epochs
• Results of previous epochs are not reused
• Hard to identify ideal epoch length
– Tradeoff between convergence and freshness
Continuous Gossip-based Aggregation
– Continuously measures current network status
– Integrates fresh measurement in every round with fixed ratio
– High precision ( 0.01 average,  0.05 sum under churn)
– Low costs (1,5 kb/s in average at a round length of 10s)
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 27

27. Thank You for Your Attention
Jun.-Prof. Dr.-Ing. Kalman Graffi
Technology of Social Networks Group
Institute of Computer Science
Heinrich-Heine-Universität Düsseldorf
eMail: graffi@cs.uni-duesseldorf.de
Web: www.p2pframework.com
Web: www.peerfact.org
?
Kalman Graffi Heinrich Heine Universität Düsseldorf 10/09/14 28
