1. Strategies for Aggregating Educational Content Bram Vandeputte & Joris Klerkx http://bit.ly/c6mRZC http://bit.ly/bram-vandeputte

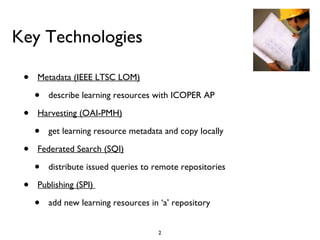

2. Key Technologies Metadata (IEEE LTSC LOM) describe learning resources with ICOPER AP Harvesting (OAI-PMH) get learning resource metadata and copy locally Federated Search (SQI) distribute issued queries to remote repositories Publishing (SPI) add new learning resources in ‘a’ repository

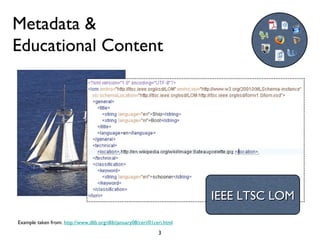

3. Metadata & Educational Content IEEE LTSC LOM Example taken from: http://www.dlib.org/dlib/january08/ceri/01ceri.html

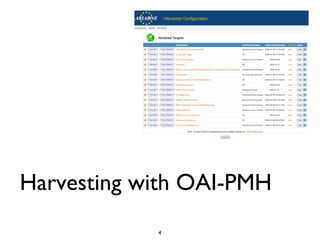

4. Harvesting with OAI-PMH

5. How OAI-PMH works OAI “VERBS” Identify ListMetadataFormats GetRecord ListIdentifiers ListRecords ListSets Service Provider Metadata Provider HTTP Request HTTP Response (OAI Verb) (Valid XML) H A R V E S T E R R E P O S I T O R Y OAI OAI

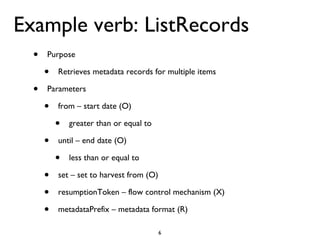

6. Example verb: ListRecords Purpose Retrieves metadata records for multiple items Parameters from – start date (O) greater than or equal to until – end date (O) less than or equal to set – set to harvest from (O) resumptionToken – flow control mechanism (X) metadataPrefix – metadata format (R)

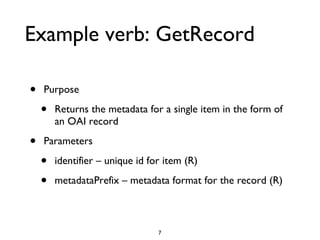

7. Example verb: GetRecord Purpose Returns the metadata for a single item in the form of an OAI record Parameters identifier – unique id for item (R) metadataPrefix – metadata format for the record (R)

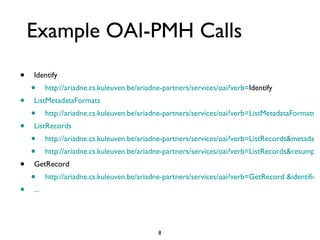

8. Example OAI-PMH Calls Identify http://ariadne.cs.kuleuven.be/ariadne-partners/services/oai?verb= Identify ListMetadataFormats http://ariadne.cs.kuleuven.be/ariadne-partners/services/oai?verb=ListMetadataFormats ListRecords http://ariadne.cs.kuleuven.be/ariadne-partners/services/oai?verb=ListRecords&metadataPrefix=oai_lom http://ariadne.cs.kuleuven.be/ariadne-partners/services/oai?verb=ListRecords&resumptionToken= GetRecord http://ariadne.cs.kuleuven.be/ariadne-partners/services/oai?verb=GetRecord &identifier=oai:ariadne.cs.kuleuven.be:BLKLKP1382&metadataPrefix=oai_lom ...

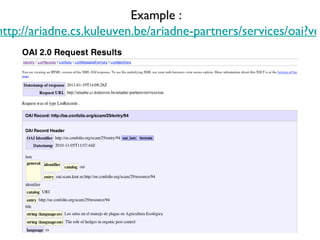

9. Example : http://ariadne.cs.kuleuven.be/ariadne-partners/services/oai?verb=ListRecords&metadataPrefix=oai_lom

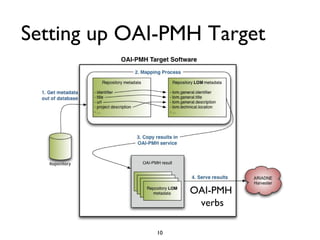

10. Setting up OAI-PMH Target OAI-PMH verbs

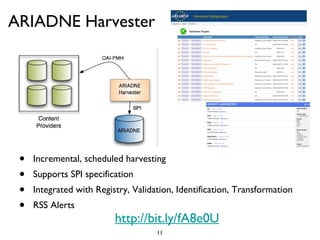

11. ARIADNE Harvester Incremental, scheduled harvesting Supports SPI specification Integrated with Registry, Validation, Identification, Transformation RSS Alerts http://bit.ly/fA8e0U

12. Validation Service Paste metadata record e.g LOM instance Select validation scheme uri e.g http://ltsc.ieee.org/xsd/LOM/strict Validate & Consult Validation Errors Based on XSD Schema & Schematron Rules http://bit.ly/90va7d In markup languages , Schematron is a rule-based validation langu age for ma king assertions about the presence or absence of patterns in XML trees. It is a structu ral schema language expressed in XML using a small number of elements and XPath .

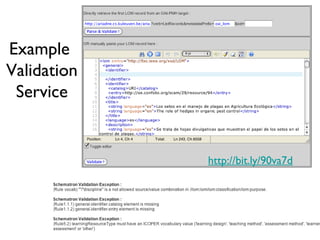

13. Example Validation Service http://bit.ly/90va7d

14. Harvesting Infrastructure External Repository ARIADNE Harvester validation service harvester log OICS 1 2 3 4 5 6

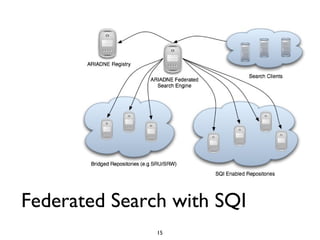

15. Federated Search with SQI

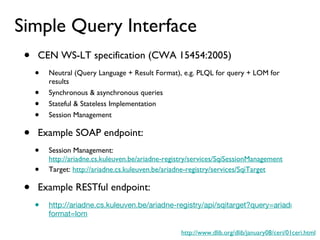

16. Simple Query Interface CEN WS-LT specification (CWA 15454:2005) Neutral (Query Language + Result Format), e.g. PLQL for query + LOM for results Synchronous & asynchronous queries Stateful & Stateless Implementation Session Management Example SOAP endpoint: Session Management: http://ariadne.cs.kuleuven.be/ariadne-registry/services/SqiSessionManagement Target: http://ariadne.cs.kuleuven.be/ariadne-registry/services/SqiTarget Example RESTful endpoint: http://ariadne.cs.kuleuven.be/ariadne-registry/api/sqitarget?query=ariadne&start=1&size=1&lang=plql1& format=lom http://www.dlib.org/dlib/january08/ceri/01ceri.html

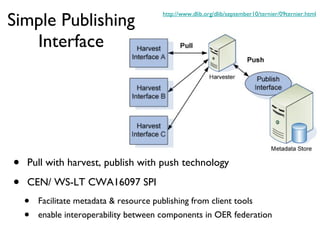

17. Simple Publishing Interface Pull with harvest, publish with push technology CEN/ WS-LT CWA16097 SPI Facilitate metadata & resource publishing from client tools enable interoperability between components in OER federation http://www.dlib.org/dlib/september10/ternier/09ternier.html

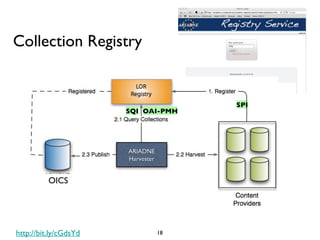

18. Collection Registry http://bit.ly/cGdsYd SPI SQI OAI-PMH ARIADNE Harvester OICS

19. CEN/WS LTS N 623 4.

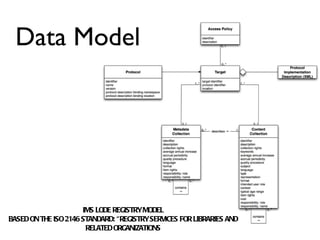

20. Data Model IMS LODE REGISTRY MODEL BASED ON THE ISO 2146 STANDARD: “REGISTRY SERVICES FOR LIBRARIES AND RELATED ORGANIZATIONS

21. “ Alliance to make shared online learning resources available to educators and students around the world” http://www.globe-info.org / >1.000.000 68.003

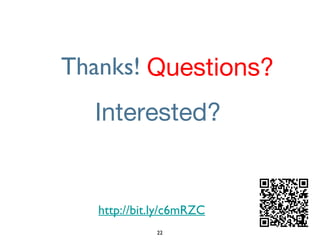

22. Thanks! Questions? http://bit.ly/c6mRZC Interested?
