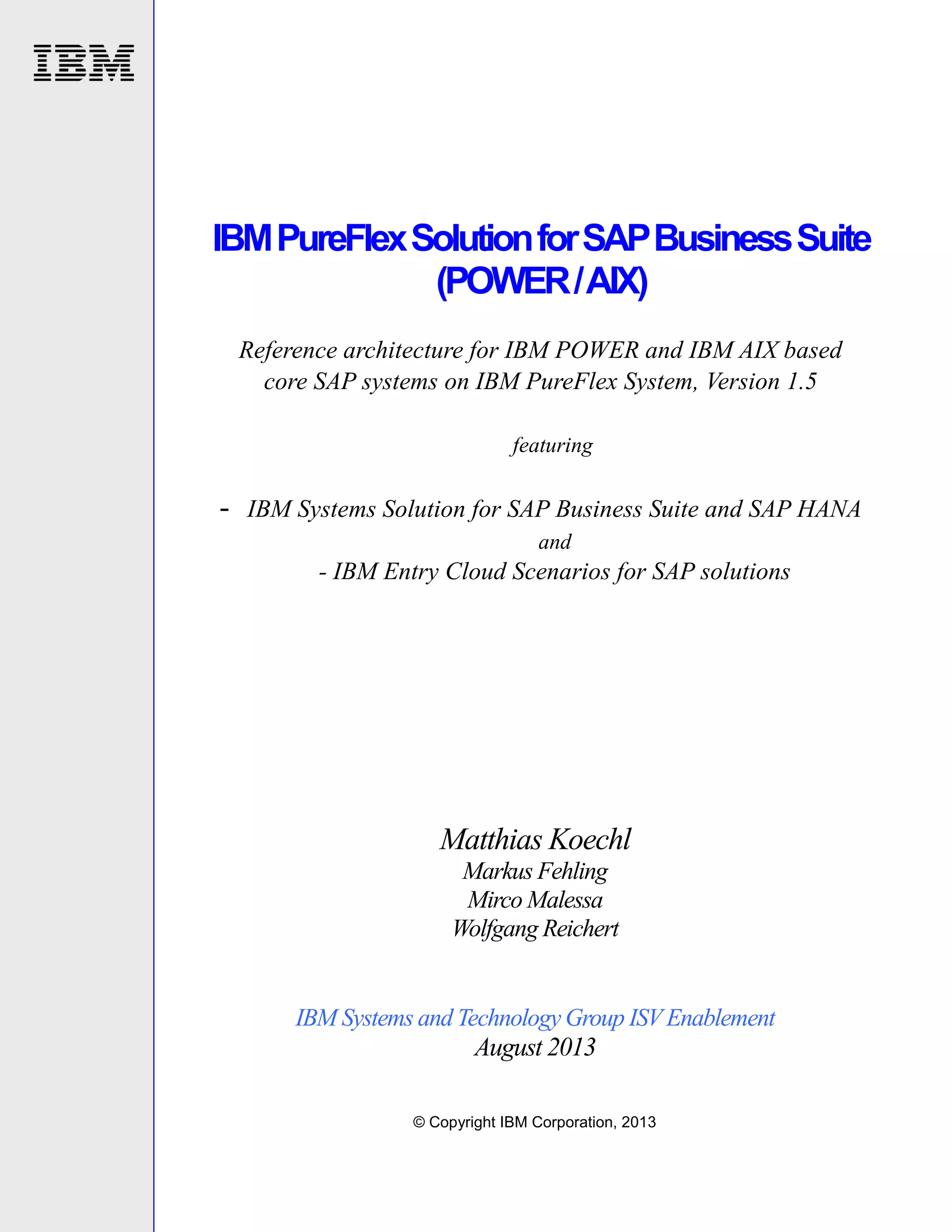

IBM PureFlex Solution for SAP Business Suite (POWER / AIX)

IBM PureFlex Solution for SAP Business Suite
(POWER / AIX)
Reference architecture for IBM POWER and IBM AIX based
core SAP systems on IBM PureFlex System, Version 1.5
featuring

-

IBM Systems Solution for SAP Business Suite and SAP HANA
and

- IBM Entry Cloud Scenarios for SAP solutions

Matthias Koechl
Markus Fehling
Mirco Malessa
Wolfgang Reichert
IBM Systems and Technology Group ISV Enablement

August 2013
© Copyright IBM Corporation, 2013

Table of contents
Table of contents ....................................................................................................................... 2
Abstract...................................................................................................................................... 3
Introduction ............................................................................................................................... 3
IBM PureFlex System overview ............................................................................................................... 3
Platform concept................................................................................................................ 3
Node scalability and performance ................................................................................. 6
System connectivity ........................................................................................................... 7
Reliability, availability, and serviceability (RAS) features .................................................. 8

SAP reference landscape on IBM PureFlex System ............................................................... 9
Introduction to SAP landscape topology .................................................................................................. 9
Supported SAP solution stacks ............................................................................................................. 10
Landscape planning ............................................................................................................................... 11
System layout concepts .................................................................................................. 11
Introducing the IBM Systems Solution for SAP Business Suite and SAP HANA ........... 12
Storage attachment ......................................................................................................... 13
Integration with existing SAP landscapes .............................................................................................. 17
Integration of SAP Appliance-based components ................................................................................. 19
FlexSystem Native Node Support for SAP Business Warehouse Accelerator ............... 23
SAP on AIX reference landscapes for IBM PureFlex System ............................................................... 25
High availability and disaster recovery .................................................................................................. 28

Landscape monitoring and management .............................................................................. 28
IBM PureFlex System integration with SAP NetWeaver Landscape Virtualization Management ......... 30
Management components ............................................................................................... 31
Managed SAP landscape ................................................................................................ 32

SAP-specific offerings for IBM PureFlex System .................................................................. 34
Lab services and IBM support ............................................................................................................... 34

Summary .................................................................................................................................. 35
Resources ................................................................................................................................ 36
Trademarks and special notices ............................................................................................ 38

Deploying and operating Entry Cloud for SAP solutions on the IBM PureFlex System

2

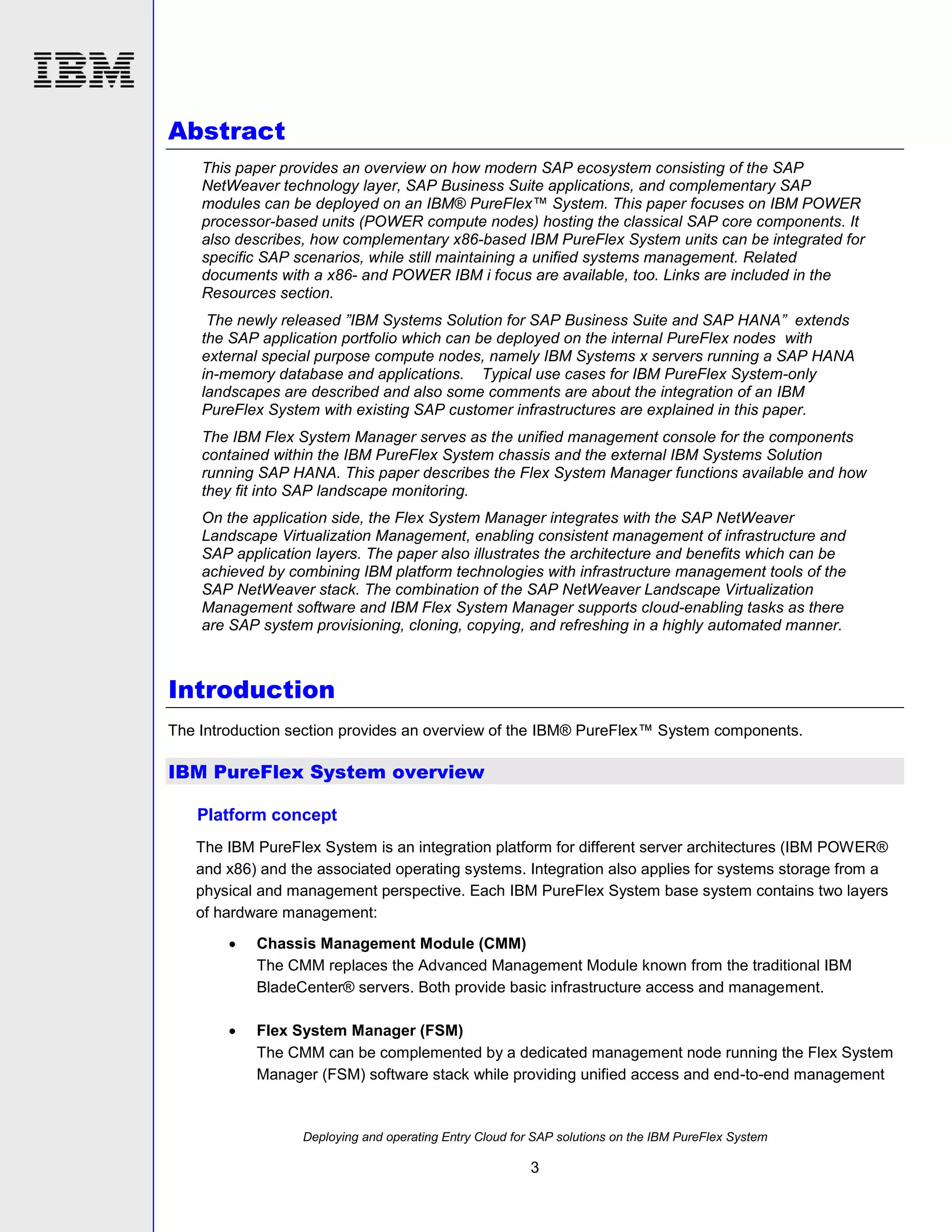

Abstract
This paper provides an overview on how modern SAP ecosystem consisting of the SAP
NetWeaver technology layer, SAP Business Suite applications, and complementary SAP
modules can be deployed on an IBM® PureFlex™ System. This paper focuses on IBM POWER
processor-based units (POWER compute nodes) hosting the classical SAP core components. It
also describes, how complementary x86-based IBM PureFlex System units can be integrated for
specific SAP scenarios, while still maintaining a unified systems management. Related
documents with a x86- and POWER IBM i focus are available, too. Links are included in the
Resources section.
The newly released ”IBM Systems Solution for SAP Business Suite and SAP HANA” extends
the SAP application portfolio which can be deployed on the internal PureFlex nodes with
external special purpose compute nodes, namely IBM Systems x servers running a SAP HANA
in-memory database and applications. Typical use cases for IBM PureFlex System-only
landscapes are described and also some comments are about the integration of an IBM
PureFlex System with existing SAP customer infrastructures are explained in this paper.
The IBM Flex System Manager serves as the unified management console for the components
contained within the IBM PureFlex System chassis and the external IBM Systems Solution
running SAP HANA. This paper describes the Flex System Manager functions available and how
they fit into SAP landscape monitoring.
On the application side, the Flex System Manager integrates with the SAP NetWeaver
Landscape Virtualization Management, enabling consistent management of infrastructure and
SAP application layers. The paper also illustrates the architecture and benefits which can be
achieved by combining IBM platform technologies with infrastructure management tools of the
SAP NetWeaver stack. The combination of the SAP NetWeaver Landscape Virtualization
Management software and IBM Flex System Manager supports cloud-enabling tasks as there
are SAP system provisioning, cloning, copying, and refreshing in a highly automated manner.

Introduction
The Introduction section provides an overview of the IBM® PureFlex™ System components.

IBM PureFlex System overview
Platform concept
The IBM PureFlex System is an integration platform for different server architectures (IBM POWER®
and x86) and the associated operating systems. Integration also applies for systems storage from a
physical and management perspective. Each IBM PureFlex System base system contains two layers
of hardware management:


Chassis Management Module (CMM)
The CMM replaces the Advanced Management Module known from the traditional IBM
BladeCenter® servers. Both provide basic infrastructure access and management.



Flex System Manager (FSM)
The CMM can be complemented by a dedicated management node running the Flex System
Manager (FSM) software stack while providing unified access and end-to-end management


3

of up to four heterogeneously populated IBM PureFlex System chassis. Technically, the FSM
is an 8-core appliance node running Linux® and kernel-based virtual machine (KVM), and the
FSM software on top. Optionally, the FSM appliance can be duplicated for resiliency of this
focal management layer. Some key FSM functions include:







Management of up to four chassis
Setup and configuration wizards
Heterogeneous nodes, server, storage, network lifecycle management
 Discovery, inventory, updates, configuration, status, reliable logging / events
 IBM Systems Director Active Energy Manager™ feature
 Network control with Voltaire Fabric Management (discovery and monitoring,
fabric service provisioning)
Single sign-on, audit logging, role-based access control, user management
Integration APIs to higher-level systems and enterprise management software, like IBM
SmartCloud® or IBM Tivoli® products

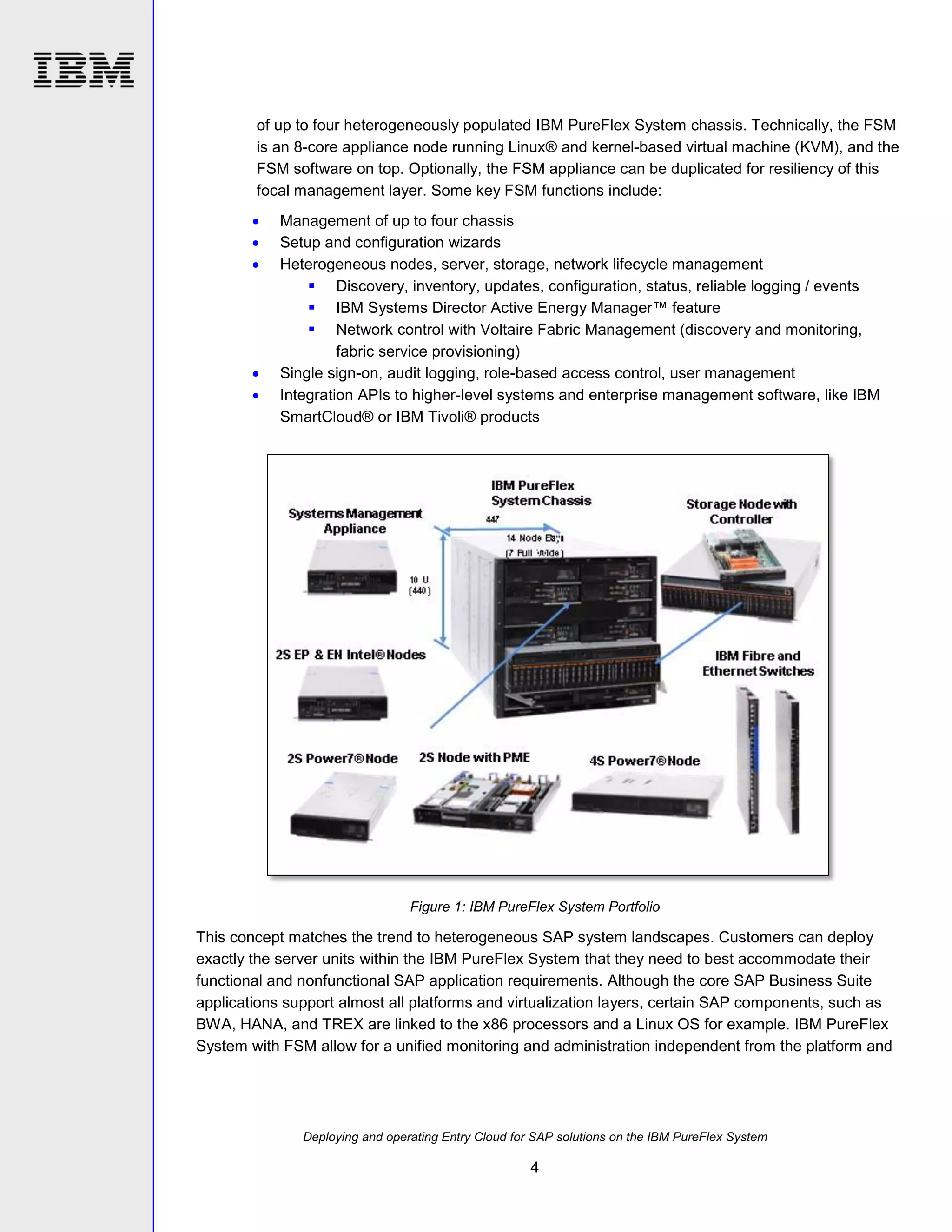

Figure 1: IBM PureFlex System Portfolio

This concept matches the trend to heterogeneous SAP system landscapes. Customers can deploy
exactly the server units within the IBM PureFlex System that they need to best accommodate their
functional and nonfunctional SAP application requirements. Although the core SAP Business Suite
applications support almost all platforms and virtualization layers, certain SAP components, such as
BWA, HANA, and TREX are linked to the x86 processors and a Linux OS for example. IBM PureFlex
System with FSM allow for a unified monitoring and administration independent from the platform and


4

OS mix while fully using the native platform strengths of each IBM server family and the related
environments.
Besides the compute nodes, customers can integrate the IBM Flex System V7000 Storage Node
with full IBM System Storage® SAN Volume Controller functionality into the same 10U-chassis.
Key storage management functions supported include:






Fully virtualized storage and virtualization of third party external storage
IBM System Storage Easy Tier™
Thin provisioning
Real-Time disk compression
Storage Management integrated with Flex System Manager

The storage node includes a storage controller and space for up to 24 disks with a maximum capacity
of 900 GB each. This allows for a gross data volume of up to 2,1 TB within a very compact volume.
Attachment to DB server nodes is done using a fast internal network without peripheral equipment and
complexity. The internal IBM PureFlex System disk capacity can be extended by attaching external
Storwize V7000 expansion units or other external storage devices through the SAN Volume Controller
capabilities of the Storwize V7000 controller.
POWER based PureFlex Systems can be ordered in three pre-configured flavors: Express. Standard,
and Enterprise configurations are available.

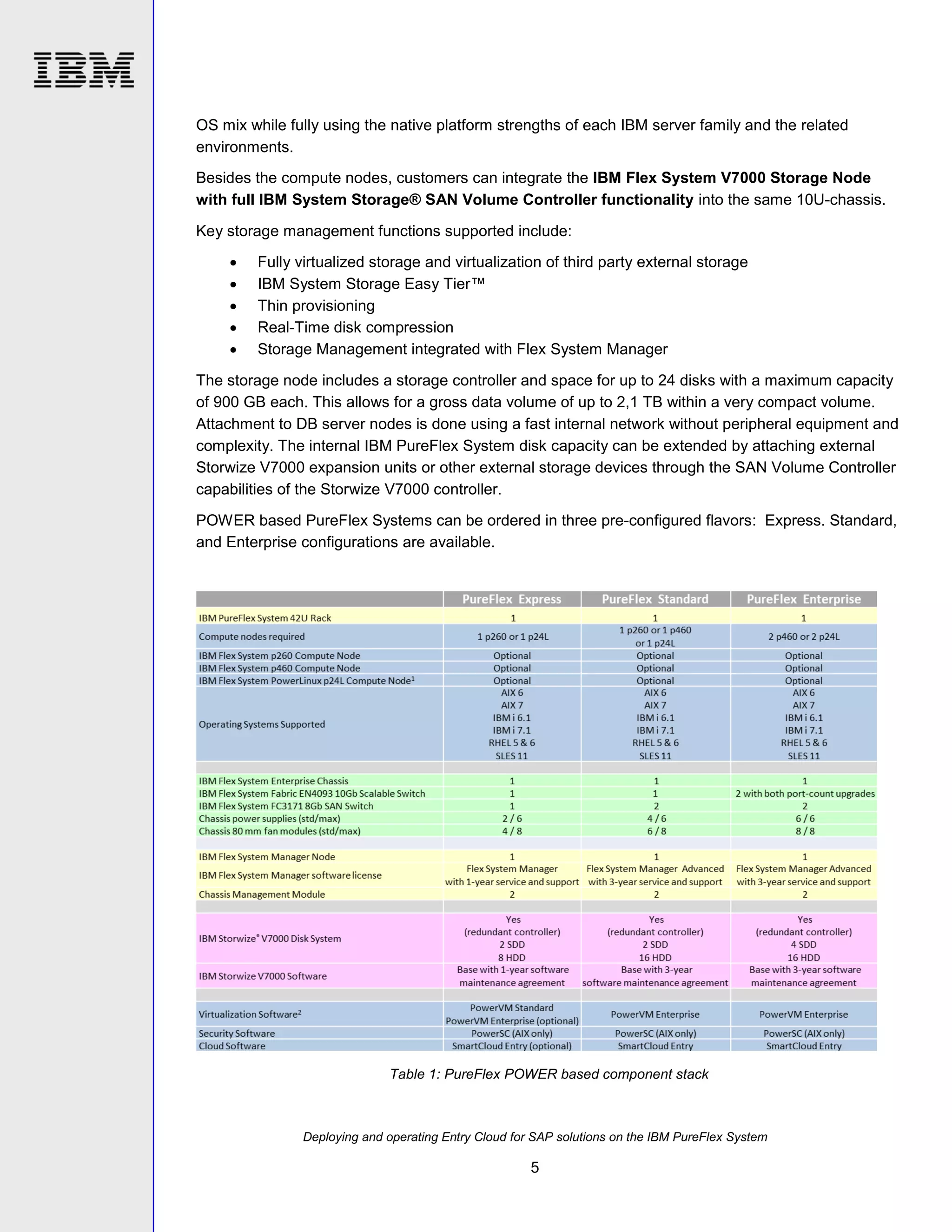

Table 1: PureFlex POWER based component stack


5

As of November 2012 build-to-order systems (BTU) are available, too. These systems are referred to
as “Flex Systems” versus the pre-packaged “PureFlex” configurations specified in Table 1. BTU
systems offer the advantage of higher configuration flexibility for the price of less integration and
automization through built-in expertise.

Node scalability and performance
Node scalability and performance applies to the vertical scalability and transaction performance of
individual nodes contained within an IBM PureFlex System chassis. Published SAP ECC 6.0 EHP 4
Sales and Distribution benchmarks provide leadership SAP Application Performance Standard (SAPS)
capacities:
POWER Node

Number of
cores@frequency

IBM PureFlex p260 node

8@3,3 / 16@3,55GHz

IBM PureFlex p260+ node

SAPS ECC 6.0
Certification No.

8@4,1 / 16@3,6/4,1GHz

54.700
2012035

IBM PureFlex p270+ node

24@3,41GHz

(DB2 10.5)

68.380
2013019

IBM PureFlex p460 node

16 / 32@3,55GHz

93.080
2012015

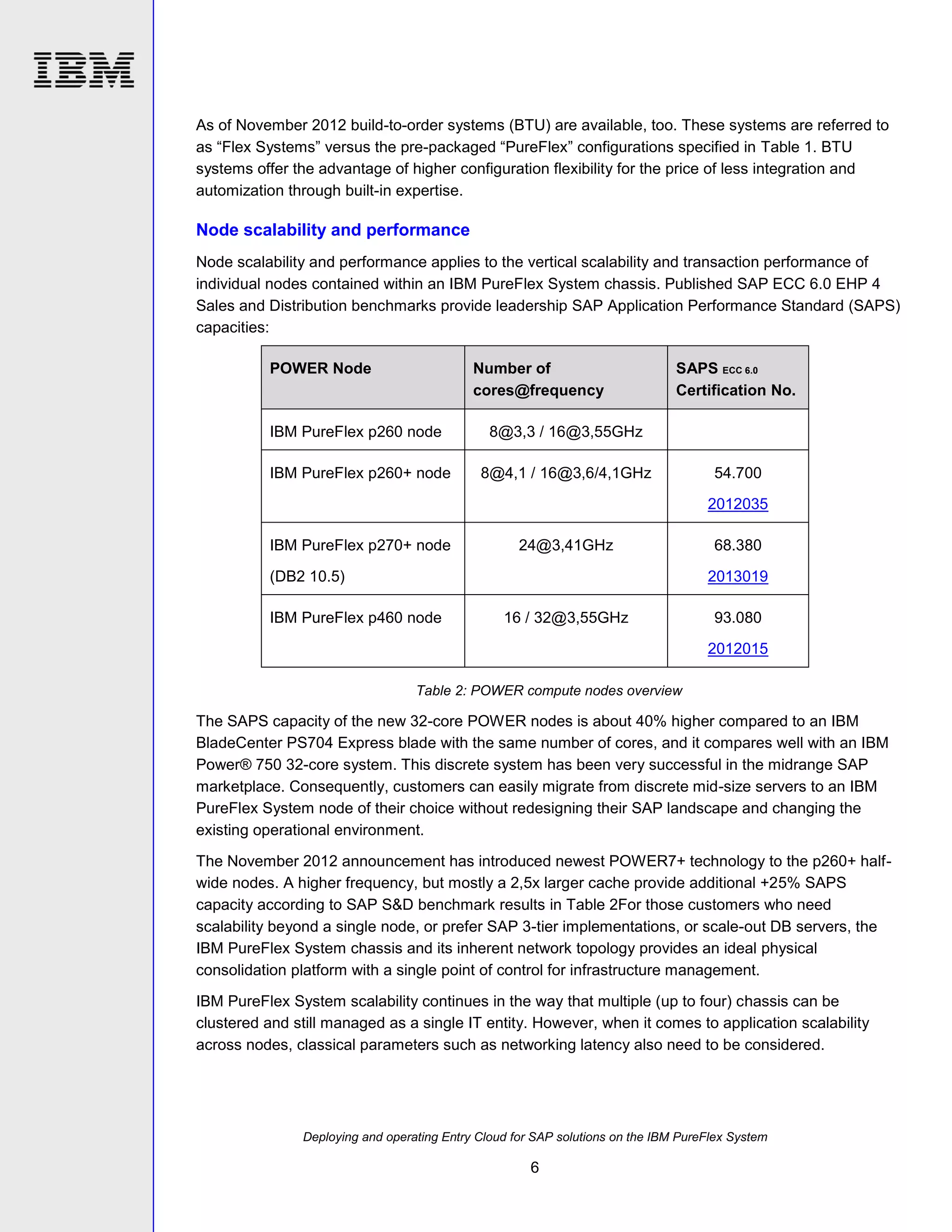

Table 2: POWER compute nodes overview

The SAPS capacity of the new 32-core POWER nodes is about 40% higher compared to an IBM
BladeCenter PS704 Express blade with the same number of cores, and it compares well with an IBM
Power® 750 32-core system. This discrete system has been very successful in the midrange SAP
marketplace. Consequently, customers can easily migrate from discrete mid-size servers to an IBM
PureFlex System node of their choice without redesigning their SAP landscape and changing the
existing operational environment.
The November 2012 announcement has introduced newest POWER7+ technology to the p260+ halfwide nodes. A higher frequency, but mostly a 2,5x larger cache provide additional +25% SAPS
capacity according to SAP S&D benchmark results in Table 2For those customers who need
scalability beyond a single node, or prefer SAP 3-tier implementations, or scale-out DB servers, the
IBM PureFlex System chassis and its inherent network topology provides an ideal physical
consolidation platform with a single point of control for infrastructure management.
IBM PureFlex System scalability continues in the way that multiple (up to four) chassis can be
clustered and still managed as a single IT entity. However, when it comes to application scalability
across nodes, classical parameters such as networking latency also need to be considered.


6

Caution needs to be paid to the available physical memory per node respectively per SAP system.
Depending on the type of internal disks installed in a POWER node, it is not possible to install the
maximum amount of memory. That is why it’s not recommended to use internal disks for POWER
nodes running SAP applications. Storage should be provided by an external solution. See section
“Storage attachment” for details.

System connectivity
IBM PureFlex System provides state-of-the-art system connectivity by scalable switch elements
providing up to four switch partitions per physical switch (three partitions at for initial release). These
can be a combination of:


24-port BNT, 10Gb Fibre Channel over Convergence Enhanced Ethernet (software
key to increase ports)



20-port, 8Gb FC



24-port BNT, 1Gb



48-port BNT, 1Gb (SW key to increase four 10Gb ports)

Mezzanine cards:


2-port 8Gb FC (QLogic)



4-port 1Gb (Broadcom)

The scalable structure allows extending I/O capacity along with increasing application needs. As the
number of nodes and their I/O adapters grow, additional switch capacity can be installed in an IBM
PureFlex System chassis.

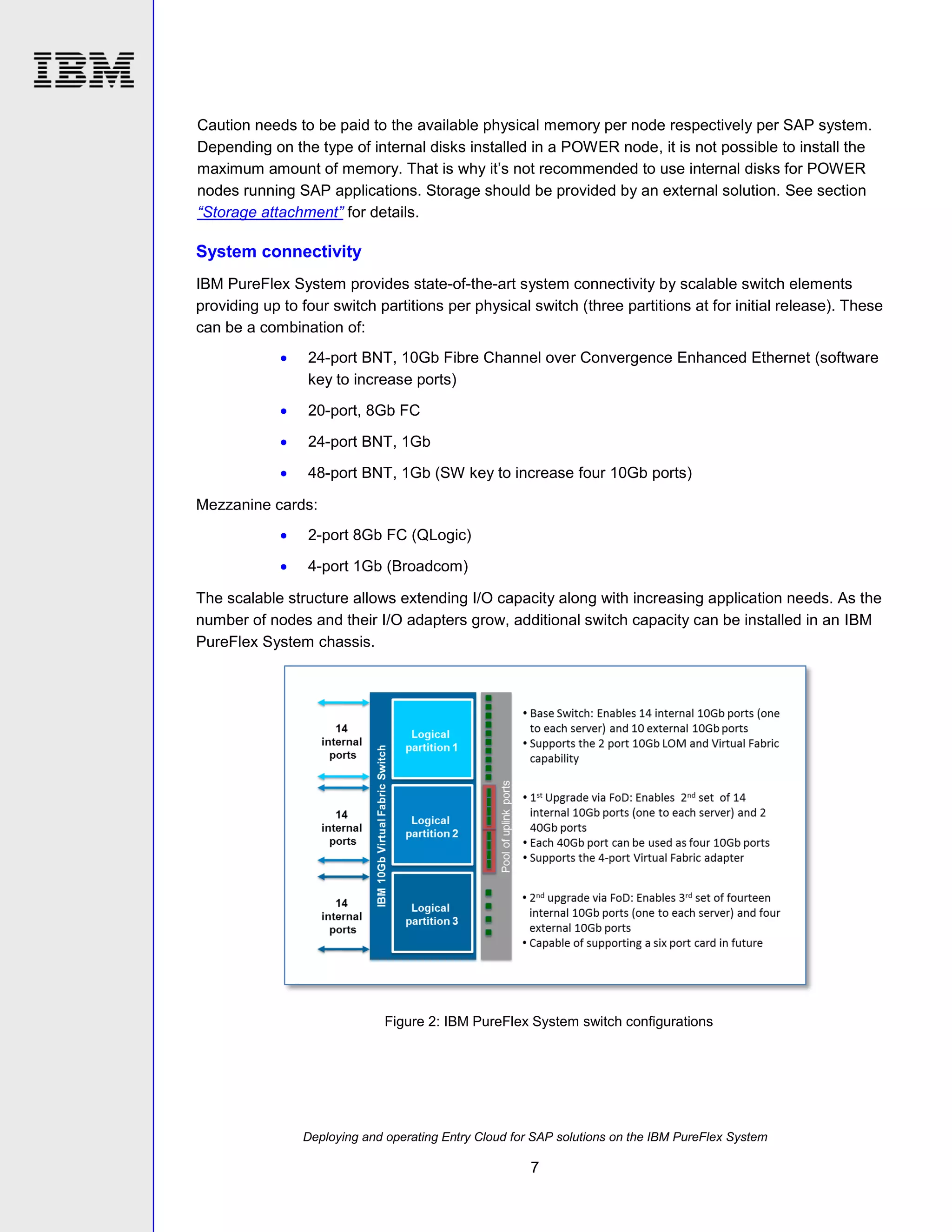

Figure 2: IBM PureFlex System switch configurations


7

The IBM PureFlex System network topology provides an internal network for monitoring and
management purposes. This is used by the CMM and the FSM appliance to interact with the hardware
components and virtualization layers.

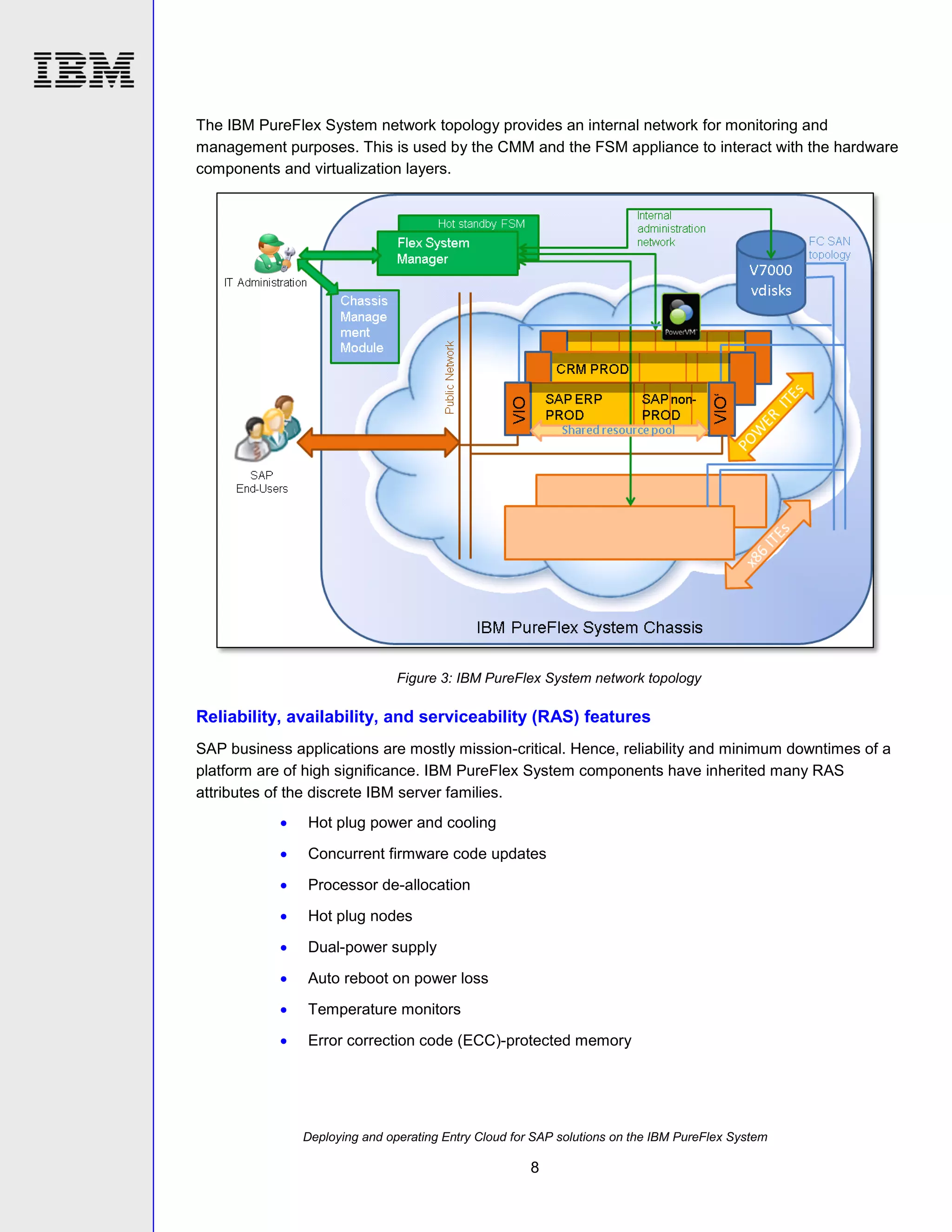

Figure 3: IBM PureFlex System network topology

Reliability, availability, and serviceability (RAS) features
SAP business applications are mostly mission-critical. Hence, reliability and minimum downtimes of a
platform are of high significance. IBM PureFlex System components have inherited many RAS
attributes of the discrete IBM server families.


Hot plug power and cooling



Concurrent firmware code updates



Processor de-allocation



Hot plug nodes



Dual-power supply



Auto reboot on power loss



Temperature monitors



Error correction code (ECC)-protected memory


8

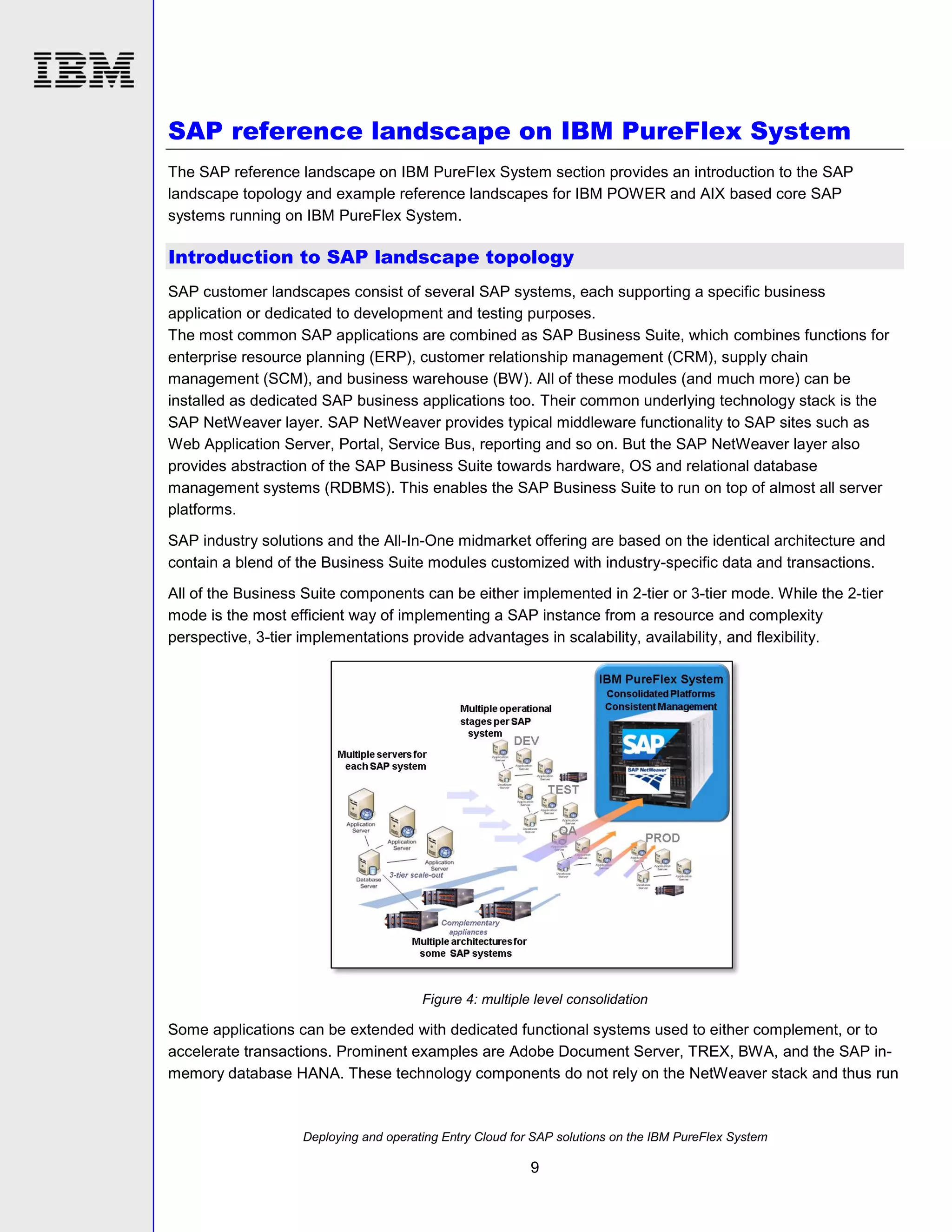

SAP reference landscape on IBM PureFlex System
The SAP reference landscape on IBM PureFlex System section provides an introduction to the SAP
landscape topology and example reference landscapes for IBM POWER and AIX based core SAP
systems running on IBM PureFlex System.

Introduction to SAP landscape topology
SAP customer landscapes consist of several SAP systems, each supporting a specific business
application or dedicated to development and testing purposes.
The most common SAP applications are combined as SAP Business Suite, which combines functions for
enterprise resource planning (ERP), customer relationship management (CRM), supply chain
management (SCM), and business warehouse (BW). All of these modules (and much more) can be
installed as dedicated SAP business applications too. Their common underlying technology stack is the
SAP NetWeaver layer. SAP NetWeaver provides typical middleware functionality to SAP sites such as
Web Application Server, Portal, Service Bus, reporting and so on. But the SAP NetWeaver layer also
provides abstraction of the SAP Business Suite towards hardware, OS and relational database
management systems (RDBMS). This enables the SAP Business Suite to run on top of almost all server
platforms.
SAP industry solutions and the All-In-One midmarket offering are based on the identical architecture and
contain a blend of the Business Suite modules customized with industry-specific data and transactions.
All of the Business Suite components can be either implemented in 2-tier or 3-tier mode. While the 2-tier
mode is the most efficient way of implementing a SAP instance from a resource and complexity
perspective, 3-tier implementations provide advantages in scalability, availability, and flexibility.

Figure 4: multiple level consolidation

Some applications can be extended with dedicated functional systems used to either complement, or to
accelerate transactions. Prominent examples are Adobe Document Server, TREX, BWA, and the SAP inmemory database HANA. These technology components do not rely on the NetWeaver stack and thus run


9

on dedicated x86-based environments. For scalability reasons, these modules often follow a scale-out
paradigm.
The variety and count of back-end and complementary systems is customer individual, but in general,
demands for physical system consolidation by using virtualization technologies.
Another dimension of SAP landscape growth is the requirement of a strict isolation of production and
nonproduction environments by SAP. The nonproduction environments mostly consist of sandbox,
development, test, and QA systems. The SAP transport system links these stages and allows critical
changes in either the OS or the application being tested before being promoted to business-critical SAP
instances.

Supported SAP solution stacks
For the POWER nodes, the same software stacks as with discrete IBM Power Systems™ are supported,
that is IBM AIX®, IBM i, and Linux servers. Same is true for the common databases, IBM DB2® for Linux,
UNIX®, and Windows, DB2 for IBM i, and Oracle for AIX. Restrictions on release level might apply,
though. All supported OS/DB/SAP module combinations are maintained in the product availability matrix
on the SAP Service Marketplace. As one big advantage of IBM PureFlex System, SAP modules which are
not supported on the POWER nodes can be deployed in the same chassis using the x86 nodes.

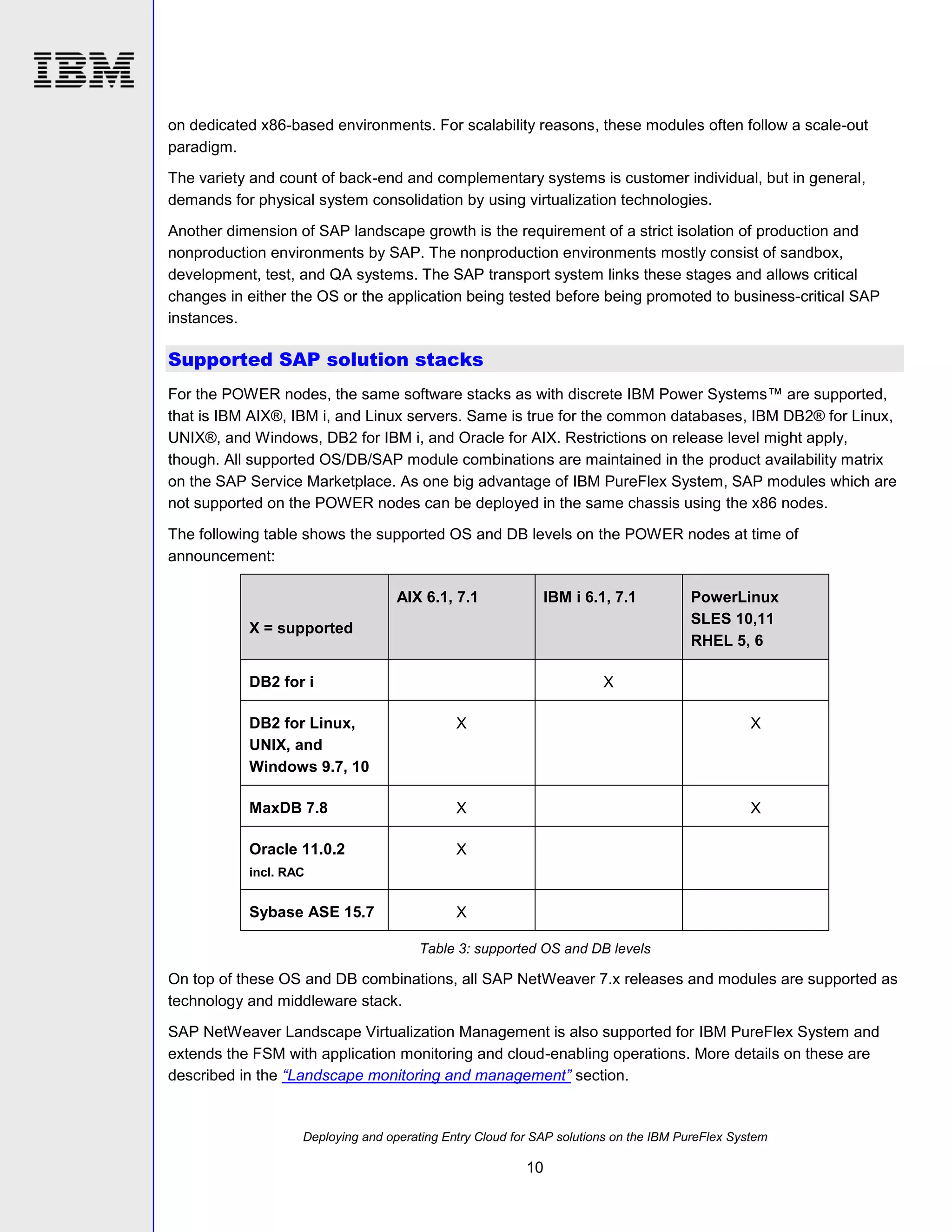

The following table shows the supported OS and DB levels on the POWER nodes at time of
announcement:
AIX 6.1, 7.1

IBM i 6.1, 7.1

X = supported

DB2 for i

PowerLinux
SLES 10,11
RHEL 5, 6

X

DB2 for Linux,
UNIX, and
Windows 9.7, 10

X

X

MaxDB 7.8

X

X

Oracle 11.0.2

X

incl. RAC

Sybase ASE 15.7

X
Table 3: supported OS and DB levels

On top of these OS and DB combinations, all SAP NetWeaver 7.x releases and modules are supported as
technology and middleware stack.
SAP NetWeaver Landscape Virtualization Management is also supported for IBM PureFlex System and
extends the FSM with application monitoring and cloud-enabling operations. More details on these are
described in the “Landscape monitoring and management” section.


10

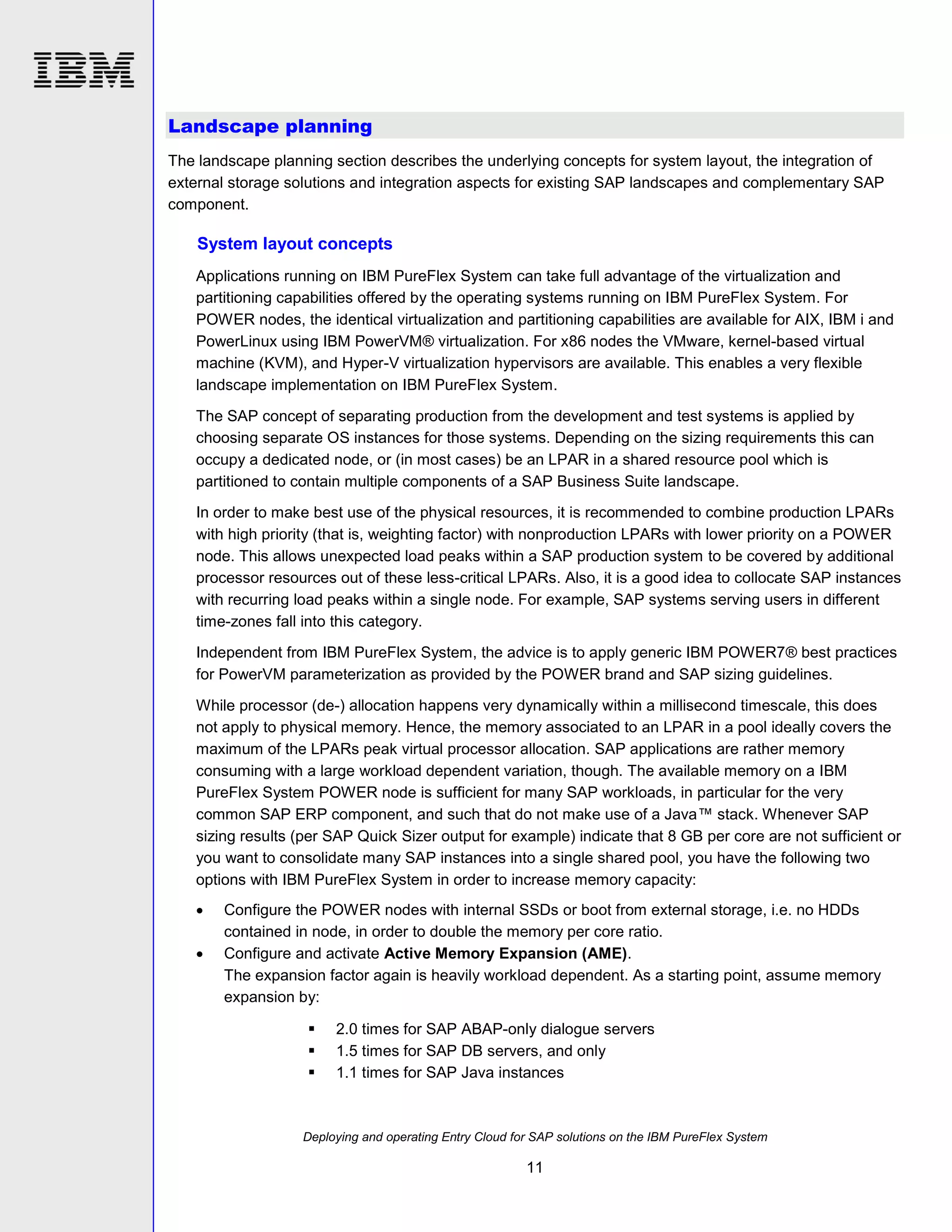

Landscape planning
The landscape planning section describes the underlying concepts for system layout, the integration of
external storage solutions and integration aspects for existing SAP landscapes and complementary SAP
component.

System layout concepts
Applications running on IBM PureFlex System can take full advantage of the virtualization and
partitioning capabilities offered by the operating systems running on IBM PureFlex System. For
POWER nodes, the identical virtualization and partitioning capabilities are available for AIX, IBM i and
PowerLinux using IBM PowerVM® virtualization. For x86 nodes the VMware, kernel-based virtual
machine (KVM), and Hyper-V virtualization hypervisors are available. This enables a very flexible
landscape implementation on IBM PureFlex System.
The SAP concept of separating production from the development and test systems is applied by
choosing separate OS instances for those systems. Depending on the sizing requirements this can
occupy a dedicated node, or (in most cases) be an LPAR in a shared resource pool which is
partitioned to contain multiple components of a SAP Business Suite landscape.
In order to make best use of the physical resources, it is recommended to combine production LPARs
with high priority (that is, weighting factor) with nonproduction LPARs with lower priority on a POWER
node. This allows unexpected load peaks within a SAP production system to be covered by additional
processor resources out of these less-critical LPARs. Also, it is a good idea to collocate SAP instances
with recurring load peaks within a single node. For example, SAP systems serving users in different
time-zones fall into this category.
Independent from IBM PureFlex System, the advice is to apply generic IBM POWER7® best practices
for PowerVM parameterization as provided by the POWER brand and SAP sizing guidelines.
While processor (de-) allocation happens very dynamically within a millisecond timescale, this does
not apply to physical memory. Hence, the memory associated to an LPAR in a pool ideally covers the
maximum of the LPARs peak virtual processor allocation. SAP applications are rather memory
consuming with a large workload dependent variation, though. The available memory on a IBM
PureFlex System POWER node is sufficient for many SAP workloads, in particular for the very
common SAP ERP component, and such that do not make use of a Java™ stack. Whenever SAP
sizing results (per SAP Quick Sizer output for example) indicate that 8 GB per core are not sufficient or
you want to consolidate many SAP instances into a single shared pool, you have the following two
options with IBM PureFlex System in order to increase memory capacity:



Configure the POWER nodes with internal SSDs or boot from external storage, i.e. no HDDs
contained in node, in order to double the memory per core ratio.
Configure and activate Active Memory Expansion (AME).
The expansion factor again is heavily workload dependent. As a starting point, assume memory
expansion by:




2.0 times for SAP ABAP-only dialogue servers
1.5 times for SAP DB servers, and only
1.1 times for SAP Java instances


11

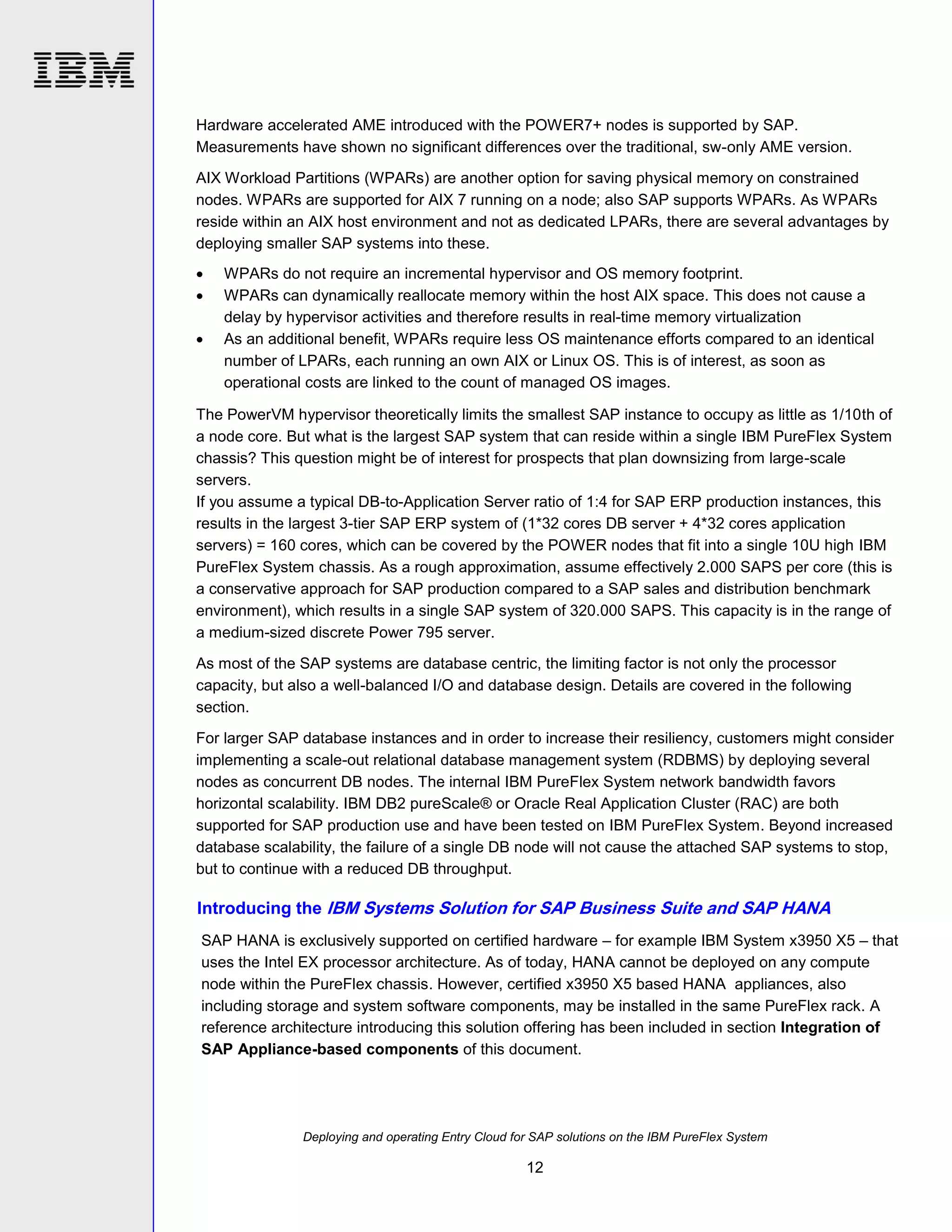

Hardware accelerated AME introduced with the POWER7+ nodes is supported by SAP.
Measurements have shown no significant differences over the traditional, sw-only AME version.
AIX Workload Partitions (WPARs) are another option for saving physical memory on constrained
nodes. WPARs are supported for AIX 7 running on a node; also SAP supports WPARs. As WPARs
reside within an AIX host environment and not as dedicated LPARs, there are several advantages by
deploying smaller SAP systems into these.




WPARs do not require an incremental hypervisor and OS memory footprint.
WPARs can dynamically reallocate memory within the host AIX space. This does not cause a
delay by hypervisor activities and therefore results in real-time memory virtualization
As an additional benefit, WPARs require less OS maintenance efforts compared to an identical
number of LPARs, each running an own AIX or Linux OS. This is of interest, as soon as
operational costs are linked to the count of managed OS images.

The PowerVM hypervisor theoretically limits the smallest SAP instance to occupy as little as 1/10th of
a node core. But what is the largest SAP system that can reside within a single IBM PureFlex System
chassis? This question might be of interest for prospects that plan downsizing from large-scale
servers.
If you assume a typical DB-to-Application Server ratio of 1:4 for SAP ERP production instances, this
results in the largest 3-tier SAP ERP system of (1*32 cores DB server + 4*32 cores application
servers) = 160 cores, which can be covered by the POWER nodes that fit into a single 10U high IBM
PureFlex System chassis. As a rough approximation, assume effectively 2.000 SAPS per core (this is
a conservative approach for SAP production compared to a SAP sales and distribution benchmark
environment), which results in a single SAP system of 320.000 SAPS. This capacity is in the range of
a medium-sized discrete Power 795 server.
As most of the SAP systems are database centric, the limiting factor is not only the processor
capacity, but also a well-balanced I/O and database design. Details are covered in the following
section.
For larger SAP database instances and in order to increase their resiliency, customers might consider
implementing a scale-out relational database management system (RDBMS) by deploying several
nodes as concurrent DB nodes. The internal IBM PureFlex System network bandwidth favors
horizontal scalability. IBM DB2 pureScale® or Oracle Real Application Cluster (RAC) are both
supported for SAP production use and have been tested on IBM PureFlex System. Beyond increased
database scalability, the failure of a single DB node will not cause the attached SAP systems to stop,
but to continue with a reduced DB throughput.

Introducing the IBM Systems Solution for SAP Business Suite and SAP HANA
SAP HANA is exclusively supported on certified hardware – for example IBM System x3950 X5 – that
uses the Intel EX processor architecture. As of today, HANA cannot be deployed on any compute
node within the PureFlex chassis. However, certified x3950 X5 based HANA appliances, also
including storage and system software components, may be installed in the same PureFlex rack. A
reference architecture introducing this solution offering has been included in section Integration of
SAP Appliance-based components of this document.


12

Storage attachment
In the previous section, the design criteria for the server nodes have been explained. This section
explains the storage and I/O relevant parameters for an IBM PureFlex System-based SAP landscape.
The IBM PureFlex System compute nodes allow adding a limited amount of internal storage to the
node. For most of the business applications, the available internal disk space might not be sufficient.
Therefore, storage needs to be supplied by an storage solution.. The IBM PureFlex System chassis
can be equipped with the internal Flex System V7000 storage node. This can be connected via the
chassis internal switches directly over Fibre Channel of Fibre Channel over Ethernet (FCoE).

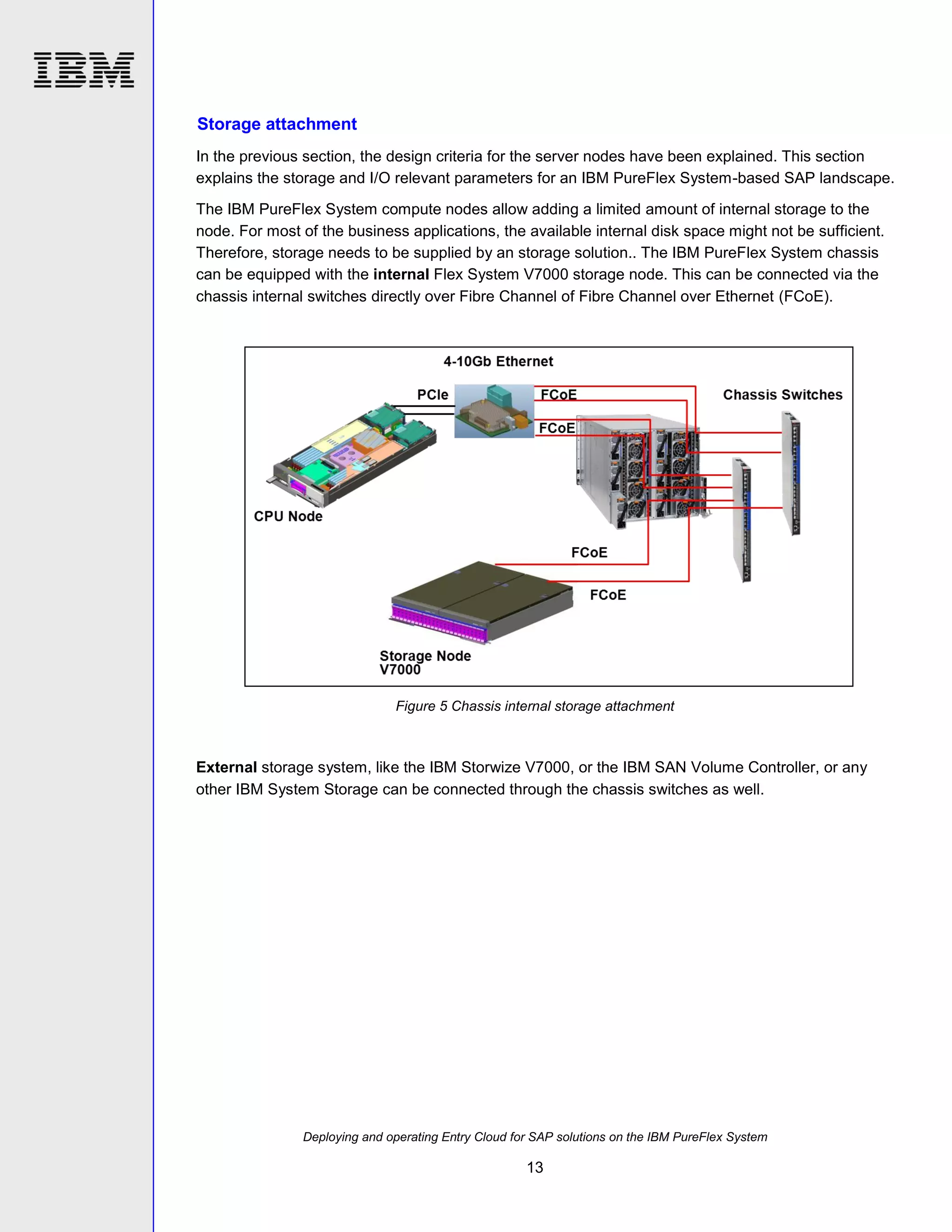

Figure 5 Chassis internal storage attachment

External storage system, like the IBM Storwize V7000, or the IBM SAN Volume Controller, or any
other IBM System Storage can be connected through the chassis switches as well.


13

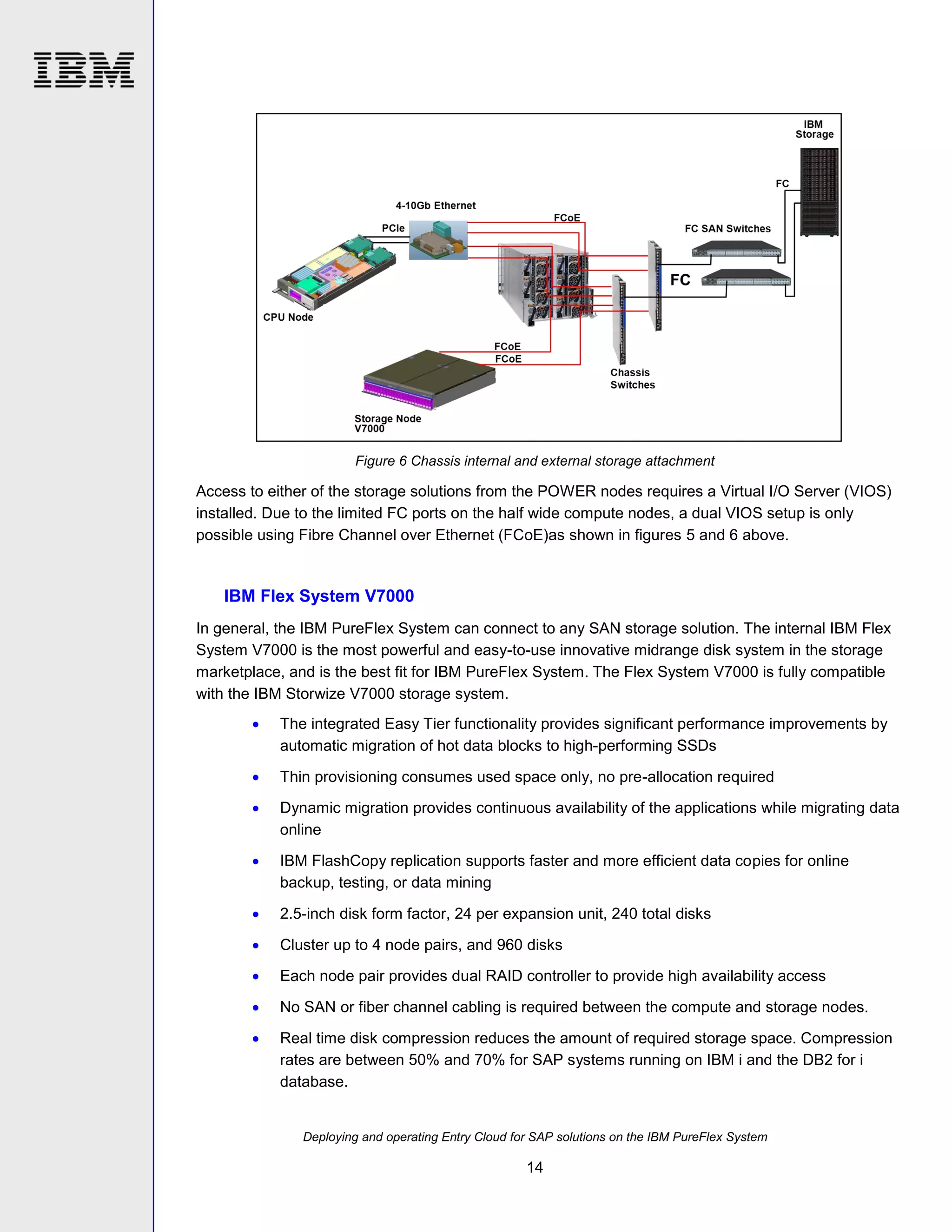

Figure 6 Chassis internal and external storage attachment

Access to either of the storage solutions from the POWER nodes requires a Virtual I/O Server (VIOS)
installed. Due to the limited FC ports on the half wide compute nodes, a dual VIOS setup is only
possible using Fibre Channel over Ethernet (FCoE)as shown in figures 5 and 6 above.

IBM Flex System V7000
In general, the IBM PureFlex System can connect to any SAN storage solution. The internal IBM Flex
System V7000 is the most powerful and easy-to-use innovative midrange disk system in the storage
marketplace, and is the best fit for IBM PureFlex System. The Flex System V7000 is fully compatible
with the IBM Storwize V7000 storage system.


The integrated Easy Tier functionality provides significant performance improvements by
automatic migration of hot data blocks to high-performing SSDs



Thin provisioning consumes used space only, no pre-allocation required



Dynamic migration provides continuous availability of the applications while migrating data
online



IBM FlashCopy replication supports faster and more efficient data copies for online
backup, testing, or data mining



2.5-inch disk form factor, 24 per expansion unit, 240 total disks



Cluster up to 4 node pairs, and 960 disks



Each node pair provides dual RAID controller to provide high availability access



No SAN or fiber channel cabling is required between the compute and storage nodes.



Real time disk compression reduces the amount of required storage space. Compression
rates are between 50% and 70% for SAP systems running on IBM i and the DB2 for i
database.


14



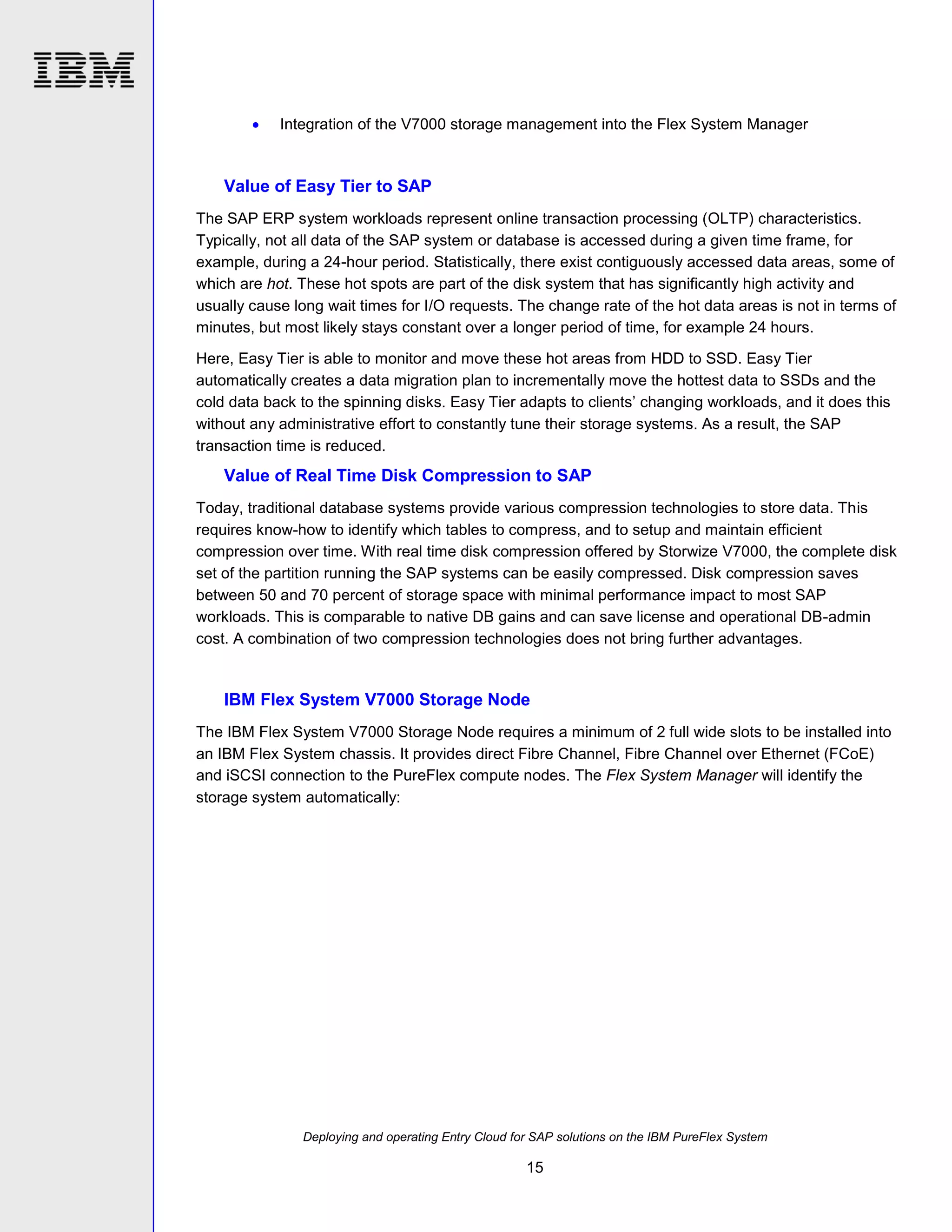

Integration of the V7000 storage management into the Flex System Manager

Value of Easy Tier to SAP
The SAP ERP system workloads represent online transaction processing (OLTP) characteristics.
Typically, not all data of the SAP system or database is accessed during a given time frame, for
example, during a 24-hour period. Statistically, there exist contiguously accessed data areas, some of
which are hot. These hot spots are part of the disk system that has significantly high activity and
usually cause long wait times for I/O requests. The change rate of the hot data areas is not in terms of
minutes, but most likely stays constant over a longer period of time, for example 24 hours.
Here, Easy Tier is able to monitor and move these hot areas from HDD to SSD. Easy Tier
automatically creates a data migration plan to incrementally move the hottest data to SSDs and the
cold data back to the spinning disks. Easy Tier adapts to clients’ changing workloads, and it does this
without any administrative effort to constantly tune their storage systems. As a result, the SAP
transaction time is reduced.

Value of Real Time Disk Compression to SAP
Today, traditional database systems provide various compression technologies to store data. This
requires know-how to identify which tables to compress, and to setup and maintain efficient
compression over time. With real time disk compression offered by Storwize V7000, the complete disk
set of the partition running the SAP systems can be easily compressed. Disk compression saves
between 50 and 70 percent of storage space with minimal performance impact to most SAP
workloads. This is comparable to native DB gains and can save license and operational DB-admin
cost. A combination of two compression technologies does not bring further advantages.

IBM Flex System V7000 Storage Node
The IBM Flex System V7000 Storage Node requires a minimum of 2 full wide slots to be installed into
an IBM Flex System chassis. It provides direct Fibre Channel, Fibre Channel over Ethernet (FCoE)
and iSCSI connection to the PureFlex compute nodes. The Flex System Manager will identify the
storage system automatically:


15

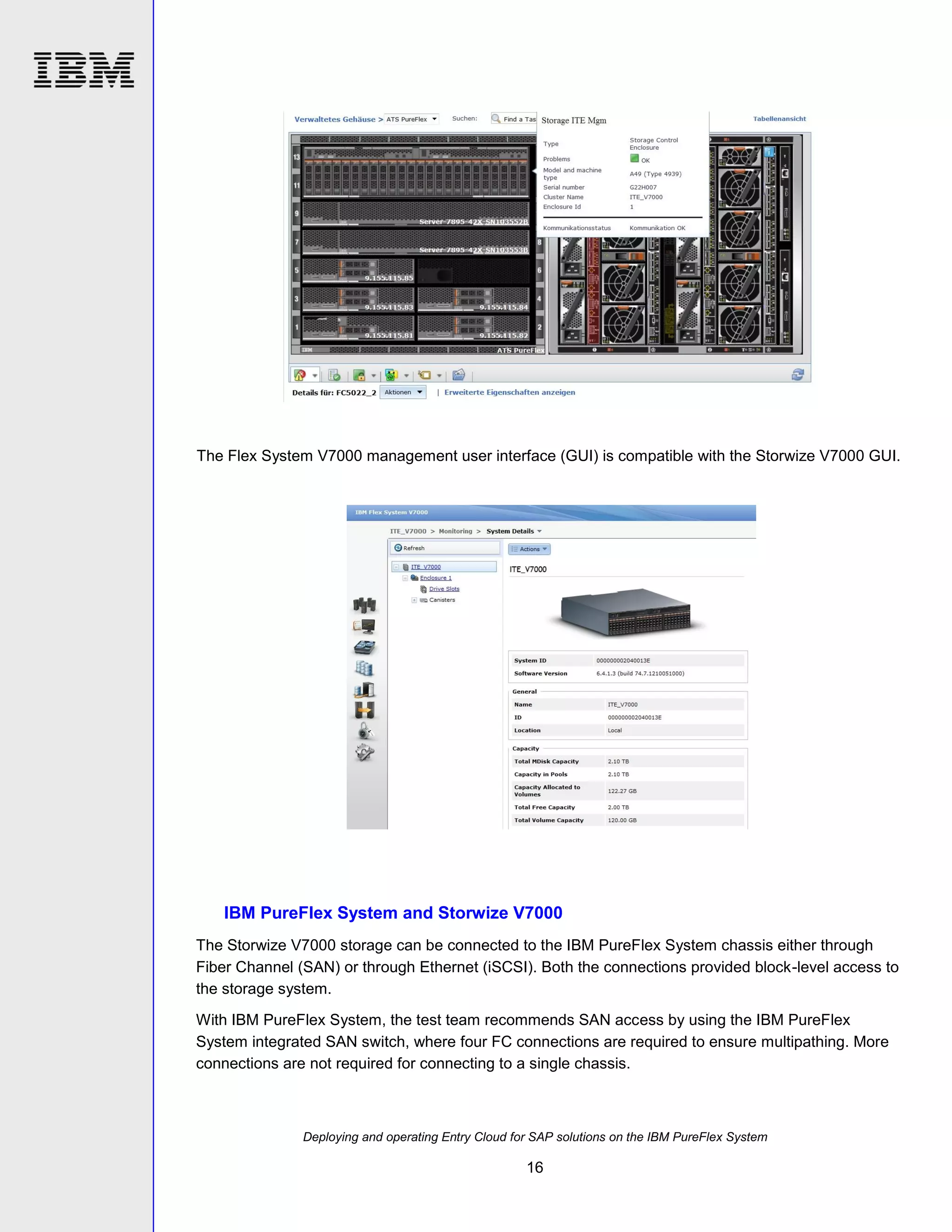

The Flex System V7000 management user interface (GUI) is compatible with the Storwize V7000 GUI.

IBM PureFlex System and Storwize V7000
The Storwize V7000 storage can be connected to the IBM PureFlex System chassis either through
Fiber Channel (SAN) or through Ethernet (iSCSI). Both the connections provided block-level access to
the storage system.
With IBM PureFlex System, the test team recommends SAN access by using the IBM PureFlex
System integrated SAN switch, where four FC connections are required to ensure multipathing. More
connections are not required for connecting to a single chassis.


16

Setting up a stretched cluster is not supported by the integrated V7000 SVC. Customers will require a
traditional SVC to support such a resilient disk setup. Of course, other technologies like AIX LVM
mirroring, Metro Mirror etc. are supported.

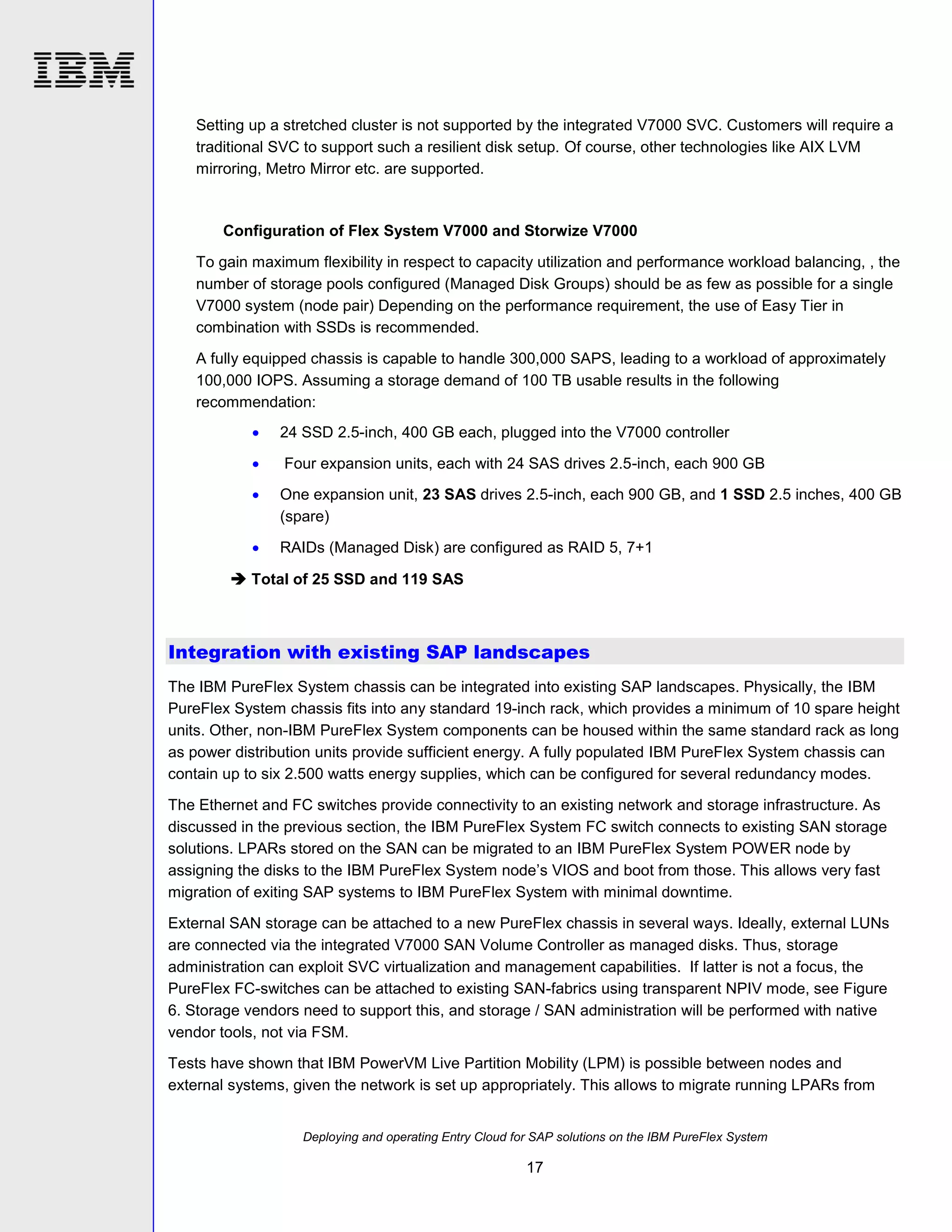

Configuration of Flex System V7000 and Storwize V7000
To gain maximum flexibility in respect to capacity utilization and performance workload balancing, , the
number of storage pools configured (Managed Disk Groups) should be as few as possible for a single
V7000 system (node pair) Depending on the performance requirement, the use of Easy Tier in
combination with SSDs is recommended.
A fully equipped chassis is capable to handle 300,000 SAPS, leading to a workload of approximately
100,000 IOPS. Assuming a storage demand of 100 TB usable results in the following
recommendation:


24 SSD 2.5-inch, 400 GB each, plugged into the V7000 controller



Four expansion units, each with 24 SAS drives 2.5-inch, each 900 GB



One expansion unit, 23 SAS drives 2.5-inch, each 900 GB, and 1 SSD 2.5 inches, 400 GB
(spare)



RAIDs (Managed Disk) are configured as RAID 5, 7+1

 Total of 25 SSD and 119 SAS

Integration with existing SAP landscapes
The IBM PureFlex System chassis can be integrated into existing SAP landscapes. Physically, the IBM
PureFlex System chassis fits into any standard 19-inch rack, which provides a minimum of 10 spare height
units. Other, non-IBM PureFlex System components can be housed within the same standard rack as long
as power distribution units provide sufficient energy. A fully populated IBM PureFlex System chassis can
contain up to six 2.500 watts energy supplies, which can be configured for several redundancy modes.
The Ethernet and FC switches provide connectivity to an existing network and storage infrastructure. As
discussed in the previous section, the IBM PureFlex System FC switch connects to existing SAN storage
solutions. LPARs stored on the SAN can be migrated to an IBM PureFlex System POWER node by
assigning the disks to the IBM PureFlex System node’s VIOS and boot from those. This allows very fast
migration of exiting SAP systems to IBM PureFlex System with minimal downtime.
External SAN storage can be attached to a new PureFlex chassis in several ways. Ideally, external LUNs
are connected via the integrated V7000 SAN Volume Controller as managed disks. Thus, storage
administration can exploit SVC virtualization and management capabilities. If latter is not a focus, the
PureFlex FC-switches can be attached to existing SAN-fabrics using transparent NPIV mode, see Figure
6. Storage vendors need to support this, and storage / SAN administration will be performed with native
vendor tools, not via FSM.
Tests have shown that IBM PowerVM Live Partition Mobility (LPM) is possible between nodes and
external systems, given the network is set up appropriately. This allows to migrate running LPARs from


17

discrete Power Systems to POWER nodes and to migrate from POWER nodes to discrete Power
Systems.
The FSM administration layer can co-exist with already implemented cross-platform management
solutions like, e.g. the IBM Systems Director. It also can become integrated with higher level enterprise
service management software as a monitored and managed layer.

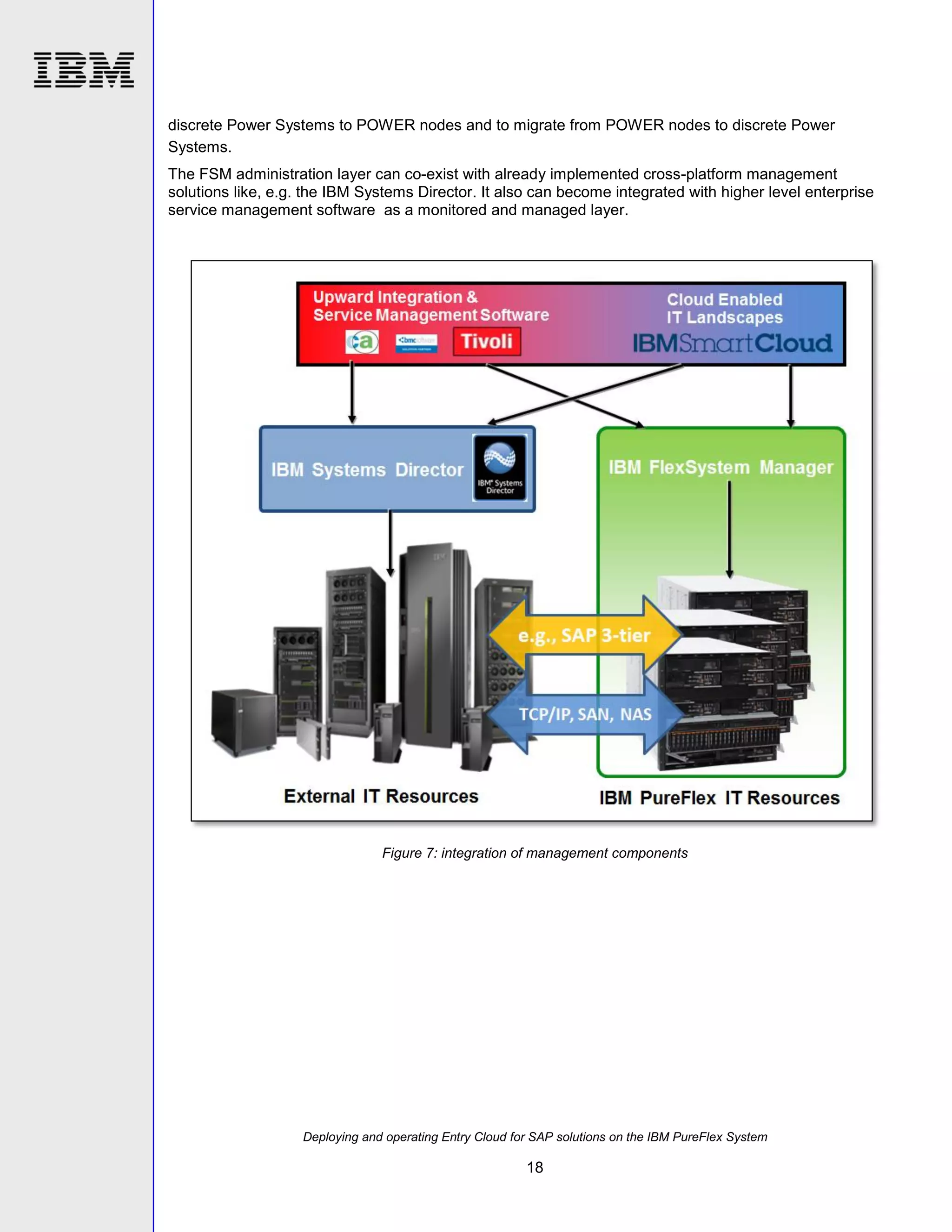

Figure 7: integration of management components


18

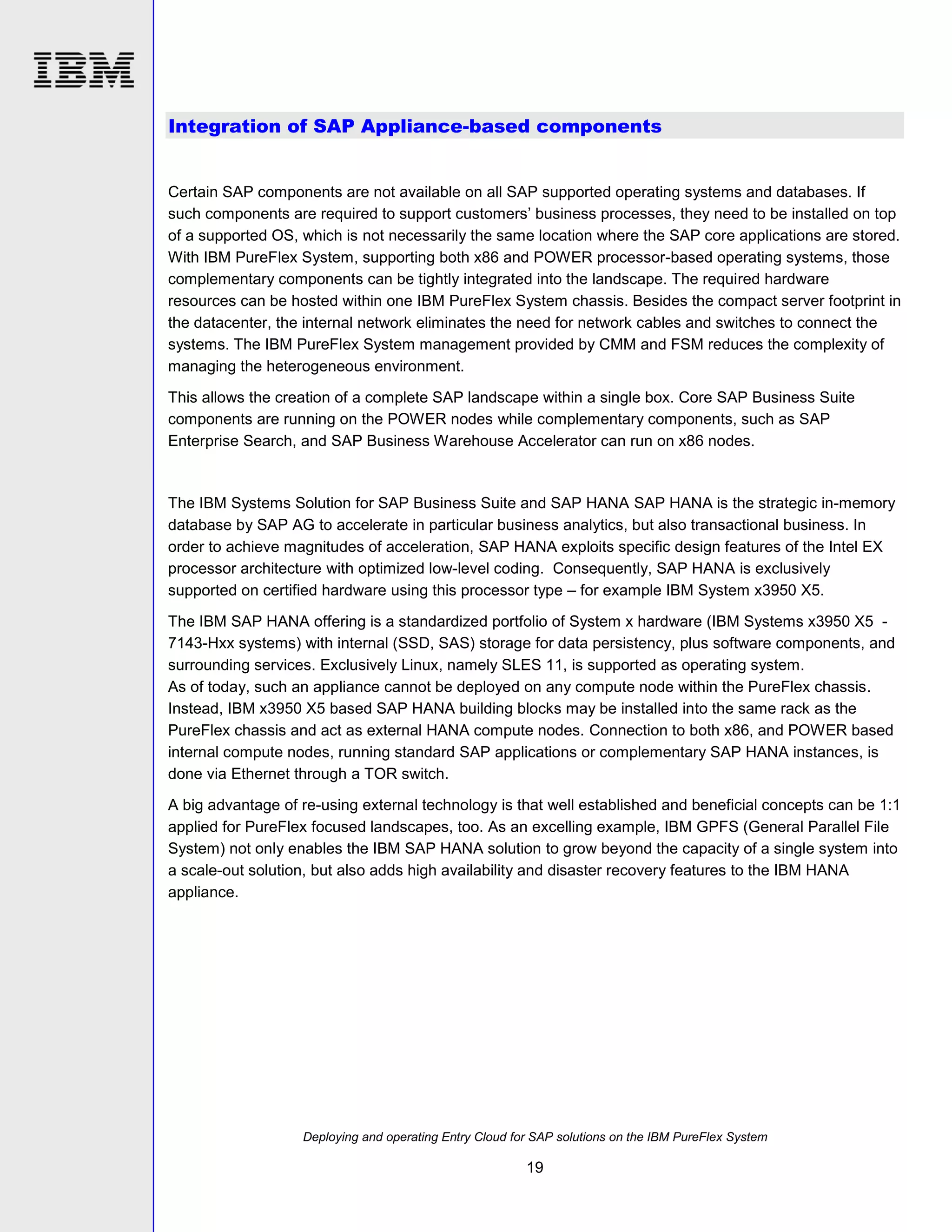

Integration of SAP Appliance-based components

Certain SAP components are not available on all SAP supported operating systems and databases. If
such components are required to support customers’ business processes, they need to be installed on top
of a supported OS, which is not necessarily the same location where the SAP core applications are stored.
With IBM PureFlex System, supporting both x86 and POWER processor-based operating systems, those
complementary components can be tightly integrated into the landscape. The required hardware
resources can be hosted within one IBM PureFlex System chassis. Besides the compact server footprint in
the datacenter, the internal network eliminates the need for network cables and switches to connect the
systems. The IBM PureFlex System management provided by CMM and FSM reduces the complexity of
managing the heterogeneous environment.
This allows the creation of a complete SAP landscape within a single box. Core SAP Business Suite
components are running on the POWER nodes while complementary components, such as SAP
Enterprise Search, and SAP Business Warehouse Accelerator can run on x86 nodes.

The IBM Systems Solution for SAP Business Suite and SAP HANA SAP HANA is the strategic in-memory
database by SAP AG to accelerate in particular business analytics, but also transactional business. In
order to achieve magnitudes of acceleration, SAP HANA exploits specific design features of the Intel EX
processor architecture with optimized low-level coding. Consequently, SAP HANA is exclusively
supported on certified hardware using this processor type – for example IBM System x3950 X5.
The IBM SAP HANA offering is a standardized portfolio of System x hardware (IBM Systems x3950 X5 7143-Hxx systems) with internal (SSD, SAS) storage for data persistency, plus software components, and
surrounding services. Exclusively Linux, namely SLES 11, is supported as operating system.
As of today, such an appliance cannot be deployed on any compute node within the PureFlex chassis.
Instead, IBM x3950 X5 based SAP HANA building blocks may be installed into the same rack as the
PureFlex chassis and act as external HANA compute nodes. Connection to both x86, and POWER based
internal compute nodes, running standard SAP applications or complementary SAP HANA instances, is
done via Ethernet through a TOR switch.
A big advantage of re-using external technology is that well established and beneficial concepts can be 1:1
applied for PureFlex focused landscapes, too. As an excelling example, IBM GPFS (General Parallel File
System) not only enables the IBM SAP HANA solution to grow beyond the capacity of a single system into
a scale-out solution, but also adds high availability and disaster recovery features to the IBM HANA
appliance.


19

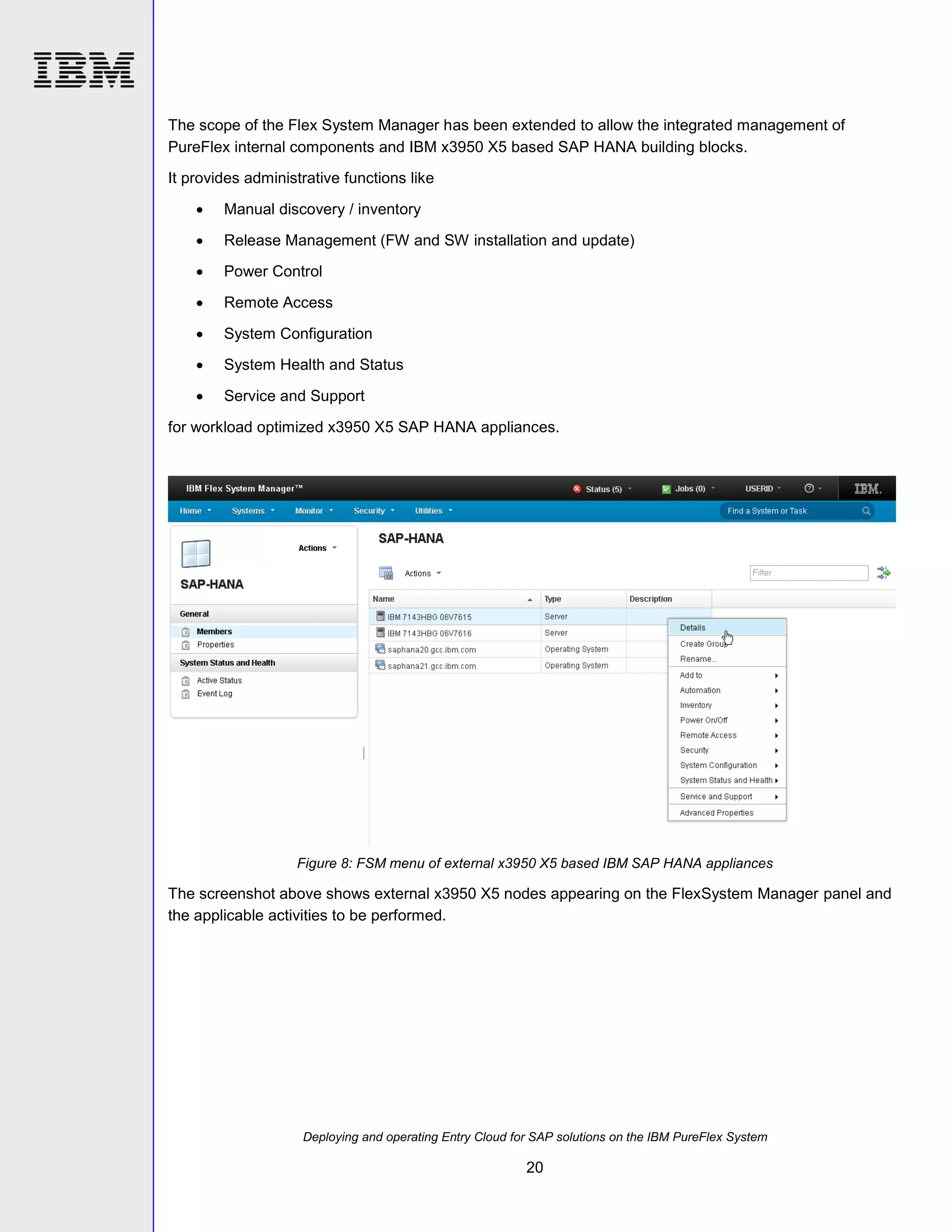

The scope of the Flex System Manager has been extended to allow the integrated management of
PureFlex internal components and IBM x3950 X5 based SAP HANA building blocks.
It provides administrative functions like


Manual discovery / inventory



Release Management (FW and SW installation and update)



Power Control



Remote Access



System Configuration



System Health and Status



Service and Support

for workload optimized x3950 X5 SAP HANA appliances.

Figure 8: FSM menu of external x3950 X5 based IBM SAP HANA appliances

The screenshot above shows external x3950 X5 nodes appearing on the FlexSystem Manager panel and
the applicable activities to be performed.


20

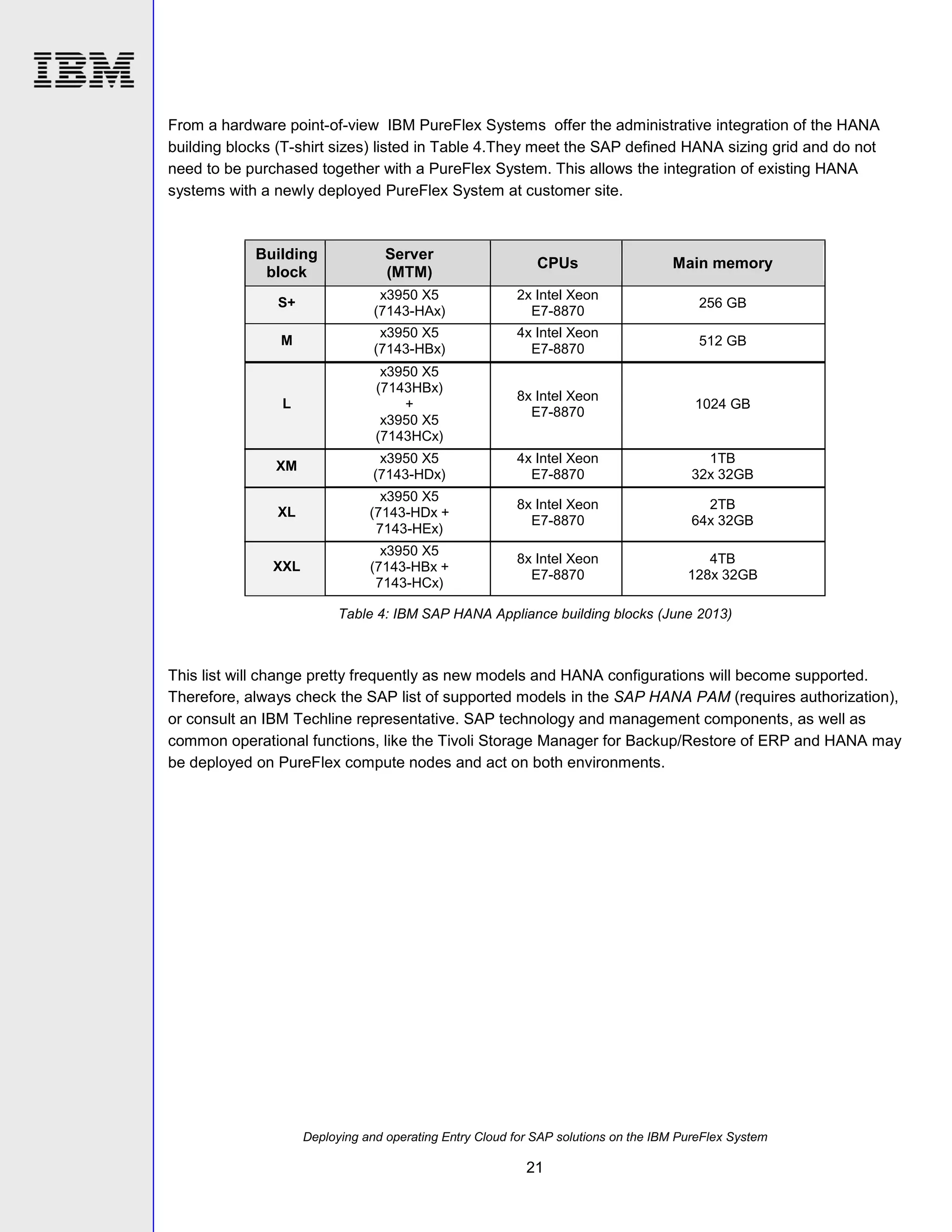

From a hardware point-of-view IBM PureFlex Systems offer the administrative integration of the HANA
building blocks (T-shirt sizes) listed in Table 4.They meet the SAP defined HANA sizing grid and do not
need to be purchased together with a PureFlex System. This allows the integration of existing HANA
systems with a newly deployed PureFlex System at customer site.

Building
block

Server
(MTM)

CPUs

Main memory

S+

x3950 X5
(7143-HAx)

2x Intel Xeon
E7-8870

256 GB

M

x3950 X5
(7143-HBx)

4x Intel Xeon
E7-8870

512 GB

L

x3950 X5
(7143HBx)
+
x3950 X5
(7143HCx)

8x Intel Xeon
E7-8870

1024 GB

XM

x3950 X5
(7143-HDx)

4x Intel Xeon
E7-8870

1TB
32x 32GB

XL

x3950 X5
(7143-HDx +
7143-HEx)

8x Intel Xeon
E7-8870

2TB
64x 32GB

XXL

x3950 X5
(7143-HBx +
7143-HCx)

8x Intel Xeon
E7-8870

4TB
128x 32GB

Table 4: IBM SAP HANA Appliance building blocks (June 2013)

This list will change pretty frequently as new models and HANA configurations will become supported.
Therefore, always check the SAP list of supported models in the SAP HANA PAM (requires authorization),
or consult an IBM Techline representative. SAP technology and management components, as well as
common operational functions, like the Tivoli Storage Manager for Backup/Restore of ERP and HANA may
be deployed on PureFlex compute nodes and act on both environments.


21

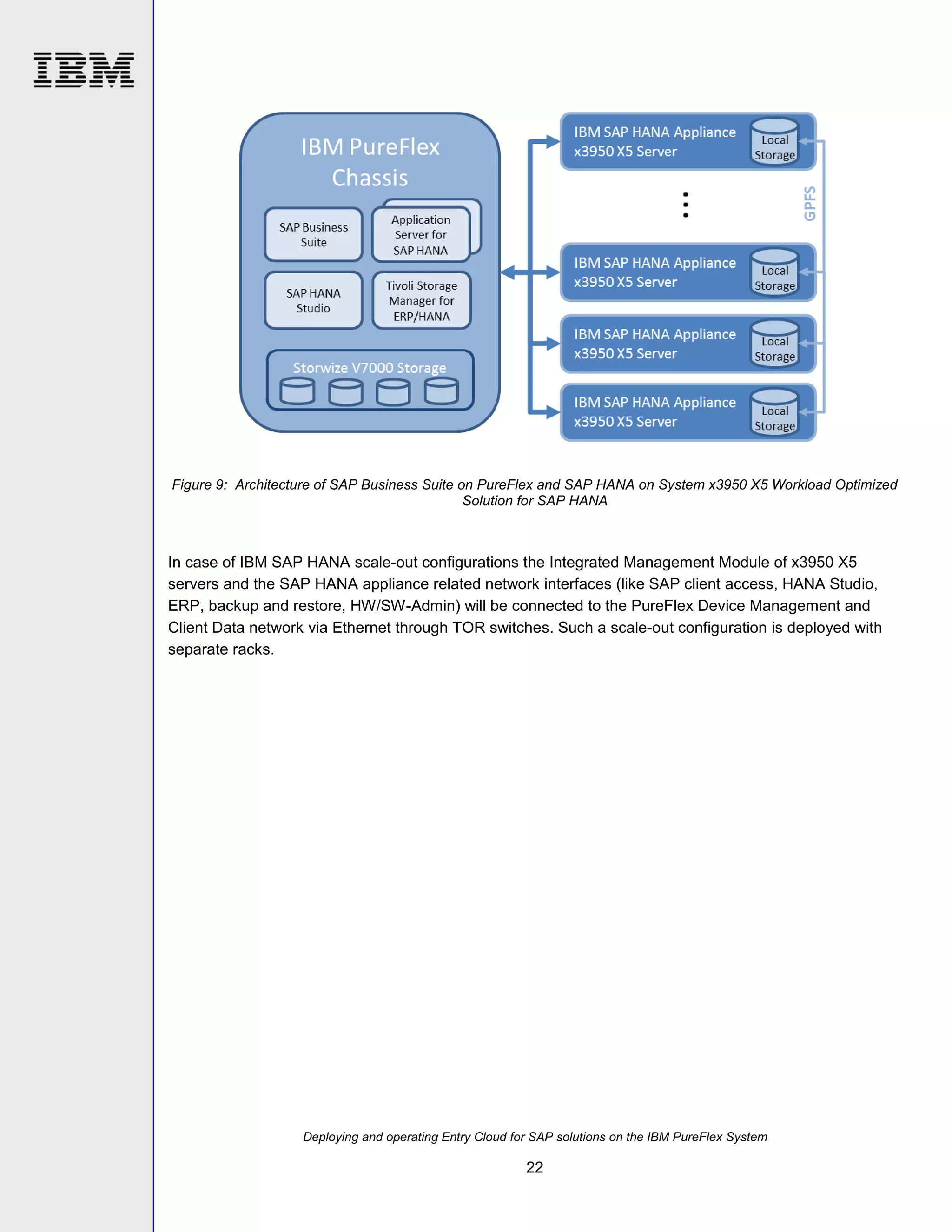

Figure 9: Architecture of SAP Business Suite on PureFlex and SAP HANA on System x3950 X5 Workload Optimized
Solution for SAP HANA

In case of IBM SAP HANA scale-out configurations the Integrated Management Module of x3950 X5
servers and the SAP HANA appliance related network interfaces (like SAP client access, HANA Studio,
ERP, backup and restore, HW/SW-Admin) will be connected to the PureFlex Device Management and
Client Data network via Ethernet through TOR switches. Such a scale-out configuration is deployed with
separate racks.


22

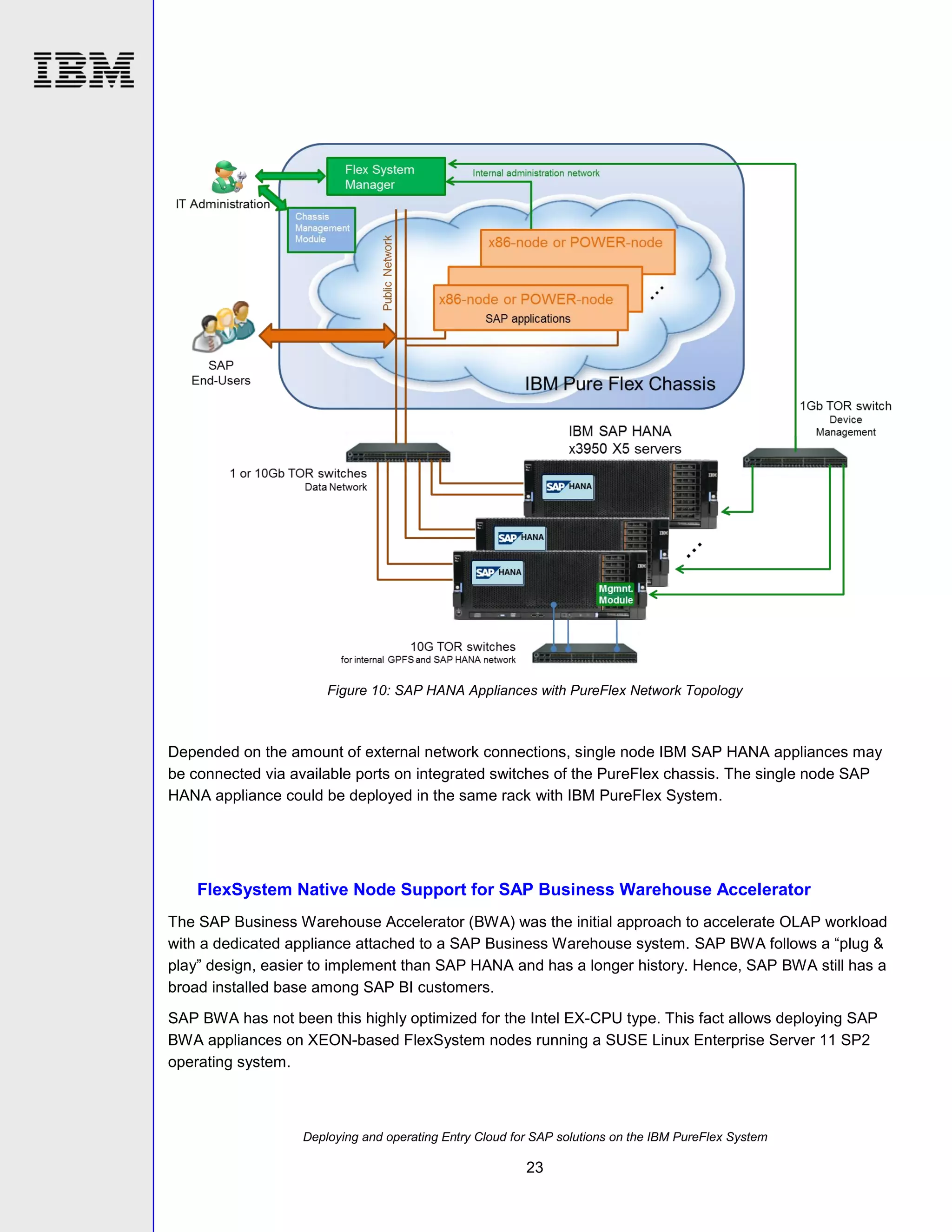

Figure 10: SAP HANA Appliances with PureFlex Network Topology

Depended on the amount of external network connections, single node IBM SAP HANA appliances may
be connected via available ports on integrated switches of the PureFlex chassis. The single node SAP
HANA appliance could be deployed in the same rack with IBM PureFlex System.

FlexSystem Native Node Support for SAP Business Warehouse Accelerator
The SAP Business Warehouse Accelerator (BWA) was the initial approach to accelerate OLAP workload
with a dedicated appliance attached to a SAP Business Warehouse system. SAP BWA follows a “plug &
play” design, easier to implement than SAP HANA and has a longer history. Hence, SAP BWA still has a
broad installed base among SAP BI customers.
SAP BWA has not been this highly optimized for the Intel EX-CPU type. This fact allows deploying SAP
BWA appliances on XEON-based FlexSystem nodes running a SUSE Linux Enterprise Server 11 SP2
operating system.


23

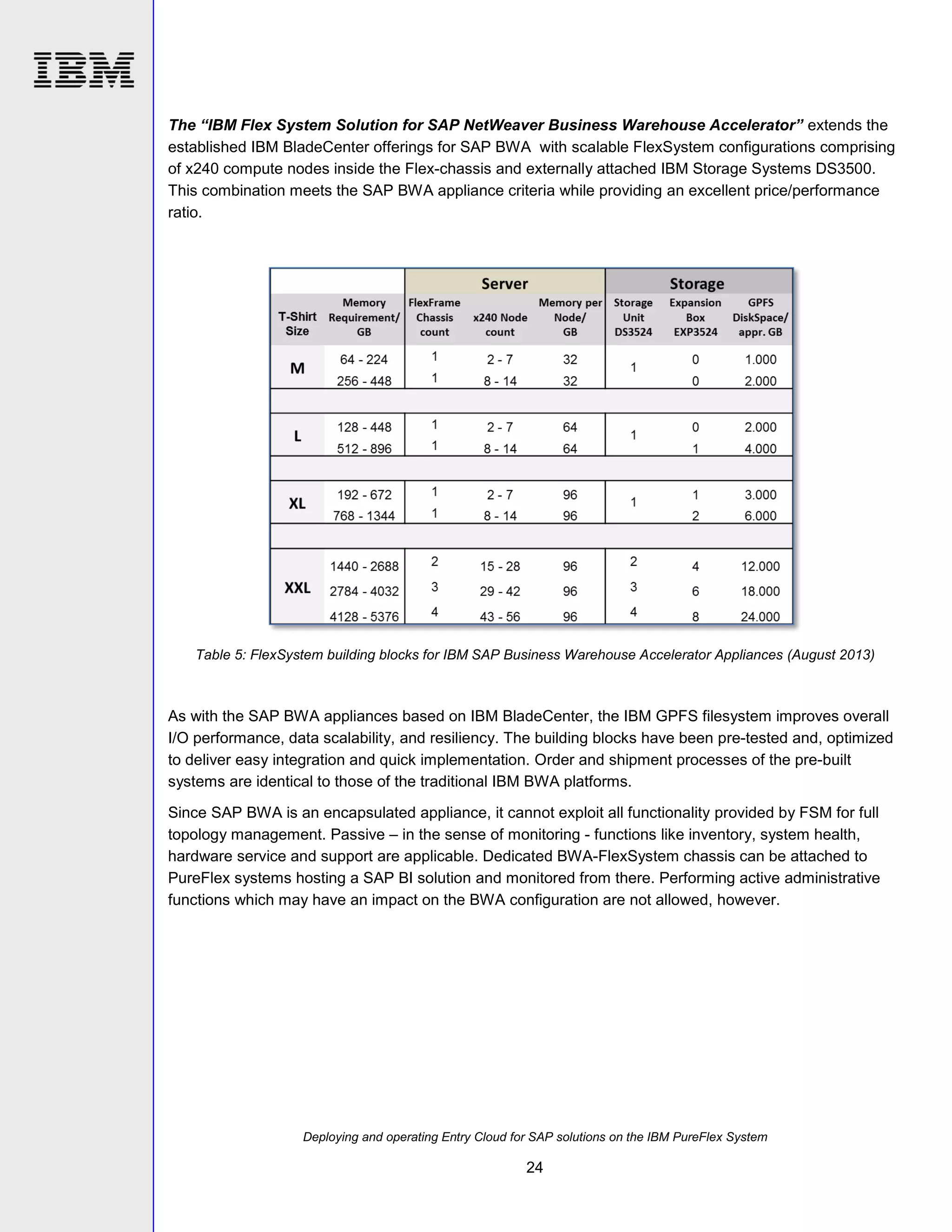

The “IBM Flex System Solution for SAP NetWeaver Business Warehouse Accelerator” extends the
established IBM BladeCenter offerings for SAP BWA with scalable FlexSystem configurations comprising
of x240 compute nodes inside the Flex-chassis and externally attached IBM Storage Systems DS3500.
This combination meets the SAP BWA appliance criteria while providing an excellent price/performance
ratio.

Table 5: FlexSystem building blocks for IBM SAP Business Warehouse Accelerator Appliances (August 2013)

As with the SAP BWA appliances based on IBM BladeCenter, the IBM GPFS filesystem improves overall
I/O performance, data scalability, and resiliency. The building blocks have been pre-tested and, optimized
to deliver easy integration and quick implementation. Order and shipment processes of the pre-built
systems are identical to those of the traditional IBM BWA platforms.
Since SAP BWA is an encapsulated appliance, it cannot exploit all functionality provided by FSM for full
topology management. Passive – in the sense of monitoring - functions like inventory, system health,
hardware service and support are applicable. Dedicated BWA-FlexSystem chassis can be attached to
PureFlex systems hosting a SAP BI solution and monitored from there. Performing active administrative
functions which may have an impact on the BWA configuration are not allowed, however.


24

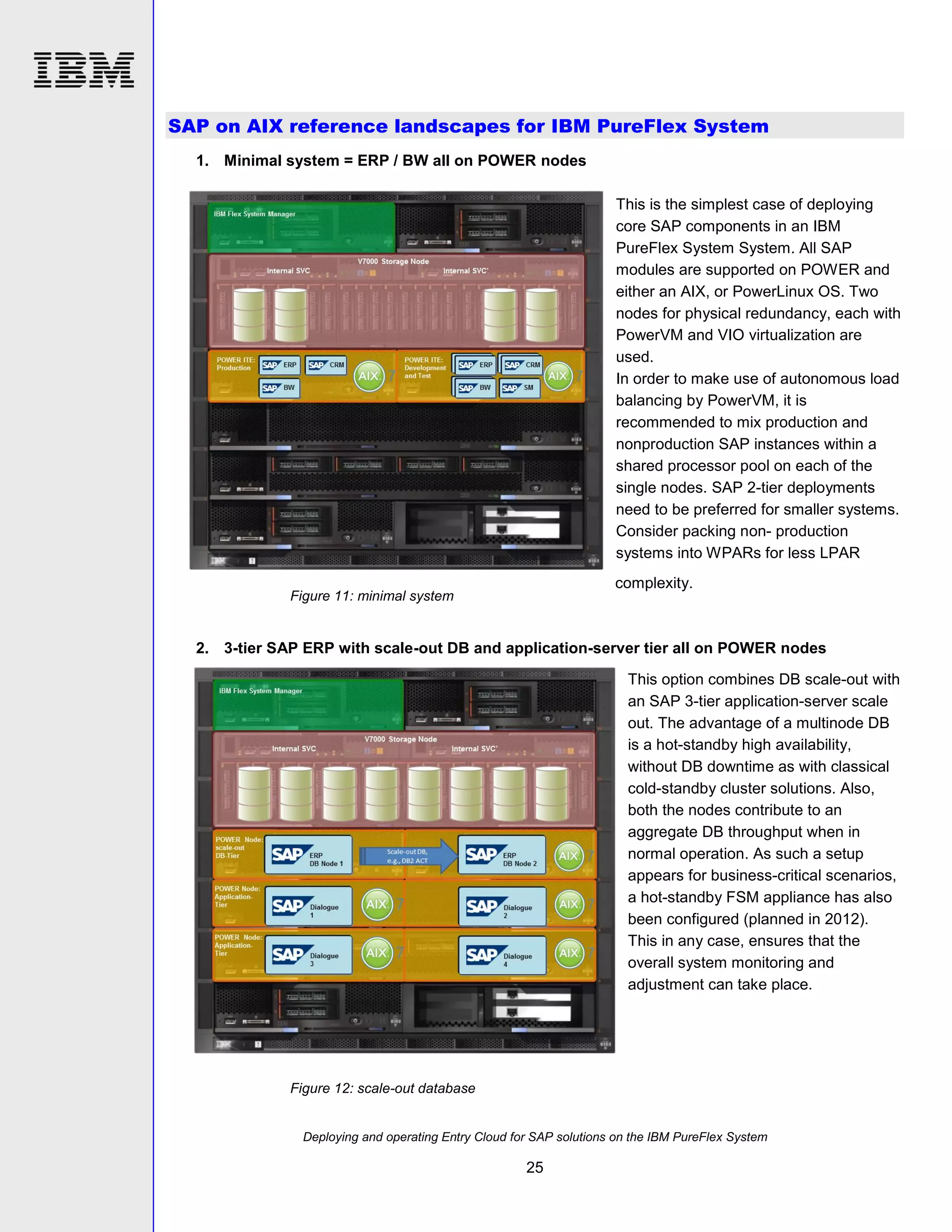

SAP on AIX reference landscapes for IBM PureFlex System
1. Minimal system = ERP / BW all on POWER nodes
This is the simplest case of deploying
core SAP components in an IBM
PureFlex System System. All SAP
modules are supported on POWER and
either an AIX, or PowerLinux OS. Two
nodes for physical redundancy, each with
PowerVM and VIO virtualization are
used.
In order to make use of autonomous load
balancing by PowerVM, it is
recommended to mix production and
nonproduction SAP instances within a
shared processor pool on each of the
single nodes. SAP 2-tier deployments
need to be preferred for smaller systems.
Consider packing nonproduction
systems into WPARs for less LPAR
complexity.

Figure 11: minimal system

2. 3-tier SAP ERP with scale-out DB and application-server tier all on POWER nodes
This option combines DB scale-out with
an SAP 3-tier application-server scale
out. The advantage of a multinode DB
is a hot-standby high availability,
without DB downtime as with classical
cold-standby cluster solutions. Also,
both the nodes contribute to an
aggregate DB throughput when in
normal operation. As such a setup
appears for business-critical scenarios,
a hot-standby FSM appliance has also
been configured (planned in 2012).
This in any case, ensures that the
overall system monitoring and
adjustment can take place.

Figure 12: scale-out database


25

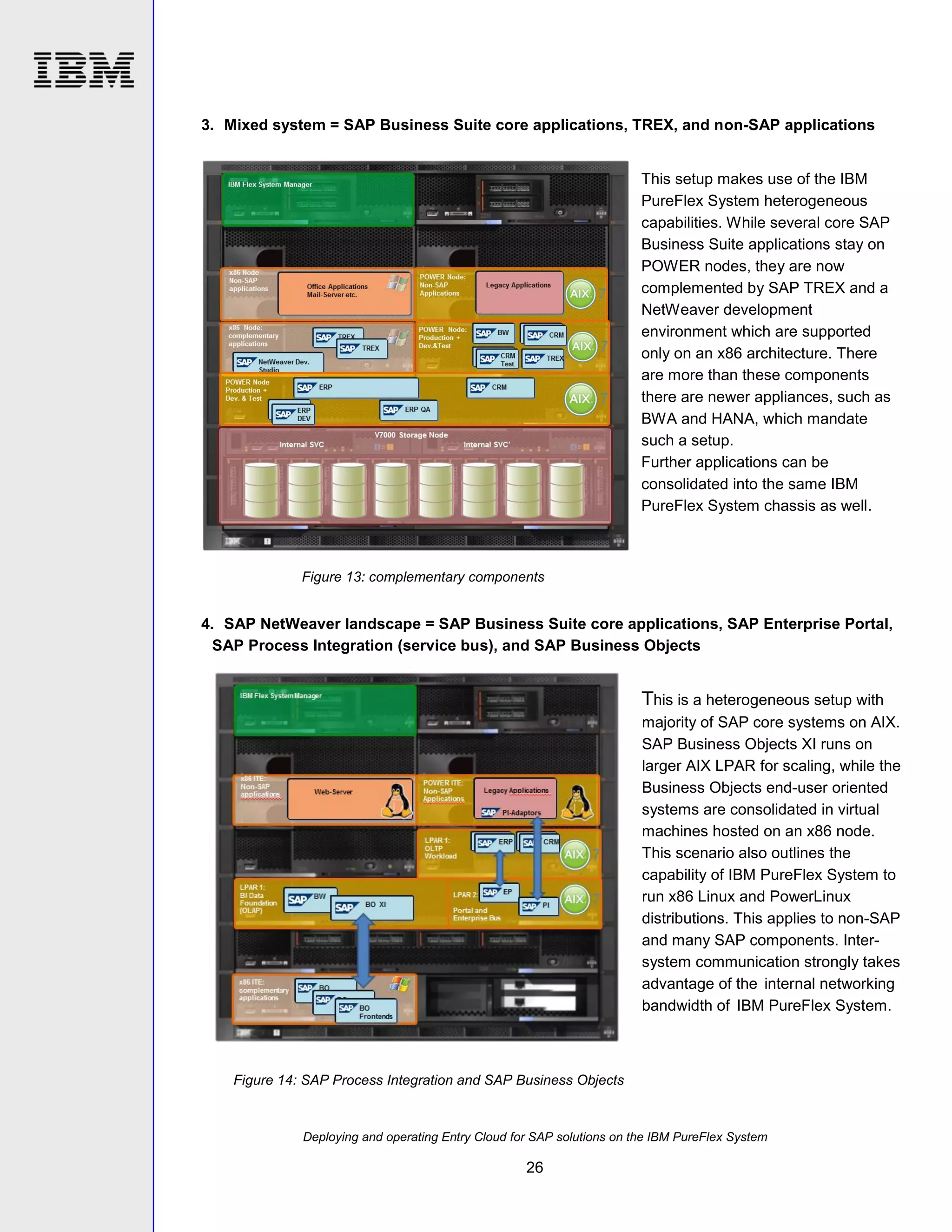

3. Mixed system = SAP Business Suite core applications, TREX, and non-SAP applications

This setup makes use of the IBM
PureFlex System heterogeneous
capabilities. While several core SAP
Business Suite applications stay on
POWER nodes, they are now
complemented by SAP TREX and a
NetWeaver development
environment which are supported
only on an x86 architecture. There
are more than these components
there are newer appliances, such as
BWA and HANA, which mandate
such a setup.
Further applications can be
consolidated into the same IBM
PureFlex System chassis as well.

Figure 13: complementary components

4. SAP NetWeaver landscape = SAP Business Suite core applications, SAP Enterprise Portal,
SAP Process Integration (service bus), and SAP Business Objects

This is a heterogeneous setup with
majority of SAP core systems on AIX.
SAP Business Objects XI runs on
larger AIX LPAR for scaling, while the
Business Objects end-user oriented
systems are consolidated in virtual
machines hosted on an x86 node.
This scenario also outlines the
capability of IBM PureFlex System to
run x86 Linux and PowerLinux
distributions. This applies to non-SAP
and many SAP components. Intersystem communication strongly takes
advantage of the internal networking
bandwidth of IBM PureFlex System.

Figure 14: SAP Process Integration and SAP Business Objects


26

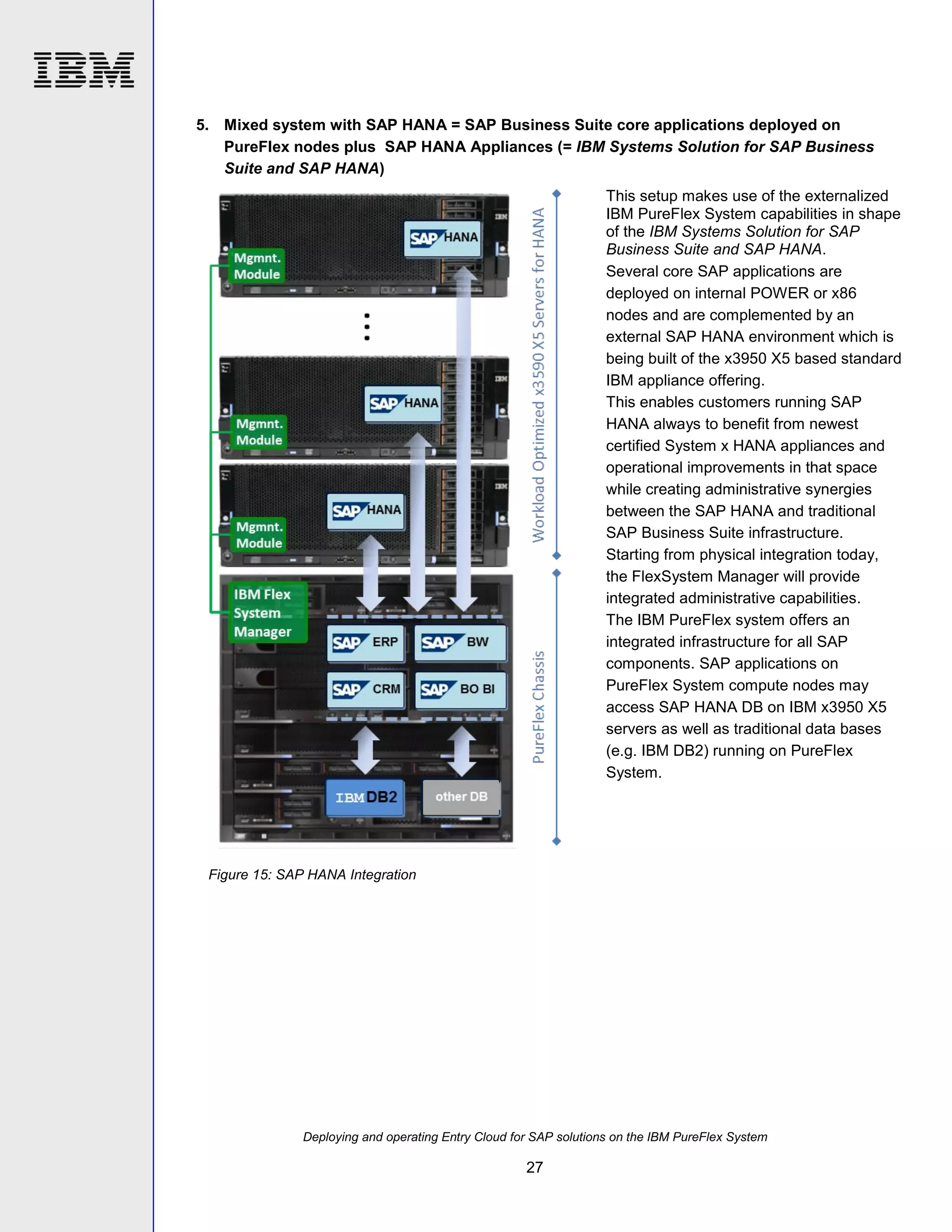

5. Mixed system with SAP HANA = SAP Business Suite core applications deployed on
PureFlex nodes plus SAP HANA Appliances (= IBM Systems Solution for SAP Business
Suite and SAP HANA)
This setup makes use of the externalized
IBM PureFlex System capabilities in shape
of the IBM Systems Solution for SAP
Business Suite and SAP HANA.
Several core SAP applications are
deployed on internal POWER or x86
nodes and are complemented by an
external SAP HANA environment which is
being built of the x3950 X5 based standard
IBM appliance offering.
This enables customers running SAP
HANA always to benefit from newest
certified System x HANA appliances and
operational improvements in that space
while creating administrative synergies
between the SAP HANA and traditional
SAP Business Suite infrastructure.
Starting from physical integration today,
the FlexSystem Manager will provide
integrated administrative capabilities.
The IBM PureFlex system offers an
integrated infrastructure for all SAP
components. SAP applications on
PureFlex System compute nodes may
access SAP HANA DB on IBM x3950 X5
servers as well as traditional data bases
(e.g. IBM DB2) running on PureFlex
System.

Figure 15: SAP HANA Integration


27

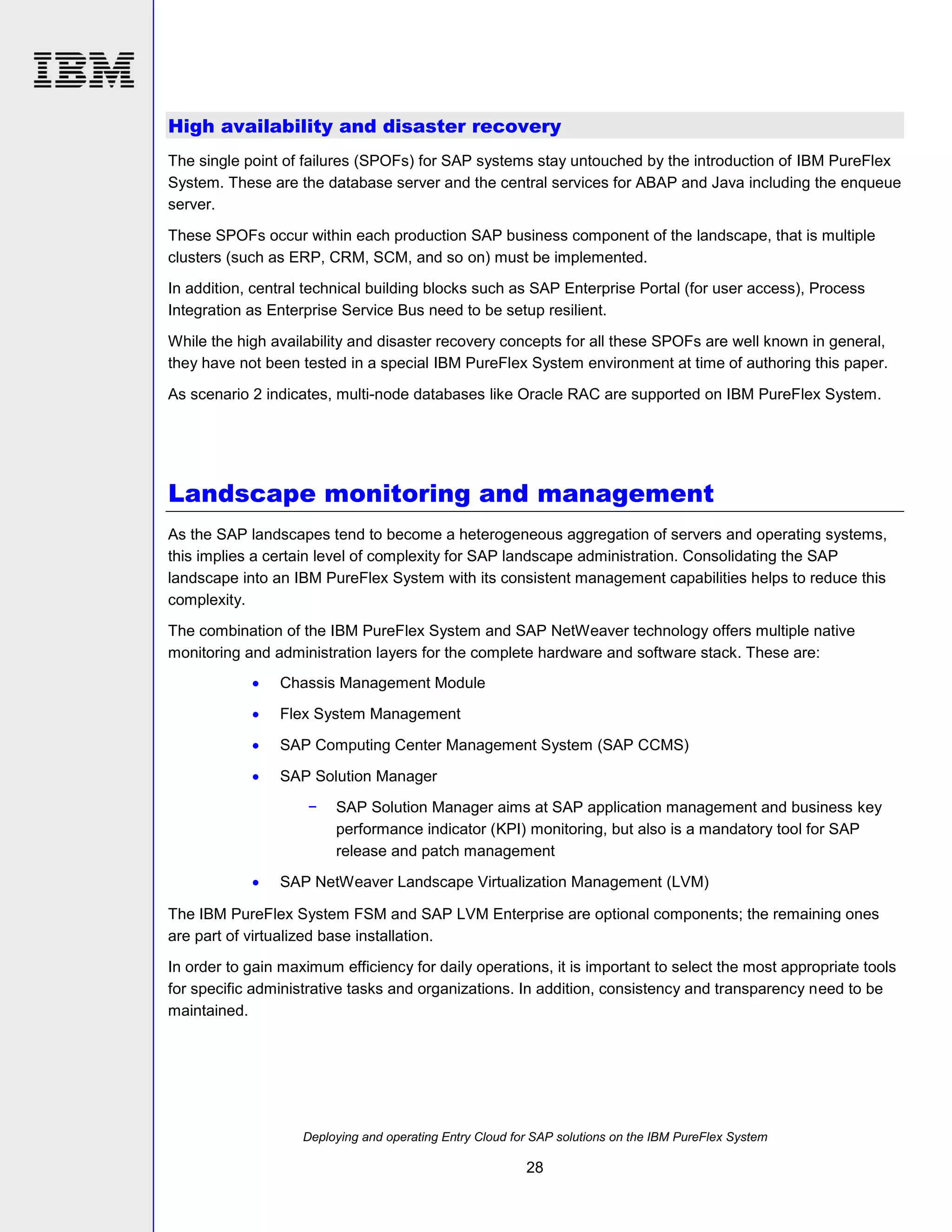

High availability and disaster recovery
The single point of failures (SPOFs) for SAP systems stay untouched by the introduction of IBM PureFlex
System. These are the database server and the central services for ABAP and Java including the enqueue
server.
These SPOFs occur within each production SAP business component of the landscape, that is multiple
clusters (such as ERP, CRM, SCM, and so on) must be implemented.
In addition, central technical building blocks such as SAP Enterprise Portal (for user access), Process
Integration as Enterprise Service Bus need to be setup resilient.
While the high availability and disaster recovery concepts for all these SPOFs are well known in general,
they have not been tested in a special IBM PureFlex System environment at time of authoring this paper.
As scenario 2 indicates, multi-node databases like Oracle RAC are supported on IBM PureFlex System.

Landscape monitoring and management
As the SAP landscapes tend to become a heterogeneous aggregation of servers and operating systems,
this implies a certain level of complexity for SAP landscape administration. Consolidating the SAP
landscape into an IBM PureFlex System with its consistent management capabilities helps to reduce this
complexity.
The combination of the IBM PureFlex System and SAP NetWeaver technology offers multiple native
monitoring and administration layers for the complete hardware and software stack. These are:


Chassis Management Module



Flex System Management



SAP Computing Center Management System (SAP CCMS)



SAP Solution Manager
−



SAP Solution Manager aims at SAP application management and business key
performance indicator (KPI) monitoring, but also is a mandatory tool for SAP
release and patch management

SAP NetWeaver Landscape Virtualization Management (LVM)

The IBM PureFlex System FSM and SAP LVM Enterprise are optional components; the remaining ones
are part of virtualized base installation.
In order to gain maximum efficiency for daily operations, it is important to select the most appropriate tools
for specific administrative tasks and organizations. In addition, consistency and transparency need to be
maintained.


28

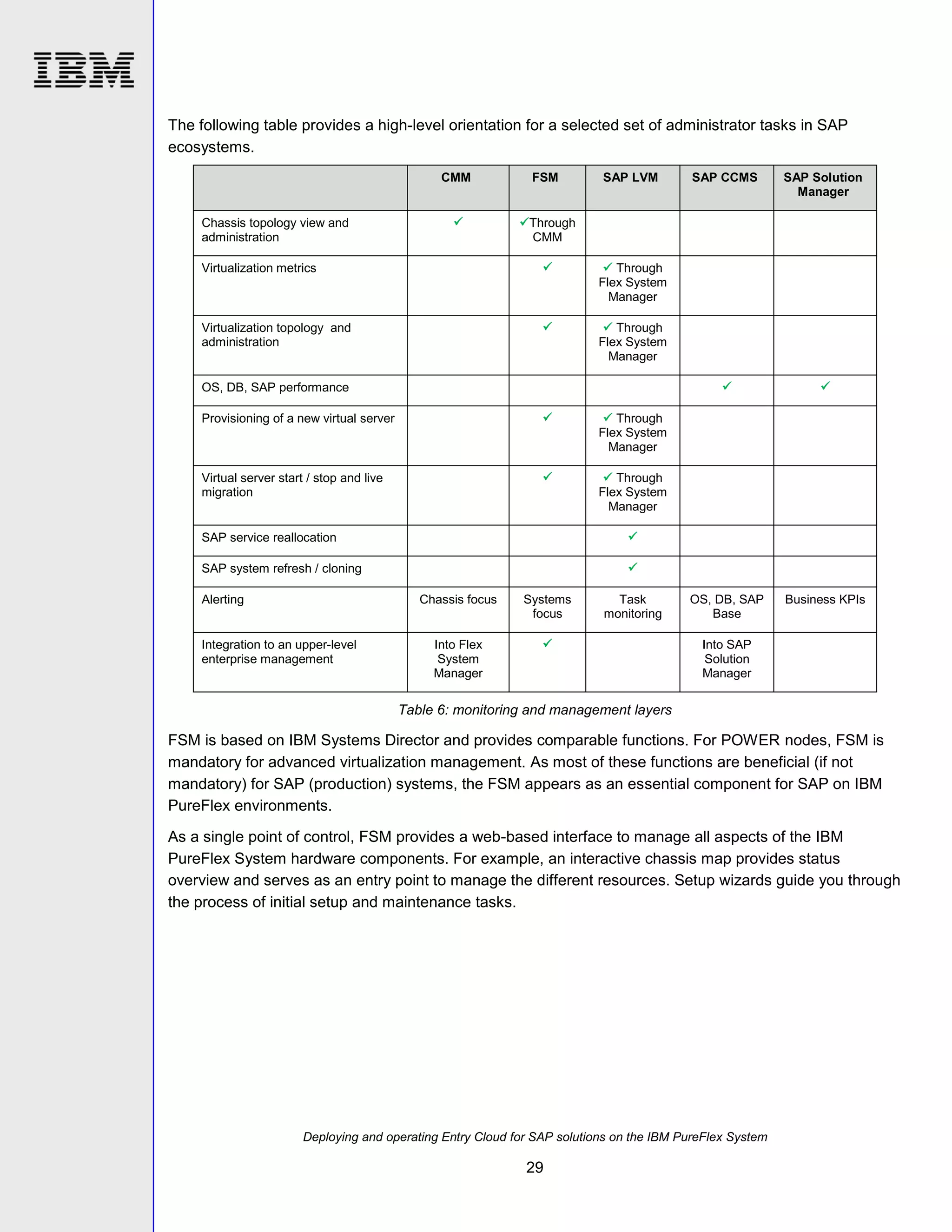

The following table provides a high-level orientation for a selected set of administrator tasks in SAP
ecosystems.
CMM

Chassis topology view and
administration

SAP LVM

SAP CCMS

SAP Solution
Manager





FSM



OS, DB, SAP
Base

Business KPIs

Through
CMM

Virtualization metrics



 Through
Flex System
Manager

Virtualization topology and
administration



 Through
Flex System
Manager

OS, DB, SAP performance
Provisioning of a new virtual server



 Through
Flex System
Manager

Virtual server start / stop and live
migration



 Through
Flex System
Manager

SAP service reallocation



SAP system refresh / cloning



Alerting

Chassis focus

Integration to an upper-level
enterprise management

Systems
focus

Into Flex
System
Manager

Task
monitoring



Into SAP
Solution
Manager

Table 6: monitoring and management layers

FSM is based on IBM Systems Director and provides comparable functions. For POWER nodes, FSM is
mandatory for advanced virtualization management. As most of these functions are beneficial (if not
mandatory) for SAP (production) systems, the FSM appears as an essential component for SAP on IBM
PureFlex environments.
As a single point of control, FSM provides a web-based interface to manage all aspects of the IBM
PureFlex System hardware components. For example, an interactive chassis map provides status
overview and serves as an entry point to manage the different resources. Setup wizards guide you through
the process of initial setup and maintenance tasks.


29

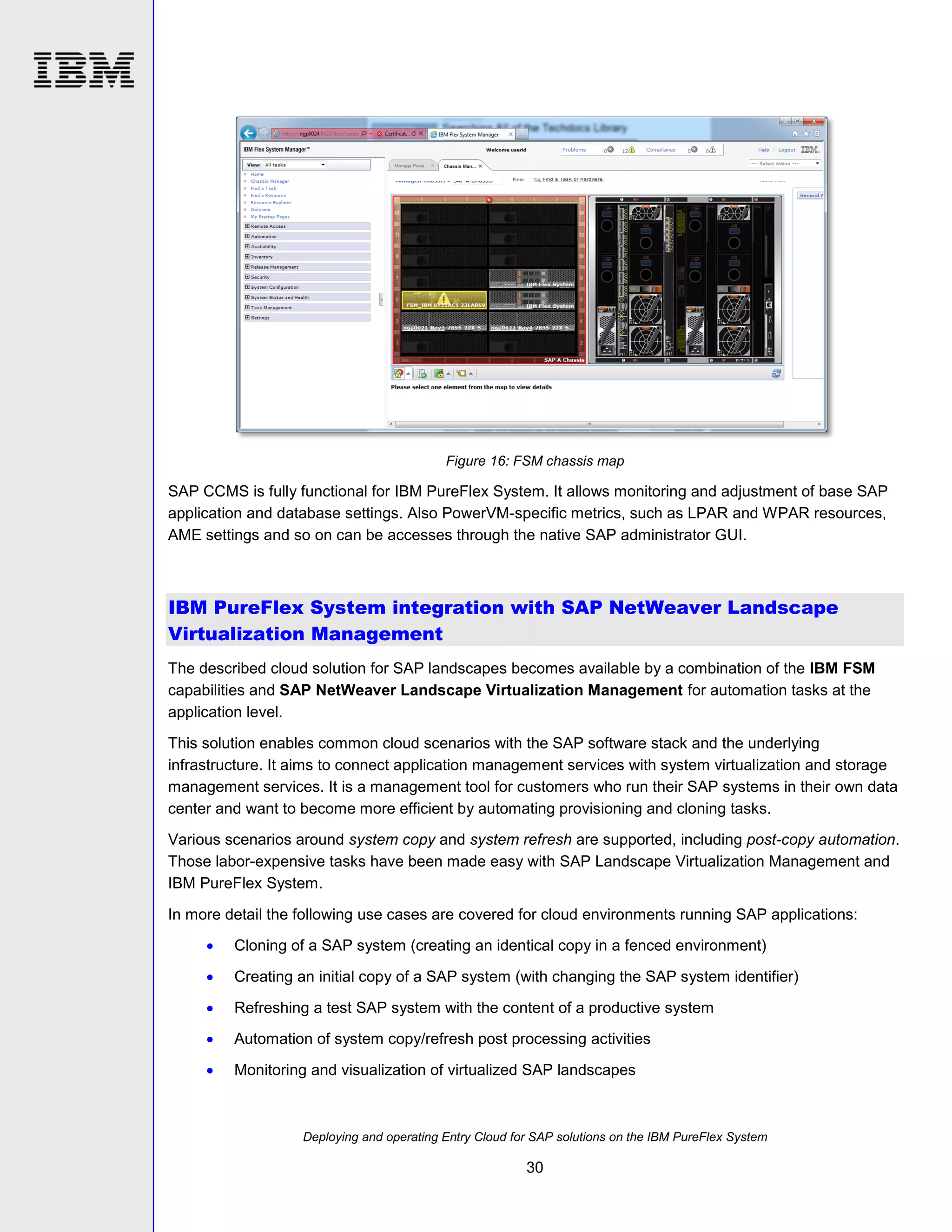

Figure 16: FSM chassis map

SAP CCMS is fully functional for IBM PureFlex System. It allows monitoring and adjustment of base SAP
application and database settings. Also PowerVM-specific metrics, such as LPAR and WPAR resources,
AME settings and so on can be accesses through the native SAP administrator GUI.

IBM PureFlex System integration with SAP NetWeaver Landscape
Virtualization Management
The described cloud solution for SAP landscapes becomes available by a combination of the IBM FSM
capabilities and SAP NetWeaver Landscape Virtualization Management for automation tasks at the
application level.
This solution enables common cloud scenarios with the SAP software stack and the underlying
infrastructure. It aims to connect application management services with system virtualization and storage
management services. It is a management tool for customers who run their SAP systems in their own data
center and want to become more efficient by automating provisioning and cloning tasks.
Various scenarios around system copy and system refresh are supported, including post-copy automation.
Those labor-expensive tasks have been made easy with SAP Landscape Virtualization Management and
IBM PureFlex System.
In more detail the following use cases are covered for cloud environments running SAP applications:


Cloning of a SAP system (creating an identical copy in a fenced environment)



Creating an initial copy of a SAP system (with changing the SAP system identifier)



Refreshing a test SAP system with the content of a productive system



Automation of system copy/refresh post processing activities



Monitoring and visualization of virtualized SAP landscapes


30

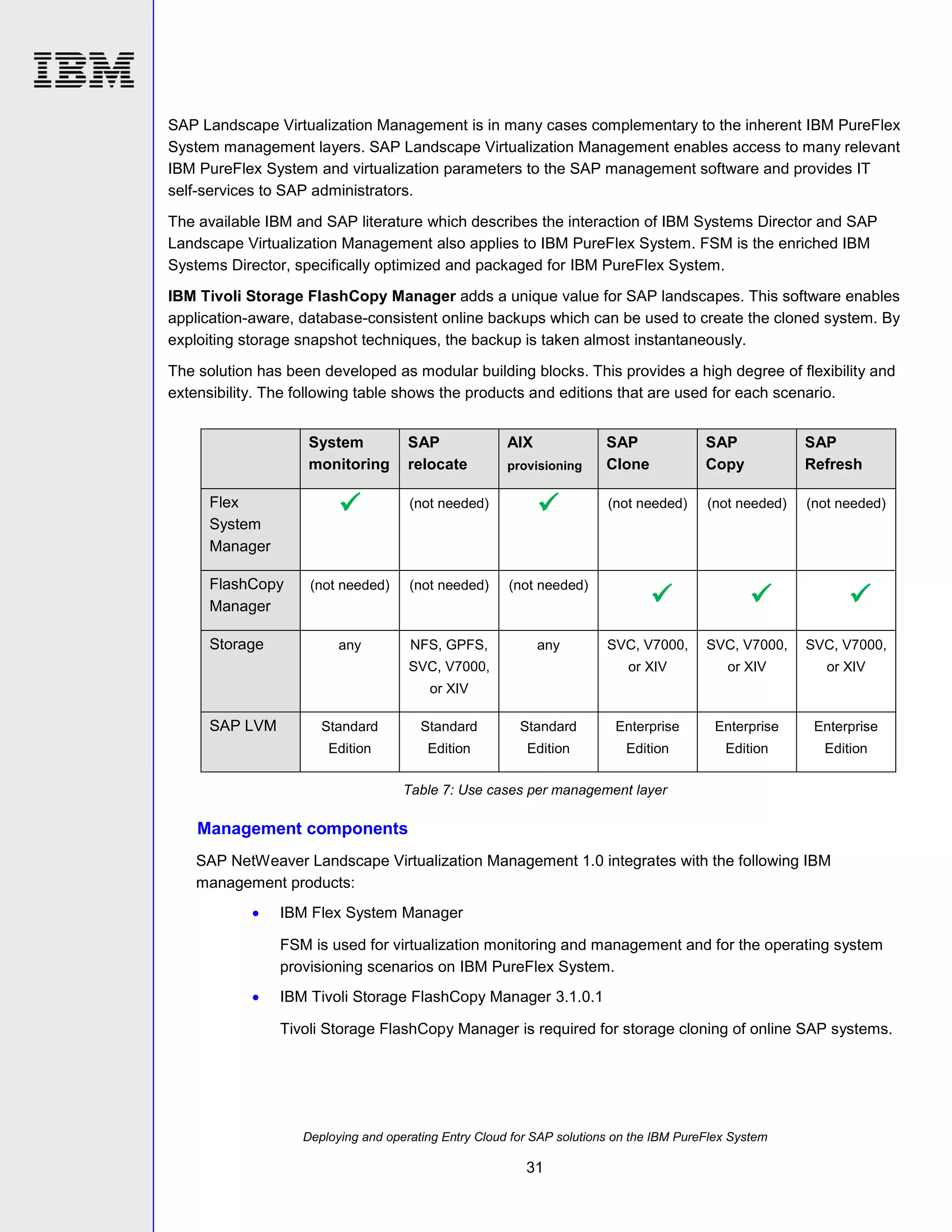

SAP Landscape Virtualization Management is in many cases complementary to the inherent IBM PureFlex
System management layers. SAP Landscape Virtualization Management enables access to many relevant
IBM PureFlex System and virtualization parameters to the SAP management software and provides IT
self-services to SAP administrators.
The available IBM and SAP literature which describes the interaction of IBM Systems Director and SAP
Landscape Virtualization Management also applies to IBM PureFlex System. FSM is the enriched IBM
Systems Director, specifically optimized and packaged for IBM PureFlex System.
IBM Tivoli Storage FlashCopy Manager adds a unique value for SAP landscapes. This software enables
application-aware, database-consistent online backups which can be used to create the cloned system. By
exploiting storage snapshot techniques, the backup is taken almost instantaneously.
The solution has been developed as modular building blocks. This provides a high degree of flexibility and
extensibility. The following table shows the products and editions that are used for each scenario.
System
monitoring

AIX
provisioning



Flex
System
Manager
FlashCopy
Manager
Storage

SAP
relocate
(not needed)



(not needed)

(not needed)

(not needed)

NFS, GPFS,

any

any

SAP
Clone

SAP
Copy

SAP
Refresh

(not needed)

(not needed)

(not needed)







SVC, V7000,

SVC, V7000,

SVC, V7000,

or XIV

SVC, V7000,

or XIV

or XIV

or XIV

SAP LVM

Standard

Standard

Standard

Enterprise

Enterprise

Enterprise

Edition

Edition

Edition

Edition

Edition

Edition

Table 7: Use cases per management layer

Management components
SAP NetWeaver Landscape Virtualization Management 1.0 integrates with the following IBM
management products:


IBM Flex System Manager
FSM is used for virtualization monitoring and management and for the operating system
provisioning scenarios on IBM PureFlex System.



IBM Tivoli Storage FlashCopy Manager 3.1.0.1
Tivoli Storage FlashCopy Manager is required for storage cloning of online SAP systems.


31

The management products can be installed on a single AIX LPAR within IBM PureFlex System.
Alternatively, the products might be installed on different servers, for example, SAP NetWeaver
Landscape Virtualization Management may run on any of the supported SAP platforms.

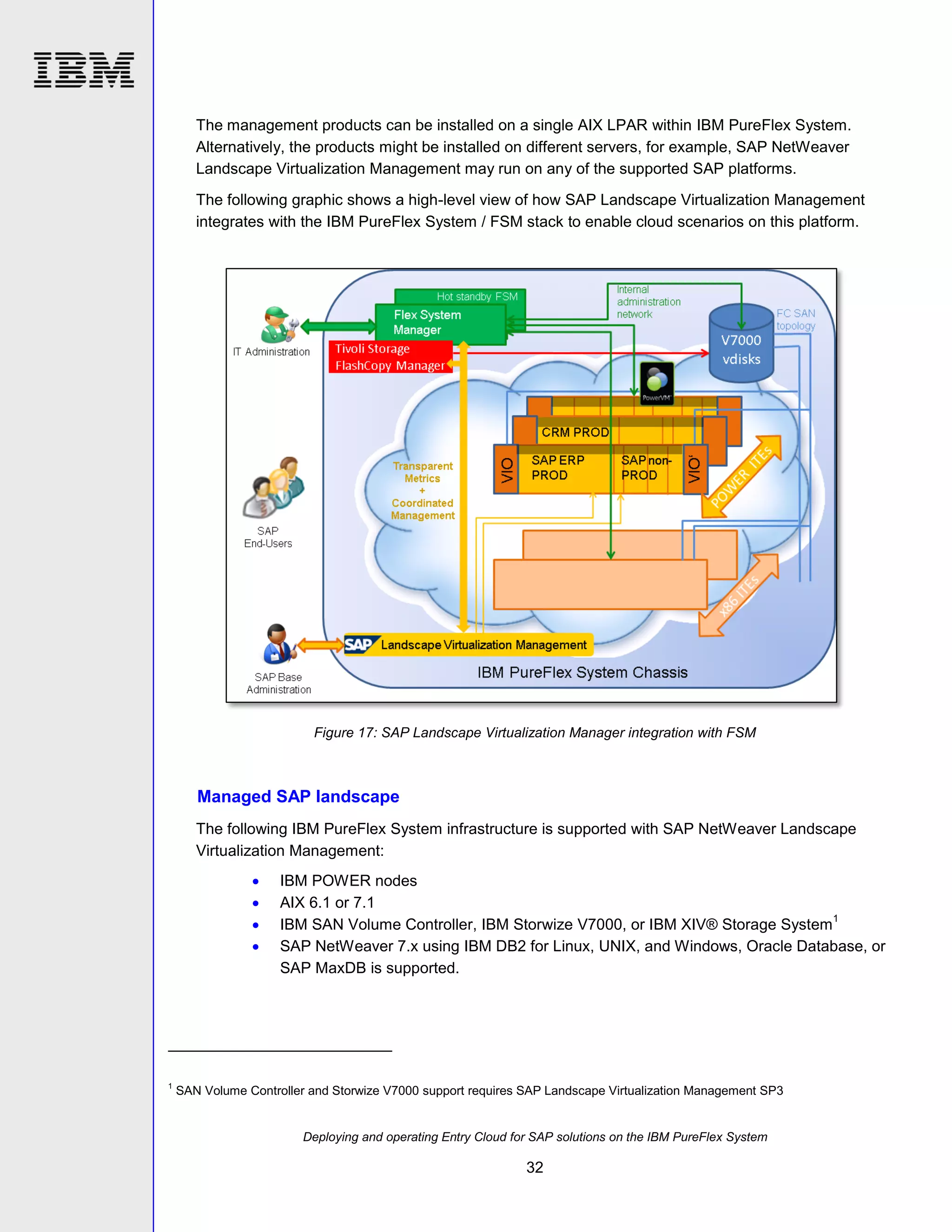

The following graphic shows a high-level view of how SAP Landscape Virtualization Management
integrates with the IBM PureFlex System / FSM stack to enable cloud scenarios on this platform.

Figure 17: SAP Landscape Virtualization Manager integration with FSM

Managed SAP landscape
The following IBM PureFlex System infrastructure is supported with SAP NetWeaver Landscape
Virtualization Management:





1

IBM POWER nodes
AIX 6.1 or 7.1
1
IBM SAN Volume Controller, IBM Storwize V7000, or IBM XIV® Storage System
SAP NetWeaver 7.x using IBM DB2 for Linux, UNIX, and Windows, Oracle Database, or
SAP MaxDB is supported.

SAN Volume Controller and Storwize V7000 support requires SAP Landscape Virtualization Management SP3


32

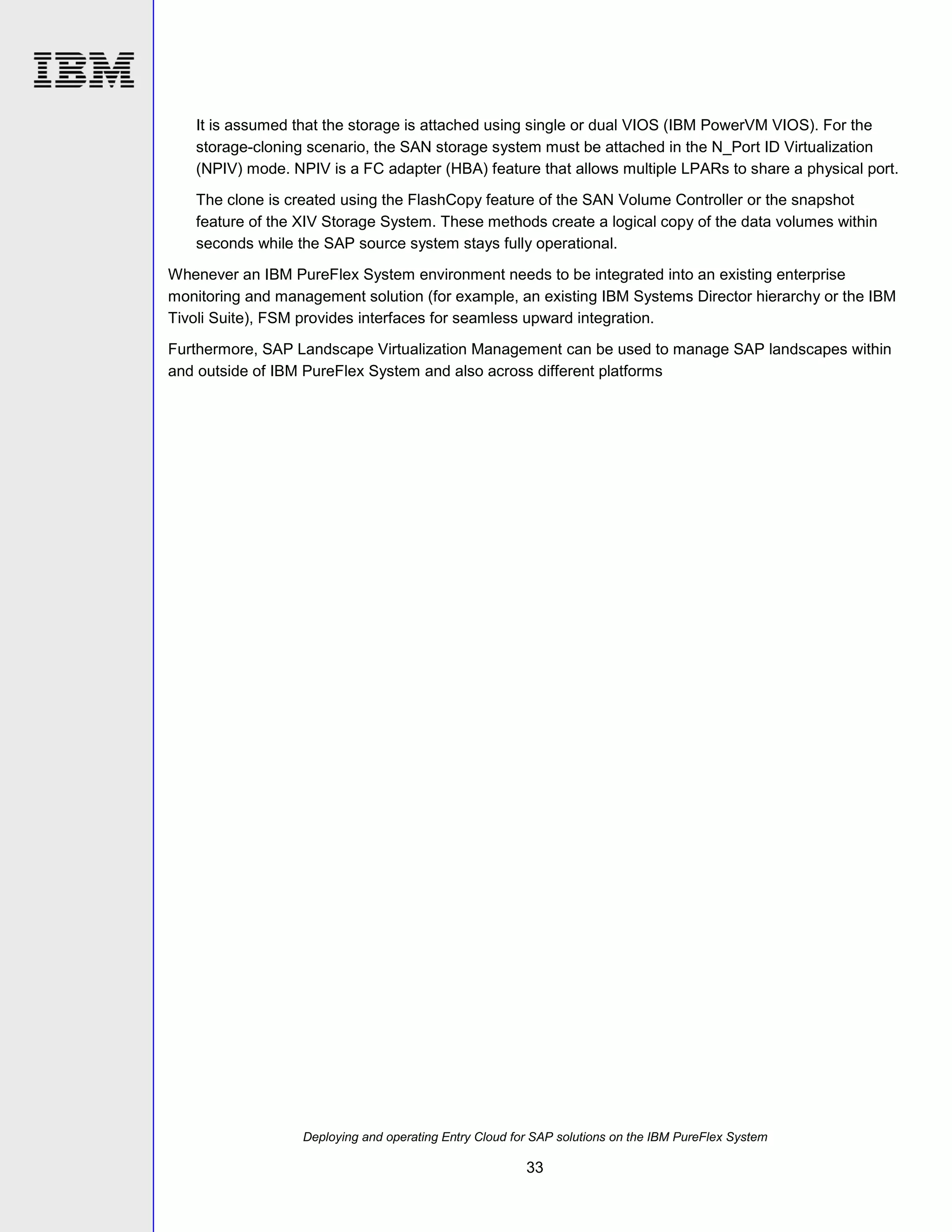

It is assumed that the storage is attached using single or dual VIOS (IBM PowerVM VIOS). For the
storage-cloning scenario, the SAN storage system must be attached in the N_Port ID Virtualization
(NPIV) mode. NPIV is a FC adapter (HBA) feature that allows multiple LPARs to share a physical port.
The clone is created using the FlashCopy feature of the SAN Volume Controller or the snapshot
feature of the XIV Storage System. These methods create a logical copy of the data volumes within
seconds while the SAP source system stays fully operational.
Whenever an IBM PureFlex System environment needs to be integrated into an existing enterprise
monitoring and management solution (for example, an existing IBM Systems Director hierarchy or the IBM
Tivoli Suite), FSM provides interfaces for seamless upward integration.
Furthermore, SAP Landscape Virtualization Management can be used to manage SAP landscapes within
and outside of IBM PureFlex System and also across different platforms


33

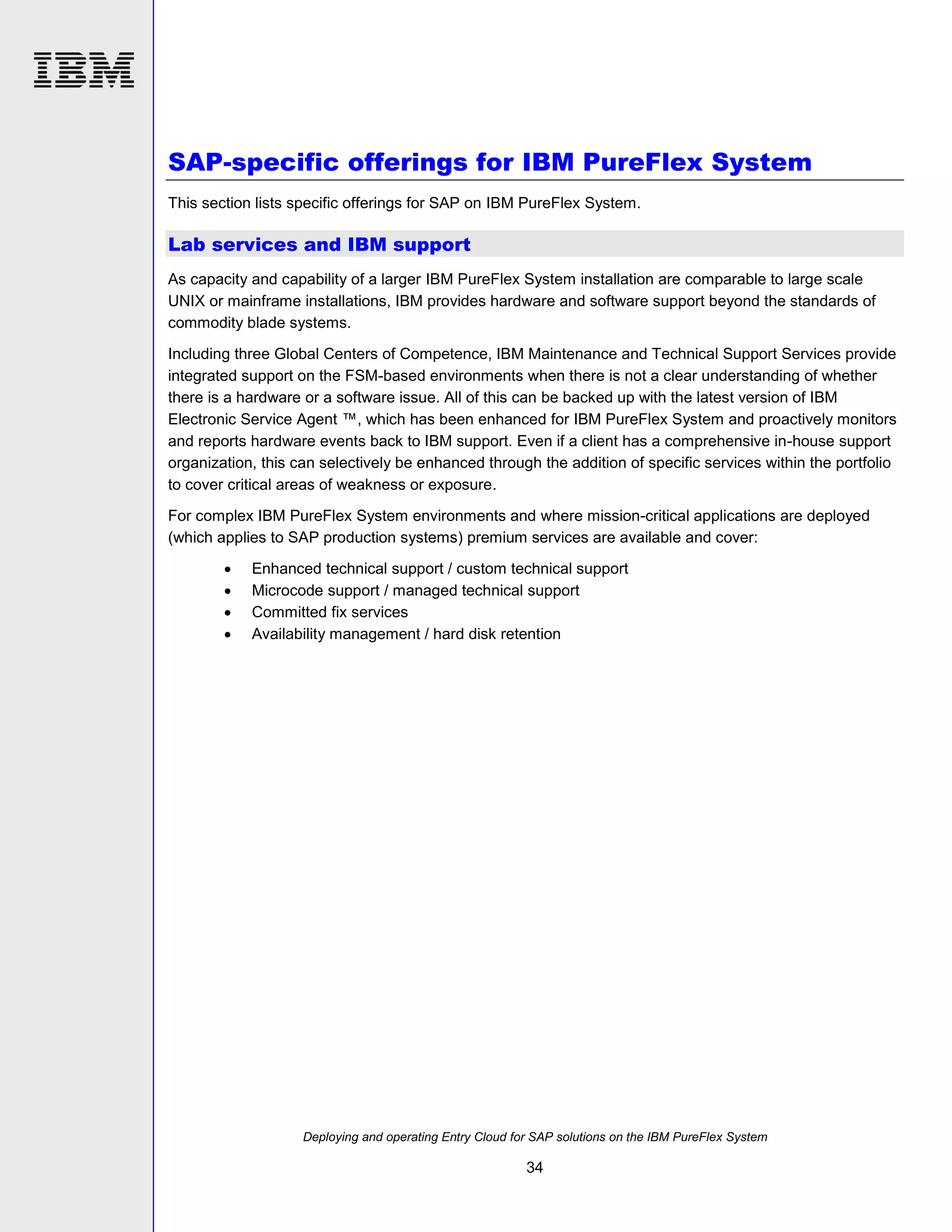

SAP-specific offerings for IBM PureFlex System
This section lists specific offerings for SAP on IBM PureFlex System.

Lab services and IBM support
As capacity and capability of a larger IBM PureFlex System installation are comparable to large scale
UNIX or mainframe installations, IBM provides hardware and software support beyond the standards of
commodity blade systems.
Including three Global Centers of Competence, IBM Maintenance and Technical Support Services provide
integrated support on the FSM-based environments when there is not a clear understanding of whether
there is a hardware or a software issue. All of this can be backed up with the latest version of IBM
Electronic Service Agent ™, which has been enhanced for IBM PureFlex System and proactively monitors
and reports hardware events back to IBM support. Even if a client has a comprehensive in-house support
organization, this can selectively be enhanced through the addition of specific services within the portfolio
to cover critical areas of weakness or exposure.
For complex IBM PureFlex System environments and where mission-critical applications are deployed
(which applies to SAP production systems) premium services are available and cover:





Enhanced technical support / custom technical support
Microcode support / managed technical support
Committed fix services
Availability management / hard disk retention


34

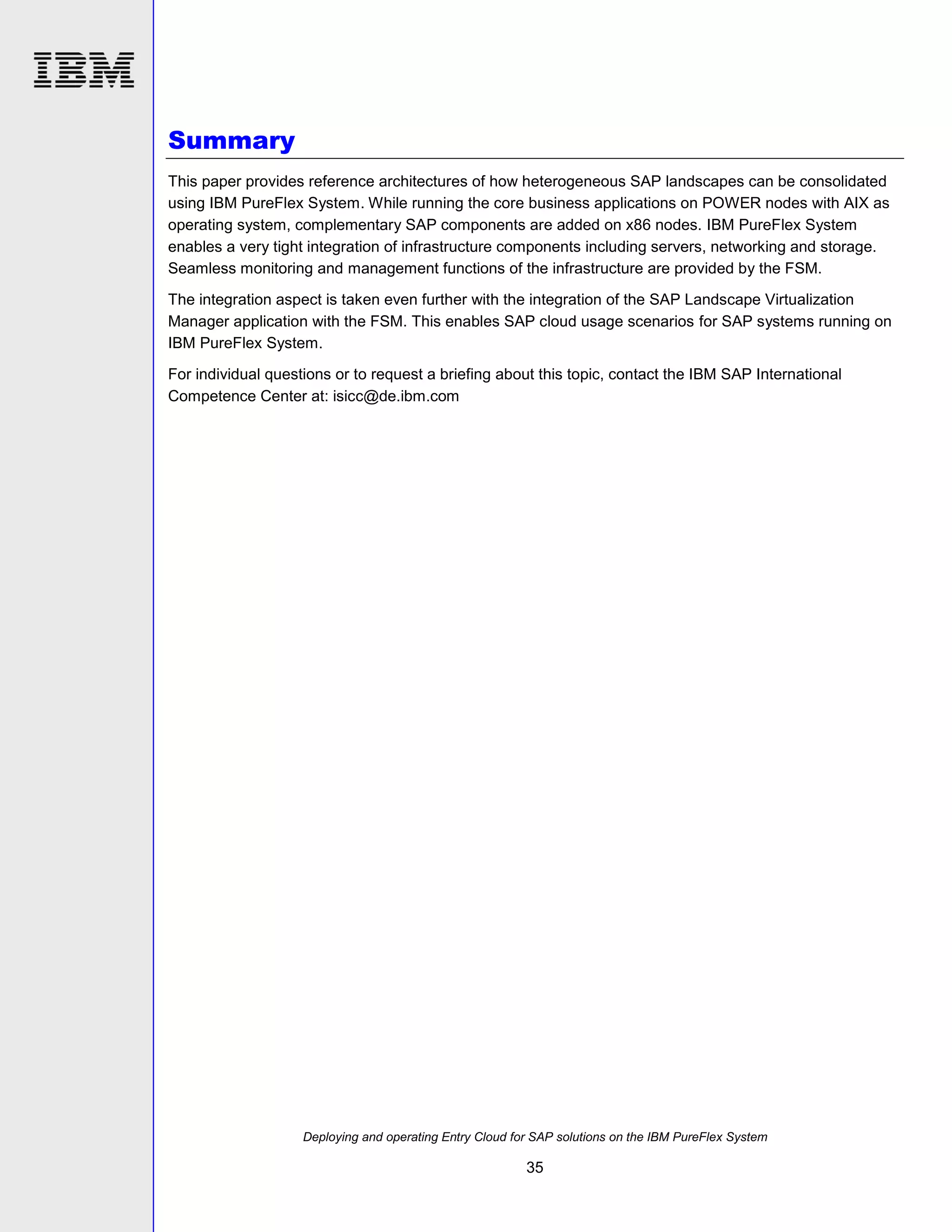

Summary
This paper provides reference architectures of how heterogeneous SAP landscapes can be consolidated
using IBM PureFlex System. While running the core business applications on POWER nodes with AIX as
operating system, complementary SAP components are added on x86 nodes. IBM PureFlex System
enables a very tight integration of infrastructure components including servers, networking and storage.
Seamless monitoring and management functions of the infrastructure are provided by the FSM.
The integration aspect is taken even further with the integration of the SAP Landscape Virtualization
Manager application with the FSM. This enables SAP cloud usage scenarios for SAP systems running on
IBM PureFlex System.
For individual questions or to request a briefing about this topic, contact the IBM SAP International
Competence Center at: isicc@de.ibm.com


35

Resources
These websites provide useful references to supplement the information contained in this paper:


IBM Systems on PartnerWorld
ibm.com/partnerworld/systems



IBM Redbooks
ibm.com/redbooks



IBM cloud computing
ibm.com/solutions/sap/us/en/landing/cloud_solutions.html



IBM Cloud Solutions for SAP clients
ibm.com/cloud-computing/us/en/



IBM SmartCloud Entry for AIX on PartnerWorld (requires PartnerWorld login)
ibm.com/partnerworld/page/stg_com_sys_smartcloud



SAP HANA on workload optimized IBM System x appliances
ibm.com/solutions/sap/hana



IBM internal SSI-URL with a collection of SAP related PureSystem materials
https://w303.sso.ibm.com/sales/support/ShowDoc.wss?docid=SGDN258263T70735C63&node=brands,B6000|brands,BI5
00|clientset,IA|alliances,T5000|alliances,T5150|channel,DR|channel,F2F|solution,Q00|solution,210&appname=C
C_SSIGD

select the “Collateral” Tab in “Main Content” section


Related SAP on PureFlex paper with System x focus: “Reference Architecture - SAP
Systems on IBM PureSystems based on x86 nodes”
http://w3.ibm.com/support/techdocs/atsmastr.nsf/WebIndex/WP102167
http://www.ibm.com/support/techdocs/atsmastr.nsf/WebIndex/WP102167
http://www-03.ibm.com/partnerworld/partnerinfo/src/atsmastr.nsf/WebIndex/WP102167



Related SAP on PureFlex paper with IBM i focus: “Efficiently deploying SAP landscapes
on the IBM PureFlex System”
http://w3.ibm.com/support/techdocs/atsmastr.nsf/WebIndex/WP102087
http://www-03.ibm.com/partnerworld/partnerinfo/src/atsmastr.nsf/WebIndex/WP102087



Virtualization for SAP on IBM PureSystems with Microsoft Hyper-V



IBM Workload Optimized Solution for SAP HANA – Quick Start Guide
provides technical overview, HW models, network requirements for IBM Systems Solution
for SAP HANA appliance
http://download.boulder.ibm.com/ibmdl/pub/systems/support/system_x_pdf/46w8274.pdf


36

IBM internal SAP HANA Wiki
https://w3-connections.ibm.com/wikis/home?lang=enus#!/wiki/Waef4c0eb0f35_427f_a25e_670e392682b1/page/SAP%20HANA



FlexSystem with SAP BWA Presentations (click to open link)


Seller



Customer



General IBM Sales Kit “SAP NetWeaver Business Warehouse Accelerator (BWA)”



Implementation Guide for BWA on IBM Flex System x240


37

Trademarks and special notices
© Copyright IBM Corporation 2013.
References in this document to IBM products or services do not imply that IBM intends to make them
available in every country.
IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business
Machines Corporation in the United States, other countries, or both. If these and other IBM trademarked
terms are marked on their first occurrence in this information with a trademark symbol (® or ™), these
symbols indicate U.S. registered or common law trademarks owned by IBM at the time this information
was published. Such trademarks may also be registered or common law trademarks in other countries. A
current list of IBM trademarks is available on the Web at "Copyright and trademark information" at
www.ibm.com/legal/copytrade.shtml.
Java and all Java-based trademarks and logos are trademarks or registered trademarks of Oracle and/or
its affiliates.
Microsoft, Windows, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the
United States, other countries, or both.
Intel, Intel Inside (logos), MMX, and Pentium are trademarks of Intel Corporation in the United States,
other countries, or both.
UNIX is a registered trademark of The Open Group in the United States and other countries.
Linux is a trademark of Linus Torvalds in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks of others.
Information is provided "AS IS" without warranty of any kind.
All customer examples described are presented as illustrations of how those customers have used IBM
products and the results they may have achieved. Actual environmental costs and performance
characteristics may vary by customer.
Information concerning non-IBM products was obtained from a supplier of these products, published
announcement material, or other publicly available sources and does not constitute an endorsement of
such products by IBM. Sources for non-IBM list prices and performance numbers are taken from publicly
available information, including vendor announcements and vendor worldwide homepages. IBM has not
tested these products and cannot confirm the accuracy of performance, capability, or any other claims
related to non-IBM products. Questions on the capability of non-IBM products should be addressed to the
supplier of those products.
All statements regarding IBM future direction and intent are subject to change or withdrawal without notice,
and represent goals and objectives only. Contact your local IBM office or IBM authorized reseller for the
full text of the specific Statement of Direction.
Some information addresses anticipated future capabilities. Such information is not intended as a definitive
statement of a commitment to specific levels of performance, function or delivery schedules with respect to
any future products. Such commitments are only made in IBM product announcements. The information is


38

presented here to communicate IBM's current investment and development activities as a good faith effort
to help with our customers' future planning.
Performance is based on measurements and projections using standard IBM benchmarks in a controlled
environment. The actual throughput or performance that any user will experience will vary depending upon
considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the
storage configuration, and the workload processed. Therefore, no assurance can be given that an
individual user will achieve throughput or performance improvements equivalent to the ratios stated here.
Photographs shown are of engineering prototypes. Changes may be incorporated in production models.
Any references in this information to non-IBM websites are provided for convenience only and do not in
any manner serve as an endorsement of those websites. The materials at those websites are not part of
the materials for this IBM product and use of those websites is at your own risk.


39

IBM PureFlex Solution for SAP Business Suite (POWER / AIX)

More Related Content

What's hot

Similar to IBM PureFlex Solution for SAP Business Suite (POWER / AIX)

More from IBM India Smarter Computing

Recently uploaded

IBM PureFlex Solution for SAP Business Suite (POWER / AIX)
