1. © 2013 IBM Corporation
IBM Power Systems™
Why IBM i and PureFlex?
IBM i
Designed for Business
Erik Rex
IBM i Cert. Consultant Specialist
Power IBM i Systems

2. © 2013 IBM Corporation2
IBM Power Systems

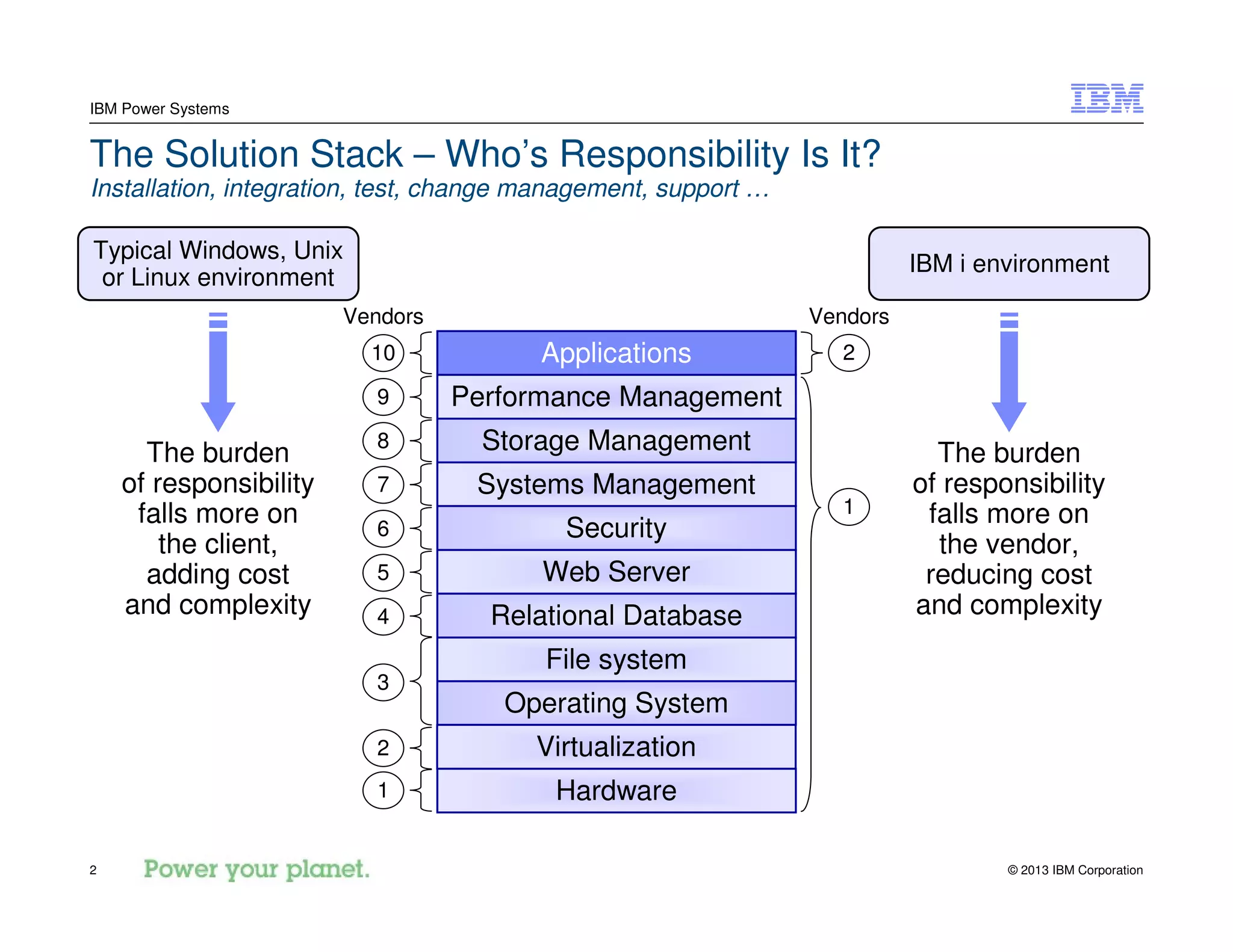

The Solution Stack – Who’s Responsibility Is It?
Installation, integration, test, change management, support …
Vendors Vendors
2
3
4
5
6
7
8
9
10
1
2
Typical Windows, Unix
or Linux environment
IBM i environment
The burden
of responsibility
falls more on
the client,
adding cost
and complexity
The burden
of responsibility
falls more on
the vendor,
reducing cost
and complexity
Operating System
File system
Relational Database
Systems Management
Performance Management
Storage Management
Web Server
Security
Applications
Virtualization
Hardware1

3. © 2013 IBM Corporation3
IBM Power Systems
Integration = Faster Time to Value
IntegrationPiece parts
Why should you expect any less from your IT
than you do from your car dealer?
When it’s time for a new car, what do you look for?

4. © 2013 IBM Corporation4
IBM Power Systems

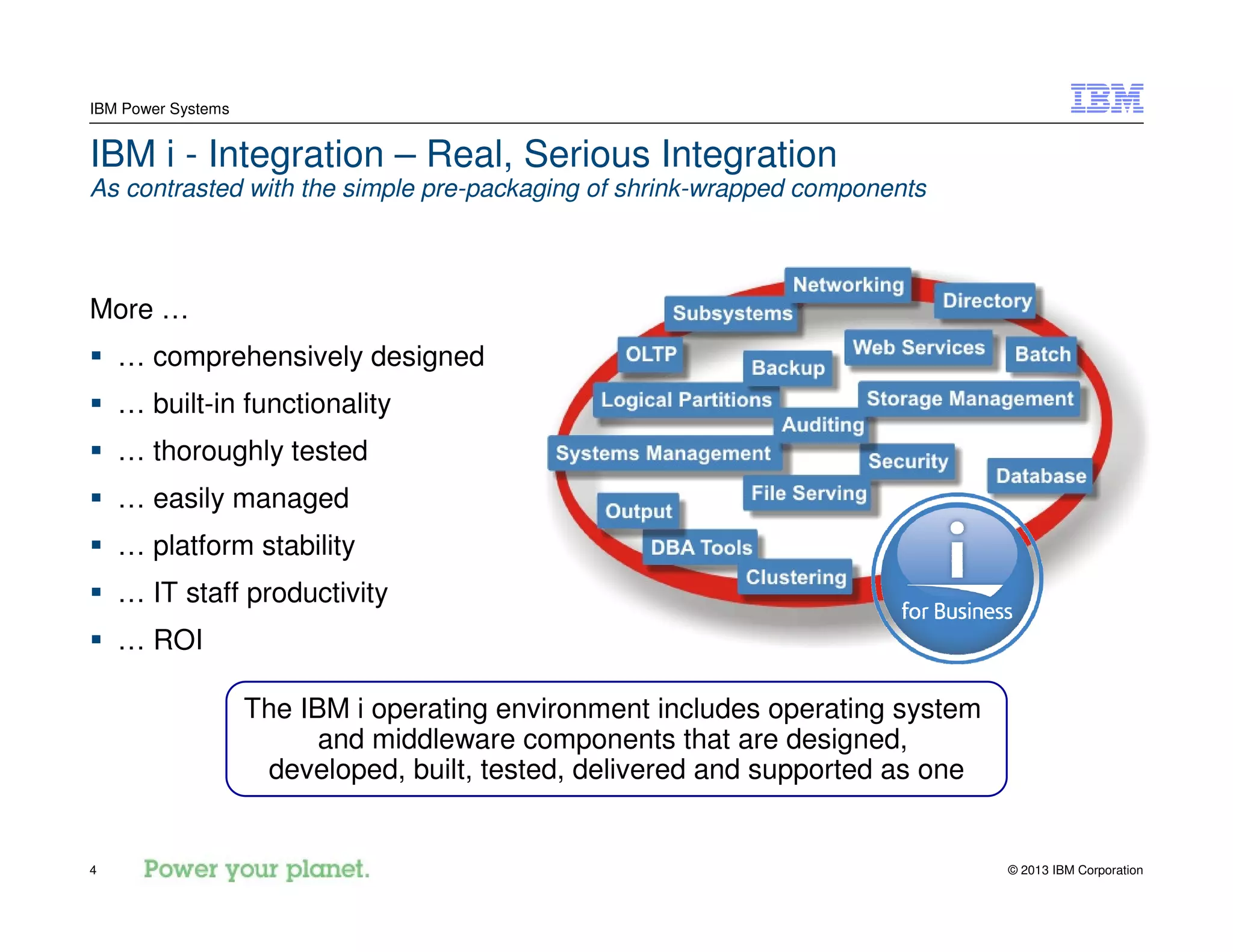

IBM i - Integration – Real, Serious Integration
As contrasted with the simple pre-packaging of shrink-wrapped components
More …
… comprehensively designed
… built-in functionality
… thoroughly tested
… easily managed
… platform stability
… IT staff productivity
… ROI
The IBM i operating environment includes operating system
and middleware components that are designed,
developed, built, tested, delivered and supported as one

5. © 2013 IBM Corporation5
IBM Power Systems

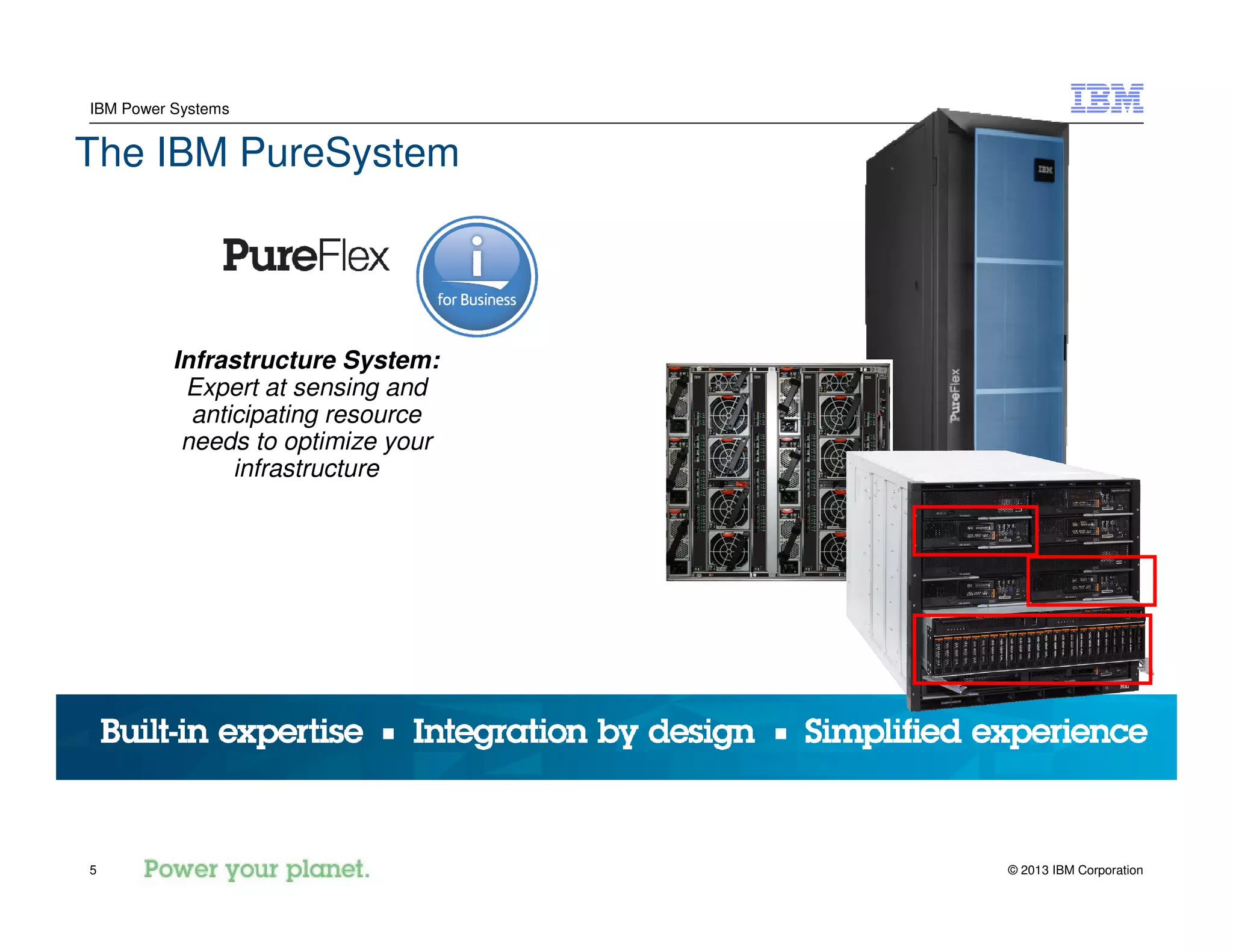

The IBM PureSystem
Infrastructure System:
Expert at sensing and
anticipating resource
needs to optimize your
infrastructure

6. © 2013 IBM Corporation6
IBM Power Systems

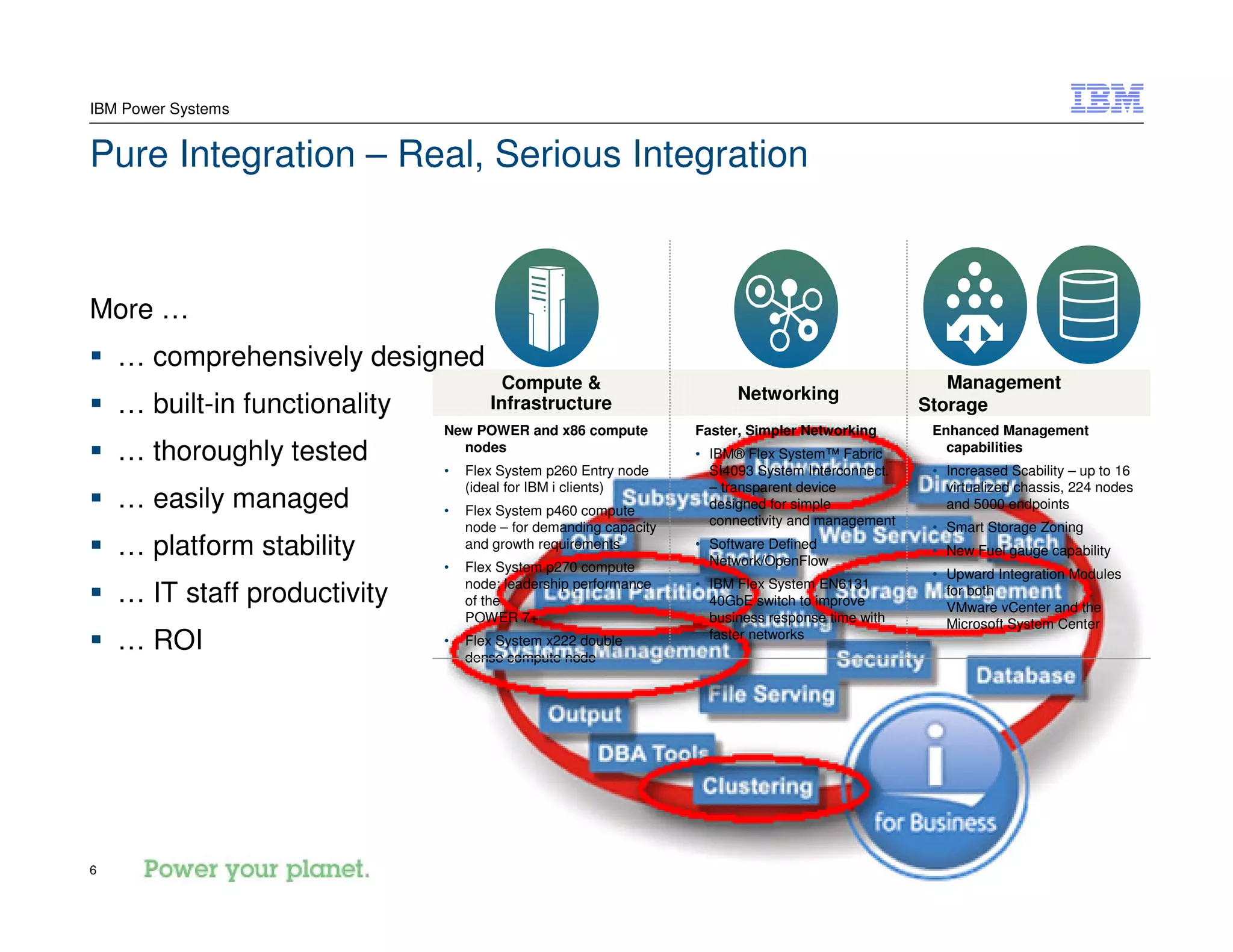

Pure Integration – Real, Serious Integration
More …
… comprehensively designed
… built-in functionality
… thoroughly tested
… easily managed
… platform stability
… IT staff productivity
… ROI
Compute &
Infrastructure
Networking
Management
Storage
New POWER and x86 compute
nodes
• Flex System p260 Entry node
(ideal for IBM i clients)
• Flex System p460 compute
node – for demanding capacity
and growth requirements
• Flex System p270 compute
node; leadership performance
of the
POWER 7+
• Flex System x222 double
dense compute node
Faster, Simpler Networking
• IBM® Flex System™ Fabric
SI4093 System Interconnect.
– transparent device
designed for simple
connectivity and management
• Software Defined
Network/OpenFlow
• IBM Flex System EN6131
40GbE switch to improve
business response time with
faster networks
Enhanced Management
capabilities
• Increased Scability – up to 16
virtualized chassis, 224 nodes
and 5000 endpoints
• Smart Storage Zoning
• New Fuel gauge capability
• Upward Integration Modules
for both
VMware vCenter and the
Microsoft System Center

7. © 2013 IBM Corporation7
IBM Power Systems
7
SSD
HDD

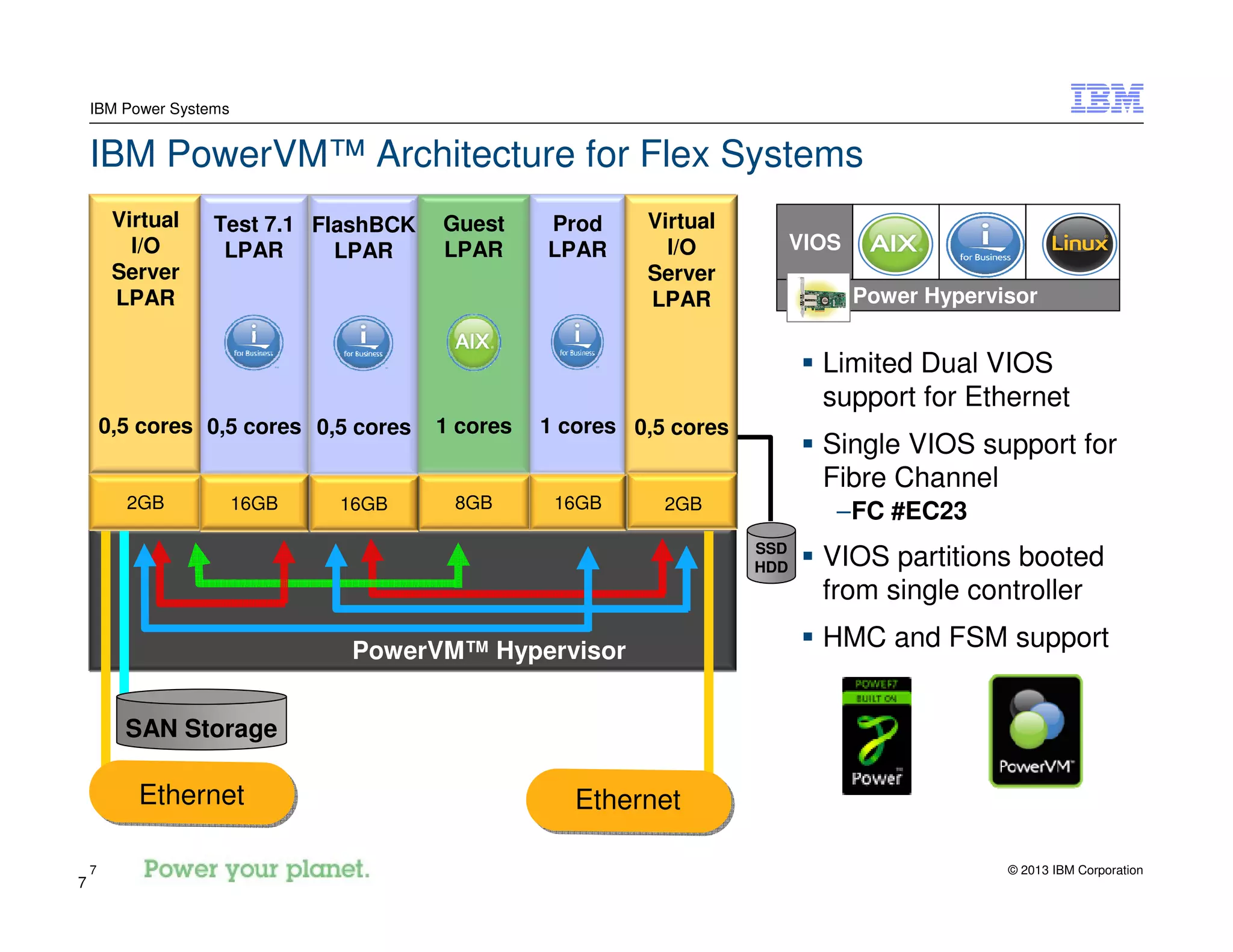

IBM PowerVM™ Architecture for Flex Systems
Limited Dual VIOS
support for Ethernet
Single VIOS support for
Fibre Channel
–FC #EC23
VIOS partitions booted
from single controller
HMC and FSM support
0,5 cores
2GB
Virtual
I/O
Server
LPAR
Guest
LPAR
1 cores
8GB
Prod
LPAR
1 cores
16GB
PowerVM™ Hypervisor
0,5 cores
Virtual
I/O
Server
LPAR
2GB
Ethernet Ethernet
SAN Storage
Power Hypervisor
VIOS
FlashBCK
LPAR
0,5 cores
16GB
Test 7.1
LPAR
0,5 cores
16GB

8. © 2013 IBM Corporation8
IBM Power Systems
8

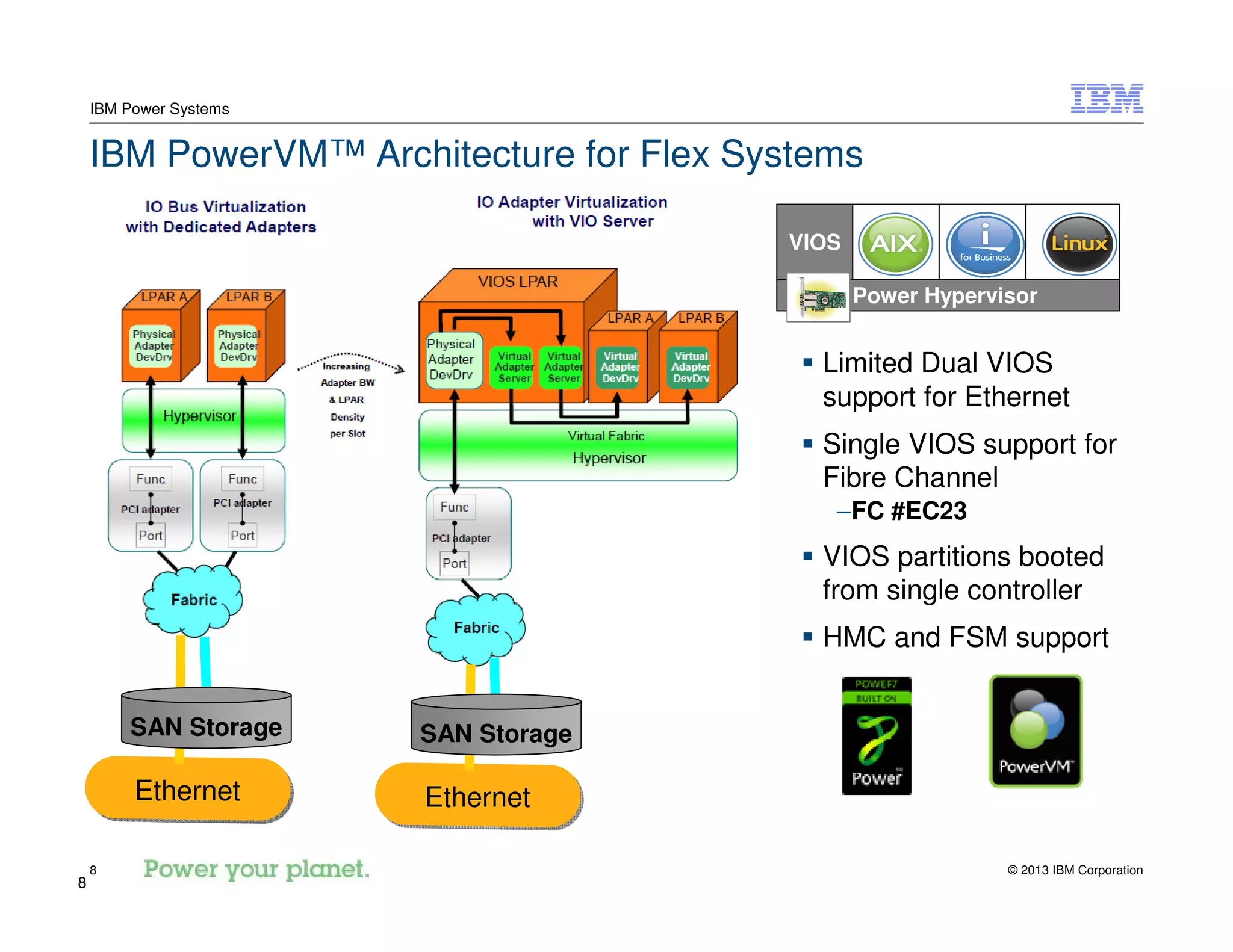

IBM PowerVM™ Architecture for Flex Systems
Limited Dual VIOS
support for Ethernet
Single VIOS support for
Fibre Channel
–FC #EC23
VIOS partitions booted
from single controller
HMC and FSM support
Ethernet
Power Hypervisor
VIOS
SAN Storage
Ethernet
SAN Storage

9. © 2013 IBM Corporation9
IBM Power Systems

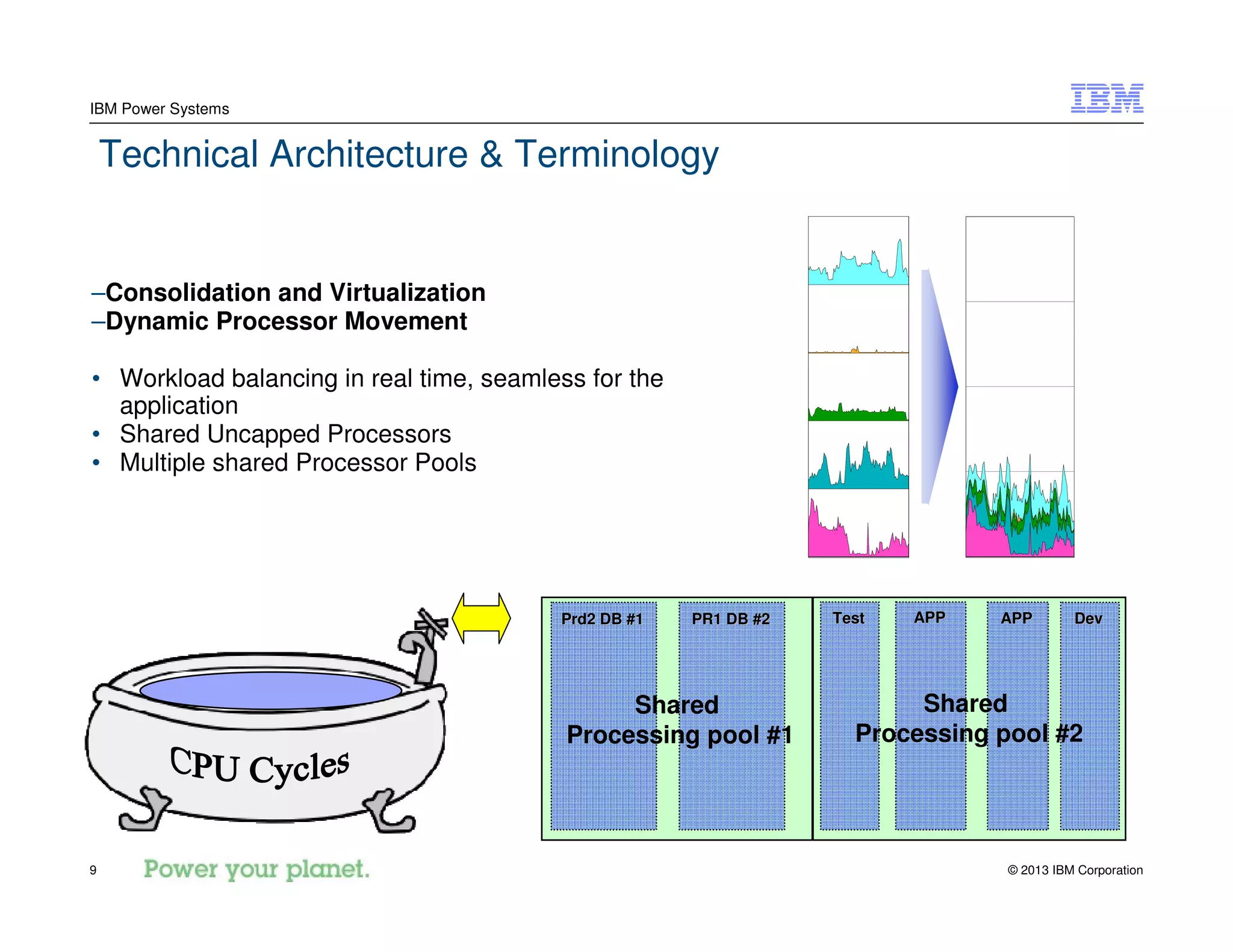

Technical Architecture & Terminology
–Consolidation and Virtualization
–Dynamic Processor Movement
• Workload balancing in real time, seamless for the
application
• Shared Uncapped Processors
• Multiple shared Processor Pools
APPAPP APPAPPPR1 DB #2PR1 DB #2 TestTestPrd2 DB #1Prd2 DB #1 DevDev
Shared
Processing pool #1
Shared
Processing pool #2

10. © 2013 IBM Corporation10
IBM Power Systems

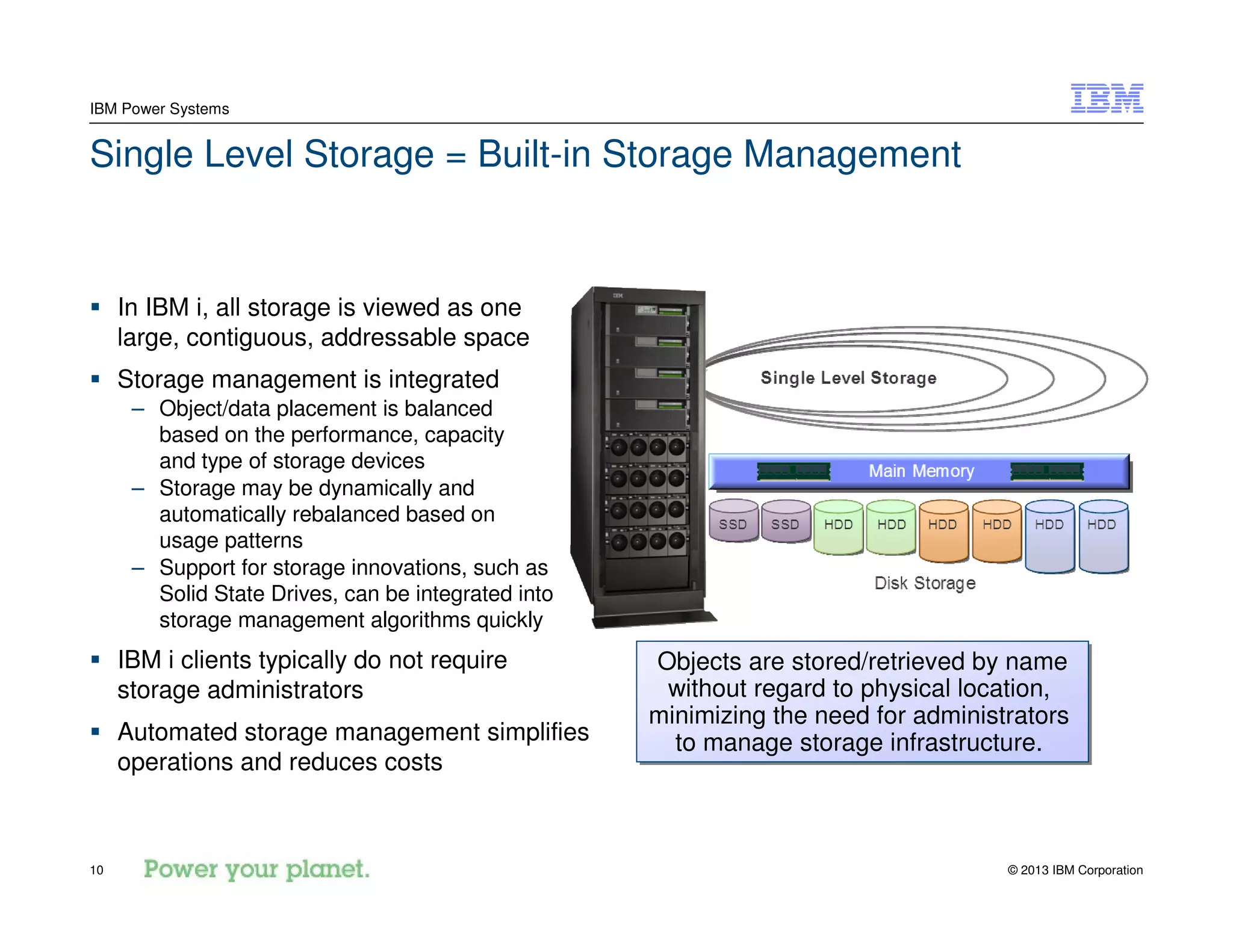

Single Level Storage = Built-in Storage Management
In IBM i, all storage is viewed as one
large, contiguous, addressable space
Storage management is integrated
– Object/data placement is balanced
based on the performance, capacity
and type of storage devices
– Storage may be dynamically and
automatically rebalanced based on
usage patterns
– Support for storage innovations, such as
Solid State Drives, can be integrated into
storage management algorithms quickly
IBM i clients typically do not require
storage administrators
Automated storage management simplifies
operations and reduces costs
Objects are stored/retrieved by name
without regard to physical location,
minimizing the need for administrators
to manage storage infrastructure.
Objects are stored/retrieved by name
without regard to physical location,
minimizing the need for administrators
to manage storage infrastructure.

11. © 2013 IBM Corporation11
IBM Power Systems

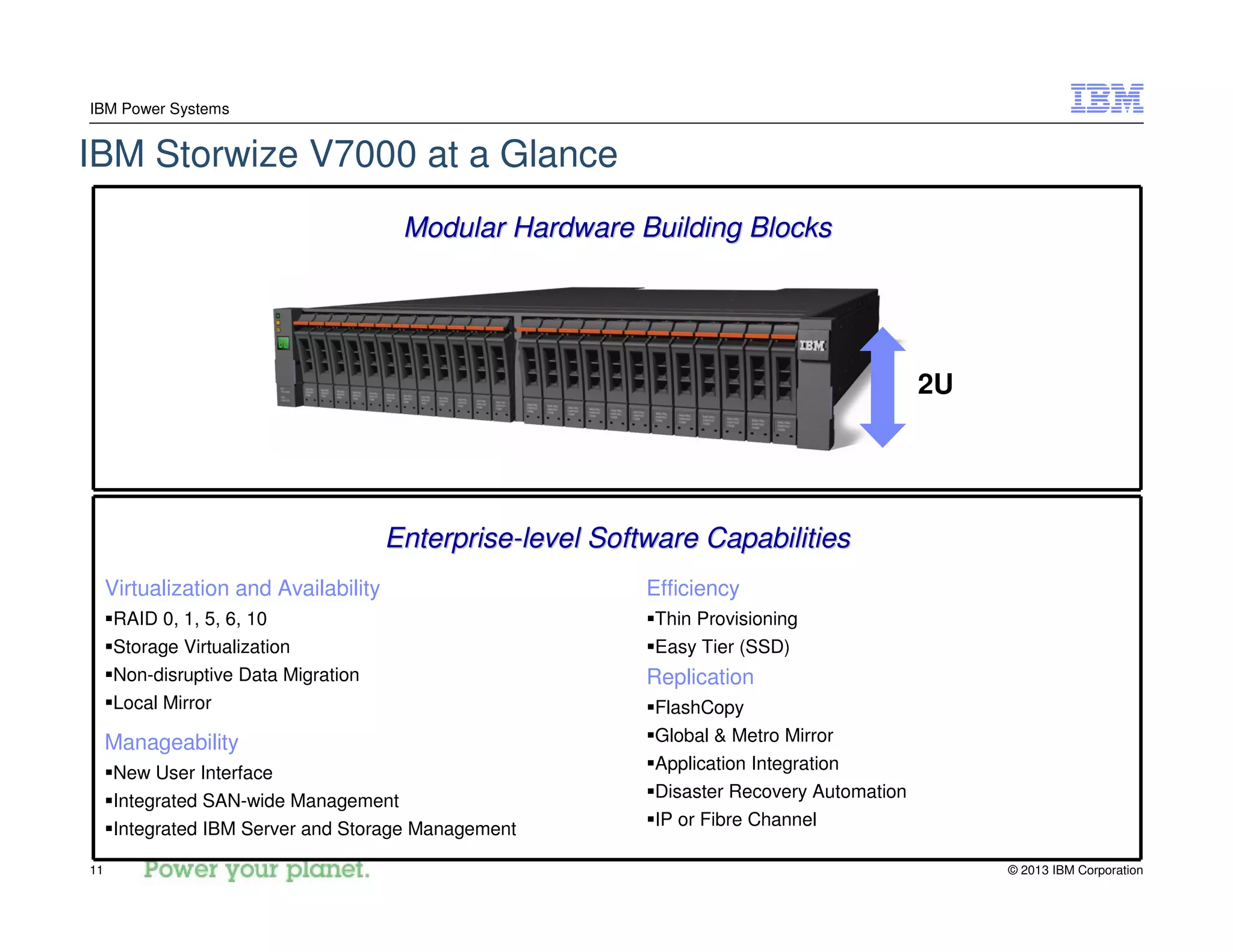

IBM Storwize V7000 at a Glance
Modular Hardware Building BlocksModular Hardware Building Blocks
EnterpriseEnterprise--level Software Capabilitieslevel Software Capabilities
Virtualization and Availability
RAID 0, 1, 5, 6, 10
Storage Virtualization
Non-disruptive Data Migration
Local Mirror
Manageability
New User Interface
Integrated SAN-wide Management
Integrated IBM Server and Storage Management
Efficiency
Thin Provisioning
Easy Tier (SSD)
Replication
FlashCopy
Global & Metro Mirror
Application Integration
Disaster Recovery Automation
IP or Fibre Channel
2U

12. © 2013 IBM Corporation12

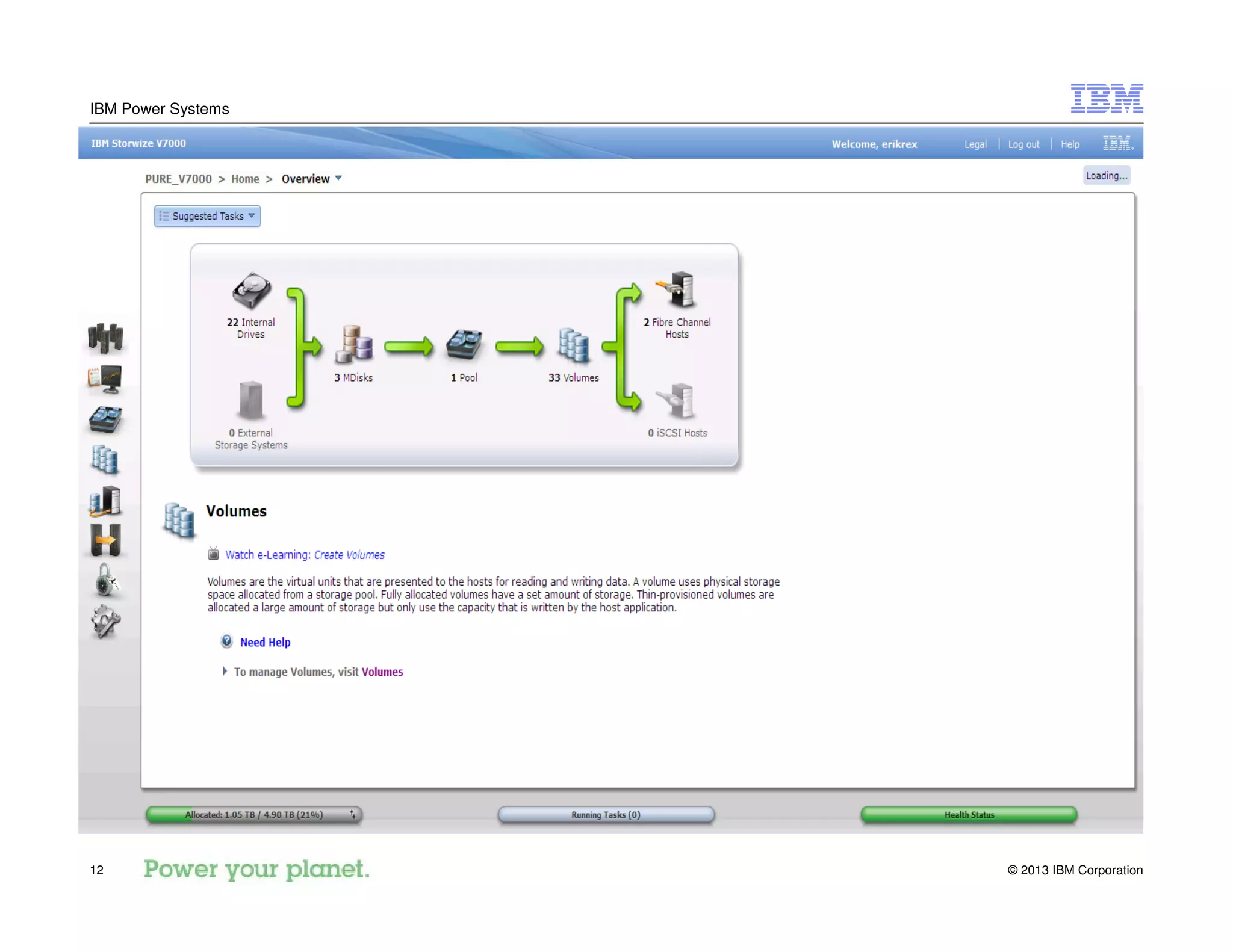

IBM Power Systems

13. © 2013 IBM Corporation13
IBM Power Systems

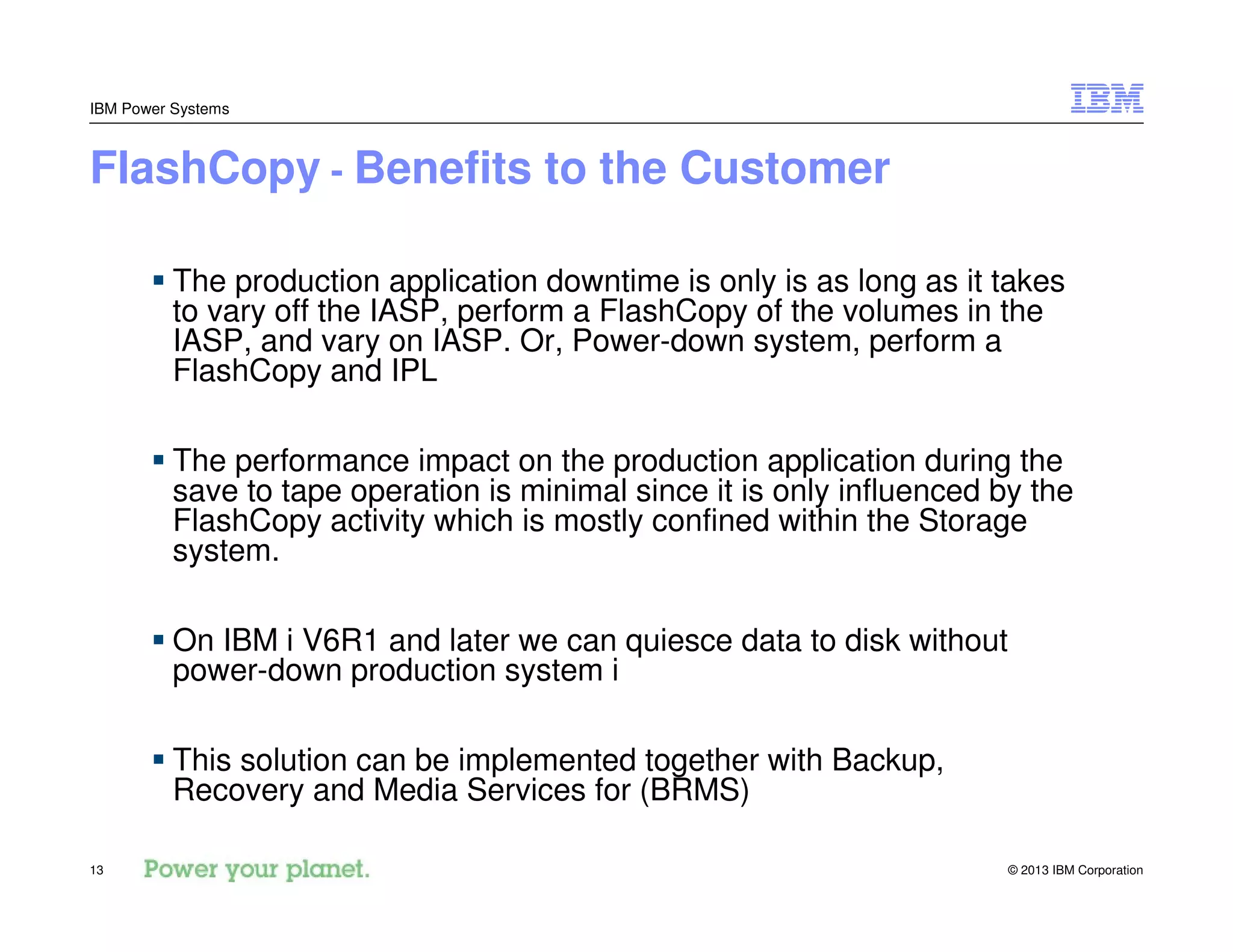

FlashCopy - Benefits to the Customer
The production application downtime is only is as long as it takes
to vary off the IASP, perform a FlashCopy of the volumes in the
IASP, and vary on IASP. Or, Power-down system, perform a
FlashCopy and IPL
The performance impact on the production application during the
save to tape operation is minimal since it is only influenced by the
FlashCopy activity which is mostly confined within the Storage
system.
On IBM i V6R1 and later we can quiesce data to disk without
power-down production system i
This solution can be implemented together with Backup,
Recovery and Media Services for (BRMS)

14. © 2013 IBM Corporation14
IBM Power Systems

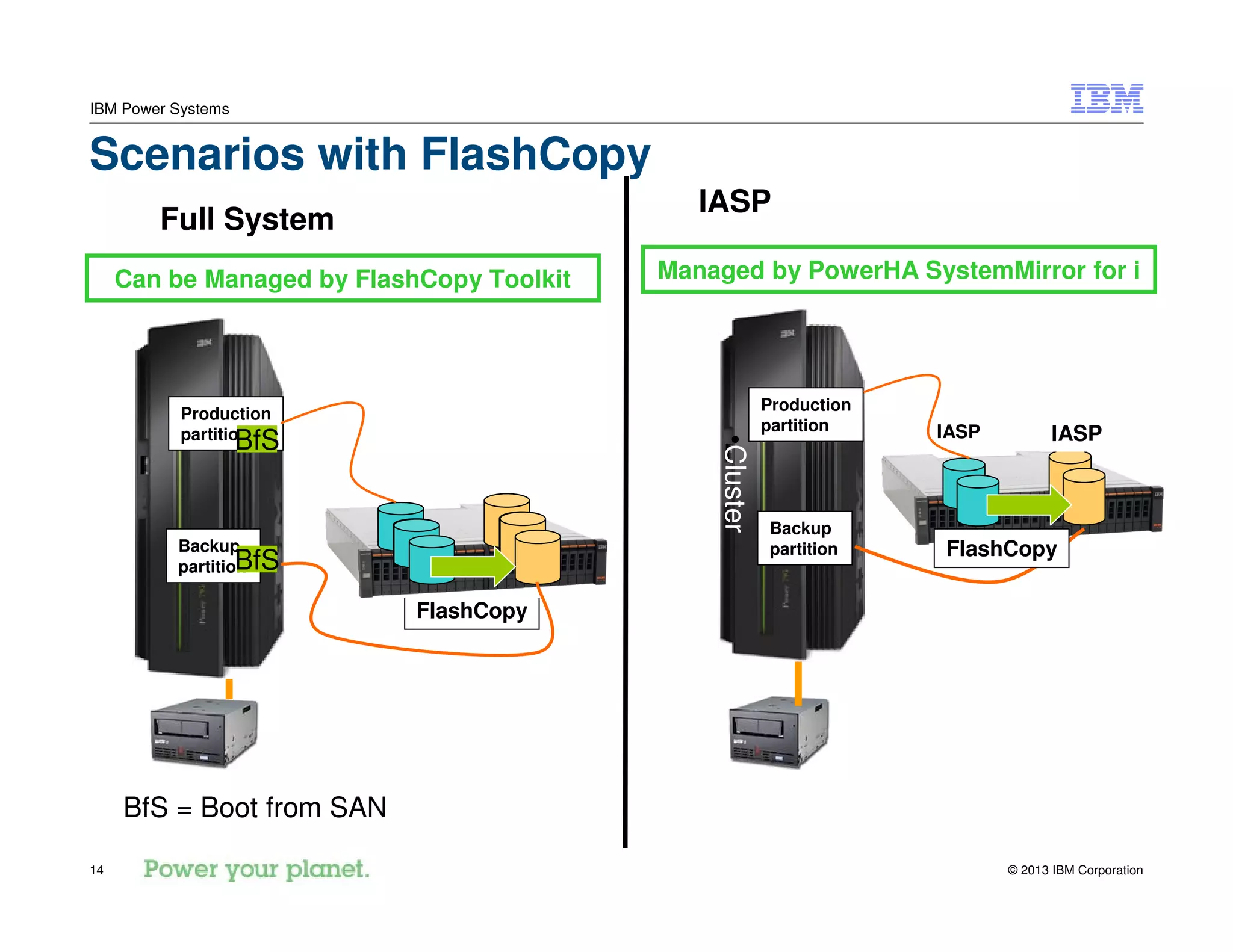

FlashCopy
Scenarios with FlashCopy
BfS = Boot from SAN
Full System
IASP
Backup
partition
Production
partition
BfS
BfS
Production
partition
Backup
partition
•Cluster
IASP IASP
FlashCopy
Managed by PowerHA SystemMirror for iCan be Managed by FlashCopy Toolkit

15. © 2013 IBM Corporation15
IBM Power Systems
Cluster
IASP IASP
Local site
Remote site

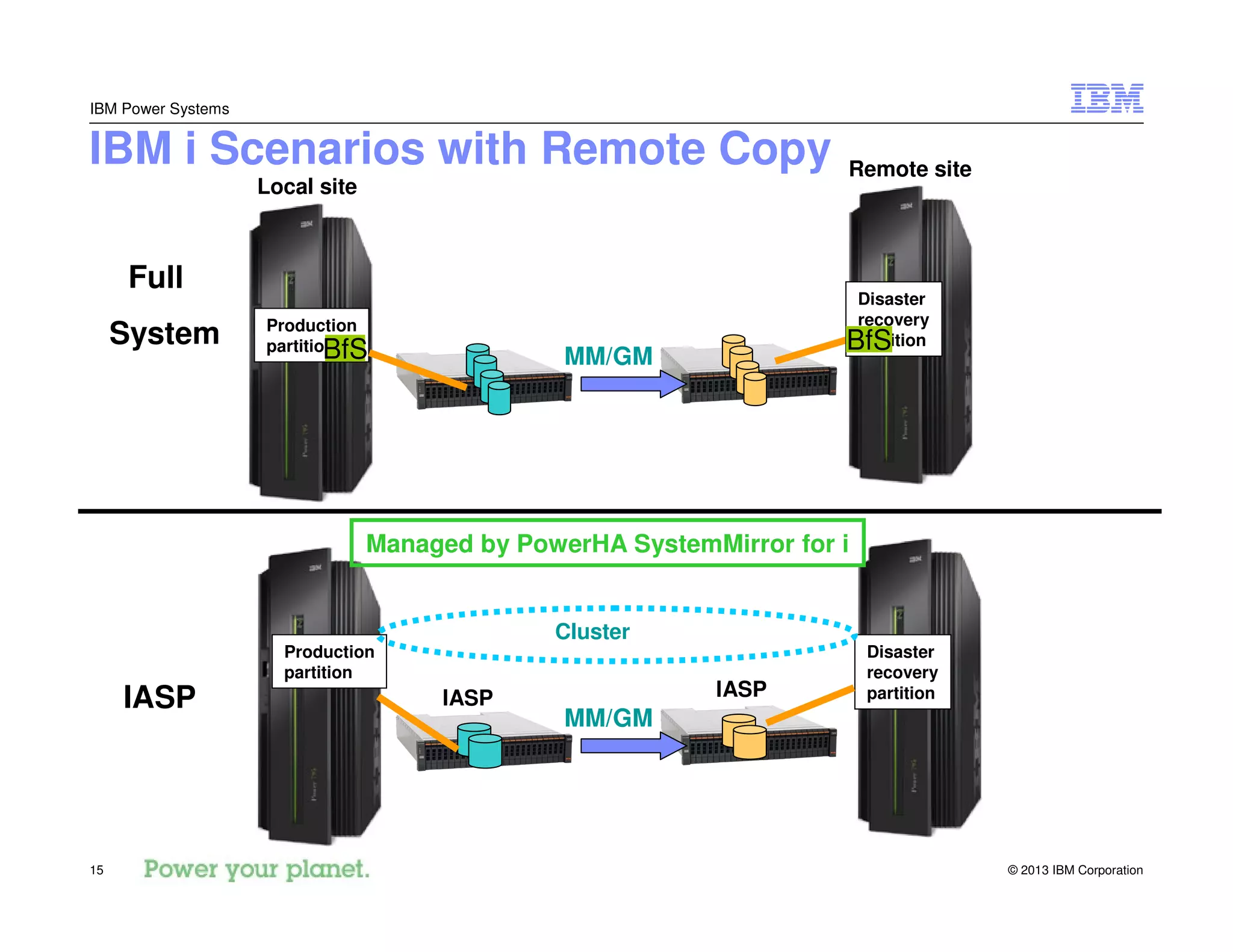

IBM i Scenarios with Remote Copy
Full
System
IASP
Production
partitionBfS MM/GM
Disaster
recovery
partitionBfS
Production
partition
Disaster
recovery
partition
MM/GM
Managed by PowerHA SystemMirror for i

16. © 2013 IBM Corporation16
IBM Power Systems
16

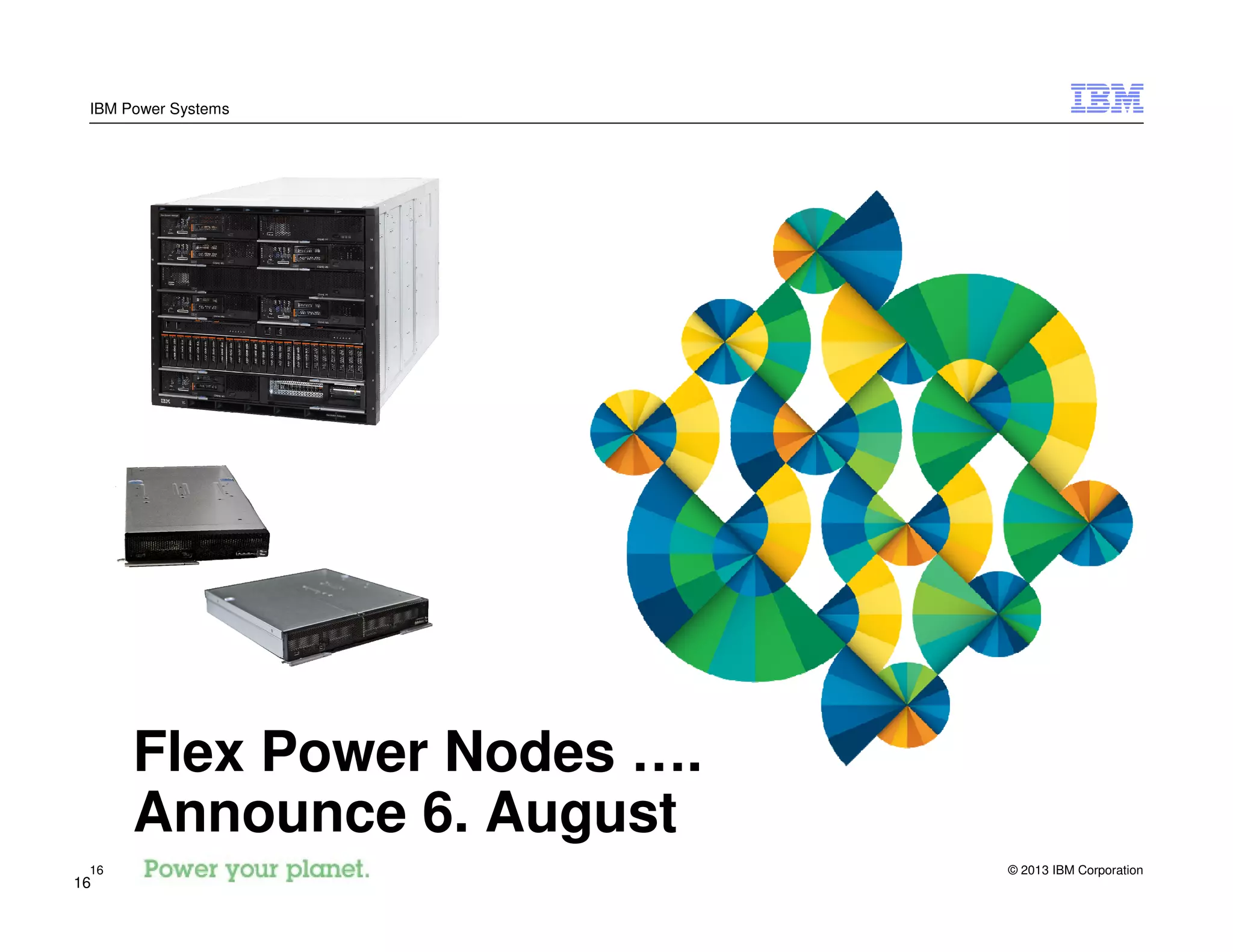

Flex Power Nodes ….
Announce 6. August

17. © 2013 IBM Corporation17
IBM Power Systems
17

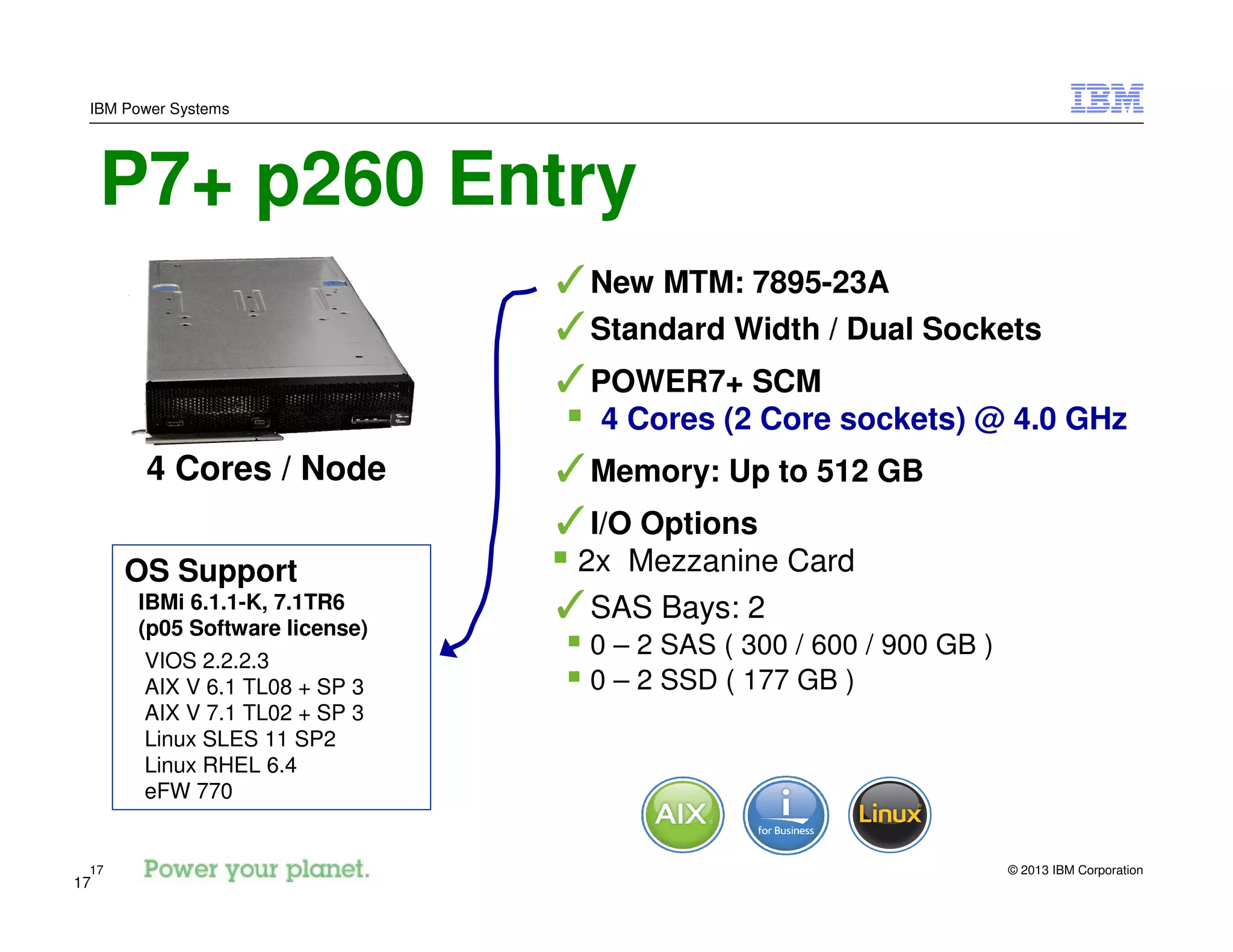

P7+ p260 Entry
✓New MTM: 7895-23A
✓Standard Width / Dual Sockets
✓POWER7+ SCM
4 Cores (2 Core sockets) @ 4.0 GHz
✓Memory: Up to 512 GB
✓I/O Options
2x Mezzanine Card
✓SAS Bays: 2
0 – 2 SAS ( 300 / 600 / 900 GB )
0 – 2 SSD ( 177 GB )
4 Cores / Node
OS Support
IBMi 6.1.1-K, 7.1TR6
(p05 Software license)
VIOS 2.2.2.3
AIX V 6.1 TL08 + SP 3
AIX V 7.1 TL02 + SP 3
Linux SLES 11 SP2
Linux RHEL 6.4
eFW 770

18. © 2013 IBM Corporation18
IBM Power Systems
18

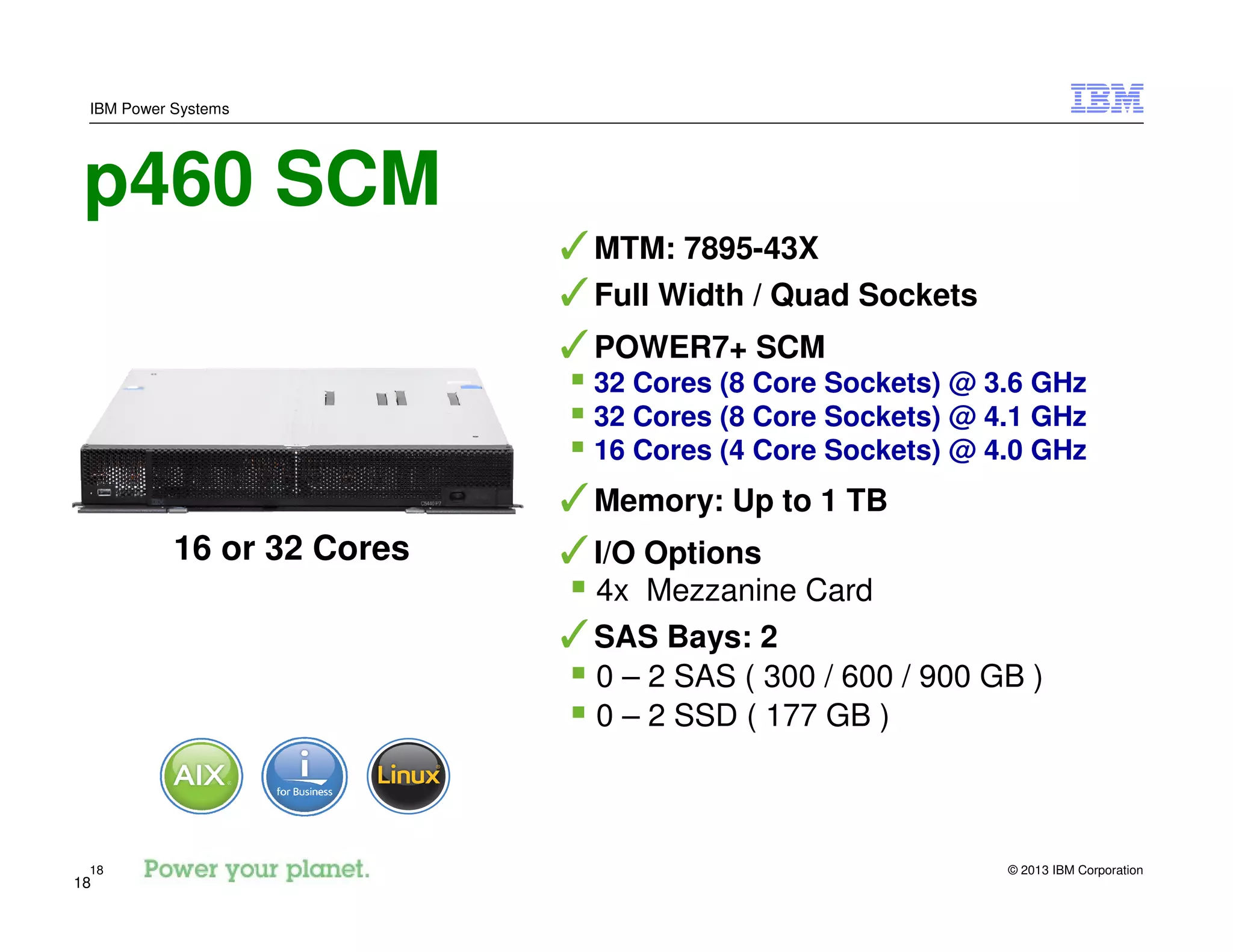

p460 SCM
✓MTM: 7895-43X
✓Full Width / Quad Sockets
✓POWER7+ SCM
32 Cores (8 Core Sockets) @ 3.6 GHz
32 Cores (8 Core Sockets) @ 4.1 GHz
16 Cores (4 Core Sockets) @ 4.0 GHz
✓Memory: Up to 1 TB
✓I/O Options
4x Mezzanine Card
✓SAS Bays: 2
0 – 2 SAS ( 300 / 600 / 900 GB )
0 – 2 SSD ( 177 GB )
16 or 32 Cores

19. © 2013 IBM Corporation19
IBM Power Systems
19
IO
Hub
TPMD
USB
FSP
VPD
DIMM
DIMM
DIMM
Buffer
Buffer
DIMM
DIMM
DIMM
DIMM
Buffer
Buffer
DIMM
DIMM
DIMM
DIMM
Buffer
Buffer
DIMM
DIMM
DIMM
DIMM
Buffer
Buffer
DIMM
Mezzanine
Conn
IO
Hub
Mezzanine
Conn
SW1
SW2
SW3
SW4
IO
Hub
DIMM
DIMM
DIMM
Buffer
Buffer
DIMM
DIMM
DIMM
DIMM
Buffer
Buffer
DIMM
DIMM
DIMM
DIMM
Buffer
Buffer
DIMM
DIMM
DIMM
DIMM
Buffer
Buffer
DIMM
Mezzanine
Conn
IO
Hub
Mezzanine
Conn
SW1
SW2
SW3
SW4
DASD Con
SAS
P7+
P7+
P7+
P7+
p460 SCM Power Flex System Node Layout

20. © 2013 IBM Corporation20
IBM Power Systems
20

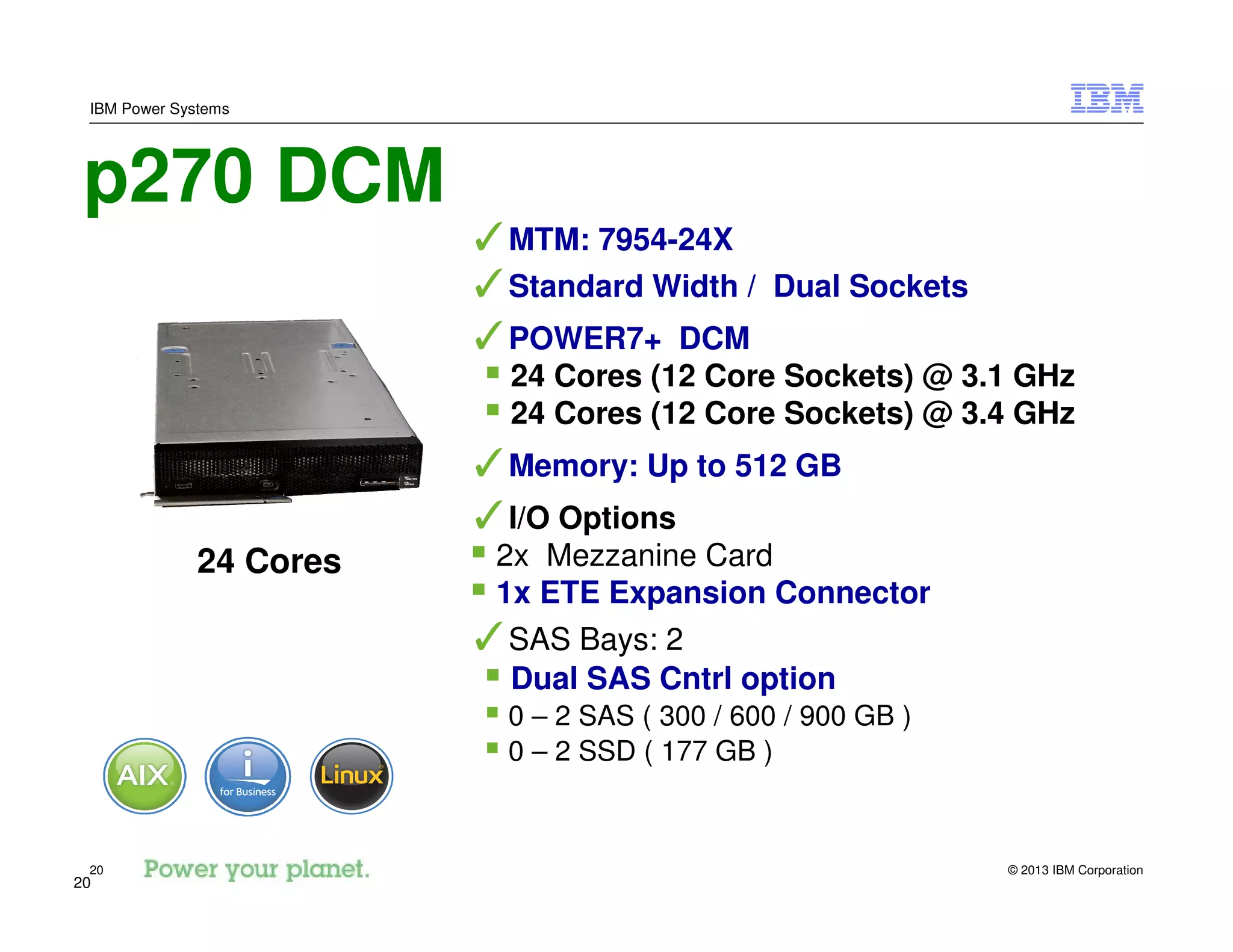

p270 DCM
✓MTM: 7954-24X
✓Standard Width / Dual Sockets
✓POWER7+ DCM
24 Cores (12 Core Sockets) @ 3.1 GHz
24 Cores (12 Core Sockets) @ 3.4 GHz
✓Memory: Up to 512 GB
✓I/O Options
2x Mezzanine Card
1x ETE Expansion Connector
✓SAS Bays: 2
Dual SAS Cntrl option
0 – 2 SAS ( 300 / 600 / 900 GB )
0 – 2 SSD ( 177 GB )
24 Cores

21. © 2013 IBM Corporation21
IBM Power Systems
21
FSM
Flex System Manager

22. © 2013 IBM Corporation22
IBM Power Systems
22

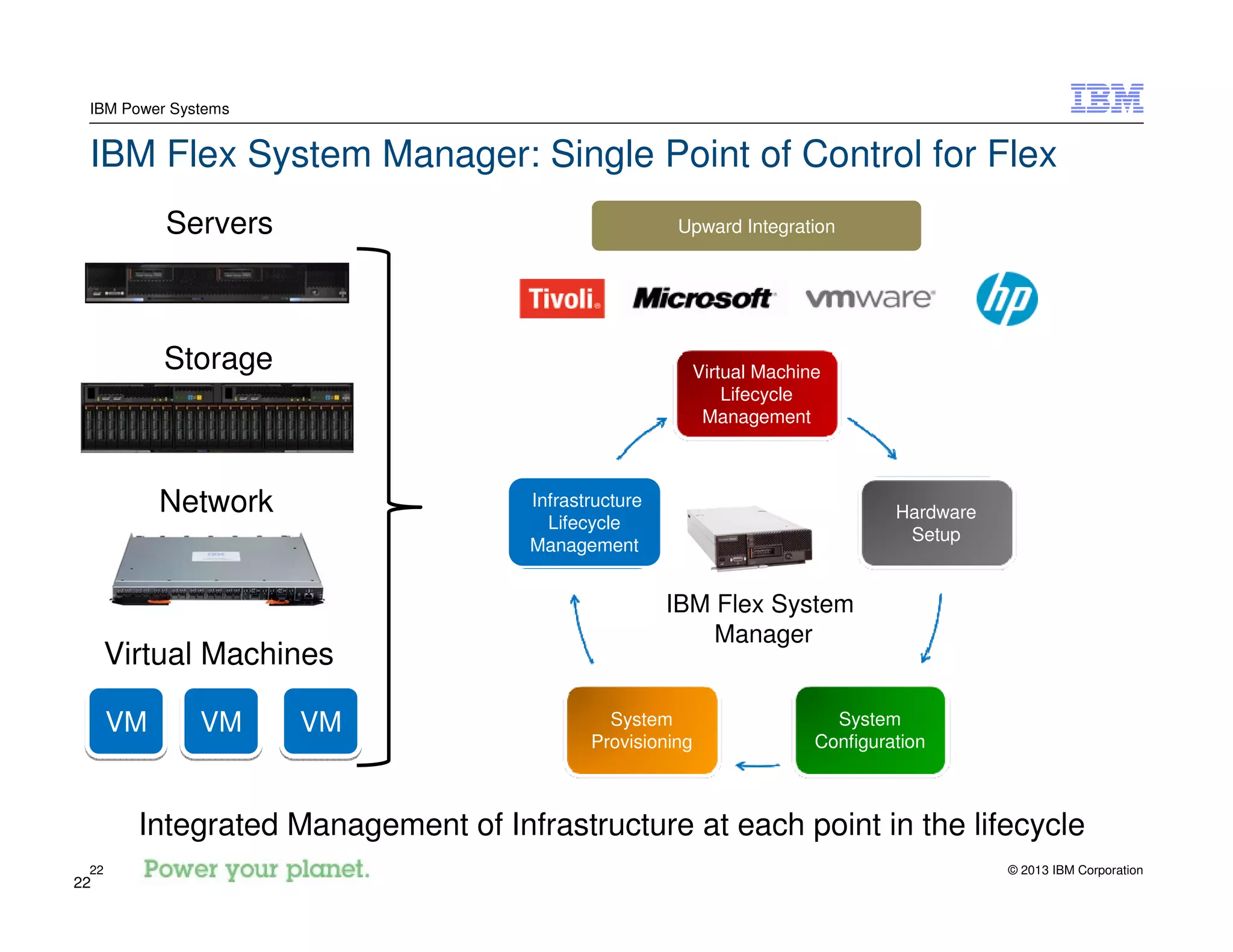

IBM Flex System Manager: Single Point of Control for Flex
Servers
Storage
Network
Virtual Machines
VMVM VMVM VMVM
Integrated Management of Infrastructure at each point in the lifecycle
IBM Flex System
Manager
Hardware
Setup
System
Configuration
System
Provisioning
Virtual Machine
Lifecycle
Management
Infrastructure
Lifecycle
Management
Upward Integration

23. © 2013 IBM Corporation23
IBM Power Systems
23
HMC Power Flex Node Management
Chassis: Controls only Power Nodes
– Intel & Storage nodes can be installed
– No FSM presence
Nodes appear as stand alone servers
Virtualization / Configuration Management
Energy Management
7.7.0 Firmware is required
IVM / HMC Power Flex Node support…..

24. © 2013 IBM Corporation24
IBM Power Systems
Why I and PureFlex?
Setting a higher standard for business computing
Business computing is the purpose
It is the paragon for integration
It is trusted
It is price and cost competitive for
the purpose it serves
It is well equipped to handle the fast pace
of change in business and technology

25. © 2013 IBM Corporation25
IBM Power Systems
Thank You!

26. © 2013 IBM Corporation26
IBM Power Systems

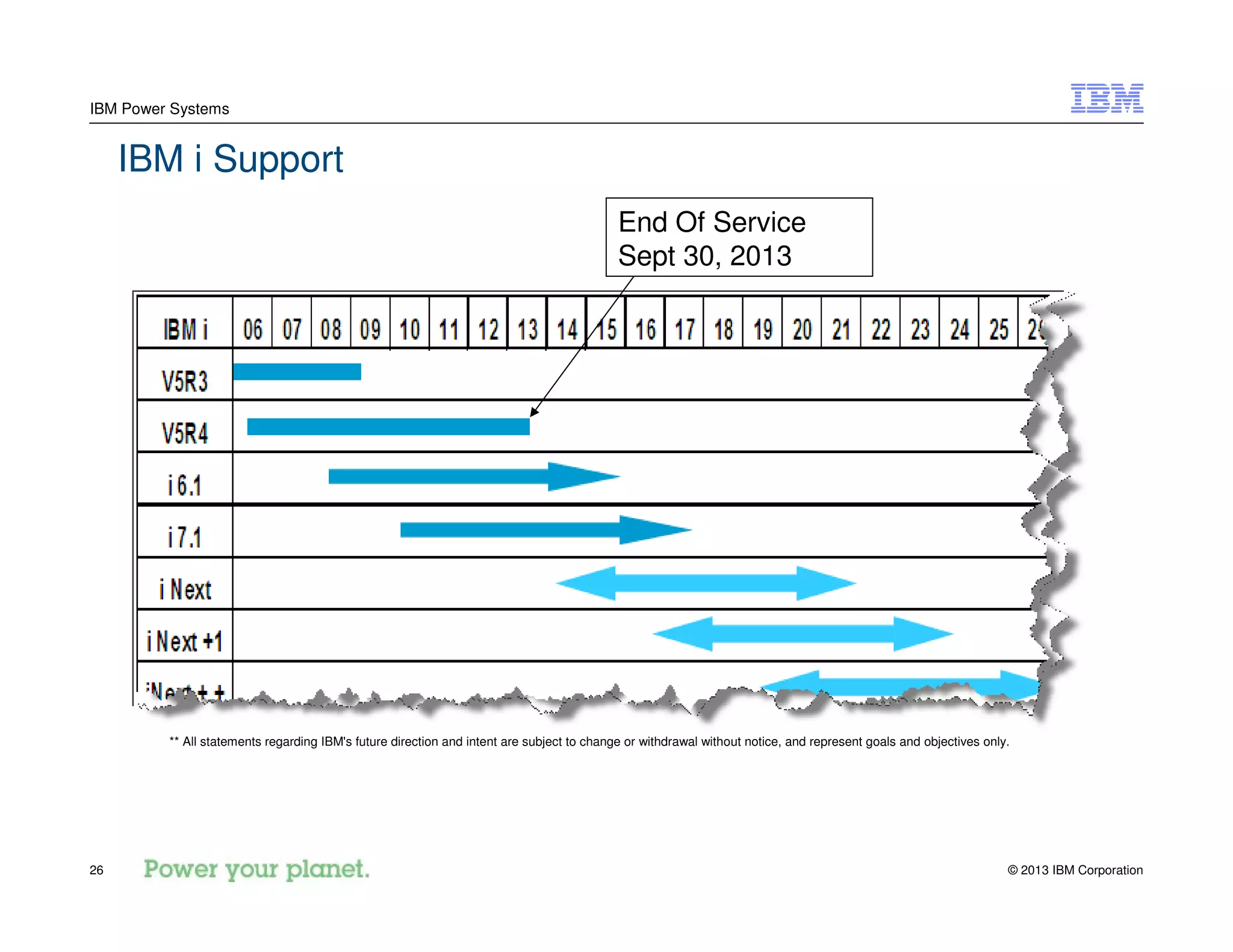

IBM i Support
** All statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.

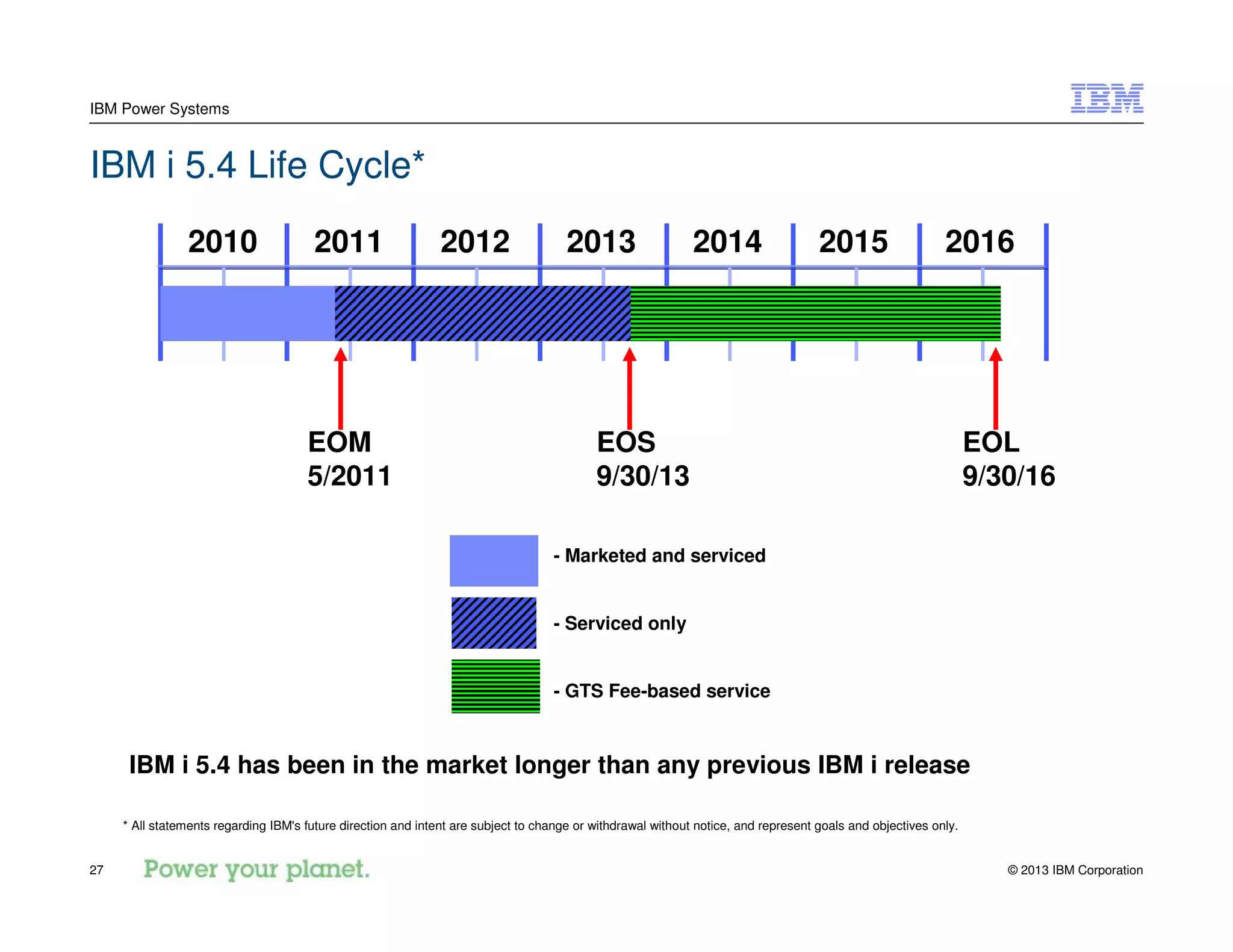

End Of Service
Sept 30, 2013

27. © 2013 IBM Corporation27
IBM Power Systems
IBM i 5.4 Life Cycle*
- Marketed and serviced
- GTS Fee-based service
- Serviced only
2011 2012 2013 2014 2015 20162010
EOL
9/30/16
EOM
5/2011
EOS
9/30/13
IBM i 5.4 has been in the market longer than any previous IBM i release
* All statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.

28. © 2013 IBM Corporation28
IBM Power Systems
IBM i 5.4 Service Extension
Q: When will the IBM i 5.4 Service Extension be announced?
A: IBM intends to announce the IBM i 5.4 Service Extension within the next year.
Q: What will be the price of the the IBM i 5.4 Service Extension?
A: For planning purposes, customer should expect to pay 75% more than they currently pay for SWMA.
Q: Will SWMA be a prerequisite to the IBM i 5.4 Service Extension?
A: Yes, customers will need to maintain SWMA for entire service extension coverage period.
Q: Will the IBM i 5.4 Service Extension be available worldwide?
A: IBM intends to make the IBM i 5.4 Service Extension offering available worldwide.
Q: How long will the IBM i 5.4 Service Extension provide support?
A: The IBM i V5R4 Service Extension offering will be available for 3 years from program services end date of
9/30/2013. All support services for IBM i 5.4 will end on 9/30/2016
Q: Will there be new cumulative PTF packages for IBM i 5.4 created?
A: IBM does not intend to provide additional IBM i 5.4 cumulative PTF packages after 9/30/2013. When deemed
necessary, individual, corrective PTFs will be created for any code defects reported by IBM i Service
Extension customers
Q: Will new function/new hardware support PTFs be created for IBM i 5.4?
A: IBM does not intend to provide any further enhancements to IBM i 5.4. This includes support for any new software
products, hardware products or hardware features .

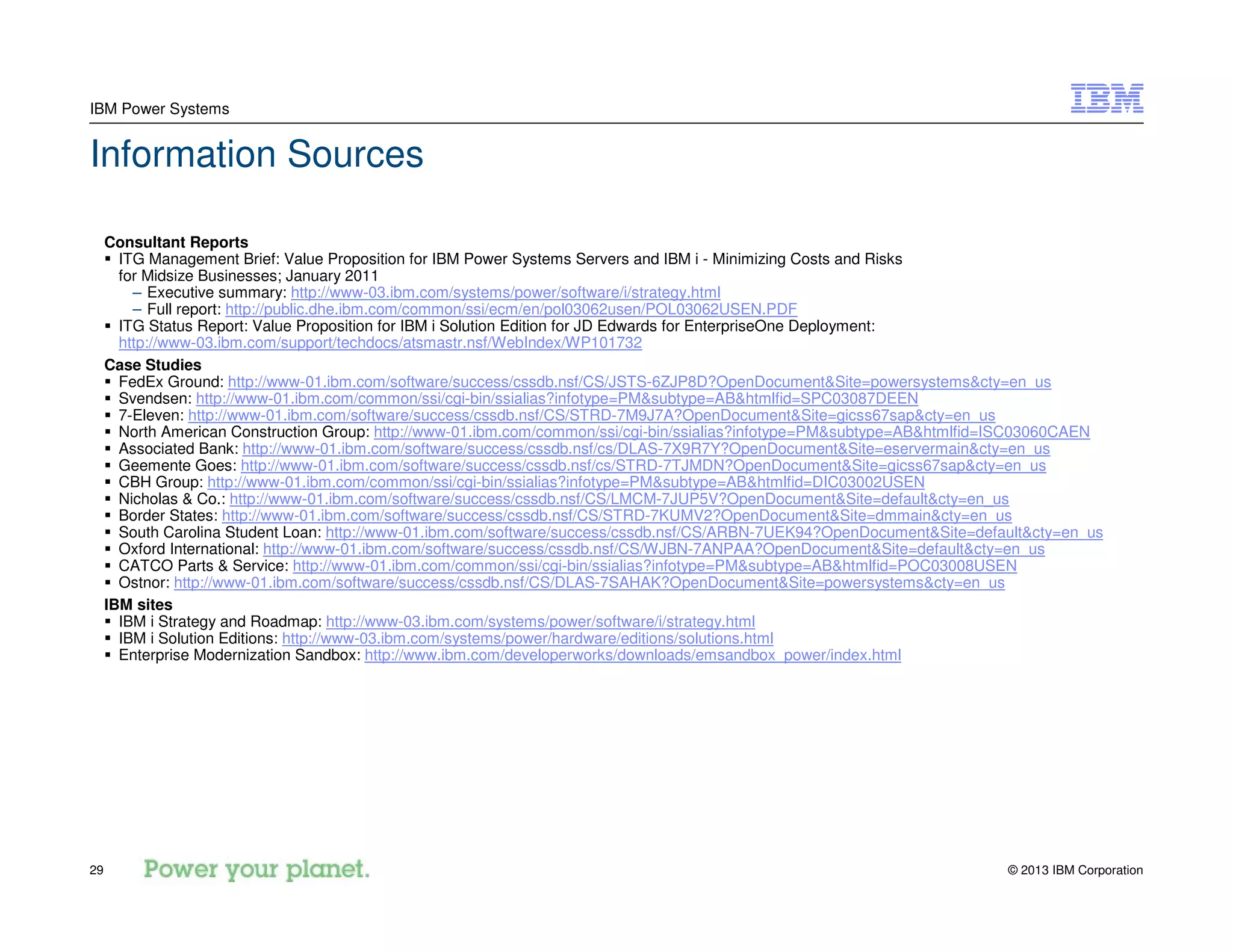

29. © 2013 IBM Corporation29
IBM Power Systems
Information Sources
Consultant Reports
ITG Management Brief: Value Proposition for IBM Power Systems Servers and IBM i - Minimizing Costs and Risks
for Midsize Businesses; January 2011
– Executive summary: http://www-03.ibm.com/systems/power/software/i/strategy.html
– Full report: http://public.dhe.ibm.com/common/ssi/ecm/en/pol03062usen/POL03062USEN.PDF
ITG Status Report: Value Proposition for IBM i Solution Edition for JD Edwards for EnterpriseOne Deployment:
http://www-03.ibm.com/support/techdocs/atsmastr.nsf/WebIndex/WP101732
Case Studies
FedEx Ground: http://www-01.ibm.com/software/success/cssdb.nsf/CS/JSTS-6ZJP8D?OpenDocument&Site=powersystems&cty=en_us
Svendsen: http://www-01.ibm.com/common/ssi/cgi-bin/ssialias?infotype=PM&subtype=AB&htmlfid=SPC03087DEEN
7-Eleven: http://www-01.ibm.com/software/success/cssdb.nsf/CS/STRD-7M9J7A?OpenDocument&Site=gicss67sap&cty=en_us
North American Construction Group: http://www-01.ibm.com/common/ssi/cgi-bin/ssialias?infotype=PM&subtype=AB&htmlfid=ISC03060CAEN
Associated Bank: http://www-01.ibm.com/software/success/cssdb.nsf/cs/DLAS-7X9R7Y?OpenDocument&Site=eservermain&cty=en_us
Geemente Goes: http://www-01.ibm.com/software/success/cssdb.nsf/cs/STRD-7TJMDN?OpenDocument&Site=gicss67sap&cty=en_us
CBH Group: http://www-01.ibm.com/common/ssi/cgi-bin/ssialias?infotype=PM&subtype=AB&htmlfid=DIC03002USEN
Nicholas & Co.: http://www-01.ibm.com/software/success/cssdb.nsf/CS/LMCM-7JUP5V?OpenDocument&Site=default&cty=en_us
Border States: http://www-01.ibm.com/software/success/cssdb.nsf/CS/STRD-7KUMV2?OpenDocument&Site=dmmain&cty=en_us
South Carolina Student Loan: http://www-01.ibm.com/software/success/cssdb.nsf/CS/ARBN-7UEK94?OpenDocument&Site=default&cty=en_us
Oxford International: http://www-01.ibm.com/software/success/cssdb.nsf/CS/WJBN-7ANPAA?OpenDocument&Site=default&cty=en_us
CATCO Parts & Service: http://www-01.ibm.com/common/ssi/cgi-bin/ssialias?infotype=PM&subtype=AB&htmlfid=POC03008USEN
Ostnor: http://www-01.ibm.com/software/success/cssdb.nsf/CS/DLAS-7SAHAK?OpenDocument&Site=powersystems&cty=en_us
IBM sites
IBM i Strategy and Roadmap: http://www-03.ibm.com/systems/power/software/i/strategy.html
IBM i Solution Editions: http://www-03.ibm.com/systems/power/hardware/editions/solutions.html
Enterprise Modernization Sandbox: http://www.ibm.com/developerworks/downloads/emsandbox_power/index.html

30. © 2013 IBM Corporation30
IBM Power Systems
Trademarks and Disclaimers
IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business Machines Corporation in
the United States, other countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in
this information with a trademark symbol (® or ™), these symbols indicate U.S. registered or common law trademarks owned
by IBM at the time this information was published. Such trademarks may also be registered or common law trademarks in
other countries. A current list of IBM trademarks is available on the Web:
"Copyright and trademark information" at www.ibm.com/legal/copytrade.shtml
Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both.
UNIX is a registered trademark of The Open Group in the United States and other countries.
Java is a trademark of Sun Microsystems, Inc. in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks of others.
