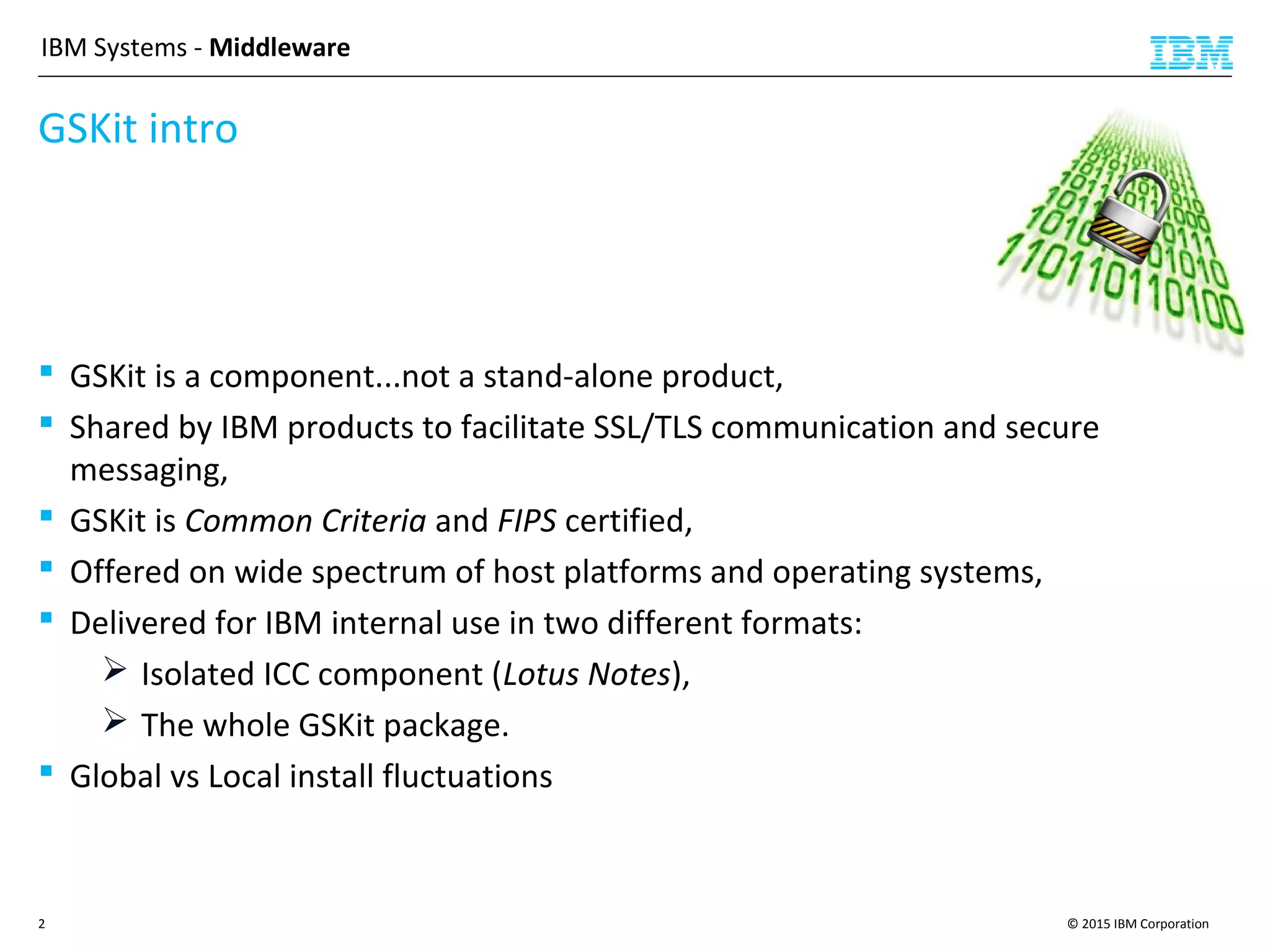

GSKit intro
 GSKit is a component...not a stand-alone product,
 Shared by IBM products to facilitate SSL/TLS communication and secure
messaging,
 GSKit is Common Criteria and FIPS certified,
 Offered on wide spectrum of host platforms and operating systems,
 Delivered for IBM internal use in two different formats:
 Isolated ICC component (Lotus Notes),
 The whole GSKit package.
 Global vs Local install fluctuations
© 2015 IBM Corporation3
IBM Systems - Middleware
Applications
 NETCOOL/OMNIBUS,
 Informix,
 WAS/IHS,
 Tivoli security family: TAMeB/TAMBI/TIM, ...
 <SecureWay / Tivoli / Security> Directory Server,
 TLM,
 TSM,
 ITCAM,
 WebSphere MQ,
 Lotus Notes/Domino,
 CMOD
 DB2
© 2015 IBM Corporation4
IBM Systems - Middleware

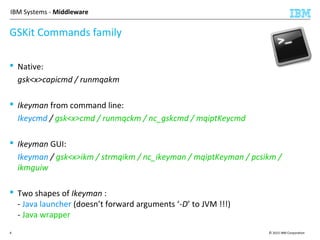

 Native:
gsk<x>capicmd / runmqakm
 Ikeyman from command line:
Ikeycmd / gsk<x>cmd / runmqckm / nc_gskcmd / mqiptKeycmd
 Ikeyman GUI:
Ikeyman / gsk<x>ikm / strmqikm / nc_ikeyman / mqiptKeyman / pcsikm /
ikmguiw
 Two shapes of Ikeyman :
- Java launcher (doesn’t forward arguments ‘-D’ to JVM !!!)
- Java wrapper
GSKit Commands family
© 2015 IBM Corporation5
IBM Systems - Middleware
GSKit API
Formal ways to access GSKit interfaces are:
 SSL Toolkit / Secure Sockets API / SSL for C (using gsk<x>ssl library) provides
SSL/TLS,
 IDUP-GSS API (using gsk<x>acmeidup library) provides Signed/Enveloped Data
protection accordingly to RFC 2479.
 ICC stub (using gsk<x>iccs library) provides GSKit Crypto module based on
OpenSSL
 Key Management for C (using gsk<x>km library) provides keys and certificates
management functionality
© 2015 IBM Corporation6
IBM Systems - Middleware

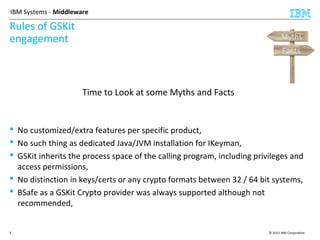

Rules of GSKit
engagement
Time to Look at some Myths and Facts
 No customized/extra features per specific product,
 No such thing as dedicated Java/JVM installation for IKeyman,
 GSKit inherits the process space of the calling program, including privileges and
access permissions,
 No distinction in keys/certs or any crypto formats between 32 / 64 bit systems,
 BSafe as a GSKit Crypto provider was always supported although not
recommended,
Facts
Myths
© 2015 IBM Corporation7
IBM Systems - Middleware
GSKit Crypto
providers
ICC stub (gsk<x>iccs.<dll/so>)
IBM OpenSSL wrapper (icclib.<dll/so>)
OpenSSL SSLeay package (libeay32<x>.dll/libcrypto.so)
GSKit Crypto utility (gsk<x>cms.<dll/so>)
GSKit User interface (gsk<x>capicmd)
RSA BSAFE (gsk<x>krsw.<dll/so>)
SSL Toolkit (gsk<x>ssl.<dll/so>)
WMQ MCA (amqrmppa)
© 2015 IBM Corporation8
IBM Systems - Middleware
ICC - IBM Crypto for
C
 IBM ICC is a cryptographic module dedicated for IBM products,
 It act as a ‘compliancy’ wrapper (icclib) around the OpenSSL SSLeay package,
 ICC exports only a subset of the OpenSSL crypto library,
 Native OpenSSL data types are not directly exposed due to ‘name mangling’
(Lotus Notes case),
 Strict rules for ICC modules integrity check (amended by 8.x),
 In 8.x the FIPS mode is implicit using certified ICC module
(un-certified ICC version can be accessed explicitly),
 ICC initialization can be controlled by Environment Variables,
 Initialization process does impact performance.
© 2015 IBM Corporation9
IBM Systems - Middleware

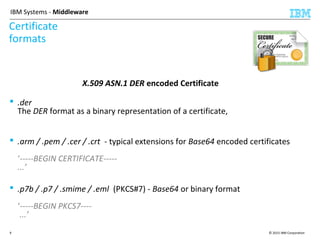

Certificate
formats
X.509 ASN.1 DER encoded Certificate
 .der
The DER format as a binary representation of a certificate,
 .arm / .pem / .cer / .crt - typical extensions for Base64 encoded certificates
‘-----BEGIN CERTIFICATE-----
...’
 .p7b / .p7 / .smime / .eml (PKCS#7) - Base64 or binary format
‘-----BEGIN PKCS7----
...’
© 2015 IBM Corporation10
IBM Systems - Middleware

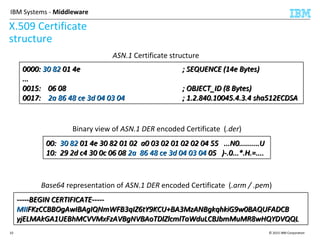

X.509 Certificate
structure
0000: 30 82 01 4e ; SEQUENCE (14e Bytes)
...
0015: 06 08 ; OBJECT_ID (8 Bytes)
0017: 2a 86 48 ce 3d 04 03 04 ; 1.2.840.10045.4.3.4 sha512ECDSA
0000: 30 82 01 4e ; SEQUENCE (14e Bytes)
...
0015: 06 08 ; OBJECT_ID (8 Bytes)
0017: 2a 86 48 ce 3d 04 03 04 ; 1.2.840.10045.4.3.4 sha512ECDSA
00: 30 82 01 4e 30 82 01 02 a0 03 02 01 02 02 04 55 ...N0..........U
10: 29 2d c4 30 0c 06 08 2a 86 48 ce 3d 04 03 04 05 )-.0...*.H.=....
00: 30 82 01 4e 30 82 01 02 a0 03 02 01 02 02 04 55 ...N0..........U
10: 29 2d c4 30 0c 06 08 2a 86 48 ce 3d 04 03 04 05 )-.0...*.H.=....
-----BEGIN CERTIFICATE-----
MIIFKzCCBBOgAwIBAgIQNmWFB3qIZ6tY9KCU+BA3MzANBgkqhkiG9w0BAQUFADCB
yjELMAkGA1UEBhMCVVMxFzAVBgNVBAoTDlZlcmlTaWduLCBJbmMuMR8wHQYDVQQL
-----BEGIN CERTIFICATE-----
MIIFKzCCBBOgAwIBAgIQNmWFB3qIZ6tY9KCU+BA3MzANBgkqhkiG9w0BAQUFADCB
yjELMAkGA1UEBhMCVVMxFzAVBgNVBAoTDlZlcmlTaWduLCBJbmMuMR8wHQYDVQQL
ASN.1 Certificate structure
Binary view of ASN.1 DER encoded Certificate (.der)
Base64 representation of ASN.1 DER encoded Certificate (.arm / .pem)
© 2015 IBM Corporation11
IBM Systems - Middleware
 gsk<x>cmd (or other Java wrappers like runmqckm/nc_gskcmd) :
-target_type <cms | jceks | jks | kdb | p12 | pkcs12>
p12 pkcs12
cms kdb
 gsk<x>capicmd :
-target_type <cms | kdb | pkcs12 | p12>
p12 pkcs12
cms kdb
 File extension rules !!!
Exporting personal
certificates
© 2015 IBM Corporation12
IBM Systems - Middleware
GSKit Key Store
formats
 CMS
 PKCS#12
 PKCS#11
 PKCS#7 (limited support)
© 2015 IBM Corporation13
IBM Systems - Middleware
GSKit’s CMS
formats
 CMS V3 still used but slowly deprecated,
 CMS V4 FIPS compliant format,
 CMS V5 = PKCS#12 standard
Cryptographic Message Syntax
Certificate Management System
© 2015 IBM Corporation14
IBM Systems - Middleware
CMS keystores under the
hood
0000 37 48 04 02 00 00 00 00 58 35 30 39 4b 45 59 00 7H......X509KEY.
0010 00 00 13 88 00 00 00 17 00 00 00 00 00 00 00 00 ................
0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0030 66 b8 99 fa 92 8f 92 9b a5 38 25 db 01 5a 73 af f........8%..Zs.
0040 48 e0 a9 d2 fe 4e 49 b8 e7 35 a8 13 71 76 2f 15 H....NI..5..qv/.
0050 6b ab 05 ec cd a3 1c a4 00 00 00 01 00 00 00 01 k...............
0060 00 00 05 1e 30 82 05 1a 02 01 01 a1 82 04 dc 30 ....0..........0
0000 37 48 04 02 00 00 00 00 58 35 30 39 4b 45 59 00 7H......X509KEY.
0010 00 00 13 88 00 00 00 17 00 00 00 00 00 00 00 00 ................
0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0030 66 b8 99 fa 92 8f 92 9b a5 38 25 db 01 5a 73 af f........8%..Zs.
0040 48 e0 a9 d2 fe 4e 49 b8 e7 35 a8 13 71 76 2f 15 H....NI..5..qv/.
0050 6b ab 05 ec cd a3 1c a4 00 00 00 01 00 00 00 01 k...............
0060 00 00 05 1e 30 82 05 1a 02 01 01 a1 82 04 dc 30 ....0..........0
0000 37 48 03 02 00 00 00 00 58 35 30 39 4b 45 59 00 7H......X509KEY.
0010 00 00 13 88 00 00 00 17 00 00 00 00 00 00 00 00 ................
0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0030 fe 2d 36 ab 04 63 79 f7 9f ed ed 9e 36 59 a4 b2 .-6..cy.....6Y..
0040 61 cf a8 c0 5e 22 c2 a2 03 a9 e1 17 2c 5f dd b6 a...^"......,_..
0050 00 00 00 01 00 00 00 01 00 00 05 1e 30 82 05 1a ............0...
0000 37 48 03 02 00 00 00 00 58 35 30 39 4b 45 59 00 7H......X509KEY.
0010 00 00 13 88 00 00 00 17 00 00 00 00 00 00 00 00 ................
0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0030 fe 2d 36 ab 04 63 79 f7 9f ed ed 9e 36 59 a4 b2 .-6..cy.....6Y..
0040 61 cf a8 c0 5e 22 c2 a2 03 a9 e1 17 2c 5f dd b6 a...^"......,_..
0050 00 00 00 01 00 00 00 01 00 00 05 1e 30 82 05 1a ............0...
CMS V3
CMS V4
© 2015 IBM Corporation15
IBM Systems - Middleware
GSKit keystore validation
Validation of PKCS#12 keystore file (IKeyman)
 gsk8capicmd -keydb -list -db <keystore file> -pw <password>
...
KDB file format is CMS version 5 (PKCS12)
OID = PKCS12pbeWithSHAAnd40BitRC2CBC
...
KDB file format is CMS version 5 (PKCS12)
OID = PKCS12pbeWithSHAAnd40BitRC2CBC
Validation of CMS keystore file
...
KDB file format is CMS version 4
hdmac:
66 B8 99 FA 92 8F 92 9B A5 38 25 DB 01 5A 73 AF
48 E0 A9 D2
dbmac:
FE 4E 49 B8 E7 35 A8 13 71 76 2F 15 6B AB 05 EC
CD A3 1C A4
File size is as expected, good.
...
KDB file format is CMS version 4
hdmac:
66 B8 99 FA 92 8F 92 9B A5 38 25 DB 01 5A 73 AF
48 E0 A9 D2
dbmac:
FE 4E 49 B8 E7 35 A8 13 71 76 2F 15 6B AB 05 EC
CD A3 1C A4
File size is as expected, good.
© 2015 IBM Corporation16
IBM Systems - Middleware
CMS Keystore password
tale
0000 85 94 86 86 82 9a 87 91 c7 f5 4e 25 8b aa 05 9c ..........N%....
0010 d0 b4 fd 59 91 95 a4 0a d9 85 98 7d ba 59 e7 10 ...Y.......}.Y..
0020 3f 05 ce cb 96 e1 4e 11 4b 89 71 ae 25 d8 82 29 ?.....N.K.q.%..)
0030 ca bf f9 4f 02 47 1a 57 18 2b f4 14 68 fa f2 50 ...O.G.W.+..h..P
0040 d8 cd 04 3b 21 4e fe 2a f7 4b 71 ba a2 3c 5f 63 ...;!N.*.Kq..<_c
0050 b1 76 69 df fe f4 86 0f 4e 43 9e 7d db 5a 57 66 .vi.....NC.}.ZWf
0060 16 99 79 87 fa a3 2e ec 6f fc 5d 1c 3a ed b7 dc ..y.....o.].:...
0070 54 9d 4f c2 4a 75 7c 7a ef f1 43 c8 ab ff bd c2 T.O.Ju|z..C.....
0000 85 94 86 86 82 9a 87 91 c7 f5 4e 25 8b aa 05 9c ..........N%....
0010 d0 b4 fd 59 91 95 a4 0a d9 85 98 7d ba 59 e7 10 ...Y.......}.Y..
0020 3f 05 ce cb 96 e1 4e 11 4b 89 71 ae 25 d8 82 29 ?.....N.K.q.%..)
0030 ca bf f9 4f 02 47 1a 57 18 2b f4 14 68 fa f2 50 ...O.G.W.+..h..P
0040 d8 cd 04 3b 21 4e fe 2a f7 4b 71 ba a2 3c 5f 63 ...;!N.*.Kq..<_c
0050 b1 76 69 df fe f4 86 0f 4e 43 9e 7d db 5a 57 66 .vi.....NC.}.ZWf
0060 16 99 79 87 fa a3 2e ec 6f fc 5d 1c 3a ed b7 dc ..y.....o.].:...
0070 54 9d 4f c2 4a 75 7c 7a ef f1 43 c8 ab ff bd c2 T.O.Ju|z..C.....
‘password2’
0000 85 94 86 86 82 9a 87 91 c4 f5 af 58 00 2d d8 f3 ...........X.-..
0010 63 a1 81 1a ea 4e 83 22 a7 8f b5 4d 85 da 88 49 c....N."...M...I
0020 82 42 ce 45 a5 8d d6 9f 59 ed 10 ea 06 72 46 f3 .B.E....Y....rF.
0030 0a 9d be 2b c5 bf 0c 88 ed 65 b4 6a 6b 2d 0a 4e ...+.....e.jk-.N
0040 c2 f3 b2 ac 01 be e2 ff 55 3f cf 50 72 47 31 33 ........U?.PrG13
0050 24 8c c3 17 27 12 84 f4 e2 ce 57 6c 18 96 47 be $...'.....Wl..G.
0060 f8 ad 19 f6 d6 64 df b8 e4 22 3c 32 73 8a dc ca .....d..."<2s...
0070 be 94 bf 51 f7 07 6e d6 14 ec 5e 33 c3 c0 71 d2 ...Q..n...^3..q.
0000 85 94 86 86 82 9a 87 91 c4 f5 af 58 00 2d d8 f3 ...........X.-..
0010 63 a1 81 1a ea 4e 83 22 a7 8f b5 4d 85 da 88 49 c....N."...M...I
0020 82 42 ce 45 a5 8d d6 9f 59 ed 10 ea 06 72 46 f3 .B.E....Y....rF.
0030 0a 9d be 2b c5 bf 0c 88 ed 65 b4 6a 6b 2d 0a 4e ...+.....e.jk-.N
0040 c2 f3 b2 ac 01 be e2 ff 55 3f cf 50 72 47 31 33 ........U?.PrG13
0050 24 8c c3 17 27 12 84 f4 e2 ce 57 6c 18 96 47 be $...'.....Wl..G.
0060 f8 ad 19 f6 d6 64 df b8 e4 22 3c 32 73 8a dc ca .....d..."<2s...
0070 be 94 bf 51 f7 07 6e d6 14 ec 5e 33 c3 c0 71 d2 ...Q..n...^3..q.
‘password1’
© 2015 IBM Corporation17
IBM Systems - Middleware
 Used to bundle a private key with X.509 certificate,
 Popular extensions: ‘.p12’ , ‘.pfx’,
 PFX as a broken predecessor of PKCS#12,
 The PFX...is just protected wrapper (40bit RC2) around initial PKCS#12 content,
 Minimum 128bit key size for FIPS compliant keystore,
 PKCS12S2 = ???...PFX rules,
 gsk8capicmd -keydb -convert -db <PKCS#12 keystore file>
-new_format pkcs12 -new_db <PKCS#12 keystore file>
PKCS#12 under IKeyman/GSKit
domain
...
PKCS7 Encrypted data: pbeWithSHA1And40BitRC2-CBC
Shrouded Keybag: pbeWithSHA1And3-KeyTripleDES-CBC
...
...
PKCS7 Encrypted data: pbeWithSHA1And40BitRC2-CBC
Shrouded Keybag: pbeWithSHA1And3-KeyTripleDES-CBC
...
openssl dump of PKCS#12 file (IKeyman)
© 2015 IBM Corporation18
IBM Systems - Middleware
GSKit certificate requests
database
0000 37 48 03 01 00 00 00 00 58 35 30 39 4b 59 50 00 7H......X509KYP.
0010 00 00 13 88 00 00 00 00 00 00 00 00 00 00 00 00 ................
0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0030 47 32 fc 56 a0 ab e6 3e 9a 66 b3 4b 12 62 0c ec G2.V...>.f.K.b..
0040 b1 bb 19 c3 f9 fb 97 87 36 e7 99 2c fc 0c 89 6b ........6..,...k
...
01e0 84 2f 04 c0 d9 eb 00 87 f3 27 74 6f 30 82 02 a0 ./.......'to0...
01f0 30 1a 06 09 2a 86 48 86 f7 0d 01 05 0a 30 0d 04 0...*.H......0..
...
0000 37 48 03 01 00 00 00 00 58 35 30 39 4b 59 50 00 7H......X509KYP.
0010 00 00 13 88 00 00 00 00 00 00 00 00 00 00 00 00 ................
0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0030 47 32 fc 56 a0 ab e6 3e 9a 66 b3 4b 12 62 0c ec G2.V...>.f.K.b..
0040 b1 bb 19 c3 f9 fb 97 87 36 e7 99 2c fc 0c 89 6b ........6..,...k
...
01e0 84 2f 04 c0 d9 eb 00 87 f3 27 74 6f 30 82 02 a0 ./.......'to0...
01f0 30 1a 06 09 2a 86 48 86 f7 0d 01 05 0a 30 0d 04 0...*.H......0..
...
‘.rdb’ file structure (IKeyman)
 ‘.rdb’ file contains private key (PKCS#8) plus copy of
certificate request (PKCS#10)
 Be careful with ‘.rdb’ files backups...!!!
 ‘06 09 2a 86 48 86 f7 0d 01 05 0a’ - PBE With SHA1 And DES
 ‘06 0b 2a 86 48 86 f7 0d 01 0c 05 01 03’ - PBE With SHA1 And TripleDES
© 2015 IBM Corporation19
IBM Systems - Middleware
GSKit Certificate
requests

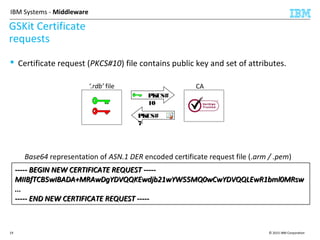

 Certificate request (PKCS#10) file contains public key and set of attributes.
----- BEGIN NEW CERTIFICATE REQUEST -----
MIIBfTCB5wIBADA+MRAwDgYDVQQKEwdjb21wYW55MQ0wCwYDVQQLEwR1bml0MRsw
...
----- END NEW CERTIFICATE REQUEST -----
----- BEGIN NEW CERTIFICATE REQUEST -----
MIIBfTCB5wIBADA+MRAwDgYDVQQKEwdjb21wYW55MQ0wCwYDVQQLEwR1bml0MRsw
...
----- END NEW CERTIFICATE REQUEST -----
Base64 representation of ASN.1 DER encoded certificate request file (.arm / .pem)
PKCS#
7
PKCS#
10
CA‘.rdb’ file
© 2015 IBM Corporation20
IBM Systems - Middleware

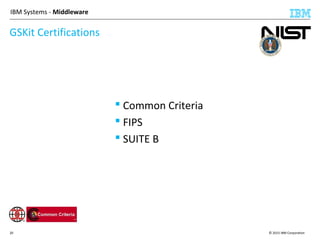

GSKit Certifications
 Common Criteria
 FIPS
 SUITE B
© 2015 IBM Corporation21
IBM Systems - Middleware
 BSafe as a crypto provider is not supported,
 Verify NIST website that the particular version of GSKit indeed contains an ICC
crypto module that is FIPS certified (formal certification is not very
frequent...the latest is 8.2.2.0),
 GSKit v8.x provides the multi ICC module instance :
‘C’ folder contains the latest FIPS certified release,
‘N’ folder contains the latest version,
The swap can be done through ICC_IGNORE_FIPS (formal compliance vs
performance/progress/security),
 FIPS approved ciphers & FIPS approved mode of operation,
 OpenSSL FIPS approved functions for distributions start from version
0.9.7j...GSKit 7.0.x encapsulates 0.9.7c from 2003,
GSKit under FIPS 140-2
© 2015 IBM Corporation22
IBM Systems - Middleware
FIPS
implications

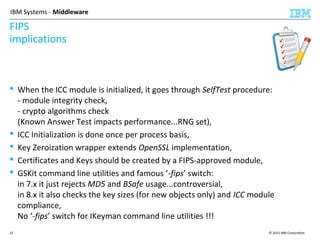

 When the ICC module is initialized, it goes through SelfTest procedure:
- module integrity check,
- crypto algorithms check
(Known Answer Test impacts performance...RNG set),
 ICC Initialization is done once per process basis,
 Key Zeroization wrapper extends OpenSSL implementation,
 Certificates and Keys should be created by a FIPS-approved module,
 GSKit command line utilities and famous ‘-fips’ switch:
in 7.x it just rejects MD5 and BSafe usage...controversial,
in 8.x it also checks the key sizes (for new objects only) and ICC module
compliance,
No ‘-fips’ switch for IKeyman command line utilities !!!
© 2015 IBM Corporation23
IBM Systems - Middleware

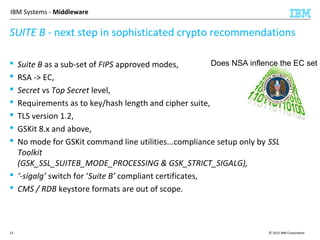

 Suite B as a sub-set of FIPS approved modes,
 RSA -> EC,
 Secret vs Top Secret level,
 Requirements as to key/hash length and cipher suite,
 TLS version 1.2,
 GSKit 8.x and above,
 No mode for GSKit command line utilities...compliance setup only by SSL
Toolkit
(GSK_SSL_SUITEB_MODE_PROCESSING & GSK_STRICT_SIGALG),
 ‘-sigalg’ switch for ‘Suite B’ compliant certificates,
 CMS / RDB keystore formats are out of scope.
SUITE B - next step in sophisticated crypto recommendations
Does NSA inflence the EC set ?
© 2015 IBM Corporation24
IBM Systems - Middleware

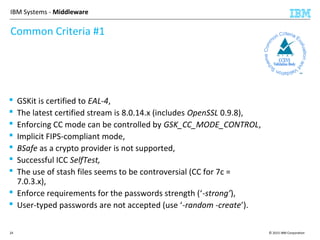

Common Criteria #1
 GSKit is certified to EAL-4,
 The latest certified stream is 8.0.14.x (includes OpenSSL 0.9.8),
 Enforcing CC mode can be controlled by GSK_CC_MODE_CONTROL,
 Implicit FIPS-compliant mode,
 BSafe as a crypto provider is not supported,
 Successful ICC SelfTest,
 The use of stash files seems to be controversial (CC for 7c =
7.0.3.x),
 Enforce requirements for the passwords strength (‘-strong’),
 User-typed passwords are not accepted (use ‘-random -create’).
© 2015 IBM Corporation25
IBM Systems - Middleware
Common Criteria
#2
 GSKit must ignore all runtime Environment Variables (reset the state),
 Can’t use CMS / RDB V3,
 Enforce certificate validation accordingly to RFC 5280,
 IKeyman (and all Java related elements) are out of scope,
 Disable PKCS#11 hardware support,
 Single user only environment... remote login must be disabled,
 Physical device and Operating System must be located within
controlled access facilities.
© 2015 IBM Corporation26
IBM Systems - Middleware

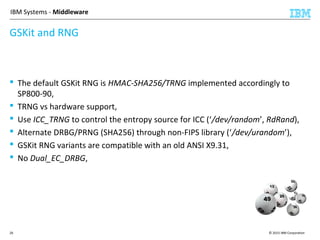

GSKit and RNG
 The default GSKit RNG is HMAC-SHA256/TRNG implemented accordingly to
SP800-90,
 TRNG vs hardware support,
 Use ICC_TRNG to control the entropy source for ICC (‘/dev/random’, RdRand),
 Alternate DRBG/PRNG (SHA256) through non-FIPS library (‘/dev/urandom’),
 GSKit RNG variants are compatible with an old ANSI X9.31,
 No Dual_EC_DRBG,
© 2015 IBM Corporation27
IBM Systems - Middleware
GSKit in the JAVA
world
© 2015 IBM Corporation28
IBM Systems - Middleware

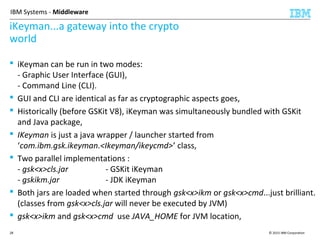

iKeyman...a gateway into the crypto
world
 iKeyman can be run in two modes:
- Graphic User Interface (GUI),
- Command Line (CLI).
 GUI and CLI are identical as far as cryptographic aspects goes,
 Historically (before GSKit V8), iKeyman was simultaneously bundled with GSKit
and Java package,
 IKeyman is just a java wrapper / launcher started from
‘com.ibm.gsk.ikeyman.<Ikeyman/ikeycmd>’ class,
 Two parallel implementations :
- gsk<x>cls.jar - GSKit iKeyman
- gskikm.jar - JDK iKeyman
 Both jars are loaded when started through gsk<x>ikm or gsk<x>cmd...just brilliant.
(classes from gsk<x>cls.jar will never be executed by JVM)
 gsk<x>ikm and gsk<x>cmd use JAVA_HOME for JVM location,
© 2015 IBM Corporation29
IBM Systems - Middleware

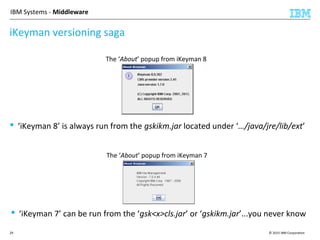

iKeyman versioning saga
The ‘About’ popup from iKeyman 8
The ‘About’ popup from iKeyman 7
 ‘iKeyman 8’ is always run from the gskikm.jar located under ‘…/java/jre/lib/ext’
 ‘iKeyman 7’ can be run from the ‘gsk<x>cls.jar’ or ‘gskikm.jar’...you never know
© 2015 IBM Corporation30
IBM Systems - Middleware

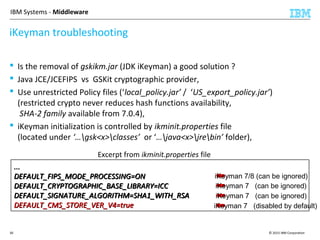

 Is the removal of gskikm.jar (JDK iKeyman) a good solution ?
 Java JCE/JCEFIPS vs GSKit cryptographic provider,
 Use unrestricted Policy files (‘local_policy.jar’ / ‘US_export_policy.jar’)
(restricted crypto never reduces hash functions availability,
SHA-2 family available from 7.0.4),
 iKeyman initialization is controlled by ikminit.properties file
(located under ‘…gsk<x>classes’ or ‘…java<x>jrebin’ folder),
...
DEFAULT_FIPS_MODE_PROCESSING=ON
DEFAULT_CRYPTOGRAPHIC_BASE_LIBRARY=ICC
DEFAULT_SIGNATURE_ALGORITHM=SHA1_WITH_RSA
DEFAULT_CMS_STORE_VER_V4=true
...
DEFAULT_FIPS_MODE_PROCESSING=ON
DEFAULT_CRYPTOGRAPHIC_BASE_LIBRARY=ICC
DEFAULT_SIGNATURE_ALGORITHM=SHA1_WITH_RSA
DEFAULT_CMS_STORE_VER_V4=true
iKeyman troubleshooting
Excerpt from ikminit.properties file
iKeyman 7 (disabled by default)
iKeyman 7/8 (can be ignored)
iKeyman 7 (can be ignored)
iKeyman 7 (can be ignored)
© 2015 IBM Corporation31
IBM Systems - Middleware
 SHA5…well, this is still a song of the
future.
Hash suite ‘counterfeit’
 Signature Algorithms defined in ‘iKeyman 7’
© 2015 IBM Corporation32
IBM Systems - Middleware
 ‘iKeyman 7’ loads a CMS provider (GSKit JNI wrapper) automatically
(com.ibm.spi.IBMCMSProvider),
no need for updates in ‘java.security‘ file !!!
 ‘iKeyman 8’ uses a dedicated Java based CMS provider
(com.ibm.security.cmskeystore.CMSProvider - ibmcmsprovider.jar)
this model does require setup within ‘java.security‘ file.
 You can’t mix those CMS providers...

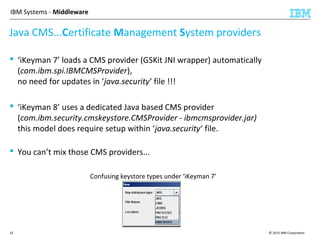

Java CMS...Certificate Management System providers
Confusing keystore types under ‘iKeyman 7’
© 2015 IBM Corporation33
IBM Systems - Middleware
 JAVA_HOME rules,
 gsk<x>kjni library requires the same ‘bitness’ as underlying JVM,
 Use truss / procmon when in doubt,

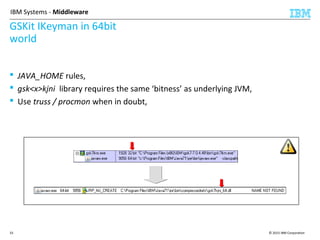

GSKit IKeyman in 64bit
world
© 2015 IBM Corporation34
IBM Systems - Middleware

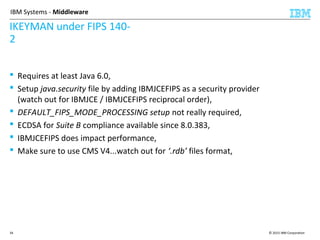

IKEYMAN under FIPS 140-
2
 Requires at least Java 6.0,
 Setup java.security file by adding IBMJCEFIPS as a security provider
(watch out for IBMJCE / IBMJCEFIPS reciprocal order),
 DEFAULT_FIPS_MODE_PROCESSING setup not really required,
 ECDSA for Suite B compliance available since 8.0.383,
 IBMJCEFIPS does impact performance,
 Make sure to use CMS V4...watch out for ‘.rdb’ files format,
© 2015 IBM Corporation35
IBM Systems - Middleware

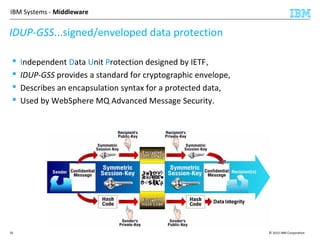

IDUP-GSS...signed/enveloped data protection
 Independent Data Unit Protection designed by IETF,
 IDUP-GSS provides a standard for cryptographic envelope,
 Describes an encapsulation syntax for a protected data,
 Used by WebSphere MQ Advanced Message Security.
© 2015 IBM Corporation36
IBM Systems - Middleware

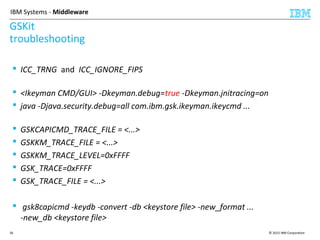

GSKit
troubleshooting
 ICC_TRNG and ICC_IGNORE_FIPS
 <Ikeyman CMD/GUI> -Dkeyman.debug=true -Dkeyman.jnitracing=on
 java -Djava.security.debug=all com.ibm.gsk.ikeyman.ikeycmd ...
 GSKCAPICMD_TRACE_FILE = <...>
 GSKKM_TRACE_FILE = <...>
 GSKKM_TRACE_LEVEL=0xFFFF
 GSK_TRACE=0xFFFF
 GSK_TRACE_FILE = <...>
 gsk8capicmd -keydb -convert -db <keystore file> -new_format ...
-new_db <keystore file>
© 2015 IBM Corporation37
IBM Systems - Middleware
Keystores/Certificates troubleshooting
tools
 openssl s_client -connect IP/Host:Port
 openssl asn1parse -in <file in Base64 format>
 certutil -<asn/dump> <file in Base64/Binary/PKCS#7/PKCS#12 format>
(certutil can also be used as a HEX viewer)
 Keytool -printcert -file <cert in Base64/Binary>
 dumpasn1
© 2015 IBM Corporation38
IBM Systems - Middleware

More Related Content

What's hot

Red Hat Global File System (GFS)
Red Hat Global File System (GFS)Red Hat Global File System (GFS)
Red Hat Global File System (GFS)Schubert Zhang

Shift Left for More Secure Apps with F5 NGINX
Shift Left for More Secure Apps with F5 NGINXShift Left for More Secure Apps with F5 NGINX
Shift Left for More Secure Apps with F5 NGINX
NGINX, Inc.

PL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptxPL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptx
Vinicius M Grippa

Managing secrets at scale
Managing secrets at scaleManaging secrets at scale
Managing secrets at scale
Alex Schoof

Tomcat y Jboss
Tomcat y JbossTomcat y Jboss
Tomcat y Jboss
Miguel Angel Nieto

Python + STIX = Awesome
Python + STIX = AwesomePython + STIX = Awesome
Python + STIX = Awesome
stixproject

Building active directory lab for red teaming
Building active directory lab for red teamingBuilding active directory lab for red teaming
Building active directory lab for red teaming
n|u - The Open Security Community

Deploying CloudStack with Ceph
Deploying CloudStack with CephDeploying CloudStack with Ceph
Deploying CloudStack with Ceph
ShapeBlue

MySQL Server Backup, Restoration, And Disaster Recovery Planning Presentation
MySQL Server Backup, Restoration, And Disaster Recovery Planning PresentationMySQL Server Backup, Restoration, And Disaster Recovery Planning Presentation
MySQL Server Backup, Restoration, And Disaster Recovery Planning PresentationColin Charles

aptly: Debian repository management tool
aptly: Debian repository management toolaptly: Debian repository management tool
aptly: Debian repository management tool
Andrey Smirnov

ModSecurity 3.0 and NGINX: Getting Started
ModSecurity 3.0 and NGINX: Getting StartedModSecurity 3.0 and NGINX: Getting Started
ModSecurity 3.0 and NGINX: Getting Started
NGINX, Inc.

ReCertifying Active Directory
ReCertifying Active DirectoryReCertifying Active Directory
ReCertifying Active Directory
Will Schroeder

Rhel cluster gfs_improveperformance
Rhel cluster gfs_improveperformanceRhel cluster gfs_improveperformance
Rhel cluster gfs_improveperformancesprdd

Security and DevOps Overview
Security and DevOps OverviewSecurity and DevOps Overview
Security and DevOps Overview
Adrian Sanabria

HSM Basic Training
HSM Basic TrainingHSM Basic Training
HSM Basic Training
Md. Budrul Hasan Bhuiyan

OS Security Hardening for SAP HANA
OS Security Hardening for SAP HANAOS Security Hardening for SAP HANA
OS Security Hardening for SAP HANA
Dirk Oppenkowski

CyberOps Associate Modul 21 Cryptography
CyberOps Associate Modul 21 CryptographyCyberOps Associate Modul 21 Cryptography
CyberOps Associate Modul 21 Cryptography
Panji Ramadhan Hadjarati

[KubeCon EU 2022] Running containerd and k3s on macOS
[KubeCon EU 2022] Running containerd and k3s on macOS[KubeCon EU 2022] Running containerd and k3s on macOS
[KubeCon EU 2022] Running containerd and k3s on macOS
Akihiro Suda

Overview of secret management solutions and architecture
Overview of secret management solutions and architectureOverview of secret management solutions and architecture
Overview of secret management solutions and architecture
Yuechuan (Mike) Chen

TLS/SSL Internet Security Talk
TLS/SSL Internet Security TalkTLS/SSL Internet Security Talk
TLS/SSL Internet Security Talk
Nisheed KM


What's hot (20)

Red Hat Global File System (GFS)
Red Hat Global File System (GFS)Red Hat Global File System (GFS)
Red Hat Global File System (GFS)

Shift Left for More Secure Apps with F5 NGINX
Shift Left for More Secure Apps with F5 NGINXShift Left for More Secure Apps with F5 NGINX
Shift Left for More Secure Apps with F5 NGINX

PL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptxPL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptx

Managing secrets at scale
Managing secrets at scaleManaging secrets at scale
Managing secrets at scale

Tomcat y Jboss
Tomcat y JbossTomcat y Jboss
Tomcat y Jboss

Python + STIX = Awesome
Python + STIX = AwesomePython + STIX = Awesome
Python + STIX = Awesome

Building active directory lab for red teaming
Building active directory lab for red teamingBuilding active directory lab for red teaming
Building active directory lab for red teaming

Deploying CloudStack with Ceph
Deploying CloudStack with CephDeploying CloudStack with Ceph
Deploying CloudStack with Ceph

MySQL Server Backup, Restoration, And Disaster Recovery Planning Presentation
MySQL Server Backup, Restoration, And Disaster Recovery Planning PresentationMySQL Server Backup, Restoration, And Disaster Recovery Planning Presentation
MySQL Server Backup, Restoration, And Disaster Recovery Planning Presentation

aptly: Debian repository management tool
aptly: Debian repository management toolaptly: Debian repository management tool
aptly: Debian repository management tool

ModSecurity 3.0 and NGINX: Getting Started
ModSecurity 3.0 and NGINX: Getting StartedModSecurity 3.0 and NGINX: Getting Started
ModSecurity 3.0 and NGINX: Getting Started

ReCertifying Active Directory
ReCertifying Active DirectoryReCertifying Active Directory
ReCertifying Active Directory

Rhel cluster gfs_improveperformance
Rhel cluster gfs_improveperformanceRhel cluster gfs_improveperformance
Rhel cluster gfs_improveperformance

Security and DevOps Overview
Security and DevOps OverviewSecurity and DevOps Overview
Security and DevOps Overview

HSM Basic Training
HSM Basic TrainingHSM Basic Training
HSM Basic Training

OS Security Hardening for SAP HANA
OS Security Hardening for SAP HANAOS Security Hardening for SAP HANA
OS Security Hardening for SAP HANA

CyberOps Associate Modul 21 Cryptography
CyberOps Associate Modul 21 CryptographyCyberOps Associate Modul 21 Cryptography
CyberOps Associate Modul 21 Cryptography

[KubeCon EU 2022] Running containerd and k3s on macOS
[KubeCon EU 2022] Running containerd and k3s on macOS[KubeCon EU 2022] Running containerd and k3s on macOS
[KubeCon EU 2022] Running containerd and k3s on macOS

Overview of secret management solutions and architecture
Overview of secret management solutions and architectureOverview of secret management solutions and architecture
Overview of secret management solutions and architecture

TLS/SSL Internet Security Talk
TLS/SSL Internet Security TalkTLS/SSL Internet Security Talk
TLS/SSL Internet Security Talk


Similar to IBM Global Security Kit as a Cryptographic layer for IBM middleware

crack satellite
crack satellite crack satellite
crack satellite
TecnicoAInstrumentos

LT SAP HANAネットワークプロトコル初段
LT SAP HANAネットワークプロトコル初段LT SAP HANAネットワークプロトコル初段
LT SAP HANAネットワークプロトコル初段
Koji Shinkubo

Ruler and Liniaal @ Troopers 17
Ruler and Liniaal @ Troopers 17Ruler and Liniaal @ Troopers 17
Ruler and Liniaal @ Troopers 17
SensePost

ambil aja
ambil aja ambil aja
ambil aja
muxander

No more dumb hex!
No more dumb hex!No more dumb hex!
No more dumb hex!
Ange Albertini

Broom not included curling the modern way
Broom not included curling the modern wayBroom not included curling the modern way
Broom not included curling the modern way
DanielStenberg7

44CON London 2015 - Jtagsploitation: 5 wires, 5 ways to root
44CON London 2015 - Jtagsploitation: 5 wires, 5 ways to root44CON London 2015 - Jtagsploitation: 5 wires, 5 ways to root
44CON London 2015 - Jtagsploitation: 5 wires, 5 ways to root
44CON

How to I/O?
How to I/O?How to I/O?
How to I/O?
C4Media

Protecting Python applications the simpler way
Protecting Python applications the simpler wayProtecting Python applications the simpler way
Protecting Python applications the simpler way
team-WIBU

Aimp3 memory manager_eventlog
Aimp3 memory manager_eventlog Aimp3 memory manager_eventlog
Aimp3 memory manager_eventlog
Ahmad Shabri

24may 1000 valday sergey shekyan artem harutyunyan 'to watch or to be watched'
24may 1000 valday sergey shekyan artem harutyunyan 'to watch or to be watched'24may 1000 valday sergey shekyan artem harutyunyan 'to watch or to be watched'
24may 1000 valday sergey shekyan artem harutyunyan 'to watch or to be watched'Positive Hack Days

A Modern Fairy Tale: Java Serialization
A Modern Fairy Tale: Java Serialization A Modern Fairy Tale: Java Serialization
A Modern Fairy Tale: Java Serialization
Steve Poole

Examining Malware with Python
Examining Malware with PythonExamining Malware with Python
Examining Malware with Python
mrphilroth

Java bytecode Malware Analysis
Java bytecode Malware AnalysisJava bytecode Malware Analysis
Java bytecode Malware Analysis
Brian Baskin

KILL MD5
KILL MD5KILL MD5
KILL MD5
Ange Albertini

CONFidence 2014: Vlatko Kosturjak: Exploring treasures of 77FEh
CONFidence 2014: Vlatko Kosturjak: Exploring treasures of 77FEhCONFidence 2014: Vlatko Kosturjak: Exploring treasures of 77FEh
CONFidence 2014: Vlatko Kosturjak: Exploring treasures of 77FEh
PROIDEA

Getting access to Lantronix devices: exploring treasures of 77FEh at Confiden...
Getting access to Lantronix devices: exploring treasures of 77FEh at Confiden...Getting access to Lantronix devices: exploring treasures of 77FEh at Confiden...
Getting access to Lantronix devices: exploring treasures of 77FEh at Confiden...
Vlatko Kosturjak


Similar to IBM Global Security Kit as a Cryptographic layer for IBM middleware (20)

Hta r31
Hta r31Hta r31
Hta r31

crack satellite
crack satellite crack satellite
crack satellite

LT SAP HANAネットワークプロトコル初段
LT SAP HANAネットワークプロトコル初段LT SAP HANAネットワークプロトコル初段
LT SAP HANAネットワークプロトコル初段

Ruler and Liniaal @ Troopers 17
Ruler and Liniaal @ Troopers 17Ruler and Liniaal @ Troopers 17
Ruler and Liniaal @ Troopers 17

ambil aja
ambil aja ambil aja
ambil aja

No more dumb hex!
No more dumb hex!No more dumb hex!
No more dumb hex!

Broom not included curling the modern way
Broom not included curling the modern wayBroom not included curling the modern way
Broom not included curling the modern way

44CON London 2015 - Jtagsploitation: 5 wires, 5 ways to root
44CON London 2015 - Jtagsploitation: 5 wires, 5 ways to root44CON London 2015 - Jtagsploitation: 5 wires, 5 ways to root
44CON London 2015 - Jtagsploitation: 5 wires, 5 ways to root

How to I/O?
How to I/O?How to I/O?
How to I/O?

Protecting Python applications the simpler way
Protecting Python applications the simpler wayProtecting Python applications the simpler way
Protecting Python applications the simpler way

Aimp3 memory manager_eventlog
Aimp3 memory manager_eventlog Aimp3 memory manager_eventlog
Aimp3 memory manager_eventlog

24may 1000 valday sergey shekyan artem harutyunyan 'to watch or to be watched'
24may 1000 valday sergey shekyan artem harutyunyan 'to watch or to be watched'24may 1000 valday sergey shekyan artem harutyunyan 'to watch or to be watched'
24may 1000 valday sergey shekyan artem harutyunyan 'to watch or to be watched'

A Modern Fairy Tale: Java Serialization
A Modern Fairy Tale: Java Serialization A Modern Fairy Tale: Java Serialization
A Modern Fairy Tale: Java Serialization

Examining Malware with Python
Examining Malware with PythonExamining Malware with Python
Examining Malware with Python

Performance Risk Management
Performance Risk ManagementPerformance Risk Management
Performance Risk Management

Java bytecode Malware Analysis
Java bytecode Malware AnalysisJava bytecode Malware Analysis
Java bytecode Malware Analysis

KILL MD5
KILL MD5KILL MD5
KILL MD5

Log
LogLog
Log

CONFidence 2014: Vlatko Kosturjak: Exploring treasures of 77FEh
CONFidence 2014: Vlatko Kosturjak: Exploring treasures of 77FEhCONFidence 2014: Vlatko Kosturjak: Exploring treasures of 77FEh
CONFidence 2014: Vlatko Kosturjak: Exploring treasures of 77FEh

Getting access to Lantronix devices: exploring treasures of 77FEh at Confiden...
Getting access to Lantronix devices: exploring treasures of 77FEh at Confiden...Getting access to Lantronix devices: exploring treasures of 77FEh at Confiden...
Getting access to Lantronix devices: exploring treasures of 77FEh at Confiden...


Recently uploaded

0x01 - Newton's Third Law: Static vs. Dynamic Abusers
0x01 - Newton's Third Law:  Static vs. Dynamic Abusers0x01 - Newton's Third Law:  Static vs. Dynamic Abusers
0x01 - Newton's Third Law: Static vs. Dynamic Abusers
OWASP Beja

Getting started with Amazon Bedrock Studio and Control Tower
Getting started with Amazon Bedrock Studio and Control TowerGetting started with Amazon Bedrock Studio and Control Tower
Getting started with Amazon Bedrock Studio and Control Tower
Vladimir Samoylov

Bonzo subscription_hjjjjjjjj5hhhhhhh_2024.pdf
Bonzo subscription_hjjjjjjjj5hhhhhhh_2024.pdfBonzo subscription_hjjjjjjjj5hhhhhhh_2024.pdf
Bonzo subscription_hjjjjjjjj5hhhhhhh_2024.pdf
khadija278284

Competition and Regulation in Professional Services – KLEINER – June 2024 OEC...
Competition and Regulation in Professional Services – KLEINER – June 2024 OEC...Competition and Regulation in Professional Services – KLEINER – June 2024 OEC...
Competition and Regulation in Professional Services – KLEINER – June 2024 OEC...
OECD Directorate for Financial and Enterprise Affairs

Obesity causes and management and associated medical conditions
Obesity causes and management and associated medical conditionsObesity causes and management and associated medical conditions
Obesity causes and management and associated medical conditions
Faculty of Medicine And Health Sciences

Bitcoin Lightning wallet and tic-tac-toe game XOXO
Bitcoin Lightning wallet and tic-tac-toe game XOXOBitcoin Lightning wallet and tic-tac-toe game XOXO
Bitcoin Lightning wallet and tic-tac-toe game XOXO
Matjaž Lipuš

Eureka, I found it! - Special Libraries Association 2021 Presentation
Eureka, I found it! - Special Libraries Association 2021 PresentationEureka, I found it! - Special Libraries Association 2021 Presentation
Eureka, I found it! - Special Libraries Association 2021 Presentation
Access Innovations, Inc.

Doctoral Symposium at the 17th IEEE International Conference on Software Test...
Doctoral Symposium at the 17th IEEE International Conference on Software Test...Doctoral Symposium at the 17th IEEE International Conference on Software Test...
Doctoral Symposium at the 17th IEEE International Conference on Software Test...
Sebastiano Panichella

Acorn Recovery: Restore IT infra within minutes
Acorn Recovery: Restore IT infra within minutesAcorn Recovery: Restore IT infra within minutes
Acorn Recovery: Restore IT infra within minutes
IP ServerOne

Sharpen existing tools or get a new toolbox? Contemporary cluster initiatives...
Sharpen existing tools or get a new toolbox? Contemporary cluster initiatives...Sharpen existing tools or get a new toolbox? Contemporary cluster initiatives...
Sharpen existing tools or get a new toolbox? Contemporary cluster initiatives...
Orkestra

Announcement of 18th IEEE International Conference on Software Testing, Verif...
Announcement of 18th IEEE International Conference on Software Testing, Verif...Announcement of 18th IEEE International Conference on Software Testing, Verif...
Announcement of 18th IEEE International Conference on Software Testing, Verif...
Sebastiano Panichella

International Workshop on Artificial Intelligence in Software Testing
International Workshop on Artificial Intelligence in Software TestingInternational Workshop on Artificial Intelligence in Software Testing
International Workshop on Artificial Intelligence in Software Testing
Sebastiano Panichella

somanykidsbutsofewfathers-140705000023-phpapp02.pptx
somanykidsbutsofewfathers-140705000023-phpapp02.pptxsomanykidsbutsofewfathers-140705000023-phpapp02.pptx
somanykidsbutsofewfathers-140705000023-phpapp02.pptx
Howard Spence


Recently uploaded (13)

0x01 - Newton's Third Law: Static vs. Dynamic Abusers
0x01 - Newton's Third Law:  Static vs. Dynamic Abusers0x01 - Newton's Third Law:  Static vs. Dynamic Abusers
0x01 - Newton's Third Law: Static vs. Dynamic Abusers

Getting started with Amazon Bedrock Studio and Control Tower
Getting started with Amazon Bedrock Studio and Control TowerGetting started with Amazon Bedrock Studio and Control Tower
Getting started with Amazon Bedrock Studio and Control Tower

Bonzo subscription_hjjjjjjjj5hhhhhhh_2024.pdf
Bonzo subscription_hjjjjjjjj5hhhhhhh_2024.pdfBonzo subscription_hjjjjjjjj5hhhhhhh_2024.pdf
Bonzo subscription_hjjjjjjjj5hhhhhhh_2024.pdf

Competition and Regulation in Professional Services – KLEINER – June 2024 OEC...
Competition and Regulation in Professional Services – KLEINER – June 2024 OEC...Competition and Regulation in Professional Services – KLEINER – June 2024 OEC...
Competition and Regulation in Professional Services – KLEINER – June 2024 OEC...

Obesity causes and management and associated medical conditions
Obesity causes and management and associated medical conditionsObesity causes and management and associated medical conditions
Obesity causes and management and associated medical conditions

Bitcoin Lightning wallet and tic-tac-toe game XOXO
Bitcoin Lightning wallet and tic-tac-toe game XOXOBitcoin Lightning wallet and tic-tac-toe game XOXO
Bitcoin Lightning wallet and tic-tac-toe game XOXO

Eureka, I found it! - Special Libraries Association 2021 Presentation
Eureka, I found it! - Special Libraries Association 2021 PresentationEureka, I found it! - Special Libraries Association 2021 Presentation
Eureka, I found it! - Special Libraries Association 2021 Presentation

Doctoral Symposium at the 17th IEEE International Conference on Software Test...
Doctoral Symposium at the 17th IEEE International Conference on Software Test...Doctoral Symposium at the 17th IEEE International Conference on Software Test...
Doctoral Symposium at the 17th IEEE International Conference on Software Test...

Acorn Recovery: Restore IT infra within minutes
Acorn Recovery: Restore IT infra within minutesAcorn Recovery: Restore IT infra within minutes
Acorn Recovery: Restore IT infra within minutes

Sharpen existing tools or get a new toolbox? Contemporary cluster initiatives...
Sharpen existing tools or get a new toolbox? Contemporary cluster initiatives...Sharpen existing tools or get a new toolbox? Contemporary cluster initiatives...
Sharpen existing tools or get a new toolbox? Contemporary cluster initiatives...

Announcement of 18th IEEE International Conference on Software Testing, Verif...
Announcement of 18th IEEE International Conference on Software Testing, Verif...Announcement of 18th IEEE International Conference on Software Testing, Verif...
Announcement of 18th IEEE International Conference on Software Testing, Verif...

International Workshop on Artificial Intelligence in Software Testing
International Workshop on Artificial Intelligence in Software TestingInternational Workshop on Artificial Intelligence in Software Testing
International Workshop on Artificial Intelligence in Software Testing

somanykidsbutsofewfathers-140705000023-phpapp02.pptx
somanykidsbutsofewfathers-140705000023-phpapp02.pptxsomanykidsbutsofewfathers-140705000023-phpapp02.pptx
somanykidsbutsofewfathers-140705000023-phpapp02.pptx


IBM Global Security Kit as a Cryptographic layer for IBM middleware

  • 1. © 2015 IBM Corporation1 IBM Systems - Middleware IBM Global Security Kit as a Cryptographic layer for IBM middleware Troubleshooting, compliance and other security implications Oktawian Powązka
  • 2. © 2015 IBM Corporation2 IBM Systems - Middleware GSKit intro  GSKit is a component...not a stand-alone product,  Shared by IBM products to facilitate SSL/TLS communication and secure messaging,  GSKit is Common Criteria and FIPS certified,  Offered on wide spectrum of host platforms and operating systems,  Delivered for IBM internal use in two different formats:  Isolated ICC component (Lotus Notes),  The whole GSKit package.  Global vs Local install fluctuations
  • 3. © 2015 IBM Corporation3 IBM Systems - Middleware Applications  NETCOOL/OMNIBUS,  Informix,  WAS/IHS,  Tivoli security family: TAMeB/TAMBI/TIM, ...  <SecureWay / Tivoli / Security> Directory Server,  TLM,  TSM,  ITCAM,  WebSphere MQ,  Lotus Notes/Domino,  CMOD  DB2
  • 4. © 2015 IBM Corporation4 IBM Systems - Middleware  Native: gsk<x>capicmd / runmqakm  Ikeyman from command line: Ikeycmd / gsk<x>cmd / runmqckm / nc_gskcmd / mqiptKeycmd  Ikeyman GUI: Ikeyman / gsk<x>ikm / strmqikm / nc_ikeyman / mqiptKeyman / pcsikm / ikmguiw  Two shapes of Ikeyman : - Java launcher (doesn’t forward arguments ‘-D’ to JVM !!!) - Java wrapper GSKit Commands family
  • 5. © 2015 IBM Corporation5 IBM Systems - Middleware GSKit API Formal ways to access GSKit interfaces are:  SSL Toolkit / Secure Sockets API / SSL for C (using gsk<x>ssl library) provides SSL/TLS,  IDUP-GSS API (using gsk<x>acmeidup library) provides Signed/Enveloped Data protection accordingly to RFC 2479.  ICC stub (using gsk<x>iccs library) provides GSKit Crypto module based on OpenSSL  Key Management for C (using gsk<x>km library) provides keys and certificates management functionality
  • 6. © 2015 IBM Corporation6 IBM Systems - Middleware Rules of GSKit engagement Time to Look at some Myths and Facts  No customized/extra features per specific product,  No such thing as dedicated Java/JVM installation for IKeyman,  GSKit inherits the process space of the calling program, including privileges and access permissions,  No distinction in keys/certs or any crypto formats between 32 / 64 bit systems,  BSafe as a GSKit Crypto provider was always supported although not recommended, Facts Myths
  • 7. © 2015 IBM Corporation7 IBM Systems - Middleware GSKit Crypto providers ICC stub (gsk<x>iccs.<dll/so>) IBM OpenSSL wrapper (icclib.<dll/so>) OpenSSL SSLeay package (libeay32<x>.dll/libcrypto.so) GSKit Crypto utility (gsk<x>cms.<dll/so>) GSKit User interface (gsk<x>capicmd) RSA BSAFE (gsk<x>krsw.<dll/so>) SSL Toolkit (gsk<x>ssl.<dll/so>) WMQ MCA (amqrmppa)
  • 8. © 2015 IBM Corporation8 IBM Systems - Middleware ICC - IBM Crypto for C  IBM ICC is a cryptographic module dedicated for IBM products,  It act as a ‘compliancy’ wrapper (icclib) around the OpenSSL SSLeay package,  ICC exports only a subset of the OpenSSL crypto library,  Native OpenSSL data types are not directly exposed due to ‘name mangling’ (Lotus Notes case),  Strict rules for ICC modules integrity check (amended by 8.x),  In 8.x the FIPS mode is implicit using certified ICC module (un-certified ICC version can be accessed explicitly),  ICC initialization can be controlled by Environment Variables,  Initialization process does impact performance.
  • 9. © 2015 IBM Corporation9 IBM Systems - Middleware Certificate formats X.509 ASN.1 DER encoded Certificate  .der The DER format as a binary representation of a certificate,  .arm / .pem / .cer / .crt - typical extensions for Base64 encoded certificates ‘-----BEGIN CERTIFICATE----- ...’  .p7b / .p7 / .smime / .eml (PKCS#7) - Base64 or binary format ‘-----BEGIN PKCS7---- ...’
  • 10. © 2015 IBM Corporation10 IBM Systems - Middleware X.509 Certificate structure 0000: 30 82 01 4e ; SEQUENCE (14e Bytes) ... 0015: 06 08 ; OBJECT_ID (8 Bytes) 0017: 2a 86 48 ce 3d 04 03 04 ; 1.2.840.10045.4.3.4 sha512ECDSA 0000: 30 82 01 4e ; SEQUENCE (14e Bytes) ... 0015: 06 08 ; OBJECT_ID (8 Bytes) 0017: 2a 86 48 ce 3d 04 03 04 ; 1.2.840.10045.4.3.4 sha512ECDSA 00: 30 82 01 4e 30 82 01 02 a0 03 02 01 02 02 04 55 ...N0..........U 10: 29 2d c4 30 0c 06 08 2a 86 48 ce 3d 04 03 04 05 )-.0...*.H.=.... 00: 30 82 01 4e 30 82 01 02 a0 03 02 01 02 02 04 55 ...N0..........U 10: 29 2d c4 30 0c 06 08 2a 86 48 ce 3d 04 03 04 05 )-.0...*.H.=.... -----BEGIN CERTIFICATE----- MIIFKzCCBBOgAwIBAgIQNmWFB3qIZ6tY9KCU+BA3MzANBgkqhkiG9w0BAQUFADCB yjELMAkGA1UEBhMCVVMxFzAVBgNVBAoTDlZlcmlTaWduLCBJbmMuMR8wHQYDVQQL -----BEGIN CERTIFICATE----- MIIFKzCCBBOgAwIBAgIQNmWFB3qIZ6tY9KCU+BA3MzANBgkqhkiG9w0BAQUFADCB yjELMAkGA1UEBhMCVVMxFzAVBgNVBAoTDlZlcmlTaWduLCBJbmMuMR8wHQYDVQQL ASN.1 Certificate structure Binary view of ASN.1 DER encoded Certificate (.der) Base64 representation of ASN.1 DER encoded Certificate (.arm / .pem)
  • 11. © 2015 IBM Corporation11 IBM Systems - Middleware  gsk<x>cmd (or other Java wrappers like runmqckm/nc_gskcmd) : -target_type <cms | jceks | jks | kdb | p12 | pkcs12> p12 pkcs12 cms kdb  gsk<x>capicmd : -target_type <cms | kdb | pkcs12 | p12> p12 pkcs12 cms kdb  File extension rules !!! Exporting personal certificates
  • 12. © 2015 IBM Corporation12 IBM Systems - Middleware GSKit Key Store formats  CMS  PKCS#12  PKCS#11  PKCS#7 (limited support)
  • 13. © 2015 IBM Corporation13 IBM Systems - Middleware GSKit’s CMS formats  CMS V3 still used but slowly deprecated,  CMS V4 FIPS compliant format,  CMS V5 = PKCS#12 standard Cryptographic Message Syntax Certificate Management System
  • 14. © 2015 IBM Corporation14 IBM Systems - Middleware CMS keystores under the hood 0000 37 48 04 02 00 00 00 00 58 35 30 39 4b 45 59 00 7H......X509KEY. 0010 00 00 13 88 00 00 00 17 00 00 00 00 00 00 00 00 ................ 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 66 b8 99 fa 92 8f 92 9b a5 38 25 db 01 5a 73 af f........8%..Zs. 0040 48 e0 a9 d2 fe 4e 49 b8 e7 35 a8 13 71 76 2f 15 H....NI..5..qv/. 0050 6b ab 05 ec cd a3 1c a4 00 00 00 01 00 00 00 01 k............... 0060 00 00 05 1e 30 82 05 1a 02 01 01 a1 82 04 dc 30 ....0..........0 0000 37 48 04 02 00 00 00 00 58 35 30 39 4b 45 59 00 7H......X509KEY. 0010 00 00 13 88 00 00 00 17 00 00 00 00 00 00 00 00 ................ 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 66 b8 99 fa 92 8f 92 9b a5 38 25 db 01 5a 73 af f........8%..Zs. 0040 48 e0 a9 d2 fe 4e 49 b8 e7 35 a8 13 71 76 2f 15 H....NI..5..qv/. 0050 6b ab 05 ec cd a3 1c a4 00 00 00 01 00 00 00 01 k............... 0060 00 00 05 1e 30 82 05 1a 02 01 01 a1 82 04 dc 30 ....0..........0 0000 37 48 03 02 00 00 00 00 58 35 30 39 4b 45 59 00 7H......X509KEY. 0010 00 00 13 88 00 00 00 17 00 00 00 00 00 00 00 00 ................ 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 fe 2d 36 ab 04 63 79 f7 9f ed ed 9e 36 59 a4 b2 .-6..cy.....6Y.. 0040 61 cf a8 c0 5e 22 c2 a2 03 a9 e1 17 2c 5f dd b6 a...^"......,_.. 0050 00 00 00 01 00 00 00 01 00 00 05 1e 30 82 05 1a ............0... 0000 37 48 03 02 00 00 00 00 58 35 30 39 4b 45 59 00 7H......X509KEY. 0010 00 00 13 88 00 00 00 17 00 00 00 00 00 00 00 00 ................ 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 fe 2d 36 ab 04 63 79 f7 9f ed ed 9e 36 59 a4 b2 .-6..cy.....6Y.. 0040 61 cf a8 c0 5e 22 c2 a2 03 a9 e1 17 2c 5f dd b6 a...^"......,_.. 0050 00 00 00 01 00 00 00 01 00 00 05 1e 30 82 05 1a ............0... CMS V3 CMS V4
  • 15. © 2015 IBM Corporation15 IBM Systems - Middleware GSKit keystore validation Validation of PKCS#12 keystore file (IKeyman)  gsk8capicmd -keydb -list -db <keystore file> -pw <password> ... KDB file format is CMS version 5 (PKCS12) OID = PKCS12pbeWithSHAAnd40BitRC2CBC ... KDB file format is CMS version 5 (PKCS12) OID = PKCS12pbeWithSHAAnd40BitRC2CBC Validation of CMS keystore file ... KDB file format is CMS version 4 hdmac: 66 B8 99 FA 92 8F 92 9B A5 38 25 DB 01 5A 73 AF 48 E0 A9 D2 dbmac: FE 4E 49 B8 E7 35 A8 13 71 76 2F 15 6B AB 05 EC CD A3 1C A4 File size is as expected, good. ... KDB file format is CMS version 4 hdmac: 66 B8 99 FA 92 8F 92 9B A5 38 25 DB 01 5A 73 AF 48 E0 A9 D2 dbmac: FE 4E 49 B8 E7 35 A8 13 71 76 2F 15 6B AB 05 EC CD A3 1C A4 File size is as expected, good.
  • 16. © 2015 IBM Corporation16 IBM Systems - Middleware CMS Keystore password tale 0000 85 94 86 86 82 9a 87 91 c7 f5 4e 25 8b aa 05 9c ..........N%.... 0010 d0 b4 fd 59 91 95 a4 0a d9 85 98 7d ba 59 e7 10 ...Y.......}.Y.. 0020 3f 05 ce cb 96 e1 4e 11 4b 89 71 ae 25 d8 82 29 ?.....N.K.q.%..) 0030 ca bf f9 4f 02 47 1a 57 18 2b f4 14 68 fa f2 50 ...O.G.W.+..h..P 0040 d8 cd 04 3b 21 4e fe 2a f7 4b 71 ba a2 3c 5f 63 ...;!N.*.Kq..<_c 0050 b1 76 69 df fe f4 86 0f 4e 43 9e 7d db 5a 57 66 .vi.....NC.}.ZWf 0060 16 99 79 87 fa a3 2e ec 6f fc 5d 1c 3a ed b7 dc ..y.....o.].:... 0070 54 9d 4f c2 4a 75 7c 7a ef f1 43 c8 ab ff bd c2 T.O.Ju|z..C..... 0000 85 94 86 86 82 9a 87 91 c7 f5 4e 25 8b aa 05 9c ..........N%.... 0010 d0 b4 fd 59 91 95 a4 0a d9 85 98 7d ba 59 e7 10 ...Y.......}.Y.. 0020 3f 05 ce cb 96 e1 4e 11 4b 89 71 ae 25 d8 82 29 ?.....N.K.q.%..) 0030 ca bf f9 4f 02 47 1a 57 18 2b f4 14 68 fa f2 50 ...O.G.W.+..h..P 0040 d8 cd 04 3b 21 4e fe 2a f7 4b 71 ba a2 3c 5f 63 ...;!N.*.Kq..<_c 0050 b1 76 69 df fe f4 86 0f 4e 43 9e 7d db 5a 57 66 .vi.....NC.}.ZWf 0060 16 99 79 87 fa a3 2e ec 6f fc 5d 1c 3a ed b7 dc ..y.....o.].:... 0070 54 9d 4f c2 4a 75 7c 7a ef f1 43 c8 ab ff bd c2 T.O.Ju|z..C..... ‘password2’ 0000 85 94 86 86 82 9a 87 91 c4 f5 af 58 00 2d d8 f3 ...........X.-.. 0010 63 a1 81 1a ea 4e 83 22 a7 8f b5 4d 85 da 88 49 c....N."...M...I 0020 82 42 ce 45 a5 8d d6 9f 59 ed 10 ea 06 72 46 f3 .B.E....Y....rF. 0030 0a 9d be 2b c5 bf 0c 88 ed 65 b4 6a 6b 2d 0a 4e ...+.....e.jk-.N 0040 c2 f3 b2 ac 01 be e2 ff 55 3f cf 50 72 47 31 33 ........U?.PrG13 0050 24 8c c3 17 27 12 84 f4 e2 ce 57 6c 18 96 47 be $...'.....Wl..G. 0060 f8 ad 19 f6 d6 64 df b8 e4 22 3c 32 73 8a dc ca .....d..."<2s... 0070 be 94 bf 51 f7 07 6e d6 14 ec 5e 33 c3 c0 71 d2 ...Q..n...^3..q. 0000 85 94 86 86 82 9a 87 91 c4 f5 af 58 00 2d d8 f3 ...........X.-.. 0010 63 a1 81 1a ea 4e 83 22 a7 8f b5 4d 85 da 88 49 c....N."...M...I 0020 82 42 ce 45 a5 8d d6 9f 59 ed 10 ea 06 72 46 f3 .B.E....Y....rF. 0030 0a 9d be 2b c5 bf 0c 88 ed 65 b4 6a 6b 2d 0a 4e ...+.....e.jk-.N 0040 c2 f3 b2 ac 01 be e2 ff 55 3f cf 50 72 47 31 33 ........U?.PrG13 0050 24 8c c3 17 27 12 84 f4 e2 ce 57 6c 18 96 47 be $...'.....Wl..G. 0060 f8 ad 19 f6 d6 64 df b8 e4 22 3c 32 73 8a dc ca .....d..."<2s... 0070 be 94 bf 51 f7 07 6e d6 14 ec 5e 33 c3 c0 71 d2 ...Q..n...^3..q. ‘password1’
  • 17. © 2015 IBM Corporation17 IBM Systems - Middleware  Used to bundle a private key with X.509 certificate,  Popular extensions: ‘.p12’ , ‘.pfx’,  PFX as a broken predecessor of PKCS#12,  The PFX...is just protected wrapper (40bit RC2) around initial PKCS#12 content,  Minimum 128bit key size for FIPS compliant keystore,  PKCS12S2 = ???...PFX rules,  gsk8capicmd -keydb -convert -db <PKCS#12 keystore file> -new_format pkcs12 -new_db <PKCS#12 keystore file> PKCS#12 under IKeyman/GSKit domain ... PKCS7 Encrypted data: pbeWithSHA1And40BitRC2-CBC Shrouded Keybag: pbeWithSHA1And3-KeyTripleDES-CBC ... ... PKCS7 Encrypted data: pbeWithSHA1And40BitRC2-CBC Shrouded Keybag: pbeWithSHA1And3-KeyTripleDES-CBC ... openssl dump of PKCS#12 file (IKeyman)
  • 18. © 2015 IBM Corporation18 IBM Systems - Middleware GSKit certificate requests database 0000 37 48 03 01 00 00 00 00 58 35 30 39 4b 59 50 00 7H......X509KYP. 0010 00 00 13 88 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 47 32 fc 56 a0 ab e6 3e 9a 66 b3 4b 12 62 0c ec G2.V...>.f.K.b.. 0040 b1 bb 19 c3 f9 fb 97 87 36 e7 99 2c fc 0c 89 6b ........6..,...k ... 01e0 84 2f 04 c0 d9 eb 00 87 f3 27 74 6f 30 82 02 a0 ./.......'to0... 01f0 30 1a 06 09 2a 86 48 86 f7 0d 01 05 0a 30 0d 04 0...*.H......0.. ... 0000 37 48 03 01 00 00 00 00 58 35 30 39 4b 59 50 00 7H......X509KYP. 0010 00 00 13 88 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 47 32 fc 56 a0 ab e6 3e 9a 66 b3 4b 12 62 0c ec G2.V...>.f.K.b.. 0040 b1 bb 19 c3 f9 fb 97 87 36 e7 99 2c fc 0c 89 6b ........6..,...k ... 01e0 84 2f 04 c0 d9 eb 00 87 f3 27 74 6f 30 82 02 a0 ./.......'to0... 01f0 30 1a 06 09 2a 86 48 86 f7 0d 01 05 0a 30 0d 04 0...*.H......0.. ... ‘.rdb’ file structure (IKeyman)  ‘.rdb’ file contains private key (PKCS#8) plus copy of certificate request (PKCS#10)  Be careful with ‘.rdb’ files backups...!!!  ‘06 09 2a 86 48 86 f7 0d 01 05 0a’ - PBE With SHA1 And DES  ‘06 0b 2a 86 48 86 f7 0d 01 0c 05 01 03’ - PBE With SHA1 And TripleDES
  • 19. © 2015 IBM Corporation19 IBM Systems - Middleware GSKit Certificate requests  Certificate request (PKCS#10) file contains public key and set of attributes. ----- BEGIN NEW CERTIFICATE REQUEST ----- MIIBfTCB5wIBADA+MRAwDgYDVQQKEwdjb21wYW55MQ0wCwYDVQQLEwR1bml0MRsw ... ----- END NEW CERTIFICATE REQUEST ----- ----- BEGIN NEW CERTIFICATE REQUEST ----- MIIBfTCB5wIBADA+MRAwDgYDVQQKEwdjb21wYW55MQ0wCwYDVQQLEwR1bml0MRsw ... ----- END NEW CERTIFICATE REQUEST ----- Base64 representation of ASN.1 DER encoded certificate request file (.arm / .pem) PKCS# 7 PKCS# 10 CA‘.rdb’ file
  • 20. © 2015 IBM Corporation20 IBM Systems - Middleware GSKit Certifications  Common Criteria  FIPS  SUITE B
  • 21. © 2015 IBM Corporation21 IBM Systems - Middleware  BSafe as a crypto provider is not supported,  Verify NIST website that the particular version of GSKit indeed contains an ICC crypto module that is FIPS certified (formal certification is not very frequent...the latest is 8.2.2.0),  GSKit v8.x provides the multi ICC module instance : ‘C’ folder contains the latest FIPS certified release, ‘N’ folder contains the latest version, The swap can be done through ICC_IGNORE_FIPS (formal compliance vs performance/progress/security),  FIPS approved ciphers & FIPS approved mode of operation,  OpenSSL FIPS approved functions for distributions start from version 0.9.7j...GSKit 7.0.x encapsulates 0.9.7c from 2003, GSKit under FIPS 140-2
  • 22. © 2015 IBM Corporation22 IBM Systems - Middleware FIPS implications  When the ICC module is initialized, it goes through SelfTest procedure: - module integrity check, - crypto algorithms check (Known Answer Test impacts performance...RNG set),  ICC Initialization is done once per process basis,  Key Zeroization wrapper extends OpenSSL implementation,  Certificates and Keys should be created by a FIPS-approved module,  GSKit command line utilities and famous ‘-fips’ switch: in 7.x it just rejects MD5 and BSafe usage...controversial, in 8.x it also checks the key sizes (for new objects only) and ICC module compliance, No ‘-fips’ switch for IKeyman command line utilities !!!
  • 23. © 2015 IBM Corporation23 IBM Systems - Middleware  Suite B as a sub-set of FIPS approved modes,  RSA -> EC,  Secret vs Top Secret level,  Requirements as to key/hash length and cipher suite,  TLS version 1.2,  GSKit 8.x and above,  No mode for GSKit command line utilities...compliance setup only by SSL Toolkit (GSK_SSL_SUITEB_MODE_PROCESSING & GSK_STRICT_SIGALG),  ‘-sigalg’ switch for ‘Suite B’ compliant certificates,  CMS / RDB keystore formats are out of scope. SUITE B - next step in sophisticated crypto recommendations Does NSA inflence the EC set ?
  • 24. © 2015 IBM Corporation24 IBM Systems - Middleware Common Criteria #1  GSKit is certified to EAL-4,  The latest certified stream is 8.0.14.x (includes OpenSSL 0.9.8),  Enforcing CC mode can be controlled by GSK_CC_MODE_CONTROL,  Implicit FIPS-compliant mode,  BSafe as a crypto provider is not supported,  Successful ICC SelfTest,  The use of stash files seems to be controversial (CC for 7c = 7.0.3.x),  Enforce requirements for the passwords strength (‘-strong’),  User-typed passwords are not accepted (use ‘-random -create’).
  • 25. © 2015 IBM Corporation25 IBM Systems - Middleware Common Criteria #2  GSKit must ignore all runtime Environment Variables (reset the state),  Can’t use CMS / RDB V3,  Enforce certificate validation accordingly to RFC 5280,  IKeyman (and all Java related elements) are out of scope,  Disable PKCS#11 hardware support,  Single user only environment... remote login must be disabled,  Physical device and Operating System must be located within controlled access facilities.
  • 26. © 2015 IBM Corporation26 IBM Systems - Middleware GSKit and RNG  The default GSKit RNG is HMAC-SHA256/TRNG implemented accordingly to SP800-90,  TRNG vs hardware support,  Use ICC_TRNG to control the entropy source for ICC (‘/dev/random’, RdRand),  Alternate DRBG/PRNG (SHA256) through non-FIPS library (‘/dev/urandom’),  GSKit RNG variants are compatible with an old ANSI X9.31,  No Dual_EC_DRBG,
  • 27. © 2015 IBM Corporation27 IBM Systems - Middleware GSKit in the JAVA world
  • 28. © 2015 IBM Corporation28 IBM Systems - Middleware iKeyman...a gateway into the crypto world  iKeyman can be run in two modes: - Graphic User Interface (GUI), - Command Line (CLI).  GUI and CLI are identical as far as cryptographic aspects goes,  Historically (before GSKit V8), iKeyman was simultaneously bundled with GSKit and Java package,  IKeyman is just a java wrapper / launcher started from ‘com.ibm.gsk.ikeyman.<Ikeyman/ikeycmd>’ class,  Two parallel implementations : - gsk<x>cls.jar - GSKit iKeyman - gskikm.jar - JDK iKeyman  Both jars are loaded when started through gsk<x>ikm or gsk<x>cmd...just brilliant. (classes from gsk<x>cls.jar will never be executed by JVM)  gsk<x>ikm and gsk<x>cmd use JAVA_HOME for JVM location,
  • 29. © 2015 IBM Corporation29 IBM Systems - Middleware iKeyman versioning saga The ‘About’ popup from iKeyman 8 The ‘About’ popup from iKeyman 7  ‘iKeyman 8’ is always run from the gskikm.jar located under ‘…/java/jre/lib/ext’  ‘iKeyman 7’ can be run from the ‘gsk<x>cls.jar’ or ‘gskikm.jar’...you never know
  • 30. © 2015 IBM Corporation30 IBM Systems - Middleware  Is the removal of gskikm.jar (JDK iKeyman) a good solution ?  Java JCE/JCEFIPS vs GSKit cryptographic provider,  Use unrestricted Policy files (‘local_policy.jar’ / ‘US_export_policy.jar’) (restricted crypto never reduces hash functions availability, SHA-2 family available from 7.0.4),  iKeyman initialization is controlled by ikminit.properties file (located under ‘…gsk<x>classes’ or ‘…java<x>jrebin’ folder), ... DEFAULT_FIPS_MODE_PROCESSING=ON DEFAULT_CRYPTOGRAPHIC_BASE_LIBRARY=ICC DEFAULT_SIGNATURE_ALGORITHM=SHA1_WITH_RSA DEFAULT_CMS_STORE_VER_V4=true ... DEFAULT_FIPS_MODE_PROCESSING=ON DEFAULT_CRYPTOGRAPHIC_BASE_LIBRARY=ICC DEFAULT_SIGNATURE_ALGORITHM=SHA1_WITH_RSA DEFAULT_CMS_STORE_VER_V4=true iKeyman troubleshooting Excerpt from ikminit.properties file iKeyman 7 (disabled by default) iKeyman 7/8 (can be ignored) iKeyman 7 (can be ignored) iKeyman 7 (can be ignored)
  • 31. © 2015 IBM Corporation31 IBM Systems - Middleware  SHA5…well, this is still a song of the future. Hash suite ‘counterfeit’  Signature Algorithms defined in ‘iKeyman 7’
  • 32. © 2015 IBM Corporation32 IBM Systems - Middleware  ‘iKeyman 7’ loads a CMS provider (GSKit JNI wrapper) automatically (com.ibm.spi.IBMCMSProvider), no need for updates in ‘java.security‘ file !!!  ‘iKeyman 8’ uses a dedicated Java based CMS provider (com.ibm.security.cmskeystore.CMSProvider - ibmcmsprovider.jar) this model does require setup within ‘java.security‘ file.  You can’t mix those CMS providers... Java CMS...Certificate Management System providers Confusing keystore types under ‘iKeyman 7’
  • 33. © 2015 IBM Corporation33 IBM Systems - Middleware  JAVA_HOME rules,  gsk<x>kjni library requires the same ‘bitness’ as underlying JVM,  Use truss / procmon when in doubt, GSKit IKeyman in 64bit world
  • 34. © 2015 IBM Corporation34 IBM Systems - Middleware IKEYMAN under FIPS 140- 2  Requires at least Java 6.0,  Setup java.security file by adding IBMJCEFIPS as a security provider (watch out for IBMJCE / IBMJCEFIPS reciprocal order),  DEFAULT_FIPS_MODE_PROCESSING setup not really required,  ECDSA for Suite B compliance available since 8.0.383,  IBMJCEFIPS does impact performance,  Make sure to use CMS V4...watch out for ‘.rdb’ files format,
  • 35. © 2015 IBM Corporation35 IBM Systems - Middleware IDUP-GSS...signed/enveloped data protection  Independent Data Unit Protection designed by IETF,  IDUP-GSS provides a standard for cryptographic envelope,  Describes an encapsulation syntax for a protected data,  Used by WebSphere MQ Advanced Message Security.
  • 36. © 2015 IBM Corporation36 IBM Systems - Middleware GSKit troubleshooting  ICC_TRNG and ICC_IGNORE_FIPS  <Ikeyman CMD/GUI> -Dkeyman.debug=true -Dkeyman.jnitracing=on  java -Djava.security.debug=all com.ibm.gsk.ikeyman.ikeycmd ...  GSKCAPICMD_TRACE_FILE = <...>  GSKKM_TRACE_FILE = <...>  GSKKM_TRACE_LEVEL=0xFFFF  GSK_TRACE=0xFFFF  GSK_TRACE_FILE = <...>  gsk8capicmd -keydb -convert -db <keystore file> -new_format ... -new_db <keystore file>
  • 37. © 2015 IBM Corporation37 IBM Systems - Middleware Keystores/Certificates troubleshooting tools  openssl s_client -connect IP/Host:Port  openssl asn1parse -in <file in Base64 format>  certutil -<asn/dump> <file in Base64/Binary/PKCS#7/PKCS#12 format> (certutil can also be used as a HEX viewer)  Keytool -printcert -file <cert in Base64/Binary>  dumpasn1
  • 38. © 2015 IBM Corporation38 IBM Systems - Middleware

Editor's Notes

  1. BSafe/OpenSSL use can be configured in TAM based products through ‘base-crypto-library’ stanza
