Vladimir Tsukur presented on hypermedia APIs and HATEOAS. He discussed REST, the Richardson Maturity Model, CRUD vs more advanced APIs, and link relations. He demonstrated Mason, a proposed hypermedia format that uses controls and namespaces to define available state transitions and link semantics.

1. 2016Vladimir Tsukur @ Tech Lunch
hypermedia APIs
and <HATEOAS>

2. REST
Volodymyr Tsukur partner @
software
engineering
manager @
flushdia vtsukur
program
committee @

3. Web / HTTP API

4. Richardson Maturity Model

5. Идея! ЧЕРНЫЙ
РЫНОК ВАЛЮТ!

6. 6

8. DEMO TIME !

9. 9
Method URL Task
POST /ads Create new ad
GET /ads View ads
GET /ads/{id} Get ad
PATCH / PUT /ads/{id} Update ad
DELETE /ads/{id} Delete ad
CRUD Style API

10. Должен же быть
БИЗНЕС-
ПРОЦЕСС!

11. if (status == Status.NEW) {
publishedAt = LocalDateTime.now();
status = Status.PUBLISHED;
} …
CRUD is NOT enough

12. 12
Method URL Task
PUT /ads/{id}/publishing Publish ad
PUT /ads/{id}/expiration Expire ad
GET /ads/search/published Get published ads
API Changes

13. DEMO TIME !

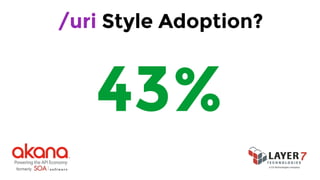

14. /uri Style Adoption?
43%

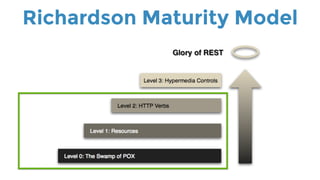

15. Richardson Maturity Model

16. 16

17. 17
Task Method URL
Update ad PATCH /ads/{id}
Delete ad DELETE /ads/{id}
Publish ad PUT /ads/{id}/publishing
Expire ad PUT /ads/{id}/expiration
URL Binding & Construction

18. URL Change Drivers

19. URL Change Drivers
•monolith → micro-services
•deployment requirements / proxies
•renaming
•optimization by locality
•caching
•…

20. 20
Task Method URL
Update ad
(only if NEW) PATCH /ads/{id}
Delete ad
(only if NEW) DELETE /ads/{id}
Publish ad
(only if NEW) PUT /ads/{id}/publishing
Expire ad
(only if
PUBLISHED)
PUT /ads/{id}/expiration
"Figuring" Out the Flow

21. Security!

22. 22
Task Method URL
Update ad
(only if NEW and user
has permissions)
PATCH /ads/{id}
Delete ad
(only if NEW and user
has permissions)
DELETE /ads/{id}
Publish ad
(only if NEW and user
has permissions)
PUT /ads/{id}/publishing
Expire ad
(only if PUBLISHED and
user has permissions)
PUT /ads/{id}/expiration
Security!

23. Должно работать
на моем iPhone 6s
!!!!!

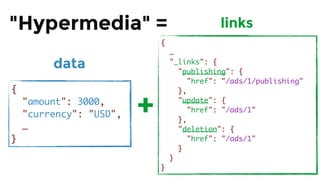

25. "Hypermedia" =
{
"amount": 3000,
"currency": "USD",
…
}
data
{
…
"_links": {
"publishing": {
"href": "/ads/1/publishing"
},
"update": {
"href": "/ads/1"
},
"deletion": {
"href": "/ads/1"
}
}
}
links
+

26. 26
Link Relation Task Method
update Update ad PATCH
deletion Delete ad DELETE
publishing Publish ad PUT
expiration Expire ad PUT
Hypermedia API

27. DEMO TIME !

28. Hypermedia Client
if (ad._links.has("publishing")) {
// draw publishing button / UI
}

29. "Simple" Hypermedia
✓where to go?
✓when?
- how?

30. Non-Hypermedia Client

31. Hypermedia Client

32. "I want hypermedia!" (2014)
0 %
7 %
14 %
21 %
28 %
Hypermedia SOAP CRUD

33. 40%
"I want hypermedia!" (2015)

35. Давай глубже!

36. «A REST API should spend almost all of its
descriptive effort in defining the media type(s)
used for representing resources and driving
application state, or in defining extended relation
names and/or hypertext-enabled mark-up for
existing standard media types.»
Roy T. Fielding, 2008

37. Hypertext Application Language

38. Mason{
"amount": 3000,
"currency": "USD",
"rate": 25.8,
…
"@controls": {
"user": {
"href": "/users/1536c64"
},
"ad-publish": {
"href": "/ads/1536c64/publishing",
"method": "PUT"
}
}
}

39. Hypermedia FactorsHypermedia Factors
Pokemons
level of hypermedia support

40. CL = Link Semantics
"_links": {
"user": {
"href": "/users/1"
}
}

41. IANA Link Relations
Name Description RFC
self Conveys an identifier for the link's context. RFC4287
first An IRI that refers to the furthest preceding resource in a series of resources. RFC5988
last An IRI that refers to the furthest following resource in a series of resources. RFC5988
up Refers to a parent document in a hierarchy of documents. RFC5988
item
The target IRI points to a resource that is a member of the collection
represented by the context IRI. RFC6573
collection
The target IRI points to a resource which represents the collection resource for
the context IRI. RFC6573
edit Refers to a resource that can be used to edit the link's context. RFC5023
prev/previous
Indicates that the link's context is a part of a series, and that the previous in
the series is the link target. HTML5
next
Indicates that the link's context is a part of a series, and that the next in the
series is the link target. HTML5

42. IANA Link Relations
Name Description RFC
create-form
The target IRI points to a resource where a submission form can be
obtained. RFC6861
edit-form
The target IRI points to a resource where a submission form for editing
associated resource can be obtained. RFC6861
payment Indicates a resource where payment is accepted RFC5988
latest-version
Points to a resource containing the latest (e.g., current) version of the
context. RFC5829
profile
Identifying that a resource representation conforms to a certain profile,
without affecting the non-profile semantics of the resource representation. RFC6906
search
Refers to a resource that can be used to search through the link's context
and related resources. OpenSearch
index Refers to an index. HTML4
about Refers to a resource that is the subject of the link's context. RFC6903
help Refers to context-sensitive help. HTML5

43. CL = Link Semantics
<link rel="stylesheet" src="styles.css" />

44. LE = Link Outbound
"_links": {
"ad": {
"href": "/ads/1536c64"
}
}

45. LE = Link Outbound
<a href="/ads/1536c64.html">
Buy, Rate: 25.0, USD 3000
</a>

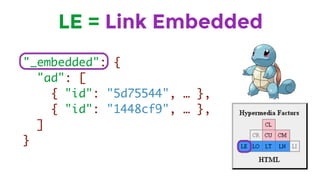

46. LE = Link Embedded
"_embedded": {
"ad": [
{ "id": "5d75544", … },
{ "id": "1448cf9", … },
]
}

47. LE = Link Embedded
<img src="/images/cities/lviv.jpg">

48. LT = Templated Queries
"_links": {
"ad-by-id": {
"href": "/ads{/id}",
"templated": true
}
}

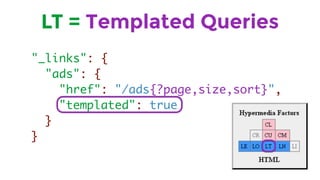

49. LT = Templated Queries
"_links": {
"ads": {
"href": "/ads{?page,size,sort}",
"templated": true
}
}

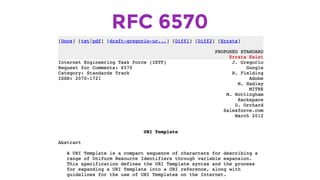

50. RFC 6570

51. LT = Templated Queries
<form method="get" action="/hotels/search">
<input name="query" type="text">
<input type="submit">
</form>

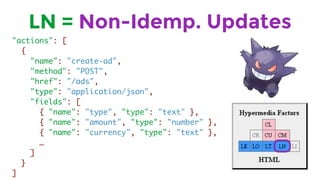

52. LN = Non-Idemp. Updates
"actions": [
{
"name": "create-ad",
"method": "POST",
"href": "/ads",
"type": "application/json",
"fields": [
{ "name": "type", "type": "text" },
{ "name": "amount", "type": "number" },
{ "name": "currency", "type": "text" },
…
]
}
]

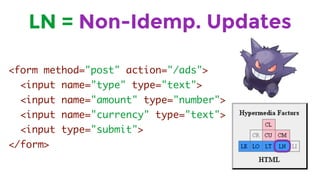

53. <form method="post" action="/ads">
<input name="type" type="text">
<input name="amount" type="number">
<input name="currency" type="text">
<input type="submit">
</form>
LN = Non-Idemp. Updates

54. LN = Idempotent Updates
"actions": [
{
"name": "delete-ad",
"method": "DELETE",
"href": "/ads/1d2e9f5"
}
]

55. CM = Method Modification
"actions": [
{
"name": "delete-ad",
"method": "DELETE",
"href": "/ads/1"
}
]

56. CM = Method Modification
"actions": [
{
"name": "delete-ad",
"method": "DELETE",
"href": "/ads/1"
}
]

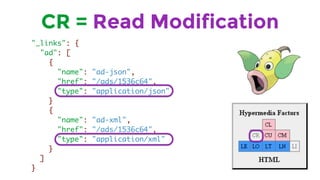

57. CR = Read Modification
"_links": {
"ad": [
{
"name": "ad-json",
"href": "/ads/1536c64",
"type": "application/json"
}
{
"name": "ad-xml",
"href": "/ads/1536c64",
"type": "application/xml"
}
]
}

58. Hypermedia Factors
?What about and

59. Hypermedia Factors
HTML XML JSON
LE ⩗ ⊗ ⊗
LO ⩗ ⊗ ⊗
LT ⩗ ⊗ ⊗
LN ⩗ ⊗ ⊗
LI ⊗ ⊗ ⊗
CR ⊗ ⊗ ⊗
CU ⩗ ⊗ ⊗
CM ⩗ ⊗ ⊗
CL ⩗ ⊗ ⊗

60. JSON-based Media Types
JSON-LD JSON API HAL Cj Siren Mason Uber
LE ⩗ ⩗ ⩗ ⩗ ⩗ ⩗ ⩗
LO ⩗ ⩗ ⩗ ⩗ ⩗ ⩗ ⩗
LT ⊗ ⩗ ⩗ ⩗ ⊗ ⩗ ⩗
LN ⊗ ⊗ ⊗ ⩗ ⩗ ⩗ ⩗
LI ⊗ ⊗ ⊗ ⩗ ⩗ ⩗ ⩗
CR ⊗ ⊗ ⩗ ⊗ ⩗ ⩗ ⩗
CU ⊗ ⊗ ⊗ ⊗ ⩗ ⩗ ⩗
CM ⊗ ⊗ ⊗ ⊗ ⩗ ⩗ ⩗
CL ⩗ ⩗ ⩗ ⩗ ⩗ ⩗ ⩗

61. Before Choosing Media Type
•list information client would want
from the API
•draw state diagram
-think "tasks"
-"(non-)idempotent", "(un-)safe"

62. {
"@id": "http://black-market.com/ads/1536c64",
"@context": "http://black-market.com/schema/ad.jsonld",
"amount": 3000,
"currency": "USD",
"rate": 25.8,
…
}
JSON-LD

63. {
"@context": {
"amount": "https://schema.org/amount",
"currency": "https://schema.org/currency",
"rate": {
"@id": "http://black-market.com/schema/rate",
"@type": "xsd:double"
},
…
}
}
http://black-market.com/schema/ad.jsonld

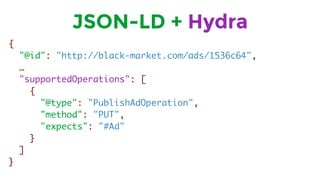

64. {
"@id": "http://black-market.com/ads/1536c64",
…
"supportedOperations": [
{
"@type": "PublishAdOperation",
"method": "PUT",
"expects": "#Ad"
}
]
}
JSON-LD + Hydra

65. {
"class": [ "ad" ],
"properties": {
"amount": 3000,
"currency": "USD",
…
},
"links": …,
"actions": [
{
"name": "create-ad",
"href": "/ads",
"method": "POST",
…
}
]
}
SIREN

66. CL = Link Semantics
"_links": {
"user": {
"href": "/users/1"
}
}

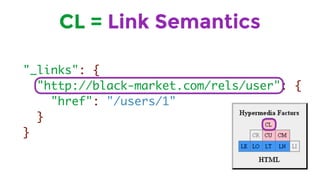

67. CL = Link Semantics
"_links": {
"http://black-market.com/rels/user": {
"href": "/users/1"
}
}

68. CL = Link Semantics
"_links": {
"urn:black-market.com/rels/user": {
"href": "/users/1"
}
}

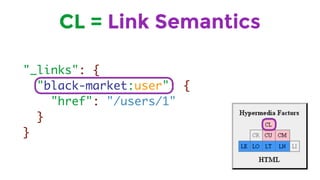

69. CL = Link Semantics
"_links": {
"black-market:user": {
"href": "/users/1"
}
}

70. CompactURIE
black-market=
http://black-market.com/rels/{rel}
black-market:user
http://black-market.com/rels/user

71. DEMO TIME !

72. Mason{
"amount": 3000,
"currency": "USD",
"rate": 25.8,
…
"@namespaces": {
"black-market": { "name": "http://black-market.com/rels/" }
},
"@controls": {
"black-market:user": { "href": "/users/1536c64" },
"black-market:ad-publish": {
"href": "/ads/1536c64/publishing",
"method": "POST"
}
}
}

73. А документация?

74. Documentation
•no URLs except of the entry point
•resources
•links (namespaces)
•HTTP status codes, verbs
•authentication, rate limiting
•errors

75. DEMO TIME !

76. Profiles
✓where to go?
✓when?
✓how?

77. DEMO TIME !

78. 78
Thanks!
Questions?
