![29Page
Generating APIs and sample applications
– Programmable business networks
– Direct consequence of a deployed model
– Query network to generate domain APIs
– Generate sample application for deployed
business network
– Yeoman questionnaire
yo fabric-composer[:angular]
– Also generate test cases using mocha and
chai node.js test packages
– composer generator tests
– Programmable business network provides
many more opportunities for interaction](https://image.slidesharecdn.com/hyperledgercomposerupdate2017-04-05-170505102310/85/Hyperledger-Composer-Update-2017-04-05-29-320.jpg)
![31Page
Command Line Interfaces
– Suite of commands to interact with an
operational business network
– Target use is scripting and interactive
operations
– Packaged as composer-cli in npm
– Generate full list with
composer –help. Individual (sub)
commands support -help
– CLI uses public APIs
– Users can create their own CLIs
$> composer –help
Commands:
archive <subcommand> Composer archive command
generator <subcommand> Composer generator command
identity <subcommand> Composer identity command
network <subcommand> Composer network command
participant <subcommand> Composer participant command
transaction <subcommand> Composer transaction command
Options:
--help Show help [boolean]
-v, --version Show version number [boolean]
Examples:
composer identity issue
For more information: http://fabric-composer.org/reference
$> composer transaction submit –help
composer transaction submit [options]
Options:
--help Show help [boolean]
-v, --version Show version number [boolean]
--connectionProfileName, -p The connection profile name [string]
--businessNetworkName, -n The business network name [string] [required]
--enrollId, -i The enrollment ID of the user [string] [required]
--enrollSecret, -s The enrollment secret of the user [string]
--data, -d Transactions JSON object [string] [required]](https://image.slidesharecdn.com/hyperledgercomposerupdate2017-04-05-170505102310/85/Hyperledger-Composer-Update-2017-04-05-31-320.jpg)
Uploaded byDan Selman
Hyperledger Composer Update 2017-04-05
Hyperledger Composer is a suite of tools for developing blockchain applications. It provides high-level abstractions like models, transactions, and participants to develop business networks. The document discusses upcoming releases of Composer that will add features like events, queries, and security enhancements. It also provides an overview of key concepts in Composer like modeling assets and participants, implementing transactions, and access control lists.
More Related Content
Similar to Hyperledger Composer Update 2017-04-05
Hyperledger Composer Update 2017-04-05
- 1. 1Page Hyperledger Composer Project Update 4thMay 2017 Dan Selman, Maintainer @danielselman
- 2. 2 Dan Selman -@danielselman • Maintainer for Hyperledger Composer • STSM & Chief Architect at IBM • Previously ILOG and BEA Systems • Expert in business rules and event processing • Passion for IT and business collaboration
- 3. 3 Agenda • Introduction • Projectoutlook • Playground demo • Technical overview
- 4.
- 5. 5 Blockchain for business •Blockchain builds on basic business concepts – Business Networks connect businesses – Assets flow over business networks – Transactions describe asset exchange – Participants submit transactions – Contracts define the rules for transactions – The ledger is a log of transactions • Blockchain provides a shared, replicated ledger – Consensus, immutability, finality, provenance
- 6. 6Page What is HyperledgerComposer? – Blockchains provide a low-level interface for business applications – Smart contract code run on a distributed processing system – Inputs go into an immutable ledger; outputs to a data store – Applications are built on top of a low level of abstraction – Hyperledger Composer – A suite of high level application abstractions for business networks – Emphasis on business-centric vocabulary for quick solution creation – Features – Model your business network, test and deploy – Applications use APIs to interact with a business network – Integrate existing systems of record using loopback/REST – Open Tools, APIs and libraries to support these activities – Exploits Hyperledger Fabric blockchain technology – Fully open and part of Linux Foundation Hyperledger Business Application Hyperledger Composer Hyperledger Fabric https://hyperledger.github.io/composer/
- 7. 7Page Benefits of HyperledgerComposer Increases understanding Saves time Reduces risk Increases flexibility Bridges simply from business concepts to blockchain Develop blockchain applications more quickly and cheaply Well tested, efficient design conforms to best practice Higher level abstraction makes it easier to iterate
- 8. 8Page Getting Started withHyperledger Composer – Start at https://hyperledger.github.io/composer/ – Many useful links – Getting started – Documentation – Chat – Community – GitHub
- 9. 9 Links • We’re allover the internet! – Website, tutorial, and docs: https://hyperledger.github.io/composer/ – Public playground: https://composer-playground.mybluemix.net/ – Source code: https://github.com/hyperledger/composer/ – NPM modules: https://www.npmjs.com/search?q=hyperledger+composer – JSDoc: https://fabric-composer.github.io/jsdoc/index.html (to be moved) – Docker images: https://hub.docker.com/u/fabriccomposer/ (to be moved)
- 10. 10 Community • You cancome and speak to us as well! – Chat to us using Rocket.Chat at https://chat.hyperledger.org • #composer and #composer-dev channels – Ask (and answer!) questions on Stack Overflow using the hyperledger-composer tag – Tweet us using the #Hyperledger #Composer hashtags!
- 11.
- 12. 12Page Hyperledger Composer Outlook –Now an official Hyperledger incubation project! – Complete the programming model – Events for notification and loose coupling of transaction processors – Links for business network linkage – Extensive query to support reporting and analytics – Encryption of data and transactions – Operational Enhancements – Exploit Hyperledger Fabric V1: consensus, channels, CouchDB – Build Activity Community – Open calls every 2 weeks – Rocket Chat – Hyperledger incubation
- 13. 13Page© 2016 IBMCorporation vehicle-lifecycle demo (under development)
- 14. 14 Tentative Release Plan(subject to change!) • Version 0.7.0 (released) – HLF v1 Alpha 1 support – Getting Started for v1 • Version 0.7.1 (May 5th) – Support 0.6 and 1.0 connection profiles in Playground • Version 0.7.2 (May 19th) • Vehicle Lifecycle Demo (iOS and Web) • Ability to emit events from TP functions • Version 0.7.3 (May 26th) – Edit using web forms in Playground • Version 0.8 (29th June) – Run complex queries – Support++ for HLF v1 – Security enhancements • Version 0.9 (27th July) – Native Node.js runtime in HLF – ACL testing
- 15.
- 16. Buyer Owner Buyer Insurer Listings registryVehicleregistry "$class": "org.acme.vehicle.auction.VehicleListing", "listingId": "LIST_1234", "reservePrice": 500, "description": "Car sale for playback 2", "state": "FOR_SALE", "vehicle": "VIN_123456" "$class": "org.acme.vehicle.auction.Vehicle", "vin": "VIN_123456", "owner": "daniel.selman@uk.ibm.com" net.biz.vehicle.auction sell car offer bid for car offer bid for car Transactions • (Sell) • Offer • Close Bidding close bidding ( Counterparties outside the business network ) Car Auction Business Network 1 23 Business Network Participants Identity Assets Registries Transactions (Events) (Links) THIS DEMO 1. Modelling, testing and exposing the business network 2. Applications consuming the business network 3. Integrating existing systems with the business network 2 DMV Existing system Auctioneer OwnerApp App App
- 17. 17Page Conceptual Components andStructure Business Network Archive Models ACLsScript File Metadata Business Network is defined by Models, Script Files, ACLs and Metadata and packaged in a Business Network Archive Solution Developer models the business network, implements the script files that define transaction behaviour and packages into a business network archive Solution Administrator provision the target environment and may manage deploy D A
- 18. 18Page The Model • Adomain specific language that defines: • Assets • Participants • Transactions • Matches how we talk about business networks in the real world Business Network Archive Models Transaction Functions ACLs Metadata
- 19. 19Page The ACL • Separatesout access control from business logic making it simpler • Can build access control into the business logic if needed • ACL engine evaluates rules for all access to assets • Top down checking • If no rule then denies access Business Network Archive Models Transaction Functions ACLs metadata
- 20. 20Page The Script File •Provide transaction implementation logic • Specified in Javascript • Designed for any reasonable Javascript developer to pick up easily Business Network Archive Models Transaction Functions ACLs meta-data

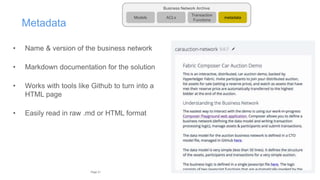

- 21. 21Page Metadata • Name &version of the business network • Markdown documentation for the solution • Works with tools like Github to turn into a HTML page • Easily read in raw .md or HTML format Business Network Archive Models Transaction Functions ACLs metadata
- 22. 22Page The Archive • TheBusiness Network Archive packages up the project to for deployment to a runtime • Can be deployed using CLI tools • Can be packed/unpacked by a developer to see its contents, check it, work on it or send it. • At deployment the archive is executed within a chaincode container Business Network Archive Models Transaction Functions ACLs Metadata Business Network Archive Models Transaction Functions ACLs meta-data Models Transaction Functions ACLs meta-data create Hyperledger Fabric Applicatio n Business network chaincode container deploy
- 23. 23 Extensive, Familiar, OpenDevelopment Toolset CLI utilities Data modelling JavaScript business logic Web playground Editor support Existing systems and data $ composer Client libraries composer-client composer-admin Code generation Swagger
- 24. 24Page Modelling Business Networks:Composer Playground – A interactive web tool for the development (and test) of business networks without installing anything – Developers & technical analysts – Create business network definition – DSL for specific assets, participants & transactions in your network – Live content assist, syntax checking – Non-web options also possible – Hosted & local playgrounds – Atom & VSCode plug-ins http://composer-playground.mybluemix.net
- 25. 25Page Testing Business Networks:Composer Playground – Test tab on playground – Dynamically reflects defined model – Creates default registries – Create, read, update, and delete resources interactively – Submit transactions interactively – Fabric and browser-only modes – Multiple environments, e.g. test, prod
- 26. 26Page Getting Started WithHyperledger Composer Docker Images JS Packages Samples Extensions Local Composer Dev Composer Playground Sample Angular 2 UI Existing Systems Integration tools Final Application Handed to UX/UI Handed to integratio n Once tested, download to use locally Swagger REST API - UI - Playground - Fabric - Hello World - Car Auction - Farm to Fork - Client - Runtime - Admin - Loopback Local or External Hyperledger Fabric
- 27. 27Page Model Development, Versioningand Distribution – GitHub for development – Use npm package format for metadata – package.json version – model files and business networks – npm for distribution – Distribute models and networks – Networks depend on models – Use npm dependencies – Applications npm install BNDs – Ensures consistency when application connects to network – See examples in sample-networks and sample- models repositories – These are loaded into playground model business network definition
- 28. 28Page Applications and JavascriptAPIs – JavaScript and REST APIs available – composer-client & composer-admin npm modules for app devs and admins respectively – Programming model JSDoc at https://fabric-composer.github.io/jsdoc/ – Domain specific REST APIs also available (see later)
- 29. 29Page Generating APIs andsample applications – Programmable business networks – Direct consequence of a deployed model – Query network to generate domain APIs – Generate sample application for deployed business network – Yeoman questionnaire yo fabric-composer[:angular] – Also generate test cases using mocha and chai node.js test packages – composer generator tests – Programmable business network provides many more opportunities for interaction
- 30. 30Page Generating APIs andsample applications Hyperledger Fabric (existing fabric) – Business Network Archive Business network chaincode container Application Template application Yeoman questionnaire 2. query 3. customize 5. API Developer 4. run User 1. yo fabric-composer-angular
- 31. 31Page Command Line Interfaces –Suite of commands to interact with an operational business network – Target use is scripting and interactive operations – Packaged as composer-cli in npm – Generate full list with composer –help. Individual (sub) commands support -help – CLI uses public APIs – Users can create their own CLIs $> composer –help Commands: archive <subcommand> Composer archive command generator <subcommand> Composer generator command identity <subcommand> Composer identity command network <subcommand> Composer network command participant <subcommand> Composer participant command transaction <subcommand> Composer transaction command Options: --help Show help [boolean] -v, --version Show version number [boolean] Examples: composer identity issue For more information: http://fabric-composer.org/reference $> composer transaction submit –help composer transaction submit [options] Options: --help Show help [boolean] -v, --version Show version number [boolean] --connectionProfileName, -p The connection profile name [string] --businessNetworkName, -n The business network name [string] [required] --enrollId, -i The enrollment ID of the user [string] [required] --enrollSecret, -s The enrollment secret of the user [string] --data, -d Transactions JSON object [string] [required]

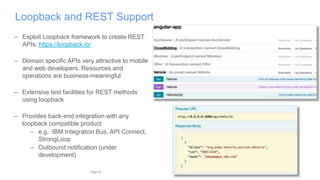

- 32. 33Page Loopback and RESTSupport – Exploit Loopback framework to create REST APIs. https://loopback.io/ – Domain specific APIs very attractive to mobile and web developers. Resources and operations are business-meaningful – Extensive test facilities for REST methods using loopback – Provides back-end integration with any loopback compatible product – e.g. IBM Integration Bus, API Connect, StrongLoop – Outbound notification (under development)
- 33. 34Page Exploiting the LoopbackConnector: Example – IBM Integration Bus Example – Takes input from file, SAP or MQ – Data mapping from CSV, BAPI/IDOC or binary form to JSON model definition of vehicle – Currently inbound only – Events support will eventually allow outbound integration
- 34.
- 35. 36Page Key Concept: Assets –Represents the resources being exchanged in the business network 1. Define using asset keyword in model file 2. Assets have structure – domain relevant class name, e.g. vehicle, house, bond 3. Set of properties, denoted by ‘o’ (letter). 4. Relationships to other resources, denoted by ‘’. Optional elements are allowed. Field validators can be provided 5. Stored in an asset registry. Registries are first class abstraction. 1 2 3 4 5
- 36. 37Page Key Concept: Participants 1– Represent the counterparties in the business network 1. Define using participant keyword in model file 2. Participants have a class name, relevant to the domain, e.g. buyer, seller 3. Set of properties, denoted by ‘o’. Relationships to other resources, denoted by ‘’. Optional elements are allowed. Field validators can be provided 4. Like assets, can be sub-classed for refinement 5. Stored in a participant registry 2 3 5 4

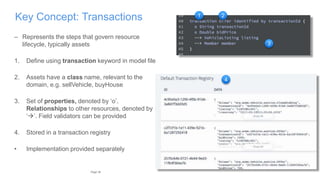

- 37. 38Page Key Concept: Transactions1 2 – Represents the steps that govern resource lifecycle, typically assets 1. Define using transaction keyword in model file 2. Assets have a class name, relevant to the domain, e.g. sellVehicle, buyHouse 3. Set of properties, denoted by ‘o’. Relationships to other resources, denoted by ‘’. Field validators can be provided 4. Stored in a transaction registry • Implementation provided separately 3 4

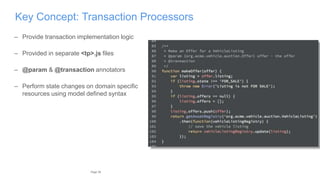

- 38. 39Page Key Concept: TransactionProcessors – Provide transaction implementation logic – Provided in separate <tp>.js files – @param & @transaction annotators – Perform state changes on domain specific resources using model defined syntax
- 39. 40Page Key Concept: AccessControl Lists – Separate ACL from application logic – Defined in a permissions.acl file in business network definition – Flexible model allowing both type and instance access e.g. ‘create cars’ and ‘scrap my car’ – Standard ACL model – Includes optional condition for more sophisticated ACL checking – Executed in order until first rule hit – DENY has precedence over ALLOW
