With the Varnish caching proxy you can make websites blazingly fast. The basics are quite simple once you understand how cache handling in HTTP works. For starters, we will look into HTTP and Varnish configuration. The main course is going to be test-driven cache invalidation and the cache tagging strategy. For desserts, there will be an introduction to Edge Side Includes (ESI). All of this will be liberally sprinkled with examples from the FOSHttpCache library and some ideas from the FOSHttpCacheBundle for Symfony2.

1. HTTP caching
with Varnish
DPC, June 27th 2015
David Buchmann & David de Boer

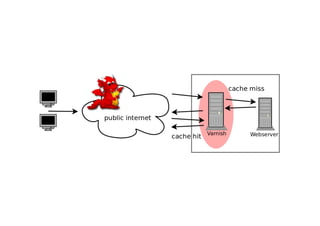

3. This thing called Varnish

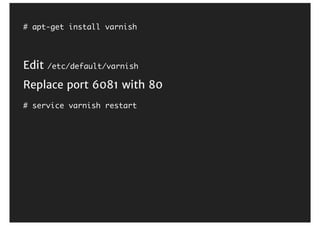

4. # apt-get install varnish
Edit /etc/default/varnish
Replace port 6081 with 80
# service varnish restart

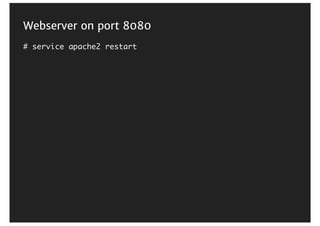

5. Webserver on port 8080
# service apache2 restart

7. What could possibly go
wrong?

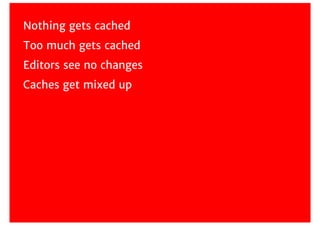

8. Nothing gets cached
Too much gets cached
Editors see no changes
Caches get mixed up

9. Let’s take a step back

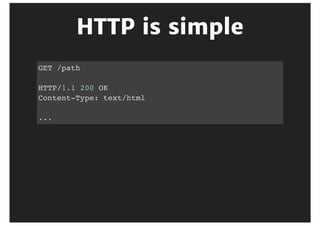

11. HTTP is simple
GET /path
HTTP/1.1 200 OK
Content-Type: text/html
...

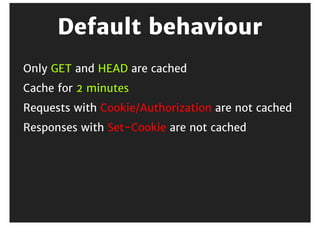

12. Default behaviour
Only GET and HEAD are cached
Cache for 2 minutes
Requests with Cookie/Authorization are not cached
Responses with Set-Cookie are not cached

13. Cache control headers
Cache-Control: s-maxage=3600, max-age=900
Expires: Sat, 27 June 2015 09:58:00 GMT

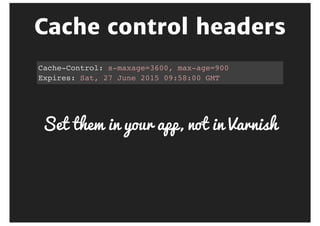

14. Cache control headers
Set them in your app, not in Varnish
Cache-Control: s-maxage=3600, max-age=900
Expires: Sat, 27 June 2015 09:58:00 GMT

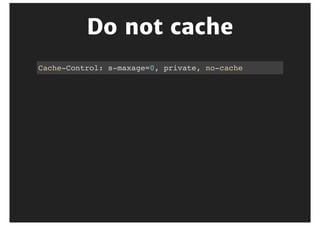

15. Do not cache
Cache-Control: s-maxage=0, private, no-cache

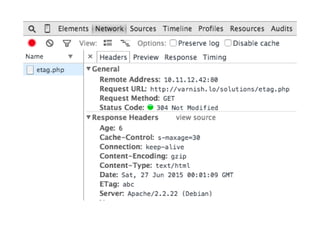

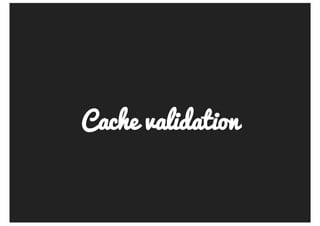

16. Cache validation

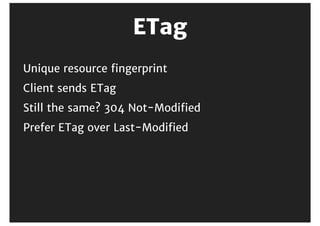

17. ETag
Unique resource fingerprint
Client sends ETag
Still the same? 304 Not-Modified
Prefer ETag over Last-Modified

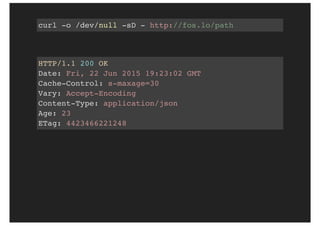

18. curl -o /dev/null -sD - http://fos.lo/path

19. curl -o /dev/null -sD - http://fos.lo/path
HTTP/1.1 200 OK
Date: Fri, 22 Jun 2015 19:23:02 GMT
Cache-Control: s-maxage=30
Vary: Accept-Encoding
Content-Type: application/json
Age: 23
ETag: 4423466221248

21. Plain PHP
header('Cache-Control: s-maxage=600, max-age=60');
header('Etag: ' . sha1($data));

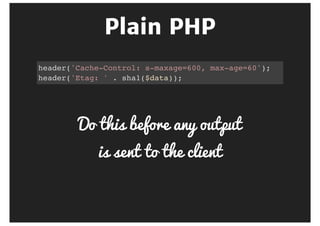

22. Plain PHP
Do this before any output
is sent to the client
header('Cache-Control: s-maxage=600, max-age=60');
header('Etag: ' . sha1($data));

23. Symfony
// DefaultController::indexAction
$response = $this->render('::index.html.twig');
$response->setSharedMaxAge(600);
$response->setMaxAge(60);
$response->setEtag(sha1($response->getContent()));
return $response;

24. Symfony
Add above or annotation to every action
// DefaultController::indexAction
$response = $this->render('::index.html.twig');
$response->setSharedMaxAge(600);
$response->setMaxAge(60);
$response->setEtag(sha1($response->getContent()));
return $response;

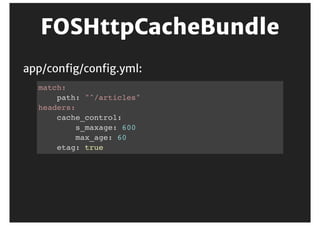

25. FOSHttpCacheBundle
app/config/config.yml:
match:
path: "^/articles"
headers:
cache_control:
s_maxage: 600
max_age: 60
etag: true

26. Overview
VCL
Invalidation
Tagging

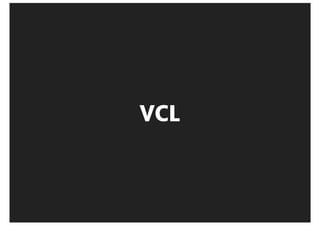

29. VCL

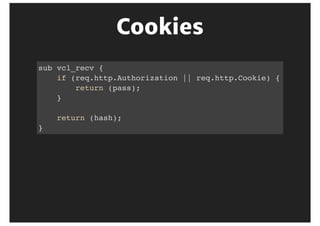

30. Cookies
sub vcl_recv {
if (req.http.Authorization || req.http.Cookie) {
return (pass);
}
return (hash);
}

31. Remove cookies

32. Remove cookies
sub vcl_recv {
if (req.http.Cookie) {
if (req.url ~ "^/static") {
unset req.http.Cookie;
}
}
}

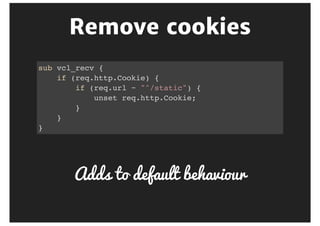

33. Remove cookies
Adds to default behaviour
sub vcl_recv {
if (req.http.Cookie) {
if (req.url ~ "^/static") {
unset req.http.Cookie;
}
}
}

34. Invalidation

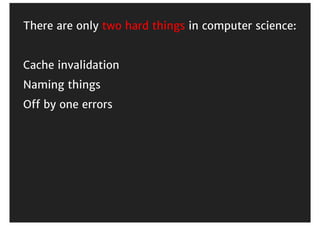

35. There are only two hard things in computer science:
Cache invalidation
Naming things
Off by one errors

36. Invalidation
Actively remove response from cache
Long TTL
More hits

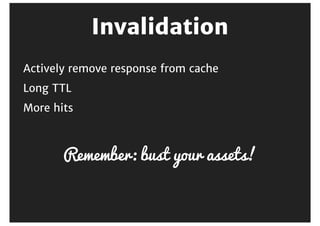

37. Invalidation
Actively remove response from cache
Long TTL
More hits
Remember: bust your assets!

38. Invalidation flavours
Purge: URL and variants
Refresh: exact request, warm cache
Ban: batch with regular expressions

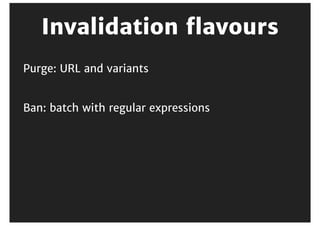

39. Invalidation flavours
Purge: URL and variants
Ban: batch with regular expressions

40. Purge

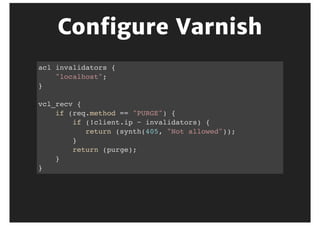

41. Configure Varnish
acl invalidators {
"localhost";
}
vcl_recv {
if (req.method == "PURGE") {
if (!client.ip ~ invalidators) {
return (synth(405, "Not allowed"));
}
return (purge);
}
}

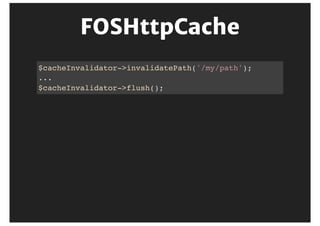

42. FOSHttpCache
$cacheInvalidator->invalidatePath('/my/path');
...
$cacheInvalidator->flush();

43. Ban

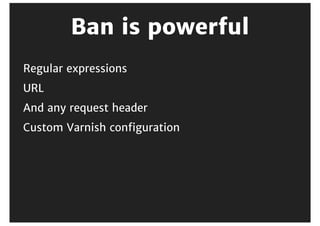

44. Ban is powerful
Regular expressions
URL
And any request header
Custom Varnish configuration

45. Cache taggingCache tagging

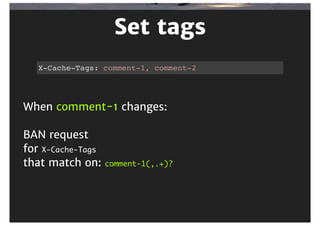

46. Set tags
When comment-1 changes:
BAN request
for X-Cache-Tags
that match on: comment-1(,.+)?
X-Cache-Tags: comment-1, comment-2

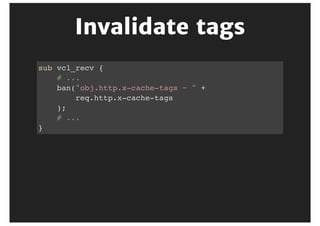

47. Invalidate tags
sub vcl_recv {
# ...
ban("obj.http.x-cache-tags ~ " +
req.http.x-cache-tags
);
# ...
}

48. FOSHttpCacheBundle
$tagHandler->addTag(['comment-1', 'comment-2']);
$tagHandler->invalidateTags(['comment-1']);
use FOSHttpCacheBundleConfigurationTag;
class CommentController extends Controller
{
/**
* @Tag({"comments", "'comment-'~id"})
*/
public function commentAction($id)
{

49. Wrap-up

50. Increase your hitsIncrease your hits

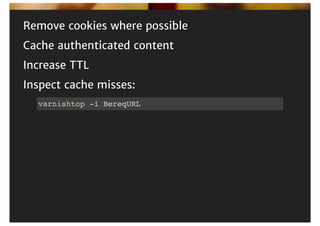

51. Remove cookies where possible
Cache authenticated content
Increase TTL
Inspect cache misses:
varnishtop -i BereqURL

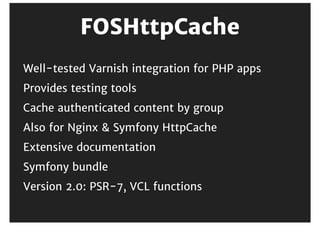

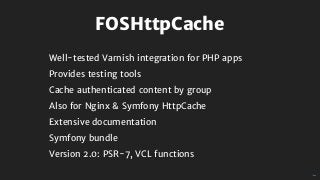

52. FOSHttpCache
Well-tested Varnish integration for PHP apps
Provides testing tools
Cache authenticated content by group
Also for Nginx & Symfony HttpCache
Extensive documentation
Symfony bundle
Version 2.0: PSR-7, VCL functions

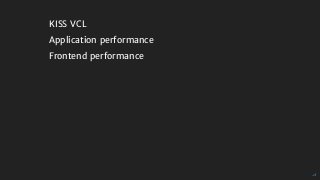

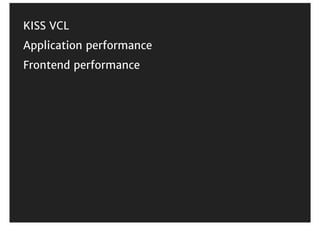

54. KISS VCL
Application performance
Frontend performance

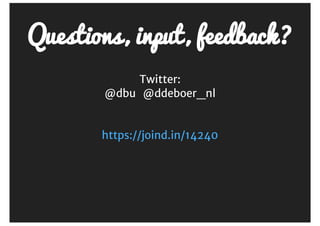

55. Questions, input, feedback?
Twitter:
@dbu @ddeboer_nl
https://joind.in/14240

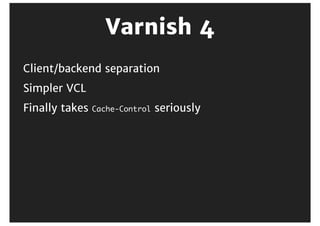

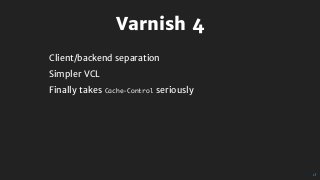

56. Varnish 4
Client/backend separation
Simpler VCL
Finally takes Cache-Control seriously

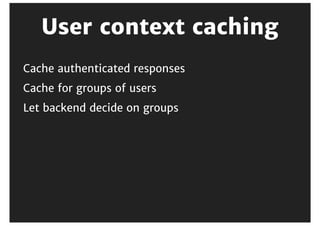

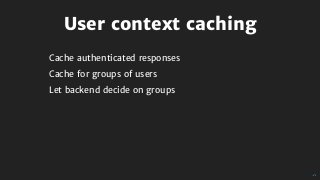

57. User context caching
Cache authenticated responses
Cache for groups of users
Let backend decide on groups

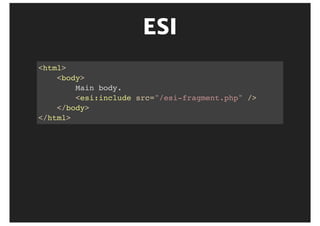

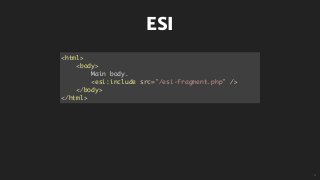

58. ESI
<html>
<body>
Main body.
<esi:include src="/esi-fragment.php" />
</body>
</html>

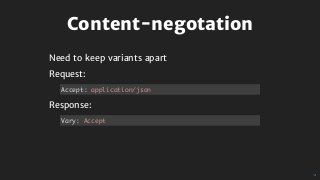

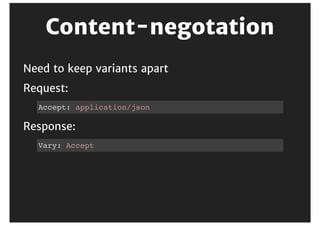

59. Content-negotation
Need to keep variants apart
Request:
Response:
Accept: application/json
Vary: Accept
