![www.spiraltrain.nl
Web Architecture
• WWW use classical client / server architecture :
• HTTP is text-based request-response protocol
• URL’s used to locate resources like HTML pages on the Internet :
• protocol://hostname[:port]/pathname
• hostname specifies name or IP address host computer :
• port field is optional and specifies TCP port connection
• pathname :
• Identifies requested resource on host
HTML Intro 10
Page request
Client running a Web Browser
Server running Web Server
Software (IIS Apache, etc.)
Server response
HTTP
HTTP](https://image.slidesharecdn.com/html-intro-200606191228/85/HTML-Intro-10-320.jpg)

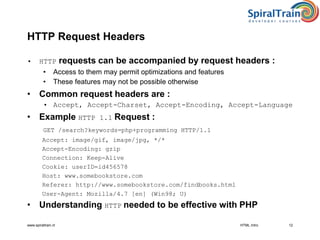

![www.spiraltrain.nl 12
HTTP Request Headers
• HTTP requests can be accompanied by request headers :
• Access to them may permit optimizations and features
• These features may not be possible otherwise
• Common request headers are :
• Accept, Accept-Charset, Accept-Encoding, Accept-Language
• Example HTTP 1.1 Request :
GET /search?keywords=php+programming HTTP/1.1
Accept: image/gif, image/jpg, */*
Accept-Encoding: gzip
Connection: Keep-Alive
Cookie: userID=id456578
Host: www.somebookstore.com
Referer: http://www.somebookstore.com/findbooks.html
User-Agent: Mozilla/4.7 [en] (Win98; U)
• Understanding HTTP needed to be effective with PHP
HTML Intro](https://image.slidesharecdn.com/html-intro-200606191228/85/HTML-Intro-12-320.jpg)
HTML Intro
- 1.
- 2. © copyright :spiraltrain@gmail.com Course Schedule • HTML Intro • Basic Tags • Core Elements • Attributes • Forms • HTML 5 2 • What is HTML? • HTML Versions • HTML Pages • HTML Elements • Basic Structure HTML Page • Basic HTML Document • Creating HTML Pages • Web Architecture • HTTP Protocol • HTTP Request Headers • HTTP Status Codes • Common Status Codes HTML Intro
- 3. www.spiraltrain.nl What is HTML? •HTML stands for Hyper Text Markup Language : • It is a markup language not a programming language • Text editor is enough to create HTML documents • Used to make HTML documents or Web Pages interpreted by Web Browsers • Web pages have many uses : • Offer a cheap and easy way to spread information to a large audience. • Are another medium to market businesses • Let the world know about you with personal website • HTML Tags : • Specify region of HTML documents for the web browser to interpret as <tag> • HTML has not been around for many years : • First Web page was created in November 1990 without a HTML standard yet • World Wide Web Consortium (W3C) emerged and set widely accepted standards • HTML was originally designed to create structured documents : • Only later browser formatting capabilities became more important 3HTML Intro
- 4. www.spiraltrain.nl HTML Versions • HTMLwas created by Berners-Lee in late 1991 : • HTML originated at CERN in Geneva for linking scrientific documents • Influenced by Standard Generalized Markup Language (SGML) format at CERN • HTML 2.0" was the first standard HTML specification : • Published in 1995 by Word Wide Web consortium • HTML 4.01 was a major version of HTML : • Published in late 1999 and still widely used • Offered three sub versions strict, transitional and frameset • HTML-5 version is a major step in HTML : • Extension to HTML 4.01 with many new capabilities • First published in 2012 • XHTML : • Separate language that began as a reformulation of HTML 4.01 using XML 1.0 • XHTML is more strict than HTML since XML syntax rules apply 4HTML Intro

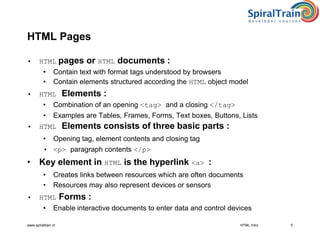

- 5. www.spiraltrain.nl HTML Pages • HTMLpages or HTML documents : • Contain text with format tags understood by browsers • Contain elements structured according the HTML object model • HTML Elements : • Combination of an opening <tag> and a closing </tag> • Examples are Tables, Frames, Forms, Text boxes, Buttons, Lists • HTML Elements consists of three basic parts : • Opening tag, element contents and closing tag • <p> paragraph contents </p> • Key element in HTML is the hyperlink <a> : • Creates links between resources which are often documents • Resources may also represent devices or sensors • HTML Forms : • Enable interactive documents to enter data and control devices HTML Intro 5

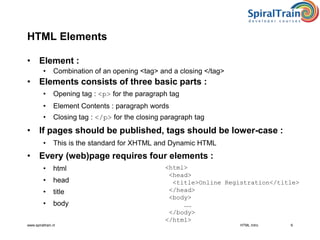

- 6. www.spiraltrain.nl HTML Elements • Element: • Combination of an opening <tag> and a closing </tag> • Elements consists of three basic parts : • Opening tag : <p> for the paragraph tag • Element Contents : paragraph words • Closing tag : </p> for the closing paragraph tag • If pages should be published, tags should be lower-case : • This is the standard for XHTML and Dynamic HTML • Every (web)page requires four elements : • html • head • title • body HTML Intro 6 <html> <head> <title>Online Registration</title> </head> <body> …… </body> </html>

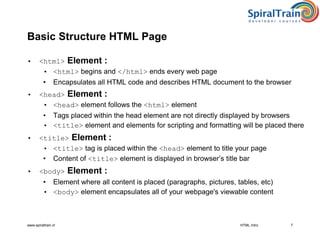

- 7. www.spiraltrain.nl Basic Structure HTMLPage • <html> Element : • <html> begins and </html> ends every web page • Encapsulates all HTML code and describes HTML document to the browser • <head> Element : • <head> element follows the <html> element • Tags placed within the head element are not directly displayed by browsers • <title> element and elements for scripting and formatting will be placed there • <title> Element : • <title> tag is placed within the <head> element to title your page • Content of <title> element is displayed in browser’s title bar • <body> Element : • Element where all content is placed (paragraphs, pictures, tables, etc) • <body> element encapsulates all of your webpage's viewable content HTML Intro 7
- 8. www.spiraltrain.nl Basic HTML Document <!DOCTYPEhtml> <html> <head> <title>This is document title</title> </head> <body> <h1>This is a heading</h1> <p>Document content goes here.....</p> </body> </html> • <!DOCTYPE> declaration tag : • Used by web browser to understand version of HTML used in document 8 Demo01 hellohtml HTML Intro
- 9. www.spiraltrain.nl Creating HTML Pages •HTML file must have an .htm or .html file extension • HTML files can be created with text editors: • NotePad, NotePad ++, PSPad • Or with HTML editors (WYSIWYG Editors ): • Microsoft FrontPage • Macromedia Dreamweaver • WebStorm • Sublime • Also possible is the use of full fledged IDE’s : • Eclipse • NetBeans • IntelliJ • Prefer an editor with support for HTML syntax 9HTML Intro
- 10. www.spiraltrain.nl Web Architecture • WWWuse classical client / server architecture : • HTTP is text-based request-response protocol • URL’s used to locate resources like HTML pages on the Internet : • protocol://hostname[:port]/pathname • hostname specifies name or IP address host computer : • port field is optional and specifies TCP port connection • pathname : • Identifies requested resource on host HTML Intro 10 Page request Client running a Web Browser Server running Web Server Software (IIS Apache, etc.) Server response HTTP HTTP

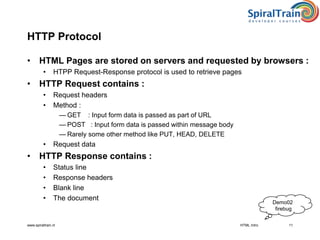

- 11. www.spiraltrain.nl 11 HTTP Protocol •HTML Pages are stored on servers and requested by browsers : • HTPP Request-Response protocol is used to retrieve pages • HTTP Request contains : • Request headers • Method : — GET : Input form data is passed as part of URL — POST : Input form data is passed within message body — Rarely some other method like PUT, HEAD, DELETE • Request data • HTTP Response contains : • Status line • Response headers • Blank line • The document Demo02 firebug HTML Intro
- 12. www.spiraltrain.nl 12 HTTP RequestHeaders • HTTP requests can be accompanied by request headers : • Access to them may permit optimizations and features • These features may not be possible otherwise • Common request headers are : • Accept, Accept-Charset, Accept-Encoding, Accept-Language • Example HTTP 1.1 Request : GET /search?keywords=php+programming HTTP/1.1 Accept: image/gif, image/jpg, */* Accept-Encoding: gzip Connection: Keep-Alive Cookie: userID=id456578 Host: www.somebookstore.com Referer: http://www.somebookstore.com/findbooks.html User-Agent: Mozilla/4.7 [en] (Win98; U) • Understanding HTTP needed to be effective with PHP HTML Intro

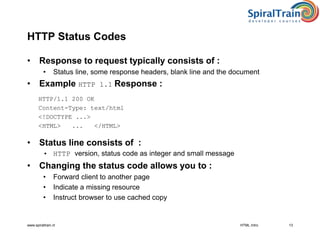

- 13. www.spiraltrain.nl 13 HTTP StatusCodes • Response to request typically consists of : • Status line, some response headers, blank line and the document • Example HTTP 1.1 Response : HTTP/1.1 200 OK Content-Type: text/html <!DOCTYPE ...> <HTML> ... </HTML> • Status line consists of : • HTTP version, status code as integer and small message • Changing the status code allows you to : • Forward client to another page • Indicate a missing resource • Instruct browser to use cached copy HTML Intro

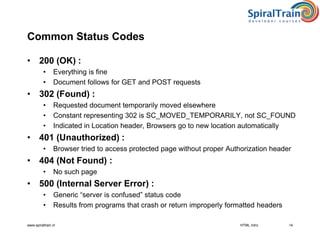

- 14. www.spiraltrain.nl 14 Common StatusCodes • 200 (OK) : • Everything is fine • Document follows for GET and POST requests • 302 (Found) : • Requested document temporarily moved elsewhere • Constant representing 302 is SC_MOVED_TEMPORARILY, not SC_FOUND • Indicated in Location header, Browsers go to new location automatically • 401 (Unauthorized) : • Browser tried to access protected page without proper Authorization header • 404 (Not Found) : • No such page • 500 (Internal Server Error) : • Generic “server is confused” status code • Results from programs that crash or return improperly formatted headers HTML Intro
- 15. © copyright :spiraltrain@gmail.com Summary : HTML Intro • HTML was created by Berners-Lee in late 1991 : • HTML originated at CERN in Geneva for linking scrientific documents • HTML is a markup language used to make HTML documents : • HTML tags are interpreted by Web Browsers which knows how to display them • HTML elements consist of three basic parts : • Opening tag, element contents and closing tag • HTML file must have an .htm or .html file extension : • Created with a Text editor or IDE • HTML pages are transferred using HTTP protocol : • HTTP is text-based request-response protocol • HTTP requests are accompanied by request headers : • Access to them may permit optimizations and features • HTTP response to request typically consists of : • Status line, some response headers, blank line and the document 15HTML Intro Exercise 01 HTML Intro
