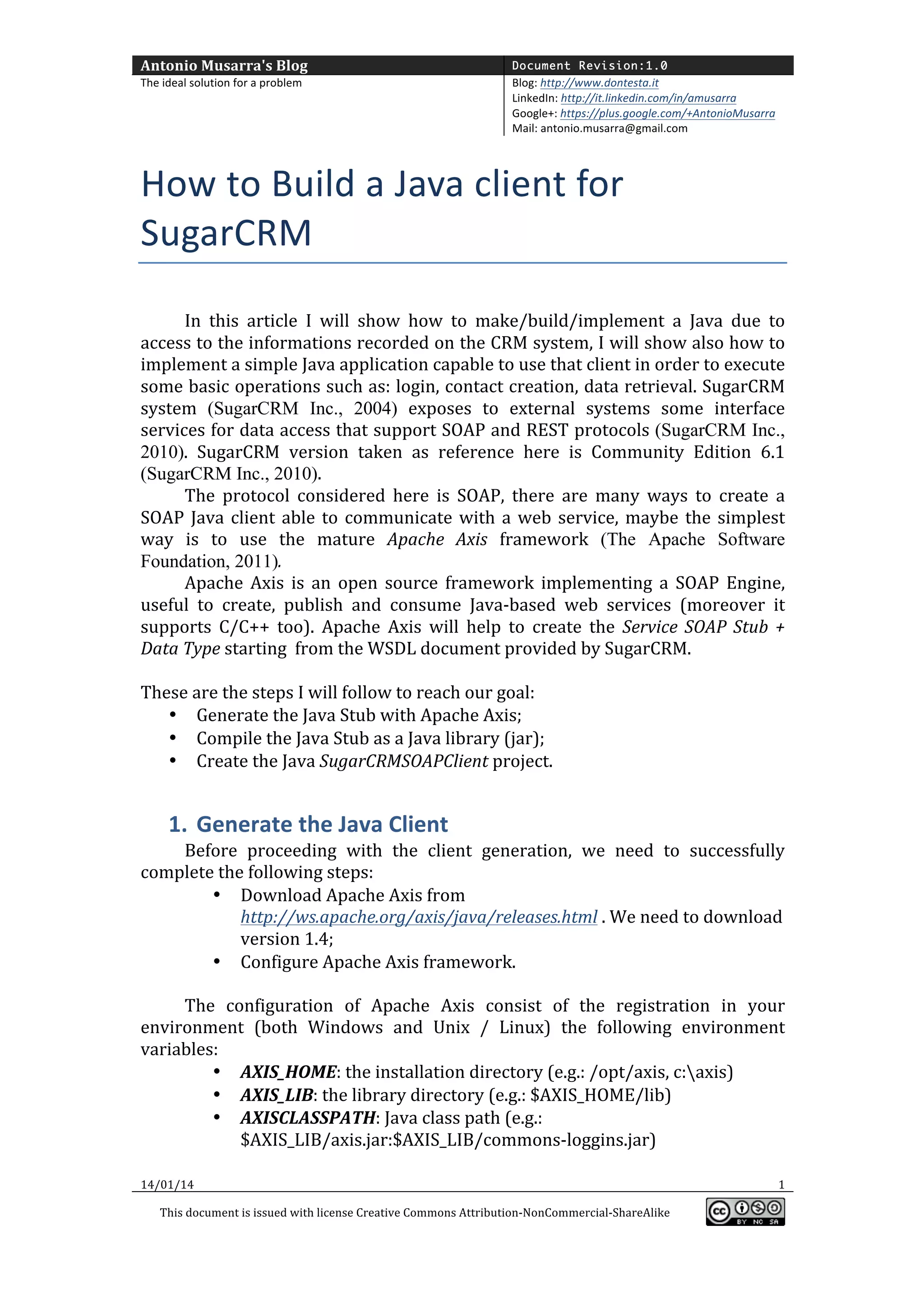

How to Build a Java client for SugarCRM

Antonio
Musarra's
Blog

Document Revision:1.0

The
ideal
solution
for
a
problem

Blog:
http://www.dontesta.it

LinkedIn:
http://it.linkedin.com/in/amusarra

Google+:
https://plus.google.com/+AntonioMusarra

Mail:
antonio.musarra@gmail.com

How
to
Build
a
Java
client
for

SugarCRM

In
this
article
I
will
show
how
to
make/build/implement
a
Java
due
to

access
to
the
informations
recorded
on
the
CRM
system,
I
will
show
also
how
to

implement
a
simple
Java
application
capable
to
use
that
client
in
order
to
execute

some
basic
operations
such
as:
login,
contact
creation,
data
retrieval.
SugarCRM

system
(SugarCRM Inc., 2004)
exposes
to
external
systems
some
interface

services
for
data
access
that
support
SOAP
and
REST
protocols
(SugarCRM Inc.,
2010).
SugarCRM
version
taken
as
reference
here
is
Community
Edition
6.1

(SugarCRM Inc., 2010).

The
protocol
considered
here
is
SOAP,
there
are
many
ways
to
create
a

SOAP
Java
client
able
to
communicate
with
a
web
service,
maybe
the
simplest

way
is
to
use
the
mature
Apache
Axis
framework
(The Apache Software
Foundation, 2011).

Apache
Axis
is
an
open
source
framework
implementing
a
SOAP
Engine,

useful
to
create,
publish
and
consume
Java-‐based
web
services
(moreover
it

supports
C/C++
too).
Apache
Axis
will
help
to
create
the
Service
SOAP
Stub
+

Data
Type
starting

from
the
WSDL
document
provided
by
SugarCRM.

These
are
the
steps
I
will
follow
to
reach
our
goal:

• Generate
the
Java
Stub
with
Apache
Axis;

• Compile
the
Java
Stub
as
a
Java
library
(jar);

• Create
the
Java
SugarCRMSOAPClient
project.

1. Generate
the
Java
Client

Before
proceeding
with
the
client
generation,
we
need
to
successfully

complete
the
following
steps:

• Download
Apache
Axis
from

http://ws.apache.org/axis/java/releases.html
.
We
need
to
download

version
1.4;

• Configure
Apache
Axis
framework.

The
configuration
of
Apache
Axis
consist
of
the
registration
in
your

environment
(both
Windows
and
Unix
/
Linux)
the
following
environment

variables:

• AXIS_HOME:
the
installation
directory
(e.g.:
/opt/axis,
c:axis)

• AXIS_LIB:
the
library
directory
(e.g.:
$AXIS_HOME/lib)

• AXISCLASSPATH:
Java
class
path
(e.g.:

$AXIS_LIB/axis.jar:$AXIS_LIB/commons-‐loggins.jar)

14/01/14

This
document
is
issued
with
license
Creative
Commons
Attribution-‐NonCommercial-‐ShareAlike

1

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

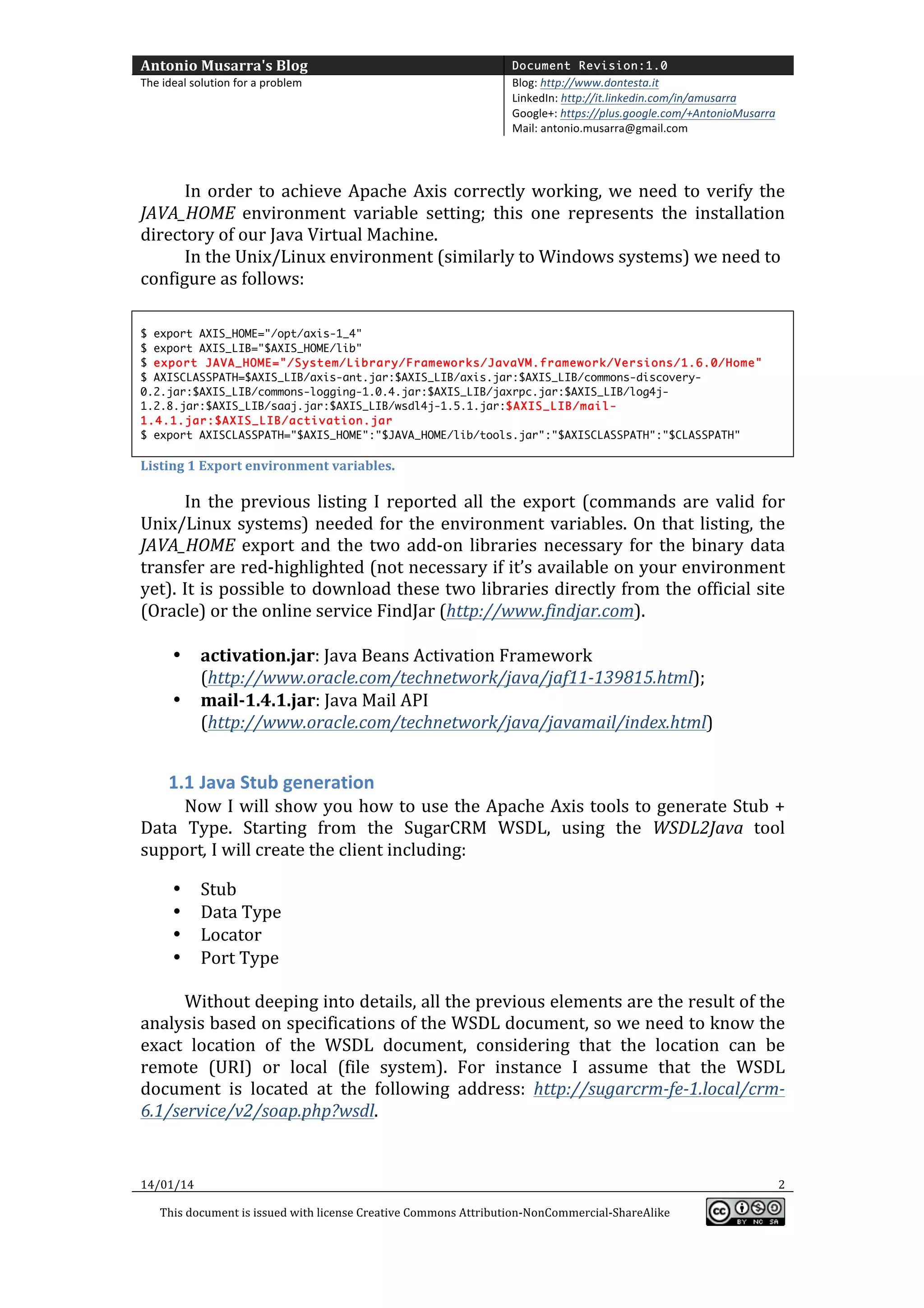

In
order
to
achieve
Apache
Axis
correctly
working,
we
need
to
verify
the

JAVA_HOME
environment
variable
setting;
this
one
represents
the
installation

directory
of
our
Java
Virtual
Machine.

In
the
Unix/Linux
environment
(similarly
to
Windows
systems)
we
need
to

configure
as
follows:

$ export AXIS_HOME="/opt/axis-1_4"
$ export AXIS_LIB="$AXIS_HOME/lib"
$ export JAVA_HOME="/System/Library/Frameworks/JavaVM.framework/Versions/1.6.0/Home"
$ AXISCLASSPATH=$AXIS_LIB/axis-ant.jar:$AXIS_LIB/axis.jar:$AXIS_LIB/commons-discovery0.2.jar:$AXIS_LIB/commons-logging-1.0.4.jar:$AXIS_LIB/jaxrpc.jar:$AXIS_LIB/log4j1.2.8.jar:$AXIS_LIB/saaj.jar:$AXIS_LIB/wsdl4j-1.5.1.jar:$AXIS_LIB/mail1.4.1.jar:$AXIS_LIB/activation.jar
$ export AXISCLASSPATH="$AXIS_HOME":"$JAVA_HOME/lib/tools.jar":"$AXISCLASSPATH":"$CLASSPATH"

Listing
1
Export
environment
variables.

In
the
previous
listing
I
reported
all
the
export
(commands
are
valid
for

Unix/Linux
systems)
needed
for
the
environment
variables.
On
that
listing,
the

JAVA_HOME
export
and
the
two
add-‐on
libraries
necessary
for
the
binary
data

transfer
are
red-‐highlighted
(not
necessary
if
it’s
available
on
your
environment

yet).
It
is
possible
to
download
these
two
libraries
directly
from
the
official
site

(Oracle)
or
the
online
service
FindJar
(http://www.findjar.com).

• activation.jar:
Java
Beans
Activation
Framework

(http://www.oracle.com/technetwork/java/jaf11-‐139815.html);

• mail-‐1.4.1.jar:
Java
Mail
API

(http://www.oracle.com/technetwork/java/javamail/index.html)

1.1 Java
Stub
generation

Now
I
will
show
you
how
to
use
the
Apache
Axis
tools
to
generate
Stub
+

Data
Type.
Starting
from
the
SugarCRM
WSDL,
using
the
WSDL2Java
tool

support,
I
will
create
the
client
including:

•
•
•
•

Stub

Data
Type

Locator

Port
Type

Without
deeping
into
details,
all
the
previous
elements
are
the
result
of
the

analysis
based
on
specifications
of
the
WSDL
document,
so
we
need
to
know
the

exact
location
of
the
WSDL
document,
considering
that
the
location
can
be

remote
(URI)
or
local
(file
system).
For
instance
I
assume
that
the
WSDL

document
is
located
at
the
following
address:
http://sugarcrm-‐fe-‐1.local/crm-‐
6.1/service/v2/soap.php?wsdl.

14/01/14

This
document
is
issued
with
license
Creative
Commons

2

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

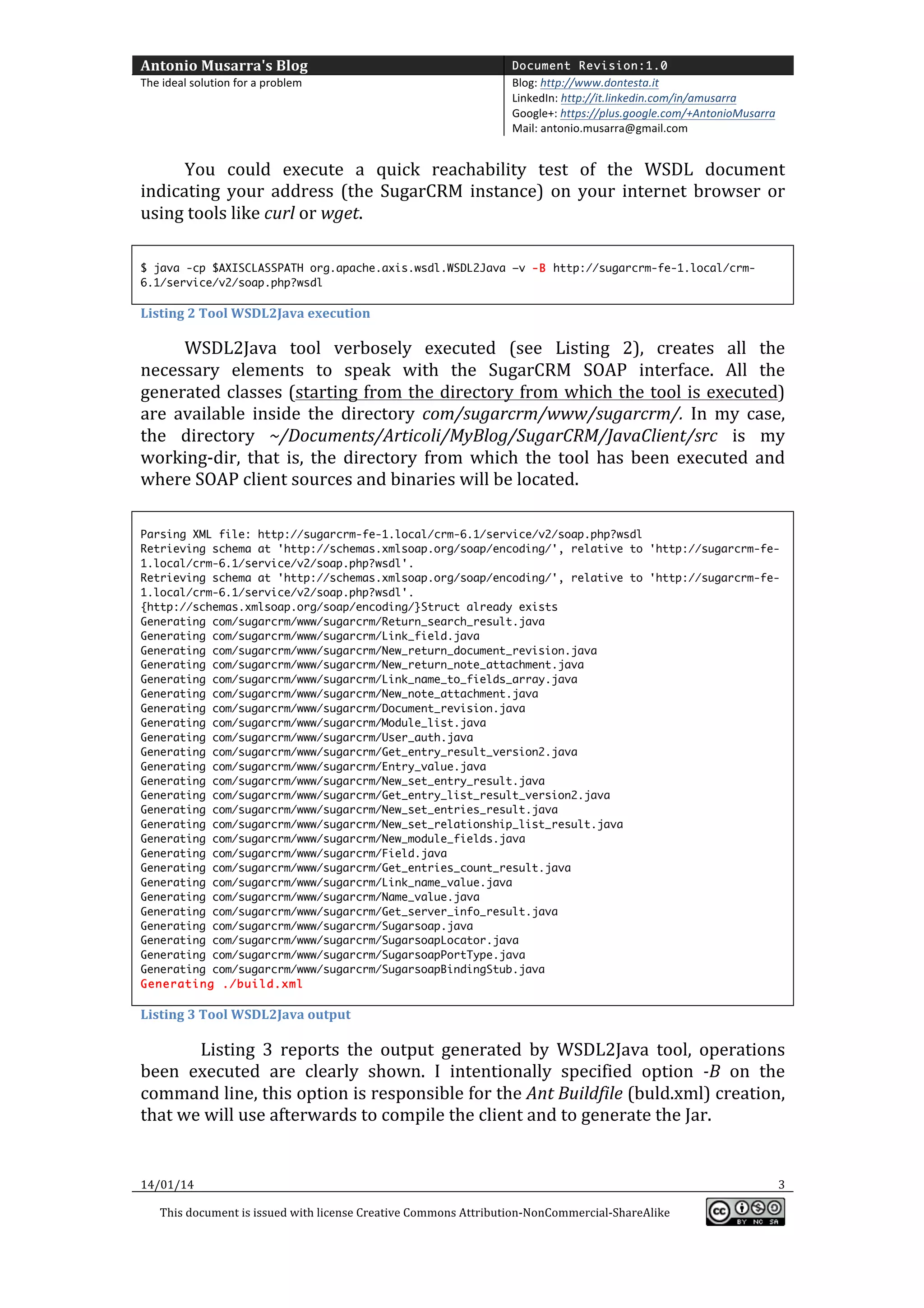

You
could
execute
a
quick
reachability
test
of
the
WSDL
document

indicating
your
address
(the
SugarCRM
instance)
on
your
internet
browser
or

using
tools
like
curl
or
wget.

$ java -cp $AXISCLASSPATH org.apache.axis.wsdl.WSDL2Java –v -B http://sugarcrm-fe-1.local/crm6.1/service/v2/soap.php?wsdl

Listing
2
Tool
WSDL2Java
execution

WSDL2Java
tool
verbosely
executed
(see
Listing
2),
creates
all
the

necessary
elements
to
speak
with
the
SugarCRM
SOAP
interface.
All
the

generated
classes
(starting
from
the
directory
from
which
the
tool
is
executed)

are
available
inside
the
directory
com/sugarcrm/www/sugarcrm/.
In
my
case,

the
directory
~/Documents/Articoli/MyBlog/SugarCRM/JavaClient/src
is
my

working-‐dir,
that
is,
the
directory
from
which
the
tool
has
been
executed
and

where
SOAP
client
sources
and
binaries
will
be
located.

Parsing XML file: http://sugarcrm-fe-1.local/crm-6.1/service/v2/soap.php?wsdl
Retrieving schema at 'http://schemas.xmlsoap.org/soap/encoding/', relative to 'http://sugarcrm-fe1.local/crm-6.1/service/v2/soap.php?wsdl'.
Retrieving schema at 'http://schemas.xmlsoap.org/soap/encoding/', relative to 'http://sugarcrm-fe1.local/crm-6.1/service/v2/soap.php?wsdl'.
{http://schemas.xmlsoap.org/soap/encoding/}Struct already exists
Generating com/sugarcrm/www/sugarcrm/Return_search_result.java
Generating com/sugarcrm/www/sugarcrm/Link_field.java
Generating com/sugarcrm/www/sugarcrm/New_return_document_revision.java
Generating com/sugarcrm/www/sugarcrm/New_return_note_attachment.java
Generating com/sugarcrm/www/sugarcrm/Link_name_to_fields_array.java
Generating com/sugarcrm/www/sugarcrm/New_note_attachment.java
Generating com/sugarcrm/www/sugarcrm/Document_revision.java
Generating com/sugarcrm/www/sugarcrm/Module_list.java
Generating com/sugarcrm/www/sugarcrm/User_auth.java
Generating com/sugarcrm/www/sugarcrm/Get_entry_result_version2.java
Generating com/sugarcrm/www/sugarcrm/Entry_value.java
Generating com/sugarcrm/www/sugarcrm/New_set_entry_result.java
Generating com/sugarcrm/www/sugarcrm/Get_entry_list_result_version2.java
Generating com/sugarcrm/www/sugarcrm/New_set_entries_result.java
Generating com/sugarcrm/www/sugarcrm/New_set_relationship_list_result.java
Generating com/sugarcrm/www/sugarcrm/New_module_fields.java
Generating com/sugarcrm/www/sugarcrm/Field.java
Generating com/sugarcrm/www/sugarcrm/Get_entries_count_result.java
Generating com/sugarcrm/www/sugarcrm/Link_name_value.java
Generating com/sugarcrm/www/sugarcrm/Name_value.java
Generating com/sugarcrm/www/sugarcrm/Get_server_info_result.java
Generating com/sugarcrm/www/sugarcrm/Sugarsoap.java
Generating com/sugarcrm/www/sugarcrm/SugarsoapLocator.java
Generating com/sugarcrm/www/sugarcrm/SugarsoapPortType.java
Generating com/sugarcrm/www/sugarcrm/SugarsoapBindingStub.java
Generating ./build.xml

Listing
3
Tool
WSDL2Java
output

Listing
3
reports
the
output
generated
by
WSDL2Java
tool,
operations

been
executed
are
clearly
shown.
I
intentionally
specified
option
-‐B
on
the

command
line,
this
option
is
responsible
for
the
Ant
Buildfile
(buld.xml)
creation,

that
we
will
use
afterwards
to
compile
the
client
and
to
generate
the
Jar.

14/01/14

This
document
is
issued
with
license
Creative
Commons

3

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

The
tool
supports
other
configuration
options
that
could
be
useful
in
other

situations,
for
further
details
I
recommend
to
consult
the
Apache
Axis
official

documentation.

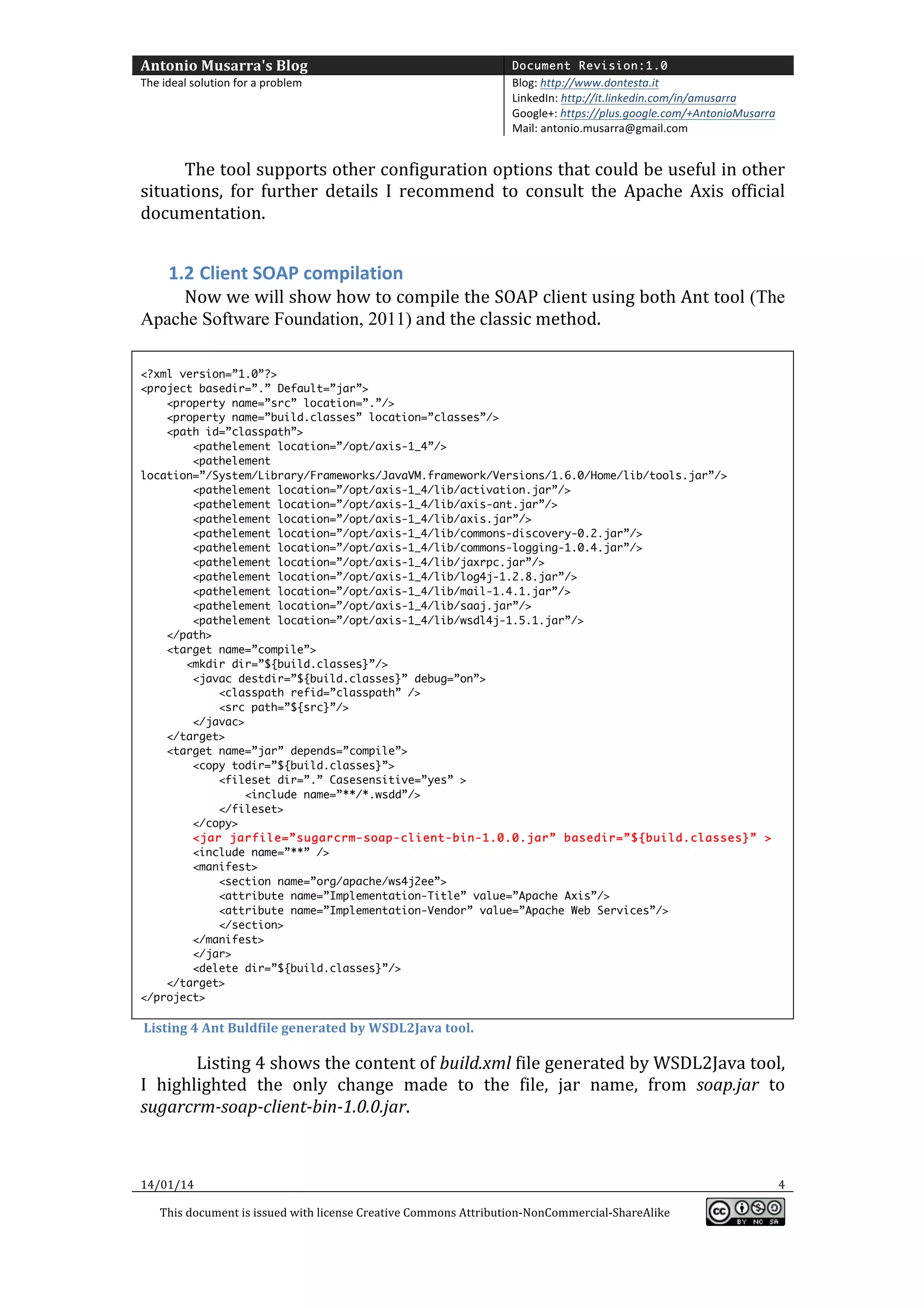

1.2 Client
SOAP
compilation

Now
we
will
show
how
to
compile
the
SOAP
client
using
both
Ant
tool (The
Apache Software Foundation, 2011)
and
the
classic
method.

<?xml version=”1.0”?>
<project basedir=”.” Default=”jar”>
<property name=”src” location=”.”/>
<property name=”build.classes” location=”classes”/>
<path id=”classpath”>
<pathelement location=”/opt/axis-1_4”/>
<pathelement
location=”/System/Library/Frameworks/JavaVM.framework/Versions/1.6.0/Home/lib/tools.jar”/>
<pathelement location=”/opt/axis-1_4/lib/activation.jar”/>
<pathelement location=”/opt/axis-1_4/lib/axis-ant.jar”/>
<pathelement location=”/opt/axis-1_4/lib/axis.jar”/>
<pathelement location=”/opt/axis-1_4/lib/commons-discovery-0.2.jar”/>
<pathelement location=”/opt/axis-1_4/lib/commons-logging-1.0.4.jar”/>
<pathelement location=”/opt/axis-1_4/lib/jaxrpc.jar”/>
<pathelement location=”/opt/axis-1_4/lib/log4j-1.2.8.jar”/>
<pathelement location=”/opt/axis-1_4/lib/mail-1.4.1.jar”/>
<pathelement location=”/opt/axis-1_4/lib/saaj.jar”/>
<pathelement location=”/opt/axis-1_4/lib/wsdl4j-1.5.1.jar”/>
</path>
<target name=”compile”>
<mkdir dir=”${build.classes}”/>
<javac destdir=”${build.classes}” debug=”on”>
<classpath refid=”classpath” />
<src path=”${src}”/>
</javac>
</target>
<target name=”jar” depends=”compile”>
<copy todir=”${build.classes}”>
<fileset dir=”.” Casesensitive=”yes” >
<include name=”**/*.wsdd”/>
</fileset>
</copy>
<jar jarfile=”sugarcrm-soap-client-bin-1.0.0.jar” basedir=”${build.classes}” >
<include name=”**” />
<manifest>
<section name=”org/apache/ws4j2ee”>
<attribute name=”Implementation-Title” value=”Apache Axis”/>
<attribute name=”Implementation-Vendor” value=”Apache Web Services”/>
</section>
</manifest>
</jar>
<delete dir=”${build.classes}”/>
</target>
</project>

Listing
4
Ant
Buldfile
generated
by
WSDL2Java
tool.

Listing
4
shows
the
content
of
build.xml
file
generated
by
WSDL2Java
tool,

I
highlighted
the
only
change
made
to
the
file,
jar
name,
from
soap.jar
to

sugarcrm-‐soap-‐client-‐bin-‐1.0.0.jar.

14/01/14

This
document
is
issued
with
license
Creative
Commons

4

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

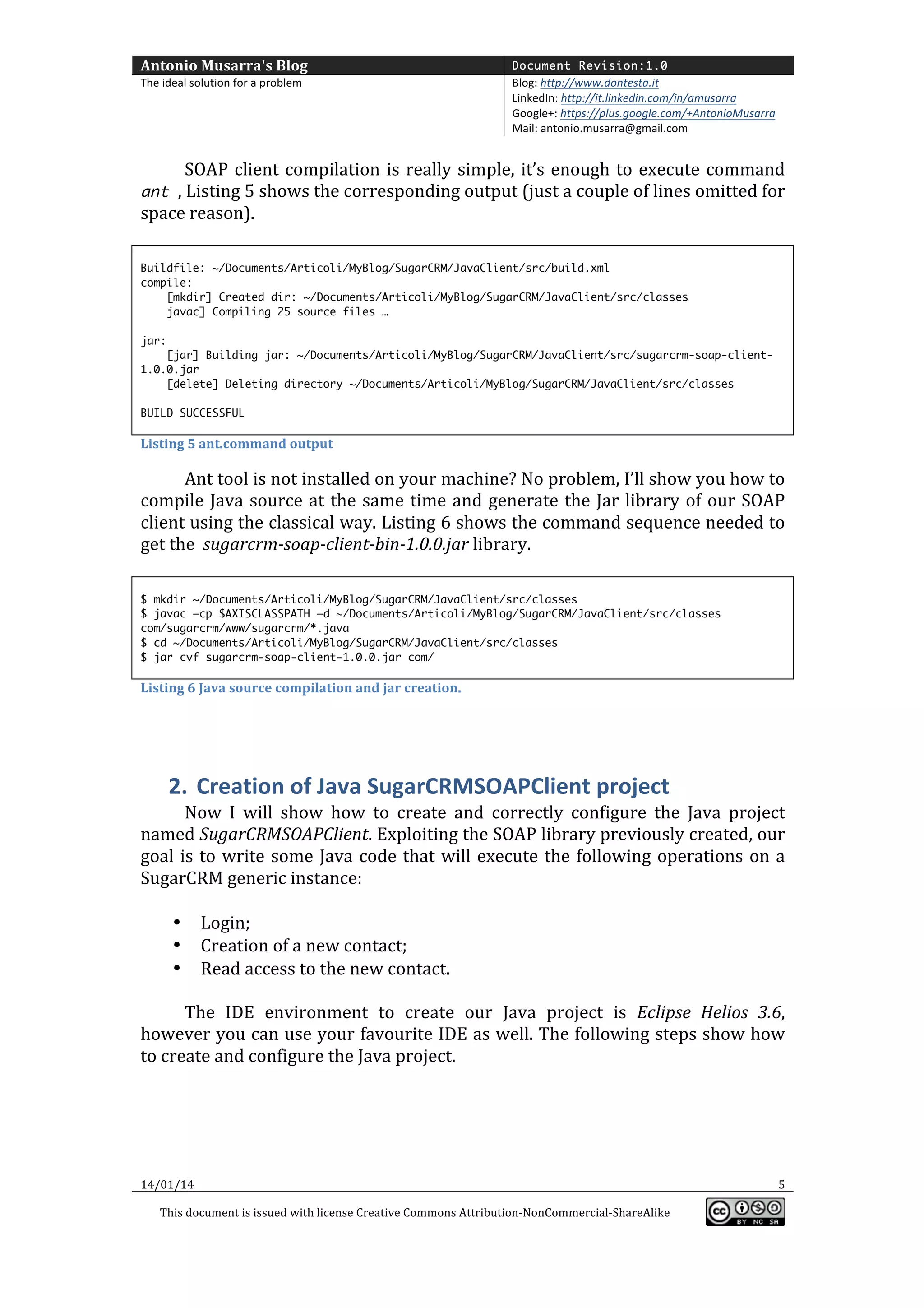

SOAP
client
compilation
is
really
simple,
it’s
enough
to
execute
command

ant ,
Listing
5
shows
the
corresponding
output
(just
a
couple
of
lines
omitted
for

space
reason).

Buildfile: ~/Documents/Articoli/MyBlog/SugarCRM/JavaClient/src/build.xml
compile:
[mkdir] Created dir: ~/Documents/Articoli/MyBlog/SugarCRM/JavaClient/src/classes
javac] Compiling 25 source files …
jar:
[jar] Building jar: ~/Documents/Articoli/MyBlog/SugarCRM/JavaClient/src/sugarcrm-soap-client1.0.0.jar
[delete] Deleting directory ~/Documents/Articoli/MyBlog/SugarCRM/JavaClient/src/classes
BUILD SUCCESSFUL

Listing
5
ant.command
output

Ant
tool
is
not
installed
on
your
machine?
No
problem,
I’ll
show
you
how
to

compile
Java
source
at
the
same
time
and
generate
the
Jar
library
of
our
SOAP

client
using
the
classical
way.
Listing
6
shows
the
command
sequence
needed
to

get
the

sugarcrm-‐soap-‐client-‐bin-‐1.0.0.jar
library.

$ mkdir ~/Documents/Articoli/MyBlog/SugarCRM/JavaClient/src/classes
$ javac –cp $AXISCLASSPATH –d ~/Documents/Articoli/MyBlog/SugarCRM/JavaClient/src/classes
com/sugarcrm/www/sugarcrm/*.java
$ cd ~/Documents/Articoli/MyBlog/SugarCRM/JavaClient/src/classes
$ jar cvf sugarcrm-soap-client-1.0.0.jar com/

Listing
6
Java
source
compilation
and
jar
creation.

2. Creation
of
Java
SugarCRMSOAPClient
project

Now
I
will
show
how
to
create
and
correctly
configure
the
Java
project

named
SugarCRMSOAPClient.
Exploiting
the
SOAP
library
previously
created,
our

goal
is
to
write
some
Java
code
that
will
execute
the
following
operations
on
a

SugarCRM
generic
instance:

• Login;

• Creation
of
a
new
contact;

• Read
access
to
the
new
contact.

The
IDE
environment
to
create
our
Java
project
is
Eclipse
Helios
3.6,

however
you
can
use
your
favourite
IDE
as
well.
The
following
steps
show
how

to
create
and
configure
the
Java
project.

14/01/14

This
document
is
issued
with
license
Creative
Commons

5

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

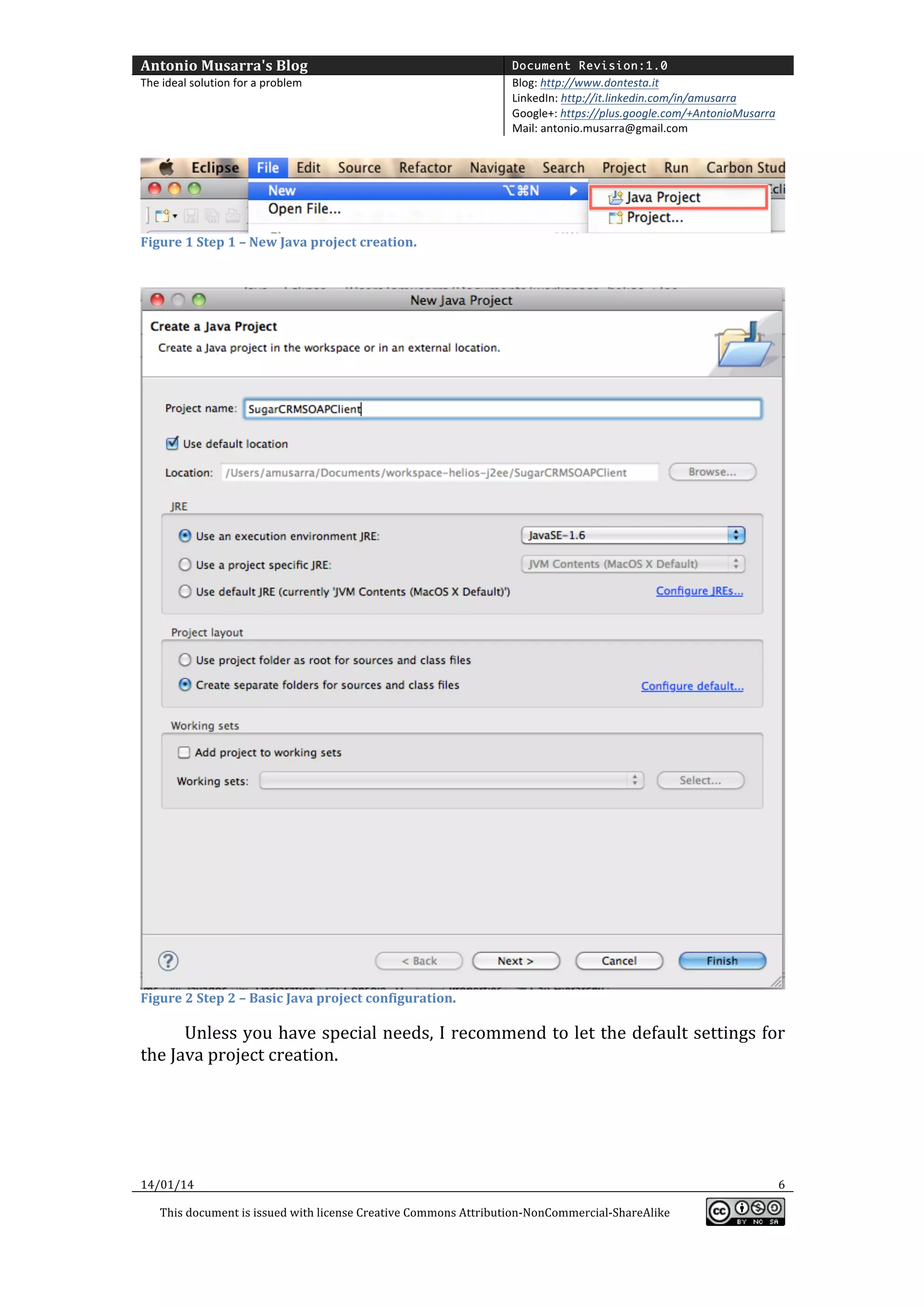

Figure
1
Step
1
–
New
Java
project
creation.

Figure
2
Step
2
–
Basic
Java
project
configuration.

Unless
you
have
special
needs,
I
recommend
to
let
the
default
settings
for

the
Java
project
creation.

14/01/14

This
document
is
issued
with
license
Creative
Commons

6

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

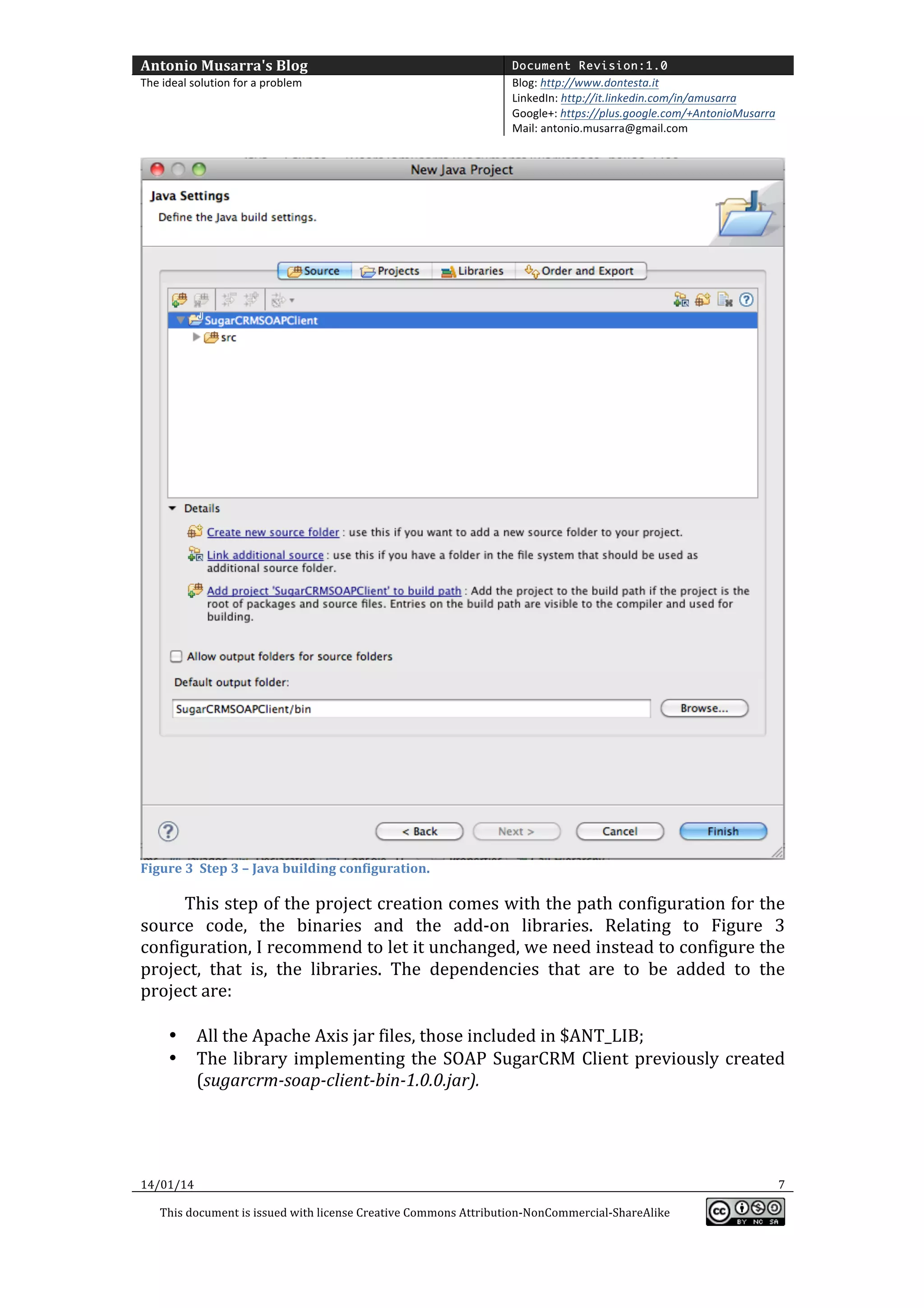

Figure
3

Step
3
–
Java
building
configuration.

This
step
of
the
project
creation
comes
with
the
path
configuration
for
the

source
code,
the
binaries
and
the
add-‐on
libraries.
Relating
to
Figure
3

configuration,
I
recommend
to
let
it
unchanged,
we
need
instead
to
configure
the

project,
that
is,
the
libraries.
The
dependencies
that
are
to
be
added
to
the

project
are:

• All
the
Apache
Axis
jar
files,
those
included
in
$ANT_LIB;

• The
library
implementing
the
SOAP
SugarCRM
Client
previously
created

(sugarcrm-‐soap-‐client-‐bin-‐1.0.0.jar).

14/01/14

This
document
is
issued
with
license
Creative
Commons

7

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

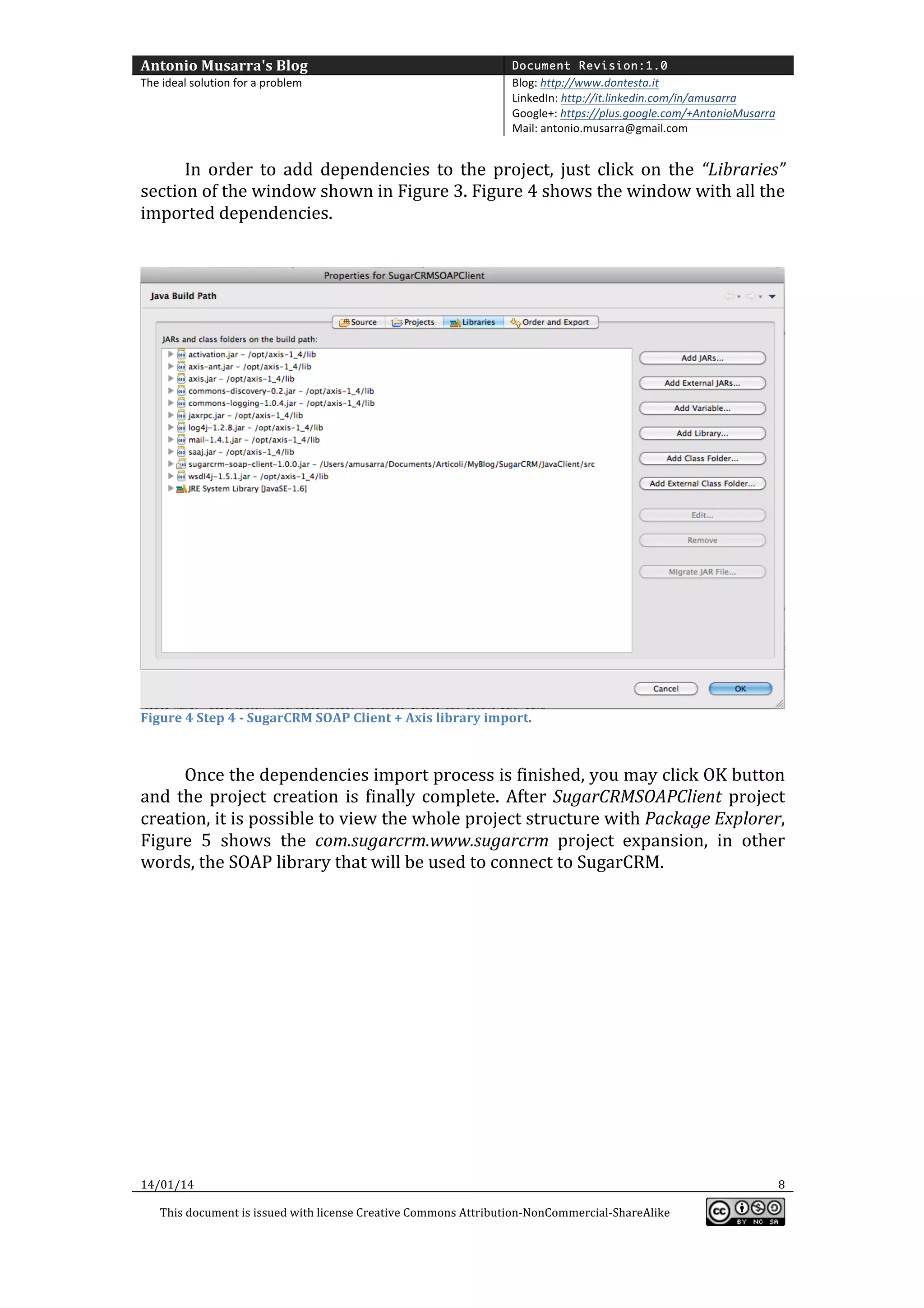

In
order
to
add
dependencies
to
the
project,
just
click
on
the
“Libraries”

section
of
the
window
shown
in
Figure
3.
Figure
4
shows
the
window
with
all
the

imported
dependencies.

Figure
4
Step
4
-‐
SugarCRM
SOAP
Client
+
Axis
library
import.

Once
the
dependencies
import
process
is
finished,
you
may
click
OK
button

and
the
project
creation
is
finally
complete.
After
SugarCRMSOAPClient
project

creation,
it
is
possible
to
view
the
whole
project
structure
with
Package
Explorer,

Figure
5
shows
the
com.sugarcrm.www.sugarcrm
project
expansion,
in
other

words,
the
SOAP
library
that
will
be
used
to
connect
to
SugarCRM.

14/01/14

This
document
is
issued
with
license
Creative
Commons

8

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

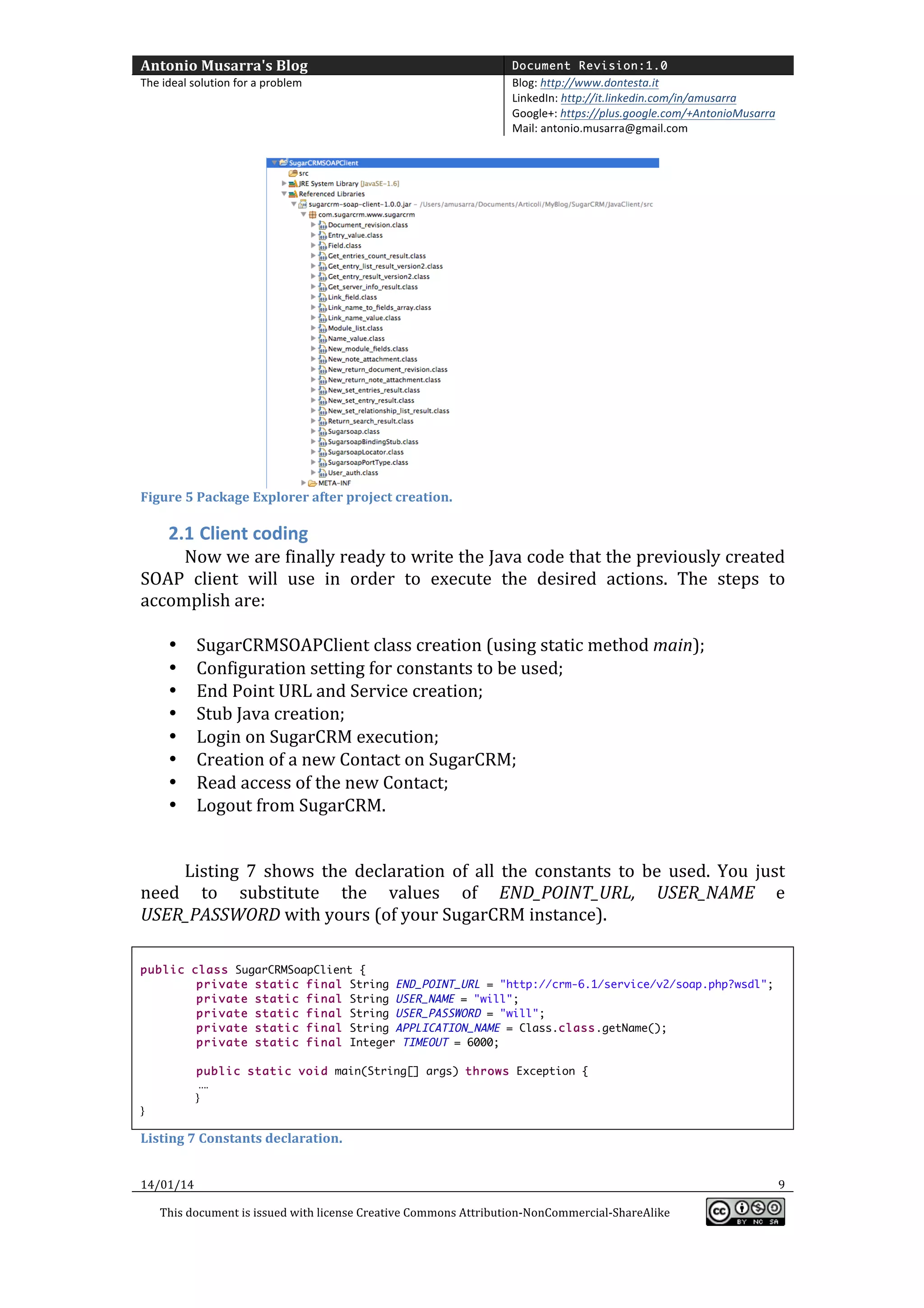

Figure
5
Package
Explorer
after
project
creation.

2.1 Client
coding

Now
we
are
finally
ready
to
write
the
Java
code
that
the
previously
created

SOAP
client
will
use
in
order
to
execute
the
desired
actions.
The
steps
to

accomplish
are:

• SugarCRMSOAPClient
class
creation
(using
static
method
main);

• Configuration
setting
for
constants
to
be
used;

• End
Point
URL
and
Service
creation;

• Stub
Java
creation;

• Login
on
SugarCRM
execution;

• Creation
of
a
new
Contact
on
SugarCRM;

• Read
access
of
the
new
Contact;

• Logout
from
SugarCRM.

Listing
7
shows
the
declaration
of
all
the
constants
to
be
used.
You
just

need
to
substitute
the
values
of
END_POINT_URL,
USER_NAME
e

USER_PASSWORD
with
yours
(of
your
SugarCRM
instance).

public class SugarCRMSoapClient {
private static final String END_POINT_URL = "http://crm-6.1/service/v2/soap.php?wsdl";
private static final String USER_NAME = "will";
private static final String USER_PASSWORD = "will";
private static final String APPLICATION_NAME = Class.class.getName();
private static final Integer TIMEOUT = 6000;
public static void main(String[] args) throws Exception {

….

}

}

Listing
7
Constants
declaration.

14/01/14

This
document
is
issued
with
license
Creative
Commons

9

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

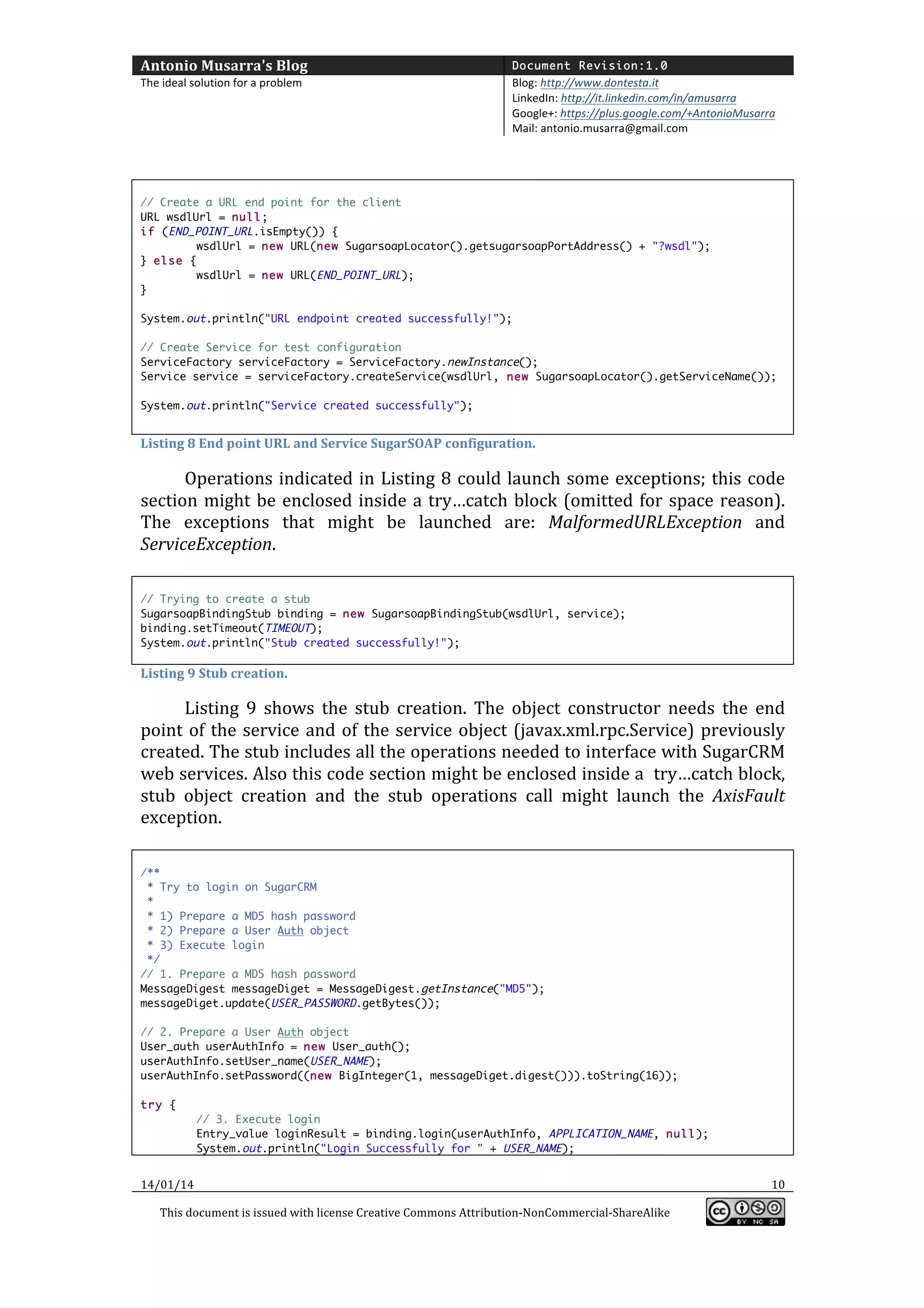

// Create a URL end point for the client
URL wsdlUrl = null;
if (END_POINT_URL.isEmpty()) {
wsdlUrl = new URL(new SugarsoapLocator().getsugarsoapPortAddress() + "?wsdl");
} else {
wsdlUrl = new URL(END_POINT_URL);
}
System.out.println("URL endpoint created successfully!");
// Create Service for test configuration
ServiceFactory serviceFactory = ServiceFactory.newInstance();
Service service = serviceFactory.createService(wsdlUrl, new SugarsoapLocator().getServiceName());
System.out.println("Service created successfully");

Listing
8
End
point
URL
and
Service
SugarSOAP
configuration.

Operations
indicated
in
Listing
8
could
launch
some
exceptions;
this
code

section
might
be
enclosed
inside
a
try…catch
block
(omitted
for
space
reason).

The
exceptions
that
might
be
launched
are:
MalformedURLException
and

ServiceException.

// Trying to create a stub
SugarsoapBindingStub binding = new SugarsoapBindingStub(wsdlUrl, service);
binding.setTimeout(TIMEOUT);
System.out.println("Stub created successfully!");

Listing
9
Stub
creation.

Listing
9
shows
the
stub
creation.
The
object
constructor
needs
the
end

point
of
the
service
and
of
the
service
object
(javax.xml.rpc.Service)
previously

created.
The
stub
includes
all
the
operations
needed
to
interface
with
SugarCRM

web
services.
Also
this
code
section
might
be
enclosed
inside
a

try…catch
block,

stub
object
creation
and
the
stub
operations
call
might
launch
the
AxisFault

exception.

/**
* Try to login on SugarCRM
*
* 1) Prepare a MD5 hash password
* 2) Prepare a User Auth object
* 3) Execute login
*/
// 1. Prepare a MD5 hash password
MessageDigest messageDiget = MessageDigest.getInstance("MD5");
messageDiget.update(USER_PASSWORD.getBytes());
// 2. Prepare a User Auth object
User_auth userAuthInfo = new User_auth();
userAuthInfo.setUser_name(USER_NAME);
userAuthInfo.setPassword((new BigInteger(1, messageDiget.digest())).toString(16));
try {
// 3. Execute login
Entry_value loginResult = binding.login(userAuthInfo, APPLICATION_NAME, null);
System.out.println("Login Successfully for " + USER_NAME);

14/01/14

This
document
is
issued
with
license
Creative
Commons

10

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

System.out.println("Your session Id: " + loginResult.getId());
sessionID = loginResult.getId();
} catch (RemoteException ex) {
System.out.println("Login failed. Message: " + ex.getMessage());
ex.printStackTrace();
}

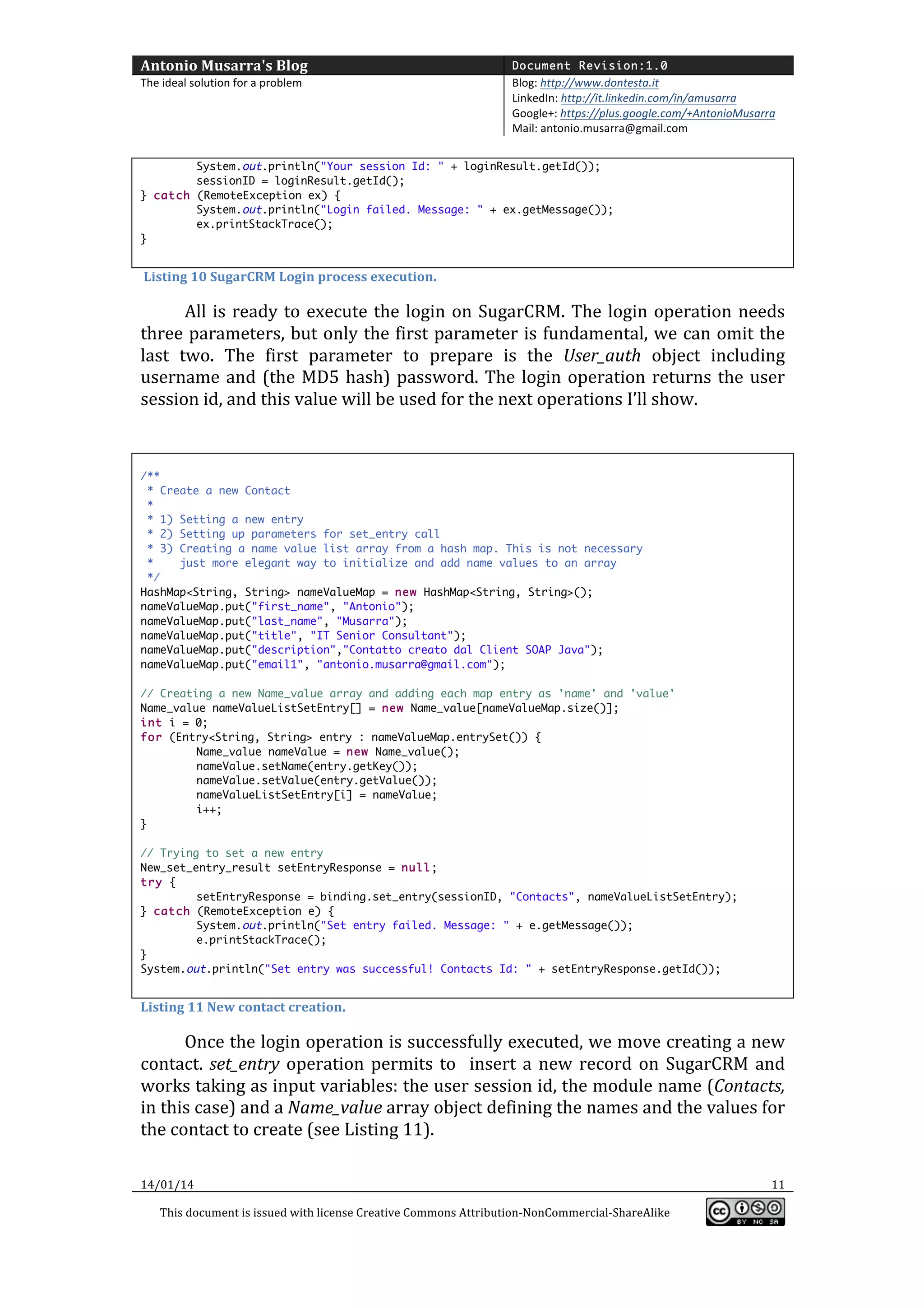

Listing
10
SugarCRM
Login
process
execution.

All
is
ready
to
execute
the
login
on
SugarCRM.
The
login
operation
needs

three
parameters,
but
only
the
first
parameter
is
fundamental,
we
can
omit
the

last
two.
The
first
parameter
to
prepare
is
the
User_auth
object
including

username
and
(the
MD5
hash)
password.
The
login
operation
returns
the
user

session
id,
and
this
value
will
be
used
for
the
next
operations
I’ll
show.

/**
* Create a new Contact
*
* 1) Setting a new entry
* 2) Setting up parameters for set_entry call
* 3) Creating a name value list array from a hash map. This is not necessary
*
just more elegant way to initialize and add name values to an array
*/
HashMap<String, String> nameValueMap = new HashMap<String, String>();
nameValueMap.put("first_name", "Antonio");
nameValueMap.put("last_name", "Musarra");
nameValueMap.put("title", "IT Senior Consultant");
nameValueMap.put("description","Contatto creato dal Client SOAP Java");
nameValueMap.put("email1", "antonio.musarra@gmail.com");
// Creating a new Name_value array and adding each map entry as 'name' and 'value'
Name_value nameValueListSetEntry[] = new Name_value[nameValueMap.size()];
int i = 0;
for (Entry<String, String> entry : nameValueMap.entrySet()) {
Name_value nameValue = new Name_value();
nameValue.setName(entry.getKey());
nameValue.setValue(entry.getValue());
nameValueListSetEntry[i] = nameValue;
i++;
}
// Trying to set a new entry
New_set_entry_result setEntryResponse = null;
try {
setEntryResponse = binding.set_entry(sessionID, "Contacts", nameValueListSetEntry);
} catch (RemoteException e) {
System.out.println("Set entry failed. Message: " + e.getMessage());
e.printStackTrace();
}
System.out.println("Set entry was successful! Contacts Id: " + setEntryResponse.getId());

Listing
11
New
contact
creation.

Once
the
login
operation
is
successfully
executed,
we
move
creating
a
new

contact.
set_entry
operation
permits
to

insert
a
new
record
on
SugarCRM
and

works
taking
as
input
variables:
the
user
session
id,
the
module
name
(Contacts,

in
this
case)
and
a
Name_value
array
object
defining
the
names
and
the
values
for

the
contact
to
create
(see
Listing
11).

14/01/14

This
document
is
issued
with
license
Creative
Commons

11

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

set_entry
operation
returns
the
inserted
SugarBean
id,
and
this
value
will

be
used
for
the
contact
data
retrieval
using
get_entry
operation.

get_entry
operation
requires
as
input
variables:
the
user
session,
the

module
name
(Contacts,
in
this
case),
the
SugarBean
id,
an
array
including
the

fields
we
like
to
have
back,
and,
at
last,
an
array
to
relate
the
returned
fields
to

specific
names
(optional).

The
operation
returns
an
entry_list
including
a

Name_value
object
array
containing
the
contact
informations.

Listing
12
shows
the
code
responsible
for
the
contact
(previously
inserted

set_entry
operation)
retrieval.

/**
* Getting an Contacts Entry (the one we just set)
*/
Link_name_to_fields_array[] link_name_to_fields_array = null;
String[] select_fields = null;
Get_entry_result_version2 getEntryResponse = null;
// Trying to get entry
try {
getEntryResponse = binding.get_entry(sessionID,"Contacts", setEntryResponse.getId(),
select_fields , link_name_to_fields_array);
} catch (RemoteException e) {
System.out.println("Get entry failed. Message: " + e.getMessage());
e.printStackTrace();
}
System.out.println("Get entry was successful! Response: ");
// Getting the fields for entry we got.
Entry_value[] entryList = getEntryResponse.getEntry_list();
for (int k=0; k < entryList.length; k++){
Entry_value entry = entryList[k];
Name_value[] entryNameValueList = entry.getName_value_list();
for (int j=0; j< entryNameValueList.length; j++){
Name_value entryNameValue = entryNameValueList[j];
//Outputting only non empty fields
if (!entryNameValue.getValue().isEmpty()){
System.out.println("Attribute Name: '" + entryNameValue.getName() + "'
Attribute Value: '" + entryNameValue.getValue() + "'");
}
}
}

Listing
12
Data
retrieval
for
the
Contact
inserted
on
SugarCRM.

14/01/14

This
document
is
issued
with
license
Creative
Commons

12

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

/**
* Logout
*/
try {
binding.logout(sessionID);
System.out.println("Logout Successfully for " + USER_NAME);
sessionID = null;
} catch (RemoteException ex) {
System.out.println("Login failed. Message: " + ex.getMessage());
ex.printStackTrace();
}

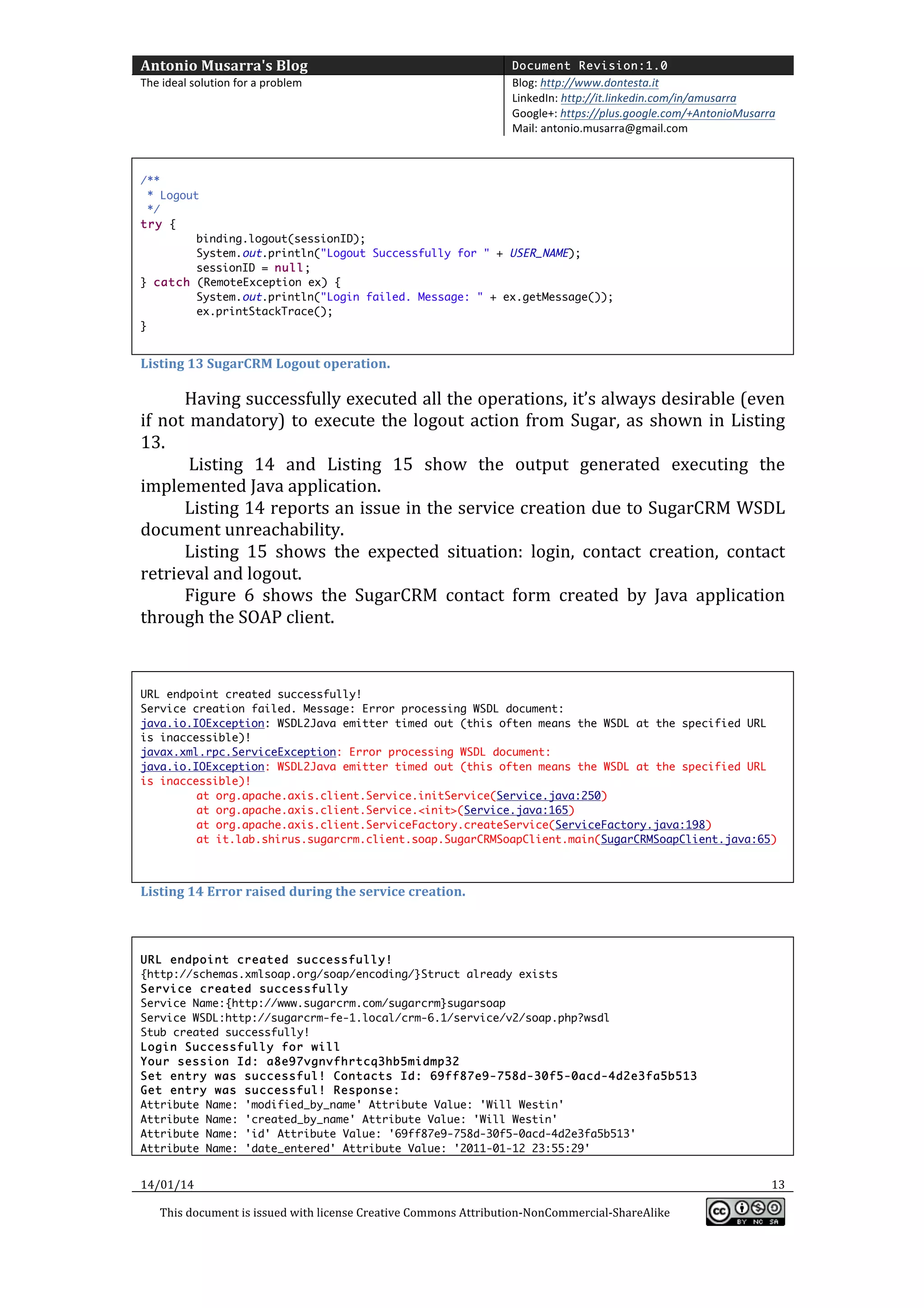

Listing
13
SugarCRM
Logout
operation.

Having
successfully
executed
all
the
operations,
it’s
always
desirable
(even

if
not
mandatory)
to
execute
the
logout
action
from
Sugar,
as
shown
in
Listing

13.

Listing
14
and
Listing
15
show
the
output
generated
executing
the

implemented
Java
application.

Listing
14
reports
an
issue
in
the
service
creation
due
to
SugarCRM
WSDL

document
unreachability.

Listing
15
shows
the
expected
situation:
login,
contact
creation,
contact

retrieval
and
logout.

Figure
6
shows
the
SugarCRM
contact
form
created
by
Java
application

through
the
SOAP
client.

URL endpoint created successfully!
Service creation failed. Message: Error processing WSDL document:
java.io.IOException: WSDL2Java emitter timed out (this often means the WSDL at the specified URL
is inaccessible)!
javax.xml.rpc.ServiceException: Error processing WSDL document:
java.io.IOException: WSDL2Java emitter timed out (this often means the WSDL at the specified URL
is inaccessible)!
at org.apache.axis.client.Service.initService(Service.java:250)
at org.apache.axis.client.Service.<init>(Service.java:165)
at org.apache.axis.client.ServiceFactory.createService(ServiceFactory.java:198)
at it.lab.shirus.sugarcrm.client.soap.SugarCRMSoapClient.main(SugarCRMSoapClient.java:65)

Listing
14
Error
raised
during
the
service
creation.

URL endpoint created successfully!
{http://schemas.xmlsoap.org/soap/encoding/}Struct already exists
Service created successfully
Service Name:{http://www.sugarcrm.com/sugarcrm}sugarsoap
Service WSDL:http://sugarcrm-fe-1.local/crm-6.1/service/v2/soap.php?wsdl
Stub created successfully!
Login Successfully for will
Your session Id: a8e97vgnvfhrtcq3hb5midmp32
Set entry was successful! Contacts Id: 69ff87e9-758d-30f5-0acd-4d2e3fa5b513
Get entry was successful! Response:
Attribute Name: 'modified_by_name' Attribute Value: 'Will Westin'
Attribute Name: 'created_by_name' Attribute Value: 'Will Westin'
Attribute Name: 'id' Attribute Value: '69ff87e9-758d-30f5-0acd-4d2e3fa5b513'
Attribute Name: 'date_entered' Attribute Value: '2011-01-12 23:55:29'

14/01/14

This
document
is
issued
with
license
Creative
Commons

13

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

Attribute Name: 'date_modified' Attribute Value: '2011-01-12 23:55:29'
Attribute Name: 'modified_user_id' Attribute Value: 'seed_will_id'
Attribute Name: 'created_by' Attribute Value: 'seed_will_id'
Attribute Name: 'description' Attribute Value: 'Contatto creato dal Client SOAP Java'
Attribute Name: 'deleted' Attribute Value: '0'
Attribute Name: 'first_name' Attribute Value: 'Antonio'
Attribute Name: 'last_name' Attribute Value: 'Musarra'
Attribute Name: 'title' Attribute Value: 'IT Senior Consultant'
Attribute Name: 'do_not_call' Attribute Value: '0'
Attribute Name: 'email1' Attribute Value: 'antonio.musarra@gmail.com'
Logout Successfully for will

Listing
15
SugarCRMSOAPClient
client
execution.

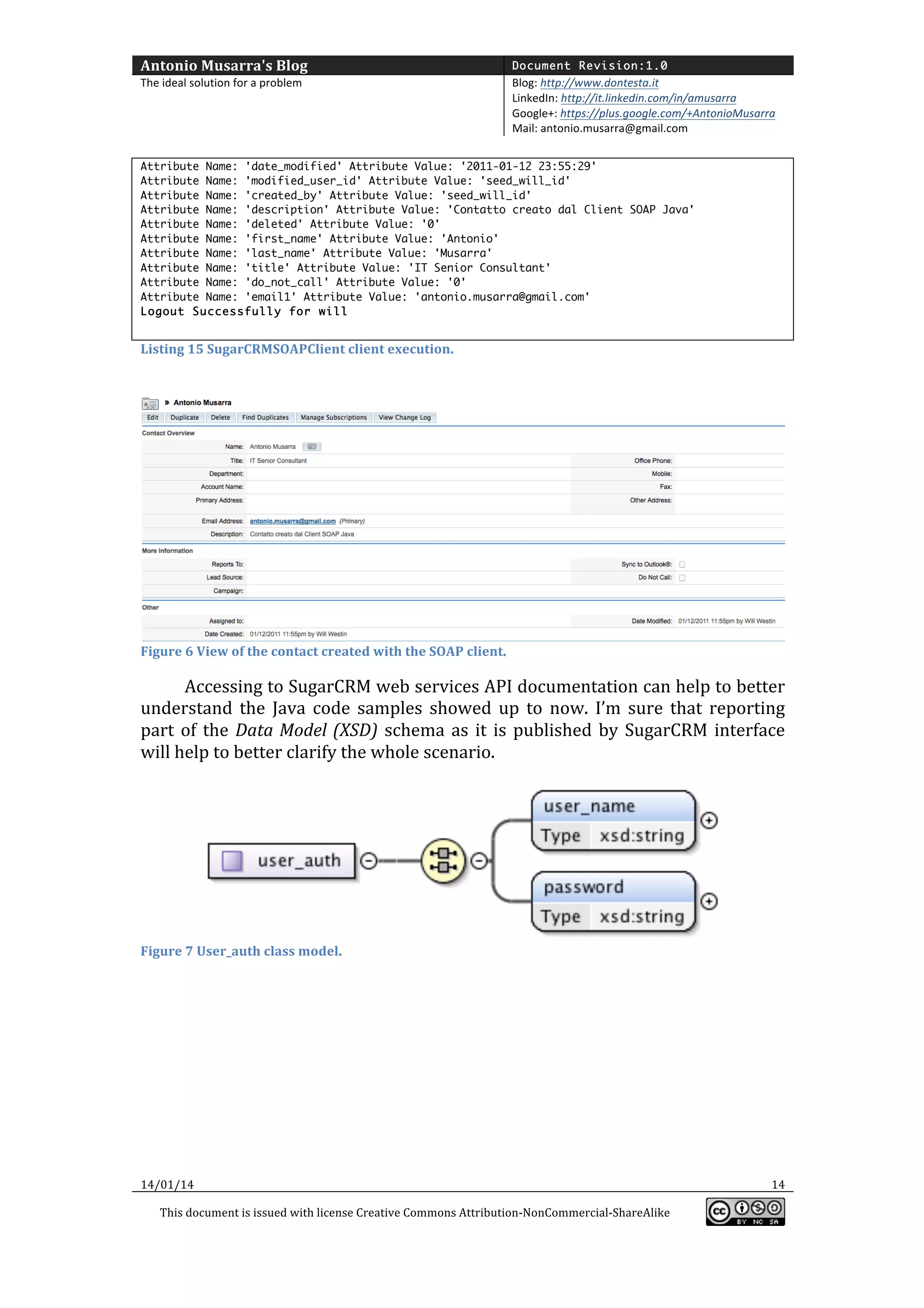

Figure
6
View
of
the
contact
created
with
the
SOAP
client.

Accessing
to
SugarCRM
web
services
API
documentation
can
help
to
better

understand
the
Java
code
samples
showed
up
to
now.
I’m
sure
that
reporting

part
of
the
Data
Model
(XSD)
schema
as
it
is
published
by
SugarCRM
interface

will
help
to
better
clarify
the
whole
scenario.

Figure
7
User_auth
class
model.

14/01/14

This
document
is
issued
with
license
Creative
Commons

14

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

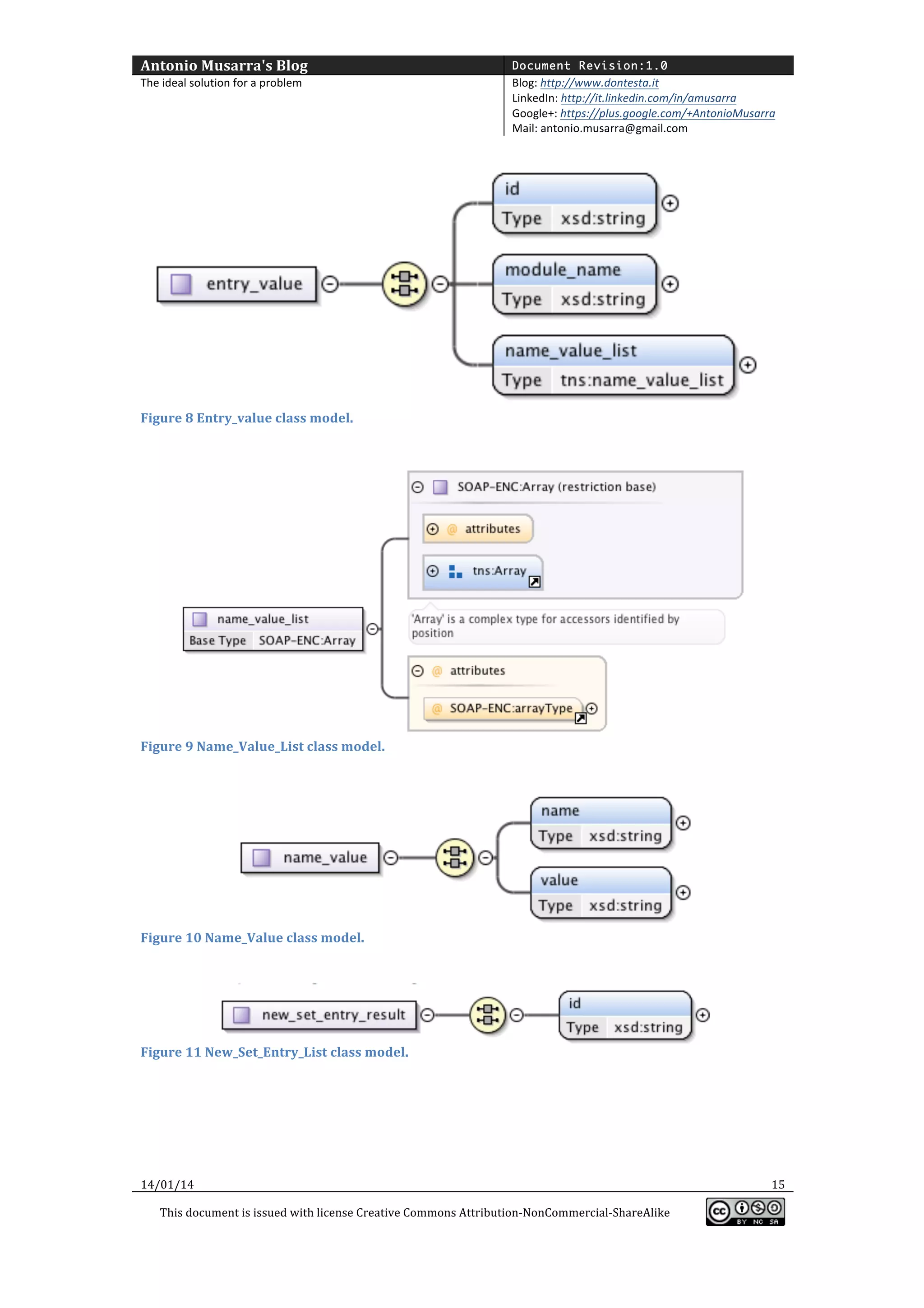

Figure
8
Entry_value
class
model.

Figure
9
Name_Value_List
class
model.

Figure
10
Name_Value
class
model.

Figure
11
New_Set_Entry_List
class
model.

14/01/14

This
document
is
issued
with
license
Creative
Commons

15

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

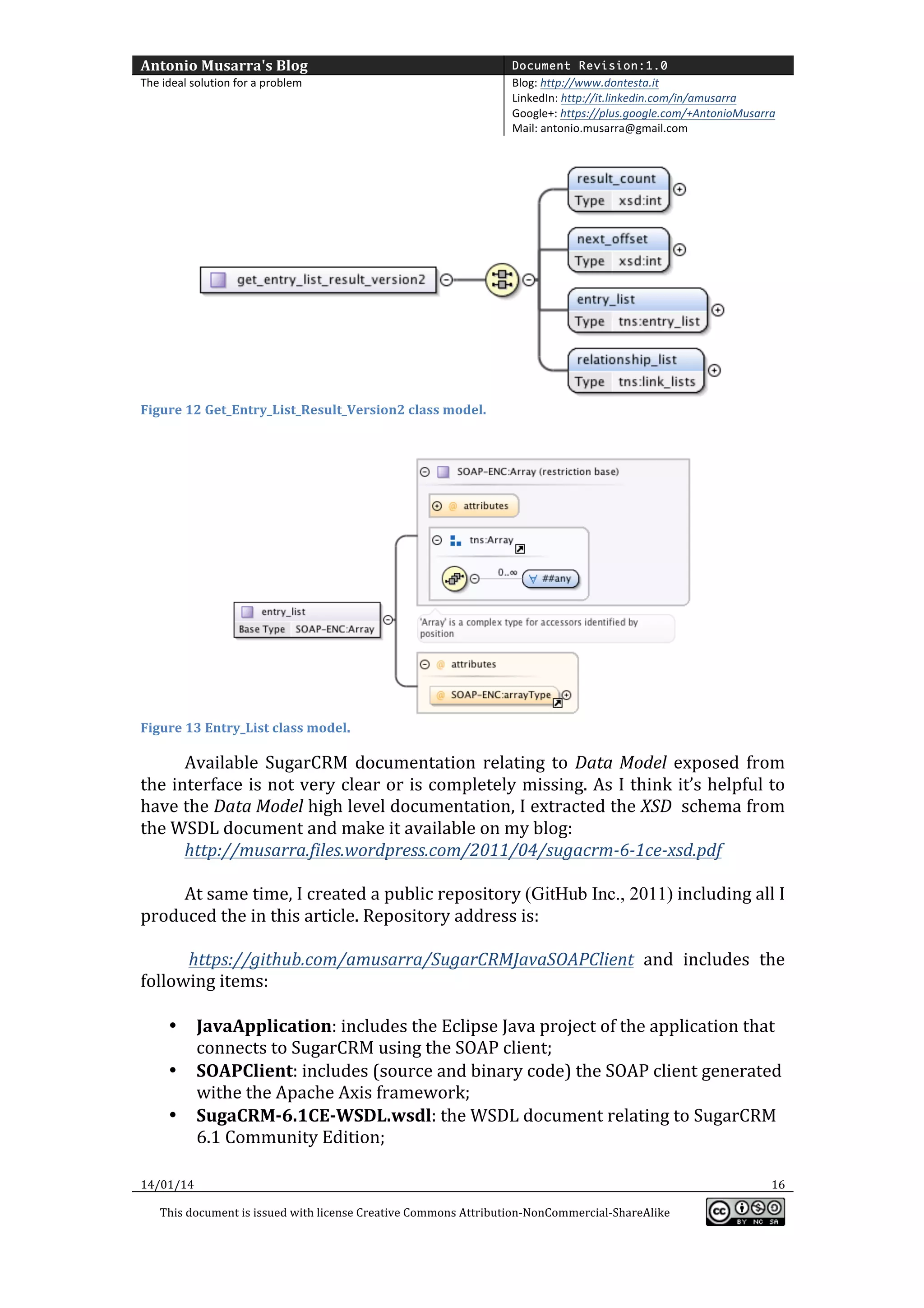

Figure
12
Get_Entry_List_Result_Version2
class
model.

Figure
13
Entry_List
class
model.

Available
SugarCRM
documentation
relating
to
Data
Model
exposed
from

the
interface
is
not
very
clear
or
is
completely
missing.
As
I
think
it’s
helpful
to

have
the
Data
Model
high
level
documentation,
I
extracted
the
XSD

schema
from

the
WSDL
document
and
make
it
available
on
my
blog:

http://musarra.files.wordpress.com/2011/04/sugacrm-‐6-‐1ce-‐xsd.pdf

At
same
time,
I
created
a
public
repository
(GitHub Inc., 2011)
including
all
I

produced
the
in
this
article.
Repository
address
is:

https://github.com/amusarra/SugarCRMJavaSOAPClient
and
includes
the

following
items:

• JavaApplication:
includes
the
Eclipse
Java
project
of
the
application
that

connects
to
SugarCRM
using
the
SOAP
client;

• SOAPClient:
includes
(source
and
binary
code)
the
SOAP
client
generated

withe
the
Apache
Axis
framework;

• SugaCRM-‐6.1CE-‐WSDL.wsdl:
the
WSDL
document
relating
to
SugarCRM

6.1
Community
Edition;

14/01/14

This
document
is
issued
with
license
Creative
Commons

16

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

•
•

SugaCRM-‐6.1CE-‐XSD.xsd:
the
XSD
document
extracted
from
the

SugarCRM
WSDL
document;

SugaCRM-‐6.1CE-‐XSD.pdf:
the
data
model
documentation
used
by

SugarCRM
interface.

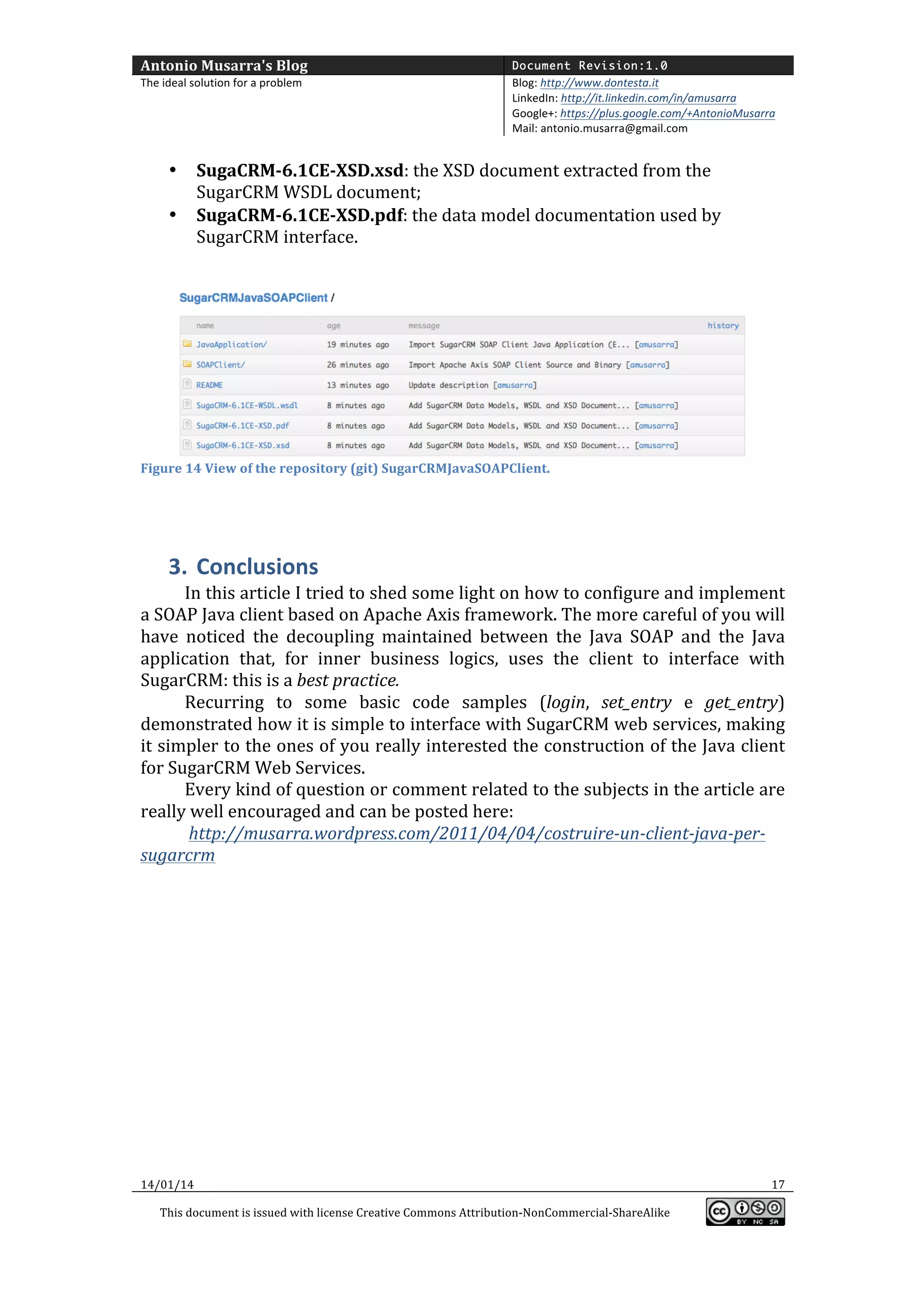

Figure
14
View
of
the
repository
(git)
SugarCRMJavaSOAPClient.

3. Conclusions

In
this
article
I
tried
to
shed
some
light
on
how
to
configure
and
implement

a
SOAP
Java
client
based
on
Apache
Axis
framework.
The
more
careful
of
you
will

have
noticed
the
decoupling
maintained
between
the
Java
SOAP
and
the
Java

application
that,
for
inner
business
logics,
uses
the
client
to
interface
with

SugarCRM:
this
is
a
best
practice.

Recurring
to
some
basic
code
samples
(login,
set_entry
e
get_entry)

demonstrated
how
it
is
simple
to
interface
with
SugarCRM
web
services,
making

it
simpler
to
the
ones
of
you
really
interested
the
construction
of
the
Java
client

for
SugarCRM
Web
Services.

Every
kind
of
question
or
comment
related
to
the
subjects
in
the
article
are

really
well
encouraged
and
can
be
posted
here:

http://musarra.wordpress.com/2011/04/04/costruire-‐un-‐client-‐java-‐per-‐
sugarcrm

14/01/14

This
document
is
issued
with
license
Creative
Commons

17

Antonio
Musarra's
Blog


The
ideal
solution
for
a
problem

Blog:

LinkedIn:

Google+:

Mail:

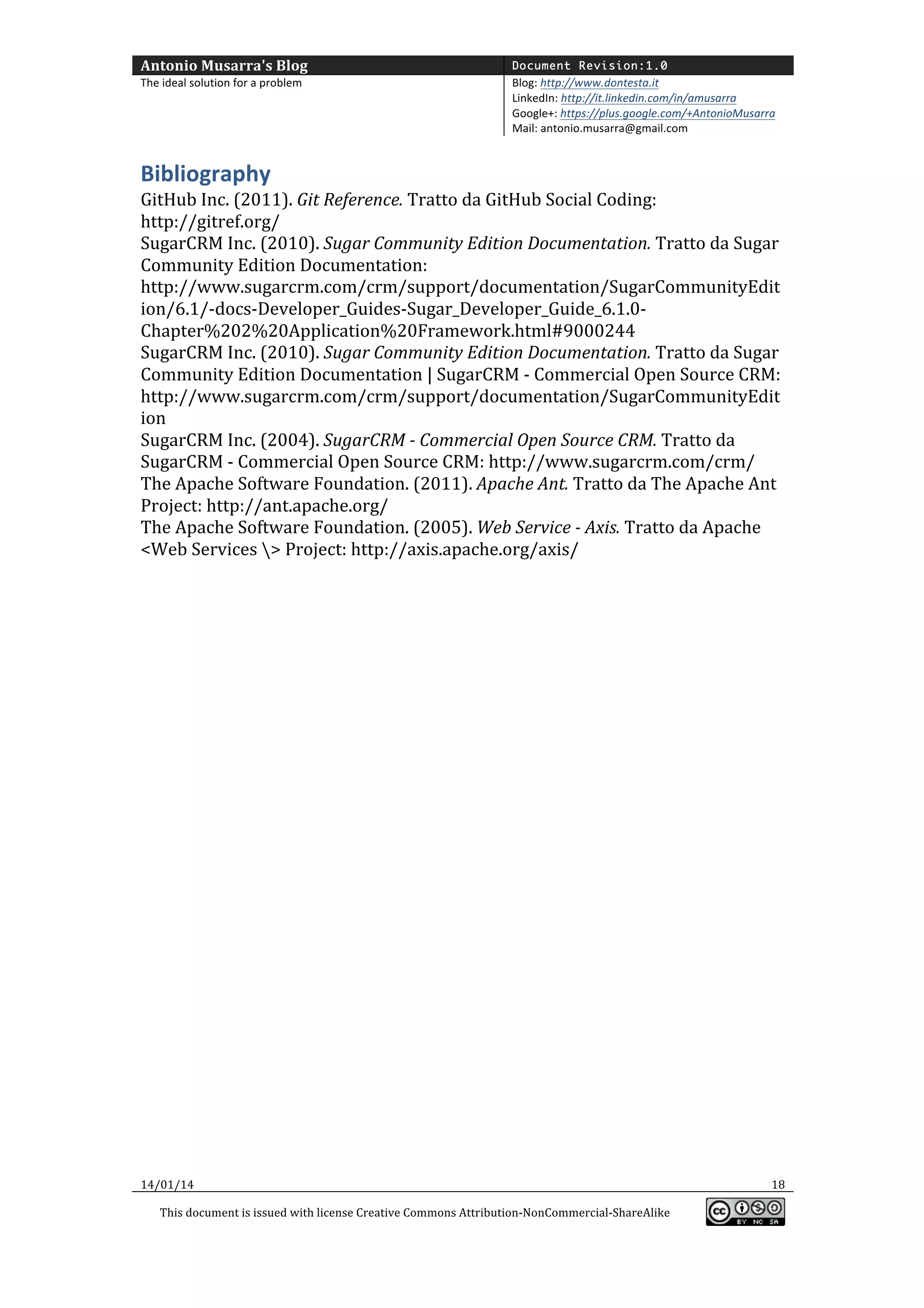

Bibliography

GitHub
Inc.
(2011).
Git
Reference.
Tratto
da
GitHub
Social
Coding:

http://gitref.org/

SugarCRM
Inc.
(2010).
Sugar
Community
Edition
Documentation.
Tratto
da
Sugar

Community
Edition
Documentation:

http://www.sugarcrm.com/crm/support/documentation/SugarCommunityEdit
ion/6.1/-‐docs-‐Developer_Guides-‐Sugar_Developer_Guide_6.1.0-‐
Chapter%202%20Application%20Framework.html#9000244

SugarCRM
Inc.
(2010).
Sugar
Community
Edition
Documentation.
Tratto
da
Sugar

Community
Edition
Documentation
|
SugarCRM
-‐
Commercial
Open
Source
CRM:

http://www.sugarcrm.com/crm/support/documentation/SugarCommunityEdit
ion

SugarCRM
Inc.
(2004).
SugarCRM
-‐
Commercial
Open
Source
CRM.
Tratto
da

SugarCRM
-‐
Commercial
Open
Source
CRM:
http://www.sugarcrm.com/crm/

The
Apache
Software
Foundation.
(2011).
Apache
Ant.
Tratto
da
The
Apache
Ant

Project:
http://ant.apache.org/

The
Apache
Software
Foundation.
(2005).
Web
Service
-‐
Axis.
Tratto
da
Apache

<Web
Services
>
Project:
http://axis.apache.org/axis/

14/01/14

This
document
is
issued
with
license
Creative
Commons

18

How to Build a Java client for SugarCRM

More Related Content

What's hot

Similar to How to Build a Java client for SugarCRM

More from Antonio Musarra

Recently uploaded

How to Build a Java client for SugarCRM
