How To Leverage OBIEE Within A Big Data Architecture

How to Leverage Your Investment in OBIEE
Within a Big Data Architecture
Kevin McGinley
Oracle ACE Director
Owner and Co-founder
Red Pill Analytics
July 9, 2014
Copyright © 2014 Oracle and/or its affiliates. All rights reserved. |
Oracle Confidential – Internal/Restricted/Highly Restricted

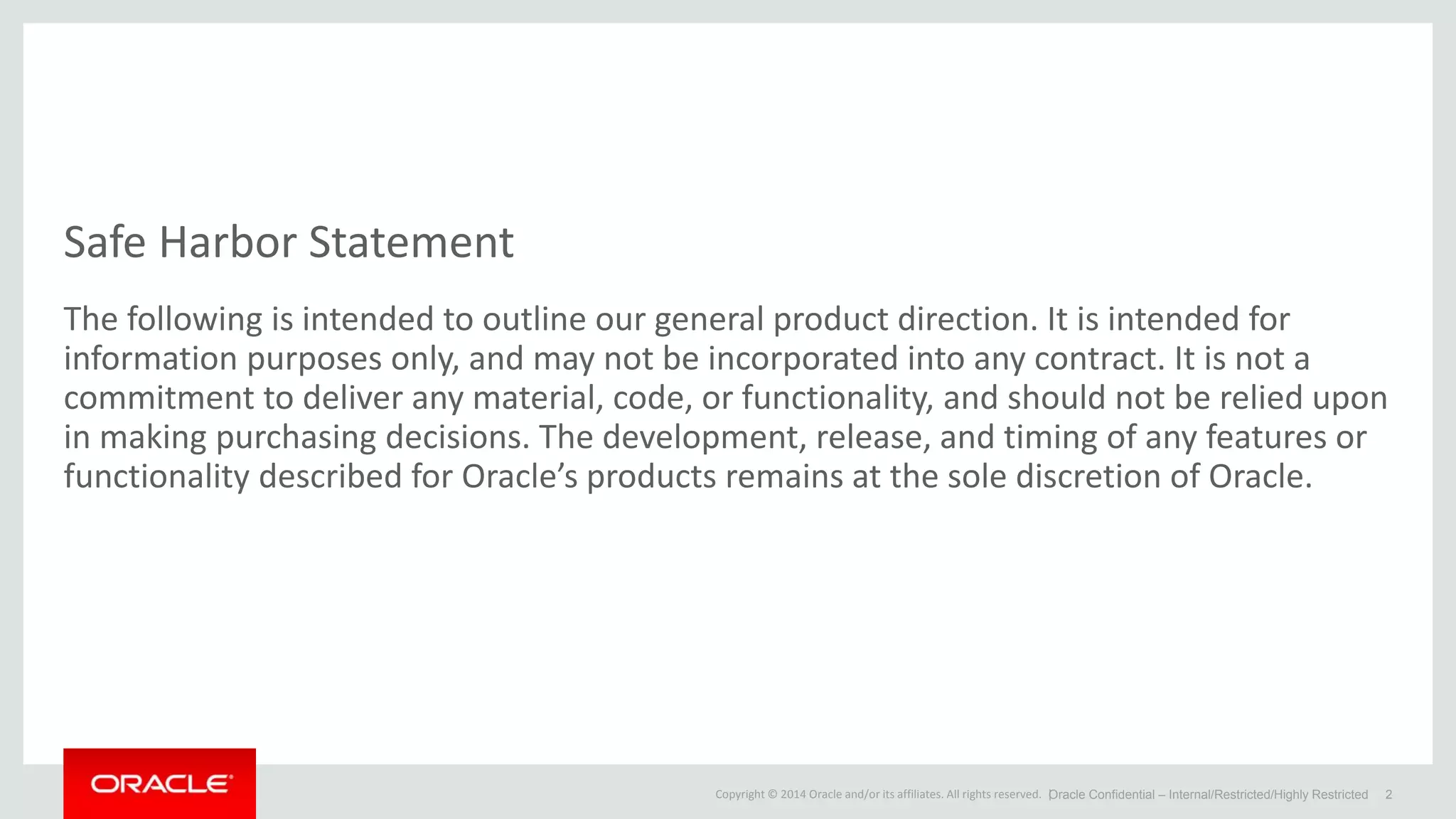

Safe Harbor Statement
The following is intended to outline our general product direction. It is intended for
information purposes only, and may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality, and should not be relied upon
in making purchasing decisions. The development, release, and timing of any features or
functionality described for Oracle’s products remains at the sole discretion of Oracle.
Copyright © 2014 Oracle and/or its affiliates. All rights reserved. |
Oracle Confidential – Internal/Restricted/Highly Restricted 2

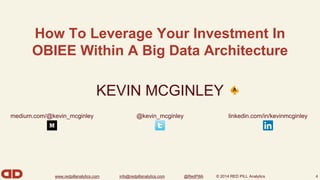

How To Leverage Your Investment In
OBIEE Within A Big Data Architecture
www.redpillanalytics.com info@redpillanalytics.com @RedPillA © 2014 RED PILL Analytics
4
KEVIN MCGINLEY
medium.com/@kevin_mcginley @kevin_mcginley linkedin.com/in/kevinmcginley

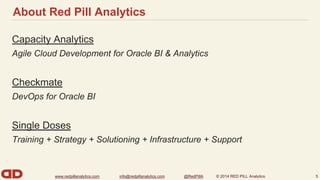

About Red Pill Analytics
5

Real Time BI with Kevin & Stewart
•
•
•
6

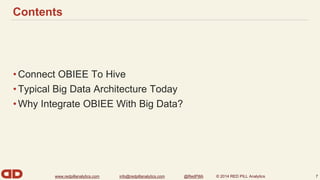

Contents
•
•
•
7

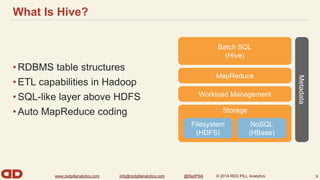

What Is Hive?
Batch SQL
MapReduce
Workload Management
•
•
•
•
9
Storage
Filesystem
(HDFS)
NoSQL
(HBase)
(Hive)
Metadata

A Basic Hive Table & Query
10

Connect OBIEE To Hive
Batch SQL
MapReduce
Workload Management
11
OBIEE
Storage
Filesystem
(HDFS)
NoSQL
(HBase)
(Hive)
Metadata

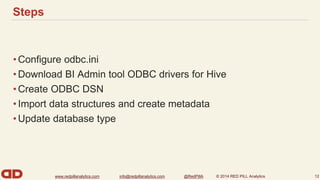

Steps
•
•
•
•
•
12

Configure odbc.ini
13
odbc.ini file
location
Configure a DSN
connection for
Hive database

Create ODBC DSN
14

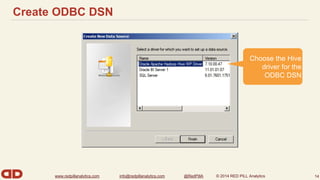

Choose the Hive
driver for the
ODBC DSN

Create ODBC DSN
15

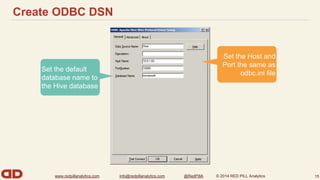

Set the Host and
Port the same as
odbc.ini file
Set the default
database name to
the Hive database

Create ODBC DSN
16
Test the
connection

Import Data Structures And Create Metadata

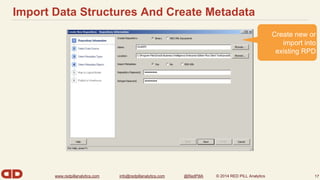

Create new or
import into
existing RPD
17

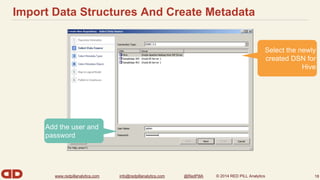

Select the newly
created DSN for
Hive
18

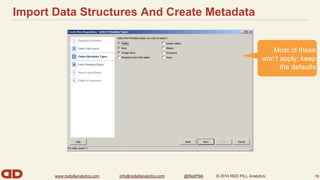

Add the user and
password

won’t apply; keep
Most of these
the defaults
19

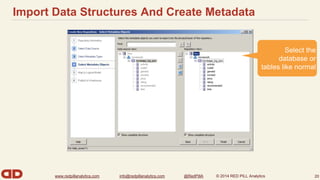

tables like normal
Select the
database or
20

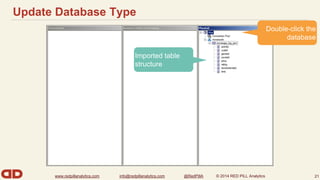

Update Database Type
Double-click the
database
21
Imported table
structure

22
Change database
type to Apache
Hadoop

23

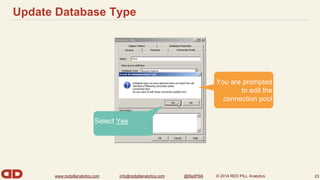

You are prompted
to edit the
connection pool
Select Yes

24

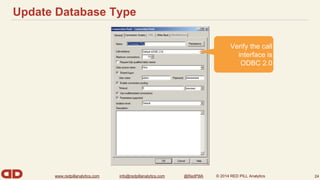

Verify the call
interface is
ODBC 2.0

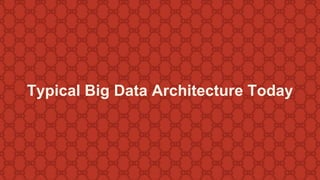

Typical Big Data Architecture Today

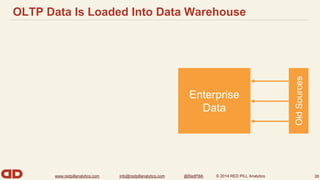

OLTP Data Is Loaded Into Data Warehouse
26
Enterprise
Data
Old Sources

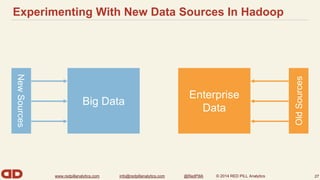

Experimenting With New Data Sources In Hadoop
27
Big Data
Enterprise
Data
Old Sources
New Sources

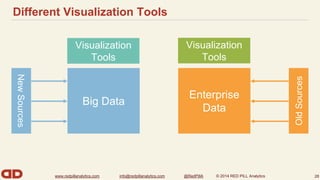

Different Visualization Tools
28
Big Data
Enterprise
Data
Old Sources
New Sources
Visualization
Tools
Visualization
Tools

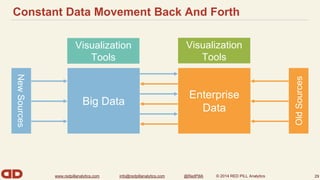

Constant Data Movement Back And Forth
29
Big Data
Enterprise
Data
Old Sources
New Sources
Visualization
Tools
Visualization
Tools

Why Integrate OBIEE With Big Data?

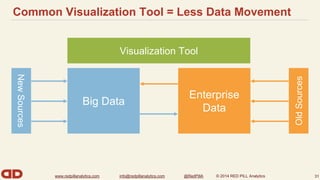

Common Visualization Tool = Less Data Movement
31
Big Data
Enterprise
Data
Old Sources
New Sources
Visualization Tool

Three Main Reasons To Use OBIEE Across Both
•
•
•
32

Federate OBIEE Across RDBMS and Hadoop
33
Hive Table
Oracle Table
Oracle Table
Oracle Table
Oracle Table

Full Business Model & Presentation Layer
34

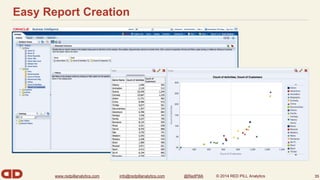

Easy Report Creation
35

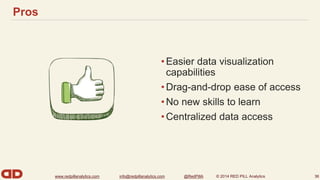

Pros
•
•
•
•
36

Cons
•
•
•
37

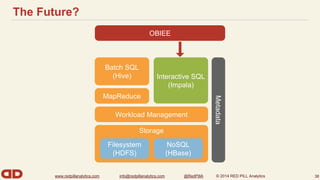

The Future?
Batch SQL
(Hive)
Workload Management
38
OBIEE
Storage
Filesystem
(HDFS)
NoSQL
(HBase)
MapReduce
Metadata
Interactive SQL
(Impala)
