How to create a component and view

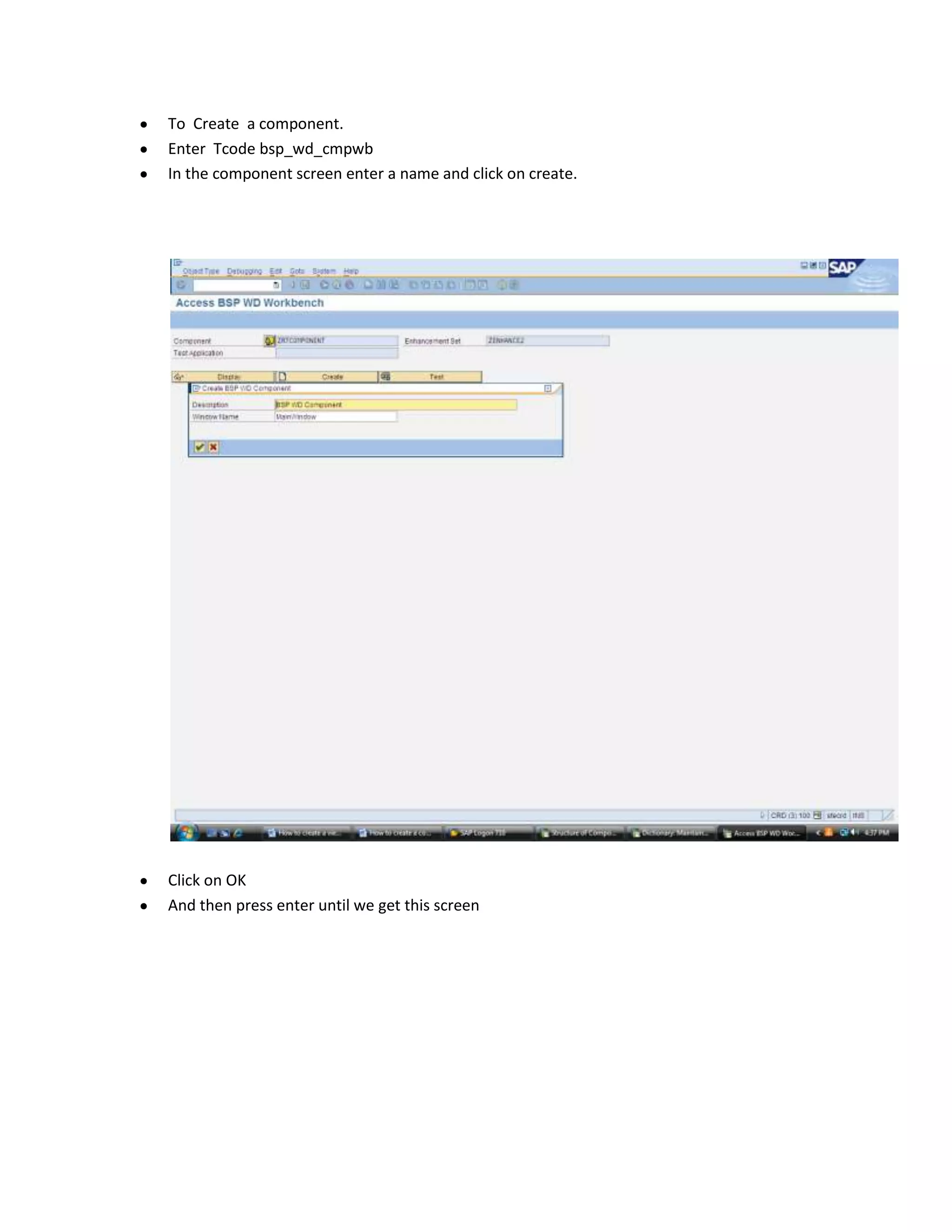

1. To Create a component.
Enter Tcode bsp_wd_cmpwb
In the component screen enter a name and click on create.
Click on OK

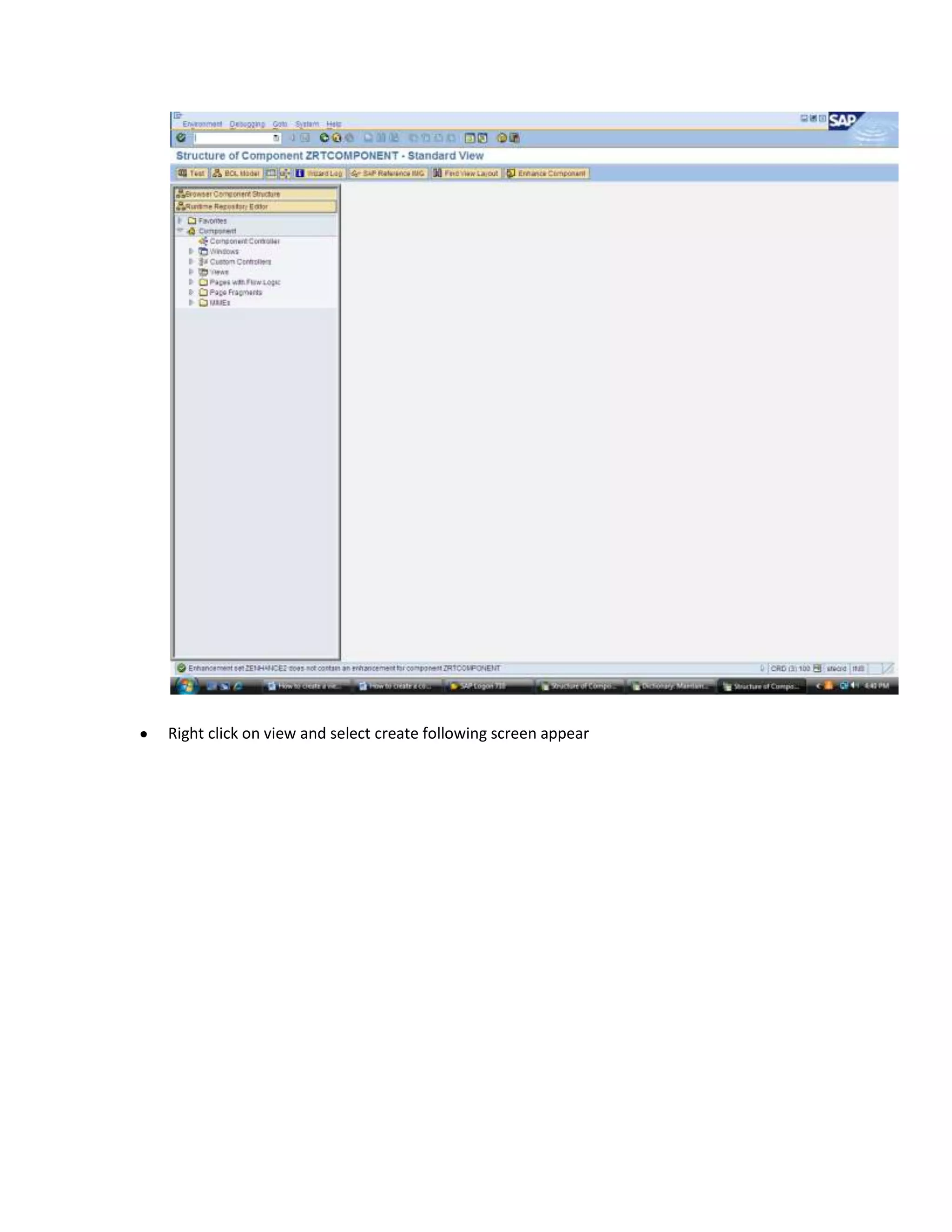

And then press enter until we get this screen
2. Right click on view and select create following screen appear
15. Click on the HTML part
And paste this code
<%@page language="abap" %>
<%@extension name="chtmlb" prefix="chtmlb" %>
<%@extension name="thtmlb" prefix="thtmlb" %>
<%
data: lv_xml type string.
lv_xml = controller->CONFIGURATION_DESCR->GET_CONFIG_DATA( ).
%>
<chtmlb:config xml = "<%= lv_xml %>"
mode = "RUNTIME" />
Save it check it activate it.
Now double click on the view this screen appears
16. Note the page preview tab is changed to configuration
Now again go on view and right click and select create overview page this page appears
17. Enter a name and then click ok this page appears (below)
32. Add to displayed assignment blocks it will appear like this and click on save
33. Now select the load option as you wish and save it.
Now component is created with a view and overview page and a window is assigned.
34. How to make LOV
Now if u want to make any field as drop down then go to browser component structure
Select any attribute like I m selecting zgender this screen appears
Double Click on get_v_zgender and create the object like this
35. Now paste this code
DATA : lt_ddlb TYPE bsp_wd_dropdown_table,
wa_ddlb like line of lt_ddlb.
wa_ddlb-key = 'M'.
wa_ddlb-value = 'MALE'.
append wa_ddlb to lt_ddlb.
wa_ddlb-key = 'F'.
wa_ddlb-value = 'FEMALE'.
append wa_ddlb to lt_ddlb.
IF gr_ddlb is not bound.
CREATE OBJECT gr_ddlb EXPORTING iv_source_type = 'T'.
endif.
36. IF gr_ddlb is bound.
gr_ddlb->set_selection_table( it_selection_table = lt_ddlb ).
ENDIF.
rv_valuehelp_descriptor = gr_ddlb.
Save it.
Goto the node class and in the attribute tab enter
GR_DDLB Instance Attribute Public Type Ref To CL_CRM_UIU_DDLB
And the activateget_v_zgender
Double Click on get_p_zgender and create similarly as get_v_zgender
Now paste this code and save and activate it.
37. CASE iv_property.
WHEN if_bsp_wd_model_setter_getter~fp_fieldtype.
rv_value = cl_bsp_dlc_view_descriptor=>field_type_picklist.
WHEN if_bsp_wd_model_setter_getter=>fp_server_event.
rv_value = 'DUMMY'.
ENDCASE.
How to disable & enable a field
To disable a field go to get_i_field comment the whole code and paste
rv_disabled = 'TRUE'.
Save it and activate it.
To change any property of the attributes go to run time repository and select field and click on
show field properties change and click apply as shown below and then save.
To run first click on test .
