The document discusses REST (REpresentational State Transfer), an architectural style based on HTTP. It defines REST as using resources and verbs to manipulate representations of those resources. The agenda covers building an API with ASP.NET Web API by first explaining REST and why it is important. Key points of REST are that it uses well-defined HTTP, treats resources as things that can be acted upon, and represents resources in responses using formats like XML or JSON. Common HTTP verbs in REST are GET, POST, PUT, and DELETE, and responses include status codes to indicate success or errors.

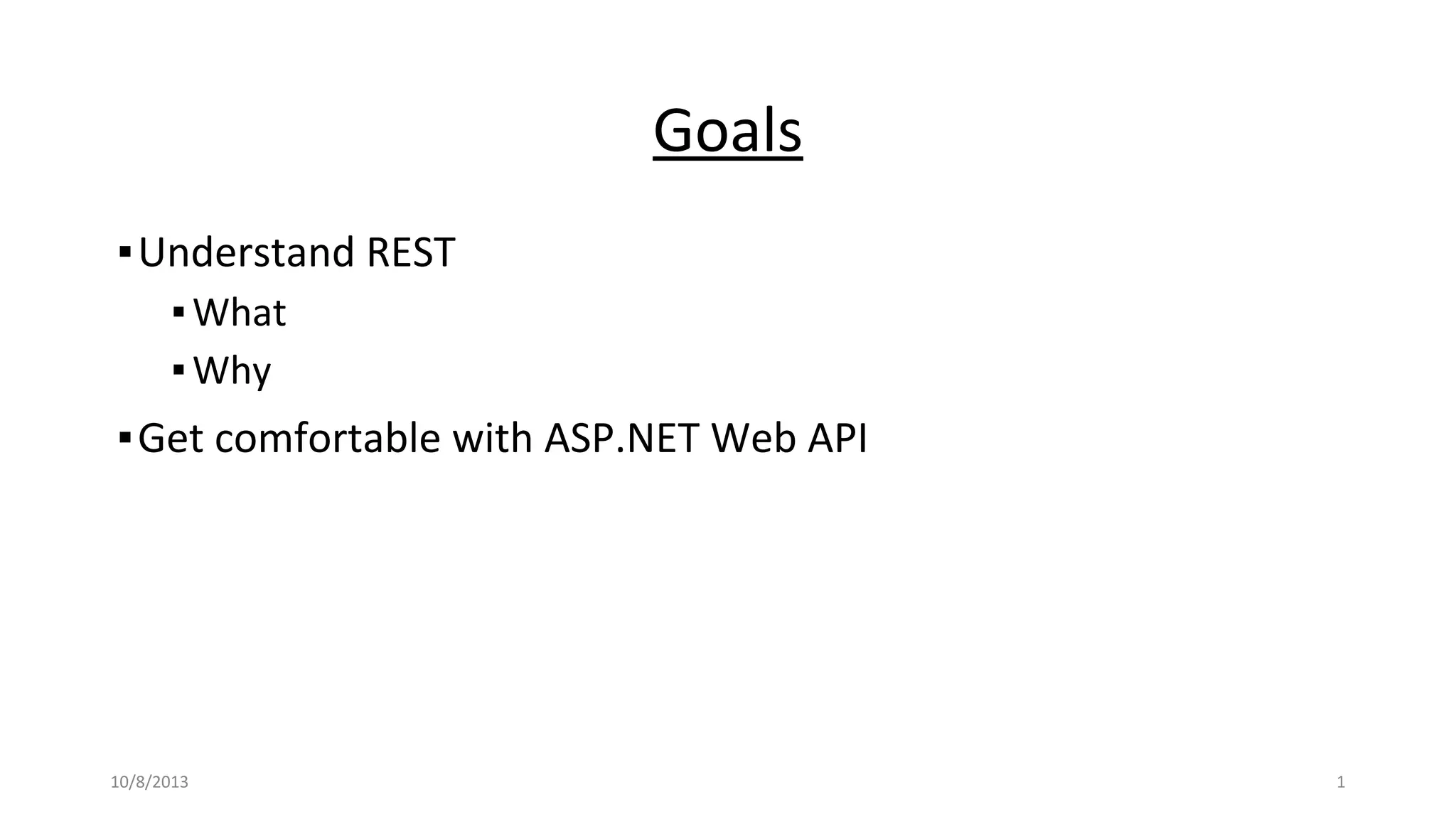

1. Goals
▪Understand REST
▪What
▪Why
▪Get comfortable with ASP.NET Web API
10/8/2013 1

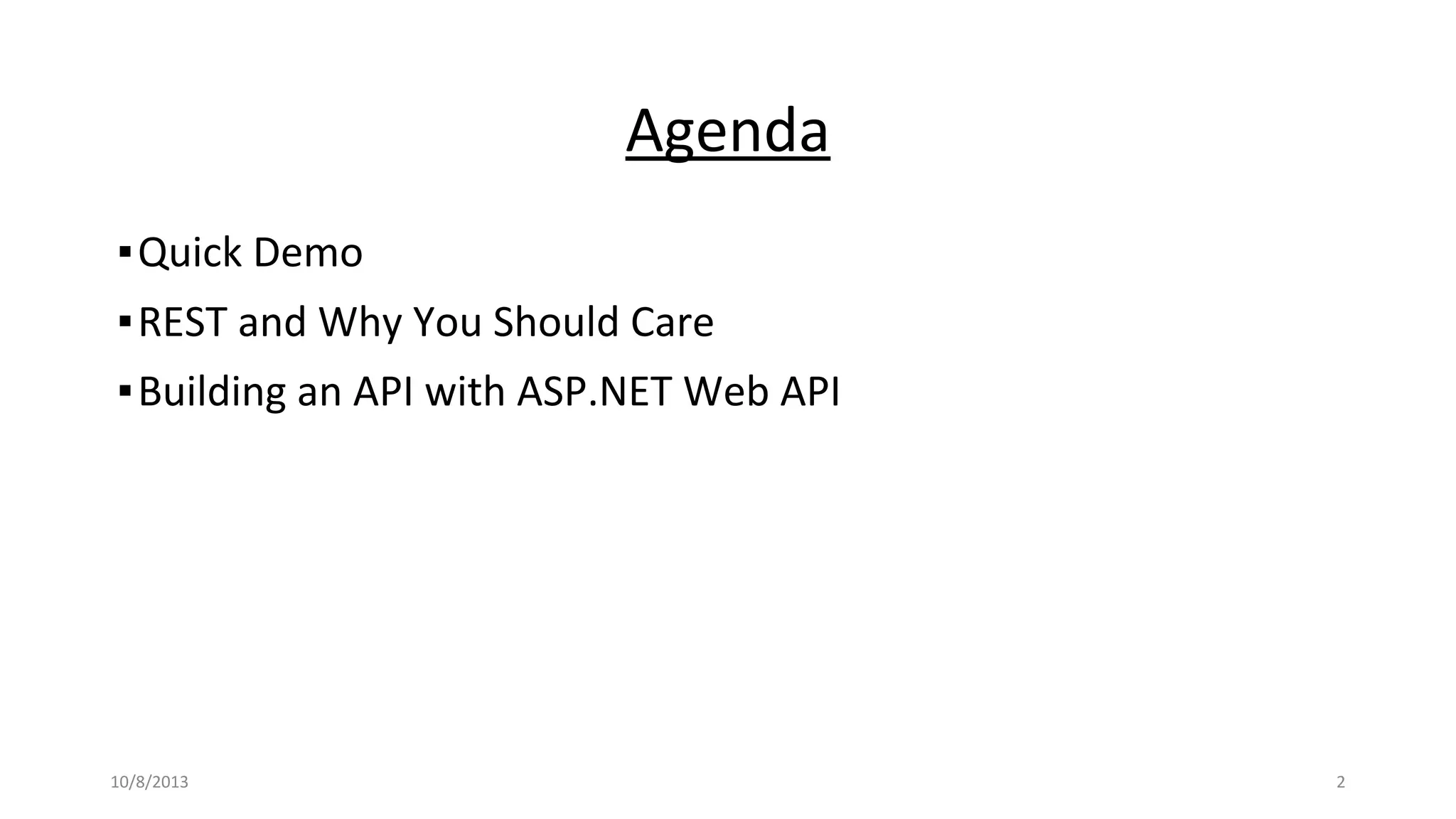

2. Agenda
▪Quick Demo
▪REST and Why You Should Care
▪Building an API with ASP.NET Web API
10/8/2013 2

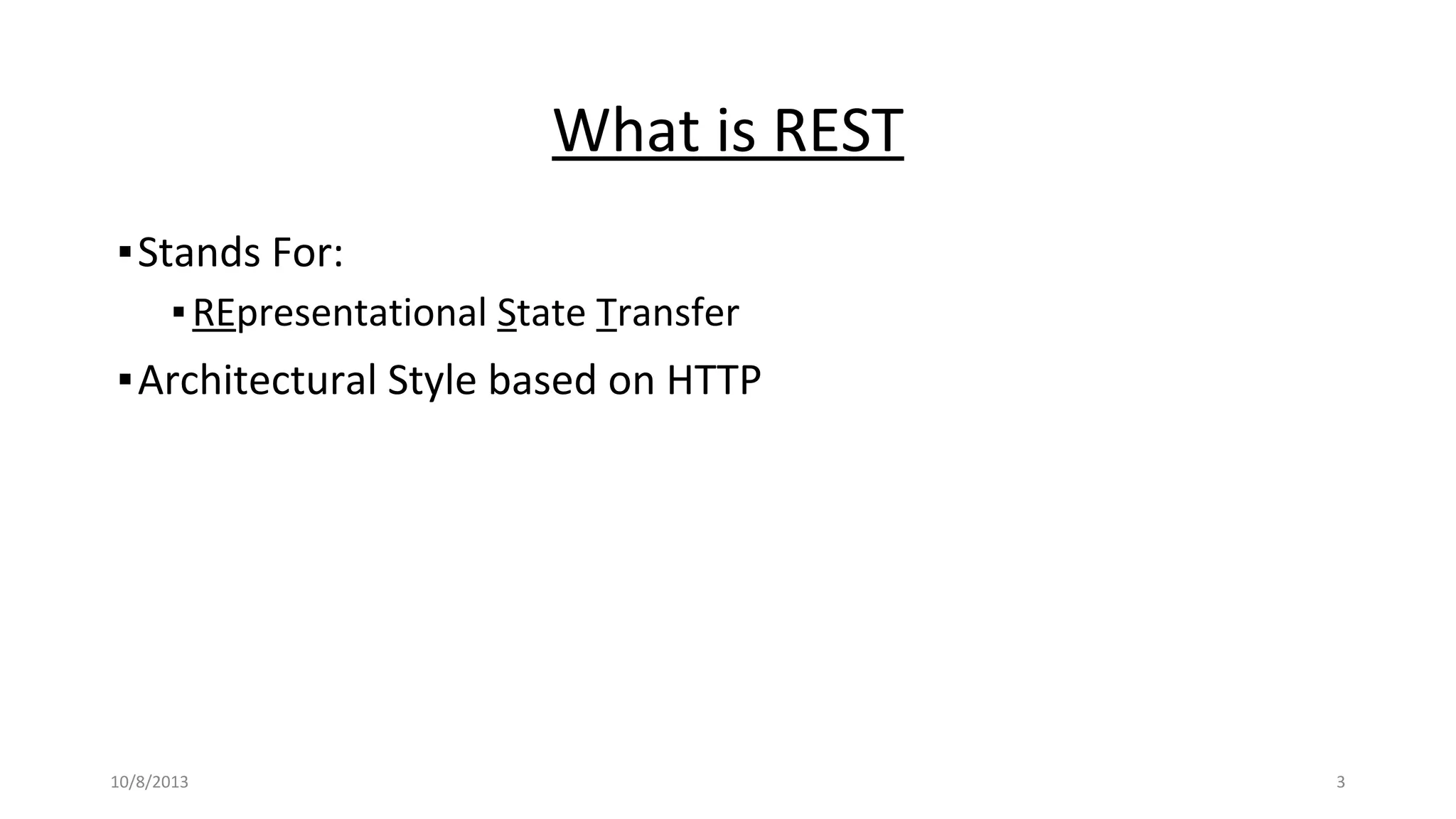

3. What is REST
▪Stands For:
▪REpresentational State Transfer
▪Architectural Style based on HTTP
10/8/2013 3

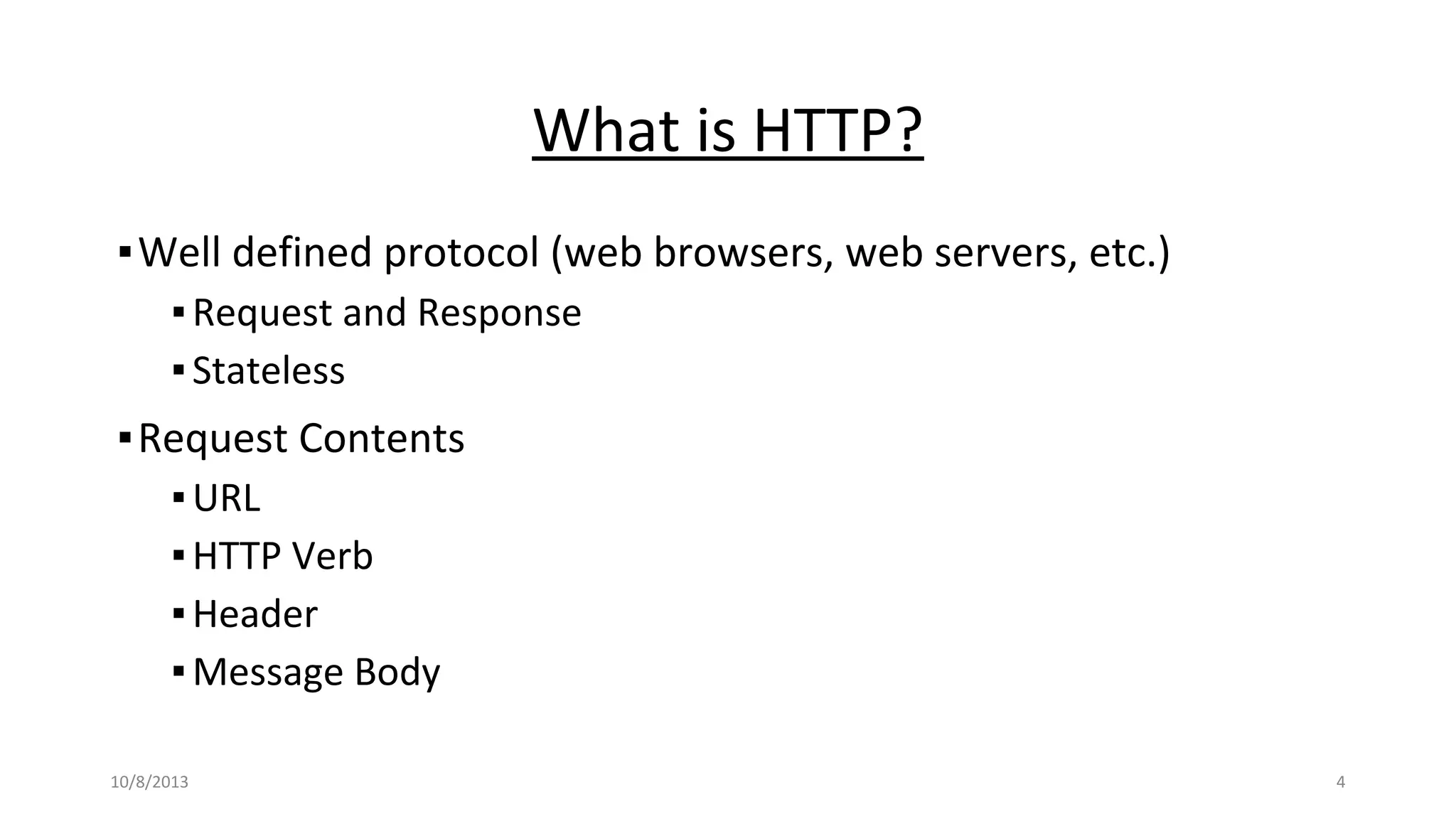

4. What is HTTP?
▪Well defined protocol (web browsers, web servers, etc.)
▪Request and Response
▪Stateless
▪Request Contents
▪URL
▪HTTP Verb
▪Header
▪Message Body
10/8/2013 4

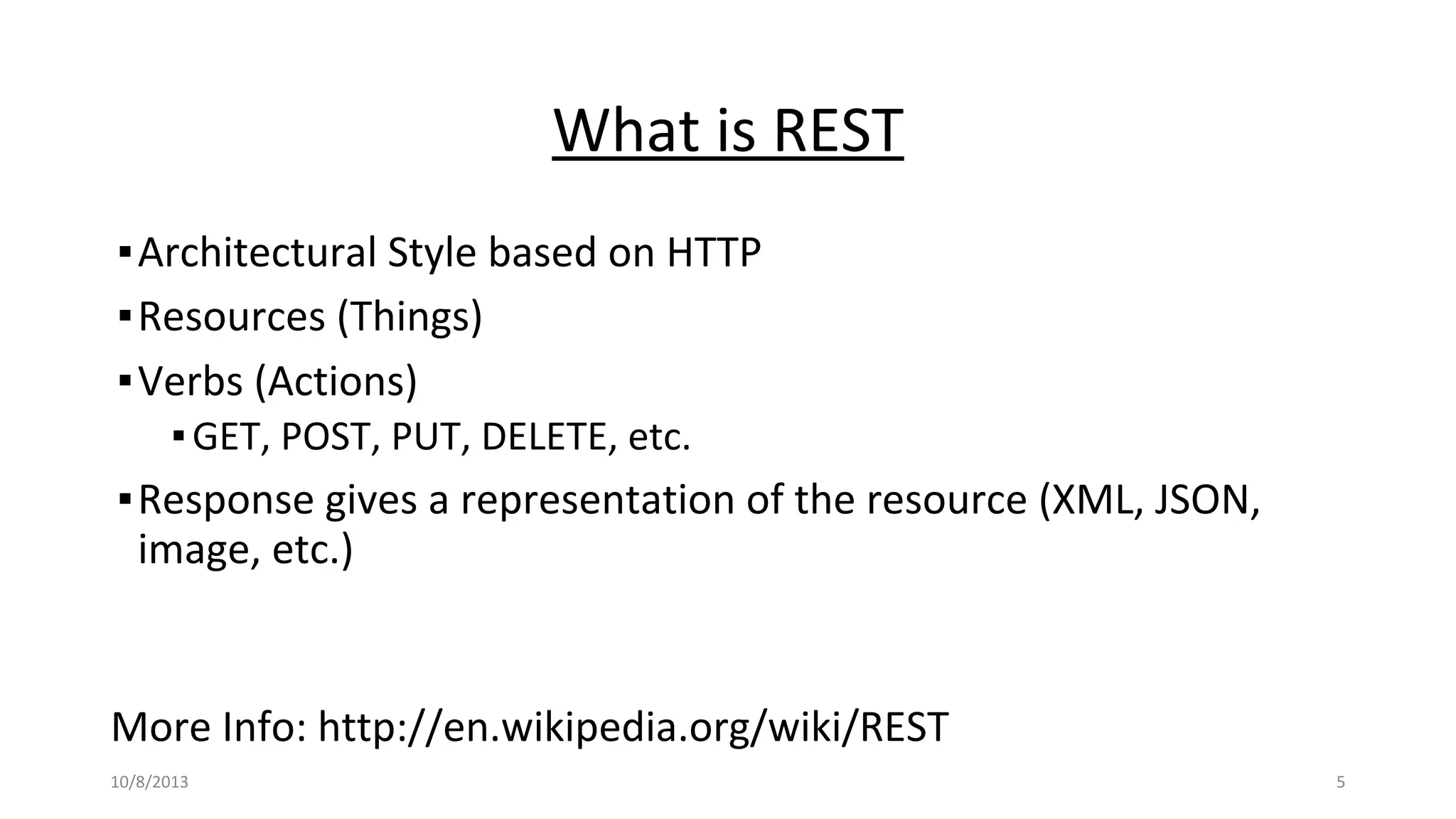

5. What is REST
▪Architectural Style based on HTTP
▪Resources (Things)
▪Verbs (Actions)
▪GET, POST, PUT, DELETE, etc.
▪Response gives a representation of the resource (XML, JSON,
image, etc.)
More Info: http://en.wikipedia.org/wiki/REST
10/8/2013 5

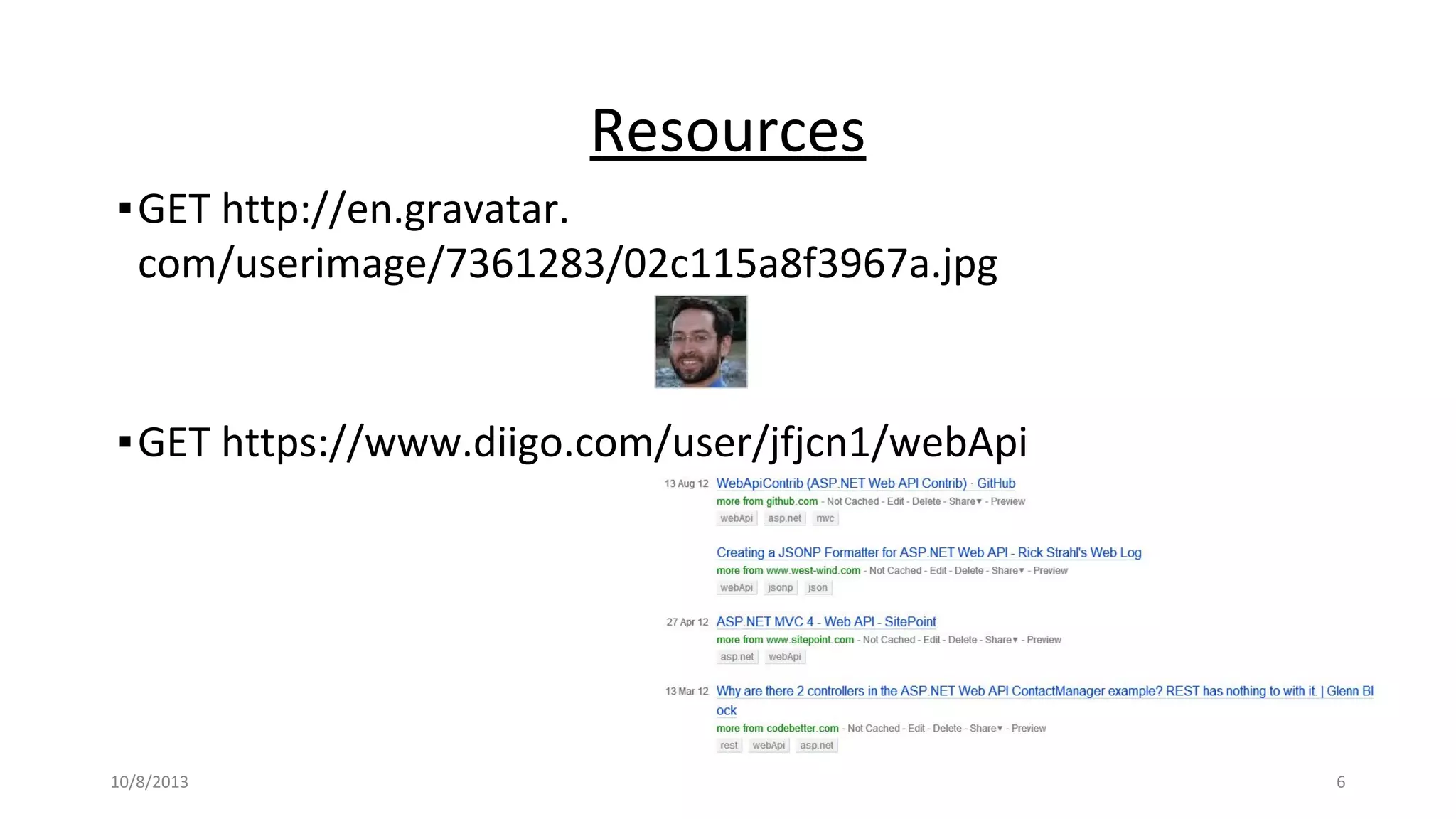

6. Resources
▪GET http://en.gravatar.
com/userimage/7361283/02c115a8f3967a.jpg
▪GET https://www.diigo.com/user/jfjcn1/webApi
10/8/2013 6

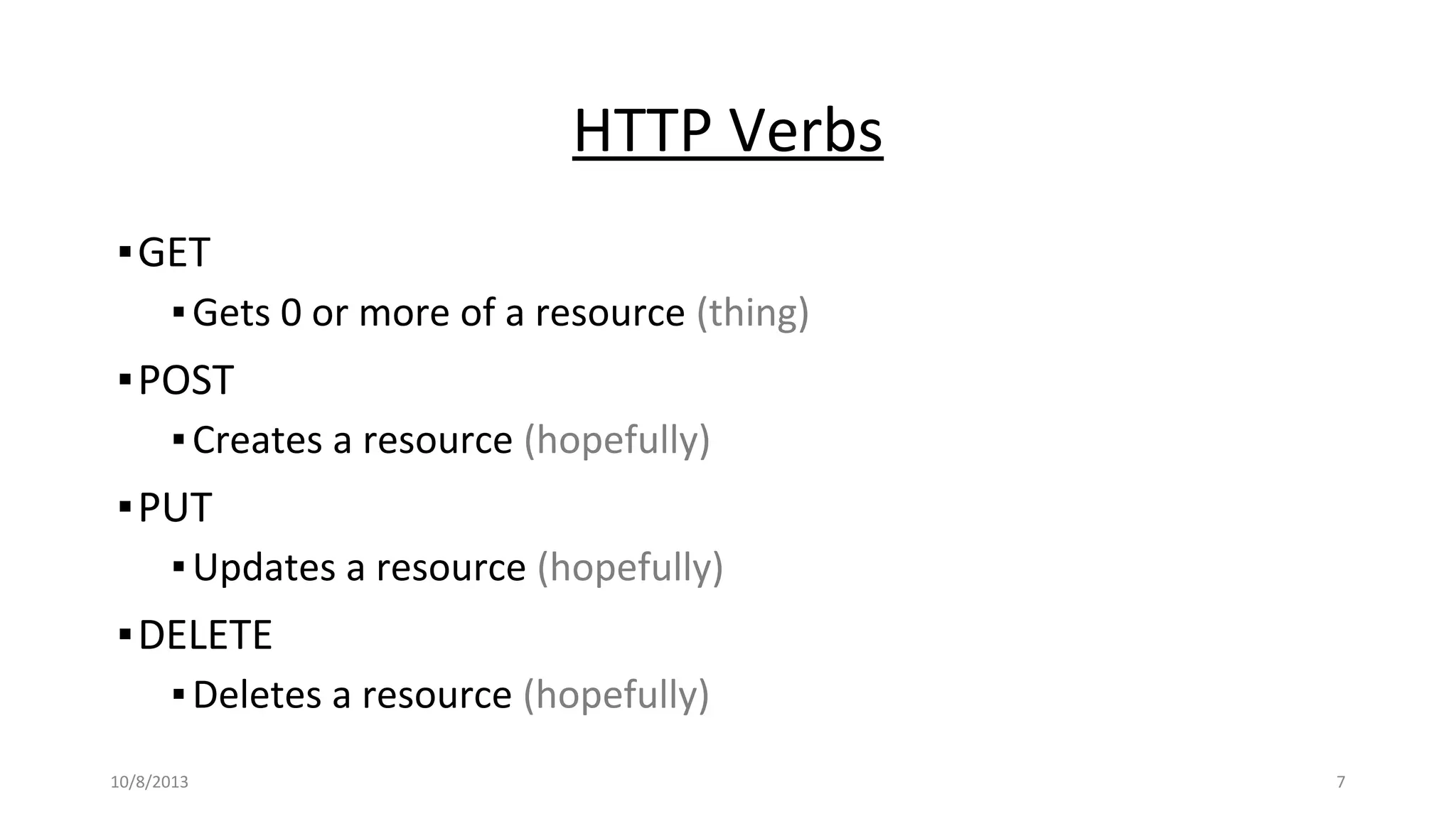

7. HTTP Verbs
▪GET
▪Gets 0 or more of a resource (thing)
▪POST
▪Creates a resource (hopefully)
▪PUT
▪Updates a resource (hopefully)
▪DELETE
▪Deletes a resource (hopefully)
10/8/2013 7

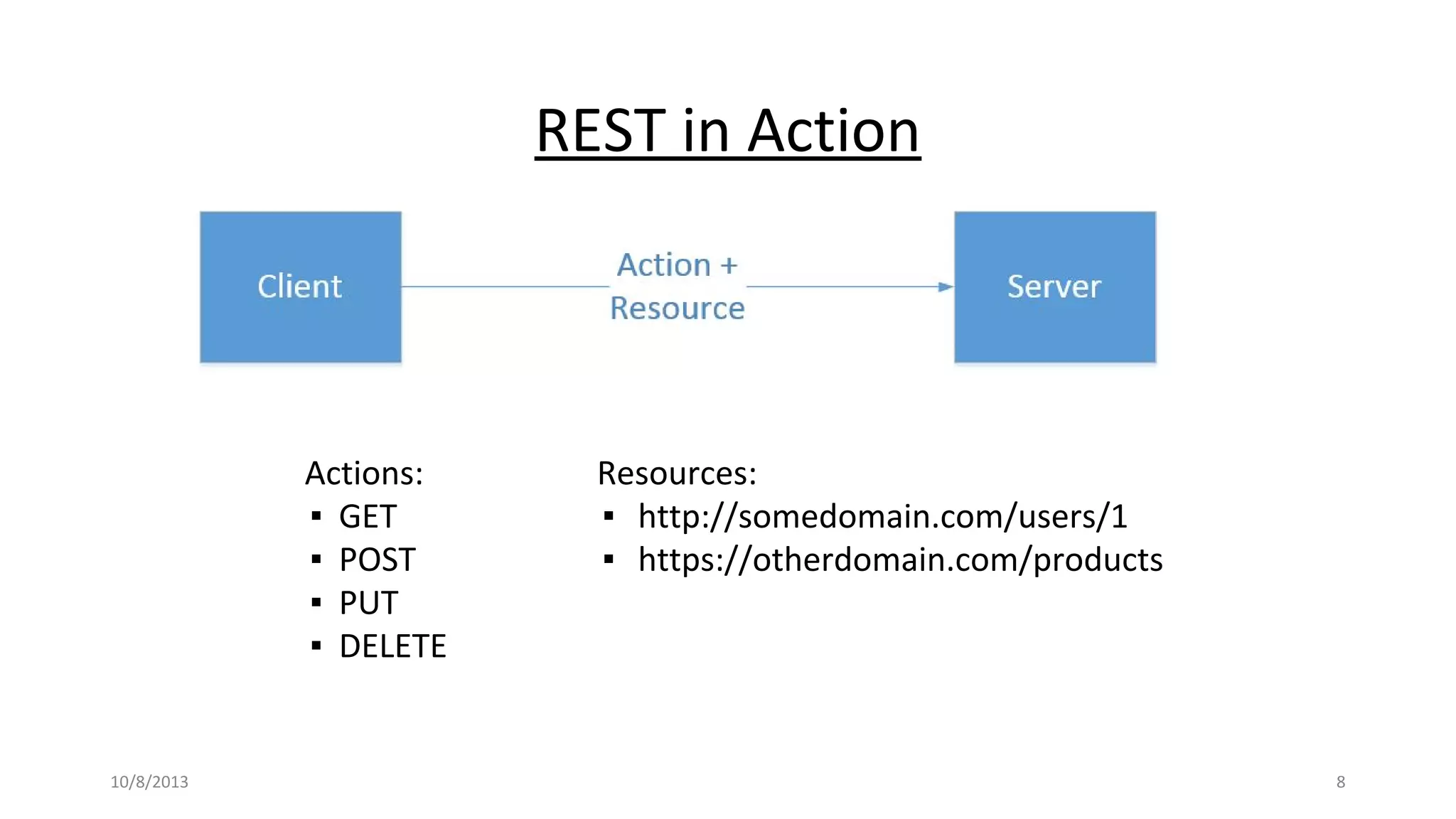

8. REST in Action
Actions:
▪ GET
▪ POST
▪ PUT
▪ DELETE
Resources:
▪ http://somedomain.com/users/1
▪ https://otherdomain.com/products
10/8/2013 8

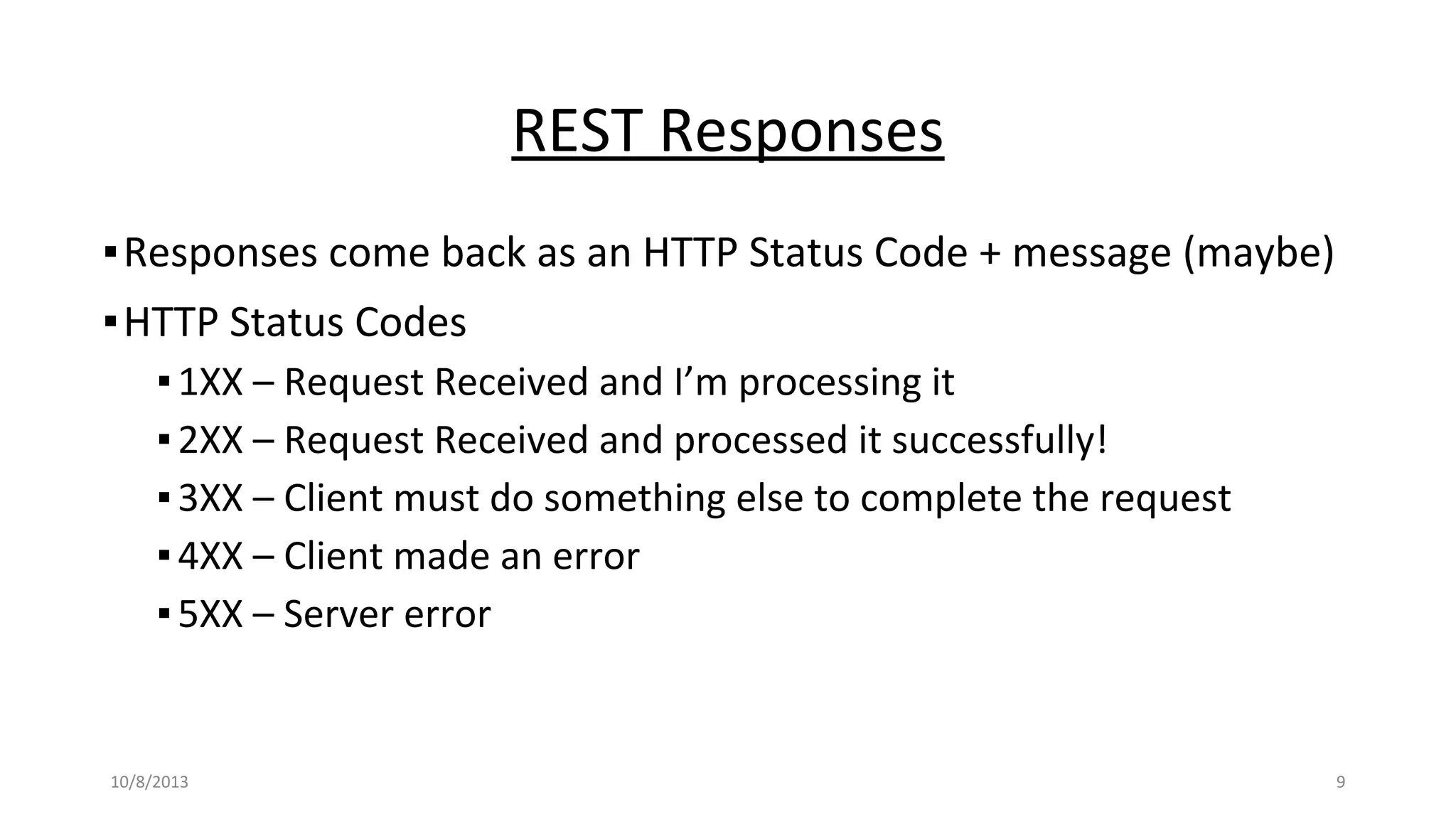

9. REST Responses
▪Responses come back as an HTTP Status Code + message (maybe)
▪HTTP Status Codes
▪1XX – Request Received and I’m processing it
▪2XX – Request Received and processed it successfully!
▪3XX – Client must do something else to complete the request
▪4XX – Client made an error
▪5XX – Server error
10/8/2013 9

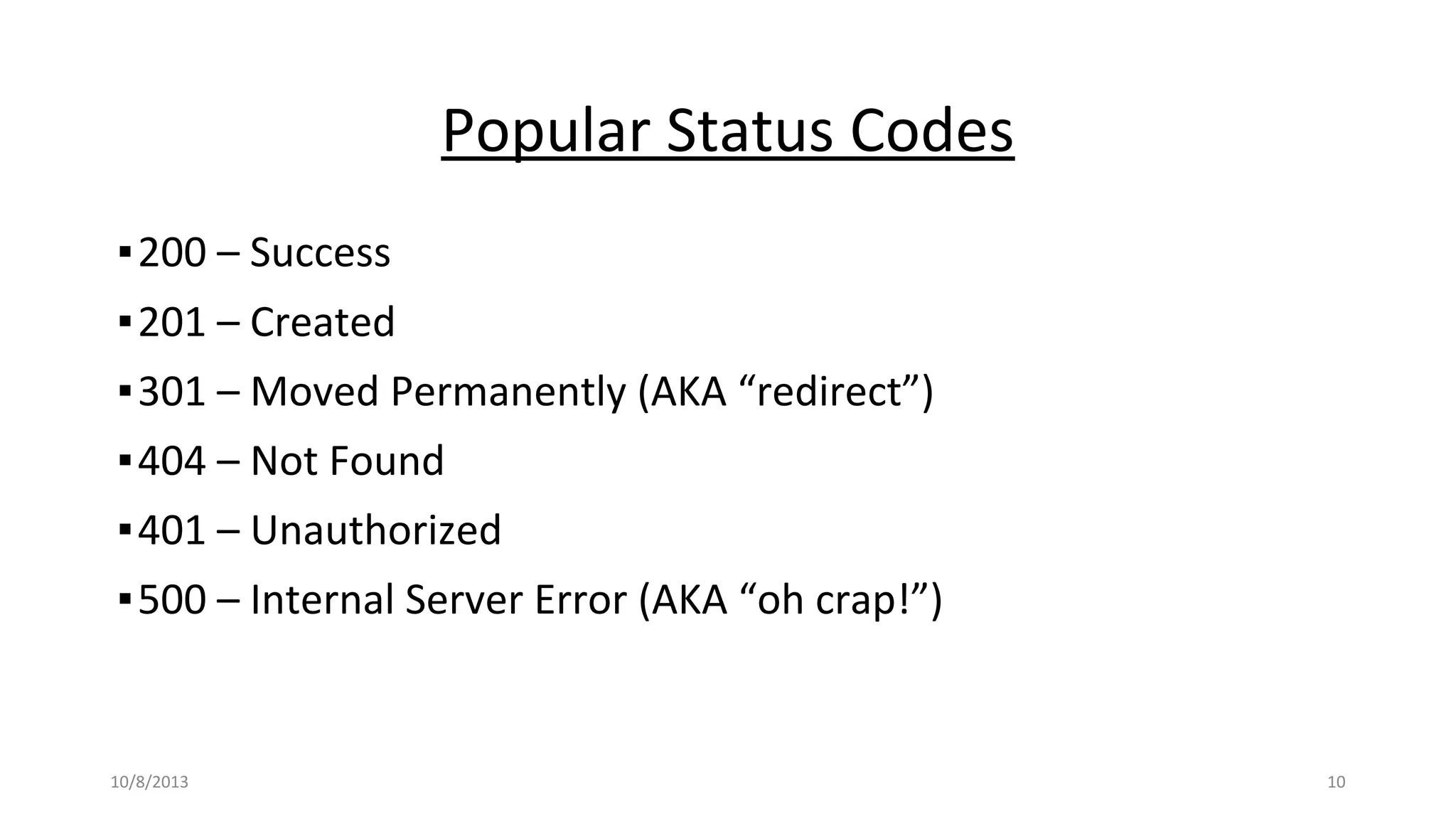

10. Popular Status Codes
▪200 – Success
▪201 – Created
▪301 – Moved Permanently (AKA “redirect”)
▪404 – Not Found
▪401 – Unauthorized
▪500 – Internal Server Error (AKA “oh crap!”)
10/8/2013 10

11. On to the codez…
10/8/2013 11

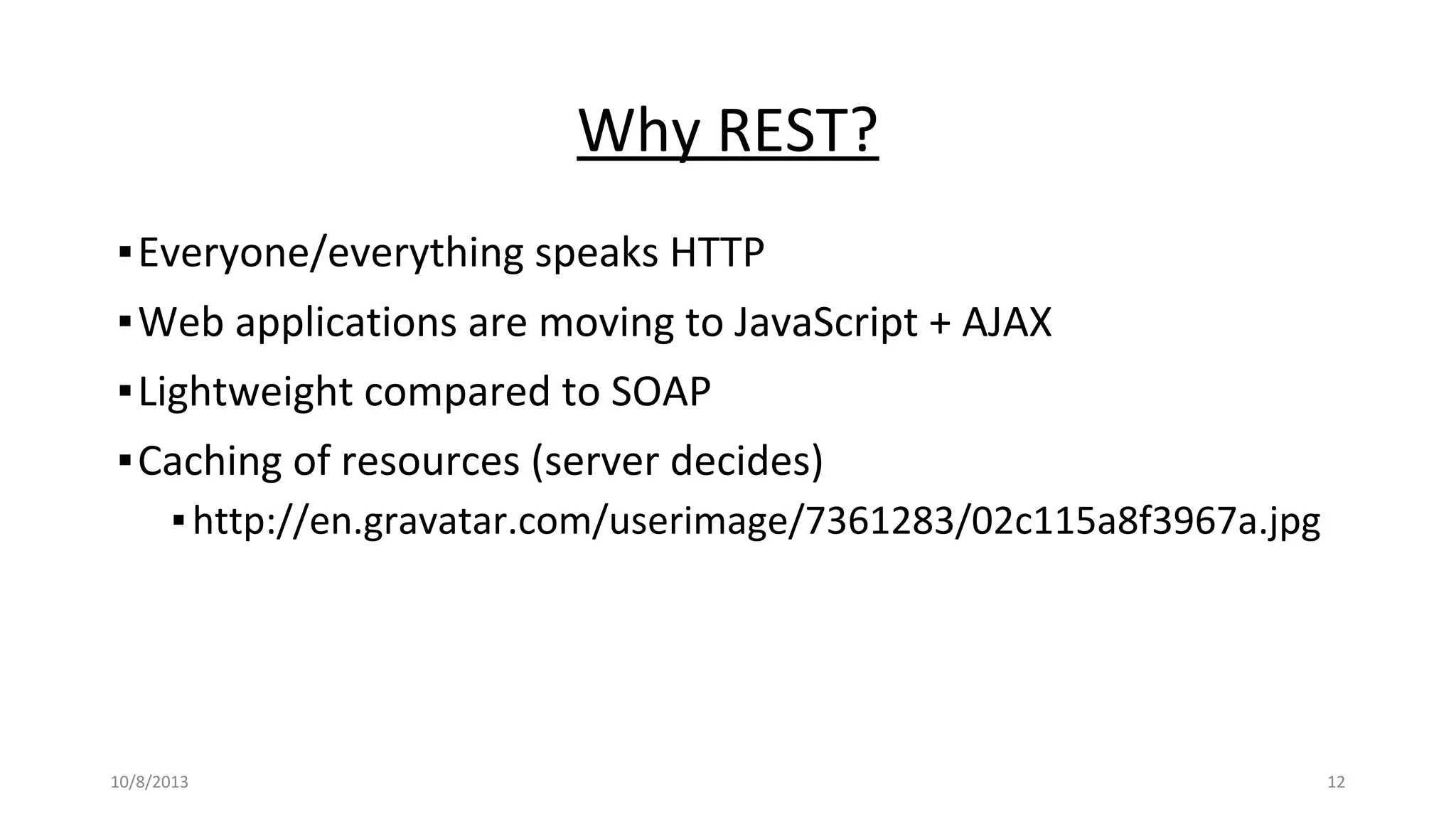

12. Why REST?
▪Everyone/everything speaks HTTP
▪Web applications are moving to JavaScript + AJAX
▪Lightweight compared to SOAP
▪Caching of resources (server decides)
▪http://en.gravatar.com/userimage/7361283/02c115a8f3967a.jpg
10/8/2013 12

13. REST is NOT a standard
10/8/2013 13

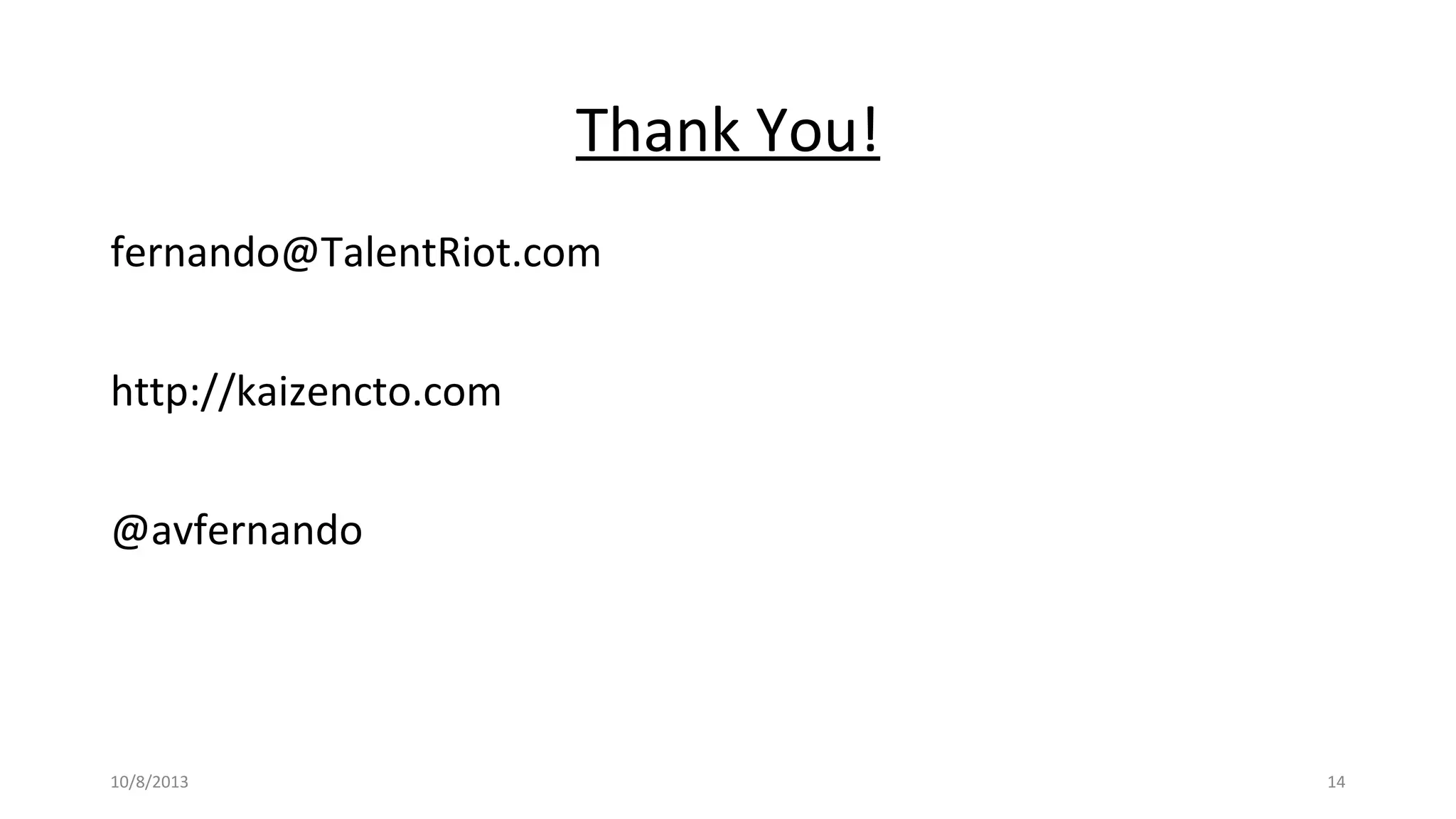

14. Thank You!
fernando@TalentRiot.com
http://kaizencto.com
@avfernando
10/8/2013 14
