1. How Incremental
Compaction Reduces Your
Storage Footprint
Benny Halevy, Core Storage Group Manager

2. Presenter
Benny Halevy, Core Storage Group Manager
■ Leads the storage software development team at ScyllaDB.
■ Working on operating systems and distributed file systems for
over 20 years.
■ Before Scylla, led software development for GSI Technology,
providing a hardware/software solution for deep learning and
similarity search using in-memory computing technology.
■ Previously co-founded Tonian (later acquired by Primary Data)
and led it as CTO, developing a distributed file server based on
the pNFS protocol delivering highly scalable performance and
dynamic, out-of-band data placement control.
■ Before Tonian, lead architect in Panasas of the pNFS protocol.

3. Introduction
Log-structured Storage and
Compaction Fundamentals

4. ■ Changes to the data are:
● First, recorded in memory, then
● Flushed into SSTables.
■ Updates accumulate over time
● in different SSTables
● Having several versions of the same cell is called
“write amplification”
Log-structured Writes
...
Updates
MemTable
...
SSTable

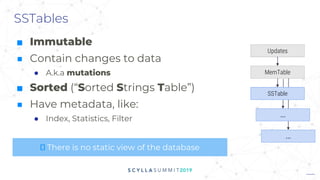

5. SSTables
■ Immutable
■ Contain changes to data
● A.k.a mutations
■ Sorted (“Sorted Strings Table”)
■ Have metadata, like:
● Index, Statistics, Filter
...
Updates
MemTable
...
SSTable
🛈 There is no static view of the database

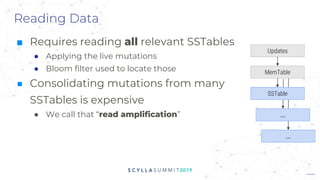

6. Reading Data
■ Requires reading all relevant SSTables
● Applying the live mutations
● Bloom filter used to locate those
■ Consolidating mutations from many
SSTables is expensive
● We call that “read amplification”
...
Updates
MemTable
...
SSTable

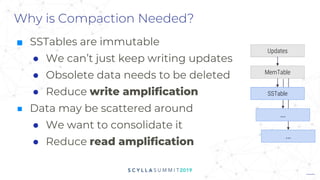

7. Why is Compaction Needed?
■ SSTables are immutable
● We can’t just keep writing updates
● Obsolete data needs to be deleted
● Reduce write amplification
■ Data may be scattered around
● We want to consolidate it
● Reduce read amplification
...
Updates
MemTable
...
SSTable

8. Compaction Fundamentals
1. Compaction first selects a set of sstables to process.
● based on the Compaction Strategy.
2. It then reads the SSTables, and
● writes the compacted output
● while eliminating overwrites, deleted and expired data.
3. Eventually, when the output SSTables are
sealed and safely stored on storage
● the input SSTables can be finally deleted.
� Note that compaction requires temporary space
Since SSTables must not be deleted until their compaction completes.

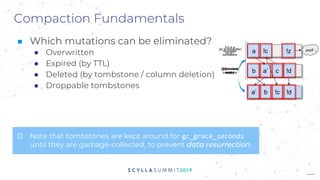

9. Compaction Fundamentals
■ Which mutations can be eliminated?
● Overwritten
● Expired (by TTL)
● Deleted (by tombstone / column deletion)
● Droppable tombstones
a’
a
b c
!c
!d
a’ b !c
!z
!d
[a] is overwritten
by [a’]
[b] is newly
written
[c] is deleted
by [!c]
[!d] is a live
tombstone
[!z] is a
droppable
tombstone
poof!
🛈 Note that tombstones are kept around for gc_grace_seconds
until they are garbage-collected, to prevent data resurrection.

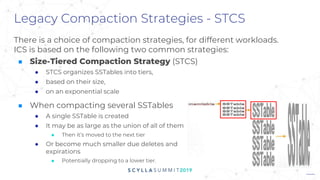

10. Legacy Compaction Strategies - STCS
There is a choice of compaction strategies, for different workloads.
ICS is based on the following two common strategies:
■ Size-Tiered Compaction Strategy (STCS)
● STCS organizes SSTables into tiers,
● based on their size,
● on an exponential scale
■ When compacting several SSTables
● A single SSTable is created
● It may be as large as the union of all of them
■ Then it’s moved to the next tier
● Or become much smaller due deletes and
expirations
■ Potentially dropping to a lower tier.

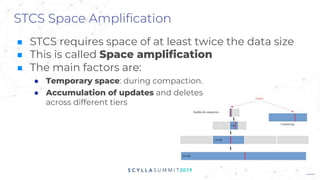

11. STCS Space Amplification
■ STCS requires space of at least twice the data size
■ This is called Space amplification
■ The main factors are:
● Temporary space: during compaction.
● Accumulation of updates and deletes
across different tiers

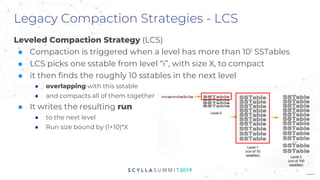

12. Legacy Compaction Strategies - LCS
Leveled Compaction Strategy (LCS)
■ Compaction is triggered when a level has more than 10i SSTables
■ LCS picks one sstable from level “i”, with size X, to compact
■ it then finds the roughly 10 sstables in the next level
● overlapping with this sstable
● and compacts all of them together
■ It writes the resulting run
● to the next level
● Run size bound by (1+10)*X

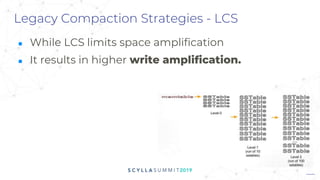

13. Legacy Compaction Strategies - LCS
■ While LCS limits space amplification
■ It results in higher write amplification.

14. Incremental
Compaction Strategy

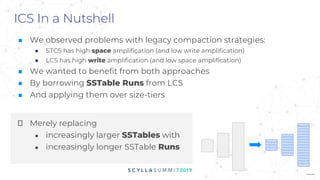

15. ICS In a Nutshell
■ We observed problems with legacy compaction strategies:
● STCS has high space amplification (and low write amplification)
● LCS has high write amplification (and low space amplification)
■ We wanted to benefit from both approaches
■ By borrowing SSTable Runs from LCS
■ And applying them over size-tiers
🛈 Merely replacing
● increasingly larger SSTables with
● increasingly longer SSTable Runs

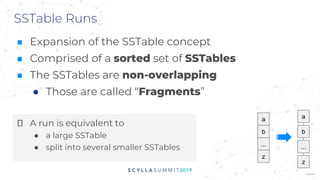

16. SSTable Runs
■ Expansion of the SSTable concept
■ Comprised of a sorted set of SSTables
■ The SSTables are non-overlapping
● Those are called “Fragments”
a
b
...
z
a
b
...
z
🛈 A run is equivalent to
● a large SSTable
● split into several smaller SSTables

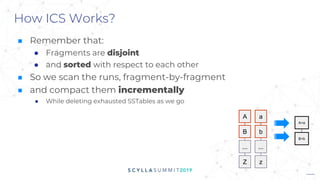

17. How ICS Works?
■ Remember that:
● Fragments are disjoint
● and sorted with respect to each other
■ So we scan the runs, fragment-by-fragment
■ and compact them incrementally
● While deleting exhausted SSTables as we go
A
B
...
Z
a
b
...
z
A+a
B+b
A a
B b
A+a
B+b

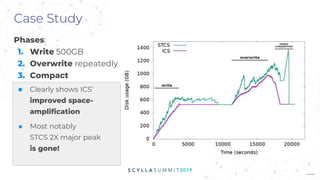

18. Case Study
Phases:
1. Write 500GB
2. Overwrite repeatedly
3. Compact
■ Clearly shows ICS’
improved space-
amplification
■ Most notably
STCS 2X major peak
is gone!

19. Thank you Stay in touch
Any questions? Benny Halevy
