How Docker simplifies CI/CD
- 1.
- 2. Gabriel N. Schenker DistinguishedSoftware Architect PhD in Astrophysics @gnschenker www.lostechies.com/gabrielschenker www.linkedin.com/in/gabrielschenker https://github.com/gnschenker
- 3. Professional Scrum Foundations Training,Monday May 16 – Tuesday May 17 Held at Clear Measure Office More Info/Register: http://www.scrum.org
- 4. •CI/CD – Whatand Why •Classical CI/CD pipeline •Containers – Quick Intro •CI using Docker •Defining a Service Stack •Blue-Green Deployment By Dreamstime
- 5. CI/CD – Whatand Why • CI = Continuous Integration • Why do we need CI? • CD = Continuous Delivery or Continuous Deployment • Why do we need CD?
- 6. Classical CI/CD pipeline Youneed: • Source repository • CI Server • Multiple Environments (INT, UAT, Staging, PROD, etc.) • Infrastructure as Code • Service Discovery • Health Monitoring, Auto-Healing • Routing, Load Balancing • Blue-Green Deployment • Canary Releases • Centralized Logging & Monitoring • SLAs; Numbers and Metrics indicating Health

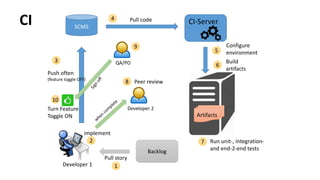

- 7. implement SCMS Push often (feature toggleOFF) Peer review Developer 1 Developer 2Turn Feature Toggle ON Artifacts Build artifacts Backlog Pull story 1 3 2 8 Pull code4 5 7 Run unit-, integration- and end-2-end tests 6 Configure environment CI-Server QA/PO 9 10 CI

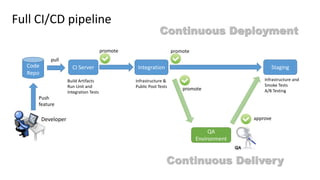

- 8. Code Repo Developer Push feature CI Server IntegrationStaging promote Build Artifacts Run Unit and Integration Tests Infrastructure & Public Pool Tests promote Infrastructure and Smoke Tests A/B Testing QA Environment Full CI/CD pipeline approve promote Continuous Delivery Continuous Deployment pull
- 9.

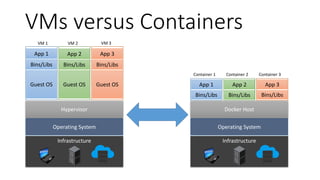

- 10. VMs versus Containers OperatingSystem Hypervisor Guest OS Bins/Libs App 1 VM 1 Guest OS Bins/Libs App 2 VM 2 Guest OS Bins/Libs App 3 VM 3 Infrastructure Operating System Docker Host Infrastructure Bins/Libs App 1 Container 1 Bins/Libs App 2 Container 2 Bins/Libs App 3 Container 3
- 11. A Sample Application •APS.NET Core 1.0 RC1 • Sample Template • Running on CLR-CORE
- 12.
- 13. Containerizing my BuildServer
- 14. Publishing Container Images •Docker Hub • Trusted Registry
- 15.
- 16.

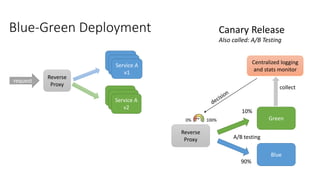

- 17. Blue-Green Deployment Reverse Proxy Service A v1 ServiceA v2 request Reverse Proxy Green Blue A/B testing 10% 90% Centralized logging and stats monitor collect 0% 100% Canary Release Also called: A/B Testing
Editor's Notes
- #6 CI assures us that after each merge of new code into the master branch we have a running, tested and deployable solution. It gives us confidence that we are not falling into the trap of “runs on my machine” CD: primary goal is to get new ideas from business into production asap, ideally in a matter of hours. Business stakeholders can then immediately measure and analyze the impact and take correcting action if necessary. Secondly, since we are now deploying often and in small batches we are reducing risk massively. Each deployment becomes a non-event.
- #7 Although having a fully automated CI/CD is highly desirable and the ROI is guaranteed it is a non-trivial undertaken. Many elements need to be present. I’ll go through the list of the most important ones one by one.
- #8 This slide shows how typically a CI setup could look like. It assumes that developers are merging their changes frequently to the master branch to reduce risk. To make this realistic they have to apply a technique called feature toggles which allows them to turn off an incomplete feature.
- #9 This is how a medium complex CI/CD pipeline could look like. A developer pushes her code or feature to the code repo. The CI server pulls the latest code and builds and tests the artifacts If everything is OK the CI server promotes the artifacts to the next environment On this environment we can run other types of tests, specifically infrastructure and public pool tests Once again if everything is OK we can promote to the next environment Here it is a QA or UAT environment. A QA engineer manually tests and approves the changes Upon approval by the QA engineer the artifacts are promoted to staging On staging we can run some smoke tests and then do some A/B-testing and slowly funnel the traffic from the previous production through this version which becomes the new production We call this “Continuous Delivery” since a human needs to approve the changes. Everything is automated except this one step. To go a step further we can eliminate the QA altogether. If we go directly to staging without human intervention we call this “Continuous Deployment”
- #10 Container in IT are revolutionizing DevOps the same way shipping containers revolutionized logistics! Shippers or carriers don’t have to care about the goods anymore but only about the container(s). Containers are self contained (e.g. cooling, packaging, etc.)
- #11 A lot of people compare containers to VMs and think of a container as slimmed down VM. But that’s not quite true. Let’s look at it in detail Guest OS are huge and wasteful. Difference in size matters for storage, download, packaging on host and startup times
- #12 Change .net version: dnvm use 1.0.0-rc1-update1 -r coreclr -arch x64
