This document outlines the goals and progress of developing a new high performance Rust UI toolkit called Xilem. It aims to improve on existing Rust UIs by rethinking the entire stack from the ground up, including using GPU compute shaders for drawing, enabling async programming, and proposing a new reactive architecture. The current status includes working prototypes of various components like the piet-gpu 2D rendering engine, and ongoing development efforts, with the next step being to rebuild an existing Rust widget set in the new Xilem architecture.

1. High Performance Rust UI
Raph Levien
Google Fonts
2022-12-02

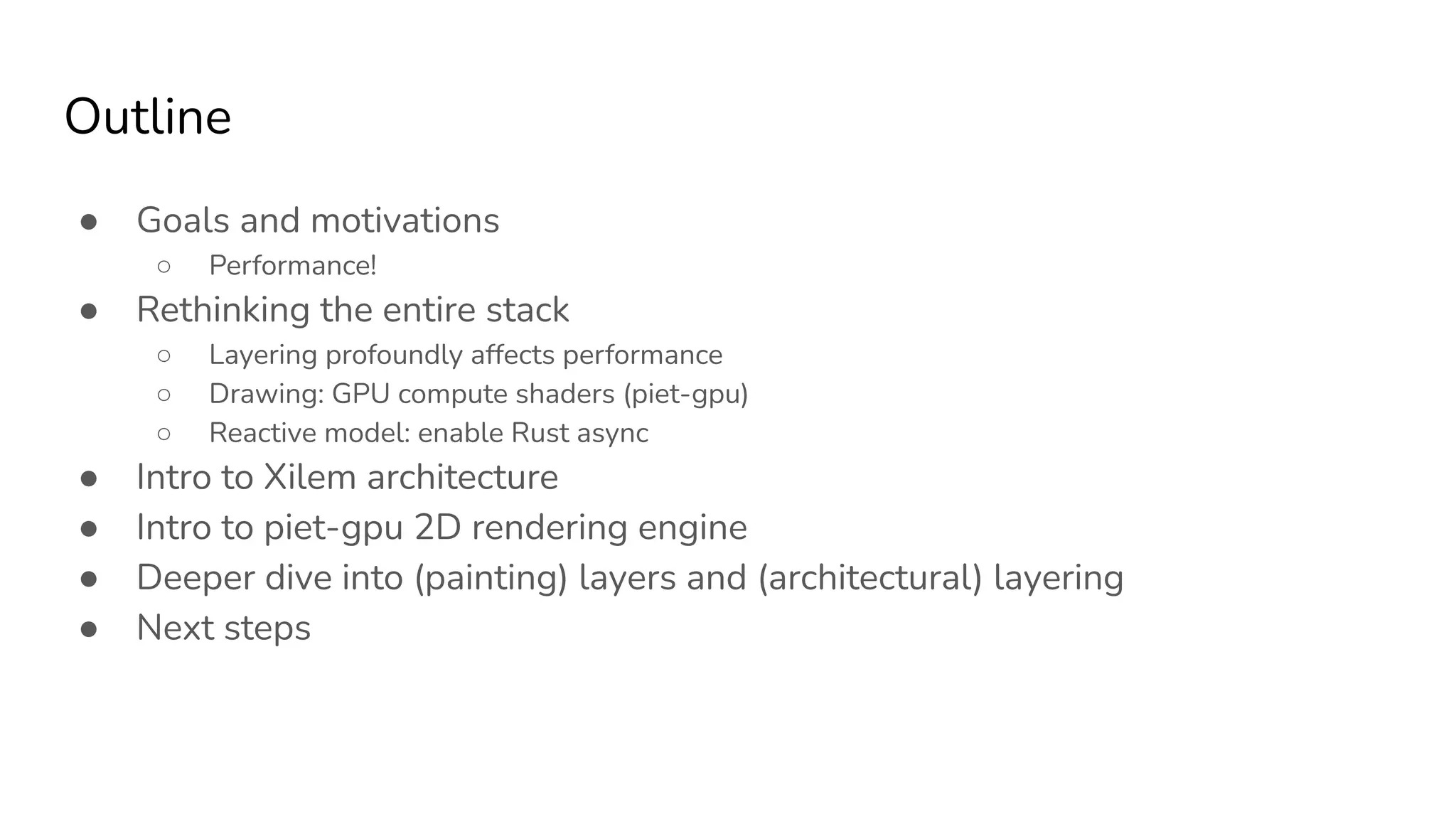

2. Outline
● Goals and motivations
○ Performance!
● Rethinking the entire stack
○ Layering profoundly affects performance
○ Drawing: GPU compute shaders (piet-gpu)
○ Reactive model: enable Rust async
● Intro to Xilem architecture
● Intro to piet-gpu 2D rendering engine
● Deeper dive into (painting) layers and (architectural) layering
● Next steps

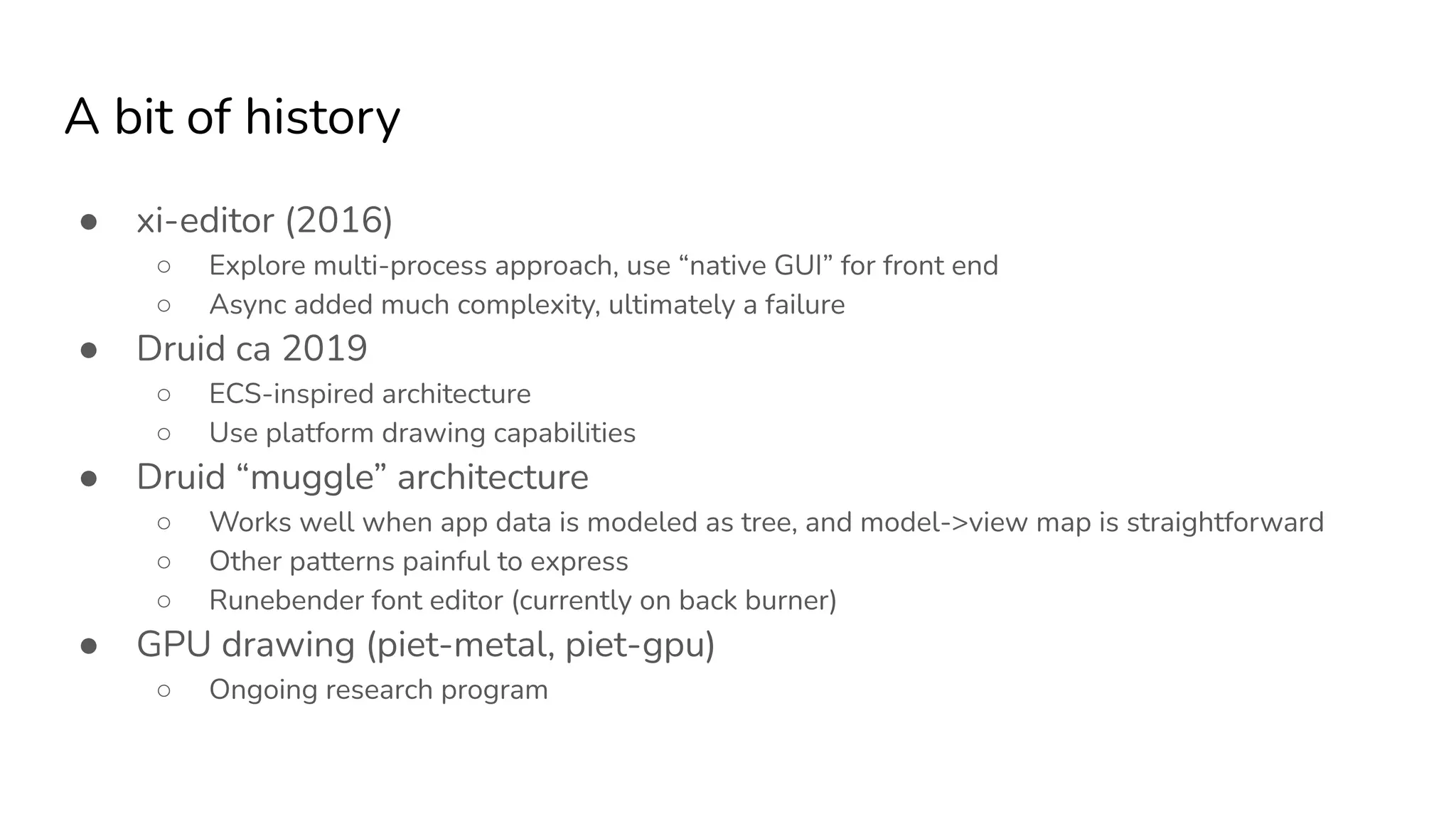

3. A bit of history
● xi-editor (2016)
○ Explore multi-process approach, use “native GUI” for front end
○ Async added much complexity, ultimately a failure
● Druid ca 2019
○ ECS-inspired architecture
○ Use platform drawing capabilities
● Druid “muggle” architecture
○ Works well when app data is modeled as tree, and model->view map is straightforward
○ Other patterns painful to express
○ Runebender font editor (currently on back burner)
● GPU drawing (piet-metal, piet-gpu)
○ Ongoing research program

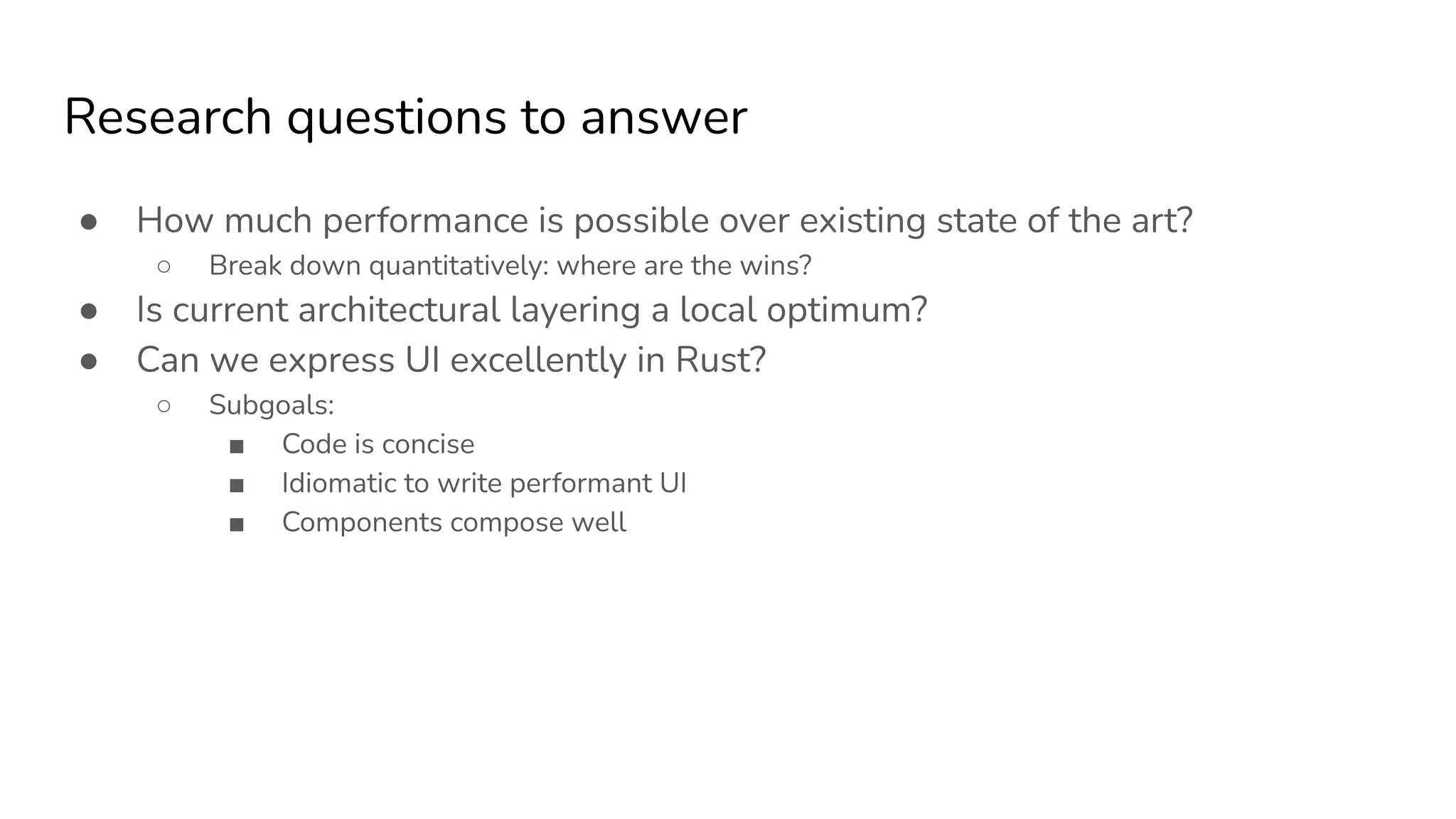

4. Research questions to answer
● How much performance is possible over existing state of the art?
○ Break down quantitatively: where are the wins?
● Is current architectural layering a local optimum?
● Can we express UI excellently in Rust?
○ Subgoals:
■ Code is concise
■ Idiomatic to write performant UI
■ Components compose well

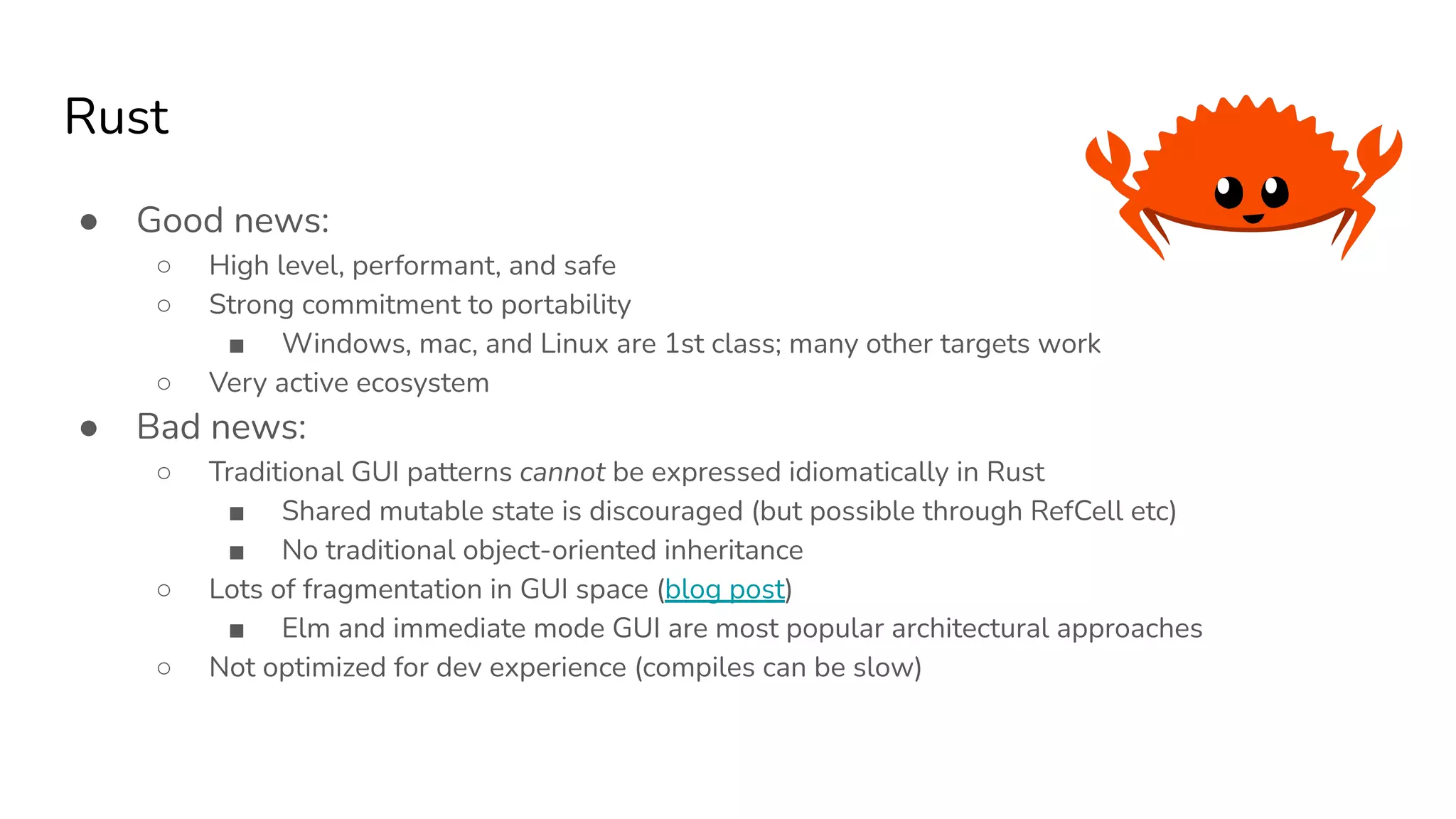

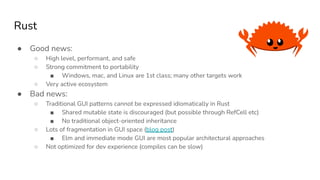

5. Rust
● Good news:
○ High level, performant, and safe
○ Strong commitment to portability
■ Windows, mac, and Linux are 1st class; many other targets work
○ Very active ecosystem
● Bad news:
○ Traditional GUI patterns cannot be expressed idiomatically in Rust
■ Shared mutable state is discouraged (but possible through RefCell etc)
■ No traditional object-oriented inheritance
○ Lots of fragmentation in GUI space (blog post)
■ Elm and immediate mode GUI are most popular architectural approaches
○ Not optimized for dev experience (compiles can be slow)

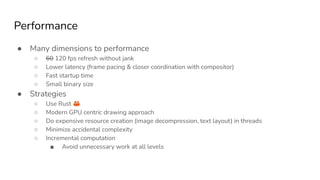

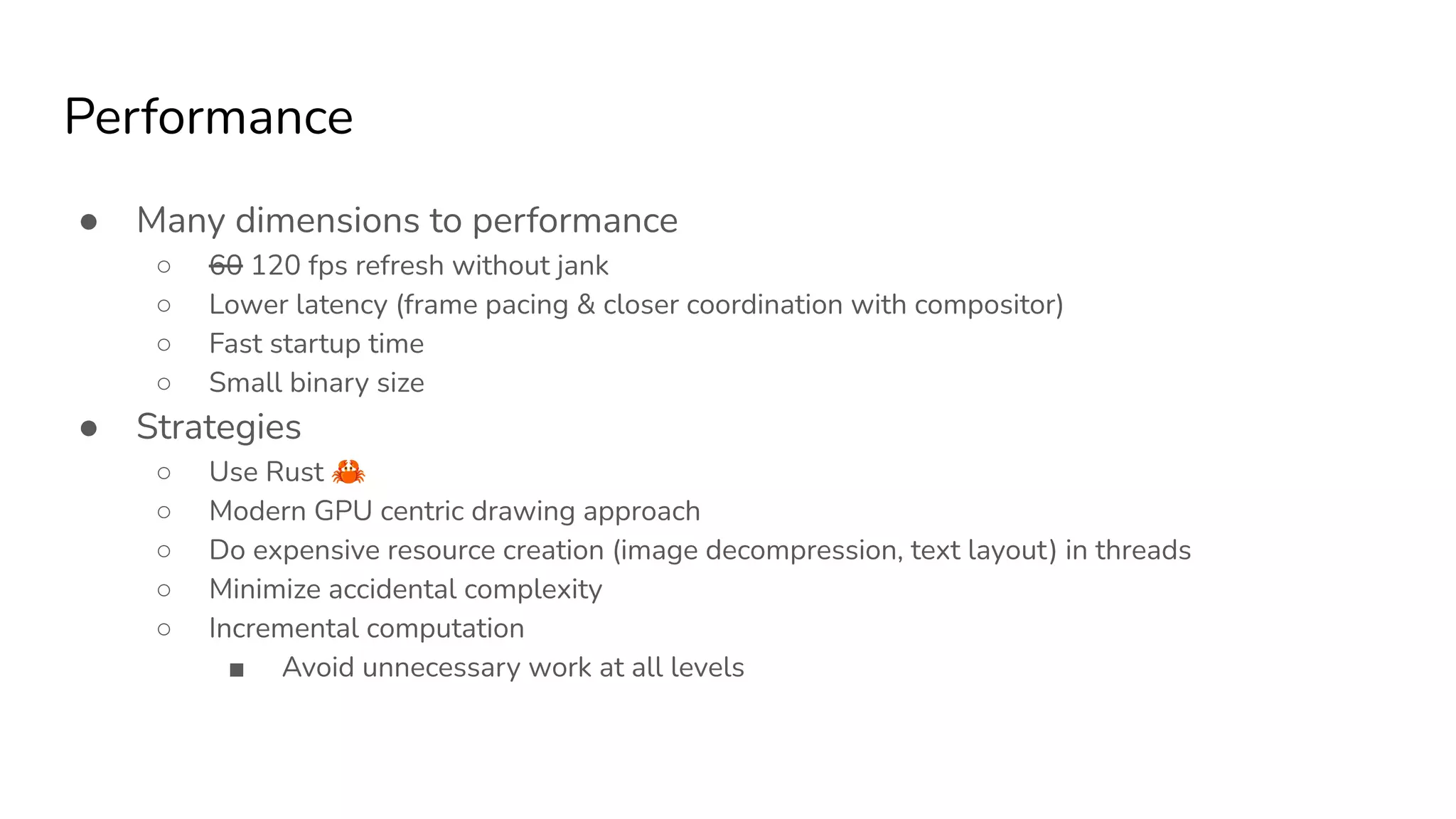

6. Performance
● Many dimensions to performance
○ 60 120 fps refresh without jank
○ Lower latency (frame pacing & closer coordination with compositor)
○ Fast startup time
○ Small binary size
● Strategies
○ Use Rust 🦀
○ Modern GPU centric drawing approach
○ Do expensive resource creation (image decompression, text layout) in threads
○ Minimize accidental complexity
○ Incremental computation
■ Avoid unnecessary work at all levels

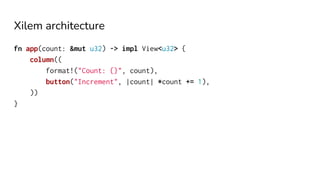

7. Xilem architecture
fn app(count: &mut u32) -> impl View<u32> {
column((
format!("Count: {}", count),
button("Increment", |count| *count += 1),
))
}

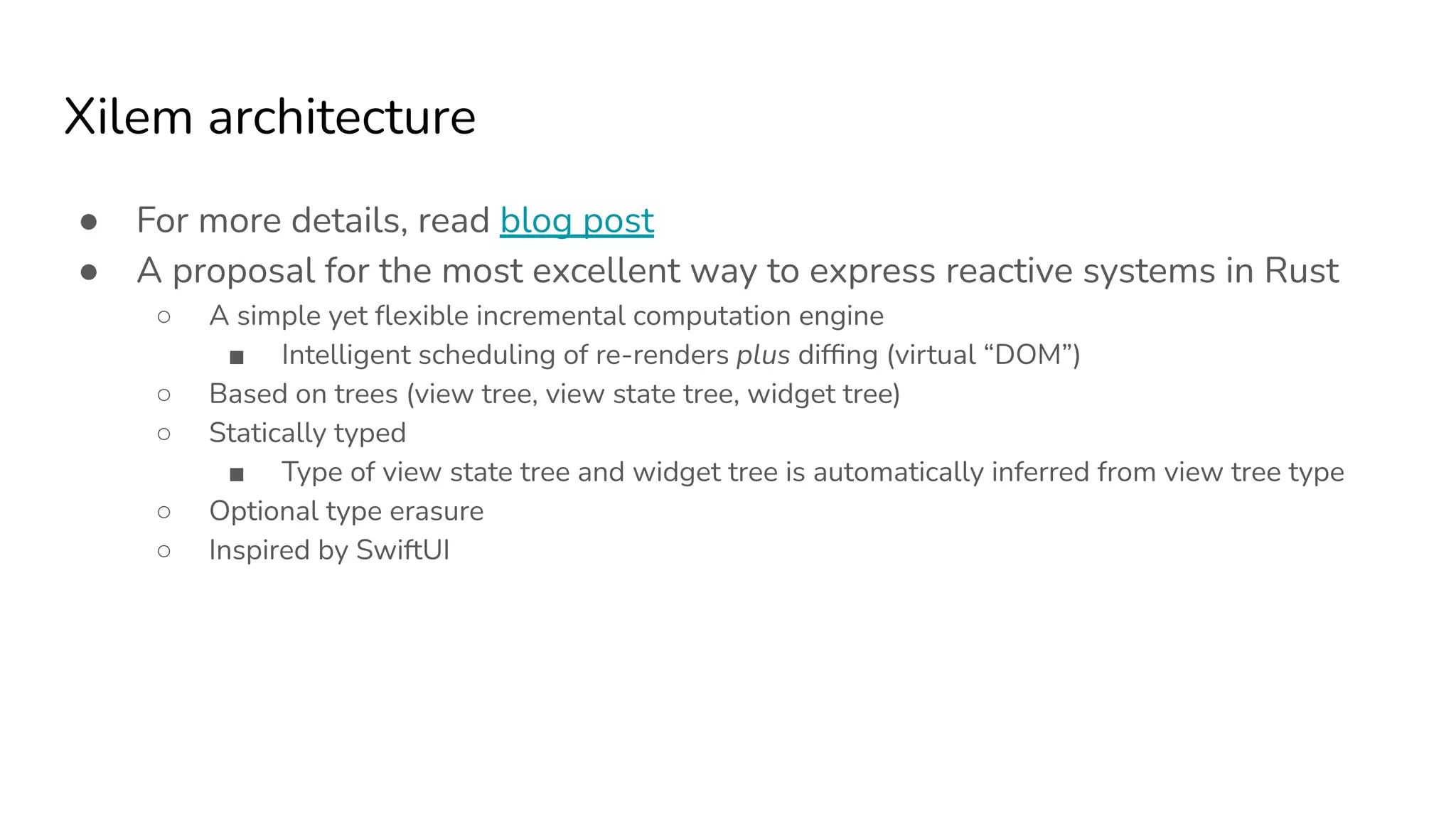

8. Xilem architecture
● For more details, read blog post
● A proposal for the most excellent way to express reactive systems in Rust
○ A simple yet flexible incremental computation engine
■ Intelligent scheduling of re-renders plus diffing (virtual “DOM”)
○ Based on trees (view tree, view state tree, widget tree)
○ Statically typed
■ Type of view state tree and widget tree is automatically inferred from view tree type
○ Optional type erasure
○ Inspired by SwiftUI

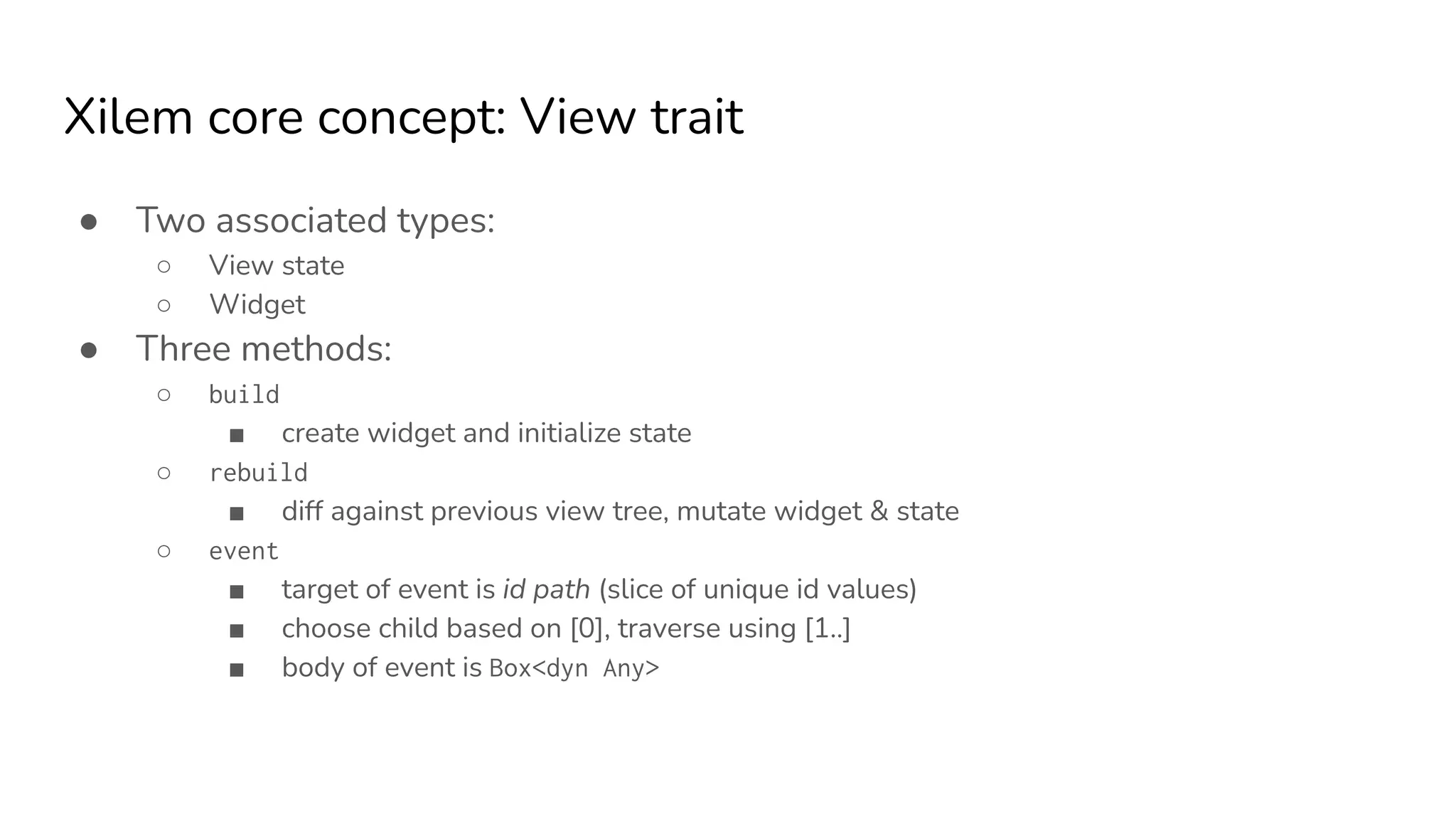

9. Xilem core concept: View trait
● Two associated types:
○ View state
○ Widget
● Three methods:
○ build
■ create widget and initialize state
○ rebuild
■ diff against previous view tree, mutate widget & state
○ event
■ target of event is id path (slice of unique id values)
■ choose child based on [0], traverse using [1..]
■ body of event is Box<dyn Any>

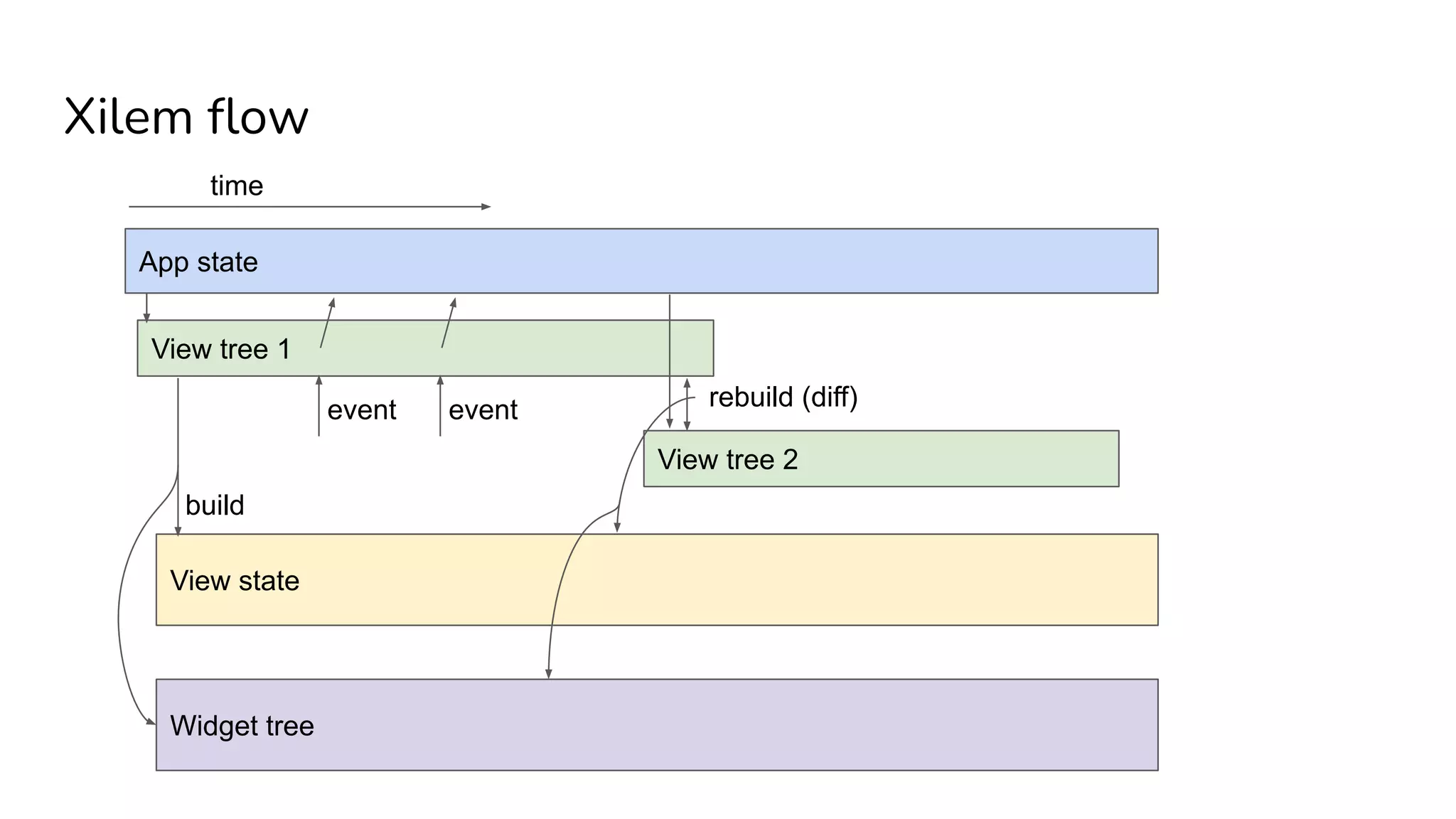

10. Xilem flow
App state
View tree 1
View tree 2
time
rebuild (diff)
View state
Widget tree
event event
build

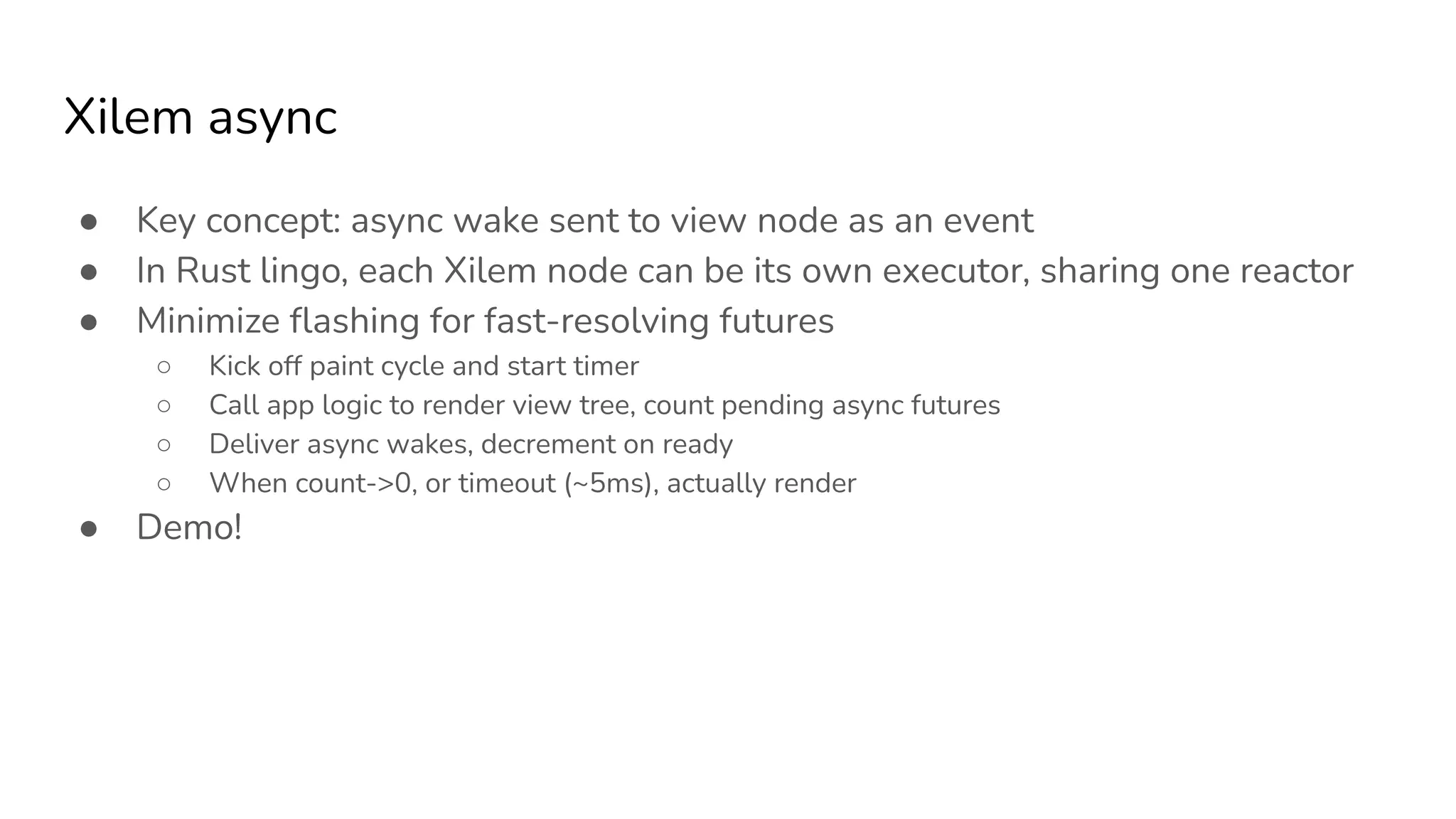

11. Xilem async
● Key concept: async wake sent to view node as an event
● In Rust lingo, each Xilem node can be its own executor, sharing one reactor
● Minimize flashing for fast-resolving futures
○ Kick off paint cycle and start timer
○ Call app logic to render view tree, count pending async futures
○ Deliver async wakes, decrement on ready
○ When count->0, or timeout (~5ms), actually render
● Demo!

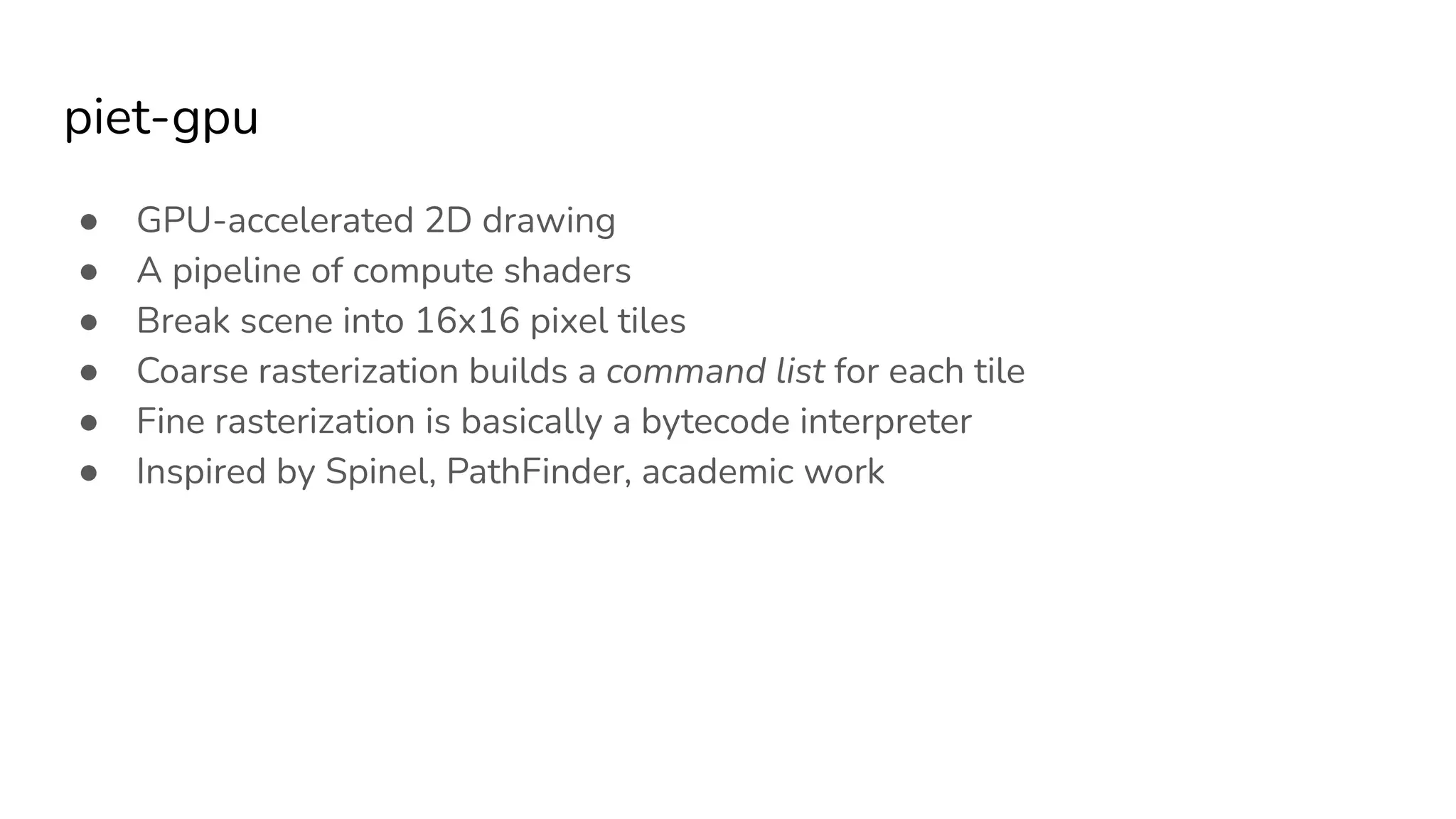

12. piet-gpu
● GPU-accelerated 2D drawing
● A pipeline of compute shaders
● Break scene into 16x16 pixel tiles
● Coarse rasterization builds a command list for each tile
● Fine rasterization is basically a bytecode interpreter
● Inspired by Spinel, PathFinder, academic work

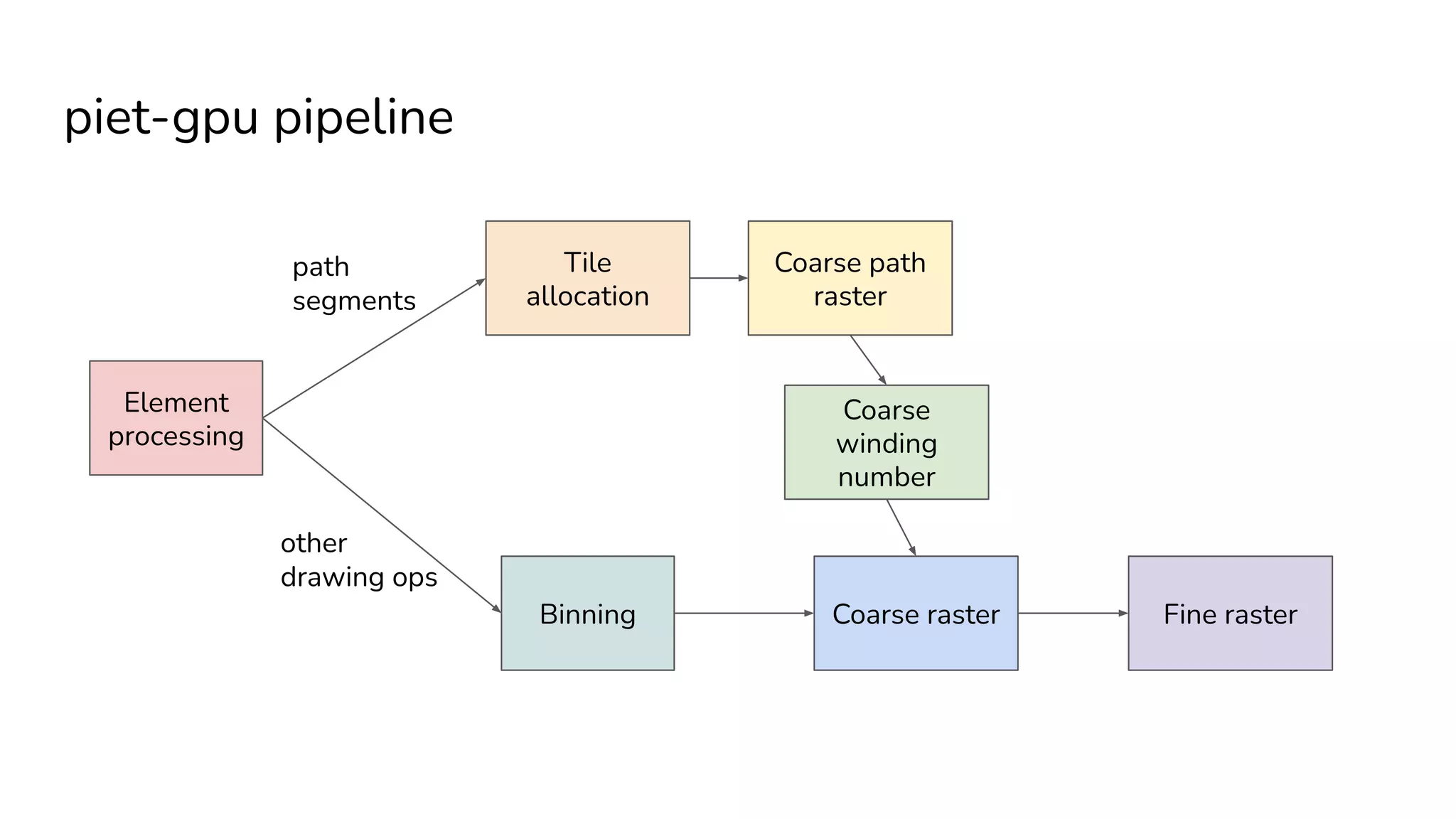

13. piet-gpu pipeline
Element
processing
Binning
Coarse path
raster
Tile
allocation
Coarse
winding
number
Coarse raster Fine raster
path
segments
other
drawing ops

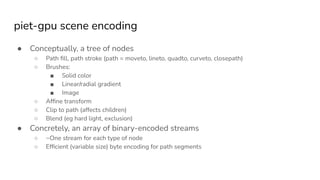

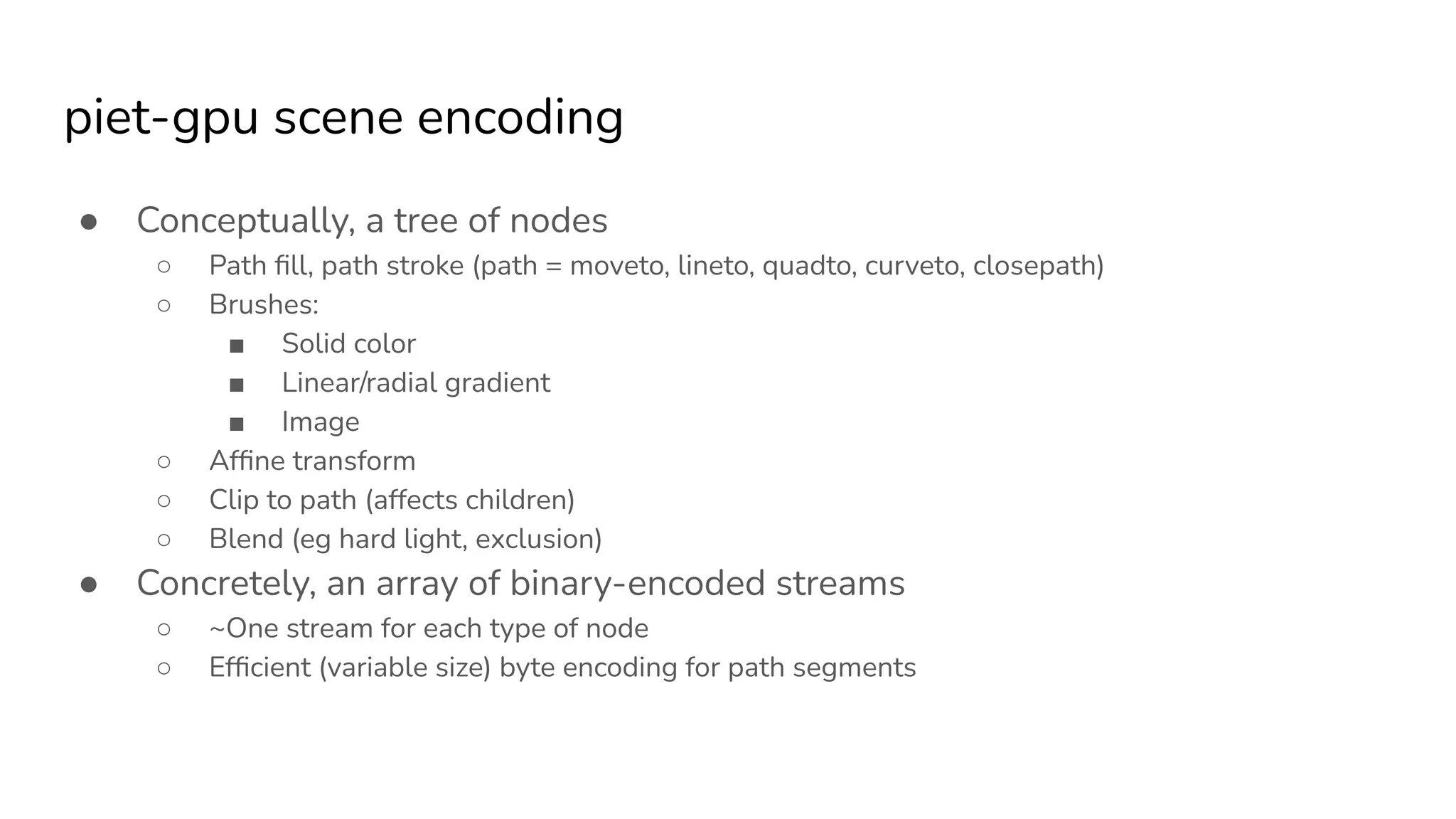

14. piet-gpu scene encoding
● Conceptually, a tree of nodes
○ Path fill, path stroke (path = moveto, lineto, quadto, curveto, closepath)
○ Brushes:
■ Solid color
■ Linear/radial gradient
■ Image
○ Affine transform
○ Clip to path (affects children)
○ Blend (eg hard light, exclusion)
● Concretely, an array of binary-encoded streams
○ ~One stream for each type of node
○ Efficient (variable size) byte encoding for path segments

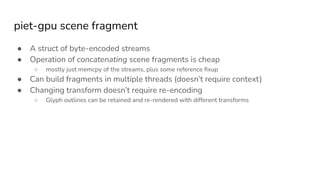

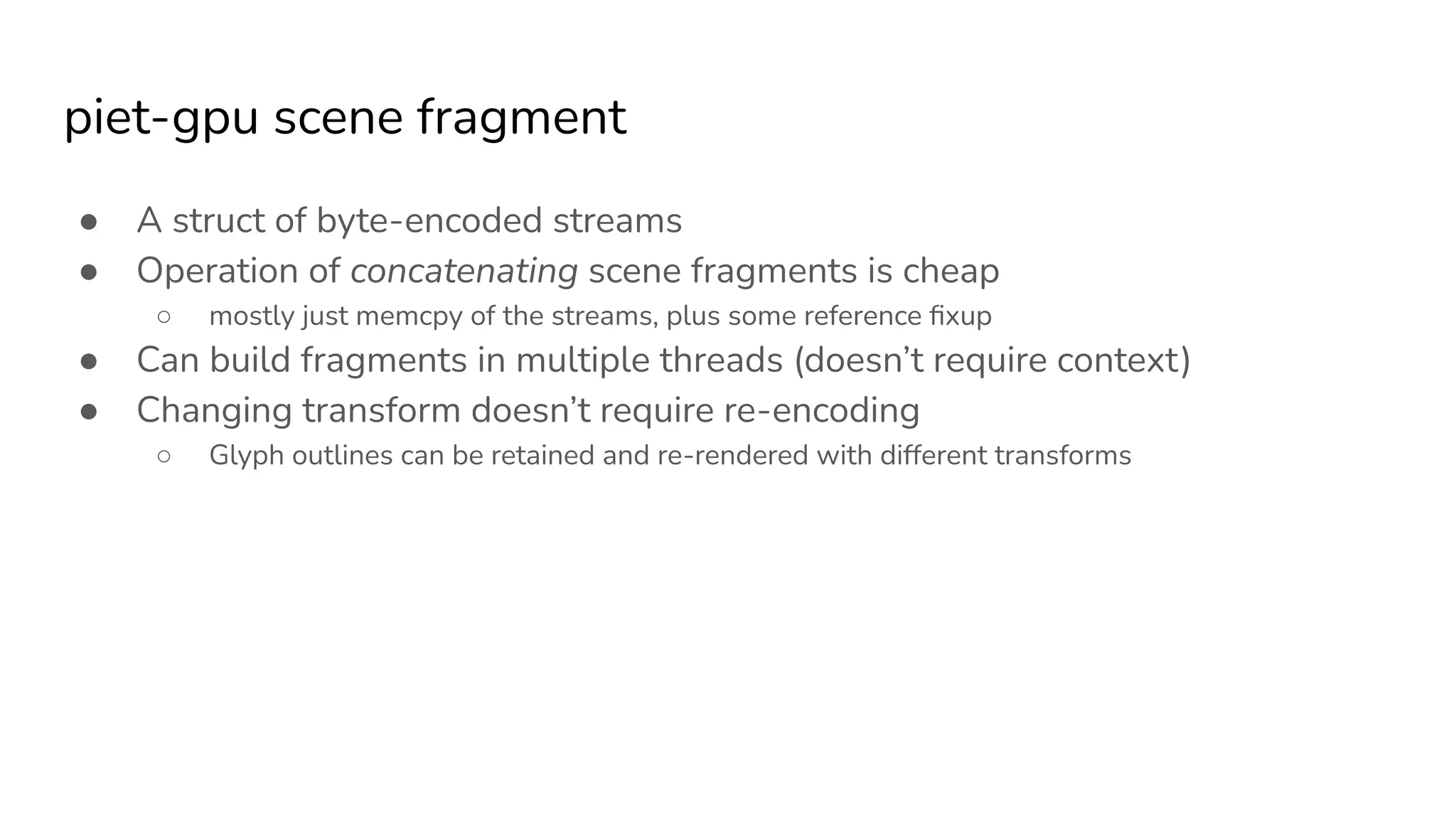

15. piet-gpu scene fragment
● A struct of byte-encoded streams
● Operation of concatenating scene fragments is cheap
○ mostly just memcpy of the streams, plus some reference fixup
● Can build fragments in multiple threads (doesn’t require context)
● Changing transform doesn’t require re-encoding
○ Glyph outlines can be retained and re-rendered with different transforms

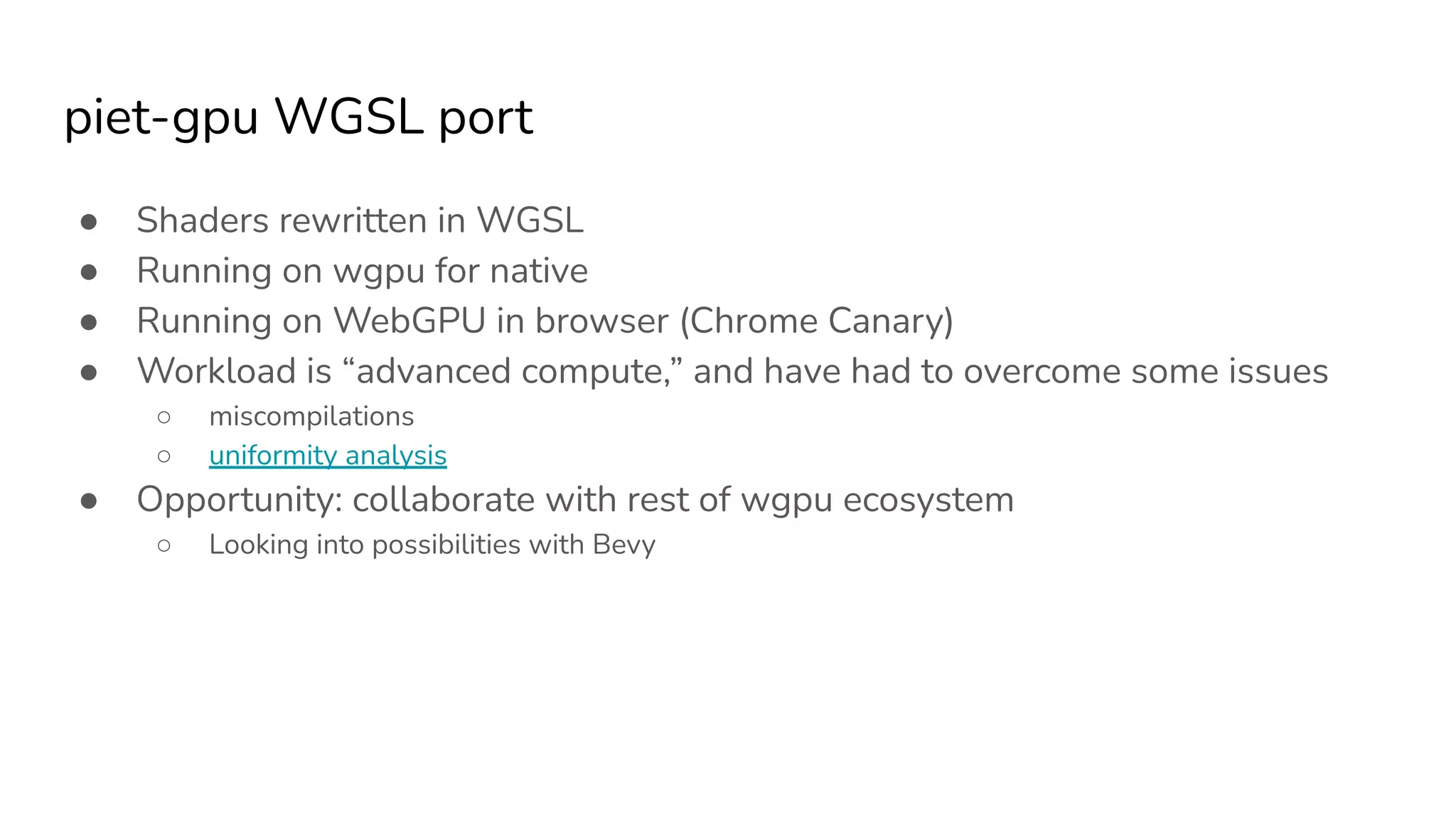

16. piet-gpu WGSL port
● Shaders rewritten in WGSL
● Running on wgpu for native
● Running on WebGPU in browser (Chrome Canary)
● Workload is “advanced compute,” and have had to overcome some issues
○ miscompilations
○ uniformity analysis
● Opportunity: collaborate with rest of wgpu ecosystem
○ Looking into possibilities with Bevy

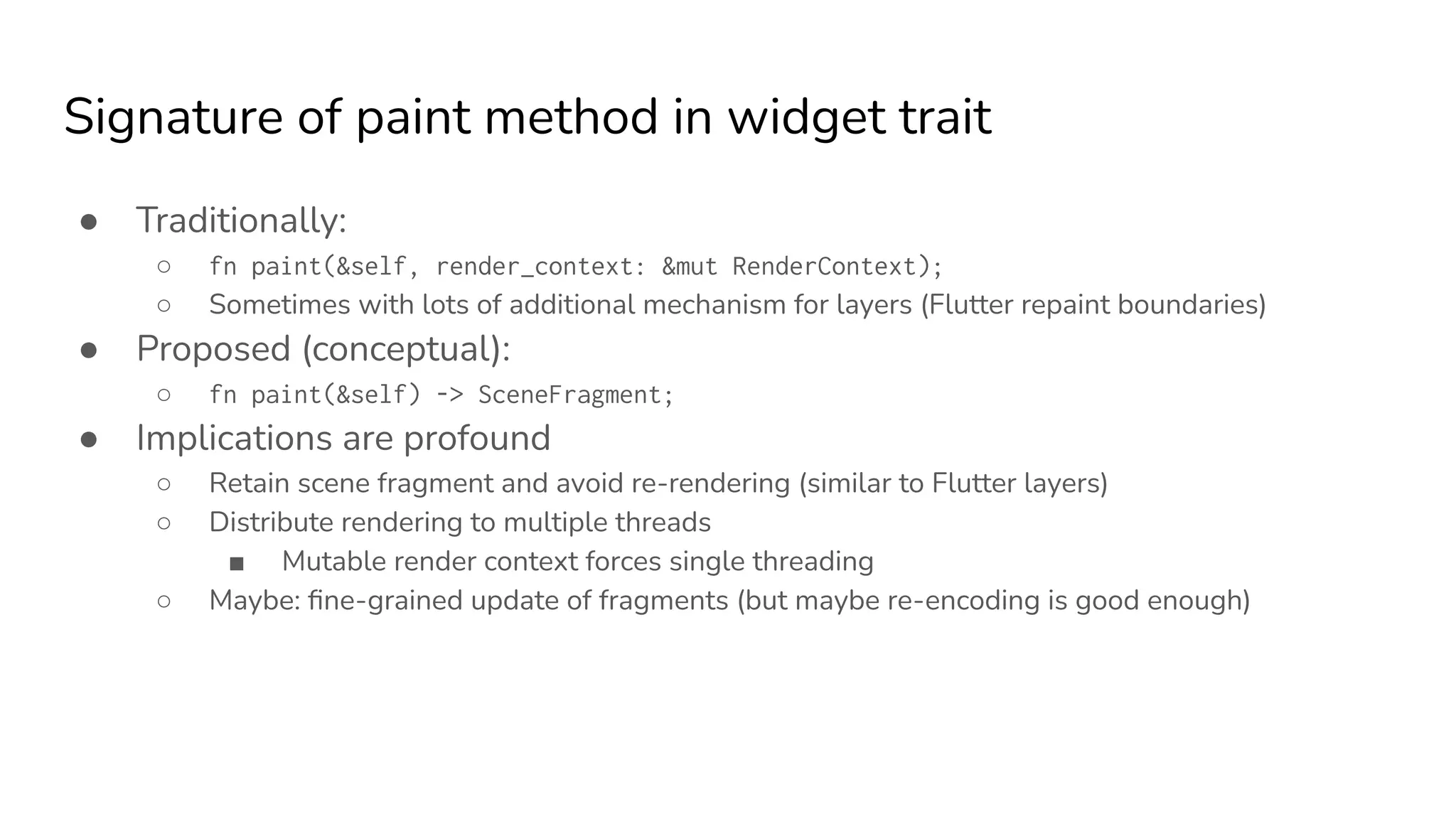

17. Signature of paint method in widget trait
● Traditionally:
○ fn paint(&self, render_context: &mut RenderContext);
○ Sometimes with lots of additional mechanism for layers (Flutter repaint boundaries)
● Proposed (conceptual):
○ fn paint(&self) -> SceneFragment;
● Implications are profound
○ Retain scene fragment and avoid re-rendering (similar to Flutter layers)
○ Distribute rendering to multiple threads
■ Mutable render context forces single threading
○ Maybe: fine-grained update of fragments (but maybe re-encoding is good enough)

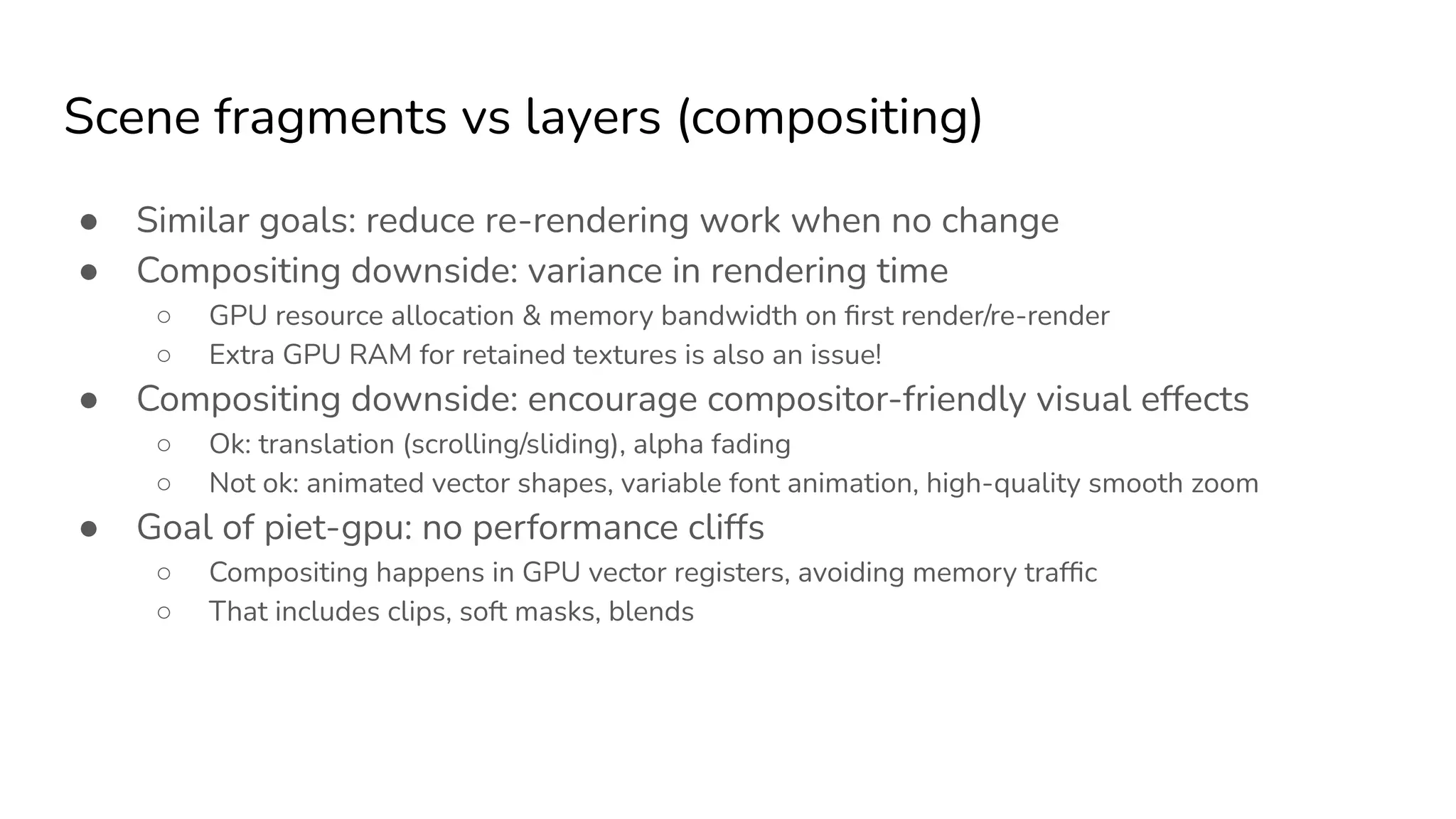

18. Scene fragments vs layers (compositing)
● Similar goals: reduce re-rendering work when no change
● Compositing downside: variance in rendering time
○ GPU resource allocation & memory bandwidth on first render/re-render
○ Extra GPU RAM for retained textures is also an issue!
● Compositing downside: encourage compositor-friendly visual effects
○ Ok: translation (scrolling/sliding), alpha fading
○ Not ok: animated vector shapes, variable font animation, high-quality smooth zoom
● Goal of piet-gpu: no performance cliffs
○ Compositing happens in GPU vector registers, avoiding memory traffic
○ That includes clips, soft masks, blends

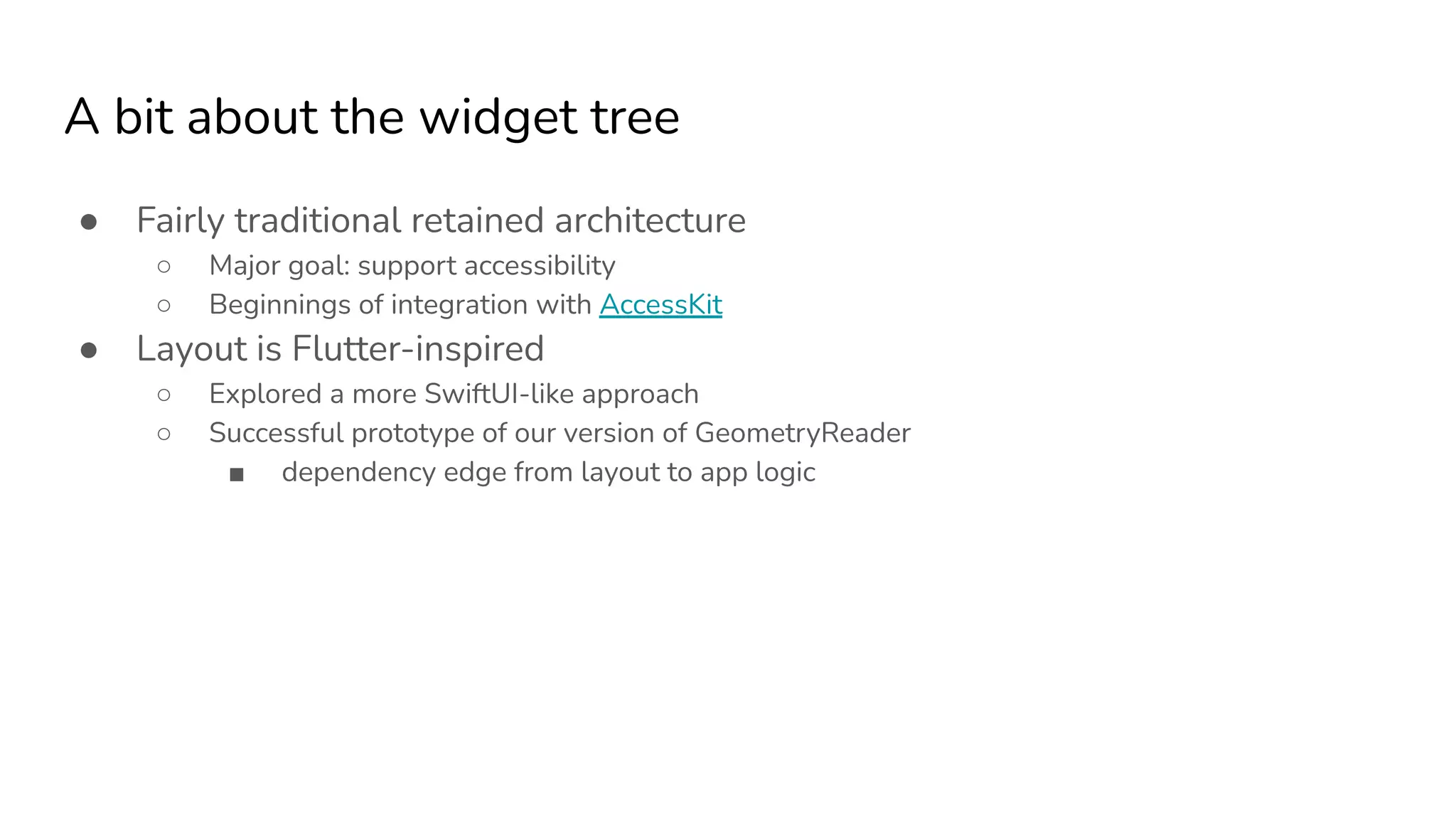

19. A bit about the widget tree
● Fairly traditional retained architecture
○ Major goal: support accessibility
○ Beginnings of integration with AccessKit
● Layout is Flutter-inspired
○ Explored a more SwiftUI-like approach
○ Successful prototype of our version of GeometryReader
■ dependency edge from layout to app logic

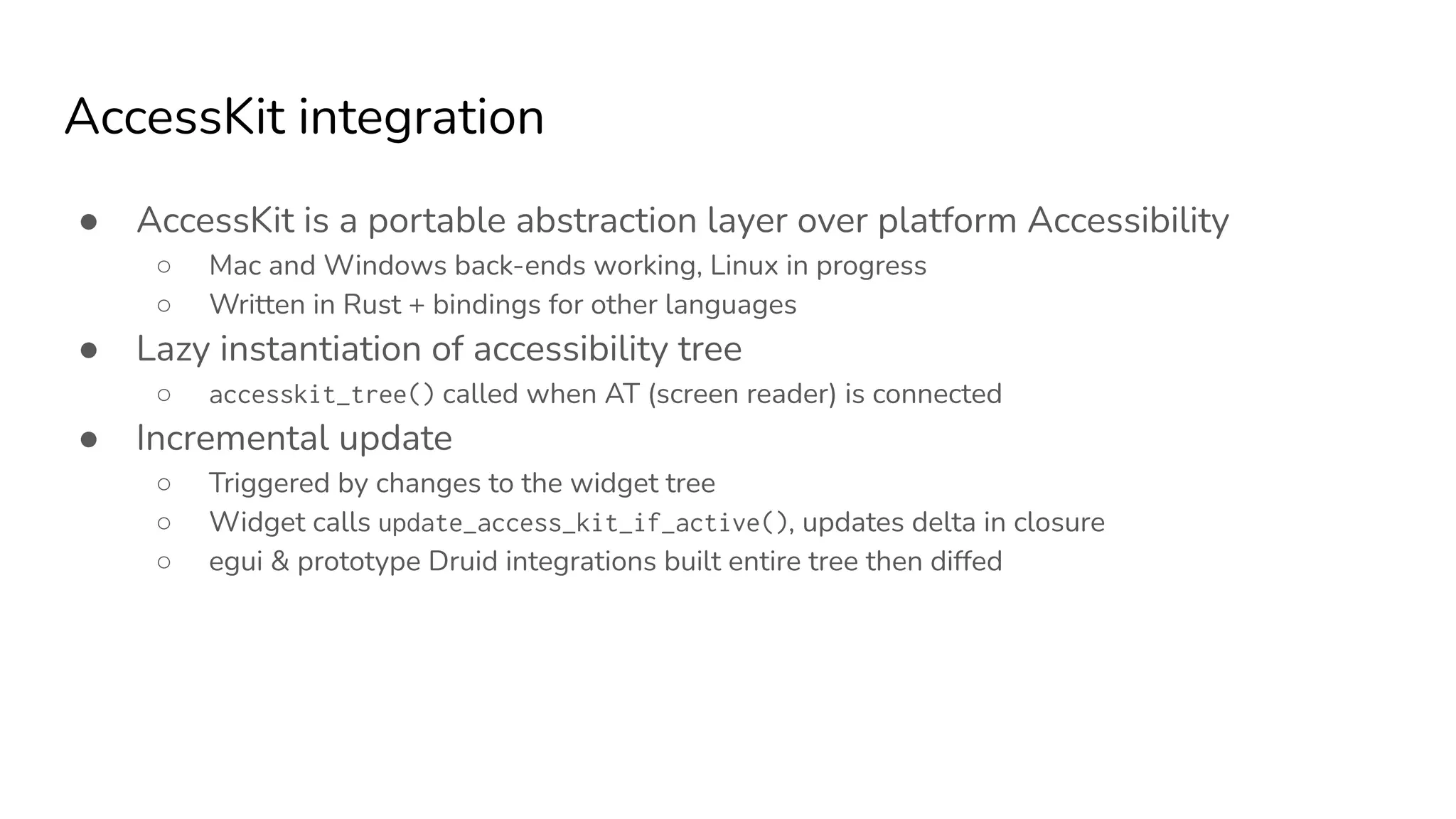

20. AccessKit integration
● AccessKit is a portable abstraction layer over platform Accessibility
○ Mac and Windows back-ends working, Linux in progress
○ Written in Rust + bindings for other languages
● Lazy instantiation of accessibility tree
○ accesskit_tree() called when AT (screen reader) is connected
● Incremental update
○ Triggered by changes to the widget tree
○ Widget calls update_access_kit_if_active(), updates delta in closure
○ egui & prototype Druid integrations built entire tree then diffed

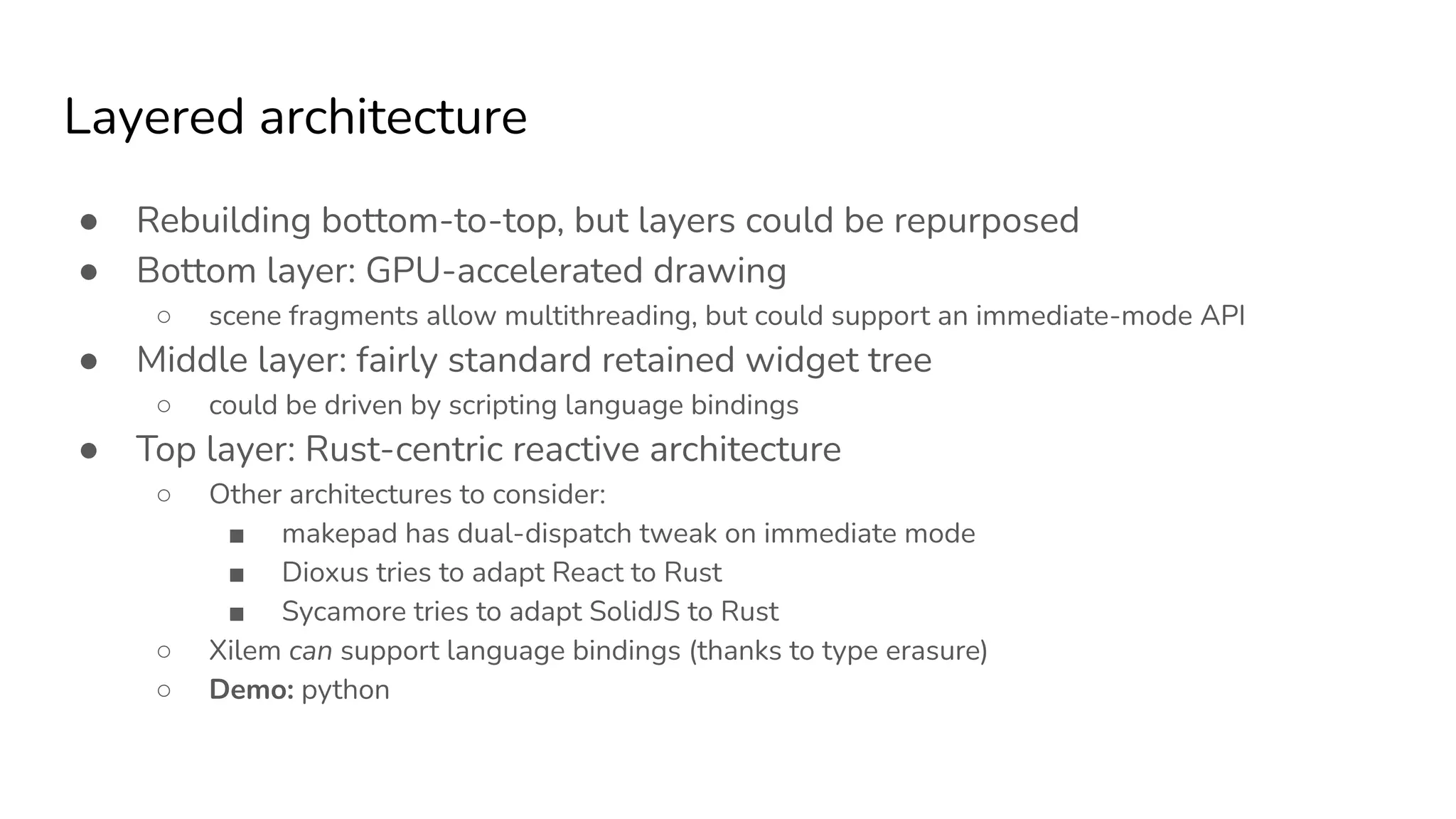

21. Layered architecture
● Rebuilding bottom-to-top, but layers could be repurposed
● Bottom layer: GPU-accelerated drawing
○ scene fragments allow multithreading, but could support an immediate-mode API
● Middle layer: fairly standard retained widget tree
○ could be driven by scripting language bindings
● Top layer: Rust-centric reactive architecture
○ Other architectures to consider:
■ makepad has dual-dispatch tweak on immediate mode
■ Dioxus tries to adapt React to Rust
■ Sycamore tries to adapt SolidJS to Rust
○ Xilem can support language bindings (thanks to type erasure)
○ Demo: python

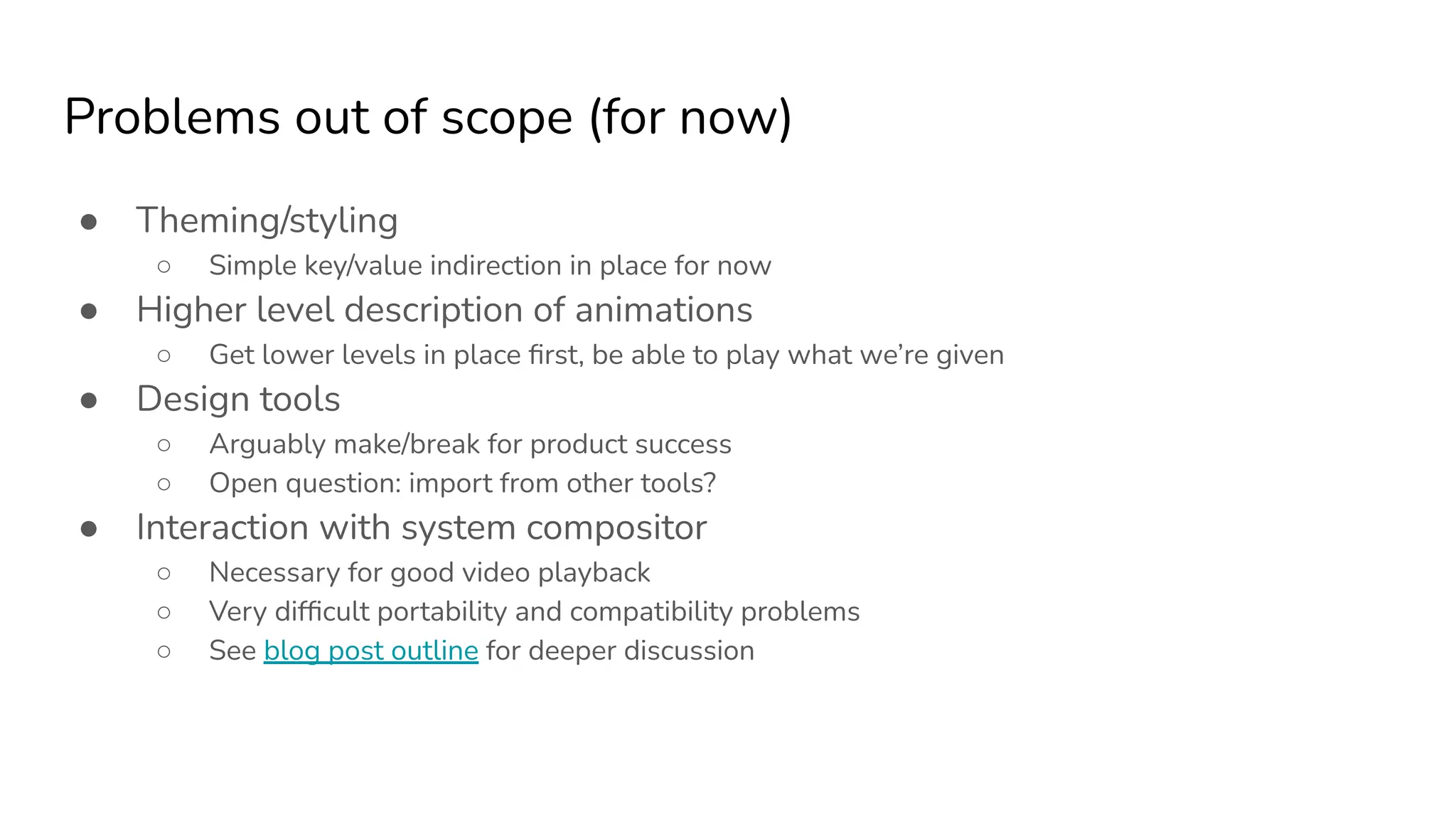

22. Problems out of scope (for now)
● Theming/styling
○ Simple key/value indirection in place for now
● Higher level description of animations
○ Get lower levels in place first, be able to play what we’re given
● Design tools
○ Arguably make/break for product success
○ Open question: import from other tools?
● Interaction with system compositor
○ Necessary for good video playback
○ Very difficult portability and compatibility problems
○ See blog post outline for deeper discussion

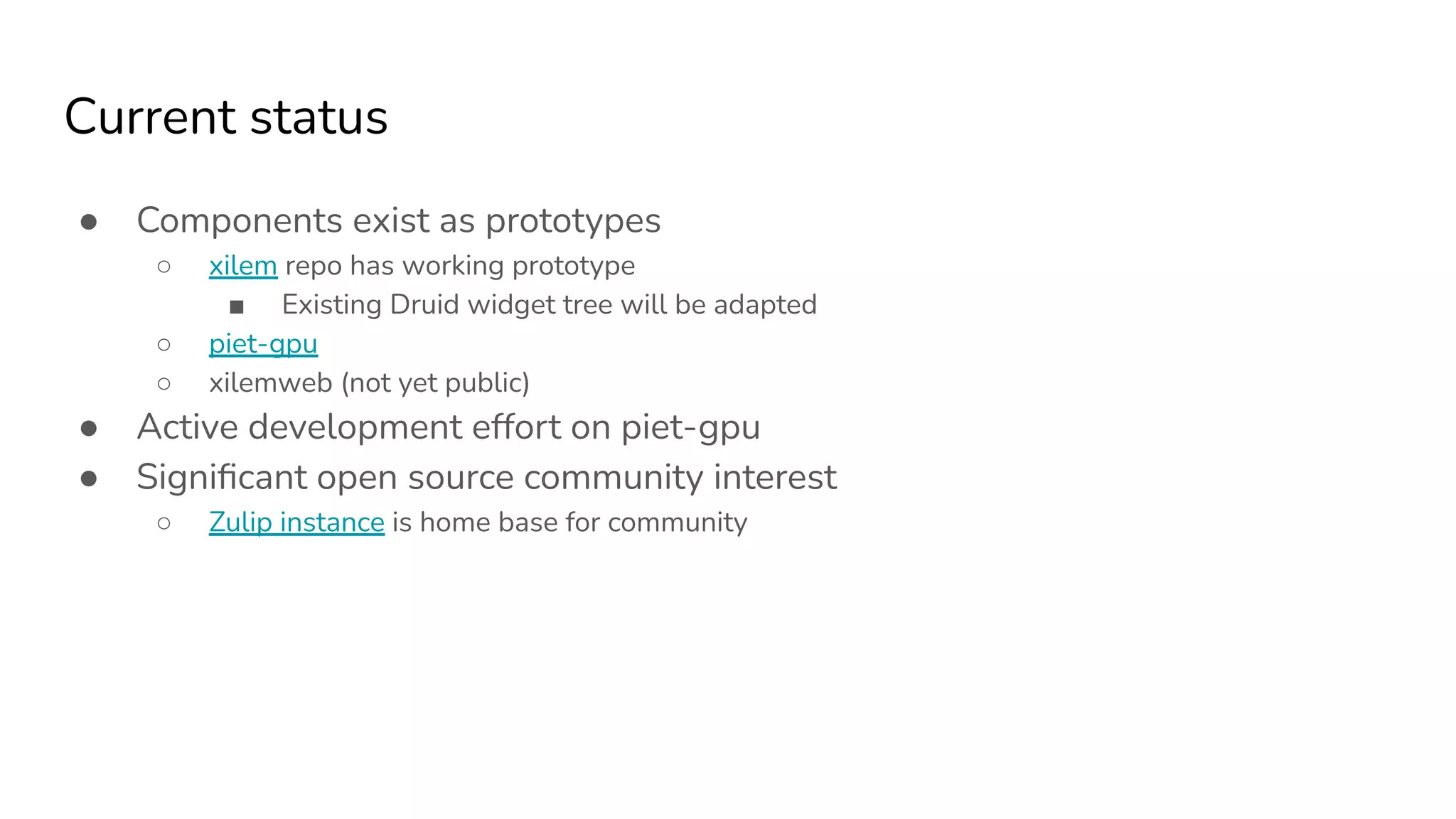

23. Current status
● Components exist as prototypes
○ xilem repo has working prototype
■ Existing Druid widget tree will be adapted
○ piet-gpu
○ xilemweb (not yet public)
● Active development effort on piet-gpu
● Significant open source community interest
○ Zulip instance is home base for community

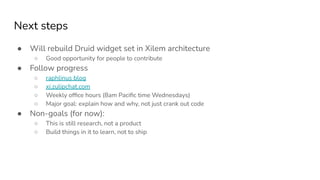

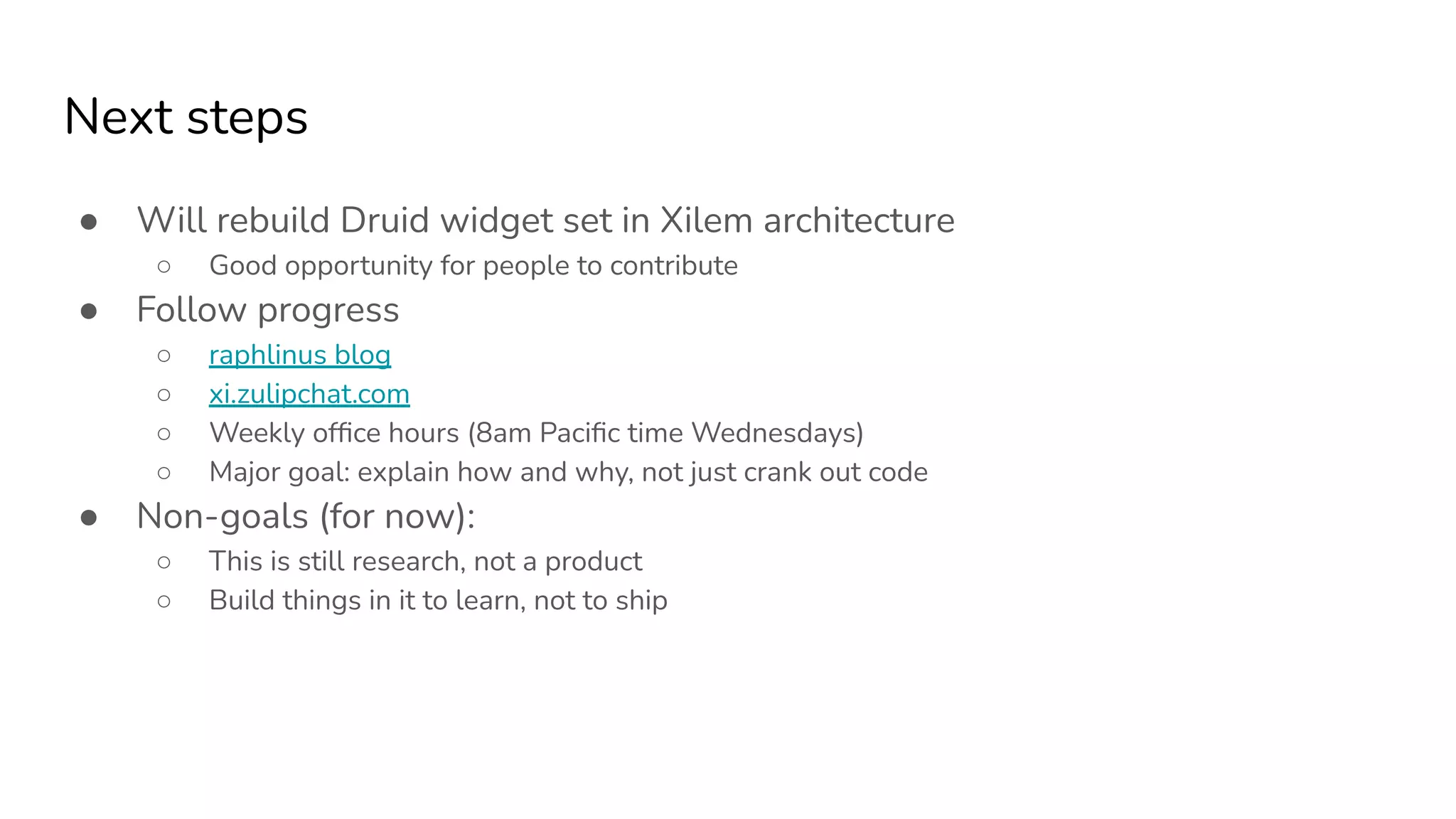

24. Next steps
● Will rebuild Druid widget set in Xilem architecture
○ Good opportunity for people to contribute
● Follow progress
○ raphlinus blog
○ xi.zulipchat.com
○ Weekly office hours (8am Pacific time Wednesdays)
○ Major goal: explain how and why, not just crank out code
● Non-goals (for now):
○ This is still research, not a product
○ Build things in it to learn, not to ship
