The HDP2 is an HD-SDI/SDI to DVI-D video and audio converter that allows users to display HD-SDI or SDI video sources on DVI monitors and projectors. It supports features like deep color 30-bit video, 8 channel embedded audio over HDMI, 2 channel analog audio output, and HD-SDI looping output. The HDP2 automatically scales and adapts inputs to popular LED, LCD, DLP, and plasma displays up to 1920x1200 at 1080p resolution using a high quality scaling engine.
The document is an installation and operation guide for the AJA HD10AVA converter, which converts analog video and audio inputs to SD/HD-SDI outputs with embedded audio. It has analog component, composite, or Y/C video inputs, 4-channel balanced analog audio inputs, and 3 SDI/HD-SDI outputs. It automatically detects the input format and embeds the audio in the SDI outputs. The guide provides information on features, supported video and audio formats, and a block diagram of the converter's design.
The document is an installation and operation guide for the AJA Hi5-3G, a video converter that takes 3G, HD, or SD SDI video inputs and converts them to HDMI output with embedded audio. It has features like support for 10-bit and deep color video on the HDMI output as well as additional analog audio outputs. Setup and control is done through a USB connection to a computer running configuration software. The guide describes the product's I/O connections and typical installation process of connecting cables and power.
The AJA HD10CEA converts SDI/HD-SDI video with embedded audio to analog video and 4 channel balanced analog audio. It supports SD formats like NTSC and PAL, as well as HD formats up to 1080p. Video and audio outputs are configured via an external dipswitch, which selects output format, audio channel group, and audio level. Installation involves connecting video and audio cables from the converter's BNC and XLR ports to other equipment, and supplying power.
The document is an installation and operation guide for the AJA Hi5-3D HD-SDI Multiplexer To HDMI 1.4a and SDI Video and Audio Converter. It multiplexes two 3G or HD-SDI inputs into various 3D formats for output over HDMI 1.4a and HD-SDI. It supports side-by-side, top-bottom, and frame-packing 3D modes and can flip inputs horizontally, vertically, or both. It works with 2D and 3D inputs in various HD and 3G formats at up to 1080p and can pass non-3D inputs directly to the HDMI output.
The document is a user manual for the AJA HD10MD3 HDTV HD to SDI Down Converter. It provides an overview of the product's features which include broadcast-quality HD to SD down conversion, dual-rate HD-SDI/SDI input and output, support for various HD and SD input formats, and external dipswitch configuration. It also includes a block diagram showing the device's signal processing components.
The document is the user manual for the AJA HD10C2 HDTV Serial Digital to Analog Converter. It provides an overview of the product, including its features, block diagram, I/O connections, user controls, installation instructions, and specifications. The HD10C2 converts HD-SDI and SDI video signals to analog component HD and SD outputs. It has dual HD-SDI loop outputs and is configured via front-panel DIP switches to set the output format and options.
The document is the user manual for the AJA HD10A HDTV Analog to Serial Video Converter. It provides an introduction to the product, listing its key features such as accepting RGB or YPbPr analog HD inputs and outputting three HD-SDI signals. The manual describes the product's I/O connections and user controls, including a 4-switch DIP switch for configuration.
The document is the user manual for the AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter. It summarizes the key features of the product as converting HDMI to SDI or HD-SDI while embedding up to 8 channels of audio. It provides information on installation, specifications, and operation including supported formats, I/O connections, and internal jumpers for audio/video settings.
The document is an installation and operation guide for the AJA HD10AVA converter, which converts analog video and audio inputs to SD/HD-SDI outputs with embedded audio. It has analog component, composite, or Y/C video inputs, 4-channel balanced analog audio inputs, and 3 SDI/HD-SDI outputs. It automatically detects the input format and embeds the audio in the SDI outputs. The guide provides information on features, supported video and audio formats, and a block diagram of the converter's design.
The document is an installation and operation guide for the AJA Hi5-3G, a video converter that takes 3G, HD, or SD SDI video inputs and converts them to HDMI output with embedded audio. It has features like support for 10-bit and deep color video on the HDMI output as well as additional analog audio outputs. Setup and control is done through a USB connection to a computer running configuration software. The guide describes the product's I/O connections and typical installation process of connecting cables and power.
The AJA HD10CEA converts SDI/HD-SDI video with embedded audio to analog video and 4 channel balanced analog audio. It supports SD formats like NTSC and PAL, as well as HD formats up to 1080p. Video and audio outputs are configured via an external dipswitch, which selects output format, audio channel group, and audio level. Installation involves connecting video and audio cables from the converter's BNC and XLR ports to other equipment, and supplying power.
The document is an installation and operation guide for the AJA Hi5-3D HD-SDI Multiplexer To HDMI 1.4a and SDI Video and Audio Converter. It multiplexes two 3G or HD-SDI inputs into various 3D formats for output over HDMI 1.4a and HD-SDI. It supports side-by-side, top-bottom, and frame-packing 3D modes and can flip inputs horizontally, vertically, or both. It works with 2D and 3D inputs in various HD and 3G formats at up to 1080p and can pass non-3D inputs directly to the HDMI output.
The document is a user manual for the AJA HD10MD3 HDTV HD to SDI Down Converter. It provides an overview of the product's features which include broadcast-quality HD to SD down conversion, dual-rate HD-SDI/SDI input and output, support for various HD and SD input formats, and external dipswitch configuration. It also includes a block diagram showing the device's signal processing components.
The document is the user manual for the AJA HD10C2 HDTV Serial Digital to Analog Converter. It provides an overview of the product, including its features, block diagram, I/O connections, user controls, installation instructions, and specifications. The HD10C2 converts HD-SDI and SDI video signals to analog component HD and SD outputs. It has dual HD-SDI loop outputs and is configured via front-panel DIP switches to set the output format and options.
The document is the user manual for the AJA HD10A HDTV Analog to Serial Video Converter. It provides an introduction to the product, listing its key features such as accepting RGB or YPbPr analog HD inputs and outputting three HD-SDI signals. The manual describes the product's I/O connections and user controls, including a 4-switch DIP switch for configuration.
The document is the user manual for the AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter. It summarizes the key features of the product as converting HDMI to SDI or HD-SDI while embedding up to 8 channels of audio. It provides information on installation, specifications, and operation including supported formats, I/O connections, and internal jumpers for audio/video settings.
The document is the user manual for the AJA D10CEA SDI to Component/Composite Video with 4 Channel Audio Converter. It converts serial digital video with embedded audio to analog component or composite video and 4 channel balanced analog audio. Key features include selectable video and audio outputs, re-clocked loop-through SDI outputs, and configuration via an external DIP switch interface. Connections for video, audio, and power are made via BNCs and a DB25 connector on the converter unit.
This document provides an installation and operation guide for the AJA RH10DA 1x8 SD/HD-SDI Reclocking Distribution Amplifier card module. The RH10DA is a multi-standard dual rate SDI/HD-SDI distribution amplifier that equalizes and re-clocks the input signal to 8 outputs. It automatically detects input formats between 143Mbps to 1.485Gbps. The document provides details on product features, specifications, I/O connections when installed in AJA FR1 and FR2 frames, installation instructions, and compliance and safety information.
The document is the user manual for the AJA D4E Serial Digital Encoder. It provides an introduction and overview of the product, describing its key features such as SDI input/output, automatic NTSC/PAL selection, and test pattern generation. It also includes a block diagram, information on I/O connections, and details on the user interface DIP switches for configuration.
The document is the user manual for the AJA D10C2 10-bit Serial Digital to Composite/Component Converter. It converts serial digital video to analog composite or component video and provides two loop-through serial digital outputs. Key features include 10-bit encoding, SDI and analog outputs, configurable output formats via dip switches, and a limited 5 year warranty.
The document is a user manual for the AJA HD10AMA HD/SD 4-Channel Analog Embedder/Disembedder. It provides instructions on installing and configuring the device through its DIP switch settings to embed or disembed 4 channels of analog audio into HD-SDI or SD-SDI video signals. The device automatically detects the input video standard and features professional and consumer-level analog audio I/O through breakout cables with XLR connectors.
The document is the user manual for the AJA D10AD 10-bit Analog to SDI Converter. It provides instructions on connecting and configuring the converter through dip switches to select input/output formats and settings. The converter accepts component and composite analog video inputs and outputs 4 channels of 10-bit SDI video with configuration of standards, blanking, pedestal and other settings through its dip switch interface.
The HVR-Z5E is a professional 1/3-inch 3 ClearVid CMOS HDV camcorder featuring a 20x optical zoom lens, 3 ClearVid CMOS sensor for high quality images in low light, 1080/25p native progressive recording mode, and dual media recording for improved workflow efficiency. It has a 3.2-inch LCD display, 0.45-inch electronic viewfinder, and dual XLR audio inputs.
The HVR-S270E is a shoulder-mount camcorder that offers flexibility through an interchangeable lens system and the ability to record in HDV, DVCAM, and DV formats. It features a 3 CMOS sensor for high resolution and sensitivity, as well as 25p native progressive recording modes. A variety of lenses can be attached via a universal mount, and it provides a streamlined workflow through solid-state memory recording onto CF cards.
KONA capture cards provide powerful features for video professionals, including:
- Capture, display, and mastering of SD, HD, 3G, Dual Link HD, and 2K formats.
- Hardware-based up/down/cross conversion for real-time monitoring and mastering to different formats.
- Hardware acceleration offloads processing from the CPU for real-time effects and smooth playback.
- The KONA family includes options for different workflows and budgets, from the entry-level KONA LSe to the top-of-the-line KONA 3G.
This document is a user manual for the PS 680 six channel power supply. It provides instructions on unpacking, installing and operating the PS 680, including connecting mains power, using front and rear panel controls, cabling stations, and technical specifications. The PS 680 can power up to 40 beltpacks or 20 speaker stations to provide intercom functionality and incorporates auxiliary audio inputs with a mixing matrix.
The telescoping crane has advantages over normal cranes such as its ability to access inaccessible areas and allow for smooth camera movements through coordinated arm and head movements. It uses a linear rail system for smooth telescoping movement with less shaking. The remote head has a high payload of 30kg despite weighing only 15kg, and provides responsive and adjustable pan and tilt control matching top brands. The system allows two-operator control of the arm and remote head/camera separately.
The document provides instructions for the DAC-50 HD/SD-SDI to Component-YUV Converter. It includes:
1) A list of features including support for 6 output resolutions and HD/SD-SDI and YUV component video inputs and outputs.
2) An overview of the front and rear panels and their connections.
3) A description of the DIP switch functions for selecting the output resolution and format.
4) A table showing the 23 supported SDI input to YUV output conversion modes and their corresponding DIP switch settings.
The document describes the Sony LMD-1530W, a 15-inch HD monitor. It has a 15:9 aspect ratio LCD panel with WXGA resolution, HDMI input, and is designed for professional studio and field use. Key features include high color purity, brightness and contrast, and flexible marker controls. It provides inputs for SD/HD signals and can be mounted in a rack or on a wall.
The LMD-940W is a 9-inch LCD monitor that can accept 3G SDI, HD-SDI, and SD-SDI signals through a single cable. It has a high brightness and contrast ratio LCD panel, chroma color processing for accurate color reproduction, and a wide viewing angle. Additional features include audio monitoring, tally lights, and various video interfaces like HDMI and composite.
The document is a user manual for the PS 130 single channel speaker station. It describes the features of the device such as front panel controls including volume control, talk and call buttons, sidetone trimmer, and gooseneck microphone. It also covers installation instructions for connecting the device to an intercom system and adjusting settings like speaker attenuation. The manual provides specifications and details on operating the device as part of an intercom communication system.
The document is a user manual for the PS 285 Power Supply Booster. It contains 3 sections:
1. The PS 285 is designed to be used as an auxiliary power supply for ASL intercom systems when the main power supply cannot support all required stations. It can power up to 20 beltpacks or 10 speaker stations.
2. Instructions are provided for unpacking, installing, connecting power and intercom lines, and setting up the PS 285.
3. Technical specifications of the PS 285 include its power output of +30V DC, dimensions of 1U height and 150mm depth, weight of 1.6kg, and ability to drive stations at a total current of 1.7A
The document is a user guide for the Sound Devices 552 five-channel portable production mixer and integrated recorder. It provides an overview of the mixer's features and specifications, as well as instructions for setup and operation. The guide includes sections on connecting inputs and outputs, adjusting gain and monitoring levels, using the built-in recorder to capture audio files, and setting preferences in the mixer's setup menu.
The document is a user manual for the PS 430 four channel speaker station. It provides instructions for unpacking, installing, and operating the device, including descriptions of front panel controls and connectors, side panel connectors, internal controls, cabling guidelines, and technical specifications. The PS 430 allows for four channel communication and includes features such as a gooseneck microphone, loudspeaker, volume controls, talk and call buttons, and a headset connector.
The Ki Pro and Ki Pro Mini are tapeless video recording devices that record high quality Apple ProRes 422 QuickTime files onto portable storage, allowing footage from any camera to be recorded and edited using the same codec. They feature inputs for SD/HD-SDI, HDMI, and analog cameras, as well as numerous outputs for monitoring. Files can be edited immediately in Final Cut Studio without additional digitizing or format conversion. The Ki Pro offers additional features like wireless control and conversion between resolutions, while the smaller Ki Pro Mini is designed for maximum portability. Both simplify video acquisition and allow seamless integration between production and post-production workflows.
The document is a user manual for the PS 19M single channel beltpack. It describes the beltpack's features like front panel controls for volume, talk, and call buttons. It details rear panel connectors for the line and headset and bottom controls for mic gain and sidetone trimming. It also covers cabling guidelines for connecting the beltpack to an intercom system.
The document is a user manual for the BS 216 Dual Channel Master Station. It provides instructions on unpacking, installing, and operating the device. The manual describes the front panel controls like power buttons, volume controls, and talk buttons for each channel. It also covers rear panel connections, cabling, technical specifications, and warranty information to help users set up and use the dual channel intercom system master station.
This document is the user guide and technical information for the Sound Devices 702T high resolution digital audio recorder. It provides details on:
- Operating the recorder including powering on, menu navigation, inputs/outputs, recording, playback and file management.
- Technical specifications of the recorder such as sampling rates, bit depths, file formats, time code features, and input/output connections.
- Information for advanced users including firmware updates, setup presets, and specifications.
The document is the user manual for the AJA D10CEA SDI to Component/Composite Video with 4 Channel Audio Converter. It converts serial digital video with embedded audio to analog component or composite video and 4 channel balanced analog audio. Key features include selectable video and audio outputs, re-clocked loop-through SDI outputs, and configuration via an external DIP switch interface. Connections for video, audio, and power are made via BNCs and a DB25 connector on the converter unit.
This document provides an installation and operation guide for the AJA RH10DA 1x8 SD/HD-SDI Reclocking Distribution Amplifier card module. The RH10DA is a multi-standard dual rate SDI/HD-SDI distribution amplifier that equalizes and re-clocks the input signal to 8 outputs. It automatically detects input formats between 143Mbps to 1.485Gbps. The document provides details on product features, specifications, I/O connections when installed in AJA FR1 and FR2 frames, installation instructions, and compliance and safety information.
The document is the user manual for the AJA D4E Serial Digital Encoder. It provides an introduction and overview of the product, describing its key features such as SDI input/output, automatic NTSC/PAL selection, and test pattern generation. It also includes a block diagram, information on I/O connections, and details on the user interface DIP switches for configuration.
The document is the user manual for the AJA D10C2 10-bit Serial Digital to Composite/Component Converter. It converts serial digital video to analog composite or component video and provides two loop-through serial digital outputs. Key features include 10-bit encoding, SDI and analog outputs, configurable output formats via dip switches, and a limited 5 year warranty.
The document is a user manual for the AJA HD10AMA HD/SD 4-Channel Analog Embedder/Disembedder. It provides instructions on installing and configuring the device through its DIP switch settings to embed or disembed 4 channels of analog audio into HD-SDI or SD-SDI video signals. The device automatically detects the input video standard and features professional and consumer-level analog audio I/O through breakout cables with XLR connectors.
The document is the user manual for the AJA D10AD 10-bit Analog to SDI Converter. It provides instructions on connecting and configuring the converter through dip switches to select input/output formats and settings. The converter accepts component and composite analog video inputs and outputs 4 channels of 10-bit SDI video with configuration of standards, blanking, pedestal and other settings through its dip switch interface.
The HVR-Z5E is a professional 1/3-inch 3 ClearVid CMOS HDV camcorder featuring a 20x optical zoom lens, 3 ClearVid CMOS sensor for high quality images in low light, 1080/25p native progressive recording mode, and dual media recording for improved workflow efficiency. It has a 3.2-inch LCD display, 0.45-inch electronic viewfinder, and dual XLR audio inputs.
The HVR-S270E is a shoulder-mount camcorder that offers flexibility through an interchangeable lens system and the ability to record in HDV, DVCAM, and DV formats. It features a 3 CMOS sensor for high resolution and sensitivity, as well as 25p native progressive recording modes. A variety of lenses can be attached via a universal mount, and it provides a streamlined workflow through solid-state memory recording onto CF cards.
KONA capture cards provide powerful features for video professionals, including:
- Capture, display, and mastering of SD, HD, 3G, Dual Link HD, and 2K formats.
- Hardware-based up/down/cross conversion for real-time monitoring and mastering to different formats.
- Hardware acceleration offloads processing from the CPU for real-time effects and smooth playback.
- The KONA family includes options for different workflows and budgets, from the entry-level KONA LSe to the top-of-the-line KONA 3G.
This document is a user manual for the PS 680 six channel power supply. It provides instructions on unpacking, installing and operating the PS 680, including connecting mains power, using front and rear panel controls, cabling stations, and technical specifications. The PS 680 can power up to 40 beltpacks or 20 speaker stations to provide intercom functionality and incorporates auxiliary audio inputs with a mixing matrix.
The telescoping crane has advantages over normal cranes such as its ability to access inaccessible areas and allow for smooth camera movements through coordinated arm and head movements. It uses a linear rail system for smooth telescoping movement with less shaking. The remote head has a high payload of 30kg despite weighing only 15kg, and provides responsive and adjustable pan and tilt control matching top brands. The system allows two-operator control of the arm and remote head/camera separately.
The document provides instructions for the DAC-50 HD/SD-SDI to Component-YUV Converter. It includes:
1) A list of features including support for 6 output resolutions and HD/SD-SDI and YUV component video inputs and outputs.
2) An overview of the front and rear panels and their connections.
3) A description of the DIP switch functions for selecting the output resolution and format.
4) A table showing the 23 supported SDI input to YUV output conversion modes and their corresponding DIP switch settings.
The document describes the Sony LMD-1530W, a 15-inch HD monitor. It has a 15:9 aspect ratio LCD panel with WXGA resolution, HDMI input, and is designed for professional studio and field use. Key features include high color purity, brightness and contrast, and flexible marker controls. It provides inputs for SD/HD signals and can be mounted in a rack or on a wall.
The LMD-940W is a 9-inch LCD monitor that can accept 3G SDI, HD-SDI, and SD-SDI signals through a single cable. It has a high brightness and contrast ratio LCD panel, chroma color processing for accurate color reproduction, and a wide viewing angle. Additional features include audio monitoring, tally lights, and various video interfaces like HDMI and composite.
The document is a user manual for the PS 130 single channel speaker station. It describes the features of the device such as front panel controls including volume control, talk and call buttons, sidetone trimmer, and gooseneck microphone. It also covers installation instructions for connecting the device to an intercom system and adjusting settings like speaker attenuation. The manual provides specifications and details on operating the device as part of an intercom communication system.
The document is a user manual for the PS 285 Power Supply Booster. It contains 3 sections:
1. The PS 285 is designed to be used as an auxiliary power supply for ASL intercom systems when the main power supply cannot support all required stations. It can power up to 20 beltpacks or 10 speaker stations.
2. Instructions are provided for unpacking, installing, connecting power and intercom lines, and setting up the PS 285.
3. Technical specifications of the PS 285 include its power output of +30V DC, dimensions of 1U height and 150mm depth, weight of 1.6kg, and ability to drive stations at a total current of 1.7A
The document is a user guide for the Sound Devices 552 five-channel portable production mixer and integrated recorder. It provides an overview of the mixer's features and specifications, as well as instructions for setup and operation. The guide includes sections on connecting inputs and outputs, adjusting gain and monitoring levels, using the built-in recorder to capture audio files, and setting preferences in the mixer's setup menu.
The document is a user manual for the PS 430 four channel speaker station. It provides instructions for unpacking, installing, and operating the device, including descriptions of front panel controls and connectors, side panel connectors, internal controls, cabling guidelines, and technical specifications. The PS 430 allows for four channel communication and includes features such as a gooseneck microphone, loudspeaker, volume controls, talk and call buttons, and a headset connector.
The Ki Pro and Ki Pro Mini are tapeless video recording devices that record high quality Apple ProRes 422 QuickTime files onto portable storage, allowing footage from any camera to be recorded and edited using the same codec. They feature inputs for SD/HD-SDI, HDMI, and analog cameras, as well as numerous outputs for monitoring. Files can be edited immediately in Final Cut Studio without additional digitizing or format conversion. The Ki Pro offers additional features like wireless control and conversion between resolutions, while the smaller Ki Pro Mini is designed for maximum portability. Both simplify video acquisition and allow seamless integration between production and post-production workflows.
The document is a user manual for the PS 19M single channel beltpack. It describes the beltpack's features like front panel controls for volume, talk, and call buttons. It details rear panel connectors for the line and headset and bottom controls for mic gain and sidetone trimming. It also covers cabling guidelines for connecting the beltpack to an intercom system.
The document is a user manual for the BS 216 Dual Channel Master Station. It provides instructions on unpacking, installing, and operating the device. The manual describes the front panel controls like power buttons, volume controls, and talk buttons for each channel. It also covers rear panel connections, cabling, technical specifications, and warranty information to help users set up and use the dual channel intercom system master station.
This document is the user guide and technical information for the Sound Devices 702T high resolution digital audio recorder. It provides details on:
- Operating the recorder including powering on, menu navigation, inputs/outputs, recording, playback and file management.
- Technical specifications of the recorder such as sampling rates, bit depths, file formats, time code features, and input/output connections.
- Information for advanced users including firmware updates, setup presets, and specifications.
The V-440HD video mixer can mix and switch multiple video formats including HD, SD, and RGB computer signals. It has inputs for 4 SD and 4 HD/RGB sources. The unit can output HD, SD, and RGB formats. It provides features like picture-in-picture, two keyers, and transitions. The intuitive interface makes it simple to operate. The V-440HD provides a affordable way to mix and switch multiple video formats for production.
The document provides an overview and instructions for operating the ProMix 6 audio mixer. Key features include 6 input channels with gain settings, phantom power, dedicated line outputs, headphone outputs, channel faders, high pass filters, peak reading meters, and output limiters. The mixer is designed for field production applications like electronic news gathering and has a rugged design to operate in various environmental conditions.
The document is an installation and operation guide for the AJA Hi5-3G, a video converter that takes 3G, HD, or SD SDI video inputs and converts them to HDMI output with embedded audio. It has features like support for 10-bit and deep color video on the HDMI output as well as additional analog audio outputs. The guide describes the unit's I/O connections and typical installation process of connecting power and sources. It also provides information about the limited warranty and technical support contact information.
The document provides information about the AJA HD10AVA converter, including:
1) It converts analog SD/HD video and audio inputs to 3 channel SD/HD-SDI outputs with embedded audio.
2) It supports a variety of SD and HD video formats and has balanced 4 channel analog audio inputs.
3) Configuration options like input format, audio levels, and blanking can be set using an external DIP switch.
This document provides an installation and operation guide for the AJA Hi5-3D HD-SDI Multiplexer to HDMI 1.4a and SDI Video and Audio Converter. The guide summarizes the product's features and capabilities, describes how to install and connect the device, and explains how to use the Mini Config software to configure settings through a computer. Mini Config allows managing input/output signals, firmware updates, and saving/recalling presets for different applications.
The document is a user manual for the AJA HD10MD3 HDTV HD to SDI Down Converter. It provides an overview of the product's features which include broadcast-quality HD to SD down conversion, dual-rate HD-SDI/SDI input and output, support for various HD and SD input formats, and external dipswitch configuration. It also includes a block diagram showing the device's signal processing components.
The document is an installation and operation guide for the AJA HD10CEA SDI/HD-SDI to Analog Audio/Video Converter. It converts serial digital video with embedded audio to analog video and 4 channel balanced analog audio. Key features include SD and HD component or composite video outputs, 4 channel balanced audio output, and configurable audio/video via dipswitches. The block diagram shows how serial video and embedded audio input is re-clocked and converted to analog video and audio outputs via a breakout cable.
The document is the user manual for the AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter. It summarizes the key features of the product as converting HDMI to SDI or HD-SDI while embedding up to 8 channels of audio. It provides information on installation, specifications, and operation including supported video formats, I/O connections, and internal jumpers for audio/video settings.
1. The HD10A is an analog to digital converter that accepts RGB or YPbPr HD video inputs and outputs three duplicate HD-SDI signals.
2. It provides 10-bit conversion and supports 1080i, 1080p, and 720p formats with internal or external sync.
3. Configuration is done through a 4-switch DIP switch accessible from the bottom of the unit which selects inputs, frame rate, and sync source.
The document is the user manual for the AJA HD10C2 HDTV Serial Digital to Analog Converter. It provides an overview of the product, including its features, block diagram, I/O connections, user controls, installation instructions, and specifications. The HD10C2 converts HD-SDI and SDI video signals to analog component HD and SD outputs. It has dual HD-SDI loop outputs and is configured via front-panel DIP switches to select output formats and settings.
The document provides instructions for installing and operating the AJA RH10UC SD to HD upconverter card module. It can upconvert SD video to HD and also perform HD framesync functions. The card installs into the AJA FR1 or FR2 frame and provides SD and HD I/O through BNC connectors on the rear of the frame. It has a simple user interface using two toggle switches and a 4-character display to adjust parameters and view status information. Parameters control functions like output format, upconversion mode, timing adjustments and more depending on whether it is in upconvert or framesync mode.
The document provides instructions for installing and operating the AJA RH10UC SD to HD upconverter card module. It can upconvert SD video to HD and also perform HD framesync functions. The card installs into the AJA FR1 or FR2 frame and provides SD and HD I/O through BNC connectors on the rear of the frame. It has a simple user interface using two toggle switches and a 4-character display to adjust parameters and view status information. Parameters control functions like output format, upconversion mode, timing adjustments and more depending on whether it is in upconvert or framesync mode.
The document is an installation and operation guide for the AJA RH10MD HD Downconverter and Re-clocking Distribution Amplifier card module. The RH10MD can downconvert HD video sources to SD formats while distributing the signal via 4 re-clocked HD-SDI or SDI outputs. It supports various HD and SD formats and can configure the 4 SD outputs individually as either SDI or analog signals. The guide provides an overview of the product's features and specifications.
The document is an installation and operation guide for the AJA RH10MD HD Downconverter and Re-clocking Distribution Amplifier card module. The RH10MD can downconvert HD video sources to SD formats while distributing the signal via 4 re-clocked HD-SDI or SDI outputs. It supports various HD and SD formats and can configure the 4 SD outputs individually as either SDI or analog signals. The guide provides an overview of the product's features and specifications.
The document is the user manual for the AJA D10AD 10-bit Analog to SDI Converter. It provides instructions on connecting and configuring the converter using dip switches to select input/output options. The converter accepts component and composite analog video inputs and outputs 4 channels of 10-bit SDI video with options for comb filtering, AGC, blanking, and test patterns controlled by the user.
This document provides an installation and operation guide for the AJA RH10DA 1x8 SD/HD-SDI Reclocking Distribution Amplifier card module. The RH10DA is a multi-standard dual rate 1x8 SDI/HD-SDI distribution amplifier that automatically configures to different SDI formats and provides re-clocking and equalization for up to 100/300 meters of coax cable. The guide provides information on features, block diagrams, I/O connections, installation instructions, specifications and compliance/safety information for the RH10DA module.
The document is the user manual for the AJA D4E Serial Digital Encoder. It provides an introduction and overview of the product, describing its key features such as SDI input/output, automatic NTSC/PAL selection, and test pattern generation. It also includes a block diagram, information on I/O connections, and details on the user interface DIP switches for configuration.
The document is a user manual for the AJA HD10AMA HD/SD 4-Channel Analog Embedder/Disembedder. It provides instructions on installing and configuring the device through its DIP switch settings to embed or disembed 4 channels of analog audio into HD-SDI or SD-SDI video signals. The device automatically detects the input video standard and features professional and consumer-level analog audio I/O through breakout cables with XLR connectors.
The document is a 3 page user manual for the AJA HD10AM HD/SD 8-Channel AES Embedder/Disembedder. It describes the product as a dual rate embedder and disembedder that can embed up to 16 channels of audio by cascading two units. It embeds and passes AES audio and ancillary data to and from HD-SDI and SD-SDI video signals according to SMPTE standards. The user manual provides an introduction to the product, its features, and a block diagram.
The document is a 3-page user manual for the AJA HD10AM HD/SD 8-Channel AES Embedder/Disembedder. It provides an introduction that summarizes the key features and functions of the product, including its ability to embed up to 16 channels of audio by cascading two units. It also includes a block diagram illustrating the signal flow through the device.
The document is the user manual for the AJA D5CE Serial Digital Encoder. It provides an overview of the product, describing its key features such as converting SDI to composite or component analog video, automatic NTSC/PAL selection, and re-clocked loop-through SDI output. It also outlines the product specifications, block diagram, input/output connections, and user interface which is a 4-switch DIP switch accessible through the bottom of the unit. The DIP switches are used to configure the output formats and settings.
The document is the user manual for the AJA D5CE Serial Digital Encoder. It provides an overview of the product, describing its features such as converting SDI to composite or component analog video. It also details how to install and configure the encoder using external DIP switches to select output formats and settings. Specifications for the encoder's video performance and electrical characteristics are provided.
This document provides an overview and operating manual for the MD-HX HDMI/SDI Cross Converter. The MD-HX can simultaneously convert between HDMI and SDI while supporting 3G, HD, and SD formats. It also includes scaling and frame rate conversion capabilities. The operating manual describes the unit's four operation modes and provides details on its menu system for controlling inputs, outputs, scaling settings, and other parameters using the front panel LCD and buttons.
The AV-HS410 is a live production switcher that provides:
1) High-end performance and functions in a compact body, including 9 video inputs, 6 outputs, chroma keying, transitions, and memory functions.
2) An intuitive user interface designed for live operation, with a built-in LCD monitor, memory preview, and multi-viewer display.
3) Expandability through optional input/output boards and a software development kit to add customized functions.
Panasonic AW-HE40SW/SK/HW/HK PTZ Camera with HD-SDI / HDMI OutputAV ProfShop
The document provides specifications for Panasonic's AW-HE40 series of integrated full HD cameras. It has a 30x optical zoom lens and supports Power over Ethernet Plus (PoE+) for installation flexibility. The cameras feature a 1/2.3-type MOS sensor, 30x optical zoom lens, 40x total zoom with super resolution, and support various outputs including HDMI, SDI, and IP. They can be controlled remotely over IP from devices like PCs and smartphones.
The MCX-500 is an affordable multi-camera live production switcher that allows a single operator to mix up to 8 video sources plus titles for live events. It provides professional 3G-SDI, HDMI, and composite video inputs along with integrated recording to SD cards. The switcher offers features like chroma keying, transitions, picture-in-picture, and live streaming for engaging live productions and events. Controls are designed for intuitive single-operator use but can also be controlled remotely via tablet or PC.
The document describes two compact 4K camcorders, the GY-HM200 and GY-HM170. Both cameras feature a 12x optical zoom lens, 4K video recording at up to 150Mbps to SD cards, HD recording up to 50Mbps in 4:2:2 color sampling, and dual SD card slots. The GY-HM200 additionally offers live streaming of HD video over WiFi or 4G LTE while continuing to record locally.
The document provides information on the JVC GY-HM620 HD/SD memory card camcorder. It summarizes the key features as having a 23x Fujinon lens, 3 full HD 1/3-inch CMOS sensors, and a FALCONBRID image processing engine for superior image quality. It records in multiple formats including MOV, MP4, and AVCHD and has dual SD card slots for simultaneous or relay recording. The camcorder offers various professional features such as XLR audio inputs, timecode sync, and HDMI and SDI outputs.
The document summarizes the features of the JVC GY-HM660 HD/SD memory card camcorder. It can live stream in full HD up to 12Mbps via Wi-Fi, 4G LTE, or Ethernet. It has a 23x optical zoom lens, dual SD card slots, and records to multiple formats including H.264 up to 50Mbps. The camcorder also has advanced connectivity including SDI and HDMI outputs, USB ports, and XLR audio inputs for professional video applications such as electronic news gathering.
This document provides an overview of the MS-2800 mobile video studio system and its components. It includes diagrams showing how the various components such as cameras, switchers, audio mixers, and monitors connect together via SDI and audio cables. Key components highlighted include the MS-2800A/B 12-channel mobile video switchers, DAC-60 SDI to VGA converters, AM-100 audio mixer, and NVS-20 video streaming server.
The document is a 2012-2013 product guide that describes the HS-2800, a 12-channel portable video studio. The HS-2800 features dual PIP and dual DSK inputs, 8 HD-SDI inputs and outputs, HDMI connectivity, and can be used with accessories like a 42" LCD monitor, digital video recorder, audio mixer, and WiFi bridging unit.
The Datavideo DVK-200 is a standalone chromakey solution that allows users to create virtual studio effects without complicated software. It supports connections from video, computer, and DVI sources and can key against blue, green, white, or black backgrounds. The DVK-200 has advanced key adjustments, input/output options, and can be controlled via RS-232. It is suitable for education, small studios, wedding videography, and other applications.
The Datavideo ITC-100 Intercom system provides clear communication between production crew members through an 8-channel intercom setup. It features a standard 1U rack design for easy integration into existing systems. Each channel supports talkback functions as well as dual color tally lights to indicate speaker status. Communication can occur between individuals or broadcast to all channels simultaneously from the director. The system helps coordinate camera operators, lighting, and more from a control room during live productions.
The RMC-180 is a PTZ camera control unit that can control up to 4 PTC-100 pan, tilt, and zoom cameras. It provides functions like iris, focus, preset positions, and tally indicators for each camera. The RMC-180 integrates easily with Datavideo SE-2000R and HS-2000 HD switchers and allows control over camera balance, noise reduction, and other settings from the switcher. It connects to PTZ cameras via RS-422 and can be controlled over IP through a network video server.
The document provides an overview of an audio/video system setup including various components such as a Datavideo SE-600 8-channel digital video switcher, TLM-170H 17.3" HD/SD LCD monitors, a DN-600 SD digital video recorder, ITC-100 intercom system, DAC-60 SDI to VGA converter, and NVS-20 H.264 video streaming server. The diagram outlines the connections between the components including video, audio, network, and control connections to integrate the system.
The document outlines an audio visual system setup including a 4-channel digital video switcher connected to 7-inch LCD monitors, an SD digital video recorder, and an H.264 video streaming server. The system allows for video and audio switching, recording, streaming, and intercom communication, and includes connections for cameras, projectors, and other peripheral devices. Tally lights indicate the active video and audio sources.
1. Atomos produces field monitor-recorders that allow video professionals to record directly from camera sensors to formats like Apple ProRes and Avid DNxHR on affordable HDD/SSD media. Their devices also function as professional monitors, playback devices, and basic editing tools.
2. The document highlights several Atomos product lines - the high-end Shogun Inferno, the mid-range Flame series including the Shogun Flame and Ninja Flame, and the entry-level Blade series. All are designed for professional recording, monitoring, and basic editing functions.
3. A case study describes how the Cloakroom Media production company used a Shogun Flame and N
The PXW-Z450 is a new 4K shoulder camcorder from Sony that records using the XAVC format. It has a newly developed 2/3-type Exmor RTM CMOS sensor that provides high quality 4K and HD images. The camcorder is compatible with a wide range of existing HD lenses through its B4 lens mount and also supports 4K lenses. It offers features such as low power consumption, wireless capabilities and flexible recording formats that make it suitable for live news gathering and television production in both 4K and HD.
Datavideo SE-2200 6 input HD broadcast quality switcherAV ProfShop
The document provides instructions and specifications for the SE-2200 production switcher. It includes a packing list, descriptions of the front and rear panels, explanations of connection types and ports, and instructions for operating keyboard controls and menu options. Dimensions and technical specifications are also provided.
IMPACT Silver is a pure silver zinc producer with over $260 million in revenue since 2008 and a large 100% owned 210km Mexico land package - 2024 catalysts includes new 14% grade zinc Plomosas mine and 20,000m of fully funded exploration drilling.
Digital Marketing with a Focus on Sustainabilitysssourabhsharma
Digital Marketing best practices including influencer marketing, content creators, and omnichannel marketing for Sustainable Brands at the Sustainable Cosmetics Summit 2024 in New York
SATTA MATKA SATTA FAST RESULT KALYAN TOP MATKA RESULT KALYAN SATTA MATKA FAST RESULT MILAN RATAN RAJDHANI MAIN BAZAR MATKA FAST TIPS RESULT MATKA CHART JODI CHART PANEL CHART FREE FIX GAME SATTAMATKA ! MATKA MOBI SATTA 143 spboss.in TOP NO1 RESULT FULL RATE MATKA ONLINE GAME PLAY BY APP SPBOSS
Call8328958814 satta matka Kalyan result satta guessing➑➌➋➑➒➎➑➑➊➍
Satta Matka Kalyan Main Mumbai Fastest Results
Satta Matka ❋ Sattamatka ❋ New Mumbai Ratan Satta Matka ❋ Fast Matka ❋ Milan Market ❋ Kalyan Matka Results ❋ Satta Game ❋ Matka Game ❋ Satta Matka ❋ Kalyan Satta Matka ❋ Mumbai Main ❋ Online Matka Results ❋ Satta Matka Tips ❋ Milan Chart ❋ Satta Matka Boss❋ New Star Day ❋ Satta King ❋ Live Satta Matka Results ❋ Satta Matka Company ❋ Indian Matka ❋ Satta Matka 143❋ Kalyan Night Matka..
Best practices for project execution and deliveryCLIVE MINCHIN
A select set of project management best practices to keep your project on-track, on-cost and aligned to scope. Many firms have don't have the necessary skills, diligence, methods and oversight of their projects; this leads to slippage, higher costs and longer timeframes. Often firms have a history of projects that simply failed to move the needle. These best practices will help your firm avoid these pitfalls but they require fortitude to apply.
How MJ Global Leads the Packaging Industry.pdfMJ Global
MJ Global's success in staying ahead of the curve in the packaging industry is a testament to its dedication to innovation, sustainability, and customer-centricity. By embracing technological advancements, leading in eco-friendly solutions, collaborating with industry leaders, and adapting to evolving consumer preferences, MJ Global continues to set new standards in the packaging sector.
Brian Fitzsimmons on the Business Strategy and Content Flywheel of Barstool S...Neil Horowitz
On episode 272 of the Digital and Social Media Sports Podcast, Neil chatted with Brian Fitzsimmons, Director of Licensing and Business Development for Barstool Sports.
What follows is a collection of snippets from the podcast. To hear the full interview and more, check out the podcast on all podcast platforms and at www.dsmsports.net
Starting a business is like embarking on an unpredictable adventure. It’s a journey filled with highs and lows, victories and defeats. But what if I told you that those setbacks and failures could be the very stepping stones that lead you to fortune? Let’s explore how resilience, adaptability, and strategic thinking can transform adversity into opportunity.
Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...my Pandit
Explore the fascinating world of the Gemini Zodiac Sign. Discover the unique personality traits, key dates, and horoscope insights of Gemini individuals. Learn how their sociable, communicative nature and boundless curiosity make them the dynamic explorers of the zodiac. Dive into the duality of the Gemini sign and understand their intellectual and adventurous spirit.
The Steadfast and Reliable Bull: Taurus Zodiac Signmy Pandit
Explore the steadfast and reliable nature of the Taurus Zodiac Sign. Discover the personality traits, key dates, and horoscope insights that define the determined and practical Taurus, and learn how their grounded nature makes them the anchor of the zodiac.
Top mailing list providers in the USA.pptxJeremyPeirce1
Discover the top mailing list providers in the USA, offering targeted lists, segmentation, and analytics to optimize your marketing campaigns and drive engagement.
How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....Lacey Max
“After being the most listed dog breed in the United States for 31
years in a row, the Labrador Retriever has dropped to second place
in the American Kennel Club's annual survey of the country's most
popular canines. The French Bulldog is the new top dog in the
United States as of 2022. The stylish puppy has ascended the
rankings in rapid time despite having health concerns and limited
color choices.”
Anny Serafina Love - Letter of Recommendation by Kellen Harkins, MS.AnnySerafinaLove
This letter, written by Kellen Harkins, Course Director at Full Sail University, commends Anny Love's exemplary performance in the Video Sharing Platforms class. It highlights her dedication, willingness to challenge herself, and exceptional skills in production, editing, and marketing across various video platforms like YouTube, TikTok, and Instagram.
1. www.aja.com
HDP2
HD-SDI/SDI to DVI-D
Video and Audio Converter
Published: 12/20/10
Installation and Operation
Guide
B e c a u s e i t m a t t e r s .
3. AJA HDP2 HD-SDI/SDI to DVI-D Video and Audio Converter 3
Introduction
The HDP2 is a miniature HD-SDI/SDI to DVI-D converter for digital display
devices (graphics and video), such as LED, LCD, DLP and Plasma monitors (and
projectors). Using a very high quality scaling engine, the HDP2 will
automatically size 4:3 or 16:9 inputs to many DVI-D monitors. For appropriate
monitor configurations, scaling is automatically 1 to 1—for example, displaying
1920x1080 video on a WUXGA (1920x1200) monitor. Where appropriate, the
HDP2 can automatically adapt the input frame rate for monitor compatibility.
In addition, the HDP2 provides 8 channel embedded audio over HDMI, 2
channel analog audio monitoring, and a looping output of the SDI input.
1
The HDP2 is designed for general monitoring, perfect for use in applications
such as: General post-production reference monitoring, Client monitoring,
Presentation, Projection, Corporate displays, Kiosk applications...and much
more!
Deep color is supported in RGB and YCbCr. USB connectivity allows for easy PC/
Mac setup and field upgrades.
Features
• HD-SDI/SDI to DVI-D
• HDMI 1.3a support (via DVI-D connector), including:
- Deep Color 30-bit video (24-bit also supported)
- 2 or 8 channels of embedded audio
• Automatically adapts to popular LED/LCD/DLP/Plasma monitors (and
projectors) up to 1920x1200 and 1080p
• High quality scaling engine for proper display of 4:3 or 16:9 content—even
better quality than original HDP
• 1 to 1 scaling for appropriate monitor configurations
• 2 channel RCA analog audio output (user-assignable channel pairs)
• HD-SDI/SDI looping output
• Setup via PC/Mac using USB port and supplied USB cable (USB
configuration software application supplied on CD)
• 5 year warranty
About Monitor Compatibility
The HDP2 is designed to work with most DVI-D monitors. HDMI monitors are
also supported with a standard, inexpensive DVI-to-HDMI cable (user supplied).
The HDP2 uses the industry standard EDID communication protocol (within
the DVI or HDMI link) to communicate with the monitor, and then adjust the
HDP2’s internal scaling engine to scale the input video to the native resolution
of the monitor. However, due to the hundreds of variations of DVI formats
currently in use, proper operation with all monitors cannot be guaranteed.

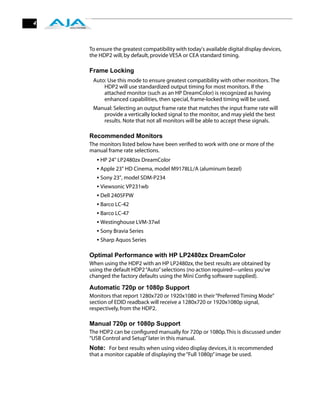

4. 4
To ensure the greatest compatibility with today's available digital display devices,
the HDP2 will, by default, provide VESA or CEA standard timing.
Frame Locking
Auto: Use this mode to ensure greatest compatibility with other monitors. The
HDP2 will use standardized output timing for most monitors. If the
attached monitor (such as an HP DreamColor) is recognized as having
enhanced capabilities, then special, frame-locked timing will be used.
Manual: Selecting an output frame rate that matches the input frame rate will
provide a vertically locked signal to the monitor, and may yield the best
results. Note that not all monitors will be able to accept these signals.
Recommended Monitors
The monitors listed below have been verified to work with one or more of the
manual frame rate selections.
• HP 24" LP2480zx DreamColor
• Apple 23" HD Cinema, model M9178LL/A (aluminum bezel)
• Sony 23", model SDM-P234
• Viewsonic VP231wb
• Dell 2405FPW
• Barco LC-42
• Barco LC-47
• Westinghouse LVM-37wl
• Sony Bravia Series
• Sharp Aquos Series
Optimal Performance with HP LP2480zx DreamColor
When using the HDP2 with an HP LP2480zx, the best results are obtained by
using the default HDP2 “Auto” selections (no action required—unless you’ve
changed the factory defaults using the Mini Config software supplied).
Automatic 720p or 1080p Support
Monitors that report 1280x720 or 1920x1080 in their “Preferred Timing Mode”
section of EDID readback will receive a 1280x720 or 1920x1080p signal,
respectively, from the HDP2.
Manual 720p or 1080p Support
The HDP2 can be configured manually for 720p or 1080p. This is discussed under
“USB Control and Setup” later in this manual.
Note: For best results when using video display devices, it is recommended
that a monitor capable of displaying the “Full 1080p” image be used.
5. AJA HDP2 HD-SDI/SDI to DVI-D Video and Audio Converter 5

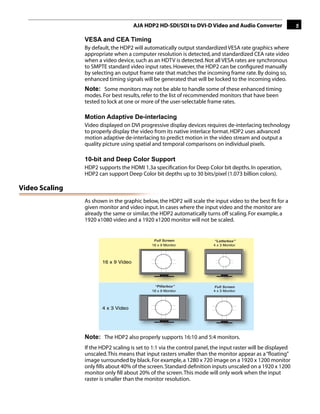

VESA and CEA Timing
By default, the HDP2 will automatically output standardized VESA rate graphics where
appropriate when a computer resolution is detected, and standardized CEA rate video
when a video device, such as an HDTV is detected. Not all VESA rates are synchronous
to SMPTE standard video input rates. However, the HDP2 can be configured manually
by selecting an output frame rate that matches the incoming frame rate. By doing so,
enhanced timing signals will be generated that will be locked to the incoming video.
Note: Some monitors may not be able to handle some of these enhanced timing
modes. For best results, refer to the list of recommended monitors that have been
tested to lock at one or more of the user-selectable frame rates.
Motion Adaptive De-interlacing 1
Video displayed on DVI progressive display devices requires de-interlacing technology
to properly display the video from its native interlace format. HDP2 uses advanced
motion adaptive de-interlacing to predict motion in the video stream and output a
quality picture using spatial and temporal comparisons on individual pixels.
10-bit and Deep Color Support
HDP2 supports the HDMI 1.3a specification for Deep Color bit depths. In operation,
HDP2 can support Deep Color bit depths up to 30 bits/pixel (1.073 billion colors).
Video Scaling
As shown in the graphic below, the HDP2 will scale the input video to the best fit for a
given monitor and video input. In cases where the input video and the monitor are
already the same or similar, the HDP2 automatically turns off scaling. For example, a
1920 x1080 video and a 1920 x1200 monitor will not be scaled.
Full Screen “Letterbox” “Widez
16 x 9 Monitor 4 x 3 Monitor 4:3 M
16 x 9 Video
“Pillarbox” Full Screen “Widezo
16 x 9 Monitor 4 x 3 Monitor 16:9
4 x 3 Video
Note: The HDP2 also properly supports 16:10 and 5:4 monitors.
If the HDP2 scaling is set to 1:1 via the control panel, the input raster will be displayed
unscaled. This means that input rasters smaller than the monitor appear as a “floating”
image surrounded by black. For example, a 1280 x 720 image on a 1920 x 1200 monitor
only fills about 40% of the screen. Standard definition inputs unscaled on a 1920 x 1200
monitor only fill about 20% of the screen. This mode will only work when the input
raster is smaller than the monitor resolution.
6. 6

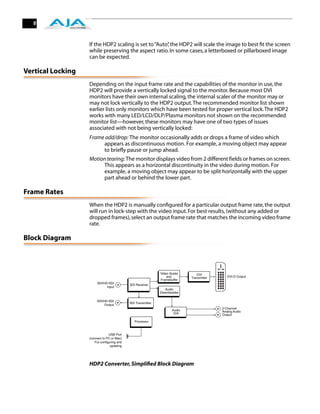

If the HDP2 scaling is set to “Auto” the HDP2 will scale the image to best fit the screen
,
while preserving the aspect ratio. In some cases, a letterboxed or pillarboxed image
can be expected.
Vertical Locking
Depending on the input frame rate and the capabilities of the monitor in use, the
HDP2 will provide a vertically locked signal to the monitor. Because most DVI
monitors have their own internal scaling, the internal scaler of the monitor may or
may not lock vertically to the HDP2 output. The recommended monitor list shown
earlier lists only monitors which have been tested for proper vertical lock. The HDP2
works with many LED/LCD/DLP/Plasma monitors not shown on the recommended
monitor list—however, these monitors may have one of two types of issues
associated with not being vertically locked:
Frame add/drop: The monitor occasionally adds or drops a frame of video which
appears as discontinuous motion. For example, a moving object may appear
to briefly pause or jump ahead.
Motion tearing: The monitor displays video from 2 different fields or frames on screen.
This appears as a horizontal discontinuity in the video during motion. For
example, a moving object may appear to be split horizontally with the upper
part ahead or behind the lower part.
Frame Rates
When the HDP2 is manually configured for a particular output frame rate, the output
will run in lock-step with the video input. For best results, (without any added or
dropped frames), select an output frame rate that matches the incoming video frame
rate.
Block Diagram
Video Scaler DVI
and Transmitter DVI-D Output
Framebuffer
SDI/HD-SDI
SDI Receiver
Input
Audio
Disembedder
SDI/HD-SDI
SDI Transmitter
Output
2-Channel
Audio Analog Audio
D/A Output
Processor
USB Port
(connect to PC or Mac)
For configuring and
updating
HDP2 Converter, Simplified Block Diagram
7. AJA HDP2 HD-SDI/SDI to DVI-D Video and Audio Converter 7
I/O Connections
LOCK LED
Green: Lock to SD
Red: Lock to HD
SD/HD-SDI Input
BNC 2 Channel
Unbalanced
Analog
SD/HD-SDI Output Audio
(RCA Jacks)
BNC
1
USB
Connector
Output
+ 5-18VDC DVI Connector
Power
Input
HDP2 Converter
USB Control and Setup—Using AJA Mini Config
The HDP2 can usually be used right out of the box for most applications since it is
designed to recognize inputs and perform standard actions automatically by default.
However you can also manually configure the HDP2 using a supplied software
application for PCs and Macs, named “Mini Config.” This same application can be used
to update firmware on the HDP2 in the event newer software is released by AJA.
Installing Mini To install the application on a Mac, simply insert the CD supplied with
Config on a Mac the Mini-Converter into the computer, drag the “AJA Mini Config”
application for your platform (Mac or PC) to your desktop or an
applications folder.
Note: Macintosh computers must be Intel-based (G5, G4 and earlier
models will not work with Mini Config).
8. 8

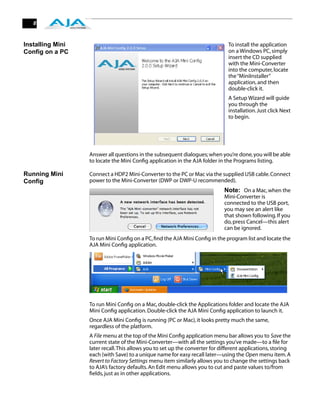

Installing Mini To install the application
Config on a PC on a Windows PC, simply
insert the CD supplied
with the Mini-Converter
into the computer, locate
the “MiniInstaller”
application, and then
double-click it.
A Setup Wizard will guide
you through the
installation. Just click Next
to begin.
Answer all questions in the subsequent dialogues; when you’re done, you will be able
to locate the Mini Config application in the AJA folder in the Programs listing.
Running Mini Connect a HDP2 Mini-Converter to the PC or Mac via the supplied USB cable. Connect
Config power to the Mini-Converter (DWP or DWP-U recommended).
Note: On a Mac, when the
Mini-Converter is
connected to the USB port,
you may see an alert like
that shown following. If you
do, press Cancel—this alert
can be ignored.
To run Mini Config on a PC, find the AJA Mini Config in the program list and locate the
AJA Mini Config application.
To run Mini Config on a Mac, double-click the Applications folder and locate the AJA
Mini Config application. Double-click the AJA Mini Config application to launch it.
Once AJA Mini Config is running (PC or Mac), it looks pretty much the same,
regardless of the platform.
A File menu at the top of the Mini Config application menu bar allows you to Save the
current state of the Mini-Converter—with all the settings you’ve made—to a file for
later recall. This allows you to set up the converter for different applications, storing
each (with Save) to a unique name for easy recall later—using the Open menu item. A
Revert to Factory Settings menu item similarly allows you to change the settings back
to AJA’s factory defaults. An Edit menu allows you to cut and paste values to/from
fields, just as in other applications.

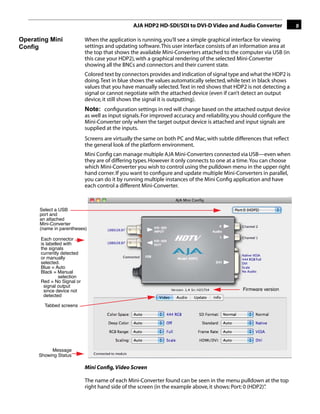

9. AJA HDP2 HD-SDI/SDI to DVI-D Video and Audio Converter 9
Operating Mini When the application is running, you’ll see a simple graphical interface for viewing
Config settings and updating software. This user interface consists of an information area at
the top that shows the available Mini-Converters attached to the computer via USB (in
this case your HDP2), with a graphical rendering of the selected Mini-Converter
showing all the BNCs and connectors and their current state.
Colored text by connectors provides and indication of signal type and what the HDP2 is
doing. Text in blue shows the values automatically selected, while text in black shows
values that you have manually selected. Text in red shows that HDP2 is not detecting a
signal or cannot negotiate with the attached device (even if can’t detect an output
device, it still shows the signal it is outputting).
Note: configuration settings in red will change based on the attached output device
as well as input signals. For improved accuracy and reliability, you should configure the
1
Mini-Converter only when the target output device is attached and input signals are
supplied at the inputs.
Screens are virtually the same on both PC and Mac, with subtle differences that reflect
the general look of the platform environment.
Mini Config can manage multiple AJA Mini-Converters connected via USB—even when
they are of differing types. However it only connects to one at a time. You can choose
which Mini-Converter you wish to control using the pulldown menu in the upper right
hand corner. If you want to configure and update multiple Mini-Converters in parallel,
you can do it by running multiple instances of the Mini Config application and have
each control a different Mini-Converter.
Select a USB
port and
an attached
Mini-Converter
(name in parentheses)
Each connector
is labelled with
the signals
currently detected
or manually
selected.
Blue = Auto
Black = Manual
selection
Red = No Signal or
signal output
since device not Firmware version
detected
Tabbed screens
Message
Showing Status
Mini Config, Video Screen
The name of each Mini-Converter found can be seen in the menu pulldown at the top
right hand side of the screen (in the example above, it shows: Port: 0 (HDP2)”
.
10. 10

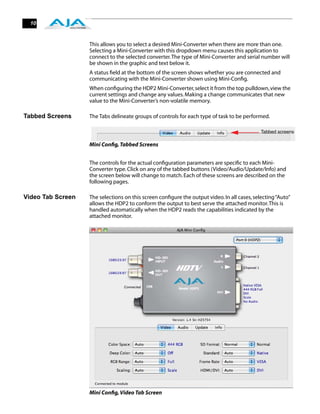

This allows you to select a desired Mini-Converter when there are more than one.
Selecting a Mini-Converter with this dropdown menu causes this application to
connect to the selected converter. The type of Mini-Converter and serial number will
be shown in the graphic and text below it.
A status field at the bottom of the screen shows whether you are connected and
communicating with the Mini-Converter shown using Mini-Config.
When configuring the HDP2 Mini-Converter, select it from the top pulldown, view the
current settings and change any values. Making a change communicates that new
value to the Mini-Converter’s non-volatile memory.
Tabbed Screens The Tabs delineate groups of controls for each type of task to be performed.
Tabbed screens
Mini Config, Tabbed Screens
The controls for the actual configuration parameters are specific to each Mini-
Converter type. Click on any of the tabbed buttons (Video/Audio/Update/Info) and
the screen below will change to match. Each of these screens are described on the
following pages.
Video Tab Screen The selections on this screen configure the output video. In all cases, selecting “Auto”
allows the HDP2 to conform the output to best serve the attached monitor. This is
handled automatically when the HDP2 reads the capabilities indicated by the
attached monitor.
Mini Config, Video Tab Screen

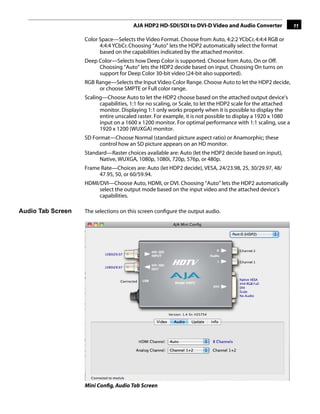

11. AJA HDP2 HD-SDI/SDI to DVI-D Video and Audio Converter 11
Color Space—Selects the Video Format. Choose from Auto, 4:2:2 YCbCr, 4:4:4 RGB or
4:4:4 YCbCr. Choosing “Auto” lets the HDP2 automatically select the format
based on the capabilities indicated by the attached monitor.
Deep Color—Selects how Deep Color is supported. Choose from Auto, On or Off.
Choosing “Auto” lets the HDP2 decide based on input. Choosing On turns on
support for Deep Color 30-bit video (24-bit also supported).
RGB Range—Selects the Input Video Color Range. Choose Auto to let the HDP2 decide,
or choose SMPTE or Full color range.
Scaling—Choose Auto to let the HDP2 choose based on the attached output device’s
capabilities, 1:1 for no scaling, or Scale, to let the HDP2 scale for the attached
monitor. Displaying 1:1 only works properly when it is possible to display the
entire unscaled raster. For example, it is not possible to display1 1920 x 1080
a
input on a 1600 x 1200 monitor. For optimal performance with 1:1 scaling, use a
1920 x 1200 (WUXGA) monitor.
SD Format—Choose Normal (standard picture aspect ratio) or Anamorphic; these
control how an SD picture appears on an HD monitor.
Standard—Raster choices available are: Auto (let the HDP2 decide based on input),
Native, WUXGA, 1080p, 1080i, 720p, 576p, or 480p.
Frame Rate—Choices are: Auto (let HDP2 decide), VESA, 24/23.98, 25, 30/29.97, 48/
47.95, 50, or 60/59.94.
HDMI/DVI—Choose Auto, HDMI, or DVI. Choosing “Auto” lets the HDP2 automatically
select the output mode based on the input video and the attached device's
capabilities.
Audio Tab Screen The selections on this screen configure the output audio.
Mini Config, Audio Tab Screen
12. 12

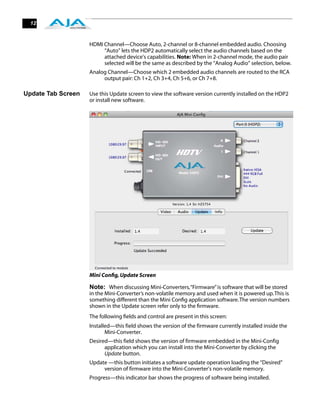

HDMI Channel—Choose Auto, 2-channel or 8-channel embedded audio. Choosing
“Auto” lets the HDP2 automatically select the audio channels based on the
attached device's capabilities. Note: When in 2-channel mode, the audio pair
selected will be the same as described by the “Analog Audio” selection, below.
Analog Channel—Choose which 2 embedded audio channels are routed to the RCA
output pair: Ch 1+2, Ch 3+4, Ch 5+6, or Ch 7+8.
Update Tab Screen Use this Update screen to view the software version currently installed on the HDP2
or install new software.
Mini Config, Update Screen
Note: When discussing Mini-Converters, “Firmware” is software that will be stored
in the Mini-Converter’s non-volatile memory and used when it is powered up. This is
something different than the Mini Config application software. The version numbers
shown in the Update screen refer only to the firmware.
The following fields and control are present in this screen:
Installed—this field shows the version of the firmware currently installed inside the
Mini-Converter.
Desired—this field shows the version of firmware embedded in the Mini-Config
application which you can install into the Mini-Converter by clicking the
Update button.
Update —this button initiates a software update operation loading the “Desired”
version of firmware into the Mini-Converter’s non-volatile memory.
Progress—this indicator bar shows the progress of software being installed.
13. AJA HDP2 HD-SDI/SDI to DVI-D Video and Audio Converter 13

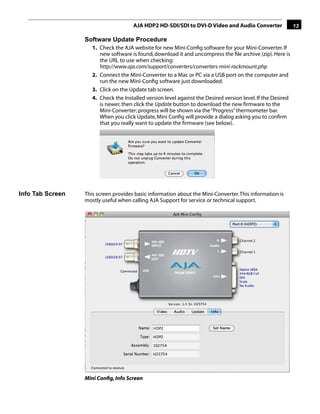

Software Update Procedure
1. Check the AJA website for new Mini-Config software for your Mini-Converter. If
new software is found, download it and uncompress the file archive (zip). Here is
the URL to use when checking:
http://www.aja.com/support/converters/converters-mini-rackmount.php
2. Connect the Mini-Converter to a Mac or PC via a USB port on the computer and
run the new Mini-Config software just downloaded.
3. Click on the Update tab screen.
4. Check the Installed version level against the Desired version level. If the Desired
is newer, then click the Update button to download the new firmware to the
Mini-Converter; progress will be shown via the “Progress” thermometer bar.
When you click Update, Mini Config will provide a dialog asking you to confirm
1
that you really want to update the firmware (see below).
Info Tab Screen This screen provides basic information about the Mini-Converter. This information is
mostly useful when calling AJA Support for service or technical support.
Mini Config, Info Screen
14. 14
Name—this field allows you to give your Mini-Converter a name. This may be useful
if you have several Mini-Converters attached to a Mac/PC via USB so you can
distinguish one of them easily (especially if they’re the same model). In the
example show previously, the Hi5-3G has been named “HDP2.”
Type—this is the factory set model name of the Mini-Converter (HDP2).
Assembly —this is the factory assembly number.
Serial Number—this is the factory set unique serial number of your HDP2. If you ever
call AJA Support for service, you may be asked for this number.
Specifications
Item Specification
Inputs HD, and SD-SDI (auto-selected), SMPTE-259/274/292/
296, BNC connector
Input Formats 525i, 625i,
720p 50/59.94/60,
1080i 50/59.94/60,
1080p 23.98/24/25/29.9/30,
1080psF 23.98/24/25, YCbCr 10-bit
Video Outputs DVI v1.0 / HDMI v1.3a, 4:2:2 YCbCr, 4:4:4 YCbCr/RGB 24/
30-bit, DVI-D standard male connector
Audio Outputs 2 channel RCA-style analog outputs (-10dBV nominal) as
user-assignable channel pairs, 2 or 8 channel 24-bit
embedded audio (HDMI mode only)
Maximum DVI resolution 1920 x 1200 @ 60Hz
User Controls USB 2.0 port used with supplied cable and software
application to configure device via PC/Mac
Size 5.8” x 3.1” x 1 (147mm x 79mm x 25mm)
Power +5 to +18v DC regulated, 5 watts
(AJA power supply model DWP or
DWP-U)
15. AJA HDP2 HD-SDI/SDI to DVI-D Video and Audio Converter 15

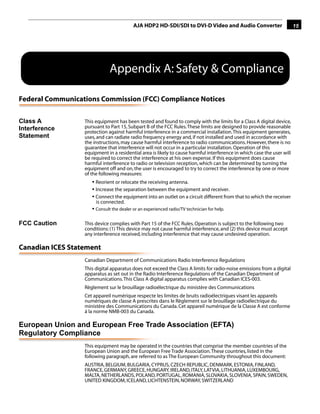

Appendix A: Safety & Compliance
Federal Communications Commission (FCC) Compliance Notices
Class A
1
This equipment has been tested and found to comply with the limits for a Class A digital device,
Interference pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a commercial installation. This equipment generates,
Statement uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Canadian ICES Statement
Canadian Department of Communications Radio Interference Regulations
This digital apparatus does not exceed the Class A limits for radio-noise emissions from a digital
apparatus as set out in the Radio Interference Regulations of the Canadian Department of
Communications. This Class A digital apparatus complies with Canadian ICES-003.
Règlement sur le brouillage radioélectrique du ministère des Communications
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils
numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du
ministère des Communications du Canada. Cet appareil numérique de la Classe A est conforme
à la norme NMB-003 du Canada.
European Union and European Free Trade Association (EFTA)
Regulatory Compliance
This equipment may be operated in the countries that comprise the member countries of the
European Union and the European Free Trade Association. These countries, listed in the
following paragraph, are referred to as The European Community throughout this document:
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND,
FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG,
MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN,
UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND
16. 16

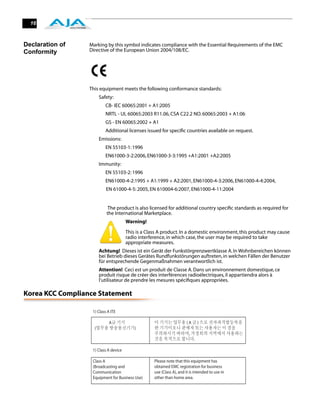

Declaration of Marking by this symbol indicates compliance with the Essential Requirements of the EMC
Conformity Directive of the European Union 2004/108/EC.
This equipment meets the following conformance standards:
Safety:
CB- IEC 60065:2001 + A1:2005
NRTL - UL 60065:2003 R11.06, CSA C22.2 NO. 60065:2003 + A1:06
GS - EN 60065:2002 + A1
Additional licenses issued for specific countries available on request.
Emissions:
EN 55103-1: 1996
EN61000-3-2:2006, EN61000-3-3:1995 +A1:2001 +A2:2005
Immunity:
EN 55103-2: 1996
EN61000-4-2:1995 + A1:1999 + A2:2001, EN61000-4-3:2006, EN61000-4-4:2004,
EN 61000-4-5: 2005, EN 610004-6:2007, EN61000-4-11:2004
The product is also licensed for additional country specific standards as required for
the International Marketplace.
Warning!
This is a Class A product. In a domestic environment, this product may cause
radio interference, in which case, the user may be required to take
appropriate measures.
Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können
bei Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen Fällen der Benutzer
für entsprechende Gegenmaßnahmen verantwortlich ist.
Attention! Ceci est un produit de Classe A. Dans un environnement domestique, ce
produit risque de créer des interférences radioélectriques, il appartiendra alors à
l’utilisateur de prendre les mesures spécifiques appropriées.
Korea KCC Compliance Statement

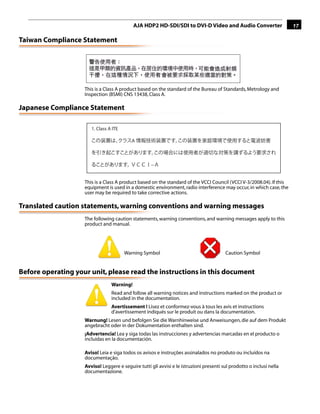

17. AJA HDP2 HD-SDI/SDI to DVI-D Video and Audio Converter 17
Taiwan Compliance Statement
This is a Class A product based on the standard of the Bureau of Standards, Metrology and
Inspection (BSMI) CNS 13438, Class A.
Japanese Compliance Statement
1
1. Class A ITE
A
−
This is a Class A product based on the standard of the VCCI Council (VCCI V-3/2008.04). If this
equipment is used in a domestic environment, radio interference may occur, in which case, the
user may be required to take corrective actions.
Translated caution statements, warning conventions and warning messages
The following caution statements, warning conventions, and warning messages apply to this
product and manual.
Warning Symbol Caution Symbol
Before operating your unit, please read the instructions in this document
Warning!
Read and follow all warning notices and instructions marked on the product or
included in the documentation.
Avertissement ! Lisez et conformez-vous à tous les avis et instructions
d'avertissement indiqués sur le produit ou dans la documentation.
Warnung! Lesen und befolgen Sie die Warnhinweise und Anweisungen, die auf dem Produkt
angebracht oder in der Dokumentation enthalten sind.
¡Advertencia! Lea y siga todas las instrucciones y advertencias marcadas en el producto o
incluidas en la documentación.
Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos na
documentação.
Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o inclusi nella
documentazione.

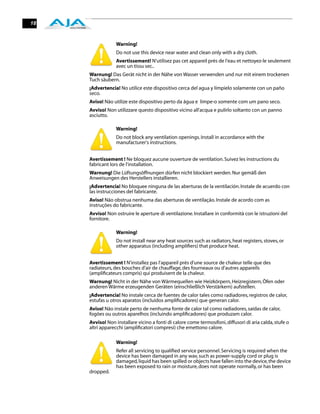

18. 18
Warning!
Do not use this device near water and clean only with a dry cloth.
Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement
avec un tissu sec..
Warnung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem trockenen
Tuch säubern.
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño
seco.
Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco.
Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno
asciutto.
Warning!
Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
Avertissement ! Ne bloquez aucune ouverture de ventilation. Suivez les instructions du
fabricant lors de l'installation.
Warnung! Die Lüftungsöffnungen dürfen nicht blockiert werden. Nur gemäß den
Anweisungen des Herstellers installieren.
¡Advertencia! No bloquee ninguna de las aberturas de la ventilación. Instale de acuerdo con
las instrucciones del fabricante.
Aviso! Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as
instruções do fabricante.
Avviso! Non ostruire le aperture di ventilazione. Installare in conformità con le istruzioni del
fornitore.
Warning!
Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
Avertissement ! N'installez pas l'appareil près d'une source de chaleur telle que des
radiateurs, des bouches d'air de chauffage, des fourneaux ou d'autres appareils
(amplificateurs compris) qui produisent de la chaleur.
Warnung! Nicht in der Nähe von Wärmequellen wie Heizkörpern, Heizregistern, Öfen oder
anderen Wärme erzeugenden Geräten (einschließlich Verstärkern) aufstellen.
¡Advertencia! No instale cerca de fuentes de calor tales como radiadores, registros de calor,
estufas u otros aparatos (incluidos amplificadores) que generan calor.
Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor,
fogões ou outros aparelhos (incluindo amplificadores) que produzam calor.
Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o
altri apparecchi (amplificatori compresi) che emettono calore.
Warning!
Refer all servicing to qualified service personnel. Servicing is required when the
device has been damaged in any wav, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the device, the device
has been exposed to rain or moisture, does not operate normally, or has been
dropped.

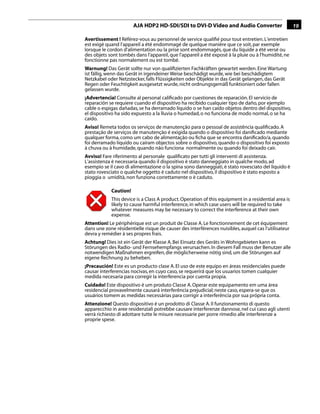

19. AJA HDP2 HD-SDI/SDI to DVI-D Video and Audio Converter 19
Avertissement ! Référez-vous au personnel de service qualifié pour tout entretien. L'entretien
est exigé quand l'appareil a été endommagé de quelque manière que ce soit, par exemple
lorsque le cordon d'alimentation ou la prise sont endommagés, que du liquide a été versé ou
des objets sont tombés dans l'appareil, que l'appareil a été exposé à la pluie ou à l'humidité, ne
fonctionne pas normalement ou est tombé.
Warnung! Das Gerät sollte nur von qualifizierten Fachkräften gewartet werden. Eine Wartung
ist fällig, wenn das Gerät in irgendeiner Weise beschädigt wurde, wie bei beschädigtem
Netzkabel oder Netzstecker, falls Flüssigkeiten oder Objekte in das Gerät gelangen, das Gerät
Regen oder Feuchtigkeit ausgesetzt wurde, nicht ordnungsgemäß funktioniert oder fallen
gelassen wurde.
¡Advertencia! Consulte al personal calificado por cuestiones de reparación. El servicio de
reparación se requiere cuando el dispositivo ha recibido cualquier tipo de daño, por ejemplo
cable o espigas dañadas, se ha derramado líquido o se han caído objetos dentro del dispositivo,
el dispositivo ha sido expuesto a la lluvia o humedad, o no funciona de modo normal, o se ha
caído. 1
Aviso! Remeta todos os serviços de manutenção para o pessoal de assistência qualificado. A
