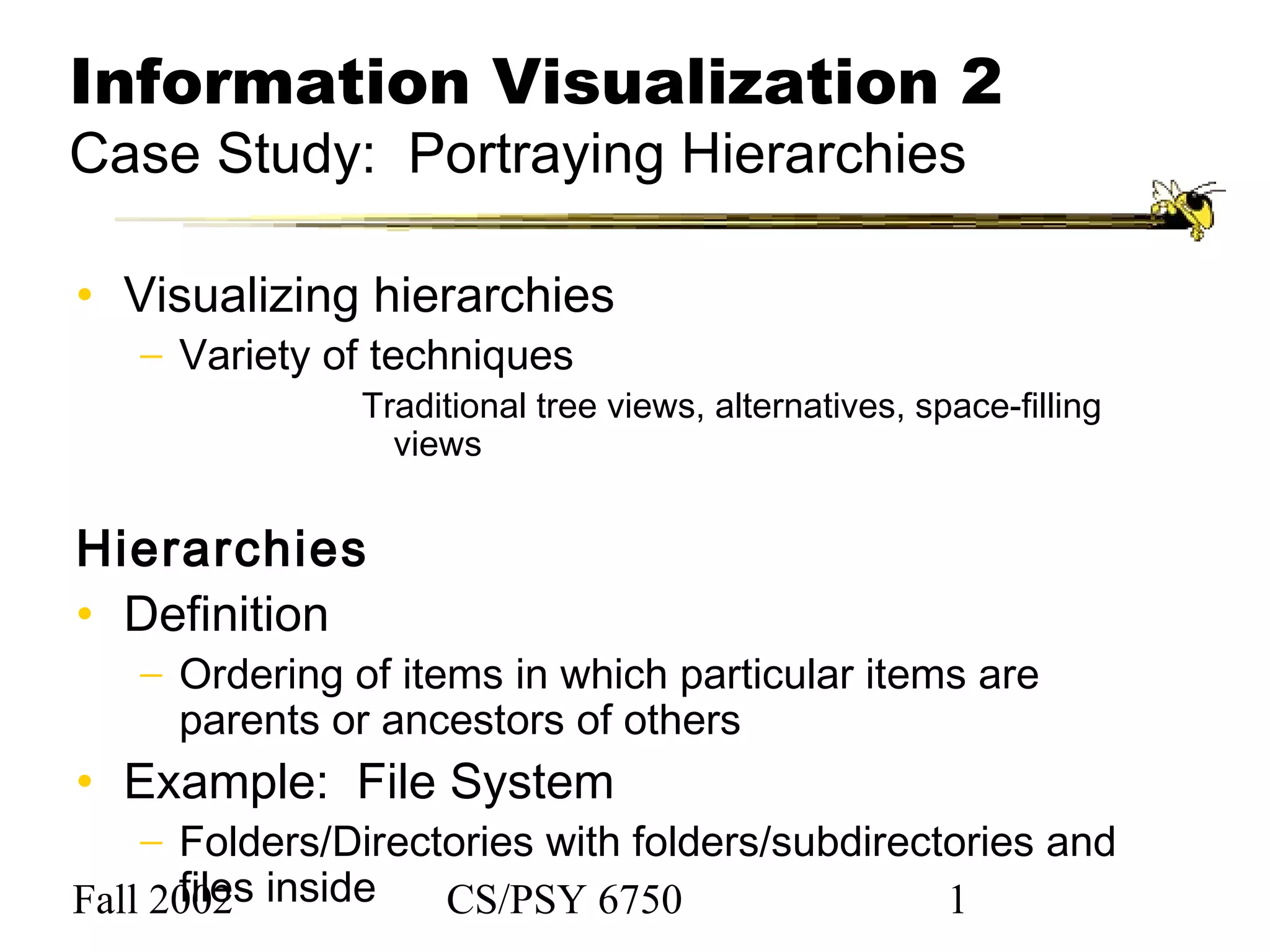

- 1. Fall 2002 CS/PSY6750 1 Information Visualization 2 Case Study: Portraying Hierarchies • Visualizing hierarchies − Variety of techniques Traditional tree views, alternatives, space-filling views Hierarchies • Definition − Ordering of items in which particular items are parents or ancestors of others • Example: File System − Folders/Directories with folders/subdirectories and files inside

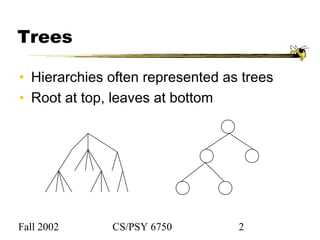

- 2. Fall 2002 CS/PSY6750 2 Trees • Hierarchies often represented as trees • Root at top, leaves at bottom

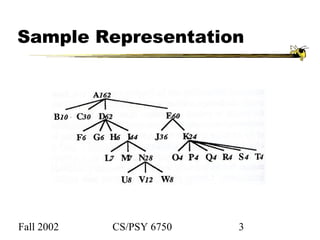

- 3. Fall 2002 CS/PSY6750 3 Sample Representation

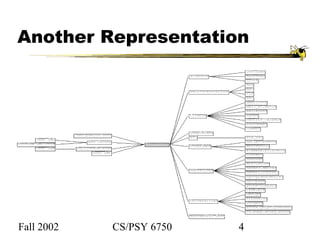

- 4. Fall 2002 CS/PSY6750 4 Another Representation

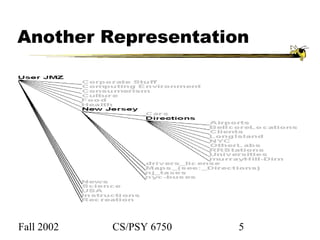

- 5. Fall 2002 CS/PSY6750 5 Another Representation
- 6. Fall 2002 CS/PSY6750 6 Another Representation root

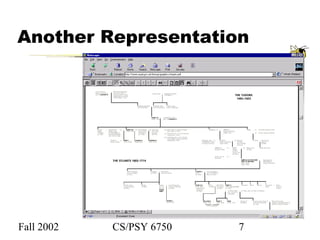

- 7. Fall 2002 CS/PSY6750 7 Another Representation
- 8. Fall 2002 CS/PSY6750 8 Potential Problems • Width of fan-out uses real estate − Run out of room quickly

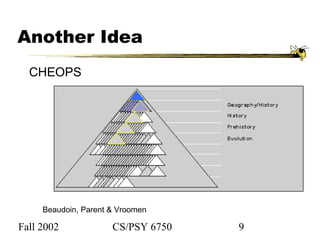

- 9. Fall 2002 CS/PSY6750 9 Another Idea CHEOPS Beaudoin, Parent & Vroomen

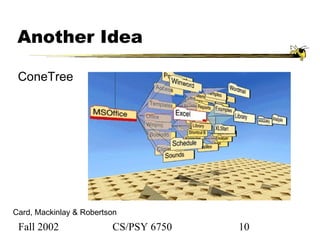

- 10. Fall 2002 CS/PSY6750 10 Another Idea Card, Mackinlay & Robertson ConeTree

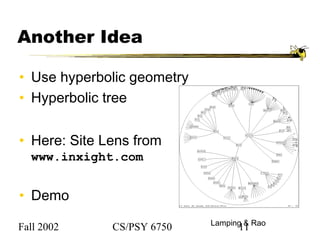

- 11. Fall 2002 CS/PSY6750 11 Another Idea • Use hyperbolic geometry • Hyperbolic tree • Here: Site Lens from www.inxight.com • Demo Lamping & Rao

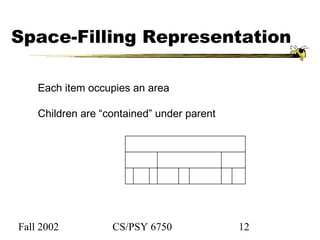

- 12. Fall 2002 CS/PSY6750 12 Space-Filling Representation Each item occupies an area Children are “contained” under parent

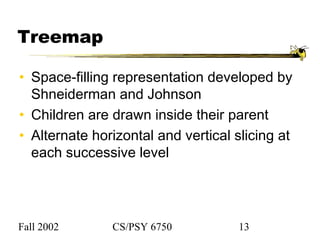

- 13. Fall 2002 CS/PSY6750 13 Treemap • Space-filling representation developed by Shneiderman and Johnson • Children are drawn inside their parent • Alternate horizontal and vertical slicing at each successive level

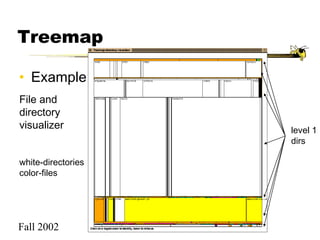

- 14. Fall 2002 CS/PSY6750 14 Treemap • Example File and directory visualizer white-directories color-files level 1 dirs

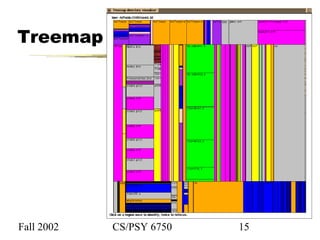

- 15. Fall 2002 CS/PSY6750 15 Treemap

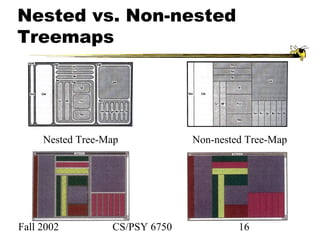

- 16. Fall 2002 CS/PSY6750 16 Nested vs. Non-nested Treemaps Nested Tree-Map Non-nested Tree-Map

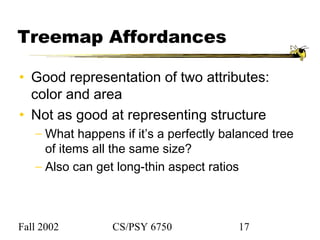

- 17. Fall 2002 CS/PSY6750 17 Treemap Affordances • Good representation of two attributes: color and area • Not as good at representing structure − What happens if it’s a perfectly balanced tree of items all the same size? − Also can get long-thin aspect ratios

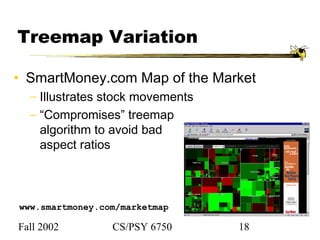

- 18. Fall 2002 CS/PSY6750 18 Treemap Variation • SmartMoney.com Map of the Market − Illustrates stock movements − “Compromises” treemap algorithm to avoid bad aspect ratios www.smartmoney.com/marketmap

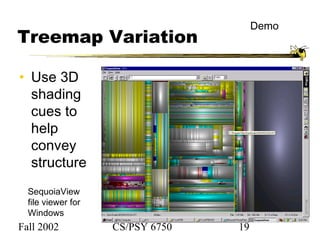

- 19. Fall 2002 CS/PSY6750 19 Treemap Variation • Use 3D shading cues to help convey structure SequoiaView file viewer for Windows Demo

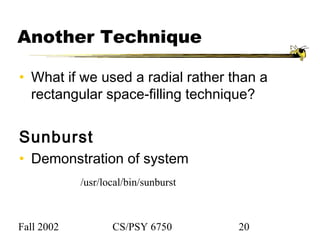

- 20. Fall 2002 CS/PSY6750 20 Another Technique • What if we used a radial rather than a rectangular space-filling technique? Sunburst • Demonstration of system /usr/local/bin/sunburst

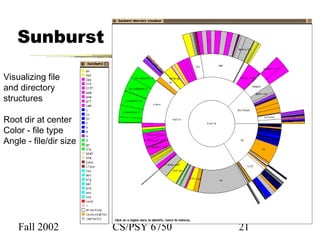

- 21. Fall 2002 CS/PSY6750 21 Sunburst Visualizing file and directory structures Root dir at center Color - file type Angle - file/dir size

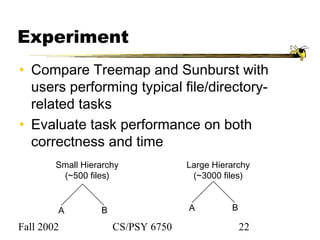

- 22. Fall 2002 CS/PSY6750 22 Experiment • Compare Treemap and Sunburst with users performing typical file/directory- related tasks • Evaluate task performance on both correctness and time Small Hierarchy (~500 files) Large Hierarchy (~3000 files) A B A B

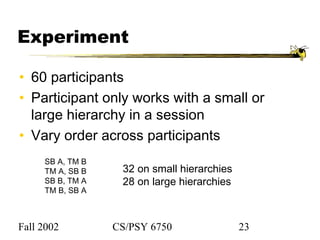

- 23. Fall 2002 CS/PSY6750 23 Experiment • 60 participants • Participant only works with a small or large hierarchy in a session • Vary order across participants SB A, TM B TM A, SB B SB B, TM A TM B, SB A 32 on small hierarchies 28 on large hierarchies

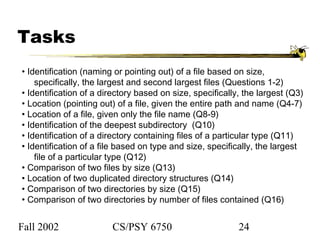

- 24. Fall 2002 CS/PSY6750 24 Tasks • Identification (naming or pointing out) of a file based on size, specifically, the largest and second largest files (Questions 1-2) • Identification of a directory based on size, specifically, the largest (Q3) • Location (pointing out) of a file, given the entire path and name (Q4-7) • Location of a file, given only the file name (Q8-9) • Identification of the deepest subdirectory (Q10) • Identification of a directory containing files of a particular type (Q11) • Identification of a file based on type and size, specifically, the largest file of a particular type (Q12) • Comparison of two files by size (Q13) • Location of two duplicated directory structures (Q14) • Comparison of two directories by size (Q15) • Comparison of two directories by number of files contained (Q16)

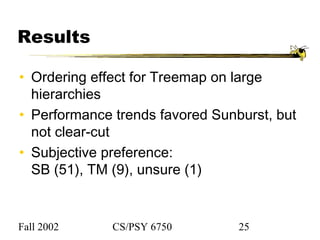

- 25. Fall 2002 CS/PSY6750 25 Results • Ordering effect for Treemap on large hierarchies • Performance trends favored Sunburst, but not clear-cut • Subjective preference: SB (51), TM (9), unsure (1)

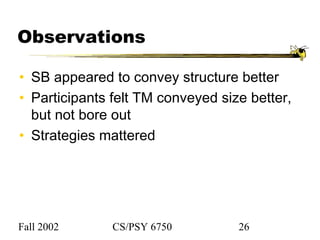

- 26. Fall 2002 CS/PSY6750 26 Observations • SB appeared to convey structure better • Participants felt TM conveyed size better, but not bore out • Strategies mattered
- 27. Fall 2002 CS/PSY6750 27 SunBurst Negative • In large hierarchies, files at the periphery are usually tiny and very difficult to distinguish examples

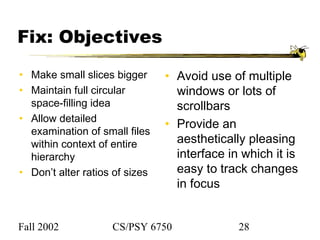

- 28. Fall 2002 CS/PSY6750 28 Fix: Objectives • Make small slices bigger • Maintain full circular space-filling idea • Allow detailed examination of small files within context of entire hierarchy • Don’t alter ratios of sizes • Avoid use of multiple windows or lots of scrollbars • Provide an aesthetically pleasing interface in which it is easy to track changes in focus

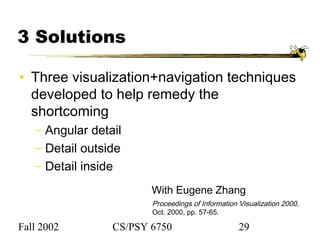

- 29. Fall 2002 CS/PSY6750 29 With Eugene Zhang Proceedings of Information Visualization 2000, Oct. 2000, pp. 57-65. 3 Solutions • Three visualization+navigation techniques developed to help remedy the shortcoming − Angular detail − Detail outside − Detail inside

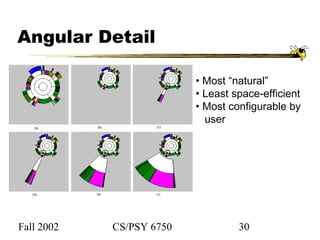

- 30. Fall 2002 CS/PSY6750 30 Angular Detail • Most “natural” • Least space-efficient • Most configurable by user

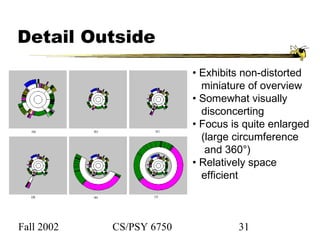

- 31. Fall 2002 CS/PSY6750 31 Detail Outside • Exhibits non-distorted miniature of overview • Somewhat visually disconcerting • Focus is quite enlarged (large circumference and 360°) • Relatively space efficient

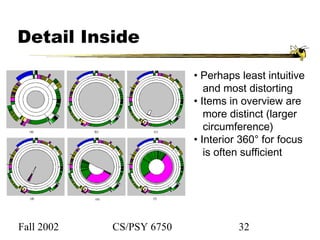

- 32. Fall 2002 CS/PSY6750 32 Detail Inside • Perhaps least intuitive and most distorting • Items in overview are more distinct (larger circumference) • Interior 360° for focus is often sufficient

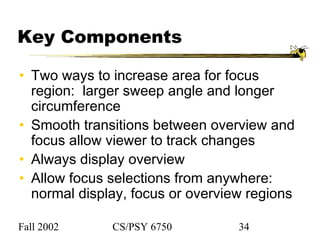

- 33. Fall 2002 CS/PSY6750 33 Video 4 minutes
