COMPANY PROFILE
Founded in 1990, HWANG CHERNG BIN (HCB)
Specialty Tools Inc. plays an innovative role in
specialty auto and truck tools, and for many
brands such as Mercedes Benz and BMW, Audi,
Honda, Volkswagen....etc. Nowadays, we also
supply a wide variety of tools for engine,
transmission, and panel tire, especially for
chassis.
The factory of H.C.B, around 4 thousand square
meters, has completed during three years. The
company has a spacious working place
including testing lab, R&D lab, sample room,
training rooms and employee break rooms that
will effectively increase the working efficiency of
all the staff.
In Taiwan, H.C.B, one of the world’s leading
manufacturers of specialist automotive tools and
the only truck repair tool R&D Company, gets
government allowance for designing new
products.
Our primary objective is making repairing safer,
easier, and faster. Furthermore, and raise more
economic benefits.
In order to keep up with market trends, H.C.B
has a professional R&D team and develops over
seven hundred kinds of tools. Currently, H.C.B
has more than 70 patents in Taiwan, Germany,
U.S.A, and Japan. Moreover, we devoted to
developing the highest-quality products with the
best service at the best prices
HARDWARE HONDA BMW
GENERAL MACHINE
BENZ REPAIR TOOL
BENZ CHASSIS REPAIR TOOL
BENZ ENGINE REPAIR TOOL
BENZ TRANSMISSION REPAIR TOOL
BMW REPAIR TOOL
BMW CHASSIS REPAIR TOOL
BMW ENGINE REPAIR TOOL
BMW TRANSMISSION REPAIR TOOL
HONDA REPAIR TOOL
HONDA REPAIR TOOL
MACHINE & HARDWARE
MACHINE & HARDWARE
FRUCK BENZ
GENERAL REPAIR TOOL
GENERAL TRANSMISSION REPAIR TOOL
GENERAL REPAIR EQUIPMENT
TRUCK REPAIR TOOL
EUROPEAN TRUCK REPAIR TOOL
JAPANESE TRUCK REPAIR TOOL
GENERAL TRUCK REPAIR TOOL
IF YOU LIKE
PLEASE PRESS

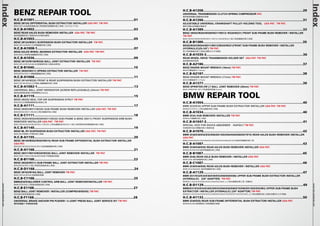

Index
Index
www.hcb-autotools.com
BENZ REPAIR TOOL
H.C.B-A1001...................................................................................................01
BENZ (W124) DIFFERENTIAL BUSH EXTRACTOR/ INSTALLER USA PAT. TW PAT.
BENZ (W124)免卸差速器.後三角架橡皮座鐵套拆裝工具組 (124 352 77 65)
H.C.B-A1002...................................................................................................03
BENZ REAR AXLES BUSH REMOVER/ INSTALLER USA PAT. TW PAT.
後仰角鐵套拆裝工具組(BENZ全車系通用)
H.C.B-A1003...................................................................................................05
BENZ (W124/W201) SUSPENSION BUSH EXTRACTOR/ INSTALLER TW PAT.
BENZ (W124/W201)工字樑鐵套拆裝工具組
H.C.B-A1008-1................................................................................................07
BENZ AXLES WHEEL BEARING EXTRACTOR/ INSTALLER USA PAT. TW PAT.
BENZ免拆三角架前後輪軸承拆裝工具組
H.C.B-A1036...................................................................................................09
BENZ (W123/W126/W220) BALL JOINT EXTRACTOR/ INSTALLER TW PAT.
BENZ (W123/W126/W220)球接頭拆裝工具組(加長型)
H.C.B-B1040...................................................................................................10
BENZ (W203/W211) SPRING EXTRACTOR/ INSTALLER TW PAT.
BENZ(W203/W211)彈簧避震器拆裝工具組
H.C.B-A1068...................................................................................................11
BENZ (W140/W220) FRONT & REAR SUSPENSION BUSH EXTRACTOR/ INSTALLER TW PAT.
BENZ (W140/W220)工字樑前.後置鐵套拆裝工具組
H.C.B-A1082-1................................................................................................13

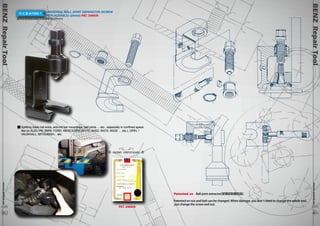

UNIVERSAL BALL JOINT SEPARATOR (SCREW REPLACEABLE) (24mm) TW PAT.
萬用球接頭拔卸組(可替換螺絲)(24mm)
H.C.B-A1119...................................................................................................15
BENZ (W220) SEAL TOP AIR SUSPENSION STRUT TW PAT.
BENZ(W220)氣壓避震器油封更換工具
H.C.B-A1111...................................................................................................17
BENZ (W203/W211/W220) SUB-FRAME BUSH REMOVER/ INSTALLER USA PAT. TW PAT.
BENZ(W203/W211/W220)三角台鐵套拆裝工具組

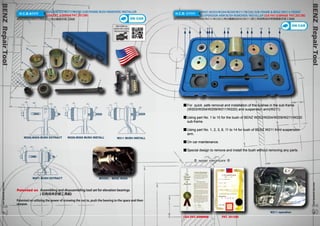

H.C.B-C1111...................................................................................................18
BENZ (W203/W204/W209/W211/W220) SUB-FRAME & BENZ (W211) FRONT SUSPENSION ARM BUSH
REMOVER/ INSTALLER USA PAT. TW PAT.
BENZ (W203/W220/W209/W211/W220) 三角台鐵套&BENZ(W211)前三角架懸掛控制臂鐵套拆裝工具組
H.C.B-A1140...................................................................................................19
BENZ ML RV SUSPENSION BUSH EXTRACTOR/ INSTALLER USA PAT. TW PAT.
BENZ ML休旅車工字樑拆裝工具組
H.C.B-A1155...................................................................................................20
BENZ (W140/W202/W203/W210) REAR SUB-FRAME DIFFERENTIAL BUSH EXTRACTOR/ INSTALLER
USA PAT.
BENZ(W140/W202/W203/W210)差速器鐵套拆裝工具組

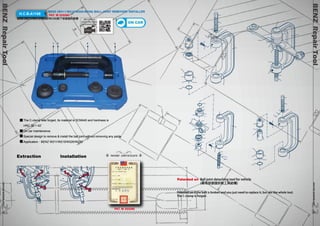

H.C.B-A1168...................................................................................................21
BENZ (W211/W215/W220/W230) BALL-JOINT REMOVER/ INSTALLER TW PAT.
BENZ (W211/W215/W220/W230)前下球接頭拆裝器
H.C.B-B1168...................................................................................................23
BENZ (W220/W211) SUB-FRAME BALL JOINT EXTRACTOR/ INSTALLER TW PAT.
BENZ(W220/W211)後三角架球接頭拆裝工具組
H.C.B-D1168...................................................................................................24
BENZ (W163/W164) BALL JOINT REMOVER TW PAT.
BENZ (W163/W164) 球接頭拔卸器
H.C.B-C1168...................................................................................................25
BMW(E30/E36)LOWER CONTROL ARM BALL JOINT REMOVER/INSTALLER TW PAT.
BMW (E30/E36) 三角架球接頭拆裝工具組
H.C.B-E1168...................................................................................................27
BENZ BALL JOINT REMOVER / INSTALLER (COMPREHENSIVE) TW PAT.
BENZ綜合型球接頭拆裝工具組
H.C.B-F1168...................................................................................................28
UNIVERSAL BRAKE ANCHOR PIN PUSHER / U-JOINT PRESS BALL JOINT SERVICE KIT TW PAT.
專利型萬象十字接頭拔卸器

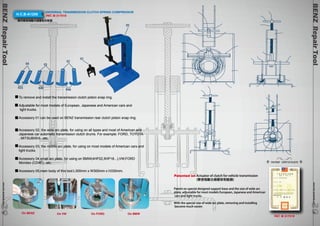

H.C.B-A1208...................................................................................................29
UNIVERSAL TRANSMISSION CLUTCH SPRING COMPRESSOR PAT.
萬用變速箱離合器壓板拆裝器
H.C.B-A1266...................................................................................................31
ADJUSTABLE UNIVERSAL CRANKSHAFT PULLEY HOLDING TOOL USA PAT. TW PAT.
專利可調式皮帶盤支檔扳手
H.C.B-A1389...................................................................................................33
BENZ (W203/W204/W209/W211/W212/ W220/W221) FRONT SUB-FRAME BUSH REMOVER / INSTALLER
TW PAT.
BENZ (W203/W204/W209/W211/W212/ W220/W221) 前三角架鐵套拆裝工具組
H.C.B-B1389...................................................................................................35
BENZ(W203/W204/W211/W212/W220/W221)FRONT SUB-FRAME BUSH REMOVER / INSTALLER
(HYDRAULIC)(Dr.3/8”) TW PAT.
前三角架鐵套拆裝工具組(油壓式)(3/8"接頭)
H.C.B-A1035-3................................................................................................36
REAR-WHEEL DRIVE TRANSMISSION HOLDER SET USA PAT. TW PAT.
後送變速箱拆裝架
H.C.B-A2186...................................................................................................37
BENZ ENGINE MOUNT WRENCH (16mm) TW PAT.
BENZ引擎腳扳手 (16mm)
H.C.B-A2187...................................................................................................38
BENZ ENGINE MOUNT WRENCH (17mm) TW PAT.
H.C.B-A1377...................................................................................................39
BENZ SPRINTER,VW LT BALL JOINT REMOVER (35mm) TW PAT.
BENZ SPRINTER, VW LT球接頭拔卸器(35mm)
BMW REPAIR TOOL
H.C.B-A1004...................................................................................................40
BMW (E32/E34) UPPER SUB-FRAME BUSH EXTRACTOR/ INSTALLER USA PAT. TW PAT.
BMW(E32/E34)上三角台鐵套拆裝工具組
H.C.B-A1034...................................................................................................40
BMW (E34) HUB REMOVER/ INSTALLER TW PAT.
BMW(E34)輪軸拆裝工具組
H.C.B-A1047-2................................................................................................41
SPECIAL VICE FOR SHOCK ABSORBER - RAPIDLY TW PAT.
快速型麥花臣式彈簧拆裝工具固定座
H.C.B-A1070...................................................................................................42
BMW (E38/E39/E52/E53/E60/E61/E63/E64/E65/E66/E67/E70) REAR AXLES BUSH REMOVER/ INSTALLER
USA PAT.
BMW (E38/E39/E52/E53/E60/E61/E63/E64/E65/E66/E67/E70)後仰角鐵套拆裝工具
H.C.B-A1087...................................................................................................43
BMW (E36/E46/E85) REAR AXLES BUSH REMOVER/ INSTALLER USA PAT.
BMW(E36/E46/E85)後仰角鐵套拆裝工具組
H.C.B-B1087...................................................................................................45
BMW (E46) REAR AXLE BUSH REMOVER / INSTALLER USA PAT.
BMW (E46) 後仰角鐵套拆裝工具組
H.C.B-C1087...................................................................................................46
BMW (E36/E46/E85) REAR AXLES BUSH REMOVER / INSTALLER USA PAT.
BMW (E36/E46/E85) 後仰角鐵套拆裝工具組
H.C.B-A1129...................................................................................................47

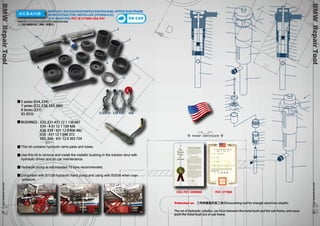

BMW (E31/E32/E34/E38/E39/E53/E60/E65/E66) UPPER SUB-FRAME BUSH EXTRACTOR/ INSTALLER
(HYDRAULIC) (3/8" ADAPTER) TW PAT.
BMW(E31/E32/E34/E38/E39/E53/E60/E65/E66) 上三角台鐵套拆裝工具 (液壓式)
H.C.B-D1129...................................................................................................49
BMW(E31/E32/E34/E38/E39/E53/E60/E65/E66/E70/E90/E91/E92/E93/M3) UPPER SUB-FRAME BUSH
EXTRACTOR / INSTALLER (HYDRAULIC) (3/8" ADAPTOR) TW PAT.
BMW(E31/E32/E34/E38/E39/E53/E60/E65/E66/E70/E90/E91/E92/E93/M3) 上三角台鐵套拆裝工具組(液壓式)(3/8"接頭)
H.C.B-A1132...................................................................................................50
BMW (E46/E85) REAR SUB-FRAME DIFFERENTIAL BUSH EXTRACTOR/ INSTALLER USA PAT.
BMW(E46/E85)差速器後三角架鐵套拆裝器

Index
Index
H.C.B-A1153...................................................................................................51
BMW (E46/E85) REAR SUSPENSION DIFFERENTIAL BUSH EXTRACTOR/ INSTALLER USA PAT.
BMW(E46/E85)工字樑後橫樑差速器鐵套拆裝工具組
H.C.B-A1154...................................................................................................52
BMW (E28/E34) REAR SUB-FRAME DIFFERENTIAL BUSH REMOVER/ INSTALLER USA PAT.
BMW(E28/E34) 後三角架鐵套拆裝工具組
H.C.B-A1158...................................................................................................53
BMW (E46/E85) REAR SUSPENSION BUSH EXTRACTOR/ INSTALLER TW PAT.
BMW(E46/E85) 後工字樑鐵套拆裝工具組
H.C.B-A1458...................................................................................................55
BMW (E87/E90) REAR SUSPENSION BUSH EXTRACTOR / INSTALLER TW PAT.
BMW (E87/E90)後工字樑鐵套拆裝工具組
H.C.B-A1487...................................................................................................57
BMW (E81-E88/E90-E93/F2/M3) REAR AXLES BUSH REMOVER/ INSTALLER TW PAT.
BMW (E81-E88/E90-E93/F2/M3)後仰角鐵套拆裝工具組
H.C.B-J2016...................................................................................................59
BMW(N52/N54/N62)/BENZ (W140) ENGINE LIFTING BAR TW PAT.
BMW(N52/N54/N62)/BENZ (W140) 引擎吊架
HONDA REPAIR TOOL
H.C.B-A1052...................................................................................................61
DOUBLE WISHBONE ALIGNMENT TOOLS (IMPROVEMENT) TW PAT.
雙A臂仰角校正器 (改良型)
H.C.B-A7001...................................................................................................63
HONDA CR-V, K6 & K8 REAR TRAILING ARM BUSH REMOVER/ INSTALLER JP PAT. TW PAT.
HONDA CR-V K6&K8後游臂鐵套拆裝工具組
H.C.B-A7002...................................................................................................65
HONDA LOWER CONTROL ARM BUSHES REMOVER/ INSTALLER (HYDRAULIC DRIVE)
USA PAT. PEN TW PAT.
HONDA三角架鐵套拆裝工具組(油壓)
H.C.B-A7003...................................................................................................67
HONDA ACCORD UPPER CONTROL ARM BUSH REMOVER/ INSTALLER (AFTER YEAR 2004) USA PAT.
HONDA 雅哥(2004年後)上三角架鐵套拆裝工具組
MACHINERY&HARDWARE
H.C.B-A8001...................................................................................................69
MULTI-FUNCTION PNEUMATIC/HYDRAULIC ENGINE LIFT TW PAT.
多功能剪型氣/油壓引擎拆卸設備
GENERAL REPAIR TOOL
H.C.B-A1005...................................................................................................71
ROLLER STITCHER TW PAT.
輪胎補胎修補器 (專利品)
H.C.B-A1006...................................................................................................71
ROLLER STITCHER TW PAT.

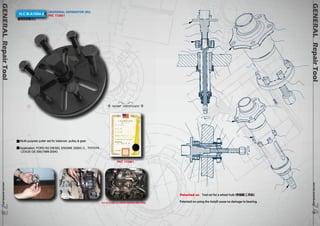

H.C.B-A1054-2................................................................................................73
UNIVERSAL SEPARATOR (R2) TW PAT.
萬用拔卸器(R2)
H.C.B-A1096...................................................................................................75
EXPELLER BELL FOR HUB EXTRACTION (HYDRAULIC) TW PAT.
油壓輪軸拆卸組
H.C.B-A1081...................................................................................................77
ADJUSTABLE UNIVERSAL CAMSHAFT PULLEY HOLDING TOOL USA PAT. TW PAT.
H.C.B-A1097...................................................................................................79
UNIVERSAL GEAR TYPE ENGINE K/D RACK USA PAT. PEN TW PAT.
齒輪式引擎拆裝架

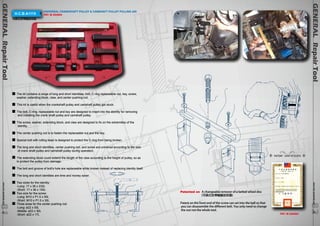

H.C.B-A1115...................................................................................................81
UNIVERSAL CRANKSHAFT PULLEY & CAMSHAFT PULLEY PULLING AID TW PAT.
可換式皮帶盤拔卸組
H.C.B-A1108...................................................................................................83
VW T4 FRONT AXLE UPPER BALL JOINT EXTRACTOR/ INSTALLER DE PAT. TW PAT.
VW T4 前三角架球接頭拆裝工具組
H.C.B-A1117...................................................................................................85
GEAR TYPE UNIVERSAL K/D RACK USA PAT. TW PAT.
專利齒輪式多功能拆裝器
H.C.B-A1117-4................................................................................................87
500 C-TYPE TRANSMISSION HOLDER BASE USA PAT. TW PAT.
500 C 型變速箱固定座
H.C.B-A1117-5................................................................................................89
600 TRANSMISSION HOLDER BASEUSA PAT. PEN TW PAT.
600 ㄇ型變速箱固定座
H.C.B-A1163...................................................................................................90
MITSUBISHI GALANT REAR AXLES BUSH REMOVER/ INSTALLER PAT. PEN
三菱GALANT 後仰角鐵套拆裝工具組
H.C.B-B1117...................................................................................................91
UNIVERSAL ENGINE STAND USA PAT. TW PAT.
專利引擎拆裝架
H.C.B-B1376...................................................................................................93
UNIVERSAL VALVE SPRING REMOVER / INSTALLER DE PAT. TW PAT.
多功能免拆式氣門彈簧拆裝工具組
H.C.B-A1445...................................................................................................97
UNIVERSAL SUSPENSION ARM LEVER TW PAT.
撬棒
H.C.B-A1503...................................................................................................99
TOYOTA HIACE AXLE EXTRACTOR PAT.
TOYOTA HIACE輪軸拔卸器
H.C.B-B1503.................................................................................................101
UNIVERSAL HIACE AXLE EXTRACTOR (SLIDE HAMMER) TW PAT.
通用輪軸拔卸器 (滑鎚式)
H.C.B-C1503.................................................................................................103
UNIVERSAL HIACE AXLE EXTRACTOR (HYDRAULIC) TW PAT.
通用輪軸拔卸器 (液壓式)
H.C.B-A2185.................................................................................................105
DOUBLE PISTON TRANSMISSION JACK (5 FEET) TW PAT.
雙活塞變速箱千斤頂(5腳)
TRUCK REPAIR TOOL
H.C.B-A1102.................................................................................................107
TRUCK BALL JOINT REMOVER (39mm) TW PAT.
卡車球接頭拔卸器(39mm)
H.C.B-B1102.................................................................................................109
EUROPEAN TRUCK BALL JOINT REMOVER (39mm) TW PAT.
歐系卡車球接頭拔卸器(39mm)
H.C.B-C1102.................................................................................................110
JAPANESE TRUCK BALL JOINT REMOVER (39mm) TW PAT.
日系卡車球接頭拔卸器(39mm)
H.C.B-A1112.................................................................................................111
MEDIUM-SIZED WAGON BALL JOINT EXTRACTOR (32mm) TW PAT.
中型貨車球接頭拔卸器(32mm)
H.C.B-A1170.................................................................................................113
TRUCK TORQUE-ROD BUSH REMOVAL/ INSTALLATION TW PAT.
卡車扭力桿鐵套拆裝工具組
H.C.B-A1337.................................................................................................115
TRUCK K/D RACK - MANUAL TW PAT.
手動卡車多功能拆裝架
H.C.B-B1337..................................................................................................117
TRUCK K/D RACK - ELECTRICAL TW PAT.
電動卡車多功能拆裝架

Index
Index
H.C.B-B1182..................................................................................................119
UNIVERSAL TRUCK BALL JOINT PULLER (REPLACEABLE) (24mm & 32mm) - IMPROVEMENT TW PAT.
萬用卡車可換式球接頭拔卸器(24mm & 32mm)-改良型
H.C.B-A1339..................................................................................................121
TRUCK KING PIN PRESS(30TONS) TW PAT.
大王銷拆卸機(30噸)
H.C.B-B1339..................................................................................................123
TRUCK KING PIN PRESS(75 TONS) TW PAT.
H.C.B-A1410..................................................................................................125
UNIVERSAL TRUCK BALL JOINT REMOVER (39mm) TW PAT.
通用卡車球接頭拆裝工具
H.C.B-C1410..................................................................................................127
UNIVERSAL TRUCK BALL JOINT REMOVER (39mm) (HYDRAULIC) TW PAT.
通用卡車球接頭拆裝工具 (油壓)
H.C.B-A1383..................................................................................................128
ELECTRICAL BRAKE LINING SHOE LOADER TW PAT.
電動鉚釘機

H.C.B-A1001 BENZ (W124) DIFFERENTIAL BUSH EXTRACTOR/INSTALLER
PAT. 165163 USA PAT. 6389668
BENZ(W124) 免卸差速器,後三角架橡皮座鐵套拆裝工具組(124.352.77.65)
ON CAR
Extractor for replacing the differential mounting metallic bushes in the rear sub-frame for
MERCEDES type W124.
Replace mounting bushes without removing of the differential.
BENZ Repair Tool www.hcb-autotools.co0m 202
Removal
Installation
BENZ Repair Tool www.hcb-autotools.com0101
Patented on Tool kit (工具組)
Patented on utilizing the power of turning over the screw to extract
and install the bush.

www.hcb-autotools.co0m 404
www.hcb-autotools.com0303
H.C.B-A1002 BENZ REAR AXLES BUSH REMOVER/ INSTALLER
PAT. 165163 USA PAT. 6389668 ON CAR
BENZ後羊角鐵套拆裝工具組(全車系)
QR CODE to
watch the video
demonstration
Removal and replacement tool for metallic bushes on rear axles MERCEDES type W201/
W124/W202/W140/W129/W210/W220
The tool incorporates with an axial bearing or a pressure piece which guarantees labor saving.
The correct position of the new metallic bushes when replaced.
Removal
Installation
PATENT CERTIFICATE
USA PAT. 6389668 PAT. 165163
BENZ Repair Tool
BENZ Repair Tool
Patented on utilizing the power of turning over the screw to extract and install the bush.

H.C.B-A1003 BENZ (W124/W201) SUSPENSION BUSH EXTRACTOR/
INSTALLER PAT. 158341
BENZ(W124/W201) 工字樑鐵套拆裝工具組
Extractor for replacing of the front and rear metallic rear sub-frame mounting bushes.
For MERCEDES type W201/W124.
Replace mounting bushes without
lowering the complete rear axle
assembly.
EXTRACT INSTALL INSTALL EXTRACT
W 201
351 19 42 FRONT BUSH W 201
124
124
351 02 42 REAR BUSH
AXLE BEARING EXTRACT
1&4
2
6
7
8
9
10
12
11
13
14
15
16
17
18
ON CAR
PATENT CERTIFICATE
PAT. 158341
05
Patented on Multi-function tool assembly for chassis works
(多功能工具組)
Patented on using this tool change the bush can be on car and you don`t need to split the chassis.
Utilize the power of turning over the screw to extract and install the bush.

BENZ Repair Tool
H.C.B-A1008-1 BENZ AXLES WHEEL BEARING EXTRACTOR/ INSTALLER
PAT. 201280 USA PAT.
BENZ免拆三角架前後輪軸承拆裝工具組
ON CAR
A great tool can be used in replacing wheel bearings without removing the steering
knuckle and strut assembly.
As the spindle assembly isn’t removed, there is no need to align front end after the
job is done. It is time saver.
Application: MERCEDES-BENZ, BMW, TOYOTA, VW, MARCH, FORD, VOLVO…etc.
BEARING INSIDE,
SAVE TIME AND EFFORT
WINDOW INDICATOR CAN
HELP USER MONITOR THE
OPERATING SITUATION
CONNECT TOOL PARTS
WITH O-RING TO PREVENT
THE TOOL PARTS SEPARATE
PATENT CERTIFICATE
USA PAT. 6389668 PAT. 201280
07
08
Patented on Assembling and disassembling tool set for elevation bearings
(仰角培林拆裝工具組)
Patented on utilizing the power of screwing the nut to, push the bearing to the space and
then remove.

H.C.B-A1036 BENZ (W123/W126/W220) BALL JOINT EXTRACTOR/
INSTALLER PAT. 179835
BENZ (W123/W126/W220)球接頭拆裝工具組
For pressing ball joint into steering knuckle.
Application : W123、W126、W220.
W220
INSTALL
W123, W126
EXTRACT
W123, W126
INSTALL
W220
EXTRACT
H.C.B- B1040 BENZ (W203/W211) SPRING EXTRACTOR/ INSTALLER
PAT.073953
BENZ(W203/W211)彈簧避震器拆裝工具組
To change the old spring for new one.
Movement range: 35mm to 350mm.
Conjunction with B1022-05 and A1047-1.
Application: BENZ (W203/ W211), BMW, FORD.
N.W.: 10.07KGS
PATENT CERTIFICATE
PATENT CERTIFICATE
PAT. 179835
PAT.073953
09
Patented on Assembling and disassembling tools for ball-typed joints
(球狀接頭之拆卸、組裝工具)
Patented on the design of the extractor tool can support the ball joint.
It can make the ball joint not be damaged when removing.
It needs to work with H.C.B-A2061.
Patented on SPRING EXTRACTOR/ INSTALLER (拆裝避震器工具)
Patented on the special design of the rectangular block can cover the shock absorbers
more touch place.
It`s safe when you change the shock absorber.
10

H.C.B-A1068 BENZ (W140/W220) FRONT & REAR SUSPENSION BUSH EXTRACTOR/
INSTALLER PAT.158341
BENZ (W140/W220)工字樑前.後置鐵套拆裝工具組 ON CAR
5-4
5-3
5-2
2
6
7 4 3
8
5 5-1
1
10
1-2
8-1
1-1
9
Rear bush
NO.220 350 03 75
Front bush
NO. 220 35 1114 2
9 5-2
10 7
Use for Installer W220
Front suspension bush
9
10 5
Used for remove W220
Front suspension bush
5-2
8
5-2
Used for remove W220
rear suspension bush
5-1
9 10 5
6
Used for installer W220
rear suspension bush
7
5-3
PATENT CERTIFICATE
PAT.158341
Patented on Multi-function tool assembly for chassis works
(多功能工具組)
Patented on using this tool change the bush can be on car and you don`t need to
split the chassis. Utilize the power of turning over the screw to extract and install
the bush.
11
To remove and install the front and rear rubber subframe mounts of axle suspension.
N.W.: 9.8KGS G.W.: 10KGS
Application:
MERCEDES-BENZ S-class (W140) 1992~2000
MERCEDES-BENZ S-class (W220) 2000

H.C.B-A1082-1 UNIVERSAL BALL JOINT SEPARATOR (SCREW
REPLACEABLE) (24mm) PAT. 208928
萬用球接頭拔卸組(可替換螺絲)(24mm)
Splitting track-rod ends, anti-roll bar mountings, ball joints ... etc., especially in confined space
like on AUDI,VW, BMW, FORD, MERCEDES (W170, W202, W210, W220 … etc.), OPEL /
VAUXHALL, MITSUBISH... etc.
PATENT CERTIFICATE
PAT. 208928
13
Patented on Ball-joint extractor(球頭拔除器改良)
Patented on nut and bolt can be changed. When damage, you don`t need to change the whole tool,
just change the screw and nut.

H.C.B-A1119 BENZ (W220) SEAL TOP AIR SUSPENSION STRUT
PAT. M 253505
BENZ(W220)氣壓避震器油封更換工具
MAGNET
STEP 1 STEP 2
STEP 3 STEP 4
BENZ Repair Tool
BENZ Repair Tool
Patented on A disassembling and assembling apparatus for an air shock absorber
(氣壓式避震器拆裝器)
Patented on using the plate support to avoid the O-ring and shock absorber damage.
If the screw hole damaged, you only need to change the nuts.

H.C.B- C1111 BENZ (W203/W204/W209/W211/W220) SUB-FRAME & BENZ (W211) FRONT
SUSPENSION ARM BUSH REMOVER/ INSTALLER USA PAT.6389668 PAT.201280
BENZ(W203/W211/W220)三角台鐵套拆裝工具組BENZ(W203/W204/W209/W211/W220)三角台鐵套&BENZ(W211)前三角架懸掛控制臂鐵套拆裝工具組
ON CAR
H.C.B-A1111 BENZ (W203/W211/W220) SUB-FRAME BUSH REMOVER/ INSTALLER
USA PAT. 6389668 PAT.201280
ON CAR
W220,W203 BUSH INSTALL
3 4
W220,W203 BUSH EXTRACT W211 BUSH INSTALL
MODEL : BENZ W203
5
W211 BUSH EXTRACT
3 4
For quick ,safe removal and installation of the bushes in the sub-frame
(W203/W204/W209/W211/W220) and suspension arm(W211)
Using part No. 1 to 10 for the bush of BENZ W203/W204/W209/W211/W220
sub-frame.
Using part No. 1, 2, 3, 8, 11 to 14 for bush of BENZ W211 front suspension
arm.
On car maintenance.
Special design to remove and install the bush without removing any parts.
W211 operation
QR CODE to
watch the video
demonstration
6 10 5 3
8
2
9
4
7
1
7 8 9 1 10
Patented on Assembling and disassembling tool set for elevation bearings
( 仰角培林拆裝工具組)
13 2 3 4 11 5 14 6
Patented on utilizing the power of screwing the nut to, push the bearing to the space and then
remove.
PATENT CERTIFICATE
USA PAT. 6389668 PAT. 201280
12

BENZ ML RV SUSPENSION BUSH EXTRACTOR/ INSTALLER
PAT. 165163 USA PAT. H.C.B-A1140
BENZ ML休旅車工字樑拆裝工具組
H.C.B-A1155 BENZ (W140/W202/W203/W210) REAR SUB-FRAME DIFFERENTIAL
BUSH EXTRACTOR/ INSTALLER USA PAT.
BENZ(W140/W202/W203/W210)差速器鐵套拆裝工具組
Installation
Removal
ON CAR
To remove and install the rear sub-frame differential metallic
bush.
Application: BENZ W210, W202, W203, W140
Save time and money for maintenance.
Genuine Stock
No.: A 129 351 2142
Removal Installation
3
Benz (W210) Differential Bush
6
2
1
6-1
6
5 6 5
4
6
6-1
1
2
3
4
6-1
5
6
19
PATENT CERTIFICATE
Patented on utilizing the power of turning over the screw to extract and install the bush.
PATENT CERTIFICATE
USA PAT. 6389668
USA PAT. 6389668 PAT. 165163

H.C.B-A1168 BENZ (W211/W215/W220/W230) BALL-JOINT REMOVER/ INSTALLER
PAT. M 333280
BENZ (W211/W215/W220/W230)前下球接頭拆裝器
ON CAR
QR CODE to
watch the video
demonstration
The C-clamp was forged, its material is SCM440 and hardness is
HRC 38˚~ 42˚
On car maintenance.
Special design to remove & install the ball joint without removing any parts.
Application：BENZ W211/W215/W220/W230
Extraction
1 2
3
Installation
1 4
5
2 1 3
PATENT CERTIFICATE
4 5
PAT. M 333280
Patented on Ball joint detaching tool for vehicle
(車用球接頭拆裝工具結構)
Patented on if the bolt is broken and you just need to replace it, but not the whole tool.
The C-clamp is forged.
21

BENZ Repair Tool
www.hcb-autotools.com2323 BENZ Repair Tool
H.C.B-B1168 BENZ (W220/W211) SUB-FRAME BALL JOINT EXTRACTOR/ INSTALLER
PAT.M 333280
BENZ(W220/W211)後三角架球接頭拆裝工具組
ON CAR
1 2 3
The C-clamp was forged, its material is SCM440 and hardness is HRC 38˚~ 42˚.
On car maintenance.
Special design to remove & install the ball joint without removing any parts.
Press the ball joint into the steering knuckle on BENZ W220 & W211.
N.W.: 4.72 KGS.
Installation Extraction
Genuine Stock
NO.:211 323 00 68
H.C.B-D1168 BENZ BALL JOINT REMOVER / INSTALLER (COMPREHENSIVE)
PAT. M333280
BUSH NUMBER: 032 060 035 012
032 060 042 012
1 3
2
The C-clamp was forged, its material is SCM440 and hardness is HRC 38˚- 42˚
On car maintenance.
To remove the drive shaft before using this tool.
Combine with H.C.B-A2136,if install ball joint.
Application：BENZ W163/W164.
PATENT CERTIFICATE
PAT. M333280

H.C.B-C1168 BMW(E30/E36)LOWER CONTROL ARM BALL JOINT REMOVER
/INSTALLER PAT. M 333280
BMW (E30/E36) 三角架球接頭拆裝工具組
ON CAR
The C-clamp was forged, its material is SCM440 and hardness is HRC38˚~42˚
Removing and installing the ball joint.
Application: BMW E30, E36
Extraction
Installation

H.C.B-F1168 UNIVERSAL BRAKE ANCHOR PIN PUSHER / U-JOINT PRESS
專利型萬象十字接頭拔卸器
BALL JOINT SERVICE KIT PAT M.333280
Special design for bolt, when the bolt is broken and you only just replace the bolt of
c-clamp, not have to change the whole c-clamp set.
The C-clamp was forged, its material is SCM440 and hardness is HRC 38˚-42˚
On car maintenance.
It contains heavy-duty C frame press, receiver tubes, and adapters that both install
and remove pins.
This tool set is designed for use on most cars and light trucks that have press-fit
type ball joints. It will help the user remove and install ball joints without the need
to remove the control arm from the vehicle.
NOTE: Some cars and light trucks may have the upper ball joint spot-welded to
the control arm. The weld must be cut before attempting to remove the ball joint.
Removal
Patented design O-ring can
be fixed in top.tipprevent
the tool from falling
Installation
Patented design O-ring can
be fixed in top.tipprevent
Brake Anchor Pin Extraction
the tool from falling “U” joint Extraction and installation
and installation
H.C.B-E1168 BENZ BALL JOINT REMOVER / INSTALLER (COMPREHENSIVE)
PAT. M333280 QR CODE to
watch the video
demonstration
B3B1 A1 B2 A3 A2 A4 A5 D2 W
This kit is for BENZ (W220/W211/W230/W163/W164/W215)BALL-JOINT.
B series for BENZ (W220/W211) BALL-JOINT.
D2 for removing BENZ (W163/W164) FRONT & REAR BALL-JOINT.
W for installing BENZ (W163/W164/W215) FRONT & REAR BALL- JOINT.
W for installing BENZ (W163/W164/W215) FRONT & REAR BALL- JOINT.
W need to be locked over 300°Nm.
The C-clamp was f orged, its material is SCM440 and hardness is HRC 38˚- 42˚
On car maintenance.
This kit includes:A1168.B1168.D1168
27

H.C.B-A1208 UNIVERSAL TRANSMISSION CLUTCH SPRING COMPRESSOR
PAT. M 317319
萬用變速箱離合器壓板拆裝器
To remove and install the transmission clutch piston snap ring.
Adjustable for most models of European, Japanese and American cars and
light trucks.
Accessory 01 can be used on BENZ transmission rear clutch piston snap ring.
Accessory 02, the wide arc plate, for using on all types and most of American and
Japanese car automatic transmission clutch drums. For example: FORD, TOYOTA
, MITSUBISHI...etc.
Accessory 03, the middle arc plate, for using on most models of American cars and
light trucks.
Accessory 04,small arc plate, for using on BMW(4HP22,5HP18...),VW,FORD
Mondeo (CD4E)...etc.
Accessory 05,main body of this tool:L300mm x W300mm x H330mm.
PATENT CERTIFICATE
04 03
02
01
05
R35 R40 R46
On BENZ On VW On FORD On BMW
PAT. M 317319
Patented on Actuator of clutch for vehicle transmission
(變速箱離合器壓板制動器)
Patent on special designed support base and the size of wide arc
plate, adjustable for most models European, Japanese and American
cars and light trucks.
With the special size of wide arc plate, removing and installing
become much easier.
29

3 3
BENZ Repair Tool www.hcb-autotools. com31
H.C.B-A1266 ADJUSTABLE UNIVERSAL CRANKSHAFT PULLEY HOLDING TOOL
USA PAT.7069821 TW PAT.227176
專利可調式皮帶盤支擋扳手
Adjustable distance: P.C.D 30mm ~ 150 mm
Material: SCM440 (Forging)
This tool is designed to hold the crankshaft only.
Application: BENZ S600, M137, M112, M113, M271,M642,CEFIRO A32,A33 and most kinds
of engine
A32
H.C.B - A1266-7
H.C.B - A1266-8
H.C.B - A1266-9
A33
φ22 φ16
70MM 70MM
φ22
110MM
φ16
φ22 φ16 φ23
PATENT CERTIFICATE
TW PAT.227176 USA PAT.7069821
Patented on Adjustable support wrench
(可調式支擋板手)
Patented on the end of the tool can change
the pin. The arch has spring inside, so it can
adjust the distance to fix more type pulley.
31

H.C.B-A1389 BENZ (W203/W204/W209/W211/W212/ W220/W221) FRONT SUB-FRAME
BUSH REMOVER / INSTALLER PAT. M 412840
BENZ (W203/W204/W209/W211/W212/ W220/W221)
前三角架鐵套拆裝工具組
W203/W204/W209 W212 W221 W220 W211
No.1-10 are H.C.B - A1111
Special design to remove and install the bush without taking off any parts.
Application: BENZ (W203/W204/W209/W211/W212/W220
/W221)
ON CAR
Magnet
Patent design
3
PATENT CERTIFICATE
Patented on Structure of dissembling tool
(拆裝工具結構)
Patented on utilizing the power of screwing the nut to, push the bearing
to the space and then remove.
PAT. M 412840
33

H.C.B-B1389 BENZ(W203/W204/W211/W212/W220/W221)FRONT SUB-FRAME BUSH
QR CODE to
watch the video
demonstration
BENZ Repair Tool
ON CAR
REMOVER / INSTALLER (HYDRAULIC)(Dr.3/8”) PAT.
前三角架鐵套拆裝工具組(油壓式)(3/8”)接頭
W212 W211 W204 W203 W220 W221
Removing / Installing safely and labor saving by using hydraulic.
Special design to remove and install the bush without taking off any parts.
ON CAR maintenance.
Various parts for widely use.
Application:
BENZ: W203/W204/W211/W212/W220/W221
H.C.B-A1035 REAR-WHEEL DRIVE TRANSMISSION HOLDER SET
後送變速箱拆裝架
TW PAT. USA PAT. 7093809
A1035-3
A1035-1
Rotating head enables engine to be placed in desired working positions.
PATENT CERTIFICATE
A1035-2
USA PAT. 7093809
PATENT CERTIFICATE
PAT. M 412840

H.C.B-A2186 BENZ ENGINE MOUNT WRENCH (16mm)
PAT. M 365815
Special angle designed to remove the
nuts from Benz engine mount
Easy to use with multiple angles.
Operators can use them in many angles
instead of four directions.
Size: 16mm/12PT.
Application : BENZ W220, 210, 203, 221,
211, 204（New Car）
Multiple Angle
H.C.B-A2187 BENZ ENGINE MOUNT WRENCH (17mm)
PAT. M 365815
Multiple Angles
Special angle designed to remove the nuts from Benz engine mount
Operators can use it in many angles instead of four directions
Using with Dr. 3/8" wrench, go-through type
Size: 17mm/12PT
Applicatoin: BENZ W124,140,170,126,201,202,210(Old car)
PATENT CERTIFICATE
Patented on Structure of hand tool(手工具結構)
Patented on users can use it in muti- angles instead of four directions.
Users can manipulate different angles, meanwhile from different angles to fix effectively.

BMW Repair Tool
H.C.B-A1377 BENZ SPRINTER,VW LT BALL JOINT REMOVER (35mm)
PAT. M 362085
BENZ SPRINTER, VW LT球接頭拔卸器(35mm)
The ball joint remover has a ball bearing pressure
peak and is used with an impact wrench.
With the pressure and impact moment great loosening
torque is achieved.
Application: Mercedes Benz Sprinter BMW and VW LT for
loosening the very tight suspension ball joint at the
front suspension.
PATENT CERTIFICATE
M-Benz Sprinter Ball Joint
H.C.B-A1004 BMW (E32/34) UPPER SUB-FRAME BUSH EXTRACTOR/ INSTALLER
PAT. 165163 USA PAT. 6389668
ON CAR
ON CAR
BMW(E32/E34)上三角台鐵套拆裝工具組
For Removing and Installing metallic bushes on upper sub-frame.
Application : BMW E32/E34.
H.C.B-A1034 BMW (E34) HUB REMOVER/ INSTALLER
PAT. 172921
BMW(E34)輪軸拆裝工具組
PATENT CERTIFICATE
PAT. 172921
The tool is designed for professional removal and installation rear wheel hub.
Application : BMW E34
PAT. M 362085
Patented on Structure of dissembling tool(拆裝工具結構)
Patented on if the bolt is broken and you just need to replace it, but not the whole tool
This tool is forged.
Special designed of the screw shaft, while replacement parts, only replace the screw shaft.

BMW Repair Tool www.hcb-autotools.co4m 242
BMW Repair Tool www.hcb-autotools.com41
H.C.B-A1070 BMW (E38/E39/E52/E53/E60/E61/E63/E64/E65/E66/E67/E70) REAR
ON CAR
AXLES BUSH REMOVER/INSTALLER USA PAT. 6389668
BMW (E38/E39/E52/E53/E60/E61/E63/E64/E65/E66/E67/E70)後羊角鐵套拆裝工具
For removing and installing metallic bushes on rear axles.
The kit is designed to operate on car.
Application model: BMW (E38/E39/E52/E53/E60/E61/E63/E64/E65/E66/E67/E70)
Remove the C Ring
Extraction
Installation
2 1
3 4
6
5
H.C.B-A1047-2 SPECIAL VISE FOR SHOCK ABSORBER - RAPIDLY
PAT. M390257
快速型麥花臣式彈簧拆裝工具固定座
ON CAR
Replaceable pads increase the height of
vise to fit the larger workbench.
Clamped on the workbench for repairing instead of screwing
Both sides are with the same function.
Struts should never be held in a normal workshop vise due to the risk of deforming
the strut-tube.
41
QR CODE to
watch the video
demonstration
PATENT CERTIFICATE
PAT. M390257
Patented on Shock absorber bracket structure
(避震器固定座結構)
Patented on the pads, replace it to increase the height of vise to fit the larger workbench

H.C.B-A1087 BMW (E36/E46/E85) REAR AXLES BUSH REMOVER/ INSTALLER
USA PAT.
BMW(E36/E46/E85)後羊角鐵套拆裝工具組
ON CAR
QR CODE to
watch the video
demonstration
Removal and replacement tool for metallic bushes on rear axles BMW type E36,E46,E85.
To replace the mounting bushes without lowering the complete rear axle assembly.
E36 REAR AXLE
E46 REAR AXLE
43
PATENT CERTIFICATE
USA PAT. 6389668

4646
H.C.B-B1087 BMW (E46) REAR AXLE BUSH REMOVER / INSTALLER
USA PAT.
BMW (E46) 後羊角鐵套拆裝工具組 USA PAT.
Item No. Product Name Correspondence Q’TY
B1087-1 Bearing Base A1087-1 1
B1087-2 Bridge Piece A1087-2 1
B1087-20 Force Nut (M12 x P1.75) 1
B1087-19 Force Screw (M12 x P1.75,
L: 232mm, H:10mm)
1
B1087-5 Installer Plate A1087-5 1
B1087-18 Thrust Plate 1
B1087-7 Lock Nut (M12 x P1.75) A1087-7 (1 PCS) 2
B1087-17 Compressor Sleeve 1
Extract Install
BMW (E46) New Bush
Genuine Stock
No.: 33 326 770 786
BMW Repair Tool
BMW Repair Tool
H.C.B-C1087 BMW (E36/E46/E85) REAR AXLES BUSH REMOVER / INSTALLER
USA PAT.
BMW (E36/E46/E85) 後羊角鐵套拆裝工具組
Removal and replacement tool for metallic bushes on rear axles BMW type E36,
E46.E85.To replace the mounting bushes without lowering the complete rear
axle assembly.
This kit not only can remove/install old bushes but also new bushes.
Save time and labor.
New Style Bushing Old Style Bushing
17
2
7
5
18 20 1
19

D
H.C.B-A1129
12
4
5
9
10
2
E32, E31-#31 12 1 136 607
E34 - # 31 12 1 139 456
E38, E39 - #31 12 0 006 482
E53 - #31 12 1 096 372
E65, E66 - #31 12 0 303 754
8
D
D
20
BMW (E31/E32/E34/E38/E39/E53/E60/E65/E66) UPPER SUB-FRAME
BUSH EXTRACTOR/ INSTALLER (HYDRAULIC)
(3/8" ADAPTER) PAT. M 277669 USA PAT
BMW(E31/E32/E34/E38/E39/E53/E60/E65/E66)
上三角台鐵套拆裝工具組 (液壓式)
14
1
5 series (E34, E39)
7 series (E32, E38, E65, E66)
8 Series (E31)
X5 (E53)
BUSHINGS :
13
ON CAR
7
3
6
E32/E34 E38 E39 E66
11
This kit contains hydraulic rams,pads and tubes.
Use this kit to remove and install the metallic bushing in the traction strut with
hydraulic driven and on car maintenance.
Hydraulic pump is not included.10 tons recommended.
Conjuntion with B1129 hydraulic hand pump,and using with B3036 when over
pressure
PATENT CERTIFICATE
USA PAT. 6389668 PAT. 277669
Patented on 三角架鐵套拆裝工具(Dismounting tool for triangle stand iron sheath)
The set of Hydraulic cylinder, can force between the metal bush and the sub-frame, and cause
push the metal bush out of sub-frame.

BMW Repair Tool 5050
H.C.B-A1132 BMW (E46/E85) REAR SUB-FRAME DIFFERENTIAL BUSH EXTRACTOR/
QR CODE to
watch the video
demonstration
INSTALLER USA PAT.
BMW(E46/E85)差速器後三角架鐵套拆裝器
For replacing of the differential mounting metallic bushes in the rear sub-frame.
Replacing of the mounting bushes without removing of the differential.
The Main Body of the Car
PATENT CERTIFICATE
USA PAT. 6389668
Extractinon Installation
H.C.B-D1129 BMW(E31/E32/E34/E38/E39/E53/E60/E65/E66/E70/E90/E91/E92/E93/M3)
UPPER SUB-FRAME BUSH EXTRACTOR / INSTALLER (HYDRAULIC)
(3/8" ADAPTOR) PAT.
BMW(E31/E32/E34/E38/E39/E53/E60/E65/E66/E70/E90/E91/E92/E93/M3)
上三角台鐵套拆裝工具組(液壓式)(3/8"接頭)
ON CAR
QR CODE to
watch the video
demonstration
This kit contains hydraulic rams,pads and tubes.
Use this kit to remove and install the metallic bushing in the traction strut with
hydraulic driven and on car maintenance.
Hydraulic pump is not included.10 tons recommended.
Conjuntion with B1129 hydraulic hand pump,and using with B3036 when over
pressure
E32/E34 E38 E39 E53(x5) E60 E65/E66 E90/E92/E93/M3 E92 E70(X5)
PATENT CERTIFICATE

H.C.B- A1153 BMW (E46/E85) REAR SUSPENSION DIFFERENTIAL BUSH
EXTRACTOR/ INSTALLER USA PAT.
BMW(E46/E85)工字樑後橫樑差速器鐵套拆裝工具組
1
3
5
6
5-1
2 4
For replacing the rear suspension differential bush.
On car maintenance.
Best tool for replacement of the bush on BMW E46.
Application : BMW E46, E85
Removal
Installation
H.C.B-A1154 BMW (E28/E34) REAR SUB-FRAME DIFFERENTIAL BUSH REMOVER/
INSTALLER USA PAT.
BMW(E28/E34) 後三角架鐵套拆裝工具組
ON CAR
(Genuine Stock No.: 33 32 9 061 946)
BMW(E28,E34) REAR SUB-FRAME
DIFFERENTIAL BUSH
6
For replacing the real sub-frame differential metallic bush.
On car maintenance.
Save time and money for maintenance.
Applicable: BMW E28,E34.
CAUTION:
The bush and rear sub-frame differential are tightly installed.
It is recommend to use a hammer to hit the rear end of the bush before using this tool．
BMW (E46) differential bush
Genuine Stock No.: 6751808 3000-04
Removal
Installation
1
2
5
3
4
QR CODE to
watch the video
demonstration
BUSH

H.C.B-A1158 BMW (E46/E85) REAR SUSPENSION BUSH EXTRACTOR/INSTALLER
ON CAR
PAT. M296813
BMW(E46/E85) 後工字樑鐵套拆裝工具組
Extractor for replacing the rear suspension mounting bushes.
Replace of the mounting bush without completely lowering the rear axle assembly.
Application: BMW (E46/E85)
REAR BUSH REAR BUSH
BMW (E46/E85) REAR SUSPENSION
F/R BUSH
F/R BUSH
33.31-1 092 515
33.31-1 092 516
33.31-1 092 517 33.31-1 092 517
The illustration for removal of F/L bush The illustration for installation of F/L bush
The illustration for removal of F/R bush
The illustration for installation of F/R bush
The illustration for removal of rear bush The illustration for installation of rear bush
QR CODE to
watch the video
demonstration
PATENT CERTIFICATE
PAT. M296813

H.C.B-A1458 BMW (E87/E90) REAR SUSPENSION BUSH EXTRACTOR /
INSTALLER KIT PAT. M296813
BMW (E87/E90)後工字樑鐵套拆裝工具組
1
2
4
5
6
3
7 8
9 10 11
12
Extractor for replacement of the rear suspension mounting bushes.
Replacement of the mounting bush without completely lowering the rear
axle assembly.
Application: BMW (E87/E90)
Genuine Stock No.:
33 31 6758 259
Genuine Stock No.:
33 31 6758 260
PATENT CERTIFICATE
PAT. M296813
Patented on Bush extractor for suspension arm of car(汽車鐵套拆裝工具組)
Control lever unit could adjusting the distance between the two support arms around,
by the strength of fasten the screw in the Screw holes on the top of the control lever unit
in order to remove the rear suspension mounting bushes.

BMW Repair Tool
www.hcb-autotools.com5757 BMW Repair Tool
H.C.B-A1487 BMW (E81-E88/E90-E93/F2/M3) REAR AXLES BUSH REMOVER/
INSTALLER PAT.M459082
BMW (E81-E88/E90-E93/F2/M3)後仰角鐵套拆裝工具組
Use this tools to remove and install the bush
Application: BMW (E81-E88, E90-E93, F2, M3)
QR CODE to
watch the video
demonstration
Rubber mount number:
33326763092 110867-10
Bush number:26643 676
9
8 6
7
10
PATENT CERTIFICATE
PAT.M59082
Patented on Structure of band clamp
(束裝器結構)
Patented on Structure of band clamp can fit more bushings.

H.C.B-J2016 BMW/BENZ (W140) ENGINE LIFTING BAR
BMW/BENZ (W140) 引擎吊架
PAT.M481854
Put the prop at the front of engine frame. Then put the blue bar on the prop, make the blue bar
into the hook.
Fix the backend on the shock absorber.
The design will make change engine socket or change oil pan conveniently and easier.
Application: BMW(N52/N54/N62),BEN(W140)
On BMW(E65) On BENZ(W140)
Patented on Tripod suspension system separator
(引擎平衡吊架結構)
Patented on the main blue bar has an adjusting rod and a fixed pole install on the pillow
ball mount to make more stable and safe while repairing.

HONDA Repair Tool www.hcb-autotools.co6m 262
HONDA Repair Tool www.hcb-autotools.com6161
H.C.B-A1052 DOUBLE WISHBONE ALIGNMENT TOOLS (IMPROVEMENT)
雙A臂羊角校正器 (改良型)
PAT. 196708
OPTIONAL : H.C.B-A1052-9
Patented on The correcting device of angle for vehicles
(車輪角度校正器結構改良)
Patent on using this tool to adjust the angles, you don’t need other tool to support and it won’t
hurt the car structure.

H.C.B-A7001 HONDA CR-V, K6 & K8 REAR TRAILING ARM BUSH REMOVER/
INSTALLER JP PAT. 3126495 PAT. M 296812
HONDA CR-V K6&K8後游臂鐵套拆裝工具組
DEGREE LASER
TIPS FOR METAL BUSH
Service completely performed “on the car”
A hydraulic press is not needed to remove the old bushing or install the new one.
Service time is only 10 minutes per side, you can save more time, labor and money.
Shifting hook design could adjust the size.
Honda Civic1988-2000,
Del Sol 1993-1997
CRV(K6,K8) 1997-2002
Acura Integra 1994-2001
LANCER VIRAGE(AFTER 2001)
A flexible bush has an elastomeric element
enclosed between an outer sleeve and a
center axis,so as to ensure better road
grip and stability.
Makes driving more comfortable and safe.
ALIGNMENT PIN
INSTALLATION
REMOVAL
QR CODE to
watch the video
demonstration
PATENT CERTIFICATE
,
Patented on Bush extractor for suspension arm of car
(鐵套拆裝工具組)
By adjusting the distance between the two support
arms around, the strength of fasten the screw in the
Screw holes on the top of the main body, which in
order to remove the metal bush.
Special shifting hook design could adjust the sizes,
service time is only 10 minutes.
PAT. M 296812 JP PAT. 3126495

H.C.B-A7002 HONDA LOWER CONTROL ARM BUSHES REMOVER/ INSTALLER
(HYDRAULIC DRIVE) PAT. M 277669 USA PAT. PEN
HONDA三角架鐵套拆裝工具組(油壓)
1 2 3 12
4
8
5 6
9 10
11
Features:
Used in conjunction with H.C.B-B1129
On car maintenance.
For replacement of bushes on HONDA cars.
Easy to use. Save time and money.
Application: HONDA CRV (before 2001), CIVIC K6 (1992),
CIVIC K8 (JC)(1996), CIVIC K2 (carburetor), CIVIC K3
(injection)
General introduction for bush:
A flexible bush has an elastomeric element enclosed
between an outer sleeve and a center axis to ensure better
road grip and stability. Makes driving more comfortable.
Removal:
Note: The window indicator is for reference during removal
and installation.
Step 1: Mount the tool on the lower control arm. Please refer
to the removal illustration for guidance.
Step 2: Check the sleeve and make sure cylinder, hydraulic
pump are properly installed.
Step 3: Remove the bush by pumping the hydraulic pump.
Step 4: Extract the bush
7
K6 LOWER CONTROL ARM
K10 & CR-V LOWER CONTROL ARM
Installation:
Note: Clean and lubricate the bush with WD-40 lubricant,
recommended, before installation.
STEP 1: Put the bush and align it on the lower control arm.
STEP 2: Mount the tool on the lower control arm. Please refer to the installation illustration for
guidance.
STEP 3: Install the bush by pumping the hydraulic pump.
STEP 4: Remove the tool and make sure the bush is properly installed on the lower control arm.
K10 & CR-V LOWER CONTROL ARM

H.C.B-A7003 HONDA ACCORD UPPER CONTROL ARM BUSH REMOVER/
INSTALLER (AFTER YEAR 2004)USA PAT.
HONDA 雅哥(2004年後)上三角架鐵套拆裝工具組
USE THE ACCESSORY
NO. 1, 2, 3, 4, 11, & 12
FOR REMOVAL
USE THE ACCESSORY
NO. 1, 2, 3, 6, 11, & 12
FOR INSTALLATION
USE THE ACCESSORY
NO. 1, 2, 3, 5, 11, & 12
FOR REMOVAL
USE THE ACCESSORY 4
NO. 1, 2,6,7, 11, & 12
FOR INSTALLATION
USE THE ACCESSORY
NO. 1, 8, 9, 11, & 12
FOR REMOVAL
USE THE ACCESSORY
NO. 1, 2, 3, 6, 11, & 12
FOR INSTALLATION
USE THE ACCESSORY
NO. 1, 2, 3, 4, 11, & 12
FOR REMOVAL
USE THE ACCESSORY
NO. 1, 8, 10, 11, & 12
FOR INSTALLATION
REMOVAL
INSTALLATION
For replace HONDA ACCORD upper control arm bush.
On car maintenance.
The best tool for replace HONDA ACCORD upper control arm bush.
No damage parts close to bush during the maintenance.
Window indicator is for reference while removing and installing the bush
Application: HONDA ACCORD after year 2004
A flexible bush has an elastomeric element enclosed between an outer sleeve and a center axis
to ensure better road grip and stability. it makes driving more comfortable
Removal
NOTE: The window indicator is for reference during removal and installation.
STEP 1: Mount the tool on the upper control arm. Refer to the removal illustration for
guidnance.
STEP 2: Check the sleeve and make sure they are properly installed.
STEP 3: Remove the bush by rotating the nut with wrench or socket.
STEP 4: Extract the bush.
Installation
NOTE: Clean and lubricate the bush with WD-40 lubricant, recommended, before installation.
STEP 1: Put the bush and align it on the upper control arm.
STEP 2: Mount the tool on the upper control arm. Refer to the installation illustration for
guidnance.
STEP 3: Install the bush by rotating the nut with wrench or socket.
STEP 4: Remove the tool and make sure the bush is properly installed on the upper control arm.
PATENT CERTIFICATE
4
PAT. M 277669
Patented on Dismounting tool for triangle stand iron sheath
(三角架鐵套拆裝工具)
The set of Hydraulic cylinder, can force between the metal bush and the sub-frame, and cause
push the metal bush out of sub-frame.

Machinery&Hardware
Machinery&Hardware
H.C.B-A8001 MULTI-FUNCTION PNEUMATIC/HYDRAULIC ENGINE LIFT
PAT.M 430377 PAT.M443701
多功能剪型氣/油壓引擎拆卸設備
QR CODE to
watch the video
demonstration
This is the best extracting tool for all kinds of transmission and engine.It can afford both weights
of engine and transmission at the same time.
Seven support frames on platform are adjustable depend on the size of transmissions or engines.
It also increases the safety and stability.
Scissor structure.
Power source : Dual-use design-Hydraulic control and manual control.
Four swivel caster wheels and pull rod design make this equipment
easy to move.
Capacity:1.5 tons
PATENT CERTIFICATE
Stroke : 1250 mm
Min height : 400 mm
Max height : 1650 mm
PAT.M 430377
Patented on Multifunction foot-pumping pneumatic/hydraulic jack lifting equipment
(多功能腳踏氣油壓千斤頂升降設備)
Patented on the side of base that can adjust for different angle rotating.
And seven support frames at platform are adjustable depend on the size of transmissions or
engines. It’s also increase the safety and stability.
It combines with Air Hydraulic and Manual hydraulic in one.
Patented on Multi-functional shear-type pneumatic/hydraulic engine disassembling equipment
(多功能剪型氣油壓引擎拆卸設備)
Patented on the hydraulic cylinder can be upwards and downwards.

GENERAL Repair Tool
www.hcb-autotools.com7171 GENERAL Repair Tool
H.C.B-A1005 ROLLER STITCHER
PAT. 155302
Durable steel handle bearing inside. Easy to use.
N.W.:0.35KG
H.C.B-A1006 ROLLER STITCHER
PAT. 155302
Durable steel handle bearing inside. Easy to use.
N.W.:0.31KG
PATENT CERTIFICATE
PAT. 155302
PATENT CERTIFICATE
PAT. 155302
Patented on Improved structure for tire mending device
(輪胎修補器之改良結構)
The pinch roller and the handle are fabricate. The handle is made from one frame so it is stronger.
If the pinch roller is damaged, you only need to change it without changing the whole tool.
It hus bearing in the junction, the tool will be durable.

GENERAL Repair Tool www.hcb-autotools.co7m 474
GENERAL Repair Tool www.hcb-autotools.com7373
H.C.B-A1054-2 UNIVERSAL SEPARATOR (R2)
萬用拔卸器(R2)
PAT. 172921
Multi-purpose puller set for balancer, pulley & gear.
Application: FORD R2 DIESEL ENGINE 2000C.C., TOYOTA ,
LEXUS GS 300(1999-2004)
PATENT CERTIFICATE
PAT. 172921
H.C.B-A1054 on LEXUS GS300(1999-2004)
Patented on Tool set for a wheel-hub (車輪轂工具組)
Patented on using the install cause no damage to bearing.

7676
H.C.B-A1096 EXPELLER BELL FOR HUB EXTRACTION (HYDRAULIC)
油壓輪軸拆卸組
PAT. M 253503
Expeller for hub extraction with mechanical spindle includes 5 conical washers.
P.C.D. RangeØ96-126mm
4H: HONDA, ACCORD, TOYOTA, MITSUBISHI,most of Japanese vehicles.
5H: BENZ, BMW, most of European vehicles.
Cylinder : 10 Tons
Material of Main Body : SCM 440
Hardness : HRC 35° ~ 40°
GENERAL Repair Tool
GENERAL Repair Tool
Patented on A wheel axle remover
(輪軸拔卸器)
Special designed of CoiLock insert on Hydraulic cylinder, which could fix in different size of wheel
axle to help remove driveshaft heart from drive shaft seat.
PATENT CERTIFICATE
PAT. M 253503

H.C.B-A1081 ADJUSTABLE UNIVERSAL CAMSHAFT PULLEY HOLDING TOOL
TW PAT. 227176 USA PAT.7069821
H.C.B-A1081- 7
H.C.B-A1081- 8
50mm 37mm
Ø15
Ø 9 Ø14
37mm
Ø10
Ø14
Ø 10 Ø14
Ø 6.3 Ø14
37mm
Ø16
Ø 7
H.C.B-A1081- 9 H.C.B-A1081- 10
Suited to all kinds of engines.
This wrench is designed with grooved pins which to hold the camshaft pulley stationary while
loosening and tightening the center shaft bolt.
It is useful to most Asian overhead cam engines, especially transverse mounted V6 engines.
Such as the VG30 used in NISSAN MAXIMAS, as well as, the 3VZFE and 1MZFE engines
used in TOYOTA CAMRY.
Application: BENZ, BMW, FORD, MITSUBISHI, HONDA, VW, AUDI, NISSAN, VOLVO,
TOYOTA…etc.
H.C.B-A1081-10
To hold the camshaft pulley, special for TOYOTA Hi-Ace(Euro 4).
Adjustable distance: P.C.D 21mm-100mm
CAUTION:
1. READ THE MANUAL CAREFULLY BEFORE USE!
2. THIS TOOL IS DESIGNED TO HOLD THE CAMSHAFT ONLY.
IMPROPERLY USE MIGHT CAUSE DAMAGE TO THIS TOOL.
3. THIS TOOL FORBIDS USING CRANKSHAFT PULLEY HOLDING.
7
3
6
4
7
5
2
1
7
8
9
10
10
9
8
7
3
1
6
2
5
4
U.S.A PAT.7069821 H.C.B-A1081
PATENT CERTIFICATE
TW PAT. 227176 USA PAT.7069821
Patented on Adjustable support wrench9 (可調式支擋板手)
Patented on the end of the tool can change the pin. The arc has spring inside, so it can adjust
the distance to fix more type pulley

H.C.B-A1097 UNIVERSAL GEAR TYPE ENGINE K/D RACK
齒輪式引擎拆裝架
USA PAT. PEN PAT. 089901
Rotating engine by gear, can assemble & disassemble engines more convenient and
effort-saving.
Small volume, store up very easy.
DIM.34.5x40x43.5cm
N.W.:29.5KGS
PATENT CERTIFICATE
PAT. 089901
Patented on UNIVERSAL GEAR TYPE ENGINE K/D RACK
(引擎拆裝架)
Patent on using this can turn the engine or transmission for 360 degree.

H.C.B-A1115 UNIVERSAL CRANKSHAFT PULLEY & CAMSHAFT PULLEY PULLING AID
可換式皮帶盤拔卸組
PAT. M 253504
The kit contains a range of long and short identities, bolt, C-ring replaceable nut, key, screw,
washer, extending block, claw, and center pushing rod.
This kit is useful when the crankshaft pulley and camshaft pulley get stuck.
The bolt, C-ring, replaceable nut and key are designed to insert into the identity for removing
and installing the crank shaft pulley and camshaft pulley.
The screw, washer, extending block, and claw are designed to fix on the extremities of the
identity.
The center pushing rod is to fasten the replaceable nut and the key.
Special bolt with rolling bead is designed to protect the C-ring from being broken.
The long and short identities, center pushing rod, and screw are universal according to the size
of crank shaft pulley and camshaft pulley during operation.
The extending block could extend the length of the claw according to the height of pulley, so as
to protect the pulley from damage.
The bolt and groove of bolt’s hole are replaceable while broken instead of replacing identity itself.
The long and short identities are time and money saver.
Two sizes for the identity:
-Long: 17 x 36 x 232L
-Short: 17 x 36 x 150L
Two size for the screw:
-Long: M10 x P1.5 x 50L
-Short: M10 x P1.5 x 30L
Three sizes for the center pushing rod:
-Long: ø22 x 55L
-Middle: ø22 x 30L
-Short: ø22 x 17L
PATENT CERTIFICATE
PAT. M 253504
Patented on A changeable remover of a belted wheel disc
(可換式皮帶輪盤拔卸器)
Patent on the front end of the screw can set into the ball so that
you can disassemble the different belt. You only need to change
the nut not the whole tool.

H.C.B-A1108 VW T4 FRONT AXLE UPPER BALL JOINT EXTRACTOR/ INSTALLER
PAT. I 233868 DE PAT.
VW T4 前三角架球接頭拆裝工具組
QR CODE to
watch the video
demonstration
Suitable for removing and installing the upper front ball Joint insitn without the need to
disassemble.
Features a variety of adaptors used in different combination for extraction and installing.
Application:
VW : T4 2000 CC
T4 2500 CC
ON CAR
T4 2000CC AXLE
T4 2500CC AXLE
EXTRACT 1
EXTRACT 2
EXTRACT3
PATENT CERTIFICATE
INSTALL 1
INSTALL2
INSTALL3
DE PAT. PAT. I 233868
Patented on Dismounting/mounting tool for
ball joints used in vehicles
(汽車球接頭拆裝工具)
U-shape adaptors could fix in different size
of combinations for extraction and installing
the front axle upper ball-joint.
Suitable for removing and installing the upper
front ball joint on-car.

H.C.B-A1117 GEAR TYPE UNIVERSAL K/D RACK
專利齒輪式多功能拆裝器
PAT. M 252610 USA PAT. 7093809
920mm
Capacity : 300KG
1000mm
1145mm
QR CODE to
watch the video
demonstration
The gear type universal K/D rack is designed for engine maintenance only.
The gear type universal K/D rack can be removed and be replaced with H.C.B-A-1117-4 C-type
holder base for transmission maintenance if necessary.
The gear and engine can be pivoted from 360 degrees during operation. Whenever the gear
turning around, the engine will be rotated passively at the same time.
The K/D rack is time, money, and labor saver.
The K/D rack can be folded for storage.
Caution:
Please do not use any hammer or tools to knock the activated pin before use.
The accurate method of operation is to softly press the pin head and gently move
it out.
Hand wheel
PATENT CERTIFICATE
PAT. M 252610 USA PAT. 7093809
Patented on The improved frame of assembling
and disassembling on an engine and a gearbox
(引擎及變速箱拆裝架結構改良)
Patent on the lock pin can fix the base. The base
can fold, that can make you save the space for
one-third off and patent on using this can turn
the engine or transmission for 360 degree.

H.C.B-A1117-4 500 C-TYPE TRANSMISSION HOLDER BASE
500 C 型變速箱固定座
PAT. M 270936 USA PAT. 7093809
This tool is combined with H.C.B-A1117 or H.C.B-A1097 that are designed to turning 360°when
repair transmission.
Repairs could extract or install any parts of transmission in different angles. It is really
convenient and useful.
Length : 500mm.
PATENT CERTIFICATE
PAT. M 270936 USA PAT. 7093809
Patented on Improved disassembler for gear shifting box
( 變速箱拆裝器改良)
Patent on C-Type transmission holder base
Adjustable C-Type transmission holder base to fit in multi-size of transmission,
while repairing the transmission.

9090
H.C.B-A1163 MITSUBISHI GALANT REAR AXLES BUSH REMOVER/ INSTALLER
PAT. PEN
三菱GALANT 後羊角鐵套拆裝工具組
Removal and replacement tool for metallic bushes on rear axles for MITSUBISHI GALANT.
The tool incorporates an axial bearing and also incorporates a pressure piece which guarantees
the correct position of the new metallic bushes when replaced.
Application: MITSUBISHI GALANT.
Extraction Installation
The main body of
MITSUBISHI GALANT
H.C.B-A1117-5 600 TRANSMISSION HOLDER BASE
600 ㄇ型變速箱固定座
TW PAT. USA PAT. PEN
This tool is combined with H.C.B-A1117 or H.C.B-A1097 that are designed to turning 360°when
repair transmission.
Repairs could extract or install any parts of transmission in different angles. It is really
convenient and useful.
Length : 600mm.
GENERAL Repair Tool
GENERAL Repair Tool

H.C.B-B1117 GEAR TYPE UNIVERSAL K/D RACK
專利引擎拆裝架
PAT. M470786 USA PAT. 7093809
QR CODE to
watch the video
demonstration
Application: V6,V8,V10,V12 and general engines.
Technical information:
1.With two strong support frames, make it stable while rotating engine.
2.By turning manual rotating wheel, can adjust the distance between two frames. Save time
and labor!
3.It can be rotated any angle by using universal joint, applicable to any kind of engines.
4.Capacity:500KGS
PATENT CERTIFICATE
H.C.B-B1117-1
(optional)
PAT. M470786 USA PAT. 7093809
Patented on Structure of engine dismantling frame
(引擎拆裝架結構)
Patented on there is a supporting brace with driven gear from the main body to make
repairing easier by turning hand wheel and it can rotate 360 degrees.

H.C.B-B1376 UNIVERSAL VALVE SPRING REMOVER / INSTALLER(22PCS)
PAT.M411316&M409923 DE
多功能免拆式氣門彈簧拆裝工具組(22PCS)
Replace valve spring and oil seal of valve rod on car, without removing head gasket.
Works great in the narrow engine room.
Enormous time saving for replacement of valve stem seals.
Special design helps compress valve spring regardless of firewall barrier.Apply for European
American,and Japanese cars.
Such as BENZ,BMW,VOLVO,TOYOTA TERCEL,MITSUBISHI SAVRIN,VW,FORD etc.
Especially suitable on BENZ V6 Engine and BMW V8 Engine.
Application engine model:
BENZ M102,M103,M104,M111,M112,M113,M271,M272.
BMW N42,N52,N62.M54,M52,M56,M60
Gain Germany and Taiwan patent.
A1376 has adapters application in universal cars.
B1376 has additional five adapters for BMW N42/N52/N54/E65/E66 and BENZ M102/M103/
M272/M273
B1376-20
D:24
d:21
L:53.5mm
B1376-21
D:20
d:17
L:53.5mm
B1376-18 M12 x P1.25 x L 330mm
B1376- 19 M12 x P1.0 x L 70mm
B1376- 22 M8
B1376 - 18
B1376 - 19
B1376 - 20
B1376 - 21
B1376 - 22
BMW N52/N54,Mercedes Benz M272,M273
BMW N52/N54,Mercedes Benz M272,M273
BMW E65/E66, BMW N52,N54,
Mercedes Benz M272,M273,
BMW N42
BENZ M102/M103
BENZ M112 (V6) BMW N62
PATENT CERTIFICATE
QR CODE to
watch the video
demonstration
PAT.M411316 PAT.M409923

Patented on Free detachable type removal tools for engine valve spring
(免拆式引擎汽門彈簧拆裝工具組)
The patent on replace valve spring and oil seal of valve rod on car. Furthermore,
it’s can work great in the narrow engine room.

H.C.B-A1445 UNIVERSAL SUSPENSION ARM LEVER
撬棒
PAT.PEN PAT.M450505
For removing ball joints, control arms and other suspension components
Six adjustment points to get maximum fit and leverage.
The suspension arm lever is not intended to break the taper of the suspension joint,the joint
must be separated from the suspension arm using the appropriate tool and then the lever can
be used to facilitate removal.
Refer to figure ,the fulcrum point(end of suspension arm lever) should be adjacent to the pivot
point of the suspension arm.
Overall length : 100CM(60CM+40CM)
lnner diameter : 24mm
Outer diameter : 30mm.
GENERAL Repair Tool
GENERAL Repair Tool
Patented on Sub-frame suspension system separator
( 三角架懸吊系統分離器)
Patented on use the lever principle to let the Sub-frame separate from the vehicle.

GENERAL Repair Tool www.hcb-autoto1ols.co0m 0100
H.C.B-A1503 TOYOTA HIACE AXLE EXTRACTOR
PAT.M253503
Specification : TOYOTA HIACE輪軸拔卸器
This kit quickly pushes the axle out of the hub, and removes the hub
P.C.D :Ø130~160mm
Application :
Ø
130 5 HOLES
4 HOLES
4 HOLES
5 HOLES
4 HOLES
130
139.7
140
160
Brand of car Size
BENZ,AUDI,PROSCHE
VW,FORD TRANSIT,BENZ
BENZ
FORD TRANSIT,BENZ
Description
Extractor
Screw
Bolt
Mandrel
Washer
Nut
Specification
D: Ø185x111L
D: Ø57x14UNCx36L
M24xP1.5x185L
Ø 25 x 30L
M12xt2
D:M12xP1.5
Remark
D: Ø57x14UNC
D: M24xP1.5
H19
H19
NO.
1
2
3
4
5
6
Q’ TY
1
1
1
1
6
6
PATENT CERTIFICATE
1
2
5
4
6
PAT.M253503

GENERAL Repair Tool www.hcb-autotoo1ls.com01101
H.C.B-B1503 UNIVERSAL AXLE EXTRACTOR (SLIDE HAMMER)
PAT.M253503
通用輪軸拔卸器 (滑鎚式)PAT.M253503
This kit quickly pushes the axle out of the hub, and removes the hub.
P.C.D: Ø130~160 mm
Application :
Ø
130 5 HOLES
4 HOLES
4 HOLES
5 HOLES
4 HOLES
130
139.7
140
160
Brand of car Size
BENZ,AUDI,PROSCHE
BENZ
FORD TRANSIT,BENZ
Specification :
No. Description Specification Q’TY Remark
1 Multi-hole Plate D: Ø 185x111L 1 d: Ø 57x14UNC
2 Nut D: Ø 57x14UNCx36L 1 d:M24xP1.5
3 Bolt M24xP1.5x185L 1 H19
4 Mandrel Ø 25x30L 1
5 Washer M12x t2 6
6 Nut d:M12xP1.5 6 H19
7 Hand bar Ø 61x660L 1 D:5/8"x10UNC
8 Nut D :5/8"x10UNC 1 H24
9 Slide hammer 90 x168L 1
10 Nut D:Ø57x14UNCx36L 1 d:5/8"x10UNC
10
4
1
2
3
8
9
PATENT CERTIFICATE
PAT.M253503

GENERAL Repair Tool www.hcb-autoto1ols.com03103
H.C.B-C1503 UNIVERSAL AXLE EXTRACTOR (HYDRAULIC)
PAT.M253503
通用輪軸拔卸器 (液壓式)PAT.M253503
This kit quickly pushes the axle out of the hub, and removes the hub.
P.C.D:Ø130~160 mm
Application :
Ø
130 5 HOLES
4 HOLES
4 HOLES
5 HOLES
4 HOLES
130
139.7
140
160
Brand of car Size
BENZ,AUDI,PROSCHE
BENZ
FORD TRANSIT,BENZ
Specification :
Description
Multi-hole Plate
Hydraulic
Mandrel
Washer
Nut
Specification
D: Ø185x111L
10 tons
D: Ø38x59L
M12 x t2
D:M12xP1.5
Remark
d: Ø57x14UNC
D: Ø57x14UNC
d: Ø 7/8”
H19
NO.
1
2
3
4
5
Q’ TY
1
1
1
6
6
2
3
1
5
4
PATENT CERTIFICATE
Patented on A wheel axle remover
(輪軸拔卸器)
Special designed of CoiLock insert on Hydraulic cylinder, which could fix in different size of wheel
axle to help remove driveshaft heart from drive shaft seat.

GENERAL Repair Tool www.hcb-autot1ools.co0m 5105
H.C.B-A2185 DOUBLE PISTON TRANSMISSION JACK (5 FEET)
雙活塞變速箱千斤頂(5腳)
PAT. D134321
Transmission with double piston that can provide two-section rising action , the
speed is double faster than traditional jack.
Special design for five feet is high safety , when the transmission jack is moved
The load is up to 500kgs
Specification :
Model Capacity Low High Base size
540x540mm
(5feet)
H.C.B-A2185 500KGS 875mm 1810mm
N.W. G.W. Forward Tilt Back Tilt Side
56 KGS 59KGS 24˚ 19˚ ±20mm
PATENT CERTIFICATE
PAT. D134321
Patented on flexible top trapezoidal sheet and five feet
new style(千斤頂腳座)
Lift up the transmission by the flexible top trapezoidal
sheet which can tilt angle and move around.
Special design for five feet has remains steady while the
transmission jack is moved.
Patented on trapezoidal sheet can tilt angle and move flexible and special design on five feet
of Jack can make moving steadier.

TRUCK Repair Tool www.hcb-autoto1ols.co0m 8108
H.C.B-A1102 TRUCK BALL JOINT REMOVER (39mm)
卡車球接頭拔卸器(39mm)
PAT. M 362085
Special Design Ball Screw
PATENT CERTIFICATE
PAT. M 362085
The best tool for removing truck ball-joint.
No damage to ball-joint and related parts.
Specification: nut width 26mm, bolt length 128mm, N.W.: 2.13 2KGS.
Application: Over 4 tons truck and most of trucks. For example: SCANIA, BENZ, MAN, HINO etc.
Technical information
Thoroughly lubricate the bolt with the grease.
Use the low RPM to rotate, tighten the bolt while using the air wrench at beginning.
Use a hammer to hit the punch nut on the tool in order to separate the ball-joint.
Patented on Structure of dissembling tool
(拆裝工具結構)
Patented on if the bolt is broken and you just need to replace it, but
not the whole tool.
Special designed of the screw shaft, while replacement parts, only
replace the screw shaft.
ON CAR

TRUCK Repair Tool
www.hcb-autoto1ols.co1m 0110
TRUCK Repair Tool
www.hcb-auto1tools.c0om 9109
H.C.B-B1102 EUROPEAN TRUCK BALL JOINT REMOVER (39mm)
PAT. M 362085
歐系卡車球接頭拔卸器(39mm)
Central ball of Bolt
Window
PATENT CERTIFICATE
The best tool for removing truck ball-joint.
No damage to ball-joint and related parts.
Specification: nut width 26mm, bolt length 128mm, N.W.: 2.13 2KGS.
Application: over 4 tons and most of European trucks. For example SCANIA, BENZ, MAN, HINO
,also canuse for DAF PITMAN ARM DAF…etc.
Special for MAN 414 drag link.
H.C.B-C1102 JAPANESE TRUCK BALL JOINT REMOVER (39mm)
PAT. M 362085
日系卡車球接頭拔卸器(39mm)
PATENT CERTIFICATE
ON CAR
The best tool for removing truck ball joint which in tie rod end, drag link and relay rod…etc.
No damage to ball joint and related parts.
Applicable: over 4 tons trucks and most of heavy duty trucks.
※ Note:
Make sure the dimension or specification of ball joint is match before installing.
Please grease the central bolt before using.
The central bolt is consumable. Please replace it when the thread loss.
The power is very strong when ball joint departs from related parts. To prevent the parts fall off
suddenly, please loose lock nut till its surface equal to the parts instead of to take it off.
Please wear goggles while using this tool.
ON CAR
PAT. M 362085
PAT. M 362085

TRUCK Repair Tool
TRUCK Repair Tool
www.hcb-autotoo1ls.com11111
H.C.B-A1112 MEDIUM-SIZED WAGON BALL JOINT EXTRACTOR (32mm)
PAT.
中型貨車球接頭拔卸器(32mm)
Application:
3.5 ~ 8.8 tons truck.
128mm
100mm
137mm
26mm
32mm
92mm
H.C.B-A1170 TRUCK TORQUE-ROD BUSH REMOVAL/ INSTALLATION
卡車扭力桿鐵套拆裝工具組
PAT. M307531
1
*CLEANING HOLE : Clean the cinder, mud and soiled out
7 8
5 6
13 12 11
Application :
BPW 12 , 16 tons and Japanese Trucks which with torque-rod.
FUSO / ISUZU / HINO / NISSAN Diesel truck
9
10
2 3 4
OPTIONAL: FOR U.S.A TRUCK
QR CODE to
watch the video
demonstration
QR CODE to
watch the video
demonstration
PATENT CERTIFICATE
PAT. M307531

TRUCK Repair Tool
TRUCK Repair Tool
www.hcb-autotoo1ls.com13113
NO.
A1170-1
A1170-2
A1170-3
A1170-4
A1170-5
A1170-6
A1170-7
A1170-8
A1170-9
A1170-10
A1170-11
A1170-12
A1170-13
Description
SPACE RING L358XW160XH151(m/m)
30 TON HYDRAULIC CYLINDER
(STROKE 130mm)
Φ103X98L RING PIVOT
Φ138X35L NUT (FIXED ONTO HYDRAULIC)
(M88XP2.0)
INSERTION SUPPORT SLEEVE (Φ138X30L)
C-SHAPE FIXD BASE
TORQUE-ROD LOCK BAR (M14XP2.0)
TRAILER (L375XW180XH110mm)
AIR PUMP
(OIL RESERVOIR CAPACITY 1,600 C.C.)
SPACE RING
OPITIONAL
REPLACEMENT BASE(Ø127 x L87)
INSTALLATION PLAE (Ø69 x L83)
REMOVAL PLATE(Ø82 x L32)
INSTALLATION :
1) Put Torque-Rod into the main body with necessary
accessories.
2) Stepping on the foot plate of air pump untill the
bush comes out.
(Don’t obstruct the motion of air pump)
REMOVAL :
1) Stepping on the foot plate of air pump untill the
bush totally combined with Torque-Rod.
(Don’t obstruct the motion of air pump)
FOR U.S.A TRUCK
accessory
TORQUE-ROD OF BPW
12/16 TONS TRUCK
Ø150mm BUSH
TORQUE-ROD
Ø70
Specification :
Patented on Assembly-Disassembly tools of iron sheath for a vehicle's torque rod
(車輛扭力桿之鐵套拆裝工具組)
Using 30 tons of hydraulic cylinders as a power source for moving the pusher to push
against the bush, the bush can be forced out of the torsion bar outside fast and easy.

H.C.B- A1337 TRUCK K/D RACK - MANUAL
手動卡車多功能拆裝架
PAT.I380921
The gear type truck K/D rack is designed for engine or transmission maintenance.
Replaceable holder base to fit any kinds of engine and transmission.
Padlocked turbine case helps technicians check the turbine easily.
The gear and engine / transmission can be pivoted on 360 degrees synchronal. Both clockwise
and reverse.
Stop at any angles if necessary.
Extendable stand for storage.
Capacity: 1500 LB.
Size: L:1600mm(extended)1140mm, W: 1000mm, H:1360mm
N.W.:347Kgs
Patented on Truck engine disassembly frame
(卡車引擎拆裝架)
Patented on T-shaped link section to facilitate coming close in orientation with the
corresponding securing member on the disassembly frame, and it is only necessary
to slip from up downwardly into the T-shaped slot, which is concavely established
at the corresponding face of the securing member.

TRUCK Repair Tool 118118
QR CODE to
watch the video
demonstration
H.C.B-B1337 TRUCK K/D RACK - ELECTRICAL
電動卡車多功能拆裝架
PAT.I380921
The best truck K/D rack for both engine and transmission maintenance.
Replaceable holder base to fit any kinds of engine and transmission.
Padlocked turbine case helps technicians check the turbine easily.
The gear and engine / transmission can be pivoted on 360 degrees synchronal. Both clockwise
and reverse.
Stop at any angles and any time if necessary.
Driven by 2HP motor.The patented design of H.C.B
Extendable stand for storage.
Capacity: 1500 LB
Specifications of power : Size:
Power 2HP motor L:1600mm(extended)1140mm
Resource Single-phase,220V
W: 1000mm
Control Wire 3m
H: 1360mm
Power Cord 5m
N.W.:376Kgs
Patented on Truck engine disassembly frame
(卡車引擎拆裝架)
Patented on T-shaped link section to facilitate coming
close in orientation with the corresponding securing
member on the disassembly frame, and it is only
necessary to slip from up downwardly into the
T-shaped slot, which is concavely established at
the corresponding face of the securing member.

TRUCK Repair Tool www.hcb-autot1ools.co2m 0120
TRUCK Repair Tool www.hcb-aut oto1ols.co1m 9119
H.C.B- B1182 UNIVERSAL TRUCK BALL JOINT PULLER (REPLACEABLE) (24mm &
32mm) - IMPROVEMENT PAT. M 384746
萬用卡車可換式球接頭拔卸器(24mm & 32mm)-改良型
Time and labor saver.
The unique replaceable truck ball joint puller. There is the anti-load grease stored inside the
tool to assist rotating the screw easily.
Application: universal truck.
Capacity of this tool is 3 tons
PATENT CERTIFICATE
Patented on Multi-functional ball-joint remover
(多功能球接頭拔卸器)
Patented on the unique replaceable truck ball joint puller. There is the
anti-load grease stored inside the tool to assist rotating the screw easily.
PAT. M 384746

122122
H.C.B-A1339 TRUCK KING PIN PRESS(30TONS)
PAT.M459081
QR CODE to
watch the video
demonstration
To turn the handle and adjust angles to push stubborn king pins and anchor pin.
Applicable: Most of trucks and buses.
To combine with H.C.B-A3036.
size : 1450mm (L) x 500mm (W) x 1550mm (H)
Capability : 30 tons. PATENT CERTIFICATE
TRUCK Repair Tool
TRUCK Repair Tool
www.hcb-autoto1ols.com21121
PAT.M459081
Patented on Mounting/dismounting device of king pin
(大王銷拆卸裝置)
Patented on the hydraulic cylinder can be upwards and downwards (rotatable 180°)
depends on position of King Pin when assembly or disassembly and the main body
can move.

H.C.B- B1339 TRUCK KING PIN PRESS(75 TONS)
PAT.M459081
Reason for replacing King Pin bearing:
King Pin bearing will looseness after driving long-term period and this will cause
front wheel alignment problem and it would be dangerous to drivers.
Description:
This press can assemble and disassemble KING PIN on European trucks and
Japanese trucks for replacing bearing or sleeve.
Save time , labor and money !
Features:
Flexibility at work.
It can be upwards and downwards (rotatable 180°) depends on position of King
pin when assembly or disassembly.
With 75 tons hydraulic cylinder & B3036 pump (1800 c.c.)
Application: European trucks & Japanese trucks.
.
Transport cart size
Hydraulic cylinder
Stroke
Air Pump
Cart Lift
Weight
Technical Data
L:1120 x W:520 x H:910(mm)
75 tons
140mm
Clearance between puller bolts 300mm
Clearance height 320mm~430mm
H.C.B-B3036(1800c.c)
350mm-580mm
Approx.172kgs
Description
Support sleeve
Support sleeve
Support sleeve
Mandrel adaptor
Mandrel
Mandrel
Mandrel
Mandrel
Mandrel
Remove Sleeve
Connecting Arm
Q’ty
11 1
1
1
1
1
1
1
1
1
1
2
12
13
14
15
16
17
18
19
20
7-3
QR CODE to
watch the video
demonstration
PATENT CERTIFICATE
HC
6
7
P
9
10
2
1
18 19
16 17
14 15
11
12
13 20
7-3
5
4
Specification :
PAT.M459081

TRUCK Repair Tool www.hcb-autoto1ols.com25125
H.C.B- A1410 UNIVERSAL TRUCK BALL JOINT REMOVER (39mm)
通用卡車球接頭拆裝工具
PAT.438423
QR CODE to
watch the video
demonstration
To remove the ball joint of tie rod ends, tie rods, drag links and steering knuckle.
Best tool for removing truck ball joint.
Easy to use. Save time and money
Application: Most of trucks over 15 tons such as SCANIA,VOLVO, DAF ,MAN,HINO
, UD, ISUZU and FUSO.
DAF 42 TONS TRUCK FUSO 380HP TRUCK RENUALT 450 TRUCK
Patented on Ball joint detaching tool for vehicle
( 車用球接頭拆裝工具結構)
Patented on special design for the bolt, washer and screw, when these parts are broken
and you just replace them, no need to replace whole tool.
ON CAR

TRUCK Repair Tool www.hcb-autotools.com1295 7
H.C.B- C1410 UNIVERSAL TRUCK BALL JOINT REMOVER (39mm) (HYDRAULIC)
PAT.438423
通用卡車球接頭拆裝工具 (油壓)
To remove the ball joint of track rod ends, tie rods, draglinks and steering knuckle.
Best tool for removing truck ball-joint.
Specially designed to be worked with hydraulic ram
Application: Most of trucks over 15 tons such as SCANIA, VOLVO, DAF ,HINO, UD, ISUZU
and FUSO.
H.C.B- A1383 ELECTRICAL BRAKE LINING SHOE LOADER
電動鉚釘機
PAT.M 409117
Maximum capactiy : 2.7 tons
Maximum pressure : 140 kg/cm
Motor : 0.75KW
Voltage : 220V / 1HP /60Hz
Stroke :100mm
ON CAR
2
QR CODE to
watch the video
QR CODE to demonstration
watch the video
demonstration
PATENT CERTIFICATE

HCB patents catalogue

More Related Content

Viewers also liked

Similar to HCB patents catalogue

Recently uploaded

HCB patents catalogue
