SAP HANA SPS08 Predictive Analysis Library

SAP HANA SPS 08 - What’s New?
Predictive Analysis Library
SAP HANA Product Management May, 2014
(Delta from SPS 07 to SPS 08)

© 2014 SAP AG or an SAP affiliate company. All rights reserved. 2Public

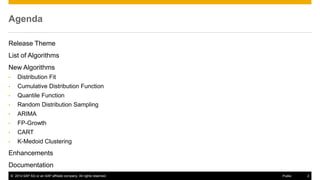

Agenda
Release Theme
List of Algorithms
New Algorithms
• Distribution Fit
• Cumulative Distribution Function
• Quantile Function
• Random Distribution Sampling
• ARIMA
• FP-Growth
• CART
• K-Medoid Clustering
Enhancements
Documentation

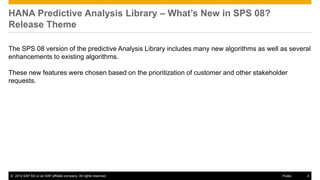

HANA Predictive Analysis Library – What’s New in SPS 08?
Release Theme
The SPS 08 version of the predictive Analysis Library includes many new algorithms as well as several
enhancements to existing algorithms.
These new features were chosen based on the prioritization of customer and other stakeholder
requests.

SAP HANA In-Memory Predictive Analytics
Predictive Analysis Library (PAL) - Algorithms Supported
Association Analysis
 Apriori
 Apriori Lite
 FP-Growth *
Classification
Analysis
 CART *
 C4.5 Decision Tree Analysis
 CHAID Decision Tree Analysis
 K Nearest Neighbour
 Logistic Regression
 Naïve Bayes
 Support Vector Machine
Regression
 Multiple Linear Regression
 Polynomial Regression
 Exponential Regression
 Bi-Variate Geometric Regression
 Bi-Variate Logarithmic
Regression
Outlier Detection
 Inter-Quartile Range Test (Tukey’s
Test)
 Variance Test
 Anomaly Detection
Statistic Functions
(Univariate)
 Mean, Median, Variance,
Standard Deviation
 Kurtosis
 Skewness
Link Prediction
 Common Neighbors
 Jaccard’s Coefficient
 Adamic/Adar
 Katzβ
* New in SPS 08
Data Preparation
 Sampling
 Random Distribution Sampling *
 Binning
 Scaling
 Partitioning
Statistic Functions
(Multivariate)
 Covariance Matrix
 Pearson Correlations Matrix
 Chi-squared Tests:
- Test of Quality of Fit
- Test of Independence
 F-test (variance equal test)
Other
 Weighted Scores Table
 Substitute Missing Values
Cluster Analysis
 ABC Classification
 DBSCAN
 K-Means
 K-Medoid Clustering *
 Kohonen Self Organized Maps
 Agglomerate Hierarchical
 Affinity Propagation
Time Series Analysis
 Single Exponential Smoothing
 Double Exponential Smoothing
 Triple Exponential Smoothing
 Forecast Smoothing
 ARIMA *
Probability Distribution
 Distribution Fit *
 Cumulative Distribution Function *
 Quantile Function *

Distribution Fit
Distribution fits aim to fit a probability distribution for a variable according to a series measurements to
this variable.
In PAL, users need to choose one probability distribution type from a supporting list (Normal, Gamma,
Weibull, and Uniform) and then PAL will calculate the optimized parameters of this probability
distribution which fits the observed variable best.
There are two distribution fitting interfaces: DISTRFIT and DISTRFITCENSORED. DISTRFIT fits un-
censored data while DISTRFITCENSORED fits censored data.
Two methods are provided for finding the optimized parameters, Maximum-Likelihood and Median-
Rank. In SPS 08, Maximum-Likelihood method supports all distribution types in supporting list for un-
censored data. Median-Rank method supports Weibull distribution fitting for both censored and un-
censored data.

Cumulative Distribution Function
The cumulative distribution function in PAL evaluates the probability of a variable x from the cumulative
distribution function (CDF) or complementary cumulative distribution function (CCDF) for a given
probability distribution.

Quantile Function
In PAL, quantile function evaluates the inverse F^(-1) (x) of cumulative distribution function (CDF) or
the inverse F ̅^(-1) (x) of complementary cumulative distribution function (CCDF) for a given probability
p and probability distribution.

Random Distribution Sampling
Random generation function with a given distribution (Normal, Gamma, Weibull, and Uniform).

ARIMA
Autoregressive integrated moving average (ARIMA) algorithm is famous in econometrics, statistics and
time series analysis. An ARIMA model can be written as ARIMA (p, d, q), where p refers to the auto
regressive order, d refers to integrated order and q refers to the moving average order. It can help
understand the time series data better and predict future data in the series. Both training and forecast
functions are provided.

FP-Growth
FP-Growth is an algorithm to find frequent patterns from transactions without generating a candidate
itemset. In PAL, FP-Growth algorithm is extended to find association rules. In the first step, the
algorithm converts the transactions into a compressed frequent pattern tree (FP-Tree). In the second
step, the algorithm recursively find frequent patterns from the FP-Tree. In the last step, the PAL
generates association rules based on the frequent patterns that found in the second step.

CART
Classification And Regression Tree (CART) is invented by Breiman et al. (1984). It only supports
binary split, and it can be used for classification or regression. CART is similar with C4.5, and it is a
recursive partitioning method. It uses GINI index or TWOING for classification, and least square error
for regression. Surrogate split method is used to support missing values when creating the tree model

K-Medoid Clustering
K-Medoid algorithm is a clustering algorithm related to the K-Means algorithm. Both K-Medoids and K-
Means algorithms partition n observations into k clusters in which each observation is assigned to the
cluster with the closest center. In contrast to K-Means algorithm, K-Medoids algorithm doesn’t
calculate means, but medoids to be the new cluster centers. A medoid is defined as the center of a
cluster, whose average dissimilarity to all the objects in the cluster is minimal. Compared to K-Means
algorithm, it is said to be more robust to noise and outliers.

Enhancements (1 of 2)
Logistic regression
• Support cancellation at runtime.
• Support multi-nomial classification. In many business scenarios we want to train a classifier with
more than two classes. Multi-class logistic regression (also referred to as multi-nomial logistic
regression) extends binary logistic regression algorithm (two classes) to multi-class cases. The
input and output of multi-class logistic regression are similar to that of logistic regression.
K-Means
Determine best k given a range according to the slight Silhouette.
Apriori
• Add prefix tree implementation for potential performance improvement with regards to memory
consumption and time cost.
• Add rule filter to define some items only allowed in the left-/right-hand side of the association rules

Enhancements (2 of 2)
Forecast Smoothing
Auto-detect the best model among single/double/triple models
Hierarchical clustering
Support categorical attribute as input feature
Univariate statistics
• Support population variance and standard deviation
• Calculate lower/upper quartile for the data
Decision tree
Treat missing values as a separate class, not only to replace the NULL values

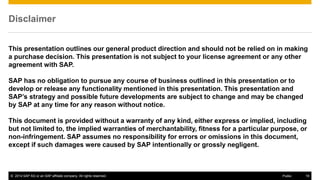

Disclaimer
This presentation outlines our general product direction and should not be relied on in making
a purchase decision. This presentation is not subject to your license agreement or any other
agreement with SAP.
SAP has no obligation to pursue any course of business outlined in this presentation or to
develop or release any functionality mentioned in this presentation. This presentation and
SAP’s strategy and possible future developments are subject to change and may be changed
by SAP at any time for any reason without notice.
This document is provided without a warranty of any kind, either express or implied, including
but not limited to, the implied warranties of merchantability, fitness for a particular purpose, or
non-infringement. SAP assumes no responsibility for errors or omissions in this document,
except if such damages were caused by SAP intentionally or grossly negligent.

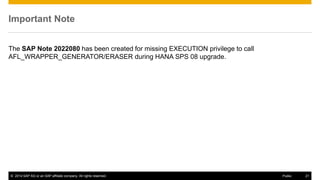

Important Note
The SAP Note 2022080 has been created for missing EXECUTION privilege to call
AFL_WRAPPER_GENERATOR/ERASER during HANA SPS 08 upgrade.

How to find SAP HANA documentation on this topic?
SAP HANA Platform SPS
 What’s New – Release Notes
 Installation
– SAP HANA Server InstallationGuide
 Administration
– SAP HANA Administration Guide
 Development
– SAP HANA Predictive Analysis Library (PAL) Reference
– SAP HANA Developer Guide
 References
– SAP HANA SQL Reference
• In addition to this learning material, you find SAP HANA documentation on
SAP Help Portal knowledge center at http://help.sap.com/hana_platform.
• The knowledge center is structured according to the product lifecycle: installation, security, administration,
development. So you can find e.g. the SAP HANA Predictive Analysis Library (PAL) Reference
in the Development section and so forth …

© 2014 SAP AG or an SAP affiliate company. All rights reserved.

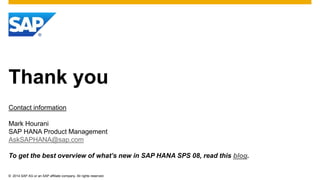

Thank you
Contact information
Mark Hourani
SAP HANA Product Management
AskSAPHANA@sap.com
To get the best overview of what’s new in SAP HANA SPS 08, read this blog.

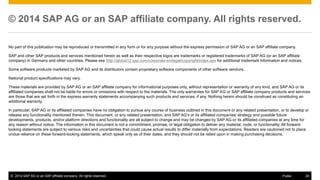

© 2014 SAP AG or an SAP affiliate company. All rights reserved.
